Article

Remediation of Surfactants Used by VUV/O3 Techniques: Degradation Efficiency, Pathway and Toxicological Analysis

1
College of Architecture & Civil Engineering, Faculty of Urban Construction, Beijing University of Technology, Beijing 100124, China
2
Department of Environmental Science, Zhejiang University, Hangzhou 310058, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(8), 3312; https://doi.org/10.3390/molecules28083312
Submission received: 17 March 2023 / Revised: 6 April 2023 / Accepted: 6 April 2023 / Published: 8 April 2023
(This article belongs to the Special Issue Photocatalysis in the Control of Environmental Pollution)

Abstract

:
Surfactants are increasingly used in systems that come into contact with the human body, such as food, pharmaceuticals, cosmetics and personal hygiene products. Increasing attention is being devoted to the toxic effects of surfactants in various human contact formulations, as well as the removal of residual surfactants. In the presence of ozone (O3), anion surfactants—a characteristic micro-pollutant—such as sodium dodecylbenzene sulfonate (SDBS) in greywater, can be removed using radical advanced oxidation. Herein, we report a systematic study of the SDBS degradation effect of O3 activated by vacuum ultraviolet (VUV) irradiation and the influence of water composition on VUV/O3, and determined the contribution of radical species. We show a synergistic effect of VUV and O3, while VUV/O3 reached a higher mineralization (50.37%) than that of VUV (10.63%) and O3 (29.60%) alone. The main reactive radicals of VUV/O3 were HO•. VUV/O3 had an optimal pH of 9. The addition of SO42− had almost no effect on the degradation of SDBS by VUV/O3, Cl and HCO3 slightly reduced the reaction rate, and NO3 had a significant inhibition on the degradation. In total, SDBS had three isomers, with which the three degradation pathways were very comparable. Compared with SDBS, the toxicity and harmfulness of the degradation by-products of the VUV/O3 process decreased. Additionally, VUV/O3 could degrade synthetic anion surfactants from laundry greywater effectively. Overall, the results show the potential of VUV/O3 in safeguarding humans from residual surfactant hazards.

Graphical Abstract

1. Introduction

The biological changes caused by surfactants and their metabolites in the body, i.e., the possible toxic side effects on the body, include acute toxicity, subacute toxicity, chronic toxicity, reproductive effects, embryotoxicity, teratogenicity, mutagenicity, carcinogenicity, allergenicity, hemolysis, etc. [1]. Surfactants are used as various processing aids or synergists in the food and pharmaceutical industries. This increases the exposure of surfactants to the human digestive tract and blood system. Hence, strict requirements are imposed on the oral toxicity, hemolysis, heredity, carcinogenicity and teratogenicity of surfactants [2]. When the concentration of surfactants is relatively high, it can adversely affect aquatic organisms [3]. For example, chronic and sublethal toxicity to aquatic animals occurs when the concentration of anionic surfactants exceeds 0.1 mg/L [4]. Surfactants also inhibit the growth, activity and photosynthetic capacity of aquatic algae [5]. Moreover, a number of synthetic surfactants and their decomposition products do present a potential risk to human health and the environment, and they tend to increase the problem of water treatment [1].
Surfactants are a class of chemicals that reduce the surface tension of liquid or liquid interfaces. They have hydrophobic tails and hydrophilic heads. Surfactants are usually found as monomers, but sometimes in more complex polymeric forms [6]. According to the charge of hydrophilic groups of surfactants, they are divided into anionic, cationic, and nonionic, semi-polar, and amphoteric. SDBS is a typical anionic surfactant, which has been extensively considered as a general pollutant in human activities [7]. Conventional biological methods, such as aerobic treatment or activated sludge tanks, can degrade surfactants efficiently, but are not suitable for the treatment of high concentrations of surfactants [8]. Physical and chemical treatments, such as adsorption, membrane separation, coagulation, electro-coagulation, electrochemical oxidation, microwave assisted degradation, and oxidizing treatments are applied for the removal of surfactants [9,10,11]. Among these technologies, advanced oxidation processes (AOPs) based on hydroxyl radicals (HO•) are the most effective method for SDBS removal, which is a key stage in the treatment of greywater [11,12,13]. Moreover, the AOPs prevent foam and pathogens in the subsequent greywater treatment process and increase the biochemical properties of the greywater [14]. AOPs rely on the generation of radical species to rapidly degrade and disinfect contaminants in water and are an alternative method for greywater reuse applications. These radical species readily react with pollutants containing electron-rich groups [14]. Further, they offer the advantage of degrading organic pollutants and removing pathogens rather than transferring them to a concentrated stage for treatment. Ozonation has been shown to be effective in treating greywater by effectively removing organic pollutants from greywater [15,16,17,18]. However, ozonation has difficulty in completely mineralizing organic matter, and has a low usage rate [19]. In addition, ozonation treatment of wastewater may also produce disinfection by-products [20]. To overcome these problems, researchers have proposed catalytic ozone oxidation to improve the yield of radicals and the removal efficiency of pollutants from water [19,21,22]. The combination of ozone and UV is considered to be an effective method to enhance the removal of organic pollutants by ozonation [23].
To enhance the oxidation efficiency of UV/O3, VUV (100–200 nm) is gradually becoming an alternative to UV because of its environmentally-friendly and efficient characteristics [24]. The VUV wavelengths used have good photochemical activity, with 185 nm photons having higher energy and usage rates than 254 nm photons to activate oxidants and so to produce strong oxidizing HO• [25]. At 185 nm, the majority of photons are captured by H2O, leading to homolytic cleavage and the production of powerful oxidizing hydroxyl radicals [26,27,28]. Compared with O3 treatment, VUV/O3 treatment significantly accelerated the utilization of O3 and the yield of HO•. VUV/O3 can decrease the acute toxicity of wastewater significantly and enhance the degradation of refractory organic matter in biological treatment [29]. Moreover, the VUV/O3 process of treating sodium n-butyl xanthate improved the COD removal by 30.4–41.6% compared to the O3 process, and O3 usage in the VUV/O3 process increased by 17.3–45.1% [30]. Compared to O3, VUV, UV/O3, and UV processes, the VUV/O3 process was effective in removing normal organic matters and performed best in DOC mineralization, UV254 reduction, and biodegradability (BDOC/DOC) enhancement [31]. These studies demonstrated the advantages of VUV/O3 in the oxidative degradation of organic contaminants in greywater. In addition, the VUV/O3 process is simple to use and occupies a compact footprint. However, the application of the VUV/O3 process to the removal of the characteristic pollutant SDBS in greywater has rarely been researched. Therefore, the effectiveness of VUV/O3 in eliminating SDBS, and the mechanism to enhance the oxidation effect of O3, need a more in-depth investigation.
The role of VUV/O3 in the oxidative degradation of SDBS and its mechanism were investigated. Electron paramagnetic resonance (EPR) and quenching tests were used to elucidate the mechanism of radical species action. The effects of the solution components on VUV/O3 were studied, involving changes of initial SDBS concentration, solution pH, as well as the co-existence of inorganic anions. The reaction sites and degradation pathways of SDBS during VUV/O3 were determined and the toxicological properties of the intermediates were evaluated. Finally, the applicability of VUV/O3 in the removal of anionic surfactants from real laundry greywater was verified. This study can help to more deeply understand the reaction mechanism of VUV/O3 and provide new concepts for remediation techniques for surfactants.

2. Results and Discussion

2.1. Degradation Rule of SDBS during Various Treatments

Figure 1 illustrates the procedure of SDBS degraded by O3 treatment, VUV treatment, and combined VUV/O3 treatment. During the 30 min of reaction, VUV/O3 was efficient to degrade SDBS at the 223 nm optical band as shown in Figure 1a. Based on the DFT calculation as shown in Figures S2–S4, 16(C)–21(C) on-ring bonds were the more vulnerable sites to radicals’ attack than the (C) on carbon chain. Interestingly, with the progress of VUV/O3 treatment, the absorbance peak widened, and a visible shoulder peak appeared, indicating the presence of intermediates. According to previous studies, SDBS can be effectively degraded by O3 itself as well as by generating free radicals, and is more efficient than other commonly used oxidants [11]. At the same time, O3 can be activated by VUV irradiation to increase the yield of radical species, which can enhance the degradation effect of surfactant [11]. Overall, it can be concluded that VUV/O3 was an effective method for degrading surfactants.
Figure 1b shows the removal efficiency of SDBS by different treatments. It can be observed that Ct/C0 progressively reduced with time, demonstrating an effective removal of SDBS. The removal efficiency of SDBS by single VUV and single O3 were only 59.21% and 71.27% when the time 30 min, respectively. The VUV/O3 had a better effect by 99.35% for SDBS removal. It can be found that VUV/O3 can promote the removal efficiency of SDBS by O3 due to its higher radical species yield.
Figure 1c depicts the mineralization of SDBS by the above three treatments during a 30 min reaction time. It can be seen that the DOCt/DOC0 gradually decreased with time, indicating a gradual increase in the mineralization of SDBS. The effect of single VUV on the removal of DOC from SDBS solution was not obvious, and the removal efficiency of DOC by single O3 was only 29.60%. The coupling of VUV and O3 had a high mineralization capacity (50.37%) for SDBS and showed a synergistic effect. This is due to the fact that O3 is able to generate radical species via other pathways as the VUV was activated, at which point O3 utilization increased significantly [29]. As the removal of SDBS by VUV/O3 reached 99.35% during 30 min, these results suggest that the generated intermediates make an important contribution to the determination of DOC. It is clear that VUV combining with O3 produced a synergistic effect and enhanced the mineralization capacity of O3.
Figure 1d shows the concentration of SO42− for the three treatments. The production of SO42− was significantly accelerated after 30 min of VUV/O3 treatment, but the effect of O3 and VUV treatments were not obvious and the final concentrations of SO42− were 1.856 mg/L, 0.788 mg/L and 0.628 mg/L, respectively. According to DFT calculation in Tables S1–S3, 1(S) is most susceptible to attack by radicals to produce SO42−, and their presence implies that advanced oxidation was effective to cleavage the S-O bond. Higher energy photons enhanced the activated efficiency of O3 and led to the acceleration of the required electron transfer, which may account for the increased rate of SO42− production [32]. Overall, this may imply the oxidation capacities of VUV alone and O3 alone were enhanced by the coupling.

2.2. Types and Roles of Radicals Existing in VUV/O3 Process

In order to obtain a quantitative evaluation of the role of various radicals on the SDBS degradation, the relevant reaction rate constants were calculated from the gradient dose of scavengers. The results of the research are displayed in Figure 2. The inhibitory degrees of SDBS degradation of two used scavengers were correlated with the oxidative effect of the relative radicals. As the TBA concentration increased from 1 to 100 mM, the degradation efficiency of SDBS by VUV/O3 decreased by 64.45–78.92%; for FA there was less of a concentration effect but an overall stronger inhibition: 27.58–51.24% for 5 μL/L–50 μL/L FA, respectively. Since the inhibition of the reaction was evident by the injection of low concentrations of TBA, it indicated that HO• was the main active substance in the degradation of SDBS by VUV/O3. Notably, the inhibition of the FA increased markedly with the increase of FA concentration. However, FA can preferentially absorb 185 nm photons over other components (H2O, O3, SDBS), so it can be inferred that O3 could also degrade SDBS, but not as effectively as HO• [31]. The results showed that both scavengers inhibited the degradation of SDBS during VUV/O3, and the degree of inhibition increased significantly with the increase of scavenger concentrations. It is thus clear that HO• played a more important role than UV photons and O3 in the degradation of SDBS during the VUV/O3 process.
To further clarify the role of radicals, EPR spectra were performed to record. According to Figure 3, a 1:2:2:1 DMPO-OH characteristic peak spectrum could be recorded in O3 alone, and the intensity of such peaks was relatively diminished in VUV alone. Obviously, significant increase in the signal intensity of HO• by O3 under VUV activation [33]. This explains why the mineralization and concentrations of SO42− can be considerably increased during SDBS degradation by the VUV/O3 system. From the analysis of each EPR spectrum, it is clear that VUV led to a considerable activated efficiency of O3, producing more HO• as Equations (1)–(3). All these confirm that HO• was the main active substance in the VUV system and its effect was greater than that of O3.
H2O + hv185nm→ HO• + H• Φ1 = 0.33
H2O + hv185nm→ H+ +eaq + HO• Φ2 = 0.045
O3 + H2O + hv254nm or 185nm→ O2 + H2O2 + hv254nm or 185nm→ 2HO•

2.3. Impacts of Varied Environmental Factors

2.3.1. Impacts of Varied Initial O3 Concentrations on VUV/O3

As shown in Figure 4, the removal rate of SDBS gradually increased with increasing ozone concentration. The constant k (SDBS removal) considerably increased from 0.064 to 0.162 min−1 with O3 dosage ranging from 0.247 to 0.927 mg/L for the VUV/O3 process. According to the calculations, at ozone doses of 0.927 mg/L, the k was 1.5- and 2.5-fold larger than the k for 0.247 mg/L and 0.462 mg/L, respectively. Increasing the ratio of ozone concentration to surfactant concentration may increase the surfactant removal rate. This was mainly due to an increase in O3 concentration that increased the absorption efficiency of 185 nm and 254 nm photons, which led to an increase in the yield of radicals. Furthermore, ozone itself can be involved in SDBS degradation. Thus, an increase in ozone concentration can significantly increase the removal rate of SDBS. The result demonstrated that the decomposition of SDBS was highly effective during the VUV/O3 process, and that the removal of SDBS was facilitated by increasing the concentration of dissolved O3.

2.3.2. Impacts of Varied Initial SDBS Concentrations on VUV/O3

Figure 5 depicts the results predicted by a pseudo-first-order kinetic model of SDBS degradation by VUV/O3 when [SDBS]0 was varied in the range of 5 mg/L to 20 mg/L. A significant decrease in VUV/O3 oxidation efficiency was observed by increasing [SDBS]0, with the k for SDBS degradation decreasing from 0.309 to 0.090 min−1. This could be explained by the fact that the concentration of SDBS affected the absorbance of different components of the solution under 185 nm and 254 nm photons. Hence, the proportion of direct photolysis in the reaction was changed, as well as the proportion of O3 and H2O photolysis. Further, when the ozone concentration is constant, an increase in the concentration of SDBS leads to an increase in the priority of ozone reaction with SDBS. However, the redox potential of ozone is lower than that of HO•.
As the concentrations were increased from 5 to 20 mg/L, the percentage absorbance of 185 nm photons by SDBS in competition with O3 and H2O increased from 12.31% at 5 mg/L to 19.58%, 24.27%, and 26.61% as the concentrations increased from 10 to 20 mg/L, as depicted in Figure 6 [34]. In theory, the higher the absorption ratio of O3 and H2O to 185 nm photons, the higher the activation efficiency of 185 nm photons. Since the concentration of O3 dissolved in solution remained constant, an increase in [SDBS]0 led to a decrease in the concentration of produced radicals, which would reduce the chance of effective collisions of radicals with contaminant molecules. Similarly, a previous study has also revealed that the removal of SDBS at lower rates by VUV/O3 for higher initial concentrations of contaminants [35].
The yield of radicals was constant for a fixed reaction time at the same ozone concentration, and the radical/reactant ratio decreased as the initial concentration of SDBS increased, leading to a decrease in the SDBS removal rate. Despite this, the degradation efficiency of SDBS was still very high even at high concentrations. The results show that VUV/O3 is a promising method for effective removal of anionic surfactants in greywater treatment [36].

2.3.3. Performance of VUV/O3 in Varied Initial pH

Figure 7 depicts the change in the degradation rate of SDBS degraded by VUV/O3 as the pH increases from 3 to 11. Solution pH is a major environmental variable, among others, that affects the degradation rate of advanced oxidation reactions, as it may determine the applicability of a process under practical treatment. The change in pH value resulted in the highest degradation rate of VUV/O3 process under weak alkaline conditions: when pH value is 9, the K value of VUV/O3 is 0.254 min−1. The rate of VUV/O3 oxidation reaction was higher in an alkaline environment. SDBS can exist as dodecylbenzene sulfonic acid under acidic conditions, and the undissociated SDBS is not as vulnerable to oxidative HO• as the anionic form [37]. Meanwhile, under the strong acidic condition, O3 oxidation dominates the degradation of SDBS and excess H3O+ might become a scavenger for HO•, which increased the consumption of reactive HO• (Equations (4) and (5)), thus inhibiting the degradation of SDBS [38]. In the VUV/O3 system, the higher the amount of HO, the faster the decomposition of O3 to HO•, which is responsible for the increased degradation rate of SDBS in a high pH environment. HO• was a more reactive than O3, and alkaline conditions improved the increase of HO• yield, which facilitated the removal of SDBS [19,39]. The optimal pH was 9 rather than 11, indicating that HO• had a stronger oxidizing effect under weakly alkaline conditions and on ionized form of SDBS (DBS) [40]. Previous studies have also observed comparable effects of pH upon the VUV/O3 process. Jiang et al. found that the optimal treatment condition by VUV/O3 was at pH of 9.0 [29], and Zhang et al. found that the removal rate of sodium n-butyl xanthate increased with increasing alkalinity of the solution in VUV/O3 process [30]. Experimental data verify that pH has a significant influence on the degradation of SDBS by VUV/O3, which is increased in strongly alkaline environments.
O3 + OH → HO•
H+ + HO• + e → H2O

2.3.4. Implications of Typical Anions on SDBS Degradation

The implications of varied typical anions on the SDBS degradation during VUV/O3 process was examined, as shown in Figure 8. For the VUV/O3 process, the presence of SO42− hardly affected SDBS degradation; there was almost no decrease in the degradation rate when 1 mM and 2 mM SO42− were dosed. When 1 mM and 2 mM of Cl and CO3 were present in the water, the degradation rate of SDBS decreased only slightly, with Cl causing a decrease of 2.75% and 7.25%, respectively, and CO3 causing a decrease of 4.50% and 7.75%, respectively. Unlike these, there was a substantial decrease in the degradation rate of SDBS when 1 mM and 2 mM NO3 were added, reaching 23.09% and 32.72%, respectively. The coexisting anions could trap the HO• radical species and convert them to second-order anionic radicals bearing relatively low redox potentials, according to chemical reaction formulae outlined as Equations (5)–(10) [41,42]. The SO42− could capture HO• and 185 nm photons to produce SO4•− (Equations (5) and (6)), and to some extent, their redox potentials (HO•: 2.8 V, SO4•−: 2.5–3.1 V) are similar. The transient lifetime of SO4•− is longer (HO•: 20 ns, SO4•−: about 30–40 μs) [41,43], so the combined reaction of multiple radicals does not influence the degradation rate of SDBS. A number of studies have found that sulfate radicals are similar in efficiency to hydroxyl radicals for the removal of certain micropollutants, and even higher for the removal of some pesticides [44,45]. As present Cl, it can directly react with O3 to generate Cl2 or HOCl at low pH conditions [35], and they will undergo oxidative degradation reaction with SDBS. However, studies have reported that Cl• could react with H2O to form HO•, which might improve the degradation rate of SDBS to a certain degree [46]. These are the reasons for the diminished inhibitory degree of Cl on removal efficiency of SDBS during the VUV/O3 process. The reaction of HCO3/CO32− with HO• to produce CO3•− is the main radical in resolution at higher HCO3 concentrations [47]. The redox potential of CO3•− is significantly lower than that of HO•, which would decrease the effectiveness of SDBS removal. Since SDBS is easily degraded, CO3 could also participate in the reaction, and the addition of HCO3 might increase the solution pH, which enhanced the generation of HO•. The above reasons could alleviate the decrease of SDBS degradation rate by HCO3. It was obtained that NO3 had the greatest inhibition on SDBS degradation in the VUV/O3 process. NO3 could absorb more 185 nm photons than any other because of its higher molar absorbance coefficient at 185 nm wavelength [41,48]. This led to a decrease in HO• yield and the production of lower oxidizing anionic radicals (NO3•), which inhibited the degradation of SDBS. Thus, these anions could also compete with H2O and O3 molecules to absorb 185 nm photons. In conclusion, the presented results showed that HO• can degrade SDBS more effectively than other radical species.
SO42− + HO• → SO4•− + OH
SO 4 2   hv   <   200 nm   SO 4 + e aq
Cl +HO• → Cl• + OH, k = 3.0 × 109 M−1s−1
HCO3 +HO• → CO3•− + H2O, k = 8.6 × 106 M−1s−1
NO3 + HO• → NO3• + HO

2.4. Proposed Degradation Pathways of SDBS

In order to derive a hypothetical pathway for the SDBS degradation during the VUV/O3 process, the formation of by-products was analyzed by high performance liquid chromatography/mass spectrometry (HPLC/MS) in ESI (−) and ESI (+) modes, and HOMO, LUMO, and Fukui indices of SDBS were calculated using DFT (Figures S2–S4 and Tables S1–S3). The obtained total ion chromatogram (TIC) and mass-to-charge ratio are presented in Figure S5. Ten by-products were deduced, and their structural formulae are listed in Table S4. According to the three SDBS isomers and intermediates detected, three possible degradation paths were given in Figure 9. Some studies have extensively inferred that HOMO and LUMO could theoretically determine the sites where organic pollutant molecules tend to lose or gain electrons during redox reactions [49,50]. Considering that the mass charge between the products is relatively large, and that all of them differ by 14 m/z, they must be the products after the attack of branched chain carbon. The above speculation could be confirmed based on the detected MS spectra at RT = 5.376–5.538 min, 3.641 min, and 3.255 min corresponding to molecular ion peaks of m/z = 325.2 (SDBS), 311.1, and 297.2, respectively. Of these, m/z = 325.2 corresponded to the anionic form of SDBS after hydrolysis in solution to release Na+, while m/z = 311.1 and 297.2 corresponded to substances where the alkane chain was decreased by one methyl and two methyl groups, respectively. According to the product types, there were three main branched forms of SDBS, including methyl, ethyl, and propyl branched chains.
According to the DFT calculation that f and f+ of Fukui index, the most easily oxidized sites of reactive oxygen radicals are the 1(S) bond and 16(C), 17(C), 18(C), 19(C), 20(C), and 21(C). Therefore, the sulfonyl group and branched chain carbon were not included in the final measured by-products. However, almost all of the products obtained during the reaction contain sulfonyl groups and branched carbon chains. It is possible that many intermediates were oxidized and degraded in a short time without their presence being detected. The following conclusions were obtained by deriving the degradation pathways based on the detected substances. In the presence of reactive oxygen species, SDBS was attacked in two main ways: (a) attacking the alpha-carbon, beta-carbon, or branched chain-containing carbon on the alkane chain; (b) attacking the adjacent carbon of the alkane chain and eventually forming phenolic hydroxyl groups. During the course of the reaction, signal peaks were also detected at RT = 0.9 min and 2.4 min with molecular ion peaks corresponding to m/z = 329 and 343 in the MS spectra. It is the further conversion product of the product after the attack of the above three branched structures, and since 329 m/z differs from 297 m/z and 343 m/z from 311 m/z by 32 m/z, this was the result of the obvious oxygen intervention, which is exactly in line with the (b) mode of attack of SDBS [51,52]. Among the by-products, m/z = 315.2 was the product of further attack on the carbon of the benzene ring of the attacked by-product of the SDBS branched chain; m/z = 185.0 was the product of further attack on the α carbon of the alkane chain. The degradation pathways of three SDBS isomers in VUV/O3 were derived from the above analysis as shown in Figure 9.
Theoretically, the site of HO•-attack could presumably appear at all C sites at the SDBS alkyl chain based on the DFT calculations, though it was more likely to occur at alpha- and beta-carbons. Nonetheless, according to the HPLC/MS, the oxidized by-products of SDBS branched carbon was detected even more frequently, and the molecular weights of the alpha- and beta-carbon cleavage products were considerably smaller than those of the basal peak cleavage by-products. At first it was the alkyl chain of SDBS that the free electrons formed by HO•-action excited the carbon atoms chemical reactivity. They are induced to react with dissolved oxygen (O2) and O3. HO• cleaved the alkyl chains at the β-position to form carbonyl groups to produced by-products (A), (B), (D), and (G). Ultimately, HO• as well as dissolved O2 and O3 transform the alkyl chains of SDBS to carboxyl groups, producing by-products (C), (E), and (H). According to the above summary, the degradation modes of the three SDBS isomers were very comparable.

2.5. Toxicological Analysis of Intermediates

Toxicological evaluations of SDBS with its degradation intermediates were performed with a toxicity assessment software tool (TEST) [53]. The structural formulae of intermediates A–J are shown in Table S4. As shown in Figure 10a, the LD50 of SDBS was estimated as 3057.19 mg/kg, which was classified to be “harmful” [6]. All by-products remained “harmful” in the process of SDBS degradation by VUV/O3, except for by-product J, the toxicity of other products increased. As can be seen from Figure 10b, SDBS and its intermediates/products were “harmful” in terms of bioaccumulation factors, and the bioaccumulation factors values of these compounds were reduced to different degrees compared to SDBS [54]. This indicated that the VUV/O3 treatment had a positive effect on the protection of the higher consumers in the organism. Figure 10c shows the developmental toxicity, which was maintained for all by-products. The developmental toxicity of all the by-products, except by-product C, were decreased. As illustrated in Figure 10d, there was an increase in the mutagenicity of 6 SDBS degradation by-products relative to the parent contaminant, but only by-product J reached a positive mutagenicity level [55]. The analysis of TEST indicated that the toxicity of most SDBS degradation by-products decreased or remained at the original level. Therefore, VUV/O3 treatment of SDBS has a broad application prospect on reduction of surfactants toxicity.

2.6. Application of VUV/O3 for Real Laundry Wastewater Treatment

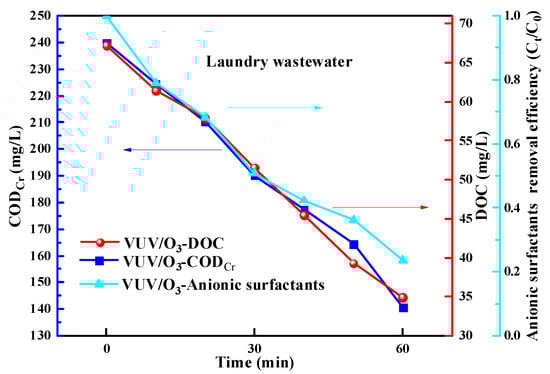

To investigate the anionic surfactant degradation effect of VUV/O3 in a real water matrix, we applied it to treat laundry wastewater. VUV/O3 could effectively remove anionic surfactants from laundry wastewater (Figure 11). The removal of surfactant was followed by the reduction of CODCr and TOC. The CODCr of laundry wastewater decreased from 239.9 to 140.6 mg/L within 60 min of VUV/O3 treatment. Meanwhile, the DOC was reduced from 67.22 to 34.91 mg/L under VUV/O3 treatment. The removal efficiency of anionic surfactants in laundry wastewater was identified to be less than that depicted above in pure water. This was probably caused by capturing of radicals and (V)UV rays by inorganic anions, protein-like and greasy contaminants existing from the treated greywater [18]. In addition, the high turbidity of the effluent may hinder the effective propagation distance of VUV and UV photons. It can be found that VUV/O3 was more suitable for treating low turbidity greywater after pretreatment.

3. Materials and Methods

3.1. Chemicals

The following chemicals were obtained from Aladdin (Shanghai, China): Sodium dodecylbenzene sulfonate (SDBS, AR grade, ≥99%), the radical spin-trapping agent 5,5-dimethyl-1-pyrrolineN-oxide (DMPO), chloroform (CHCl3), methylene blue, NaCl, Na2SO4, NaNO3, NaHCO3, tert-butanol (C4H10O, TBA), formic acid (≥98%, FA), and humic acid (HA). Ultra-pure water, required for the preparation of the reaction solution, was obtained using a Milli-Q Heal Force ultra-pure system (Millipore, Burlington, MA, USA). HCl, NaOH and H2SO4 were purchased from Beijing Chemical Works (Beijing, China). For UPLC–MS, HPLC-grade MeOH Fisher Scientific (Cranbury, NJ, USA) was used.

3.2. Experimental Procedures

A glass reactor with a capacity of 700 mL was used for the VUV oxidation experiments. The setup used for the tests was placed in 6 mm thick polyvinyl chloride sealed chamber, which was connected to the thermostatic water cycle (kept stable in 298 K) and also defended against UV leakage. A 6 W low-pressure mercury VUV lamp was fixed in a quartz tube to prevent water from coming into direct contact with the lamp. The low-pressure mercury lamp used (GPH150T5VH/4, Heraeus, Hanau, Germany) was mainly available in two wavelengths, 254 nm (~90%) and 185 nm (~10%), and its light intensity was tested by the degradation kinetics of photosensitizers, exhibited in Figure S1 according to existing methods [56,57]. To ensure stable output of optical power, the VUV lamps should be preheated for at least 20 min. In standard experimental procedure, a fixed amount of O3 (about 0.927 mg/L O3 dissolved in solution) was introduced into a 10 mg/L SDBS solution and simultaneously exposed to VUV for 30 min, while 10 mL samples were taken every 5 min. These samples were injected into 10 mL sampling tubes after direct filtration with a 0.45 μm microfiltration membrane.
To determine the performance of the radicals and VUV photons for the degradation of SDBS, the scavengers tert-butanol (TBA) and formic acid (FA) were added. TBA is a well-known HO• scavenger [58]; FA can absorb VUV photons in preference to H2O molecules (ΦFA,185 > ΦH2O,185) [59].
Several sets of univariable experiments were conducted to determine the influences of varied water constituents. The initial SDBS concentrations ([SDBS]0) varied from 5 to 20 mg/L. The initial solution pH was regulated from 3 to 5, 7, 9, and 11 with 0.1 M H2SO4 or 0.1 M NaOH. The influence of the presence of inorganic anions on the degradation of SDBS was measured by adding 1–2 mM Na2SO4, NaCl, NaHCO3, and NaNO3. All of the test results were the average of the three replicates.
Intermediates during SDBS degradation were identified with an Agilent 1290 Infinity/6460 LC/QQQ MS equipped with an electrospray ionization (ESI) source and operated in the negative (ESI)- electrospray ionization mode. The spray voltage (−) was 3.5 kV and capillary temperature was 300 °C. The mobile phase was a mixture of methanol and ultrapure water (0.1% formic acid) at a flow rate of 0.2 mL min−1. The elution process was: 0–4 min, 5–25% methanol; 4–5 min, 5–25% methanol; and 5–8 min, 25% methanol.

3.3. Analytical Methods

The SDBS concentration of the taken samples was measured by liquid chromatography (LC, Agilent 1260 LC, Santa Clara, CA, USA) with a C18 column. Dissolved organic carbon (DOC) was analyzed by a German Elementar TOC analyzer. The concentrations of O3 were determined by indigo spectrophotometry [60]. Inorganic anions were determined with a chromatograph (Metrohm, 883 Basic IC plus, Herisau, Switzerland) on a Metrosep a Supp (250.0 mm × 4.0 mm) column.
The degradation kinetics of SDBS were consistent with a pseudo-first-order kinetic formulation (Equation (11)), following our previous research [37]. C0 and Ct are initial and residual SDBS concentrations (mg/L); k is the degradation rate of the presented formulation (min−1).
−ln (Ct/C0) = kt
The spectra of radicals were recorded by electron paramagnetic resonance (EPR, JEOL JES-FA200, Akishima City, Tokyo, Japan), while all spectra were detected three times separately. O3 and 5,5-Dimethyl-1-pyrroline N-oxide (DMPO) were dissolved into ultrapure water and the mixture drawn to the capillary for HO• detection in EPR.
The absorbances of varied water constituents were measured using a UV-Vis spectrophotometer (UV1900, Shimadzu, Tsukuba City, Japan). The distribution ratio was calculated by Equation (12):
P 185 nm , i % = ε 185 nm , i C i i = 1 i ε 185 nm , i C i × 100
P185nm,i: photon absorption percentage (%) for the given solution constituent (i) at the specified 185 nm. ε185nm,i: molar absorbances (cm−1mol−1); Ci: molar concentrations of the given solution constituents (mol) [34].
Density functional theory (DFT) calculations were all calculated using B3LYP/6-31+G* predictive models on Gaussian 09 software, which helped to further elucidate the radical attack on SDBS molecule in the VUV/O3 reaction system [61]. The molecular structural formula of generated SDBS oxidation by-products were deduced by an Agilent 1290 HPLC-MS (Santa Clara, CA, USA). Toxicological analysis of SDBS degraded intermediates were evaluated by using the Toxicity Estimation Software Tool (TEST). Use of the TEST (version 4.2.1) software is to estimate toxicity values for chemicals from their molecular structure using a variety of quantitative structure–activity relationship (QSAR) methodologies.

4. Conclusions

VUV/O3 was an effective method to degrade SDBS. The main conclusions of the present research are as follows:
(1)
VUV-activated O3 resulted in a synergistic effect and enhanced the oxidative effect of O3. VUV/O3 could convert SDBS to inorganic more efficiently, and DOCt/DOC0 dropped to 50.37% after 30 min treatment. With VUV alone and O3 alone, they only reached 10.63% and 29.60%. Advanced oxidation was effective to cleavage the S-O bond of SDBS, and the final concentrations of SO42− increased fastest in the VUV/O3 process.
(2)
VUV/O3 promoted the production of HO• compared to VUV alone and O3 alone, which was the major reactive species attacking SDBS molecules.
(3)
The performance of VUV/O3 was optimal at pH 9, with lower oxidation efficiency at more acidic levels. The addition of SO42− hardly affected the degradation of SDBS and that of Cl and HCO3 slightly reduced the reaction rate, except that adding NO3 had a remarkable inhibitory effect on the process.
(4)
There were three isomers in SDBS, and the degradation modes of the three SDBS isomers as three pathways were very comparable. The degradation by-products of the VUV/O3 process decrease in harmfulness and toxicity compared to the SDBS parent.
(5)
VUV/O3 could effectively remove anionic surfactants from laundry wastewater. The removal efficiency of anionic surfactants in laundry wastewater was identified to be less than that depicted above in pure water.
The above results suggest that increasing the yield of hydroxyl radicals is the main goal that different processes should pursue when removing surfactants. When using the VUV/O3 process, a moderate increase in reaction time is recommended for deep oxidation or complete minimization of residual intermediates. This ensures that the toxic intermediates in the treated effluent are mineralized or reduced to a lower concentration.
This study contributes to the development of optimal operating conditions for the VUV/O3 technology and explores novel methods to remediation of surfactants.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28083312/s1, Figure S1: Photolysis kinetics of 0.12 mM uridine (black, 254 nm) and 100 mM MeOH (purple, 185 nm) under UV or VUV irradiation; Figure S2: Natural bond orbital (NBO) analysis for the methyl isomers of SDBS molecule at B3LYP/6-31+G(d) level. (a) SDBS molecule structure; (b) The highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO); (c) Electrostatic potential (ESP)-mapped molecular surface; Figure S3: Natural bond orbital (NBO) analysis for the ethyl isomer of SDBS molecule at B3LYP/6-31+G(d) level. (a) SDBS molecule structure; (b) The highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO); (c) Electrostatic potential (ESP)-mapped molecular surface of SDBS; Figure S4: Natural bond orbital (NBO) analysis for the propyl isomer of SDBS molecule at B3LYP/6-31+G(d) level. (a) SDBS molecule structure; (b) The highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO); (c) Electrostatic potential (ESP)-mapped molecular surface of SDBS; Figure S5: TIC and mass chromatography in ((a) ESI+ and (b) ESI-) mode of SDBS degradation intermediates formed during VUV/O3; Table S1: The methyl isomers of SDBS molecule: natural population analysis (NPA) charge populations and condensed Fukui index distribution for electrophilic attack (f and f+); Table S2: The ethyl isomer of SDBS molecule: natural population analysis (NPA) charge populations and condensed Fukui index distribution for electrophilic attack (f and f+); Table S3: The propyl isomer of SDBS molecule: natural population analysis (NPA) charge populations and condensed Fukui index distribution for electrophilic attack (f and f+); Table S4: Chemical formulas and main fragments (m/z) of intermediate products; Table S5: Organic characteristics and anions concentration of the laundry greywater.

Author Contributions

Conceptualization, H.L. and Y.Y.; methodology, H.L.; validation, H.L., Y.Y., and X.L.; formal analysis, H.L.; resources, X.L.; data curation, H.L.; writing—original draft preparation, H.L.; writing—review and editing, H.L. and H.U.; supervision, Y.Y.; project administration, X.L.; funding acquisition, X.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Key Research and Development Program of China, grant number 2018YFC0406203.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the available data are incorporated in the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. Rebello, S.; Asok, A.K.; Mundayoor, S.; Jisha, M.S. Surfactants: Toxicity, remediation and green surfactants. Environ. Chem. Lett. 2014, 12, 275–287. [Google Scholar] [CrossRef]
  2. Ying, G. Fate, behavior and effects of surfactants and their degradation products in the environment. Environ. Int. 2006, 32, 417–431. [Google Scholar] [CrossRef] [PubMed]
  3. Koparal, A.S.; Önder, E.; Öütveren, B. Removal of linear alkylbenzene sulfonate from a model solution by continuous electrochemical oxidation. Desalination 2006, 197, 262–272. [Google Scholar] [CrossRef]
  4. Lewis, M.A. Chronic and sublethal toxicities of surfactants to aquatic animals: A review and risk assessment. Water Res. 1991, 25, 101–113. [Google Scholar] [CrossRef]
  5. Maksimov, V.N.; Parshikova, T.V. Influence of surfactants on the photosynthetic activity of algae. Hydrobiol. J. 2006, 42, 67–76. [Google Scholar] [CrossRef]
  6. Martins, N.; Pereira, J.L.; Antunes, F.E.; Melro, E.; Duarte, C.M.G.; Dias, L.; Soares, A.M.V.M.; Lopes, I. Role of surfactant headgroups on the toxicity of SLEnS-LAS mixed micelles: A case study using microtox test. Sci. Total Environ. 2018, 643, 1366–1372. [Google Scholar] [CrossRef]
  7. Zhou, Y.; Zhang, Z.; Zhang, L.; Xu, S.; Guo, B.; Liu, Y.; Xia, S. Promoting waste activated sludge reduction by linear alkylbenzene sulfonates: Surfactant dose control extracellular polymeric substances solubilization and microbial community succession. J. Hazard. Mater. 2019, 374, 74–82. [Google Scholar] [CrossRef]
  8. Palmer, M.; Hatley, H. The role of surfactants in wastewater treatment: Impact, removal and future techniques: A critical review. Water Res. 2018, 147, 60–72. [Google Scholar] [CrossRef]
  9. Zhou, Y.; Guo, B.; Li, R.; Zhang, L.; Xia, S.; Liu, Y. Treatment of grey water (GW) with high linear alkylbenzene sulfonates (LAS) content and carbon/nitrogen (C/N) ratio in an oxygen-based membrane biofilm reactor (O2-MBfR). Chemosphere 2020, 258, 127363. [Google Scholar] [CrossRef]
  10. Ucevli, O.; Kaya, Y. A comparative study of membrane filtration, electrocoagulation, chemical coagulation and their hybrid processes for greywater treatment. J. Environ. Chem. Eng. 2021, 9, 104946. [Google Scholar] [CrossRef]
  11. Méndez-Díaz, J.D.; Sánchez-Polo, M.; Rivera-Utrilla, J.; Bautista-Toledo, M.I. Effectiveness of different oxidizing agents for removing sodium dodecylbenzenesulphonate in aqueous systems. Water Res. 2009, 43, 1621–1629. [Google Scholar] [CrossRef] [PubMed]
  12. Chin, W.H.; Roddick, F.A.; Harris, J.L. Greywater treatment by UVC/H2O2. Water Res. 2009, 43, 3940–3947. [Google Scholar] [CrossRef] [PubMed]
  13. Yu, J.; Cui, Y.; Zhang, H.; Liu, Y.; Oinuma, G.; Yamauchi, T.; Mu, Z.; Yang, M. Degradation of SDBS in water solutions using plasma in gas-liquid interface discharge: Performance, byproduct formation and toxicity evaluation. Chemosphere 2019, 234, 471–477. [Google Scholar] [CrossRef]
  14. Gassie, L.W.; Englehardt, J.D. Advanced oxidation and disinfection processes for onsite net-zero greywater reuse: A review. Water Res. 2017, 125, 384–399. [Google Scholar] [CrossRef]
  15. Alrousan, D.M.A.; Dunlop, P.S.M. Evaluation of ozone-based oxidation and solar advanced oxidation treatment of greywater. J. Environ. Chem. Eng. 2020, 8, 104309. [Google Scholar] [CrossRef]
  16. Hassanshahi, N.; Karimi-Jashni, A. Comparison of photo-Fenton, O3/H2O2/UV and photocatalytic processes for the treatment of gray water. Ecotox. Environ. Saf. 2018, 161, 683–690. [Google Scholar] [CrossRef]
  17. Oh, K.S.; Poh, P.E.; Chong, M.N.; Gouwanda, D.; Lam, W.H.; Chee, C.Y. Optimizing the in-line ozone injection and delivery strategy in a multistage pilot-scale greywater treatment system: System validation and cost-benefit analysis. J. Environ. Chem. Eng. 2015, 3, 1146–1151. [Google Scholar] [CrossRef]
  18. Li, H.; Yang, Y.; Ren, J.; Zhou, Z.; Li, X.; Liu, Y.; Feng, J. Fate of organic fractions of greywater in combined process of vacuum-ultraviolet (VUV/UV)/ozone pre-oxidation with enhanced coagulation. J. Environ. Chem. Eng. 2022, 10, 107417. [Google Scholar] [CrossRef]
  19. Wang, Y.; Li, H.; Yi, P.; Zhang, H. Degradation of clofibric acid by UV, O3 and UV/O3 processes: Performance comparison and degradation pathways. J. Hazard. Mater. 2019, 379, 120771. [Google Scholar] [CrossRef]
  20. Hua, G.; Reckhow, D.A. Effect of pre-ozonation on the formation and speciation of DBPs. Water Res. 2013, 47, 4322–4330. [Google Scholar] [CrossRef]
  21. Sable, S.S.; Ghute, P.P.; Fakhrnasova, D.; Mane, R.B.; Rode, C.V.; Medina, F.; Contreras, S. Catalytic ozonation of clofibric acid over copper-based catalysts: In situ ATR-IR studies. Appl. Catal. B-Environ. 2017, 209, 523–529. [Google Scholar] [CrossRef]
  22. Setareh, P.; Khezri, S.M.; Hossaini, H.; Pirsaheb, M. Coupling effect of ozone/ultrasound with coagulation for improving NOM and turbidity removal from surface water. J. Water Process. Eng. 2020, 37, 101340. [Google Scholar] [CrossRef]
  23. Chang, E.; Liu, T.; Huang, C.; Liang, C.; Chiang, P. Degradation of mefenamic acid from aqueous solutions by the ozonation and O3/UV processes. Sep. Purif. Technol. 2012, 98, 123–129. [Google Scholar] [CrossRef]
  24. Zoschke, K.; Börnick, H.; Worch, E. Vacuum-UV radiation at 185 nm in water treatment—A review. Water Res. 2014, 52, 131–145. [Google Scholar] [CrossRef] [PubMed]
  25. Oppenländer, T. Photochemical Purification of Water and Air; Wiley-VCH: Hoboken, NJ, USA, 2007; ISBN 9783527305636; 3527305637; 352761088X; 9783527610884. [Google Scholar]
  26. Gonzalez, M.G.; Oliveros, E.; Wörner, M.; Braun, A.M. Vacuum-ultraviolet photolysis of aqueous reaction systems. J. Photochem. Photobiol. C 2004, 5, 225–246. [Google Scholar] [CrossRef]
  27. Crapulli, F.; Santoro, D.; Sasges, M.R.; Ray, A.K. Mechanistic modeling of vacuum UV advanced oxidation process in an annular photoreactor. Water Res. 2014, 64, 209–225. [Google Scholar] [CrossRef]
  28. Moussavi, G.; Hossaini, H.; Jafari, S.J.; Farokhi, M. Comparing the efficacy of UVC, UVC/ZnO and VUV processes for oxidation of organophosphate pesticides in water. J. Photochem. Photobiol. A 2014, 290, 86–93. [Google Scholar] [CrossRef]
  29. Jiang, F.; Qiu, B.; Sun, D. Degradation of refractory organics from biologically treated incineration leachate by VUV/O3. Chem. Eng. J. 2019, 370, 346–353. [Google Scholar] [CrossRef]
  30. Fu, P.; Feng, J.; Yang, H.; Yang, T. Degradation of sodium n-butyl xanthate by vacuum UV-ozone (VUV/O3) in comparison with ozone and VUV photolysis. Process Saf. Environ. Protect. 2016, 102, 64–70. [Google Scholar] [CrossRef]
  31. Ratpukdi, T.; Siripattanakul, S.; Khan, E. Mineralization and biodegradability enhancement of natural organic matter by ozone–VUV in comparison with ozone, VUV, ozone–UV, and UV: Effects of pH and ozone dose. Water Res. 2010, 44, 3531–3543. [Google Scholar] [CrossRef]
  32. Krakkó, D.; Illés, Á.; Licul-Kucera, V.; Dávid, B.; Dobosy, P.; Pogonyi, A.; Demeter, A.; Mihucz, V.G.; Dóbé, S.; Záray, G. Application of (V)UV/O3 technology for post-treatment of biologically treated wastewater: A pilot-scale study. Chemosphere 2021, 275, 130080. [Google Scholar] [CrossRef]
  33. Liu, H.; Gao, Y.; Wang, J.; Ma, D.; Wang, Y.; Gao, B.; Yue, Q.; Xu, X. The application of UV/O3 process on ciprofloxacin wastewater containing high salinity: Performance and its degradation mechanism. Chemosphere 2021, 276, 130220. [Google Scholar] [CrossRef] [PubMed]
  34. Wen, D.; Wu, Z.; Tang, Y.; Li, M.; Qiang, Z. Accelerated degradation of sulfamethazine in water by VUV/UV photo-Fenton process: Impact of sulfamethazine concentration on reaction mechanism. J. Hazard. Mater. 2018, 344, 1181–1187. [Google Scholar] [CrossRef] [PubMed]
  35. Xu, Y.; Wu, Y.; Zhang, W.; Fan, X.; Wang, Y.; Zhang, H. Performance of artificial sweetener sucralose mineralization via UV/O3 process: Kinetics, toxicity and intermediates. Chem. Eng. J. 2018, 353, 626–634. [Google Scholar] [CrossRef]
  36. Karimian, S.; Moussavi, G.; Fanaei, F.; Mohammadi, S.; Shekoohiyan, S.; Giannakis, S. Shedding light on the catalytic synergies between Fe(II) and PMS in vacuum UV (VUV/Fe/PMS) photoreactors for accelerated elimination of pharmaceuticals: The case of metformin. Chem. Eng. J. 2020, 400, 125896. [Google Scholar] [CrossRef]
  37. Li, H.; Yang, Y.; Gao, J.; Li, X.; Zhou, Z.; Wang, N.; Du, P.; Zhang, T.; Feng, J. Degradation of sodium dodecyl benzenesulfonate by vacuum ultraviolet irradiation. J. Water Process. Eng. 2020, 34, 101172. [Google Scholar] [CrossRef]
  38. Dai, Q.; Wang, J.; Chen, J.; Chen, J. Ozonation catalyzed by cerium supported on activated carbon for the degradation of typical pharmaceutical wastewater. Sep. Purif. Technol. 2014, 127, 112–120. [Google Scholar] [CrossRef]
  39. Staehelin, J.; Hoigne, J. Decomposition of ozone in water in the presence of organic solutes acting as promoters and inhibitors of radical chain reactions. Environ. Sci. Technol. 1985, 19, 1206–1213. [Google Scholar] [CrossRef]
  40. Koppenol, W.H.; Liebman, J.F. The oxidizing nature of the hydroxyl radical. A comparison with the Ferryl Ion (FeO2+). J. Phys. Chem. 1984, 88, 99–101. [Google Scholar] [CrossRef]
  41. Duca, C.; Imoberdorf, G.; Mohseni, M. Effects of inorganics on the degradation of micropollutants with vacuum UV (VUV) advanced oxidation. J. Environ. Sci. Health Part a-Toxic/Hazard. Subst. Environ. Eng. 2017, 52, 524–532. [Google Scholar] [CrossRef]
  42. Tan, C.; Gao, N.; Zhou, S.; Xiao, Y.; Zhuang, Z. Kinetic study of acetaminophen degradation by UV-based advanced oxidation processes. Chem. Eng. J. 2014, 253, 229–236. [Google Scholar] [CrossRef]
  43. Zhao, Q.; Mao, Q.; Zhou, Y.; Wei, J.; Liu, X.; Yang, J.; Luo, L.; Zhang, J.; Chen, H.; Chen, H.; et al. Metal-free carbon materials-catalyzed sulfate radical-based advanced oxidation processes: A review on heterogeneous catalysts and applications. Chemosphere 2017, 189, 224–238. [Google Scholar] [CrossRef] [PubMed]
  44. Yang, Y.; Cao, Y.; Jiang, J.; Lu, X.; Ma, J.; Pang, S.; Li, J.; Liu, Y.; Zhou, Y.; Guan, C. Comparative study on degradation of propranolol and formation of oxidation products by UV/H2O2 and UV/persulfate (PDS). Water Res. 2019, 149, 543–552. [Google Scholar] [CrossRef] [PubMed]
  45. Yang, L.; Li, M.; Li, W.; Jiang, Y.; Qiang, Z. Bench- and pilot-scale studies on the removal of pesticides from water by VUV/UV process. Chem. Eng. J. 2018, 342, 155–162. [Google Scholar] [CrossRef]
  46. Zhou, C.; Gao, N.; Deng, Y.; Chu, W.; Rong, W.; Zhou, S. Factors affecting ultraviolet irradiation/hydrogen peroxide (UV/H2O2) degradation of mixed n-nitrosamines in water. J. Hazard. Mater. 2012, 231–232, 43–48. [Google Scholar] [CrossRef]
  47. Zhu, H.; Jia, R.; Sun, S.; Feng, G.; Wang, M.; Zhao, Q.; Xin, X.; Zhou, A. Elimination of trichloroanisoles by UV/H2O2: Kinetics, degradation mechanism, water matrix effects and toxicity assessment. Chemosphere 2019, 230, 258–267. [Google Scholar] [CrossRef]
  48. Furatian, L.; Mohseni, M. Inuence of major anions on the 185 nm advanced oxidation process—Sulphate, bicarbonate, and chloride. Chemosphere 2018, 201, 503–510. [Google Scholar] [CrossRef]
  49. Yi, X.; Ji, H.; Wang, C.; Li, Y.; Li, Y.; Zhao, C.; Wang, A.; Fu, H.; Wang, P.; Zhao, X.; et al. Photocatalysis-activated SR-AOP over PDINH/MIL-88A(Fe) composites for boosted chloroquine phosphate degradation: Performance, mechanism, pathway and DFT calculations. Appl. Catal. B-Environ. 2021, 293, 120229. [Google Scholar] [CrossRef]
  50. Ji, H.; Du, P.; Zhao, D.; Li, S.; Sun, F.; Duin, E.C.; Liu, W. 2D/1D graphitic carbon nitride/titanate nanotubes heterostructure for efficient photocatalysis of sulfamethazine under solar light: Catalytic “hot spots” at the rutile–anatase–titanate interfaces. Appl. Catal. B-Environ. 2020, 263, 118357. [Google Scholar] [CrossRef]
  51. Mailhot, G.; Asif, A.; Bolte, M. Degradation of sodium 4-dodecylbenzenesulphonate photoinduced by Fe(III) in aqueous solution. Chemosphere 2000, 41, 363–370. [Google Scholar] [CrossRef]
  52. Ashokkumar, M.; Niblett, T.; Tantiongco, L.; Grieser, F. Sonochemical degradation of sodium dodecylbenzene sulfonate in aqueous solutions. Aust. J. Chem. 2003, 56, 1045. [Google Scholar] [CrossRef]
  53. Cai, Z.; Hao, X.; Sun, X.; Du, P.; Liu, W.; Fu, J. Highly active WO3@anatase-SiO2 aerogel for solar-light-driven phenanthrene degradation: Mechanism insight and toxicity assessment. Water Res. 2019, 162, 369–382. [Google Scholar] [CrossRef] [PubMed]
  54. Lima, T.M.S.; Procópio, L.C.; Brandão, F.D.; Leão, B.A.; Tótola, M.R.; Borges, A.C. Evaluation of bacterial surfactant toxicity towards petroleum degrading microorganisms. Bioresour. Technol. 2011, 102, 2957–2964. [Google Scholar] [CrossRef] [PubMed]
  55. Chen, L.; Ji, H.; Qi, J.; Huang, T.; Wang, C.; Liu, W. Degradation of acetaminophen by activated peroxymonosulfate using Co(OH)2 hollow microsphere supported titanate nanotubes: Insights into sulfate radical production pathway through CoOH+ activation. Chem. Eng. J. 2021, 406, 126877. [Google Scholar] [CrossRef]
  56. Li, M.; Qiang, Z.; Pulgarin, C.; Kiwi, J. Accelerated methylene blue (MB) degradation by Fenton reagent exposed to UV or VUV/UV light in an innovative micro photo-reactor. Appl. Catal. B-Environ. 2016, 187, 83–89. [Google Scholar] [CrossRef] [Green Version]
  57. Li, H.; Yang, Y.; Li, X.; Zhou, Z.; Feng, J.; Dai, Y.; Li, X.; Ren, J. Degradation of sulfamethazine by vacuum ultraviolet-activated sulfate radical-advanced oxidation: Efficacy, mechanism and influences of water constituents. Sep. Purif. Technol. 2022, 282, 120058. [Google Scholar] [CrossRef]
  58. Buxton, G.V.; Greenstock, C.L.; Helman, W.P.; Ross, A.B. Critical review of rate constants for reactions of hydrated electrons, hydrogen atoms and hydroxyl radicals (⋅OH/⋅O in aqueous solution. J. Phys. Chem. Ref. Data 1988, 17, 513–886. [Google Scholar] [CrossRef] [Green Version]
  59. Imoberdorf, G.; Mohseni, M. Modeling and experimental evaluation of vacuum-UV photoreactors for water treatment. Chem. Eng. Sci. 2011, 66, 1159–1167. [Google Scholar] [CrossRef]
  60. Bader, H.; Hoigné, J. Determination of ozone in water by the indigo method. Water Res. 1981, 15, 449–456. [Google Scholar] [CrossRef]
  61. Yin, R.; Chen, Y.; He, S.; Li, W.; Zeng, L.; Guo, W.; Zhu, M. In situ photoreduction of structural Fe(III) in a metal–organic framework for peroxydisulfate activation and efficient removal of antibiotics in real wastewater. J. Hazard. Mater. 2020, 388, 121996. [Google Scholar] [CrossRef]

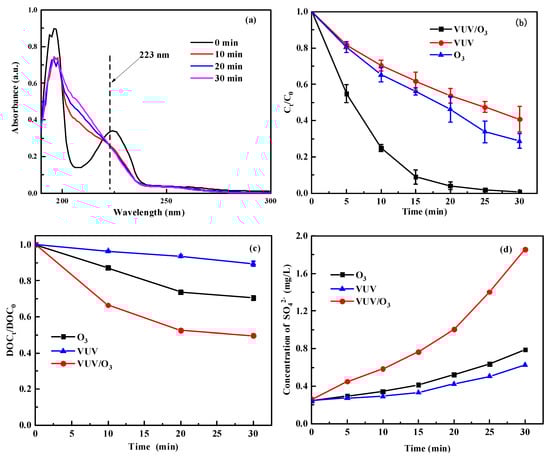

Figure 1. Rules of SDBS degradation by the VUV/O3 process: (a) UV-Vis spectra, (b) removal efficiency, (c) mineralization, and (d) SO42− concentration.
Figure 1. Rules of SDBS degradation by the VUV/O3 process: (a) UV-Vis spectra, (b) removal efficiency, (c) mineralization, and (d) SO42− concentration.
Molecules 28 03312 g001

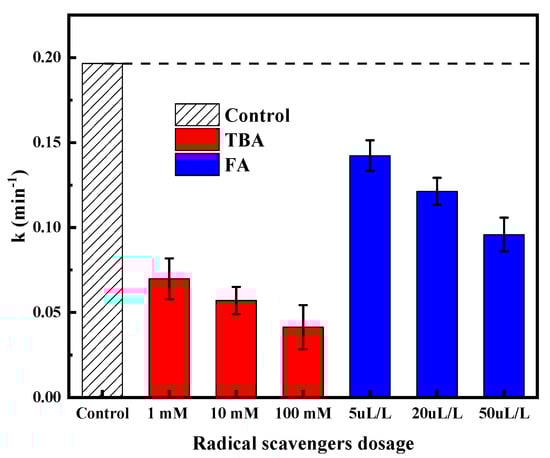

Figure 2. Scavenging tests during VUV/O3 process.
Figure 2. Scavenging tests during VUV/O3 process.
Molecules 28 03312 g002

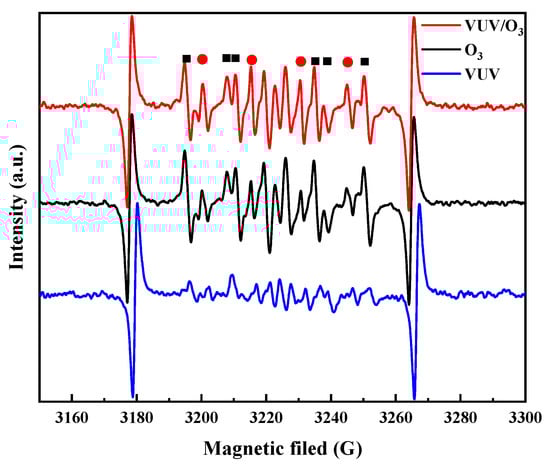

Figure 3. Radical species analysis at various process: HO• (red circles) and HOO• (black squares) formed in VUV/O3 process.
Figure 3. Radical species analysis at various process: HO• (red circles) and HOO• (black squares) formed in VUV/O3 process.
Molecules 28 03312 g003

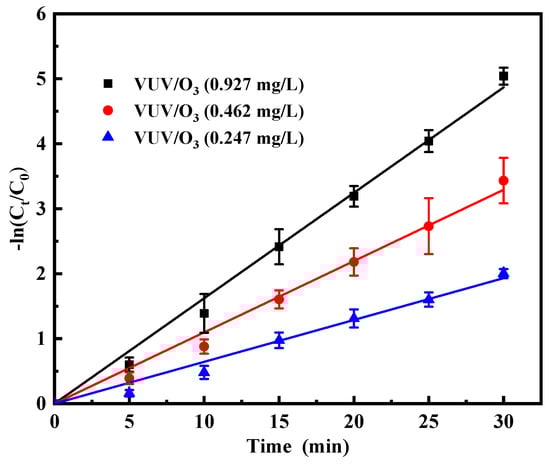

Figure 4. Impact of initial O3 concentration ([O3]0) on SDBS degradation by VUV/O3. Conditions: [O3]0 was changed from 0.247 to 0.927 mg/L.
Figure 4. Impact of initial O3 concentration ([O3]0) on SDBS degradation by VUV/O3. Conditions: [O3]0 was changed from 0.247 to 0.927 mg/L.
Molecules 28 03312 g004

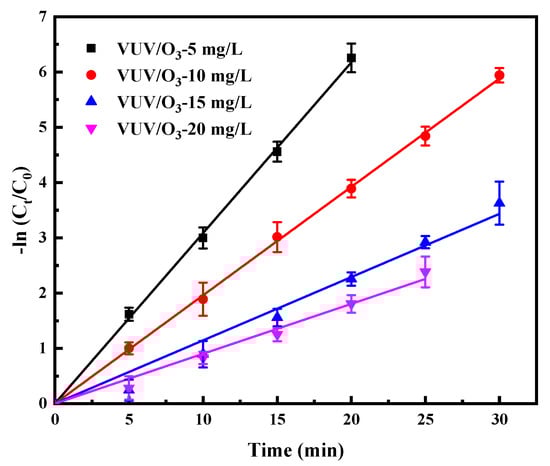

Figure 5. Impact of initial SDBS concentration ([SDBS]0) on SDBS degradation by VUV/O3. Conditions: [SDBS]0 was changed from 5 to 20 mg/L.
Figure 5. Impact of initial SDBS concentration ([SDBS]0) on SDBS degradation by VUV/O3. Conditions: [SDBS]0 was changed from 5 to 20 mg/L.
Molecules 28 03312 g005

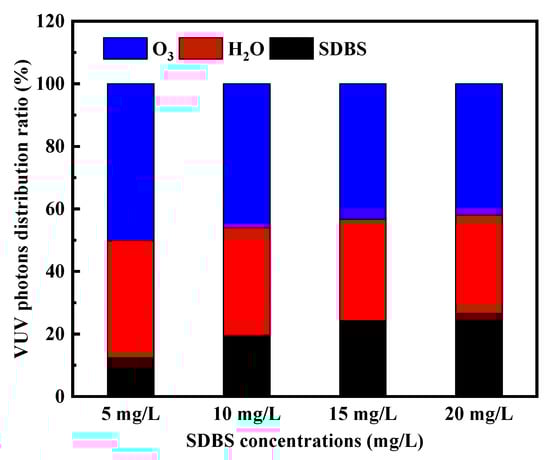

Figure 6. Impact of [SDBS]0 on the ratio of absorbance of various solution components to 185 nm photons.
Figure 6. Impact of [SDBS]0 on the ratio of absorbance of various solution components to 185 nm photons.
Molecules 28 03312 g006

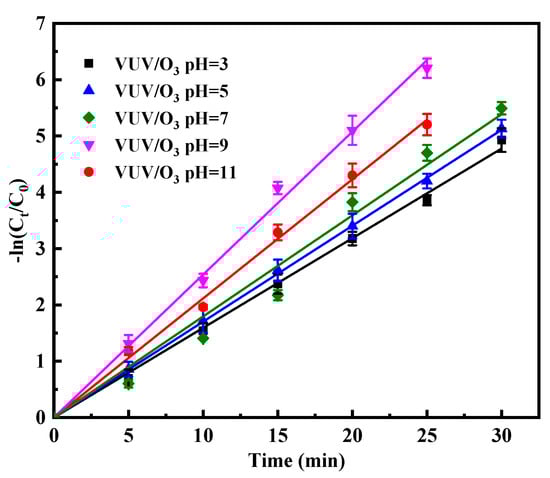

Figure 7. Impact of initial pH on the SDBS degradation during VUV/O3 treatment.
Figure 7. Impact of initial pH on the SDBS degradation during VUV/O3 treatment.
Molecules 28 03312 g007

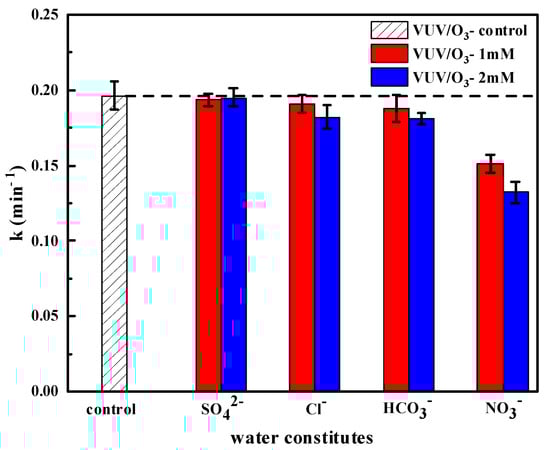

Figure 8. Impact of different inorganic anions (1–2 mM).
Figure 8. Impact of different inorganic anions (1–2 mM).
Molecules 28 03312 g008

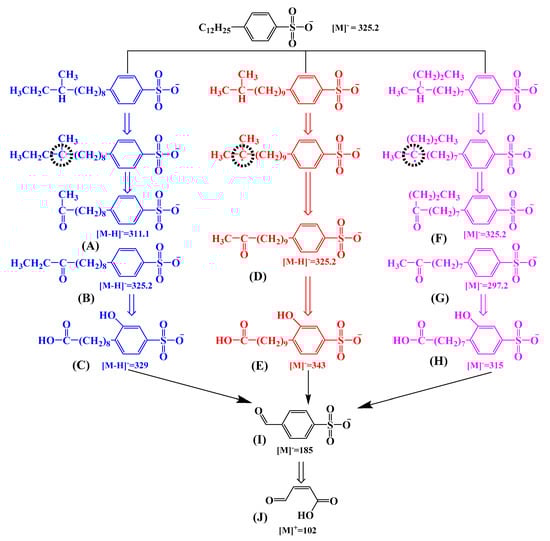

Figure 9. Proposed pathways of three SDBS isomers degradation by VUV/O3.
Figure 9. Proposed pathways of three SDBS isomers degradation by VUV/O3.
Molecules 28 03312 g009

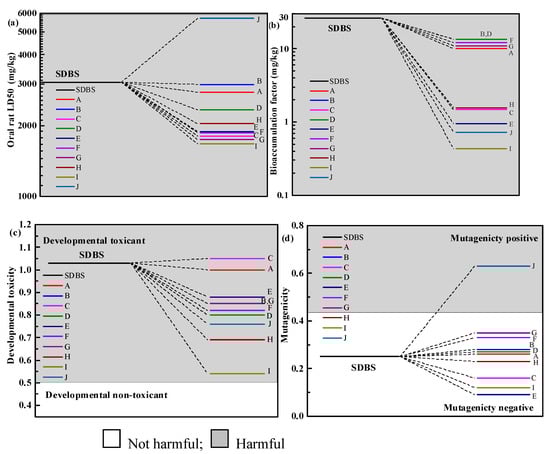

Figure 10. Theoretically calculated analysis of various toxicity of SDBS and its by-products: (a) Oral rat LD50, (b) bioaccumulation factor, (c) developmental toxicity, (d) mutagenicity.
Figure 10. Theoretically calculated analysis of various toxicity of SDBS and its by-products: (a) Oral rat LD50, (b) bioaccumulation factor, (c) developmental toxicity, (d) mutagenicity.
Molecules 28 03312 g010
Figure 11. Removal efficiency of anionic surfactants (in light blue), CODCr (in dark blue) and DOC (in red) by VUV/O3 in laundry wastewater.
Figure 11. Removal efficiency of anionic surfactants (in light blue), CODCr (in dark blue) and DOC (in red) by VUV/O3 in laundry wastewater.
Molecules 28 03312 g011
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, H.; Yang, Y.; Li, X.; Ullah, H. Remediation of Surfactants Used by VUV/O3 Techniques: Degradation Efficiency, Pathway and Toxicological Analysis. Molecules 2023, 28, 3312. https://doi.org/10.3390/molecules28083312

AMA Style

Li H, Yang Y, Li X, Ullah H. Remediation of Surfactants Used by VUV/O3 Techniques: Degradation Efficiency, Pathway and Toxicological Analysis. Molecules. 2023; 28(8):3312. https://doi.org/10.3390/molecules28083312

Chicago/Turabian Style

Li, Hang, Yanling Yang, Xing Li, and Habib Ullah. 2023. "Remediation of Surfactants Used by VUV/O3 Techniques: Degradation Efficiency, Pathway and Toxicological Analysis" Molecules 28, no. 8: 3312. https://doi.org/10.3390/molecules28083312

Article Metrics

Back to TopTop
