Organocatalytic Asymmetric [2 + 4] Cycloadditions of 3-Vinylindoles with ortho-Quinone Methides

,
,
,
,
,
and
1
School of Chemistry and Materials Science, Jiangsu Normal University, Xuzhou 221116, China
2
Department of Chemistry, Key Laboratory for Preparation and Application of Ordered Structural Materials of Guangdong Province, Shantou University, Shantou 515063, China
*
Authors to whom correspondence should be addressed.
Molecules2021, 26(21), 6751;https://doi.org/10.3390/molecules26216751
This article belongs to the Special Issue Recent Advances in Chiral Ligand/Catalyst Design and Asymmetric Catalytic Reactions
Version Notes
Order Reprints

Abstract

Catalytic asymmetric [2 + 4] cycloadditions of 3-vinylindoles with ortho-quinone methides and their precursors were carried out in the presence of chiral phosphoric acid to afford a series of indole-containing chroman derivatives with structural diversity in overall high yields (up to 98%), good diastereoselectivities (up to 93:7 dr) and moderate to excellent enantioselectivities (up to 98% ee). This approach not only enriches the chemistry of catalytic asymmetric cycloadditions involving 3-vinylindoles but is also useful for synthesizing chiral chroman derivatives.

1. Introduction

Chiral indole derivatives are ubiquitous in biologically important natural products, pharmaceuticals and materials [1,2,3,4,5]. In recent years, vinylindoles have been recognized as versatile reactants for the synthesis of enantioenriched indole derivatives [6,7]. The 3-vinylindoles belong to a class of vinylindoles with multiple reactive sites and are widely applied in organocatalytic asymmetric cycloadditions and substitutions [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29].
As shown in Figure 1, 3-vinylindoles exhibit versatile reactivities and participate in four main types of organocatalytic asymmetric reactions. Namely, 3-vinylindoles act as dienes in asymmetric [4 + 2] cycloaddition (Figure 1a) [8,9,10,11,12], as mono-olefins in asymmetric [2 + n] cycloaddition (Figure 1b) [13,14,15,16,17,18,19,20,21,22,23], as electrophiles in asymmetric addition reaction (Figure 1c) [24,25,26,27], and as nucleophiles in asymmetric alkenylation (Figure 1d) [28,29]. Among these reactions, organocatalytic asymmetric [2 + n] cycloaddition of 3-vinylindoles as mono-olefins has proven to be an important reaction (Figure 1b) to efficiently synthesize indole-containing heterocycles with optical purity [30,31].

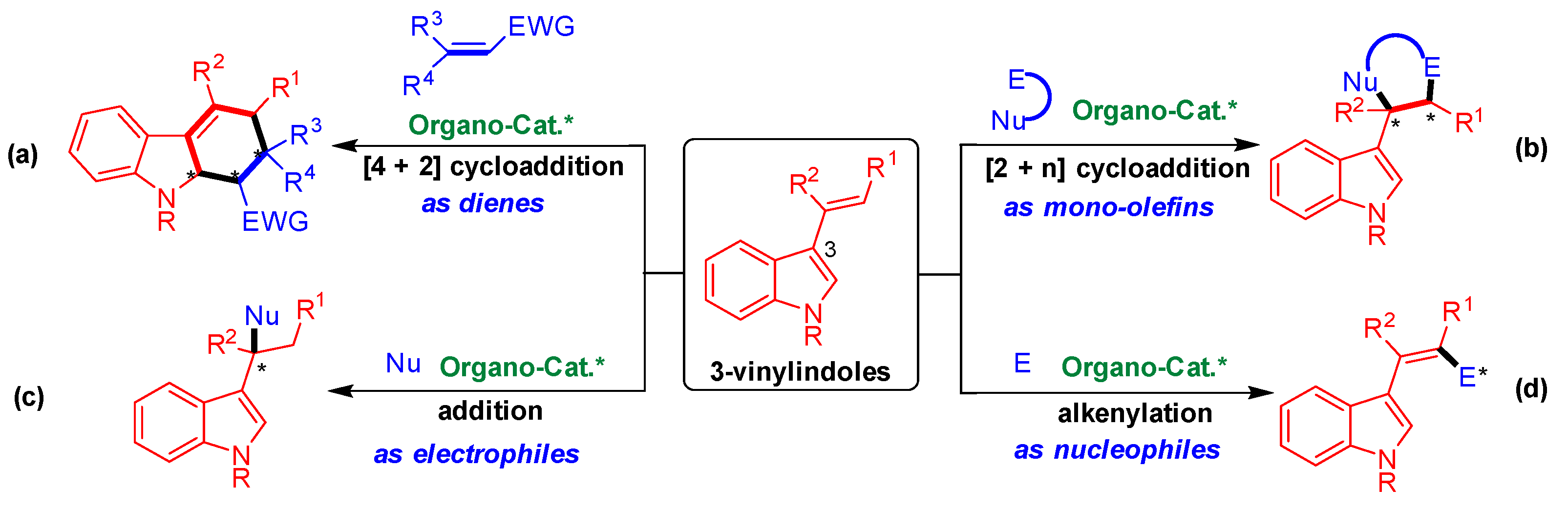

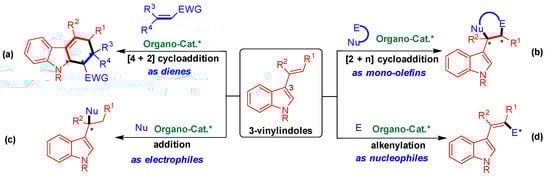

Figure 1. Profile of organocatalytic asymmetric reactions involving 3-vinylindoles. (a) [4 + 2] Cycloaddition; (b) [2 + n] Cycloaddition; (c) Addition reaction; (d) Alkenylation reaction. The asterisk * indicates chiral center.
Among the organocatalytic asymmetric [2 + n] cycloadditions of 3-vinylindoles, [2 + 4] cycloadditions using 3-vinylindoles as dienophiles belong to a class of important inverse-electron-demand Diels−Alder reactions (Figure 2). However, most of these reactions involve [2 + 4] cycloadditions of 3-vinylindoles with aza-dienes (Figure 2a) [13,14,15]. By sharp contrast, organocatalytic asymmetric [2 + 4] cycloadditions of 3-vinylindoles with oxa-dienes have been sporadically reported in the literature (Figure 2b) [16,17,18]. The underdevelopment of this class of reactions could be ascribed to the considerable challenges encountered in conducting these reactions, which mainly include (1) finding suitable reaction partners and (2) controlling the regioselectivity (whether 3-vinylindoles act as mono-olefins or dienes) and enantioselectivity of the cycloaddition reaction.

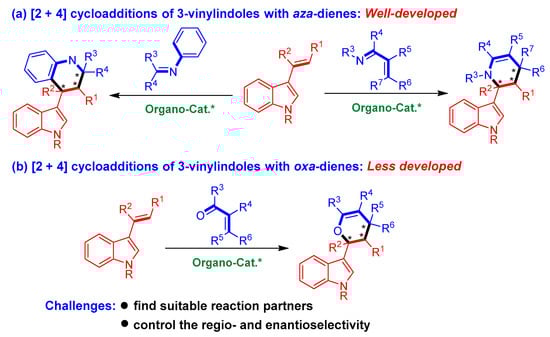

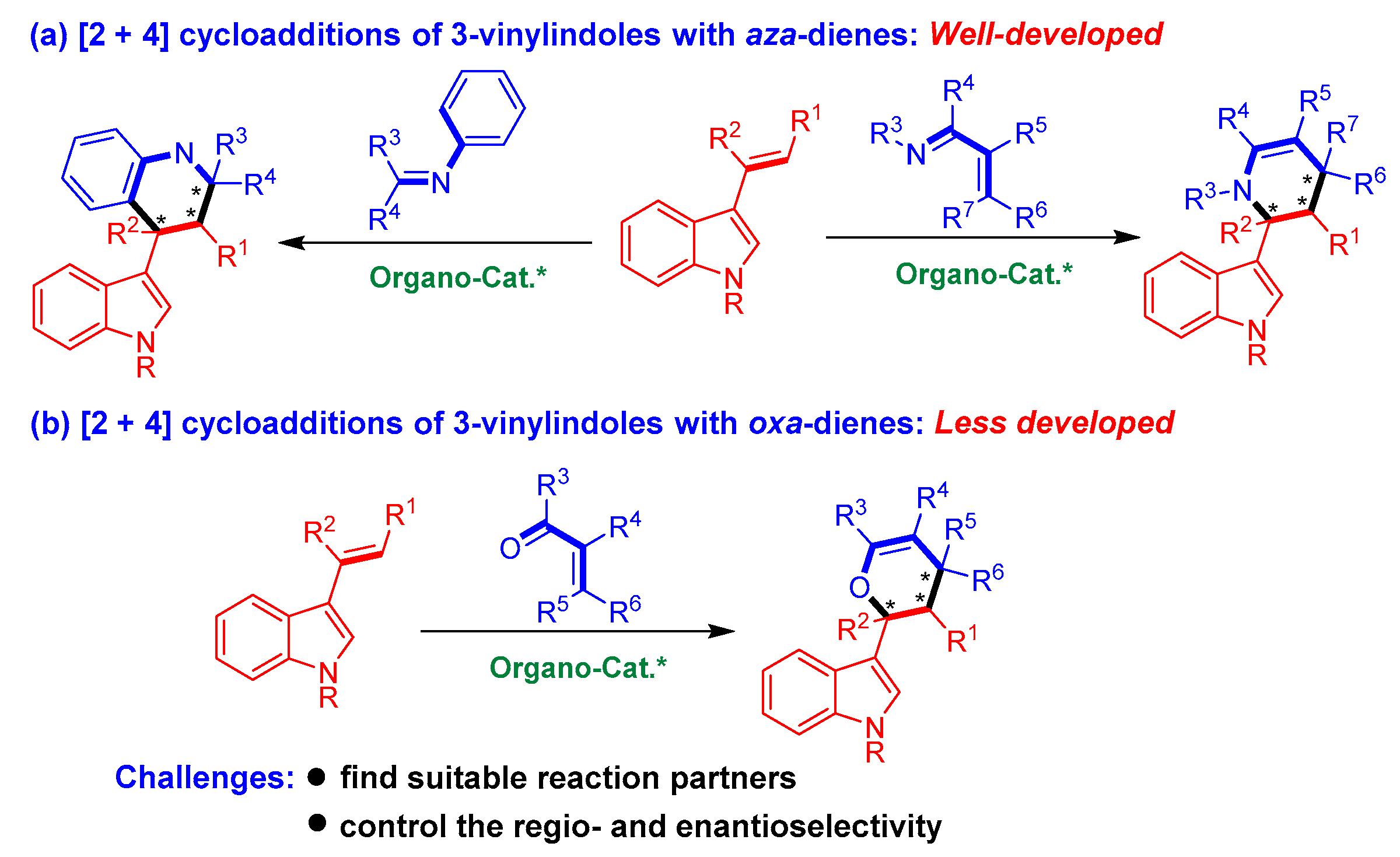

Figure 2. Profile of organocatalytic asymmetric [2 + 4] cycloadditions of 3-vinylindoles. The asterisk * indicates chiral center.
To date, there are only three cases of organocatalytic asymmetric [2 + 4] cycloadditions of 3-vinylindoles with oxa-dienes (Figure 3) [16,17,18]. In 2011, Zhu’s group realized the organocatalytic asymmetric [2 + 4] cycloaddition of 3-vinylindoles with chromone-derived oxa-dienes, generating enantioenriched indole-containing heterocycles (Figure 3a) [16]. In 2019, Zhang and coworkers performed an organocatalytic asymmetric [2 + 4] cycloaddition of 3-vinylindoles with β,γ-unsaturated α-ketoesters with high enantioselectivities (Figure 3b) [17]. Very recently, our group reported an organocatalytic asymmetric [2 + 4] cycloaddition of 3-vinylindoles with ortho-hydroxyphenyl-substituted para-quinone methide derivatives that provides a series of chiral chroman derivatives bearing an indole moiety (Figure 3c) [18]. Other than these cases, organocatalytic asymmetric [2 + 4] cycloadditions of 3-vinylindoles with oxa-dienes remain rather limited. Therefore, developing this class of reactions and overcoming the associated inherent challenges are urgently required.

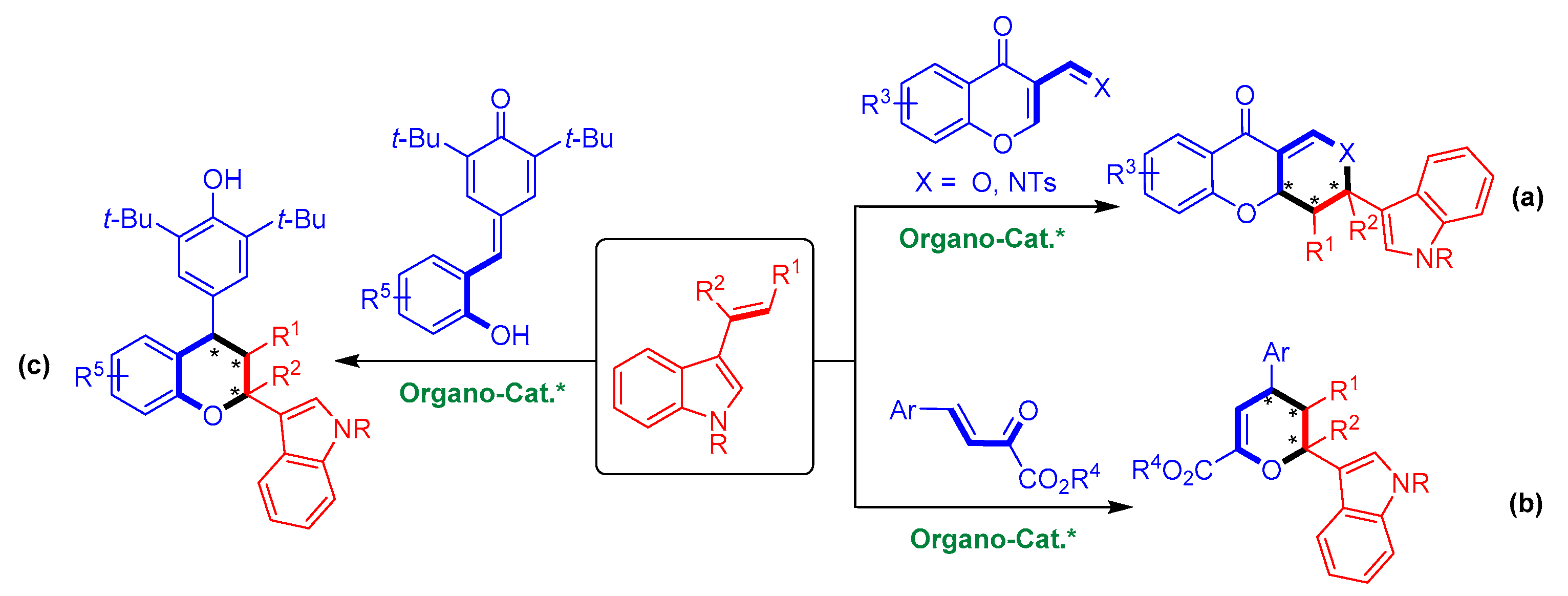

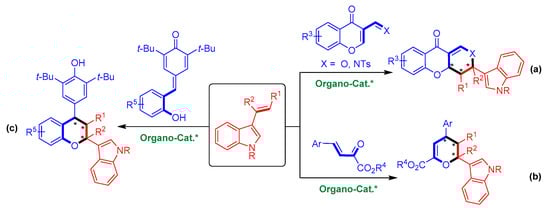

Figure 3. Limited examples of organocatalytic asymmetric [2 + 4] cycloadditions of 3-vinylindoles with oxa-dienes. (a) With chromone-derived oxa-dienes; (b) With β,γ-unsaturated α-ketoesters; (c) With ortho-hydroxyphenyl-substituted para-quinone methides. The asterisk * indicates chiral center.
To fulfill this task and in continuation of our ongoing efforts in the enantioselective synthesis of indole-based chiral heterocycles [32,33,34,35], we designed a chiral phosphoric acid [36,37,38,39,40,41,42,43,44] (CPA)-catalyzed asymmetric [2 + 4] cycloaddition of 3-vinylindoles with ortho-quinone methides (o-QMs) and their precursors (Figure 4). The o-QMs were selected as suitable reaction partners because of their high reactivity as oxa-dienes in catalytic asymmetric cycloadditions [45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63]. Within this design scheme, 3-vinylindoles 1 and o-QMs 2 can be simultaneously activated by CPA via hydrogen-bonding interactions. This dual activation mode of CPA facilitates regioselective and enantioselective [2 + 4] cycloaddition between 3-vinylindoles 1 and o-QMs 2, thus affording the chiral indole-containing chroman derivatives 3.

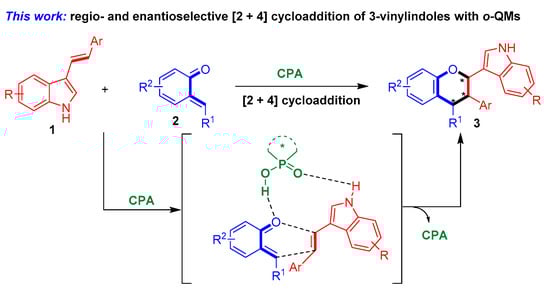

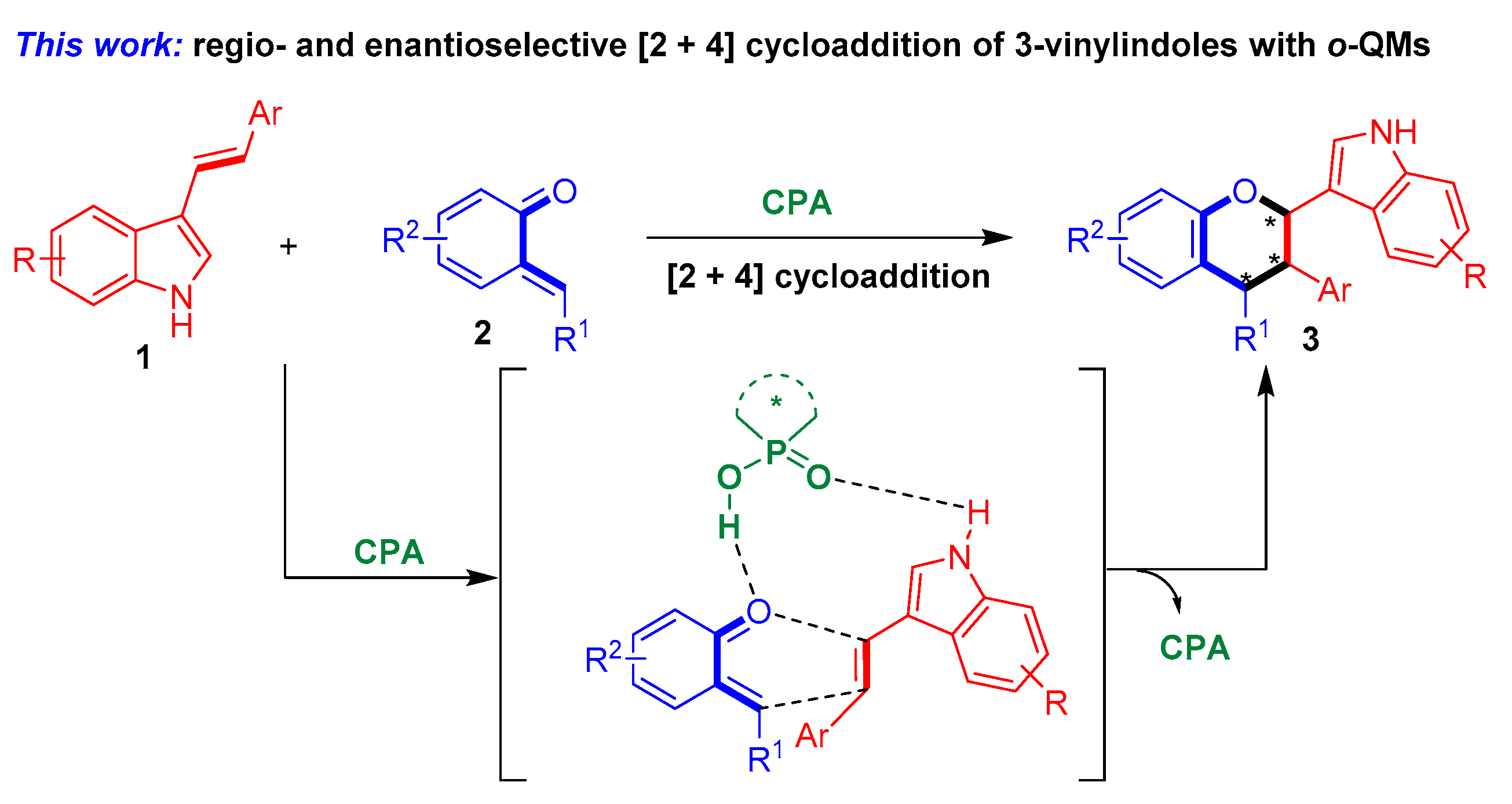

Figure 4. Design of CPA-catalyzed asymmetric [2 + 4] cycloaddition of 3-vinylindoles using o-QMs. The asterisk * indicates chiral center.
Herein, we report the CPA-catalyzed asymmetric [2 + 4] cycloaddition of 3-vinylindoles with o-QMs and their precursors to afford chiral indole-containing chroman derivatives in overall good yields (up to 98% yield) and moderate to excellent stereoselectivities (up to 93:7 dr, 98% ee).

2. Results and Discussion

2.1. Organocatalytic Asymmetric [2 + 4] Cycloaddition of 3-Vinylindoles with Sesamol-Derived o-QMs

2.1.1. Optimization of Reaction Conditions

To test the feasibility of the designed catalytic asymmetric [2 + 4] cycloaddition, 3-vinylindole 1a was reacted with sesamol-derived o-QM 2a in the presence of CPA (R)-4a at 25 °C in toluene (Table 1, entry 1). Catalytic asymmetric [2 + 4] cycloaddition occurred, as expected, to afford the chiral chroman derivative 3aa in a moderate yield with excellent diastereoselectivity, albeit with no enantio-control (43% yield, 96:4 dr, 0% ee). To control the enantioselectivity of this [2 + 4] cycloaddition, a series of CPAs 4 were screened (entries 2–7). The CPA (R)-4c bearing two bulky 3,3′-(1-naphthyl) groups facilitated the [2 + 4] cycloaddition with the highest enantioselectivity of 66% ee (for the major diastereomer) among the investigated catalysts (entry 3 vs. entries 1–2 and 4–7), which could be ascribed to the steric hindrance effect of the 3,3′-disubstituents of CPA in creating a chiral environment for controlling the enantioselectivity [64,65]. The subsequent evaluation of a series of representative solvents (entries 8–12) in the presence of CPA (R)-4c showed that toluene remained the most suitable solvent in terms of controlling the enantioselectivity (entry 3 vs. entries 8–12).

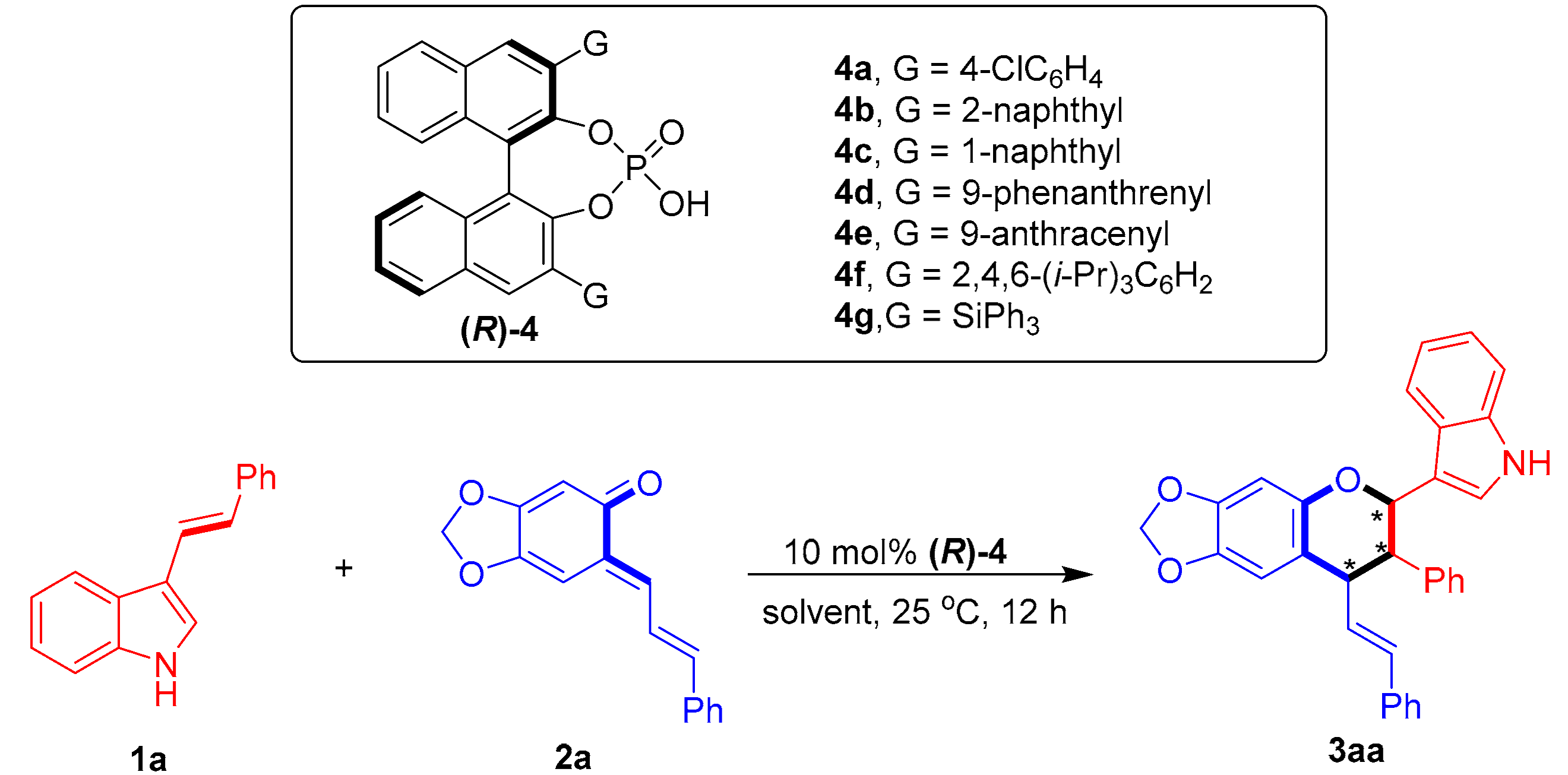

Table 1. Screening of catalysts and solvents a.
Next, we investigated the effect of the reaction temperature (Table 2, entries 1–4) and found 0 °C to be the optimal reaction temperature (entry 1 vs. entry 3). Modulating the molar ratio of the reactants (entries 5–8) revealed that increasing the quantity of sesamol-derived o-QM 2a improved the yield but decreased the enantioselectivity (entry 3 vs. entries 5–6), whereas increasing the quantity of 3-vinylindole 1a was detrimental to the reaction (entry 3 vs. entries 7–8). Therefore, the most suitable molar reagent ratio remained 1:1.2. Finally, some additives were screened (entries 9–13), and the optimal conditions for this [2 + 4] cycloaddition were set as shown in entry 12.

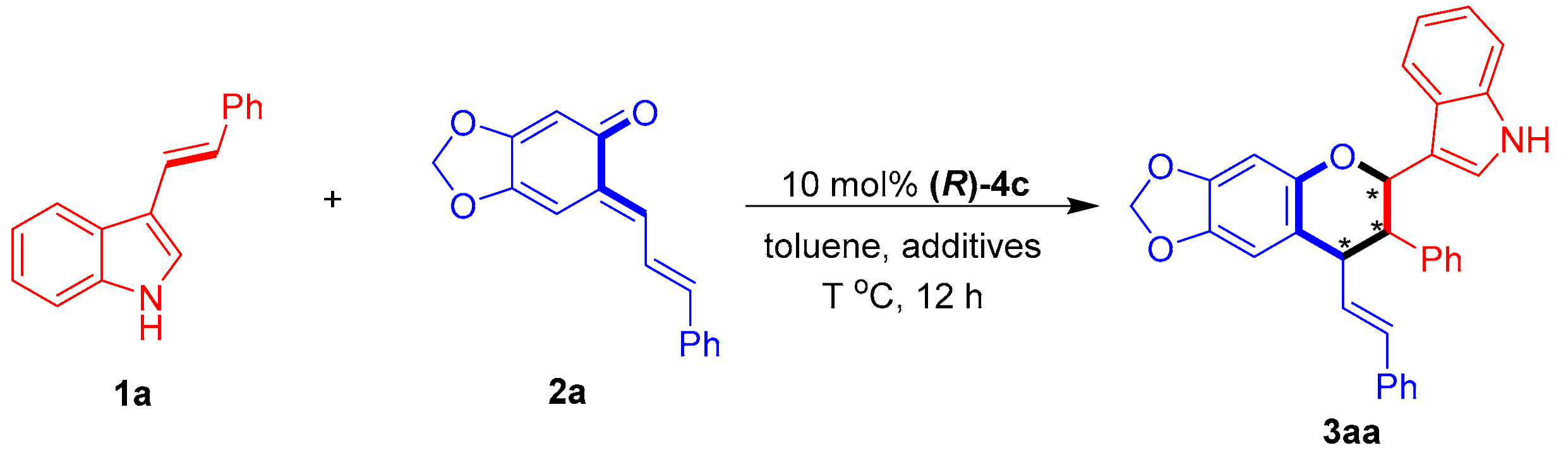

Table 2. Further optimization of reaction conditions a.

2.1.2. Substrate Scope

After establishing the optimal reaction conditions, we investigated the substrate scope of the 3-vinylindoles 1 for catalytic asymmetric [2 + 4] cycloadditions with sesamol-derived o-QM 2a. As shown in Table 3, a variety of 3-vinylindoles 1 bearing different R/R1 groups underwent [2 + 4] cycloadditions to generate chiral indole-containing chroman derivatives 3 in overall good yields (54–98%) and moderate to excellent stereoselectivities (78:22 dr to 93:7 dr, 55–97% ee). In detail, C5-, C6- and C7-substituted 3-vinylindoles 1b–1f participated in the [2 + 4] cycloaddition with high yields and moderate enantioselectivities (entries 2–6). In addition, a series of ortho-, meta- and para-substituted phenyl groups were utilized as R1 groups for the 3-vinylindoles 1, and the corresponding substrates participated in [2 + 4] cycloaddition with moderate to good results (entries 7–13). Among these 3-vinylindoles, 1l–1m bearing para-substituted phenyl groups (R1) delivered the corresponding products 3la–3ma with the best enantioselectivities (85% ee and 97% ee, entries 12–13). Notably, these para-substituted substrates 1l–1m displayed a much higher capability in controlling the enantioselectivity than their ortho- and meta-substituted counterparts (entries 12–13 vs. entries 7–8 and 10–11), which might be ascribed to the steric effect of the para-substituents.

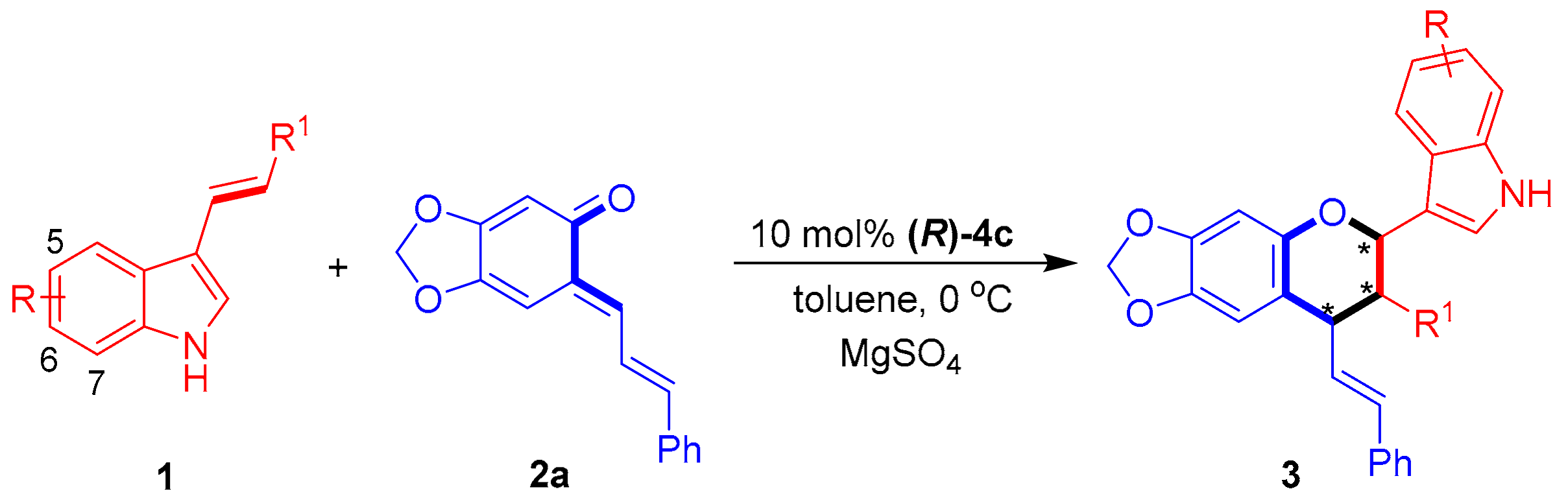

Table 3. Substrate scope of 3-vinylindoles 1 a.
Next, the substrate scope of sesamol-derived o-QMs 2 was explored by catalytic asymmetric [2 + 4] cycloaddition with 3-vinylindole 1a (Table 4). This reaction was clearly amenable to participation by a series of sesamol-derived o-QMs 2a–2g bearing either electron-donating or electron-withdrawing groups at different positions of the phenyl ring (entries 1−7), producing chiral indole-containing chroman derivatives 3 in generally high yields (53–98%) and moderate to excellent diastereo- and enantioselectivities (75:25 dr to 89:11 dr, 60–98% ee). Among these o-QMs, 2f–2g bearing para-halogen-substituted phenyl groups delivered products 3af–3ag in the highest enantioselectivities of 97–98% ee (entries 4–7). Notably, o-QM 2h bearing a heteroaromatic 2-thiophenyl group could also be utilized as a reaction partner to yield the product 3ah with a high enantioselectivity of 87% ee (entry 8).
Table 4. Substrate scope of o-QMs 2 a.
The structures of all products 3 were identified by their NMR, IR and HR MS data, and the ee value of all products 3 were calculated by their HPLC traces (see the Supplementary Materials). Although we tried to cultivate the single crystal from enantioenriched products 3, we failed to achieve this goal. So, the absolute configurations of chiral products 3 could not be determined. Nevertheless, when N-methyl-protected 3-vinylindole 1n was employed as a substrate in the reaction with sesamol-derived o-QM 2a under standard conditions (Figure 5a), the [2 + 4] cycloaddition occurred to generated product 3na in a moderate yield and diastereoselectivity (47% yield, 86:14 dr) albeit with an extremely low enantioselectivity (14% ee). Fortunately, we cultivated the single crystal of product 3na, whose relative configuration was determined to be (trans, trans) by X-ray diffraction analysis of the single crystal (CCDC 2100427, see the Supplementary Materials) (Figure 5b).

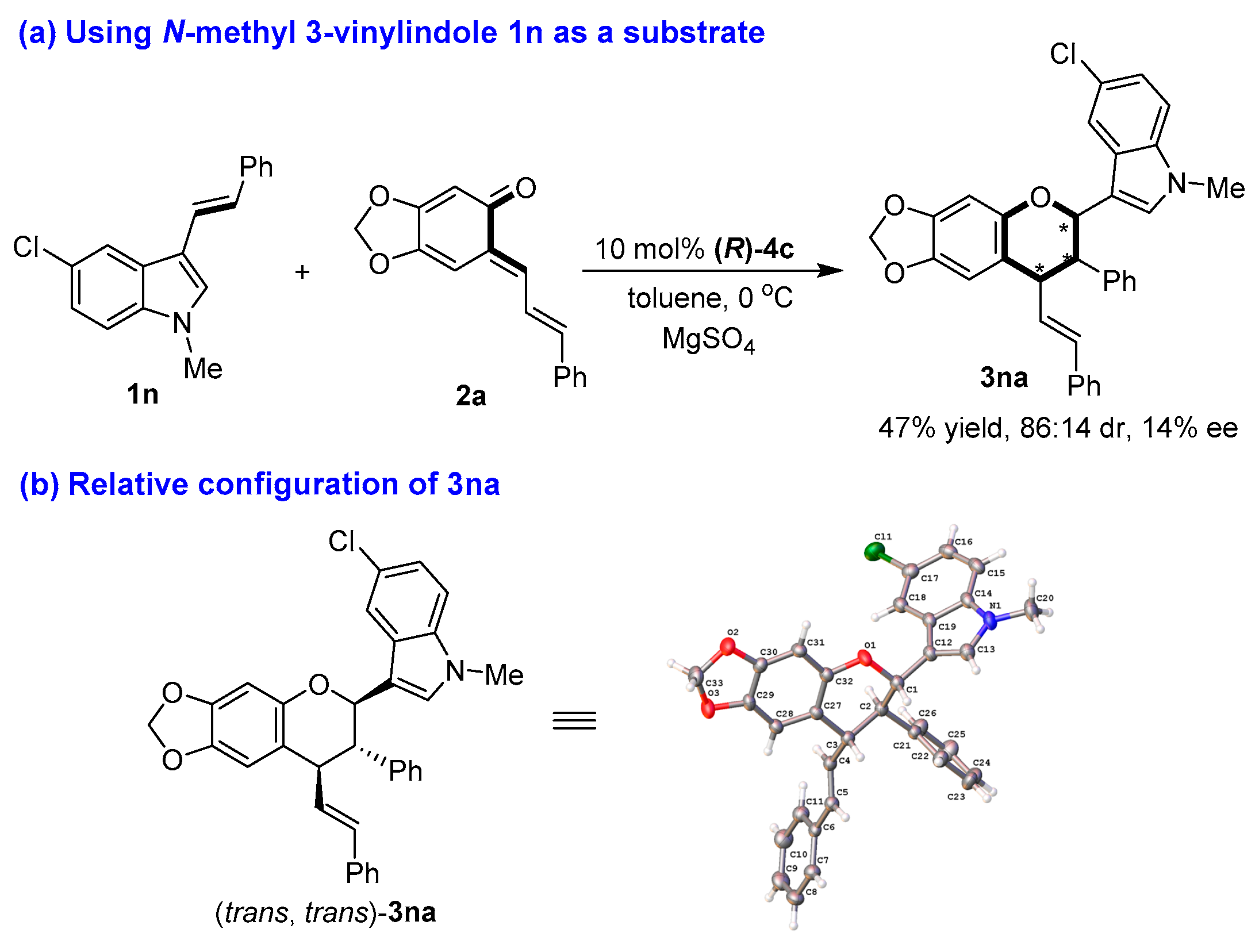

Figure 5. Determination of the relative configuration of 3na. The asterisk * indicates chiral center.

2.1.3. Theoretical Calculations of the Reaction Pathway and Key Transition States

To elucidate the reaction pathway and the interaction of CPA with the substrates, we carried out theoretical calculations on the reaction pathway of catalytic asymmetric [2 + 4] cycloaddition (see the Supplementary Materials) based on previous mechanistic studies [66,67]. As exemplified by the formation of product 3ma (Figure 6a), the key transition states (TSs) and the Gibbs free energy leading to the enantiomers of 3ma were determined, wherein TS-1 led to the major enantiomer (R,S,R)-3ma and TS-1′ led to the minor enantiomer (S,R,S)-3ma. DFT calculations revealed that the two bulky 3,3′-(1-naphthyl) groups and the BINOL scaffold of CPA (R)-4c formed a pocket-like chiral environment to hold the two substrates of 1m and 2a in a confined orientation. Specifically, in TS-1, 3-vinylindole 1m was located above o-QM 2a in the chiral pocket of CPA (R)-4c, wherein the space above 2a was enough to make 1m have little steric effect on other groups. While in TS-1′, 1m was located below o-QM 2a, wherein the space below 2a was limited, thus making the phenyl group of 1m have some steric effect on the 1-naphthyl group of (R)-4c. This steric repulsion made TS-1′ inferior to TS-1, which led to the formation of the major enantiomer (R,S,R)-3ma.

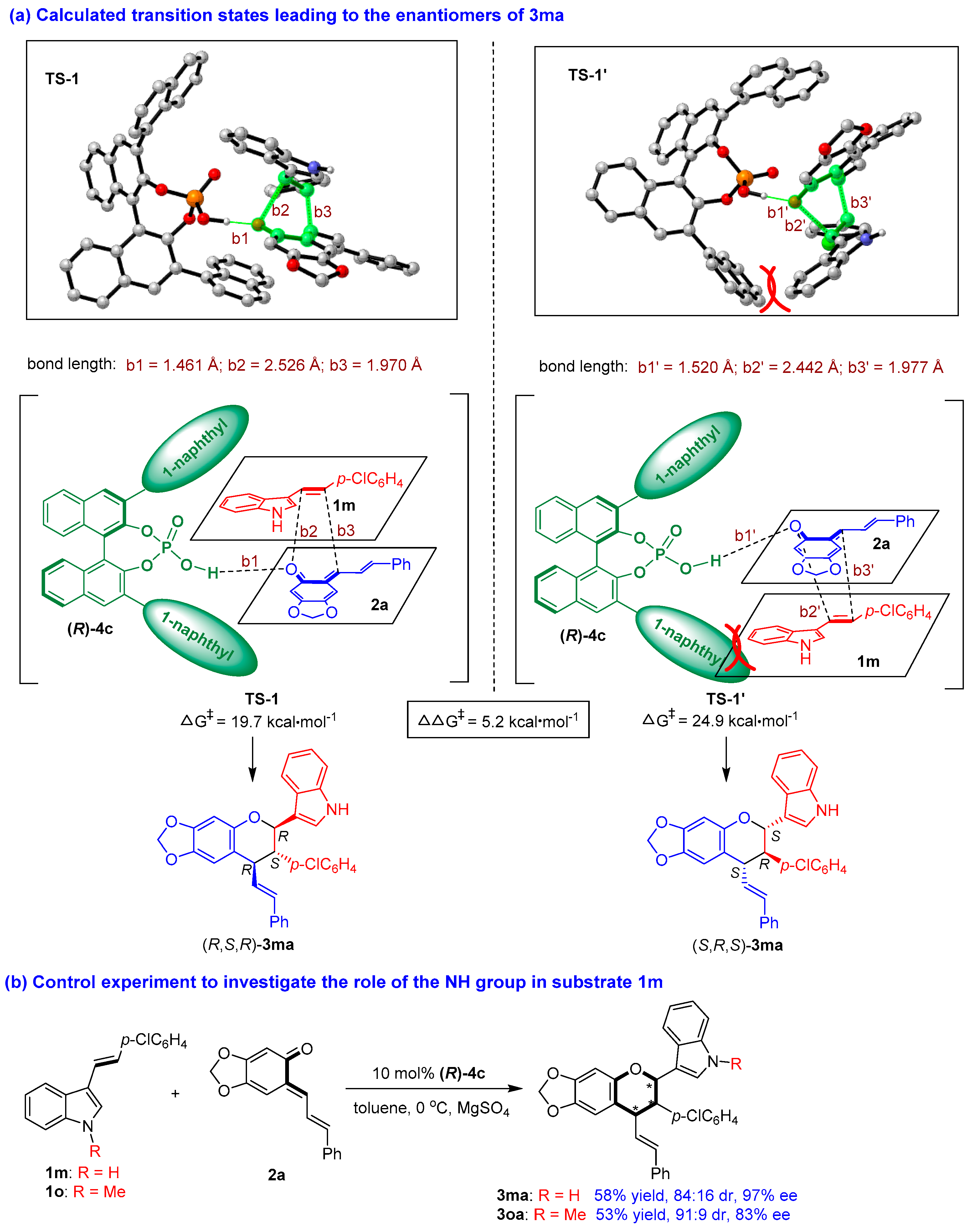

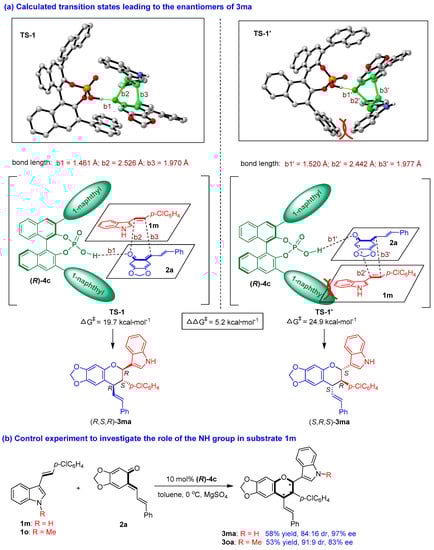

Figure 6. Calculated transition states leading to the enantiomers of 3ma and control experiment. The asterisk * indicates chiral center.
In TS-1, CPA (R)-4c utilized its O-H group to form a strong hydrogen bond (b1 = 1.461 Å) with the C=O group of o-QM 2a, but there was no discernible hydrogen-bonding interaction between CPA (R)-4c and 3-vinylindole 1m. In addition, the calculations suggested that the [2 + 4] cycloaddition largely occurred via a concerted reaction pathway involving the formation of two new bonds (b2 = 2.526 Å, b3 = 1.970 Å). However, the longer bond length of b2 than b3 indicated that b3 (a C-C bond) formed slightly earlier than b2 (a C-O bond), which is in accordance with the reactivity of 3-vinylindole (based on the nucleophilicity of the vinyl group). In TS-1′, there were similar interactions between CPA (R)-4c and the substrates. However, the hydrogen bond (b1′ = 1.520 Å) between (R)-4c and 2a in TS-1′ was weaker than that in TS-1 (b1 = 1.461 Å), which resulted in a significantly higher Gibbs free energy barrier for the generation of TS-1′ (24.9 kcal/mol) compared to that for TS-1 (19.7 kcal/mol). The calculated difference in the energy barriers for the two transition states of TS-1′ and TS-1 of 5.2 kcal/mol explained the excellent experimentally obtained enantioselectivity of 3ma (97% ee).
Very interestingly, in the calculated transition states, there was no discernible hydrogen-bonding interaction between CPA (R)-4c and 3-vinylindole 1m, which was seldom reported in CPA-catalyzed reactions involving 3-vinylindoles. To verify this issue, we performed a control experiment to investigate the role of the NH group in substrate 1m (Figure 6b). Namely, 3-vinylindole 1o, as N-methyl protected counterpart of 1m, was employed as a substrate in the [2 + 4] cycloaddition with o-QM 2a under standard conditions, which smoothly generated product 3oa in a moderate yield of 53% with a good diastereo- and enantioselectivity (91:9 dr, 83% ee). Compared to the results of product 3ma which was generated from N-unprotected 3-vinylindole 1m, the yield and the stereoselectivity of product 3oa were on a similar level, thus supporting the calculated activation mode that the NH group of 3-vinylindole 1m had no discernible hydrogen-bonding interaction with CPA (R)-4c.
It should be noted that the E-configuration of vinylindoles 1 has been retained as trans-configuration in products 3 due to a concerted [2 + 4] cycloaddition pathway as illustrated in TS-1. So, the diastereomeric ratio of product 3 reflects the stereoselectivity of the two adjacent chiral centers generated by the two individual substrates 1 and 2.

2.1.4. Large-Scale Synthesis of Product 3aa

Finally, the catalytic asymmetric [2 + 4] cycloaddition of 1a with 2a was carried out on a one mmol scale (Figure 7). The yield and stereoselectivity of this one-mmol-scale reaction were at the same level as those of the small-scale reaction (Table 3, entry 1), which implied that the catalytic asymmetric [2 + 4] cycloaddition could be scaled up.

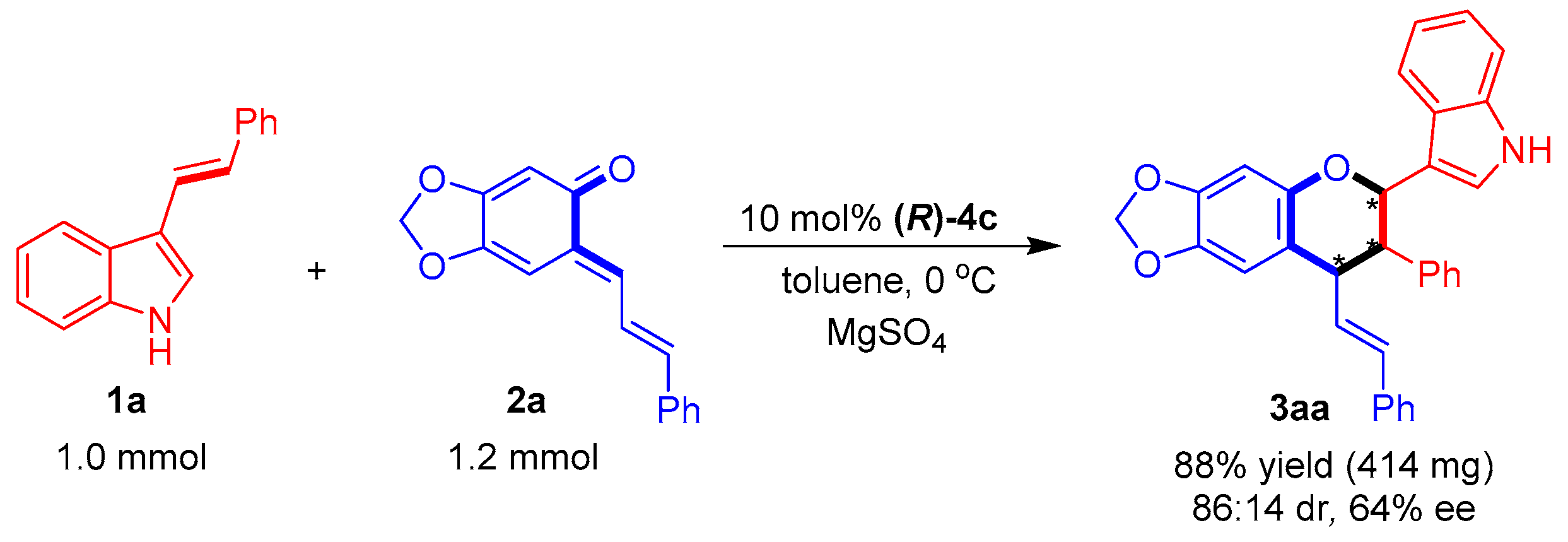

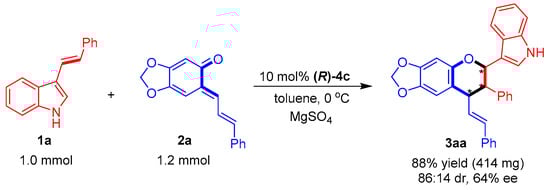

Figure 7. One-mmol-scale synthesis of product 3aa. The asterisk * indicates chiral center.

2.2. Organocatalytic Asymmetric [2 + 4] Cycloaddition of 3-Vinylindoles with o-Hydroxybenzyl Alcohols

To expand the substrate scope of this organocatalytic asymmetric [2 + 4] cycloaddition, we attempted to react 3-vinylindole 1a with o-hydroxybenzyl alcohol 5a as a precursor of o-QM (Table 5). In the presence of CPA (R)-4a (entry 1), the desired product 6aa was afforded in a moderate yield, albeit with a low stereoselectivity (51% yield, 67:33 dr, 42% ee). Then, a series of CPAs (R)-4 were screened. Among these CPAs, (R)-4e, bearing two 3,3′-(9-anthracenyl) groups, displayed the highest catalytic activity in delivering product 6aa with a better enantioselectivity than the other catalysts (entry 5 vs. entries 1–4 and 6–7), which could also be ascribed to the steric hindrance effect of the bulky 3,3′-disubstituents of CPA (R)-4e in controlling the enantioselectivity. Next, different solvents were evaluated in the presence of (R)-4e, revealing toluene to still be the most suitable solvent (entry 5 vs. entries 8–12). Finally, the reaction temperature was modulated (entries 13–15), and the optimal reaction conditions were set as shown in entry 14.

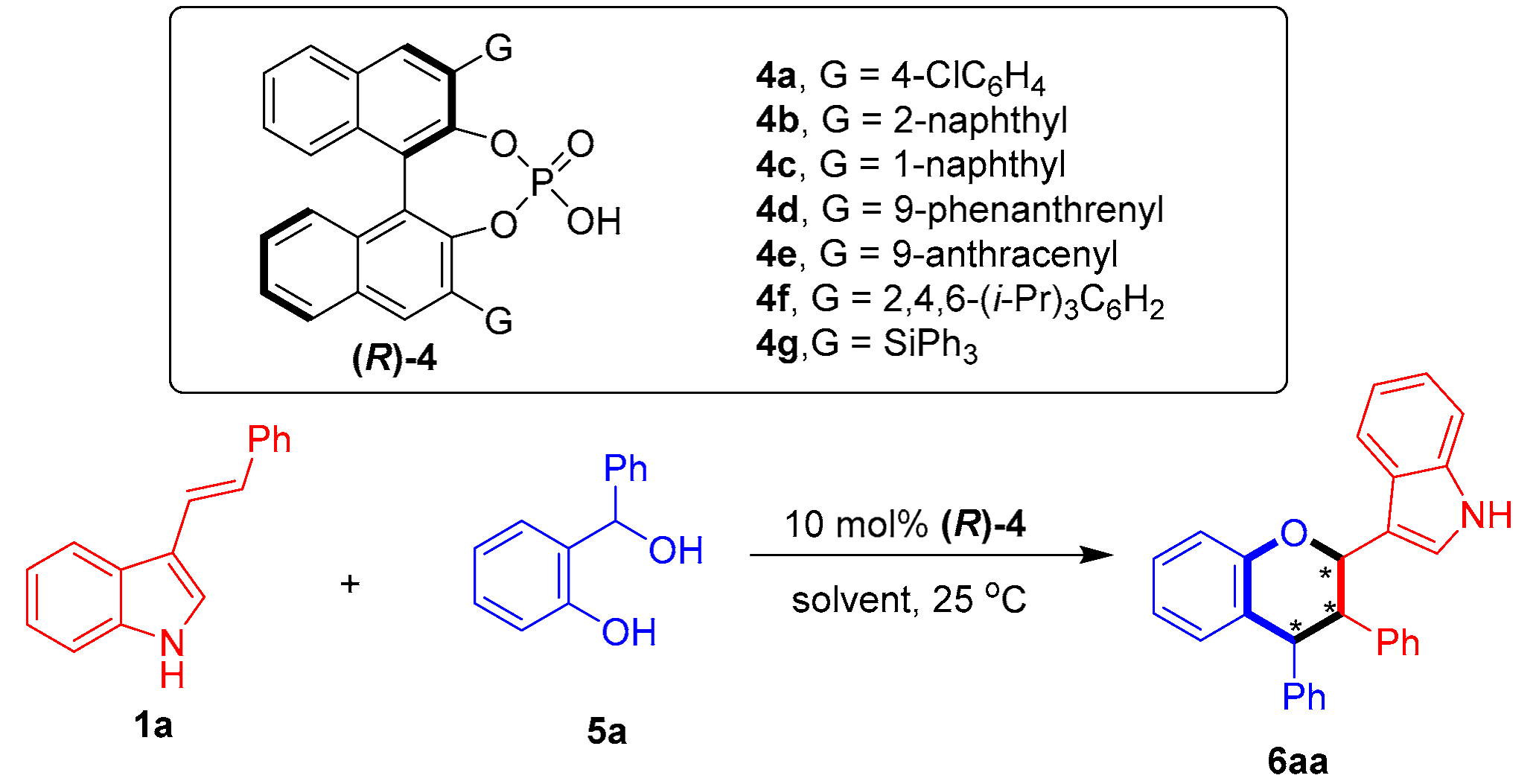

Table 5. Optimization of reaction conditions for [2 + 4] cycloaddition of 1a with 5a a.
With the optimal conditions in hand, we investigated the substrate scope of 3-vinylindole 1 in catalytic asymmetric [2 + 4] cycloaddition with the o-hydroxybenzyl alcohol 5a. As shown in Table 6, this [2 + 4] cycloaddition was amenable to participation by a wide range of 3-vinylindoles 1 bearing different R/R1 groups. In detail, C5-, C6- and C7-substituted 3-vinylindoles participated in the [2 + 4] cycloaddition with the o-hydroxybenzyl alcohol 5a to generate the chiral indole-containing chroman derivatives 6 in moderate to good diastereo- and enantioselectivities (75:25 dr to 83:17 dr, 74–82% ee, entries 2–7). In addition, meta- and para-substituted phenyl groups were found to be suitable R1 groups for the 3-vinylindoles 1, and the corresponding substrates participated in [2 + 4] cycloaddition with good results (entries 8–9).

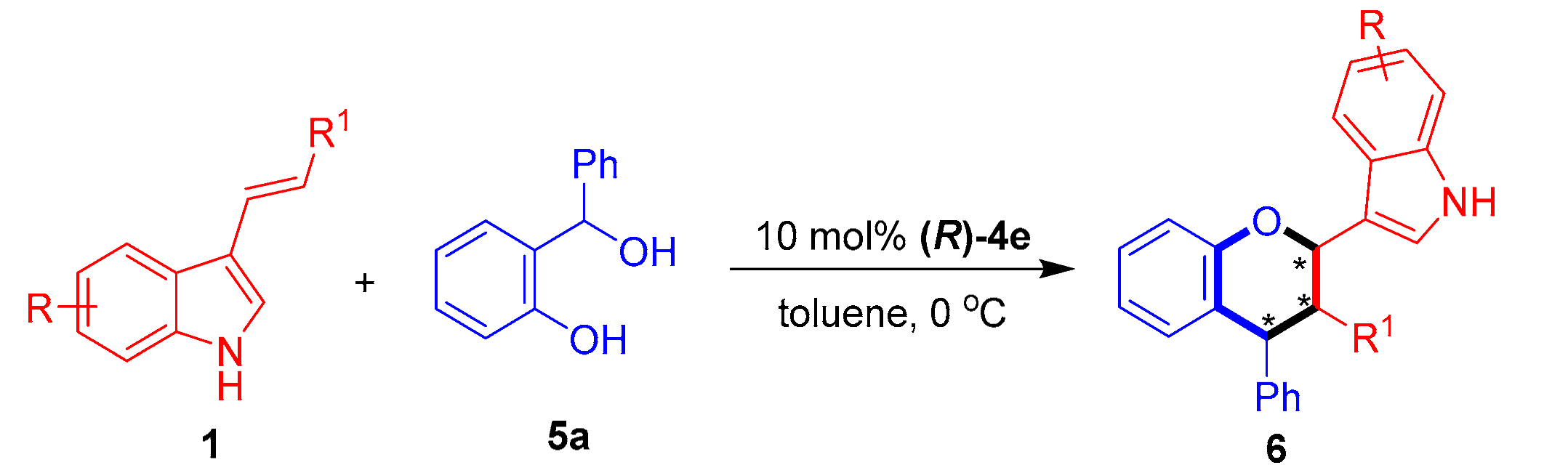

Table 6. Substrate scope of 3-vinylindoles 1 for [2 + 4] cycloaddition with o-hydroxybenzyl alcohol 5a a.
Then, the substrate scope of o-hydroxybenzyl alcohols 5 was investigated for [2 + 4] cycloaddition with 3-vinylindole 1a under standard reaction conditions. As shown in Table 7, the o-hydroxybenzyl alcohols 5b–5c bearing a methyl group or a halogen group at the C5 position successfully participated in [2 + 4] cycloaddition with 3-vinylindole 1a, providing products 6ab–6ac in moderate to good diastereo- and enantioselectivities (68:32 dr to 81:19 dr, 73–76% ee, entries 2–3). In addition, aromatic R1 groups with ortho, meta and para-substituents were successfully employed in the reaction, affording products 6ad–6af in overall good enantioselectivities (76–81% ee, entries 4–6).

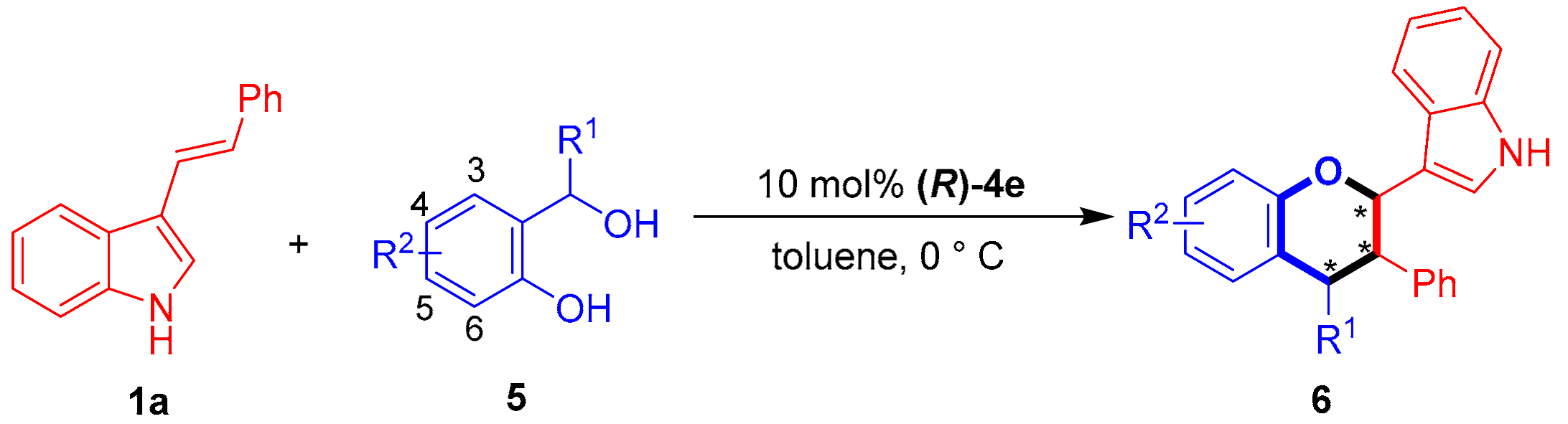

Table 7. Substrate scope of o-hydroxybenzyl alcohols 5 for [2 + 4] cycloaddition a.
The structures of all products 6 were identified by their NMR, IR and HR MS data, and the ee value of all products 6 were calculated by their HPLC traces (see the Supplementary Materials). The relative configuration of product 6ma was determined to be (trans, cis) by a NOE experiment (see the Supplementary Materials) (Figure 8) and comparing the 1H NMR spectra with that of a similar compound [18].

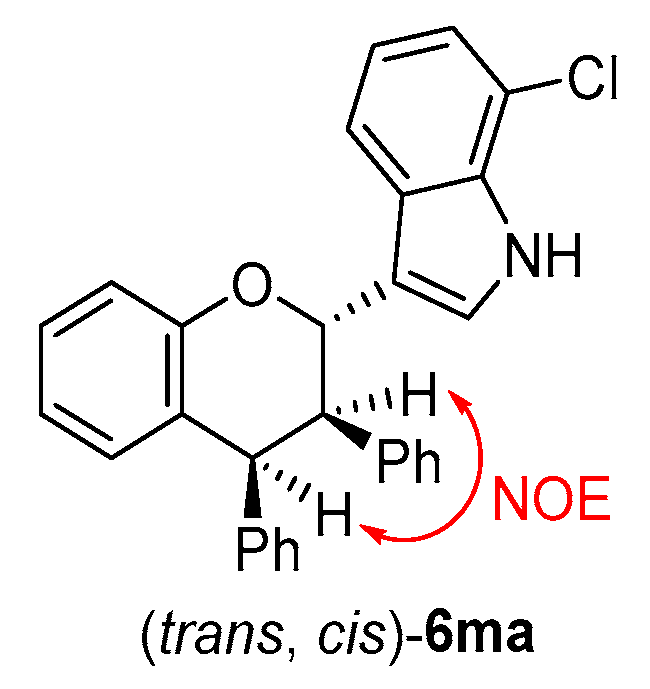

Figure 8. Relative configuration of 6ma.

3. Materials and Methods

The detailed procedures for the synthesis and characterization of the products are given in Appendix A section.

4. Conclusions

In summary, we performed catalytic asymmetric [2 + 4] cycloaddition of 3-vinylindoles with ortho-quinone methides and their precursors in the presence of chiral phosphoric acid. This approach was used to synthesize a series of indole-containing chroman derivatives with structural diversity in overall high yields (up to 98%), good diastereoselectivities (up to 93:7 dr) and moderate to excellent enantioselectivities (up to 98% ee). This approach not only enriches the chemistry of 3-vinylindole-inolved catalytic asymmetric cycloadditions but is also useful for the enantioselective synthesis of chiral chroman derivatives.

Supplementary Materials

The following are available online. NMR and HPLC spectra of products 3 and 6, NOE spectrum of product 6ma, X-ray single-crystal data for product 3na, and theoretical calculations of the reaction pathway.

Author Contributions

Conceptualization, F.S.; Data curation, Y.-C.Z.; Investigation, S.-J.L., M.-S.T., K.-Y.L. and J.-Y.C.; Supervision, Y.-C.Z. and F.S.; Writing—original draft, Y.-C.Z.; Writing—review & editing, S.-F.N. and F.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by National Natural Science Foundation of China (22125104 and 21831007), Natural Science Foundation of Jiangsu Province (BK20201018), Natural Science Foundation of Xuzhou City (KC21021), High-level Innovative and Entrepreneurial Talents Introduction Plan of Jiangsu Province and Natural Science Foundation of JSNU (19XSRX010).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in this article.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

Appendix A. Experimental Section

1H and 13C NMR spectra were measured at 400 and 100 MHz, respectively. The solvents used for NMR spectroscopy were acetone-d6 and CDCl3, using tetramethylsilane as the internal reference. HR MS (ESI) was determined by an HR MS/MS instrument. The X-ray source used for the single crystal X-ray diffraction analysis of compound 3na was MoKα (λ = 0.71073), and the thermal ellipsoid was drawn at the 30% probability level. Analytical grade solvents for the column chromatography were used after distillation, and commercially available reagents were used as received. Substrates 1 were synthesized according to the literature method [17]. Substrates 2 and 5 were synthesized according to the literature method [52,68].
General procedure for the synthesis of products3
To the mixture of 3-vinylindoles 1 (0.1 mmol), ortho-quinone methides 2 (0.12 mmol), catalyst (R)-4c (0.01 mmol), and MgSO4 (50 mg) was added toluene (1 mL). Then, the reaction mixture was stirred at 0 °C for 12 h. After completion of the reaction, which was indicated by TLC, the reaction mixture was directly purified through flash column chromatography to afford products 3.
(E)-2-(7-phenyl-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3aa):
Yield: 81% (38.0 mg); 89:11 dr; white solid; m.p. 97.6–99.0 °C; [α]D20 = −19.0 (c 0.76, acetone); 1H NMR (400 MHz, CDCl3) δ 7.88–7.80 (m, 2H), 7.26–7.22 (m, 5H), 7.20–7.18 (m, 1H), 7.17–7.12 (m, 2H), 7.07 (m, 2H), 7.03–7.00 (m, 1H), 7.00–6.96 (m, 2H), 6.79 (d, J = 2.4 Hz, 1H), 6.77 (s, 1H), 6.56 (s, 1H), 6.16 (d, J = 15.7 Hz, 1H), 6.06–5.96 (m, 1H), 5.92–5.89 (m, 2H), 5.48 (d, J = 10.5 Hz, 1H), 4.01–3.95 (m, 1H), 3.57–3.50 (m, 1H). 13C NMR (100 MHz, CDCl3) δ 149.8, 147.0, 141.7, 140.9, 137.1, 136.2, 132.8, 131.3, 128.4, 128.3, 128.1, 127.2, 126.4, 126.2, 125.9, 123.3, 122.2, 120.1, 119.8, 116.4, 114.4, 111.2, 108.2, 101.0, 98.8, 76.9, 50.5, 48.2; IR (KBr): 3419, 3057, 3026, 2894, 1499, 1477, 1264, 1153, 1072, 864 cm−1; (C32H25NO3-H)− requires m/z 470.1761, found m/z 470.1749; ee: 72%, AD-H, hexane/isopropanol = 70/30, tR = 11.147 (minor), tR = 30.360 (major).
(E)-5-methyl-2-(7-phenyl-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ba):
Yield: 80% (38.9 mg); 83:17 dr; white solid; m.p. 123.2–125.3 °C; [α]D20 = −26.1 (c 0.78, acetone); 1H NMR (400 MHz, CDCl3) δ 7.68 (s, 1H), 7.61 (s, 1H), 7.30–7.27 (m, 1H), 7.26–7.17 (m, 4H), 7.13–7.06 (m, 3H), 7.05–6.98 (m, 4H), 6.80 (s, 1H), 6.72 (d, J = 2.5 Hz, 1H), 6.60 (s, 1H), 6.20–6.16 (m, 1H), 6.09–6.00 (m, 1H), 5.92 (s, 2H), 5.45 (d, J = 10.5 Hz, 1H), 4.02–3.96 (m, 1H), 3.59–3.50 (m, 1H), 2.49 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 149.8, 147.0, 141.7, 141.1, 137.2, 134.6, 132.8, 131.4, 129.2, 129.0, 128.5, 128.4, 128.3, 128.1, 128.0, 127.2, 126.5, 126.4, 126.3, 126.2, 123.8, 123.5, 119.6, 116.4, 113.7, 110.9, 108.2, 101.0, 98.9, 77.0, 50.3, 48.3, 21.6; IR (KBr): 3416, 3025, 2895, 1499, 1478, 1425, 1238, 1152, 1037, 748 cm−1; (C33H27NO3-H)− requires m/z 484.1918, found m/z 484.1890; ee: 55%, IA, hexane/isopropanol = 70/30, tR = 10.293 (minor), tR = 30.297 (major).
(E)-6-fluoro-2-(7-phenyl-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ca):
Yield: 98% (47.8 mg); 86:14 dr; brown solid; m.p. 108.7–110.0 °C; [α]D20 = −27.8 (c 0.96, acetone); 1H NMR (400 MHz, CDCl3) δ 7.77–7.70 (m, 2H), 7.29–7.26 (m, 1H), 7.25–7.22 (m, 3H), 7.20–7.16 (m, 1H), 7.12–7.06 (m, 2H), 7.06–7.01 (m, 1H), 7.00–6.95 (m, 2H), 6.91–6.84 (m, 2H), 6.78 (s, 1H), 6.73 (d, J = 2.1 Hz, 1H), 6.57 (s, 1H), 6.18 (d, J = 15.5 Hz, 1H), 6.05–5.97 (m, 1H), 5.92–5.89 (m, 2H), 5.43 (d, J = 10.5 Hz, 1H), 4.03–3.95 (m, 1H), 3.53–3.43 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 159.9 (d, J = 236.0 Hz), 149.6, 147.0, 141.8, 140.8, 137.1, 136.1 (J = 12.0 Hz), 132.9, 131.1, 128.4, 128.3, 128.2, 127.3, 126.5, 126.2, 123.7 (d, J = 2.0 Hz), 122.4, 120.9 (d, J = 10.0 Hz), 116.4, 114.5, 108.6 (d, J = 24.0 Hz), 108.2, 101.0, 98.7, 97.5 (d, J = 26.0 Hz), 76.9, 50.7, 48.1; IR (KBr): 3891, 3725, 3421, 1844, 1699, 1239, 1153, 862, 747 cm−1; (C32H24FNO3-H)− requires m/z 488.1667, found m/z 488.1676; ee: 69%, IA, hexane/isopropanol = 70/30, tR = 9.773 (major), tR = 25.597 (minor).
(E)-6-bromo-2-(7-phenyl-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3da):
Yield: 98% (53.8 mg); 91:9 dr; brown solid; m.p. 104.5–105.1 °C; [α]D20 = −18.2 (c 1.08, acetone); 1H NMR (400 MHz, CDCl3) δ 7.73 (s, 1H), 7.67 (d, J = 8.5 Hz, 1H), 7.32–7.26 (m, 2H), 7.25–7.23 (m, 3H), 7.22–7.21 (m, 1H), 7.21–7.16 (m, 1H), 7.12–7.06 (m, 2H), 7.05–7.00 (m, 1H), 6.99–6.93 (m, 2H), 6.78 (s, 1H), 6.71–6.67 (m, 1H), 6.55 (s, 1H), 6.18 (d, J = 15.7 Hz, 1H), 6.05–5.96 (m, 1H), 5.92–5.88 (m, 2H), 5.42 (d, J = 10.5 Hz, 1H), 4.01–3.94 (m, 1H), 3.50–3.41 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 149.5, 147.0, 141.9, 140.7, 137.0, 136.9, 133.0, 131.0, 128.4, 128.3, 127.3, 126.6, 126.2, 124.7, 123.9, 123.1, 121.3, 116.4, 115.8, 114.6, 114.2, 108.2, 101.1, 98.7, 76.8, 50.7, 48.1; IR (KBr): 3801, 3735, 3670, 3421, 1844, 1576, 1670, 964, 861, 747 cm−1; (C32H24BrNO3-H)− requires m/z 548.0867, found m/z 548.0844; ee: 65%, IA, hexane/isopropanol = 70/30, tR =13.480 (minor), tR = 28.633 (major).
(E)-7-methyl-2-(7-phenyl-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ea):
Yield: 91% (44.1 mg); 85:15 dr; brown solid; m.p. 106.3–107.5 °C; [α]D20 = −20.0 (c 0.88, acetone); 1H NMR (400 MHz, CDCl3) δ 7.71–7.62 (m, 2H), 7.25–7.16 (m, 5H), 7.13–7.04 (m, 3H), 7.04–7.00 (m, 3H), 6.96 (d, J = 7.0 Hz, 1H), 6.82–6.75 (m, 2H), 6.57–6.54 (m, 1H), 6.16 (d, J = 16.6 Hz, 1H), 6.06–5.98 (m, 1H), 5.91 (s, 2H), 5.49 (d, J = 10.5 Hz, 1H), 4.00–3.94 (m, 1H), 3.60–3.50 (m, 1H), 2.35–2.29 (m, 3H); 13C NMR (100 MHz, CDCl3) δ 149.8, 146.9, 141.7, 141.1, 137.1, 135.8, 132.8, 131.3, 128.4, 128.3, 128.2, 127.2, 126.4, 126.2, 125.4, 123.1, 122.7, 120.3, 120.0, 117.8, 116.4, 114.8, 108.2, 101.0, 98.8, 76.8, 50.4, 48.4, 16.5; IR (KBr): 3853, 3751, 3735, 3711, 1734, 1684, 1476, 1152, 1038, 748 cm−1; (C33H27NO3-H)− requires m/z 484.1918, found m/z 484.1893; ee: 59%, IA, hexane/isopropanol = 90/10, tR =55.313 (minor), tR = 117.610 (major).
(E)-7-fluoro-2-(7-phenyl-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3fa):
Yield: 98% (47.9 mg); 88:12 dr; brown solid; m.p. 78.2–79.0 °C; [α]D20 = −30.3 (c 0.96, acetone); 1H NMR (400 MHz, CDCl3) δ 8.03 (s, 1H), 7.58 (d, J = 8.0 Hz, 1H), 7.25–7.14 (m, 5H), 7.12–7.07 (m, 2H), 7.05–7.00 (m, 2H), 7.00–6.96 (m, 2H), 6.91–6.86 (m, 1H), 6.82 (d, J = 2.4 Hz, 1H), 6.78 (s, 1H), 6.57 (s, 1H), 6.20–6.16 (m, 1H), 6.06–5.97 (m, 1H), 5.92–5.89 (m, 2H), 5.45 (d, J = 10.5 Hz, 1H), 4.03–3.96 (m, 1H), 3.55–3.45 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 148.4 (d, J = 261.0 Hz), 141.9, 140.7, 137.1, 133.0, 131.1, 128.4 (d, J = 18.0 Hz), 128.3, 127.3, 126.6, 126.2, 124.0, 120.2 (d, J = 6.0 Hz), 116.4, 116.0 (d, J = 3.0 Hz), 115.4, 108.3, 107.1 (d, J = 16.0 Hz), 101.1, 98.8, 76.8, 50.7, 48.2; IR (KBr): 3779, 3702, 3689, 3675, 3567, 1869, 1700, 1559, 1039, 748 cm−1; (C32H24FNO3-H)− requires m/z 488.1667, found m/z 488.1672; ee: 60%, IA, hexane/isopropanol = 70/30, tR = 11.473 (major), tR = 14.520 (minor).
(E)-2-(8-styryl-7-(o-tolyl)-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ga):
Yield: 60% (29.2 mg); 93:7 dr; brown solid; m.p. 181.2–182.9 °C; [α]D20 = −63.1 (c 0.58, acetone); 1H NMR (400 MHz, CDCl3) δ 7.85 (d, J = 7.6 Hz, 1H), 7.73 (s, 1H), 7.28 (s, 1H), 7.25–7.19 (m, 5H), 7.19–7.09 (m, 4H), 6.96–6.90 (m, 1H), 6.82–6.76 (m, 2H), 6.74–6.70 (m, 1H), 6.60 (s, 1H), 6.13–6.05 (m, 2H), 5.93–5.89 (m, 2H), 5.53 (d, J = 10.1 Hz, 1H), 4.00–3.91 (m, 1H), 3.90–3.83 (m, 1H), 1.91 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 149.8, 147.0, 141.7, 139.9, 137.2, 136.2, 132.4, 130.7, 130.0, 128.5, 127.2, 126.2, 126.1, 125.9, 122.9, 122.1, 120.2, 119.7, 116.7, 114.2, 111.2, 108.2, 101.0, 98.8, 77.3, 49.5, 44.9, 20.0; IR (KBr): 3702, 3690, 3676, 1751, 1522, 1240, 1153, 743 cm−1; (C33H27NO3-H)− requires m/z 484.1918, found m/z 484.1896; ee: 65%, IB, hexane/isopropanol = 90/10, tR = 21.567 (minor), tR = 23.540 (major).
(E)-2-(7-(2-chlorophenyl)-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ha):
Yield: 62% (31.7 mg); 91:9 dr; brown solid; m.p. 195.1–195.6 °C; [α]D20 = −57.9 (c 0.63, acetone); 1H NMR (400 MHz, CDCl3) δ 7.92 (s, 1H), 7.79 (d, J = 7.0 Hz, 1H), 7.26–7.20 (m, 6H), 7.20–7.17 (m, 1H), 7.16–7.10 (m, 3H), 7.07 (m, 2H), 6.94–6.90 (m, 1H), 6.74 (s, 1H), 6.55 (s, 1H), 6.12–6.07 (m, 2H), 5.90 (s, 2H), 5.62 (d, J = 9.6 Hz, 1H), 4.38–4.27 (m, 1H), 3.91–3.80 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 149.7, 147.1, 141.8, 139.4, 137.2, 136.1, 134.8, 132.6, 130.6, 129.3, 128.5, 127.8, 127.4, 127.3, 127.1, 126.3, 123.1, 122.3, 119.9, 119.6, 116.2, 114.2, 111.1, 108.1, 101.1, 98.8, 75.3, 50.3, 44.7; IR (KBr): 3853, 3676, 3650, 3629, 1685, 1507, 1477, 1037, 745 cm−1; (C32H24ClNO3-H)− requires m/z 504.1372, found m/z 504.1377; ee: 65%, IA, hexane/isopropanol = 70/30, tR = 10.020 (minor), tR = 27.087 (major).
(E)-2-(7-(2-bromophenyl)-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ia):
Yield: 96% (52.8 mg); 92:8 dr; brown solid; m.p. 185.0–185.4 °C; [α]D20 = −59.3 (c 1.06, acetone); 1H NMR (400 MHz, CDCl3) δ 7.90 (s, 1H), 7.81 (d, J = 7.3 Hz, 1H), 7.30–7.27 (m, 4H), 7.25–7.19 (m, 4H), 7.18–7.10 (m, 3H), 7.08 (d, J = 2.4 Hz, 1H), 6.88–6.82 (m, 1H), 6.76 (s, 1H), 6.56 (s, 1H), 6.18–6.13 (m, 1H), 6.12–6.05 (m, 1H), 5.90 (s, 2H), 5.63 (d, J = 10.3 Hz, 1H), 4.37–4.27 (m, 1H), 3.91–3.82 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 149.7, 147.1, 141.9, 141.1, 137.2, 136.0, 132.7, 132.6, 130.5, 128.5, 128.1, 127.8, 127.3, 126.4, 126.1, 123.3, 122.3, 119.9, 119.7, 116.2, 114.0, 111.2, 108.1, 101.1, 98.8, 75.5, 50.7, 47.6; IR (KBr): 3418, 3055, 2885, 1499, 1477, 1240, 1152, 1037, 965, 744 cm−1; (C32H24BrNO3-H)− requires m/z 548.0867 found m/z 548.0849; ee: 66%, IA, hexane/isopropanol = 70/30, tR = 10.603 (minor), tR = 29.107 (major).
(E)-2-(8-styryl-7-(m-tolyl)-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ja):
Yield: 84% (40.8 mg); 84:16 dr; brown solid; m.p. 148.3–148.6 °C; [α]D20 = −29.2 (c 0.82, acetone); 1H NMR (400 MHz, CDCl3) δ 7.82 (d, J = 7.4 Hz, 1H), 7.78 (s, 1H), 7.26–7.18 (m, 6H), 7.17–7.11 (m, 2H), 6.98–6.94 (m, 1H), 6.85–6.77 (m, 5H), 6.57 (s, 1H), 6.20–6.16 (m, 1H), 6.06–5.98 (m, 1H), 5.91 (s, 2H), 5.48 (d, J = 10.5 Hz, 1H), 4.00–3.93 (m, 1H), 3.53–3.44 (m, 1H), 2.15 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 149.8, 146.9, 141.7, 140.9, 137.5, 137.2, 136.2, 132.7, 131.5, 129.0, 128.4, 128.0, 127.2, 126.2, 126.0, 125.4, 123.3, 122.1, 120.0, 119.7, 116.5, 114.4, 111.2, 108.2, 101.0, 98.8, 76.8, 50.4, 48.3, 21.4; IR (KBr): 3801, 3734, 3648, 3587, 1749, 1576, 1521, 1038, 746 cm−1; (C33H27NO3-H)− requires m/z 484.1918, found m/z 484.1905; ee: 59%, IA, hexane/isopropanol = 70/30, tR = 10.097 (minor), tR = 19.040 (major).
(E)-2-(7-(3-chlorophenyl)-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ka):
Yield: 98% (49.5 mg); 87:13 dr; brown solid; m.p. 160.3–160.9 °C; [α]D20 = −30.5 (c 0.99, acetone); 1H NMR (400 MHz, CDCl3) δ 7.87 (s, 1H), 7.81 (d, J = 7.6 Hz, 1H), 7.30–7.27 (m, 2H), 7.26–7.13 (m, 6H), 7.04 (s, 1H), 7.00–6.93 (m, 2H), 6.84–6.80 (m, 2H), 6.77 (s, 1H), 6.56 (s, 1H), 6.22 (d, J = 15.8 Hz, 1H), 6.00 (m, 1H), 5.91 (s, 2H), 5.42 (d, J = 10.5 Hz, 1H), 3.98–3.92 (m, 1H), 3.57–3.49 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 149.7, 147.1, 143.1, 141.9, 136.9, 136.3, 133.9, 133.2, 130.8, 129.4, 128.5, 128.0, 127.4, 126.9, 126.7, 126.3, 125.7, 123.4, 122.3, 119.9, 116.0, 114.0, 111.3, 108.1, 101.1, 98.8, 76.7, 50.4, 48.2; IR (KBr): 3749, 3647, 3617, 3419, 1698, 1683, 1418, 745, 668 cm−1; (C32H24ClNO3-H)− requires m/z 504.1372, found m/z 504.1389; ee: 58%, IB, hexane/isopropanol = 90/10, tR = 24.790 (minor), tR = 26.910 (major).
(E)-2-(8-styryl-7-(p-tolyl)-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3la):
Yield: 54% (26.0 mg); 78:22 dr; brown solid; m.p. 220.1–221.9°C; [α]D20 = −46.2 (c 0.52, acetone); 1H NMR (400 MHz, CDCl3) δ 7.86–7.79 (m, 2H), 7.28 (s, 1H), 7.25–7.22 (m, 4H), 7.17–7.12 (m, 2H), 7.05–6.97 (m, 1H), 6.87 (s, 4H), 6.79 (d, J = 2.4 Hz, 1H), 6.76 (s, 1H), 6.56 (s, 1H), 6.20–6.16 (m, 1H), 6.05–5.97 (m, 1H), 5.90 (s, 2H), 5.45 (d, J = 10.5 Hz, 1H), 3.97–3.92 (m, 1H), 3.54–3.47 (m, 1H), 2.16 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 149.8, 147.0, 141.7, 137.9, 137.2, 136.3, 135.8, 132.7, 131.5, 128.9, 128.5, 128.1, 127.2, 126.3, 126.0, 123.4, 122.2, 120.2, 119.8, 116.5, 114.5, 111.2, 108.3, 101.0, 98.8, 77.0, 50.0, 48.3, 21.0; IR (KBr): 3726, 3675, 3649, 3587, 1869, 1670, 1395, 1152, 744 cm−1; (C33H27NO3-H)− requires m/z 484.1918, found m/z 484.1902; ee: 85%, IA, hexane/isopropanol = 70/30, tR = 10.557 (minor), tR = 18.093 (major).
(E)-2-(7-(4-chlorophenyl)-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ma):
Yield: 58% (29.5 mg); 84:16 dr; brown solid; m.p. 85.2–86.0 °C; [α]D20 = −16.7 (c 0.59, acetone); 1H NMR (400 MHz, CDCl3) δ 7.88 (s, 1H), 7.81 (d, J = 7.8 Hz, 1H), 7.30–7.26 (m, 2H), 7.26–7.25 (m, 2H), 7.23–7.11 (m, 4H), 7.06–7.00 (m, 2H), 6.89 (d, J = 8.4 Hz, 2H), 6.79 (d, J = 2.5 Hz, 1H), 6.76 (s, 1H), 6.55 (s, 1H), 6.22–6.17 (m, 1H), 6.04–5.95 (m, 1H), 5.91 (s, 2H), 5.40 (d, J = 10.5 Hz, 1H), 3.96–3.90 (m, 1H), 3.58–3.49 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 149.7, 147.1, 141.9, 139.5, 136.9, 136.4, 133.1, 132.1, 130.9, 129.6, 128.5, 128.4, 127.4, 126.3, 125.7, 123.4, 122.4, 120.1, 120.0, 116.1, 114.1, 111.4, 108.2, 101.1, 98.8, 76.9, 50.0, 48.2; IR (KBr): 3870, 3711, 3690, 3629, 1844, 1684, 1576, 1395, 745 cm−1; (C32H24ClNO3-H)− requires m/z 504.1372, found m/z 504.1374; ee: 97%, IA, hexane/isopropanol = 70/30, tR = 11.823 (minor), tR = 20.797 (major).
(E)-5-chloro-1-methyl-2-(7-phenyl-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3na):
Yield:47% (24.2 mg); 86:14 dr; brown solid; m.p. 205.1–205.7 °C; [α]D20 = −11.4 (c 0.48, acetone); 1H NMR (400 MHz, acetone-d6) δ 7.77 (m, 1H), 7.30–7.23 (m, 6H), 7.20–7.15 (m, 3H), 7.11–7.05 (m, 4H), 6.99–6.94 (m, 1H), 6.71 (s, 1H), 6.43 (s, 1H), 6.24–6.20 (m, 1H), 6.17–6.11 (m, 1H), 5.92 (d, J = 1.8 Hz, 2H), 5.57 (d, J = 10.6 Hz, 1H), 3.65 (s, 3H), 3.62–3.56 (m, 1H); 13C NMR (100 MHz, acetone-d6) δ 149.9, 147.0, 141.7, 141.4, 137.3, 135.5, 132.6, 131.6, 130.3, 129.3, 128.6, 128.4, 128.0, 127.1, 126.2, 126.1, 124.4, 121.3, 119.1, 116.6, 113.1, 110.9, 107.9, 101.0, 98.2, 76.0, 50.4, 48.7, 32.1; IR (KBr): 3868 3852, 3688, 3627, 1791, 1733, 1698, 1521, 1507, 746 cm−1; (C33H26ClNO3-H)− requires m/z 518.1528, found m/z 518.1526; ee: 14%, IB, hexane/isopropanol = 80/20, tR = 9.320 (major), tR = 9.850 (minor).
(E)-2-(8-(2-methylstyryl)-7-phenyl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ab):
Yield: 98% (47.5 mg); 88:12 dr; brown solid; m.p. 203.3–205.0 °C; [α]D20 = −6.0 (c 0.95, acetone); 1H NMR (400 MHz, CDCl3) δ 7.84 (d, J = 7.4 Hz, 1H), 7.77 (s, 1H), 7.34–7.30 (m, 1H), 7.21–7.15 (m, 3H), 7.14–7.09 (m, 4H), 7.09–7.04 (m, 2H), 7.03–7.00 (m, 2H), 6.82 (s, 1H), 6.78 (m, 1H), 6.59 (s, 1H), 6.33 (d, J = 15.5 Hz, 1H), 5.94–5.92 (m, 2H), 5.88–5.80 (m, 1H), 5.52 (d, J = 10.5 Hz, 1H), 4.05–3.98 (m, 1H), 3.60–3.49 (m, 1H), 2.01 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 149.7, 147.0, 141.7, 141.0, 136.6, 136.2, 135.2, 132.7, 131.5, 130.0, 128.4, 128.2, 127.2, 126.4, 126.1, 126.0, 123.4, 122.2, 120.1, 119.8, 116.5, 114.4, 111.2, 108.1, 101.0, 98.8, 76.8, 50.4, 48.7, 19.5; IR (KBr): 3763, 3668, 3627, 2899, 1732, 1682, 1568, 1479, 1153, 744 cm−1; (C33H27NO3-H)− requires m/z 484.1918, found m/z 484.1894; ee: 62%, AD-H, hexane/isopropanol = 70/30, tR = 8.893 (minor), tR = 13.527 (major).
(E)-2-(8-(3-methoxystyryl)-7-phenyl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ac):
Yield: 98% (49.1 mg); 86:14 dr; brown solid; m.p. 120.9–121.2 °C; [α]D20 = −39.9 (c 0.98, acetone); 1H NMR (400 MHz, CDCl3) δ 7.84 (d, J = 7.3 Hz, 1H), 7.78 (s, 1H), 7.21–7.16 (m, 3H), 7.16–7.15 (m, 1H), 7.11–7.05 (m, 2H), 7.05–6.97 (m, 3H), 6.84 (d, J = 7.8 Hz, 1H), 6.78 (s, 2H), 6.77–6.74 (m, 2H), 6.58 (s, 1H), 6.17–6.12 (m, 1H), 6.07–5.99 (m, 1H), 5.92–5.90 (m, 2H), 5.48 (d, J = 10.5 Hz, 1H), 4.01–3.95 (m, 1H), 3.78 (s, 3H), 3.59–3.49 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 159.7, 149.8, 147.0, 141.8, 140.9, 138.6, 136.2, 132.7, 131.6, 129.4, 128.3, 128.2, 126.4, 125.9, 123.4, 122.2, 120.0, 119.8, 118.9, 116.3, 114.3, 112.9, 111.5, 111.2, 108.2, 101.0, 98.8, 76.9, 55.2, 50.5, 48.2; IR (KBr): 3904, 3690, 3675, 3421, 1734, 1670, 1522, 1153, 746 cm−1; (C33H27NO4-H)− requires m/z 500.1867, found m/z 500.1868; ee: 63%, IA, hexane/isopropanol = 70/30, tR = 11.337 (minor), tR = 26.440 (major).
(E)-2-(8-(3-fluorostyryl)-7-phenyl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ad):
Yield: 98% (47.9 mg); 85:15 dr; brown solid m.p. 163.6–164.0 °C; [α]D20 = −39.6 (c 0.96, acetone); 1H NMR (400 MHz, CDCl3) δ 7.83 (d, J = 7.3 Hz, 1H), 7.78 (s, 1H), 7.23–7.13 (m, 5H), 7.08 (d, J = 7.5 Hz, 1H), 7.06–7.01 (m, 1H), 7.01–6.96 (m, 3H), 6.94–6.85 (m, 2H), 6.77 (m, 1H), 6.74 (s, 1H), 6.58 (s, 1H), 6.16–6.10 (m, 1H), 6.08–5.99 (m, 1H), 5.92 (s, 2H), 5.48 (d, J = 10.5 Hz, 1H), 4.01–3.95 (m, 1H), 3.58–3.49 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 163.0 (d, J = 244.0 Hz), 149.8, 147.1, 141.8, 140.8, 139.4 (d, J = 7.0 Hz), 136.2, 132.7, 131.8, 131.7, 129.9 (d, J = 9.0 Hz), 128.3, 128.2, 126.5, 125.9, 123.4, 122.2, 122.1, 119.9 (J = 21.0 Hz), 116.0, 114.2, 114.0 (d, J = 21.0 Hz), 112.6 (d, J = 22.0 Hz), 111.2, 108.1, 101.0, 98.9, 76.8, 50.4, 48.2; IR (KBr): 3869, 3750, 3734, 3587, 1868, 1683, 1521, 1038, 748, 668 cm−1; (C32H24FNO3-H)− requires m/z 488.1667, found m/z 488.1675; ee: 60%, AD-H, hexane/isopropanol = 70/30, tR = 11.737 (minor), tR = 49.947 (major).
(E)-2-(8-(4-methoxystyryl)-7-phenyl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ae):
Yield: 73% (36.5 mg); 89:11 dr; brown solid m.p. 207.6–207.7 °C; [α]D20 = −47.8 (c 0.73, acetone); 1H NMR (400 MHz, acetone-d6) δ 9.98 (s, 1H), 7.81 (d, J = 7.7 Hz, 1H), 7.29 (d, J = 8.0 Hz, 1H), 7.23–7.20 (m, 2H), 7.17–7.13 (m, 2H), 7.10 (m, 1H), 7.06–7.00 (m, 4H), 6.96–6.91 (m, 1H), 6.82–6.78 (m, 2H), 6.72 (s, 1H), 6.43 (s, 1H), 6.18–6.12 (m, 1H), 6.01–5.94 (m, 1H), 5.91 (m, 2H), 5.59 (d, J = 10.6 Hz, 1H), 4.01–3.94 (m, 1H), 3.74 (s, 3H), 3.67–3.60 (m, 1H); 13C NMR (100 MHz, acetone-d6) δ 159.2, 150.1, 147.0, 141.8, 141.5, 136.7, 132.0, 130.0, 129.4, 128.6, 127.8, 127.3, 126.5, 126.0, 124.4, 121.3, 119.7, 118.9, 116.9, 114.1, 113.8, 111.4, 108.0, 101.0, 98.2, 76.6, 54.6, 50.4, 48.7; IR (KBr): 3742, 3720, 3708, 3306, 1574, 1434, 1247, 745, 668 cm−1; (C33H27NO4-H)− requires m/z 500.1867, found m/z 500.1871; ee: 77%, AD-H, hexane/isopropanol = 80/20, tR = 22.810 (minor), tR = 55.720 (major).
(E)-2-(8-(4-fluorostyryl)-7-phenyl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3af):
Yield: 53% (25.9 mg); 75:25 dr; brown solid; m.p. 81.4–82.6 °C; [α]D20 = −53.3 (c 0.52, acetone); 1H NMR (400 MHz, CDCl3) δ 7.85–7.79 (m, 2H), 7.23 (d, J = 7.7 Hz, 1H), 7.19–7.12 (m, 6H), 7.07 (d, J = 7.5 Hz, 1H), 7.04–7.01 (m, 1H), 6.99–6.96 (m, 2H), 6.95–6.91 (m, 2H), 6.78 (m, 1H), 6.75 (s, 1H), 6.56 (s, 1H), 6.13–6.09 (m, 1H), 5.91 (s, 2H), 5.47 (d, J = 10.5 Hz, 1H), 3.98–3.93 (m, 1H), 3.56–3.49 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 162.1 (d, J = 245.0 Hz), 149.8, 147.0, 141.7, 140.9, 136.2, 133.3, 133.2, 131.6, 131.1 (d, J = 2.0 Hz) 129.1, 128.2 (d, J = 13.0 Hz), 127.7 (d, J = 8.0 Hz), 126.4, 125.9, 123.3, 122.2, 120.0, 119.8, 116.3, 115.3 (d, J = 21.0 Hz), 114.3, 111.2, 108.1, 101.0, 98.8, 76.9, 50.5, 48.2; IR (KBr): 3891, 3884, 3734, 3669, 3446, 2970, 1669, 1066, 749, 668 cm−1; (C32H24FNO3-H)− requires m/z 488.1667, found m/z 488.1668; ee: 97%, AD-H, hexane/isopropanol = 70/30, tR = 15.207 (minor), tR = 22.800 (major).
(E)-2-(8-(4-chlorostyryl)-7-phenyl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ag):
Yield: 57% (28.7 mg); 84:16 dr; brown solid; m.p. 175.7–176.2 °C; [α]D20 = −89.5 (c 0.51, acetone); 1H NMR (400 MHz, CDCl3) δ 7.85–7.78 (m, 2H), 7.25–7.21 (m, 2H), 7.19 (s, 1H), 7.17–7.15 (m, 1H), 7.14–7.13 (m, 2H), 7.12–7.11 (m, 1H), 7.10–7.05 (m, 2H), 7.04–7.00 (m, 1H), 6.99–6.95 (m, 2H), 6.78 (d, J = 2.5 Hz, 1H), 6.73 (s, 1H), 6.57 (s, 1H), 6.12–6.06 (m, 1H), 6.02–5.94 (m, 1H), 5.92–5.89 (m, 2H), 5.47 (d, J = 10.5 Hz, 1H), 3.99–3.93 (m, 1H), 3.57–3.47 (m, 1H); 13C NMR (100 MHz, CDCl3) 149.8, 147.0, 141.8, 140.9, 136.2, 135.5, 132.8, 132.0, 131.6, 128.5, 128.3, 128.2, 127.4, 126.5, 125.9, 123.3, 122.2, 120.0, 119.8, 116.1, 114.3, 111.2, 108.1, 101.0, 98.8, 76.8, 50.5, 48.2; IR (KBr): 3869, 3688, 3627, 1791, 1683, 1521, 1076, 749, 668 cm−1; (C32H24ClNO3-H)− requires m/z 504.1372, found m/z 504.1379; ee: 98%, IB, hexane/isopropanol = 70/30, tR = 7.900 (major), tR = 8.993 (minor).
(E)-2-(7-phenyl-8-(2-(thiophen-2-yl)vinyl)-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1H-indole (3ah):
Yield: 70% (33.2 mg); 85:15 dr; brown solid; m.p. 216.2–218.0 °C; [α]D20 = −53.9 (c 0.66, acetone); 1H NMR (400 MHz, CDCl3) δ 7.84–7.79 (m, 2H), 7.25–7.21 (m, 1H), 7.15–7.11 (m, 2H), 7.10–7.06 (m, 3H), 7.04–7.01 (m, 1H), 7.00–6.97 (m, 2H), 6.91–6.87 (m, 1H), 6.79–6.75 (m, 3H), 6.55 (s, 1H), 6.28 (d, J = 15.6 Hz, 1H), 5.92–5.90 (m, 2H), 5.89–5.81 (m, 1H), 5.46 (d, J = 10.5 Hz, 1H), 3.95–3.89 (m, 1H), 3.55–3.47 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 149.8, 147.1, 142.2, 141.8, 141.0, 136.3, 131.1, 128.3, 128.2, 127.2, 126.5, 126.0, 125.9, 125.1, 123.7, 123.4, 122.2, 120.1, 119.8, 116.2, 114.3, 111.2, 108.2, 101.1, 98.9, 76.9, 50.5, 48.2; IR (KBr): 3868, 3851, 3742, 3674, 3565, 1715, 1506, 1265, 1153, 743 cm−1; (C30H23NO3S-H)− requires m/z 476.1326, found m/z 476.1315; ee: 87%, IB, hexane/isopropanol = 90/10, tR = 22.563 (minor), tR = 24.167 (major).
(E)-3-(7-(4-chlorophenyl)-8-styryl-7,8-dihydro-6H-[1,3]dioxolo[4,5-g]chromen-6-yl)-1-methyl-1H-indole:(3oa)
Yield: 53% (27.7 mg); 91:9 dr; white solid; m.p. 183.0–183.7 °C; [α]D20 = −46.6 (c 0.15, acetone); 1H NMR (400 MHz, CDCl3) δ 7.75 (d, J = 7.9 Hz, 1H), 7.25–7.17 (m, 7H), 7.13–7.08 (m, 1H), 7.03 (d, J = 8.2 Hz, 2H), 6.91 (d, J = 8.3 Hz, 2H), 6.73 (d, J = 4.3 Hz, 2H), 6.52 (s, 1H), 6.15 (d, J = 15.7 Hz, 1H), 6.01–5.94 (m, 1H), 5.90 (s, 2H), 5.40 (d, J = 10.5 Hz, 1H), 3.92–3.86 (m, 1H), 3.62 (s, 3H), 3.56–3.49 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 149.7, 147.0, 141.8, 139.6, 137.2, 136.9, 133.0, 132.0, 130.9, 129.5, 128.5, 128.3, 128.0, 127.4, 126.3, 126.2, 121.8, 119.9, 119.4, 116.0, 112.4, 109.4, 108.1, 101.0, 98.8, 76.5, 50.0, 48.5, 32.7; IR (KBr): 3852, 3749, 3648, 2920, 1477, 1238, 1152, 1037, 1013, 742 cm−1; (C33H26ClNO3+H)+ requires m/z 520.1674, found m/z 520.1668; ee: 83%, AD-H, hexane/isopropanol = 70/30, tR = 9.900 (minor), tR = 10.893 (major).
Procedure for one-mmol-scale synthesis of product 3aa
To the mixture of 3-vinylindole 1a (1.0 mmol), ortho-quinone methide 2a (1.2 mmol), catalyst (R)-4c (0.1 mmol), and MgSO4 (500 mg) was added toluene (10 mL). Then, the reaction mixture was stirred at 0 °C for 12 h. After completion of the reaction, which was indicated by TLC, the reaction mixture was directly purified through flash column chromatography to afford product 3aa in 88% yield (414 mg) with 86:14 dr and 64% ee.
General procedure for the synthesis of products 6
To the mixture of 3-vinylindoles 1 (0.1 mmol), ortho-hydroxybenzyl alcohols 5 (0.12 mmol), catalyst 4e (0.01 mmol) were added toluene (1 mL). Then, the reaction mixture was stirred at 0 °C for 6 h. After completion of the reaction, which was indicated by TLC, the reaction mixture was directly purified through flash column chromatography to afford products 6.
(E)-3-(3,4-diphenylchroman-2-yl)-1H-indole (6aa):
Yield: 61% (24.5 mg); 77:23 dr; white solid; m.p. 95.0–97.0 °C; [α]D20 = −169.4 (c 0.26, acetone); 1H NMR (400 MHz, CDCl3) δ 7.84 (s, 1H), 7.79 (d, J = 7.7 Hz, 1H), 7.25–7.20 (m, 2H), 7.17–7.08 (m, 5H), 7.07–7.01 (m, 2H), 7.00–6.97 (m, 1H), 6.97–6.92 (m, 2H), 6.91–6.86 (m, 2H), 6.72 (d, J = 7.5 Hz, 2H), 6.59 (d, J = 7.5 Hz, 2H), 5.93 (d, J = 10.7 Hz, 1H), 4.40 (d, J = 5.2 Hz, 1H), 4.20–4.11 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 154.9, 141.5, 139.6, 136.2, 130.6, 130.2, 129.1, 128.1, 127.5, 126.4, 126.2, 126.1, 124.8, 123.7, 122.2, 120.4, 119.9, 119.8, 116.8, 114.7, 111.2, 71.2, 48.7, 48.1; IR (KBr): 3648, 3566, 1733, 1456, 1418, 1242, 1111, 990, 748, 700 cm−1; (C29H23NO+H)+ requires m/z 402.1853, found m/z 402.1853; ee: 79%, OD-H, hexane/isopropanol = 95/5, tR = 20.910 (major), tR = 23.560 (minor).
(E)-3-(3,4-diphenylchroman-2-yl)-5-methyl-1H-indole (6ba):
Yield: 50% (20.7 mg); 75:25 dr; white solid; m.p. 84.0–86.0 °C; [α]D20 = −145.2 (c 0.17, acetone); 1H NMR (400 MHz, CDCl3) δ 7.76 (s, 1H), 7.56 (s, 1H), 7.25–7.20 (m, 1H), 7.18–7.09 (m, 4H), 7.08–7.04 (m, 1H), 7.04–7.01 (m, 1H), 7.00–6.91 (m, 4H), 6.91–6.86 (m, 1H), 6.84 (d, J = 2.2 Hz, 1H), 6.72 (d, J = 7.3 Hz, 2H), 6.60 (d, J = 7.4 Hz, 2H), 5.90 (d, J = 10.6 Hz, 1H), 4.40 (d, J = 5.3 Hz, 1H), 4.20–4.11 (m, 1H), 2.44 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 154.9, 141.6, 139.7, 134.6, 130.6, 130.3, 129.1, 129.0, 128.1, 127.5, 127.4, 126.4, 126.2, 124.8, 123.8, 120.3, 119.4, 116.9, 114.1, 110.8, 71.2, 48.7, 47.9, 21.6; IR (KBr): 3648, 3566, 2922, 1748, 1558, 1507, 1456, 1242, 750, 668 cm−1; (C30H25NO+H)+ requires m/z 416.2009, found m/z 416.1992; ee: 76%, AD-H, hexane/isopropanol = 70/30, tR = 5.200 (minor), tR = 7.937 (major).
(E)-6-chloro-3-(3,4-diphenylchroman-2-yl)-1H-indole (6pa):
Yield: 72% (31.3 mg); 75:25 dr; white solid; m.p. 112.0–114.0 °C; [α]D20 = −253.5 (c 0.20, acetone); 1H NMR (400 MHz, CDCl3) δ 7.77 (s, 1H), 7.69 (d, J = 8.5 Hz, 1H), 7.22 (d, J = 7.7 Hz, 1H), 7.20–7.10 (m, 4H), 7.09–7.01 (m, 3H), 7.01–6.97 (m, 1H), 6.97–6.87 (m, 3H), 6.86–6.83 (m, 1H), 6.72 (d, J = 7.4 Hz, 2H), 6.55 (d, J = 7.4 Hz, 2H), 5.87 (d, J = 10.9 Hz, 1H), 4.39 (d, J = 5.2 Hz, 1H), 4.14–4.06 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 154.7, 141.4, 139.3, 136.5, 130.6, 130.3, 129.1, 128.2, 128.1, 127.5, 126.5, 126.4, 124.8, 124.6, 124.3, 120.7, 120.6, 116.8, 114.9, 111.1, 71.0, 48.7, 48.3; IR (KBr): 3750, 3724, 3648, 3026, 1488, 1456, 1239, 1216, 752, 705 cm−1; (C29H22ClNO+H)+ requires m/z 436.1463, found m/z 436.1460; ee: 74%, AD-H, hexane/isopropanol = 70/30, tR = 5.843 (minor), tR = 7.477 (major).
(E)-6-bromo-3-(3,4-diphenylchroman-2-yl)-1H-indole (6da):
Yield: 77% (36.8 mg); 78:22 dr; white solid; m.p. 95.0–97.0 °C; [α]D20 = −203.3 (c 0.28, acetone); 1H NMR (400 MHz, CDCl3) δ 7.77 (s, 1H), 7.64 (d, J = 8.5 Hz, 1H), 7.33 (s, 1H), 7.24–7.15 (m, 3H), 7.15–7.10 (m, 2H), 7.05–7.01 (m, 2H), 6.99 (d, J = 7.3 Hz, 1H), 6.97–6.92 (m, 2H), 6.92–6.87 (m, 1H), 6.82 (d, J = 2.1 Hz, 1H), 6.72 (d, J = 7.4 Hz, 2H), 6.55 (d, J = 7.4 Hz, 2H), 5.87 (d, J = 10.9 Hz, 1H), 4.39 (d, J = 5.2 Hz, 1H), 4.13–4.06 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 154.7, 141.4, 139.3, 137.0, 130.6, 130.3, 129.1, 128.2, 127.5, 126.5, 126.4, 124.9, 124.8, 124.3, 123.1, 121.1, 120.6, 116.7, 115.7, 114.9, 114.1, 71.0, 48.7, 48.3; IR (KBr): 3648, 3566, 1716, 1540, 1507, 1456, 1226, 801, 750, 668 cm−1; (C29H22BrNO+H)+ requires m/z 480.0958, found m/z 480.0947; ee: 74%, AD-H, hexane/isopropanol = 70/30, tR = 6.190 (minor), tR = 8.233 (major).
(E)-3-(3,4-diphenylchroman-2-yl)-7-methyl-1H-indole (6ea):
Yield: 53% (21.9 mg); 75:25 dr; white solid; m.p. 92.0–94.0 °C; [α]D20 = −158.6 (c 0.19, acetone); 1H NMR (400 MHz, CDCl3) δ 7.72 (s, 1H), 7.63 (d, J = 7.9 Hz, 1H), 7.25–7.19 (m, 1H), 7.18–7.09 (m, 3H), 7.06–6.98 (m, 4H), 6.97–6.92 (m, 3H), 6.91–6.85 (m, 2H), 6.72 (d, J = 7.4 Hz, 2H), 6.61 (d, J = 7.4 Hz, 2H), 5.92 (d, J = 10.6 Hz, 1H), 4.39 (d, J = 5.2 Hz, 1H), 4.21–4.11 (m, 1H), 2.33 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 154.9, 141.5, 139.7, 135.8, 130.6, 130.2, 129.1, 128.1, 127.5, 127.4, 126.4, 126.2, 125.6, 124.8, 123.4, 122.7, 120.3, 120.0, 117.5, 116.8, 115.2, 71.2, 48.7, 48.0, 16.5; IR (KBr): 3628, 3587, 3566, 3030, 1868, 1716, 1569, 1558, 749, 668 cm−1; (C30H25NO+H)+ requires m/z 416.2009, found m/z 416.2004; ee: 74%, AD-H, hexane/isopropanol = 70/30, tR = 5.437 (major), tR = 6.597 (minor).
(E)-7-chloro-3-(3,4-diphenylchroman-2-yl)-1H-indole (6qa):
Yield: 90% (39.2 mg); 82:18 dr; white solid; m.p. 55.0–57.0 °C; [α]D20 = −191.1 (c 0.54, acetone); 1H NMR (400 MHz, CDCl3) δ 8.07 (s, 1H), 7.70 (d, J = 7.9 Hz, 1H), 7.25–7.21 (m, 1H), 7.20–7.11 (m, 4H), 7.08–6.99 (m, 4H), 6.99 –6.88 (m, 4H), 6.73 (d, J = 7.2 Hz, 2H), 6.58 (d, J = 7.3 Hz, 2H), 5.91 (d, J = 10.9 Hz, 1H), 4.40 (d, J = 5.1 Hz, 1H), 4.20–4.07 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 154.7, 141.4, 139.3, 133.5, 130.6, 130.3, 129.1, 128.2, 127.6, 127.5, 126.5, 126.4, 124.8, 124.3, 121.6, 120.7, 120.6, 118.6, 116.8, 116.7, 115.9, 71.1, 48.8, 48.2; IR (KBr): 3648, 3628, 3566, 3420, 1507, 1472, 1339, 1241, 752, 700 cm−1; (C29H22ClNO+H)+ requires m/z 436.1463, found m/z 436.1459; ee: 75%, AD-H, hexane/isopropanol = 70/30, tR = 5.490 (major), tR = 6.753 (minor).
(E)-7-bromo-3-(3,4-diphenylchroman-2-yl)-1H-indole (6ra):
Yield: 89% (42.7 mg); 83:17 dr; white solid; m.p. 87.0–89.0 °C; [α]D20 = −194.8 (c 0.56, acetone); 1H NMR (400 MHz, CDCl3) δ 8.04 (s, 1H), 7.75 (d, J = 8.0 Hz, 1H), 7.30 (d, J = 7.6 Hz, 1H), 7.23 (d, J = 7.5 Hz, 1H), 7.20–7.12 (m, 3H), 7.07–6.94 (m, 7H), 6.93–6.88 (m, 1H), 6.73 (d, J = 7.3 Hz, 2H), 6.58 (d, J = 7.4 Hz, 2H), 5.90 (d, J = 10.9 Hz, 1H), 4.40 (d, J = 5.2 Hz, 1H), 4.20–4.08 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 154.7, 141.4, 139.3, 134.9, 130.6, 130.3, 129.1, 128.2, 127.6, 127.5, 127.3, 126.5, 126.4, 124.8, 124.6, 124.3, 121.0, 120.6, 119.2, 116.8, 116.0, 104.8, 71.1, 48.8, 48.2; IR (KBr): 3648, 3628, 3566, 1868, 1716, 1507, 1456, 1339, 751, 668 cm−1; (C29H22BrNO+H)+ requires m/z 480.0958, found m/z 480.0945; ee: 82%, AD-H, hexane/isopropanol = 70/30, tR = 5.820 (major), tR = 7.357 (minor).
(E)-3-(3-(3-chlorophenyl)-4-phenylchroman-2-yl)-1H-indole (6ka):
Yield: 72% (31.3 mg); 76:24 dr; white solid; m.p. 93.0–95.0 °C; [α]D20 = −174.8 (c 0.29, acetone); 1H NMR (400 MHz, CDCl3) δ 7.89 (s, 1H), 7.77 (d, J = 7.8 Hz, 1H), 7.25–7.19 (m, 2H), 7.19–7.16 (m, 3H), 7.15–7.08 (m, 2H), 7.07–7.01 (m, 2H), 6.99–6.95 (m, 1H), 6.92–6.82 (m, 3H), 6.78–6.70 (m, 2H), 6.57 (s, 1H), 6.44 (d, J = 7.6 Hz, 1H), 5.86 (d, J = 10.7 Hz, 1H), 4.38 (d, J = 5.2 Hz, 1H), 4.17–4.08 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 154.8, 141.7, 141.1, 136.3, 133.2, 130.6, 130.3, 129.2, 128.7, 128.3, 127.6, 127.3, 126.7, 126.5, 125.9, 124.3, 123.7, 122.3, 120.6, 119.9, 119.8, 116.9, 114.3, 111.3, 71.0, 48.5, 48.1; IR (KBr): 3648, 3628, 3566, 3030, 1868, 1748, 1507, 1456, 749, 701 cm−1; (C29H22ClNO+H)+ requires m/z 436.1463, found m/z 436.1462; ee: 80%, AD-H, hexane/isopropanol = 70/30, tR = 5.337 (minor), tR = 6.787 (major).
(E)-3-(3-(4-chlorophenyl)-4-phenylchroman-2-yl)-1H-indole (6ma):
Yield: 70% (30.5 mg); 78:22 dr; white solid; m.p. 97.0–99.0 °C; [α]D20 = −106.1 (c 0.41, acetone); 1H NMR (400 MHz, CDCl3) δ 7.89 (s, 1H), 7.76 (d, J = 7.8 Hz, 1H), 7.26–7.19 (m, 2H), 7.18–7.15 (m, 3H), 7.15–7.07 (m, 2H), 7.07–7.00 (m, 2H), 6.93–6.86 (m, 4H), 6.74 (d, J = 6.9 Hz, 2H), 6.49 (d, J = 8.1 Hz, 2H), 5.86 (d, J = 10.7 Hz, 1H), 4.37 (d, J = 5.2 Hz, 1H), 4.18–4.11 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 154.8, 141.2, 138.1, 136.3, 132.0, 130.6, 130.4, 130.3, 128.3, 127.6, 126.7, 125.9, 124.5, 123.7, 122.3, 120.5, 119.9, 119.7, 116.9, 114.4, 111.3, 71.1, 48.5, 47.7; IR (KBr): 3648, 3628, 3618, 1868, 1716, 1698, 1507, 1456, 748, 702 cm−1; (C29H22ClNO+H)+ requires m/z 436.1463, found m/z 436.1449; ee: 83%, IA, hexane/isopropanol = 70/30, tR = 5.587 (minor), tR = 6.463 (major).
(E)-3-(7-methyl-3,4-diphenylchroman-2-yl)-1H-indole (6ab):
Yield: 73% (30.5 mg); 81:19 dr; white solid; m.p. 107.0–109.0 °C; [α]D20 = −167.9 (c 0.37, acetone); 1H NMR (400 MHz, CDCl3) δ 7.80 (s, 1H), 7.78 (s, 1H), 7.23–7.19 (m, 1H), 7.18–7.08 (m, 5H), 7.06–7.02 (m, 1H), 7.00–6.92 (m, 4H), 6.86–6.82 (m, 2H), 6.74 (d, J = 7.5 Hz, 2H), 6.58 (d, J = 7.4 Hz, 2H), 5.91 (d, J = 10.7 Hz, 1H), 4.35 (d, J = 5.2 Hz, 1H), 4.18–4.10 (m, 1H), 2.24 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 152.7, 141.6, 139.7, 136.2, 130.6, 130.4, 129.5, 129.1, 128.9, 127.4, 126.4, 126.2, 126.1, 124.4, 123.7, 122.1, 119.9, 119.7, 116.5, 114.8, 111.2, 71.1, 48.8, 48.3, 20.5; IR (KBr): 3648, 3586, 3566, 1868, 1716, 1496, 1456, 1218, 740, 699 cm−1; (C30H25NO+H)+ requires m/z 416.2009, found m/z 416.1999; ee: 76%, IA, hexane/isopropanol = 70/30, tR = 6.360 (minor), tR = 9.837 (major).
(E)-3-(7-bromo-3,4-diphenylchroman-2-yl)-1H-indole (6ac):
Yield: 57% (27.1 mg); 68:32 dr;
Major diastereoisomer: white solid; m.p. 81.7–82.0 °C; [α]D20 = −62.5 (c 0.20, acetone); 1H NMR (400 MHz, CDCl3) δ 8.04 (s, 1H), 7.75 (d, J = 7.9 Hz, 1H), 7.30 (d, J = 7.6 Hz, 1H), 7.23 (d, J = 7.7 Hz, 1H), 7.20–7.11 (m, 3H), 7.07–6.93 (m, 7H), 6.93–6.87 (m, 1H), 6.73 (d, J = 7.3 Hz, 2H), 6.58 (d, J = 7.3 Hz, 2H), 5.90 (d, J = 10.9 Hz, 1H), 4.40 (d, J = 5.1 Hz, 1H), 4.18–4.09 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 155.6, 140.8, 139.2, 136.2, 131.4, 130.5, 129.0, 127.6, 126.6, 126.4, 126.0, 123.9, 123.7, 123.5, 122.3, 121.0, 119.9, 119.8, 119.7, 114.3, 111.3, 71.7, 48.2, 47.8; IR (KBr): 3647, 2922, 2852, 1732, 1716, 1479, 1456, 1261, 741, 700 cm−1; (C29H22BrNO+H)+ requires m/z 480.0958, found m/z 480.0935; ee: 73%, AD-H, hexane/isopropanol = 70/30, tR = 5.520 (major), tR = 6.530 (minor).
Minor diastereoisomer: white solid; m.p. 85.5–87.0 °C; [α]D20 = −3.0 (c 0.17, acetone); 1H NMR (400 MHz, CDCl3) δ 7.84 (s, 1H), 7.68 (d, J = 8.5 Hz, 1H), 7.40 (s, 1H), 7.23–7.09 (m, 5H), 7.04–6.93 (m, 6H), 6.89–6.75 (m, 5H), 5.60 (d, J = 10.6 Hz, 1H), 4.50 (d, J = 11.1 Hz, 1H), 3.71–3.64 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 155.3, 143.2, 140.4, 136.9, 130.3, 129.1, 128.3, 128.2, 128.1, 127.7, 126.6, 126.5, 126.4, 124.8, 123.8, 123.2, 121.3, 120.8, 116.9, 115.7, 114.8, 114.1, 76.8, 53.1, 50.9; IR (KBr): 3647, 2922, 1575, 1456, 1261, 1214, 1012, 798, 742, 700 cm−1; (C29H22BrNO+H)+ requires m/z 480.0958, found m/z 480.0931; ee: 60%, OD-H, hexane/isopropanol = 70/30, tR = 6.127 (minor), tR = 7.847 (major).
(E)-3-(4-(4-fluorophenyl)-3-phenylchroman-2-yl)-1H-indole (6ad):
Yield: 59% (24.6 mg); 75:25 dr; white solid; m.p. 105.0–107.0 °C; [α]D20 = −135.0 (c 0.24, acetone); 1H NMR (400 MHz, CDCl3) δ 7.87 (s, 1H), 7.78 (d, J = 7.7 Hz, 1H), 7.26–7.21 (m, 2H), 7.18–7.08 (m, 2H), 7.05 (d, J = 8.2 Hz, 1H), 7.03–6.93 (m, 4H), 6.92–6.86 (m, 2H), 6.85–6.77 (m, 2H), 6.69–6.63 (m, 2H), 6.61 (d, J = 7.2 Hz, 2H), 5.87 (d, J = 10.6 Hz, 1H), 4.38 (d, J = 5.2 Hz, 1H), 4.18–4.10 (m, 1H); 13C NMR (100 MHz, CDCl3) δ 161.6 (J = 243.6 Hz), 154.8, 139.5, 137.3 (J = 3.1 Hz), 136.2, 131.9 (J = 7.9 Hz), 130.1, 129.1, 128.3, 127.6, 126.4, 126.1, 124.6, 123.7, 123.1, 122.2, 120.5, 119.8 (J = 7.7 Hz), 116.9, 114.6, 114.3 (J = 21.0 Hz), 111.2, 71.1, 48.0, 47.9; 19F NMR (376 MHz, CDCl3) δ -116.50; IR (KBr): 3648, 3628, 3618, 1771, 1716, 1653, 1488, 1456, 748, 699 cm−1; (C29H22FNO+H)+ requires m/z 420.1758, found m/z 420.1760; ee: 76%, AD-H, hexane/isopropanol = 70/30, tR = 5.360 (minor), tR = 6.863 (major).
(E)-3-(4-(3-methoxyphenyl)-3-phenylchroman-2-yl)-1H-indole (6ae):
Yield: 80% (34.6 mg); 75:25 dr; white solid; m.p. 92.0–94.0 °C; [α]D20 = −170.3 (c 0.27, acetone); 1H NMR (400 MHz, CDCl3) δ 7.85 (s, 1H), 7.79 (d, J = 7.7 Hz, 1H), 7.25–7.20 (m, 2H), 7.16–7.08 (m, 2H), 7.07–7.05 (m, 1H), 7.05–7.01 (m, 2H), 7.01–6.94 (m, 3H), 6.92–6.86 (m, 2H), 6.74–6.68 (m, 1H), 6.64 (d, J = 7.3 Hz, 2H), 6.38 (d, J = 7.6 Hz, 1H), 6.15 (s, 1H), 5.94 (d, J = 10.6 Hz, 1H), 4.37 (d, J = 5.2 Hz, 1H), 4.19–4.11 (m, 1H), 3.54 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 158.7, 154.8, 143.1, 139.7, 136.2, 130.2, 129.1, 128.4, 128.2, 127.5, 126.2, 126.1, 124.6, 123.7, 123.1, 122.2, 120.4, 119.9, 119.8, 116.8, 116.1, 114.7, 112.4, 111.2, 71.2, 55.0, 48.7, 48.0; IR (KBr): 3750, 3648, 3618, 3566, 1583, 1486, 1456, 1241, 744, 702 cm−1; (C30H25NO2+H)+ requires m/z 432.1958, found m/z 432.1949; ee: 79%, IA, hexane/isopropanol = 70/30, tR = 5.743 (minor). tR = 6.993 (major).
(E)-3-(6-methoxy-4-(2-methoxyphenyl)-3-phenylchroman-2-yl)-1H-indole (6af):
Yield: 71% (32.7 mg); 90:10 dr; white solid; m.p. 110.0–112.0 °C; [α]D20 = −133.8 (c 0.24, acetone); 1H NMR (400 MHz, CDCl3) δ 7.81 (d, J = 7.6 Hz, 1H), 7.78 (s, 1H), 7.21–7.13 (m, 2H), 7.14–7.02 (m, 3H), 6.97 (d, J = 8.9 Hz, 1H), 6.93–6.85 (m, 4H), 6.84 (d, J = 2.1 Hz, 1H), 6.82–6.77 (m, 1H), 6.63–6.55 (m, 3H), 6.53 (d, J = 2.9 Hz, 1H), 5.86 (d, J = 10.5 Hz, 1H), 5.05 (d, J = 5.4 Hz, 1H), 4.15–4.06 (m, 1H), 3.68 (s, 3H), 3.09 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 157.5, 153.4, 149.5, 140.3, 136.2, 131.3, 130.6, 128.8, 127.6, 127.0, 126.2, 125.8, 125.5, 123.6, 122.0, 120.0, 119.9, 119.6, 117.3, 115.0, 114.7, 114.2, 111.1, 109.7, 71.2, 55.7, 54.6, 47.8, 40.0; IR (KBr): 3648, 3628, 3618, 1868, 1456, 1435, 1238, 1031, 749, 698 cm−1; (C31H27NO3+H)+ requires m/z 462.2064, found m/z 462.2069; ee: 81%, IA, hexane/isopropanol = 70/30, tR = 5.823 (major), tR = 7.830 (minor).

References

  1. Kochanowska-Karamyan, A.J.; Hamann, M.T. Marine Indole Alkaloids: Potential New Drug Leads for the Control of Depression and Anxiety. Chem. Rev. 2010, 110, 4489–4497. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Wan, Y.; Li, Y.; Yan, C.; Yan, M.; Tang, Z. Indole: A Privileged Scaffold for the Design of Anti-Cancer Agents. Eur. J. Med. Chem. 2019, 183, 111691. [Google Scholar] [CrossRef]
  3. Liu, Y.; Wu, G.; Yang, Z.; Rouh, H.; Katakam, N.; Ahmed, S.; Unruh, D.; Cui, Z.; Lischka, H.; Li, G. Multi-Layer 3D Chirality: New Synthesis, AIE and Computational Studies. Sci. China. Chem. 2020, 63, 692–698. [Google Scholar] [CrossRef]
  4. Wu, G.; Liu, Y.; Yang, Z.; Jiang, T.; Katakam, N.; Rouh, H.; Ma, L.; Tang, Y.; Ahmed, S.; Rahman, A.U.; et al. Enantioselective Assembly of Multi-Layer 3D Chirality. Natl. Sci. Rev. 2020, 7, 588–599. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Zhang, J.; Kürti, L. Multi-Layer 3D Chirality: Its Enantioselective Synthesis and Aggregation-Induced Emission (AIE). Natl. Sci. Rev. 2021, 8, nwaa205. [Google Scholar] [CrossRef] [PubMed]
  6. Tu, M.-S.; Chen, K.-W.; Wu, P.; Zhang, Y.-C.; Liu, X.-Q.; Shi, F. Advances in Organocatalytic Asymmetric Reactions of Vinylindoles: Powerful Access to Enantioenriched Indole Derivatives. Org. Chem. Front. 2021, 8, 2643–2672. [Google Scholar] [CrossRef]
  7. Sheng, F.-T.; Wang, J.-Y.; Tan, W.; Zhang, Y.-C.; Shi, F. Progresses in Organocatalytic Asymmetric Dearomatization Reactions of Indole Derivatives. Org. Chem. Front. 2020, 7, 3967–3998. [Google Scholar] [CrossRef]
  8. Gioia, C.; Hauville, A.; Bernardi, L.; Fini, F.; Ricci, A. Organocatalytic Asymmetric Diels–Alder Reactions of 3-Vinylindoles. Angew. Chem. Int. Ed. 2008, 47, 9236–9239. [Google Scholar] [CrossRef]
  9. Tan, B.; Hernaandez-Torres, G.; Barbas, C.F. Highly Efficient Hydrogen-Bonding Catalysis of the Diels-Alder Reaction of 3-Vinylindoles and Methyleneindolinones Provides Carbazolespirooxindole Skeletons. J. Am. Chem. Soc. 2011, 133, 12354–12357. [Google Scholar] [CrossRef] [PubMed]
  10. Enders, D.; Joie, C.; Deckers, K. Organocatalytic Asymmetric Synthesis of Tetracyclic Pyridocarbazole Derivatives by Using a Diels-Alder/aza-Michael/Aldol Condensation Domino Reaction. Chem. Eur. J. 2013, 19, 10818–10821. [Google Scholar] [CrossRef] [PubMed]
  11. Zhang, L.-L.; Zhang, J.-W.; Xiang, S.-H.; Guo, Z.; Tan, B. Remote Control of Axial Chirality: Synthesis of Spirooxindole−Urazoles via Desymmetrization of ATAD. Org. Lett. 2018, 20, 6022–6026. [Google Scholar] [CrossRef]
  12. Yang, X.; Zhou, Y.-H.; Yang, H.; Wang, S.-S.; Ouyang, Q.; Luo, Q.-L.; Guo, Q.-X. Asymmetric Diels-Alder Reaction of 3-Vinylindoles and Nitroolefins Promoted by Multiple Hydrogen Bonds. Org. Lett. 2019, 21, 1161–1164. [Google Scholar] [CrossRef]
  13. Bergonzini, G.; Gramigna, L.; Mazzanti, A.; Fochi, M.; Bernardi, L.; Ricci, A. Organocatalytic Asymmetric Povarov Reactions with 2- and 3-Vinylindoles. Chem. Commun. 2010, 46, 327–329. [Google Scholar] [CrossRef]
  14. Koay, W.L.; Mei, G.-J.; Lu, Y. Facile Access to Benzofuran-Fused Tetrahydropyridines via Catalytic Asymmetric [4 + 2] Cycloaddition of Aurone-Derived 1-Azadienes with 3-Vinylindoles. Org. Chem. Front. 2021, 8, 968–974. [Google Scholar] [CrossRef]
  15. Chen, T.; Che, C.; Guo, Z.; Dong, X.-Q.; Wang, C.-J. Diastereoselective Synthesis of Functionalized Tetrahydropyridazines Containing Indole Scaffolds via an Inverse-Electron-Demand aza-Diels–Alder Reaction. Org. Chem. Front. 2021, 8, 4392–4398. [Google Scholar] [CrossRef]
  16. Mao, Z.; Lin, A.; Shi, Y.; Mao, H.; Li, W.; Cheng, Y.; Zhu, C. Chiral Tertiary Amine Thiourea-Catalyzed Asymmetric Inverse-Electron-Demand Diels−Alder Reaction of Chromone Heterodienes using 3-Vinylindoles as Dienophiles. J. Org. Chem. 2013, 78, 10233–10239. [Google Scholar] [CrossRef]
  17. Guan, X.-K.; Liu, G.-F.; An, D.; Zhang, H.; Zhang, S.-Q. Chiral Imidodiphosphoric Acid-Catalyzed Highly Diastereo- and Enantioselective Synthesis of Poly-Substituted 3,4-Dihydro-2H-pyrans: [4 + 2] Cycloadditions of β,γ-Unsaturated α-Ketoesters and 3-Vinylindoles. Org. Lett. 2019, 21, 5438–5442. [Google Scholar] [CrossRef] [PubMed]
  18. Wu, S.-F.; Tu, M.-S.; Hang, Q.-Q.; Zhang, S.; Ding, H.; Zhang, Y.-C.; Shi, F. Construction of Chiral Chroman Scaffolds via Catalytic Asymmetric [4 + 2] Cyclizations of Paraquinone Methide Derivatives with 3-Vinylindoles. Org. Biomol. Chem. 2020, 18, 5388–5399. [Google Scholar] [CrossRef] [PubMed]
  19. Sun, X.-X.; Zhang, H.-H.; Li, G.-H.; Meng, L.; Shi, F. Diastereo- and Enantioselective Construction of an Indole-Based 2,3-Dihydrobenzofuran Scaffold via Catalytic Asymmetric [3 + 2] Cyclizations of Quinone Monoimides with 3-Vinylindoles. Chem. Commun. 2016, 52, 2968–2971. [Google Scholar] [CrossRef]
  20. Fan, T.; Zhang, H.-H.; Li, C.; Shen, Y.; Shi, F. The Application of N-Protected 3-Vinylindoles in Chiral Phosphoric Acid-Catalyzed [3 + 2] Cyclization with 3-Indolylmethanols: Monoactivation of the Catalyst to Vinyliminium. Adv. Synth. Catal. 2016, 358, 2017–2031. [Google Scholar] [CrossRef]
  21. Zhu, Z.-Q.; Shen, Y.; Sun, X.-X.; Tao, J.-Y.; Liu, J.-X.; Shi, F. Catalytic Asymmetric [3 + 2] Cycloadditions of C-3 Unsubstituted 2-Indolylmethanols: Regio-, Diastereo- and Enantioselective Construction of the Cyclopenta[b]indole Framework. Adv. Synth. Catal. 2016, 358, 3797–3808. [Google Scholar] [CrossRef]
  22. Li, C.; Xu, D.-N.; Ma, C.; Mei, G.-J.; Shi, F. Diastereo- and Enantioselective Construction of Dihydrobenzo[e]indole Scaffolds via Catalytic Asymmetric [3 + 2] Cycloannulations. J. Org. Chem. 2018, 83, 9190–9200. [Google Scholar] [CrossRef] [PubMed]
  23. Mei, G.-J.; Zheng, W.; Gonçalves, T.P.; Tang, X.; Huang, K.-W.; Lu, Y. Catalytic Asymmetric Formal [3 + 2] Cycloaddition of Azoalkenes with 3-Vinylindoles: Synthesis of 2,3-Dihydropyrroles. iScience 2020, 23, 100873. [Google Scholar] [CrossRef] [Green Version]
  24. Terada, M.; Moriya, K.; Kanomata, K.; Sorimachi, K. Chiral Brønsted Acid Catalyzed Stereoselective Addition of Azlactones to 3-Vinylindoles for Facile Access to Enantioenriched Tryptophan Derivatives. Angew. Chem. Int. Ed. 2011, 50, 12586–12590. [Google Scholar] [CrossRef]
  25. Wang, Z.; Ai, F.; Wang, Z.; Zhao, W.; Zhu, G.; Lin, Z.; Sun, J. Organocatalytic Asymmetric Synthesis of 1,1-Diarylethanes by Transfer Hydrogenation. J. Am. Chem. Soc. 2015, 137, 383–389. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, Y.; Zhang, S.-X.; Fu, L.-N.; Guo, Q.-X. Highly Efficient Atom-Economic Synthesis of Chiral Bis(indolyl)methanes Bearing Quaternary Stereogenic Carbon Centers. ChemCatChem 2017, 9, 3107–3110. [Google Scholar] [CrossRef]
  27. Guan, X.-K.; Zhang, H.; Gao, J.-G.; Sun, D.-Y.; Qin, X.-S.; Jiang, G.-F.; Zhang, G.-L.; Zhang, S. Asymmetric Synthesis of 1,1,1-Triarylethanes by Chiral Imidodiphosphoric Acid Catalyzed Nucleophilic Addition of Pyrrole and Indoles to 3-Vinylindoles. J. Org. Chem. 2019, 84, 12562–12572. [Google Scholar] [CrossRef]
  28. Xue, J.-H.; Shi, M.; Yu, F.; Li, X.-Y.; Ren, W.; Fu, L.-N.; Guo, Q.-X. Catalytic Asymmetric Nucleophilic Addition of 3-Vinylindoles to Imines. Org. Lett. 2016, 18, 3874–3877. [Google Scholar] [CrossRef]
  29. Li, X.-Y.; Hu, W.-T.; Xiong, Q.-J.; Ye, S.-M.; Huang, Y.-M.; Guo, Q.-X. Chiral Anion-Induced Catalytic Asymmetric Direct Dehydrative Coupling of 3-Vinylindoles and 3-Indolylmethanols. Adv. Synth. Catal. 2019, 361, 1803–1807. [Google Scholar] [CrossRef]
  30. Li, J.-L.; Liu, T.-Y.; Chen, Y.-C. Aminocatalytic Asymmetric Diels–Alder Reactions via HOMO Activation. Acc. Chem. Res. 2012, 45, 1491–1500. [Google Scholar] [CrossRef]
  31. Jiang, X.; Wang, R. Recent Developments in Catalytic Asymmetric Inverse-Electron-Demand Diels–Alder Reaction. Chem. Rev. 2013, 113, 5515–5546. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, Y.-C.; Jiang, F.; Shi, F. Organocatalytic Asymmetric Synthesis of Indole-Based Chiral Heterocycles: Strategies, Reactions, and Outreach. Acc. Chem. Res. 2020, 53, 425–446. [Google Scholar] [CrossRef]
  33. Wang, J.-Y.; Sun, M.; Yu, X.-Y.; Zhang, Y.-C.; Tan, W.; Shi, F. Atroposelective Construction of Axially Chiral Alkene-Indole Scaffolds via Catalytic Enantioselective Addition Reaction of 3-Alkynyl-2-indolylmethanols. Chin. J. Chem. 2021, 39, 2163–2171. [Google Scholar] [CrossRef]
  34. Wan, X.; Sun, M.; Wang, J.-Y.; Yu, L.; Wu, Q.; Zhang, Y.-C.; Shi, F. Regio- and Enantioselective Ring-Opening Reaction of Vinylcyclopropanes with Indoles under Cooperative Catalysis. Org. Chem. Front. 2021, 8, 212–223. [Google Scholar] [CrossRef]
  35. Li, T.-Z.; Liu, S.-J.; Sun, Y.-W.; Deng, S.; Tan, W.; Jiao, Y.; Zhang, Y.-C.; Shi, F. Regio- and Enantioselective [3 + 3] Cycloaddition of Nitrones with 2-Indolylmethanols Enabled by Cooperative Organocatalysis. Angew. Chem. Int. Ed. 2021, 60, 2355–2363. [Google Scholar] [CrossRef]
  36. Akiyama, T. Stronger Brønsted Acids. Chem. Rev. 2007, 107, 5744–5758. [Google Scholar] [CrossRef]
  37. Terada, M. Binaphthol-derived Phosphoric Acid as a Versatile Catalyst for Enantioselective Carbon–Carbon Bond Forming Reactions. Chem. Commun. 2008, 35, 4097–4112. [Google Scholar] [CrossRef] [PubMed]
  38. Terada, M. Chiral Phosphoric Acids as Versatile Catalysts for Enantioselective Transformations. Synthesis 2010, 2010, 1929–1982. [Google Scholar] [CrossRef]
  39. Yu, J.; Shi, F.; Gong, L.-Z. Brønsted-Acid-Catalyzed Asymmetric Multicomponent Reactions for the Facile Synthesis of Highly Enantioenriched Structurally Diverse Nitrogenous Heterocycles. Acc. Chem. Res. 2011, 44, 1156–1171. [Google Scholar] [CrossRef]
  40. Parmar, D.; Sugiono, E.; Raja, S.; Rueping, M. Complete Field Guide to Asymmetric BINOL-Phosphate Derived Brønsted Acid and Metal Catalysis: History and Classification by Mode of Activation; Brønsted Acidity, Hydrogen Bonding, Ion Pairing, and Metal Phosphates. Chem. Rev. 2014, 114, 9047–9153. [Google Scholar] [CrossRef]
  41. Li, S.; Xiang, S.-H.; Tan, B. Chiral Phosphoric Acid Creates Promising Opportunities for Enantioselective Photoredox Catalysis. Chin. J. Chem. 2020, 38, 213–214. [Google Scholar] [CrossRef]
  42. Liu, L.; Zhang, J. Catalytic Asymmetric [4 + 3] Cyclizations of 2-Indolylmethanols with ortho-Quinone Methides. Chin. J. Org. Chem. 2019, 39, 3308–3309. [Google Scholar] [CrossRef]
  43. Tan, B. Design and Catalytic Asymmetric Construction of Axially Chiral Aryl-Alkene-Indole Frameworks. Chin. J. Org. Chem. 2020, 40, 1404–1405. [Google Scholar] [CrossRef]
  44. Jiang, M.; Zhou, T.; Shi, B. Construction of a New Class of Oxindole-Based Axially Chiral Styrenes via Kinetic Resolution. Chin. J. Org. Chem. 2020, 40, 4364–4366. [Google Scholar] [CrossRef]
  45. Wang, Z.; Sun, J. Recent Advances in Catalytic Asymmetric Reactions of o-Quinone Methides. Synthesis 2015, 47, 3629–3644. [Google Scholar]
  46. Caruana, L.; Fochi, M.; Bernardi, L. The Emergence of Quinone Methides in Asymmetric Organocatalysis. Molecules 2015, 20, 11733–11764. [Google Scholar] [CrossRef] [PubMed]
  47. Jaworski, A.A.; Scheidt, K.A. Emerging Roles of in Situ Generated Quinone Methides in Metal-Free Catalysis. J. Org. Chem. 2016, 81, 10145–10153. [Google Scholar] [CrossRef]
  48. Yang, B.; Gao, S. Recent Advances in the Application of Diels-Alder Reactions Involving o-Quinodimethanes, aza-o-Quinone Methides and o-Quinone Methides in Natural Product Total Synthesis. Chem. Soc. Rev. 2018, 47, 7926–7953. [Google Scholar] [CrossRef] [PubMed]
  49. Lv, H.; You, L.; Ye, S. Enantioselective Synthesis of Dihydrocoumarins via N-Heterocyclic Carbene-Catalyzed Cycloaddition of Ketenes and o-Quinone Methides. Adv. Synth. Catal. 2009, 351, 2822–2826. [Google Scholar] [CrossRef]
  50. El-Sepelgy, O.; Haseloff, S.; Alamsetti, S.K.; Schneider, C. Brønsted Acid Catalyzed, Conjugate Addition of β-Dicarbonyls to In Situ Generated ortho-Quinone Methides-Enantioselective Synthesis of 4-Aryl-4H-Chromenes. Angew. Chem. Int. Ed. 2014, 53, 7923–7927. [Google Scholar] [CrossRef]
  51. Hsiao, C.-C.; Liao, H.-H.; Rueping, M. Enantio- and Diastereoselective Access to Distant Stereocenters Embedded within Tetrahydroxanthenes: Utilizing ortho-Quinone Methides as Reactive Intermediates in Asymmetric Bronsted Acid Catalysis. Angew. Chem. Int. Ed. 2014, 53, 13258–13263. [Google Scholar] [CrossRef]
  52. Zhao, J.-J.; Sun, S.-B.; He, S.-H.; Wu, Q.; Shi, F. Catalytic Asymmetric Inverse-Electron-Demand oxa-Diels-Alder Reaction of In Situ Generated ortho-Quinone Methides with 3-Methyl-2-Vinylindoles. Angew. Chem. Int. Ed. 2015, 54, 5460–5464. [Google Scholar] [CrossRef] [PubMed]
  53. Saha, S.; Schneider, C. Bronsted Acid-Catalyzed, Highly Enantioselective Addition of Enamides to In Situ-Generated ortho-Quinone Methides: A Domino Approach to Complex Acetamidotetrahydroxanthenes. Chem. Eur. J. 2015, 21, 2348–2352. [Google Scholar] [CrossRef]
  54. Saha, S.; Schneider, C. Directing Group Assisted Nucleophilic Substitution of Propargylic Alcohols via o-Quinone Methide Intermediates: Brønsted Acid Catalyzed, Highly Enantio- and Diastereoselective Synthesis of 7-Alkynyl-12a-acetamido-Substituted Benzoxanthenes. Org. Lett. 2015, 17, 648–651. [Google Scholar] [CrossRef] [PubMed]
  55. Tsui, G.C.; Liu, L.; List, B. The Organocatalytic Asymmetric Prins Cyclization. Angew. Chem. Int. Ed. 2015, 54, 7703–7706. [Google Scholar] [CrossRef]
  56. Alamsetti, S.K.; Spanka, M.; Schneider, C. Synergistic Rhodium/Phosphoric Acid Catalysis for the Enantioselective Addition of Oxonium Ylides to ortho-Quinone Methides. Angew. Chem. Int. Ed. 2016, 55, 2392–2396. [Google Scholar] [CrossRef]
  57. Chen, P.; Wang, K.; Guo, W.; Liu, X.; Liu, Y.; Li, C. Enantioselective Reactions of 2-Sulfonylalkyl Phenols with Allenic Esters: Dynamic Kinetic Resolution and [4 + 2] Cycloaddition Involving ortho-Quinone Methide Intermediates. Angew. Chem. Int. Ed. 2017, 56, 3689–3693. [Google Scholar] [CrossRef]
  58. Wang, Z.; Sun, J. Enantioselective [4 + 2] Cycloaddition of o-Quinone Methides and Vinyl Sulfides: Indirect Access to Generally Substituted Chiral Chromanes. Org. Lett. 2017, 19, 2334–2337. [Google Scholar] [CrossRef]
  59. Wang, Z.; Wang, T.; Yao, W.; Lu, Y. Phosphine-Catalyzed Enantioselective [4 + 2] Annulation of o-Quinone Methides with Allene Ketones. Org. Lett. 2017, 19, 4126–4129. [Google Scholar] [CrossRef]
  60. Zhang, J.; Liu, X.; Guo, S.; He, C.; Xiao, W.; Lin, L.; Feng, X. Enantioselective Formal [4 + 2] Annulation of ortho-Quinone Methides with ortho-Hydroxyphenyl α,ß-Unsaturated Compounds. J. Org. Chem. 2018, 83, 10175–10185. [Google Scholar] [CrossRef] [PubMed]
  61. Zhang, J.; Lin, L.; He, C.; Xiong, Q.; Liu, X.; Feng, X. A Chiral Scandium-Complex-Catalyzed Asymmetric Inverse-Electron-Demand oxa-Diels-Alder Reaction of o-Quinone Methides with Fulvenes. Chem. Commun. 2018, 54, 74–77. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Spanka, M.; Schneider, C. Phosphoric Acid Catalyzed Aldehyde Addition to in Situ Generated o-Quinone Methides: An Enantio- and Diastereoselective Entry toward cis-3,4-Diaryl Dihydrocoumarins. Org. Lett. 2018, 20, 4769–4772. [Google Scholar] [CrossRef]
  63. Göricke, F.; Schneider, C. Palladium-Catalyzed Enantioselective Addition of Chiral Metal Enolates to In Situ Generated ortho-Quinone Methides. Angew. Chem. Int. Ed. 2018, 57, 14736–14741. [Google Scholar] [CrossRef] [PubMed]
  64. Jiao, P.; Nakashima, D.; Yamamoto, H. Enantioselective 1,3-Dipolar Cycloaddition of Nitrones with Ethyl Vinyl Ether: The Difference between Brønsted and Lewis Acid Catalysis. Angew. Chem. Int. Ed. 2008, 47, 2411–2413. [Google Scholar] [CrossRef]
  65. Čorić, I.; List, B. Asymmetric spiroacetalization catalysed by confined Brønsted acids. Nature 2012, 483, 315–319. [Google Scholar] [CrossRef] [PubMed]
  66. Greindl, J.; Hioe, J.; Sorgenfrei, N.; Morana, F.; Gschwind, R.M. Brønsted Acid Catalysis Structural Preferences and Mobility in Imine/Phosphoric Acid Complexes. J. Am. Chem. Soc. 2016, 138, 15965–15971. [Google Scholar] [CrossRef]
  67. Lokesh, N.; Hioe, J.; Gramüller, J.; Gschwind, R.M. Relaxation Dispersion NMR to Reveal Fast Dynamics in Brønsted Acid Catalysis: Influence of Sterics and H-Bond Strength on Conformations and Substrate Hopping. J. Am. Chem. Soc. 2019, 141, 16398–16407. [Google Scholar] [CrossRef] [Green Version]
  68. Luan, Y.; Schaus, S.E. Enantioselective Addition of Boronates to o-Quinone Methides Catalyzed by Chiral Biphenols. J. Am. Chem. Soc. 2012, 134, 19965–19968. [Google Scholar] [CrossRef] [Green Version]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Article Metrics

Citations

Article Access Statistics

Journal Statistics
Multiple requests from the same IP address are counted as one view.
Download PDF
Cell Culture Characterization of Prooxidative Chain-Transfer Agents as Novel Cytostatic Drugs
Previous
Attenuative Effects of Fluoxetine and Triticum aestivum against Aluminum-Induced Alzheimer’s Disease in Rats: The Possible Consequences on Hepatotoxicity and Nephrotoxicity
Next
