Article

Precursor-Directed Biosynthesis of Aminofulvenes: New Chalanilines from Endophytic Fungus Chalara sp.

by
Mahsa Khoshbakht
1,
Jason Srey
1,
Donovon A. Adpressa
1,
Annika Jagels
2 and
Sandra Loesgen
1,2,*
1
Department of Chemistry, Oregon State University, Corvallis, OR 97331, USA
2
Whitney Laboratory for Marine Bioscience, Department of Chemistry, University of Florida, Gainesville, FL 32080, USA
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(15), 4418; https://doi.org/10.3390/molecules26154418
Submission received: 17 June 2021 / Revised: 17 July 2021 / Accepted: 19 July 2021 / Published: 22 July 2021
(This article belongs to the Special Issue Organic Chemistry in the USA)
Browse Figures
Versions Notes

Abstract

:
The plant endophyte Chalara sp. is able to biotransform the epigenetic modifier vorinostat to form unique, aniline-containing polyketides named chalanilines. Here, we sought to expand the chemical diversity of chalaniline A-type molecules by changing the aniline moiety in the precursor vorinostat. In total, twenty-three different vorinostat analogs were prepared via two-step synthesis, and nineteen were incorporated by the fungus into polyketides. The highest yielding substrates were selected for large-scale precursor-directed biosynthesis and five novel compounds, including two fluorinated chalanilines, were isolated, purified, and structurally characterized. Structure elucidation relied on 1D and 2D NMR techniques and was supported by low- and high-resolution mass spectrometry. All compounds were tested for their bioactivity but were not active in antimicrobial or cell viability assays. Aminofulvene-containing natural products are rare, and this high-yielding, precursor-directed process allows for the diversification of this class of compounds.

Graphical Abstract

1. Introduction

Fungal natural products keep surprising us with unprecedented chemical diversity derived from complex biosynthetic machineries. A multitude of applications for fungal metabolites have been found to aid humankind: from the antibiotic penicillin, the cholesterol-lowering agent lovastatin, to the immunosuppressant cyclosporin, to name a few [1,2]. In recent years, an increasing number of fungal genomes have been sequenced and the number of biosynthetic gene clusters present in these fungi, which encode for specialized small molecules, is much larger than the chemical diversity found [3,4]. Together with the estimate that only a small fraction of fungi have been chemically explored thus far, the potential of chemical discovery from fungi remains high [5,6,7]. Additionally, fungi are masters in biotransformation and have been shown to harbor unique enzymes enabling them to conquer challenging environments, food sources, and lifestyles [8,9]. This has been exploited in biotechnological applications; approximately half of the commercially available enzymes used in industry are of fungal origin [10]. Some fungi are known to biotransform small molecules and/or biosynthesize highly chemoreactive species. One example is the compound maximiscin from Tolypocladium sp. which results from highly reactive intermediates that can detoxify various synthetic and naturally derived antifungals via nucleophilic substitutions [11]. Previously, we found that the endophyte Chalara sp. is able to biotransform the epigenetic modifier vorinostat, also known as suberanilohydroxamic acid, to form unique, aniline-containing polyketides named chalanilines A and B (Figure 1) [12]. In our studies, chalaniline B, an unusual aminoxanthone, exhibited micromolar antimicrobial activity against multidrug-resistant Staphylococcus aureus strain ATCC# BAA-44. Recently, the total synthesis of chalaniline B was achieved, which allowed us to expand its antimicrobial assessment [13]. To our surprise, the synthetic intermediate deshydroxymethyl chalaniline B (1-anilino-2,8-dihydroxyxanthone) (Figure 1) was the most potent compound tested, with MIC values of 8 μg/mL (25 μM) against both methicillin-resistant S. aureus and B. subtilis. Aniline moieties are rare in natural products [14,15], but have been used extensively by synthetic chemists, for example, in dyes and early antibiotic development, or in medicinal chemistry to optimize a drug lead [16]. In one example, the introduction of aniline substituents enhanced the antifungal activity of aminoquinolones [17,18] and in another, methoxy substituents on the aniline moiety increased brain permeability in the development of a new drug to treat Alzheimer’s disease [19]. Here, we sought to expand the chemical diversity of chalaniline A-type molecules by changing the aniline moiety in the precursor vorinostat. Precursor-directed biosynthesis yielded five novel compounds and their bioactivity in antimicrobial and cell viability assays was tested.

2. Results

Vorinostat analogs were prepared in a two-step synthesis following previous reports (Figure 2A) [20]. Briefly, commercially available suberic acid monomethyl ester and different anilines were coupled using 1-(3-dimethylaminopropyl)-3-ethylcarbodiimide (EDC) and hydroxybenzotriazole (HOBt), followed by hydroxyl amination under basic conditions as the second step. After adjusting to pH 7 with hydrochloric acid, the vorinostat analogs were purified using silica column chromatography and analyzed by mass spectrometry (MS) and nuclear magnetic resonance (NMR) and the data compared to published reports [21,22,23]. Overall yields of the derivatives were 60–75% over two steps.
Next, the vorinostat analogs were supplemented to Chalara cultures (Figure 2D). Previously, we have found that the full vorinostat structure is required for high yields in the biotransformation; aniline or acetanilide were not incorporated or were only incorporated in trace amounts [12]. One can hypothesize that the suberoyl chain aids in cell permeability, and once inside the fungal cells, the aniline moiety is released by catabolic processes similar to the ones found in human serum [24]. Isofusidienols, as well as chalanilines from Chalara sp., can be envisioned biosynthetically from a xanthone arene epoxidation, forming a highly reactive aldehyde on the xanthofulvene, which is able to react with free aniline to form chalaniline A (SI Figure S33) [12]. Here, we optimized the feeding experiment and found that the addition of vorinostat precursors (in DMSO, final concentration 1 mM) to fungal cultures, followed by cultivation for 12–19 days, provided the highest yields of chalanilines in the Chalara cultures (SI Figures S34 and S35). In total, twenty-three different vorinostat analogs were prepared and nineteen were incorporated into the polyketide backbone by the fungus as shown by low-resolution mass spectrometry (SI Figure S36). We selected five vorinostat analogs with the most promising yields for large-scale precursor-directed biosynthesis, using 2 L cultures of fungus, and were able to isolate unoptimized yields of 1–4 mg/L of compounds 1–5.

2.1. Structure Elucidation

3-Fluoro chalaniline A (1) was isolated as a yellow amorphous solid in a yield of 3.2 mg/L. The HRESIMS gave an m/z value of 394.1088 [M + H]+ (calcd for C22H17FNO5, 394.1085; Δppm = 0.8) and an m/z value of 416.0904 [M + Na]+ (calcd for C22H16FNO5Na, 416.0905; Δppm = 0.2), resulting in a molecular formula of C22H16FNO5. The UV spectrum showed maxima at 380, 308, and 244 nm, representing the chalaniline A-type backbone. The 1H NMR spectrum exhibited a broad hydroxyl peak (δH 13.75), an N-H resonance (δH 11.84) with a large coupling constant (14.5 Hz) to one methine (δH 8.74), seven aromatic/olefinic hydrogens, one methoxy, and one methyl group (Table 1). The 13C NMR spectrum displayed two carbonyls, two methyl carbons, and eighteen olefinic carbons. The 3-fluoro benzene moiety exhibited 1J (244.9 Hz), 2J (26.2 and 21.4 Hz), and 3J (9.4 Hz) C-F coupling constants in the carbon spectrum, and the proton spectrum revealed two 3J (10.7 and 8.0 Hz) H-F coupling constants (Table 1). The structure of 1 was determined by conventional 2D NMR experiments. COSY and HSQC correlations helped to establish aromatic rings A to C. HMBC correlations between H-6 of the fulvene and C-11 of the bridging methine, connections between N-H and the aniline ring (C-2′ and C-6′), as well as the correlation between H-11 and C-2′ supported the structural assignment. The placement of the fluorine at C-3′ was confirmed by C-F coupling constant analysis (Figure 3).
As previously established by quantum mechanical calculations [12], chalanilines exist as zwitterions in solution (Figure 1). The NMR data found for 1–3 with the large trans coupling constant between N-H and H-11 confirm the iminium with delocalized double bond character.
4-Fluoro chalaniline A (2) was isolated as a yellow amorphous solid and the HRESIMS provided an m/z value of 394.1088 [M + H] + (calcd for C22H17FNO5, 394.1085; Δppm = 0.8) and m/z value of 416.0909 [M + Na]+ for the sodium adduct (calcd for C22H16FNO5Na, 416.0905; Δppm = 1.0). The 1H NMR spectrum of 2 was very similar to the spectrum of 1, the only differences can be found in the number of aromatic signals and the coupling and integration pattern for the fluoro-benzene moiety. Two sets of aromatic signals, with each an integration of ~2H, supported the symmetric, para-substituted fluoro-aniline incorporation (Table 1). The 13C spectrum showed twenty signals: one methyl, one methoxy, two carbonyl, one phenolic, and fifteen olefinic carbons. Only two aromatic protons and carbons could be found due to the symmetry in the 4′-fluoro aniline moiety. 1J C-F coupling could be found for C-4′ (244.8 Hz), 2J C-F coupling of 23.0 Hz for C-3′/5′, 3J C-F coupling of 8.3 Hz for C 2′/6′, and 4J C-F coupling (2.6 Hz) for C-1′ (Table 1). Two-dimensional NMR experiments were analyzed to complete the structure suggestion for 2, with key HMBC correlations from N-H to both the fulvene (C-5) and the 4-fluoro anilino ring C-2′/6′, and also from the H-11 to C-2′ (Figure 3).
3-Methoxy chalaniline A (3) was isolated as an amorphous yellow solid. The HRESIMS gave an m/z value of 406.1284 [M + H] + (calcd for C23H20NO6, 406.1285) and m/z value of 428.1102 [M + Na]+ for the sodium adduct (calcd for C23H19NO6Na, 428.1105; Δppm = 0.7). The 1H NMR spectrum of 3 showed a similar pattern of signals as previously reported for chalaniline A [12], with the addition of a second methoxy singlet (δH 3.84, δC 55.5) and fewer aromatic resonances. The 13C NMR spectrum exhibited twenty-three signals: three methyl peaks, two carbonyl shifts, a phenol and seventeen olefinic signals (Table 1). The methoxy group was placed meta to the aniline based on the observed coupling constant (Table 1). HMBC correlations between the fulvene (H-6) and the bridging methine (H-11), H-11 and the aniline ring (C-2′), as well as correlations from the N-H into the aromatic ring (C-2′; C-6′) established connectivity of the spin systems. The methoxy group exhibited a strong HMBC correlation to C-3′, confirming its meta position (Figure 3).
4-Methoxy chalaniline A (4) was isolated as a yellow amorphous solid with low yields. The HRESIMS showed an m/z of 406.1286 [M + H] + (calcd for C23H20NO6, 406.1285; Δppm = 0.2), indicative of a regioisomer of 3. The para-substitution in the 4-methoxy aniline moiety became evident in the proton NMR with two doublets each with an integration of ~2H (Table 1). The 13C signals were mainly derived from 2D spectra and were similar to the spectra of 2 and 3. HMBC correlations from both the H-2′ and H-3′ of the aniline ring to the bridging methine (C-11), as well as the correlation between bridging methine (H-11) to the fulvene (C-6, C-9a) assisted in the structure assembly (Figure 3).
Notably, there are differences in the NMR data between compounds 1–3 and 4, 5 in the 1H NMR spectrum due to different isolation procedures. When acid was used, the compounds lacked the N-H signal as well as the large coupling to H-11. We believe this is due to protonation effects by water found in the NMR solvent.
Naphthyl chalaniline A (5) was isolated as a yellow amorphous solid and the HRESIMS gave an m/z value of 426.1341 [M + H]+ (calcd for C26H20NO5, 426.1336; Δppm = 1.2), and an m/z value of 448.1160 [M + Na]+ for the sodium adduct (calcd for C26H19NO5Na, 448.1155; Δppm = 1.1) supporting a molecular formula of C26H19NO5. The 1H and 13C NMR spectra were similar to chalaniline A with additional signals for the naphthyl moiety instead of the phenyl in the aromatic region (Table 1). Due to the low amount of 5, only a partial assignment of the naphthyl moiety based on 1D NMR and chemical shift predictions, but not 2D correlations, could be made (Table 1). HMBC correlations from the bridging methine (H-11) to the fulvene (C-6, C-9a) and C-2′ of the naphthyl ring were utilized to connect the spin systems (Figure 3).

2.2. Bioactivity

Inhibition of cell viability of pure compounds 1-5 was evaluated against colon (HCT-116) and melanoma (SK-MEL-5) cancer cell models by measuring the reduction of the tetrazolium salt MTT (3-(4, 5 dimethylthiazolyl-2)-2,5-diphenyltetrazolium bromide) by metabolically active cells [25]. No inhibition of cell viability was observed at a single dose of 10 μM against these cell lines. All isolated compounds displayed no antimicrobial activity at a dose of 128 μg/mL against a panel of four Gram-positive bacteria (S. aureus ATCC 25923, methicillin-resistant S. aureus ATCC BAA-41, multidrug-resistant S. aureus ATCC BAA-44, and E. faecium ATCC 49032), two Gram-negative bacteria (P. aeruginosa ATCC 15422, E. coli ATCC 8739) as well as the yeast Candida albicans (ATCC 90027) following CLSI guidelines (details in the experimental section) [26].

3. Discussion

Precursor-directed biosynthesis has emerged as a powerful tool to diversify complex natural products [27]. It combines the best of two worlds; the flexibility and ease of organic synthesis to access small molecule precursors with the selectivity and often high yields found in biosynthetic processes. This strategy allows natural products to be made with “unnatural” functional groups, for example fluorine atoms or alkyne sidechains, which enable bio-orthogonal approaches for mode-of-action studies. Anilino-fulvenes are rarely found in chemical databases and chalaniline A was the first example found in fungi to our knowledge. The ability to utilize the fungal biosynthesis to incorporate different anilino moieties enabled us to study this new compound class in more detail. Chalara sp. was able to biotransform nineteen different vorinostat analogs; in particular, various anilines were well tolerated. The incorporation of alkynes or halogens like fluorine and bromine into a small molecule backbone can assist in the pull down of a potential molecular target via click-chemistry, fluorine-19 NMR to enable binding studies to macromolecules, or bromination, which might aid in crystallization attempts or ease in mass spectrometric detection [28]. These modifications also provide reactive handles for further chemical diversification efforts. We will continue our exploration of the activity of the chalanilines in an in vivo zebrafish behavior assay [29] as well as in silico molecular docking to find potential receptors and intracellular targets for these aminofulvenes.

4. Materials and Methods

General experimental procedures. UV spectra were recorded on a BioRad SmartSpec3000. IR spectra were recorded on a Thermo Scientific Nicolet 6700 FT-IR spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). NMR spectra were acquired on a Bruker Avance III 500 MHz or Bruker Avance III 700 MHz spectrometer equipped with a 5 mm TXI probe or 5 mm BBO probe (Bruker, Billerica, MA, USA 500 MHz and 700 MHz). For compound 4, we used AMRIS’ Agilent VNMRS-600 spectrometer with a unique 1.5 mm High Temperature Superconducting (HTS) Cold Probe and AMRIS’ Bruker Neo-600 spectrometer equipped with a 1.7 mm TCI Cryoprobe, all with the residual solvent used as an internal standard (DMSO: 2.50/39.50 ppm). Low-resolution ESI-MS and HRTOFMS mass spectra were recorded in positive ionization mode on an Agilent 1100 series LC with MSD 1946 or Agilent 1260 Infinity II LC with 6545 QTOF MS, respectively. Analytical high-pressure liquid chromatography (HPLC, Agilent, Santa Clara, CA, USA) was performed using an Agilent 1100 HPLC system equipped with a photodiode array detector. The mobile phase consisted of ultra-pure water (A) and acetonitrile (MeCN) (B), both with 0.05% formic acid. A gradient method from 10% A to 100% B in 35 min at a flow rate of 0.8 mL/min was used. The column (Phenomenex Kinetex® C18, 5 μm particle size, 150 mm × 4.6 mm, Phenomenex, Torrance, CA, USA) was re-equilibrated before each injection and the column compartment was maintained at 30 °C throughout each run. Semi-preparative HPLC (Phenomenex Kinetex® C 18, 5 μm particle size, 150 mm × 10 mm) utilized isocratic elution conditions or a gradient system with a flow rate of 4 mL/min on an Agilent 1100 HPLC system operating at room temperature equipped with a photodiode array detector. Preparative HPLC (Phenomenex Luna C18, 5 μm particle size, 250 mm × 21 mm) was conducted at room temperature, using isocratic elution conditions or a gradient system with a flow rate of 20 mL/min utilizing an Agilent 1260 Infinity series HPLC equipped with a DAD detector. All samples were filtered through a 0.45 μm nylon filter or centrifuged at 14,000 rpm for five minutes before LCMS and HPLC analysis. Analytical thin layer chromatography (TLC) was performed on pre-coated silica gel 60 F254 plates (Eppendorf, Hamburg, Germany). TLC plates were visualized by UV (254 and 360 nm), and by spraying with anisaldehyde solution followed by heating at 80 °C. General reagents were from Sigma-Aldrich Corp. and VWR International.
Preparation of vorinostat analogs. A solution of suberic acid monomethyl ester (1.0 g, 5.3 mmol) in anhydrous dimethyl formamide (DMF) (20.0 mL) was treated with EDC (1.2 g, 7.7 mmol), HOBt (1.0 g, 7.3 mmol), triethylamine (2.2 mL, 15.9 mmol), and stirred at room temperature (rt) for 30 minutes. Commercially available amine derivatives were first dissolved in DMF (10.0 mL) and then added to the reaction mixture. The resulting mixtures were stirred overnight (15–20 h) at rt and then diluted with ethyl acetate (EtOAc) (30.0 mL) and washed with concentrated hydrochloric acid (2 M, 8.0 mL), water (12.0 mL), and saturated sodium chloride solution (brine, 5 mL). The organic layer was dried with sodium sulfate (Na2SO4), filtered and evaporated to afford the ester derivatives. The crude products were pure enough to directly move to the second step. The ester derivatives in methanol (MeOH) (~20.0 mL) were added to freshly prepared hydroxylamine (~20.0 mL) and potassium hydroxide (KOH) and stirred for 2 h. The solvent evaporated and the reaction mixtures were extracted with EtOAc, dried with Na2SO4 and in vacuo. The crude products containing vorinostat derivatives were purified with silica column chromatography and structures proved via NMR and LCMS methods.
Precursors directed biosynthesis. Cultures of Chalara sp. 6661 were grown for seven days in YPD medium (yeast extract 20 g/L, bacto peptone 20 g/L; dextrose 40 g/L; pH 6.0) agar at 25 °C with a day/night cycle [12,30]. Then, 1 cm2 sections of agar/hyphae were excised and used to inoculate 50 mL cultures of YPD. After 48 h of growth at ambient temperatures with 200 rpm shaking, 1 M solutions of synthesized vorinostat derivatives [21,22,23] in dimethyl sulfoxide (DMSO) were used to bring duplicate cultures to a final treatment concentration of 1 mM. Cultures were maintained at ambient light and temperature with 200 rpm shaking for 30 days before extraction. Two-liter cultures treated with vorinostat derivatives were prepared in a similar fashion, with 1 cm2 hyphae/100 mL used for inoculation and vorinostat application occurring at 48 h thereafter. Biosynthesis of chalaniline A was monitored by LCMS from the day of inoculation until 26 days of cultivation; chalaniline A production was observed after 12 days (see SI Figures S33 and S34). Precursor-directed biosynthesis cultures were allowed to grow for ~20 days before extraction, and isolation of compounds of interest.
Extraction and isolation. Fungal cultures were treated with XAD-7 resin (10% w/v) and left overnight after separation of fungal mycelia from culture broth by filtration. XAD-7 resin was collected by filtration, washed with 2 L of deionized water, and then extracted with 2 L of 1:1 acetone:methanol mixture. Extract was concentrated before partitioning between EtOAc and water. The aqueous layer was washed three times with EtOAc and organic layers were combined to be concentrated to dryness in vacuo. Crude organic extracts were first separated into fractions by normal phase chromatographic separation on an ISCO flash chromatography system (3-fluoro vorinostat-treated culture: four fractions eluted with gradient of dichloromethane (DCM):MeOH, 4-fluoro vorinostat-treated culture: five fractions eluted with a gradient of DCM:MeOH, 3-methoxy vorinostat-treated culture: six fractions eluted first with a gradient of hexane:EtOAc and then with EtOAc:MeOH, 4-methoxy vorinostat-treated culture: five fractions eluted with DCM:MeOH gradient, naphthyl vorinostat-treated culture: seven fractions eluted with first 3:1 to 0:1 gradient of hexane:EtOAc and then EtOAc:MeOH gradient) and were further isolated directly from these fractions using preparative HPLC with isocratic mobile phases (3.2 mg of 1 from fraction two using a 60%:40% MeCN:H2O isocratic run, 2.9 mg of 2 from fraction two by preparative HPLC using 60%:40% MeCN:H2O isocratic run, 3.5 mg of 3 from fraction three by using 55%:45% MeCN:H2O isocratic run, 1.0 mg of 4 from fraction two by using 55%:45% MeCN:H2O isocratic run, 1.1 mg of 5 from fraction six using 65%:35% MeCN:H2O isocratic run). Precursor incorporation studies were checked with LCMS analysis by preparing 10 mg/mL samples in MeCN.
3-Fluoro chalaniline A (1): yellow amorphous solid; IR (ATR): νmax = 3370, 2925, 2854, 1712, 1651, 1591, 1470, 1297, 1208, 1147, 827, 732 cm−1; UV (MeCN) λmax: 380, 306, 244 nm; 13C NMR (176 MHz, DMSO-d6) and 1H NMR (500 MHz, DMSO-d6) see Table 1; HRESIMS: m/z 394.1088 [M + H]+ (calcd for C22H17FNO5 394.1085; Δppm 0.8), m/z 416.0904 [M + Na]+ (calcd for C22H16FNO5Na 416.0905; Δppm 0.2)
4-Fluoro chalaniline A (2): yellow amorphous solid; IR (ATR): νmax = 3430, 2925, 2853, 1712, 1651, 1589, 1508, 1466, 1365, 1209, 1098 cm−1; UV (MeCN) λmax: 380, 308, 244 nm; 13C NMR (176 MHz, DMSO-d6) and 1H NMR (700 MHz, DMSO-d6) see Table 1; HRESIMS: m/z 394.1088 [M + H]+ (calcd for C22H17FNO5 394.1085; Δppm = 0.8), m/z 416.0909 [M + Na]+, (calcd for C22H16FNO5Na 416.0905; Δppm = 1.0)
3-Methoxy chalaniline A (3): yellow amorphous solid; IR (ATR): νmax = 3290, 2924, 2850, 1703, 1647, 1601, 1510, 1470, 1252, 1190, 1050, 840, 735 cm−1; UV (MeCN) λmax = 383, 310, 246 nm; 13C NMR (176 MHz, DMSO-d6) and 1H NMR (700 MHz, DMSO-d6) see Table 1; HRESIMS: m/z 406.1284 [M + H]+ (calcd for C23H20NO6 406.1285; Δppm 0.2), m/z 428.1102 [M + Na]+ (calcd for C23H19NO6Na 428.1005; Δppm 0.7)
4-Methoxy chalaniline A (4): yellow amorphous solid; IR (ATR): νmax = 3290, 2924, 1703, 1647, 1510, 1490, 1252, 1050, 820, 745 cm−1; UV (MeCN) λmax: 382, 308, 244 nm; 13C NMR (150 MHz, DMSO-d6) and 1H NMR (600 MHz, DMSO-d6) see Table 1; HRESIMS: m/z 406.1286 [M + H]+, (calcd for C23H20NO6 406.1285; Δppm 0.2)
Naphthyl chalaniline A (5): yellow amorphous solid; IR (ATR): νmax = 3410, 2926, 2852, 1737, 1647, 1614, 1465,1372, 1307, 1207, 1098, 830, 767 cm−1; UV (MeCN) λmax: 374, 305, 242, 214 nm; 13C NMR (176 MHz, DMSO-d6) and 1H NMR (500 MHz, DMSO-d6) see Table 1; HRESIMS: m/z 426.1341 [M + H]+ (calcd for C26H20NO5 426.1336; Δppm 1.2), m/z 448.1160 [M + Na]+ (calcd for C26H19NO5Na 448.1155; Δppm 1.1)
Antimicrobial Assays. Extracts and fractions were tested for inhibitory activity against Staphylococcus aureus (ATCC 25923), methicillin-resistant Staphylococcus aureus (ATCC BAA-41), multidrug-resistant Staphylococcus aureus (ATCC BAA-44), Pseudomonas aeruginosa (ATCC 15442), Candida albicans (ATCC 90027), Candida krusei (ATCC 34135), and Mycobacterium smegmatis (ATCC 14468) in microbroth assays performed following an established protocol [26,31]. Fractions and pure compounds were tested at a concentration of 128 μg/mL. All human pathogens used in the study were acquired from the American Type Culture Collection (ATCC, Manassas, VA, USA).
Cell proliferation assay. Cytotoxic activities of extracts and pure compounds were evaluated against colon (HCT-116) and melanoma (SK-MEL-5) cancer models by measuring the reduction of the tetrazolium salt MTT (3-(4, 5-dimethylthiazolyl-2)-2, 5-diphenyltetrazolium bromide) by metabolically active cells following standard procedures [32,33].

Supplementary Materials

The following are available online. NMR spectra of compounds 1–5 (S1–S32), HPLC chromatograms (S33 and S34), vorinostats made in this study and scope of biotransformation (S35 and S36)

Author Contributions

M.K., J.S. performed experiments, data analysis, and prepared manuscript, D.A.A. developed synthesis, feeding protocols, and supervised data analysis, A.J. assisted with compound isolation and NMR acquisition and analysis. D.A.A. and S.L. conceived and designed the study. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by OSU and UF start-up funds and by the National Science Foundation under grant CH 1808717, CH 2020110.

Data Availability Statement

NMR and MS raw files can be requested from the authors.

Acknowledgments

We thank Steve Huhn (OSU), Ion Ghiviriga (UF), and James Rocca (UF, AMRIS) for excellent NMR support. We acknowledge the support of the Oregon State University’s NMR Facility, funded in part by the National Institutes of Health, HEI grant 1S10OD018518, and by the M. J. Murdock Charitable Trust grant no. 2014162. We acknowledge the University of Florida’s McKnight Brain Institute at the National High Magnetic Field Laboratory’s Advanced Magnetic Resonance Imaging and Spectroscopy (AMRIS) Facility, which is supported by the US NSF Cooperative Agreement No. DMR-1644779 and the State of Florida. A portion of this work was carried out using a 1.5 mm High-Temperature Superconducting Cryogenic Probe developed with support from NIH award R01 EB009772. We thank E. N. Kaweesa, P. E. Mandelare, and C. Zhu for performing the cytotoxicity and antimicrobial assays, respectively. We would like to thank Paul Blakemore for continued support.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds, if available in enough quantity, are available from the authors.

References

  1. Alberti, F.; Foster, G.D.; Bailey, A.M. Natural products from filamentous fungi and production by heterologous expression. Appl. Microbiol. Biotechnol. 2017, 101, 493–500. [Google Scholar] [CrossRef] [Green Version]
  2. Keller, N.P. Fungal secondary metabolism: Regulation, function and drug discovery. Nat. Rev. Microbiol. 2019, 17, 167–180. [Google Scholar] [CrossRef]
  3. Okada, B.K.; Seyedsayamdost, M.R. Antibiotic dialogues: Induction of silent biosynthetic gene clusters by exogenous small molecules. FEMS Microbiol. Rev. 2017, 41, 19–33. [Google Scholar] [CrossRef] [Green Version]
  4. Li, G.; Lou, H.X. Strategies to diversify natural products for drug discovery. Med. Res. Rev. 2018, 38, 1255–1294. [Google Scholar] [CrossRef]
  5. Greco, C.; Keller, N.P.; Rokas, A. Unearthing fungal chemodiversity and prospects for drug discovery. Curr. Opin. Microbiol. 2019, 51, 22–29. [Google Scholar] [CrossRef]
  6. Aly, A.H.; Debbab, A.; Proksch, P. Fungal endophytes: Unique plant inhabitants with great promises. Appl. Microbiol. Biotechnol. 2011, 90, 1829–1845. [Google Scholar] [CrossRef]
  7. Hyde, K.D.; Xu, J.; Rapior, S.; Jeewon, R.; Lumyong, S.; Niego, A.G.T.; Abeywickrama, P.D.; Aluthmuhandiram, J.V.S.; Brahamanage, R.S.; Brooks, S.; et al. The amazing potential of fungi: 50 ways we can exploit fungi industrially. Fungal Divers. 2019, 97, 1–136. [Google Scholar] [CrossRef] [Green Version]
  8. Vylkova, S. Environmental pH modulation by pathogenic fungi as a strategy to conquer the host. PLoS Pathog. 2017, 13, e1006149. [Google Scholar] [CrossRef] [Green Version]
  9. Wang, Y.; Dai, C.-C. Endophytes: A potential resource for biosynthesis, biotransformation, and biodegradation. Ann. Microbiol. 2011, 61, 207–215. [Google Scholar] [CrossRef]
  10. Biotechnological Use of Fungal Enzymes. In Fungi; Wiley: Hoboken, NJ, USA, 2017; pp. 201–225.
  11. Du, L.; You, J.; Nicholas, K.M.; Cichewicz, R.H. Chemoreactive Natural Products that Afford Resistance against Disparate Antibiotics and Toxins. Angew. Chem. Int. Ed. Engl. 2016, 55, 4220–4225. [Google Scholar] [CrossRef] [Green Version]
  12. Adpressa, D.A.; Stalheim, K.J.; Proteau, P.J.; Loesgen, S. Unexpected Biotransformation of the HDAC Inhibitor Vorinostat Yields Aniline-Containing Fungal Metabolites. ACS Chem. Biol. 2017, 12, 1842–1847. [Google Scholar] [CrossRef]
  13. Khoshbakht, M.; Thanaussavadate, B.; Zhu, C.; Cao, Y.; Zakharov, L.N.; Loesgen, S.; Blakemore, P.R. Total Synthesis of Chalaniline B: An Antibiotic Aminoxanthone from Vorinostat-Treated Fungus Chalara sp. 6661. J. Org. Chem. 2021. [Google Scholar] [CrossRef]
  14. Dunn, T.B.; Ellis, J.M.; Kofink, C.C.; Manning, J.R.; Overman, L.E. Asymmetric Construction of Rings A−D of Daphnicyclidin-Type Alkaloids. Org. Lett. 2009, 11, 5658–5661. [Google Scholar] [CrossRef] [Green Version]
  15. Hong, B.-C.; Shr, Y.-J.; Wu, J.-L.; Gupta, A.K.; Lin, K.-J. Novel [6 + 2] Cycloaddition of Fulvenes with Alkenes:  A Facile Synthesis of the Anislactone and Hirsutane Framework. Org. Lett. 2002, 4, 2249–2252. [Google Scholar] [CrossRef]
  16. Naksomboon, K.; Poater, J.; Bickelhaupt, F.M.; Fernández-Ibáñez, M.Á. para-Selective C–H Olefination of Aniline Derivatives via Pd/S,O-Ligand Catalysis. J. Am. Chem. Soc. 2019, 141, 6719–6725. [Google Scholar] [CrossRef] [Green Version]
  17. Wang, J.; Liu, J.; Xie, Z.; Li, J.; Li, J.; Hu, L. Design, synthesis and biological evaluation of mogrol derivatives as a novel class of AMPKα2β1γ1 activators. Bioorg. Med. Chem. Lett. 2020, 30, 126790. [Google Scholar] [CrossRef]
  18. Yang, R.; Du, W.; Yuan, H.; Qin, T.; He, R.; Ma, Y.; Du, H. Synthesis and biological evaluation of 2-phenyl-4-aminoquinolines as potential antifungal agents. Mol. Divers. 2020, 24, 1065–1075. [Google Scholar] [CrossRef]
  19. Srivastava, P.; Tripathi, P.N.; Sharma, P.; Shrivastava, S.K. Design, synthesis, and evaluation of novel N-(4-phenoxybenzyl)aniline derivatives targeting acetylcholinesterase, β-amyloid aggregation and oxidative stress to treat Alzheimer’s disease. Bioorg. Med. Chem. 2019, 27, 3650–3662. [Google Scholar] [CrossRef]
  20. Soli, E.D.; Braun, M.P. Synthesis of [phenyl-U-14C]aryl and [8-14C]carboxy labeled tracers of vorinostat. J. Labelled Comp. Radiopharm. 2006, 49, 437–443. [Google Scholar] [CrossRef]
  21. Salmi-Smail, C.; Fabre, A.; Dequiedt, F.; Restouin, A.; Castellano, R.; Garbit, S.; Roche, P.; Morelli, X.; Brunel, J.M.; Collette, Y. Modified cap group suberoylanilide hydroxamic acid histone deacetylase inhibitor derivatives reveal improved selective antileukemic activity. J. Med. Chem. 2010, 53, 3038–3047. [Google Scholar] [CrossRef] [PubMed]
  22. Rebelo, B.A.; Santos, R.B.; Ascenso, O.S.; Nogueira, A.C.; Lousa, D.; Abranches, R.; Ventura, M.R. Synthesis and biological effects of small molecule enhancers for improved recombinant protein production in plant cell cultures. Bioorg. Chem. 2020, 94, 103452. [Google Scholar] [CrossRef]
  23. Remiszewski, S.W.; Sambucetti, L.C.; Atadja, P.; Bair, K.W.; Cornell, W.D.; Green, M.A.; Howell, K.L.; Jung, M.; Kwon, P.; Trogani, N.; et al. Inhibitors of human histone deacetylase: Synthesis and enzyme and cellular activity of straight chain hydroxamates. J. Med. Chem. 2002, 45, 753–757. [Google Scholar] [CrossRef]
  24. Thangavel, S.; Rajamanikandan, R.; Friedrich, H.B.; Ilanchelian, M.; Omondi, B. Binding interaction, conformational change, and molecular docking study of N-(pyridin-2-ylmethylene)aniline derivatives and carbazole Ru(II) complexes with human serum albumins. Polyhedron 2016, 107, 124–135. [Google Scholar] [CrossRef]
  25. Vichai, V.; Kirtikara, K. Sulforhodamine B colorimetric assay for cytotoxicity screening. Nat. Protoc. 2006, 1, 1112–1116. [Google Scholar] [CrossRef]
  26. CLSI. Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria That Grow Aerobically, 7th ed.; National Committee for Clinical Laboratory Standards: Wayne, PA, USA, 2018. [Google Scholar]
  27. Kennedy, J. Mutasynthesis, chemobiosynthesis, and back to semi-synthesis: Combining synthetic chemistry and biosynthetic engineering for diversifying natural products. Nat. Prod. Rep. 2008, 25, 25–34. [Google Scholar] [CrossRef]
  28. Hughes, C.C. Chemical labeling strategies for small molecule natural product detection and isolation. Nat. Prod. Rep. 2021. [Google Scholar] [CrossRef]
  29. Haney, W.A.; Moussaoui, B.; Strother, J.A. Prolonged exposure to stressors suppresses exploratory behavior in zebrafish larvae. J. Exp. Biol. 2020, 223, jeb224964. [Google Scholar] [CrossRef]
  30. Lösgen, S.; Magull, J.; Schulz, B.; Draeger, S.; Zeeck, A. Isofusidienols: Novel chromone-3-oxepines produced by the endophytic fungus Chalara sp. Eur. JOC 2008, 4, 698–703. [Google Scholar]
  31. CLSI. Performance Standards for Antimicrobial Susceptibility Testing M100, 30th ed.; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2020. [Google Scholar]
  32. Kmail, A.; Lyoussi, B.; Zaid, H.; Saad, B. In vitro assessments of cytotoxic and cytostatic effects of Asparagus aphyllus, Crataegus aronia, and Ephedra alata in monocultures and co-cultures of Hepg2 and THP-1-derived macrophages. Pharmacogn. Commun. 2015, 5, 165–172. [Google Scholar] [CrossRef] [Green Version]
  33. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
Molecules 26 04418 g001 550

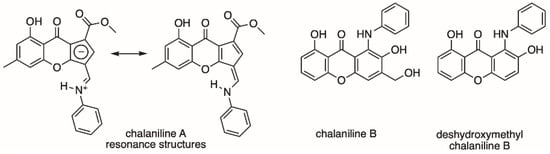

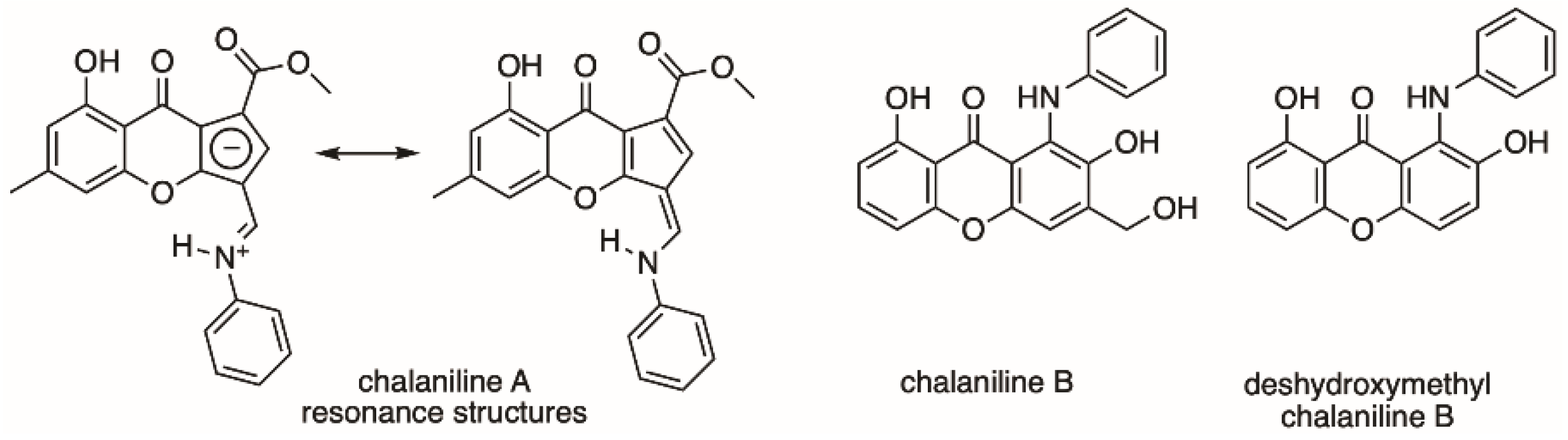

Figure 1. Chalanilines A and B isolated from Chalara sp. and deshydroxymethyl chalaniline B made by chemical synthesis.
Figure 1. Chalanilines A and B isolated from Chalara sp. and deshydroxymethyl chalaniline B made by chemical synthesis.
Molecules 26 04418 g001
Molecules 26 04418 g002 550

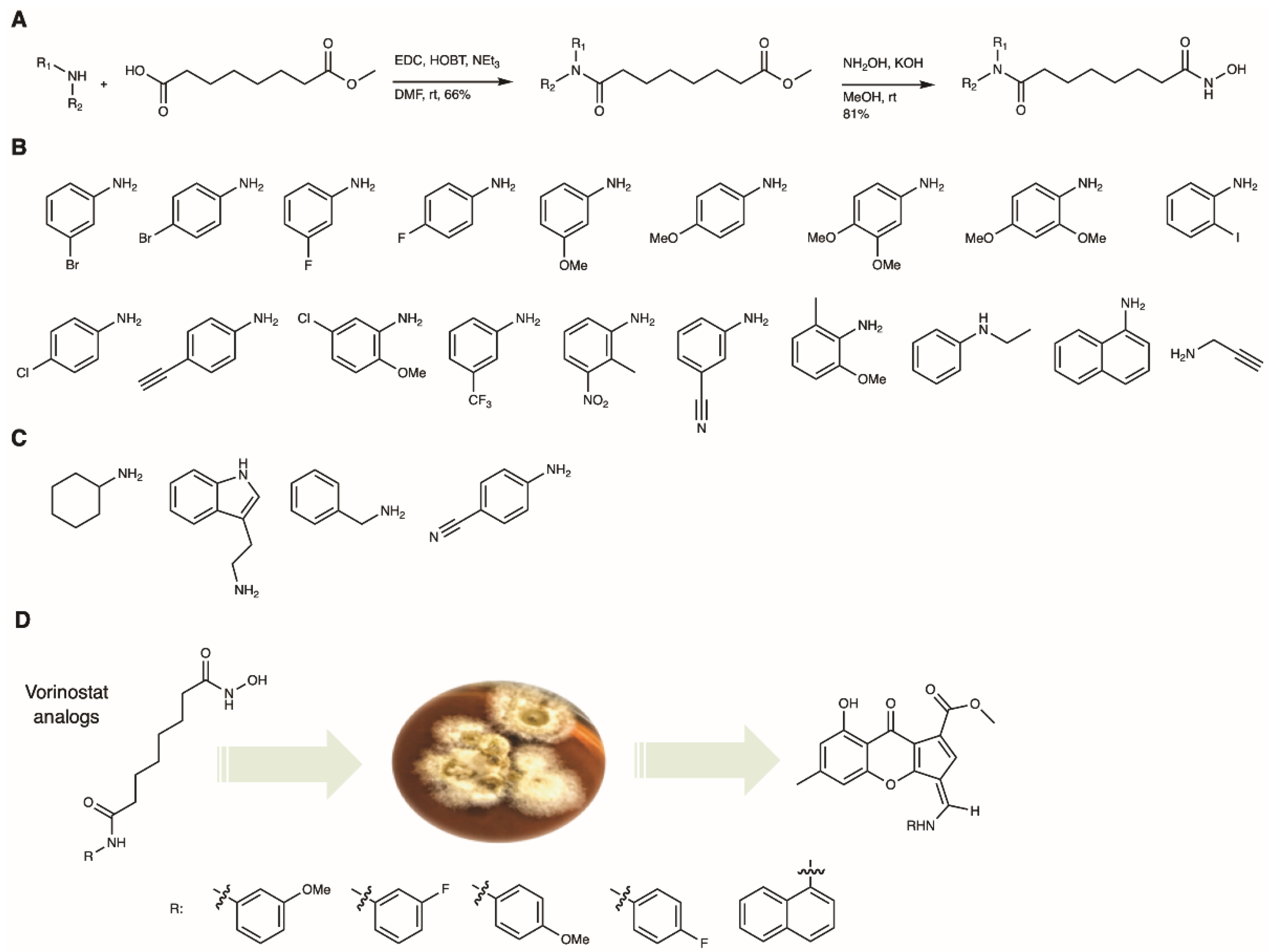

Figure 2. (A) Synthesis of twenty-three vorinostat analogs following published procedures (R1 and R2 for different amine substituents) [20]. (B) Nineteen amines were biotransformed into chalaniline A structures. (C) Four amine moieties were not incorporated by the fungus. (D) Overview of precursor-directed biosynthesis of chalaniline A-type molecules by supplementing Chalara sp. cultures with vorinostat analogs.
Figure 2. (A) Synthesis of twenty-three vorinostat analogs following published procedures (R1 and R2 for different amine substituents) [20]. (B) Nineteen amines were biotransformed into chalaniline A structures. (C) Four amine moieties were not incorporated by the fungus. (D) Overview of precursor-directed biosynthesis of chalaniline A-type molecules by supplementing Chalara sp. cultures with vorinostat analogs.
Molecules 26 04418 g002
Molecules 26 04418 g003 550

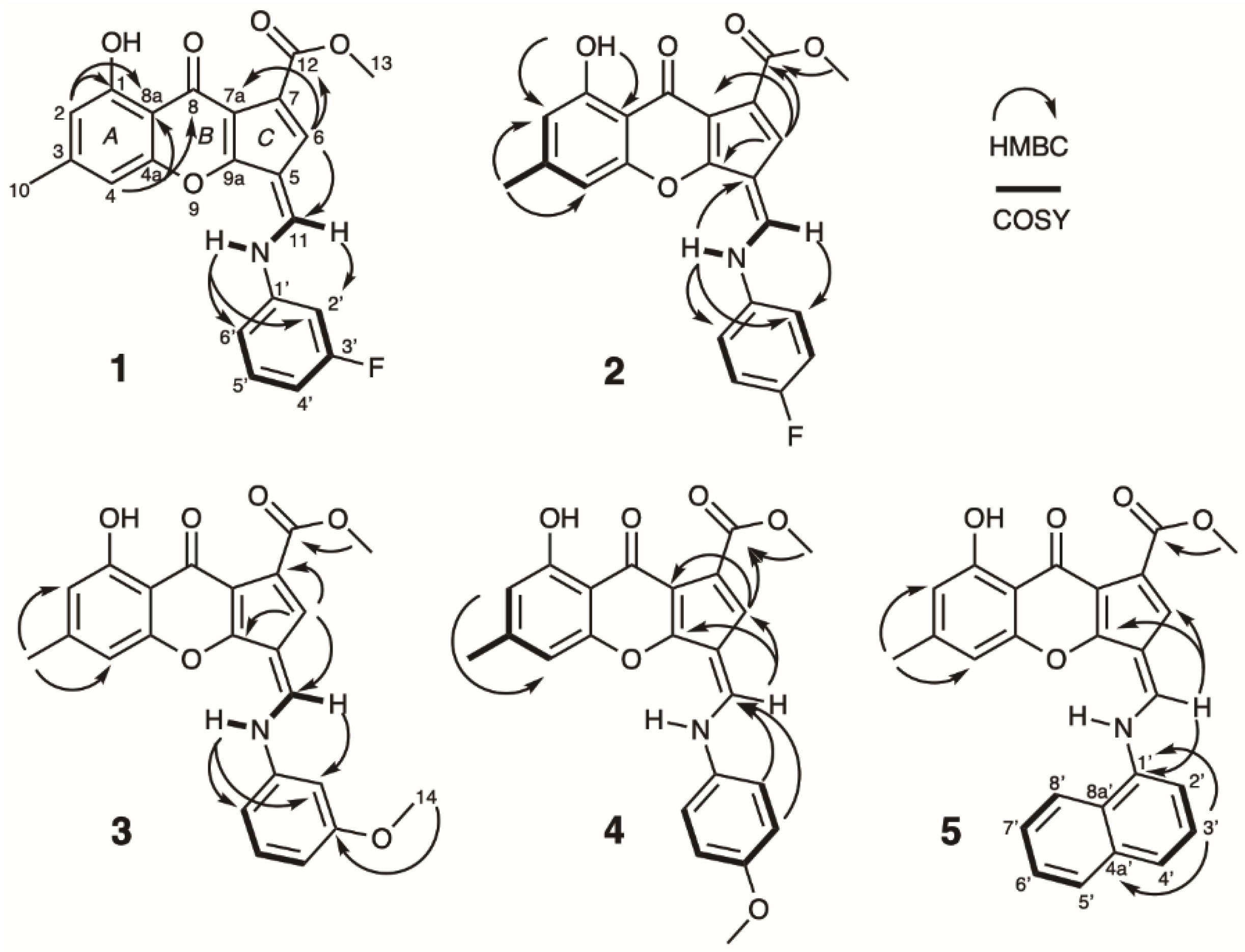

Figure 3. Chemical structures of new chalanilines 1–5 with selected 2D NMR correlations.
Figure 3. Chemical structures of new chalanilines 1–5 with selected 2D NMR correlations.
Molecules 26 04418 g003
Table
Table 1. 1H and 13C NMR spectroscopic data for compounds 1–5 (all recorded in DMSO-d6), a JHH in Hz, b JCF, c JHF, * partially assigned from 1D data.
Table 1. 1H and 13C NMR spectroscopic data for compounds 1–5 (all recorded in DMSO-d6), a JHH in Hz, b JCF, c JHF, * partially assigned from 1D data.
1 2 3 4 5
Pos.δC TypeδHδC TypeδHδC TypeδHδC TypeδHδC TypeδH
1161.3, C 161.8, C 161.3, C 161.9, C 161.7, C
2111.2, CH6.57, s111.5, CH6.56, s111.0, CH6.56, s109.3, CH6.37, s109.8, CH6.41, s
3145.0, C 145.3, C 144.9, C 142.5, C 143.3, C
4106.9, CH6.88, s107.3, CH6.87, s106.9, CH6.89, s106.0, CH6.70, s106.3, CH6.71, s
4a155.0, C 155.5, C 155.0, C 154.9, C 155.1, C
5105.3 C 105.0, C 104.8, C 107.8, C 107.1, C
6120.6, CH7.69, s121.0, CH7.69, s120.7, CH7.73, s122.0, CH7.31, s122.7, CH
7119.6, CH 119.2, C 118.9, C 124.7, C 122.3, C
7a111.1, C 111.4, C 111.1, C 110.7, C 110.9, C
8176.2, C 176.6, C 176.2, C 174.7, C 175.7, C
8a107.7, C 108.1, C 107.6, C 107.3, C 107.4, C
9
9a160.6, C 160.7, C 160.3, C 154.2, C 155.0, C
1021.7, CH32.38, s21.7, CH32.38, s21.7, CH32.38, s21.5, CH32.32, s21.6, CH32.32, s
11145.1, CH8.74, d (14.5) a146.1, C8.68, d, (14.5) a145.2, CH8.73, d (14.7) a147.0, CH8.50, s152.1, CH8.61, s
12164.2, C 164.7, C 164.2, C 164.9, C 165.0, C
1351.2, CH33.77, s51.6, CH33.77, s51.1, CH33.76, s50.0, CH33.65, s50.3, CH33.76, s
14 55.5, CH33.84, s55.1, CH33.75, s
1′140.7, C (10.3) b 135.5, C (2.6) b 140.1, C 133.1, C 133.7, C *
2′105.28, CH (26.2) b7.61, d (10.7) c120.5, CH, (8.3) b7.68, m104.0, CH7.23, t (2.0) a121.4, CH7.10, d (8.7) a112.7, CH *7.10, brd
3′162.8, C (244.9) b 116.5, CH, (23.0) b7.36, t (8.7) a160.4, C 114.2, CH6.91, d (8.8) a125.5, CH *7.49, m *
4′112.6, CH (21.4) b7.12, t (8.0) c160.6, C (244.8) b 111.9, CH6.87, dd (8.0, 2.0) a156.1, C 123.3, CH7.65, d (7.3) a
4a′ 134.2, C
5′131.5, CH (9.4) b7.53, q (8.0) a 130.7, CH7.40, t (8.1) a 127.8, CH7.88, d (7.0) a
6′114.8, CH (2.8) b7.44, d (8.0) a 110.7, CH7.21, dd (8.1, 2.0) a 123.6, CH *7.49, m *
7′ 126.7, CH *7.49, m *
8′ 124.0, CH8.39, d (7.0) a
8a′ 129.0, C
OH 13.75, brd 13.84, brd 13.83, brd 14.97, brd 14.91, brd
NH 11.84, d (14.5) a 11.89, d (14.5) a 11.83, d (14.7) a
