Extraction and Quantification of Sulforaphane and Indole-3-Carbinol from Rapeseed Tissues Using QuEChERS Coupled with UHPLC-MS/MS

by
Xu Yu
1,2,3,
Fei Ma
1,2,3,4,*,
Liangxiao Zhang
1,2,4,5 and
Peiwu Li
1,2,3,4,5
1
Oil Crops Research Institute, Chinese Academy of Agricultural Sciences, Wuhan 430062, China
2
Key Laboratory of Biology and Genetic Improvement of Oil Crops, Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
3
Key Laboratory of Detection for Mycotoxins, Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
4
Laboratory of Quality and Safety Risk Assessment for Oilseeds Products (Wuhan), Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
5
Quality Inspection and Test Center for Oilseeds Products, Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(9), 2149; https://doi.org/10.3390/molecules25092149
Submission received: 22 March 2020 / Revised: 29 April 2020 / Accepted: 30 April 2020 / Published: 4 May 2020
(This article belongs to the Special Issue Chromatographic Science of Natural Products)
Browse Figures
Versions Notes

Abstract

:
Rapeseed (Brassica napus L.) is rich in phenols, vitamins, carotenoids, and mineral elements, such as selenium. Additionally, it contains the active ingredients sulforaphane and indole-3-carbinol, which have been demonstrated to have pharmacological effects. In this study, sulforaphane and indole-3-carbinol were extracted and quantified from rapeseeds using quick, easy, cheap, effective, rugged and safe (QuEChERS) method coupled with ultra high performance liquid chromarography tandem mass spectrometry (UHPLC-MS/MS). The major parameters for extraction and purification efficiency were optimized, including the hydrolysis reaction, extraction condition and type and amount of purification adsorbents. The limit of detection (LOD) and the limit of quantification (LOQ) for sulforaphane were 0.05 μg/kg and 0.15 μg/kg, and for indole-3-carbinol were 5 μg/kg and 15 μg/kg, respectively. The developed method was used to successfully analyze fifty rapeseed samples. The QuEChERS coupled with UHPLC-MS/MS simultaneously detect sulforaphane and indole-3-carbinol in vegetable matrix and evaluate the quality and nutrition of rapeseed samples.

1. Introduction

Rapeseed (Brassica napus L.) is a major oilseed crop in China. China generates approximately 20% of the world’s yield [1]. Rapeseeds not only produce edible oils, but their sprouts, seedlings, and leaves have nutritional value for human consumption [2]. Vegetables such as Brassicaceae (Cruciferae) are vital nutritional sources throughout the world. They contain several chemopreventive compounds, such as glucosinolates, polyphenols, and selenium [3,4,5]. During plant tissue damage, glucosinolates decompose into isothiocyanates and nitriles in the presence of the endogenous enzyme myrosinase (EC 3.2.1.147), then undergo immediate hydrolysis of the β-thioglucoside group [6].
More than 300 glucosinolates and their hydrolytic products have been identified and evaluated for their beneficial effects [7,8]. The phytochemicals classified as isothiocyanates have been widely utilized to investigate their anti-tumor, anti-cancer and anti-inflammatory effects. Sulforaphane (SFN) has been demonstrated to be the most potent compound. It is the activator of the Nrf2 pathway, which regulates the cellular defense system and promotes various detoxifying and antioxidative effects [9,10]. Sulforaphane has beneficial effects for diabetic complications by effectively reducing fasting blood glucose and glycated hemoglobin levels in obese type 2 diabetic patients with poor glycemic control [11]. The bioavailability of sulforaphane in vegetables has also been studied, and could serve as a guide for the design and implementation of SFN in clinical trials [12,13]. Indole-3-carbinol (I3C) is another important anti-cancer chemopreventive compound that acts via further hydrolysis of isothiocyanate (indol-3-methyl isothiocyanate), which is derived from cruciferous plants. The I3C compound has been shown to regulate the growth of cancer cells by modulating genes involved in growth, signal transduction and carcinogenesis [14]. It can inhibit the proliferation of cancer cells [15,16], inhibit the expression of drug resistance genes [17], and induce apoptosis [18]. Preliminary clinical trials have indicated that indole-3-carbinol could be used to protect against hormone dependent/independent human cancers [19]. As shown in Figure 1, sulforaphane and indole-3-carbinol are both non-toxic, “natural products” and are often used in combination with conventional chemotherapy to treat human malignancies to give a lower toxicity and higher efficacy.
An appropriate sample pretreatment method is a key step to the quantification of sulforaphane and indole-3-carbinol in vegetables. Current pretreatment extraction techniques for sulforaphane and indole-3-carbinol include liquid–liquid extraction [20], solid-phase extraction (SPE) [21], dispersive liquid–liquid microextraction (DLLME) [22], high-speed countercurrent chromatography (HSCCC) [23] and preparative HPLC [24]. However, the majority of the extraction and purification methods are tedious and require large volumes of organic solvents or sophisticated equipment. QuEChERS (quick, easy, cheap, effective, rugged and safe) is a comprehensive method that has been widely used to determine target analytes in foods, agri-products, environmental substances and biological fluids [25,26]. The QuEChERS method constitutes two key steps including liquid–liquid extraction and dispersive solid-phase extraction clean-up. This method is simple, versatile, eco-friendly, eliminates matrix effects and has excellent recovery. The QuEChERS is an ideal method for the extraction and purification of sulforaphane and indole-3-carbinol in vegetable samples.
Quantitative methods for sulforaphane include thin-layer chromatography (TLC) [27], gas chromatography (GC) [28], and gas chromatography-mass spectrometry (GC-MS) [29]. However, high temperatures at the injection ports in the GC or GC-MS system could result in the degradation of sulforaphane and indole-3-carbinol [30]. To measure the stability and solubility of the analytes, liquid chromatography coupled with various detectors has been developed. These include ultraviolet (UV) [31], diode-array (DAD) [32], evaporative light-scattering detectors (ELSD) [33], fluorescence detectors (FLD) [34] and high-resolution mass spectrometry (HR-MS) [35]. UHPLC-MS/MS provides high-throughput screening capability with confirmatory data. This is an important method for the simultaneous determination of nutritional compounds in plant samples.
This study aimed to develop a fast, simple and accurate method using QuEChERS coupled with UHPLC-MS/MS for the extraction and quantification of sulforaphane and indole-3-carbinol in rapeseed samples. The major parameters for extraction and purification efficiency were investigated, including the hydrolysis reaction, extraction condition and type and amount of purification adsorbents. Under the optimized parameters, the analytes of rapeseed stem tissue were simultaneously detected.

2. Results and Discussion

2.1. Optimization of Extraction Conditions

2.1.1. The Effect of Hydrolysis Time

The yield of sulforaphane and indole-3-carbinol extracted from rapeseed tissue samples before and after hydrolysis were compared. The yield of sulforaphane and indole-3-carbinol extracted without hydrolysis was 50.3%, which was 30.0% lower compared to the yield obtained after hydrolysis. The results demonstrated that the hydrolysis step increased the yield of sulforaphane and indole-3-carbinol. Enzymatic hydrolysis was performed for 1 to 5 h. An increase in sulforaphane and indole-3-carbinol yields were observed with an increase in hydrolysis times (Figure 2a). Peak yields of sulforaphane and indole-3-carbinol were observed after two hours of hydrolysis. Prolonged hydrolysis resulted in slightly lower yields of sulforaphane. Hence, the hydrolysis time was set at 2 h for subsequent experiments.

2.1.2. Effect of Hydrolysis Temperature

The effect of temperature was investigated from 25 °C to 55 °C for the hydrolysis reaction. Yields for sulforaphane and indole-3-carbinol increased from 25 °C to 45 °C (Figure 2b). However, when the temperature was at 55 °C the yield for indole-3-carbinol decreased. The results indicated that endogenous myrosinase had the best catalytic activity at 45 °C. Hence, the hydrolysis temperature was set at 45 °C for subsequent experiments.

2.1.3. Effect of Solvent Type on Extraction

Different organic solvents were evaluated to improve the extraction efficiency, such as n-hexane, methyl tert-butyl ether, ethyl acetate, and dichloromethane [36]. As shown in Figure 2c, the high yields for sulforaphane and indole-3-carbinol were achieved with the increased polarity from 0.519 n-hexane to 0.876 dichloromethane. Additionally, organic and aqueous phases could be separated in short time using high density dichloromethane, which significantly improved extraction efficiency. Hence, dichloromethane was selected as the extraction solvent.

2.1.4. Effect of Solvent Volume on Extraction

Appropriate extraction solvent volume could improve the complete extraction of the target compounds. Extraction yields for the two compounds at different the material–liquid ratios of 1: 4, 1:16, 1:20, and 1:24 (g/mL) are shown in Figure 2d. The extraction yields gradually increased with larger volume of extraction solvent and the extraction yields plateaued when the ratio of material to liquid reached 1:20 (g/mL). Based on factors such as reagent use, environmental pollution, test costs, and other factors, the final material–liquid ratio of 1:20 (g/mL) was selected.

2.2. Type and Amount of Purification Adsorbents

Different purification adsorbents including C18, PSA, GCB were evaluated for extraction steps. As shown in Figure 3a, using C18 for purification was the best, with optimal recovery for both compounds. The recoveries using PSA, GCB and no purification were low for both compounds, indicating that PSA and GCB had an adsorption effect on the target compounds. Extraction without purification had the presence of pigments and other impurities, which significantly contaminated the ion source of the mass spectrometer.
Using C18, the target compound was inhibited from ionization, resulting in a decrease in MS signal. Hence, the effects of different amounts of C18 (5, 15, 25, 35, and 45 mg) on the purification effect of the target compounds were investigated. As shown in Figure 3b, 25 mg of C18 resulted in recovery rates of 96.4% and 97.3% for sulforaphane and indole-3-carbinol, respectively, which satisfied the quantitative requirements. A decrease in recovery rate was observed when greater than 25 mg of C18 was used.

2.3. Method Validation

2.3.1. Linear Equations, Detection Lines, and Limits of Quantification

Under optimal conditions, the peak area was designated as the ordinate and the concentration as the abscissa to establish the standard curve. The regression equation and linear range for each compound are shown in Table 1. The limit of detection (LOD) and the limit of quantification (LOQ) were determined using the target compound concentration corresponding to 3 and 10 times the signal-to-noise ratio (S/N), respectively. The LOD and LOQ for sulforaphane were 0.05 μg/kg and 0.15 μg/kg, and for indole-3-carbinol were 5 μg/kg and 15 μg/kg, respectively.

2.3.2. Recovery, Intra-Day and Inter-Day Precision

Sulforaphane and indole-3-carbinol were spiked at different concentrations in rapeseed leaf samples. The recoveries were calculated using the ratio between (total detected amount-original amount) and spiked amount [37,38]. As presented in Table 2, the recoveries of sulforaphane were in the range of 76.5%–96.4%, and indole-3-carbinol were in the range of 80.2%–97.3%. The results satisfied the acceptance criteria for the assay. Accuracy was calculated by repeated measurements and then the relative standard deviation (RSD, %) was calculated. Using the same conditions, different concentrations of the spiked matrix were measured three times within one day to assess intra-day precision. They were also measured for five consecutive days to assess inter-day precision. The intra-day and inter-day precision for sulforaphane were less than 5.9% and 11.3%, respectively, and for indole-3-carbinol were less than 10.3% and 10.6%, respectively. The results indicated that target compounds were stable.

2.3.3. Matrix Effect

Components other than the analytes from rapeseed tissues were considered to be matrices. These matrices may enhance or reduce the intensity of the mass spectra. Sample spike experiments were used to determine matrix effects (ME). Three sets of experiments were designed to evaluate the matrix effects of the method. Matrix standard solution (A), matrix solution (B) and standard solution (C) with different concentrations were investigated. The matrix effect was calculated using the following formula:
ME (%) = [(A − B)/C − 1] × 100%
The ME in rapeseed tissues ranged from −6.56% to 11.02%, which indicated that this extraction and purification method was acceptable for routine UHPLC-MS/MS analysis.

2.4. Method Application

The developed synchronous quantitative method was applied for the determination of sulforaphane and indole-3-carbinol compounds in rapeseed tissues as present in Figure 4. The summary of sulforaphane and indole-3-carbinol in the leaves and stems derived from rapeseed are illustrated in Table 3. The overall ranges of sulforaphane and indole-3-carbinol are presented in this validation study for rapeseed tissues. The amount of sulforaphane varied from ND—415.3 μg/kg and 14.6 μg/kg—1621.8 μg/kg in stems and leaves, and the amount of indole-3-carbinol varied from ND—131.3 μg/kg and 36.4—879.5 μg/kg in stems and leaves. As depicted in Figure 5, the highest sulforaphane and indole-3-carbinol were both found in the leaf samples (p < 0.05). The difference in all analytes between stems and leaves could be attributed to the part, variety, geography, climate and environment conditions, in accordance with previous studies [39,40,41].
Compared to previous studies, this QuEChERS-based UHPLC-MS/MS method was more rapid and convenient than other methods (Table 4). The analysis time of SFN and I3C could be achieved in 8 min without a complicated gradient procedure. Additionally, this is the first time that QuEChERS was applied to extraction of SFN and I3C from vegetables, avoiding the tedious extraction step, which completely eliminates matrix effects during the MS detection with good sensitivity and excellent efficiency.

3. Materials and Methods

3.1. Chemicals and Materials

Sulforaphane and indole-3-carbinol standards were obtained from Shanghai Aladdin Technology Co., Ltd. (Shanghai, China). Methanol, n-hexane, methyl tert-butyl ether (MTBE), ethyl acetate (EtOAc), dichloromethane (DCM) and ammonium formate of HPLC grade were purchased from Shanghai Aladdin Technology Co., Ltd. (Shanghai, China). C18, N-propyl ethylenediamine (PSA), graphitized carbon black (GCB) was purchased from Agilent Technologies Co., Ltd. (Beijing, China). Anhydrous magnesium sulfate and sodium chloride were purchased from Sinopharm Chemical Reagent Co., Ltd. (Beijing, China). All other chemicals and organic solvents were of analytical reagent grade. Ultra-pure water (18 mΩ) was obtained from a Milli-Q water purification system from Millipore Co., Ltd. (Milford, CT, USA). Rapeseed was obtained from the Oil Crop Research Institute, Chinese Academy of Agricultural Sciences (Wuhan, China).
Sulforaphane and indole-3-carbinol standard (10.0 mg (accuracy to 0.01 mg)) were dissolved with 10 mL of methanol, for a stock solution of 1.0 mg/mL. A series of standard solutions were diluted with methanol to appropriate concentrations for the calibration curves, and all the standard solutions were stored at 4 °C in darkness.

3.2. Sample Preparation

The leaves and stems from rapeseed (N = 50) samples were crushed, pounded and processed separately. Each sample 0.50 g (accurate to 0.01 g) was placed in a 50 mL centrifuge tube and vortexed for 1 min with 10 mL of water, and immediately incubated at 45 °C for 2 h. Sodium chloride (200 mg) was added to the sample, then 5 mL × 2 of dichloromethane was vortexed for 1 min and ultrasound-assisted extraction was performed for 10 min. We then added 25 mg of C18 and 80 mg anhydrous magnesium sulfate to a 50 mL centrifuge tube, and then 5 mL of the extracted supernatants were combined with vortex for 5 min. After centrifugation at 4500 rpm for 5 min, the supernatant was transferred and dried using nitrogen stream. Finally, the residual was reconstituted using 1 mL of methanol, and filtered with 0.22 μm organic microporous membrane for UHPLC-MS/MS analysis.

3.3. UHPLC-MS/MS Analysis

3.3.1. Liquid Chromatography

The UHPLC-MS/MS system consisted of Shimadzu UHPLC-30AD and MS-8060 mass spectrometer (Kyoto, Japan). Selective quantification of compounds was performed using the multiple reaction monitoring (MRM) mode. Two compounds were separated by UHPLC using a solvent system consisting of 10 mM ammonium formate-methanol (solvent A; v/v) and water (solvent B) along with an ACQUITY UHPLC ® BEH C18 (100 mm × 2.1 mm, 1.7 µm) column. The gradient elution program for UHPLC-MS/MS analysis was as follows: 0 min, 40% A; 2.5 min, 45% A; 3 min, 50% A; 3.5 min, 95% A; 4 min, 45% A; 8 min, 40% A. The injection volume was 1 µL, and the flow rate was 200 µL/min. The column temperature was held at 40 °C.

3.3.2. MS Analysis

Sulforaphane and indole-3-carbinol were optimized using 1 mg/L standard solution on a Shimadzu MS-8060 triple quadrupole tandem mass spectrometer. The collision energy (CE) and the appropriate atomization gas flow rate and drying gas flow rate were optimized. The ion source used an electrospray ion source (ESI), with a temperature of 300 °C. The ion transfer capillary temperature was 275 °C, the spray gas flow rate was 2.5 L/min, the dry gas flow rate was 10 L/min, and the heated gas flow rate was 10 L/min. The heating block temperature was 400 °C, the DL temperature was 250 °C and the scanning was performed in the positive ion mode. The MS/MS parameters for compound analysis were shown in Table 5. The MRM chromatogram of SFN and I3C were identified by comparing the retention time, as well as parent and product ions with the standard solutions. As shown in Figure 6, the most abundant product ions were selected as identification points (IPs), and the other product ions were utilized for qualitative detection.

3.4. Statistical Analysis

Results were expressed as average values with three replicates. Data acquisition and processing were performed using the labSolutions software (Kyoto, Japan). Statistical analyses were performed using the @Risk 5.5.1 software package from Palisade Co. (Palisade, Australia). Significant differences were determined by the Student t-test at a significance level of 0.05 (p < 0.05).

4. Conclusions

In the present study, the QuEChERS-based UHPLC-MS/MS method was developed for the simultaneous determination of sulforaphane and indole-3-carbinol in rapeseed tissues, which achieves simplicity of the extraction and purification procedure and reduces the entire analysis time. The recoveries for sulforaphane and indole-3-carbinol were 96.4% and 97.3%, respectively. The LOD and LOQ for sulforaphane were 0.05 μg/kg and 0.15 μg/kg, and for indole-3-carbinol were 5 μg/kg and 15 μg/kg, respectively. The amount of sulforaphane and indole-3-carbinol in the leaves were higher compared to the stems, which could be attributed to the part, variety, geography, climate and environment conditions. The developed method is valuable for monitoring levels of sulforaphane and indole-3-carbinol in vegetable samples. This analytic method is valuable for studying the nutritional active ingredients of rapeseeds and the breeding of high-quality rapeseed varieties.

Author Contributions

Conceptualization, X.Y., F.M. and P.L.; methodology, X.Y., F.M.; software, X.Y., F.M.; validation, X.Y. and F.M.; formal analysis, X.Y., L.Z.; investigation, X.Y., F.M. and L.Z.; resources, X.Y.; data curation, X.Y., F.M. and L.Z.; writing—original draft preparation, X.Y. and F.M.; writing—review and editing, P.L.; visualization, X.Y., F.M.; supervision, P.L.; project administration, F.M., and P.L.; funding acquisition, F.M., and P.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by National Key R&D Program of China (2018YFC1602500), the National Natural Science Foundation of China (31201447), the earmarked fund for China Agriculture Research System (CARS-12).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hu, Q.; Hua, W.; Yin, Y.; Zhang, X.; Liu, L.; Shi, J.; Zhao, Y.; Qin, L.; Chen, C.; Wang, H. Rapeseed research and production in China. Crop J. 2017, 5, 127–135. [Google Scholar] [CrossRef] [Green Version]
  2. Groenbaek, M.; Tybirk, E.; Kristensen, H.L. Glucosinolate and carotenoid content of white- and yellow-flowering rapeseed grown for human consumption as sprouts and seedlings under light emitting diodes. Eur. Food Res. Technol. 2018, 244, 1121–1131. [Google Scholar] [CrossRef]
  3. Vaughn, S.F.; Berhow, M.A. Glucosinolate hydrolysis products from various plant sources: pH effects, isolation, and purification. Ind. Crops Prod. 2005, 21, 193–202. [Google Scholar] [CrossRef]
  4. Matusheski, N.V.; Swarup, R.; Juvik, J.A.; Mithen, R.; Bennett, M.; Jeffery, E.H. Epithiospecifier protein from broccoli (Brassica oleracea L. ssp italica) inhibits formation of the anticancer agent sulforaphane. J. Agric. Food Chem. 2006, 54, 2069–2076. [Google Scholar] [CrossRef] [PubMed]
  5. Song, J.G.; Cao, C.; Li, J.; Xu, Y.J.; Liu, Y. Development and validation of a QuEChERS-LC-MS/MS method for the analysis of phenolic compounds in rapeseed oil. J. Agric. Food Chem. 2019, 67, 4105–4112. [Google Scholar] [CrossRef] [PubMed]
  6. Dinkova-Kostova, A.T.; Kostov, R.V. Glucosinolates and isothiocyanates in health and disease. Trends Mol. Med. 2012, 18, 337–347. [Google Scholar] [CrossRef]
  7. Śmiechowska, A.; Bartoszek, A.; Namieśnik, J. Determination of glucosinolates and their decomposition products—indoles and isothiocyanates in cruciferous vegetables. Crit. Rev. Anal. Chem. 2010, 40, 202–216. [Google Scholar] [CrossRef]
  8. Liang, H.; Yuan, Q. Natural sulforaphane as a functional chemopreventive agent: Including a review of isolation, purification and analysis methods. Crit. Rev. Biotechnol. 2012, 32, 218–234. [Google Scholar] [CrossRef]
  9. Li, Y.; Palliyaguru, D.L.; Kensler, T.W. Frugal chemoprevention: Targeting Nrf2 with foods rich in sulforaphane. Semin. Oncol. 2016, 43, 146–153. [Google Scholar]
  10. Dinkova-Kostova, A.T.; Fahey, J.W.; Kostov, R.V.; Kensler, T.W. KEAP1 and done? Targeting the NRF2 pathway with sulforaphane. Trends Food Sci. Tech. 2017, 69, 257–269. [Google Scholar] [CrossRef] [Green Version]
  11. Sun, Y.; Zhou, S.; Guo, H.; Zhang, J.; Ma, T.; Zheng, Y.; Zhang, Z.; Cai, L. Protective effects of sulforaphane on type 2 diabetes-induced cardiomyopathy via AMPK-mediated activation of lipid metabolic pathways and NRF2 function. Metab. Clin. Exp. 2020, 102, 154002. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Egner, P.A.; Chen, J.G.; Wang, J.B.; Wu, Y.; Sun, Y.; Lu, J.H.; Zhu, J.; Zhang, Y.H.; Chen, Y.S.; Friesen, M.D.; et al. Bioavailability of sulforaphane from two broccoli sprout beverages: Results of a short-term, cross-over clinical trial in Qidong, China. Cancer Prev. Res. 2011, 4, 384–395. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Shapiro, T.; Fahey, J.W.; Wade, K.L.; Stephenson, K.K.; Talalay, P. Chemoprotective glucosinolates and isothiocyanates of broccoli sprouts: metabolism and excretion in humans. Cancer Epidemiol. Biomarkers Prev. 2001, 10, 501–508. [Google Scholar] [PubMed]
  14. Sarkar, F.H.; Li, Y. Harnessing the fruits of nature for the development of multi-targeted cancer therapeutics. Cancer Treat. Rev. 2009, 35, 597–607. [Google Scholar] [CrossRef] [Green Version]
  15. Lee, Y.R.; Chen, M.; Lee, J.D.; Zhang, J.; Lin, S.Y.; Fu, T.M.; Chen, H.; Ishikawa, T.; Chiang, S.Y.; Katon, J.; et al. Reactivation of PTEN tumor suppressor for cancer treatment through inhibition of a MYC-WWP1 inhibitory pathway. Science 2019, 364, eaau0159. [Google Scholar] [CrossRef]
  16. Marconett, C.N.; Singhal, A.K.; Sundar, S.N.; Firestone, G.L. Indole-3-carbinol disrupts estrogen receptor-alpha dependent expression of insulin-like growth factor-1 receptor and insulin receptor substrate-1 and proliferation of human breast cancer cells. Mol. Cell Endocrinol. 2012, 363, 74–84. [Google Scholar] [CrossRef] [Green Version]
  17. Arora, A.; Kalra, N.; Shukla, Y. Modulation of P-glycoprotein-mediated multidrug resistance in K562 leukemic cells by indole-3-carbinol. Toxicol. Appl. Pharm. 2005, 202, 237–243. [Google Scholar] [CrossRef]
  18. Megna, B.W.; Carney, P.R.; Nukaya, M.; Geiger, P.; Kennedy, G.D. Indole-3-carbinol induces tumor cell death: Function follows form. J. Surg. Res. 2016, 204, 47–54. [Google Scholar] [CrossRef] [Green Version]
  19. Licznerska, B.; Baer-Dubowska, W. Anti-inflammatory Nutraceuticals and Chronic Diseases, 1st ed.; Springer: Cham, Switzerland, 2016; pp. 131–154. [Google Scholar]
  20. Kokotou, M.G.; Revelou, P.K.; Pappas, C.; Constantinou-Kokotou, V. High resolution mass spectrometry studies of sulforaphane and indole-3-carbinol in broccoli. Food Chem. 2017, 237, 566–573. [Google Scholar] [CrossRef]
  21. Han, D.; Row, K.H. Separation and purification of sulforaphane from broccoli by solid phase extraction. Int. J. Mol. Sci. 2011, 12, 1854–1861. [Google Scholar] [CrossRef] [Green Version]
  22. Fusari, C.M.; Ramirez, D.A.; Camargo, A.B. Simplified analytical methodology for glucosinolate hydrolysis products: A miniaturized extraction technique and multivariate optimization. Anal. Methods 2019, 11, 309–316. [Google Scholar] [CrossRef]
  23. Liang, H.; Li, C.; Yuan, Q.; Vriesekoop, F. Application of high-speed countercurrent chromatography for the isolation of sulforaphane from broccoli seed meal. J. Agric. Food Chem. 2008, 56, 7746–7749. [Google Scholar] [CrossRef] [PubMed]
  24. Alvarez-Jubete, L.; Smyth, T.J.; Valverde, J.; Rai, D.K.; Barry-Ryan, C. Simultaneous determination of sulphoraphane and sulphoraphane nitrile in Brassica vegetables using ultra-performance liquid chromatography with tandem mass spectrometry. Phytochem. Anal. 2014, 25, 141–146. [Google Scholar] [CrossRef] [PubMed]
  25. Santana-Mayor, Á.; Socas-Rodríguez, B.; Herrera-Herrera, A.V.; Rodríguez-Delgado, M.Á. Current trends in QuEChERS method. A versatile procedure for food, environmental and biological analysis. Trac-Trend Anal. Chem. 2019, 116, 214–235. [Google Scholar] [CrossRef]
  26. Musarurwa, H.; Chimuka, L.; Pakade, V.E.; Tavengwa, N.T. Recent developments and applications of QuEChERS based techniques on food samples during pesticide analysis. J. Food Compos. Anal. 2019, 84, 103314. [Google Scholar] [CrossRef]
  27. Benzekri, R.; Bouslama, L.; Papetti, A.; Snoussi, M.; Benslimene, I.; Hamami, M.; Limam, F. Isolation and identification of an antibacterial compound from diplotaxis harra (Forssk.) Boiss. Ind. Crop. Prod. 2016, 80, 228–234. [Google Scholar] [CrossRef]
  28. Ito, H.; Kimura, M. Pre-harvest effects on naturally occurred isothiocyanates (ITCs) of cruciferous sprouts. In Proceedings of the ivth International Conference on Maging Quality in Chains, Vols 1 and 2: The Integrated View on Fruits and Vegetables Quality, Bankok, Thailand, 30 June 2006; pp. 497–504. [Google Scholar]
  29. Khoobchandani, M.; Ojeswi, B.K.; Ganesh, N.; Srivastava, M.M.; Gabbanini, S.; Matera, R.; Iori, R.; Valgimigli, L. Antimicrobial properties and analytical profile of traditional Eruca sativa seed oil: Comparison with various aerial and root plant extracts. Food Chem. 2010, 120, 217–224. [Google Scholar] [CrossRef]
  30. Chiang, W.C.K.; Pusateri, D.J.; Leitz, R.E.A. Gas chromatography mass spectrometry method for the determination of sulforaphane and sulforaphane nitrile in broccoli. J. Agric. Food Chem. 1998, 46, 1018–1021. [Google Scholar] [CrossRef]
  31. Kamal, M.M.; Nazzal, S. Development and validation of a HPLC-UV method for the simultaneous detection and quantification of paclitaxel and sulforaphane in lipid based self-microemulsifying formulation. J. Chromatogr. Sci. 2020, 57, 931–938. [Google Scholar] [CrossRef]
  32. Vieites-Outes, C.; López-Hernández, J.; Lage-Yusty, M.A. Modification of glucosinolates in turnip greens (Brassica rapa subsp. rapa L.) subjected to culinary heat processes. Cyta J. Food 2016, 14, 536–540. [Google Scholar] [CrossRef] [Green Version]
  33. Liang, H.; Yuan, Q.; Liu, M. Simultaneous determination of glucoraphanin and sulforaphane in Brassica oleracea seeds by high-performance liquid chromatography with evaporative light-scattering detector. Nat. Prod. Res. 2013, 27, 194–197. [Google Scholar] [CrossRef] [PubMed]
  34. Lee, S.Y. Determination of indole-3-carbinol and indole-3-acetonitrile in Brassica vegetables using high-performance liquid chromatography with fluorescence detection. J. Korean Soc. Appl. Biol. Chem. 2010, 53, 249–252. [Google Scholar] [CrossRef]
  35. Sun, J.; Charron, C.S.; Novotny, J.A.; Peng, B.; Yu, L.; Chen, P. Profiling glucosinolate metabolites in human urine and plasma after broccoli consumption using non-targeted and targeted metabolomic analyses. Food Chem. 2020, 309, 125660. [Google Scholar] [CrossRef] [PubMed]
  36. Catalan, J.; Lopez, V.; Perez, P.; Martinvillamil, R.; Rodriguez, J.G. Progress towards a generalized solvent polarity scale-the solvatochromism of 2-(dimethylamino)-7-nitrofluorene and its homomorph 2-fluoro-7-nitrofluorene. Liebigs Annalen 1995, 241–252. [Google Scholar] [CrossRef]
  37. Wu, R.; Ma, F.; Zhang, L.; Li, P.; Li, G.; Zhang, Q.; Zhang, W.; Wang, X. Simultaneous determination of phenolic compounds in sesame oil using LC-MS/MS combined with magnetic carboxylated multi-walled carbon nanotubes. Food Chem. 2016, 204, 334–342. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, D.; Zhang, L.; Xu, Y.; Qi, X.; Wang, X.; Wang, X.; Zhang, Q.; Li, P. Optimization of an ultrasound-assisted extraction for simultaneous determination of antioxidants in sesame with response surface methodology. Antioxidants (Basel) 2019, 8, 321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Ares, A.M.; Bernal, J.; Martín, M.T.; Bernal, J.L.; Nozal, M.J. Optimized formation, extraction, and determination of sulforaphane in broccoli by liquid chromatography with diode array detection. Food Anal. Methods 2013, 7, 730–740. [Google Scholar] [CrossRef]
  40. Nakagawa, K.; Umeda, T.; Higuchi, O.; Tsuzuki, T.; Suzuki, T.; Miyazawa, T. Evaporative light-scattering analysis of sulforaphane in broccoli samples: Quality of broccoli products regarding sulforaphane contents. J. Agric. Food Chem. 2006, 54, 2479–2483. [Google Scholar] [CrossRef]
  41. Sivakumar, G.; Aliboni, A.; Bacchetta, L. HPLC screening of anti-cancer sulforaphane from important European Brassica species. Food Chem. 2007, 104, 1761–1764. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 25 02149 g001 550

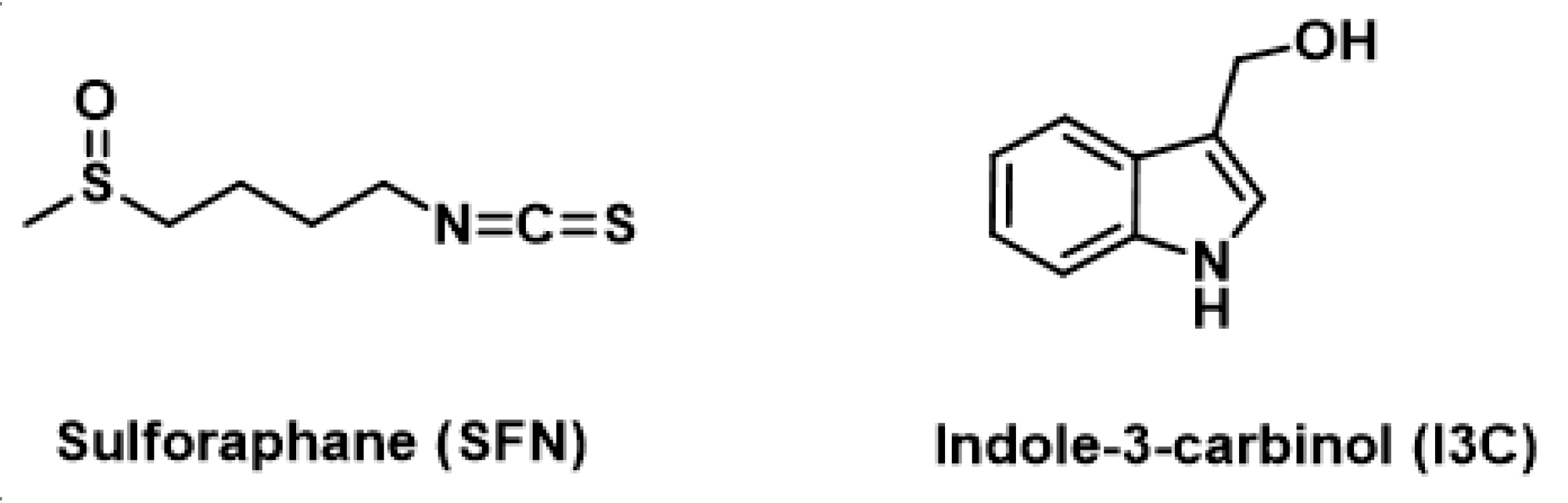

Figure 1. The molecular structures of sulforaphane and indole-3-carbinol.
Figure 1. The molecular structures of sulforaphane and indole-3-carbinol.
Molecules 25 02149 g001
Molecules 25 02149 g002 550

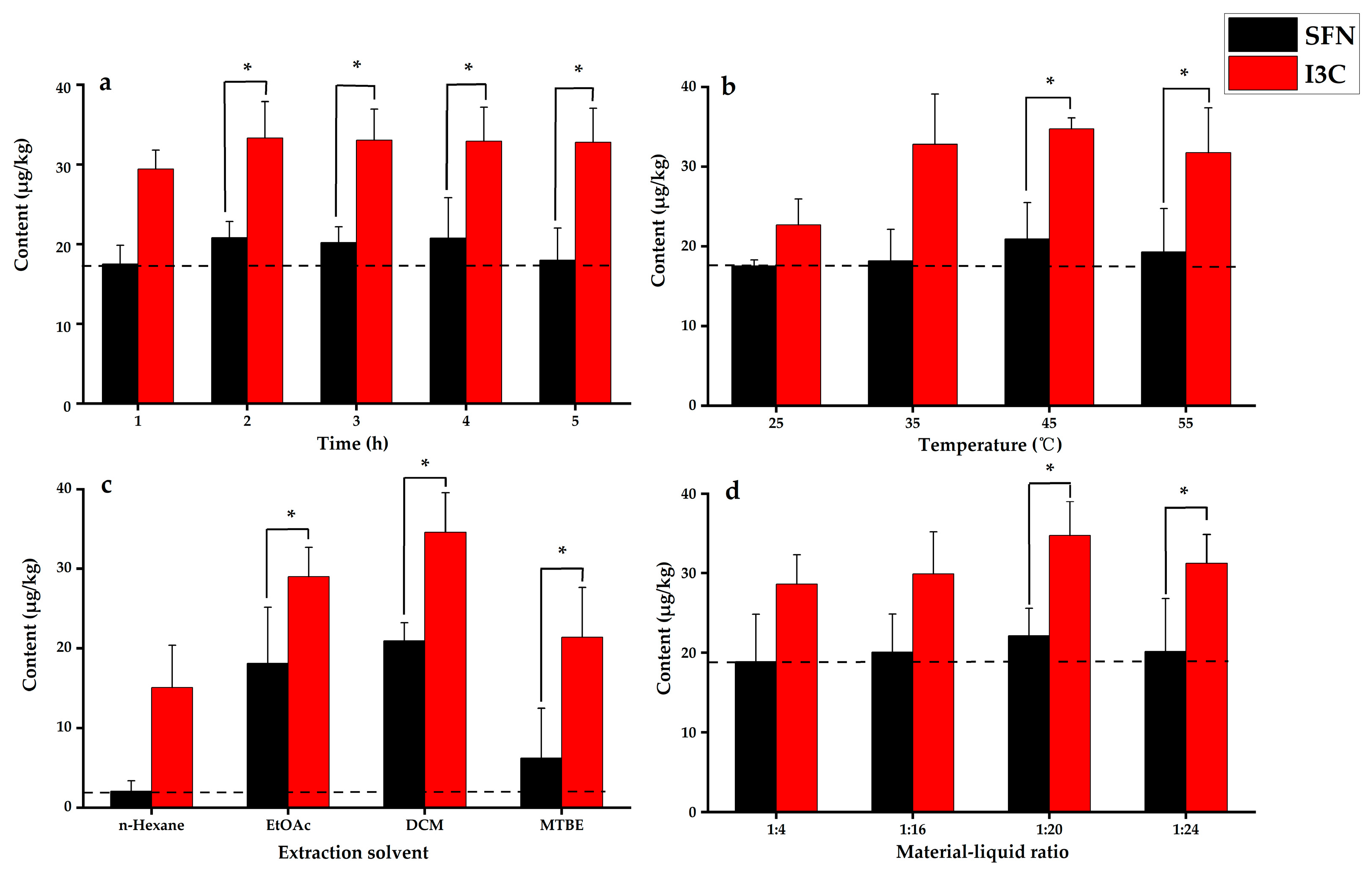

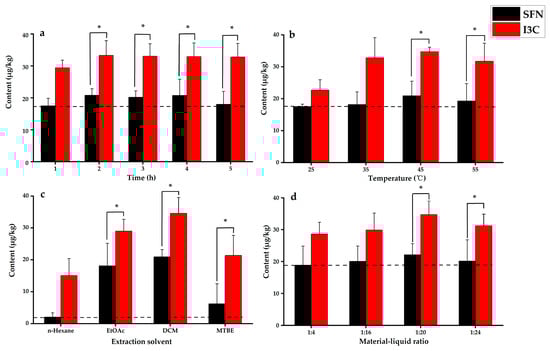

Figure 2. Optimized extraction conditions: (a) effect of hydrolysis time, (b) effect of temperature, (c) effect of solvent type, (d) effect of extraction solvent volume. “*” with brackets represent significant differences of SFN and I3C, p < 0.05.
Figure 2. Optimized extraction conditions: (a) effect of hydrolysis time, (b) effect of temperature, (c) effect of solvent type, (d) effect of extraction solvent volume. “*” with brackets represent significant differences of SFN and I3C, p < 0.05.
Molecules 25 02149 g002
Molecules 25 02149 g003 550

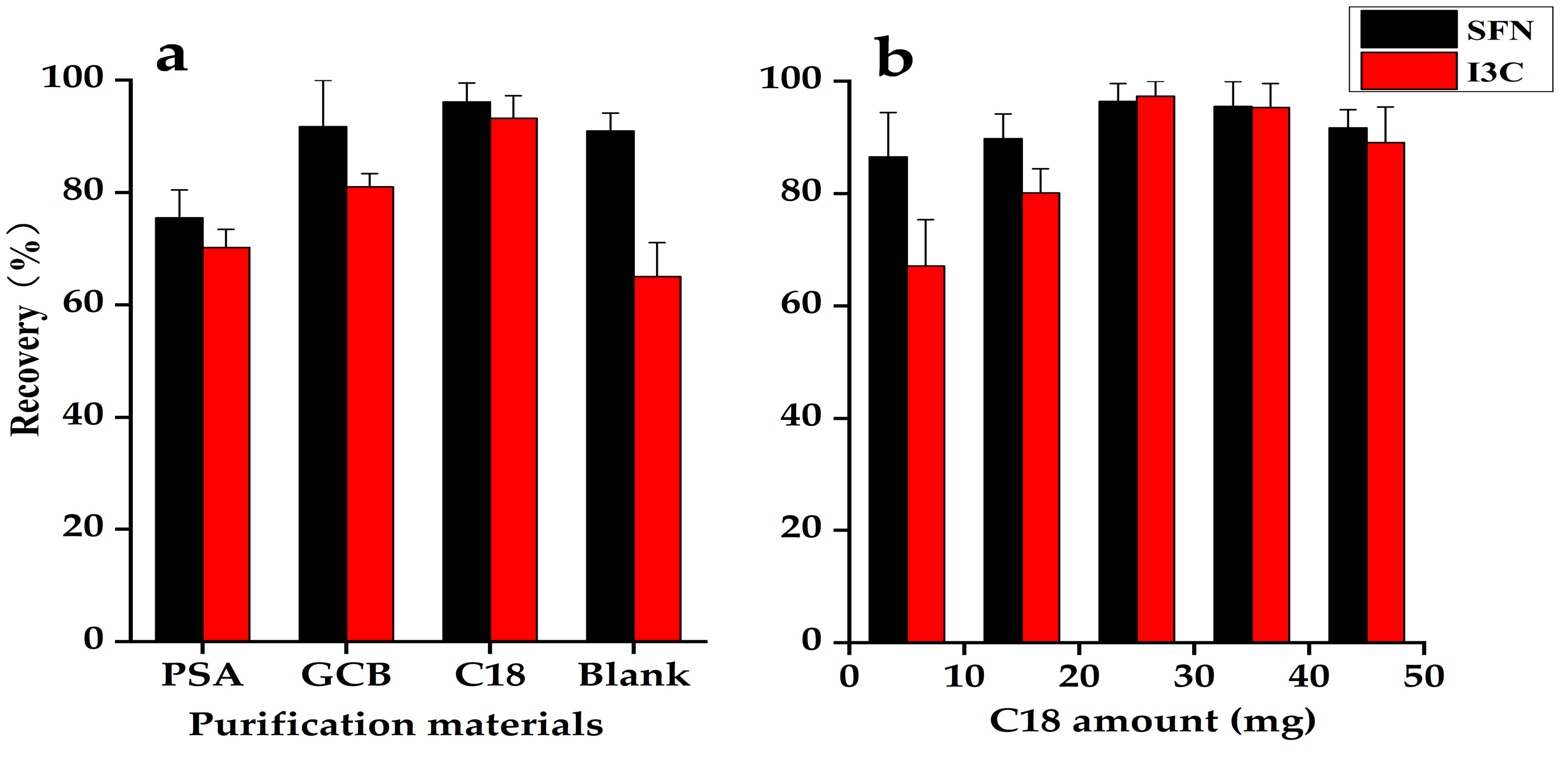

Figure 3. Optimization of the amount and type of purification material: (a) effect of the different types of purification materials, (b) amounts of C18 used for purification. Solutions were spiked with sulforaphane at 20 µg/kg, indole-3-carbinol at 50 µg/kg.
Figure 3. Optimization of the amount and type of purification material: (a) effect of the different types of purification materials, (b) amounts of C18 used for purification. Solutions were spiked with sulforaphane at 20 µg/kg, indole-3-carbinol at 50 µg/kg.
Molecules 25 02149 g003
Molecules 25 02149 g004 550

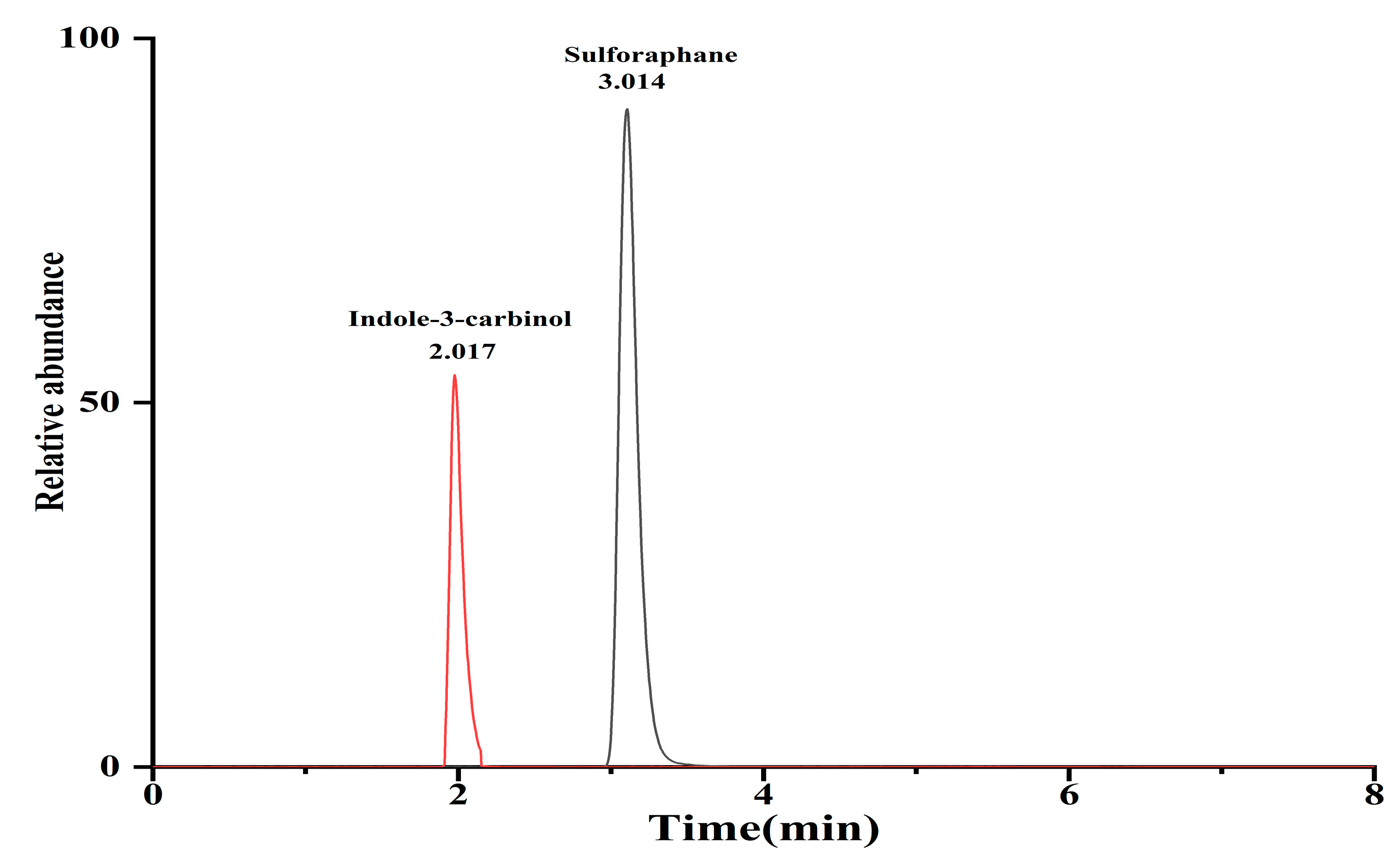

Figure 4. UHPLC-MS/MS chromatograms (MRM) of sulforaphane and indole-3-carbinol in rapeseed samples at 10 and 25 µg/kg, respectively.
Figure 4. UHPLC-MS/MS chromatograms (MRM) of sulforaphane and indole-3-carbinol in rapeseed samples at 10 and 25 µg/kg, respectively.
Molecules 25 02149 g004
Molecules 25 02149 g005 550

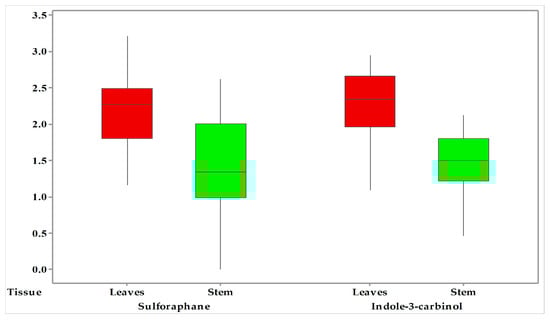

Figure 5. Box plot of sulforaphane and indole-3-carbinol concentration in the leaves and stems of rapeseed samples.
Figure 5. Box plot of sulforaphane and indole-3-carbinol concentration in the leaves and stems of rapeseed samples.
Molecules 25 02149 g005
Molecules 25 02149 g006 550

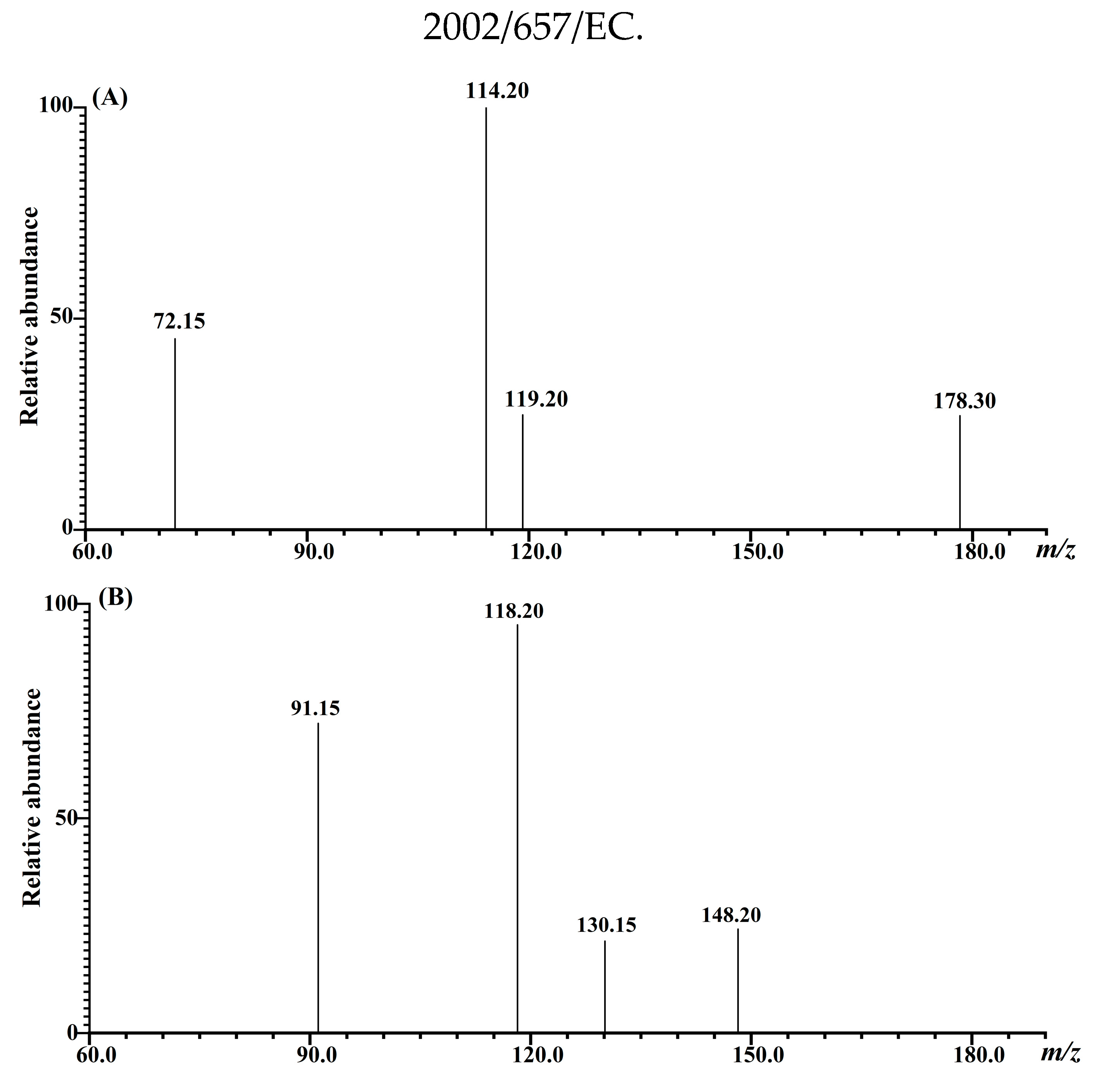

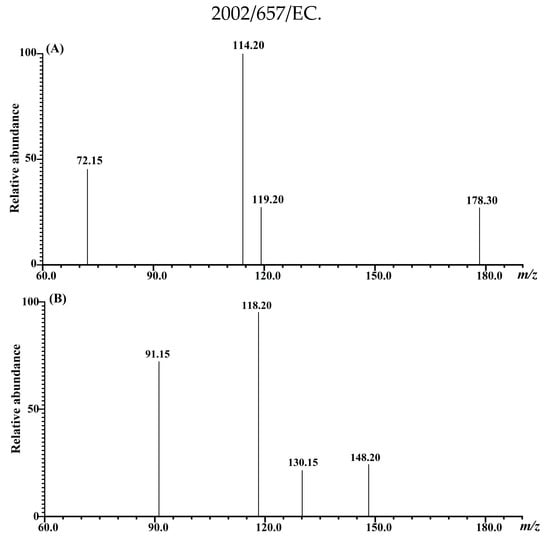

Figure 6. The product ions of sulforaphane and indole-3-carbinol obtained by UHPLC-MS/MS. (A) product ions of m/z 178.3 from sulforaphane standard; (B) product ions of m/z 148.2 from the indole-3-carbinol standard.
Figure 6. The product ions of sulforaphane and indole-3-carbinol obtained by UHPLC-MS/MS. (A) product ions of m/z 178.3 from sulforaphane standard; (B) product ions of m/z 148.2 from the indole-3-carbinol standard.
Molecules 25 02149 g006
Table
Table 1. Linear equations, correlation coefficient (R2), LODs, LOQs for sulforaphane and indole-3-carbinol.
Table 1. Linear equations, correlation coefficient (R2), LODs, LOQs for sulforaphane and indole-3-carbinol.
CompoundLinear Range
(μg/kg)		Regression EquationCorrelation
Coefficient		LOD
(μg/kg)		LOQ
(μg/kg)
Sulforaphane0.1–800Y = 458,317X − 133,9010.99990.050.15
Indole-3-carbinol15–1000Y = 42.3285X + 397.5990.9986515
Table
Table 2. Recovery rate, intra-day and inter-day precision for sulforaphane and indole-3-carbinol.
Table 2. Recovery rate, intra-day and inter-day precision for sulforaphane and indole-3-carbinol.
CompoundSpiked Concentration
(µg/kg)		Recovery
(%)		Intra-Day Precision
(N = 3, %)		Inter-Day
Precision
(N = 5, %)
Sulforaphane1/5/2576.5/91.3/96.44.9/5.9/4.19.4/9.0/11.3
Indole-3-carbinol20/50/10080.2/92.3/97.310.3/8.9/7.79.9/10.6/9.8
Table
Table 3. Quantity of the detected sulforaphane and indole-3-carbinol in rapeseed samples a (µg/kg).
Table 3. Quantity of the detected sulforaphane and indole-3-carbinol in rapeseed samples a (µg/kg).
Rapeseed Tissue
(N = 50)		SulforaphaneIndole-3-Carbinol
MaxMinMeanMaxMinMean
Stems415.3 ± 4.7ND b68.5 ± 15.9131.3 ± 11.8ND41.9 ± 12.4
Leaves1621.8 ± 28.114.6 ± 6.7287.3 ± 24.8 *879.5 ± 27.936.4 ± 5.9285.4 ± 18.7 *
a Values represent the mean of the triplicate analyses ± the standard deviation. b ND, below the limit of detection. “*” with brackets represent significant differences of SFN and I3C between the stems and leaves, p < 0.05.
Table
Table 4. Comparison of the extraction step and LOD with the previous methods.
Table 4. Comparison of the extraction step and LOD with the previous methods.
MatrixAnalytesExtraction StepDetermination TechniqueAnalyzed Time (min)Linear RangeLOD
(µg/kg)		Ref.
BroccoliSFNLLEUHPLC–HR MS20-770[20]
I3C420
BroccoliSFNSPEHPLC-UV205–10020[21]
BrassicaceaeSFNDLLMELC-DAD30-100[22]
I3C500
BroccoliSFNLLEUHPLC-MS/MS31.8–897.10.53[24]
Chinese cabbage, mustardI3CLLEHPLC-DAD6515–10005[34]
RapeseedSFNQuEChERSUHPLC-MS/MS80.1–8000.05This work
I3C15–10005
Table
Table 5. Mass scan parameters and retention time for sulforaphane and indole-3-carbinol.
Table 5. Mass scan parameters and retention time for sulforaphane and indole-3-carbinol.
CompoundR.T
(min)		Quantitative Ion PairCE (eV)Qualitative Ion pairsCE (eV)I.P. a
Sulforaphane3.014178.3 > 114.219178.3 > 72.1204
Indole-3-carbinol2.017148.2 > 118.215148.2 > 91.1304
a Identification points (IPs) are followed Commission Decision 2002/657/EC.
