Kinetic Studies on Radical Scavenging Activity of Kaempferol Decreased by Sn(II) Binding

by
Zhi-Yin Yang
1,
Ling-Ling Qian
1,
Yi Xu
1,
Meng-Ting Song
1,
Chao Liu
1,
Rui-Min Han
1,*,
Jian-Ping Zhang
1 and
Leif H. Skibsted
2
1
Department of chemistry, Renmin University of China, No. 59 ZhongGuanCun Street, Beijing 100872, China
2
Department of Food Science, University of Copenhagen, Rolighedsvej 26, DK-1958 Frederiksberg C, Denmark
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(8), 1975; https://doi.org/10.3390/molecules25081975
Submission received: 5 March 2020 / Revised: 11 April 2020 / Accepted: 14 April 2020 / Published: 23 April 2020
Browse Figures
Review Reports Versions Notes

Abstract

:
Sn(II) binds to kaempferol (HKaem, 3,4′,5,7-tetrahydroxy-2-(4-hydroxyphenyl)-4H-1-benzopyran-4-one) at the 3,4-site forming [Sn(II)(Kaem)2] complex in ethanol. DPPH• scavenging efficiency of HKaem is dramatically decreased by SnCl2 coordination due to formation of acid inhibiting deprotonation of HKaem as ligands and thus reduces the radical scavenging activity of the complex via a sequential proton-loss electron transfer (SPLET) mechanism. Moderate decreases in the radical scavenging of HKaem are observed by Sn(CH3COO)2 coordination and by contact between Sn and HKaem, in agreement with the increase in the oxidation potential of the complex compared to HKaem, leading to a decrease in antioxidant efficiency for fruits and vegetables with Sn as package materials.

1. Introduction

Flavonoids are a group of natural products with a variety of biological activities such as antioxidant, anti-inflammatory and anti-cancer [1,2,3,4,5,6]. Antioxidant activities of most flavonoids have recently been found to be enhanced by coordination of metal ions as reported by us [7,8] and by other authors [9,10,11,12,13,14,15]. In some cases, the presence of metal ions have been found to reduce the antioxidant activities of flavonoids depending on solvent, pH and the nature of flavonoids and metal ions [16,17]. The detailed mechanism behind the effect of metal ions on antioxidative efficiency at the molecular level is far from well established.
Sn plates are very commonly used in packaging for vegetables, fruits and beverages [18,19]. The total for food packaging is approximately 80,000 million cans worldwide every year [20]. Sn cans may protect natural flavor and appearance of food through oxidation of Sn itself in preference to oxidative degradation of the food [20]. Sn used for food and beverage packaging may partly dissolve into the food preservatives and react with organic components like flavonoids [20]. Sn has been found to have a rich coordination chemistry with flavonoids including anthocyanin, quercetin and the more water soluble glucoside, rutin, as evidenced by the decrease in phenolic content of fruits canned in Sn [16,17,21]. Sn(II) coordination has been found to decrease the antioxidant effect of flavonoids [14,15]. However, molecular mechanism on radical scavenging activity of flavonoids decreased by Sn(II) coordination is still not clear.
Kaempferol (HKaem, Scheme 1a), 3,4′,5,7-tetrahydroxyflavone, a flavone derivative, is widely distributed in plants and plant products [22]. Antioxidant effects of HKaem have been reported to be increased by the presence of copper (II), iron (III), and zinc (II) by other authors and our recent studies [7,8,23,24,25,26]. In the present study, HKaem was selected as a typical flavonoid with two possible chelation sites (3,4 and 4,5) for metal ions, and complex formation by Sn(II) coordination to HKaem was investigated together with the complex as a radical scavenger. The effect on radical scavenging efficiency of HKaem by Sn(II) coordination is of relevance as Sn is used for packaging of food, and accordingly deserves more attention.

2. Results and Discussions

2.1. Formation and Stability of [Sn(II)(Kaem)2] Complex

As seen in Figure 1a, HKaem in ethanol was found to react with SnCl2 slower than luteolin reacting with Cu(II) reaching equilibrium on a millisecond timescale [8]. The peak of UV-Vis absorption spectra red shifts gradually from 366 nm for HKaem to 433 nm by addition of SnCl2. The kinetics was measured every 30 s with a total time of 30 min as shown in Figure 1b. The increase at 366 nm and the decrease at 433 nm in absorbance both giving the same first-order rate constant of 0.12 ± 0.01 min−1. In contrast, apigenin (Scheme 1b) without 3-OH does not react with SnCl2 (Figure 1c), which indirectly supports that Kaem chelate to SnCl2 at 3-OH and 4-C=O excluding the possibility of Sn(II) chelating at 4-C=O and 5-OH [7,27,28]. This chelating mode is frequently found in metal-Kaem complexes like zinc(II) and ruthenium(II) [7,29,30].
UV-Vis absorption spectra of HKaem and Sn(II) in ratios ranging from 1:0.2 to 1:5 are seen in Figure 2a. Job’s-Plots of the spectra shown in Figure 2a at 430 nm against molar fractions of Sn(II), FSn(II), (Figure 2b) shows the stoichiometry of Kaem with Sn(II) is 2:1. The composition of the complex in ethanol is proposed to be a five-coordinate structure [Sn(II)(Kaem)2 ( EtOH ) ] containing a solvent ligand as shown in Scheme 1c, which is supported by mass spectrometry in methanol [23,31] (Table 1 and Figure 3). For simplicity, five-coordinate structure Sn(II)(Kaem)2 ( EtOH ) is written as [Sn(II)(Kaem)2] in the following. The reaction of Sn(II) with HKaem in ethanol is thus written as Equation (1):
Sn 2 + + 2 HKaem   + nEtOH ⇌ Sn ( II ) ( Kaem ) 2   ( EtOH ) n + 2 H +
The stability constant was calculated as 8.2 × 1010 L2∙mol−2, which is closed to the stability constants, 1.1 × 1011 L2 mol−2 for 1:2 Cu(II)–genistein complex [23] and 1.1 × 1011 L2 mol−2 for 1:2 Zn(II)–kaempferol complex [7].
The stability of the [Sn(II)(Kaem)2] complex was investigated by addition of water, HCl and NaOH, and the corresponding absorption spectra are shown in Figure 4a–c. Figure 4a,b shows that the complex gradually decomposes with increasing addition of water or hydrochloric acid. Water may react with Sn(II) in complex to form Sn(OH)2 causing the dissociation of the complex as shown in Equation (2) [28,32]. The chemical equilibrium of the reaction shown in Equation (1) moves backwards by the addition of hydrochloric acid to release the parent HKaem from the [Sn(II)(Kaem)2] complex.
Sn ( II ) ( Kaem ) 2 + H 2 O ⇌   Sn ( OH ) 2 + 2 HKaem
Sn ( II ) ( Kaem ) 2 + 2 H + ⇌   Sn 2 + + 2 HKaem
In addition, the [Sn(II)(Kaem)2] complex was also found to dissociate into deprotonated Kaem in the presence of excessive sodium hydroxide in ethanol in the reaction shown in Equation (4). The dissociation was confirmed spectrally by the similar absorption spectra of [Sn(II)(Kaem)2] and the parent HKaem in basic condition as seen in Figure 4c.
Sn ( II ) ( Kaem ) 2 + 2 OH − ⇌   Sn ( OH ) 2 + 2 Kaem −

2.2. Radical Scavenging Kinetics

The reaction between the semi-stable radical 2,2-diphenyl-1-picrylhydrazyl (DPPH•) and HKaem as well as the [Sn(II)(Kaem)2] complex was investigated by the absorbance changes at 517 nm in ethanol by stopped-flow spectroscopy, as shown in Figure 5.
Upon addition of HKaem only with concentration increasing from 25 to 200 μM, the decay of absorbance at 517 nm for 100 μM DPPH• gradually accelerated (Figure 5a). However, the rate of DPPH• scavenging gradually decreased for 100 μM HKaem with increasing addition of SnCl2 in ratios of HKaem:SnCl2 varying from 1:0.02 to 1:10 (Figure 5b). Notably, this pattern is different from what was observed in our previous and recent work including the combination of HKaem and Zn(II) or HKaem and alkaline rare earth ions in ethanol, and the combination of luteolin and Cu(II) in aqueous solution for which the rate of scavenging increased [7,8,23]. According to the method in reference [33], time evolution curves at 517 nm in Figure 5 can be fitted by the use of linear and exponential functions ,   A 517 = k 1 t + b and A 517 = m e − k 2 t + n for linear and non-linear kinetics respectively, and the initial rates at t=0 s, r a t e t = 0 , are quantitatively obtained by differentiating the fitting functions with respect to time t using Equations (5) and (6):
r a t e t = 0 = − d A 517 ,   t = 0 d t = k 1 t + b   ( t = 0 ) = k 1
r a t e t = 0 = − d A 517 ,   t = 0 d t = m e − k 2 t ( t = 0 ) = m k 2
in which k1 and k2 represent rate constants and b, m, n are constants. The initial rates k1 for linear fitting and k2 for exponential fitting are listed in Table 2 for comparison.
The rate of DPPH• scavenging dramatically decreased (~10 times) by addition of SnCl2 with the ratio of HKaem:SnCl2 changing within a small range from 1:0.02 to 1:0.08. For the ratio of HKaem:SnCl2 changing from 1:1 to 1:10, the rate of DPPH• scavenging only decreased 2.5 times. The decrease in the DPPH• scavenging rate was obviously not only the result of an increase in the fraction of the [Sn(II)(Kaem)2] complex.
Coordination of HKaem with Sn(OAc)2 as a salt of weak acid was compared with SnCl2 as a salt of a strong acid. The Job’s plot and stability constant were not directly available due to the poor solubility of Sn(OAc)2. The absorption spectra of 50 µM HKaem and 50 µM Sn(OAc)2 shown in Figure 6 produced a peak at 433 nm in agreement with the spectra of the [Sn(II)(Kaem)2] complex formed by SnCl2 reacting with HKaem. Absorption spectra were nicely fitted by a linear addition of the absorption spectra of HKaem and the [Sn(II)(Kaem)2] complex formed from HKaem reacting with SnCl2, which showed that the same [Sn(II)(Kaem)2] complex formed from both SnCl2 and Sn(OAc)2 reacting with HKaem. The stability constant for [Sn(II)(Kaem)2] formed from HKaem and Sn(OAc)2 (Equation (7)) was calculated as 5.39 × 108 mol−2L2, lower than the 8.19 × 1010 mol−2L2 obtained for the HKaem and SnCl2 combination.
Sn ( OAc ) 2 + 2 HKaem   ⇌ Sn ( II ) ( Kaem ) 2   + 2 HOAc
The time evolutions of DPPH• scavenging by the combination of HKaem and Sn(OAc)2 in Figure 5c were different from the combination of HKaem and SnCl2, and the radical scavenging rate of HKaem slightly decreased by Sn(OAc)2 coordination compared with SnCl2 coordination. Acetic acid, as a product formed by the reaction of HKaem and Sn(OAc)2, has an acid dissociation constant, pKa = 10.59 [34], and the protons in solution were far less completely dissociated than the hydrochloric acid formed in reaction of HKaem and SnCl2. Therefore, the acidic effect on DPPH• scavenging was negligible for the complex formed from HKaem and Sn(OAc)2. The [Sn(II)(Kaem)2] complex was the dominant DPPH• radical scavenger in a solution of HKaem and Sn(OAc)2 excluding the interference of acid. The dramatically decreased antioxidant effect of the Sn(II)(Kaem)2 complex formed in the reaction with SnCl2 and HKaem arose from hydrochloric acid as a side product, which decreased radical scavenging activity of [Sn(II)(Kaem)2]. As shown in Equations (8)–(10), the mechanism of DPPH• radical scavenging by [Sn(II)(Kaem)2] can accordingly be described as a sequential proton loss electron transfer (SPLET) mechanism [35]:
Sn ( II ) ( Kaem ) 2 → Sn ( II ) ( Kaem ) 2 − + H +
Sn ( II ) ( Kaem ) 2 − + DPPH → Sn ( II ) ( Kaem ) 2 + DPPH −
  DPPH − + H + → DPPH H
Kaem, as a ligand in the complex, deprotonates first and then reacts with DPPH•. The deprotonated flavonoids have higher radical scavenging capacity than the protonated flavonoids. The hydrochloric acid formed from SnCl2 reacting with HKaem inhibited the deprotonation of HKaem in the complex and accordingly decreased the radical scavenging reactivity of the [Sn(II)(Kaem)2] complex. The addition of hydrochloric acid to the solution of HKaem and Sn(OAc)2 significantly decreased the rate of DPPH• decay, as seen in Figure 5c, which further indicated the inhibition mechanism of acid on radical scavenging of the [Sn(II)(Kaem)2] complex.
The absorption spectra of DPPH• radicals with HKaem, SnCl2/Sn(OAc)2 and equilibrated solutions of HKaem and SnCl2/Sn(OAc)2 shown in Figure 7 also indicated that Sn(II) salts alone do not react with DPPH•. HKaem and the combination of Kaem and Sn(OAc)2 were able to scavenge the DPPH• radicals. The spectral characteristics of DPPH• are not affected by combination of HKaem and SnCl2, which excludes the possibility of DPPH• protonation in the radical scavenging [36,37].
The time evolution of absorption of 50 μM DPPH• at 517 nm following addition of 100 μM HKaem soaked in a glass vessel and in a Sn can for 48 h (Figure 8) indicated that the radical scavenging rate of HKaem is 0.72 times lower than of the parent HKaem and is apparently decreased by reaction with Sn as the packaging material in cans. This result implied that Sn or Sn oxide may dissolve and react with HKaem in solution forming a complex, which causes a decrease in radical scavenging efficiency.
Decreased radical scavenging reactivity of HKaem by Sn(II) coordination is also supported by comparisons of oxidation potential as determined for Kaem and [Sn(II)(Kaem)2] formed from Kaem reacting with SnCl2 and Sn(OAc)2 (Figure 9a,b). Using cyclic voltammetry, HKaem was found to be oxidized by a quasi-reversible process and to have an oxidation potential of 0.08 V versus ferrocene corresponding to oxidation of a phenolic group [38,39]. No signal was observed for SnCl2 or Sn(OAc)2 alone within the detection range. The lowest oxidation peak of HKaem gradually increased with the addition of SnCl2 with the ratio of HKaem:SnCl2 at 1:0.1 to 1:5. With the increase in SnCl2 relative to HKaem, a new oxidation peak appeared and moved toward a higher oxidation potential of 0.41 V, assigned to the oxidation potential of the [Sn(II)(Kaem)2] complex formed from HKaem reacting with SnCl2 (Figure 9a). The oxidation potential of the Sn(II)(Kaem)2 complex formed from HKaem reacting with Sn(OAc)2 was determined to be 0.16 V (Figure 9b). This value is higher than the potential of HKaem of 0.08 V but lower than the potential of the [Sn(II)(Kaem)2] complex formed from combination of Kaem and SnCl2, which had a value of 0.41 V. A higher oxidation potential for HKaem coordination to SnCl2 than for HKaem coordination to Sn(OAc)2 confirmed that the SPLET reaction of the [Sn(II)(Kaem)2] complex in radical scavenging also occurs at the electrode during cyclic voltammetry. The higher oxidation potential of the [Sn(II)(Kaem)2] complex than the parent HKaem is consistent with the decreased radical scavenging capacity of HKaem by Sn(II) coordination.
As a main group metal element, Sn(II) often has metal–ligand covalent interactions with other elements [40]. Cationic low-valent Sn(II) species possess a combination of electrophilicity of the cation with the nucleophilicity of the metal-centered lone electron pair [41]. Compared with their parent flavonoid molecules, Sn(II) reacting with HKaem decreases the radical scavenging efficiency and increases oxidation potential, whereas transition metal ions like Zn(II) and Cu(II) reacting with flavonoids both increase the radical scavenging efficiencies and decrease the oxidation potentials. This may arise from the weakened electron donation ability of HKaem by coordination of Sn(II) with the nucleophilicity of the metal-centered lone electron pair, whereas the strong electron-withdrawing effects of Zn(II) or Cu(II) increase the electron donation ability of flavonoids in radical scavenging.

3. Materials and Methods

3.1. Chemicals

HKaem (>98%) and HApi (>98%) from Huike Plant Exploitation Inc, (Shanxi, China), ‘stannous chloride dihydrate, SnCl2·2H2O (>99%) from Beijing Chemical Reagents Company (China), tin acetate (Sn(OAc)2, C4H6O4Sn, > 97%) from Energy Chemical (Shanghai, China), DPPH• (>97%) from Zhongshengruitai Technology Inc. (Beijing, China), ferrocene (>98%) and sodium perchlorate, NaClO4 (>98%) from Sigma-Aldrich (St. Louis, MO, USA), hydrochloric acid (37%) from Sigma-Aldrich, NaOH (>98%) from Sigma-Aldrich, and spectrophotometric grade ethanol and methanol (99.9%, Fine Chemical Industry Research Institute, Tianjin, China) were used as received. Ultrapure water purified on a Milli-Q purification train was used throughout. Sn cans used to keep fruits were bought from supermarkets and were polished to remove the oxide layer before performing the experiment.

3.2. Reaction of Sn(II) with Kaempferol

All UV-Vis absorption spectra were measured on a Cary 60 spectrophotometer (Varian, Inc., Palo Alto, CA, USA) using 1.0 cm quartz cells in a room at a temperature of 25 °C. The solutions were prepared by mixing solutions of HKaem and SnCl2 with total molar concentrations of 50 μM in Kaem:Sn(II) molar ratios varying from 9:1 to 1:9. Stabilities of the complex were investigated by addition of different concentrations of water, acid, and base to the solution of 50 µM SnCl2 and 50 µM HKaem. For the reaction of HKaem with Sn(OAc)2, 100 μM HKaem was added to 100 and 200 μM Sn(OAc)2 in ethanol. The absorption spectra to monitor the reactions were measured after 30 min when the reactions had reached equilibrium. For the reaction of HApi with SnCl2, 100 µM HApi was added to 100 µM SnCl2 in ethanol and stored for 30 min and 24 h. Then, UV-Vis spectroscopy was performed for the two solutions.

3.3. Mass Spectroscopy

Mass spectra were obtained on a Thermo Scientific™ Q Exactive™ HF (Waltham, MA, USA) in positive ion mode. The [Sn(II)(Kaem)2] complexes were prepared by filtering the solutions obtained by mixing 100 µM HKaem + 50 µM SnCl2 through a nylon membrane with 220 nm sieve pores. The samples were analyzed by direct infusion into electron spray ionization by means of a syringe pump (Thermo UltiMate 3000, Waltham, MA, USA) at a flow rate of 5 μL/min. Capillary temperature was 320 °C and spray voltage was 3.50 kV.

3.4. DPPH• Radical Scavenging

The kinetics of DPPH• scavenging by the [Sn(II)(Kaem)2] complexes was investigated using the same rapid mixing stopped-flow technique, performed on a RX2000 Rapid-Mixing Stopped-Flow Unit (Applied Photophysics Ltd., Surrey, U.K.) as in our previous study [7]. One syringe contained a solution of DPPH• dissolved in ethanol. The other syringe contained the samples to be measured.
The kinetics of DPPH• scavenging by a HKaem in ethanol soaked in a Sn can for 48 h was compared to a similar sample under the same conditions but stored in a glass vessel covered by aluminium foil.

3.5. Determination of Oxidation Potentials

Cyclic voltammetry (CV) was performed on a three-electrode CHI 760D electrochemical analyzer (ChenHua Instruments Inc., Shanghai, China). The working electrode was a glassy carbon piece (diameter = 4 mm), the reference electrode was a silver wire and the auxiliary electrode was a platinum wire. The supporting electrolyte, 0.10 mol L−1 NaClO4, was used. The internal standard, 5.0 × 10−5 mol L−1 ferrocene, was used. The cyclic voltammetry in ethanol was scanned in potential from −0.5 to 1.0 V on a 0.1 V/s scan rate.
All experimental results were repeated three times and showed the same tendency.

4. Conclusions

Sn(II) reacts with HKaem forming the proposed [Sn(II)(Kaem)2] complex by coordination at the 3,4-site on a time scale of seconds, as confirmed by UV-Vis spectroscopy, mass spectroscopy, and through a comparison with reaction of Sn(II) and apigenin. Radical scavenging reactivity of HKaem was found to be moderately decreased by Sn(II) coordination by comparing the complexes formed from SnCl2 and Sn(OAc)2 reacting with HKaem, in agreement with the increase in oxidation potential for the [Sn(II)(Kaem)2] complex compared to the parent HKaem, which may be due to the electron donation ability of Kaem as a ligand in the complex decreased by the nucleophilicity of the Sn(II)-centered lone electron pair. These results concerning the molecular mechanism behind the radical scavenging efficiency of HKaem as decreased by Sn(II) is relevant for Sn as food packaging in the food industry and protection of flavonoids as natural antioxidants, which needs more attention.

Author Contributions

Z.-Y.Y. completed the main experimental work under the supervision of R.-M.H. L.-L.Q. and Y.X. analyzed some results. M.-T.S. and C.L. helped Z.-Y.Y. prepare the samples. R.-M.H., L.H.S., and J.-P.Z. planned the investigation. Z.-Y.Y. and R.-M.H. wrote the manuscript. All authors approved the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by grants from Natural Science Foundation of China (No. 21573284 and 21673288).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, A.Y.; Chen, Y.C. A review of the dietary flavonoid, kaempferol on human health and cancer chemoprevention. Food Chem. 2013, 138, 2099–2107. [Google Scholar] [CrossRef] [Green Version]
  2. Panhwar, Q.K.; Memon, S.; Bhanger, M.I. Synthesis, characterization, spectroscopic and antioxidation studies of Cu(II)–morin complex. J. Mol. Struc. 2010, 967, 47–53. [Google Scholar] [CrossRef]
  3. Kasprzak, M.M.; Erxleben, A.; Ochocki, J. Properties and applications of flavonoid metal complexes. RSC Adv. 2015, 5, 45853–45877. [Google Scholar] [CrossRef]
  4. PieniEk, E.; Kalembkiewicz, J.; Dranka, M.; Woznicka, E. Syntheses, crystal structures and antioxidant study of Zn(II) complexes with morin-5′-sulfonic acid (MSA). J. Inorg. Biochem. 2014, 141, 180–187. [Google Scholar] [CrossRef] [PubMed]
  5. Imran, M.; Salehi, B.; Sharifi-Rad, J.; Gondal, T.A.; Saeed, F.; Imran, A.; Shahbaz, M.; Fokou, P.V.T.; Arshad, M.U.; Khan, H.; et al. Kaempferol: A Key Emphasis to Its Anticancer Potential. Molecules 2019, 24, 2277. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Porkodi, J.; Raman, N. Synthesis, characterization and biological screening studies of mixed ligand complexes using flavonoids as precursors. Appl. Organomet. Chem. 2017, e4030. [Google Scholar] [CrossRef]
  7. Xu, Y.; Qian, L.; Yang, J.; Han, R.; Zhang, J.; Skibsted, L.H. Kaempferol Binding to Zinc(II), Efficient Radical Scavenging through Increased Phenol Acidity. J. Phys. Chem. B 2018, 122, 10108–10117. [Google Scholar] [CrossRef]
  8. Xu, Y.; Yang, J.; Lu, Y.; Qian, L.; Yang, Z.; Han, R.; Zhang, J.; Skibsted, L.H. Copper(II) coordination and translocation in luteolin and effect on radical scavenging. J. Phys. Chem. B 2020, 124, 380–388. [Google Scholar] [CrossRef] [PubMed]
  9. De Souza, R.F.V.; Sussuchi, E.M.; De Giovani, W.F. Synthesis, Electrochemical, Spectral, and Antioxidant Properties of Complexes of Flavonoids with Metal Ions. Synth. React. Inorg. Met. Org. Chem. 2003, 33, 1125–1144. [Google Scholar] [CrossRef]
  10. Říha, M.; Karlíčková, J.; Filipský, T.; Macáková, K.; Rocha, L.; Bovicelli, P.; Silvestri, I.P.; Saso, L.; Jahodář, L.; Hrdina, R.; et al. In vitro evaluation of copper-chelating properties of flavonoids. RSC Adv. 2014, 4, 32628–32638. [Google Scholar] [CrossRef] [Green Version]
  11. Jantrawut, P.; Phongpradist, R.; Muller, M.; Viernstein, H. Enhancement of anti-inflammatory activity of polyphenolic flavonoid rutin by encapsulation. Pak. J. Pharm. Sci. 2017, 30, 1521–1527. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Thompson, M.; Williams, C.R.; Elliot, G.E.P. Stability of flavonoid complexes of copper(II) and flavonoid antioxidant activity. Anal. Chim. Acta 1976, 85, 375–381. [Google Scholar] [CrossRef]
  13. Souza, R.F.V.D.; Giovani, W.F.D. Antioxidant properties of complexes of flavonoids with metal ions. Redox Rep. 2004, 9, 97–104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. De Souza, R.F.V.; De Giovani, W.F. Synthesis, spectral and electrochemical properties of Al(III) and Zn(II) complexes with flavonoids. Spectrochim. Acta A 2005, 61, 1985–1990. [Google Scholar] [CrossRef] [PubMed]
  15. Andelescu, A.A.; Cretu, C.; Sasca, V.; Marinescu, S.; Cseh, L.; Costisor, O.; Szerb, E.I. New heteroleptic Zn(II) and Cu(II) complexes with quercetine and N^N ligands. Polyhedron 2018, 147, 120–125. [Google Scholar] [CrossRef]
  16. Dehghan, G.; Khoshkam, Z. tin(II)-quercetin complex: Synthesis, spectral characterisation and antioxidant activity. Food Chem. 2012, 131, 422–426. [Google Scholar] [CrossRef]
  17. Panhwar, Q.K.; Memon, S. Synthesis, characterization and antioxidant study of tin(II)–rutin complex: Exploration of tin packaging hazards. Inorg. Chim. Acta 2013, 407, 252–260. [Google Scholar] [CrossRef]
  18. Boogaard, P.J.; Boisset, M.; Blunden, S.; Davies, S.; Ong, T.J.; Taverne, J.P. Comparative assessment of gastrointestinal irritant potency in man of tin(II) chloride and tin migrated from packaging. Food Chem. Toxicol. 2003, 41, 1663–1670. [Google Scholar] [CrossRef]
  19. Perring, L.; Basic-Dvorzak, M. Determination of total tin in canned food using inductively coupled plasma atomic emission spectroscopy. Anal. Bioanal. Chem. 2002, 374, 235–243. [Google Scholar] [CrossRef]
  20. Blunden, S.; Wallace, T. Tin in canned food: A review and understanding of occurrence and effect. Food Chem. Toxicol. 2003, 41, 1651–1662. [Google Scholar] [CrossRef]
  21. Asami, D.K.; Hong, Y.J.; Barrett, D.M.; Michell, A.E. Processing-induced changes in total phenolics and procyanidins in clingstone peaches. J. Sci. Food Agric. 2003, 83, 56–63. [Google Scholar] [CrossRef]
  22. Samsonowicz, M.; Regulska, E.; Kalinowska, M. Hydroxyflavone metal complexes—Molecular structure, antioxidant activity and biological effects. Chem.-Biol. Interact. 2017, 273, 245–256. [Google Scholar] [CrossRef] [PubMed]
  23. Yang, J.; Xu, Y.; Liu, H.; Han, R.; Zhang, J.; Skibsted, L.H. Genistein binding to copper(II)—Solvent dependence and effects on radical scavenging. Molecules 2017, 22, 1757. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Dimitrić Marković, J.M.; Marković, Z.S.; Brdarić, T.P.; Pavelkić, V.M.; Jadranin, M.B. Iron complexes of dietary flavonoids: Combined spectroscopic and mechanistic study of their free radical scavenging activity. Food Chem. 2011, 129, 1567–1577. [Google Scholar] [CrossRef]
  25. Puppo, A. Effect of flavonoids on hydroxyl radical formation by fenton-type reactions; influence of the iron chelator. Phytochemistry 1992, 31, 85–88. [Google Scholar] [CrossRef]
  26. Zhang, L.; Liu, Y.; Wang, Y.; Xu, M.; Hu, X. UV–vis spectroscopy combined with chemometric study on the interactions of three dietary flavonoids with copper ions. Food Chem. 2018, 263, 208–215. [Google Scholar] [CrossRef]
  27. Wei, Y.; Guo, M. Zinc-Binding Sites on Selected Flavonoids. Biol. Trace Elem. Res. 2014, 161, 223–230. [Google Scholar] [CrossRef]
  28. Kalinowska, M.; Swiderski, G.; Matejczyk, M.; Lewandowski, W. Spectroscopic, thermogravimetric and biological studies of Na(I), Ni(II) and Zn(II) complexes of querceSn. J. Therm. Anal. Calor. 2016, 126, 141–148. [Google Scholar] [CrossRef] [Green Version]
  29. Tu, L.Y.; Pi, J.; Jin, H.; Cai, J.Y.; Deng, S.P. Synthesis, characterization and anticancer activity of kaempferol-zinc (II) complex. Bioorg. Med. Chem. Lett. 2016, 26, 2730–2734. [Google Scholar] [CrossRef] [PubMed]
  30. Thangavel, P.; Viswanath, B.; Kim, S. Synthesis and characterization of kaempferol-based ruthenium (II) complex: A facile approach for superior anticancer application. Mater. Sci. Eng. C 2018, 89, 87–94. [Google Scholar] [CrossRef]
  31. Liu, Y.; Guo, M. Studies on Transition Metal-Quercetin Complexes Using Electrospray Ionization Tandem Mass Spectrometry. Molecules 2015, 20, 8583–8594. [Google Scholar] [CrossRef] [PubMed]
  32. Schaefer, S.G.; Femfert, U. Tin—A toxic heavy metal. A review of the literature. Regul. Toxicol. Pharmacol. 1984, 4, 57–69. [Google Scholar] [CrossRef]
  33. Han, R.M.; Tian, Y.X.; Becker, E.M.; Andersen, M.L.; Skibsted, L.H. Puerarin and conjugate bases as radical scavengers and antioxidants: Molecular mechanism and synergism with β-carotene. J. Agric. Food Chem. 2007, 55, 2384–2391. [Google Scholar] [CrossRef]
  34. Gutbezahl, B.; Grunwald, E. The Acidity and Basicity Scale in the System Ethanol—Water. The Evaluation of Degenerate Activity Coefficients for Single Ions. J. Am. Chem. Soc. 1953, 75. [Google Scholar] [CrossRef]
  35. Galano, A.; Mazzone, G.; Alvarez-Diduk, R.; Marino, T.; Alvarez-Idaboy, J.R.; Russo, N. Food Antioxidants: Chemical Insights at the Molecular Level. Annu. Rev. Food Sci. Technol. 2016, 7, 335–352. [Google Scholar] [CrossRef]
  36. Foti, M.C. Use and Abuse of the DPPH(•) Radical. J. Agric. Food Chem. 2015, 63, 8765–8776. [Google Scholar] [CrossRef]
  37. Shang, Y.J.; Qian, Y.P.; Liu, X.D.; Dai, F.; Shang, X.L.; Jia, W.Q.; Liu, Q.; Fang, J.; Zhou, B. Radical-scavenging activity and mechanism of resveratrol-oriented analogues: Influence of the solvent, radical, and substitution. J. Org. Chem. 2009, 74, 5025–5031. [Google Scholar] [CrossRef]
  38. Dar, R.A.; Naikoo, G.A.; Hassan, I.U.; Shaikh, A.M.H. Electrochemical behavior of kaempferol and its determination in presence of quercetin employing multi-walled carbon nanotube modified carbon paste electrode. Anal. Chem. Res. 2016, 7, 1–8. [Google Scholar] [CrossRef] [Green Version]
  39. Oztekin, Y.; Yazicigil, Z.; Ramanaviciene, A.; Ramanavicius, A. Polyphenol-modified glassy carbon electrodes for copper detection. Sens. Actuators B 2011, 152, 37–48. [Google Scholar] [CrossRef]
  40. Gielen, M.; Davies, A.G.; Pannell, K.H.; Tiekink, E. Tin Chemistry—Fundamentals, Frontiers and Applications; Wiley: Hoboken, NJ, USA, 2008. [Google Scholar] [CrossRef]
  41. Jurca, T.; Hiscock, L.K.; Korobkov, I.; Rowley, C.N.; Richeson, D.S. The tipping point of the inert pair effect: Experimental and computational comparison of In(I) and Sn(II) bis(imino)pyridine complexes. Dalton Trans. 2013, 43, 690–697. [Google Scholar] [CrossRef]
Molecules 25 01975 sch001 550

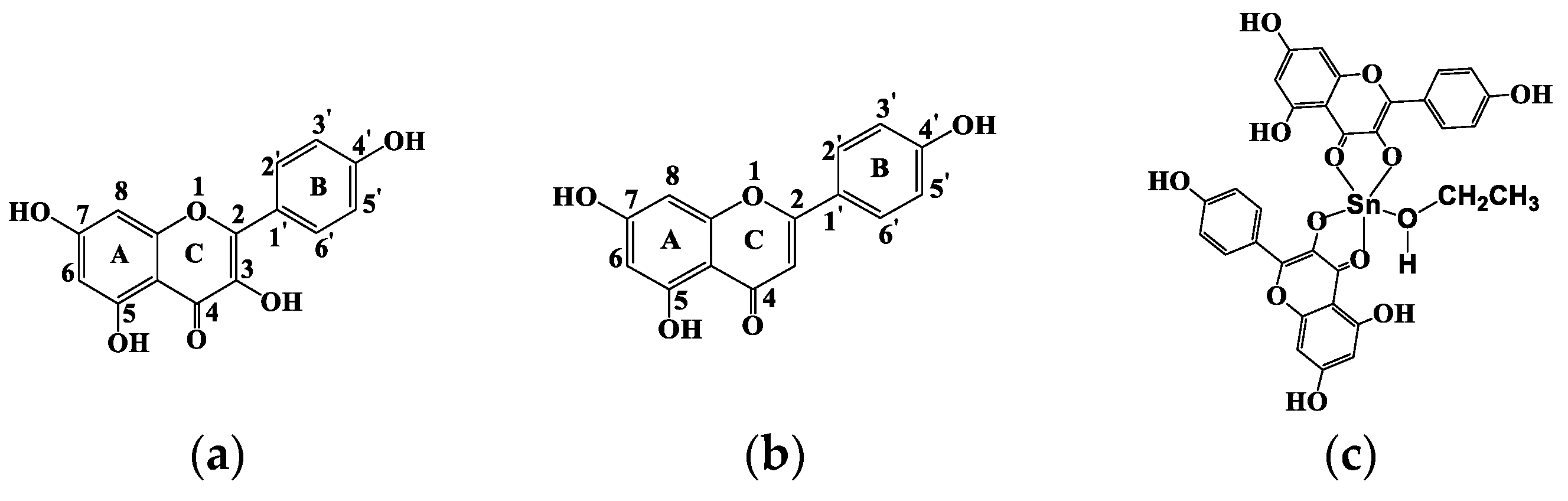

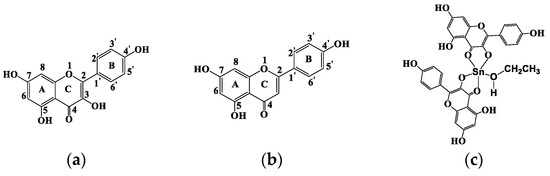

Scheme 1. Molecular structures of (a) HKaem, (b) HApi and (c) proposed structure of the complex [Sn(II)(Kaem)2(EtOH)] complex.
Scheme 1. Molecular structures of (a) HKaem, (b) HApi and (c) proposed structure of the complex [Sn(II)(Kaem)2(EtOH)] complex.
Molecules 25 01975 sch001
Molecules 25 01975 g001 550

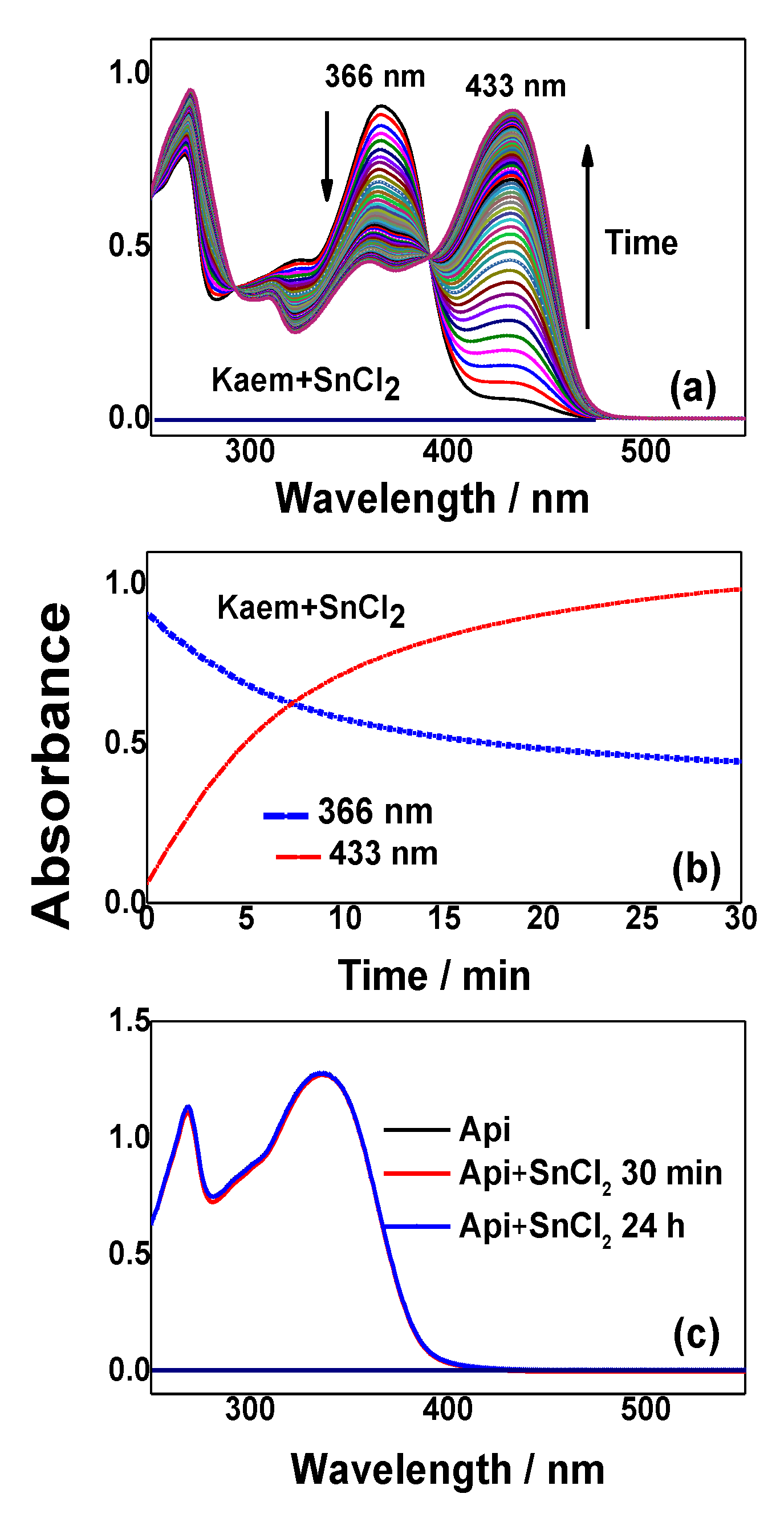

Figure 1. Slow reaction of tin chloride (SnCl2) with HHHHhhKaem and no reaction of SnCl2 with apigenin (HApi). (a) Absorption spectra of 50 µM SnCl2 and 50 µM kaempferol (HKaem) in ethanol measured every 30 s for total time of 30 min. (b) Time evolutions at 433 and 366 nm from Figure 1a corresponding to the transformation of HKaem into the [Sn(II)(Kaem)2] complex. (c) Absorption spectra of 50 µM HApi and solutions of 50 µM HApi and 50 µM SnCl2 in ethanol at 30 min and 24 h after mixing.
Figure 1. Slow reaction of tin chloride (SnCl2) with HHHHhhKaem and no reaction of SnCl2 with apigenin (HApi). (a) Absorption spectra of 50 µM SnCl2 and 50 µM kaempferol (HKaem) in ethanol measured every 30 s for total time of 30 min. (b) Time evolutions at 433 and 366 nm from Figure 1a corresponding to the transformation of HKaem into the [Sn(II)(Kaem)2] complex. (c) Absorption spectra of 50 µM HApi and solutions of 50 µM HApi and 50 µM SnCl2 in ethanol at 30 min and 24 h after mixing.
Molecules 25 01975 g001
Molecules 25 01975 g002 550

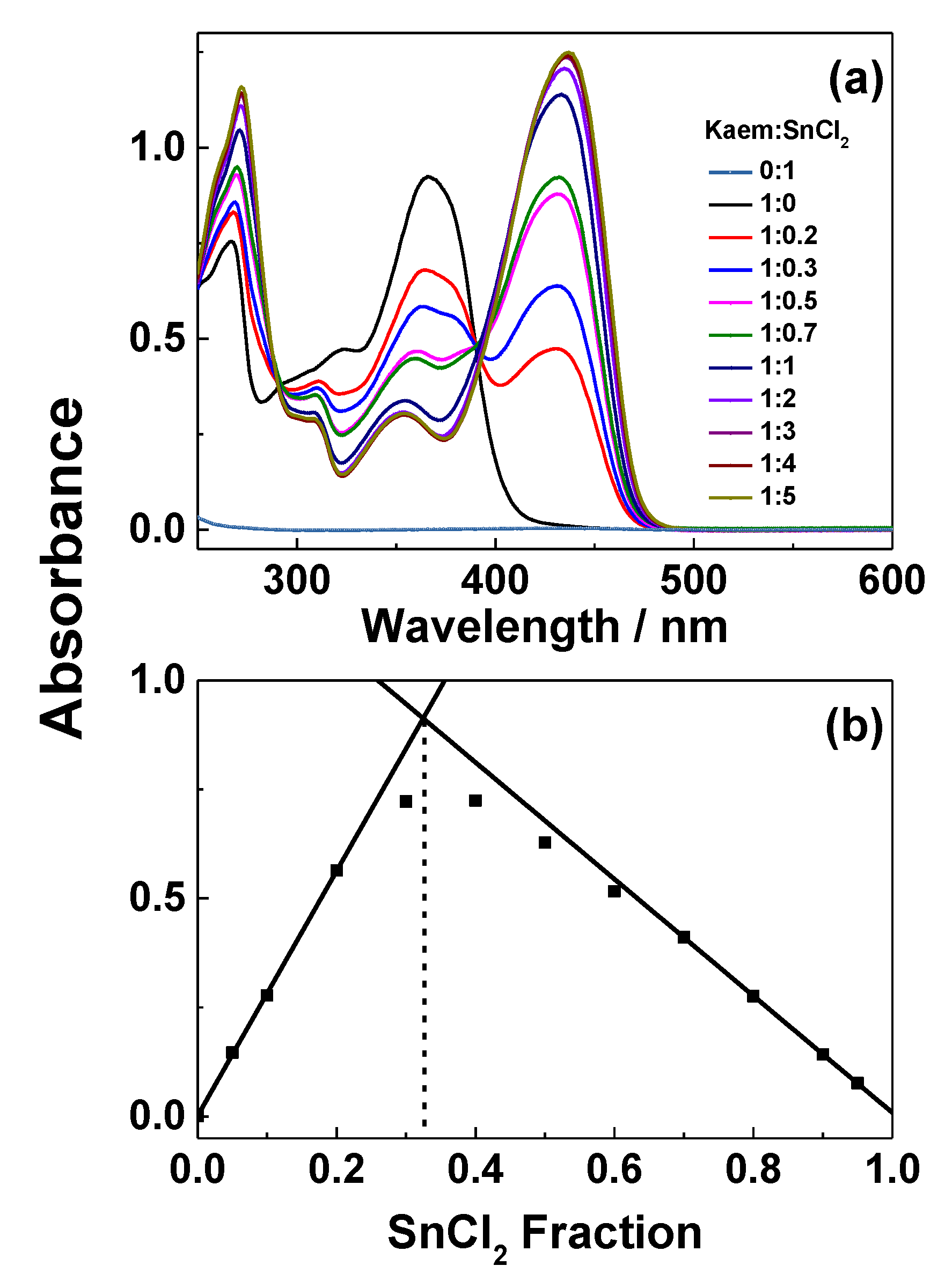

Figure 2. Determination of the Sn:Kaem ratio. (a) Absorption spectra of 50 µM HKaem, 50 µM SnCl2, and solutions of 50 µM HKaem addition of SnCl2 in varying ratio (1:0.2–1:5) in ethanol. (b) Job’s plots of absorbance at 430 nm obtained by mixing solutions of HKaem and SnCl2 with total concentration of 50 μM in HKaem:Sn(II) molar ratios varying from 9:1 to 1:9.
Figure 2. Determination of the Sn:Kaem ratio. (a) Absorption spectra of 50 µM HKaem, 50 µM SnCl2, and solutions of 50 µM HKaem addition of SnCl2 in varying ratio (1:0.2–1:5) in ethanol. (b) Job’s plots of absorbance at 430 nm obtained by mixing solutions of HKaem and SnCl2 with total concentration of 50 μM in HKaem:Sn(II) molar ratios varying from 9:1 to 1:9.
Molecules 25 01975 g002
Molecules 25 01975 g003 550

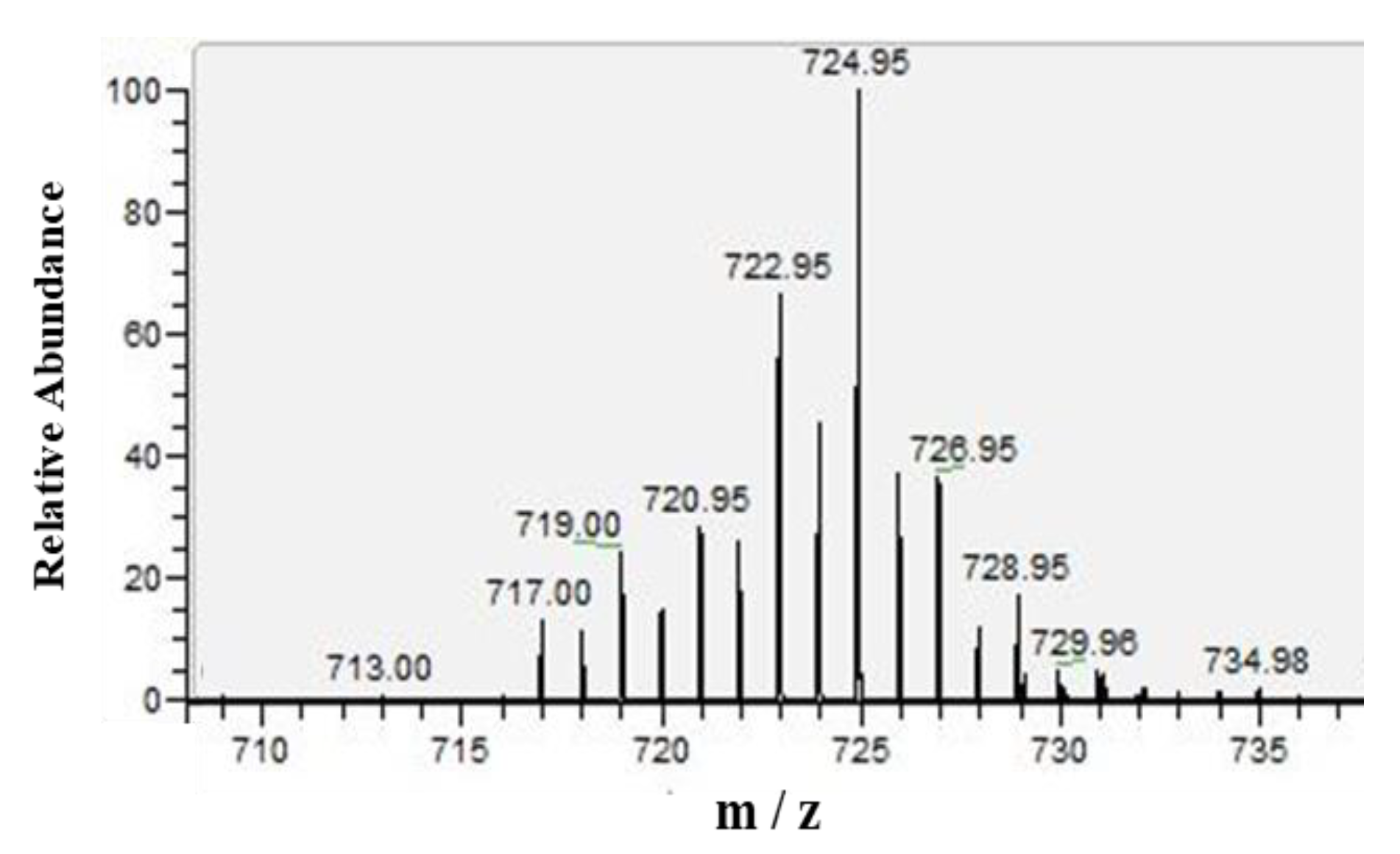

Figure 3. Mass spectra of solutions of 100 μM HKaem with 50 μM SnCl2 in methanol.
Figure 3. Mass spectra of solutions of 100 μM HKaem with 50 μM SnCl2 in methanol.
Molecules 25 01975 g003
Molecules 25 01975 g004 550

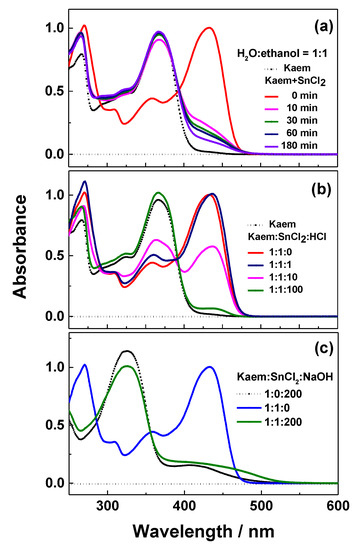

Figure 4. Effects of addition of water, acid, and base on the stability of the [Sn(II)(Kaem)2] complex. Absorption spectra of solution of 50 µM HKaem and 50 µM SnCl2 measured (a) in water:ethanol = 1:1, v/v, and in ethanol by addition of (b) 50, 500, and 5000 µM hydrochloric acid and (c) 1 mM sodium hydroxide. Absorption spectra of 50 µM HKaem alone under the same conditions is indicated by a dashed line for comparison.
Figure 4. Effects of addition of water, acid, and base on the stability of the [Sn(II)(Kaem)2] complex. Absorption spectra of solution of 50 µM HKaem and 50 µM SnCl2 measured (a) in water:ethanol = 1:1, v/v, and in ethanol by addition of (b) 50, 500, and 5000 µM hydrochloric acid and (c) 1 mM sodium hydroxide. Absorption spectra of 50 µM HKaem alone under the same conditions is indicated by a dashed line for comparison.
Molecules 25 01975 g004
Molecules 25 01975 g005 550

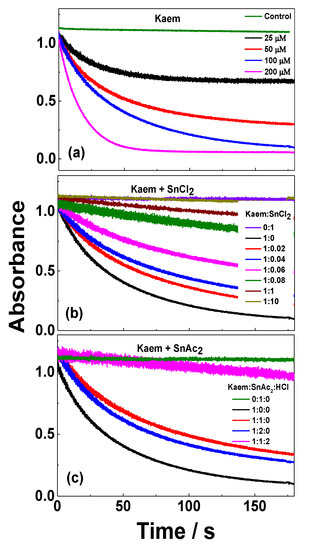

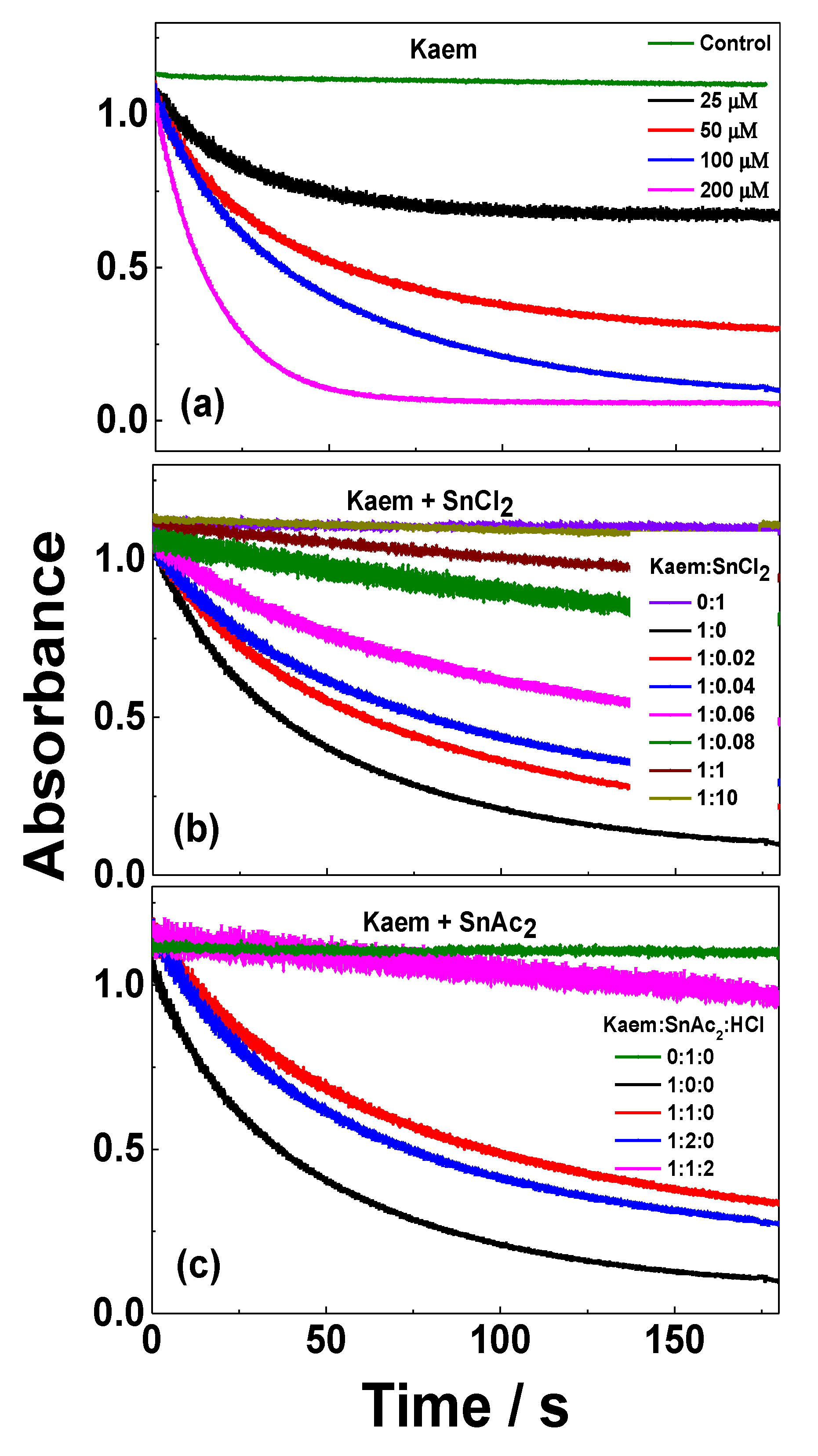

Figure 5. Time evolution of absorbance at 517 nm for 100 μM 2,2-diphenyl-1-picrylhydrazyl (DPPH•) scavenged by (a) 25, 50, 100, and 250 μM HKaem; (b) 100 μM HKaem, 100 μM SnCl2, and solutions of 100 μM HKaem with 2, 4, 6, 8, 10, 100, and 1000 μM SnCl2; and (c) 100 μM HKaem, and solutions of 100 μM HKaem with 100 and 200 μM Sn(OAc)2 in ethanol. The samples of DPPH• alone and solutions of DPPH• with SnCl2 and Sn(OAc)2 are shown for comparison. Ethanol was used as the solvent.
Figure 5. Time evolution of absorbance at 517 nm for 100 μM 2,2-diphenyl-1-picrylhydrazyl (DPPH•) scavenged by (a) 25, 50, 100, and 250 μM HKaem; (b) 100 μM HKaem, 100 μM SnCl2, and solutions of 100 μM HKaem with 2, 4, 6, 8, 10, 100, and 1000 μM SnCl2; and (c) 100 μM HKaem, and solutions of 100 μM HKaem with 100 and 200 μM Sn(OAc)2 in ethanol. The samples of DPPH• alone and solutions of DPPH• with SnCl2 and Sn(OAc)2 are shown for comparison. Ethanol was used as the solvent.
Molecules 25 01975 g005
Molecules 25 01975 g006 550

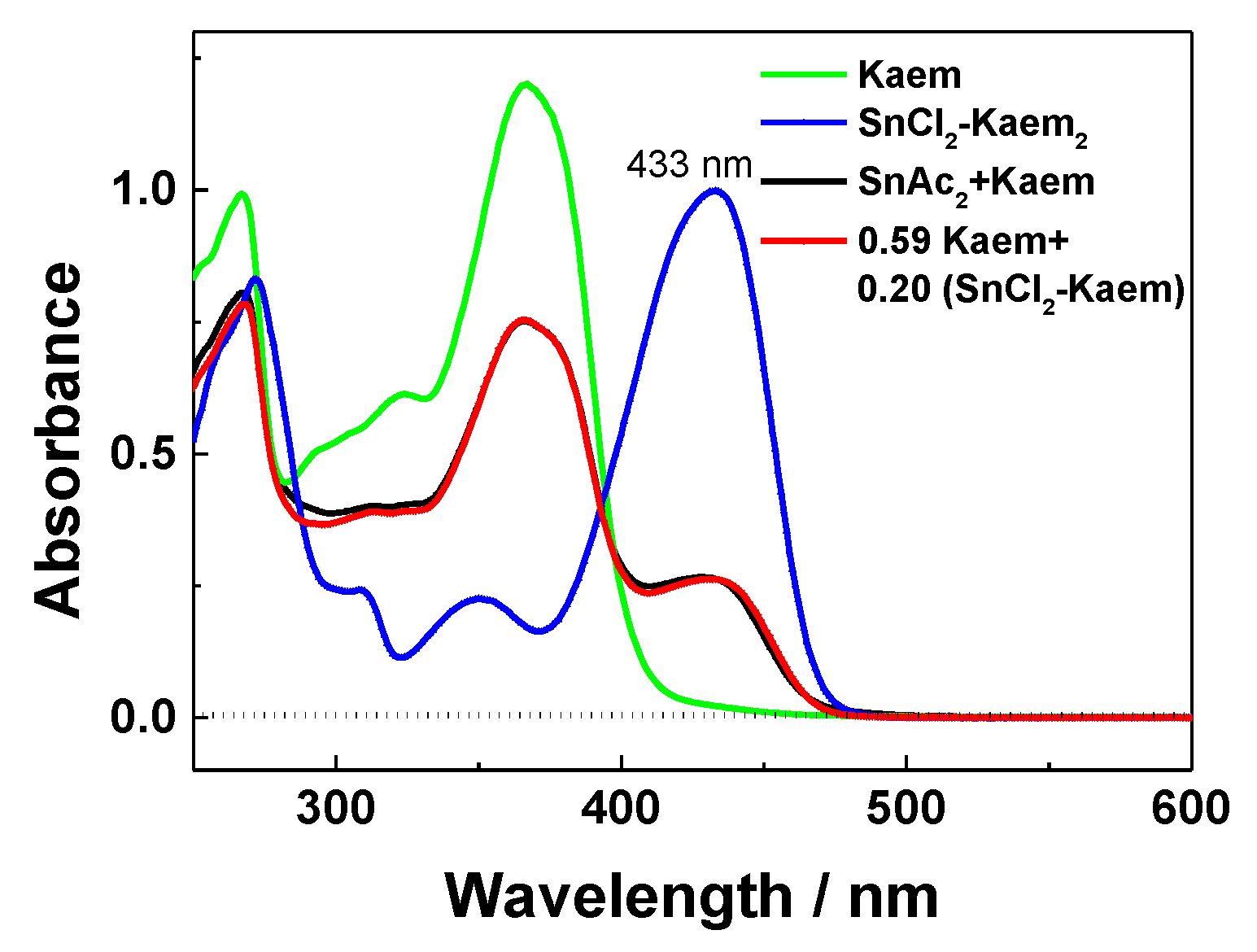

Figure 6. Absorption spectra in ethanol of 50 µM HKaem alone, 50 µM HKaem plus 50 µM Sn(OAc)2, 50 µM HKaem plus 50 µM SnCl2, and the linear combination of spectra of 50 µM HKaem plus 50 µM Sn(OAc)2, SKaem + Sn(OAc)2, using spectrum of HKaem alone, SKaem, and spectrum of 50 µM HKaem plus 50 µM SnCl2, SKaem+SnCl2 giving the relationship of 0.59SKaem + 0.20SKaem+SnCl2.
Figure 6. Absorption spectra in ethanol of 50 µM HKaem alone, 50 µM HKaem plus 50 µM Sn(OAc)2, 50 µM HKaem plus 50 µM SnCl2, and the linear combination of spectra of 50 µM HKaem plus 50 µM Sn(OAc)2, SKaem + Sn(OAc)2, using spectrum of HKaem alone, SKaem, and spectrum of 50 µM HKaem plus 50 µM SnCl2, SKaem+SnCl2 giving the relationship of 0.59SKaem + 0.20SKaem+SnCl2.
Molecules 25 01975 g006
Molecules 25 01975 g007 550

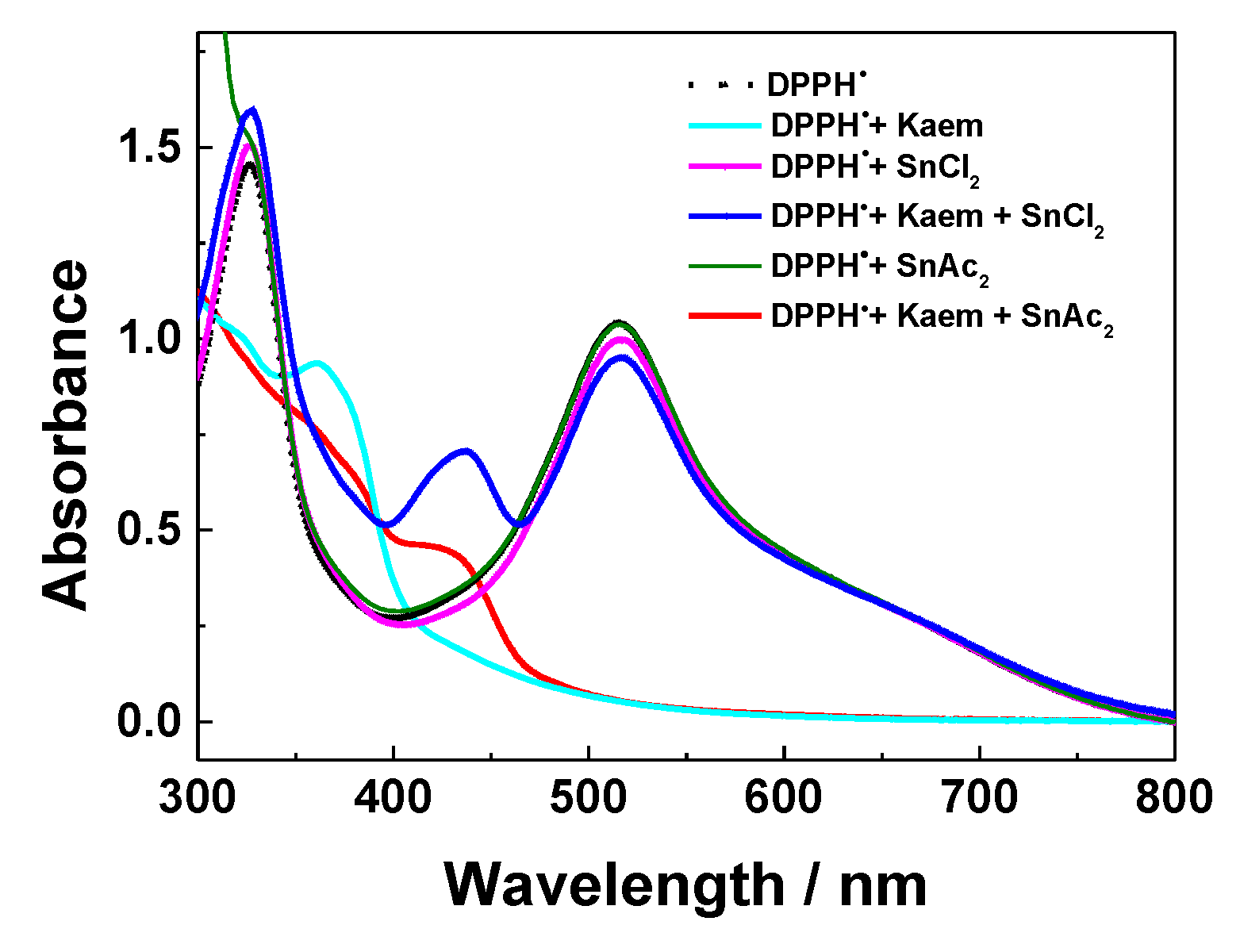

Figure 7. Absorption spectra of 100 µM DPPH•, 100 µM DPPH• plus 100 µM HKaem, 100 µM DPPH• plus 100 µM SnCl2/Sn(OAc)2, and 100 µM DPPH• plus 100 µM HKaem + 100 µM SnCl2/Sn(OAc)2. Ethanol was used as the solvent.
Figure 7. Absorption spectra of 100 µM DPPH•, 100 µM DPPH• plus 100 µM HKaem, 100 µM DPPH• plus 100 µM SnCl2/Sn(OAc)2, and 100 µM DPPH• plus 100 µM HKaem + 100 µM SnCl2/Sn(OAc)2. Ethanol was used as the solvent.
Molecules 25 01975 g007
Molecules 25 01975 g008 550

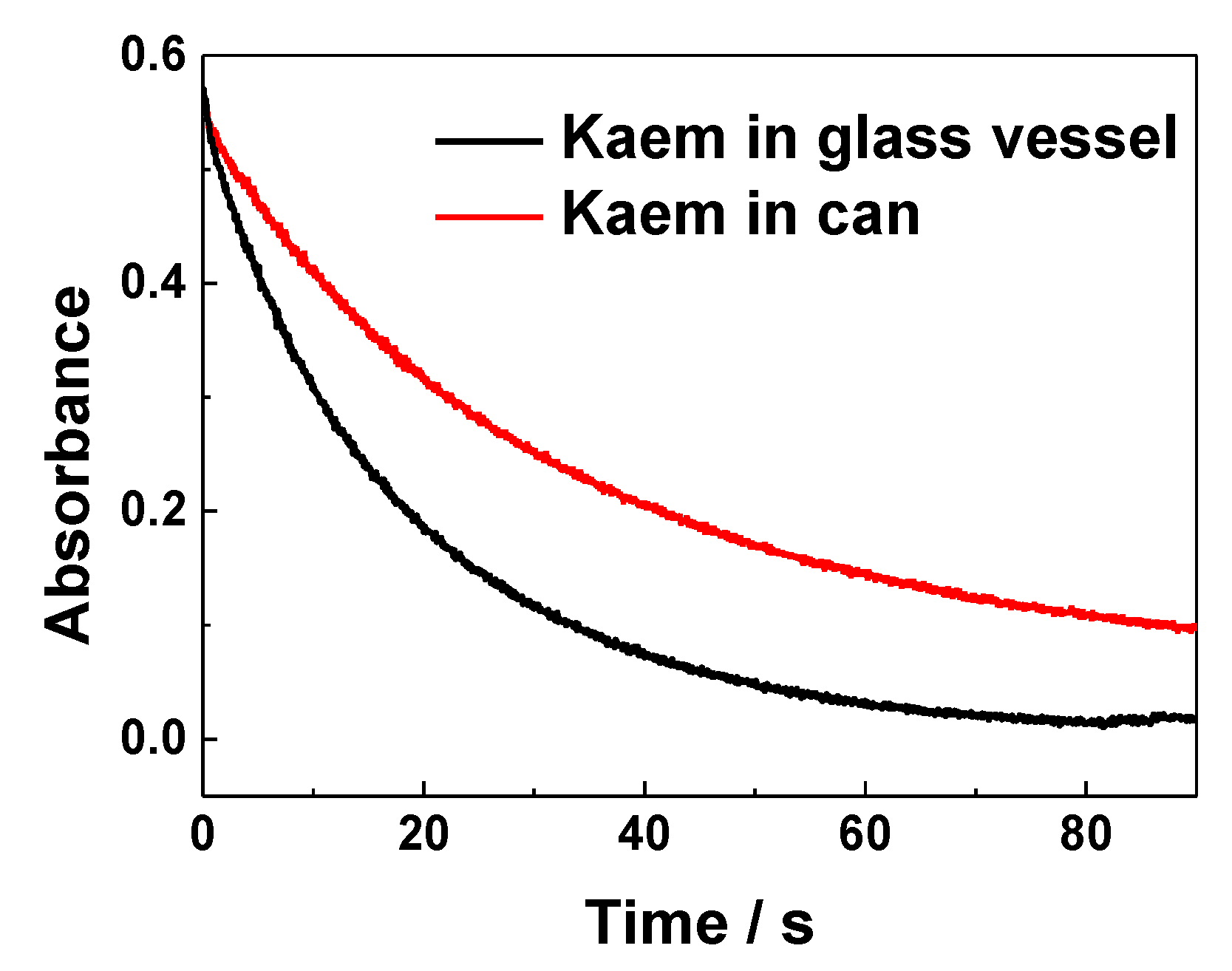

Figure 8. Time evolution of absorbance at 517 nm for 50 μM DPPH• scavenged by 100 μM HKaem in ethanol stored for 48 h in glass vessel and in a Sn can.
Figure 8. Time evolution of absorbance at 517 nm for 50 μM DPPH• scavenged by 100 μM HKaem in ethanol stored for 48 h in glass vessel and in a Sn can.
Molecules 25 01975 g008
Molecules 25 01975 g009 550

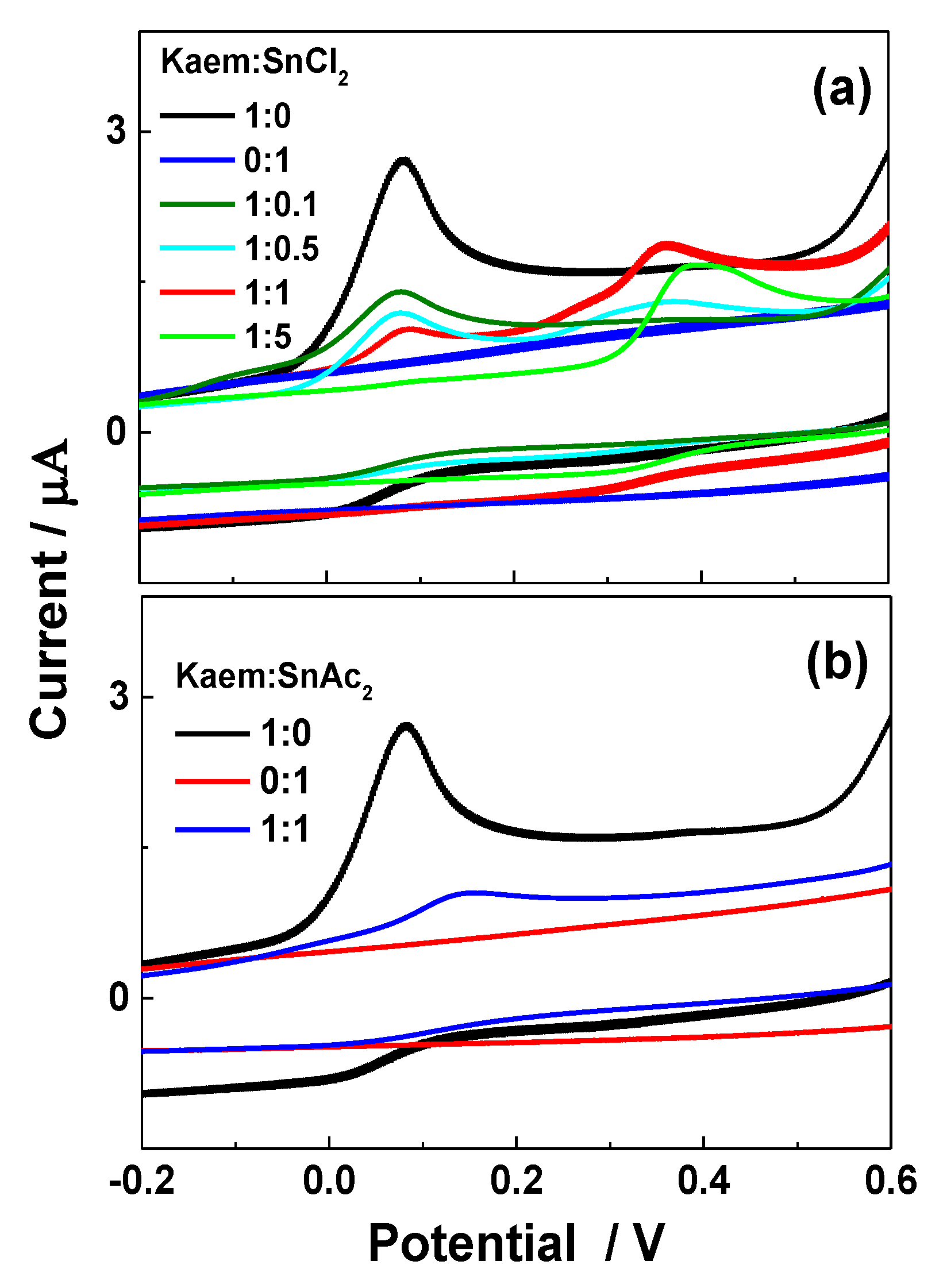

Figure 9. Cyclic voltammograms of 100 μM HKaem alone and (a) 100 μM SnCl2 and solutions of 100 μM HKaem with 10, 50, 100, and 200 μM SnCl2, and (b) 100 μM Sn(OAc)2 and solutions of 100 μM HKaem plus 100 μM Sn(OAc)2. All samples were in ethanol relative to 50 μM ferrocene with 0.1 M sodium perchlorate, NaClO4.
Figure 9. Cyclic voltammograms of 100 μM HKaem alone and (a) 100 μM SnCl2 and solutions of 100 μM HKaem with 10, 50, 100, and 200 μM SnCl2, and (b) 100 μM Sn(OAc)2 and solutions of 100 μM HKaem plus 100 μM Sn(OAc)2. All samples were in ethanol relative to 50 μM ferrocene with 0.1 M sodium perchlorate, NaClO4.
Molecules 25 01975 g009
Table
Table 1. Mass spectra (m/z) of 100 μM Kaem with 50 μM SnCl2 in methanol.
Table 1. Mass spectra (m/z) of 100 μM Kaem with 50 μM SnCl2 in methanol.
m/zKaem:Sn(II) = 2:1
717.002(Kaem)− + CH3OH + 114Sn2+ + H+
718.002(Kaem)− + CH3OH + 115Sn2+ + H+
719.00 2(Kaem)− + CH3OH + 116Sn2+ + H+
720.002(Kaem)− + CH3OH + 117Sn2+ + H+
720.952(Kaem)− + CH3OH + 118Sn2+ + H+
721.952(Kaem)− + CH3OH + 119Sn2+ + H+
722.952(Kaem)− + CH3OH + 120Sn2+ + H+
724.952(Kaem)− + CH3OH + 122Sn2+ + H+
726.952(Kaem)− + CH3OH + 124Sn2+ + H+
Table
Table 2. Fractions (F, %) of Kaem and [Sn(II)(Kaem)2] and initial rate k (s−1, including k1 and k2 from Equations (5) and (6)) of DPPH• scavenging by100 µM HKaem, by solutions of 100 µM HKaem and SnCl2 at indicated varying ratios, and by a solution of 100 µM HKaem and 100 µM Sn(OAc)2 in ethanol.
Table 2. Fractions (F, %) of Kaem and [Sn(II)(Kaem)2] and initial rate k (s−1, including k1 and k2 from Equations (5) and (6)) of DPPH• scavenging by100 µM HKaem, by solutions of 100 µM HKaem and SnCl2 at indicated varying ratios, and by a solution of 100 µM HKaem and 100 µM Sn(OAc)2 in ethanol.
SampleKaem:Sn(II)FKaem (%)FSn(II)-Kaem2 (%)k (s−1)
Kaem1:010002.16 × 10−2
Kaem+SnCl21:0.0298.02.041.60 × 10−2
1:0.0495.84.171.45 × 10−2
1:0.0693.66.381.17 × 10−2
1:0.0891.38.701.61 × 10−3
1:0.188.911.21.41 × 10−3
1:0.275.224.81.12 × 10−3
1:0.359.140.91.07 × 10−3
1:0.444.056.09.40 × 10−4
1:0.534.265.87.92 × 10−4
1:119.280.86.96 × 10−4
1:57.9092.14.92 × 10−4
1:105.6094.42.77 × 10−4
Kaem+SnAc21:181.518.51.50 × 10−2
