Article

The N’-Substituted Derivatives of 5-Chloro-3-Methylisothiazole-4-Carboxylic Acid Hydrazide with Antiproliferative Activity

by
Izabela Jęśkowiak
1,*,
Stanisław Ryng
1,
Marta Świtalska
2,
Joanna Wietrzyk
2,
Iwona Bryndal
3,
Tadeusz Lis
4 and
Marcin Mączyński
1
1
Department of Organic Chemistry, Faculty of Pharmacy, Wrocław Medical University, 211A Borowska Str, 50-556 Wrocław, Poland
2
Institute of Immunology and Experimental Therapy, Polish Academy of Sciences, R. Weigla 12, 53-114 Wrocław, Poland
3
Department of Drug Technology, Faculty of Pharmacy, Wrocław Medical University, 211A Borowska Str, 50-556 Wrocław, Poland
4
Faculty of Chemistry, University of Wrocław, 14 Joliot-Curie, 50-383 Wrocław, Poland
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(1), 88; https://doi.org/10.3390/molecules25010088
Submission received: 4 December 2019 / Revised: 20 December 2019 / Accepted: 22 December 2019 / Published: 25 December 2019
Browse Figures
Review Reports Versions Notes

Abstract

Thanks to the progress in oncology, pharmacological treatment of cancer is gaining in importance and in the near future anti-cancer chemotherapeutics are expected to be the main method of treatment for cancer diseases. What is more, the search for new anti-cancer compounds with the desired application properties is constantly underway. As a result of designed syntheses, we obtained some new N’-substituted 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide derivatives with anticancer activity. The structure of new compounds was determined by mass spectrometry (MS), elemental analysis, proton nuclear magnetic resonance spectroscopy (1H-NMR), carbon nuclear magnetic resonance spectroscopy (13C-NMR), 1H-13C NMR correlations and infrared spectroscopy (IR). Moreover, the structures of the compounds were confirmed by crystallographic examination. The antiproliferative MTT tests for 11 prepared compounds was conducted towards human biphenotypic B cell myelomonocytic leukemia MV4-11. SRB test was used to examine their potential anticancer activity towards human colon adenocarcinoma cell lines sensitive LoVo, resistant to doxorubicin LoVo/DX, breast adenocarcinoma MCF-7 and normal non-tumorigenic epithelial cell line derived from mammary gland MCF-10A. The most active compound was 5-chloro-3-methyl-N′-[(1E,2E)-(3-phenyloprop-2-en-1-ylidene]isothiazole-4-carbohydrazide, which showed the highest antiproliferative activity against all tested cell lines.

1. Introduction

Chemotherapy is a method of systemic treatment of malignant tumors using cytostatic drugs, which stop the division and spread of cancer cells [1]. The basis of modern chemotherapy is the pairing of several cytostatics belonging to different classes. The simultaneous administration of several anticancer drugs reduces the risk of developing resistance to the treatment and leads to enhanced cytostatic activity. Cancer chemotherapy is difficult for many reasons. Due to the not fully understood causes of cancer, minimal biochemical differences between the cancer cell and the normal one, no specificity of antitumor drug action of cytostatic agents, their low therapeutic factor and toxicity to normal tissues [2,3,4,5,6], we decided to design new compounds with potential anticancer activity.
Many studies have indicated the antitumor potential of isothiazole derivatives. CP-547.632 39, which belongs to the (3-aryl-4-carboxamido-isothiazol-3-yl)-carbamides, is a promising tyrosine kinase inhibitor with antineoplastic activity [7,8] used in the treatment of non-small cell lung cancer. CP-547.632 39 is an anti-angiogenic drug, which is effective only in combination with other cytostatics [9,10].
Another biological target of various isothiazole derivatives are MEK1 and MEK2 kinases [11,12,13,14], checkpoint kinases (Chk1 and Chk2) [15,16], tropomyosin receptor kinase A, TrkA [17] and a histone acetyltransferase (HAT enzyme)—Tip60 (KAT5) [18], whose overexpression is responsible for the induction of malignancy. This is a direction of intensive research, which addresses the synthesis of new isothiazole derivatives with the activity of tumor suppression inhibitors.

2. Results

The aim of our synthesis was to obtain new isothiazole derivatives with anticancer activity. The modification of the 4-position of isothiazole was characterized by the formation of N’-substituted 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazides with the chlorine substitution of the isothiazole ring in the 5-position. 5-Chloro-3-methyl-isothazole-4-carbohydrazide 2 has already been synthetized by Kuczyński et al. [19], whereas in this work we used another method of synthesizing hydrazides through an intermediate azide product (Scheme 1). The new method for preparing hydrazide 1 is more efficient, as the use of 2-PrOH as the solvent enables the product to crystallize out from the reaction mixture while cooling and can be obtained pure after a methanol wash. Moreover, we describe the spectral properties of 5-chloro-3-methylisothiazole-4-carbohydrazide 2, because these data have not been reported so far. Scheme 1 presents the synthesis of 5-chloro-3-methylisothazole-4-carbohydrazide 2 and the 4-substituted derivatives 3–11.
5-Chloro-3-methylisothiazole-4-carboxylic acid 1 was prepared according to the method described by Machoń [20]. Substrate 1 and 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide 2 were also examined in terms of their antiproliferative activity.
The N’-substituted 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide derivatives 3–11 (Scheme 1) were obtained by the nucleophilic addition reaction in yields ranging from 50% to 86%. The new derivatives were obtained in the reaction 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide 2 with the corresponding carbonyl compounds heated at a temperature of 78 °C while being stirring vigorously for 4 h in ethanol. The synthesis took place according to the nucleophilic addition mechanism consisting of the attachment of 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide 2 to the carbon bond of the C=O carbonyl group to form a carbanion. The next step was the elimination of a water molecule and creation of an imine bond.
In the IR spectra of all the compounds, an absorption band was observed in the range of 1643–668 cm−1 corresponding to the C=O carbonyl bond, at 1551–1594 cm−1 corresponding to the N=CH azamethine bond and in the 3164–3271 cm−1 range for the amine NH group. The structures of new compounds were also determined by mass spectrometry (Figures S1–S10). In the 1H-NMR (Figures S11–S30) and 13C-NMR (Figure S31–S40) spectra, double signals for each of the protons were present.
In the present study, the spectral data were measured in a DMSO-d6 solution. For these compounds, we observed in 1H-NMR and 13C-NMR signals belonging to Z and E geometrical isomers about the C=N double bond, which is characteristic of arylidene-hydrazide structure [21,22,23,24,25]. In addition, the compounds with this structure may exist as cis–trans amide conformers [26,27,28]. What is more, we have done 1H-13C NMR correlations (Figures S41–S50) for all compounds, which confirmed the presence of isomers. The correlation spectrum of the proton and carbon in the most active compound 3 (Figure 1) allows us to determine the presence of double signals from geometric isomers.
Additionally, three isothiazole derivative compounds, denoted as 3, 4 and 8, were crystallized and X-ray crystallography confirmed their chemical structure with the expected trans (E) configuration in the solid form. The asymmetric unit of 3 consists of two independent molecules, denoted as A (and D in the case of disordered part attached to the atom C41A) and B (and C in the case of disordered part attached to the atom C41B), respectively (Figure 2a), whereas compounds 4 (Figure 2b) and 8 (Figure 2c) crystallize with one molecule in the asymmetric unit.
In the first stage of biological research, 11 prepared compounds were tested for their antiproliferative activity towards human leukemia MV4-11 cells (Table 1). The highest activity was revealed by compound 3 with IC50 4.4 µg/mL. Other tested compounds had lower activity, with 3-8 times smaller IC50 values than compound 3. Three compounds (2, 9 and 10) had very low antiproliferative activity with IC50 > 80 µg/mL, and two compounds 1 and 11 had no antiproliferative activity against leukemia cells. The MV4-11 leukemia line is often used in screening for antiproliferative activity as this cell line is very sensitive to the antiproliferative effect of various groups of compounds. By using it, inactive compounds can be eliminated from further research. On the other hand, we can be quite sure that no potentially active molecules are missed in this way.
In the next stage, five compounds with IC50 values on MV4-11 cells lower than 30 µg/mL were tested for their antiproliferative activity against MCF-7 (breast cancer), LoVo (colon cancer) human cell lines and also against Doxorubicin-resistant colon cancer LoVo/DX (P-gp-dependent, MRP-, LRP-dependent multidrug resistance). The cytotoxicity experiments were also performed towards the MCF-10A cell line (normal breast epithelial).
The data for the in vitro anticancer activity (Table 1 and Table 2) were expressed as the IC50—concentration of the compound (in μg/mL and μM) that inhibits proliferation of cells by 50% compared to the untreated control cells. Cisplatin and DMSO (in a concentration comparable to the one which was used at the highest concentration of compounds) were used as a positive control.
Compound 3 also had the highest activity against breast MCF-7, colon LoVo and LoVo/DX cancer cells (IC50 < 15 µg/mL). A similar activity was revealed by compound 4 with IC50 < 20 µg/mL. Compound 7 had the lowest antiproliferative activity against colon cancer cell lines (non-resistant and resistant) with IC50 > 30 µg/mL (Table 2).
The cytotoxicity study of compounds towards MCF-10A cell line showed that compounds 3 and 4 also had the highest activity against normal cells. Compounds 5, 8 and 9 were about three times less cytotoxic against normal MCF-10A cells than against cancer MCF-7 cells (Table 2).
We also calculated the resistance indexes (RI) by dividing the IC50 values of the compounds tested against the cells of drug resistant cell LoVo/DX by respective values obtained against the drug sensitive LoVo cell line (Table 2). All tested compounds were able to overcome the barrier of P-gp-dependent resistance. Compound 7 has the highest ability to overcome the barrier of resistance (RI = 0.72), and compound 3 had a lower ability (RI = 1.36).

3. Discussion

The main purpose of this work was to develop synthesis methods to obtain isothiazole derivatives with antitumor activity, in order to demonstrate the influence of the structure of the compounds obtained on antitumor activity as well as to determine the leading structure. Earlier, we prepared 5-hydrazino-3-methylisothiazole-4-carboxylic acid and its new 5-substituted derivatives, among which 13 compounds displayed strong antiproliferative activity. In this scientific work we obtained 3-methylisothiazole derivatives with modifications of position 4, which contained the same substituent as the most active 5-substituted derivatives of 3-methylisothiazole [29]. The same tests and cell lines as in the previously published work [29] were used. We chose different reference drugs to compare the results. In the previous studies, the reference medicine was 5-Fluorouracil, which is a small molecule therapeutic substance used in the treatment of colorectal cancer [29]. However, in this work, we chose Cisplatin as a reference medicine, which is also a small-molecule drug. It is the basis of many combination treatment regimens of various types of cancers, including breast cancer. The synthesized derivatives in position at 4 of the isothiazole moiety, including hydrazide groups, were selected on the basis of the most active derivatives from a series of derivatives substituted in the 5 position of the isothiazole containing the CH=N- Schiff’s base group [29]. The activity of the substituent change in position at 4 of the isothiazole was assessed by preserving the 5-chloro-3-methylisothiazole fragment.
The highest activity towards all examined cancer and normal cell lines was demonstrated by compound 3, which contains a hydrazide group with a -3-phenylprop-2-en-1-ylidene substituent. Other compounds qualified for the second stage of studies are 5–7 times less active than compound 3 for all tested cell lines, except for the MCF-7 breast cancer line. Compounds 4-7 have similar IC50 values for all tumor lines and a desirable weak antiproliferative activity relative to the normal line, except for compound 4, which has the 3-Cl substituent in the meta position. In this group of derivatives with lower IC50 values, 4–7 dominated the compounds, which contained the substituent in the meta position, such as 4 (3-Cl), 5 (3-NO2) and 7 (3-OMe). Compounds 2 (substrate for the synthesis of compounds 3–11), 9 (two Me groups, i.e., 2-Me and 4-Me) and 10 (2-Me) are characterized by very poor activity. IC50 values were not determined, but only the inhibition of cell proliferation at a concentration of 80 μg/mL. Compound 1, the substrate for the synthesis of hydrazide 2 and 11, containing the ortho (2-Cl) substituted phenyl ring shows no antiproliferative activity. The compound that substitute aromatic rings with methoxy group 7 (3-OMe) exhibits 1.5–2 times higher antiproliferative activity than phenyl derivative 8. The ability of the obtained compounds to overcome drug resistance of the studied cancer cells was confirmed by low values of the resistance index, RI. RI values from 0 to 2 indicate the sensitivity of the cells tested to the compound used. RI values from 2 to 10 indicate moderate drug resistance of the cells in question to the test compound, and RI values > 10 indicate strong drug resistance. The activity against the LoVo/DX drug-resistant cell line and its equivalent LoVo sensitive line was calculated and compared. All compounds showed RI below 2. Compound 3, which is the most active, has over 2-fold higher RI index (1.37). Compound 7 showed the lowest RI index (0.72).
The most active compound of this series is 5-chloro-N’-[(1E, 2E)-3-phenylprop-2-en-1-ylidene]-3-methylisothiazole-4-carbohydrazide 3, but it is less activity than compounds from the 5-substituted isothiazole Schiff base series, Cisplatin and 5-Fluorouracil towards sensitive (LoVo) and multi-drug resistant (LoVo/DX) human colon adenocarcinoma cell lines [29]. However, the activity of this series is relatively higher towards breast adenocarcinoma MCF-7 and comparable to the normal non-tumorigenic epithelial cell line derived from mammary gland MCF-10A. What is more, in both series 3-Cl (compound 4) with a monosubstituted benzene ring is in the group of most active compounds. In addition to this, we also examined the synthesis substrates 1 and 2, which are devoid of any anticancer activity. The results indicated that the activity of the synthesized derivatives 5-hydrazino-3-methylisothiazole-4-carboxylic acids [29] and new 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide derivatives 3–11 is mainly associated with the presence of the -N=CH group with a suitable size and shape substituent in 3-methyl-4-isothiazole derivatives.
The application possibilities of hydrazides were confirmed after isonicotinic acid hydrazide (INH) was obtained. The unusual clinical value of INH has substituted the synthesis of other heterocyclic hydrazides [30]. Also, a series of 7-azaindolyl hydrazones are characterized as antiproliferative against MCF-7 breast carcinoma cell line [25]. N-methyl and N,N-dimethyl bis(indolyl)hydrazide hydrazone analog derivatives had anti-proliferative activity against cervical (HeLa) and breast cancer (MCF-7) [31]. The series of (E)-N1-((2-chloro-7-methoxyquinolin-3-yl)methylene)-3-(phenylthio)propanehydrazide derivatives had a greater cytotoxic effect on the neuroblastoma cells (SH-SY5Y and Kelly) compared to the breast cancer cell lines (MCF-7 and MDA-MB-231) [32].
The advantage of the obtained isothiazole derivatives is their low toxicity on healthy cells, and at the same time the selectivity in relation to colorectal cancer cells by the most active compound of this series. In addition, these compounds can be potentially one of the components of chemotherapeutic systems as a factor preventing the development of drug resistance during chemotherapy. Indeed, none of the compounds tested turned out to be more active with 5-Fluorouracil and Cisplatin. However, all of the tested compounds cross the cell-resistance barrier and their activity on LoVo/DX cells is in many cases higher than the activity of Doxorubicin.
Based on the results of biological studies of the 5-substituted 5-hydrazine-3-methylisothiazole-4-carboxylic acid derivatives [29] and compounds from this work—N’-substituted derivatives of 5-chloro-3-methylisothiazole-4-carboxylic acid the lead structure of anti-cancer isothiazole derivatives was determined. The designated leading structure contains structural elements with anti-tumor effect, i.e., methylisothiazole, carboxyl and azomethine group, as well as the phenylprop-2-ene group located near the azomethine group of the 5-methylisothiazole derivatives, gives them probably potential selectivity towards tumor lines. In this scientific work the most active compound against all cancer cell lines is 5-chloro-N’-[(1E,2E)-3-phenylprop-2-en-1-ylidene]-3-methylisothiazole-4-carbohydrazide 3, which possesses almost two times lower activity towards the MCF-10A normal cell line than against cancer cells. This indicates the potential selectivity of the compound with regards to cancer cells such as leukemia, breast and colon cancer cell lines. In addition, the most active compounds in both series contain substituents at the meta position of the phenyl ring near the azomethine group. In our opinion, the research on low-molecular weight of isothiazole derivatives with antiproliferative activity is very desirable because of the demand for oncological drugs that break the increasing resistance of tumors to cytostatics currently used in therapy.

4. Materials and Methods

4.1. General Information

Commercially available reagents were used without further purification. Progress of the reaction was controlled by thin layer chromatography (TLC) on ALUGRAM SIL G/UV pre-coated TLC sheets (Macherey-Nagel, Dylan, Germany) and visualized by ultraviolet (UV) light at 254 nm (Bioblock Scientific lamp, Fisher, Hampton, NH, USA). Melting points of all new compounds were measured by a LLG uniMELT-2 apparatus (LLG). A Thermo Scientific Nicolet iS50 FT-IR spectrophotometer (Thermo Fisher Scientific Inc., Waltham, MA, USA) was used to record infrared specta (IR). The samples were applied as solids and frequencies are given in cm−1. Proton nuclear magnetic resonance (1H-NMR), carbon nuclear magnetic resonance (13C-NMR) and 2D 1H-13C NMR correlation spectra were recorded in deuterated dimethyl sulfoxide (DMSO-d6) using a Bruker ARX-300 spectrometer (Bruker Analytische Messtechnik GmbH, Rheinstetten, Germany). Chemical shifts are reported in in parts per million (ppm) units and signal multiplicities were collected by the abbreviations: s (singlet), d (doublet), t (triplet), m (multiplet). The values of coupling constant are reported as J in Hz. Elemental analysis was obtained on NA 1500 equipment (Carlo Erba, Sabadell, Barcelona, Spain). Mass spectrometry (MS) was performed on a compactTM Electrospray Ionisation-Quadrupole-Time of Flight (ESI-Q-TOF) apparatus (Bruker Daltonics, Billerica, MA, USA). The samples for ESI-MS experiments were dissolved in methanol. Monoisotopic mass was calculated (calc.) by Compass Data Analysis 4.2.

4.2. Procedures for the Synthesis All the New Compounds and Their Spectroscopic Data (IR, 1H-NMR, 13C-NMR, 2D 1H-13C NMR, ESI-MS)

4.2.1. 5-Chloro-3-Methylisothiazole-4-Carbohydrazide 2

A 45% solution of thionyl chloride dissolved in benzene (90 mL) was added to 33.8 mmol of 5-chloro-3-methylisothiazole-4-carboxylic acid 1. The mixture was heating under reflux for 3 h to obtain a clear solution. After cooling, the solution was distilled in an evaporator to give an oily residue. Thereafter benzene (30 mL) was added twice and distilled off in each case to remove residual thionyl chloride.
In an ice-cold water bath cooled to 8 °C with a magnetic stirrer, 5-chloro-3-methylisothiazole-4-carboxylic acid chloride (30 mmol, 5981.2 mg) was dissolved in acetone (240 mL). The reaction mixture was kept at a temperature of up to 8 °C at all times. At the same time, sodium azide (83 mmol, 539.5 mg) was dissolved in distilled water (18 mL) and then slowly added to the reaction mixture. After addition of the sodium azide solution, stirring was continued for 30 min. The separated salt was filtered off. The solution was distilled from the reaction mixture until the semi-liquid form. The suspension was cooled in an ice-cold water bath. The precipitate was filtered off and washed with 2-propanol.
To azide (9.8 mmol, 1980.0 mg), 2-propanol (40 mL) and anhydrous hydrazine (2.0 mL, 2000.0 mg, 63.7 mmol) was added. Then, the reaction mixture was heated at a temperature of 83 °C for 45 min under reflux. The course of the reaction was monitored by TLC eluting with ethyl acetate. The solid precipitated in the course of the reaction was then filtered off through a paper filter. After cooling the filtrate, colorless crystals fell out of the mixture, which were washed with cold methanol (yield 57%, 1060 mg), mp = 163.0 °C; IR νmax (cm−1): 1622, 3205, 3288; 1H-NMR (DMSO-d6, 300 MHz) 2.39 (3H, s, CH3), 4.65 (2H, s, NH2), 9.69 (1H, s, NH); 13C-NMR (DMSO-d6, 75.4 MHz) δ 18.7 (CH3), 132.2 (isothiazole-C3), 150.1 (isothiazole-C4), 160.4 (isothiazole-C5), 165.8 (C=O); anal. C 31.44, H 3.14, N 21.96%, calcd for C5H6ClN3OS C 31.34, H 3.16, N 21.93%; ESI-MS m/z 189.9847 (calcd for C5H6ClN3OS, 189.9847).

4.2.2. 5-Chloro-N’-[(1E,2E)-3-phenylprop-2-en-1-ylidene]-3-methylisothiazole-4-carbohydrazide 3

A stirred mixture of 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide (2, 439.2 mg, 2.3 mmol) and cinnamaldehyde (303.9 mg, 2.3 mmol) in EtOH (2.0 mL) was heated at 78 °C for 4 h. At the end of the reaction (monitored by TLC chloroform–ethyl acetate 7:3), reaction mixture was cooled. The separated product was precipitated and then washed with cold methanol (yield 64%, 450 mg). The product was purified by crystallization from acetonitrile to give yellow crystals, mp = 180–181 °C; IR νmax 1578, 1649, 3164 cm−1; 1H-NMR (DMSO-d6, 300 MHz) δ 2.37 and 2.45′ (3H, s, CH3), 7.0 (1H, s, CH) and 7.06 (1H, s, CH), 7.10′ (2H, s, CH), 7.32 (1H, s, arH), 7.34 (2H, d, J = 3.0 Hz, arH), 7.38 (2H, d, J = 3.0 Hz, arH), 7.41′ (1H, s, arH), 7.43′ (1H, s, arH), 7.60′ (3H, t, J = 6.0 Hz, 6.0 Hz, arH), 7.94 (1H, d, J = 9.0 Hz, N=CH), 8.06′ (1H, d, J = 6.0 Hz, N=CH), 11.92 and 12.09′ (1H, s, NH); 13C-NMR (DMSO-d6, 75.4 MHz) δ 18.8 (CH3), 124.7 (isothiazole-C3), 125.1 (CH), 127.2 and 128.9′ (N=CH), 131.9 and 132.2′ (arC), 135.7 (arC), 140.0 (arC), 140.3 (arC), 148.2 (arC), 150.1 and 150.6′ (arC), 151.1 (CH), 157.3 (isothiazole-C4), 165.3 (isothiazole-C5), 166.0 (C=O). anal. C 55.34, H 3.84, N 13.70%, calcd for C14H12ClN3OS C 54.99, H 3.96, N 13.74%; ESI-MS m/z 304.0388 (calcd for C14H12ClN3OS, 304.0317).

4.2.3. 5-Chloro-N’-[(E)-(3-chlorophenyl)methylidene]-3-methylisothiazole-4-carbohydrazide 4

A stirred mixture of 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide (2, 496.57, 2.6 mmol) and 3-chlorobenzaldehyde (365.4 mg, 2.6 mmol) in EtOH (1.5 mL) was heated at 78 °C for 4 h. At the end of the reaction (controlled in a TLC chloroform–ethyl acetate 9:1), the reaction mixture was cooled. The separated product was precipitated and washed with cold methanol (yield 67%, 545 mg). The product was purified by crystallization from acetonitrile to give yellow crystal, mp = 174–175 °C. IR νmax 1557, 1648, 3216 cm−1; 1H-NMR (DMSO-d6, 300 MHz) δ 2.39 and 2.46′ (3H, s, CH3), 7.44 (3H, s, arH) and 7.51′ (3H, dd, J = 3.0 Hz, 3.0 Hz, arH), 7.70–7.74 (1H, m, arH) and 7.81′ (1H, s, arH), 8.10 and 8.28′ (1H, s, N=CH), 12.18 and 12.34′ (1H, s, NH); 13C-NMR (DMSO-d6, 75.4 MHz) δ 18.5 (CH3), 124.9 (C3-isothiazole), 125.7 and 125.9′ (N=CH), 126.4 (arC), 129.5 and 129.8′ (arC), 130.5 and 131.4′ (arC), 133.3 and 133.4′ (arC), 135.7 and 135.7′ (arC), 143.4 and 146.8′ (arC), 150.1 and 151.1′ (isothiazole-C4), 157.4 and 163.5′ (isothiazole-C5), 165.2 and 165.7′ (C=O); anal. C 46.15, H 2.62, N 13.37%, calcd for C12H9Cl2N3OS C 45.87, H 2.89, N 13.17%. ESI-MS m/z 311.9750 (calcd for C12H9Cl2N3OS, 311.9771).

4.2.4. 5-Chloro-N’-[(E)-(3-nitrophenyl)methylidene]-3-methylisothiazole-4-carbohydrazide 5

A stirred mixture of 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide (2, 286.4 mg, 1.5 mmol) and 3-nitrobenzaldehyde (226.6 mg, 1.5 mmol) in EtOH (1.5 mL) was heated at 78 °C for 4 h. During the reaction, the resulting suspension thickens. At the end of the reaction (controlled by TLC, chloroform–ethyl acetate 7:3), the separated product was filtered and washed with cold methanol (yield 53%, 258 mg). The product was purified by crystallization from 70% ethanol to give yellow crystals, mp = 199–200 °C; IR νmax 1560, 1644, 3271 cm−1; 1H-NMR (DMSO-d6, 300 MHz) δ 2.40 and 2.47′ (3H, s, CH3), 7.68–7.77 (2H, m, arH), 7.90 (1H, d, J = 9.0 Hz, arH), 8.18-8.24′ (3H, m, arH), 8.29′ (2H, d, J = 9.0 Hz, arH), 8.42 and 8.58′ (1H, s, N=CH), 12.39 (2H, s, NH); 13C-NMR (DMSO-d6, 75.4 MHz) δ 18.1 and 18.8′ (CH3), 121.1 and 121.4′ (isothiazole-C3), 124.3 and 124.6′ (N=CH), 130.5 and 131.6′ (arC), 132.6 and 133.5′ (arC), 135.6 and 135.7′ (arC), 143.0 (arC), 146.4 and 148.2′ (arC), 150.5 and 151.4′ (arC), 157.8 and 158.5′ (isothiazole-C4), 163.9 (isothiazole-C5), 165.5 and 166.0′ (C=O); anal. C 44.37, H 2.60, N 17.13%, calcd for C12H9ClN4O3S C 44.38, H 2.79, N 17.25%; ESI-MS m/z 322.9810 (calcd for C12H9ClN4O3S, 323.0011).

4.2.5. 5-Chloro-N’-[(E)-(4-ethylphenyl)methylidene]-3-methylisothiazole-4-carbohydrazide 6

A stirred mixture of 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide (2, 226.6 mg, 1.5 mmol) and 4-ethylbenzaldehyde (134.1 mg, 1.0 mmol) in EtOH (1.5 mL) was heated at 78 °C for 4 h. During the reaction, the resulting suspension thickens. At the end of the reaction (controlled by TLC chloroform–ethyl acetate 7:3), the separated product was filtered and washed with cold methanol (yield 65%, 200 mg). The product was purified by crystallization from acetonitrile to give colorless crystals, mp = 152–154 °C, IR νmax 1551, 1668, 3195 cm−1; 1H-NMR (DMSO-d6, 300 MHz) δ 1.12 (1H, s, CH3CH2), 1.14 (1H, s, CH3CH2), 1.17 (2H, s, CH2CH3), 1.20 (1H, s, CH3CH2), 1.22′ (1H, s, CH3CH2), 2.39 and 2.46′ (3H, s, CH3), 2.57′ (1H, s, CH3CH2), 2.60′ (1H, s, CH3CH2), 2.64′ (1H, s, CH3CH2), 2.68′ (1H, d, J = 9.0 Hz, CH3CH2), 7.23 (2H, d, J = 9.0 Hz, arH), 7.31′ (2H, d, J = 6.0 Hz, arH) 7.39 (2H, d, J = 9.0 Hz, arH), 7.67′ (2H, d, J = 9.0 Hz, arH), 8.09 and 8.25′ (1H, s, N=CH), 11.99 and 12.17′ (1H, s, NH); 13C- NMR (DMSO-d6, 75.4 MHz) δ 15.2 (CH3), 18.8 (CH3), 28.0 (CH2), 126.8 (isothiazole-C3), 127.4 and 128.3′ (N=CH), 131.3 and 132.0′ (arC), 145.3 (arC), 146.2 and 146.6′ (arC), 148.7 (arC), 150.2 and 151.1′ (arC), 157.4 (isothiazole-C4), 163.5 (isothiazole-C5), 165.5 and 166.0′ (C=O); anal. C 54.40, H 4.31, 13.53%, calcd for C14H14ClN3OS C 54.63, H 4.58, N 13.65%; ESI-MS m/z 306.0346 (calcd for C14H14ClN3OS, 306.0473).

4.2.6. 5-Chloro-N’-[(E)-(3-methoxyphenyl)methylidene]-3-methylisothiazole-4-carbohydrazide 7

A stirred mixture of 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide (2, 458.3 mg, 2.4 mmol) and 3-methoxybenzaldehyde (326.7 mg, 2.4 mmol) in EtOH (1.5 mL) was heated at 78 °C for 4 h. At the end of the reaction (controlled by TLC chloroform–ethyl acetate 7:3), the formed clear mixture was poured into water. The separated product fell out, and was washed with cold methanol (yield 80%, 590 mg). The product was purified by crystallization from 70% ethanol to give colorless crystals, mp = 139–140 °C; IR νmax 1580, 1666, 3181 cm−1; 1H-NMR (DMSO-d6, 300 MHz) δ 2.40 and 2.47′ (3H, 1s, CH3), 3.73 and 3.82′ (3H, 1s, OCH3), 6.96–7.05 (4H, m, arH,) and 7.30′ (3H, d, J = 9.0 Hz, arH), 7.39′ (1H, d, J = 9 Hz, arH), 8.08 and 8.27′ (1H, s, N=CH), 12.07 and 12.26′ (1H, s, NH); 13C-NMR (DMSO-d6, 75.4 MHz) δ 18.7 (CH3), 55.0 (OCH3), 111.5 (isothiazole-C3), 115.9 (N=CH), 119.3 (arC), 120.3 (arC), 130.0 (arC), 131.8 (arC), 135.2 (arC), 144.8 (arC), 148.6 (isothiazole-C4), 157.5 (isothiazole-C5), 159.4 (C=O); anal. C 50.84, H 3.91, N 13.06%, calcd for C13H12ClN3O2S C 50.40, H 3.90, N 13.56%; ESI-MS m/z 308.0237 (calcd for C13H12ClN3O2S, 308.0266).

4.2.7. 5-Chloro-N’-[(E)-phenylmethylidene]-3-methylisothiazole-4-carbohydrazide 8

A stirred mixture of 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide (2, 362.8 mg, 1.9 mmol) and benzaldehyde (201.6 mg, 1.9 mmol) in EtOH (1.5 mL) was heated at 78 °C for 4 h. At the end of the reaction (controlled by TLC, chloroform–ethyl acetate 7:3), the reaction mixture was cooled. The separated product was precipitated and then washed with cold methanol (yield 50%, 265 mg). The product was purified by crystallization from acetonitrile to give colorless crystals, mp = 164–165 °C; IR νmax 1557, 1648, 3192 cm−1; 1H-NMR (DMSO-d6, 300 MHz) δ 2.39 and 2.47′ (3H, s, CH3), 7.38–7.40 (3H, m, arH), 7.46–7.48 ’ (5H, m, arH), 7.74 (1H, d, J = 3.0 Hz, arH), 7.76 (1H, d, J = 6.0 Hz, arH) 8.12 and 8.29′ (1H, s, N=CH), 12.09 and 12.21′ (1H, s, NH); 13C-NMR (DMSO-d6, 75.4 MHz) δ 18.8 (CH3), 126.7 (isothiazole-C3), 127.3 and 128.9′ (arC), 130.2 and 130.5′ (N=CH), 131.8 (arC), 133.7 (arC), 145.2 (arC), 148.7 (arC), 150.3 and 151.2′ (arC), 157.5 (isothiazole-C4), 163.7 (isothiazole-C5), 165.5 and 166.0′ (C=O); anal. C 51.67, H 3.35, N 14.92%, calc. for C12H10ClN3OS C 51.52, H 3.60, N 15.02%; ESI-MS m/z 278.0187 (calcd for C12H10ClN3OS, 278.0160).

4.2.8. 5-Chloro-N’-[(E)-(2,4-dimethylphenyl)methylidene]-3-methylisothiazole-4-carbohydrazide 9

A stirred mixture of 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide (2, 401.0 mg, 2.1 mmol) and 2,4-dimethylbenzaldehyde (281.7 mg, 2.1 mmol) in EtOH (2.0 mL) was heated at 78 °C for 4 h. At the end of the reaction (controlled by TLC, chloroform–ethyl acetate 9:1), the reaction mixture was cooled. The separated product was precipitated and then washed with cold methanol (yield 86%, 554 mg). The product was purified by crystallization from acetonitrile to give colorless crystals, mp = 232–234 °C; IR νmax 1556, 1667, 3182 cm−1. 1H-NMR (DMSO-d6, 300 MHz) δ 2.23′ (6H, s, CH3), 2.25 (3H, s, CH3), 2.38′ (6H, s, CH3), 2.46 (3H, s, CH3), 7.00 (2H, d, J = 9.0 Hz, arH) and 7.10′ (2H, d, J = 6.0 Hz, arH), 7.31 (1H, d, J = 6.0 Hz, arH) and 7.76′ (1H, d, J = 9.0 Hz, arH), 8.32 and 8.52′ (1H, s, N=CH), 11.96 and 12.09′ (1H, s, NH); 13C-NMR (DMSO-d6, 75.4 MHz) δ 18.7 and 18.8′ (CH3), 18.9 and 19.2′ (CH3), 20.9 (CH3), 126.2 (C3-isothiazole) 126.7 and 126.9′ (N=CH), 127.0 and 128.9′ (arC), 131.6 and 131.7′ (arC), 131.9 and 132.3′ (arC), 136.7 and 137.1′ (arC), 139.5 and 140.0′ (arC), 144.9 and 147.4′ (arC), 149.7 and 151.1′ (isothiazole-C4), 157.3 and 163.6′ (isothiazole-C5), 165.3 and 166.0′ (C=O); anal. C 54.72, H 4.55, N 13.67%, calcd for C14H14ClN3OS C 54.63, H 4.58, N 13.65%; ESI-MS m/z 306.0506 (calcd for C14H14ClN3OS, 306.0473).

4.2.9. 5-Chloro-N’-[(E)-(2-methylphenyl)methylidene]-3-methylisothiazole-4-carbohydrazide 10

A stirred mixture of 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide (2, 477.4 mg, 2.5 mmol) and 2-methylbenzaldehyde (300.3 mg, 2.5 mmol) in EtOH (5.0 mL) was heated at 78 °C for 4 h. At the end of the reaction (controlled by TLC, chloroform–ethyl acetate 7:3), the reaction mixture was cooled. The separated product was precipitated and then washed with cold methanol (yield 66%, 480 mg). The product was purified by crystallization from acetonitrile to give colorless crystals, mp = 226–228 °C; IR νmax 1594, 1643, 3173 cm−1; 1H-NMR (DMSO-d6, 300 MHz) δ 2.27 and 2.38′ (3H, s, CH3), 2.43 and 2.46′ (3H, s, CH3), 7.19 (1H, s, arH), 7.21 (1H, s, arH), 7.25′ (1H, s, arH), 7.27 (2H, d, J = 6.0 Hz, arH), 7.31′ (1H, d, J = 6.0 Hz, arH), 7.42′ (1H, d, J = 9.0 Hz, arH), 7.84′ (1H, d, J = 6.0 Hz, arH), 8.36 and 8.56′ (1H, s, N=CH), 12.03 and 12.15′ (1H, s, NH); 13C-NMR (DMSO-d6, 75.4 MHz) δ 17.9 (CH3), 18.4 (CH3), 125.4 (isothiazole-C3), 128.9 (arC), 130.1 and 130.8′ (N=CH), 131.4 (arC), 135.9 (arC), 136.4 (arC), 143.9 (arC), 156.6 (arC), 162.9 (isothiazole-C4), 164.4 (isothiazole-C5), 165.2 (C=O); anal. C 53.41, H 4.04, N 14.21%, calcd for C13H12ClN3OS C 53.15, H 4.12, N 14.30%; ESI-MS m/z 292.0337 (calcd for C13H12ClN3OS, 292.0317).

4.2.10. 5-Chloro-N’-[(E)-(2-chlorophenyl)methylidene]-3-methylisothiazole-4-carbohydrazide 11

A stirred mixture of 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide (2, 324.6 mg, 1.7 mmol) and 2-chlorobenzaldehyde (238.9 mg, 1.7 mmol) in EtOH (1.5 mL) was heated at 78 °C for 4 h. During the reaction, the resulting suspension thickens. At the end of the reaction (controlled by TLC, chloroform–ethyl acetate 9:1), the separated product was filtered and washed with cold methanol (yield 62%, 0.329 mg). The product was purified by crystallization from 70% ethanol to give yellow crystals, mp = 232–233 °C; IR νmax 1590, 1644, 3167 cm−1; 1H-NMR (DMSO-d6, 300 MHz) δ 2.39 and 2.47′ (3H, s, CH3), 7.33 (1H, d, J = 6.0 Hz, arH), 7.36′ (1H, dd, J = 6.0 Hz, 6Hz, arH), 7.43–7.49 (3H, m, arH), 7.52′ (1H, d, J = 6.0 Hz, arH), 7.56′ (1H, s, arH), 8.04′ (1H, d, J = 9.0 Hz, arH), 8.51 and 8.70′ (1H, s, N=CH), 12.27 and 12.39′ (1H, s, NH); 13C-NMR (DMSO-d6, 75.4 MHz) δ 19.1 (CH3), 126.5 (isothiazole-C3), 127.3 and 128.0 (C=NH), 130.3 and 131.2′ (arC), 131.8 and 132.2′ (arC), 133.4 and 133.7′ (arC), 141.7 (arC), 144.9 (arC), 151.7 (arC), 157.9 (isothiazole-C4), 164.1 (isothiazole-C5), 165.8 and 166.3′ (C=O); anal. C 46.16, H 2.81, N 13.08%, calcd for C12H9Cl2N3OS C 45.87, H 2.89, N 13.37%; ESI-MS m/z 311.9587 (calcd for C12H9Cl2N3OS, 311.9771).

4.3. Single Crystal X-ray Structure Determination of 3, 4 and 8

Crystals of 3, 4 and 8 suitable for single-crystal X-ray diffraction analysis were obtained by dissolution in acetonitrile/2-propanol followed by slow evaporation of the solvent at room temperature. Crystallographic measurements for 3, 4 and 8 were collected with Κ-geometry diffractometers: Xcalibur R (Agilent Technologies, city, state abbrev if USA, country) with a Ruby CCD camera (3 and 4) and a Kuma KM-4 CCD with a Sapphire2 CCD camera (8), with graphite monochromatized Mo-Kα radiation (λ = 0.71073 Å) at 100(2) K, using an Oxford Cryosystems cooler. Data collection, cell refinement, data reduction and analysis were carried out with CrysAlisPro [33]. Analytical absorption correction was applied to data with the use of CrysAlisPro. The crystal structures were solved using SHELXS [34] and refined on F2 by a full-matrix least squares technique with SHELXL-2014 [35] with anisotropic thermal parameters for all the ordered non-H atoms. In the final refinement cycles, H atoms were repositioned in their calculated positions and treated as riding atoms, with C-H = 0.95–0.98 Å, and N-H = 0.88 Å and with Uiso(H) = 1.2Ueq (C, N) for CH and NH or 1.5Ueq(C) for CH3. All figures were made using DIAMOND program [36].
Compound 3: C14H12ClN3OS, Mr = 305.78 g mol−1, colorless plates, size 0.50 × 0.21 × 0.02 mm, triclinic, space group P1, a = 7.282 (2) Å, b = 7.465 (2) Å, c = 14.381 (4) Å, α = 83.85 (5)°, β = 81.97 (5)°,γ = 68.47 (5)°, V = 718.8 (4) Å3, Z = 2, Dcalc = 1.413 g cm−3, F(000) = 316, μ = 0.41 mm−1, 6066 measured reflections, 6066 independent reflections, 3909 reflections with I > 2σ(I), 420 parameters (99 restraints), R[F2 > 2σ(F2)] = 0.091, wR(F2) = 0.214, S = 1.04, largest diff. peak and hole = 1.29 e Å−3/−0.45 e Å−3. The diffraction experiment was performed with a twined crystal [21]. The asymmetric unit of 3 consists of two independent molecules and in both molecules (denoted as A and B), the isothiazole ring was found to be disordered over two sites and refined with the occupancy factors of 0.749 (11) and 0.251 (11) in molecule A, and 0.686 (10) and 0.314 (10) in molecule B. The atoms of lower occupancy were denoted as D (in case of disordered part attached to C41A) and C (in case of disordered part attached to C41B). Disordered atoms were refined with anisotropic displacement parameter using EADP instruction of SHELXL [35].
Compound 4: C12H9Cl2N3OS, Mr = 314.18 g mol−1, colorless needles, size 0.25 × 0.14 × 0.08 mm, monoclinic, space group P21/c, a = 11.593 (4) Å, b = 13.972 (5) Å, c = 8.238 (2) Å, β = 90.51 (5)°, V = 1334.3 (7) Å3, Z = 4, Dcalc = 1.564 g cm−3, F(000) = 640, μ = 0.64 mm−1, 5794 measured reflections, 2464 independent reflections [Rint = 0.078], 1673 reflections with I > 2σ(I), 173 parameters, R[F2 > 2σ(F2)] = 0.082, wR(F2) = 0.242, S = 1.06, largest diff. peak and hole = 1.02 e Å−3/−0.59 e Å−3.
Compound 8: C12H10ClN3OS, Mr = 279.74 g mol−1, colorless needles, size 0.55 × 0.20 × 0.12 mm, monoclinic, space group Cc, a = 13.989 (4) Å, b = 10.846 (2) Å, c = 8.6451 (15) Å, β = 103.85 (3)°, V = 1255.4 (5) Å3, Z = 4, Dcalc = 1.480 g cm−3, F(000) = 576, μ= 0.46 mm−1, 7998 measured reflections, 3417 independent reflections [Rint = 0.040], 3195 reflections with I > 2σ(I), 187 parameters, R[F2 > 2σ(F2)] = 0.042, wR(F2) = 0.106, S = 1.06, largest diff. peak and hole = 0.46 e Å−3/−0.29 e Å−3. The isothiazole ring was found to be disordered over two sites and refined with the occupancy factors of 0.758 (3) and 0.242 (3). Disordered atoms of lower occupancy were refined with a common isotropic displacement parameter [35].
CCDC 1958014-1958016 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via www.ccdc.cam.ac.uk/data_request/cif, by e-mailing data_request@ccdc.cam.ac.uk, or by contacting the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK; fax: + 44(0)1223-336033.

4.4. Pharmacology

4.4.1. Cell Culture

Established in vitro, human cell lines MV4-11 (human biphenotypic B myelomonocytic leukemia), MCF-7 (breast cancer), LoVo (colon cancer), LoVo/DX (colon cancer drug resistant), and MCF-10A (normal breast epithelial) were used. The lines were obtained from the American Type Culture Collection (lines MV4-11, LoVo, LoVo/DX, MCF-10A; Rockville, MD, USA) or from the European Collection of Authenticated Cell Cultures (line MCF-7) and are being maintained at the Hirszfeld Institute of Immunology and Experimental Therapy PAS, Wroclaw, Poland.

4.4.2. Cells Preparing for Antiproliferative Assays

MV4-11 cells were cultured in the RPMI 1640 medium (HIIET PAS, Poland) supplemented with 1.0 mM sodium pyruvate, 2 mM L-glutamine and 10% FBS (all from Sigma Aldrich, Steinheim, Germany), LoVo cells were cultured in the F-12K medium (Life Technologies, Carlsbad, CA, United States) supplemented with 10% FBS (GE Healthcare, Chicago, IL, USA), and LoVo/DX cells were cultured in the mixture of RPMI 1640+OptiMEM (1:1) medium (HIIET PAS) supplemented with 5% FBS (GE Healthcare, Chicago, IL, USA), 2 mM L-glutamine, 1.0 mM sodium pyruvate (all from Sigma Aldrich, Steinheim, Germany) and 0.1 µg/mL doxorubicin chloride (Accord).
MCF-7 cells were cultured in the Eagle’s medium (HIIET PAS, Poland) supplemented with 10% FBS, 8 µg/mL insulin, 2 mM L-glutamine and 1% MEM-non essential amino acid solution 100X (all from Sigma Aldrich, Steinheim, Germany). MCF-10A cells were cultured in the HAM’S F-12 with L-glutamine medium (Corning) supplemented with 10% Hors Serum (Gibco), 10 µg/mL insulin, 0.5 µg/mL hydrocortisone, 20 ng/mL EGFh and 0.05 mg/mL Cholera Toxin from Vibrio cholerae (all from Sigma Aldrich, Steinheim, Germany). All culture mediums were supplemented with 100 units/mL penicillin (Polfa Tarchomin S.A. Poland), and 100 µg/mL streptomycin (Sigma Aldrich). All cell lines were grown at 37 °C with 5% CO2 humidified atmosphere.

4.4.3. Cytotoxicity Assay In Vitro

Test solutions of the compounds tested (50 mM) were prepared by dissolving the substances in DMSO (Sigma Aldrich). Afterwards, the tested compounds were diluted in a culture medium to reach the final concentrations at the range of 1-80 μg/mL (250, 125, 25 and 5 μM).
Twenty-four hours prior to the addition of the tested compounds, the cells were plated in 96-well plates (Sarstedt, Germany) at a density of 1 × 104 or 0.75 × 104 (MCF-7) cells per well. The assay was performed after 72 h of exposure to varying concentrations of the tested agents. The in vitro cytotoxic effect of all agents was examined using the MTT (MV4-11) or SRB assay [37]. The results were calculated as IC50 (inhibitory concentration 50%) the concentration of tested agent, which is cytotoxic for 50% of the cancer cells. IC50 values were calculated for each experiment separately and mean values ± SD are presented in Table 1 and Table 2. Each compound in each concentration was tested in triplicate in a single experiment, which was repeated 3–4 times.
The resistance indexes (RI) were calculated by dividing the IC50 values of the compounds tested against the cells of drug resistant cell LoVo/DX line by respective values obtained against the cells of drug sensitive LoVo line (Table 2). According to Harker et al. [38], three categories of the cells could be distinguished: (a) the cells are drug-sensitive if the ratio approaches 0–2; (b) the cells are moderately drug-resistant if the ratio ranges from 2 to 10; (c) the cells are markedly drug-resistant if the ratio is higher than 10.
MTT Assay (for MV4-11 Cell Line)
This technique was applied for cells growing in suspension culture. An assay was performed after 72 h exposure to varying concentrations of the tested agents. For the last 4 h of incubation, 20 µL of MTT solution was added to each well (MTT: 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide; stock solution: 5 mg/mL, Sigma Aldrich). When the incubation time was completed, 80 µL of the lysing mixture was added to each well (lysing mixture: 225 mL dimethylformamide, POCh, Gliwice, Poland, 67.5 g sodium dodecyl sulfate, Sigma Aldrich, and 275 mL of distilled water). After 24 h, when formazan crystals had been dissolved, the optical densities of the samples were read on Synergy H4 photometer (BioTek Instruments, USA) at 570 nm wavelength. The background optical density was measured in the wells filled with culture medium, without the cells.
Sulforhodamine B Assay (for Other Cell Lines)
This technique was applied for the cytotoxicity screening against cells growing in adherent culture. The details of this technique were described by Skehan et. al. [39]. The cytotoxicity assay was performed after 72 h exposure of the cultured cells to varying concentrations of the tested agents. The cells attached to the plastic were fixed by gently layering cold 50% TCA (trichloroacetic acid, Sigma Aldrich) on the top of the culture medium in each well. The plates were incubated at 4 °C for 1 h and then washed five times with tap water. The cellular material fixed with TCA was stained with 0.1% sulforhodamine B (SRB, Sigma Aldrich) dissolved in 1% acetic acid (POCh) for 30 min. Unbound dye was removed by rinsing (4×) with 1% acetic acid. The protein-bound dye was extracted with 10 mM unbuffered Tris base (Sigma Aldrich) for determination of optical density (at 540 nm) on Synergy H4 photometer (BioTek Instruments). The background optical density was measured in the wells filled with culture medium, without the cells.

5. Conclusions

In recent decades, there has been great progress in designing and obtaining modern oncology drugs [40]. In this study we obtained nine compounds, which are the 5-chloro-3-methylisothiazole-4-carboxylic acid hydrazide derivatives 3–11. All the new compounds 3–11 and substrates 1 and 2 were tested for activity against the MV4-11 cell line. The substrates had no anticancer activity. The antiproliferative activity of the five most active compounds was examined against breast MCF-7, colon LoVo and LoVo/DX cancer cells and normal MCF-10A cells. 5-Chloro-N’-[(1E,2E)-3-phenylprop-2-en-1-ylidene]-3-methylisothiazole-4-carbohydrazide 3, which is the most active compound of this series, possessed almost two times lower activity (IC50 value) towards the MCF-10A normal cell line than against cancer cells. This compound is characterized by potential selectivity toward cancer cells such as leukemia, breast and colon cancer cell lines and low toxicity against healthy cells. Other tested compounds displayed slightly weaker antiproliferative activity against tumor cells, but in the case of normal MCF-10A cells, their activity was about three times lower. On the basis of the conducted research, it can be concluded that the antiproliferative activity of this group of derivatives corresponds to the hydrazide moiety. The position of the azomethine group -N=CH at the 5-position of the isothiazole in Schiff bases [36] is more favorable than in the 4-position of the isothiazole ring on hydrazide derivatives 3–11.

Supplementary Materials

The following are available online at https://www.mdpi.com/1420-3049/25/1/88/s1, Figure S1: ESI-MS spectrum of compound 2, Figure S2: ESI-MS spectrum of compound 3, Figure S3: ESI-MS spectrum of compound 4, Figure S4: ESI-MS spectrum of compound 5, Figure S5: ESI-MS spectrum of compound 6, Figure S6: ESI-MS spectrum of compound 7, Figure S7: ESI-MS spectrum of compound 8, Figure S8: ESI-MS spectrum of compound 9, Figure S9: ESI-MS spectrum of compound 10, Figure S10: ESI-MS spectrum of compound 11, Figure S11: 1H NMR spectrum of compound 2, Figure S11: 1H NMR spectrum of compound 2, Figure S12: 1H NMR spectrum of compound 3, Figure S13: 1H NMR spectrum of compound 4, Figure S14: 1H NMR spectrum of compound 5, Figure S15: 1H NMR spectrum of compound 6, Figure S16: 1H NMR spectrum of compound 7, Figure S17: 1H NMR spectrum of compound 8, Figure S18: 1H NMR spectrum of compound 9, Figure S19: 1H NMR spectrum of compound 10, Figure S20: 1H NMR spectrum of compound 11, Figure S21: 13C NMR spectrum of compound 2, Figure S22: 13C NMR spectrum of compound 3, Figure S23: 13C NMR spectrum of compound 4, Figure S24: 13C NMR spectrum of compound 5, Figure S25: 13C NMR spectrum of compound 6, Figure S26: 13C NMR spectrum of compound 7, Figure S27: 13C NMR spectrum of compound 8, Figure S28: 13C NMR spectrum of compound 9, Figure S29: 13C NMR spectrum of compound 10, Figure S30: 13C NMR spectrum of compound 11, Figure S31: 1H-13C NMR spectrum of compound 2, Figure S32: 1H-13C NMR spectrum of compound 3, Figure S33: 1H-13C NMR spectrum of compound 4, Figure S34: 1H-13C NMR spectrum of compound 5, Figure S35: 1H-13C NMR spectrum of compound 6, Figure S36: 1H-13C NMR spectrum of compound 7, Figure S37: 1H-13C NMR spectrum of compound 8, Figure S38: 1H-13C NMR spectrum of compound 9, Figure S39: 1H-13C NMR spectrum of compound 10, Figure S40: 1H-13C NMR spectrum of compound 11.

Author Contributions

Formal analysis, I.J., M.Ś., I.B. and T.L.; Investigation, S.R.; Methodology, I.J., M.Ś., J.W., I.B., T.L. and M.M.; Writing—original draft, I.J., M.Ś. and I.B.; Writing—review & editing, S.R., J.W., T.L. and M.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Wroclaw Medical University supervisory research project for young scientists, grant number STM.D090.17.003.

Acknowledgments

The proton nuclear magnetic spectra, infrared spectra and mass spectrometry measurement were carried out in the Laboratory of Elemental Analysis and Structural Research, Faculty of Pharmacy with Division of Laboratory Diagnostics, Wroclaw Medical University.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Si, W.; Shen, J.; Zheng, H.; Fan, W. The role and mechanisms of action of microRNAs in cancer drug resistance. Clin. Epigenet. 2019, 11, 1–25. [Google Scholar] [CrossRef] [PubMed]
  2. Pusuluri, A.; Krishnan, V.; Wu, D.; Wyatt Shields, C.W.; Wang, L.W.; Mitragotri, S. Role of synergy and immunostimulation in design of chemotherapy combinations: An analysis of doxorubicin and camptothecin. Bioeng. Transl. Med. 2019, 4, 10129–10140. [Google Scholar] [CrossRef] [PubMed]
  3. Yu, Z.; Chen, Z.; Sub, Q.; Ye, S.; Yuan, H.; Kuai, M.; Lv, M.; Tu, Z.; Yang, X.; Liue, R.; et al. Dual Inhibitors of RAF-MEK-ERK and PI3K-PDK1-AKT pathways: Design, Synthesis and Preliminary Anticancer Activity Studies of 3-Substituted-5-(phenylamino) indolone Derivatives. Bioorgan. Med. Chem. 2019, 27, 944–954. [Google Scholar] [CrossRef] [PubMed]
  4. El-Naggar, M.; Sallam, H.A.; Shaban, S.S.; Abdel-Wahab, S.S.; Amr, A.E.; Azab, M.E.; Nossier, E.S.; Al-OmaR, M.A. Design, Synthesis, and Molecular Docking Study of Novel Heterocycles Incorporating 1,3,4-Thiadiazole Moiety as Potential Antimicrobial and Anticancer Agents. Molecules 2019, 24, 1066. [Google Scholar] [CrossRef] [PubMed]
  5. Elsayed, N.M.Y.; Serya, R.A.T.; Tolba, M.F.; Ahmed, M.; Barakat, K.; Ella, K.D.A.A.E.; Abouzid, K.A.M. Design, synthesis, biological evaluation and dynamics simulation of indazole derivatives with antiangiogenic and antiproliferative anticancer activity. Bioorgan. Chem. 2019, 82, 340–359. [Google Scholar] [CrossRef] [PubMed]
  6. Tahlan, S.; Kumar, S.; Ramasamy, K.; Lim, S.M.; Shah, S.A.A.A.; Mani, V.; Pathania, R.; Narasimhan, B. In-silico molecular design of heterocyclic benzimidazole scafolds as prospective anticancer agents. BMC Chem. 2019, 13, 90. [Google Scholar] [CrossRef] [PubMed]
  7. Beebe, J.S.; Jani, J.P.; Knauth, E.; Goodwin, P.; Higdon, C.; Rossi, A.M.; Emerson, E.; Finkelstein, M.; Floyd, E.; Harriman, S.; et al. Pharmacological Characterization of CP-547,632, a Novel Vascular Endothelial Growth Factor Receptor-2 Tyrosine Kinase Inhibitor for Cancer Therapy. Cancer Res. 2003, 63, 7301–7309. [Google Scholar]
  8. Sridevi, G.; Arul Antony, S.; Angayarkani, R. Schiff Base Metal Complexes as Anticancer Agents. Asian J. Chem. 2019, 31, 493–504. [Google Scholar] [CrossRef]
  9. Cohen, R.B.; Langer, C.J.; Simon, G.R.; Eisenberg, P.D.; Hainsworth, J.D.; Madajewicz, S.; Cosgriff, T.M.; Pierce, K.; Xu, H.; Liau, K.; et al. A phase I/randomized phase II, non-comparative, multicenter, open label trial of CP-547,632 in combination with paclitaxel and carboplatin or paclitaxel and carboplatin alone as first-line treatment for advanced non-small cell lung cancer (NSCLC). Cancer Chemother. Pharmacol. 2007, 60, 81–89. [Google Scholar] [CrossRef]
  10. Sierko, E.; Wojtukiewicz, M.Z. Podstawy terapii antyangiogennej u chorych na nowotwory. Nowotw. J. Oncol. 2008, 58, 349–357. [Google Scholar]
  11. Abdellaoui, H.E.; Varaprasad, C.V.N.S.; Barawkar, D.; Chakravarty, S.; Maderna, A.; Tam, R.; Chen, H.; Allan, M.; Wu, J.Z.; Appleby, T.; et al. Identification of isothiazole-4-carboxamidines derivatives as a novel class of allosteric MEK1 inhibitors. Bioorgan. Med. Chem. Lett. 2006, 16, 5561–5566. [Google Scholar] [CrossRef] [PubMed]
  12. Melagraki, G.; Afantitis, A.; Sarimveis, H.; Igglessi-Markopoulou, O.; Koutentis, P.A.; Kollias, G. In Silico Exploration for Identifying Structure–Activity Relationship of MEK Inhibition and Oral Bioavailability for Isothiazole Derivatives. Chem. Biol. Drug Des. 2010, 76, 397–406. [Google Scholar] [CrossRef] [PubMed]
  13. Reddy, B.M.; Tanneeru, K.; Angamba Meetei, P.; Guruprasad, L. 3D-QSAR and Molecular Docking Studies on Substituted Isothiazole Analogs as Inhibitors Against MEK-1 Kinase. Chem. Biol. Drug Des. 2012, 79, 84–91. [Google Scholar] [CrossRef] [PubMed]
  14. AhmadPasha, F.; Muddassar, M.; JooCho, S. Molecular Docking and 3D QSAR Studies of Chk2 Inhibitors. Chem. Biol. Drug Des. 2009, 73, 292–300. [Google Scholar] [CrossRef]
  15. Velic, D.; Couturier, A.M.; Tedim Ferreira, M.; Rodrigue, A.; Poirier, G.G.; Fleury, F.; Masson, J. DNA Damage Signalling and Repair Inhibitors: The Long-Sought-After Achilles’ Heel of Cancer. Biomolecules 2015, 5, 3204–3259. [Google Scholar] [CrossRef] [PubMed]
  16. Larson, G.; Yan, S.; Chen, H.; Rong, F.; Hong, Z.; Wu, J.Z. Identification of novel, selective and potent Chk2 inhibitors. Bioorgan. Med. Chem. Lett. 2007, 17, 172–175. [Google Scholar] [CrossRef]
  17. Rao Ambati, S.; Gudala, S.; Sharma, A.; Penta, S.; Loka Reddy, V.; Bomma, Y.; RaoJanapala, V.; Pola, S. Facile Synthesis of Novel 3-(4-phenylisothiazol-5-yl)-2H-chromen-2-one Derivatives as Potential Anticancer Agents. J. Heterocycl. Chem. 2017, 54, 2333–2341. [Google Scholar] [CrossRef]
  18. Coffey, K.; Blackburn, T.J.; Cook, S.; Golding, B.T.; Griffin, R.J.; Hardcastle, I.R.; Hewitt, L.; Huberman, K.; McNeill, H.V.; Newell, D.R.; et al. Characterisation of a Tip60 Specific Inhibitor, NU9056, in Prostate Cancer. PLoS ONE 2012, 7, e45539. [Google Scholar] [CrossRef]
  19. Kuczyński, L.; Kuriata, M.; Ciupka, B. Synthesis of new 4 and 5 disubstituted isothiazoles. Pol. J. Pharmacol. Pharm. 1984, 36, 485–491. [Google Scholar]
  20. Machoń, Z. Synthesis and cytostatic properties of some isothiazole derivatives. Diss. Pharm. Pharmacol. 1969, 21, 135–144. [Google Scholar]
  21. Demirbas, N.; Karaoglu, S.A.; Demirbas, A.; Sancak, K. Synthesis and antimicrobial activities of some new 1-(5-phenylamino-[1,3,4]thiadiazol-2-yl)methyl-5-oxo-[1,2,4]triazole and 1-(4-phenyl-5-thioxo-[1,2,4]triazol-3-yl)methyl-5-oxo-[1,2,4]triazole derivatives. Eur. J. Med. Chem. 2004, 39, 793–804. [Google Scholar] [CrossRef] [PubMed]
  22. Bayrak, H.; Demirbas, A.; Karaoglu, S.I.A.; Demirbas, N. Synthesis of some new 1,2,4-triazoles, their Mannich and Schiff bases and evaluation of their antimicrobial activities. Eur. J. Med. Chem. 2009, 44, 1057–1066. [Google Scholar] [CrossRef] [PubMed]
  23. Vicini, P.; Incerti, M.; La Colla, P.; Loddo, R. Anti-HIV evaluation of benzo[d]isothiazole hydrazones. Eur. J. Med. Chem. 2009, 44, 1801–1807. [Google Scholar] [CrossRef] [PubMed]
  24. Vicini, P.; Incerti, M.; Doytchinova, I.A.; La Colla, P.; Busonera, B.; Loddo, R. Synthesis and antiproliferative activity of benzo[d]isothiazole hydrazones. Eur. J. Med. Chem. 2006, 41, 624–632. [Google Scholar] [CrossRef] [PubMed]
  25. Dongare, S.B.; Bandgar, B.P.; Bhale, P.S.; Shringare, S.N.; Chavan, H.V. Design, Synthesis, and Spectroscopic Study of 7-Azaindolyl Hydrazones with Anti-Breast Cancer Activity. Croat. Chem. Acta 2019, 92, 1–9. [Google Scholar] [CrossRef]
  26. Mamolo, M.G.; Falagiani, V.; Zampieri, D.; Vio, L.; Banfi, E. Synthesis and antimycobacterial activity of [5-(pyridin-2-yl)-1,3,4-thiadiazol-2-ylthio]acetic acid arylidene-hydrazide derivatives. Farmaco 2001, 56, 587–592. [Google Scholar] [CrossRef]
  27. Wyrzykiewicz, E.; Prukah, D. New Isomeric N-substituted Hydrazones of 2-, 3- and 4-Pyridinecarboxaldehydes. J. Heterocycl. Chem. 1998, 35, 381–387. [Google Scholar] [CrossRef]
  28. Galic, N.; Peric, B.; Kojic-Prodic, B.; Cimerman, Z. Structural and spectroscopic characteristics of aroylhydrazones derived from nicotinic acid hydrazide. J. Mol. Stuct. 2001, 559, 187–194. [Google Scholar] [CrossRef]
  29. Jęśkowiak, I.; Mączyński, M.; Trynda, J.; Wietrzyk, J.; Ryng, S. The 5-hydrazino-3-methylisothiazole-4-carboxylic acid, its new 5-substituted derivatives and their antiproliferative activity. Bioorgan. Chem. 2019, 91, 103082–103091. [Google Scholar] [CrossRef]
  30. Shahnawaz Khan, M.; Parveen Siddiqui, S.; Tarannum, N. A systematic review on the synthesis and biological activity of hydrazide derivatives. Hygeia 2017, 9, 61–79. [Google Scholar] [CrossRef]
  31. Sreenivasulu, R.; Reddy, K.T.; Sujitha, P.; Kumar, C.G.; Raju, R.R. Synthesis, antiproliferative and apoptosis induction potential activities of novel Bis(indolyl)hydrazide-hydrazone derivatives. Bioorgan. Med. Chem. 2019, 27, 1043–1055. [Google Scholar] [CrossRef] [PubMed]
  32. Bingul, M.; Gardner, C.R.; Kumar, N.; Black, D.; Bingul, M.; Tan, O.; Gardner, C.R.; Sutton, K.S.; Arndt, M.G.; Marshall, M.G.; et al. Synthesis, Characterization and Anti-Cancer Activity of Hydrazide Derivatives Incorporating a Quinoline Moiety. Molecules 2016, 21, 916. [Google Scholar] [CrossRef] [PubMed]
  33. Agilent Technologies; Rigaku Oxford Diffraction. CrysAlisPro; Agilent Technologies: Yarnton, UK, 2012; Rigaku Oxford Diffraction: Yarnton, UK, 2018. [Google Scholar]
  34. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. Sect. A: Found. Crystallogr. 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]
  35. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C: Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  36. Brandenburg, K. Diamond, Version 3.2i; Crystal Impact GbR: Bonn, Germany, 2012. [Google Scholar]
  37. Gliszczyńska, A.; Niezgoda, N.; Gładkowski, W.; Czarnecka, M.; Świtalska, M.; Wietrzyk, J. Synthesis and Biological Evaluation of Novel Phosphatidylcholine Analogues Containing Monoterpene Acids as Potent Antiproliferative Agents. PLoS ONE 2016, 11, e0157278. [Google Scholar] [CrossRef]
  38. Harker, W.G.; Slade, D.L.; Dalton, W.S.; Meltzer, P.S.; Trent, J.M. Multidrug resistance in mitoxantrone-selected HL-60 leukemia cells in the absence of P-glycoprotein overexpression. Cancer Res. 1989, 49, 4542–4549. [Google Scholar]
  39. Skehan, P.; Storeng, R.; Scudiero, D.; Monks, A.; McMahon, J.; Vistica, D.; Warren, J.T.; Bokesch, H.; Kenney, S.; Boyd, M.R. New colorimetric cytotoxicity assay for anticancer-drug screening. J. Natl. Cancer Inst. 1990, 82, 1107–1112. [Google Scholar] [CrossRef]
  40. Wakelee, H.A.; Schiller, J.H. Targeting Angiogenesis with Vascular Endothelial Growth Factor Receptor Small-Molecule Inhibitors: Novel Agents with Potential in Lung Cancer. Clin. Lung Cancer 2005, 7, S31–S38. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 25 00088 sch001

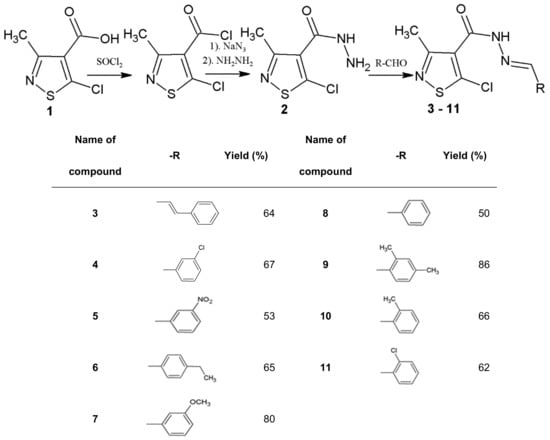

Scheme 1. Synthesis of 5-chloro-3-methylizothiazole-4-carboxylic acid hydrazide derivatives.
Scheme 1. Synthesis of 5-chloro-3-methylizothiazole-4-carboxylic acid hydrazide derivatives.
Molecules 25 00088 sch001
Molecules 25 00088 g001

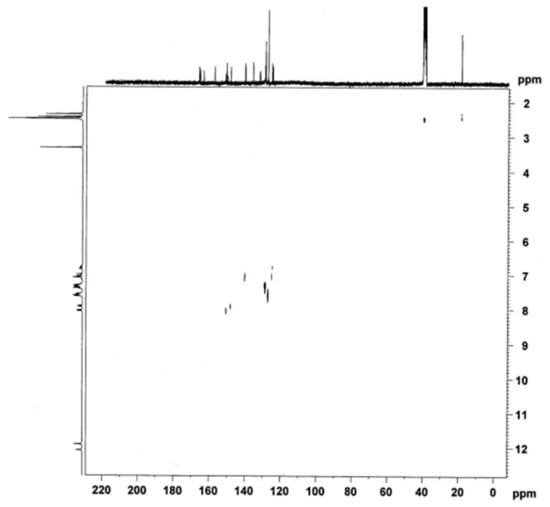

Figure 1. The correlation spectrum of proton and carbon of the most active compound 3 from this series.
Figure 1. The correlation spectrum of proton and carbon of the most active compound 3 from this series.
Molecules 25 00088 g001
Molecules 25 00088 g002

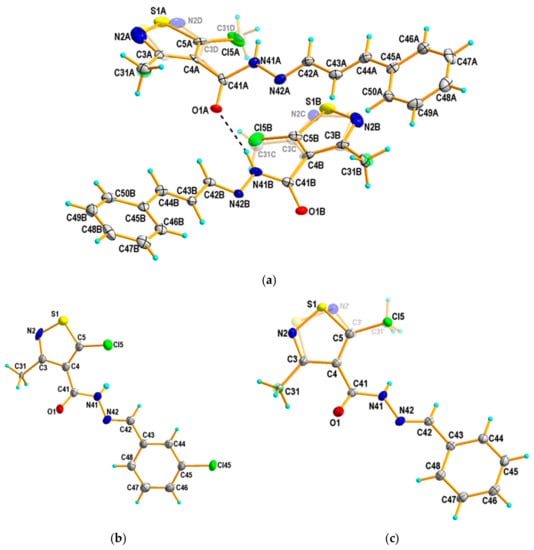

Figure 2. X-ray structures of 3 (a) (the dotted line indicates N-H…O hydrogen bond which linking together both independent molecules—denoted as A and B), 4 (b) and 8 (c), with atom-numbering scheme. Displacement ellipsoids are drawn at the 50% probability level. H atoms are shown as small spheres of arbitrary radii. For compounds 2 and 3, atoms and bonds from a disordered isothiazole ring with a lower occupancy factor were marked with a transparency of 0.6.
Figure 2. X-ray structures of 3 (a) (the dotted line indicates N-H…O hydrogen bond which linking together both independent molecules—denoted as A and B), 4 (b) and 8 (c), with atom-numbering scheme. Displacement ellipsoids are drawn at the 50% probability level. H atoms are shown as small spheres of arbitrary radii. For compounds 2 and 3, atoms and bonds from a disordered isothiazole ring with a lower occupancy factor were marked with a transparency of 0.6.
Molecules 25 00088 g002
Table 1. Results of examination of IC50 of the all obtained compounds against the human biphenotypic B cell myelomonocytic leukemia (MV4-11).
Table 1. Results of examination of IC50 of the all obtained compounds against the human biphenotypic B cell myelomonocytic leukemia (MV4-11).
MV4-11
Name of CompoundIC50 ± SDName of CompoundIC50±SD
[µg/mL]μM[µg/mL]μΜ
Cisplatin0.38 ± 0.141.28 ± 0.45621.3 ± 8.269.4 ± 26.8
1n.a.722.4 ± 8.672.3 ± 27.8
2n.a. [45%] *836.6 ± 11.6131.2 ± 41.7
34.3 ± 1.914 ± 6.49n.a. [42.5%] *
415.2 ± 2.448.4 ± 7.810n.a. [47%] *
518.7 ± 1.757.7 ± 5.311n.a
DMSO (0.5%)9% **
n.a.—no activity in a concentration of 1–80 μg/mL. IC50–compound concentration leading to 50% inhibition of cell proliferation. Data are presented as mean ± SD of 3-5 independent experiments. *—inhibition of cell proliferation by compounds in a concentration of 80 μg/mL. **—inhibition of cell proliferation by DMSO in a concentration of 0.5%.
Table 2. Antiproliferative activity of the most active compounds 9 against selected cell lines (human colon adenocarcinoma cell lines sensitive (LoVo) and multi-drug resistant (LoVo/DX), breast adenocarcinoma MCF-7 and normal non-tumorigenic epithelial cell line derived from mammary gland MCF-10A).
Table 2. Antiproliferative activity of the most active compounds 9 against selected cell lines (human colon adenocarcinoma cell lines sensitive (LoVo) and multi-drug resistant (LoVo/DX), breast adenocarcinoma MCF-7 and normal non-tumorigenic epithelial cell line derived from mammary gland MCF-10A).
Name of CompoundIC50 ± SDRI
MCF-7MCF-10ALoVoLoVoDX
[µg/mL]μM[µg/mL]μM[µg/mL]μM[µg/mL]μM
Cisplatin1.56 ± 0.35.2 ± 1.02.9 ± 0.49.7 ± 1.41.7 ± 0.85.6 ± 2.60.84 ± 0.172.8 ± 0.60.49
312 ± 1.939.3 ± 6.320.9 ± 2.268.6 ± 7.37.64 ± 1.725 ± 5.510.4 ± 0.734.2 ± 2.31.37
415.2 ± 1.848.6 ± 5.724.6 ± 2.278.5 ± 7.118.6 ± 1.159.4 ± 3.415 ± 1.147.9 ± 3.70.81
520.1 ± 2.665.1 ± 8.460.8 ± 5.1196.6 ± 16.622.7 ± 0.373.4 ± 0.829.2 ± 5.394.6 ± 17.31.29
613.9 ± 1.942.9 ± 5.940.6 ± 3.7125.4 ± 11.331.7 ± 6.797.7 ± 20.828.8 ± 2.788.8 ± 8.40.91
717.8 ± 3.158 ± 10.256 ± 14.1182.5 ± 48.927.8 ± 10.490.5 ± 3420 ± 1.165 ± 3.50.72
DMSO (0.5%)16% **5.3% **10% **2.7% **-
** inhibition of cell proliferation by DMSO in a concentration of 0.5%. RI* was calculated according to the formula RI = (IC50 estimated against resistant cell line)/(IC50 estimated against non-resistant cell line); values range: 0 < RI < 2—indicate that the tested compound is able to overcome drug resistance; 2 < RI < 10—defines the moderate ability of the compound to overcome drug resistance; RI > 10—defines no influence on the drug resistance phenomenon.

Share and Cite

MDPI and ACS Style

Jęśkowiak, I.; Ryng, S.; Świtalska, M.; Wietrzyk, J.; Bryndal, I.; Lis, T.; Mączyński, M. The N’-Substituted Derivatives of 5-Chloro-3-Methylisothiazole-4-Carboxylic Acid Hydrazide with Antiproliferative Activity. Molecules 2020, 25, 88. https://doi.org/10.3390/molecules25010088

AMA Style

Jęśkowiak I, Ryng S, Świtalska M, Wietrzyk J, Bryndal I, Lis T, Mączyński M. The N’-Substituted Derivatives of 5-Chloro-3-Methylisothiazole-4-Carboxylic Acid Hydrazide with Antiproliferative Activity. Molecules. 2020; 25(1):88. https://doi.org/10.3390/molecules25010088

Chicago/Turabian Style

Jęśkowiak, Izabela, Stanisław Ryng, Marta Świtalska, Joanna Wietrzyk, Iwona Bryndal, Tadeusz Lis, and Marcin Mączyński. 2020. "The N’-Substituted Derivatives of 5-Chloro-3-Methylisothiazole-4-Carboxylic Acid Hydrazide with Antiproliferative Activity" Molecules 25, no. 1: 88. https://doi.org/10.3390/molecules25010088

APA Style

Jęśkowiak, I., Ryng, S., Świtalska, M., Wietrzyk, J., Bryndal, I., Lis, T., & Mączyński, M. (2020). The N’-Substituted Derivatives of 5-Chloro-3-Methylisothiazole-4-Carboxylic Acid Hydrazide with Antiproliferative Activity. Molecules, 25(1), 88. https://doi.org/10.3390/molecules25010088

Article Metrics

Back to TopTop
