Theoretical Study of the Effect of Different π Bridges Including an Azomethine Group in Triphenylamine-Based Dye for Dye-Sensitized Solar Cells

by
Tomás Delgado-Montiel
1,
Rody Soto-Rojo
1,*,
Jesús Baldenebro-López
1,* and
Daniel Glossman-Mitnik
2
1
Facultad de Ingeniería Mochis, Universidad Autónoma de Sinaloa, Prol. Ángel Flores y Fuente de Poseidón, S/N, Los Mochis 81223, Sinaloa, Mexico
2
Laboratorio Virtual NANOCOSMOS, Departamento de Medio Ambiente y Energía, Centro de investigación en Materiales Avanzados, Miguel de Cervantes 120, Complejo Industrial Chihuahua, Chihuahua, Chihuahua 31136, Mexico
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(21), 3897; https://doi.org/10.3390/molecules24213897
Submission received: 7 September 2019 / Revised: 20 October 2019 / Accepted: 22 October 2019 / Published: 29 October 2019
(This article belongs to the Special Issue Recent Advances in Dye-Sensitized Solar Cells)
Browse Figures
Versions Notes

Abstract

:
Ten molecules were theoretically calculated and studied through density functional theory with the M06 density functional and the 6-31G(d) basis set. The molecular systems have potential applications as sensitizers for dye-sensitized solar cells. Three molecules were taken from the literature, and seven are proposals inspired in the above, including the azomethine group in the π-bridge expecting a better charge transfer. These molecular structures are composed of triphenylamine (donor part); different combinations of azomethine, thiophene, and benzene derivatives (π-bridge); and cyanoacrylic acid (acceptor part). This study focused on the effect that the azomethine group caused on the π-bridge. Ground-state geometry optimization, the highest occupied molecular orbital, the lowest unoccupied molecular orbital, and their energy levels were obtained and analyzed. Absorption wavelengths, oscillator strengths, and electron transitions were obtained via time-dependent density functional theory using the M06-2X density functional and the 6-31G(d) basis set. The free energy of electron injection (ΔGinj) was calculated and analyzed. As an important part of this study, chemical reactivity parameters are discussed, such as chemical hardness, electrodonating power, electroaccepting power, and electrophilicity index. In conclusion, the inclusion of azomethine in the π-bridge improved the charge transfer and the electronic properties of triphenylamine-based dyes.

1. Introduction

Solar energy is a form of renewable energy, being the most abundant on this planet and, thus, generating great interest to transform solar energy into electrical energy while being friendly to the environment. At present, different technologies are being developed to obtain higher efficiency. Silicon-based solar cells and dye-sensitized solar cells (DSSC) are some more developed devices for their promising efficiency; from the above, DSSCs have presented a great growth in efficiency in a short time. Grätzel in 1991 proposed the DSSC for the first time; since, it has been greatly studied [1]. DSSC is mainly composed of semi-conductive oxide, electrolyte, electrode, and sensitizer, which contribute to the cells’ performance. However, several authors have proposed that the cells’ efficiency can be modulated with the dye modification [2]. Recently, some dyes have been reported with high energy conversion efficiencies, such as ruthenium-based dyes up to 12% [3] and metal-free organic dyes up to 14.5% [4]. Metal-free organic dyes present some advantages because of their easy synthesis, low cost, and environmental friendliness [5]. On the other hand, dyes with donator π-bridge-acceptor (D-π-A) structure have reached high efficiencies [6]. Regarding D-π-A structure, several studies about dyes have been reported using different proposals. For example, modifying the donor part using coumarin [7,8], carbazole [9,10], phenothiazine [11,12], and triphenylamine [13,14]; modifying the acceptor part using cyanoacrylic acid [15] and alkoxysilane [16,17]; and mainly modifying the π-bridge using thiophene [18,19,20], benzene [21,22], dioxythiophene [23], and benzothiadiazole [24,25], among many others. Hence, the study and the understanding of the performance of D-π-A metal-free organic dyes is very important. The above can be reached via theoretical studies, which allows designing new dyes searching for the best efficiency. Specifically, Density Functional Theory (DFT) has been used to study the electronic properties of new and already reported dyes [26,27,28]. It is well known that the design of sensitizer dye consists mainly in modifying the π-bridge. On the other hand, several studies have reported the use of azomethine in molecular systems used in photovoltaics devices, finding an improvement in the luminescent properties and the molecular structures stability [29] and considering the azomethine as a photo-stable group [30] and with a good electric conductance [31]. Therefore, it is expected that azomethine is beneficial to charge transportation and has potential application to produce high-quality organic semiconductors [32]. Further, azomethine has been used in applications such as organic light-emitting diodes (OLEDs) [33,34,35], OFET [36,37], and DSSC [38,39]. Recently, Manzoor et al. reported a study of optical and photovoltaic properties of coumarin-based dyes with a similar azo group in the π-bridge, obtaining good absorption behavior in UV-visible region, good photovoltaic response, and a reduction in the HOMO-LUMO gap [7]. The main contribution of this paper is to study the effect of the azomethine group in sensitizers’ photoelectronic properties. To achieve the above, seven dyes with D-π-A structure were conformed by triphenylamine (TPA) in the donor part; cyanoacrylic acid in the acceptor part; and different conformations in the π-bridge using thiophene, benzene, methylbenzene, nitrobenzene, and azomethine groups. These dyes were inspired by three experimentally reported dyes, which are 2-Cyano-3-(5-(4-(diphenylamino)phenyl)thiophen-2-yl)acrylic acid [40], 2-Cyano-3-[5-[4′-(diphenylamino)[1,1′-biphenyl]-2-thienyl]-2-acrylic acid [41,42], and 2-Cyano-3-[5′-[4-(diphenylamino)phenyl][2,2′-bithiophen]-5-yl]-2-acrylic acid [41,43,44]. In this work, these dyes are called AT, BBT, and BTT, respectively. AT and BTT were theoretically studied by our work group [45]; however, these results are shown to compare to the seven studied dyes, which were named TPAZ identified from 1 to 7, as is shown in Figure 1. Through the Density Functional Theory (DFT), different optoelectronics properties were calculated of the already reported AT, BBT, and BTT dyes and of the TPA1, TPA2, TPA3, TPA4, TPA5, TPAZ6, and TPA7 dyes. The second group is inspired by the first group but includes the azomethine group in the π-bridge with different conjugations. The optimization of molecular geometry, the highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energy levels, the free energy of electron injection, UV-Vis absorptions and transitions, and chemical reactivity were evaluated and analyzed to compare both groups. Finally, the best sensitizers were chosen regarding their optoelectronic properties.

2. Results and Discussion

2.1. Molecular Structure of Dyes

The optimized structures reported correspond to the ground state in vacuum, which were obtained by M06/6-31G(d) level of calculation. In this work, seven molecules were studied with D-π-A structure. The π-bridge was conformed by two and three units of chemical groups such as thiophene, benzene, methylbenzene, nitrobenzene, and azomethine. Table 1 shows a summary of the most representative bond lengths and dihedral angles. Specifically, it reports the dihedral angles that are formed between i) the donor part and unit one of the π-bridge (D-π1); ii) unit one and unit two of the π-bridge (π1-π2); iii) unit two and unit three of the π-bridge (π2-π3); and iv) unit three of the π-bridge and the acceptor part (π3-A). Further, the bond lengths shown are those between the mentioned units. In Figure 1, it can be observed that the dyes reported in this research are grouped according to its similarities in chemical structure such that the main difference is the presence or the position of the azomethine group. For example, in group 1, TPAZ1 and TPAZ2 are similar to the AT dye; in group 2, TPAZ3, TPAZ4, and TPAZ5 are similar to BBT; and in group 3, TPAZ6 and TPAZ7 are similar to BTT. On the other hand, it can be observed that the presence of thiophene in π1 results in a structure more plane regarding D-π1 dihedral angle, as it occurs in AT, TPAZ2, BTT, TPAZ7, and TPAZ6. Further, in group 1, the presence of azomethine in π2 (TPAZ2) results in a structure more plane in π1-π2 than the AT dye. In group 2, the dihedral angle in D-π1 does not vary with the presence of the azomethine group, but in TPAZ3, the dihedral angle in π1-π2 varied 15° approximately. The rest of the dihedral angles did not present significant differences. In group 3, dihedral angles did not present significant differences between BTT, TPAZ6, and TPAZ7, but using azomethine decreases this angle. It is important to see that the difference between TPAZ6 and TPAZ7 is the position of the N atom in the azomethine, which resulted in a more planar geometry for TPAZ7, mainly in the π2-π3 angle. In general, it is expected that the dyes structural planarity is related to the improvements of charge transfer from donor moiety to the anchoring group [46]. Then, this property suggests that TPAZ2 and TPAZ7 are the best sensitizers.

2.2. Frontier Molecular Orbitals

The energy levels of the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) were calculated with the M06/6-31G(d) level of calculation. The HOMO and LUMO energy levels are shown in Figure 2. For an efficient electron injection, the LUMO energy level must be above the band conduction of nanocrystalline semiconductor oxide (commonly used TiO2) [47,48], and for an efficient regeneration of the dye, the HOMO energy level must be below the redox potential of the electrolyte (commonly used I − / I 3 − redox couple) [49]. Furthermore, a smaller HOMO-LUMO gap is desired to sure an electron excitation from HOMO to LUMO with less energy. Figure 2 shows that the LUMO level of all dyes studied is above the conduction band of TiO2, which is located at −4.0 eV [50] and that the HOMO level of all dyes is below the redox potential of the electrolytes I − / I 3 − redox couple. Hence, the electron injection from the dye to the conduction band of TiO2 is thermodynamically favorable.
Also, it has been observed that the inclusion of the azomethine group induces more negative LUMO levels, namely, closer to the conduction band of TiO2 and, hence, with a more favorable electron injection. For example, in group 1, TPAZ1 (−2.786 eV) and TPAZ2 (−2.692 eV) have LUMO levels more negative than AT (−2.381 eV). Further, TPAZ1 has the LUMO level more negative than TPAZ2 and less gap (2.610 eV for TPAZ1 and 2.872 eV for TPAZ2). In group 2, TPAZ3 (−2.856 eV), TPAZ4 (−2.855 eV), and TPAZ5 (−3.005 eV) have LUMO levels more negative than BBT (−2.490 eV). Further, the dye with the methylbenzene group in π1 (TPAZ4) has the lowest gap ((2.430 eV) < TPAZ3 (2.459 eV) < TPAZ5 (2.470 eV) < BBT (2.825 eV)). In group 3, TPAZ6 (−2.585 eV) and TPAZ7 (−2.837 eV) have LUMO levels more negative than BTT (−2.560 eV). Further, TPAZ7 has the lowest gap ((2.471 eV) < TPAZ6 (2.882 eV) < BTT (2.904 eV)). In general, the LUMO levels closer to the conduction band of TiO2 are the sensitizer with benzene, methylbenzene, and nitrobenzene in π1, besides TPAZ7. These values are very similar: −3.005 eV to TPAZ5, −2.856 eV to TPAZ3, −2.855 eV to TPAZ4, and −2.837 eV to TPAZ7. Further, the HOMO-LUMO gap increases as follows: TPAZ4 (2.430 eV) < TPAZ3 (2.459 eV) < TPAZ5 (2.470 eV) < TPAZ7 (2.471 eV). The best dyes with regard to LUMO level and gap are TPAZ4, TPAZ3, TPAZ5, and TPAZ7. While that with regard to HOMO level are TPAZ4 (−5.284 eV), TPAZ7 (−5.308 eV) and TPAZ3 (−5.315 eV) because they are closer to redox potential of the electrolytes I − / I 3 − redox couple, which favors a better electron regeneration of the dye. Finally, it can be observed that the LUMO+1 and HOMO-1 levels have behaviors like that above. On the other hand, it is important to know that the mechanism of charge separation depends notably on the spatial distribution of the HOMO and LUMO density because it is significantly related to the electron injection. As shown in Figure 3, in all dyes, the HOMO density is mainly found on the triphenylamine part and the π-bridge and the LUMO density is mainly distributed on the π-bridge and cyanoacrylic acid part; the distribution meets the requirements according to the charge transfer mechanism. In addition, with the increase of π-conjugation of the linker by the inclusion of the azomethine group, a better load separation occurs as well as an adjustment in energy level values of HOMO and LUMO, causing a decrease in gap [51,52,53]. This occurred in groups 1, 2, and 3. Moreover, the best charge separation can be observed in TPAZ5, TPAZ4, and TPAZ3.

2.3. Ultraviolet-Visible Absorption Spectra

Ultraviolet-Visible absorption spectra were calculated with the M06-2X/6-31G(d) level of calculation, using tetrahydrofuran (THF) as solvent. The calculation was carried out with nonequilibrium protocol, taking into account 20 excited states. Figure 4 shows the theoretical UV-Vis absorption spectra of the dyes. M06-2X/6-31G(d) level of calculation was validated by experimental UV-Vis spectra data, taking experimental values of maximum absorption wavelength (λmax) and comparing them with theoretical results, obtaining reasonable similarities (see Figure S1). Experimental λmax taken from the bibliography were 415 nm [40], 417 nm [41], and 473 nm [44], while the theoretical λmax obtained results of 446 nm, 486 nm, and 474 nm for AT, BBT, and BTT, respectively. All experimental and theoretical spectra were obtained in THF solvent. In Figure 4, it can be observed that the inclusion of the azomethine group in the π-bridge increases the conjugation of π bonds, which promotes a bathochromic displacement of λmax [52,54,55,56,57,58], except in TPAZ6. Regarding the oscillator strength (f) reported in Table 2, a significant variation was not observed with the inclusion of azomethine. On the other hand, dyes with benzene-derived groups in π1 showed a bathochromic displacement of λmax but also showed a hypochromic effect. For example, in group 2, TPAZ1 with azomethine in π1 presented λmax of 513 nm and f value of 0.713 and TPAZ2 with thiophene in π1 showed λmax of 483 nm and f value of 1.027. Meanwhile, TPAZ3 with benzene in π1 presented λmax of 564 nm and f value of 0.340, TPAZ4 with methylbenzene in π1 presented λmax of 563 nm and f value of 0.323, and TPAZ5 in π1 presented λmax of 576 nm and f value of 0.206 (see Table 2). However, TPAZ3 and TPAZ4 showed higher f values from the secondary band of 0.878 and 0.719, respectively. All transitions of λmax were from HOMO to LUMO (H-L). Group 2 had the higher H-L transitions of 92% in BBT, of 95% in TPAZ3, of 94% in TPAZ4, and of 96% in TPAZ5. According to λmax, the best dyes could be TPAZ5, TPAZ3, and TPAZ4. Additionally, other strong absorption bands were observed in the ultraviolet range with HOMO to LUMO+1 and HOMO-1 to LUMO transitions, among others (see Table 2).
The emission spectra were estimated through vertical excitation energy without considering external iteration calculations (these conditions were chosen taking into account the computational cost). Stokes shift can be consulted in the Supplementary Material (see Figure S1); the results indicate that the studied molecules constitute potential applications in organic light-emitting diodes (OLEDs), except TPAZ1 linking the azomethine group with the donor moiety.

2.4. Free Energy of Electron Injection

One of the important factors to predict the short-circuit current density (Jsc) is the electron injection efficiency (Øinj), which is influenced by the free energy of electron injection (ΔGinj), that is, Øinj α (−ΔGinj) [7,59,60]; therefore, Øinj is equal to the absolute values of ΔGinj. Thereby, the absolute values of ΔGinj (Øinj) for all dyes are much greater than 0.2 eV, as is shown in Table 3, and according to the literature [60], we can predict that these dyes have enough driving force for the fast injection of excited electrons from dyes to TiO2. The ΔGinj oscillate between −1.23 and −0.68 eV, which is large enough to guarantee an efficient electron injection (AT, BBT, and BTT have been reported with good conversion efficiency [40,41,44]). Besides, if this ΔGinj is too large, it may introduce energy redundancy and result in a smaller open-circuit voltage (Voc) and large thermalization losses [61,62]. Furthermore, ΔGinj increases in the order: AT (−1.28) < BTT (−1.23) < TPAZ6 (−1.17) < BBT (−1.16) < TPAZ7 (−1.07) < TPAZ1 (−1.02) < TPAZ2 (−1.01) < TPAZ4 (−0.92) < TPAZ3 (−0.89) < TPAZ5 (−0.68). The results reflect that all the dyes have good electron injection efficiencies with AT, BTT, TPAZ6, BBT, and TPAZ7 having better electron injection efficiencies. Despite TPAZ4, TPAZ3, and TPAZ5 presenting the lowest electron injection efficiencies, it should be considered that this study considers as a parameter the oscillator strength of λmax; however, these dyes have other absorption bands with a high oscillator strength.
On the other hand, the f parameter is related to light harvesting efficiency (LHE) [63,64,65], and higher values indicating that short-circuit photocurrent (Jsc) can be increased [66]. However, according to LHE, the best dyes could be TPAZ6 with 0.94, BTT with 0.93, TPAZ7 with 0.91, TPAZ2 with 0.906, and AT with 0.88. Note that the best electron conjugation occurs when the thiophene group is next to the donators zone; see Table 3. It should be noted that this parameter only contemplates a wavelength (λmax) and does not represent all others that also contribute to the absorption of the sensitizer, and so, they should be considered in light harvesting.

2.5. Chemical Reactivity Parameters

Chemical reactivity parameters were calculated through DFT conceptual using M06/6-31G(d) level of calculation to obtain neutral and ionic energies. Chemical hardness (η), electrophilicity index (ω), electrodonating power (ω−), and electroaccepting power (ω+) were obtained and analyzed. The chemical hardness has been related to the ease with which electrons are transferred through the molecule [67,68]. This parameter, furthermore, has been inversely associated with the conversion efficiency of the DSSC, which is highly supported on correlation calculations between theoretical results of the chemical hardness and experimental data of the efficiency [69]. Likewise, the electrodonating power and electroaccepting power are related to the capacity of the molecule to donate and accept electrons, respectively [70], and the electrophilicity index is related to the stabilizing energy that a system experiences when it is saturated with electrons [71]. Mainly, lower values of chemical hardness are expected to consider the highest efficiency [72]. Furthermore, higher values of electrophilicity and electroaccepting power are expected to consider the highest efficiency in dyes with the modification in the π-bridge (see Figure 5).
Table 4 shows the calculated chemical reactivity parameters. It can be observed that the inclusion of the azomethine group in the π-bridge decreases in the chemical hardness in each group of dyes. Further, it increases in electrophilicity index, electrodonating power, and electroaccepting power. The lower values of chemical hardness resulted in the next order: TPAZ7 (4.46 eV) < TPAZ4 (4.60 eV) < TPAZ3 (4.63 eV) < TPAZ5 (4.68 eV), which have the azomethine group between the π-bridge units (π1-π3). Other dyes had the next values of chemical hardness: TPAZ1 (4.81 eV) < TPAZ6 (4.82 eV) < TPAZ2 (4.98 eV). The highest values in electrophilicity index, electrodonating power, and electroaccepting power were present in decreasing order as TPAZ5 > TPAZ7 > TPAZ4 > TPAZ3 > TPAZ1 > TPAZ2 > BTT > BBT > AT. The lowest chemical hardness and the highest electrophilicity index, electrodonating power, and electroaccepting power were obtained by the dyes with the inclusion of azomethine.
According to the analyzed properties, the best molecules to be used as sensitizer are TPAZ7, TPAZ4, TPAZ5, and TPAZ3, with similar optoelectronic properties among them. Further, this group of dyes presented optoelectronic properties far better than AT, BBT, and BTT, which have been reported with high efficiency.

3. Computational Details

A theoretical study was carried out on the optoelectronic properties of the proposed molecular systems. Ground state molecular structure was obtained using Density Functional Theory (DFT) [73,74] with the M06 hybrid meta-GGA density functional [75] combined with the 6-31G(d) [76,77] basis set, proposed by Pople. Frequencies were reviewed to guarantee the non-presence of the imaginary frequencies, namely, to guarantee the molecular structure of the global minimum energy. Likewise, energy levels and electron density of the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) and chemical reactivity parameters were obtained. Chemical reactivity parameters were obtained with DFT conceptual by ionic and neutral energy calculations, such as chemical hardness (η) [78], electrodonating power (ω−) and electroaccepting (ω+) power [70], and electrophilicity index (ω) [71]. Ultraviolet-visible (UV-vis) absorption spectra were calculated using time-dependent DFT (TD-DFT) [79,80] with M06-2X hybrid meta-GGA density functional [75] combined with 6-31G(d) [76,77] basis set to obtain maximum absorption wavelength (λmax). UV-Vis spectra were calculated by nonequilibrium protocol [81,82]; tetrahydrofuran (THF) was considered as solvent; and its effect was calculated through integral equational formalism polarizable continuum model (IEF-PCM) [83], an implicit method. The equations were resolved for 20 excited states. Absorption spectra data was processed using the Swizard program [84] and the Gaussian model to read oscillator strength (f) and orbitals involved in the electron transition. Also, the free energy of electron injection (ΔGinj) was obtained for all molecules, this being the difference between oxidation potential energy of the excited state (Eoxdye*) and the reduction potential energy of TiO2 conduction band (ECB = −4.0 eV). Then, it is expressed as ΔGinj = Eoxdye* − ECB and, successively, as Eoxdye* = Eoxdye − ΔE, where Eoxdye is the ground-state oxidation potential (−HOMO) of the dye and ΔE is the absorption energy in eV associated with λmax (vertical excitation energy of λmax); for more details, consult References [7,59,60]. The light harvesting efficiency (LHE) was obtained by L H E λ = 1 − 10 − f , where f is the oscillator strength associated to λmax [26,85,86]. All calculations were carried out using the Gaussian 09 Revision D.01 [87].

4. Conclusions

We have presented the study of 10 dyes, of which three have already been reported experimentally and theoretically and of which seven are new structures inspired by the former. The effect of the π-bridge was evaluated by combining azomethine, thiophene, and benzene derivatives using two and three units. In all cases, the inclusion of azomethine improved the electronic properties such as UV-Vis absorption, charge transfer from the donator part to acceptor part and the electron injection according to HOMO and LUMO levels, and chemical reactivity. Therefore, considering the obtained results, the dyes with the best properties are TPAZ7, TPAZ4, TPAZ3, and TPAZ5. The chemical hardness received particular attention in this prediction regarding previous studies reported [5,88,89,90]. It can be recommended to synthesize and experimentally research dyes with azomethine on the π-bridge in DSSC.

Supplementary Materials

The following are available online, Figure S1: Comparison of UV–Vis absorption spectra of triphenylamine-based dyes. Experimental λmax was taken from the bibliography and theoretical results obtained with TD-DFT and M06-2X/6-31G(d) level of theory, Table S1: Stokes shift of triphenylamine based dyes at M06-2X/6-31G(d) level of theory.

Author Contributions

T.D.-M.: methodology, validation, formal analysis, investigation, and writing—original draft preparation; R.S.-R.: conceptualization, methodology, validation, formal analysis, investigation, writing—review editing, and supervision; J.B.-L.: conceptualization, methodology, validation, formal analysis, writing—review editing, and supervision; and D.G.-M.: conceptualization, methodology, validation, formal analysis, investigation, and writing—review editing.

Funding

This work has been partially supported by Consejo Nacional de Ciencia y Tecnología (CONACYT) through grant 219566/2014.

Acknowledgments

This work was supported by Universidad Autónoma de Sinaloa (UAS), Consejo Nacional de Ciencia y Tecnología (CONACYT), and Centro de Investigación en Materiales Avanzados, S.C. (CIMAV). T.D.M. gratefully acknowledges a fellowship from CONACYT. J.B.L. and R.S.R. are professors and researchers at UAS and CONACYT. D.G.M. is a researcher at CIMAV and CONACYT. The authors also gratefully acknowledge Rodrigo Domίnguez from CIMAV for his technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. O’Regan, B.; Grätzel, M. A low-cost, high-efficiency solar cell based on dye-sensitized colloidal TiO2 films. Nature 1991, 353, 737–740. [Google Scholar] [CrossRef]
  2. Zanjanchi, F.; Beheshtian, J. Natural pigments in dye-sensitized solar cell (DSSC): A DFT-TDDFT study. J. Iran. Chem. Soc. 2018, 16, 795–805. [Google Scholar] [CrossRef]
  3. Ozawa, H.; Okuyama, Y.; Arakawa, H. Dependence of the Efficiency Improvement of Black-Dye-Based Dye-Sensitized Solar Cells on Alkyl Chain Length of Quaternary Ammonium Cations in Electrolyte Solutions. Chem. Phys. Chem. 2014, 15, 1201–1206. [Google Scholar] [CrossRef] [PubMed]
  4. Kakiage, K.; Aoyama, Y.; Yano, T.; Oya, K.; Fujisawa, J.; Hanaya, M. Highly-efficient dye-sensitized solar cells with collaborative sensitization by silyl-anchor and carboxy-anchor dyes. Chem. Commun. 2015, 51, 15894–15897. [Google Scholar] [CrossRef] [PubMed]
  5. Sun, C.; Li, Y.; Han, J.; Cao, B.; Yin, H.; Shi, Y. Enhanced photoelectrical properties of alizarin-based natural dye via structure modulation. Sol. Energy 2019, 185, 315–323. [Google Scholar] [CrossRef]
  6. Zhang, M.; Wang, Y.; Xu, M.; Ma, W.; Li, R.; Wang, P. Design of high-efficiency organic dyes for titania solar cells based on the chromophoric core of cyclopentadithiophene-benzothiadiazole. Energy Environ. Sci. 2013, 6, 2944–2949. [Google Scholar] [CrossRef]
  7. Manzoor, T.; Niaz, S.; Pandith, A.H. Exploring the effect of different coumarin donors on the optical and photovoltaic properties of azo-bridged push-pull systems: A theoretical approach. Int. J. Quantum Chem. 2019, 42, e25979. [Google Scholar] [CrossRef]
  8. Jadhav, M.M.; Vaghasiya, J.V.; Patil, D.S.; Soni, S.S.; Sekar, N. Structure-efficiency relationship of newly synthesized 4-substituted donor-π-acceptor coumarins for dye-sensitized solar cells. New J. Chem. 2018, 42, 5267–5275. [Google Scholar] [CrossRef]
  9. Naik, P.; Elmorsy, M.R.; Su, R.; Babu, D.D.; El-Shafei, A.; Adhikari, A.V. New carbazole based metal-free organic dyes with D-π-A-π-A architecture for DSSCs: Synthesis, theoretical and cell performance studies. Sol. Energy 2017, 153, 600–610. [Google Scholar] [CrossRef]
  10. Kusumawati, Y.; Massin, J.; Olivier, C.; Toupance, T.; Ivansyah, A.L.; Martoprawiro, M.A.; Prijamboedi, B.; Radiman, C.L.; Pauporté, T. Journal of Photochemistry and Photobiology A: Chemistry Combined computational and experimental study of carbazole dyes for iodide- and cobalt-based ZnO DSSCs. J. Photochem. Photobiol. A Chem. 2017, 341, 69–77. [Google Scholar] [CrossRef]
  11. Park, J.M.; Jung, C.Y.; Wang, Y.; Choi, H.D.; Park, S.J.; Ou, P.; Jang, W.-D.; Jaung, J.Y. Effect of additional phenothiazine donor and thiophene π-bridge on photovoltaic performance of quinoxaline cored photosensitizers. Dye Pigment. 2019, 170, 107568. [Google Scholar] [CrossRef]
  12. Duvva, N.; Prasanthkumar, S.; Giribabu, L. Influence of strong electron donating nature of phenothiazine on A 3 B- type porphyrin based dye sensitized solar cells. Sol. Energy 2019, 184, 620–627. [Google Scholar] [CrossRef]
  13. Slimi, A.; Fitri, A.; Touimi Benjelloun, A.; Elkhattabi, S.; Benzakour, M.; Mcharfi, M.; Bouachrine, M. Molecular Design of D-π-A-A Organic Dyes Based on Triphenylamine Derivatives with Various Auxiliary Acceptors for High Performance DSSCs. J. Electron. Mater 2019, 48, 4452–4462. [Google Scholar] [CrossRef]
  14. Estrella, L.L.; Lee, S.H.; Kim, D.H. New semi-rigid triphenylamine donor moiety for D-π-A sensitizer: Theoretical and experimental investigations for DSSCs. Dye Pigment. 2019, 165, 1–10. [Google Scholar] [CrossRef]
  15. Fu, Y.; Lu, T.; Xu, Y.; Li, M.; Wei, Z.; Liu, H.; Lu, W. Theoretical screening and design of SM315-based porphyrin dyes for highly efficient dye-sensitized solar cells with near-IR light harvesting. Dye Pigment. 2018, 155, 292–299. [Google Scholar] [CrossRef]
  16. Carli, S.; Casarin, L.; Caramori, S.; Boaretto, R.; Busatto, E.; Argazzi, R.; Bignozzi, C.A. A viable surface passivation approach to improve efficiency in cobalt based dye sensitized solar cells. Polyhedron 2014, 82, 173–180. [Google Scholar] [CrossRef]
  17. Kakiage, K.; Aoyama, Y.; Yano, T.; Otsuka, T.; Kyomen, T.; Unno, M.; Hanaya, M. An achievement of over 12 percent efficiency in an organic dye-sensitized solar cell. Chem. Commun. 2014, 50, 6379–6381. [Google Scholar] [CrossRef]
  18. Wu, Z.-S.; Guo, W.-J.; Zhang, J.; Liu, Y.-D.; Song, X.-C.; Jiang, Y.; Weng, Q.; An, Z.-W. Novel 4,4′-bis(alkylphenyl/alkyloxyphenyl)-2,2′-bithiophene bridged cyclic thiourea functionalized triphenylamine sensitizers for efficient dye-sensitized solar cells. Sol. Energy 2019, 186, 1–8. [Google Scholar] [CrossRef]
  19. El Mzioui, S.; Bouzzine, S.M.; Sidir, İ.; Bouachrine, M.; Bennani, M.N.; Bourass, M.; Hamidi, M. Theoretical investigation on π-spacer effect of the D–π–A organic dyes for dye-sensitized solar cell applications: A DFT and TD-BHandH study. J. Mol. Model. 2019, 25, 92. [Google Scholar] [CrossRef]
  20. Majid, A.; Bibi, M.; Khan, S.U.-D.; Haider, S. First Principles Study of Dendritic Carbazole Photosensitizer Dyes Modified with Different Conjugation Structures. ChemistrySelect 2019, 4, 2787–2794. [Google Scholar] [CrossRef]
  21. Liu, Y.; Zhang, X.; Li, C.; Tian, Y.; Zhang, F.; Wang, Y.; Wu, W.; Liu, B. Energy-Level Control via Molecular Planarization and Its Effect on Interfacial Charge-Transfer Processes in Dye-Sensitized Solar Cells. J. Phys. Chem. C 2019, 123, 13531–13537. [Google Scholar] [CrossRef]
  22. Lyu, L.; Tang, P.; Tong, G.; Han, L. Molecular engineering and synthesis of symmetric metal-free organic sensitizers with A-π-D-π-A architecture for DSSC applications: The effect of bridge unit. J. Iran. Chem. Soc. 2019. [Google Scholar] [CrossRef]
  23. Wazzan, N.A. A DFT/TDDFT investigation on the efficiency of novel dyes with ortho-fluorophenyl units (A1) and incorporating benzotriazole/benzothiadiazole/phthalimide units (A2) as organic photosensitizers with D–A2–π–A1 configuration for solar cell applications. J. Comput. Electron. 2019, 18, 375–395. [Google Scholar] [CrossRef]
  24. ElKhattabi, S.; Hachi, M.; Fitri, A.; Benjelloun, A.T.; Benzakour, M.; Mcharfi, M.; Bouachrine, M. Theoretical study of the effects of modifying the structures of organic dyes based on N,N-alkylamine on their efficiencies as DSSC sensitizers. J. Mol. Model. 2019, 25, 9. [Google Scholar] [CrossRef] [PubMed]
  25. Duvva, N.; Reddy, G.; Singh, S.P.; Chowdhury, T.H.; Bedja, I.; Islam, A.; Giribabu, L. Functional π-conjugated tetrathiafulvalene decorated with benzothiadiazole organic sensitizers for dye sensitized solar cells. New J. Chem. 2019, 43, 8919–8929. [Google Scholar] [CrossRef]
  26. Sun, C.; Li, Y.; Song, P.; Ma, F. An Experimental and Theoretical Investigation of the Electronic Structures and Photoelectrical Properties of Ethyl Red and Carminic Acid for DSSC Application. Materials 2016, 9, 813. [Google Scholar] [CrossRef]
  27. Sadki, H.; Bourass, M.; Bennani, M.N.; Bouachrine, M. New organic materials based on D–π–A structure for application in dye-sensitized solar cells. Res. Chem. Intermed. 2018, 44, 6071–6085. [Google Scholar] [CrossRef]
  28. Trabelsi, S.; Kouki, N.; Seydou, M.; Maurel, F.; Tangour, B. Intramolecular Path Determination of Active Electrons on Push-Pull Oligocarbazole Dyes-Sensitized Solar Cells. ChemistryOpen 2019, 8, 580–588. [Google Scholar] [CrossRef]
  29. Koole, M.; Frisenda, R.; Petrus, M.L.; Perrin, M.L.; van der Zant, H.S.J.; Dingemans, T.J. Charge transport through conjugated azomethine-based single molecules for optoelectronic applications. Org. Electron. 2016, 34, 38–41. [Google Scholar] [CrossRef] [Green Version]
  30. Tsang, D.; Bourgeaux, M.; Skene, W.G. Demystifying the triplet state and the quenching mechanism of self-assembled fluorenoazomethines. J. Photochem. Photobiol. A Chem. 2007, 192, 122–129. [Google Scholar] [CrossRef]
  31. Petrus, M.L.; Music, A.; Closs, A.C.; Bijleveld, J.C.; Sirtl, M.T.; Hu, Y.; Dingemans, T.J.; Bein, T.; Docampo, P. Design rules for the preparation of low-cost hole transporting materials for perovskite solar cells with moisture barrier properties. J. Mater. Chem. A 2017, 5, 25200–25210. [Google Scholar] [CrossRef] [Green Version]
  32. Grucela-Zajac, M.; Bijak, K.; Zaleckas, E.; Grigalevicius, S.; Wiacek, M.; Janeczek, H.; Schab-Balcerzak, E. Electronic and thermal properties of compounds bearing diimide, azomethine and triphenylamine units. Opt. Mater. (Amst). 2014, 37, 543–551. [Google Scholar] [CrossRef]
  33. Moraes, R.S.; Aderne, R.E.; Cremona, M.; Rey, N.A. Luminescent properties of a di-hydrazone derived from the antituberculosis agent isoniazid: Potentiality as an emitting layer constituent for OLED fabrication. Opt. Mater. (Amst). 2016, 52, 186–191. [Google Scholar] [CrossRef]
  34. Srinivas, M.; Vijayakumar, G.R.; Mahadevan, K.M.; Nagabhushana, H.; Bhojya Naik, H.S. Synthesis, photoluminescence and forensic applications of blue light emitting azomethine-zinc (II) complexes of bis(salicylidene)cyclohexyl-1,2-diamino based organic ligands. J. Sci. Adv. Mater. Devices 2017, 2, 156–164. [Google Scholar] [CrossRef]
  35. Kim, S.M.; Kim, J.-S.; Sohn, B.-C.; Kim, Y.K.; Ha, Y.Y. Synthesis and Application of the Aromatic Spacered Azomethine Metal Complexes for the Organic Electroluminescent Devices. Mol. Cryst. Liq. Cryst. Sci. Technol. Sect. A. Mol. Cryst. Liq. Cryst. 2001, 371, 321–324. [Google Scholar] [CrossRef]
  36. Fujii, S.; Minami, S.; Urayama, K.; Suenaga, Y.; Naito, H.; Miyashita, O.; Imoto, H.; Naka, K. Beads-on-String-Shaped Poly(azomethine) Applicable for Solution Processing of Bilayer Devices Using a Same Solvent. ACS Macro Lett. 2018, 7, 641–645. [Google Scholar] [CrossRef]
  37. Jebnouni, A.; Chemli, M.; Lévêque, P.; Fall, S.; Majdoub, M.; Leclerc, N. Effects of vinylene and azomethine bridges on optical, theoretical electronic structure and electrical properties of new anthracene and carbazole based π-conjugated molecules. Org. Electron. 2018, 56, 96–110. [Google Scholar] [CrossRef]
  38. Gencer Imer, A.; Syan, R.H.B.; Gülcan, M.; Ocak, Y.S.; Tombak, A. The novel pyridine based symmetrical Schiff base ligand and its transition metal complexes: Synthesis, spectral definitions and application in dye sensitized solar cells (DSSCs). J. Mater Sci. Mater. Electron. 2018, 29, 898–905. [Google Scholar] [CrossRef]
  39. Suman, G.R.; Bubbly, S.G.; Gudennavar, S.B.; Muthu, S.; Roopashree, B.; Gayatri, V.; Nanje Gowda, N.M. Structural investigation, spectroscopic and energy level studies of Schiff base: 2-[(3′-N-salicylidenephenyl)benzimidazole] using experimental and DFT methods. J. Mol. Struct. 2017, 1139, 247–254. [Google Scholar] [CrossRef]
  40. Tang, J.; Hua, J.; Wu, W.; Li, J.; Jin, Z.; Long, Y.; Tian, H. New starburst sensitizer with carbazole antennas for efficient and stable dye-sensitized solar cells. Energy Environ. Sci. 2010, 3, 1736. [Google Scholar] [CrossRef]
  41. Chang, Y.J.; Chow, T.J. Dye-sensitized solar cell utilizing organic dyads containing triarylene conjugates. Tetrahedron 2009, 65, 4726–4734. [Google Scholar] [CrossRef]
  42. Ci, Z.; Yu, X.; Bao, M.; Wang, C.; Ma, T. Influence of the benzo[d]thiazole-derived π-bridges on the optical and photovoltaic performance of D–π–A dyes. Dye Pigment. 2013, 96, 619–625. [Google Scholar] [CrossRef]
  43. Justin Thomas, K.R.; Hsu, Y.-C.; Lin, J.T.; Lee, K.-M.; Ho, K.-C.; Lai, C.-H.; Cheng, Y.-M.; Chou, P.-T. 2,3-Disubstituted Thiophene-Based Organic Dyes for Solar Cells. Chem. Mater. 2008, 20, 1830–1840. [Google Scholar] [CrossRef]
  44. Yen, Y.; Hsu, Y.-C.; Lin, J.T.; Chang, C.; Hsu, C.; Yin, D. Pyrrole-Based Organic Dyes for Dye-Sensitized Solar Cells. J. Phys. Chem. C 2008, 112, 12557–12567. [Google Scholar] [CrossRef]
  45. Delgado-Montiel, T.; Baldenebro-López, J.; Soto-Rojo, R.; Glossman-Mitnik, D. Quantum chemical study of the effect of π-bridge on the optical and electronic properties of sensitizers for DSSCs incorporating dioxythiophene and thiophene units. Theor. Chem. Acc. 2016, 135, 235. [Google Scholar] [CrossRef]
  46. Namuangruk, S.; Jungsuttiwong, S.; Kungwan, N.; Promarak, V.; Sudyoadsuk, T.; Jansang, B.; Ehara, M. Coumarin-based donor–π–acceptor organic dyes for a dye-sensitized solar cell: Photophysical properties and electron injection mechanism. Theor. Chem. Acc. 2016, 135, 14. [Google Scholar] [CrossRef]
  47. Nattestad, A.; Mozer, A.J.; Fischer, M.K.R.; Cheng, Y.-B.; Mishra, A.; Bäuerle, P.; Bach, U. Highly efficient photocathodes for dye-sensitized tandem solar cells. Nat. Mater. 2010, 9, 31–35. [Google Scholar] [CrossRef]
  48. Joly, D.; Pellejà, L.; Narbey, S.; Oswald, F.; Meyer, T.; Kervella, Y.; Maldivi, P.; Clifford, J.N.; Palomares, E.; Demadrille, R. Metal-free organic sensitizers with narrow absorption in the visible for solar cells exceeding 10% efficiency. Energy Environ. Sci. 2015, 8, 2010–2018. [Google Scholar] [CrossRef]
  49. Cong, J.; Yang, X.; Kloo, L.; Sun, L. Iodine/iodide-free redox shuttles for liquid electrolyte-based dye-sensitized solar cells. Energy Environ. Sci. 2012, 5, 9180. [Google Scholar] [CrossRef]
  50. Lu, X.; Wei, S.; Wu, C.L.; Li, S.; Guo, W. Can Polypyridyl Cu(I)-based Complexes Provide Promising Sensitizers for Dye-Sensitized Solar Cells? A Theoretical Insight into Cu(I) versus Ru(II) Sensitizers. J. Phys. Chem. C 2011, 115, 3753–3761. [Google Scholar] [CrossRef]
  51. Liang, M.; Chen, J. Arylamine organic dyes for dye-sensitized solar cells. Chem. Soc. Rev. 2013, 42, 3453. [Google Scholar] [CrossRef] [PubMed]
  52. Ezhov, A.V.; Zhdanova, K.A.; Bragina, N.A.; Mironov, A.F. Approaches to Improve Efficiency of Dye-Sensitized Solar Cells. Macroheterocycles 2016, 9, 337–352. [Google Scholar] [CrossRef] [Green Version]
  53. Jadhav, M.; Vaghasiya, J.V.; Patil, D.; Soni, S.S.; Sekar, N. Effect of donor modification on the photo-physical and photo-voltaic properties of N -alkyl/aryl amine based chromophores. New J. Chem. 2019, 43, 8970–8981. [Google Scholar] [CrossRef]
  54. Vaghasiya, J.V.; Nandakumar, D.K.; Yaoxin, Z.; Tan, S.C. Low toxicity environmentally friendly single component aqueous organic ionic conductors for high efficiency photoelectrochemical solar cells. J. Mater. Chem. A 2018, 6, 1009–1016. [Google Scholar] [CrossRef]
  55. Vaghasiya, J.V.; Sonigara, K.K.; Soni, S.S.; Tan, S.C. Dual functional hetero-anthracene based single component organic ionic conductors as redox mediator cum light harvester for solid state photoelectrochemical cells. J. Mater. Chem. A 2018, 6, 4868–4877. [Google Scholar] [CrossRef]
  56. Vaghasiya, J.V.; Sonigara, K.K.; Suresh, L.; Panahandeh-Fard, M.; Soni, S.S.; Tan, S.C. Efficient power generating devices utilizing low intensity indoor lights via non-radiative energy transfer mechanism from organic ionic redox couples. Nano Energy 2019, 60, 457–466. [Google Scholar] [CrossRef]
  57. Soni, S.S.; Fadadu, K.B.; Vaghasiya, J.V.; Solanki, B.G.; Sonigara, K.K.; Singh, A.; Das, D.; Iyer, P.K. Improved molecular architecture of D–π–A carbazole dyes: 9% PCE with a cobalt redox shuttle in dye sensitized solar cells. J. Mater. Chem. A 2015, 3, 21664–21671. [Google Scholar] [CrossRef]
  58. Zhang, L.; Cole, J.M. Anchoring Groups for Dye-Sensitized Solar Cells. ACS Appl. Mater. Interfaces 2015, 7, 3427–3455. [Google Scholar] [CrossRef]
  59. Mehmood, U.; Hussein, I.A.; Harrabi, K.; Ahmed, S. Density Functional Theory Study on the Electronic Structures of Oxadiazole Based Dyes as Photosensitizer for Dye Sensitized Solar Cells. Adv. Mater. Sci. Eng. 2015, 2015, 1–8. [Google Scholar] [CrossRef] [Green Version]
  60. Islam, A.; Sugihara, H.; Arakawa, H. Molecular design of ruthenium(II) polypyridyl photosensitizers for efficient nanocrystalline TiO2 solar cells. J. Photochem. Photobiol. A Chem. 2003, 158, 131–138. [Google Scholar] [CrossRef]
  61. Ning, Z.; Zhang, Q.; Wu, W.; Pei, H.; Liu, B.; Tian, H. Starburst Triarylamine Based Dyes for Efficient Dye-Sensitized Solar Cells. J. Org. Chem. 2008, 73, 3791–3797. [Google Scholar] [CrossRef] [PubMed]
  62. Sayama, K.; Tsukagoshi, S.; Hara, K.; Ohga, Y.; Shinpou, A.; Abe, Y.; Suga, S.; Arakawa, H. Photoelectrochemical Properties of J Aggregates of Benzothiazole Merocyanine Dyes on a Nanostructured TiO 2 Film. J. Phys. Chem. B 2002, 106, 1363–1371. [Google Scholar] [CrossRef]
  63. Sun, M.; Cao, Z. DFT and TD-DFT studies on osmacycle dyes with tunable photoelectronic properties for solar cells. Theor. Chem. Acc. 2014, 133, 1531. [Google Scholar] [CrossRef]
  64. Sang-aroon, W.; Saekow, S.; Amornkitbamrung, V. Density functional theory study on the electronic structure of Monascus dyes as photosensitizer for dye-sensitized solar cells. J. Photochem. Photobiol. A Chem. 2012, 236, 35–40. [Google Scholar] [CrossRef]
  65. Wang, Z.-S.; Yamaguchi, T.; Sugihara, H.; Arakawa, H. Significant Efficiency Improvement of the Black Dye-Sensitized Solar Cell through Protonation of TiO 2 Films. Langmuir 2005, 21, 4272–4276. [Google Scholar] [CrossRef] [PubMed]
  66. Tachibana, Y.; Hara, K.; Sayama, K.; Arakawa, H. Quantitative Analysis of Light-Harvesting Efficiency and Electron-Transfer Yield in Ruthenium-Dye-Sensitized Nanocrystalline TiO 2 Solar Cells. Chem. Mater. 2002, 14, 2527–2535. [Google Scholar] [CrossRef]
  67. Pearson, R.G.; Palke, W.E. Support for a principle of maximum hardness. J. Phys. Chem. 1992, 96, 3283–3285. [Google Scholar] [CrossRef]
  68. Pearson, R.G. Absolute electronegativity and hardness correlated with molecular orbital theory. Proc. Natl. Acad. Sci. USA 1986, 83, 8440–8441. [Google Scholar] [CrossRef] [Green Version]
  69. Soto-Rojo, R.; Baldenebro-López, J.; Glossman-Mitnik, D. Study of chemical reactivity in relation to experimental parameters of efficiency in coumarin derivatives for dye sensitized solar cells using DFT. Phys. Chem. Chem. Phys. 2015, 17, 14122–14129. [Google Scholar] [CrossRef]
  70. Gázquez, J.L.; Cedillo, A.; Vela, A. Electrodonating and Electroaccepting Powers. J. Phys. Chem. A 2007, 111, 1966–1970. [Google Scholar] [CrossRef]
  71. Parr, R.G.; Szentpály, L.v.; Liu, S. Electrophilicity Index. J. Am. Chem. Soc. 1999, 121, 1922–1924. [Google Scholar] [CrossRef]
  72. Li, Y.; Li, Y.; Song, P.; Ma, F.; Liang, J.; Sun, M. Screening and design of high-performance indoline-based dyes for DSSCs. RSC Adv. 2017, 7, 20520–20536. [Google Scholar] [CrossRef] [Green Version]
  73. Hohenberg, P.; Kohn, W. Inhomogeneous Electron Gas. Phys. Rev. 1964, 136, B864–B871. [Google Scholar] [CrossRef] [Green Version]
  74. Kohn, W.; Sham, L.J. Self-Consistent Equations Including Exchange and Correlation Effects. Phys. Rev. 1965, 140, A1133–A1138. [Google Scholar] [CrossRef] [Green Version]
  75. Zhao, Y.; Truhlar, D.G. The M06 suite of density functionals for main group thermochemistry, thermochemical kinetics, noncovalent interactions, excited states, and transition elements: Two new functionals and systematic testing of four M06-class functionals and 12 other function. Theor. Chem. Acc. 2008, 120, 215–241. [Google Scholar] [CrossRef]
  76. Francl, M.M.; Pietro, W.J.; Hehre, W.J.; Binkley, J.S.; Gordon, M.S.; DeFrees, D.J.; Pople, J.A. Self-consistent molecular orbital methods. XXIII. A polarization-type basis set for second-row elements. J. Chem. Phys. 1982, 77, 3654–3665. [Google Scholar] [CrossRef]
  77. Rassolov, V.A.; Ratner, M.A.; Pople, J.A.; Redfern, P.C.; Curtiss, L.A. 6-31G* basis set for third-row atoms. J. Comput. Chem. 2001, 22, 976–984. [Google Scholar] [CrossRef]
  78. Parr, R.G.; Pearson, R.G. Absolute hardness: Companion parameter to absolute electronegativity. J. Am. Chem. Soc. 1983, 105, 7512–7516. [Google Scholar] [CrossRef]
  79. Burke, K.; Werschnik, J.; Gross, E.K.U. Time-dependent density functional theory: Past, present, and future. J. Chem. Phys. 2005, 123, 062206. [Google Scholar] [CrossRef] [Green Version]
  80. Stratmann, R.E.; Scuseria, G.E.; Frisch, M.J. An efficient implementation of time-dependent density-functional theory for the calculation of excitation energies of large molecules. J. Chem. Phys. 1998, 109, 8218. [Google Scholar] [CrossRef]
  81. Cossi, M.; Barone, V. Time-dependent density functional theory for molecules in liquid solutions. J. Chem. Phys. 2001, 115, 4708. [Google Scholar] [CrossRef]
  82. Improta, R.; Barone, V.; Scalmani, G.; Frisch, M.J. A state-specific polarizable continuum model time dependent density functional theory method for excited state calculations in solution. J. Chem. Phys. 2006, 125, 054103. [Google Scholar] [CrossRef] [PubMed]
  83. Cancès, E.; Mennucci, B.; Tomasi, J. A new integral equation formalism for the polarizable continuum model: Theoretical background and applications to isotropic and anisotropic dielectrics. J. Chem. Phys. 1997, 107, 3032. [Google Scholar] [CrossRef]
  84. Gorelsky, S.I.; Lever, A.B.P. Electronic structure and spectra of ruthenium diimine complexes by density functional theory and INDO/S. Comparison of the two methods. J. Organomet. Chem. 2001, 635, 187–196. [Google Scholar] [CrossRef]
  85. Guo, M.; Xie, K.; Lin, J.; Yong, Z.; Yip, C.T.; Zhou, L.; Wang, Y.; Huang, H. Design and coupling of multifunctional TiO2 nanotube photonic crystal to nanocrystalline titania layer as semi-transparent photoanode for dye-sensitized solar cell. Energy Environ. Sci. 2012, 5, 9881. [Google Scholar] [CrossRef]
  86. Chaitanya, K.; Ju, X.-H.; Heron, B.M. Theoretical study on the light harvesting efficiency of zinc porphyrin sensitizers for DSSCs. RSC Adv. 2014, 4, 26621–26634. [Google Scholar] [CrossRef]
  87. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision B.01; Gaussian Inc.: Oxford, UK, 2010.
  88. Arunkumar, A.; Deepana, M.; Shanavas, S.; Acevedo, R.; Anbarasan, P.M. Computational Investigation on Series of Metal-Free Sensitizers in Tetrahydroquinoline with Different π-spacer Groups for DSSCs. ChemistrySelect 2019, 4, 4097–4104. [Google Scholar] [CrossRef]
  89. Li, Y.; Li, Y.; Song, P.; Ma, F.; Yang, Y. Electric field effect on multi-anchoring molecular architectures: Electron transfer process and opto-electronic property. J. Mol. Liq. 2018, 261, 123–136. [Google Scholar] [CrossRef]
  90. Sun, C.; Li, Y.; Shi, Y.; Li, Y. Effects of Structural Modification on the Photoelectrical Properties of the D-A-π-A-Type Dyes in DSSCs: A Computational Investigation. ChemistrySelect 2018, 3, 6622–6637. [Google Scholar] [CrossRef]
Sample Availability: Samples of all compounds are available from the corresponding authors.
Molecules 24 03897 g001 550

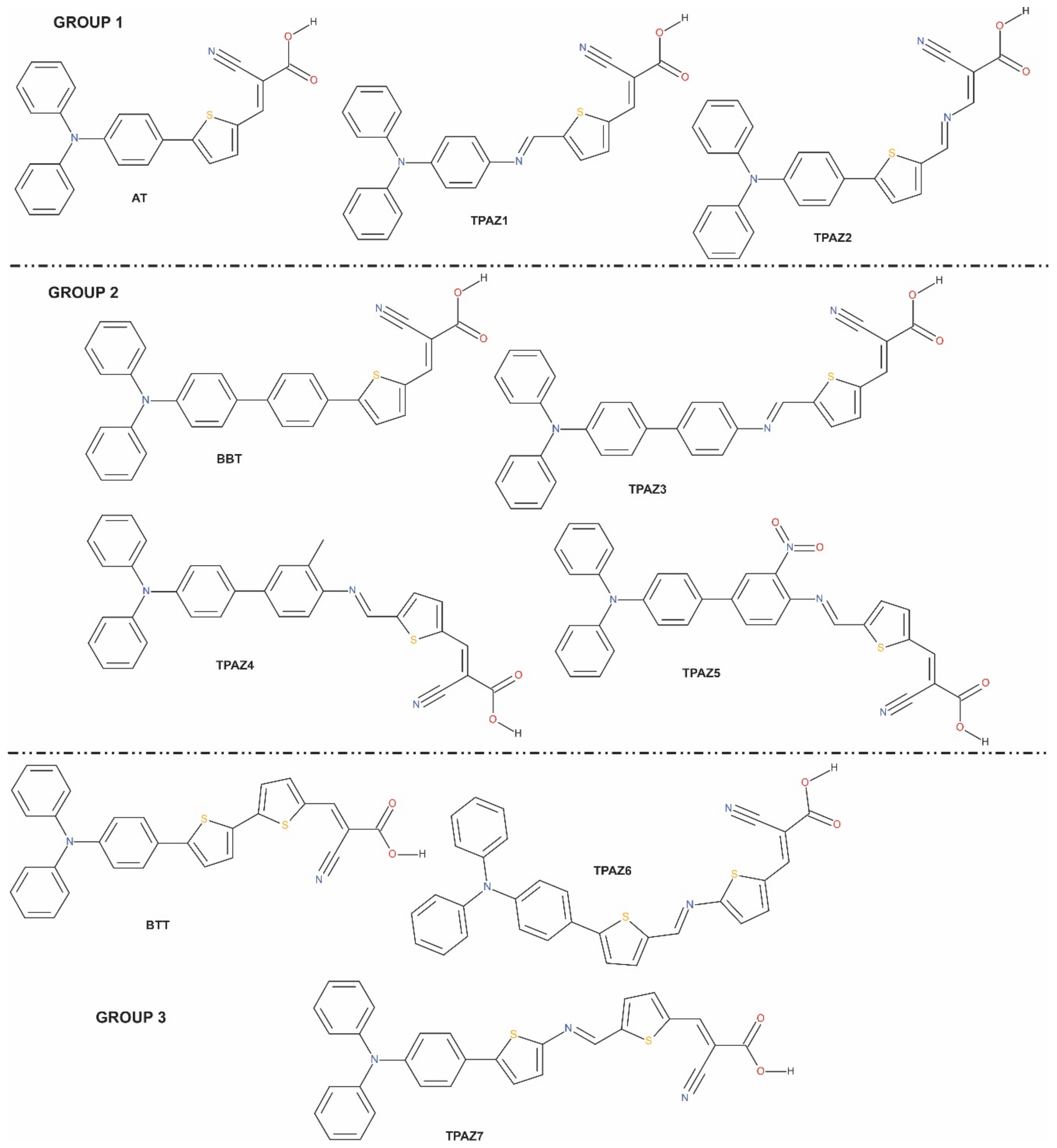

Figure 1. Molecular structures of triphenylamine-based dyes with different conjugation orders of the π-bride.
Figure 1. Molecular structures of triphenylamine-based dyes with different conjugation orders of the π-bride.
Molecules 24 03897 g001
Molecules 24 03897 g002 550

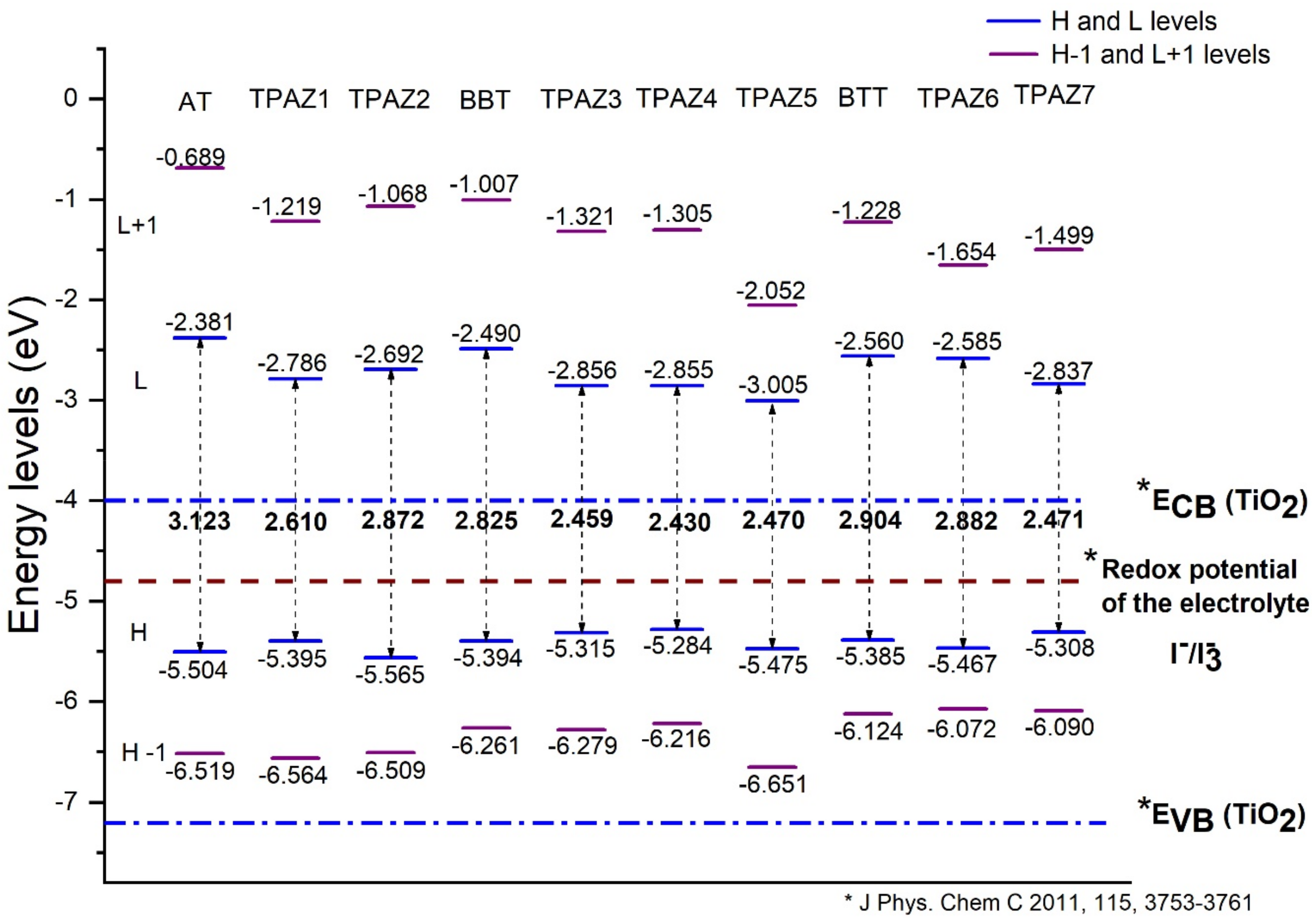

Figure 2. Highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energy levels of the triphenylamine-based dyes at M06/6-31G(d) level of theory.
Figure 2. Highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energy levels of the triphenylamine-based dyes at M06/6-31G(d) level of theory.
Molecules 24 03897 g002
Molecules 24 03897 g003 550

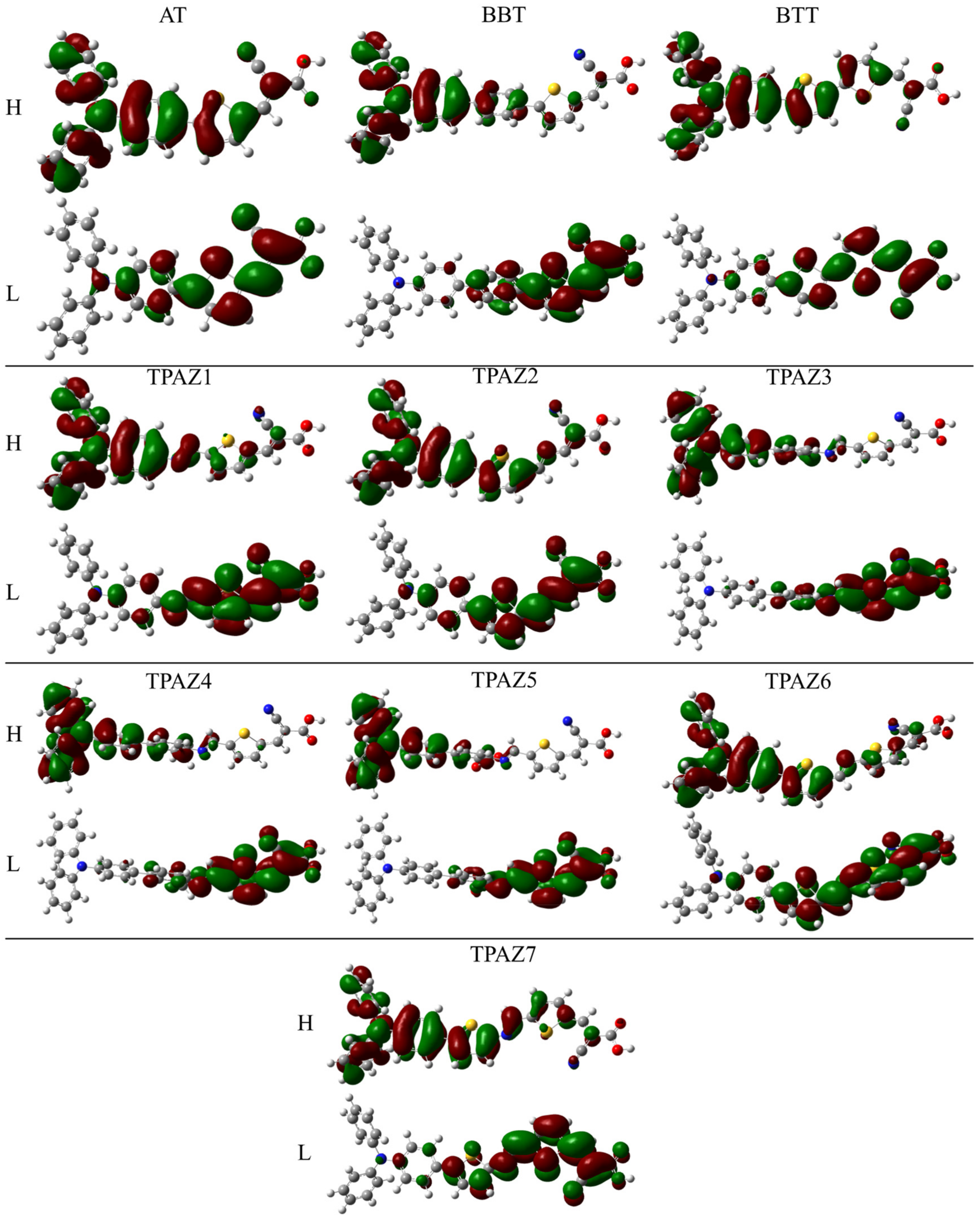

Figure 3. Density of HOMO and LUMO frontier molecular orbitals of the triphenylamine-based dyes at M06/6-31G(d) level of theory.
Figure 3. Density of HOMO and LUMO frontier molecular orbitals of the triphenylamine-based dyes at M06/6-31G(d) level of theory.
Molecules 24 03897 g003
Molecules 24 03897 g004 550

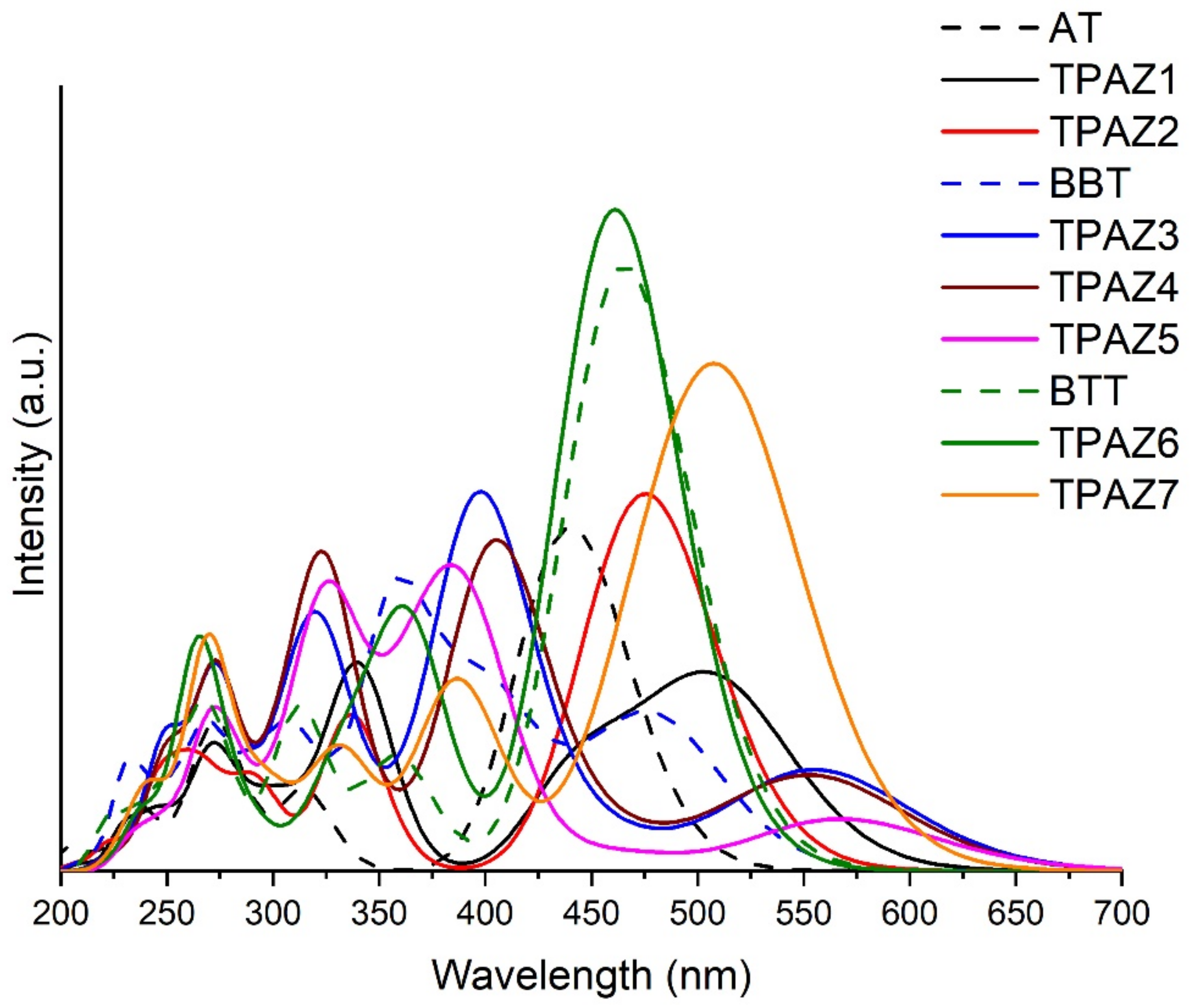

Figure 4. UV-Vis absorption spectra of triphenylamine-based dyes obtained with time-dependent Density Functional Theory (TD-DFT) and M06-2X/6-31G(d) level of theory.
Figure 4. UV-Vis absorption spectra of triphenylamine-based dyes obtained with time-dependent Density Functional Theory (TD-DFT) and M06-2X/6-31G(d) level of theory.
Molecules 24 03897 g004
Molecules 24 03897 g005 550

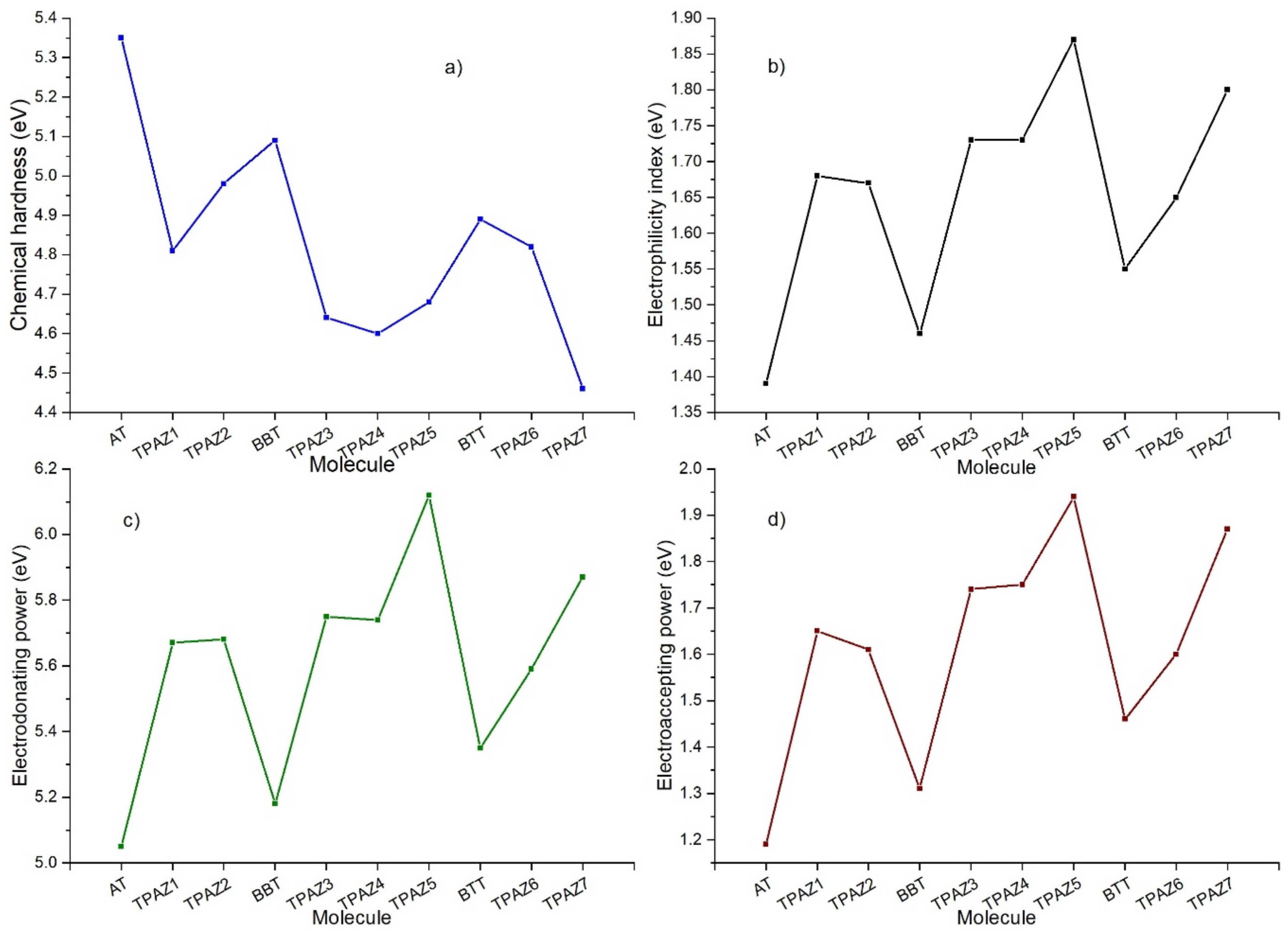

Figure 5. (a) Chemical hardness, (b) electrophilicity index, (c) electrodonating power, and (d) electroaccepting power of the triphenylamine based dyes at M06/6-31G(d).
Figure 5. (a) Chemical hardness, (b) electrophilicity index, (c) electrodonating power, and (d) electroaccepting power of the triphenylamine based dyes at M06/6-31G(d).
Molecules 24 03897 g005
Table
Table 1. Resume of bond lengths (Å) and dihedral angles (degrees) of the calculated dyes at M06/6-31G(d) level of theory.
Table 1. Resume of bond lengths (Å) and dihedral angles (degrees) of the calculated dyes at M06/6-31G(d) level of theory.
DyesDonor Part (D)π-BridgingAcceptor Part (A)
D-π1π1-π2π2-π3π3-A
AT
Dihedral22.5−−−0.9
Distance1.45−−1.42
TPAZ1
Dihedral−26.8−1.4−−0.2
Distance1.391.45−1.42
TPAZ2
Dihedral−19.00.5−0.1
Distance1.451.42−1.36
BBT
Dihedral−33.123.2−−0.8
Distance1.471.46−1.42
TPAZ3
Dihedral−33.8−32.1−1.2−0.1
Distance1.471.401.451.42
TPAZ4
Dihedral−33.6−34.9−1.00.1
Distance1.471.401.451.42
TPAZ5
Dihedral−33.3−49.14.90.4
Distance1.471.391.451.42
BTT
Dihedral−23.57.7−−0.3
Distance1.451.45−1.42
TPAZ6
Dihedral−22.7−0.7−30.3−0.3
Distance1.461.431.371.42
TPAZ7
Dihedral−19.51.90.60.1
Distance1.451.361.431.42
Table
Table 2. Absorption wavelengths, vertical excitation energy (E), oscillator strengths (f), and the orbitals involved in the transitions of triphenylamine-based dyes at M06-2X/6-31G(d) level of theory.
Table 2. Absorption wavelengths, vertical excitation energy (E), oscillator strengths (f), and the orbitals involved in the transitions of triphenylamine-based dyes at M06-2X/6-31G(d) level of theory.
Moleculeλmax (nm)E (eV)fTransitions H = HOMO, L = LUMO (%)
AT4462.780.928H → L (90%)
3153.940.260H-1 → L (84%)
2824.400.169H → L+1 (72%)
2654.670.198H → L+3 (89%)
TPAZ15132.420.713H → L (90%)
3423.630.624H-1 → L (66%)
3064.050.192H → L+1 (66%)
2684.630.234H → L+4 (55%) H → L+5 (35%)
TPAZ24832.571.027H → L (89%)
3383.670.492H-1 → L (82%)
2974.170.138H → L+1 (54%) H-9 → L (25%)
2634.710.140H → L+4 (67%)
BBT4862.550.520H → L (92%)
3613.430.869H-1 → L (71%)
3153.940.333H → L+1 (71%)
2335.320.208H-1 → L+1 (72%)
TPAZ35642.200.340H →L (95%)
3953.140.878H-1 → L (65%)
3313.750.228H → L+1 (69%)
3223.850.423H-8 → L (42%) H-6 → L (23%)
2694.610.237H → L+7 (88%)
TPAZ45632.200.323H → L (94%)
4033.080.719H-1 → L (67%)
3293.770.288H → L+1 (68%)
3253.810.518H-8 → L (42%) H-7 → L (27%)
2694.610.205H → L+7 (72%)
TPAZ55762.150.206H → L (96%)
3883.200.536H → L+1 (56%)
3723.330.313H → L+1 (32%) H-1 → L (21%)
3313.750.392H → L+2 (49%) H → L+3 (27%)
3263.800.411H-6 → L (42%) H-7 → L (32%)
2674.640.233H → L+9 (92%)
BTT4742.621.148H → L (80%)
3603.440.303H-1 → L (77%)
3163.920.311H → L+1 (77%)
2694.610.212H → L+4 (88%)
TPAZ64692.641.225H → L (74%)
3663.390.545H-1 → L (68%)
3383.670.261H → L+1 (74%)
2684.630.213H → L+4 (83%)
TPAZ75222.381.036H → L (84%)
3903.180.501H-1 → L (76%)
3373.680.230H → L+1 (74%)
2694.610.185H → L+5 (72%)
Table
Table 3. Ground-state oxidation potential energy (Eoxdye), absorption energy associated with λmax (ΔE), oxidation potential energy of the excited state (Eoxdye*), driving force of electron injection (ΔGinj), and light harvesting efficiency (LHE).
Table 3. Ground-state oxidation potential energy (Eoxdye), absorption energy associated with λmax (ΔE), oxidation potential energy of the excited state (Eoxdye*), driving force of electron injection (ΔGinj), and light harvesting efficiency (LHE).
MoleculeEoxdye (eV)∆E(eV)Eoxdye* (eV)∆Ginj (eV)LHE
AT5.502.782.72−1.280.88
TPAZ15.402.422.98−1.020.81
TPAZ25.562.572.99−1.010.91
BBT5.392.552.84−1.160.70
TPAZ35.312.203.11−0.890.54
TPAZ45.282.203.08−0.920.53
TPAZ55.472.153.32−0.680.38
BTT5.392.622.77−1.230.93
TPAZ65.472.642.83−1.170.94
TPAZ75.312.382.93−1.070.908
Table
Table 4. Chemical reactivity parameters of triphenylamine based dyes (in eV) obtained by DFT conceptual at M06/6-31G(d) level of theory.
Table 4. Chemical reactivity parameters of triphenylamine based dyes (in eV) obtained by DFT conceptual at M06/6-31G(d) level of theory.
Moleculeηωω−ω+
AT5.351.395.051.19
TPAZ14.811.685.671.65
TPAZ24.981.675.681.61
BBT5.091.465.181.31
TPAZ34.651.735.751.74
TPAZ44.601.735.741.75
TPAZ54.681.876.121.94
BTT4.891.555.351.46
TPAZ64.821.655.591.60
TPAZ74.461.805.871.87

Share and Cite

MDPI and ACS Style

Delgado-Montiel, T.; Soto-Rojo, R.; Baldenebro-López, J.; Glossman-Mitnik, D. Theoretical Study of the Effect of Different π Bridges Including an Azomethine Group in Triphenylamine-Based Dye for Dye-Sensitized Solar Cells. Molecules 2019, 24, 3897. https://doi.org/10.3390/molecules24213897

AMA Style

Delgado-Montiel T, Soto-Rojo R, Baldenebro-López J, Glossman-Mitnik D. Theoretical Study of the Effect of Different π Bridges Including an Azomethine Group in Triphenylamine-Based Dye for Dye-Sensitized Solar Cells. Molecules. 2019; 24(21):3897. https://doi.org/10.3390/molecules24213897

Chicago/Turabian Style

Delgado-Montiel, Tomás, Rody Soto-Rojo, Jesús Baldenebro-López, and Daniel Glossman-Mitnik. 2019. "Theoretical Study of the Effect of Different π Bridges Including an Azomethine Group in Triphenylamine-Based Dye for Dye-Sensitized Solar Cells" Molecules 24, no. 21: 3897. https://doi.org/10.3390/molecules24213897

Article Metrics

Back to TopTop
