Next Article in Journal
Generation of BSA-capsaicin Nanoparticles and Their Hormesis Effect on the Rhodotorula mucilaginosa Yeast
Previous Article in Journal
Antityrosinase, Antioxidant, and Cytotoxic Activities of Phytochemical Constituents from Manilkara zapota L. Bark
Open AccessFeature PaperArticle

TiVZrNb Multi-Principal-Element Alloy: Synthesis Optimization, Structural, and Hydrogen Sorption Properties

1
Université Paris Est, ICMPE (UMR 7182), CNRS, UPEC, F-94320 Thiais, France
2
Department of Chemistry, Uppsala University, Box 523, SE-75120 Uppsala, Sweden
3
University Grenoble Alpes, CNRS, Grenoble INP, Institut Néel, 38000 Grenoble, France
*
Author to whom correspondence should be addressed.
Academic Editor: Ewa C.E. Rönnebro
Molecules 2019, 24(15), 2799; https://doi.org/10.3390/molecules24152799
Received: 12 July 2019 / Revised: 26 July 2019 / Accepted: 30 July 2019 / Published: 31 July 2019
(This article belongs to the Special Issue Advances in Hydrogen Storage Materials for Energy Utilization)

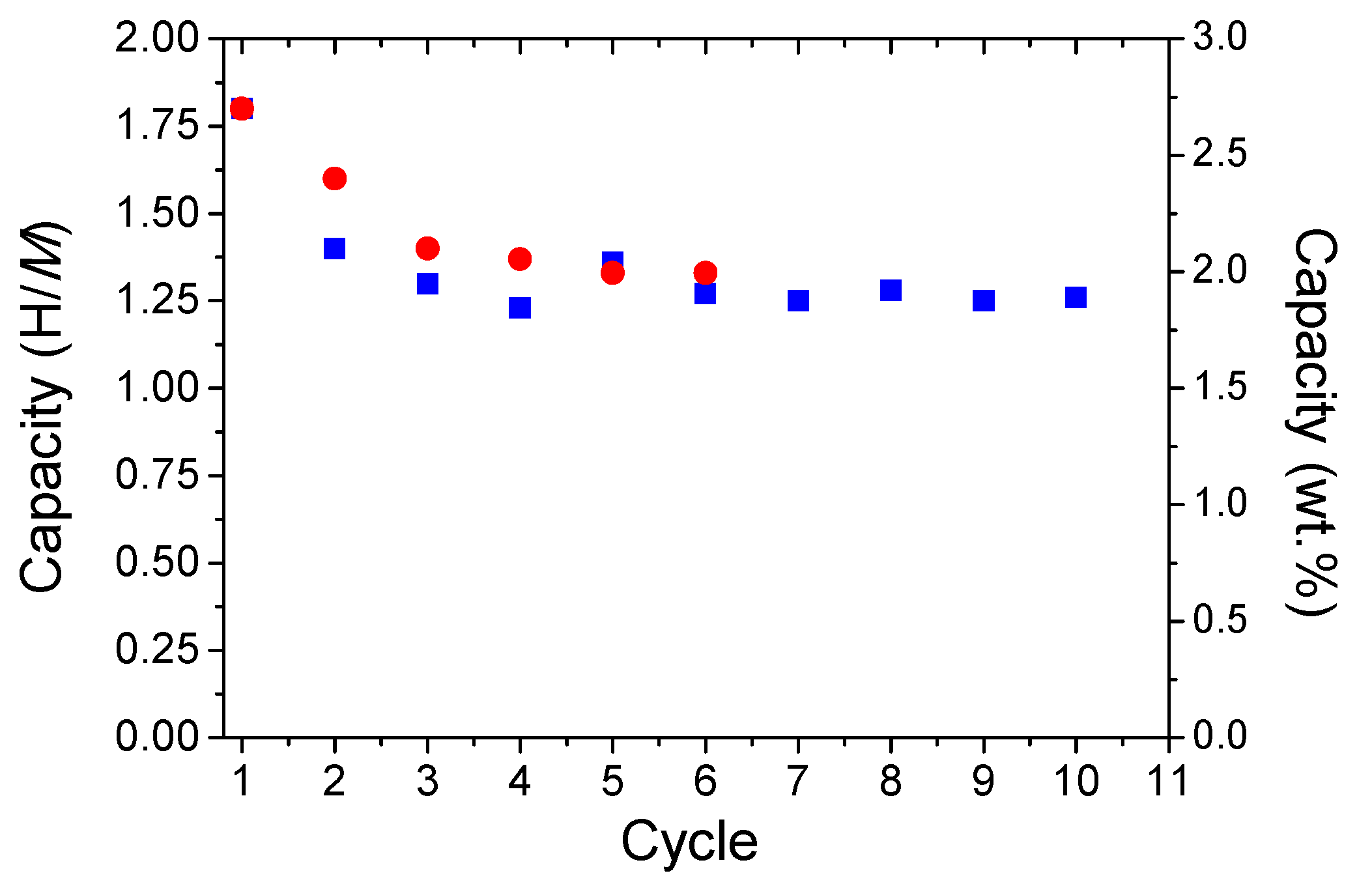

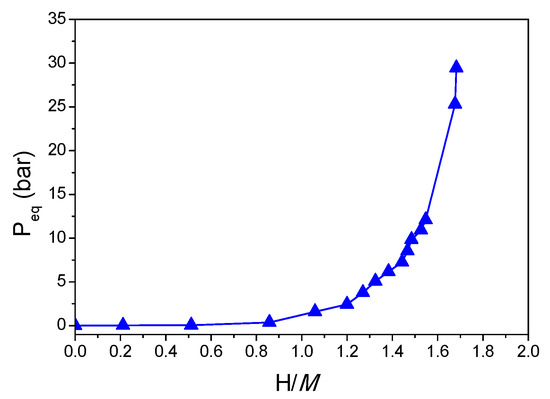

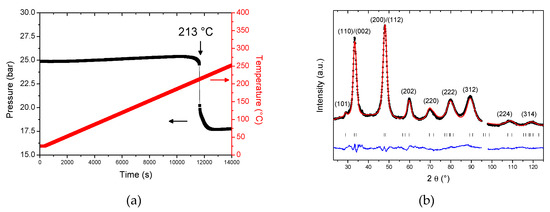

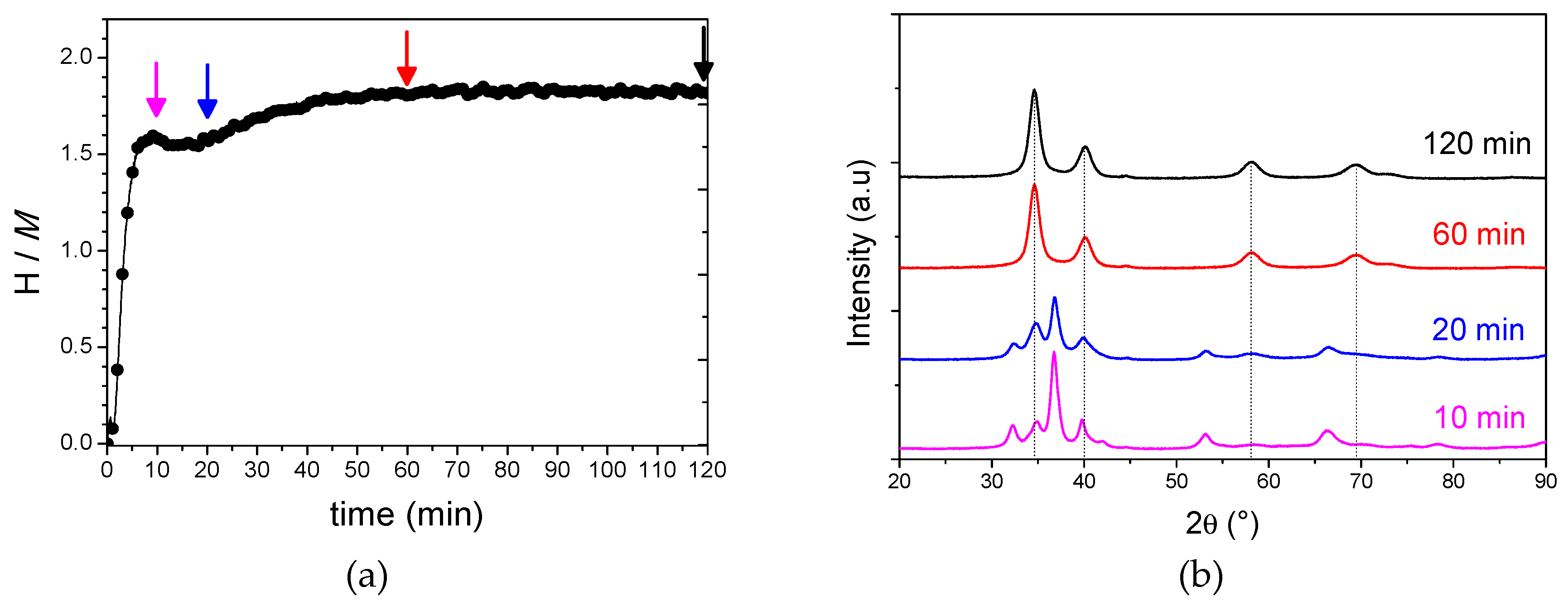

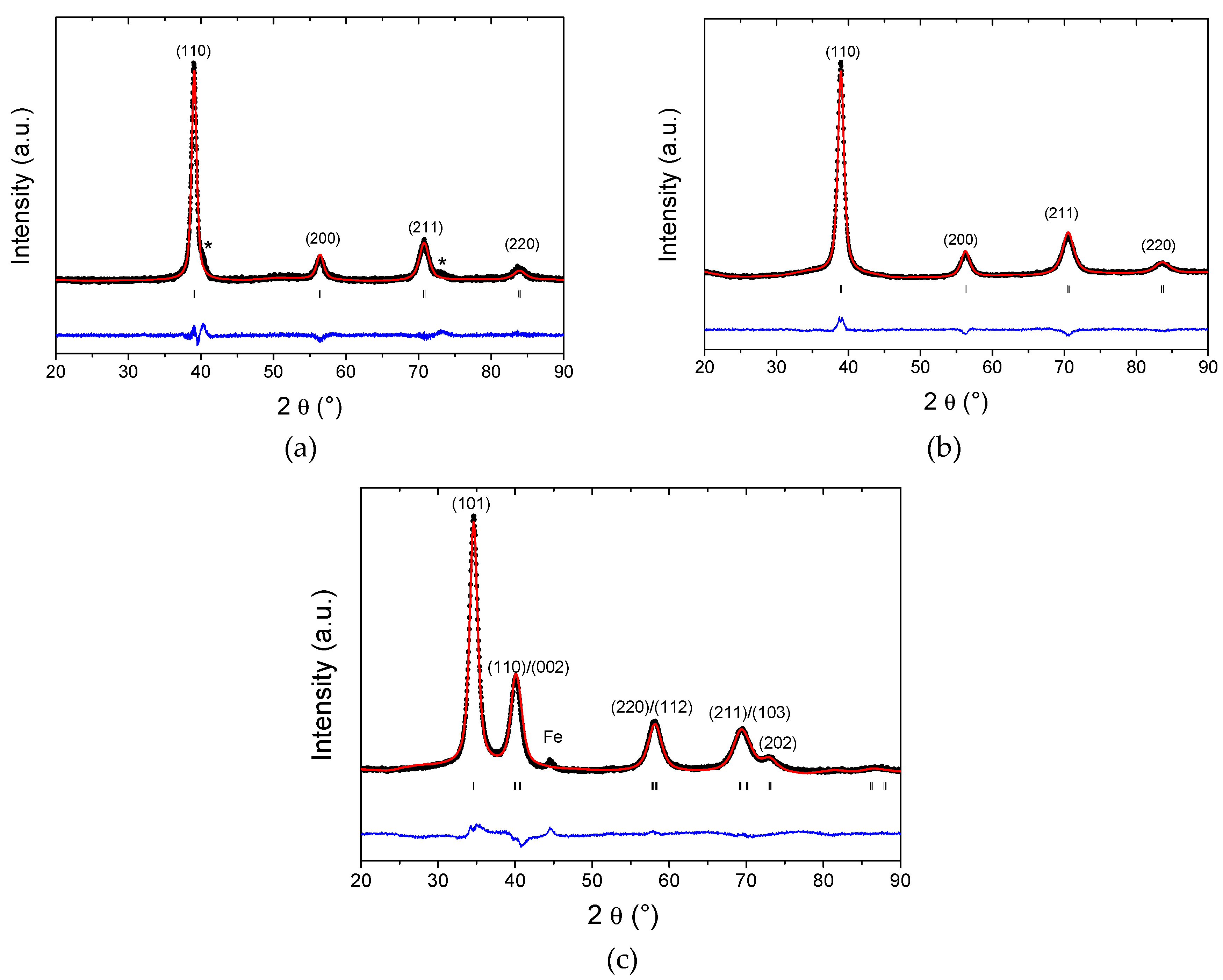

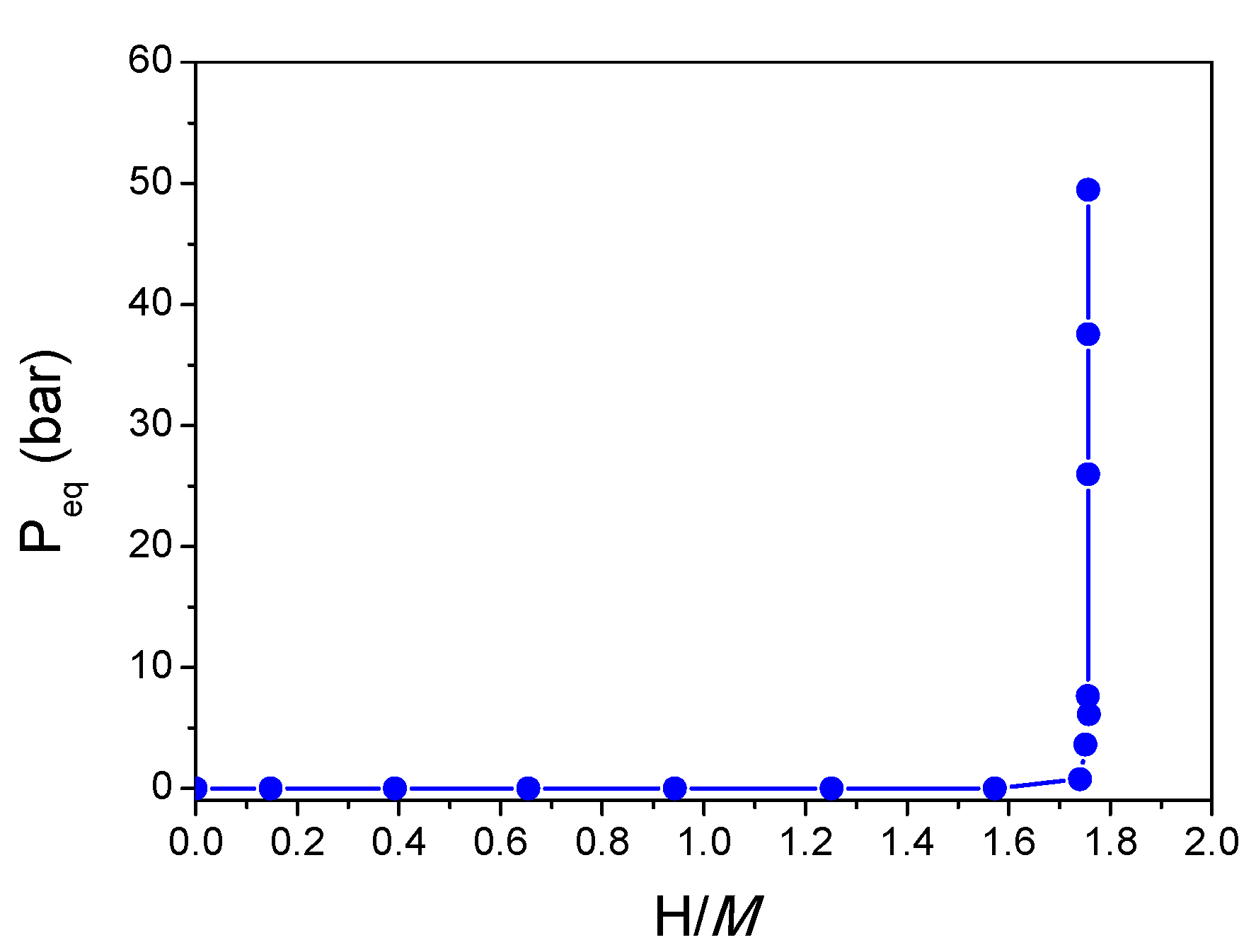

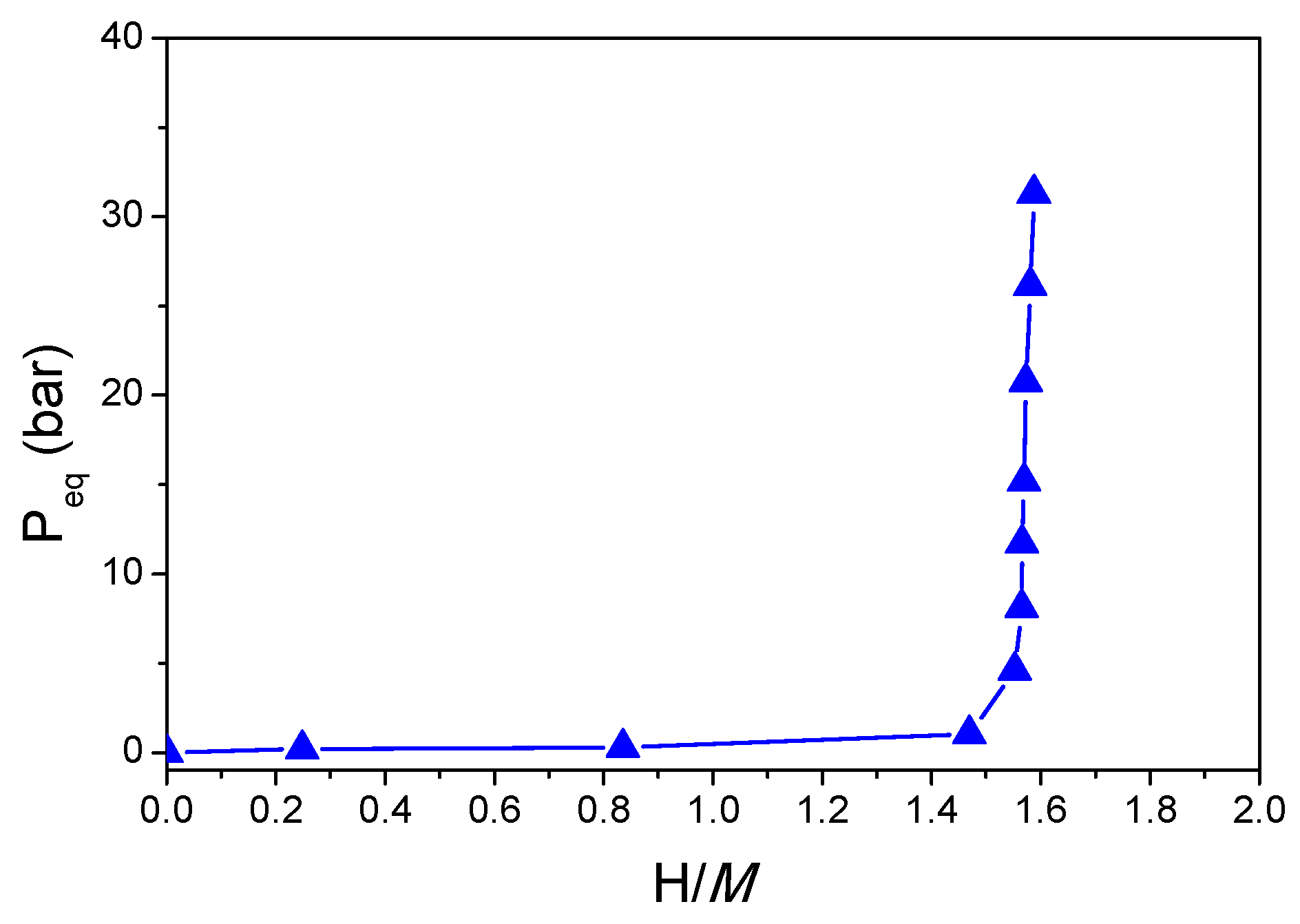

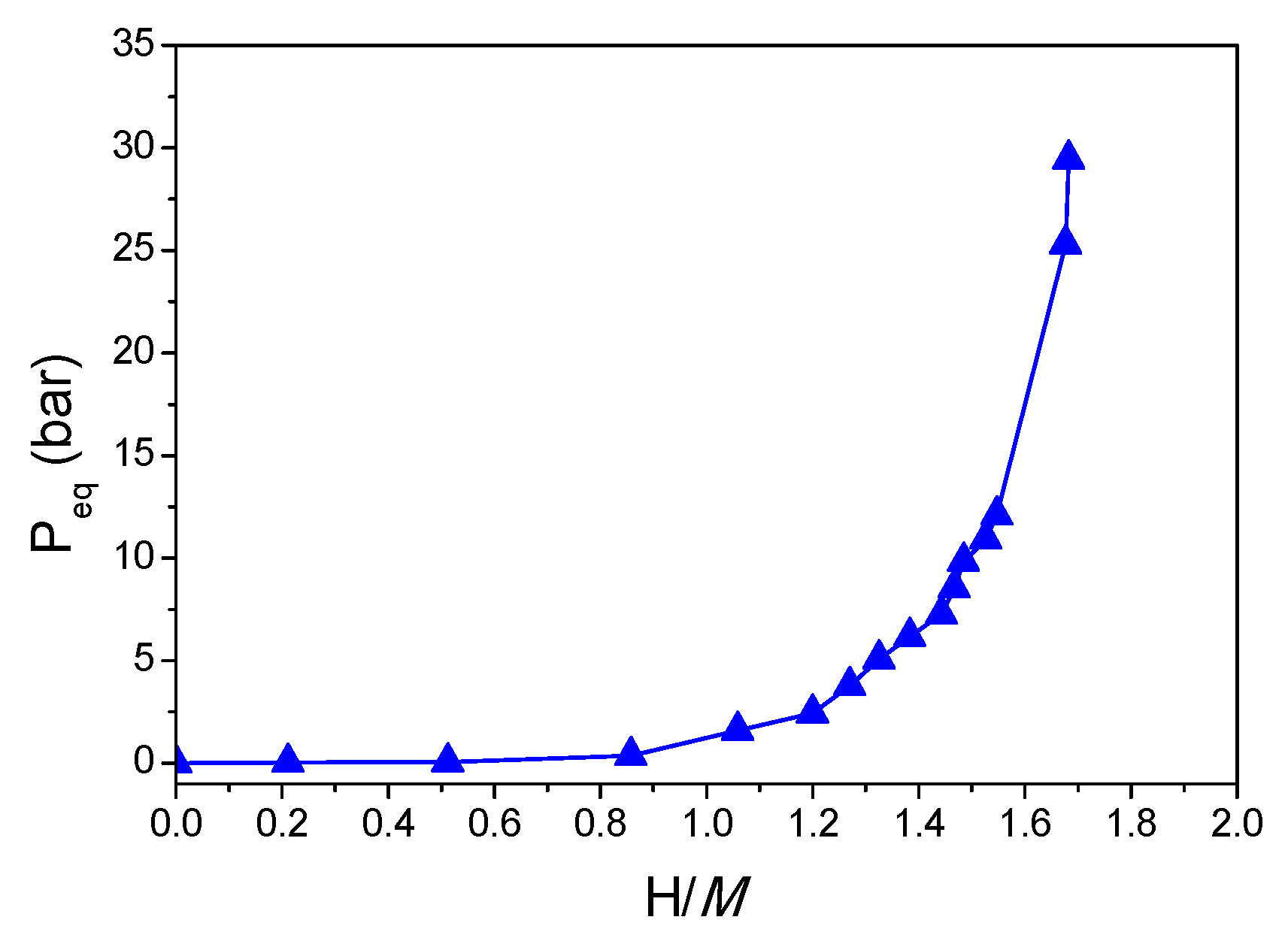

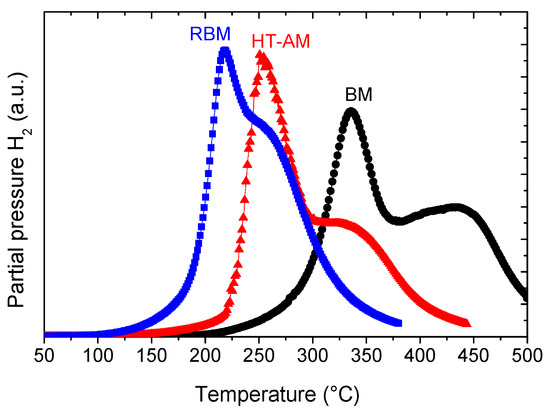

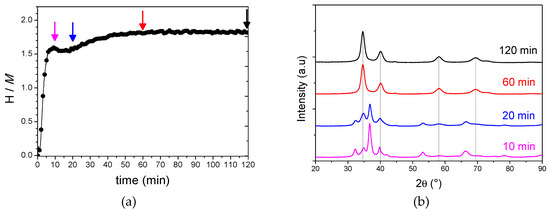

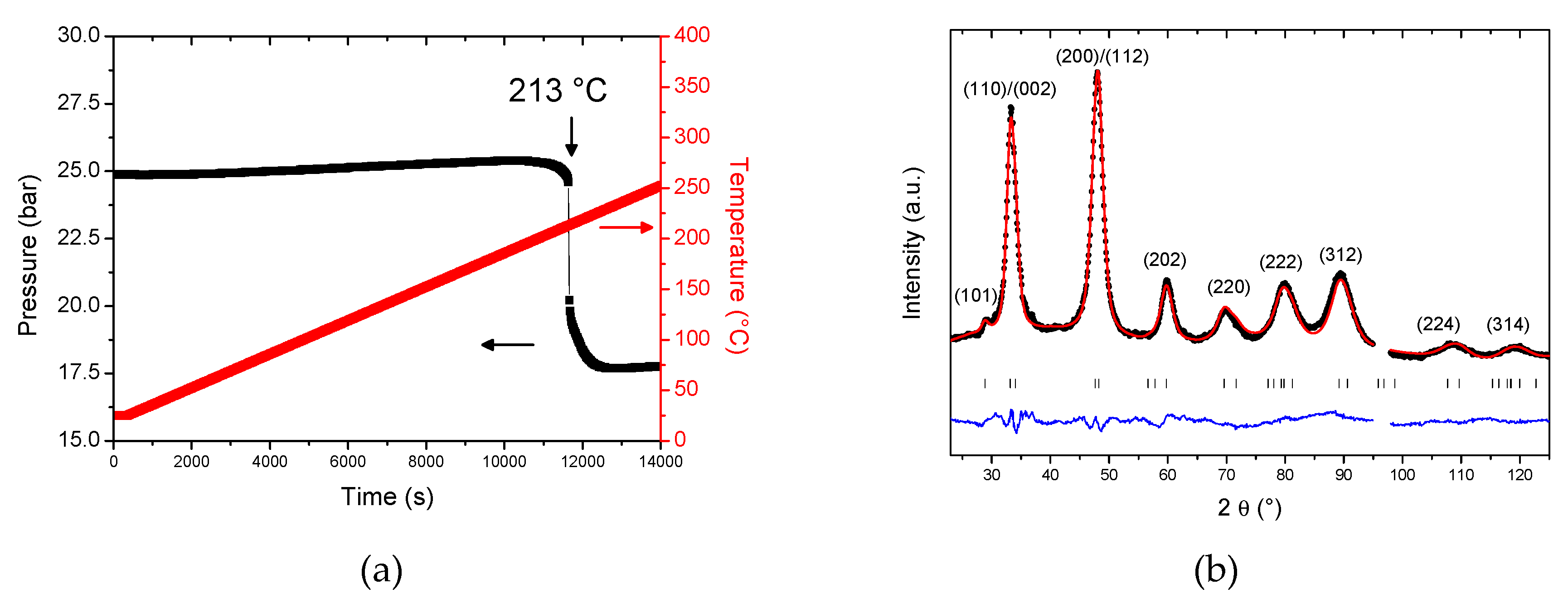

While the overwhelming number of papers on multi-principal-element alloys (MPEAs) focus on the mechanical and microstructural properties, there has been growing interest in these alloys as solid-state hydrogen stores. We report here the synthesis optimization, the physicochemical and the hydrogen sorption properties of Ti0.325V0.275Zr0.125Nb0.275. This alloy was prepared by two methods, high temperature arc melting and ball milling under Ar, and crystallizes into a single-phase bcc structure. This MPEA shows a single transition from the initial bcc phase to a final bct dihydride and a maximum uptake of 1.7 H/M (2.5 wt%). Interestingly, the bct dihydride phase can be directly obtained by reactive ball milling under hydrogen pressure. The hydrogen desorption properties of the hydrides obtained by hydrogenation of the alloy prepared by arc melting or ball milling and by reactive ball milling have been compared. The best hydrogen sorption properties are shown by the material prepared by reactive ball milling. Despite a fading of the capacity for the first cycles, the reversible capacity of the latter material stabilizes around 2 wt%. To complement the experimental approach, a theoretical investigation combining a random distribution technique and first principle calculation was done to estimate the stability of the hydride. View Full-Text
Keywords: multi-principal element alloys; hydrogen absorption; phase transformation; neutron diffraction; thermo-desorption spectroscopy; SQS-DFT multi-principal element alloys; hydrogen absorption; phase transformation; neutron diffraction; thermo-desorption spectroscopy; SQS-DFT
Show Figures

Graphical abstract

MDPI and ACS Style

Montero, J.; Zlotea, C.; Ek, G.; Crivello, J.-C.; Laversenne, L.; Sahlberg, M. TiVZrNb Multi-Principal-Element Alloy: Synthesis Optimization, Structural, and Hydrogen Sorption Properties. Molecules 2019, 24, 2799.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
