Comparison of Serum Metabolite Changes of Radiated Mice Administered with Panax quinquefolium from Different Cultivation Regions Using UPLC-Q/TOF-MS Based Metabolomic Approach

by
Zhenxian Qin
†,
Chan Jia
†,
Dengqun Liao
†,
Xiaofang Chen
and
Xian’en Li
*
Institute of Medicinal Plant Development, Chinese Academy of Medical Sciences & Peking Union Medical College, Beijing 100193, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2018, 23(5), 1014; https://doi.org/10.3390/molecules23051014
Submission received: 10 April 2018 / Revised: 22 April 2018 / Accepted: 24 April 2018 / Published: 26 April 2018
Browse Figures
Versions Notes

Abstract

:
Chemometric analysis of bioactive compounds revealed that American ginsengs (AGs) from different cultivation regions of China had a difference in quality, which indicates their possible pharmacological difference. A UPLC-Q/TOF-MS-based untargeted metabolomic approach was used to uncover serum metabolite changes in radiated mice pre-administered with AG root decoctions from seven cultivation regions and to further assess their quality difference. OPLS-DA revealed that 51 metabolites (ESI−) and 110 (ESI+) were differentially expressed in sera between the control and the radiated model mice. Heatmap analysis further revealed that AG could not reverse most of these radiation-altered metabolites, which indicates dietary supplement of AG before cobalt radiation had the weak potential to mediate serum metabolites that were altered by the sub-lethal high dose radiation. In addition, 83 (ESI−) and 244 (ESI+) AG altered metabolites were detected in radiated mice under radiation exposure. Both OPLS-DA on serum metabolomes and heatmap analysis on discriminant metabolites showed that AGs from different cultivation regions differentially influenced metabolic alterations in radiated mice, which indicates AGs from different cultivation regions showed the pharmacological difference in modulation of metabolite changes. AGs from Shandong, Shanxi, and Beijing provinces had more similar pharmacological effects than AGs from USA, Canada, Jilin, and Heilongjiang. Finally, 28 important potential biomarkers were annotated and assigned onto three metabolic pathways including lipid, amino acid, and energy metabolisms.

1. Introduction

American ginseng (Panax quinquefolius L., Xi yangshen in Chinese) is a perennial medicinal plant of the genus Panax in Araliaceae family. It has been a popular traditional Chinese medicine since the 17th century. Many studies demonstrated that American ginseng had a wide range of pharmacological effects including immunomodulatory [1,2,3], antioxidative [4,5,6], anti-inflammatory [7,8], anticancer [7,9,10], antidiabetic [11,12], and anti-aging effects [13]. Due to its high medical values like other ginseng species, AG roots known as the main used medicinal organs of this species are widely used in the world not only as drugs but also as dietary supplements and food. China is one of a large AG-consuming country and also one of three primary AG-producing countries including its places of origin, which is America and Canada. After the successful introduction into China in the 1980s, American ginseng is now cultivated in three main regions including Northeast China, Shandong Peninsula, and the Huairou district of Beijing and also on a small scale in other provinces such as the Qinling region in Shanxi [14,15]. AG products from the same or different cultivation regions of China or from native countries (USA and Canada) vary greatly in quality and root appearance, which usually influences their market share and pricing. In order to reveal the quality difference of AGs from different cultivation regions of China and to see whether our domestic AGs, after near 40 years of domestication, had a close quality to cultivated AGs of USA and Canada, Chinese researchers/scientists evaluated AG quality of different geographical origins based on the contents of saponins, which are the major bioactive compounds [14,15,16,17,18,19,20,21]. These results showed that AGs from the specific cultivation regions of China had a similar total saponin content and varied in content of some ginsenosides. Fourier infrared spectroscopy analysis on methanol-dissolved AG extracts uncovered the metabolite difference of AG products from seven cultivation regions including the United States, Canada, and five provinces of China (Heilongjiang, Jilin, Shandong, Shanxi, and Beijing) [22]. TCM theory thinks that therapeutic or pharmacological effects of an herbal medicine are determined by the comprehensive actions of all the metabolites within itself. In this sense, clinical therapeutic effects are more convincing and direct indicators for quality evaluation of medicinal plants. However, no such pharmacological research has been conducted until now to reveal whether AGs from different cultivation regions have different or similar medical effects and to further assess their quality difference.
Metabolomics, which is a relatively new branch, has become a powerful approach to qualitative and quantitative analysis of the entire metabolites (mass < 1000 Da) within a given sample, which provides the metabolite fingerprinting of the sample and, therefore, could distinguish multiple samples under different physiological statuses or could be subjected to an environmental stimulus. Many high-throughput analytical techniques including NMR spectroscopy, LC-MS, and GC-MS are applied in metabolomics studies because of their efficiency in separating metabolites and identifying patterns or metabolite markers among a great number of samples. Pharmacology-based metabolomics has the potential not only to study pharmacological effects of herbal plants and their metabolic action mechanisms [23,24] but also to discriminate plant species of the same genus [25,26] and the same plant species from different cultivation regions [27]. It was also adopted to assess the holistic quality of herbal medicinal products [28].
Ionizing radiation occurs accidentally or regularly around us, which renders various health problems. 60Co-γ radiation is often applied to study radiation-induced injuries on living organisms and radiation-therapy effects and to screen radiation-protective or alleviating agents [29,30,31,32,33]. 60Co-γ radiation generates reactive oxygen species (ROS) and results in many adverse biological effects including the damage of DNA, proteins, and lipids at the molecular level and consequent changes of gene expression and blood biochemicals or metabolites, which further injures hematopoietic, immunological, and gastrointestinal tissues. This depends on the radiation dose and dose rate adopted in the experiments. The genome-wide gene expression analysis revealed that radiation exposure mainly induced the genes involved in the immune system and in cancer development pathways. 1 Gy radioactive exposure was likely the critical threshold dosage for carcinogenesis and metabolic disorders in peripheral blood mononuclear cells [34]. Acute phase protein SAA serum amyloid A (SAA), which is an indicator of the severity of acute radiation syndrome (ARS), peaked one day after cobalt radiation and was independent on the radiation dose [32]. The dual biomarkers of total-body irradiation known as the IL-18 binding protein (IL-18BP) and IL-18 were both increased in mice serum on Day 1 after 5 Gy doses of cobalt radiation [35]. These studies indicated that cobalt radiation could induce the rapid changes of serum biochemical components within a few hours or one day after radiation.
Due to its updated and circulating characteristics and no damage to living organisms, serum is often collected for disease diagnosis and therapy effects of medicines through assays of enzyme or metabolite biomarkers inside itself. LC-MS or NMR-based metabolomic analysis revealed that metabolites belonging to amino acids, fatty acids, and lipids were altered in sera of radiated mice or radio-therapeutic patients [36,37,38,39]. Therefore, a UPLC-Q/TOF-MS-based untargeted metabolomics combining multivariate analyses was employed to investigate the holistic metabolite alterations in murine serum one day after cumulative 5.0 Gy of 60Co γ-ray radiation. The Ex Vivo 137Cs γ-ray radiation experiment showed that North American ginseng extract (NAGE) had the radio-protective effects on human lymphocytes through the increase of total antioxidant capacity (TAC) and decrease of the reactive oxygen species (ROS) before and after 137Cs-radiation [40,41]. As a popular herbal antioxidant, American ginseng is taken not only as a regular dietary supplement but is often used in many cancer therapies [42]. Sometimes, radiation is needed for cancer therapy or illness diagnosis. In some cases, American ginseng was used with other drugs or Chinese herbals to improve cancer-related symptoms during or post radiotherapy of cancers [43,44,45,46,47]. Therefore, we investigated the potential modulating effects of AG pre-administration on radiation-induced metabolite alterations in serum of radiated mice and compared the pharmacological difference of AGs from seven cultivation regions, which will facilitate the overall quality assessment and control of AGs.

2. Results

2.1. Method Validation

The typical chromatograms of serum samples in both positive and negative ion modes were shown in Figure S1A,B, respectively. As shown in Figure S1, the metabolites could be well separated within 15 min using the optimized UPLC/Q-TOF-MS conditions. In order to monitor and access the chromatographic stability and reproducibility, repetitive injections of the same quality control (QC) sample were performed before and during sample analysis. Four abundant ion peaks (1.13_226.9511, 3.73_517.9415, 8.73_496.3408, and 9.06_522.3571) were extracted from the positive ion chromatograms of QC samples for method validation. The precision of injection was validated by analysis of six continuous injections of the same QC sample. The RSDs ranged from 0.11% to 0.54% for the retention time and from 5% to 16.7% for peak intensity. Afterward, method repeatability was validated by six replicate analysis of the QC sample. The RSDs of retention time and peak intensity were estimated to be 0.05% to 1.7% and 5.9% to 13.5%, separately. We further evaluated the deviation variation of all the QC samples via principal component analysis (18 QC samples in the positive ion mode and 11 in the negative ion mode). It can be seen that all the QC samples fell within the 2SD’s region and the plot of 95% confidence interval (see Figure 1). All these data indicated that our experimental conditions were suitable for metabolomic data analysis of experimental samples.

2.2. Cobalt-Radiation Induced Metabolite Changes in Mouse Serum

Metabolomic profiling of mouse serum samples yielded a total of 3653 peaks in the positive ion mode and 809 peaks in the negative ion mode, respectively. Principal component analysis (PCA) and Orthogonal partial least squares discriminant analysis (OPLS-DA) are the two most widely used methods in multivariate analysis of high dimensional metabolomic data [48,49]. As an unsupervised multivariate statistic method, PCA depicts the general relationship of experimental samples. OPLS-DA is a popular and effective supervised multivariate analysis, which separates the systematic variation in X into between-class variation (Y-linear) and is uncorrelated within-class variation (Y-orthogonal), which makes metabolomic data more easy to interpret [50]. In our study, we first performed PCA and OPLS-DA to discern whether the cumulative 5.0 Gy of 60Co γ-ray radiation caused metabolite change in mouse serum. Both analyses revealed that there was a complete separation between the model and control groups (see Figure 2). In the positive ion mode, the PCA resulted in three principal components with R2X (cum) = 0.489 and Q2 (cum)  = 0.189. OPLS-DA resulted in one predictive component and four orthogonal components. The predictive component (R2X1 = 0.222) could reveal all the variance in the class separation (R2Y cum) with the predictive ability of 86.2% (Q2 cum). In the negative ion mode, PCA resulted in three principal components, which revealed 48.9% of the total variance induced by radiation exposure. OPLS-DA obtained one predictive component with R2X = 0.314 and three orthogonal components, which explained 99.8% of the variations among all the samples. The predictive ability of Q2 (cum) was 92.6%. At the same time, the robust of two constructed OPLS-DA models was further confirmed by Coefficient variability analysis of variance (CV-ANOVA) with a p value of 0.000602037 and 1.16212e-005, respectively. Therefore, the cobalt-radiated model was successfully established and can be further used for the pharmacological analysis of American Ginseng on ionizing radiation and for quality assessment of AGs from different cultivation regions. However, individuals within the same treatment group were dispersed in the unsupervised PCA score plots and divided into two major subgroups in OPLS-DA score plots, which indicated that the contents of serum metabolites varied greatly among individuals under the same treatment.
In order to reveal whether pre-administration of AG decoction could modulate radiation-induced metabolite alterations in the sera of radiated mice, we subsequently performed PCA and OPLS-DA on metabolomic data of all the nine groups (see Figure 3). In the positive ion mode, the PCA and OPLS-DA results (see Figure 3A,B) showed that the non-irradiated normal control group was separated from the model and AG groups (for the convenience, AG group(s) here and after was referred to AG-pre-administered radiated group(s)). However, there was no apparent separation between AG groups and the model group. The OPLS-DA model produced four predictive components and two orthogonal components. The quality parameters of OPLS-DA model were R2X (cum)  = 0.453, R2Y (cum)  =  0.391, Q2 (cum)  =  0.277, separately. In the negative ion mode, OPLS-DA fitted mode resulted in one predictive and four orthogonal components with R2X (cum)  = 0.528, R2Y (cum) =  0.871, Q2 (cum)  = 0.501 (see Figure 3D). The model control group was separated from both the control group and AG groups, which indicates that the negative ion mode was more powerful to discriminate different AG treatments than the positive ion mode. p values obtained from CV-ANOVA validation also showed that the OPLS-DA models constructed by nine groups were statistically significant and workable.

2.3. Serum Metabolite Changes in Radiated-Mice Administered with AG Decoction

In pairwise comparisons of the model group and the individual AG groups, OPLS-DA discriminated all AG-administered mice groups from the mouse model (data not shown). OPLS-DA comparing the model group, the control group, and each individual AG groups showed that AG-pretreated groups especially in the negative ion mode were separated from the cobalt-radiated model group and also from the control (see Figure S2A,B), which suggests that the dietary supplement of American ginseng can interrupt the serum metabolism under normal and adverse conditions. Although Figure 3 could not reveal that all the AG groups were clearly separated from the model group, it was observed that some AG groups including US, CA, HLJ, and JL groups were much closer to the model group, which indicates that there was the pharmacologically radiation-responding difference of mice administered with AGs from the different cultivation regions.
In order to reveal whether pre-administration of AG decoction could have anti-radiation effects on frequent or occasional exposure to ionizing radiation at the metabolite level, we first investigated the influence of AG pretreatment on cobalt-radiation altered metabolites, which were identified in OPLS-DA models by comparing the model and control groups (Table 1, Figure 4A,B). In the positive ion mode, Table 1 showed that a total of 110 metabolites (46 increased/64 decreased) were altered between the control and radiated model group, which was based on our differential metabolite screening criteria described in the method. In total, 68 common metabolites were found significantly distinct between the control and all AG groups. In the negative ion mode, 51 metabolites with 15 metabolites increased and 36 metabolites decreased in the model mice, which were altered by cobalt radiation compared to the control group. Heatmap analysis on these differential metabolites revealed that they had similar changing trends in sera of AG-administered mice groups as the model group (see Figure 4A,B), which suggests that the supplement of AG decoction before cobalt radiation could not modulate the radiation-altered metabolites especially in our experiment where cobalt radiation was applied with a high dose within the short time. At the same time, our heatmap results also revealed that mice groups receiving AG decoctions of different cultivation regions were clustered into two major groups. The cluster containing US, CA, HLJ, and JL groups had less differential metabolites from the model group. Their metabolite contents were closer to those of the model group. The second sub-cluster comprising SD, SX, and BJ groups had more differential metabolites relative to the model group. The changing values of the differential metabolites in sera of these three AG-treated mice were higher than those of the former four AG groups.
In order to identify AG altered metabolites under the condition of radiation exposure, we made pairwise comparisons of individual AG groups and the model group (Table 1, Figure 5A,B). In the positive ion mode, a total of 291 metabolites were significantly changed between AG groups and the model radiated group, which included 47 metabolites differentially expressed between the control and model groups. The number of significantly changed metabolites between AG groups and the model group ranged from 17 (USA) to 146 (BJ), which indicates that AGs from the different cultivation regions affected mouse serum metaboliomics differently when exposed to cobalt radiation. In the negative ion mode, a total of 111 metabolites were significantly altered by pre-administration of AG decoction, which included 28 metabolites differentially expressed between the control and model groups. Additionally, 13 (USA) to 57 (BJ) differential metabolites were detected between AG groups and the model group. Heatmap analysis on these AG altered metabolites (see Figure 5A,B) observed similar results as Figure 4A,B with regard to the influence of place origins of AG decoctions on metabolite changes in radiated mouse serum. Therefore, AGs from different cultivation regions showed the pharmacological difference in modulation of metabolite changes. SD, SX, and BJ groups were still clustered together and showed different metabolite alterations from US, CA, and HLJ groups, which were located on the same branch as the model and control groups. The model and control groups were clustered on the same branch than the other seven AG groups, which reflects that some metabolites in the mouse serum were induced specifically by AG pre-administration (see Figure 5A,B).

2.4. Biomarker Identification and Metabolic Pathway Analysis

Among the statistically significant differential metabolites with VIP values ≥1, 28 metabolites were annotated as fatty acids, amino acids, and lysophospholipids and assigned onto three KEGG metabolic pathways including lipid, amino acid, and energy metabolism (see Table 2). As such, 20 metabolites were found to have the fragment ions compared with the reported characteristic ions in research studies (see Table S1). Additionally, 22 of these identified metabolites showed the differential expression between the control and radiated model groups of which six lipid metabolites including myristic acid, cis-8,11,14,17-eicosatetraenoic acid, LysoPC (14:0), LysoPC (16:1), LysoPC (18:1), and LysoPC (22:5) were attenuated or increased by AG decoction especially from Shandong, Shanxi, Jilin, and Beijing provinces (see Figure 6). Lipid peroxidation was increased greatly in the radiated mouse and can be reduced by antioxidants such as melatonin [29]. As a satisfactory antioxidant, American ginseng may be related to the reduction of lipid peroxidation, which increased the contents of unsaturated fatty acids and several lysophospholipids.

3. Discussion

In this study, we aimed to investigate the in vitro pharmacological effect of American ginseng on radiation via an untargeted serum metabolomic analysis and to reveal the quality difference of American ginseng from different cultivation regions. Although ex vivo experiments revealed that American ginseng had the radioprotective effects in reducing radiation-induced DNA damage through the increase of the total oxidant and the reduction of ROS [40,41], our serum metabolomic results showed that pre-treatment of American ginseng could not reverse most of the radiated-altered serum metabolites in mice with only a few metabolites ameliorated. This result indicated that American ginseng had the very weak radiation-protective or therapeutic effects in terms of modulating the overall radiation-altered metabolites in the serum. It was observed that the radio-protective effect of AG on human lymphocytes was concentration-dependent, dose-dependent, and administration-time-dependent [40,41]. In these two ex vivo studies, AG was administered one day before or 90 min after radiation exposure. However, our serum samples were collected for the metabolomic analysis six days after the last administration, which consisted of five days of consecutive radiation. In addition, the high-dose radiation we used in this experiment is a sub-lethal dose that caused irreversible injuries on living organisms [29]. Therefore, the radiation-induced metabolite changes were unable to be reversed by AG in our experimental conditions. However, our present finding of AG modulation on radiation-induced metabolite changes need to be further validated with a relatively low-dose and short-term radiation. In addition, observation should be made around the last administration of AG decoction. Furthermore, the continued duration of AG in vivo radioprotective effects also should be investigated. These future studies combining our current result will provide some more information on the potential radioprotection of American ginseng and the optimal administration time during radiation therapy or diagnosis.
In addition, our results could still reveal that there was a pharmacological effect difference in American ginseng from different cultivation regions in this radiation experiment. AGs grown in Shandong, Shanxi, and Beijing provinces showed more similar pharmacological effects than AGs from four other cultivation regions including USA, Canada, Jilin, and Heilongjiang. Zhang et al. [51] found that AG quality, which was assessed by ginsenoside content, was more highly correlated with its origin place than traditional commercial specifications (root size and length). American ginseng originated from the United States and Canada, which are now two important producing areas of American ginseng in the world. Based on ecotype data and ginsenoside content, Huang et al. [17] classified the domestic AGs into two major chemo-ecotype groups: Beijing and Shandong group and Northeast group including Heilongjiang, Jilin and Liaoning provinces. Using the infrared spectroscopy method, Jia et al. [22] classified the above seven AG groups into the US-group and the Shanxi-group, the Canada group and the third group containing AG from HLJ, BJ, SD, and JL provinces, which was somewhat different from our in vivo metabolomic results.
In summary, the long-term dietary supplement of AG had a weak potential to mediate the metabolite alterations that were induced by the sub-lethal high dose radiation. AGs from different cultivation regions showed the pharmacological difference in modulation of metabolite changes under radiation. In Vitro experiments and AG utilization in cancer radiotherapy proved that AG had the radioprotection or improvement on radiation side effects. Our current result combines future studies such as the preventive efficacy of AG and its lasting time as a potential radioprotector. This will provide some more information on its optimal administration dose/time during radiation therapy or diagnosis.

4. Materials and Methods

4.1. American Ginseng Root Samples and Decoction Preparation

A total of 38 four-year-old AG main root samples were used to study radiation-related pharmacological effects of American ginseng from seven different geographical locations including the United States (represented by Wisconsin state), Canada (represented by Quebec province), and five provinces of China including Heilongjiang, Jilin, Shandong, Shanxi, and Beijing. Among these samples, 25 domestic American ginseng root samples were collected from farms in 2015 and 11 imported root samples were purchased from Beijing Tongrentang Co., Ltd., Beijing, China. Another two root samples were obtained directly from American provinces (Wisconsin state) and Canada (Quebec province). These 38 dried root samples were separately ground and sieved via a 60 mesh sieve. Then the equal amount of root powders from different batches (cultivation regions) from the same originating province/country were weighed and mixed up, which served as the sample from the same province of China, USA, or Canada. Additionally, 20 grams of the mixed root powder in each province or country was immersed in 500 mL of distilled water for one hour and then boiled for 45 min. The extracted solution was filtered and the residue was re-extracted twice in the same way. Finally, three filtrates were combined, concentrated to 100 mL, and stored at a low temperature for the below administration experiment.

4.2. Animals, Administration, and Co60 γ-Radiation Experiments

The animal experiments were performed according to the Guidelines of National Health Institutes of China for the Care and Use of Laboratory Animals and approved by the Institutional Animal Care and Welfare Committee of IMPLAD (Institute of Medicinal Plant Development) with the certificate No. SYXK2013-0023 (Jing). Additionally, 108 five-week old male ICR mice (18–22 g) were purchased from the Peking University Health Science Center, Beijing, China (No. SCXK (Jing) 2014–0006) and housed at the temperature of 22 °C to 23 °C and humidity of 50% to 60% in a 12/12 h light/dark cycle at the animal center of IMPLAD, Beijing, China. All the mice could freely access an aseptic diet and tap water. After one week of acclimation, 108 mice were randomly divided into nine equal groups, which includes the control (vehicle) group, the model control group, and seven groups that were administered separately with AG decoctions of seven cultivation regions. For the convenience, the administered mice group was named after the production province or country of its administered AG decoction including the US, CA, HLJ, JL, SD, SX, and BJ group. Additionally, 0.2 mL AG decoction /10 g mouse weight was intragastrically injected into each mouse daily for four consecutive weeks. At the same time, the mice in the control and model groups received an equal volume of distilled water. After the last administration, mice in model and administered groups were whole body irradiated for five consecutive days with the daily 1.0 Gy 60Cobalt γ-rays.

4.3. Serum Metabolomic Analysis

4.3.1. Serum Sample and QC Sample Preparation

In total, eight to 12 mice in each group were used to study radiation-associated pharmacological effects of American ginseng from seven different geographical locations by using mouse serum metabolomic analysis. The day after the last 60Cobalt-γ radiation, blood samples were collected through eye vessels by removing mouse eyeballs and then centrifuging at 4 °C at 3500 rpm for 10 min to isolate serum supernatant for serum metabolomic analysis. They were immediately stored in −80 °C until undergoing UPLC-Q/TOF-MS analysis. Prior to the analyses, the frozen serum samples thawed at 4 °C. 200 μL of the serum sample was mixed with 600 μL of 4 °C pre-cooled acetonitrile (ACN) and vortexed for 30 s. The mixture was kept on ice for 15 min and subsequently centrifuged at 15,000 rpm at 4 °C for 15 min. The supernatant was collected, filtered through a 0.22 μm membrane filter, and then transferred into the inner vial in order to undergo UPLC/Q-TOF-MS analysis. Meanwhile, 10 μL of the individual serum supernatant samples from the different groups were taken and mixed up as the quality control (QC) sample. The steps to prepare the QC sample for UPLC/Q-TOF-MS analysis were performed on the aforementioned serum samples.

4.3.2. UPLC/Q-TOF-MS Analysis

Five microliters of the serum sample were separated at 40 °C on a Waters AcquityTM Ultra Performance LC system (Waters Corporation, Milford, MA, USA) and coupled with a Waters UPLC BEH C18 column (1.7 µm, 2.1 × 100 mm, Waters Corp. Milford, MA, USA). The flow rate was set to 0.2 mL/min. The mobile phase consisted of 0.1% formic acid in water (A) and ACN (B) and was run in an optimized gradient program using the following parameters: 5% B at 0–0.5 min, 5–30% B at 0.5–2 min, 30–60% B at 2–5 min, 60–80% B at 5–8 min, 80–100% B at 8–11 min, 100–5% B at 11–13 min and 5% of B for 2 min to re-equilibrate the column. All the samples of the same group were analyzed before the next group of samples was initiated. Seven consecutive injections of the QC sample were performed to stabilize the instrument system before the formal samples were analyzed. At the same time, in order to monitor the condition and stability of the UPLC instrument system, the blank and the abovementioned QC sample were injected recurrently during the run of each group.
MS data acquisition was performed in the positive/negative ion modes on the Synapt G2 high definition mass spectrometer system (Waters Corporation, Milford, MA, USA), which was equipped with an ESI ion source. The optimized ESI conditions included capillary voltage, 3 kV for the positive ion mode, 2.8 kV for the negative ion mode, a sampling cone voltage of 40 V, a desolvation gas temperature of 450 °C with a desolvation gas flow of 600 L/h, a source temperature of 120 °C with a cone gas flow of 50 L/h, and collision energy of 6 V. The centroid data were acquired over the range of m/z 50–1000 at a scan rate of 0.15 s with the inter-scan delay of 0.02 s.

4.3.3. Multivariate Analysis of UPLC/Q-TOF-MS Data

The raw chromatographic data were then introduced into the MarkerLynx Applications Manager package of MassLynx 4.1 software (Waters Corp., Manchester, UK) for peak extraction and assignment. The parameters for peak extraction and alignment included a retention time range of 0–15 min, an XIC window of 0.02 Da, peak width at 5% height and 1 s, default peak–peak baseline noise, smoothing applied, marker intensity threshold (counts) of 100, a mass tolerance of 0.02 Da, RT windows of 0.1 s, a noise elimination level of 6, and deisotope peaks selected. The resultant data including retention times, m/z, and ion intensities were exported as USP files and then transferred into SIMCA-P software (V.13.0, Umetric, Umea, Sweden) for pareto normalization, multivariate analysis, and identification of differentially-expressed metabolites between two compared groups of mice. Multivariate analyses (MVA) including PCA and OPLS-DA were used to discern the global metabolomic differences among the control (vehicle) group, the model control group, and administered groups. The quality of OPLS-DA models was evaluated by p-values obtained in CV-ANOVA analysis. The default 7-round cross-validation was applied during the construction of MVA models and CV-ANOVA analysis.
To identify potential biomarkers for radiation-induced injuries and screen potential biomarkers contributing to anti-radiation effects of AG decoction as well as explain differential anti-radiation effects of AGs from different cultivation regions, OPLS-DA models between two groups were established for pairwise comparisons. The differential biomarkers were obtained through the following three sequential screening steps: (1) to select the variables with VIP ≥ 1 to construct S-plot for the list analyzed in Step 2, (2) to extract the former variables with |P(corr)| value ≥ 0.65 to construct a coefficient plot for the list analyzed in Step 3, and (3) to create the list in Step 2 whose Jack-knifed confidence intervals (CIJFjk) were present on the same side of the X-axis in the coefficient plot. These candidate biomarkers were further subjected to a two-tailed t-test to determine the statistical significance of the differential metabolites between two compared groups. To reveal the changing trends of the differential metabolites among different treated groups, these screened metabolites (ions) were further subjected to the unsupervised heatmap analysis, which was implemented by the MetaboAnalyst (http://www.metaboanalyst.ca/). The identities of significant biomarkers were deduced by comparing m/z information of their parent ion and MS/MS ion fragments with those of the Human Metabolome Database (http://www.hmdb.ca/), PubChem Compound databases (http://ncbi.nim.nih.gov/), and research reports. The mass error of deduced metabolites between the experimental mass and the theoretical mass was allowed to be ≤15 parts-per-million (ppm). The relevant metabolic pathways of deduced metabolites were obtained using the KEGG database (http://www.genome.jp/kegg/).

4.4. Metabolite Concentration

The concentrations of the detected metabolites in mouse serum were expressed as peak areas and their values for administered groups, model groups, and normal controls were reported as the means ± SD. One-way analysis of variance (ANOVA) followed by the Turkey’s multiple comparison test, which was applied using GraphPad Prism 6 software, was utilized to determine the statistical significance of the metabolites between the control and AG groups and the model group.

Supplementary Materials

The following are available online. Figure S1: Typical total ion chromatograms of mouse serum sample analyzed by UPLC/Q-TOF-MS. Figure S2: OPLS-DA score plots of three groups of serum metabolomes. Table S1: The metabolites and their fragment ions detected by UPLC-Q/TOF-MS analysis.

Author Contributions

Z.Q., C.J., and D.L. contributed equally to this work. They analyzed the data and wrote the manuscript. X.L. conceived and designed the experiments and revised the manuscript. X.C. helped C.J. throughout the animal experiment. All the authors read and approved the final manuscript.

Acknowledgments

We thank Yong Yang from our institute for his help with data analysis. This work was financially supported by the Standardization of Seeds, Seedlings and Plantation of Chinese Medicinal Herbs, National Science and Technology Major Project of China (2012ZX09304006) and CAMS Initiative for Innovative Medicine (2017-I2M-3-013). The costs to publish in open access will be covered by our funds.

Conflicts of Interest

The authors declare no conflict of interest. The funding sponsors had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

References

  1. Lemmon, H.R.; Sham, J.; Chau, L.A.; Madrenas, J. High molecular weight polysaccharides are key immunomodulators in North American ginseng extracts: Characterization of the ginseng genetic signature in primary human immune cells. J. Ethnopharmacol. 2012, 142, 1–13. [Google Scholar] [CrossRef] [PubMed]
  2. Yu, Z.P.; Xu, D.D.; Lu, L.F.; Zheng, X.D.; Chen, W. Immunomodulatory effect of a formula developed from American ginseng and Chinese jujube extracts in mice. J. Zhejiang Univ. Sci. B 2016, 17, 147–157. [Google Scholar] [CrossRef] [PubMed]
  3. Qi, B.; Wang, S.; Wang, Q.; Zhang, H.; Bai, X.Y.; He, H.N.; Sun, W.J.; Liu, L.; Zhao, D.Q. Characterization and immunostimulating effects on murine peritoneal macrophages of a novel protein isolated from Panax quinquefolius L. J. Ethnopharmacol. 2016, 193, 700–705. [Google Scholar] [CrossRef] [PubMed]
  4. Kitts, D.D.; Wijewickreme, A.N.; Hu, C. Antioxidant properties of a North American ginseng extract. Mol. Cell. Biochem. 2000, 203, 1–10. [Google Scholar] [CrossRef] [PubMed]
  5. Sen, S.; Chen, S.; Feng, B.; Wu, Y.X.; Lui, E.; Chakrabarti, S. American ginseng (Panax quinquefolius) prevents glucose-induced oxidative stress and associated endothelial abnormalities. Phytomedicine 2011, 18, 1110–1117. [Google Scholar] [CrossRef] [PubMed]
  6. Bowie, L.E.; Roscoe, W.A.; Lui, E.M.; Smith, R.; Karlik, S.J. Effects of an aqueous extract of North American ginseng on MOG(35–55)-induced EAE in mice. Can. J. Physiol. Pharmacol. 2012, 90, 933–939. [Google Scholar] [CrossRef] [PubMed]
  7. Yu, C.; Wen, X.D.; Zhang, Z.; Zhang, C.F.; Wu, X.; He, X.; Liao, Y.; Wu, N.; Wang, C.Z.; Du, W.; et al. American ginseng significantly reduced the progression of high-fat-diet-enhanced colon carcinogenesis in Apc (Min/+) mice. J. Ginseng Res. 2015, 39, 230–237. [Google Scholar] [CrossRef] [PubMed]
  8. Garbett, J.; Wilson, S.A.; Ralston, J.C.; De Boer, A.A.; Lui, E.M.; Wright, D.C.; Mutch, D.M. North American ginseng influences adipocyte-macrophage crosstalk regulation of inflammatory gene expression. J. Ginseng Res. 2016, 40, 141–150. [Google Scholar] [CrossRef] [PubMed]
  9. Wang, C.Z.; Aung, H.H.; Zhang, B.; Sun, S.; Li, X.L.; He, H.; Xie, J.T.; He, T.C.; Du, W.; Yuan, C.S. Chemopreventive effects of heat-processed Pana xquinquefolius root on human breast cancer cells. Anticancer Res. 2008, 28, 2545–2551. [Google Scholar] [PubMed]
  10. Park, E.H.; Kim, Y.J.; Yamabe, N.; Park, S.H.; Kim, H.K.; Jang, H.J.; Kim, J.H.; Cheon, G.J.; Ham, J.; Kang, K.S. Stereospecific anticancer effects of ginsenoside Rg3 epimers isolated from heat-processed American ginseng on human gastric cancer cell. J. Ginseng Res. 2014, 38, 22–27. [Google Scholar] [CrossRef] [PubMed]
  11. Sen, S.; Querques, M.A.; Chakrabarti, S. North American ginseng (Panax quinquefolius) prevents hyperglycemia and associated pancreatic abnormalities in diabetes. J. Med. Food 2013, 16, 587–592. [Google Scholar] [CrossRef] [PubMed]
  12. Mucalo, I.; Jovanovski, E.; Vuksan, V.; Božikov, V.; Romić, Z.; Rahelić, D. American ginseng extract (Panax quinquefolius L.) Is safe in long-term use in type 2 diabetic patients. Evid. Based Complement. Altern. Med. 2014, 969168. [Google Scholar] [CrossRef]
  13. Liu, Y.; Zhang, J.T. Comparative study on anti-aging action of Panax Ginseng (GQ) and quinquefolium (PQ). Chin. Pharmacol. Bull. 1997, 13, 229–232. [Google Scholar]
  14. Sun, J.H.; Chen, P. Differentiation of Panax quinquefolius grown in the USA and China using LC/MS-based chromatographic fingerprinting and chemometric approaches. Anal. Bioanal. Chem. 2011, 399, 1877–1889. [Google Scholar] [CrossRef] [PubMed]
  15. Sun, X.; Chen, P.; Cook, S.L.; Jackson, G.P.; Harnly, J.M.; Harrington, P.B. Classification of cultivation locations of Panax quinquefolius L samples using high performance liquid chromatography-electrospray ionization mass spectrometry and chemometric analysis. Anal. Chem. 2012, 84, 3628–3634. [Google Scholar] [CrossRef] [PubMed]
  16. Zhou, H.Y.; Zhao, R.H.; Fu, J.G.; Li, Y. Investigation on production and commercial specification quality of Amercican ginseng cultivated in China. Mod. Chin. Med. 2013, 15, 324–328. [Google Scholar]
  17. Huang, L.F.; Suo, F.M.; Song, J.Y.; Wen, M.J.; Jia, G.L.; Xie, C.X.; Chen, S.L. Quality variation and ecotype division of Panax quinquefolium in China. Acta Pharm. Sin. 2013, 48, 580–589. [Google Scholar]
  18. Tang, Y.; Yan, S.M.; Wang, J.J.; Yuan, Y.; Yang, B. Quality evaluation of American ginseng using UPLC coupled with multivariate analysis. China J. Chin. Mater. Med. 2016, 41, 1678–1684. [Google Scholar]
  19. Xu, W.N.; Han, X.L.; Wang, K.P.; Wang, Z.; Dong, W.P.; Tian, Y.X. Comparison research of total saponins’s content of American ginseng from different regions. Ginseng Res. 2012, 4, 11–12. [Google Scholar]
  20. Wang, H.; Zeng, F.L.; Xie, C.X. Study on UPLC-UV-ELSD fingerprints for roots of Panax quinquefolium. Chin. Tradit. Herb. Drugs 2016, 47, 143–148. [Google Scholar]
  21. Zhang, D.; Zheng, K.Y.; Wang, Q.; Hou, F.J.; You, H.L.; Gao, Y.Z.; Wang, Q.Y.; Zheng, Y.G. Study on quality difference between domestic and imported Americanginseng. Mod. Chin. Med. 2017, 19, 833–838. [Google Scholar]
  22. Jia, C.; Chen, X.F.; WU, X.Y.; Li, X.E. Quality evaluation of American ginseng from different regions by infrared spectroscopy. Guid. J. Tradit. Chin. Med. Pharm. 2017, 14, 68–75. [Google Scholar]
  23. Wang, C.Z.; Yu, C.; Wen, X.D.; Chen, L.; Zhang, C.F.; Calway, T.; Qiu, Y.; Wang, Y.; Zhang, Z.; Anderson, S.; et al. American ginseng attenuates colitis-associated colon carcinogenesis in mice: Impact on gut microbiota and metabolomics. Cancer Prev. Res. 2016, 9, 803–811. [Google Scholar] [CrossRef] [PubMed]
  24. Xie, G.; Wang, C.Z.; Yu, C.; Qiu, Y.; Wen, X.D.; Zhang, C.F.; Yuan, C.S.; Jia, W. Metabonomic profiling reveals cancer chemopreventive effects of American ginseng on colon carcinogenesis in Apc(Min/+) mice. J. Proteome Res. 2015, 14, 3336–3347. [Google Scholar] [CrossRef] [PubMed]
  25. Yang, L.; Yu, Q.T.; Ge, Y.Z.; Zhang, W.S.; Fan, Y.; Ma, C.W.; Liu, Q.; Qi, L.W. Distinct urine metabolome after Asian ginseng and American ginseng intervention based on GC-MS metabolomics approach. Sci. Rep. 2016, 6. [Google Scholar] [CrossRef] [PubMed]
  26. Michl, J.; Kite, G.C.; Wanke, S.; Zierau, O.; Vollmer, G.; Neinhuis, C.; Simmonds, M.S.; Heinrich, M. LC-MS- and (1)H NMR-based metabolomic analysis and in vitro toxicological assessment of 43 Aristolochia species. J. Nat. Prod. 2016, 79, 30–37. [Google Scholar] [CrossRef] [PubMed]
  27. Tong, J.H.; Wang, Y.X.; Sun, H.; Liao, N.; Li, X.E.; Qin, M.J.; Pang, X.C. Pharmacodynamic differences between hang maidong and chuan maidong based on metabonomics. Acta Pharm. Sin. 2014, 49, 1451–1456. [Google Scholar]
  28. Lemonakis, N.; Gikas, E.; Halabalaki, M.; Skaltsounis, A.L. Development and validation of a combined methodology for assessing the total quality control of herbal medicinal products—Application to oleuropein preparations. PLoS ONE 2013, 8, e78277. [Google Scholar] [CrossRef] [PubMed]
  29. Khan, S.; Adhikari, J.S.; Rizvi, M.A.; Chaudhury, N.K. Melatonin attenuates 60Co γ-ray-induced hematopoietic; immunological and gastrointestinal injuries in C57BL/6 male mice. Environ. Toxicol. 2017, 32, 501–518. [Google Scholar] [CrossRef] [PubMed]
  30. Zhang, J.; Yu, Y.; Zhang, Z.; Ding, Y.; Dai, X.; Li, Y. Effect of polysaccharide from cultured Cordyceps sinensis on immune function and anti-oxidation activity of mice exposed to 60Co. Int. Immunopharmacol. 2011, 11, 2251–2257. [Google Scholar] [CrossRef] [PubMed]
  31. Shanthakumar, J.; Karthikeyan, A.; Bandugula, V.R.; Rajendra Prasad, N. Ferulic acid, a dietary phenolic acid, modulates radiation effects in Swiss albino mice. Eur. J. Pharmacol. 2012, 691, 268–274. [Google Scholar] [CrossRef] [PubMed]
  32. Ossetrova, N.I.; Condliffe, D.P.; Ney, P.H.; Krasnopolsky, K.; Hieber, K.P.; Rahman, A.; Sandgren, D.J. Early-response biomarkers for assessment of radiation exposure in a mouse total-body irradiation model. Health Phys. 2014, 106, 772–786. [Google Scholar] [CrossRef] [PubMed]
  33. Yang, L.; Yu, M.W.; Wang, X.M.; Zhang, Y.; Yang, G.W.; Luo, X.Q.; Peng, R.Y.; Gao, Y.B.; Zhao, L.; Wang, L.F. Heijiangdan ointment relieves oxidative stress from radiation dermatitis induced by (60)Co γ-ray in mice. Chin. J. Integr. Med. 2016, 22, 110–115. [Google Scholar] [CrossRef] [PubMed]
  34. Lee, K.F.; Weng, J.T.; Hsu, P.W.; Chi, Y.H.; Chen, C.K.; Liu, I.Y.; Chen, Y.C.; Wu, L.S. Gene expression profiling of biological pathway alterations by radiation exposure. Biomed. Res. Int. 2014. [Google Scholar] [CrossRef] [PubMed]
  35. Ha, C.T.; Li, X.; Fu, D.; Xiao, M. Circulating IL-18 binding protein (IL-18BP) and IL-18 as dual biomarkers of total-body irradiation in mice. Radiat. Res. 2016, 185, 375–383. [Google Scholar] [CrossRef] [PubMed]
  36. Khan, A.R.; Rana, P.; Devi, M.M.; Chaturvedi, S.; Javed, S.; Tripathi, R.P.; Khushu, S. Nuclear magnetic resonance spectroscopy-based metabonomic investigation of biochemical effects in serum of γ-irradiated mice. Int. J. Radiat. Biol. 2011, 87, 91–97. [Google Scholar] [CrossRef] [PubMed]
  37. Laiakis, E.C.; Strassburg, K.; Bogumil, R.; Lai, S.; Vreeken, R.J.; Hankemeier, T.; Langridge, J.; Plumb, R.S.; Fornace, A.J., Jr; Astarita, G. Metabolic phenotyping reveals a lipid mediator response to ionizing radiation. J. Proteome Res. 2014, 13, 4143–4154. [Google Scholar] [CrossRef] [PubMed]
  38. Goudarzi, M.; Weber, W.M.; Mak, T.D.; Chung, J.; Doyle-Eisele, M.; Melo, D.R.; Brenner, D.J.; Guilmette, R.A.; Fornace, A.J., Jr. Metabolomic and lipidomic analysis of serum from mice exposed to an internal emitter, cesium-137, using a shotgun LC-MS(E) approach. J. Proteome Res. 2015, 14, 374–384. [Google Scholar] [CrossRef] [PubMed]
  39. Pannkuk, E.L.; Laiakis, E.C.; Mak, T.D.; Astarita, G.; Authier, S.; Wong, K.; Fornace, A.J., Jr. A lipidomic and metabolomic serum signature frommonhuman primates exposed to ionizing radiation. Metabolomics 2016, 12. [Google Scholar] [CrossRef] [PubMed]
  40. Lee, T.K.; O’Brien, K.F.; Wang, W.; Sheng, C.; Wang, T.; Johnke, R.M.; Allison, R.R. American Ginseng modifies Cs-induced DNA damage and oxidative stress in human lymphocytes. Open Nucl. Med. J. 2009, 1, 1–8. [Google Scholar] [CrossRef] [PubMed]
  41. Lee, T.K.; O’Brien, K.F.; Wang, W.D.; Johnke, R.M.; Sheng, C.; Benhabib, S.M.; Wang, T.; Allison, R.R. Radioprotective effect of American ginseng on human lymphocytes at 90 minutes postirradiation: A study of 40 cases. Altern. Complement. Med. 2010, 16, 561–567. [Google Scholar] [CrossRef] [PubMed]
  42. Chang, Y.D.; Smith, J.; Portman, D.; Kim, R.; Oberoi-Jassal, R.; Rajasekhara, S.; Davis, M. Single institute experience with methylphenidate and American ginseng in cancer-related fatigue. Am. J. Hosp. Palliat. Care 2018, 35, 144–150. [Google Scholar] [CrossRef] [PubMed]
  43. Chu, S.X. Experience of Chinese medicine utilization in postradiation lung cancer. Chin. J. Integr. Tradit. West. Med. 1994, S1, 287–288. [Google Scholar]
  44. Li, X.F. Chinese medicine treatment of radiotherapy-induced oral ulcer. J. Emerg. Tradit. Chin. Med. 2008, 17, 255–256. [Google Scholar]
  45. Wang, C.G.; Jia, X.J.; Dong, L.H.; Wu, Z.F.; Gong, S.L.; Ma, X.Y.; Chen, Y.P. Ef fects of PQL on levels of immunal proteins, C3, C4 and expressions of CD4, CD8, and CD25 on lymphocytes of peripherial blood in patients with breast carcinoma undergoing radiotherapy. J. Jilin Univ. Med. Ed. 2005, 31, 287–289. [Google Scholar]
  46. Barton, D.L.; Soori, G.S.; Bauer, B.A.; Sloan, J.A.; Johnson, P.A.; Figueras, C.; Duane, S.; Mattar, B.; Liu, H.; Atherton, P.J.; et al. Pilot study of Panax quinquefolius (American ginseng) to improve cancer-related fatigue: A randomized, double-blind, dose-finding evaluation: NCCTG trial N03CA. Support. Care Cancer 2010, 18, 179–187. [Google Scholar] [CrossRef] [PubMed]
  47. Barton, D.L.; Liu, H.; Dakhil, S.R.; Linquist, B.; Sloan, J.A.; Nichols, C.R.; McGinn, T.W.; Stella, P.J.; Seeger, G.R.; Sood, A.; et al. Wisconsin ginseng (Panax quinquefolius) to improve cancer-related fatigue: A randomized, double-blind trial, N07C2. J. Natl. Cancer Inst. 2013, 105, 1230–1238. [Google Scholar] [CrossRef] [PubMed]
  48. Worley, B.; Powers, R. Multivariate analysis in metabolomics. Curr. Metab. 2013, 1, 92–107. [Google Scholar]
  49. Worley, B.; Powers, R. PCA as a practical indicator of OPLS-DA model reliability. Curr. Metab. 2016, 4, 97–103. [Google Scholar] [CrossRef] [PubMed]
  50. Wiklund, S.; Johansson, E.; Sjöström, L.; Mellerowicz, E.J.; Edlund, U.; Shockcor, J.P.; Gottfries, J.; Moritz, T.; Trygg, J. Visualization of GC/TOF-MS-based metabolomics data for identification of biochemically interesting compounds using OPLS class models. Anal. Chem. 2008, 80, 115–122. [Google Scholar] [CrossRef] [PubMed]
  51. Zhang, D.; Zheng, K.Y.; Wang, L.F.; Zhao, R.H.; Hou, F.J.; Wang, Q.; You, H.L.; Du, L.H.; Huang, L.Q.; Zheng, Y.G. Correlation analysis between quality characteristics and commercial specifications of Panacis Quinquefolii Radix. China J. Chin. Mater. Med. 2016, 41, 3329–3335. [Google Scholar]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 23 01014 g001 550

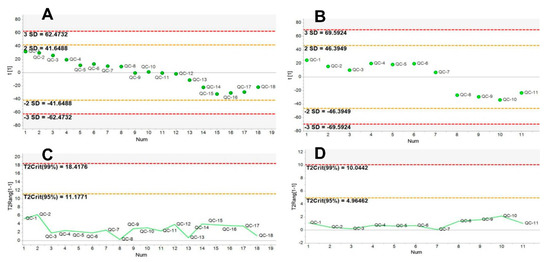

Figure 1. Line plots showing PCA of different injections of the pooled QC sample. The X-axis represented run order of the QC sample, the Y-axis represented standard deviation (A,B), and Hotelling’s T2 range (C,D), separately. (A,C) positive ion mode and (B,D) negative ion mode.
Figure 1. Line plots showing PCA of different injections of the pooled QC sample. The X-axis represented run order of the QC sample, the Y-axis represented standard deviation (A,B), and Hotelling’s T2 range (C,D), separately. (A,C) positive ion mode and (B,D) negative ion mode.
Molecules 23 01014 g001
Molecules 23 01014 g002 550

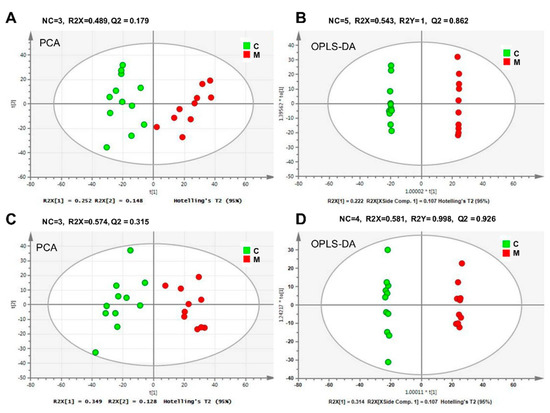

Figure 2. PCA and OPLS-DA score plots based on UPLC-Q/TOF-MS profiling of serum metabolomes from control group (C) and model group (M). (A,B) for ESI+ mode, (C,D) for ESI− mode. NC meant number of components. R2X, R2Y, and Q2 were cumulative fractions of all the R2Xs, R2Ys, and Q2, respectively. PCV-ANOVA values for OPLS-DA models (B,D) were separately, 0.000602037 and 1.16212e-005.
Figure 2. PCA and OPLS-DA score plots based on UPLC-Q/TOF-MS profiling of serum metabolomes from control group (C) and model group (M). (A,B) for ESI+ mode, (C,D) for ESI− mode. NC meant number of components. R2X, R2Y, and Q2 were cumulative fractions of all the R2Xs, R2Ys, and Q2, respectively. PCV-ANOVA values for OPLS-DA models (B,D) were separately, 0.000602037 and 1.16212e-005.
Molecules 23 01014 g002
Molecules 23 01014 g003 550

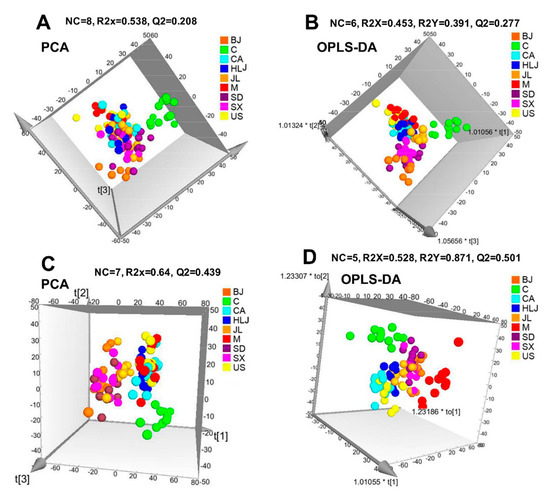

Figure 3. PCA and OPLS-DA score plots of serum metabolomes from control group (C), Co-radiated model group (M) and AG groups. ESI+ mode: (A,B); ESI− mode: (C,D). NC meant number of components. R2X, R2Y, and Q2 were cumulative fraction of all the R2Xs, R2Ys, and Q2, respectively. PCV-ANOVA values for OPLS-DA models (C,D) were separately, 4.74629e-013 and 2.35445e-009.
Figure 3. PCA and OPLS-DA score plots of serum metabolomes from control group (C), Co-radiated model group (M) and AG groups. ESI+ mode: (A,B); ESI− mode: (C,D). NC meant number of components. R2X, R2Y, and Q2 were cumulative fraction of all the R2Xs, R2Ys, and Q2, respectively. PCV-ANOVA values for OPLS-DA models (C,D) were separately, 4.74629e-013 and 2.35445e-009.
Molecules 23 01014 g003
Molecules 23 01014 g004 550

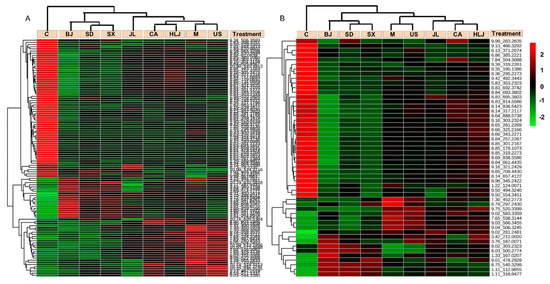

Figure 4. Hierarchical clustering analysis of cobalt-altered metabolites in sera of the control (C), model (M), and AG mice. The heatmaps were generated in MetaboAnalyst using the differential biomarkers identified between the model group and the control group. ESI+ mode: (A); ESI− mode: (B).
Figure 4. Hierarchical clustering analysis of cobalt-altered metabolites in sera of the control (C), model (M), and AG mice. The heatmaps were generated in MetaboAnalyst using the differential biomarkers identified between the model group and the control group. ESI+ mode: (A); ESI− mode: (B).
Molecules 23 01014 g004
Molecules 23 01014 g005 550

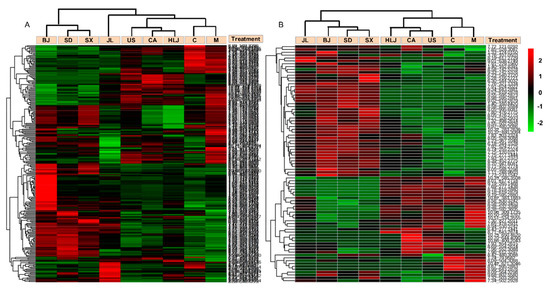

Figure 5. Hierarchical clustering analysis of AG-induced differential metabolites among different treatments. The heatmaps were generated in MetaboAnalyst using the differential biomarkers of importance identified between the model group and various AG groups. The biomarkers that were identified between the control and model groups were excluded in this analysis. ESI+ mode: (A); ESI− mode: (B).
Figure 5. Hierarchical clustering analysis of AG-induced differential metabolites among different treatments. The heatmaps were generated in MetaboAnalyst using the differential biomarkers of importance identified between the model group and various AG groups. The biomarkers that were identified between the control and model groups were excluded in this analysis. ESI+ mode: (A); ESI− mode: (B).
Molecules 23 01014 g005
Molecules 23 01014 g006 550

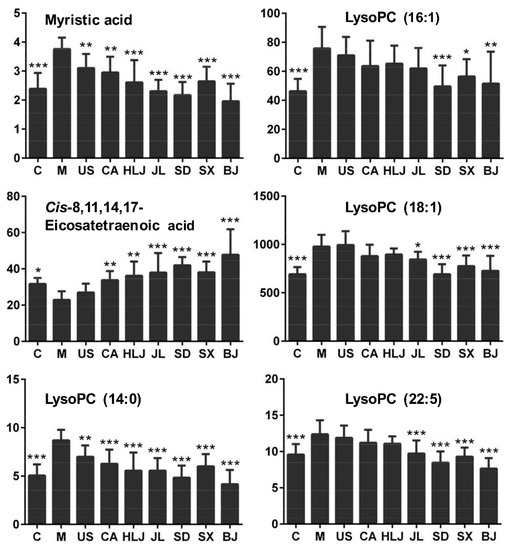

Figure 6. Peak intensities of six representative potential biomarkers in serum of each group. Y-axis showing peak intensity was indicated by peak area. * p < 0.05, ** p < 0.01, and *** p < 0.001 meant the significant difference of metabolites in the control and AG groups compared with the model group. These six biomarkers were significantly induced by cobalt radiation and modulated to various degrees by AG decoctions from different cultivation regions.
Figure 6. Peak intensities of six representative potential biomarkers in serum of each group. Y-axis showing peak intensity was indicated by peak area. * p < 0.05, ** p < 0.01, and *** p < 0.001 meant the significant difference of metabolites in the control and AG groups compared with the model group. These six biomarkers were significantly induced by cobalt radiation and modulated to various degrees by AG decoctions from different cultivation regions.
Molecules 23 01014 g006
Table
Table 1. Number of increased/decreased metabolites revealed by pairwise comparisons between the model group and other groups.
Table 1. Number of increased/decreased metabolites revealed by pairwise comparisons between the model group and other groups.
ESI ModeCUSCAHLJJLSDSXBJ
+46/646/1119/2821/4839/5937/4331/5471/75
−15/367/613/1013/818/1120/1926/2227/30
Table
Table 2. Identification of representative differential metabolites and their fold changes among different groups.
Table 2. Identification of representative differential metabolites and their fold changes among different groups.
RT (min)Quasi-Molecular Ion (m/z)Cal. m/zMass Error (ppm)HMDB IDMetabolitesFormulaMetabolic PathwayFold Change
C-MM-USM-CAM-HLJM-JLM-SDM-SXM-BJ
* 7.30468.3084
[M + H]+		468.3085−0.140HMDB10379LysoPC (14:0)C22H46NO7PLipid metabolism1.72 c0.80 b0.72 c0.64 c0.64 c0.56 c0.69 c0.48 c
* 8.65476.2746
[M + Na]+		476.2748−0.337 HMDB11503LysoPE (16:0)C21H44NO7PLipid metabolism0.97 c1.341.431.691.98 c1.641.731.61
7.65494.3246
[M + H]+		494.32410.980HMDB10383LysoPC (16:1)C24H48NO7PLipid metabolism1.64 c0.940.84 a0.860.820.66 b0.75 a0.68 b
* 10.80510.3913
[M + H]+		510.3918−0.982HMDB11149LysoPC (O-18:0)C26H56NO6PLipid metabolism0.72 c0.920.940.970.870.840.78 a0.67 c
* 7.84520.3404
[M + H]+		520.33981.219HMDB10386LysoPC (18:2)C26H50NO7PLipid metabolism0.67 c0.871.011.000.981.090.990.89
* 9.05522.3568
[M + H]+		522.35542.650HMDB02815LysoPC (18:1)C26H52NO7PLipid metabolism1.42 c1.020.900.920.860.71 b0.79 b0.74 b
* 8.01524.2754
[M + Na]+		524.27481.220HMDB11517LysoPE (20:4/0:0)C25H44NO7PLipid metabolism0.64 a1.381.67 a2.03 c1.91 c2.82 c2.26 c2.74 c
* 7.49540.3062
[M + Na]+		540.30610.258HMDB10387LysoPC (18:3)C26H48NO7PLipid metabolism0.971.371.431.411.401.79 b1.72 a1.59
* 7.76548.2756
[M + Na]+		548.27481.532HMDB11526LysoPE (22:6/0:0)C27H44NO7PLipid metabolism1.031.231.431.481.052.22 c1.94 b1.90
* 8.34568.3380
[M + Na]+		568.33741.125HMDB10394LysoPC (20:3)C28H52NO7PLipid metabolism0.67 c0.910.900.810.870.930.840.69
* 9.39570.3533
[M + H]+		570.3554−3.710HMDB10402LysoPC (22:5)C30H52NO7PLipid metabolism1.29 b0.960.910.900.79 a0.68 c0.75 b0.62 c
* 7.22282.2789
[M + H]+		282.2791−0.855HMDB02117OleamideC18H35NOAmino acid metabolism0.65 c0.40 c0 c0 c0 c0 c0 c0 c
2.91132.0643
[M + H]+		132.0655−9.236HMDB021133-Hydroxy-l-prolineC5H9NO3Amino acid metabolism1.120.880.650.57 b0.820.911.030.94
* 8.16301.2158
[M + Na]+		301.21386.635HMDB01388Alpha-Linolenic acidC18H30O2Lipid metabolism0.42 c1.001.001.251.100.760.600.38 a
* 8.84303.2316
[M + H]+		303.2319−0.847HMDB01999Eicosapentaenoic acidC20H30O2Lipid metabolism0.51 c0.941.051.141.030.890.770.51
9.23319.1939
[M + H]+		319.190411.010HMDB06709Ubiquinone-2C19H26O4Energy metabolism0.360.451.201.199.15 b3.041.571.60
7.81448.3413
[M + Na]+		448.33973.502HMDB06464Elaidic carnitineC25H47NO4Lipid metabolism0.48 c1.151.281.281.201.340.711.09
7.29372.3101
[M + H]+		372.3108−1.975HMDB05066Tetradecanoyl carnitineC21H41NO4Lipid metabolism0.49 c1.291.471.271.551.561.151.32
* 8.84285.2208
[M + H]+		285.2213−1.725HMDB01358RetinalC20H28OLipid metabolism0.52 c0.971.081.161.020.890.790.51 b
* 10.32283.2636
[M − H]−		283.26315681.565HMDB00827Stearic acidC18H36O2Lipid metabolism0.920.931.021.111.151.30 b1.22 a1.23 a
* 8.85301.2167
[M − H]−		301.21620671.638HMDB01999Eicosapentaenoic acidC20H30O2Lipid metabolism0.60 c0.921.031.100.930.820.720.49 c
* 8.02303.2323
[M − H]−		303.23185671.462HMDB02177Cis-8,11,14,17-Eicosatetraenoic acidC20H32O2Lipid metabolism0.72 a1.141.47 b1.58 b1.66 c1.84 c1.61 c2.08 c
9.39319.2261
[M − H]−		319.2267713−2.103HMDB0624518-Hydroxyarachidonic acidC20H32O3Lipid metabolism0.07 c3.774.165.274.943.092.231.29
8.14836.5423
[M − H]−		836.5436105−1.567HMDB10166PS (18:0/22:5)C46H80NO10PAmino acid metabolism0.41 c1.511.71 a1.491.370.730.720.35 a
* 1.22124.0071
[M − H]−		124.00629036.530HMDB00251TaurineC2H7NO3SAmino acid metabolism0.48 c0.390.330.590.460.600.05 b0.19 a
9.02281.2481
[M − H]−		281.24750682.109HMDB00207Oleic acidC18H34O2Lipid metabolism1.31 c0.960.960.991.020.910.960.95
* 8.74255.2324
[M − H]−		255.23185672.129HMDB00220Palmitic acidC16H32O2Lipid metabolism1.041.071.101.091.171.29 b1.23 a1.27 b
* 7.30227.2011
[M − H]−		227.20055662.392HMDB00806Myristic acidC14H28O2Lipid metabolism1.57 c0.82 b0.78 b0.69 c0.61 c0.56 c0.73 c0.52 c
RT: retention time; * had detected fragment ions listed in Table S1. C, control; M, model; US, United States; CA, Canada; HLJ, Heilongjiang; JL, Jilin; SD, Shandong; SX, Shanxi; BJ, Beijing; Fold change was calculated by the ratio of the average peak intensity of the latter group to the former group. a, b, c represented separately the significance p < 0.05, p < 0.01, and p < 0.001.

Share and Cite

MDPI and ACS Style

Qin, Z.; Jia, C.; Liao, D.; Chen, X.; Li, X. Comparison of Serum Metabolite Changes of Radiated Mice Administered with Panax quinquefolium from Different Cultivation Regions Using UPLC-Q/TOF-MS Based Metabolomic Approach. Molecules 2018, 23, 1014. https://doi.org/10.3390/molecules23051014

AMA Style

Qin Z, Jia C, Liao D, Chen X, Li X. Comparison of Serum Metabolite Changes of Radiated Mice Administered with Panax quinquefolium from Different Cultivation Regions Using UPLC-Q/TOF-MS Based Metabolomic Approach. Molecules. 2018; 23(5):1014. https://doi.org/10.3390/molecules23051014

Chicago/Turabian Style

Qin, Zhenxian, Chan Jia, Dengqun Liao, Xiaofang Chen, and Xian’en Li. 2018. "Comparison of Serum Metabolite Changes of Radiated Mice Administered with Panax quinquefolium from Different Cultivation Regions Using UPLC-Q/TOF-MS Based Metabolomic Approach" Molecules 23, no. 5: 1014. https://doi.org/10.3390/molecules23051014

APA Style

Qin, Z., Jia, C., Liao, D., Chen, X., & Li, X. (2018). Comparison of Serum Metabolite Changes of Radiated Mice Administered with Panax quinquefolium from Different Cultivation Regions Using UPLC-Q/TOF-MS Based Metabolomic Approach. Molecules, 23(5), 1014. https://doi.org/10.3390/molecules23051014

Article Metrics

Back to TopTop
