The Complete Chloroplast Genome Sequence of the Medicinal Plant Swertia mussotii Using the PacBio RS II Platform

Beibei Xiang; Xiaoxue Li; Jun Qian; Lizhi Wang; Lin Ma; Xiaoxuan Tian; Yong Wang

doi:10.3390/molecules21081029

Abstract

Swertia mussotii is an important medicinal plant that has great economic and medicinal value and is found on the Qinghai Tibetan Plateau. The complete chloroplast (cp) genome of S. mussotii is 153,431 bp in size, with a pair of inverted repeat (IR) regions of 25,761 bp each that separate an large single-copy (LSC) region of 83,567 bp and an a small single-copy (SSC) region of 18,342 bp. The S. mussotii cp genome encodes 84 protein-coding genes, 37 transfer RNA (tRNA) genes, and eight ribosomal RNA (rRNA) genes. The identity, number, and GC content of S. mussotii cp genes were similar to those in the genomes of other Gentianales species. Via analysis of the repeat structure, 11 forward repeats, eight palindromic repeats, and one reverse repeat were detected in the S. mussotii cp genome. There are 45 SSRs in the S. mussotii cp genome, the majority of which are mononucleotides found in all other Gentianales species. An entire cp genome comparison study of S. mussotii and two other species in Gentianaceae was conducted. The complete cp genome sequence provides intragenic information for the cp genetic engineering of this medicinal plant.

Keywords:

Swertia mussotii; medicinal plant; chloroplast genome; PacBio RS; Gentianaceae

1. Introduction

Swertia mussotii Franch (Zang Yin Chen, in Tibetan medicine) belongs to the family Gentianaceae. This species grows on the Qinghai Tibetan Plateau at an elevation of 3800–5000 m. To date, several pharmaceutically-active compounds have been isolated and structurally identified from the whole S. mussotii plant, including oleanolic acid, ursolic acid, mangiferin, swertiamarin, and gentiopicroside [1,2,3,4]. Modern pharmacological research has demonstrated that these compounds have anti-hepatitis activity [5,6,7]. Due to the overexploitation of this plant, S. mussotii as a wild resource has become rare. S. mussotii seeds only germinate poorly when planted at low elevations.

Chloroplasts originated from the interaction of photosynthetic bacteria with non-photosynthetic hosts through endosymbiosis [8]. Chloroplasts are photosynthetic organelles that synthesise starch, amino acids, pigments, and fatty acids [9,10]. The chloroplast has its own genome, and a typical circular cp genome is composed of four parts: a large single-copy (LSC) region, a small single-copy (SSC) region, and two inverted repeat (IR) regions. The majority of angiosperm cp genomes are highly conserved in gene content and order [11]. However, large-scale genome rearrangement and gene loss have been identified in several angiosperm lineages [12,13].

The third-generation sequencing platform, PacBio, based on single-molecule, real-time (SMRT) sequencing technology, generates average read lengths of over 10 kb, with half of the reads over 20 kb and a maximum read length reaching up to 60 kb, using the newest P6-C4 chemical reagents on the current PacBio RS II machine. In addition to its extraordinarily long read length, this platform provides uniform coverage across GC-abnormal regions because no PCR amplification is required during the library construction [14,15]. Many concerns have concentrated on the high rates of random error in single-pass reads (approximately 11% to 14%) [15]. However, this can be improved given sufficient sequencing depth [15]. Additionally, the optimisation of the PacBio assembly algorithm [16,17,18] has made this platform widely applied in de novo genome sequencing [19,20], as well as full-length transcriptome sequencing [21,22], for a growing number of species.

Due to the low GC content and the IR regions, it is difficult to use short reads from second-generation sequencing to recover a single contig spanning the whole cp genome [14]. Using PacBio, long reads can greatly reduce the complexity of the assembly, and PacBio has already been successfully applied in many chloroplast genome sequencing projects, including Ananas comosus var. comosus [23], Aconitum barbatum var. puberulum [24], Beta vulgaris [25], and Gentiana straminea [26]. Meanwhile, comparative studies among the three generations of sequencing technologies (Sanger, Illumina and PacBio) have demonstrated the reliability and accuracy of SMRT sequencing [27,28].

Currently, more than 1000 complete cp genome sequences have been deposited in the NCBI Organelle Genome Resources [29]. However, few reports have been published on the genetic diversity of cpDNA from Gentianaceae [26]. The chloroplast genome sequences of two members of the Gentianaceae, Gentiana straminea [26] and Gentiana crassicaulis, have been analysed. Here, we report the complete cp genome sequence of S. mussotii as determined using PacBio technology. Comparative sequence analysis was conducted among published Gentianaceae cp genomes.

2. Results and Discussion

2.1. Features of the S. mussotii Chloroplast Genome

The complete cp genome of S. mussotii is 153,431 bp in size, with a pair of IR regions of 25,761 bp that separate an LSC region of 83,567 bp from an SSC region of 18,342 bp (Table 1 and Figure 1). The overall GC content of the S. mussotii cp genome is 38.2%, with the IR regions possessing higher GC content (43.5%) than the LSC (36.2%) and SSC regions (31.9%) (Table 1). The high GC content of the IR regions is caused by the high GC content of the four ribosomal RNA (rRNA) genes (55.2%) present in this region [30]. The S. mussotii cp genome encodes 84 protein-coding genes, 37 transfer RNA (tRNA) genes, and eight rRNA genes (Table 2). Seven protein-coding, seven tRNA, and all rRNA genes are duplicated in the IR regions. The non-coding regions constitute 41.6% of the genome, including introns, pseudogenes, and intergenic spacers; coding regions constitute 58.4%.

Table 1. Base composition in the S. mussotii chloroplast genome.

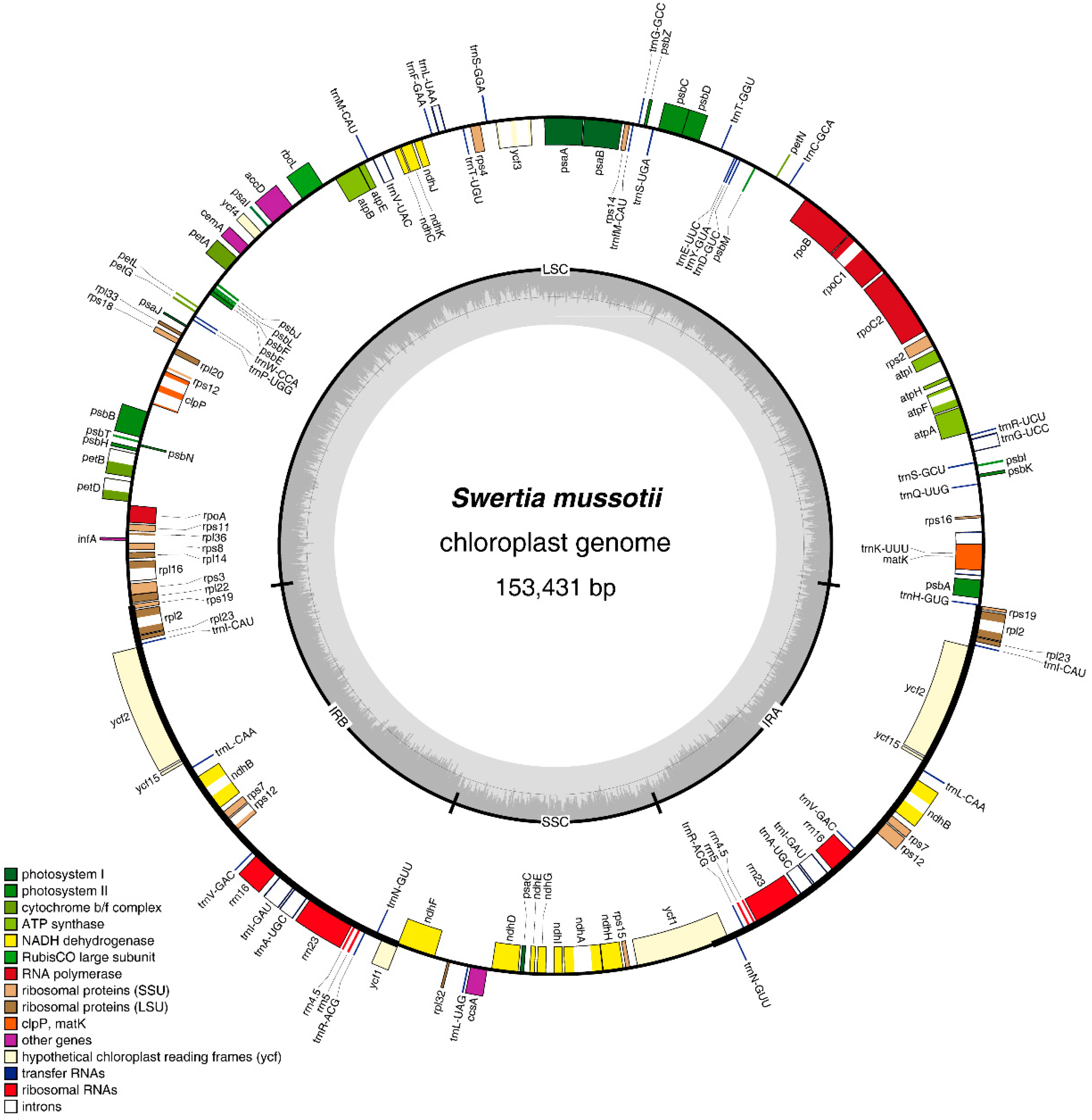

Figure 1. Gene map of the S. mussotii chloroplast genome. Genes drawn inside the circle are transcribed clockwise, and those outside are counterclockwise. Genes are colour-coded based on the functional groups to which they belong. CDS: protein-coding regions.

Table 2. Genes present in the S. mussotii chloroplast genome.

There are five pseudogenes, i.e., accD, rps16, infA, rps19, and ycf1. The accD gene in S. mussotii contains internal stop codons. The accD gene also exists as a pseudogene in Jasminum nudiflorum and Trachelium caeruleum, but it is a normal gene in G. straminea. The rps16 gene lacks exon 2, a phenomenon that has been observed in related species. In S. mussotii, rps16 is a pseudogene, whereas in Syzygium cumini, Eucalyptus globulus, and Gossypium barbadense, the rps16 gene encodes a 16S ribosomal protein [31]. The absence or incompleteness of this gene has also been reported in other plants [32,33]. The infA gene is 3′ truncated, though it is a normal gene in many other cp genomes [34,35].

The S. mussotii cp genome has 17 intron-containing genes, of which three (clpP, rps12, and ycf3) contain two introns (Table 3). The rps12 gene is a trans-spliced gene with the 5′ end located in the LSC region and the duplicated 3′ end located in the IR regions. trnK-UUU has the largest intron, which contains the matK gene. Together, all of the genes of S. mussotii are encoded by 25,731 codons. Among these, leucine, with 2769 (10.7%) of the codons, is the most frequent amino acid in the genome, and cysteine, with 292 (1.1%), is the least frequent (Table 4). Within the protein-coding regions (CDS), the percentages of AT content for the first, second, and third codon positions are 54.3%, 61.3%, and 68.8%, respectively. The bias towards a higher AT representation at the third codon position has also been observed in other plant cp genomes [36,37].

Table 3. The genes with introns in the S. mussotii chloroplast genome and the lengths of the exons and introns.

Table 4. The codon-anticodon recognition pattern and codon usage for the S. mussotii chloroplast genome.

2.2. Repeat Analysis

Repeat structure analysis revealed the presence of 11 forward repeats, eight palindromic repeats, and one reverse repeat in the S. mussotii cp genome (Table 5). The repeats were mostly distributed in the intergenic spacer (IGS) and intron sequences. We analysed the repeats of several other species in Gentianales (Figure 2). Interestingly, this comparison revealed that the longest repeats in the five Gentianales cp genomes were 30–39 bp, and the Oncinotis tenuiloba cp genome contained the greatest total number of repeats (54). Chloroplast simple sequence repeats (SSRs) have been accepted as effective molecular markers [38,39]. There were 45 SSRs in the S. mussotii cp genome (Table 6), the majority of which were mononucleotides (30) that we found in all the other species [40]. Pentanucleotides and hexanucleotides were rarely found in the Gentianales cp genomes (Table 7). Most SSR loci were located in LSC regions. In all species, the majority of the tri- to hexanucleotides were AT-rich. An average of 62% of all SSRs in the Gentianales cp genomes were A/T mononucleotides. These results are consistent with the view that SSRs in cp genomes contribute to AT richness [41,42].

Table 5. Repeat sequences and their distribution in the S. mussotii chloroplast genome.

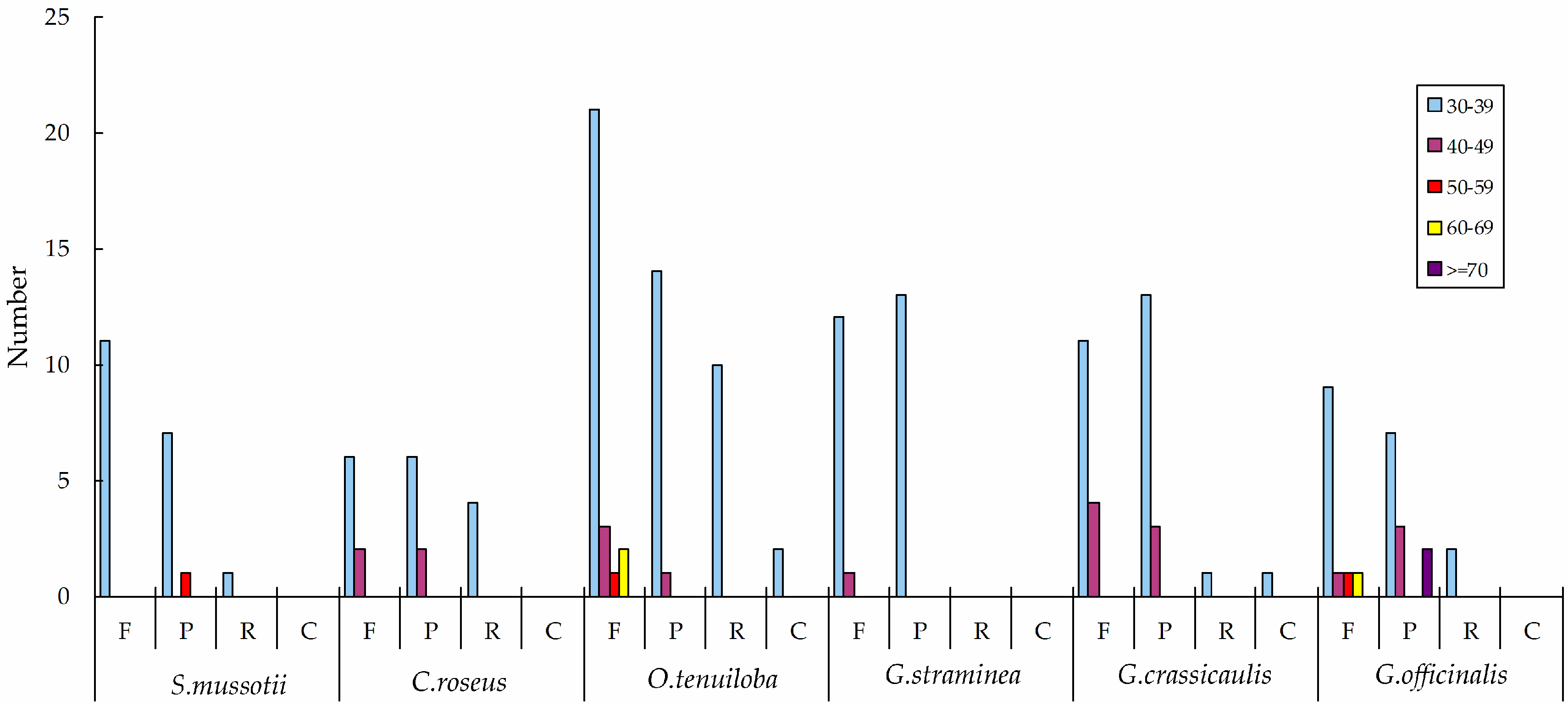

Figure 2. Repeat sequences in six Gentianales chloroplast genomes. REPuter was used to identify repeat sequences with length ≥ 30 bp and sequence identify ≥90% in the chloroplast genomes. F, P, R, and C indicate the repeat types F (forward), P (palindrome), R (reverse), and C (complement), respectively. Repeats with different lengths are indicated in different colours.

Table 6. Simple sequence repeats in the S. mussotii chloroplast genome.

Table 7. Distribution of SSRs present in the Gentianales chloroplast genomes.

2.3. Comparative Chloroplast Genomic Analysis

The whole cp genome sequence of S. mussotii was compared to those of G. straminea and G. crassicaulis. The cp genome of S. mussotii is the longest of the three cp genomes, measuring approximately 4.4 kb and 4.7 kb longer than those of G. straminea and G. crassicaulis, respectively. There are no significant differences in sequence length between the SSCs or the IRs, and the variation in sequence length is mainly attributable to the difference in the length of the LSC region (Table S2) [40].

The overall sequence identity of the three Gentianaceae cp genomes was plotted using mVISTA, with the annotation of S. mussotii as a reference (Figure 3). The comparison shows that the two IR regions are less divergent than the LSC and SSC regions. Additionally, the coding regions are more conserved than the non-coding regions [26], and the highly divergent regions among the three cp genomes occur in the non-coding regions, including ndhD-ccsA, ndhI-ndhG, and trnH-psbA. Similar results have been observed in other plant cp genomes [26,43]. In our study, we observed that all four rRNA genes are the most conserved, while the most divergent coding regions are the clpP, rpl22, ycf1, rpl32, ycf15, and matK genes. The divergent portions of non-coding regions of cp genomes have proven useful for phylogenetic analysis [44,45].

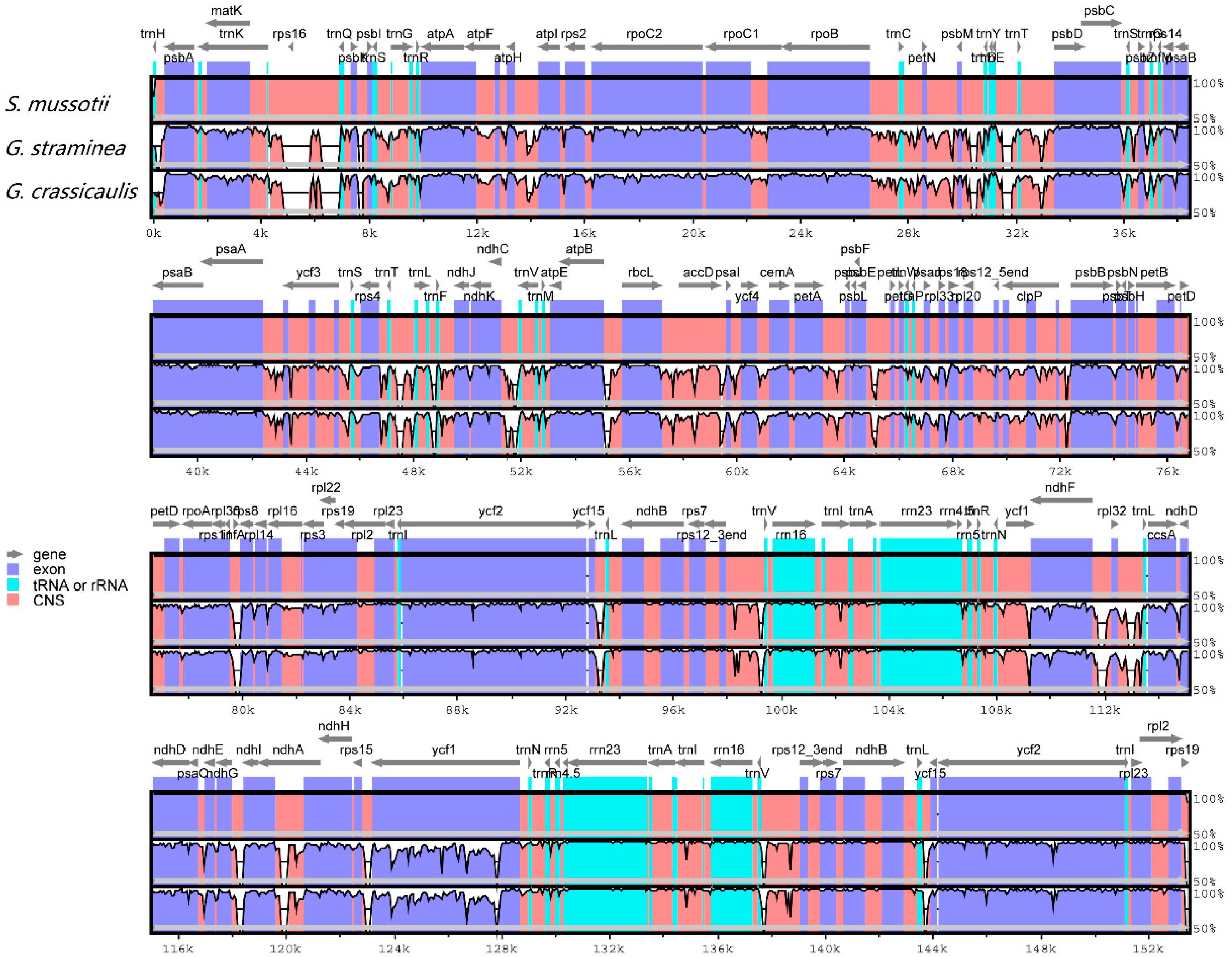

Figure 3. Comparison of three chloroplast genomes using mVISTA. Grey arrows and thick lines above the alignment indicate genes with their orientation and the position of the IRs, respectively. A cut-off of 70% identity was used for the plots, and the y-axis represents the percent identity between 50%–100%. Genome regions are color-coded as protein-coding (exon), rRNA, tRNA, and conserved noncoding sequences (CNS).

2.4. IR Contraction and Expansion

IR contraction was observed at the junction of the IR and LSC regions of the S. mussotii cp genome. This contraction has also been found in the twelve species of Gentianales analysed (G. straminea, G. crassicaulis, C. arabica, C. roseus, A. nivea, A. syriaca, R. stricta, E. umbellatus, N. oleander, O. tenuiloba, P. luteum, and G. officinalis) (Figure 4). In all of these species, the IRA/SSC junction is situated in the coding region of the ycf1 gene, resulting in the duplication of the 3′ end of this gene. This duplication produces a pseudogene of variable length at the IRB/SSC border. The lengths of the ycf1 pseudogenes varied from 945 bp to 1426 bp. In addition, the ycf1 pseudogene and the ndhF gene overlapped in S. mussotii, G. straminea, G. crassicaulis, N. oleander, and R. stricta by 54 bp, 54 bp, 54 bp, 62 bp, and 3 bp, respectively. The IRb/LSC border is located in the coding region of rps19 in all the compared plants, except for A. nivea, A. syriaca, and G. officinalis. rps19 pseudogenes of various lengths were also found at the IRa/LSC borders in S. mussotii, G. straminea, G. crassicaulis, C. arabica, C. roseus, G. officinalis, and R. stricta. S. mussotii had the longest rps19 pseudogene, at 199 bp in length. The trnH genes of these thirteen species were all located in the LSC region, 0–82 bp away from the IRa/LSC border. In the cp genome, the IR/LSC boundaries are not static, but are subject to a dynamic and random processes that allow conservative expansions and contractions [46].

Figure 4. Comparison of the borders of the LSC, SSC, and IR regions among thirteen chloroplast genomes. Ψ indicates a pseudogene. This figure is not to scale.

3. Materials and Methods

3.1. DNA Sequencing, Genome Assembly, and Validation

Fresh leaves were collected from S. mussotii in Yushu County, Qinghai Province. Total DNA was extracted using the NuClean PlantGen DNA Kit (CWBIO, Beijing, China) and was used to construct an SMRT sequencing library with an insert size of 10 kb. The genome was sequenced using the PacBio RS II platform (Pacific Biosciences, Menlo Park, CA, USA) at the Institute of Medicinal Plant Development of the Chinese Academy of Medical Sciences. We assembled the cp genome of S. mussotii as follows: first, the PacBio reads were error-corrected and assembled to produce the initial contigs using the hierarchical genome assembly process (HGAP) of SMRT Analysis (Pacific Biosciences); then, the coverage for each contig was calculated by mapping the PacBio reads to these initial contigs using BLASR [47], and contigs either showing similarity to the closely-related cp genome sequences or exhibiting similar coverage were extracted; finally, the complete cp genome was constructed by assembling these contigs. Based on the BLASR results, 3904 PacBio reads were used in the assembly of the complete cp genome, with a total length of 46,037,271 bp, thus yielding a 300× depth of the cp genome. Four junction regions between IRs and LSC/SSC were verified by PCR amplifications and Sanger sequencing. The final cp genome of S. mussotii was submitted to GenBank under the accession number KU641021.

3.2. Genome Annotation and Codon Usage

DOGMA [48] was used to annotate the cp genome, followed by manual corrections. The tRNA genes were identified using tRNAscan-SE [49]. The circular genome map was drawn using OGDRAW [50]. Codon usage and GC content were analysed using MEGA5 [51].

3.3. Genome Comparison and Repeat Analyses

mVISTA [52,53] was used to compare the cp genome of S. mussotii with two other cp genomes using the annotation of S. mussotii as a reference.

Repeats (forward, palindromic, reverse, and complement) and simple sequence repeats (SSRs) were identified using REPuter [54] and MISA, respectively, with the same parameters as described in Ni et al. [26].

4. Conclusions

This is the first study to analyse the complete cpDNA sequence of S. mussotii. The chloroplast genome structure and composition of S. mussotii are similar to those reported for other Gentianaceae. In addition, the distributions and locations of repeated sequences were determined. All of these repeats, together with the aforementioned SSRs, are informative sources for the exploration of new molecular markers. Studying the cp genome facilitates the identification of the optimal intergenic spacers for transgene integration and the development of site-specific cp transformation vectors in chloroplast genetic engineering. To date, many transgenes have been successfully introduced into the plastid genomes of the tobacco model species and of selected other important crop plants [55,56]. The feasibility of metabolic engineering in transgenic plastids has been demonstrated for several nutritionally important biochemical pathways, including carotenoid biosynthesis [57] and fatty acid biosynthesis [58,59]. With the details of the bioactive compound synthesis pathway in S. mussotii having been described [60], there is no doubt that plastid engineering holds great potential in secondary metabolic engineering to enhance the production of pharmaceutically active compounds.

Supplementary Materials

Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/21/8/1029/s1.

Acknowledgments

This work was supported by grants from the National Natural Science Foundation of China (No. 81303303) and the Tianjin City High School Science & Technology Fund Planning Project (No. 20130203).

Author Contributions

Y.W. and L.M. conceived and designed the experiments; B.X. and X.L. performed the experiments; B.X. and J.Q. analysed the data; L.W. and X.T. contributed reagents/materials/analysis tools; B.X. wrote the paper. All authors read and approved the final manuscript.

Conflicts of Interest

There is no conflict of interest.

References

Yamahara, J.; Konoshima, T.; Sawada, T.; Fujimura, H. Biologically active principles of crude drugs: Pharmacological actions of Swertia japonica extracts, swertiamarin and gentianine (author′s transl). Yakugaku Zasshi: J. Pharm. Soc. Jpn. 1978, 98, 1446–1451. [Google Scholar]
Kikuzaki, H.; Kawasaki, Y.; Kitamura, S.; Nakatani, N. Secoiridoid glucosides from Swertia mileensis. Planta Med. 1996, 62, 35–38. [Google Scholar] [CrossRef] [PubMed]
Brahmachari, G.; Mondal, S.; Gangopadhyay, A.; Gorai, D.; Mukhopadhyay, B.; Saha, S.; Brahmachari, A.K. Swertia (Gentianaceae): Chemical and pharmacological aspects. Chem. Biodivers. 2004, 1, 1627–1651. [Google Scholar] [CrossRef] [PubMed]
Ma, L.N.; Tian, C.W.; Zhang, T.J.; Zhang, L.J.; Xu, X.H. Advances in study on iridoids in plants of Swertia L. and their pharmacological activity. Chin. Tradit. Herb. Drugs 2008, 39, 790–795. [Google Scholar]
Kong, L.B.; Li, S.S.; Liao, Q.J.; Zhang, Y.N.; Sun, R.N.; Zhu, X.D.; Zhang, Q.H.; Wang, J.; Wu, X.Y.; Fang, X.N. Oleanolic acid and ursolic acid: Novel hepatitis C virus antivirals that inhibit NS5B activity. Antivir. Res. 2013, 98, 44–53. [Google Scholar] [CrossRef] [PubMed]
Zhang, L.J.; Cheng, Y.; Du, X.H.; Chen, S.; Feng, X.C.; Gao, Y.; Li, S.X.; Liu, L.; Yang, M.; Chen, L.; et al. Swertianlarin, an Herbal Agent Derived from Swertia mussotii Franch, Attenuates Liver Injury, Inflammation, and Cholestasis in Common Bile Duct-Ligated Rats. Evid. Based Complement. Altern. Med. 2015. [Google Scholar] [CrossRef]
Zhang, Y.M. The Effect of Gentiopicroside and Mangiferin, Two Major Ingredients of Tibet Capillary Artemisia, on Expression of Hepatocyte Membrane Transporters MRP2 and MRP3. Master′s Thesis, Third Military Medical University, Chongqing, China, 2011. [Google Scholar]
Howe, C.J.; Barbrook, A.C.; Koumandou, V.L.; Nisbet, R.E.R.; Symington, H.A.; Wightman, T.F. Evolution of the chloroplast genome. Philos. Trans. R. Soc. Lond. B 2003, 358, 99–107. [Google Scholar] [CrossRef] [PubMed]
Neuhaus, H.E.; Emes, M.J. Nonphotosynthetic metabolism in plastids. Annu. Rev. Plant Biol. 2000, 51, 111–140. [Google Scholar] [CrossRef] [PubMed]
Rodríguez-Ezpeleta, N.; Brinkmann, H.; Burey, S.C.; Roure, B.; Burger, G.; Löffelhardt, W.; Bohnert, H.J.; Philippe, H.; Lang, B.F. Monophyly of primary photosynthetic eukaryotes: Green plants, red algae, and glaucophytes. Curr. Biol. 2005, 15, 1325–1330. [Google Scholar] [CrossRef] [PubMed]
Wicke, S.; Schneeweiss, G.M.; Depamphilis, C.W.; Kai, F.M.; Quandt, D. The evolution of the plastid chromosome in land plants: Gene content, gene order, gene function. Plant Mol. Biol. 2011, 76, 273–297. [Google Scholar] [CrossRef] [PubMed]
Wolfe, K.H.; Mordent, C.W.; Ems, S.C.; Palmer, J.D. Rapid evolution of the plastid translational apparatus in a nonphotosynthetic plant: Loss or accelerated sequence evolution of tRNA and ribosomal protein genes. J. Mol. Evol. 1992, 35, 304–317. [Google Scholar] [CrossRef] [PubMed]
Lee, H.L.; Jansen, R.K.; Chumley, T.W.; Kim, K.J. Gene relocations within chloroplast genomes of Jasminum and Menodora (Oleaceae) are due to multiple, overlapping inversions. Mol. Biol. Evol. 2007, 24, 1161–1180. [Google Scholar] [CrossRef] [PubMed]
Li, Q.S.; Li, Y.; Song, J.Y.; Xu, H.B.; Xu, J.; Zhu, Y.J.; Li, X.W.; Gao, H.H.; Dong, L.L.; Qian, J.; et al. High-accuracy de novo assembly and SNP detection of chloroplast genomes using a SMRT circular consensus sequencing strategy. New Phytol. 2014, 204, 1041–1049. [Google Scholar] [CrossRef] [PubMed]
Roberts, R.J.; Carneiro, M.O.; Schatz, M.C. The advantages of SMRT sequencing. Genome Biol. 2013, 14. [Google Scholar] [CrossRef] [PubMed]
English, A.C.; Richards, S.; Han, Y.; Wang, M.; Vee, V.; Qu, J.; Qin, X.; Muzny, D.M.; Reid, J.G.; Worley, K.C. Mind the Gap: Upgrading Genomes with Pacific Biosciences RS Long-Read Sequencing Technology. PLoS ONE 2012, 7, e47768. [Google Scholar] [CrossRef] [PubMed]
Koren, S.; Schatz, M.C.; Walenz, B.P.; Martin, J.; Howard, J.T.; Ganapathy, G.; Wang, Z.; Rasko, D.A.; McCombie, W.R.; Jarvis, E.D. Phillippy Hybrid error correction and de novo assembly of single-molecule sequencing reads. Nat. Biotechnol. 2012, 30, 693–700. [Google Scholar] [CrossRef] [PubMed]
Chin, C.S.; Alexander, D.H.; Marks, P.; Klammer, A.A.; Drake, J.; Heiner, C.; Clum, A.; Copeland, A.; Huddleston, J.; Eichler, E.E. Nonhybrid, finished microbial genome assemblies from long-read SMRT sequencing data. Nat. Methods 2013, 10, 563–569. [Google Scholar] [CrossRef] [PubMed]
Vanburen, R.; Bryant, D.; Edger, P.P.; Tang, H.; Burgess, D.; Challabathula, D.; Spittle, K.; Hall, R.; Gu, J.; Lyons, E. Single-molecule sequencing of the desiccation-tolerant grass Oropetium thomaeum. Nature 2015, 527, 508–511. [Google Scholar] [CrossRef] [PubMed]
Gordon, D.; Huddleston, J.; Chaisson, M.J.; Hill, C.M.; Kronenberg, Z.N.; Munson, K.M.; Malig, M.; Raja, A.; Fiddes, I.; Hillier, L.W. Long-read sequence assembly of the gorilla genome. Science 2016, 352. [Google Scholar] [CrossRef] [PubMed]
Xu, Z.X.; Peters, R.J.; Weirather, J.; Luo, H.M.; Liao, B.S.; Zhang, X.; Zhu, Y.J.; Ji, A.J.; Zhang, B.; Hu, S.N.; et al. Full-length transcriptome sequences and splice variants obtained by a combination of sequencing platforms applied to different root tissues of Salvia miltiorrhiza and tanshinone biosynthesis. Plant J. 2015, 82, 951–961. [Google Scholar] [CrossRef] [PubMed]
Abdelghany, S.E.; Hamilton, M.; Jacobi, J.L.; Ngam, P.; Devitt, N.; Schilkey, F.; Benhur, A.; Reddy, A.S.N. A survey of the sorghum transcriptome using single-molecule long reads. Nat. Commun. 2016, 7. [Google Scholar] [CrossRef]
Redwan, R.M.; Saidin, A.; Kumar, S.V. Complete chloroplast genome sequence of MD-2 pineapple and its comparative analysis among nine other plants from the subclass Commelinidae. BMC Plant Biol. 2014, 15. [Google Scholar] [CrossRef] [PubMed]
Chen, X.C.; Li, Q.S.; Li, Y.; Qian, J.; Han, J.P. Chloroplast genome of Aconitum barbatum var. puberulum (Ranunculaceae) derived from CCS reads using the PacBio RS platform. Front. Plant Sci. 2015, 6, 42. [Google Scholar] [CrossRef] [PubMed]
Stadermann, K.B.; Weisshaar, B.; Holtgräwe, D. SMRT sequencing only de novo assembly of the sugar beet (Beta vulgaris) chloroplast genome. BMC Bioinform. 2015, 16. [Google Scholar] [CrossRef] [PubMed]
Ni, L.H.; Zhao, Z.L.; Xu, H.X.; Chen, S.L.; Dorje, G. The complete chloroplast genome of Gentiana straminea (Gentianaceae), an endemic species to the Sino-Himalayan subregion. Gene 2016, 577, 281–288. [Google Scholar] [CrossRef] [PubMed]
Ferrarini, M.; Moretto, M.; Ward, J.A.; Šurbanovski, N.; Stevanović, V.; Giongo, L.; Viola, R.; Cavalieri, D.; Velasco, R.; Cestaro, A. An evaluation of the PacBio RS platform for sequencing and de novo assembly of a chloroplast genome. BMC Genomics 2013, 14. [Google Scholar] [CrossRef] [PubMed]
Wu, Z.H.; Gui, S.T.; Quan, Z.W.; Pan, L.; Wang, S.Z.; Ke, W.D.; Liang, D.Q.; Ding, Y. A precise chloroplast genome of Nelumbo nucifera (Nelumbonaceae) evaluated with Sanger, Illumina MiSeq, and PacBio RS II sequencing platforms: Insight into the plastid evolution of basal eudicots. BMC. Plant Biol. 2014, 14. [Google Scholar] [CrossRef] [PubMed]
Organelle Genome Esources. Available online: http://www.ncbi.nlm.nih.gov/genomes/ORGANELLES/organelles.html (access on 21 June 2016).
Raveendar, S.; Na, Y.W.; Lee, J.R.; Shim, D.; Ma, K.H.; Lee, S.Y.; Chung, J.W. The complete chloroplast genome of Capsicum annuum var. glabriusculum using Illumina sequencing. Molecules 2015, 20, 13080–13088. [Google Scholar] [PubMed]
Ibrahim, R.I.; Azuma, J.; Sakamoto, M. Complete nucleotide sequence of the cotton (Gossypium barbadense L.) chloroplast genome with a comparative analysis of sequences among 9 dicot plants. Genes Genetic Syst. 2006, 81, 311–321. [Google Scholar] [CrossRef]
Wu, C.S.; Chaw, S.M. Highly rearranged and size-variable chloroplast genomes in conifers II clade (cupressophytes): Evolution towards shorter intergenic spacers. Plant Biotechnol. J. 2013, 12, 344–353. [Google Scholar] [CrossRef] [PubMed]
Tuskan, G. The genome of black cottonwood, Populus trichocarpa (Torr. & Gray). Science 2006, 313, 1596–1604. [Google Scholar] [PubMed]
Sato, S.; Nakamura, Y.; Kaneko, T.; Asamizu, E.; Tabata, S. Complete structure of the chloroplast genome of Arabidopsis thaliana. Dna Res. Int. J. Rapid Publ. Rep. Genes Genomes 1999, 6, 283–290. [Google Scholar] [CrossRef]
Do, H.D.K.; Kim, J.S.; Kim, J.H. Comparative genomics of four Liliales families inferred from the complete chloroplast genome sequence of Veratrum patulum O. Loes. (Melanthiaceae). Gene 2013, 530, 229–235. [Google Scholar] [CrossRef] [PubMed]
Yang, M.; Zhang, X.; Liu, G.; Yin, Y.; Chen, K.; Yun, Q.; Zhao, D.; Al-Mssallem, I.S.; Yu, J. The complete chloroplast genome sequence of date palm (Phoenix dactylifera L.). PLoS ONE 2012, 5, e12762. [Google Scholar] [CrossRef] [PubMed]
Tangphatsornruang, S.; Sangsrakru, D.; Chanprasert, J.; Uthaipaisanwong, P.; Yoocha, T.; Jomchai, N.; Tragoonrung, S. The Chloroplast Genome Sequence of Mungbean (Vigna radiata) Determined by High-throughput Pyrosequencing: Structural Organization and Phylogenetic Relationships. DNA. Res. 2010, 17, 11–22. [Google Scholar] [CrossRef] [PubMed]
Powell, W.; Rafalski, J.A. Polymorphic simple sequence repeat regions in chloroplast genomes: Applications to the population genetics of pines. Proc. Natl. Acad. Sci. USA 1995, 92, 7759–7763. [Google Scholar] [CrossRef] [PubMed]
Jiao, Y.; Jia, H.M.; Li, X.W.; Chai, M.L.; Jia, H.J.; Chen, Z.; Wang, G.Y.; Chai, C.Y.; Weg, E.V.D.; Gao, Z.S. Development of simple sequence repeat (SSR) markers from a genome survey of Chinese bayberry (Myrica rubra). BMC Genomics 2012, 13, 151–154. [Google Scholar] [CrossRef] [PubMed]
Qian, J.; Song, J.; Gao, H.; Zhu, Y.; Xu, J.; Pang, X.; Yao, H.; Sun, C.; Li, X.E.; Li, C. The complete chloroplast genome sequence of the medicinal plant Salvia miltiorrhiza. PLoS ONE 2013, 8, e57607. [Google Scholar] [CrossRef] [PubMed]
Kuang, D.Y.; Wu, H.; Wang, Y.L.; Gao, L.M.; Zhang, S.Z.; Lu, L. Complete chloroplast genome sequence of Magnolia kwangsiensis (Magnoliaceae): Implication for DNA barcoding and population genetics. Genome 2011, 54, 663–673. [Google Scholar] [CrossRef] [PubMed]
Huotari, T.; Korpelainen, H. Complete chloroplast genome sequence of Elodea canadensis and comparative analyses with other monocot plastid genomes. Gene 2012, 508, 96–105. [Google Scholar] [CrossRef] [PubMed]
Nie, X.J.; Lv, S.Z.; Zhang, Y.X.; Du, X.H.; Wang, L.; Biradar, S.S.; Tan, X.F.; Wan, F.H.; Song, W.N. Complete chloroplast genome sequence of a major invasive species, crofton weed (Ageratina adenophora). PLoS ONE 2012, 7. [Google Scholar] [CrossRef] [PubMed]
Takano, A.; Okada, H. Phylogenetic relationships among subgenera, species, and varieties of Japanese Salvia L. (Lamiaceae). J. Plant Res. 2011, 124, 245–252. [Google Scholar] [CrossRef] [PubMed]
Schäferhoff, B.; Fleischmann, A.; Fischer, E.; Albach, D.C.; Borsch, T.; Heubl, G.; Kai, F.M. Towards resolving Lamiales relationships: Insights from rapidly evolving chloroplast sequences. BMC Evol. Biol. 2010, 10. [Google Scholar] [CrossRef] [PubMed]
Ma, J.; Yang, B.; Zhu, W.; Sun, L.; Tian, J.; Wang, X. The complete chloroplast genome sequence of Mahonia bealei (Berberidaceae) reveals a significant expansion of the inverted repeat and phylogenetic relationship with other angiosperms. Gene 2013, 528, 120–131. [Google Scholar] [CrossRef] [PubMed]
Chaisson, M.J.; Tesler, G. Mapping single molecule sequencing reads using basic local alignment with successive refinement (BLASR): Application and theory. BMC Bioinform. 2012, 13. [Google Scholar] [CrossRef] [PubMed]
Wyman, S.K.; Jansen, R.K.; Boore, J.L. Automatic annotation of organellar genomes with DOGMA. Bioinformatics 2004, 20, 3252–3255. [Google Scholar] [CrossRef] [PubMed]
Schattner, P.; Brooks, A.N.; Lowe, T.M. The tRNAscan-SE, snoscan and snoGPS web servers for the detection of tRNAs and snoRNAs. Nucleic Acids Res. 2007, 33, W686–W689. [Google Scholar] [CrossRef] [PubMed]
Lohse, M.; Drechsel, O.; Bock, R. OrganellarGenomeDRAW (OGDRAW): A tool for the easy generation of high-quality custom graphical maps of plastid and mitochondrial genomes. Curr. Genet. 2007, 52, 267–274. [Google Scholar] [CrossRef] [PubMed]
Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed]
Kurtz, S.; Phillippy, A.; Delcher, A.L.; Smoot, M.; Shumway, M.; Antonescu, C.; Salzberg, S.L. Versatile and open software for comparing large genomes. Genome Biol. 2004, 5. [Google Scholar] [CrossRef] [PubMed]
Frazer, K.A.; Pachter, L.; Poliakov, A.; Rubin, E.M.; Dubchak, I. VISTA: Computational tools for comparative genomics. Nucleic Acids Res. 2004, 32, W273–W279. [Google Scholar] [CrossRef] [PubMed]
Kurtz, S.; Choudhuri, J.V.; Ohlebusch, E.; Schleiermacher, C.; Stoye, J.; Giegerich, R. REPuter: The Manifold Applications of Repeat Analysis on a Genomic Scale. Nucleic Acids Res. 2001, 29, 4633–4642. [Google Scholar] [CrossRef] [PubMed]
Wani, S.H.; Haider, N.; Kumar, H.; Singh, N.B. Plant Plastid Engineering. Curr. Genomics 2010, 11, 500–512. [Google Scholar] [CrossRef] [PubMed]
Bock, R. Engineering Plastid Genomes: Methods, Tools, and Applications in Basic Research and Biotechnology. Annu. Rev. Plant Biol. 2015, 66, 211–241. [Google Scholar] [CrossRef] [PubMed]
Apel, W.; Bock, R. Enhancement of carotenoid biosynthesis in transplastomic tomatoes by induced lycopene-to-provitamin A conversion. Plant Physiol. 2009, 151, 59–66. [Google Scholar] [CrossRef] [PubMed]
Craig, W.; Lenzi, P.; Scotti, N.; Palma, M.D.; Saggese, P.; Carbone, V.; Curran, M.G.; Magee, A.M.; Medgyesy, P.; Kavanagh, T.A. Transplastomic tobacco plants expressing a fatty acid desaturase gene exhibit altered fatty acid profiles and improved cold tolerance. Transgenic Res. 2008, 17, 769–782. [Google Scholar] [CrossRef] [PubMed]
Madoka, Y.; Tomizawa, K.; Mizoi, J.; Nishida, I.; Nagano, Y.; Sasaki, Y. Chloroplast transformation with modified accD operon increases acetyl-CoA carboxylase and causes extension of leaf longevity and increase in seed yield in tobacco. Plant Cell Physiol. 2002, 43, 1518–1525. [Google Scholar] [CrossRef] [PubMed]
Wang, J.; Liu, Y.; Cai, Y.; Zhang, F.; Xia, G.; Xiang, F. Cloning and functional analysis of geraniol 10-hydroxylase, a cytochrome P450 from Swertia mussotii Franch. Biosci. Biotechnol. Biochem. 2010, 74, 1583–1590. [Google Scholar] [CrossRef] [PubMed]

Sample Availability: Samples are not available.

Figure 1. Gene map of the S. mussotii chloroplast genome. Genes drawn inside the circle are transcribed clockwise, and those outside are counterclockwise. Genes are colour-coded based on the functional groups to which they belong. CDS: protein-coding regions.

Figure 2. Repeat sequences in six Gentianales chloroplast genomes. REPuter was used to identify repeat sequences with length ≥ 30 bp and sequence identify ≥90% in the chloroplast genomes. F, P, R, and C indicate the repeat types F (forward), P (palindrome), R (reverse), and C (complement), respectively. Repeats with different lengths are indicated in different colours.

Figure 3. Comparison of three chloroplast genomes using mVISTA. Grey arrows and thick lines above the alignment indicate genes with their orientation and the position of the IRs, respectively. A cut-off of 70% identity was used for the plots, and the y-axis represents the percent identity between 50%–100%. Genome regions are color-coded as protein-coding (exon), rRNA, tRNA, and conserved noncoding sequences (CNS).

Figure 4. Comparison of the borders of the LSC, SSC, and IR regions among thirteen chloroplast genomes. Ψ indicates a pseudogene. This figure is not to scale.

Table 1. Base composition in the S. mussotii chloroplast genome.

**Table 1.** Base composition in the S. mussotii chloroplast genome.
Region		T (U) (%)	C (%)	A (%)	G (%)	Length (bp)
LSC		32.6	18.5	31.2	17.7	83,567
SSC		34.1	16.3	34.0	15.6	18,342
IRa		28.3	22.5	28.2	21.0	25,761
IRb		28.2	21.0	28.3	22.5	25,761
Total		31.3	19.3	30.5	18.8	153,431
CDS		31.3	18.1	30.2	20.4	77,193
	1st position	23.9	19.2	30.4	26.5	25731
	2nd position	32.6	20.6	28.7	18.1	25731
	3rd position	37.2	14.6	31.6	16.6	25731

Table 2. Genes present in the S. mussotii chloroplast genome.

**Table 2.** Genes present in the S. mussotii chloroplast genome.
No.	Group of Genes	Gene Names
1	Photosystem I	psaA, psaB, psaC, psaI, psaJ
2	Photosystem II	psbA, psbB, psbC, psbD, psbE, psbF, psbH, psbI, psbJ, psbK, psbL, psbM, psbN, psbT, psbZ
3	Cytochrome b/f complex	petA, petB , petD , petG, petL, petN
4	ATP synthase	atpA, atpB, atpE, atpF *, atpH, atpI
5	NADH dehydrogenase	ndhA , ndhB (×2), ndhC, ndhD, ndhE, ndhF, ndhG, ndhH, ndhI, ndhJ, ndhK
6	RuBisCO large subunit	rbcL
7	RNA polymerase	rpoA, rpoB, rpoC1 *, rpoC2
8	Ribosomal proteins (SSU)	rps2, rps3, rps4, rps7 (×2), rps8, rps11, rps12 ** (×2), rps14, rps15, rps18, rps19
9	Ribosomal proteins (LSU)	rpl2 * (×2), rpl14, rpl16 *, rpl20, rpl22, rpl23 (×2), rpl32, rpl33, rpl36
10	Other genes	clpP *, matK, ccsA, cemA
11	Proteins of unknown function	ycf1, ycf2 (×2), ycf3 **, ycf4, ycf15 (×2)
12	Transfer RNAs	37 tRNAs (6 contain one intron each, 7 in the IRs)
13	Ribosomal RNAs	rrn4.5 (×2), rrn5 (×2), rrn16 (×2), rrn23 (×2)

The presence of one or two asterisks after the name of a gene indicates that that gene contains one or two introns, respectively.

Table 3. The genes with introns in the S. mussotii chloroplast genome and the lengths of the exons and introns.

**Table 3.** The genes with introns in the S. mussotii chloroplast genome and the lengths of the exons and introns.
Gene	Location	Exon I (bp)	Intron I (bp)	Exon II (bp)	Intron II (bp)	Exon III (bp)
atpF	LSC	161	700	403
clpP	LSC	71	784	292	680	228
ndhA	SSC	561	1117	540
ndhB	IR	777	683	756
petB	LSC	6	727	642
petD	LSC	8	678	475
rpl16	LSC	9	764	399
rpl2	IR	393	657	435
rpoC1	LSC	435	734	1623
rps12 *	LSC	114	-	232	535	26
trnA-UGC	IR	38	824	35
trnG-UCC	LSC	23	689	48
trnI-GAU	IR	37	950	35
trnK-UUU	LSC	37	2496	35
trnL-UAA	LSC	37	374	50
trnV-UAC	LSC	38	601	37
ycf3	LSC	126	745	228	770	153

* The rps12 gene is a trans-spliced gene with the 5′ end located in the LSC region and the duplicated 3′ end in the IR region.

Table 4. The codon-anticodon recognition pattern and codon usage for the S. mussotii chloroplast genome.

**Table 4.** The codon-anticodon recognition pattern and codon usage for the S. mussotii chloroplast genome.
Amino Acid	Codon	No.	RSCU	tRNA	Amino Acid	Codon	No.	RSCU	tRNA
Phe	UUU	981	1.32		Tyr	UAU	738	1.59
Phe	UUC	507	0.68	trnF-GAA	Tyr	UAC	189	0.41	trnY-GUA
Leu	UUA	847	1.84	trnL-UAA	Stop	UAA	49	1.75
Leu	UUG	551	1.19	trnL-CAA	Stop	UAG	21	0.75
Leu	CUU	610	1.32		His	CAU	467	1.5
Leu	CUC	187	0.41		His	CAC	157	0.5	trnH-GUG
Leu	CUA	392	0.85	trnL-UAG	Gln	CAA	698	1.54	trnQ-UUG
Leu	CUG	182	0.39		Gln	CAG	207	0.46
Ile	AUU	1047	1.47		Asn	AAU	920	1.5
Ile	AUC	435	0.61	trnI-GAU	Asn	AAC	303	0.5	trnN-GUU
Ile	AUA	660	0.92	trnI-CAU	Lys	AAA	988	1.45	trnK-UUU
Met	AUG	582	1	trn(f)M-CAU	Lys	AAG	377	0.55
Val	GUU	510	1.45		Asp	GAU	802	1.61
Val	GUC	187	0.53	trnV-GAC	Asp	GAC	194	0.39	trnD-GUC
Val	GUA	528	1.5	trnV-UAC	Glu	GAA	923	1.45	trnE-UUC
Val	GUG	185	0.52		Glu	GAG	350	0.55
Ser	UCU	540	1.6		Cys	UGU	221	1.52
Ser	UCC	352	1.04	trnS-GGA	Cys	UGC	70	0.48	trnC-GCA
Ser	UCA	382	1.13	trnS-UGA	Stop	UGA	14	0.5
Ser	UCG	221	0.66		Trp	UGG	461	1	trnW-CCA
Pro	CCU	395	1.42		Arg	CGU	339	1.28	trnR-ACG
Pro	CCC	234	0.84		Arg	CGC	102	0.39
Pro	CCA	318	1.14	trnP-UGG	Arg	CGA	356	1.35
Pro	CCG	166	0.6		Arg	CGG	139	0.53
Thr	ACU	485	1.46		Arg	AGA	385	1.14	trnR-UCU
Thr	ACC	272	0.82	trnT-GGU	Arg	AGG	143	0.42
Thr	ACA	413	1.24	trnT-UGU	Ser	AGU	477	1.81
Thr	ACG	157	0.47		Ser	AGC	171	0.65	trnS-GCU
Ala	GCU	614	1.8		Gly	GGU	534	1.2
Ala	GCC	225	0.66		Gly	GGC	198	0.45	trnG-GCC
Ala	GCA	378	1.11	trnA-UGC	Gly	GGA	705	1.59	trnG-UCC
Ala	GCG	148	0.43		Gly	GGG	342	0.77

RSCU: Relative Synonymous Codon Usage.

Table 5. Repeat sequences and their distribution in the S. mussotii chloroplast genome.

**Table 5.** Repeat sequences and their distribution in the S. mussotii chloroplast genome.
No.	Size (bp)	Type	Repeat 1 Start	Repeat 1 Location	Repeat 2 Start	Repeat 2 Location	Region
1	39	F	97971	IGS (rps12, trnV-GAC)	119586	ndhA (intron)	IRb, SSC
2	38	F	44377	ycf3 (intron 1)	97971	IGS (rps12, trnV-GAC)	LSC, IRb
3	38	F	44377	ycf3 (intron 1)	119586	ndhA (intron)	LSC, SSC
4	37	F	216	IGS (trnH-GUG, psbA)	244	IGS (trnH-GUG, psbA)	LSC
5	38	F	39302	psaB (CDS)	41526	psaA (CDS)	LSC
6	32	F	8154	trnS-GCU	36099	trnS-UGA	LSC
7	30	F	7704	IGS (psbK, psbI)	28958	IGS (petN, psbM)	LSC
8	30	F	9536	trnG-UCC	37013	trnG-GCC	LSC
9	30	F	38751	psaB (CDS)	40966	psaA (CDS)	LSC
10	30	F	58479	ΨaccD	58512	ΨaccD	LSC
11	30	F	75545	petB (intron)	138996	IGS (trnV-GAC, rps12)	LSC, IRa
12	51	P	114672	IGS (ccsA, ndhD)	114675	IGS (ccsA, ndhD)	SSC
13	39	P	119586	ndhA (intron)	138988	IGS (trnV-GAC, rps12)	SSC, IRa
14	38	P	44377	ycf3 (intron 1)	138989	IGS (trnV-GAC, rps12)	LSC, IRa
15	32	P	8154	trnS-GCU	45722	trnS-GGA	LSC
16	32	P	36096	trnS-UGA	45725	trnS-GGA	LSC
17	30	P	44378	ycf3 (intron 1)	75545	petB (intron)	LSC
18	30	P	75545	petB (intron)	119587	ndhA (intron)	LSC, SSC
19	30	P	75545	petB (intron)	97972	IGS (rps12, trnV-GAC)	LSC, IRb
20	31	R	42871	IGS (psaA, ycf3)	42875	IGS (psaA, ycf3)	LSC

F = forward, P = palindrome, IGS = intergenic spacer.

Table 6. Simple sequence repeats in the S. mussotii chloroplast genome.

**Table 6.** Simple sequence repeats in the S. mussotii chloroplast genome.
Unit	Length	No.	SSR Start	Region
A	16	1	68265	LSC
	13	3	45315	LSC
			80949	LSC
			114240	SSC
	11	1	22183	LSC
	10	7	8410	LSC
			12227	LSC
			57572	LSC
			63341	LSC
			71135	LSC
			77632	LSC
			122496	SSC
C	11	1	60812	LSC
T	14	1	60823	LSC
	13	2	118296	SSC
			118428	SSC
	12	4	5757	LSC
			32886	LSC
			35984	LSC
			112141	SSC
	11	3	1828	LSC
			124064	SSC
			125507	SSC
	10	7	92	LSC
			7909	LSC
			54930	LSC
			66001	LSC
			120007	LSC
			125752	LSC
			127189	SSC
AT	10	1	47791	LSC
TA	10	1	47617	LSC
ATT	15	1	119656	LSC
TTA	12	1	127046	LSC
TTC	12	1	35761	LSC
TTG	12	1	111418	SSC
AATT	16	1	29843	LSC
ATTT	12	1	116917	SSC
CATA	12	1	151279	IRa
TATG	12	1	85709	IRb
TATT	12	1	116932	SSC
TGTC	12	1	30554	LSC
TAATA	15	1	116944	SSC
TATTG	15	1	62151	LSC
CCTTTA	18	1	37196	LSC

Table 7. Distribution of SSRs present in the Gentianales chloroplast genomes.

**Table 7.** Distribution of SSRs present in the Gentianales chloroplast genomes.
Taxon	Genome Size (bp)	AT (%)	SSR Type						CDS
Taxon	Genome Size (bp)	AT (%)	Mono	Di	Tri	Tetra	Penta	Hexa	Total	% ^a	No. ^b	% ^c
Swertia mussotii	153,431	62	30	2	4	6	2	1	45	58	10	22
Gentiana straminea	148,991	62	27	3	2	7	0	0	39	61	10	26
Gentiana crassicaulis	148,776	62	27	4	2	7	0	1	41	61	10	24
Coffea arabica	155,189	63	31	5	3	4	0	0	43	59	8	19
Catharanthus roseus	154,950	62	33	6	7	9	1	0	56	59	5	9
Asclepias nivea	161,592	62	47	15	6	23	3	4	98	56	17	17
Asclepias syriaca	158,719	62	56	13	7	16	2	7	101	55	17	17
Rhazya stricta	154,841	62	33	5	9	12	3	0	62	58	6	10
Echites umbellatus	153,970	62	47	9	7	7	1	1	72	59	7	10
Nerium oleander	154,903	62	42	6	3	8	2	0	61	59	10	16
Oncinotis tenuiloba	155,011	62	41	7	4	9	2	0	63	58	5	8
Pentalinon luteum	154,053	62	34	5	2	5	3	0	49	57	6	12
Gynochthodes officinalis	153,398	62	26	4	7	3	4	1	45	60	7	16

CDS: coding regions. ^a Percentages were calculated using the total length of the CDS divided by the genome size. ^b Total number of SSRs identified in the CDS. ^c Percentages were calculated using the total number of SSRs in the CDS divided by the total number of SSRs in the genome.

© 2016 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC-BY) license ( http://creativecommons.org/licenses/by/4.0/).

Article Metrics

Citations

Article Access Statistics

Journal Statistics

Multiple requests from the same IP address are counted as one view.
