Review

Synthesis and Conformation of Substituted Chiral Binaphthyl-Azobenzene Cyclic Dyads with Chiroptical Switching Capabilities

by
Kazuto Takaishi
* and
Masuki Kawamoto
Supramolecular Science Laboratory, RIKEN, 2-1 Hirosawa, Wako, Saitama 351-0198, Japan
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(2), 1603-1624; https://doi.org/10.3390/molecules16021603
Submission received: 10 January 2011 / Revised: 2 February 2011 / Accepted: 11 February 2011 / Published: 14 February 2011
(This article belongs to the Special Issue Chiroptical Techniques)
Browse Figures
Versions Notes

Abstract

:
Optically active binaphthyl-azobenezene cyclic dyads were synthesized to develop a photochromic switching molecule. Azobenezene moieties were cis-trans isomerized by photoirradiation. As a reflection of the structural change, the specific optical rotation and circular dichroism underwent significant shifts. Under certain conditions, the positive-negative and zero-positive (or zero-negative) signals were reversed. Optical rotation may potentially be applied in noise-cancelling nondestructive photoswiches. The conformations were studied by experimental and theoretical methods. The results revealed that the helical chirality, (P) or (M), of the cis-azobenzene moiety was induced by intramolecular axial chirality. The twist direction depended on the axial chirality as well as the azobenzene linkage position to the binaphthyls, but was independent of the identity of substituted groups. 2,2’-Linked-(R)-binaphthyl was found to induce cis-(P)-azobenzene, whereas symmetrically 7,7’-linked-(R)-binaphthyl was found to induce cis-(M)-azobenzene.

1. Introduction

Molecular scaffolds designed for disparate purposes may be linked to enhance the properties of one component or to confer altogether new properties. Stimulus-driven chiroptical switches such as light-, electrically-, pH-, ion-, and temperature-driven switches have received a great deal of attention in the past decade [1,2,3,4,5,6,7,8,9,10,11]. Their high sensitivity and fast response are of great interest for molecular devices. These molecular switches are expected to find application in the fields of noise cancellation data storage, display instrument, and modulator.
Meanwhile, the axially chiral 1,1’-binaphthyl skeletons represented by BINOL [12,13] and BINAP [14,15] have a wide, flexible asymmetric field. Therefore, binaphthyl skeletons have made great contributions to the fields of catalytic asymmetric synthesis [14,15,16,17,18,19,20,21,22,23,24,25,26,27,28], specific molecular recognition [29,30,31,32,33,34,35,36,37,38,39,40,41], helical twisting of liquid crystals [42,43,44,45,46,47,48,49,50,51,52,53,54,55], and computational chemistry [56,57,58,59,60,61,62]. Azobenzenes are frequently used as photochromic components due to their switchable absorption spectra, fluorescence properties, and association constants [63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86]. The cis and trans forms of the azobenzene skeleton differ significantly in length. Therefore, it was thought that the combination of binaphthyls and azobenzenes may lead to novel molecular switches with optical properties that are derived from the chirality of the components.
Previously, Kawamoto et al. described a basic binaphthyl-azobenzene dyad 1 (Figure 1) and its enantiomer [87]. The azobenzene moiety of 1 was efficiently photoisomerized to yield switching behavior, as observed in the intensity of the circular dichroism (CD) and the helical twisting power (HTP) against liquid crystal materials.
Molecules 16 01603 g001 550

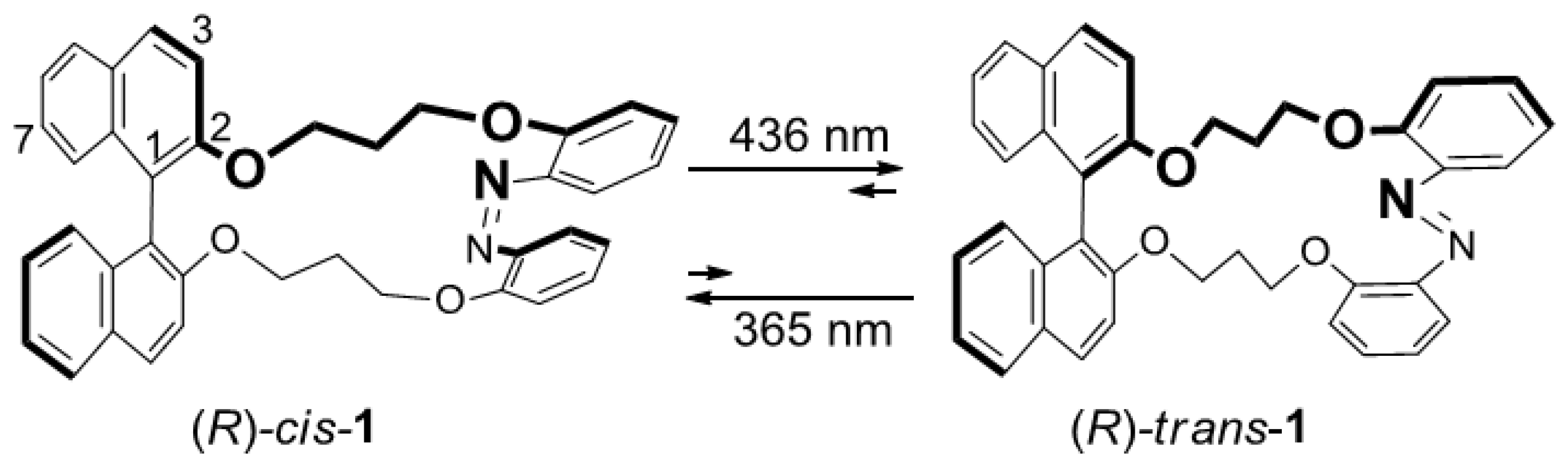

Figure 1. Photoisomerization of binaphthyl-azobenzene dyads 1.
Figure 1. Photoisomerization of binaphthyl-azobenzene dyads 1.
Molecules 16 01603 g001
We have continued this work to analyze the photoswitchable optical properties, including absorption, CD, and optical rotation, using substituted binaphthyl-azobenene dyads and their regioisomers [88,89]. Above all, we focused on the switching of the optical rotation, which can be detected at an unabsorbed wavelength, so that the target compounds did not degrade during measurements.
The cis-azobenzene isomers assume an inherent helicity, (P) or (M), caused by the steric hindrance of each of the two benzene rings (Figure 2). The properties of the helicity were not well understood with a notable exception [90], so we proceeded to investigate the twisting patterns of the cis-azobenzene moieties induced by intramolecular chirality transfer from the axial chirality of the binaphthyl units.
Molecules 16 01603 g002 550

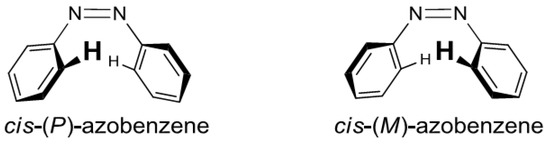

Figure 2. Helicity of the cis-azobenzenes.
Figure 2. Helicity of the cis-azobenzenes.
Molecules 16 01603 g002

2. Results and Discussion

2.1. Binaphthyl-Azobenzene Cyclic Dyads

Binaphthyl-azobenzene cyclic dyads 2–8 used in this study are shown in Figure 3. Their binaphthyl moieties are the axially chiral parts, and the azobenzene moieties are the photochromic parts. Compounds 2–6 have various substituents – benzyloxy, hydroxy, methoxy, and diphenylmethoxy groups – at the 3,3’-positions of the 1,1’-binaphthyl moiety and are linked circulary to the azobenzene moiety at the 2,2’-positions. In contrast, compound 7 has dibenzyloxy groups at the 7,7’-positions, while compound 8 is substituted by 2,2’-dimethoxy groups and is linked to an azobenzene moiety through the 7,7’-positions.
Molecules 16 01603 g003 550

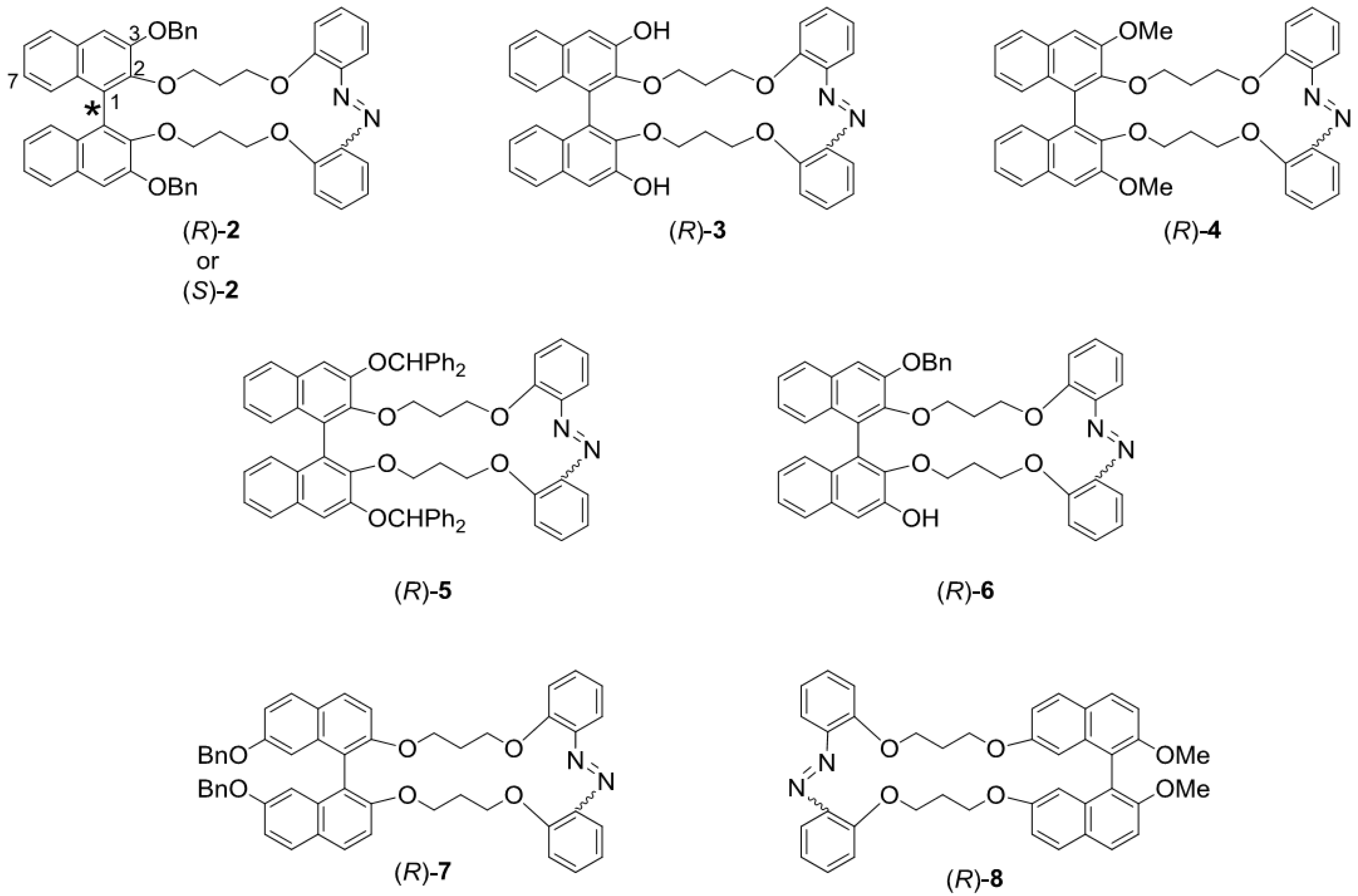

Figure 3. Opically active binaphthyl-azobenzene cyclic dyads 2–8.
Figure 3. Opically active binaphthyl-azobenzene cyclic dyads 2–8.
Molecules 16 01603 g003

2.2. Synthesis of 2–8

As shown in Scheme 1, 3,3’-disubstituted binaphthyl-azobenzene dyads (R)-2-6 were synthesized starting from optically active (R)-9 [91]. Tandem Williamson synthesis of diol (R)-9 and dibromide 10 afforded cyclic compound (R)-2 in 36% yield. Then debenzylation of (R)-2 with titanium tetrachloride [92,93,94] for 5 min gave (R)-3 in high yield (91%). Using a higher temperature, longer reaction time, or other Lewis acids (e.g. aluminum trichloride or niobium pentachloride) resulted in an extremely low yield (<5%). Additionally, generalized deprotection using palladium-activated carbon (Pd/C) and hydrogen was unsuccessful due to the concomitant reduction of the azobenzene moiety. (R)-4-6 were prepared in moderate yields by coupling (R)-3 with the appropriate halide. In the synthesis of (R)-4 and -5, excess methyl iodide (MeI) and α-bromodiphenylmethane were used, respectively. Although in the synthesis of nonsymmetrical (R)-6, 1.1 equivalents [based on (R)-3] of benzyl bromide were used for preferential monobenzylation, mixtures of desired (R)-6 (35%), unreacted (R)-3 (25%), and dibenzylated (R)-2 (29%) were obtained; they were easily separated by gel permeation chromatography (GPC). (R)-7 and -8 were synthesized by similar manner of synthesis of (R)-2 from 10 and binol (R)-11 [95,96] and -12 [97,98], respectively in moderate yield. Moreover, (S)-2 was prepared from (S)-9 and 10 using the foregoing procedure.
Molecules 16 01603 g016 550

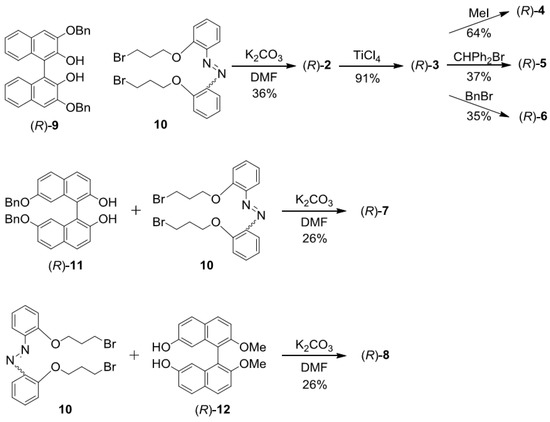

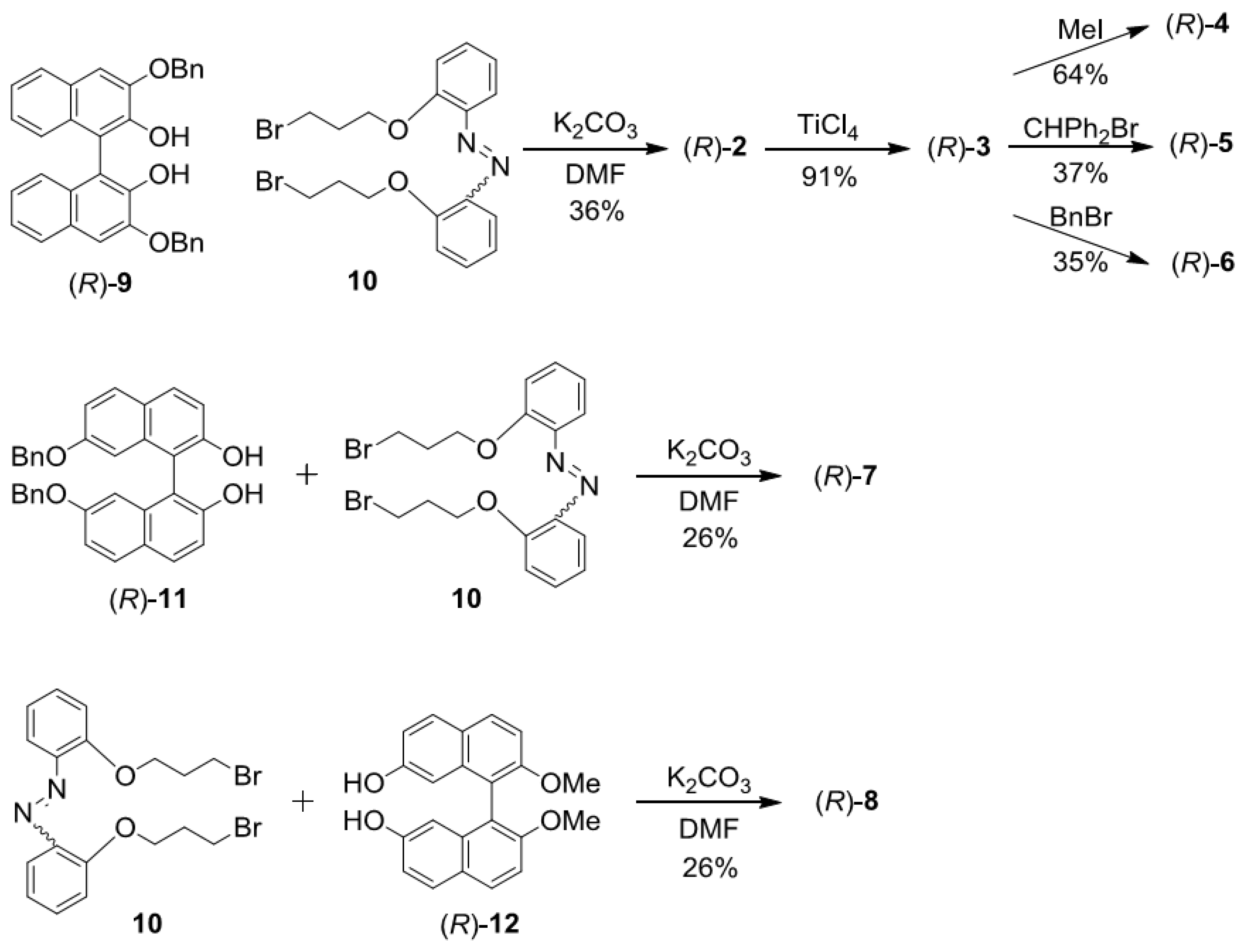

Scheme 1. Synthetic route to (R)-2-8.
Scheme 1. Synthetic route to (R)-2-8.
Molecules 16 01603 g016

2.3. Photoswitching of Absorption, CD, and NMR Spectra

The change in absorption near 360 nm, which indicated a π−π* transition of the trans form, confirmed the cis-trans isomerization of the azobenzene moiety. The absorption regions of the binaphthyl moiety were below 350 nm [95,96,97,98,99,100]. Hence, every compounds efficiently photoisomerized. As an example, Figure 4c–d and Figure 5c–d show the change in the absorption spectrum of (R)-2 and (R)-7 after irradiation with 365 nm or 436 nm light, respectively. Irradiation at 365 nm caused trans→cis isomerization, whereas irradiation at 436 nm caused the reverse cis→trans isomerization. Both wavelengths gave the same cis-trans isomerization rates of 0.7–0.8 in all compounds. Figure 4a–b and Figure 5a–b show the CD spectra of (R)-2 and (R)-7 after photoirradiation, respectively. The split CD at a short wavelength (around 250 nm), which is attributed mainly to the 1Bb transition moment of naphthalene rings, reflects the dihedral angle of two naphthalene rings of binaphthyl [101,102,103]. CD spectra of (R)-2 mean the dihedral angles are varied with the compounds and the isomerism. However, further investigation on the short wavelength side is extremely difficult because the azobenzene units also absorb in this region. Meanwhile, the positive/negative region appeared on the long wavelength (400–500 nm) and absorbed only an azobenzene moiety, n-π* band, of (R)-2. Additionally, about (R)-7, the negative/flat region appeared on same wavelength. Hence, we hypothesized that their cis-azobenzene moieties were preferentially-twisted as either (P) or (M) along with the chiral axis of the binaphthyls. This point is discussed later in detail (Section 2.6).
Molecules 16 01603 g004 550

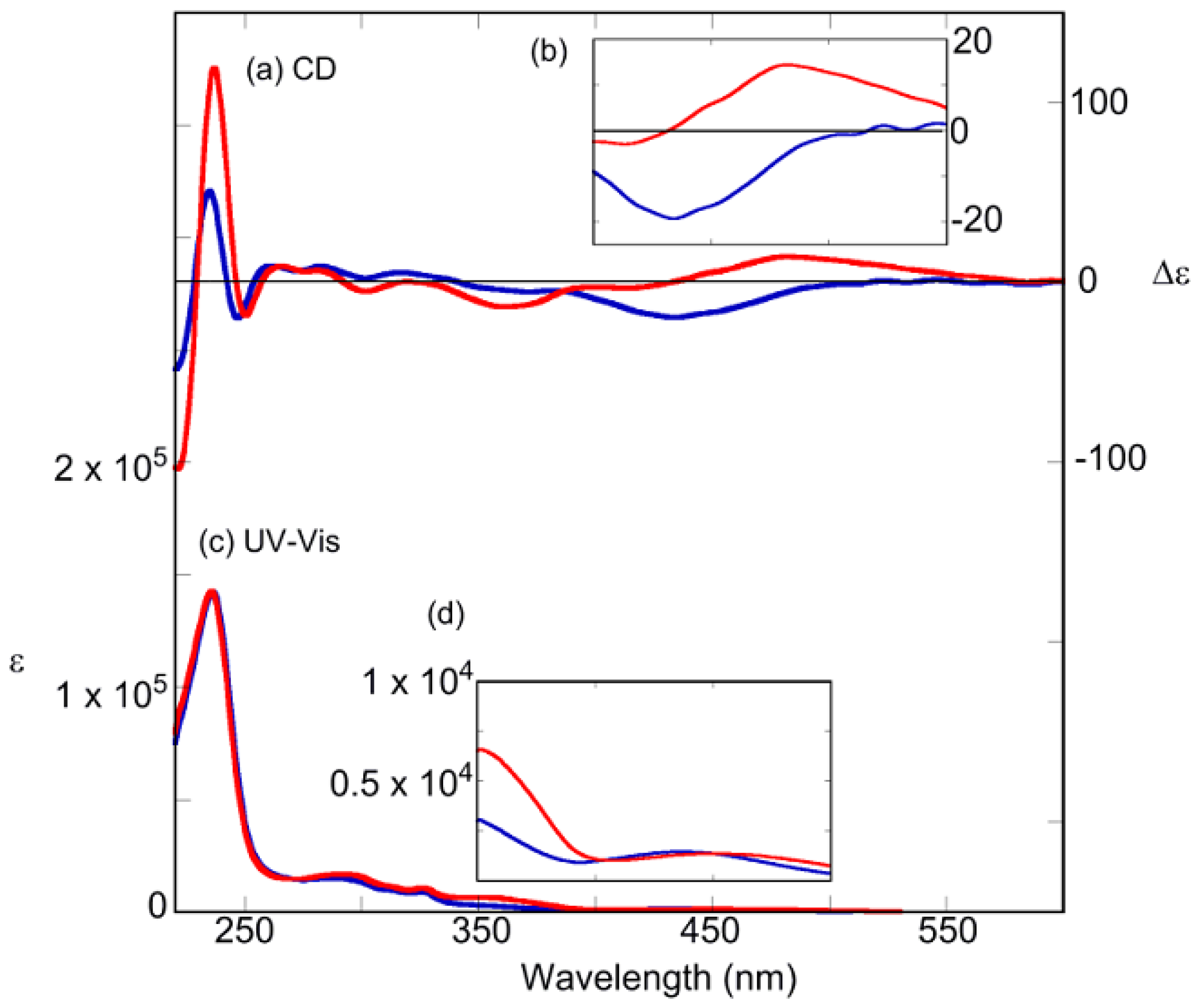

Figure 4. (a, b) CD spectra of (R)-2. (c, d) Absorption spectra of (R)-2. After 365-nm irradiation (blue line), after 436-nm irradiation (red line). Conditions: 1,4-dioxane (1.0 × 10−5 M), 20 °C, light path length = 10 mm, irradiation wavelength = 365 nm (10 mW/cm2, 100 s) and 436 nm (10 mW/cm2, 100 s).
Figure 4. (a, b) CD spectra of (R)-2. (c, d) Absorption spectra of (R)-2. After 365-nm irradiation (blue line), after 436-nm irradiation (red line). Conditions: 1,4-dioxane (1.0 × 10−5 M), 20 °C, light path length = 10 mm, irradiation wavelength = 365 nm (10 mW/cm2, 100 s) and 436 nm (10 mW/cm2, 100 s).
Molecules 16 01603 g004
Molecules 16 01603 g005 550

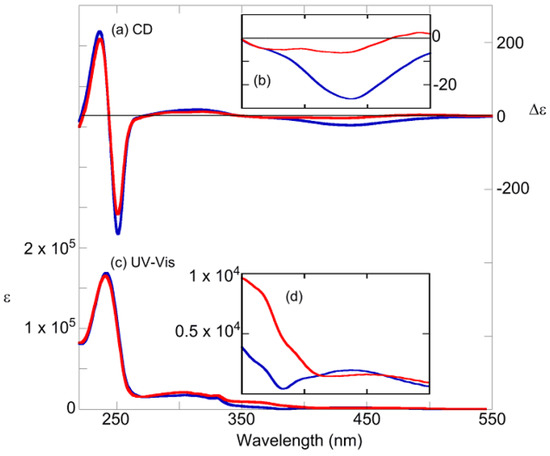

Figure 5. (a, b) CD spectra of (R)-7. (c, d) Absorption spectra of (R)-7. After 365-nm irradiation (blue line), after 436-nm irradiation (red line). Conditions: 1,4-dioxane (1.0 × 10−5 M), 20 °C, light path length = 10 mm, irradiation wavelength = 365 nm (10 mW/cm2, 100 s) and 436 nm (10 mW/cm2, 100 s).
Figure 5. (a, b) CD spectra of (R)-7. (c, d) Absorption spectra of (R)-7. After 365-nm irradiation (blue line), after 436-nm irradiation (red line). Conditions: 1,4-dioxane (1.0 × 10−5 M), 20 °C, light path length = 10 mm, irradiation wavelength = 365 nm (10 mW/cm2, 100 s) and 436 nm (10 mW/cm2, 100 s).
Molecules 16 01603 g005
Next, the NMR spectra of the cis- and trans-forms were investigated. In compounds 2–8, isomerism resulted in a pronounced change in the signals of the protons of the binaphthyl parts and their substituents far from the light-driven parts. For example, the chemical shift and signal splitting pattern of the benzyl protons far from the light-driven part of (R)-2 in the 1H-NMR differed vastly between the cis and trans forms because the signal of (R)-cis-2 appeared as a singlet (5.19 ppm), whereas that of (R)-trans-2 was an AB quartet (4.88 ppm, ΔνAB = 61.7 Hz, JAB = 11.2 Hz) with Δδ of 0.3 ppm (Figure 6). Like in the examples above, the 3,3’-subsituents of binaphthyls played an important role in the overall conformation of these compounds.
Molecules 16 01603 g006 550

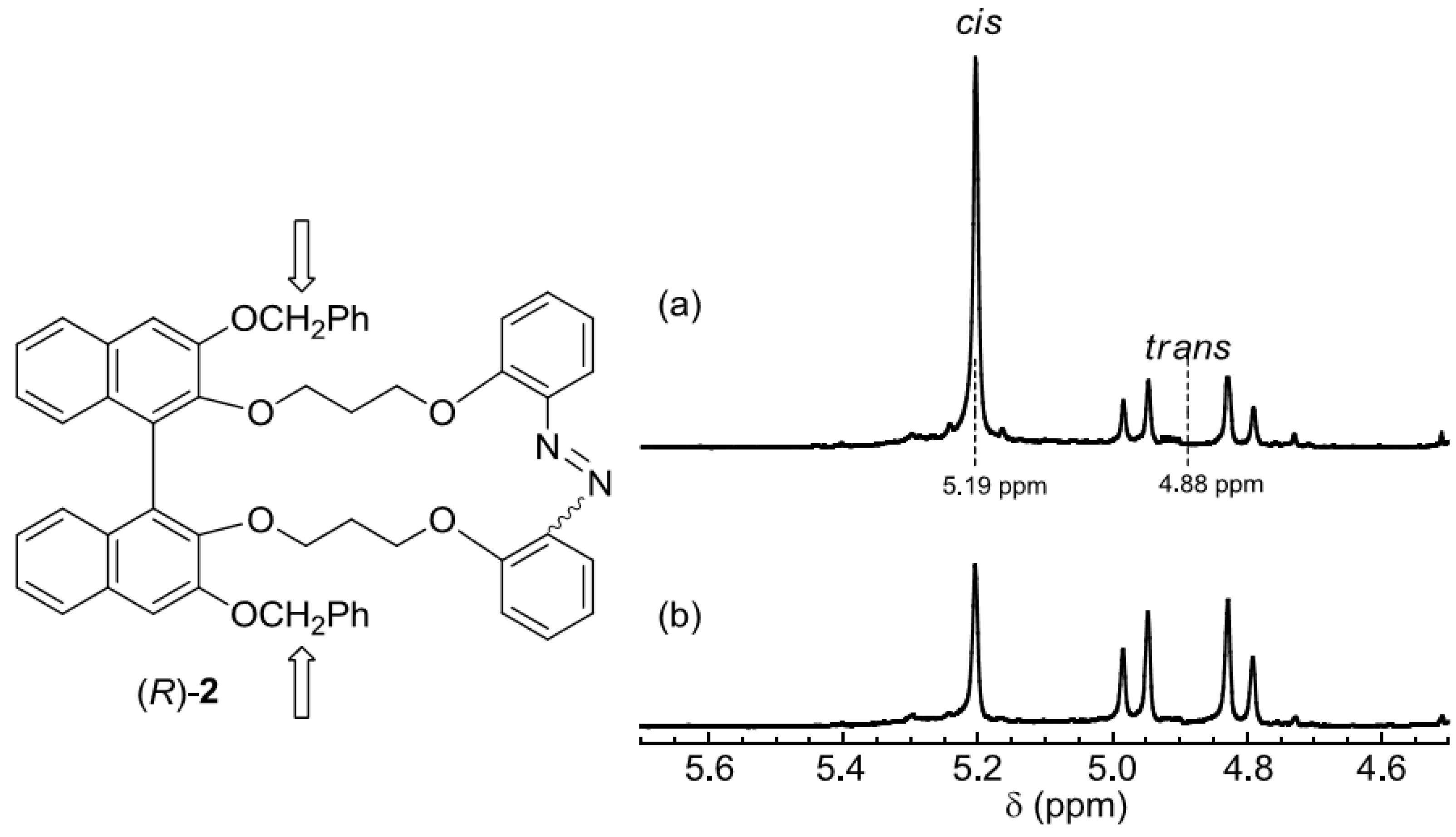

Figure 6. 1H-NMR spectra of the benzyl protons of (R)-2 after (a) 365 nm-irradiation, (b) 436 nm-irradiation. Conditions: CDCl3, 1 × 10−3 M, 300 MHz, 22 °C, Irradiation: 365 nm (10 mW/cm2, 500 s), 436 nm (10 mW/cm2, 500 s) in an NMR test tube (ϕ = 5 mm).
Figure 6. 1H-NMR spectra of the benzyl protons of (R)-2 after (a) 365 nm-irradiation, (b) 436 nm-irradiation. Conditions: CDCl3, 1 × 10−3 M, 300 MHz, 22 °C, Irradiation: 365 nm (10 mW/cm2, 500 s), 436 nm (10 mW/cm2, 500 s) in an NMR test tube (ϕ = 5 mm).
Molecules 16 01603 g006

2.4. Photoswiching of Optical Rotation

Isomerization also influenced the optical rotation. Table 1 shows the specific optical rotations at the sodium D-line, [α]D, of (R)-2-8 after photoirradiation until the values were constant (500 seconds). Generally, [α]D after 365-nm irradiation reflects the CD intensity and Cotton effect pattern at longer wavelengths. The cis-trans ratios were same as those shown in Table 1. The absolute values of [α]D were lower than those of helicenes and other chiral metallic compounds [104,105,106], but were greater than general axially chiral binaphthyls. Furthermore, [α]D of (R)-2, -4, and -5 resulted in a sign inversion; (R)-2 showed the largest change (ca. 1,000°). The absolute values of [α]D of compound (R)-5 remained nearly constant, but the sign was reversed. From the result of (R)-6, both 3- and 3’-substitents, which are bulkier than the hydroxy group, are necessary to realize a sufficient sign inversion. [α]D of (R)-7 is suited as a switch for zero-rotation/levo-rotation, although the values of (R)-8 remained relatively constant despite efficient isomerization. Hence, a selection of appropriate compounds could yield any type of sign-changing pattern. Moreover, absorption at the sodium D-line (589 nm) did not occur despite analysis at high concentrations and long path-lengths (Figure 7). Thus, target compounds did not degrade during measurement of [α]D. Hence, a switch for large α adapted from these compounds should realize the development of nondestructive reading of memory devices [107,108,109].
Table
Table 1. [α]D and cis-trans ratio after photoirradiation of (R)-2-8.
Table 1. [α]D and cis-trans ratio after photoirradiation of (R)-2-8.
Compound[α]D after 365 nm irradiation (deg)[α]D after 436 nm irradiation (deg)cis:trans after 365 nm irradiationcis:trans after 436 nm irradiation
(R)-2−314+64271:2931:69
(R)-3−427−49065:3531:69
(R)-4−370+24872:2822:78
(R)-5−252+27869:3135:65
(R)-6−415−28568:3229:71
(R)-7−544−780:2020:80
(R)-8+358+28280:2026:74
Conditions: chloroform, c = 0.10 g/dL, 20 °C, light path length = 10 cm, irradiation wavelength = 365 nm (10 mW/cm2, 500 s) and 436 nm (10 mW/cm2, 500 s)
Molecules 16 01603 g007 550

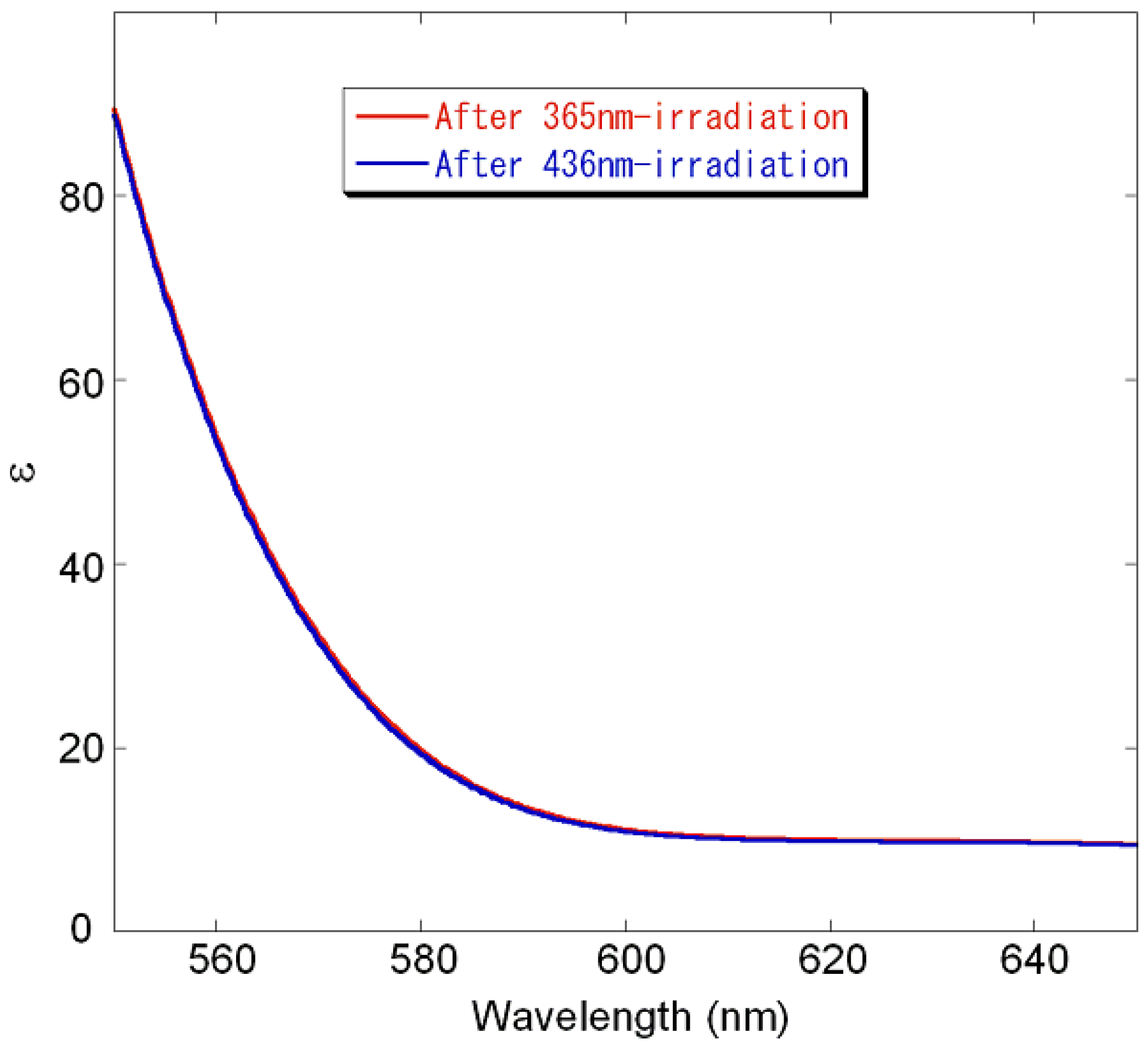

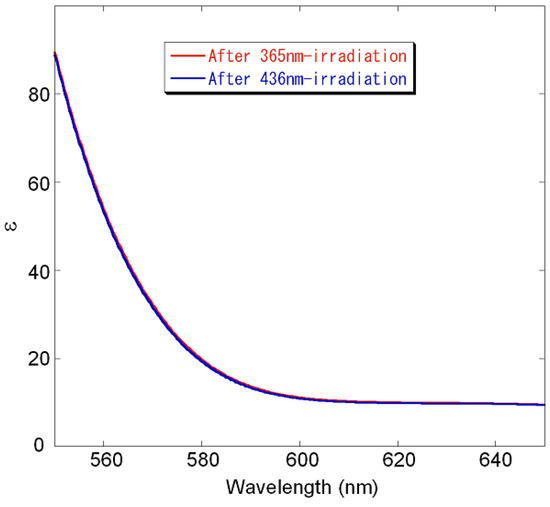

Figure 7. Absorption spectra of concentrated (R)-2 after photo-irradiation; after 365 nm-irradiation (blue line), after 436 nm-irradiation (red line). Conditions: CHCl3, 0.0126 M (0.01 g/dL), light path length = 10 mm, 20 °C, Irradiation wavelength: 365 nm (10 mW/cm2, 500 s), 436 nm (10 mW/cm2, 500 s).
Figure 7. Absorption spectra of concentrated (R)-2 after photo-irradiation; after 365 nm-irradiation (blue line), after 436 nm-irradiation (red line). Conditions: CHCl3, 0.0126 M (0.01 g/dL), light path length = 10 mm, 20 °C, Irradiation wavelength: 365 nm (10 mW/cm2, 500 s), 436 nm (10 mW/cm2, 500 s).
Molecules 16 01603 g007

2.5. Thermodynamic Parameters of Trans to cis Isomerization Process

The thermodynamic parameters, including rate constants (k), enthalpy of activation (ΔH‡), entropy of activation (ΔS‡), and half-life (t1/2) at 298 K of 2–8 for the cis to trans thermal isomerization were measured or calculated. These parameters were determined according to Eyring equation [110] as discussed in more detail below, and were first-order reactions. For the thermal cis-trans isomerization:
Molecules 16 01603 i001
where [cis]t and [cis]0 are the concentrations of the cis-azobenzene at time t and time zero, respectively, and k is the rate constant for the thermal cis-trans isomerization. The first-order rate constant was determined by fitting the experimental data to the equation:
Molecules 16 01603 i002
where At, A0 and A∞ are the absorbance at 365 nm at time t, time zero and infinite time, respectively.　The first order plots according to equation (2) for the cis-trans thermal isomerization at various temperatures and resulting rate constants are shown in Figure 8 and Table 2, respectively.
Molecules 16 01603 g008 550

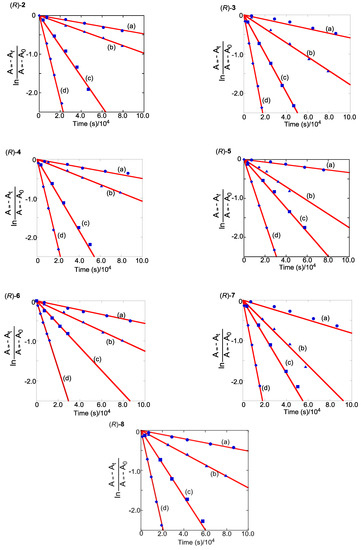

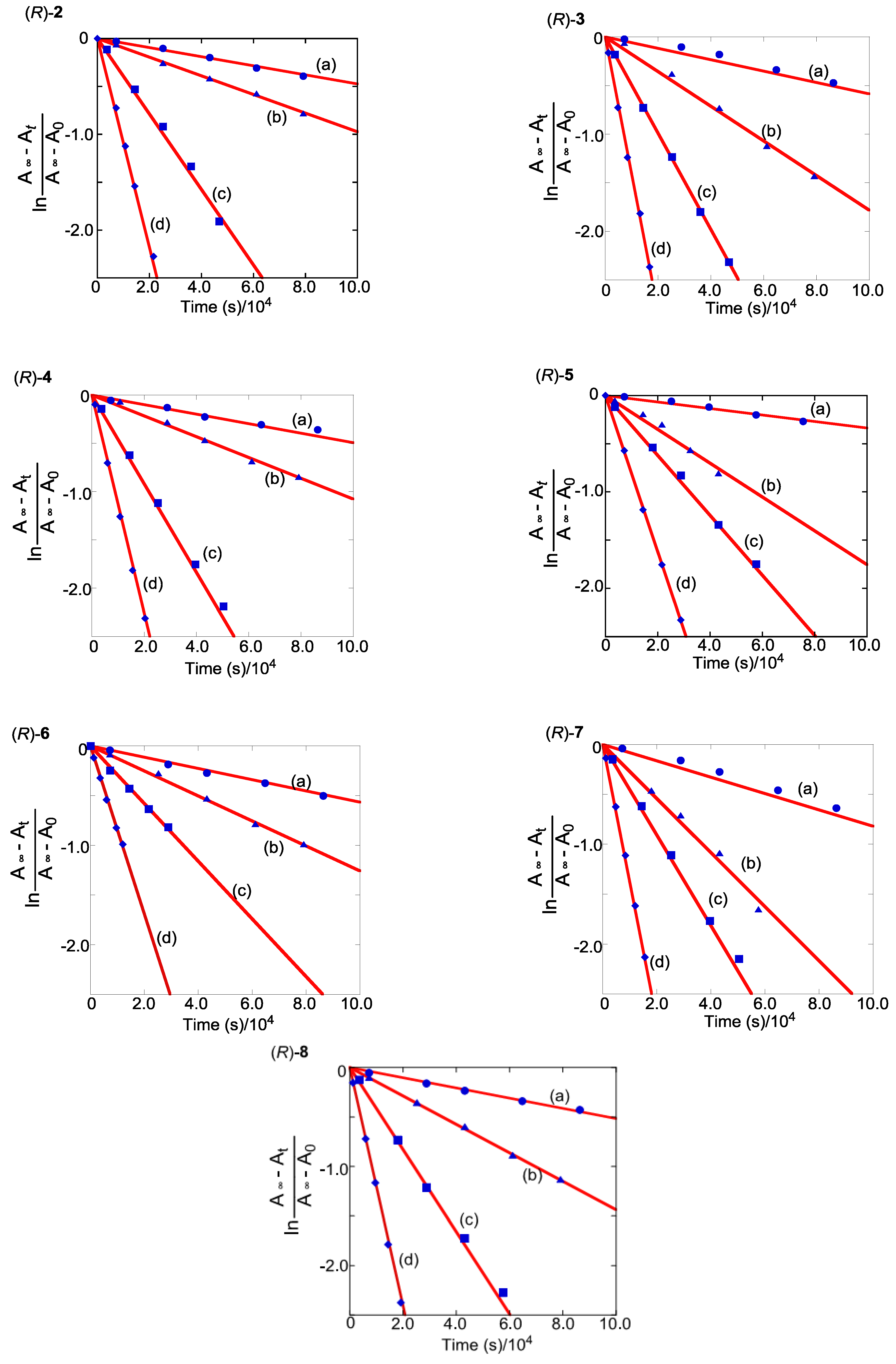

Figure 8. First-order plots for cis to trans thermal isomerization of (R)-2-8. (a) 35 °C, (b) 45 °C, (c) 55 °C, (d) 65 °C.Conditions: 1,4-dioxane, 1.0 × 10−5 M.
Figure 8. First-order plots for cis to trans thermal isomerization of (R)-2-8. (a) 35 °C, (b) 45 °C, (c) 55 °C, (d) 65 °C.Conditions: 1,4-dioxane, 1.0 × 10−5 M.
Molecules 16 01603 g008
Table
Table 2. Rate constants k (s−1) of cis to trans isomerization of (R)-2-8.
Table 2. Rate constants k (s−1) of cis to trans isomerization of (R)-2-8.
Compoundk at 35 °Ck at 45 °Ck at 55 °Ck at 65 °C
(R)-24.7 × 10−69.8 × 10−64.0 × 10−51.1 × 10−4
(R)-35.9 × 10−61.8 × 10−55.0 × 10−51.4 × 10−4
(R)-45.0 × 10−61.1 × 10−54.6 × 10−51.1 × 10−4
(R)-53.4 × 10−61.8 × 10−53.1 × 10−58.1 × 10−5
(R)-65.7 × 10−61.3 × 10−52.9 × 10−58.5 × 10−5
(R)-78.2 × 10−62.7 × 10−54.5 × 10−51.4 × 10−4
(R)-85.2 × 10−61.4 × 10−54.2 × 10−51.2 × 10−4
Conditions: 1,4-dioxane, 1.0 × 10−5 M.
Furthermore thermodynamic parameters such as enthalpy of activation (ΔH‡) and entropy of activation (ΔS‡) were determined according to the Eyring equation:
Molecules 16 01603 i003
where R, kB, and h are gas constant, Boltzmann constant, and Planck’s constant, respectively. Substituting into equation (3):
Molecules 16 01603 i004
Molecules 16 01603 g009 550

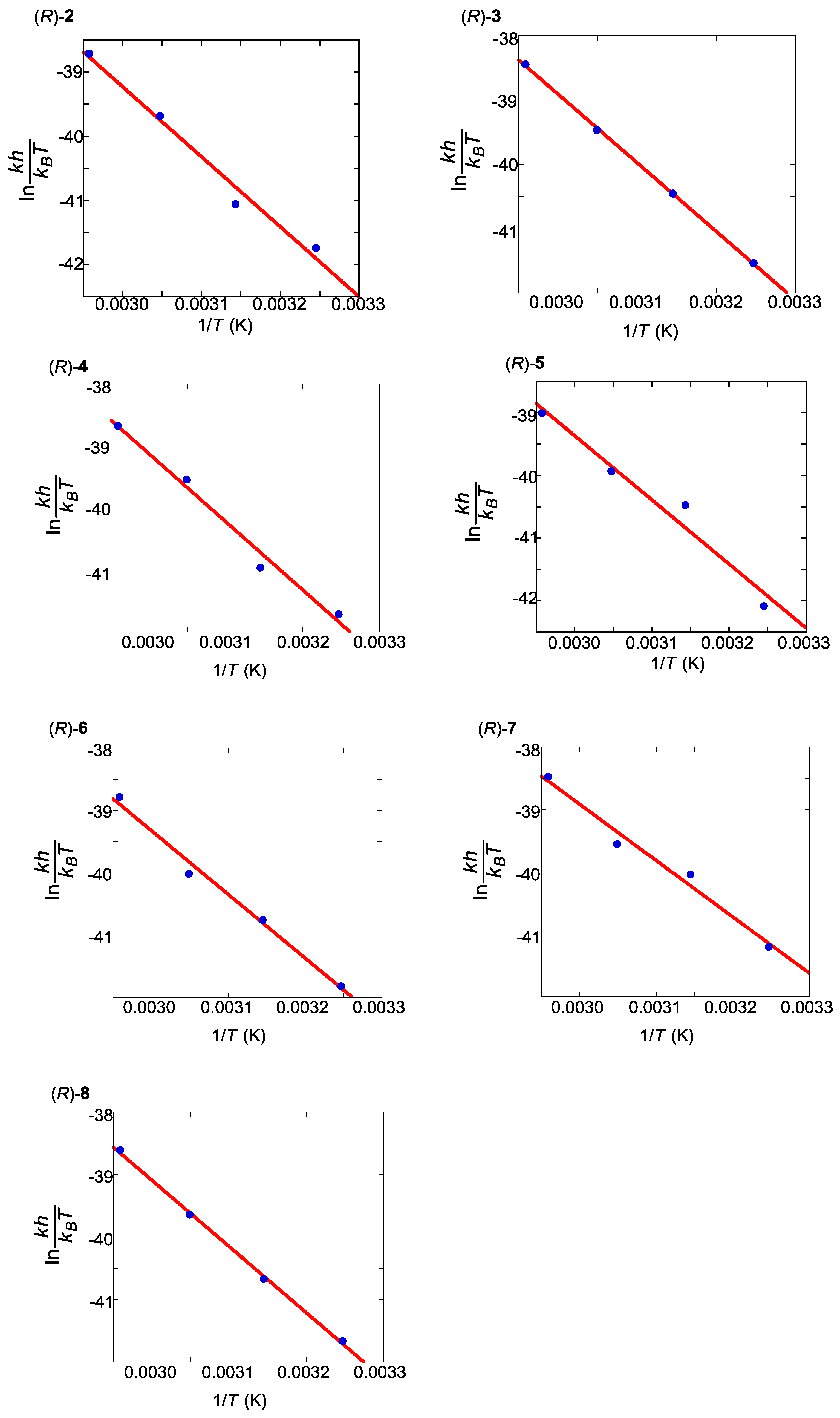

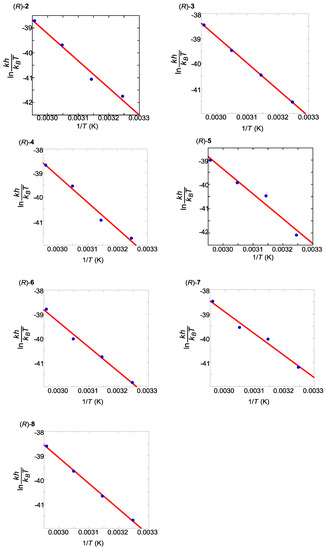

Figure 9. Eyring plots for cis to trans thermal isomerization of (R)-2-8.
Figure 9. Eyring plots for cis to trans thermal isomerization of (R)-2-8.
Molecules 16 01603 g009
Figure 9 shows Eyring plots for cis to trans thermal isomerization. The values of ΔH‡ and ΔS‡ were obtained from intersect and a slope, respectively, of the linear plot of ln(kh/kBT) versus 1/T extrapolated to T → ∞ (Table 3).
Table
Table 3. Enthalpy of activation, entropy of activation, and half-life of (R)-2-8.
Table 3. Enthalpy of activation, entropy of activation, and half-life of (R)-2-8.
CompoundΔH‡ (kcal/mol)ΔS‡ (cal/mol·K)t1/2 at 298 K (h)
(R)-222−13157
(R)-321−14120
(R)-422−13163
(R)-520−17148
(R)-618−25101
(R)-718−2361
(R)-821−15128
Conditions: 1,4-dioxane, 1.0 × 10−5 M.
Both ΔH‡ and ΔS‡ derived from the rate constants varied slightly for each compound. Although the isomer ratios differ slightly, it is more than probable that the isomerization mechanism is the same for all compounds. Furthermore, most of these compounds had the half-lives at 298 K longer than 100 h, which is extraordinary for azobenzene derivatives. These long lives provide practical advantages for future application.

2.6. Helical Chirality of cis-Azobenzenes

To confirm the hypothesis that the axial chirality of binaphthyl induces the helical chirality of cis-azobenzene (Figure 10), we calculated the optimized geometries and corresponding CD spectra of two diastereomers, the (P)- and (M)-forms at the azobenzene moiety.
Molecules 16 01603 g010 550

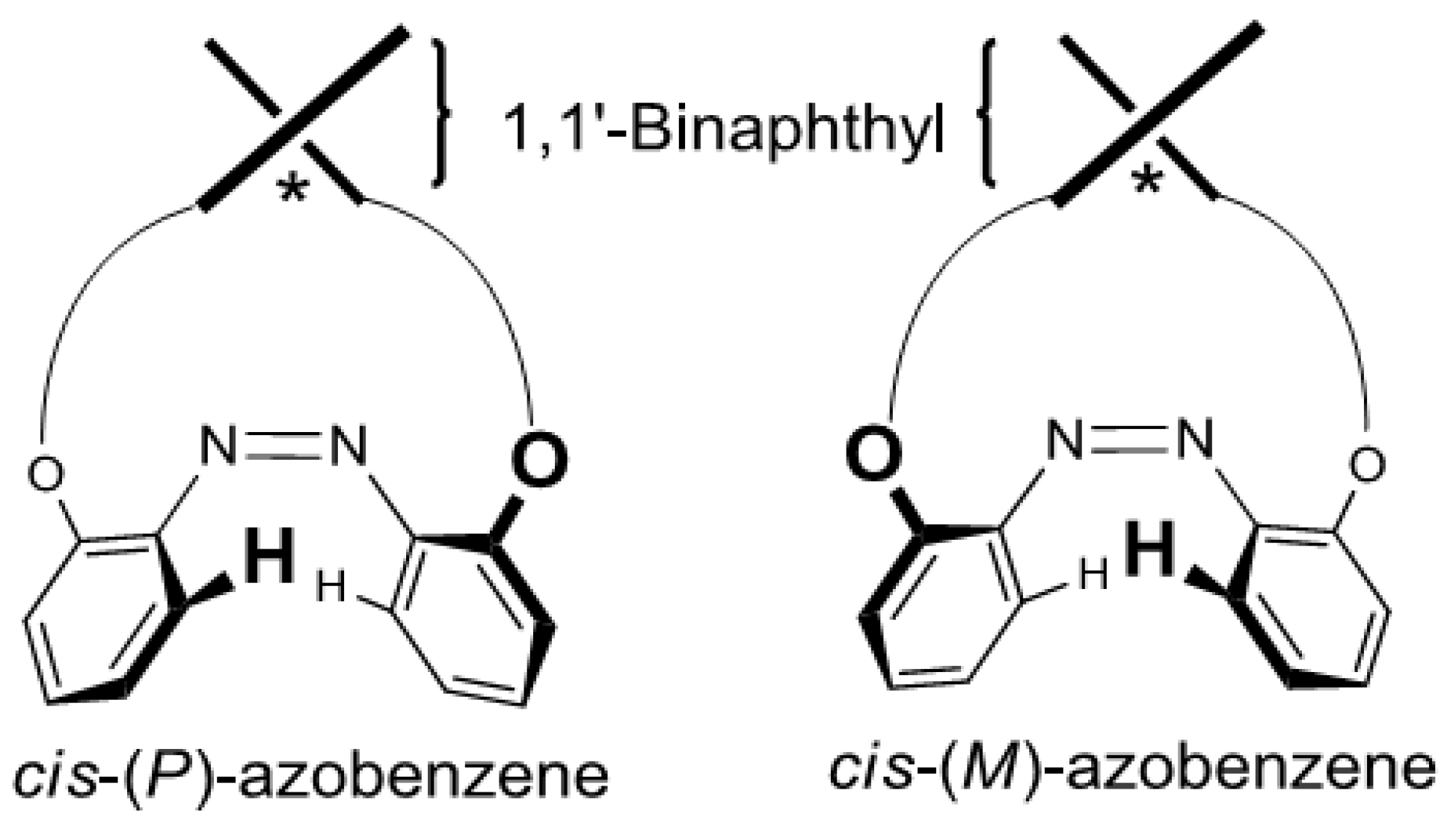

Figure 10. Structures of cis-(P)-azobenzene and cis-(M)-azobenzenelinked to a 1,1’-binaphthyl.
Figure 10. Structures of cis-(P)-azobenzene and cis-(M)-azobenzenelinked to a 1,1’-binaphthyl.
Molecules 16 01603 g010
Figure 11a shows the optimized structures of (R)-cis-(P)- and (R)-cis-(M)-2 obtained by the DFT calculations at the B3LYP/6-31G(d) level [101]. Figure 11b shows the CD in the “azobenzene region” (350–600 nm) predicted using these optimized structures by TD-DFT methods at the B3LYP/6-31G(d) level. These results indicated that the (R)-cis-(P)-2 exhibited a negative Cotton effect pattern and (R)-cis-(M)-2 exhibited a positive Cotton effect pattern.
The experimental CD indicated that the preferential configuration of (R)-cis-2 was the (P)-form. Using the same method, (R)-cis-7 was also determined to assume (P)-configuration (Figure 12). In contrast, (R)-cis-8 was determined to assume (M)-configuration (Figure 13). Additionally, the CDs of just the azobenzene moieties in cis-(P)- and cis-(M)-13 were calculated (Figure 14). Similar to (R)-cis-2 -7, and -8, cis-(P)-13 (cis-(M)-13) exhibited a negative (positive) Cotton effect. Therefore, the CD patterns described herein are derived from the innate CD of azobenzene itself and not from binaphthyl-related induced CD [112,113]. Most of the optimized structures were obtained by a calculation under C2 symmetry. However, the obtained structure of (R)-cis-(M)-7 calculated under C2 symmetry had an imaginary frequency. Hence, the symmetry was ignored during the optimization of (R)-cis-(M)-7. Additionally, some of the obtained structures using M06/6-31G(d) [114] were unacceptable as it was based on an imaginary frequency.
Molecules 16 01603 g011 550

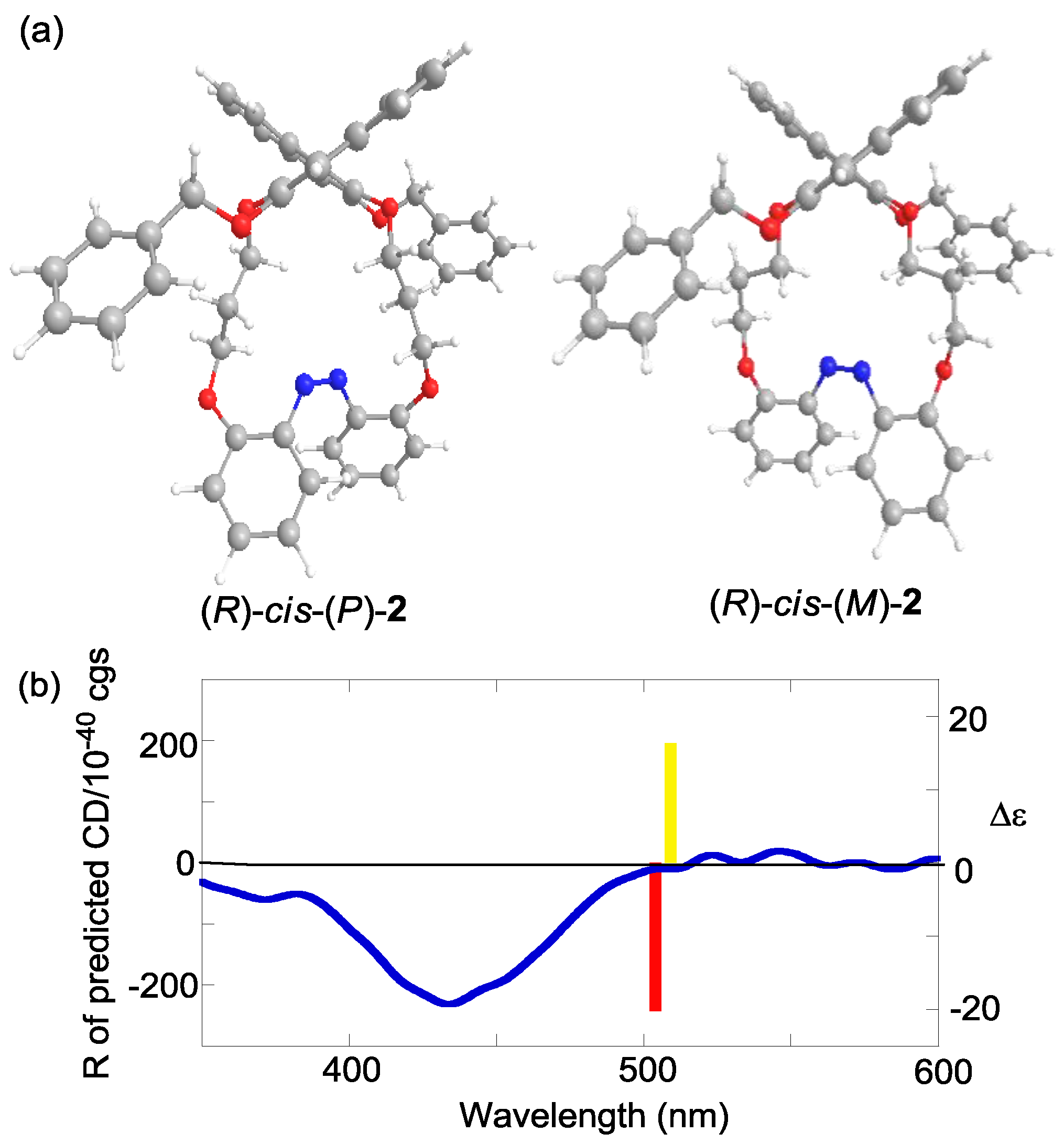

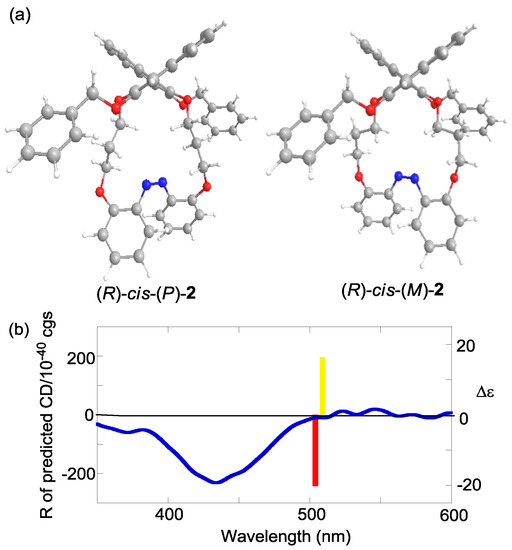

Figure 11. (a) Optimized structures of (R)-cis-(P)-2 and (R)-cis-(M)-2 obtained by the DFT calculations at the B3LYP/6-31G(d) level under C2 symmetry. (b) CD calculated by the TD-DFT method with the B3LYP/6-31G(d) level of (R)-cis-(P)-2 (red bar), (R)-cis-(M)-2 (yellow bar), and experimental CD of (R)-2 after 365-nm irradiation (blue line, 1 × 10−5 M in 1,4-dioxane, 20 °C).
Figure 11. (a) Optimized structures of (R)-cis-(P)-2 and (R)-cis-(M)-2 obtained by the DFT calculations at the B3LYP/6-31G(d) level under C2 symmetry. (b) CD calculated by the TD-DFT method with the B3LYP/6-31G(d) level of (R)-cis-(P)-2 (red bar), (R)-cis-(M)-2 (yellow bar), and experimental CD of (R)-2 after 365-nm irradiation (blue line, 1 × 10−5 M in 1,4-dioxane, 20 °C).
Molecules 16 01603 g011
Molecules 16 01603 g012 550

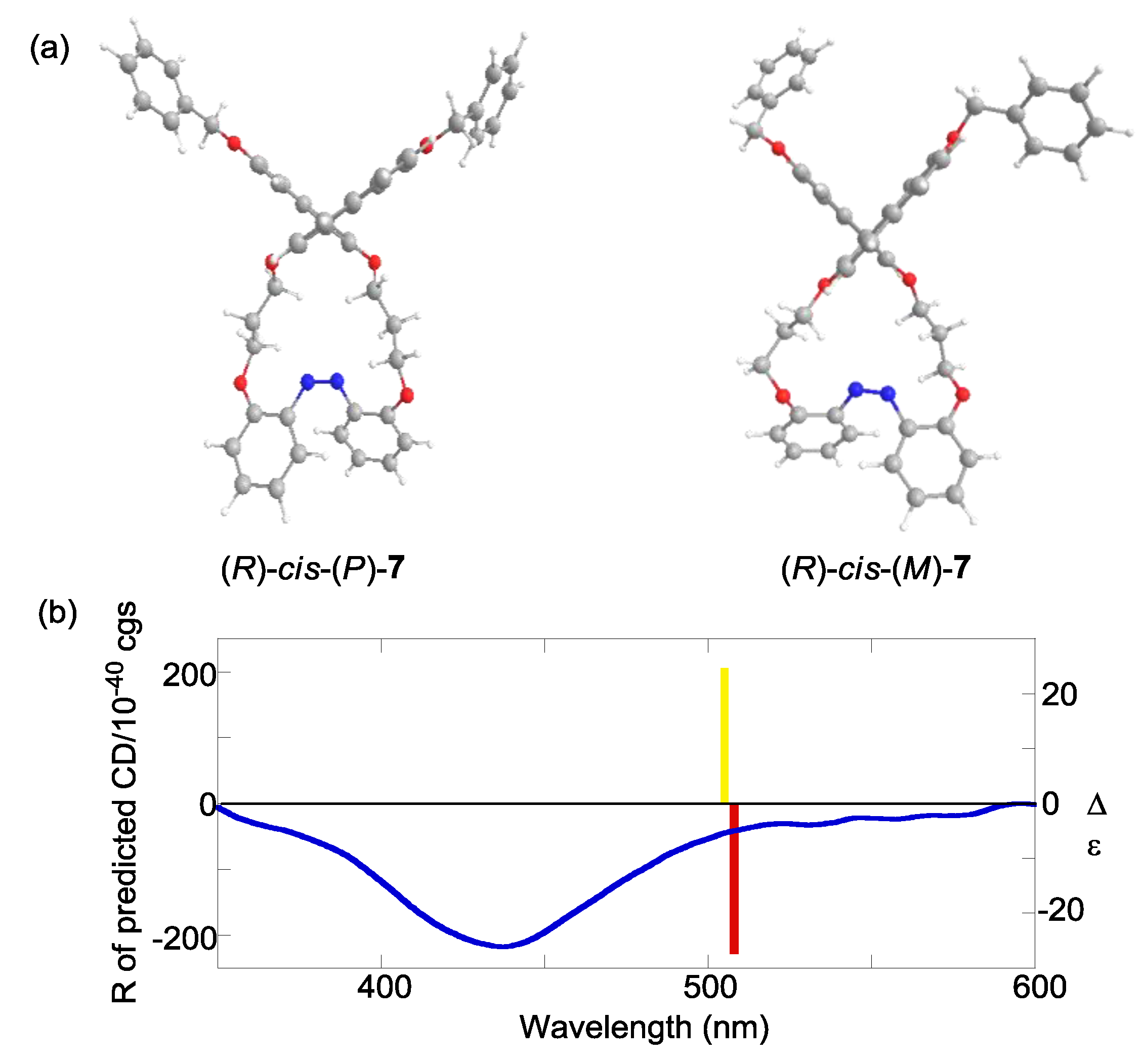

Figure 12. (a) Optimized structures of (R)-cis-(P)-7 and (R)-cis-(M)-7 obtained by the DFT calculations at the B3LYP/6-31G(d) level. (b) CD calculated by the TD-DFT method with the B3LYP/6-31G(d) level of (R)-cis-(P)-7 (red bar), (R)-cis-(M)-7 (yellow bar), and experimental CD of (R)-7 after 365-nm irradiation (blue line, 1 × 10−5 M in 1,4-dioxane, 20 °C).
Figure 12. (a) Optimized structures of (R)-cis-(P)-7 and (R)-cis-(M)-7 obtained by the DFT calculations at the B3LYP/6-31G(d) level. (b) CD calculated by the TD-DFT method with the B3LYP/6-31G(d) level of (R)-cis-(P)-7 (red bar), (R)-cis-(M)-7 (yellow bar), and experimental CD of (R)-7 after 365-nm irradiation (blue line, 1 × 10−5 M in 1,4-dioxane, 20 °C).
Molecules 16 01603 g012
Molecules 16 01603 g013 550

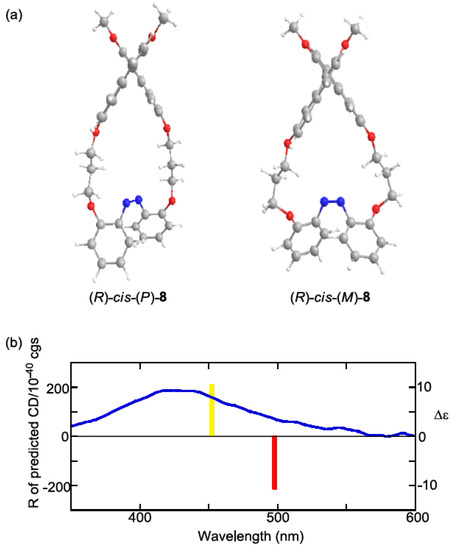

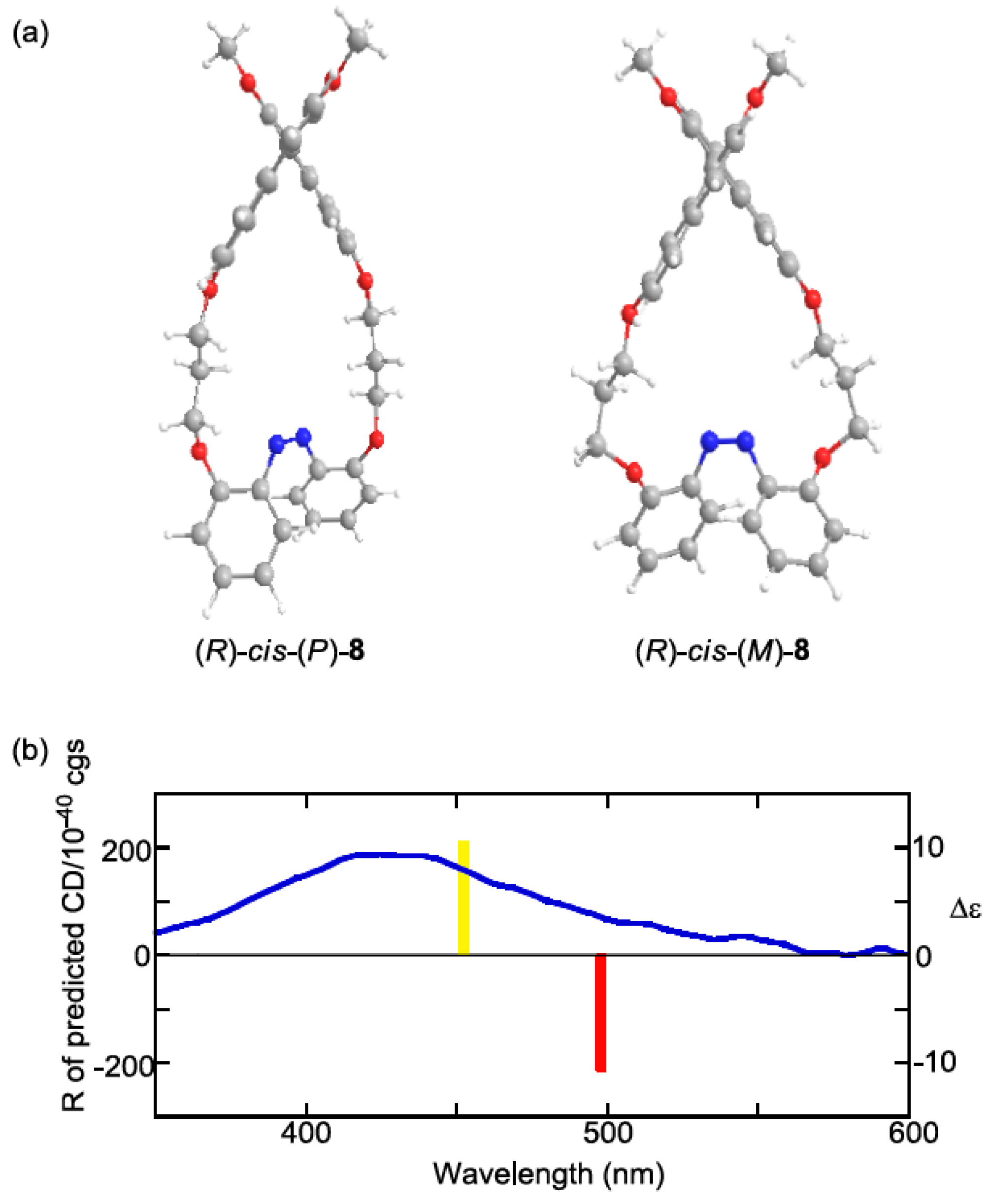

Figure 13. (a) Optimized structures of (R)-cis-(P)-8 and (R)-cis-(M)-8 obtained by the DFT calculations at the B3LYP/6-31G(d) level under C2 symmetry. (b) CD calculated by the TD-DFT method with the B3LYP/6-31G(d) level of (R)-cis-(P)-8 (red bar), (R)-cis-(M)-7 (yellow bar), and experimental CD of (R)-8 after 365-nm irradiation (blue line, 1 × 10−5 M in 1,4-dioxane, 20 °C).
Figure 13. (a) Optimized structures of (R)-cis-(P)-8 and (R)-cis-(M)-8 obtained by the DFT calculations at the B3LYP/6-31G(d) level under C2 symmetry. (b) CD calculated by the TD-DFT method with the B3LYP/6-31G(d) level of (R)-cis-(P)-8 (red bar), (R)-cis-(M)-7 (yellow bar), and experimental CD of (R)-8 after 365-nm irradiation (blue line, 1 × 10−5 M in 1,4-dioxane, 20 °C).
Molecules 16 01603 g013
Molecules 16 01603 g014 550

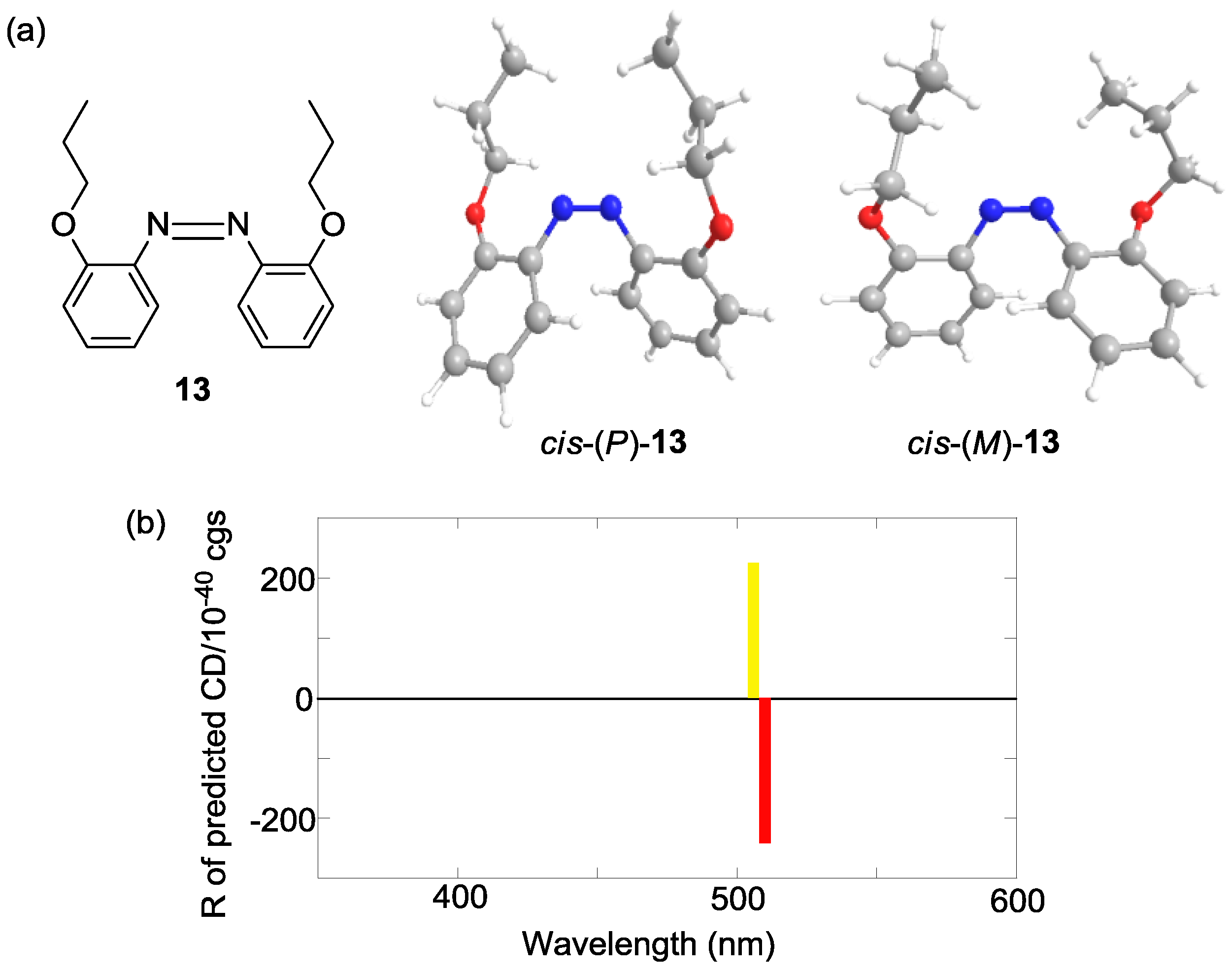

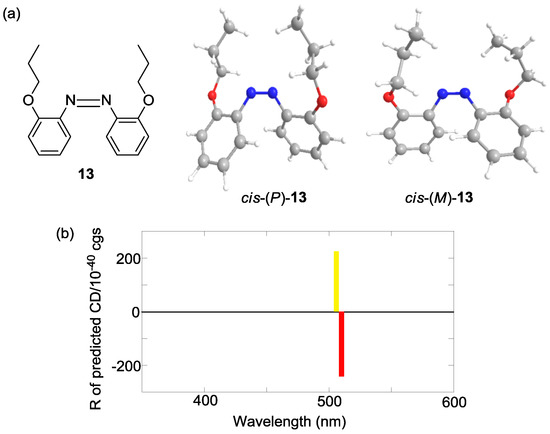

Figure 14. (a) Structures of cis-(P)-13 and cis-(M)-13. (b) CD calculated by the TD-DFT method with the B3LYP/6-31G(d) level of cis-(P)-13 (red bar), cis-(M)-13 (yellow bar).
Figure 14. (a) Structures of cis-(P)-13 and cis-(M)-13. (b) CD calculated by the TD-DFT method with the B3LYP/6-31G(d) level of cis-(P)-13 (red bar), cis-(M)-13 (yellow bar).
Molecules 16 01603 g014
Table 4, which shows the data regarding the asymmetry of the compounds (R)-2-8, (S)-2, and 13, illustrates three points regarding chirality: (1) (R)-2,2’-azobenzene-linked-binaphthyls induced (P)-azobenzene, (2) (S)-2,2’-analogues induced (M)-azobenzene, and (3) 7,7’-analogues acted as pseudo-enantiomers of 2,2’-analogues. A systematic and simple induction of asymmetrical cis-azobenzenes (Figure 15) was structured using common binaphthyl skeletons. These conformational results should assist in future studies on asymmetric azobenzenes.
Table
Table 4. Sign of experimental and calculated CD, and helical chirality of the cis-azobenzene moiety in 2–8 and 13.
Table 4. Sign of experimental and calculated CD, and helical chirality of the cis-azobenzene moiety in 2–8 and 13.
CompoundSign of Δε[a][b]
ExperimentalCalculated cis-(P)-formCalculated cis-(M)-formChirality of cis-azobenzene[c]
(R)-2––+(P)
(R)-3––+(P)
(R)-4––+(P)
(R)-5––+(P)
(R)-6––+(P)
(R)-7––+(P)
(R)-8+–+(M)
(S)-2+–+(M)
13 –+
[a] Sign of Δε at 350–600 nm; [b] Calculated using the TD-DFT method with B3LYP/6-31G(d); [c] These chiralities were determined by comparing the signs between the experimental and computed CD.
Molecules 16 01603 g015 550

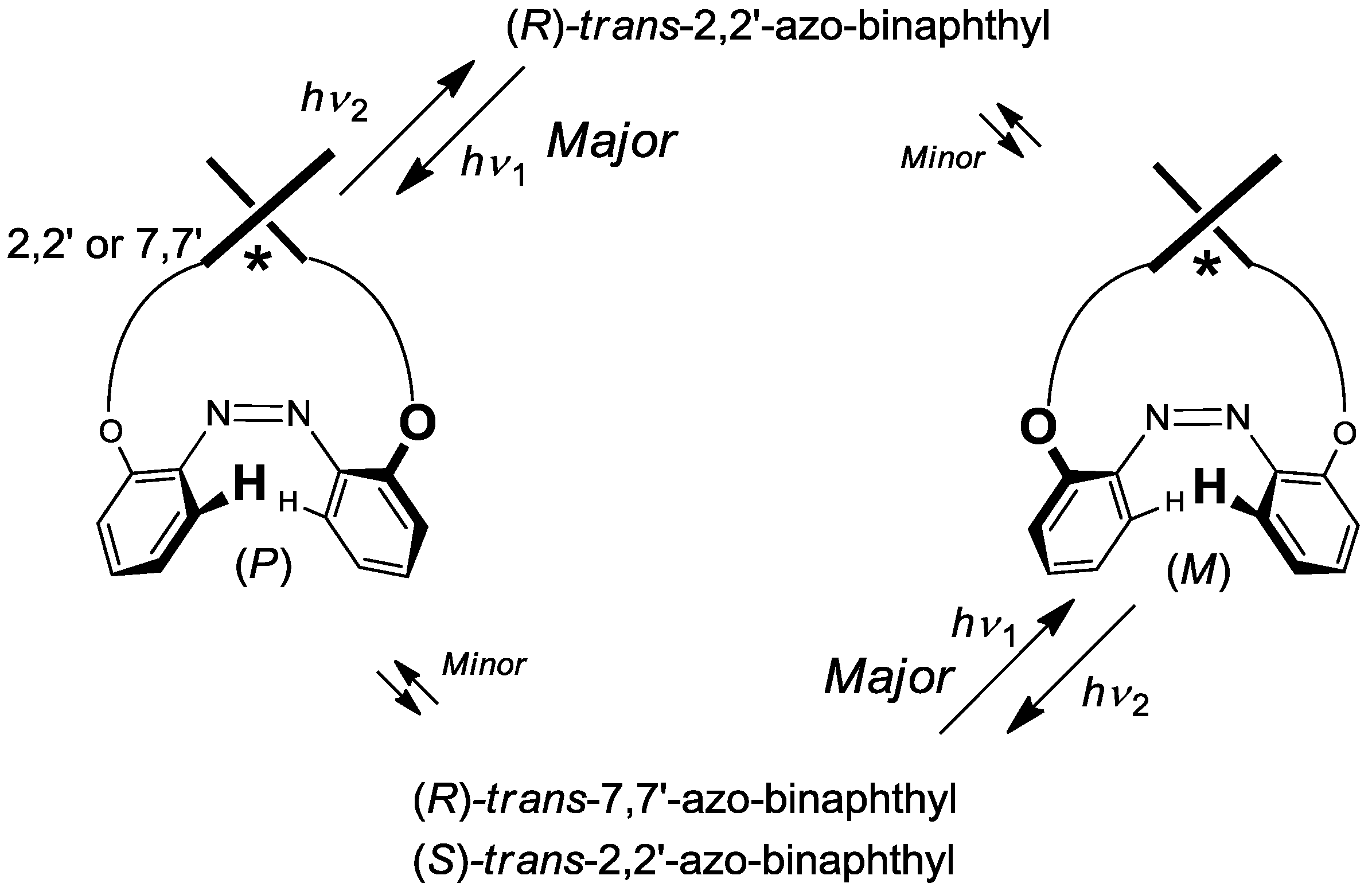

Figure 15. Twisting pattern of cis-azobenzenes induced by axial chirality of binaphthyls.
Figure 15. Twisting pattern of cis-azobenzenes induced by axial chirality of binaphthyls.
Molecules 16 01603 g015

3. Conclusions

Several axially chiral binaphthyl-azobenzene dyads with substituents were synthesized to examine their reversible photoisomerization and subsequent changes in optical properties. The chiroptical properties of the dyads, CD and optical rotation, changed dramatically. It is notable that reversible positive-negative and zero-positive (zero-negative) chiroptical signals were detected. Moreover, intramolecular chiral transfer from the chiral axis to the helix of the cis-azobenzene moiety was studied empirically and computationally. 2,2’-Linked-(R)-binaphthyl was found to induce cis-(P)-azobenzene, whereas the symmetrical 7,7’-linked-(R)-binaphthyl was found to induce cis-(M)-azobenzene without exception. These results may be useful in designing chiroptical switches as well as in the study of azobenene helicity. Additionally, this work provides a novel use for axially chiral binaphthyls. We are currently studying the development, conformation, and application of specific binaphthyl-azobenzene systems with interesting functions.

Acknowledgements

This work was supported in part by the Shorai Foundation for Science and Technology and by the foundation for a special doctoral fellow from RIKEN. We also thank Masanobu Uchiyama, Kazunori Tsubaki, Atsuya Muranaka, and Taniyuki Furuyama for experimental help.

References

  1. Ogoshi, T.; Shiga, R.; Yamagishi, T.; Nakamoto, Y. Planar-chiral pillar[5]arene: Chiral switches induced by multiexternal stimulus of temperature, solvents, and addition of achiral guest molecule. J. Org. Chem. 2011, 76, 618–622. [Google Scholar] [CrossRef]
  2. Liu, W.; Cao, D.; Peng, J.; Zhang, H.; Meier, H. A dendrimer chiroptical switch based on the reversible intramolecular photoreaction of anthracene and benzene rings. Chem. Asian J. 2010, 5, 1896–1901. [Google Scholar] [CrossRef]
  3. Zheng, Y.; Cui, J.; Zheng, J.; Wan, X. Near-infrared electrochromic and chiroptical switching polymers: Synthesis and characterization of helical poly(N-propargylamides) carrying anthraquinone imide moieties in side chains. J. Mater. Chem. 2010, 20, 5915–5922. [Google Scholar] [CrossRef]
  4. Li, D.; Wang, Z.Y.; Ma, D. Electrically-controlled near-infrared chiroptical switching of enantiomeric dinuclear ruthenium complexes. Chem. Commun. 2009, 1529–1531. [Google Scholar]
  5. Deng, J.; Zhou, C.; Chen, C.; Song, N.; Su, Z. Synthesis and redox-driven chiroptically switching properties of viologen-containing optically active polymer with main-chain axial chirality. Macromolecules 2008, 41, 7805–7811. [Google Scholar] [CrossRef]
  6. Deng, J.; Song, N.; Zhou, Q.; Su, Z. Electrically-driven chiroptical switches based on axially dissymmetric 1,1’-binaphthyl and electrochromic viologens: Synthesis and optical properties. Org. Lett. 2007, 9, 5393–5396. [Google Scholar] [CrossRef]
  7. Rajakumar, P.; Selvam, S. Synthesis, complexation, and photoisomerization studies on some chiral monocyclic stilbenophanes and bis-cyclophanes. Tetrahedron 2007, 63, 8891–8901. [Google Scholar] [CrossRef]
  8. van Delden, R.A.; Mecca, T.; Rosini, C.; Feringa, B.L. A chiroptical molecular switch with distinct chiral and photochromic entities and its application in optical switching of a cholesteric liquid crystal. Chem. Eur. J. 2004, 10, 61–70. [Google Scholar] [CrossRef]
  9. Feringa, B.L. In control of motion: From molecular switches to molecular motors. Acc. Chem. Res. 2001, 34, 504–513. [Google Scholar] [CrossRef]
  10. Cornelissen, J.J.L.M.; Rowan, A.E.; Nolte, R.J.M.; Sommerdijk, N.A.J.M. Chiral architectures from macromolecular building blocks. Chem. Rev. 2001, 101, 4039–4070. [Google Scholar] [CrossRef]
  11. Feringa, B.L.; van Delden, R.A.; Koumura, N.; Geertsema, E.M. Chiroptical molecular switches. Chem. Rev. 2000, 100, 1789–1816. [Google Scholar] [CrossRef]
  12. Brunel, J.M. BINOL: A versatile chiral reagent. Chem. Rev. 2005, 105, 857–897. [Google Scholar] [CrossRef]
  13. Chen, Y.; Yekta, S.; Yudin, A. K. Modified BINOL ligands in asymmetric catalysis. Chem. Rev. 2003, 103, 3155–3211. [Google Scholar] [CrossRef]
  14. Berthod, M.; Mignani, G.; Woodward, G.; Lemaire, M. Modified BINAP: The How and the Why. Chem. Rev. 2005, 105, 1801–1836. [Google Scholar] [CrossRef]
  15. Miyashita, A.; Yasuda, A.; Takaya, H.; Toriumi, K.; Ito, T.; Souchi, T.; Noyori, R. Synthesis of 2,2’-bis(dipheny1phosphino)-1,l’-binaphthyl (BINAP), an atropisomeric chiral bis(triaryl)-phosphine, and its use in the rhodium(I)-catalyzed asymmetric hydrogenation of a (acylamino)acrylic acids. J. Am. Chem. Soc. 1980, 102, 7932–7934. [Google Scholar] [CrossRef]
  16. Yukawa, T.; Seelig, B.; Xu, Y.; Morimoto, H.; Matsunaga, S.; Berkessel, A.; Shibasaki, M. Catalytic asymmetric aza-Morita−Baylis−Hillman reaction of methyl acrylate: Role of a bifunctional La(O-iPr)3/linked-BINOL complex. J. Am. Chem. Soc. 2010, 132, 11988–11992. [Google Scholar]
  17. Mirri, G.; Bull, S.D.; Horton, P.N.; James, T.D.; Male, L.; Tucker, J.H.R. Electrochemical method for the determination of enantiomeric excess of binol using redox-active boronic acids as chiral sensors. J. Am. Chem. Soc. 2010, 132, 8903–8905. [Google Scholar]
  18. Pignataro, L.; Carboni, S.; Civera, M.; Colombo, R.; Piarulli, U.; Gennari, C. PhthalaPhos: Chiral supramolecular ligands for enantioselective rhodium-catalyzed hydrogenation reactions. Angew. Chem. Int. Ed. 2010, 49, 6633–6637. [Google Scholar]
  19. Li, N.; Chen, X.-H.; Zhou, S.-M.; Luo, S.-W.; Song, J.; Ren, L.; Gong, L.-Z. Asymmetric Amplification in Phosphoric Acid Catalyzed Reactions. Angew. Chem. Int. Ed. 2010, 49, 6378–6381. [Google Scholar] [CrossRef]
  20. Hou, Z.; Wang, J.; He, P.; Wang, J.; Qin, B.; Liu, X.; Lin, L.; Feng, X. Highly enantioselective insertion of carbenoids into N-H bonds catalyzed by copper(I) complexes of binol derivatives. Angew. Chem. Int. Ed. 2010, 49, 4763–4766. [Google Scholar]
  21. Shirakura, M.; Suginome, M. Nickel-catalyzed asymmetric addition of alkyne C-H bonds across1,3-dienes using taddol-based chiral phosphoramidite ligands. Angew. Chem. Int. Ed. 2010, 49, 3827–3829. [Google Scholar] [CrossRef]
  22. Hatano, M.; Moriyama, K.; Maki, T.; Ishihara, K. Which is the actual catalyst: Chiral phosphoric acid or chiral calcium phosphate? Angew. Chem. Int. Ed. 2010, 49, 3823–3826. [Google Scholar] [CrossRef]
  23. Teichert, J.F.; Feringa, B.L. Phosphoramidites: Privileged ligands in asymmetric catalysis. Angew. Chem. Int. Ed. 2010, 49, 2486–2528. [Google Scholar] [CrossRef]
  24. Aikawa, K.; Hioki, Y.; Mikami, K. Highly enantioselective alkynylation of trifluoropyruvate with alkynylsilanes catalyzed by the BINAP-Pd complex: Access to α-trifluoromethyl-substituted tertiary alcohols. Org. Lett. 2010, 12, 5716–5719. [Google Scholar] [CrossRef]
  25. Arai, N.; Akashi, M.; Sugizaki, S.; Ooka, H.; Inoue, T.; Ohkuma, T. Asymmetric hydrogenation of bicyclic ketones catalyzed by BINAP/IPHAN-Ru(II) complex. Org. Lett. 2010, 12, 3380–3383. [Google Scholar] [CrossRef]
  26. Fraile, J.M.; Garcia, J.I.; Mayoral, J.A. Noncovalent Immobilization of Enantioselective Catalysts. Chem. Rev. 2009, 109, 360–417. [Google Scholar] [CrossRef]
  27. Yamamoto, H.; Abel, J.P. Catalytic enantioselective pudovik reaction of aldehydes and aldimines with tethered bis(8-quinolinato) (TBOx) aluminum complex. J. Am. Chem. Soc. 2008, 130, 10521–10523. [Google Scholar] [CrossRef]
  28. Rabalakos, C.; Wulff, W.D. Enantioselective organocatalytic direct Michael addition of nitroalkanes to nitroalkenes promoted by a unique bifunctional DMAP-thiourea. J. Am. Chem. Soc. 2008, 130, 13524–13525. [Google Scholar] [CrossRef]
  29. Chen, X.; Huang, Z.; Chen, S.-Y.; Li, K.; Yu, X.-Q.; Pu, L. Enantioselective gel collapsing: A new means of visual chiral sensing. J. Am. Chem. Soc. 2010, 130, 7297–7299. [Google Scholar]
  30. Liu, H.-L.; Zhu, H.-P.; Hou, X.-L.; Lin Pu, L. Highly enantioselective fluorescent recognition of serine and other amino acid derivatives. Org. Lett. 2010, 12, 4172–4175. [Google Scholar] [CrossRef]
  31. Liu, H.-L.; Peng, Q.; Wu, Y.-D.; Chen, D.; Hou, X.-L.; Sabat, M.; Pu, L. Highly enantioselective recognition of structurally diverse α-hydroxycarboxylic acids using a fluorescent sensor. Angew. Chem. Int. Ed. 2010, 49, 602–606. [Google Scholar] [CrossRef]
  32. Sambasivan, S.; Kim, D.; Ahn, K.H. Chiral discrimination of α-amino acids with a C2-symmetric homoditopic receptor. Chem. Commun. 2010, 46, 541–543. [Google Scholar] [CrossRef]
  33. Yang, L.; Qin, S.; Su, X.; Yang, F.; You, J.; Hu, C.; Xie, R.; Lan, J. 1,1’-Binaphthyl-based imidazolium chemosensors for highly selective recognition of tryptophan in aqueous solutions. Org. Biomol. Chem. 2010, 8, 339–348. [Google Scholar] [CrossRef]
  34. Ema, T.; Hamada, K.; Sugita, K.; Nagata, Y.; Sakai, T.; Ohnishi, A. Synthesis and evaluation of chiral selectors with multiple hydrogen-bonding sites in the macrocyclic cavities. J. Org. Chem. 2010, 75, 4492–4500. [Google Scholar] [CrossRef]
  35. Nandhakumar, R.; Ryu, J.; Park, H.; Tang, L.; Choi, S.; Kim, K.M. Effects of ring substituents on enantioselective recognition of amino alcohols and acids in uryl-based binol receptors. Tetrahedron 2008, 64, 7704–7708. [Google Scholar] [CrossRef]
  36. Ema, T.; Tanida, D.; Sugita, K.; Sakai, T.; Miyazawa, K.; Ohnishi, A. Chiral selector with multiple hydrogen-bonding sites in a macrocyclic cavity. Org. Lett. 2008, 10, 2365–2368. [Google Scholar]
  37. Ema, T.; Tanida, D.; Hamada, K.; Sakai, T. Tuning the chiral cavity of macrocyclic receptor for chiralrecognition and discrimination. J. Org. Chem. 2008, 73, 9129–9132. [Google Scholar] [CrossRef]
  38. Park, H.; Nandhakumar, R.; Hong, J.; Ham, S.; Chin, J.; Kim, K. M. Stereoconversion of amino acids and peptides in uryl-pendant binol schiff bases. Chem. Eur. J. 2008, 14, 9935–9942. [Google Scholar]
  39. Wang, Q.; Chen, X.; Tao, L.; Wang, L.; Xiao, D.; Yu, X.-Q.; Pu, L. Enantioselective fluorescent recognition of amino alcohols by a chiral tetrahydroxyl 1,1’-binaphthyl compound. J. Org. Chem. 2007, 72, 97–101. [Google Scholar] [CrossRef]
  40. Bříza, T.; Kejík, Z.; Vašek, P.; Králová, J.; Martásek, P.; Císařová, I.; Král, V. Chromophoric binaphthylderivatives. Org. Lett. 2005, 7, 3661–3664. [Google Scholar] [CrossRef]
  41. Tsubaki, K.; Tanaka, H.; Morikawa, H.; Fuji, K. Synthesis and recognition of amino acids by binaphthyl-crown receptors. Tetrahedron 2003, 59, 3195–3199. [Google Scholar] [CrossRef]
  42. Mathews, M.; Zola, R.S.; Hurley, S.; Yang, D.-K.; White, T.J.; Bunning, T.J.; Li, Q. Light-driven reversible handedness inversion in self-organized helical superstructures. J. Am. Chem. Soc. 2010, 132, 18361–18366. [Google Scholar]
  43. Han, Y.; Pacheco, K.; Bastiaansen, C.W.M.; Broer, D.J.; Sijbesma, R.P. Optical monitoring of gases with cholesteric liquid crystals. J. Am. Chem. Soc. 2010, 132, 2961–2967. [Google Scholar]
  44. Akagi, K. Helical polyacetylene: Asymmetric polymerization in a chiral liquid-crystal field. Chem. Rev. 2009, 109, 5354–5361. [Google Scholar] [CrossRef]
  45. Yoshizawa, A.; Kogawa, Y.; Kobayashi, K.; Takanishi, Y.; Yamamoto, J. A binaphthyl derivative with a wide temperature range of a blue phase. J. Mater. Chem. 2009, 19, 5759–5764. [Google Scholar] [CrossRef]
  46. Goh, M.; Kyotani, M.; Akagi, K. Highly twisted helical polyacetylene with morphology free from the bundle of fibrils synthesized in chiral nematic liquid crystal reaction field. J. Am. Chem. Soc. 2007, 129, 8519–8527. [Google Scholar] [CrossRef]
  47. Yoshizawa, A.; Kobayashi, K.; Sato, M. Host-guest effect on chirality transfer from a binaphthyl derivative to a host nematic liquid crystal. Chem. Commun. 2007, 257–259. [Google Scholar]
  48. Li, Q.; Green, L.; Venkataraman, N.; Shiyanovskaya, I.; Khan, A.; Urbas, A.; Doane, J.W. Reversible photoswitchable axially chiral dopants with high helical twisting power. J. Am. Chem. Soc. 2007, 129, 12908–12909. [Google Scholar]
  49. Eelkema, R.; Feringa, B.L. Amplification of chirality in liquid crystals. Org. Biomol. Chem. 2006, 4, 3729–3745. [Google Scholar] [CrossRef]
  50. Pieraccini, S.; Ferrarini, A.; Fuji, K.; Gottarelli, G.; Lena, S.; Tsubaki, K.; Spada, G.P. Homochiral helices of oligonaphthalenes inducing opposite-handed cholesteric phases. Chem. Eur. J. 2006, 12, 1121–1126. [Google Scholar] [CrossRef]
  51. Akagi, K.; Guo, S.; Mori, T.; Goh, M.; Piao, G.; Kyotan, M. Synthesis of helical polyacetylene in chiral nematic liquid crystals using crown ether type binaphthyl derivatives as chiral dopants. J. Am. Chem. Soc. 2005, 127, 14647–14654. [Google Scholar] [CrossRef]
  52. Holzwarth, R.; Bartsch, R.; Cherkaoui, Z.; Solladié, G. New 2,2'-substituted 4,4'-dimethoxy-6,6'-dimethyl[1,1'-biphenyls], inducing a strong helical twisting power in liquid crystals. Chem. Eur. J. 2004, 10, 3931–3935. [Google Scholar] [CrossRef]
  53. Carlo, R.; Piero, S.G.; Gloria, P.; Stefano, M.; Simone, S. Conformational analysis of some trans-4,5-Diaryl-1,3-dioxolanes by CD spectroscopy and induction of cholesteric mesophases in nematic solvents: A correlation between twisting power and structure of the dopant. J. Am. Chem. Soc. 1997, 119, 506–512. [Google Scholar]
  54. Gottarelli, G.; Spada, G.P. Induction of the cholesteric mesophase in nematic liquid crystals: Correlation between the conformation of open-chain chiral 1,l’-binaphthyls and their twisting powers. J. Org. Chem. 1986, 51, 589–592. [Google Scholar] [CrossRef]
  55. Gottarelli, G.; Hibert, M.; Samori, B.; Solladie, G.; Spada, G.P.; Zimmermann, R. Induction of the cholesteric mesophase in nematic liquid crystals: Mechanism and application to the determination of bridged biaryl configurations. J. Am. Chem. Soc. 1983, 105, 7318–7321. [Google Scholar] [CrossRef]
  56. Reimann, S.; Urakawa, A.; Baiker, A. BINAP adsorption on palladium: A combined infrared spectroscopy and theoretical study. J. Phys. Chem. C 2010, 114, 17836–17844. [Google Scholar] [CrossRef]
  57. Nishizaka, M.; Mori, T.; Inoue, Y. Experimental and theoretical studies on the chiroptical properties of donor-acceptor binaphthyls. Effects of dynamic conformer population on circular dichroism. J. Phys. Chem. Lett. 2010, 1, 1809–1812. [Google Scholar] [CrossRef]
  58. Bunzen, J.; Bruhn, T.; Bringmann, G.; Lűtzen, A. Synthesis and helicate formation of a new family of BINOL-based bis(bipyridine) ligands. J. Am. Chem. Soc. 2009, 131, 3621–3630. [Google Scholar]
  59. Sahnoun, R.; Koseki, S.; Fujimura, Y. Density functional theoretical study on enantiomerization of 2,2'-biphenol. J. Phys. Chem. A 2006, 110, 2440–2447. [Google Scholar] [CrossRef]
  60. Albrow, V.; Biswas, K.; Crane, A.; Chaplin, N.; Easun, T.; Gladiali, S.; Lygo, B.; Woodward, S. Synthesis of an octahydro-1,1’-binaphthyl thioether ligand and comparison with unhydrogenated binaphthyl analogues. Tetrahedron Asymmetry 2003, 14, 2813–2819. [Google Scholar] [CrossRef]
  61. Setnička, V.; Urbanová, M.; Bouř, P.; Král, V.; Volka, K. Vibrational circular dichroism of 1,1’-binaphthyl derivatives: Experimental and theoretical study. J. Phys. Chem. A 2001, 105, 8931–8938. [Google Scholar]
  62. Kranz, M.; Clark, T.; Schleyer, P.v.R. Rotational barriers of 1,1'-binaphthyls: A computational study. J. Org. Chem. 1993, 58, 3317–3325. [Google Scholar] [CrossRef]
  63. Dube, H.; Ams, M.R.; Rebek, J., Jr. Supramolecular control of fluorescence through reversible encapsulation. J. Am. Chem. Soc. 2010, 132, 9984–9985. [Google Scholar] [CrossRef]
  64. Han, J.; Yan, D.; Shi, W.; Ma, J.; Yan, H.; Wei, M.; Evans, D.G.; Duan, X. Layer-by-layer ultrathin films of azobenzene-containing polymer/layered double hydroxides with reversible photoresponsive behavior. J. Phys. Chem. B 2010, 114, 5678–5685. [Google Scholar] [CrossRef]
  65. Liu, M.; Yan, X.; Hu, M.; Chen, X.; Zhang, M.; Zheng, B.; Hu, X.; Shao, S.; Huang, F. Photoresponsive host-guest systems based on a new azobenzene-containing crytpand. Org. Lett. 2010, 12, 2558–2561. [Google Scholar]
  66. Oka, Y.; Tamaoki, N. Structure of silver(I) complex prepared from azobenzenonaphthalenophane, photochemical coordination change of silver(I) and silver(I)-induced acceleration of Z-E thermal isomerization of azobenzene unit. Inorg. Chem. 2010, 49, 4765–4767. [Google Scholar] [CrossRef]
  67. Kawamoto, M.; Sassa, T.; Wada, T. Photoinduced control over the self-organized orientation of amorphous molecular materials using polarized light. J. Phys. Chem. B 2010, 114, 1227–1232. [Google Scholar]
  68. Chen, W.-C.; Lee, Y.-W.; Chen, C.-T. Diastereoselective, synergistic dual-mode optical switch with integrated chirochromic helicene and photochromic bis-azobenzene moieties. Org. Lett. 2010, 12, 1472–1475. [Google Scholar] [CrossRef]
  69. Basheer, M.C.; Oka, Y.; Mathews, M.; Tamaoki, N. A light-controlled molecular brake with complete ON-OFF rotation. Chem. Eur. J. 2010, 16, 3489–3496. [Google Scholar] [CrossRef]
  70. Kawamoto, M.; Shiga, N.; Takaishi, K.; Yamashita, T. Non-destructive erasable molecular switches and memory using light-driven twisting motions. Chem. Commun. 2010, 46, 8344–8346. [Google Scholar]
  71. Sadovski, O.; Beharry, A.A.; Zhang, F.; Woolley, G.A. Spectral tuning of azobenzene photoswitches for biological applications. Angew. Chem. Int. Ed. 2009, 48, 1484–1486. [Google Scholar] [CrossRef]
  72. Zou, G.; Jiang, H.; Kohn, H.; Manaka, T.; Iwamoto, M. Control and modulation of chirality for azobenzene-substituted polydiacetylene LB films with circularly polarized light. Chem. Commun. 2009, 5627–5629. [Google Scholar]
  73. Siewertsen, R.; Neumann, H.; Buchheim-Stehn, B.; Herges, R.; Näther, C.; Renth, F.; Temps, F. Highly efficient reversible Z-E photoisomerization of a bridged azobenzene with visible light through resolved S1(nπ*) absorption bands. J. Am. Chem. Soc. 2009, 131, 15594–15595. [Google Scholar]
  74. Uno, S.; Dohno, C.; Bittermann, H.; Malinovskii, V.L.; Häner, R.; Nakatani, K. A light-driven supramolecular optical switch. Angew. Chem. Int. Ed. 2009, 48, 7362–7365. [Google Scholar] [CrossRef]
  75. Chen, J.; Serizawa, T.; Komiyama, M. Peptides recognize photoresponsive targets. Angew. Chem. Int. Ed. 2009, 48, 2917–2920. [Google Scholar] [CrossRef]
  76. Puntoriero, F.; Bergamini, G.; Ceroni, P.; Balzania, V.; Vögtle, F. A fluorescent guest encapsulated by a photoreactive azobenzene dendrimer. New J. Chem. 2008, 32, 401–406. [Google Scholar] [CrossRef]
  77. Tamaoki, N.; Mathews, M. Planar chiral azobenzenophanes as chiroptic switches for photon mode reversible reflection color control in induced chiral nematic liquid crystals. J. Am. Chem. Soc. 2008, 130, 11409–11416. [Google Scholar] [CrossRef]
  78. King, E.D.; Tao, P.; Sanan, T.T.; Hadad, C.M.; Parquetted, J.R. Photomodulated chiral induction in helical azobenzene oligomers. Org. Lett. 2008, 10, 1671–1674. [Google Scholar] [CrossRef]
  79. Kay, E.R.; Leigh, D.A.; Zerbetto, F. Synthetic molecular motors and mechanical machines. Angew. Chem. Int. Ed. 2007, 46, 72–191. [Google Scholar] [CrossRef]
  80. Vera, F.; Tejedor, R.M.; Romero, P.; Barberá, J.; Ros, M.B.; Serrano, J.L.; Sierra, T. Light-driven supramolecular chirality in propeller-like hydrogen-bonded complexes that show columnar mesomorphism. Angew. Chem. Int. Ed. 2007, 46, 1873–1877. [Google Scholar] [CrossRef]
  81. Alam, M.Z.; Yoshioka, T.; Ogata, T.; Nonaka, T.; Kurihara, S. Influence of helical twisting poweron the photoswitching behavior of chiral azobenzene compounds: Applications to high-performance switching devices. Chem. Eur. J. 2007, 13, 2641–2647. [Google Scholar] [CrossRef]
  82. Choi, S.-W.; Kawauchi, S.; Ha, N.Y.; Takezoe, H. Photoinduced chirality in azobenzene-containing polymer systems. Phys. Chem. Chem. Phys. 2007, 9, 3671–3681. [Google Scholar]
  83. Muraoka, T.; Kinbara, K.; Aida, T. Mechanical twisting of a guest by a photoresponsive host. Nature 2006, 440, 512–515. [Google Scholar] [CrossRef]
  84. Jousselme, B.; Blanchard, P.; Allain, M.; Levillain, E.; Dias, M.; Roncali, J. Structural control of the electronic properties of photodynamic azobenzene-derivatized π-conjugated oligothiophenes. J. Phys. Chem. A 2006, 110, 3488–3494. [Google Scholar] [CrossRef]
  85. Balzani, V.; Venturi, M.; Credi, A. Molecular Devices and Machines; Wiley-VCH: Weinheim, Germany, 2003. [Google Scholar]
  86. Feringa, B.L. Molecular Switches; Wiley-VCH: Weinheim, Germany, 2001. [Google Scholar]
  87. Kawamoto, M.; Aoki, T.; Wada, T. Light-driven twisting behaviour of chiral cyclic compounds. Chem. Commun. 2007, 930–932. [Google Scholar] [CrossRef]
  88. Takaishi, K.; Kawamoto, M.; Tsubaki, K.; Wada, T. Photoswitching of dextro/levo rotation with axially chiral binaphthyls linked to an azobenzene. J. Org. Chem. 2009, 74, 5723–5726. [Google Scholar] [CrossRef]
  89. Takaishi, K.; Kawamoto, M.; Tsubaki, K.; Furuyama, T.; Muranaka, A.; Uchiyama, M. Helical chirality of azobenzenes induced by an intramolecular chiral axis and potential as chiroptical switches. Chem. Eur. J. 2011, 17, 1778–1782. [Google Scholar] [CrossRef]
  90. Haberhauer, G.; Kallweit, C. A bridged azobenzene derivative as a reversible, light-induced chirality switch. Angew. Chem. Int. Ed. 2010, 49, 2418–2421. [Google Scholar] [CrossRef]
  91. Tsubaki, K.; Morikawa, H.; Tanaka, H.; Fuji, K. Convenient synthesis and efficient resolution of 3,3'-bis(benzyloxy)-1,1’-binaphthalene-2,2’-diol. Tetrahedron Asymmetry 2003, 14, 1393–1396. [Google Scholar] [CrossRef]
  92. Chang, C.-F.; Yang, L.-Y.; Chang, S.-W.; Fang, Y.-T.; Lee, Y.-J. Total synthesis of demethylwedelolactone and wedelolactone by Cu-mediated/Pd(0)-catalysis and oxidative-cyclization. Tetrahedron 2008, 68, 3661–3666. [Google Scholar]
  93. Surivet, J.-P.; Vatèle, J.-M. First total synthesis of (-)-8-epi-9-deoxygoniopypyrone. Tetrahedron Lett. 1998, 39, 9681–9682. [Google Scholar] [CrossRef]
  94. Hori, H.; Nishida, Y.; Ohrui, H.; Meguro, H. Regioselective de-O-benzylation with lewis acids. J. Org. Chem. 1989, 54, 1346–1353. [Google Scholar] [CrossRef]
  95. Bandin, M.; Casolari, S.; Cozzi, P.G.; Proni, G.; Schmohel, E.; Spada, G.P.; Tagliavini, E.; Umani-Ronchi, A. Synthesis and characterization of new enantiopure 7,7’-disubstituted 2,2’-dihydroxy-1,1’-binaphthyls: Useful ligands for the asymmetric allylation reaction of aldehydes. Eur. J. Org. Chem. 2000, 491–497. [Google Scholar]
  96. Diederich, F.; Hester, M.R.; Uyeki, M.A. Auf 2,2’,7,7’-Tetrahydroxy-1,1’-binaphthyl basierende neuartige chirale mono- und ditope cyclophanartige wirtverbindungen mit einer unpolaren bindungsstelle. Angew. Chem. 1988, 100, 1775–1777. [Google Scholar] [CrossRef]
  97. Horiuchi, T.; Ohta, T.; Stephan, M.; Takaya, H. Synthesis of (R)- and (S)-7,7’-bis(diphenylphosphino)-2,2’-dimethoxy-l,l’-binaphthyl, a new axially dissymmetric bis(triarylphosphine). Tetrahedron Asymmetry 1994, 5, 325–328. [Google Scholar] [CrossRef]
  98. Reeder, J.; Castro, P.P.; Knobler, C.B. Chiral recognition of cinchona alkaloids at the minor and major grooves of 1,l’-binaphthyl receptors. J. Org. Chem. 1994, 59, 3151–3160. [Google Scholar] [CrossRef]
  99. Takaishi, K.; Sue, D.; Kuwahara, S.; Harada, N.; Kawabata, T.; Tsubaki, K. Synthesis and properties of S,R-alternating octinaphthalenes. Tetrahedron 2009, 65, 6135–6140. [Google Scholar] [CrossRef]
  100. Sue, D.; Takaishi, K.; Harada, T.; Kuroda, R.; Kawabata, T.; Tsubaki, K. Synthesis of chiral dotriacontanaphthalenes: How many naphthalene units are we able to elaborately connect? J. Org. Chem. 2009, 74, 3940–3943. [Google Scholar]
  101. Bari, L.D.; Pescitelli, G.; Marchetti, F.; Salvadori, P. Anomalous CD/UV exciton splitting of a binaphthyl derivative: The case of 2,2’-diiodo-1,1’-binaphthalene. J. Am. Chem. Soc. 2000, 122, 6395–6398. [Google Scholar] [CrossRef]
  102. Harada, N.; Nakanishi, K. The exciton chirality method and its application to configurational and conformational studies of natural products. Acc. Chem. Res. 1972, 5, 257–263. [Google Scholar] [CrossRef]
  103. Jaffé, H.H.; Orchin, M. Theory and Applications of Ultraviolet Spectroscopy; Wiley: New York, NY, USA, 1962. [Google Scholar]
  104. Graule, S.; Rudolph, M.; Vanthuyne, N.; Autschbach, J.; Roussel, C.; Crassous, J.; Réau, R. Metal-bis(helicene) assemblies incorporating π-conjugated phosphole-azahelicene ligands: Impacting chiroptical properties by metal variation. J. Am. Chem. Soc. 2009, 131, 3183–3185. [Google Scholar]
  105. Rzepa, H.S. The chiro-optical properties of a lemniscular octaphyrin. Org. Lett. 2009, 11, 3088–3091. [Google Scholar]
  106. Katzenelson, O.; Edelstein, J.; Avnir, D. Quantitative chirality of helicenes. Tetrahedron Asymmetry 2000, 11, 2695–2704. [Google Scholar] [CrossRef]
  107. Okumura, T.; Tani, Y.; Miyake, K.; Yokoyama, Y. Chiral helicenoid diarylethene with large change in specific optical rotation by photochromism. J. Org. Chem. 2007, 72, 1634–1638. [Google Scholar] [CrossRef]
  108. Wigglesworth, T.J.; Sud, D.; Norsten, T.B.; Lekhi, V.S.; Branda, N.R. Chiral discrimination in photochromic helicenes. J. Am. Chem. Soc. 2005, 127, 7272–7273. [Google Scholar]
  109. Wang, Z.Y.; Todd, E.K.; Meng, X.S.; Gao, J.P. Dual modulation of a molecular switch with exceptional chiroptical properties. J. Am. Chem. Soc. 2005, 127, 11552–11553. [Google Scholar]
  110. Eyring, H. The activated complex and the absolute rate of chemical reactions. Chem. Rev. 1935, 17, 65–77. [Google Scholar] [CrossRef]
  111. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; Nakatsuji, H.; Caricato, M.; Li, X.; Hratchian, H.P.; Izmaylov, A.F.; Bloino, J.; Zheng, G.; Sonnenberg, J.L.; Hada, M.; Ehara, M.; Toyota, K.; Fukuda, R.; Hasegawa, J.; Ishida, M.; Nakajima, T.; Honda, Y.; Kitao, O.; Nakai, H.; Vreven, T.; Montgomery, J.A., Jr.; Peralta, J.E.; Ogliaro, F.; M. Bearpark, M.; Heyd, J.J.; Brothers, E.; Kudin, K.N.; Staroverov, V.N.; Kobayashi, R.; Normand, J.; Raghavachari, K.; Rendell, A.; Burant, J.C.; Iyengar, S.S.; Tomasi, J.; Cossi, M.; Rega, N.; Millam, J.M.; Klene, M.; Knox, J.E.; Cross, J.B.; Bakken, V.; Adamo, C.; Jaramillo, J.; Gomperts, R.; Stratmann, R.E.; Yazyev, O.; Austin, A.J.; Cammi, R.; Pomelli, C.; Ochterski, J.W.; Martin, R.L.; Morokuma, K.; Zakrzewski, V.G.; Voth, G.A.; Salvador, P.; Dannenberg, J.J.; Dapprich, S.; Daniels, A.D.; Farkas, O.; Foresman, J.B.; Ortiz, J.V.; Cioslowski, J.; Fox, D.J. Gaussian 09, Revision A.02; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  112. Ma, X.; Wang, Q.; Qu, D.; Xu, Y.; Ji, F.; Tian, H. A light-driven pseudo[4]rotaxane encoded by induced circular dichroism in a hydrogel. Adv. Funct. Mater. 2007, 17, 829–837. [Google Scholar] [CrossRef]
  113. Kobayashi, N.; Higashi, R.; Titeca, B.C.; Lamote, F.; Ceulemans, A. Substituent-induced circular dichroism in phthalocyanines. J. Am. Chem. Soc. 1999, 121, 12018–12028. [Google Scholar] [CrossRef]
  114. Zhao, Y.; Truhlar, D.G. The M06 suite of density functionals for main group thermochemistry, thermochemical kinetics, noncovalent interactions, excited states, and transition elements: Two new functionals and systematic testing of four M06-class functionals and 12 other functional. Theor. Chem. Account. 2008, 120, 215–241. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds 2–8 are available from the authors.

Share and Cite

MDPI and ACS Style

Takaishi, K.; Kawamoto, M. Synthesis and Conformation of Substituted Chiral Binaphthyl-Azobenzene Cyclic Dyads with Chiroptical Switching Capabilities. Molecules 2011, 16, 1603-1624. https://doi.org/10.3390/molecules16021603

AMA Style

Takaishi K, Kawamoto M. Synthesis and Conformation of Substituted Chiral Binaphthyl-Azobenzene Cyclic Dyads with Chiroptical Switching Capabilities. Molecules. 2011; 16(2):1603-1624. https://doi.org/10.3390/molecules16021603

Chicago/Turabian Style

Takaishi, Kazuto, and Masuki Kawamoto. 2011. "Synthesis and Conformation of Substituted Chiral Binaphthyl-Azobenzene Cyclic Dyads with Chiroptical Switching Capabilities" Molecules 16, no. 2: 1603-1624. https://doi.org/10.3390/molecules16021603

APA Style

Takaishi, K., & Kawamoto, M. (2011). Synthesis and Conformation of Substituted Chiral Binaphthyl-Azobenzene Cyclic Dyads with Chiroptical Switching Capabilities. Molecules, 16(2), 1603-1624. https://doi.org/10.3390/molecules16021603

Article Metrics

Back to TopTop
