Next Article in Journal
Temporal–Spatial Evolution of Kinetic and Thermal Energy Dissipation Rates in a Three-Dimensional Turbulent Rayleigh–Taylor Mixing Zone
Previous Article in Journal
On Leader-Following Consensus in Multi-Agent Systems with Discrete Updates at Random Times
Open AccessArticle

Constructal Design of Elliptical Cylinders with Heat Generating for Entropy Generation Minimization

by Rong Wang 1,2,3, Zhihui Xie 1,2,3,*, Yong Yin 2,3 and Lingen Chen 2,3,*
1
College of Power Engineering, Naval University of Engineering, Wuhan 430033, China
2
Institute of Thermal Science and Power Engineering, Wuhan Institute of Technology, Wuhan 430205, China
3
School of Mechanical & Electrical Engineering, Wuhan Institute of Technology, Wuhan 430205, China
*
Authors to whom correspondence should be addressed.
Entropy 2020, 22(6), 651; https://doi.org/10.3390/e22060651
Received: 14 April 2020 / Revised: 5 June 2020 / Accepted: 8 June 2020 / Published: 12 June 2020

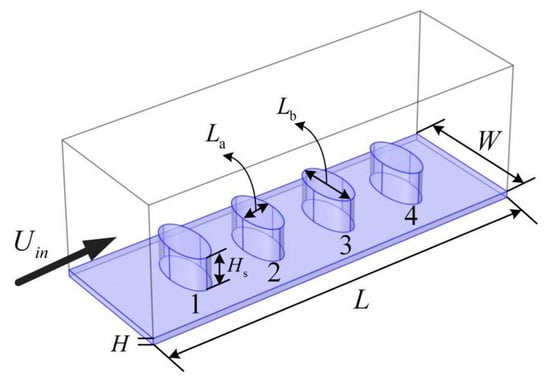

A heat dissipation model of discrete elliptical cylinders with heat generation on a thermal conduction pedestal cooled by forced convection is established. Constructal design is conducted numerically by taking the distributions of thermal conductivity and heat generating intensity as design variables, the dimensionless entropy generation rate (DEGR) as performance indicator. The optimal designs for discrete elliptical cylinders with heat generating are obtained respectively, i.e., there are optimal distributions of heat generating intensity with its fixed total amount of heat sources, and there are optimal distributions of thermal conductivity with its fixed total amount of heat sources. These optimums for minimum DEGRs are different at different Reynolds numbers of airflow. The heat generating intensity can be decreased one by one appropriately in the fluid flow direction to achieve the best effect. When the Reynolds number of airflow is smaller, the thermal conductivity of heat source can be increased one by one appropriately in the fluid flow direction to achieve the best effect; when the Reynolds number of airflow is larger, the thermal conductivity of each heat source should be equalized to achieve the best effect. The results can give thermal design guidelines for the practical heat generating devices with different materials and heat generating intensities. View Full-Text
Keywords: constructal theory; entropy generation minimization; electronics cooling; discrete elliptical cylinder; heat source; generalized thermodynamic optimization constructal theory; entropy generation minimization; electronics cooling; discrete elliptical cylinder; heat source; generalized thermodynamic optimization
Show Figures

Figure 1

MDPI and ACS Style

Wang, R.; Xie, Z.; Yin, Y.; Chen, L. Constructal Design of Elliptical Cylinders with Heat Generating for Entropy Generation Minimization. Entropy 2020, 22, 651.
