Entropy 2019, 21(2), 206; https://doi.org/10.3390/e21020206

Coherent Structure of Flow Based on Denoised Signals in T-junction Ducts with Vertical Blades

School of Energy and Power Engineering, Xi’an Jiaotong University, Xi’an 710049, China
*
Author to whom correspondence should be addressed.
Received: 24 December 2018 / Revised: 15 February 2019 / Accepted: 15 February 2019 / Published: 21 February 2019
Full-Text   |   PDF [5258 KB, uploaded 25 February 2019]   |

Abstract

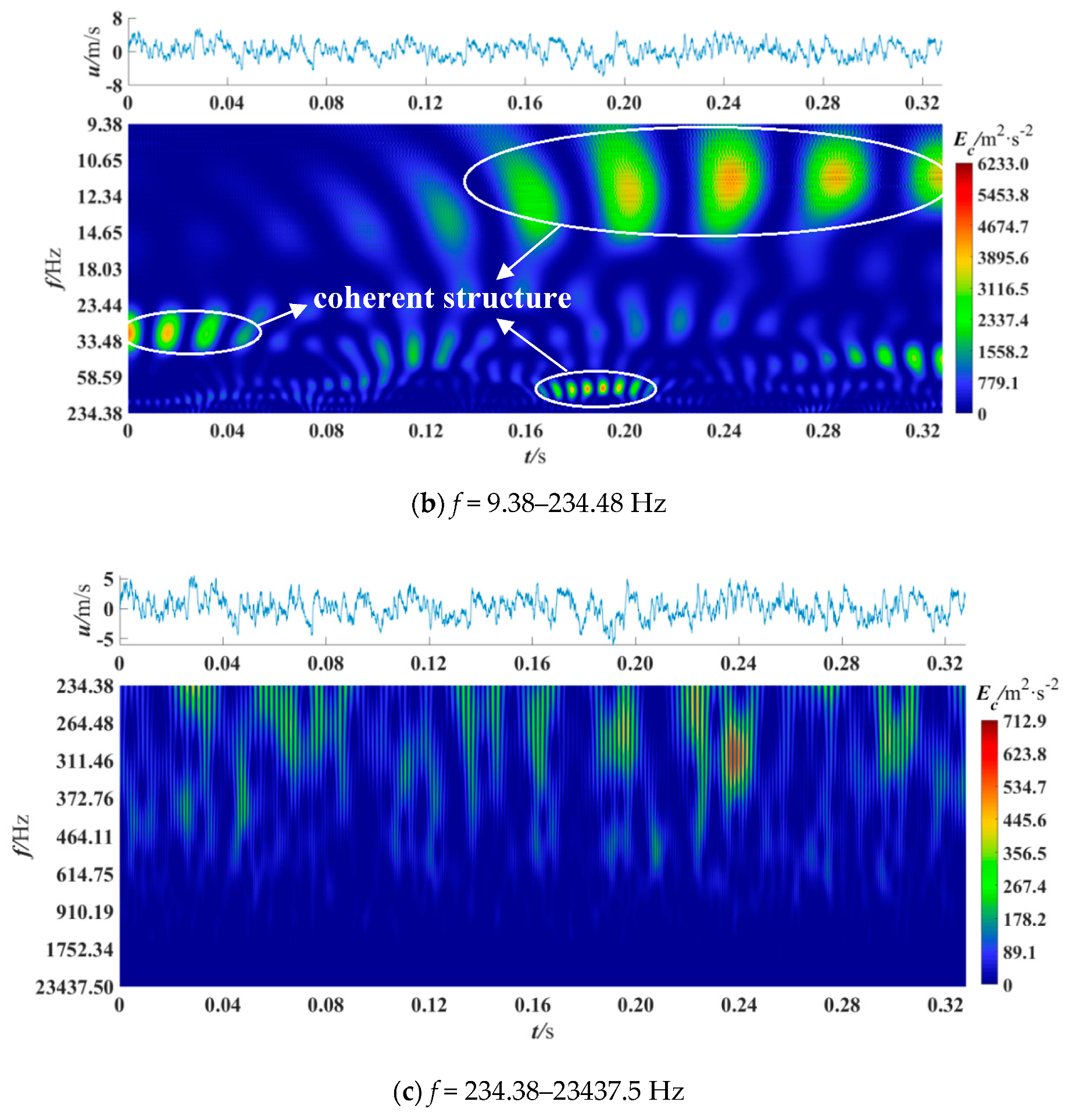

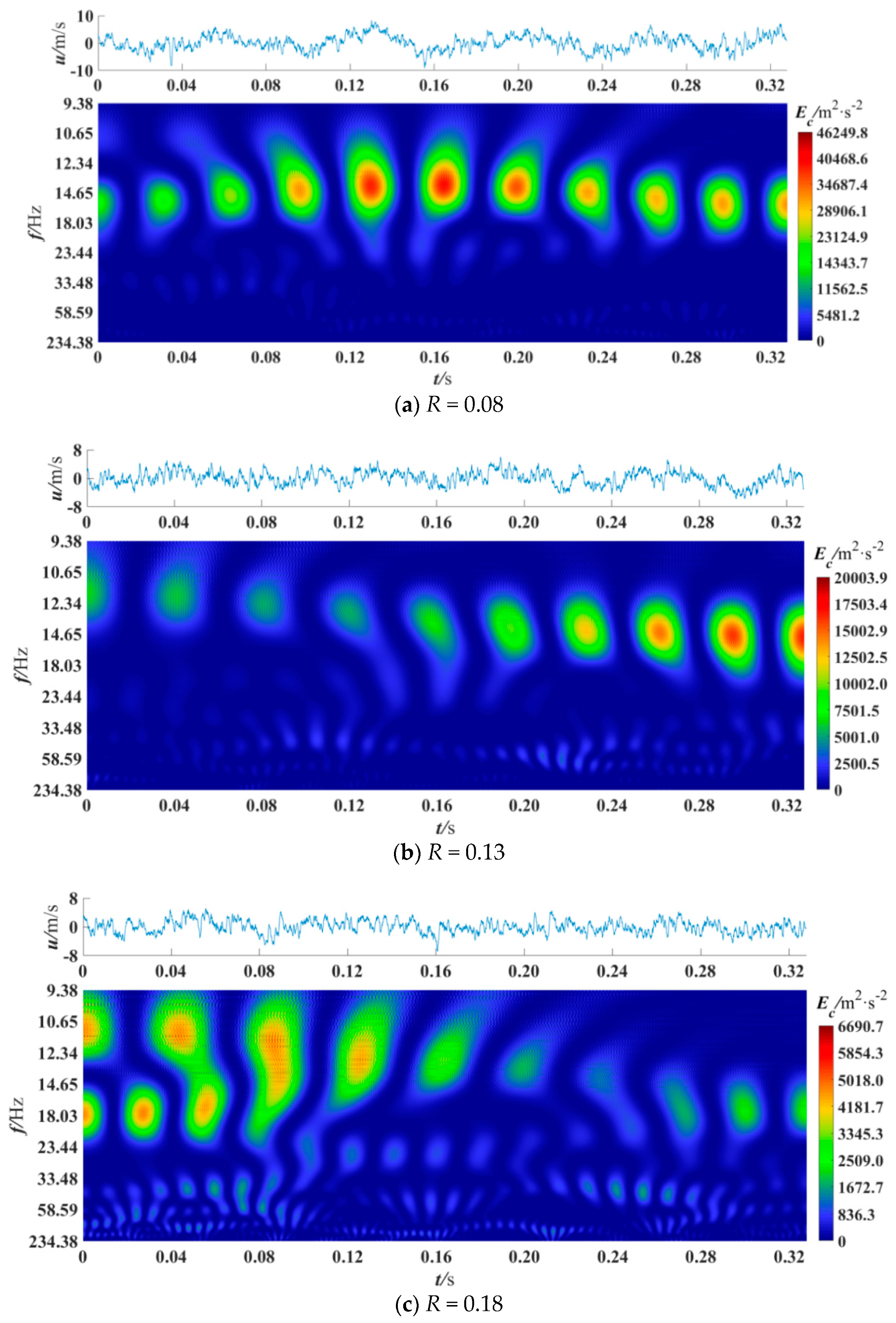

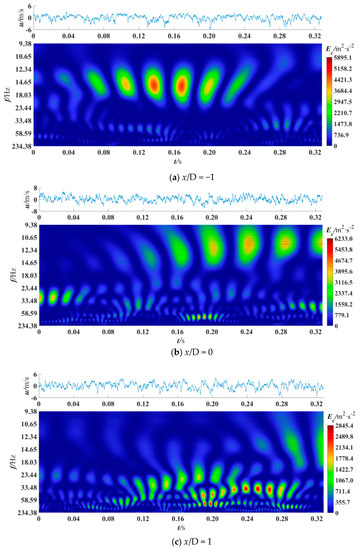

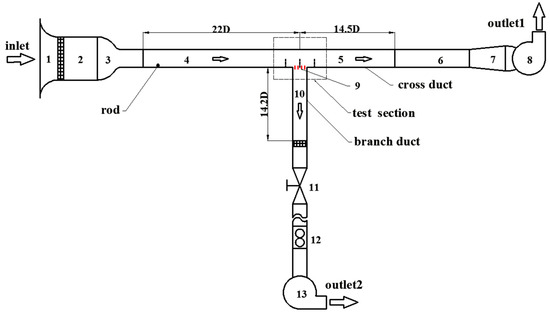

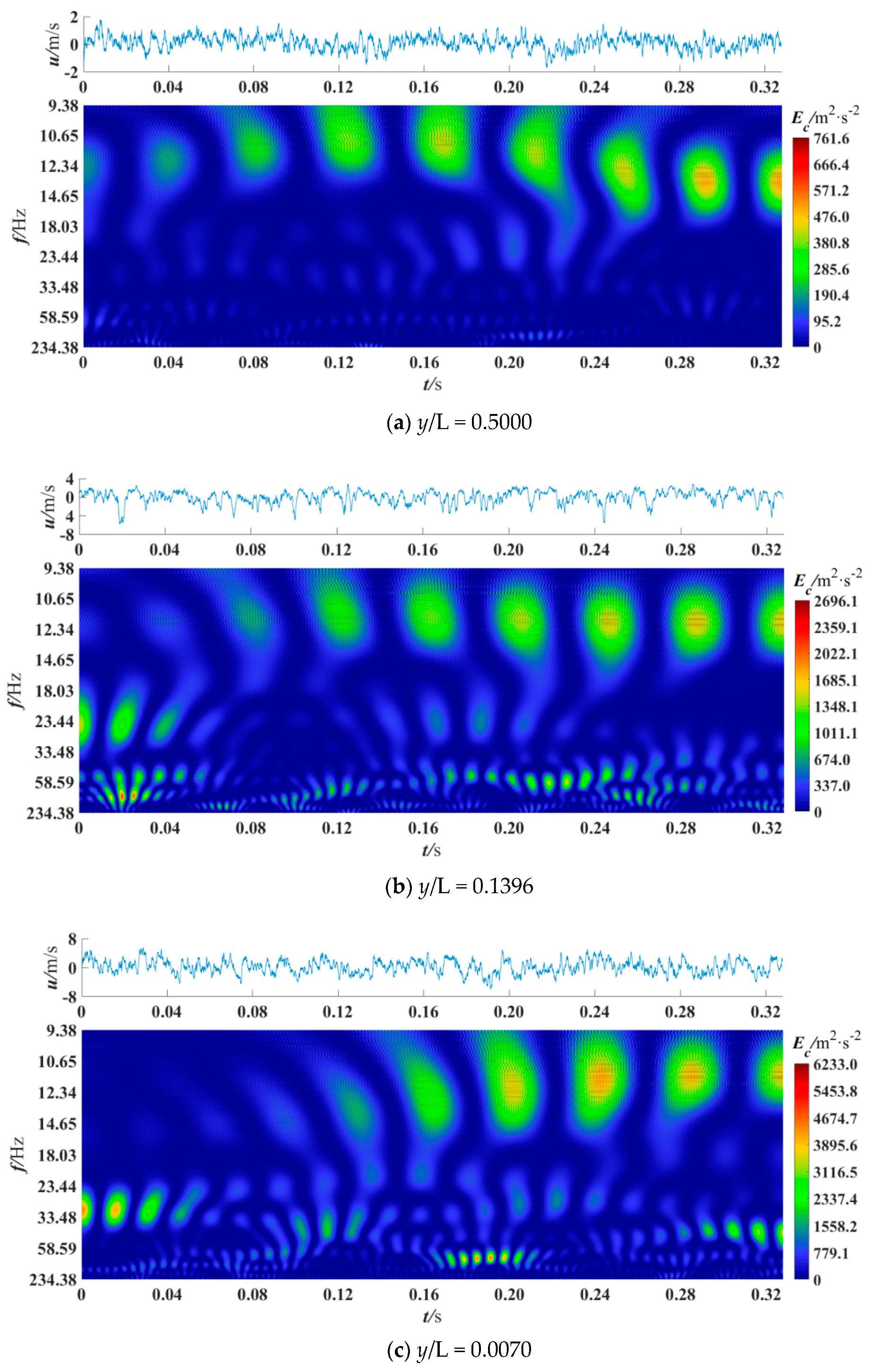

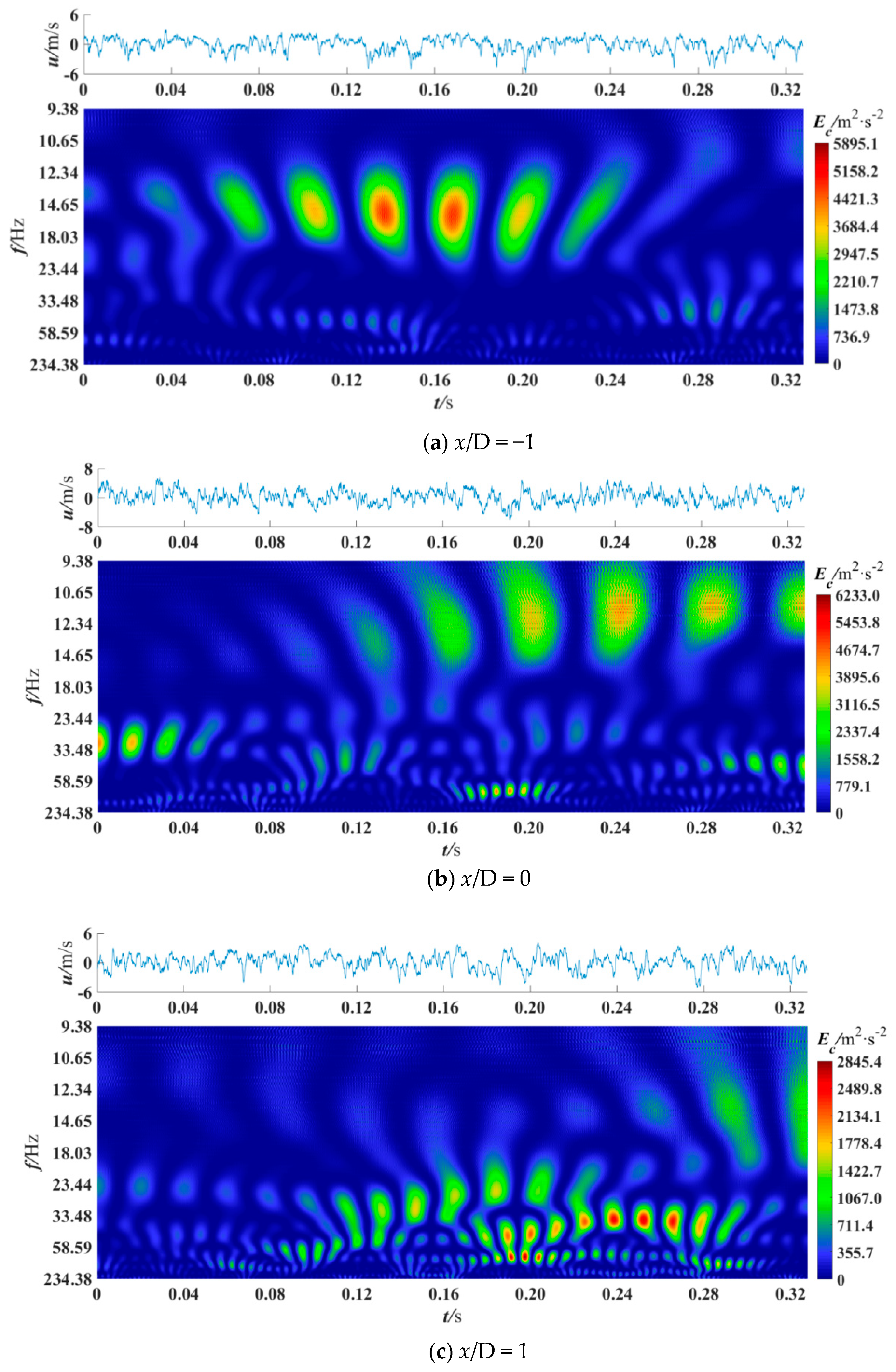

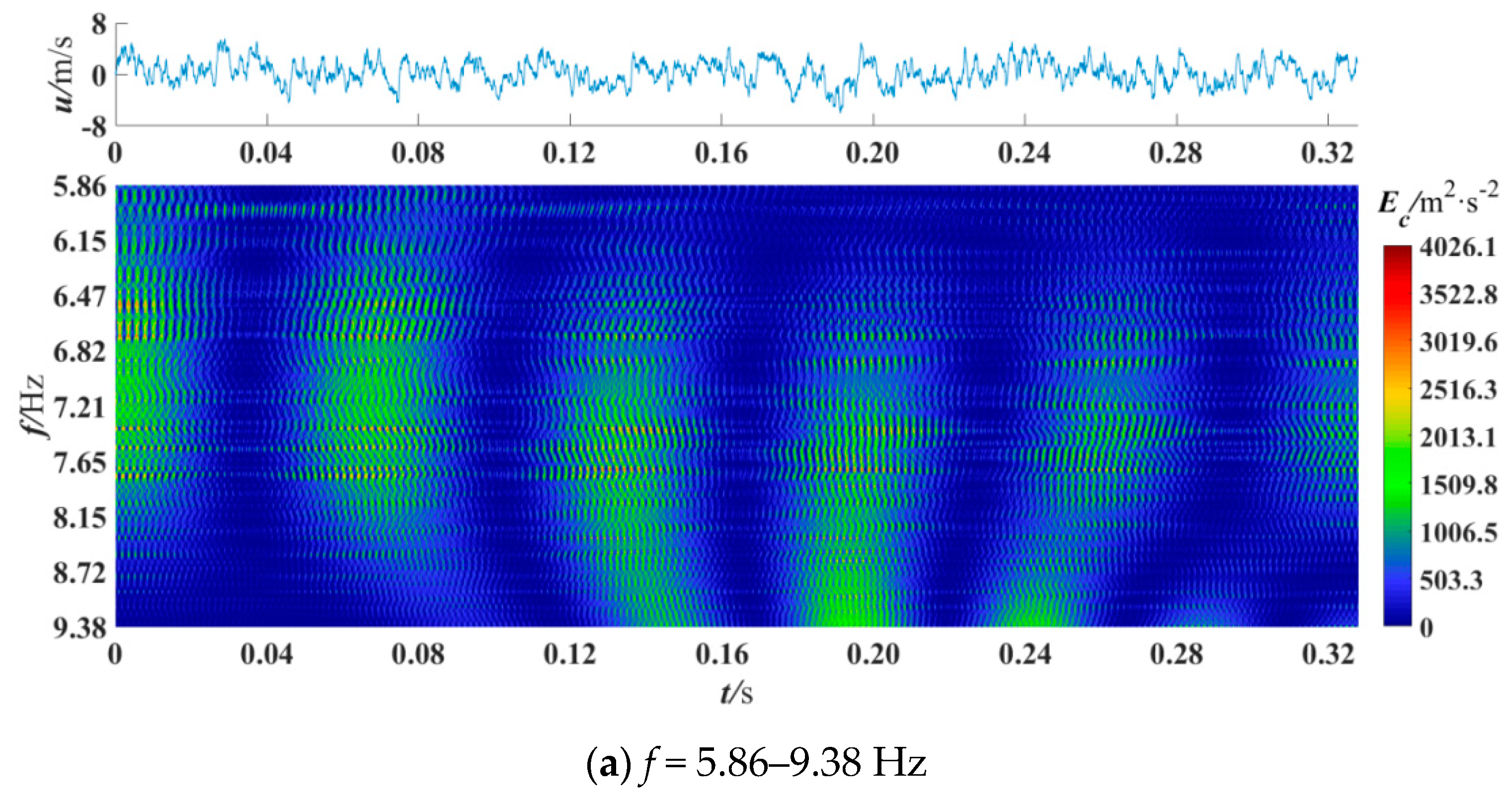

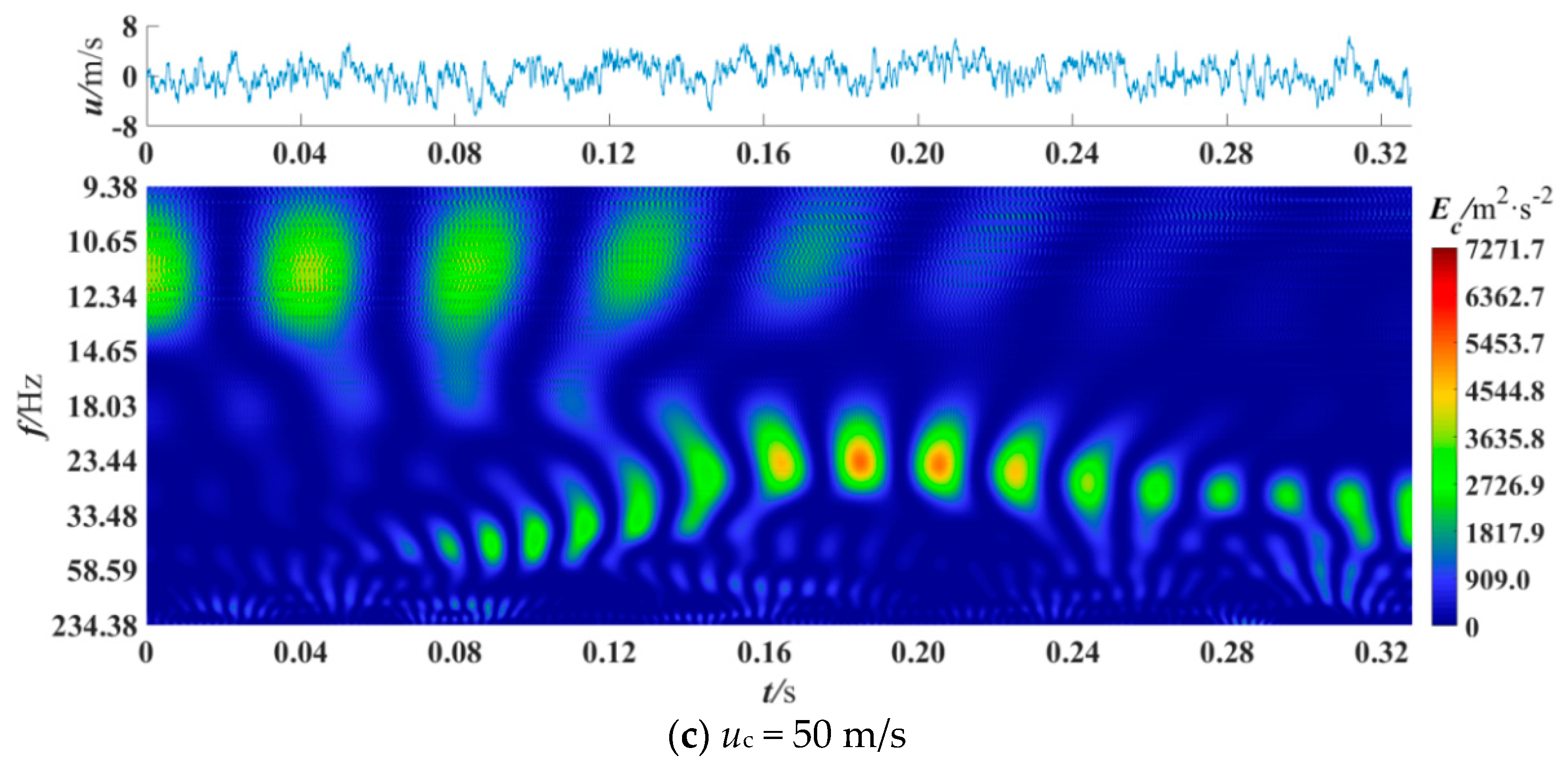

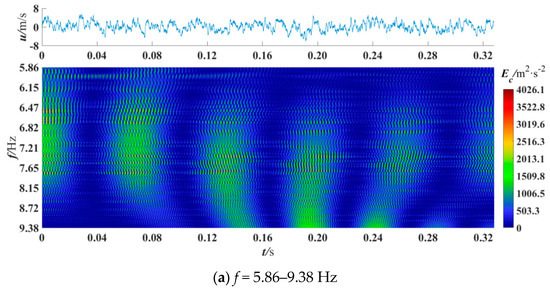

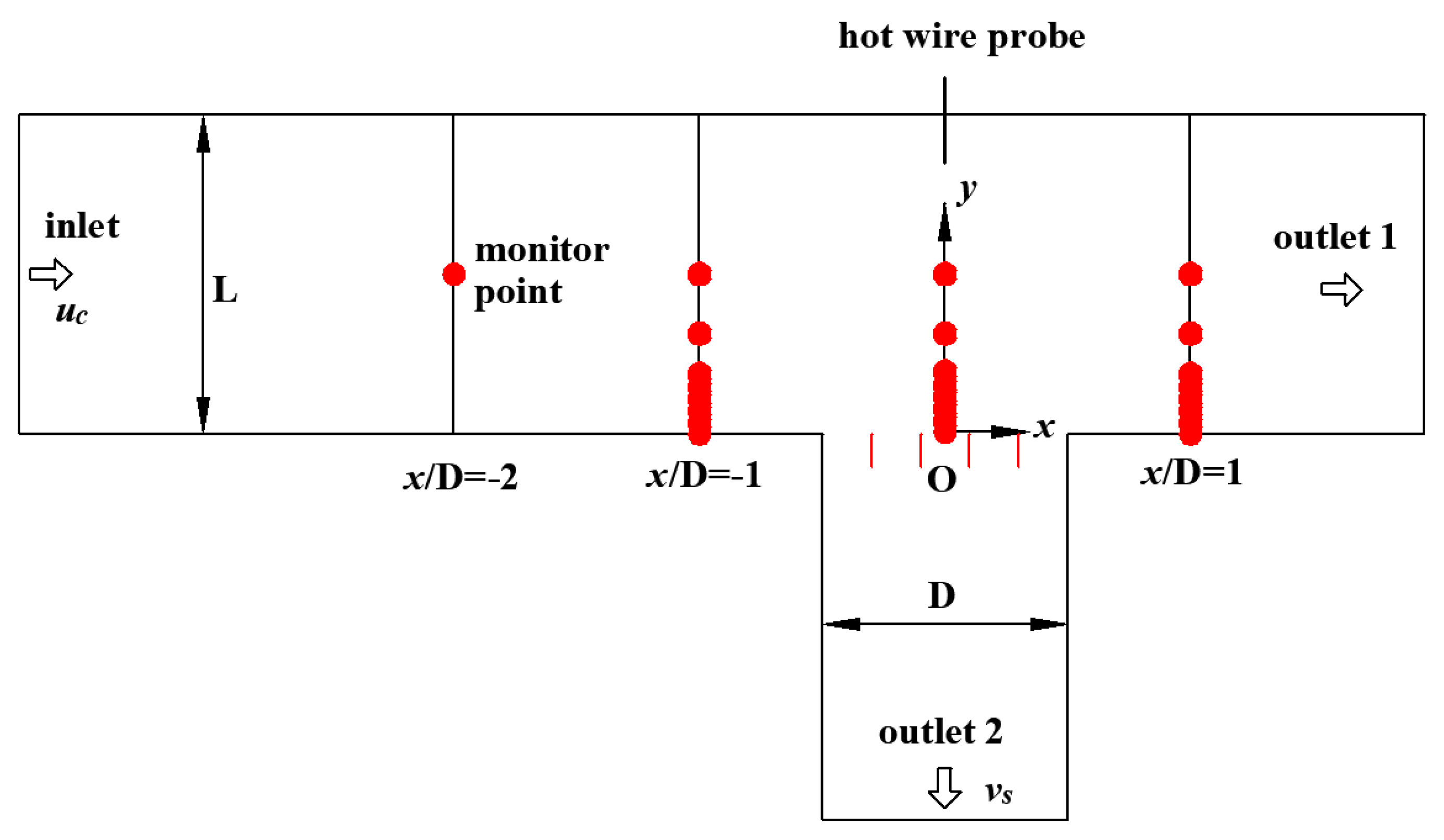

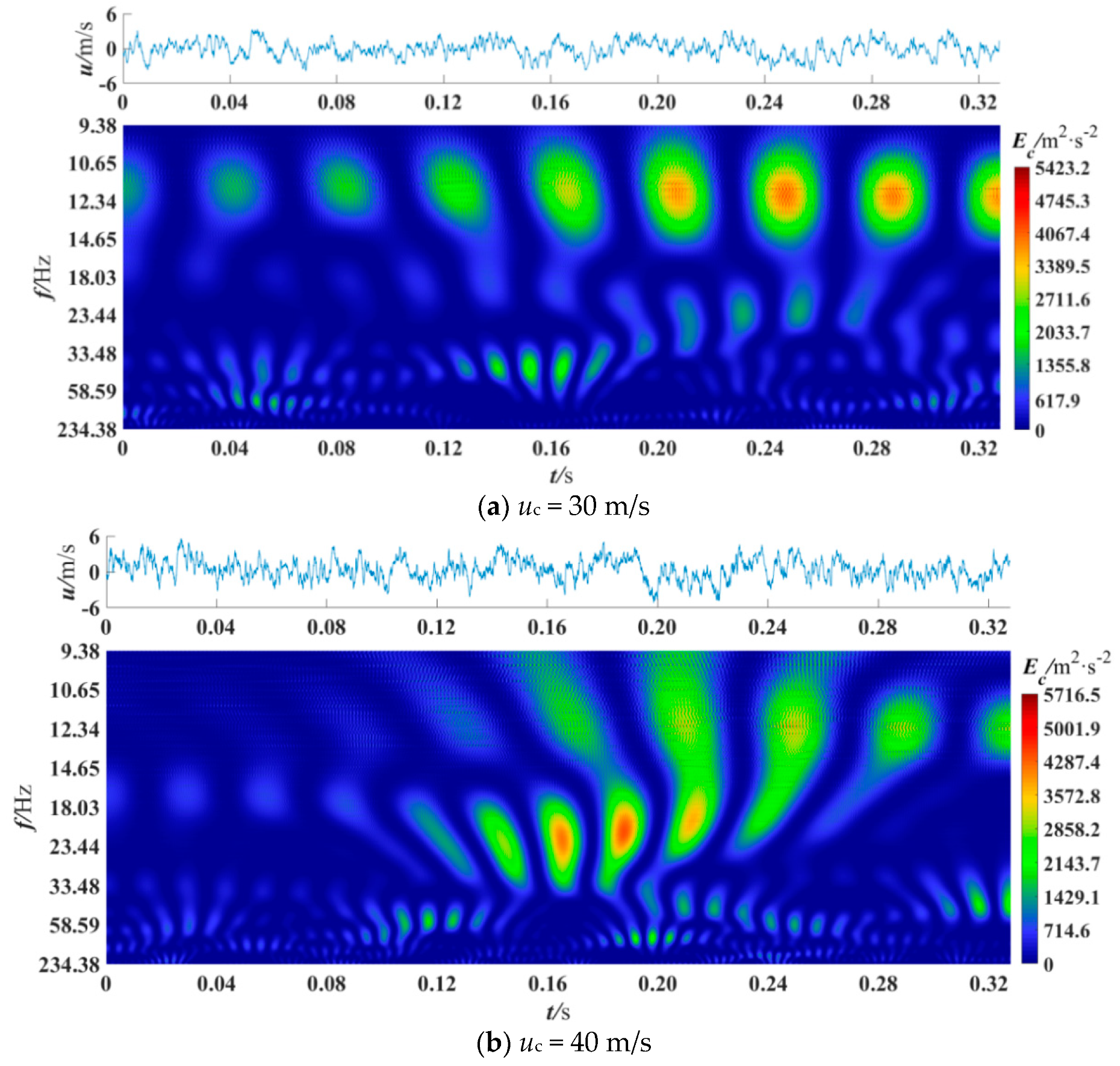

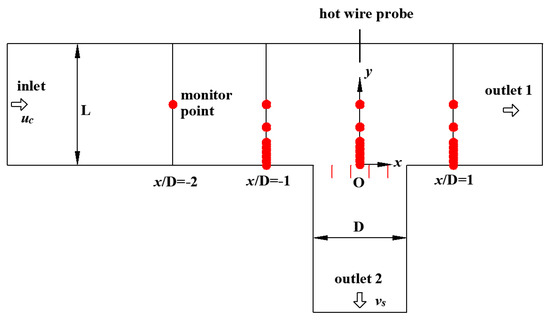

The skin friction consumes some of the energy when a train is running, and the coherent structure plays an important role in the skin friction. In this paper, we focus on the coherent structure generated near the vent of a train. The intention is to investigate the effect of the vent on the generation of coherent structures. The ventilation system of a high-speed train is reasonably simplified as a T-junction duct with vertical blades. The velocity signal of the cross duct was measured in three different sections (upstream, mid-center and downstream), and then the coherent structure of the denoised signals was analyzed by continuous wavelet transform (CWT). The analysis indicates that the coherent structure frequencies become abundant and the energy peak decreases with the increase of the velocity ratio. As a result, we conclude that a higher velocity ratio is preferable to reduce the skin friction of the train. Besides, with the increase of velocity ratio, the dimensionless frequency St of the high-energy coherent structure does not change obviously and St = 3.09 × 10−4–4.51 × 10−4. View Full-Text
Keywords: T-junction; denoise; coherent structure; continuous wavelet transform T-junction; denoise; coherent structure; continuous wavelet transform
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

He, J.; Wang, X.; Lin, M. Coherent Structure of Flow Based on Denoised Signals in T-junction Ducts with Vertical Blades. Entropy 2019, 21, 206.
