# The Method for Risk Evaluation in Assembly Process based on the Discrete-Time SIRS Epidemic Model and Information Entropy

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

**Assumptions**: As risk is a common phenomenon, it occurs in all areas of manufacturing. There are various scientific disciplines that deal with risk analysis, e.g., probability calculus, statistics, econometrics, image recognition theory, reliability theory, operational research, theory of organization and management, etc. [53].

**Assumption 1**: The reliability of each assembly stations is equal and constant.

**Assumption 2**: Different production lines are independent of each other.

**Assumption 3**: Products in assembly process are divided into three compartments according to their health states. In a certain condition, three states can transform into each other.

## 2. Optimal Assembly Path Selection based on Reliability and Cost

## 3. Risk Evaluation of Assembly Process

#### 3.1. Discrete-Time SIRS Epidemic Model in Assembly Process

#### 3.2. The Calculation of Information Entropy

## 4. Case Study

#### 4.1. Case Introduction

#### 4.2. Optimal Assembly Approach Selection

#### 4.3. Risk Evaluation based on SIRS Model and Entropy

## 5. Conclusions and Discussions

## Author Contributions

## Funding

## Conflicts of Interest

## Notations

$p$ | The reliability of each assembly station |

${P}_{i}$ | The assembly process |

$M$ | The maximum capacity of each process |

${O}_{j}(G)$ | The assembly capacity in general line |

${O}_{j}(R)$ | The assembly capacity in rework line |

${I}_{j}$ | The input loading of line j |

${S}_{ij}$ | The sequence number of inspection station |

${t}_{ij}$ | The number of processes behind the repaired station |

${O}_{j}$ | The quantity of products assembled in production line j |

${r}_{ij}$ | The quantity of processes behind process ${P}_{ij}$ |

$k$ | The number of repaired station |

${\alpha}_{ij}$ | The indicative function |

${O}_{\mathrm{max}}$ | The maximum assembly capacity of system |

${O}_{j\mathrm{max}}$ | The maximum assembly capacity of production line j |

$D$ | The assembly task |

${d}_{j}$ | The assembly task for production line j |

${V}_{ij}$ | The sequence number of ${P}_{ij}$ in assembly line |

${Q}_{ij}(G)$ | The input quantity of each process in general line |

${Q}_{ij}(R)$ | The input quantity of each process in rework line |

${\beta}_{ij}$ | The indicative function |

${L}_{j}$ | The loading vector of assembly system |

${l}_{ij}$ | The actual input loading of each process |

${C}_{j}$ | The minimum capacity vector of production j |

${c}_{ij}$ | The minimum assembly vector |

$R$ | The reliability of whole system, that is, the capacity that assembling required products |

$\oplus $ | Take the maximum value of the corresponding element of two sets |

$\mathsf{\Lambda}$ | The products recruitment in process ${i}^{th}$ |

$\mu $ | The failure rate in process ${i}^{th}$ |

$\eta $ | Residual defect density left by the previous process |

$\epsilon $ | Product’s mortality due to this type of defect |

${\gamma}_{1},{\gamma}_{2}$ | The immune level of process ${i}^{th}$, that is, a certain degree of repairability |

$\delta $ | Loss rate of immune status |

$S/S(t)$ | The number of products in susceptible state |

$I/I(t)$ | The number of products in infectious state |

$R/R(t)$ | The number of products in recovered state |

$f(I)$ | A real local Lipschitz function |

$\beta $ | The infective rate of defects |

${S}^{\prime}$ | The derivative of $S$ with respect to time |

${I}^{\prime}$ | The derivative of $I$ with respect to time |

${R}^{\prime}$ | The derivative of $R$ with respect to time |

$\Delta t$ | A time step size |

$X$ | A random variable |

$H(X)$ | The entropy of the random variable $X$ |

${p}_{i}$ | The probability that the system is in the ${i}^{th}$ microstate |

${H}_{I}$ | The entropy of whole process at the initial time |

${H}_{c}$ | The entropy of whole process at the critical time point |

$\Delta {H}_{base}$ | The increment of entropy calculated by SIRS epidemic model in assembly process |

$\Delta H$ | The process entropy increment in optimal assembly approach |

$P$ | The overall assembly risk probability |

## References

- Shuiabi, E.; Thomson, V.; Bhuiyan, N. Entropy as a measure of operational flexibility. Eur. J. Oper. Res.
**2005**, 165, 696–707. [Google Scholar] [CrossRef] - Zhang, T.; Efstathiou, J. The complexity of mass customization systems under different inventory strategies. Int. J. Comput. Integr. Manuf.
**2006**, 19, 423–433. [Google Scholar] [CrossRef] - He, F.; Zhu, H.P. The complexity in assembly manufacturing system. Adv. Mater. Res.
**2013**, 834–836, 1770–1775. [Google Scholar] [CrossRef] - Huang, Y.; Dai, W.; Mou, W.; Zhao, Y. Uncertainty evaluation in multistage assembly process based on enhanced OOPN. Entropy
**2018**, 20, 164. [Google Scholar] [CrossRef] - You, D.; Wang, S.; Dai, W.; Wu, W.; Jia, Y. An approach for enumerating minimal siphons in a subclass of Petri nets. IEEE Access
**2018**, 6, 4255–4265. [Google Scholar] [CrossRef] - Hu, S.J.; Ko, J.; Weyand, L.; ElMaraghy, H.A.; Lien, T.K.; Koren, Y.; Bley, H.; Chryssolouris, G.; Nasr, N.; Shpitalni, M. Assembly system design and operations for product variety. CIRP Ann.
**2011**, 60, 715–733. [Google Scholar] [CrossRef] - Gelber, M.K.; Hurst, G.; Bhargava, R. Freeform assembly planning. IEEE Trans. Autom. Sci. Eng.
**2019**, 16, 1315–1329. [Google Scholar] [CrossRef] - Kumar, A.; Pattanaik, L.N.; Agrawal, R. Optimal sequence planning for multi-model reconfigurable assembly systems. Int. J. Adv. Manuf. Technol.
**2019**, 100, 1719–1730. [Google Scholar] [CrossRef] - Mei, B.; Zhu, W.; Zheng, P.; Ke, Y. Variation modeling and analysis with interval approach for the assembly of compliant aeronautical structures. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf.
**2019**, 233, 948–959. [Google Scholar] [CrossRef] - Kusiak, A.; He, D.W. Design for agile assembly: An operational perspective. Int. J. Prod. Res.
**1997**, 35, 157–178. [Google Scholar] [CrossRef] - Heilala, J.; Voho, P. Modular reconfigurable flexible final assembly systems. Assem. Autom.
**2001**, 21, 20–30. [Google Scholar] [CrossRef] - Ho, J.K.L. A proposed approach for reconfiguration of flexible assembly line systems by motion genes. Int. J. Prod. Res.
**2005**, 43, 1729–1749. [Google Scholar] [CrossRef] - Xu, Z.; Liang, M. Integrated planning for product module selection and assembly line design/reconfiguration. Int. J. Prod. Res.
**2006**, 44, 2091–2117. [Google Scholar] [CrossRef] - Bryan, A.; Ko, J.; Hu, S.J.; Koren, Y. Co-evolution of product families and assembly systems. CIRP Ann.
**2007**, 56, 41–44. [Google Scholar] [CrossRef] - Saif, U.; Guan, Z.; Liu, W.; Wang, B.; Zhang, C. Multi-objective artificial bee colony algorithm for simultaneous sequencing and balancing of mixed model assembly line. Int. J. Adv. Manuf. Technol.
**2014**, 75, 1809–1827. [Google Scholar] [CrossRef] - Bowles, J. An assessment of RPN prioritization in a failure modes effects and criticality analysis. J. IEST
**2004**, 47, 51–56. [Google Scholar] [CrossRef] - Chin, K.-S.; Wang, Y.-M.; Poon, G.K.K.; Yang, J.-B. Failure mode and effects analysis by data envelopment analysis. Decis. Support Syst.
**2009**, 48, 246–256. [Google Scholar] [CrossRef] - Ben-Daya, M.; Raouf, A. A revised failure mode and effects analysis model. Int. J. Qual. Reliab. Manag.
**1996**, 13, 43–47. [Google Scholar] [CrossRef] - Gargama, H.; Chaturvedi, S.K. Criticality assessment models for failure mode effects and criticality analysis using fuzzy logic. IEEE Trans. Reliab.
**2011**, 60, 102–110. [Google Scholar] [CrossRef] - Fattahi, R.; Khalilzadeh, M. Risk evaluation using a novel hybrid method based on FMEA, extended MULTIMOORA, and AHP methods under fuzzy environment. Saf. Sci.
**2018**, 102, 290–300. [Google Scholar] [CrossRef] - Ravi Sankar, N.; Prabhu, B.S. Modified approach for prioritization of failures in a system failure mode and effects analysis. Int. J. Qual. Reliab. Manag.
**2001**, 18, 324–336. [Google Scholar] [CrossRef] - Tooranloo, H.S.; sadat Ayatollah, A. A model for failure mode and effects analysis based on intuitionistic fuzzy approach. Appl. Soft Comput.
**2016**, 49, 238–247. [Google Scholar] [CrossRef] - Ceglarek, D.; Huang, W.; Zhou, S.; Ding, Y.; Kumar, R.; Zhou, Y. Time-based competition in multistage manufacturing: Stream-of-variation analysis (SOVA) methodology—Review. Int. J. Flex. Manuf. Syst.
**2004**, 16, 11–44. [Google Scholar] [CrossRef] - Huang, W.; Lin, J.; Kong, Z.; Ceglarek, D. Stream-of-variation (SOVA) modeling—Part II: A generic 3D variation model for rigid body assembly in multistation assembly processes. J. Manuf. Sci. Eng.
**2007**, 129, 832. [Google Scholar] [CrossRef] - Huang, W.; Lin, J.; Bezdecny, M.; Kong, Z.; Ceglarek, D. Stream-of-variation modeling—Part I: A generic three-dimensional variation model for rigid-body assembly in single station assembly processes. J. Manuf. Sci. Eng.
**2007**, 129, 821. [Google Scholar] [CrossRef] - Zhang, T.; Shi, J. Stream of variation modeling and analysis for compliant composite part assembly—Part II: Multistation processes. J. Manuf. Sci. Eng.
**2016**, 138, 121004. [Google Scholar] [CrossRef] - Zhang, T.; Shi, J. Stream of variation modeling and analysis for compliant composite part assembly—Part I: Single-station processes. J. Manuf. Sci. Eng.
**2016**, 138, 121003. [Google Scholar] [CrossRef] - Camelio, J.; Hu, S.J.; Ceglarek, D. Modeling variation propagation of multi-station assembly systems with compliant parts. J. Mech. Des.
**2003**, 125, 673–681. [Google Scholar] [CrossRef] - Zhou, S.; Huang, Q.; Shi, J. State space modeling of dimensional variation propagation in multistage machining process using differential motion vectors. IEEE Trans. Robot. Autom.
**2003**, 19, 296–309. [Google Scholar] [CrossRef] - Li, Y.; Zhang, F.P.; Yan, Y.; Zhou, J.H.; Li, Y.F. Multi-source uncertainty considered assembly process quality control based on surrogate model and information entropy. Struct. Multidiscip. Optim.
**2019**, 59, 1685–1701. [Google Scholar] [CrossRef] - Liu, H.; Xu, K.; Pan, Z. Modeling and application of mixed model assembly system complexity introduced by auto-body personalization. Int. J. Adv. Manuf. Technol.
**2017**, 93, 43–54. [Google Scholar] [CrossRef] - Fujimoto, H.; Ahmed, A.; Iida, Y.; Hanai, M. Assembly process design for managing manufacturing complexities because of product varieties. Int. J. Flex. Manuf. Syst.
**2003**, 15, 283–307. [Google Scholar] [CrossRef] - Barchielli, A.; Gregoratti, M.; Toigo, A. Measurement uncertainty relations for discrete observables: Relative entropy formulation. Commun. Math. Phys.
**2018**, 357, 1253–1304. [Google Scholar] [CrossRef] - Glover, F.; Greenberg, H.J. New approaches for heuristic search: A bilateral linkage with artificial intelligence. Eur. J. Oper. Res.
**1989**, 39, 119–130. [Google Scholar] [CrossRef] - Tang, D.; Dai, M.; Salido, M.A.; Giret, A. Energy-efficient dynamic scheduling for a flexible flow shop using an improved particle swarm optimization. Comput. Ind.
**2016**, 81, 82–95. [Google Scholar] [CrossRef] - Rahman, H.F.; Sarker, R.; Essam, D. A genetic algorithm for permutation flow shop scheduling under make to stock production system. Comput. Ind. Eng.
**2015**, 90, 12–24. [Google Scholar] [CrossRef] - Benkalai, I.; Rebaine, D.; Gagné, C.; Baptiste, P. Improving the migrating birds optimization metaheuristic for the permutation flow shop with sequence-dependent set-up times. Int. J. Prod. Res.
**2017**, 55, 6145–6157. [Google Scholar] [CrossRef] - Bessedik, M.; Benbouzid-Si Tayeb, F.; Cheurfi, H.; Blizak, A. An immunity-based hybrid genetic algorithms for permutation flowshop scheduling problems. Int. J. Adv. Manuf. Technol.
**2016**, 85, 2459–2469. [Google Scholar] [CrossRef] - Du, H.; Liu, D.; Zhang, M. A hybrid algorithm based on particle swarm optimization and artificial immune for an assembly job shop scheduling problem. Math. Probl. Eng.
**2016**, 3938679. [Google Scholar] - Zandieh, M.; Khatami, A.R.; Rahmati, S.H.A. Flexible job shop scheduling under condition-based maintenance: Improved version of imperialist competitive algorithm. Appl. Soft Comput.
**2017**, 58, 449–464. [Google Scholar] [CrossRef] - Gao, K.Z.; Suganthan, P.N.; Chua, T.J.; Chong, C.S.; Cai, T.X.; Pan, Q.K. A two-stage artificial bee colony algorithm scheduling flexible job-shop scheduling problem with new job insertion. Expert Syst. Appl.
**2015**, 42, 7652–7663. [Google Scholar] [CrossRef] - Gao, K.Z.; Suganthan, P.N.; Pan, Q.K.; Chua, T.J.; Chong, C.S.; Cai, T.X. An improved artificial bee colony algorithm for flexible job-shop scheduling problem with fuzzy processing time. Expert Syst. Appl.
**2016**, 65, 52–67. [Google Scholar] [CrossRef] [Green Version] - Lei, D.; Zheng, Y.; Guo, X. A shuffled frog-leaping algorithm for flexible job shop scheduling with the consideration of energy consumption. Int. J. Prod. Res.
**2017**, 55, 3126–3140. [Google Scholar] [CrossRef] - Lei, Q.; Guo, W.; Song, Y. Integrated scheduling algorithm based on an operation relationship matrix table for tree-structured products. Int. J. Prod. Res.
**2018**, 56, 5437–5456. [Google Scholar] [CrossRef] - Lahrouz, A.; Omani, L. Extinction and stationary distribution of a stochastic SIRS epidemic model with non-linear incidence. Stat. Probab. Lett.
**2013**, 83, 960–968. [Google Scholar] [CrossRef] - Lu, M.; Huang, J.; Ruan, S.; Yu, P. Bifurcation analysis of an SIRS epidemic model with a generalized nonmonotone and saturated incidence rate. J. Differ. Equ.
**2019**, 267, 1859–1898. [Google Scholar] [CrossRef] - Song, Y.; Miao, A.; Zhang, T.; Wang, X.; Liu, J. Extinction and persistence of a stochastic SIRS epidemic model with saturated incidence rate and transfer from infectious to susceptible. Adv. Differ. Equ.
**2018**, 293. [Google Scholar] - Zhang, S.; Meng, X.; Wang, X. Application of stochastic inequalities to global analysis of a nonlinear stochastic SIRS epidemic model with saturated treatment function. Adv. Differ. Equ.
**2018**, 50. [Google Scholar] - Hu, Z.; Teng, Z.; Jiang, H. Stability analysis in a class of discrete SIRS epidemic models. Nonlinear Anal. Real World Appl.
**2012**, 13, 2017–2033. [Google Scholar] [CrossRef] - Cai, Y.; Kang, Y.; Banerjee, M.; Wang, W. A stochastic SIRS epidemic model with infectious force under intervention strategies. J. Differ. Equ.
**2015**, 259, 7463–7502. [Google Scholar] [CrossRef] - Wu, M.; Dai, W.; Huang, Y.; Zhao, Y. The analysis of defect emergence in assembly process based on the discrete-time SIRS model. IEEE Access
**2019**, 7, 94840–94847. [Google Scholar] [CrossRef] - Wu, M.; Dai, W.; Zhao, Y. Research on the Propagation of Defects in Assembly Process Based on SIR Epidemic Model; IEEE: San Francisco, CA, USA, 2019; pp. 1–6. [Google Scholar]
- Burduk, A.; Chlebus, E. Methods of risk evaluation in manufacturing systems. Arch. Civ. Mech. Eng.
**2009**, 9, 17–30. [Google Scholar] [CrossRef]

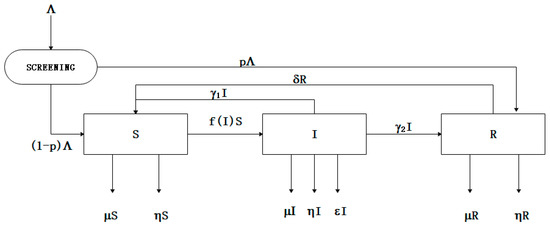

**Figure 5.**The SIRS model in assembly process considering screening [51].

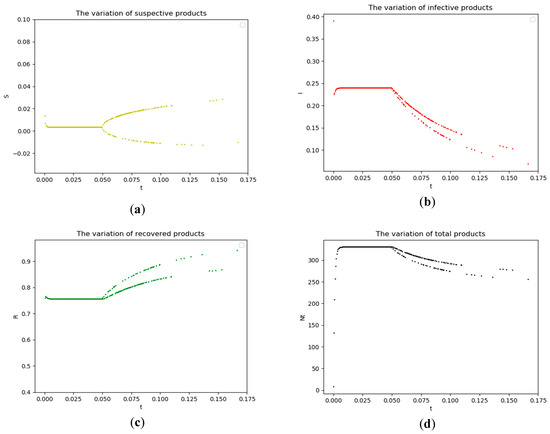

**Figure 11.**The variation of different states during assembly process. (

**a**) The variation of susceptive products; (

**b**) The variation of infective products; (

**c**) The variation of recovered products; and, (

**d**) The variation of total products.

**Table 1.**The comparison between defect emergence and disease propagation [52].

Definition | Infectious Source | Infectious Path | Susceptible Individuals |
---|---|---|---|

Disease propagation | Individuals with pathogens | The process that pathogens arrive and invade new susceptible individuals | Individuals susceptible to an infectious disease that lacks immunity or adaptive immunity |

Defect emergence | Process that has a positive or negative effect on product defects under process stress | A time series process in which product defects are corrected or excited under stress | Hidden risk of infection or Lack of resilience to risks |

Process | Capacity | Probability | Process | Capacity | Probability |
---|---|---|---|---|---|

P_{1} | 0 | 0.010 | P_{5} | 0 | 0.001 |

100 | 0.010 | 60 | 0.002 | ||

150 | 0.010 | 120 | 0.002 | ||

200 | 0.010 | 180 | 0.005 | ||

250 | 0.010 | 200 | 0.010 | ||

300 | 0.020 | 240 | 0.005 | ||

350 | 0.020 | 260 | 0.005 | ||

400 | 0.910 | 280 | 0.970 | ||

P_{2} | 0 | 0.005 | P_{6} | 0 | 0.010 |

150 | 0.010 | 50 | 0.010 | ||

200 | 0.010 | 100 | 0.010 | ||

250 | 0.015 | 150 | 0.020 | ||

300 | 0.010 | 200 | 0.020 | ||

350 | 0.010 | 220 | 0.005 | ||

450 | 0.020 | 240 | 0.003 | ||

600 | 0.920 | 260 | 0.001 | ||

P_{3} | 0 | 0.002 | P_{7} | 280 | 0.001 |

50 | 0.003 | 300 | 0.920 | ||

100 | 0.005 | 0 | 0.005 | ||

150 | 0.010 | 150 | 0.005 | ||

200 | 0.010 | 170 | 0.015 | ||

250 | 0.015 | 190 | 0.015 | ||

300 | 0.955 | 210 | 0.015 | ||

P_{4} | 0 | 0.001 | P_{8} | 230 | 0.025 |

50 | 0.001 | 250 | 0.010 | ||

100 | 0.001 | 270 | 0.910 | ||

150 | 0.002 | 0 | 0.001 | ||

200 | 0.002 | 50 | 0.002 | ||

250 | 0.003 | 100 | 0.002 | ||

280 | 0.010 | 150 | 0.005 | ||

300 | 0.010 | 200 | 0.010 | ||

320 | 0.010 | 250 | 0.015 | ||

350 | 0.960 | 300 | 0.965 |

Process | ${\mathbf{S}}_{\mathbf{i}\mathbf{j}}$ | Following Processes | ${\mathbf{t}}_{\mathbf{i}\mathbf{j}}$ | ${\mathsf{\alpha}}_{\mathbf{i}\mathbf{j}}$ | ${\mathsf{\beta}}_{\mathbf{i}\mathbf{j}}$ |
---|---|---|---|---|---|

P_{1} | 1 | P_{2}, P_{3}, P_{4}, P_{5}, P_{6}, P_{7}, P_{8} | 7 | 1 | 0 |

P_{2} | 2 | P_{3}, P_{4}, P_{5}, P_{6}, P_{7}, P_{8} | 6 | 1 | 0 |

P_{3} | 3 | P_{4}, P_{5}, P_{6}, P_{7}, P_{8} | 5 | 0 | 1 |

P_{4} | 4 | P_{5}, P_{6}, P_{7}, P_{8} | 4 | 0 | 1 |

P_{5} | 5 | P_{6}, P_{7}, P_{8} | 3 | 0 | 1 |

P_{6} | 6 | P_{7}, P_{8} | 2 | 0 | 1 |

P_{7} | 7 | P_{8} | 1 | 0 | 1 |

P_{8} | 8 | - | 0 | 0 | 1 |

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
---|---|---|---|---|---|---|---|---|

${Q}_{i1}(G)$ | 302.874 | 287.73 | 273.344 | 259.677 | 246.693 | 234.358 | 222.64 | 211.508 |

${Q}_{i1}(R)$ | 0 | 0 | 12.9838 | 12.3346 | 11.7179 | 11.132 | 10.5754 | 10.0466 |

${l}_{i1}$ | 302.874 | 287.73 | 286.328 | 272.011 | 258.411 | 245.49 | 233.216 | 221.555 |

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
---|---|---|---|---|---|---|---|---|

${Q}_{i2}(G)$ | 216.339 | 205.522 | 195.246 | 185.483 | 176.209 | 167.399 | 159.029 | 151.077 |

${Q}_{i2}(R)$ | 0 | 0 | 9.2747 | 8.81046 | 8.36994 | 7.95144 | 7.55387 | 7.17618 |

${l}_{i2}$ | 216.339 | 205.522 | 204.52 | 194.294 | 184.579 | 175.35 | 166.583 | 158.254 |

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
---|---|---|---|---|---|---|---|---|

${Q}_{i1}(G)$ | 259.606 | 246.626 | 234.295 | 222.58 | 211.451 | 200.878 | 190.835 | 181.293 |

${Q}_{i1}(R)$ | 0 | 0 | 11.129 | 10.5726 | 10.0439 | 9.54173 | 9.06464 | 8.61141 |

${l}_{i1}$ | 259.606 | 246.626 | 245.424 | 233.153 | 221.495 | 210.42 | 199.899 | 189.904 |

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
---|---|---|---|---|---|---|---|---|

${Q}_{i2}(G)$ | 259.606 | 246.626 | 234.295 | 222.58 | 211.451 | 200.878 | 190.835 | 181.293 |

${Q}_{i2}(R)$ | 0 | 0 | 11.129 | 10.5726 | 10.0439 | 9.54173 | 9.06464 | 8.61141 |

${l}_{i2}$ | 259.606 | 246.626 | 245.424 | 233.153 | 221.495 | 210.42 | 199.899 | 189.904 |

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
---|---|---|---|---|---|---|---|---|

${Q}_{i1}(G)$ | 216.339 | 205.522 | 195.246 | 185.483 | 176.209 | 167.399 | 159.029 | 151.077 |

${Q}_{i1}(R)$ | 0 | 0 | 9.2747 | 8.81046 | 8.36994 | 7.95144 | 7.55387 | 7.17618 |

${l}_{i1}$ | 216.339 | 205.522 | 204.52 | 194.294 | 184.579 | 175.35 | 166.583 | 158.254 |

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
---|---|---|---|---|---|---|---|---|

${Q}_{i2}(G)$ | 302.874 | 287.73 | 273.344 | 259.677 | 246.693 | 234.358 | 222.64 | 211.508 |

${Q}_{i2}(R)$ | 0 | 0 | 12.9838 | 12.3346 | 11.7179 | 11.132 | 10..5754 | 10.0466 |

${l}_{i2}$ | 302.874 | 287.73 | 286.328 | 272.011 | 258.411 | 245.49 | 233.216 | 221.555 |

Position | Path | D | Input loading | Minimum capacity vector | Reliability |
---|---|---|---|---|---|

Position1 | Rework 1 | (210,150) | 302.874 | [350,300,300,280,260,260,250,250, 250,250,250,200,200,200,170,200] | 0.68757846320055 |

216.339 | |||||

(180,180) | 259.606 | [300,250,250,250,240,220,210,200, 300,250,250,250,240,220,210,200] | |||

259.606 | |||||

(150,210) | 216.339 | [250,250,250,200,200,200,170,200, 350,300,300,280,260,260,250,250] | |||

302.874 | |||||

Rework 2 | (210,150) | 302.187 | [350,300,300,280,260,260,250,250, 250,250,200,200,200,200,170,200] | 0.69951463495432 | |

215.848 | |||||

(180,180) | 259.018 | [300,250,250,250,240,220,210,200, 300,250,250,250,240,220,210,200] | |||

259.018 | |||||

(150,210) | 215.848 | [250,250,200,200,200,200,170,200, 350,300,300,280,260,260,250,250] | |||

302.187 | |||||

Rework 3 | (210,150) | 301.468 | [350,300,300,280,260,260,250,250, 250,250,200,200,200,200,170,200] | 0.69951463495432 | |

215.334 | |||||

(180,180) | 258.401 | [300,250,250,250,240,220,210,200, 300,250,250,250,240,220,210,200] | |||

258.401 | |||||

(150,210) | 215.334 | [250,250,200,200,200,200,170,200, 350,300,300,280,260,260,250,250] | |||

301.468 | |||||

Position2 | Rework 1 | (210,150) | 303.529 | [350,300,300,280,260,260,250,250, 250,250,250,200,200,200,170,200] | 0.68757846320055 |

216.807 | |||||

(180,180) | 260.168 | [300,250,250,250,240,220,210,200, 300,250,250,250,240,220,210,200] | |||

260.168 | |||||

(150,210) | 216.807 | [250,250,250,200,200,200,170,200, 350,300,300,280,260,260,250,250] | |||

303.529 | |||||

Rework 2 | (210,150) | 302.187 | [350,300,200,280,260,260,250,250, 250,250,200,200,200,200,170,200] | 0.71474526994618 | |

215.848 | |||||

(180,180) | 259.018 | [300,250,250,250,240,220,210,200, 300,250,250,250,240,220,210,200] | |||

259.018 | |||||

(150,210) | 215.848 | [250,250,200,200,200,200,170,200, 350,300,200,280,260,260,250,250] | |||

302.187 |

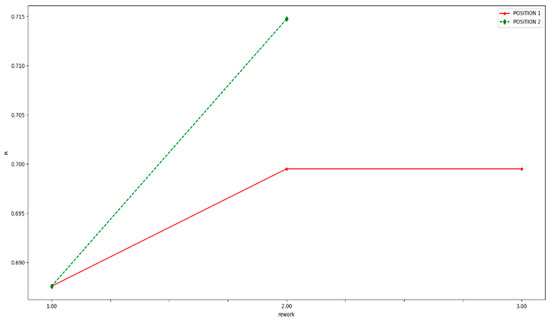

Path | Reliability | Rank | |
---|---|---|---|

Position 1 | Rework 1 | 0.687578 | 4 |

Rework 2 | 0.699514 | 3 | |

Rework 3 | 0.699514 | 2 | |

Position 2 | Rework 1 | 0.687578 | 5 |

Rework 2 | 0.714745 | 1 |

Position | Rework path | $\Delta \mathit{H}$ |
---|---|---|

1 | 1 | 1.099 |

2 | 1.095 | |

3 | 1.090 | |

2 | 1 | 1.103 |

2 | 1.095 |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Wu, M.; Dai, W.; Lu, Z.; Zhao, Y.; Wang, M.
The Method for Risk Evaluation in Assembly Process based on the Discrete-Time SIRS Epidemic Model and Information Entropy. *Entropy* **2019**, *21*, 1029.
https://doi.org/10.3390/e21111029

**AMA Style**

Wu M, Dai W, Lu Z, Zhao Y, Wang M.
The Method for Risk Evaluation in Assembly Process based on the Discrete-Time SIRS Epidemic Model and Information Entropy. *Entropy*. 2019; 21(11):1029.
https://doi.org/10.3390/e21111029

**Chicago/Turabian Style**

Wu, Mengyao, Wei Dai, Zhiyuan Lu, Yu Zhao, and Meiqing Wang.
2019. "The Method for Risk Evaluation in Assembly Process based on the Discrete-Time SIRS Epidemic Model and Information Entropy" *Entropy* 21, no. 11: 1029.
https://doi.org/10.3390/e21111029
