Search Results (709)

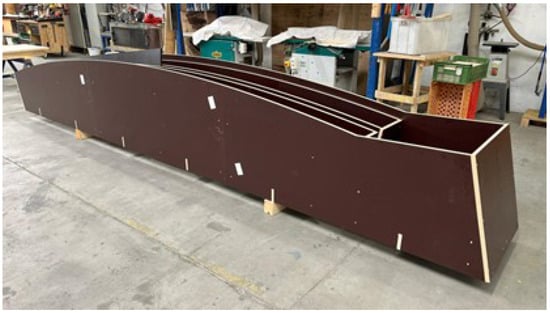

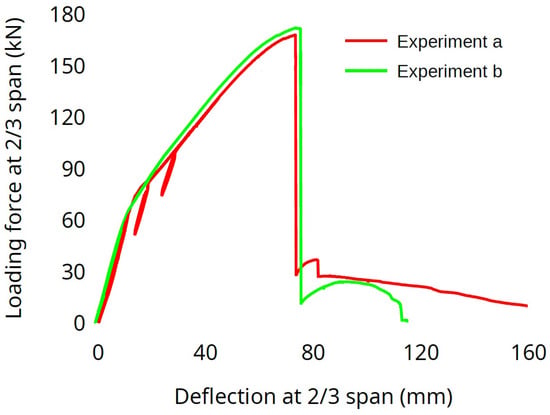

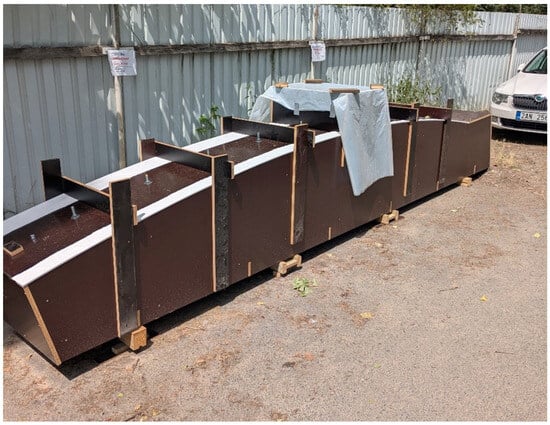

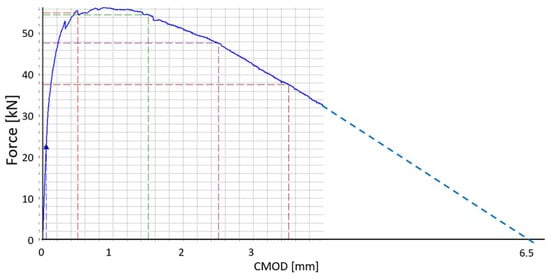

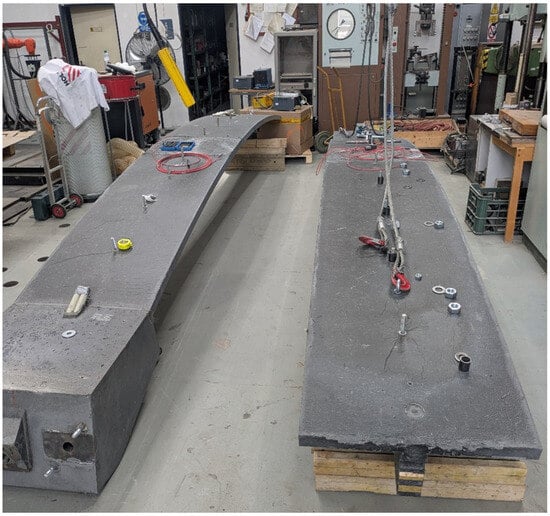

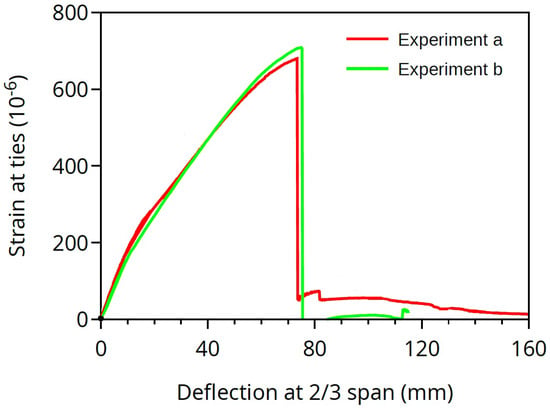

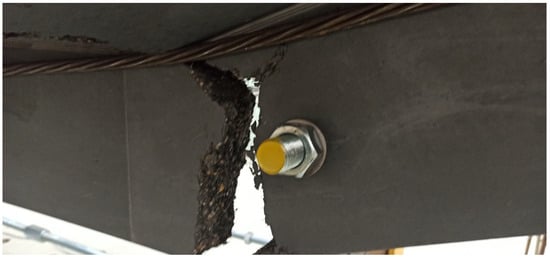

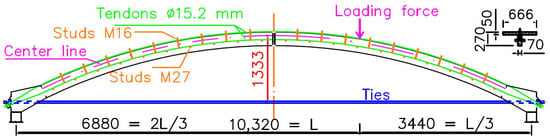

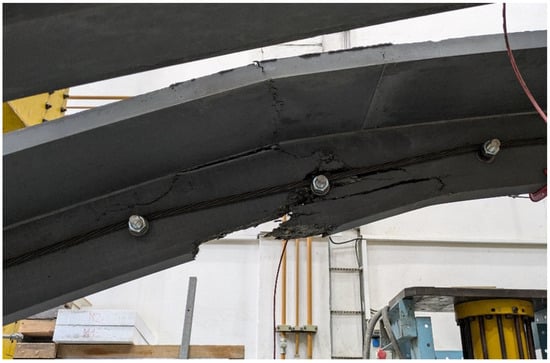

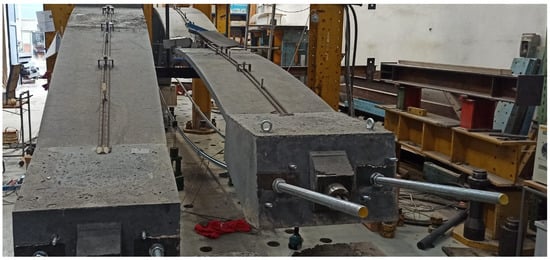

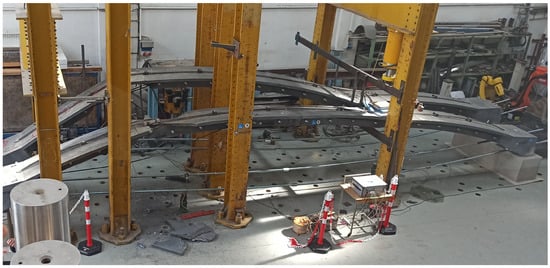

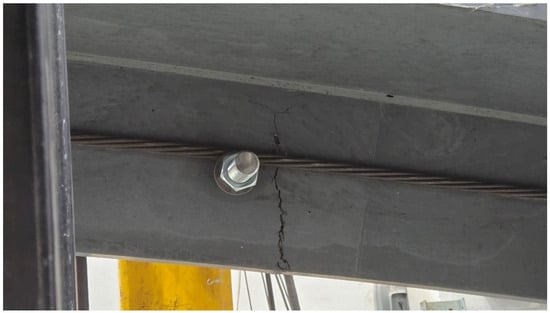

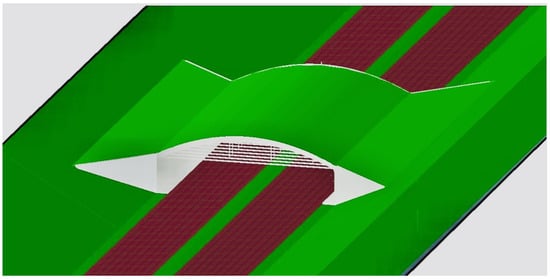

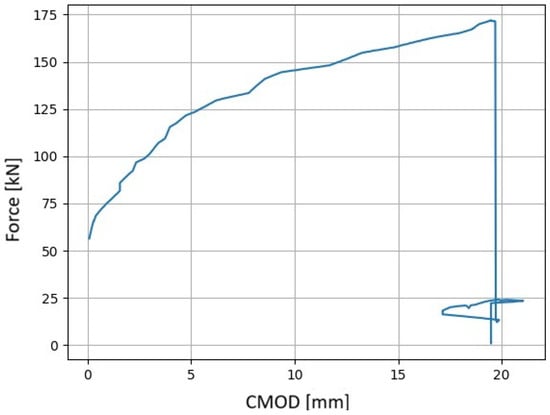

A two-hinged arch is part of a traditional structural element that can last for thousands of years. This mockup experiment tested two prestressed UHPFRC (Ultra-High-Performance Fibre-Reinforced Concrete) arches with a span of 10.32 m up to failure. Each arch was composed of two semi-arches, which were joined and slightly prestressed to ensure watertightness in the joint. The load acted on one third of the span, inducing eigenshape-like displacements. The first tensile crack appeared under the load at 60 kN, followed by shear cracks and tensile failure in an approximately opposite cross-section. The maximum load reached 170 kN with brittle failure afterwards. The behavior was successfully validated using a 3D finite element analysis and damage-plasticity material model. The mockup experiment proved that upscaling to a real ecoduct arch becomes possible, creating a unique structure with a very long service life. Full article

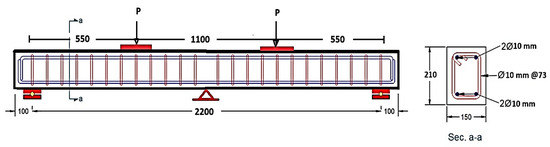

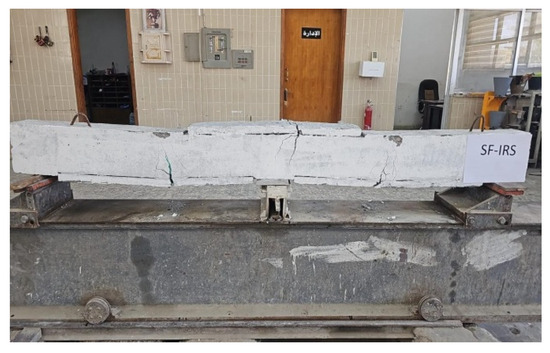

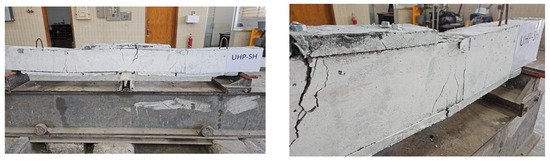

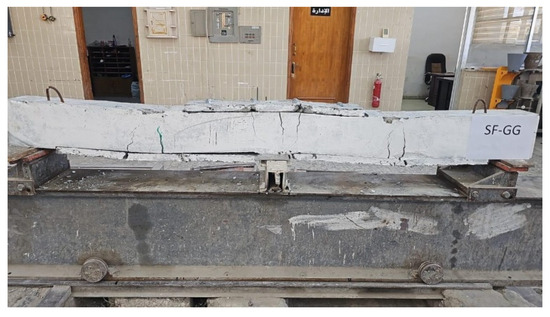

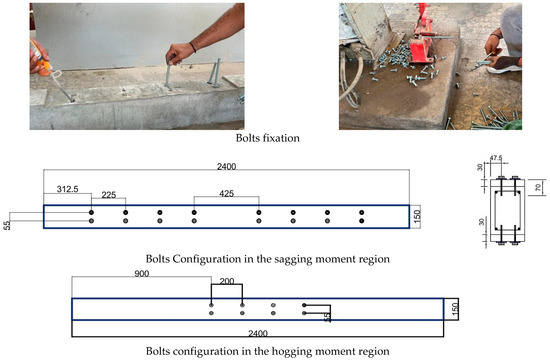

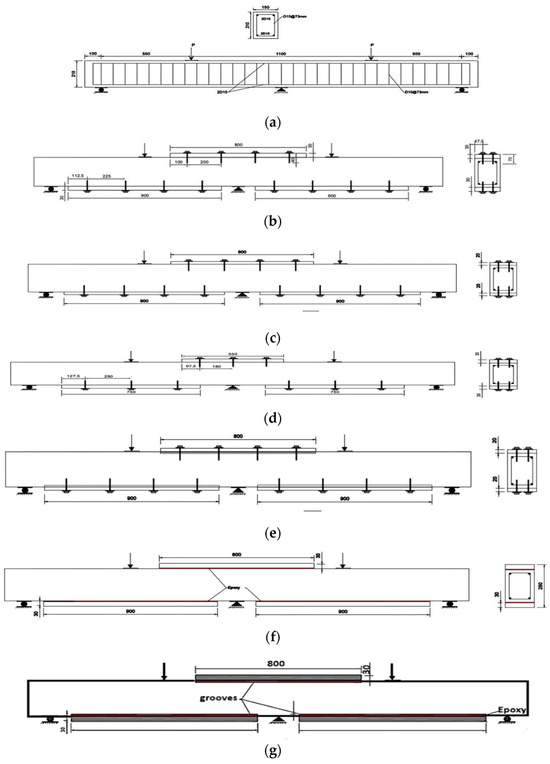

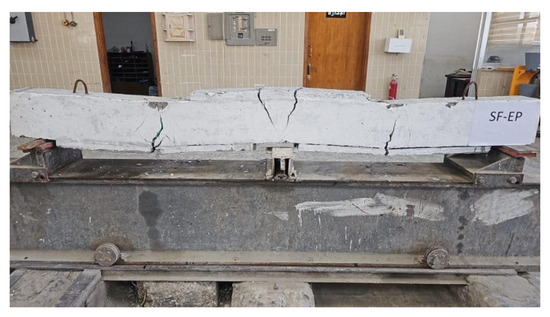

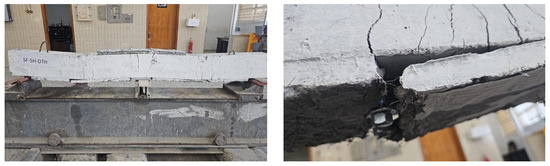

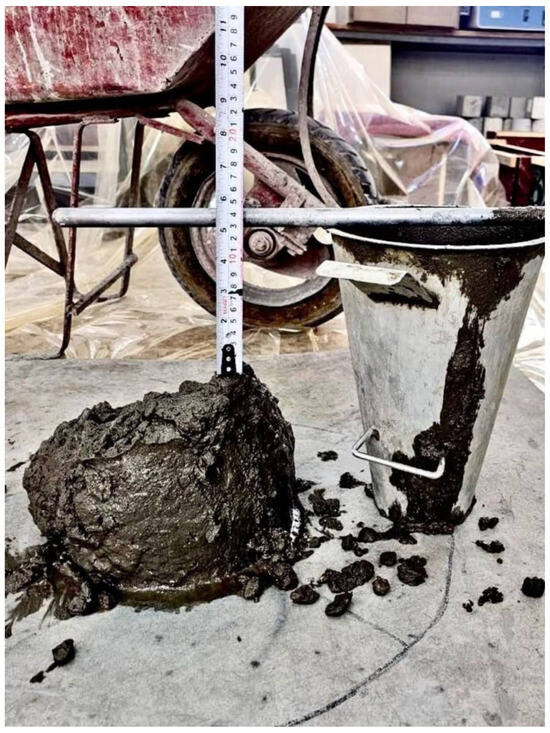

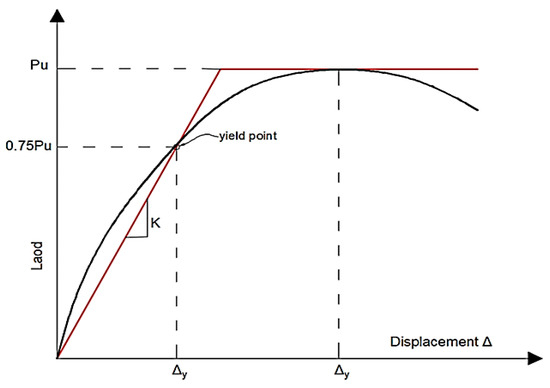

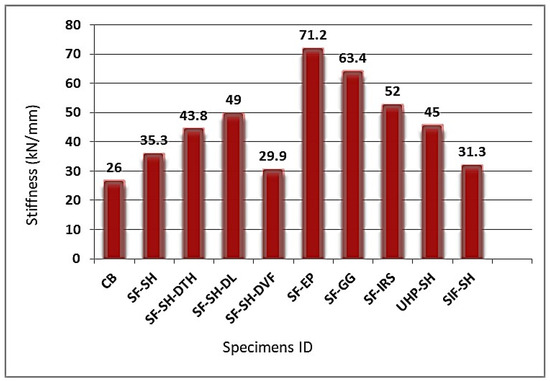

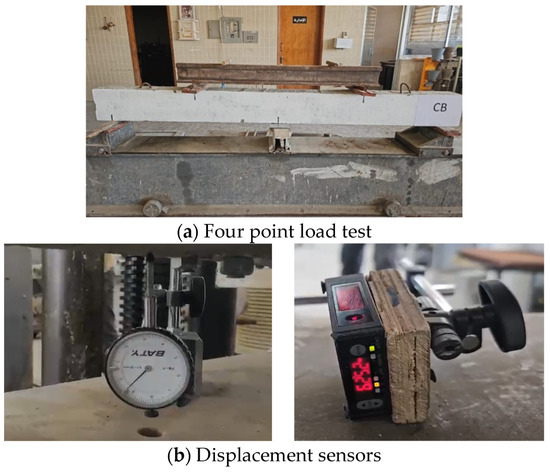

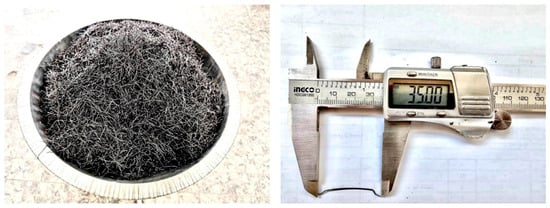

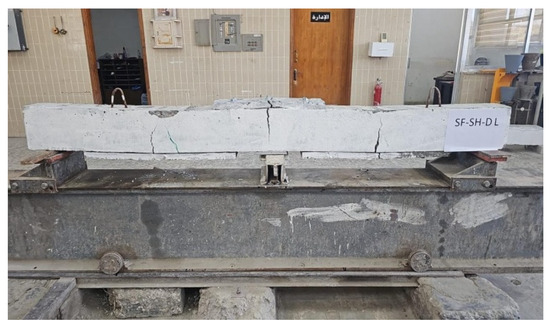

An experimental study was conducted to investigate the flexural behavior of continuous beams strengthened with precast concrete plates. Ten rectangular concrete beams with a cross-section of 210 × 150 mm and a total length of 2400 mm were tested under four-point loads. One specimen, without any strengthening, acted as the control, while the remaining nine were strengthened at both the positive and negative moment zones. The variables in this study were: strengthening plate thickness, length, type of bonding (epoxy or mechanical connector), bonding method (surface bonding or 10 mm grooving), type of concrete used (UHPC, SFRC, or SIFCON), and finally, the steel fiber ratio. The failure mode, cracking modes, ultimate load, load–deflection curve, stiffness and ductility were analyzed. The results showed the effectiveness of the strengthening methods, as they improved the flexural strength of the beams by 15.7% to 53%, as well as their stiffness by 15% to 173.8%, and reduced crack propagation. Also, decreasing the thickness and length of plates reduced the flexural strength by 7.28% and 23.5%, respectively. When the bonding methods were compared, the beam with mechanical bonding showed 5.7% more flexural strength than the one using epoxy. However, it was noted that all cracks in the strengthening plates were located at the bolt positions. Additionally, the use of SIFCON plates enhanced flexural strength more than UHPC and SFRC plates. However, for the SFRC plate, increasing the steel fiber content from 1.5% to 2% improved the strength by 1.2%, but this high percentage also caused cracking in the SFRC plate due to the inhomogeneity of the concrete mixture. As for the initial stiffness, the sample in which epoxy was used showed the highest value, with an increase of 173.8%, due to the uniform bonding at the connection surface. Finally, it was observed that the reference beam had the highest ductility due to the high ultimate displacement resulting from the numerous cracks that occurred in the beam, which were reduced in the strengthened beams. Full article

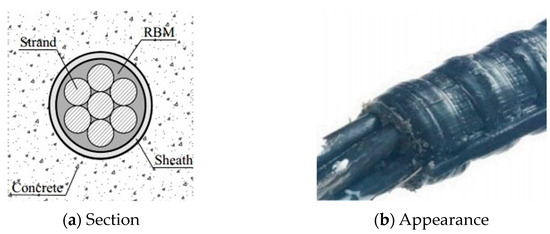

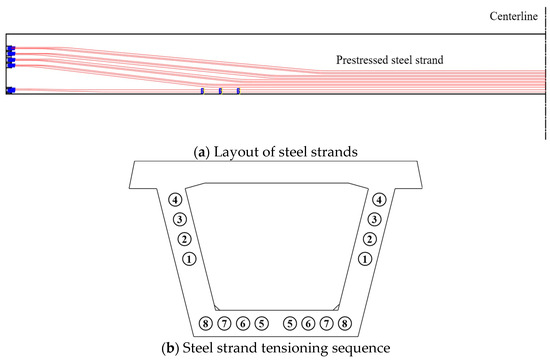

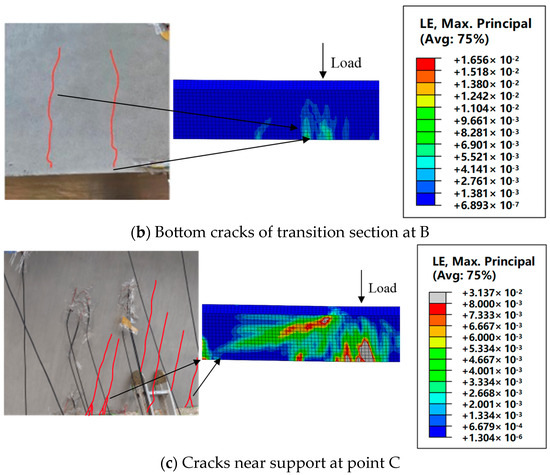

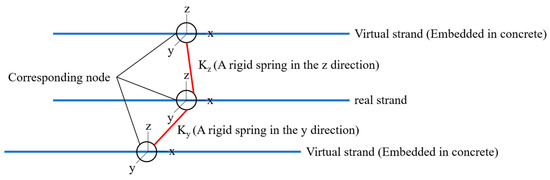

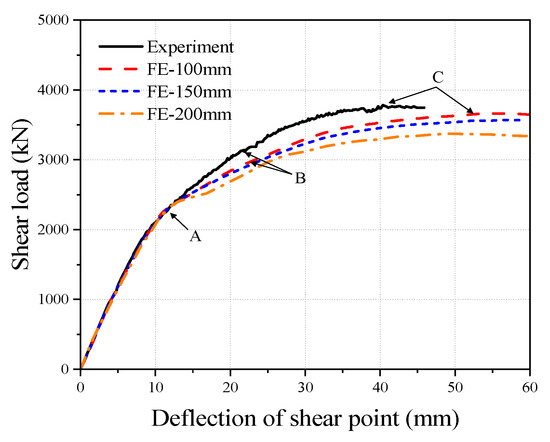

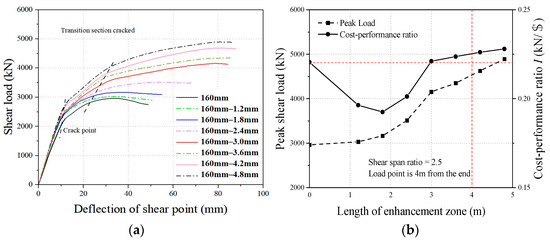

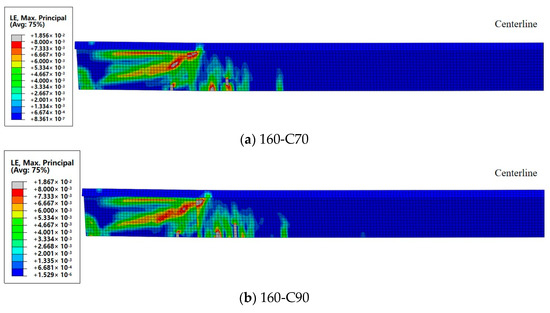

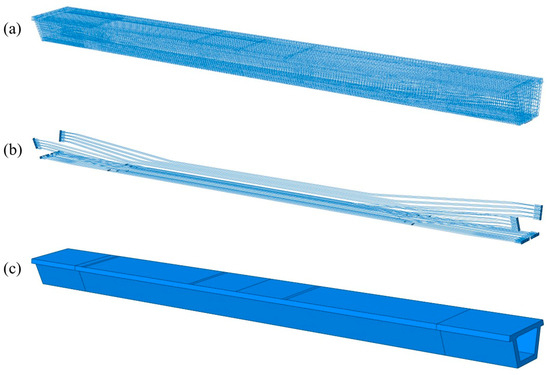

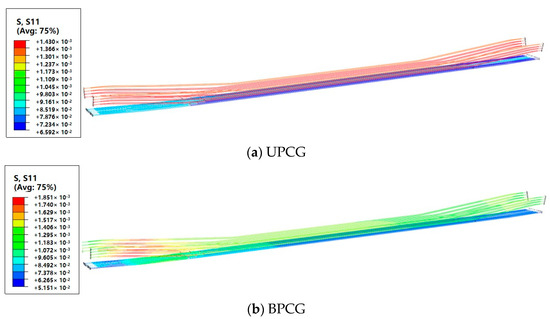

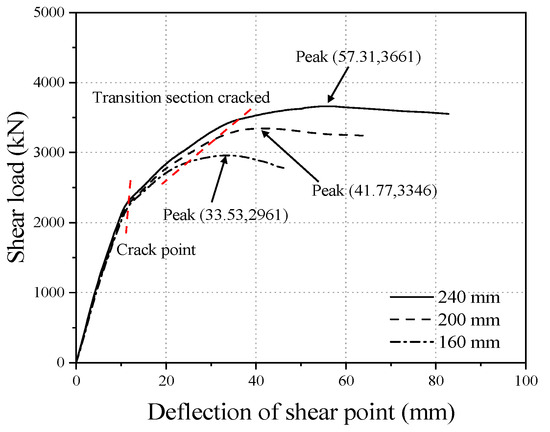

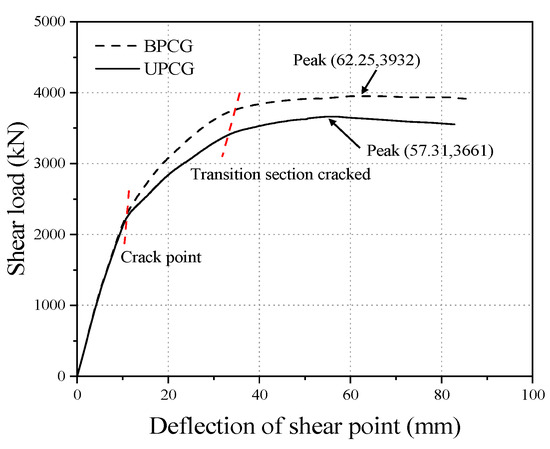

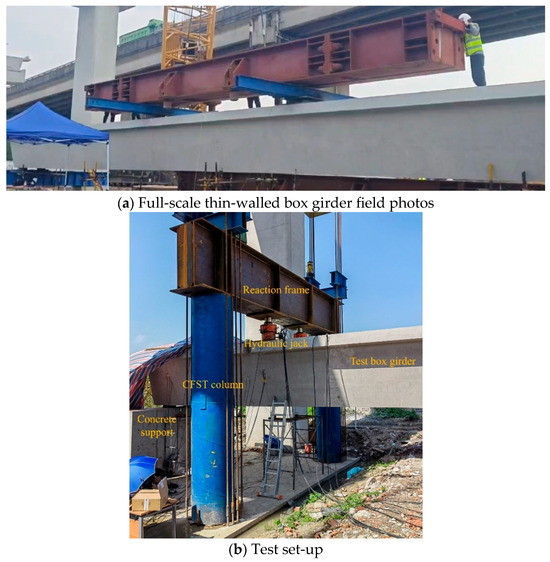

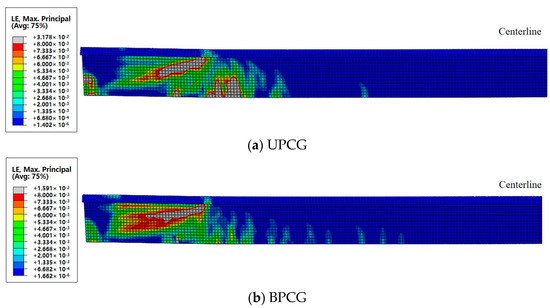

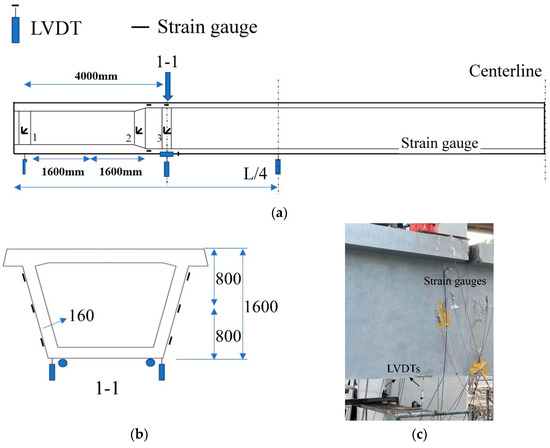

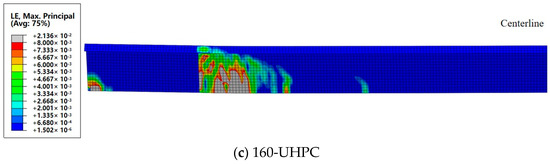

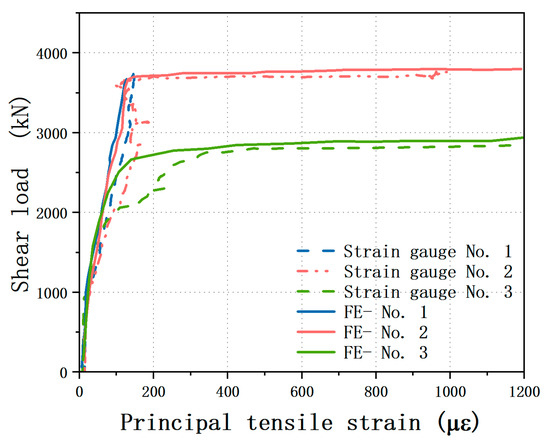

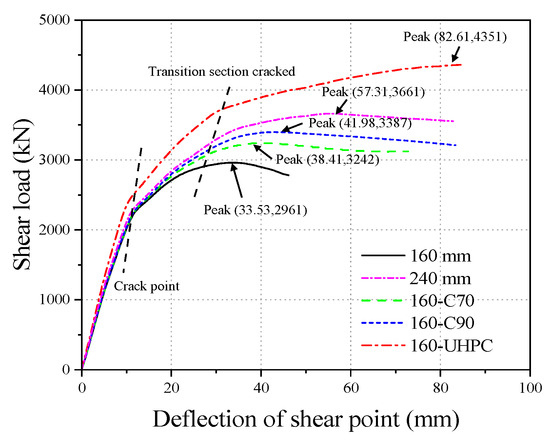

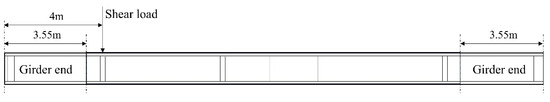

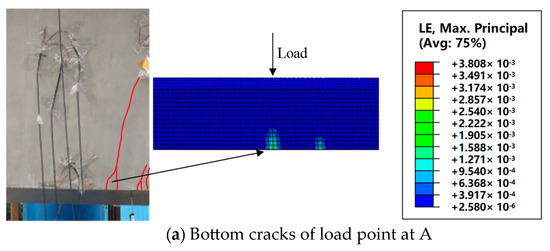

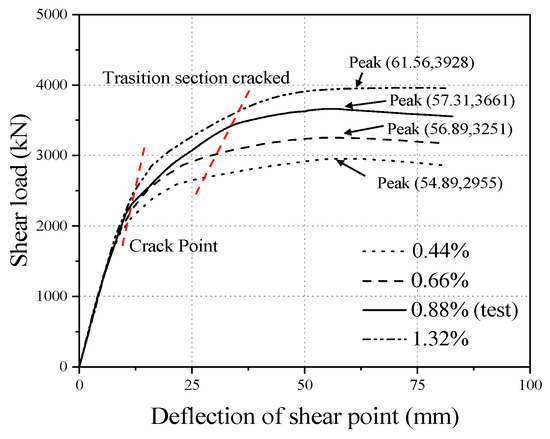

In order to produce long-span precast bridge members and reduce the transport pressure of precast members, the lightweight design of bridge components has become a key area of research. In this study, utilizing retard-bonded prestressing technology and high-strength concrete, a full-scale thin-walled box girder measuring 30,000 mm in length and 1600 mm in height was designed and fabricated. A shear test with a shear-span ratio of 2.5 was conducted to investigate the failure mode and shear carrying capacity. Subsequently, an Abaqus finite element (FE) model was established and validated with experimental data. Based on the FE model, numerical investigations were conducted to examine the influence of bonding between prestressed steel strands and concrete, stirrup ratio, web thickness and bottom flange thickness at the end of the box girder, concrete strength and length of UHPC end zone on the shear performance of thin-walled box girder. The results indicate that the retard-bonded prestressed box girder exhibits acceptable mechanical performance. Additionally, intensifying the ends of the box girder with ultra-high-performance concrete (UHPC) can further reduce the wall (i.e., web and bottom flange) thickness of the girder, enhance its shear carrying capacity, and achieve lightweighting. This discovery provides new insights into the lightweight design of bridge components. Full article

High-volume fly ash binder and aeolian sand have been widely used in the production of low-carbon ultra-high performance concrete (UHPC) owing to their environmental and economic benefits. However, such low-carbon UHPC still faces the volume stability issues, including autogenous shrinkage, drying shrinkage and early-age cracking. In this study, a superabsorbent polymer (SAP) was incorporated into low-carbon UHPC containing high-volume fly ash and aeolian sand to improve its volume stability through internal curing. The effects of SAP particle size and dosage on the mechanical properties and volume stability of low-carbon UHPC were investigated. Results showed that the addition of 0.3% SAP with a particle size of 180–600 μm significantly reduced shrinkage and early-age cracking while maintaining the compressive strength. Furthermore, the microstructure of low-carbon UHPC was characterized using advanced techniques to shed light on the underlying mechanisms. Full article

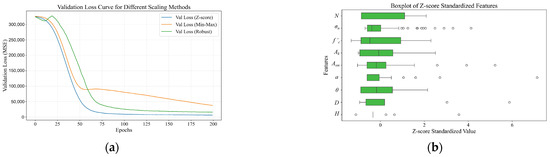

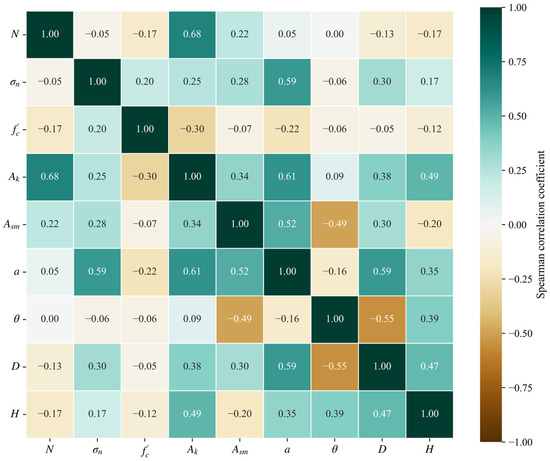

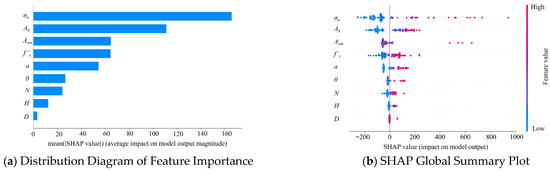

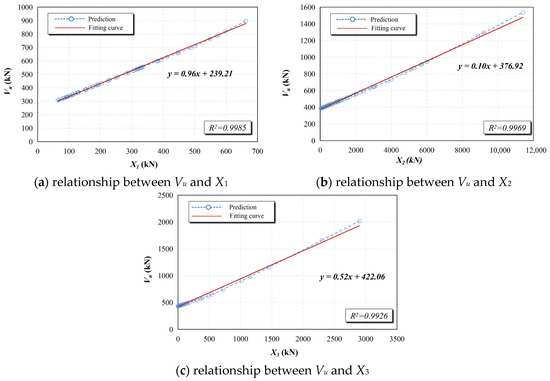

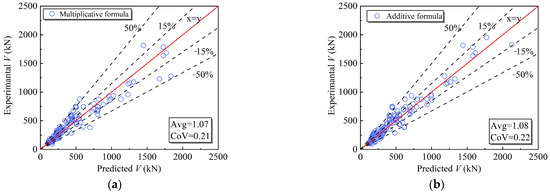

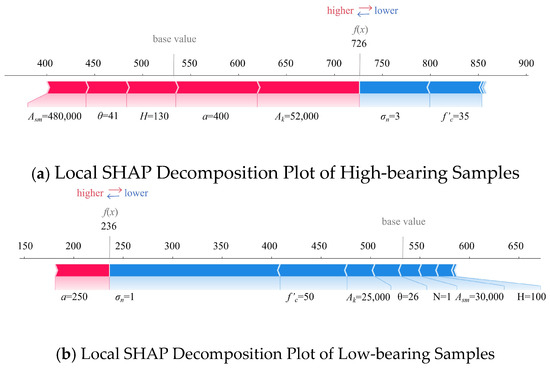

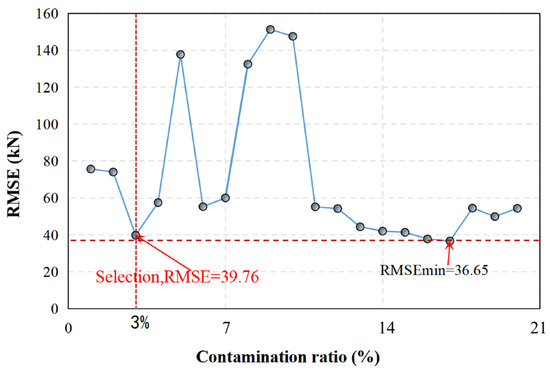

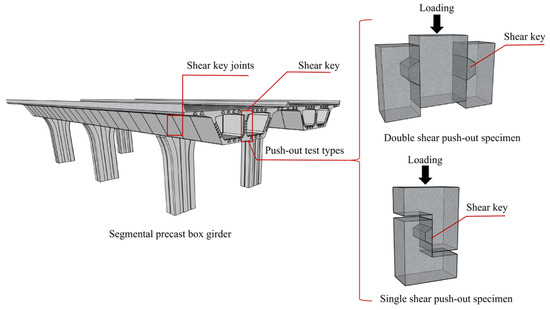

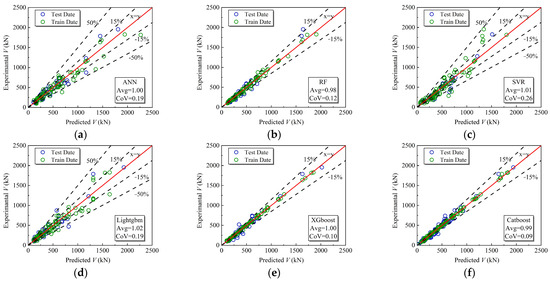

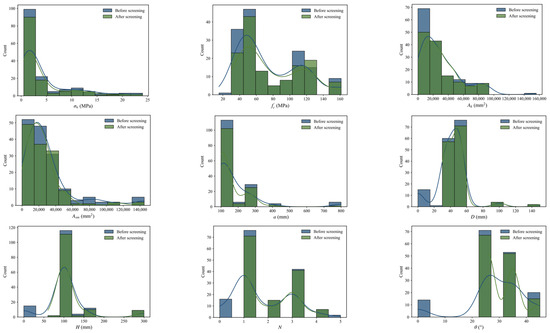

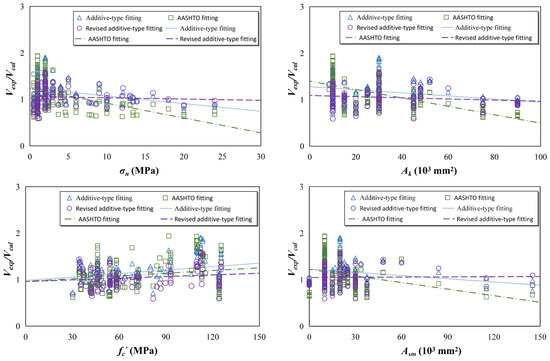

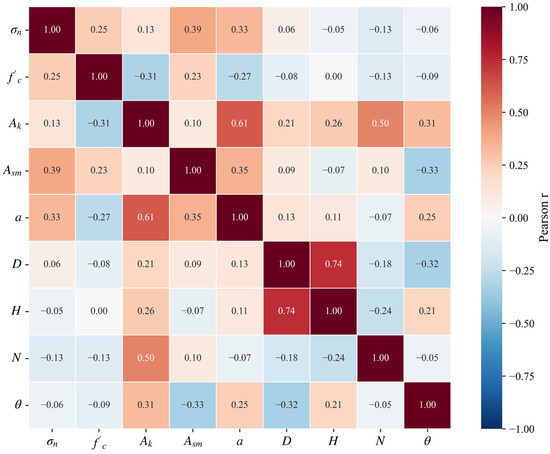

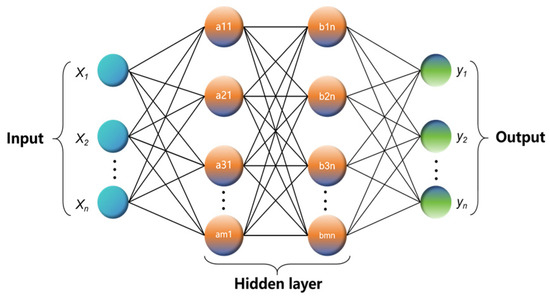

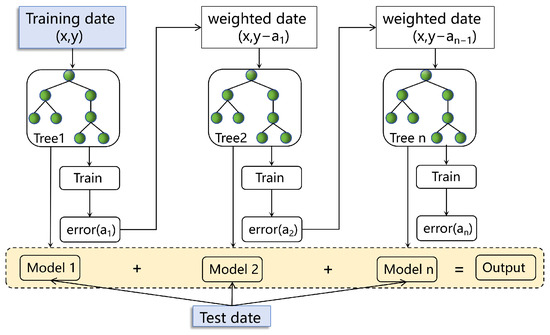

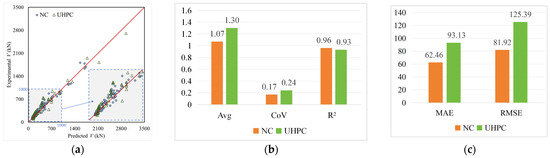

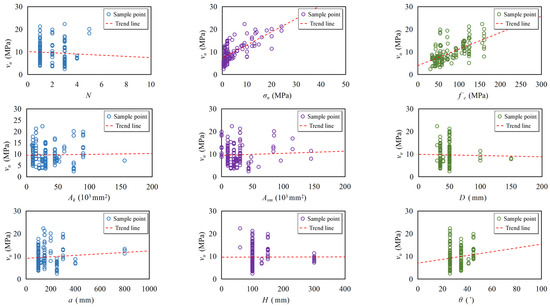

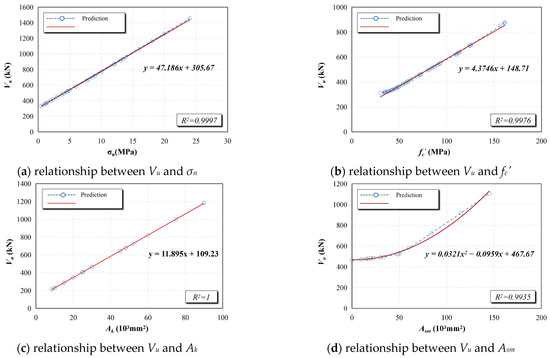

Precast concrete segmental bridges rely on keyed dry joints to transfer shear forces, yet existing formulas have insufficient accuracy for normal concrete (NC) and ultra-high-performance concrete (UHPC) joints. In this study, a unified database containing 158 specimens of keyed dry joints was established and systematically screened, and 134 specimens were retained for machine-learning modeling and formula development. Among six machine-learning models, Categorical Boosting (CatBoost) showed the best prediction performance. SHapley Additive exPlanations (SHAP) analysis indicated that confining stress, concrete compressive strength, the area of the base of all keys in the failure plane, and the area of contact between smooth surfaces on the failure plane govern shear capacity. Based on these key variables, multiplicative and additive explicit formulas were developed, and the additive formula showed better overall performance, with average experimental-to-predicted ratio (Avg), coefficient of variation (CoV), and R² values of 1.08, 0.22, and 0.94, respectively. Although the additive formula stably predicted NC specimens, it showed insufficient accuracy for UHPC specimens. After introducing steel fiber volume fraction into the root shear term, the UHPC subset’s Avg and CoV improved from 1.30 and 0.24 to 1.09 and 0.21, respectively. The proposed framework integrates data-driven prediction and physical interpretability, providing an engineering-oriented method for shear-capacity prediction of keyed dry joints. Full article

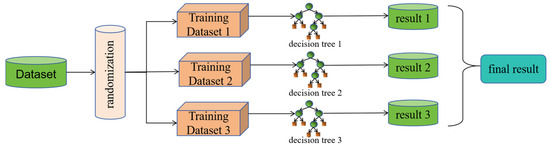

The compressive strength of ultra-high-performance concrete (UHPC) is jointly influenced by multiple factors, including material composition, mixture proportion parameters, and curing regime. Conventional empirical methods are therefore insufficient to accurately characterize the highly nonlinear relationships involved. To improve the prediction accuracy of UHPC compressive strength and to achieve mixture proportion optimization that simultaneously considers mechanical performance, economic efficiency, and environmental impact, this study developed random forest (RF), artificial neural network (ANN), gradient boosting decision tree (GBDT), and extreme gradient boosting (XGBoost) models based on 810 publicly available UHPC experimental datasets. Model performance was evaluated using R², RMSE, MAE, and MAPE. To enhance the robustness of model validation, repeated K-fold cross-validation, sensitivity analysis with different random seed splits, and benchmark model comparisons were further introduced. The results indicate that the XGBoost model achieved superior predictive performance on both the test set and robustness validation, with test-set R², RMSE, MAE, and MAPE values of 0.9604, 7.77, 5.58, and 4.80, respectively. The model was further interpreted using SHAP, PDP, and ICE methods, and the results revealed that curing age, fiber content, silica fume content, and water-to-binder ratio were important variables affecting the compressive strength of UHPC. Furthermore, XGBoost was used as a surrogate model and coupled with NSGA-II and TOPSIS methods for multi-objective optimization. Under the constraints of compressive strength, water-to-binder ratio, superplasticizer-to-binder ratio, and absolute volume, a computationally recommended UHPC mixture proportion balancing strength, cost, and carbon emissions was obtained. This study provides a reproducible machine-learning-assisted approach for UHPC compressive strength prediction and low-carbon, cost-effective mixture proportion design. Full article

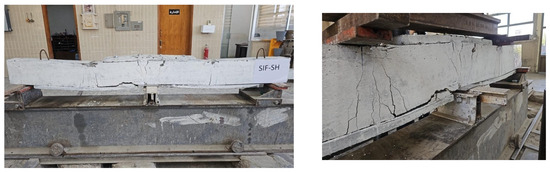

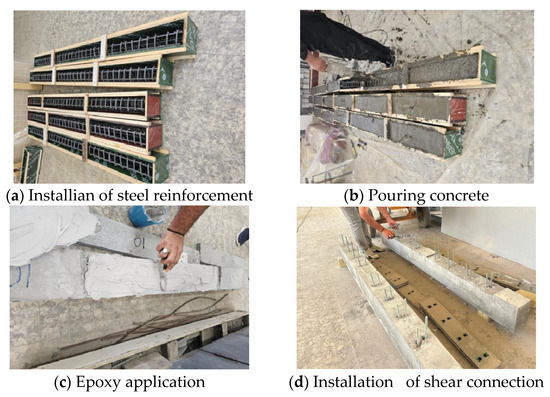

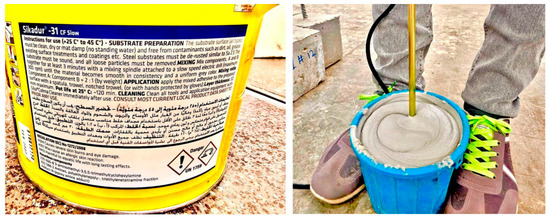

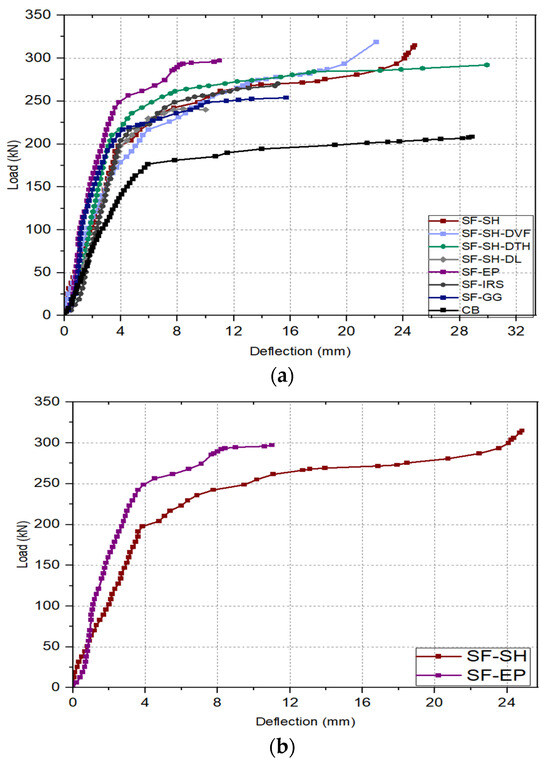

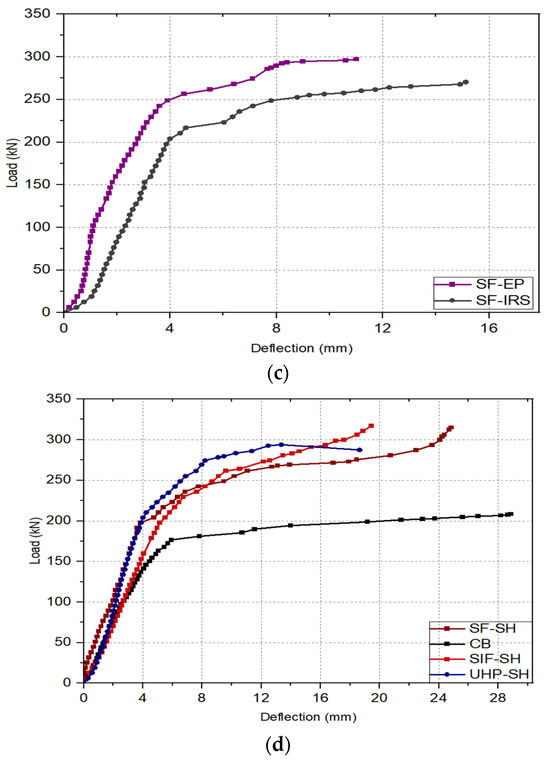

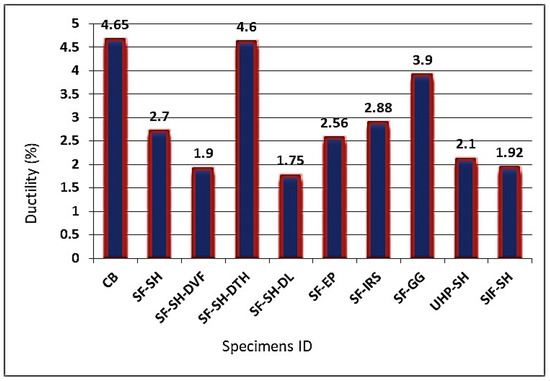

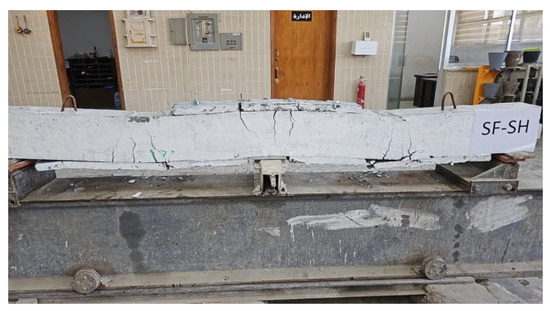

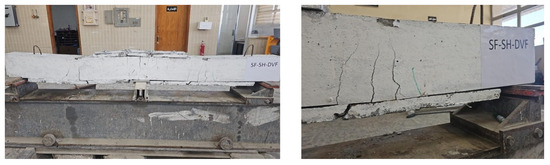

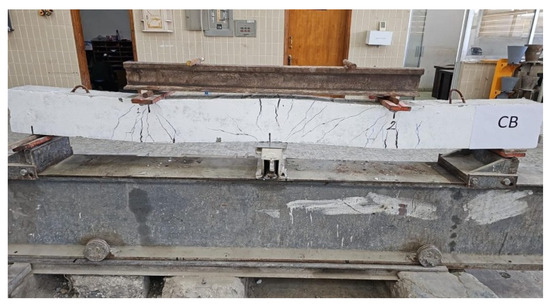

This study presents an experimental investigation of reinforced concrete T-beams strengthened using ultra-high-performance concrete (UHPC) with steel plates, and in some cases, UHPC with a geotextile layer. Ten reinforced concrete specimens with the same internal reinforcement but different strengthening methods were tested. These included a control specimen and nine strengthened specimens. Four of the strengthened specimens had grooves in the wooden formwork before pouring to secure the strengthening composite plates inside it, four had it directly attached to the RC beam surface, and the last had vertical lines 10 mm deep to enhance bonding. The external composite plate consisted of four types: the first type included a composite of UHPC and steel plates as strips with 220 × 150 mm at 105 mm, while the remaining types consisted of a plate along the shear zones made of UHPC with steel, geotextiles, or steel and geotextiles. This study also included increasing the number of steel plate layers and the direction of strengthening placement. The results showed that all the strengthened beams failed in flexure, unlike the control specimen, which failed in shear. The strengthening systems improved the load-bearing capacity and overall structural behavior of the tested beams. Among the investigated specimens, beam IR-2S90SS, strengthened with two layers of steel plates, showed the highest improvement, achieving a 39.2% increase in ultimate load compared to the control beam. Debonding was observed in some specimens and was identified as one of the governing failure mechanisms. Overall, the investigated strengthening techniques demonstrated their effectiveness in improving the structural performance of reinforced T-beams. Full article

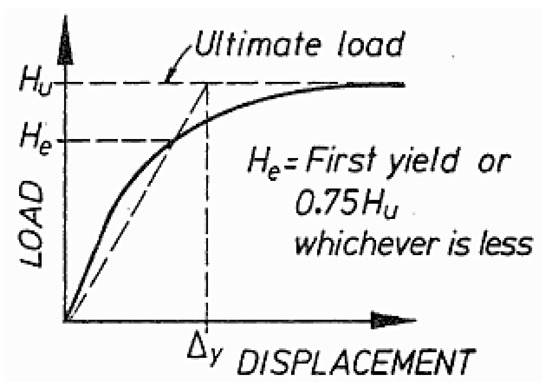

This paper investigates the seismic performance of precast concrete shear-wall subassemblies connected by post-cast ultra-high performance concrete (UHPC) zones and short lap-spliced reinforcement with a lap length of $10d$, where d denotes the diameter of the reinforcement bar. Seven quasi-static cyclic tests were conducted, including one cast-in-place control specimen, five specimens with horizontal UHPC back-cast joints at the wall base, and one exploratory specimen with both horizontal and vertical UHPC back-cast joints. The variables considered were the joint arrangement and the axial compression ratio. The specimens with horizontal joints generally exhibited compression-flexure-dominated damage, and the crushing zone shifted from the wall-footing interface to the ordinary concrete immediately above the UHPC back-cast zone. The specimen with the vertical joint (TW6) exhibited bending-shear damage, accompanied by limited in-plane lateral slip at the beam–wall joint and shear damage of several vertical bars. Specimen TW2, with an axial compression ratio of 0.30, was identified as a construction-quality-sensitive case because an insufficient local UHPC cover caused splitting damage and reduced hysteretic stability. The strain measurements indicate that, within the limits of the present instrumentation, the 10d lap in the UHPC zone provided effective stress transfer in the tested specimens; however, direct interface-slip and bond-slip tests are still required for generalized design verification. Under an axial compression ratio of 0.20, TW1 and TW6 showed comparable seismic indices to the cast-in-place specimen, but the conclusions are limited to the tested configurations. All specimens reached ultimate drift ratios greater than 1/100, and their seismic performance is discussed together with failure mode, stiffness degradation, energy dissipation, and connection reliability. Full article

Reinforced concrete (RC) beams are crucial load-bearing members in multistory buildings. Due to architectural modifications, increased service loads, or construction deficiencies, these members often require flexural strengthening to restore or enhance their performance. The use of prefabricated reinforced ultra-high-performance fiber-reinforced concrete (UHPFRC) plates has recently emerged as a promising strengthening technique. When attached to the tension, compression, or both faces of RC beams, these plates provide noteworthy structural benefits. This study presents a detailed investigation—using nonlinear calibrated finite element (FE) models—into the flexural strengthening of RC beams using reinforced UHPFRC plates. A total of 18 large-scale RC beams were explored, including two control specimens and 16 strengthened beams. The control specimens comprised one beam with a tensile steel ratio close to the minimum code thresholds and another with a conventional reinforcement ratio typical of standard design. The strengthening schemes were developed to enhance the flexural capacity of the first control beam to a level comparable to the ideal reference specimen. A simplified analytical tool was developed to estimate the peak load of control and strengthened specimens for the design of upgrading schemes. The parametric study in the FE matrix examined the effects of reinforcement type within the UHPFRC plates (steel or glass fiber-reinforced-polymer (GFRP) bars), plate location (tension side, compression side, or both), bonding method (adhesive, mechanical, or combined), and end anchorage condition (with or without fiber-reinforced polymer (FRP) U-wraps). The beams’ behavior was evaluated in terms of load-deflection response, stiffness, and failure mode. The results demonstrated that combined adhesive–mechanical bonding with compression-side UHPFRC plates provided the most efficient and reliable strengthening technique. Full article

With the continuous expansion of the lithium industry, lithium slag (LS) has been generated in large quantities, and its potential reuse in cement-based materials has become increasingly important. In this work, LS was introduced into ultra-high-performance concrete (UHPC) as a partial substitute for cement to explore its applicability in low-cement UHPC systems. The fresh properties of UHPC, including flowability and setting behavior, were measured, and its mechanical performance was evaluated through compressive and flexural strength tests. In addition, early-age autogenous shrinkage was monitored to clarify the effect of LS on dimensional stability. To further reveal the mechanisms associated with the macroscopic performance changes, isothermal conduction calorimetry, backscattered electron microscopy (BSE), X-ray diffraction (XRD), thermogravimetric analysis (TGA), and mercury intrusion porosimetry (MIP) were adopted. These techniques were used to characterize the hydration behavior, phase composition, hydration product evolution, and pore-structure characteristics of UHPC containing different LS contents. Results demonstrate that LS incorporation effectively reduces autogenous shrinkage and accelerates setting. An optimal LS content enhances long-term strength development; however, LS incorporation compromises early-age compressive strength and flowability. Calorimetric, thermogravimetric, and BSE analyses collectively reveal that LS retards early hydration heat release and delays initial strength gain, attributable to its dilution effect, but exhibits latent pozzolanic reactivity, consuming Ca(OH)₂ and promoting secondary C–S–H formation, thereby increasing the 28-day degree of cement hydration. Pore-structure analysis further confirms that an appropriate LS content significantly reduces total porosity, average pore diameter, and the volume fraction of pores with PD > 50 nm, leading to a more refined and compact microstructure. Integrated macroscopic and microscopic evidence identifies 20 wt.% LS as the optimal replacement level: relative to the reference mixture LS0, the 28-day compressive and flexural strengths of LS20 are increased by 10.86% and 27.93%, while flowability decreases by 13.97%, initial setting time shortens by 10.54%, and autogenous shrinkage is reduced by 57.41%. The results provide a scientific basis for the resource utilization of lithium slag in UHPC and contribute to the development of cement-reduced UHPC mixtures with improved mechanical and microstructural characteristics. Full article

The particle size and dosage of quartz sand significantly affect the bleeding and segregation of UHPC mixtures, thereby influencing their strength and durability. However, the maximum particle size of quartz sand is a key focus of existing research, and the influence sensitivity of particle size gradation and dosage for UHPC performance are not clear. Based on this, this study systematically investigates the effects of particle size gradation and dosage of quartz sand on the slump flow and strength of UHPC, and the grey relational analysis method is employed to identify the sensitive particle size fractions. The results show that the compressive and flexural strength of UHPC with quartz sand mixing ratio of 40:40:20 and 40:50:10 is significantly improved at both 7 d and 28 d curing ages compared with those using coarse, medium, and fine quartz sand individually. The order of particle size affecting slump flow, flexural and compressive strength of UHPC is 0.6–1.18 mm > 0.3–0.6 mm > 1.18–2.36 mm > 0–0.075 mm > 0.075–0.15 mm > 0.15–0.3 mm. The key measure for enhancing strength and ensuring workability of UHPC lies in the proportion of quartz sand with particle size of 0.6–1.18 mm, which needs to be above 40% to serve a filler and framework function. When coarse, medium, and fine quartz sand mixing ratio equals to 40:40:20, the dosage increases lead to the decrease in UHPC slump flow, and as the quartz sand dosage varies from 900 kg/m³ to 1500 kg/m³, the 28 d compressive strength of UHPC first increases and then decreases. It is recommended to use a quartz sand dosage of 1050 kg/m³ ± 50 kg/m³ and mixing ratio of 0.6–1.18 mm quartz sand larger than 40% to produce UHPC exhibiting slump flow larger than 600 mm and compressive strength of 120–150 MPa. The findings provide important guidance for the preparation and performance regulation of UHPC. Full article

The growing demand for sustainable construction materials has led to significant advancements in ultra-high-performance concrete (UHPC), with a particular focus on geopolymer-based systems as an alternative to conventional cementitious binders. This review explores the latest developments in sustainable Ultra-High-Performance Geopolymer Concrete (UHPGPC) by analysing key material composition, mechanical, durability and microstructural properties. The incorporation of ground granulated blast furnace slag (GGBFS), silica fume (SF), and fly ash (FA) has demonstrated notable improvements in compressive strength, durability, and workability. Additionally, the use of activators such as sodium silicate and sodium hydroxide optimizes geopolymerization, resulting in a denser microstructure and enhanced mechanical performance. This review highlights the critical role of fibre reinforcement in UHPGPC, where steel fibres (SFs) and hybrid fibres significantly enhance compressive and tensile strength, as well as crack resistance. The inclusion of waste materials such as rice husk ash and recycled glass promotes sustainability by reducing CO₂ emissions while maintaining structural integrity. However, higher waste-glass content may adversely affect bonding due to its smooth surface texture. The findings highlight the potential of UHPGC as a high-performance, eco-friendly alternative to traditional cement-based UHPC. By integrating industrial by-products and alternative activation techniques, UHPGPC can contribute significantly to the global shift towards sustainable and low-carbon construction materials. Full article

Ultra-high-performance concrete (UHPC) is known for its exceptional compressive strength and durability; however, its brittle nature requires fiber reinforcement to improve toughness and tensile performance. This study investigates the synergistic effects of triple fiber reinforcement, including desized and sized carbon fibers (0.2–1.0 vol%), steel fibers (1.0 vol%), and polypropylene fibers (0.2 vol%) on the fresh, mechanical, durability, microstructure, and fire resistance properties of UHPC. The experimental program included workability, compressive and flexural strength, load-deflection behavior, electrical resistivity, dynamic modulus of elasticity, SEM analysis, and fire resistance at elevated temperatures (425 and 900 °C). The results showed that desized carbon fibers performed better than sized fibers by improving workability, fiber dispersion, flexural behavior, and fiber–matrix bonding. The optimal triple-fiber composition, DC1.0P0.2S1.0, achieved the highest flexural strength of 24 MPa while maintaining compressive strength above 141 MPa. The triple-fiber system provided effective multi-scale crack control, where PP fibers prevented explosive spalling, carbon fibers bridged meso-crack control, and steel fibers enhanced macro-crack load transfer and ductility. SEM analysis further confirmed better dispersion and stronger interfacial bonding of desized carbon fibers. Overall, the optimized triple-fiber system significantly improved flexural performance, toughness, workability, and fire resistance without notably reducing compressive strength, demonstrating strong potential for advanced structural applications. Full article

Supplementary cementitious materials and aeolian sand have been used to produce low-carbon ultra-high-performance concrete (UHPC) due to their beneficial effects on the reduction in production cost and carbon emissions. However, low-carbon UHPC still faces some drawbacks, such as lowered mechanical properties, large shrinkage, and a tendency for cracking. This study proposed an approach to improve the performance of low-carbon UHPC by incorporating recycled coarse aggregate. The effects of recycled coarse aggregate type, particle size, and content on the workability and mechanical properties of low-carbon UHPC were investigated. Moreover, the internal relative humidity and volume stability of UHPC containing recycled coarse aggregate was also explored. At last, the hydration products and microstructure of UHPC was analyzed to shed light on the underlying mechanisms for the improved performance. Full article

Steel–concrete composite beams are widely used in bridge infrastructure but are vulnerable to deterioration due to uniform and pitting corrosion, particularly at the lower flange. This study investigates the flexural behavior of corroded steel–normal strength concrete (NSC) composite beams and evaluates rehabilitation using ultra-high-performance concrete (UHPC) slab replacement, with and without additional steel plate strengthening. A comprehensive finite element analysis was conducted considering three beam spans (5, 7, and 9 m), two corrosion types, and three corrosion levels. The results indicate that both corrosion types significantly reduce flexural capacity due to cross-sectional loss, with pitting corrosion causing greater strength reduction than uniform corrosion at the same weight loss because of stress concentration effects. Replacing the NSC slab with a UHPC slab effectively restores and often enhances load-carrying capacity beyond that of intact beams while reducing dead load, demonstrating the superiority of the proposed rehabilitation approach. The combined use of UHPC slab replacement and welded steel plate strengthening provides the greatest improvement, revealing a strong synergistic effect. A case study of a corroded steel bridge in Pennsylvania confirms the practical applicability of the method, showing that UHPC-based rehabilitation increases the load rating from below unity to above unity. These findings highlight UHPC as an efficient and sustainable solution for extending the service life of aging steel bridges. Full article
