The labyrinth weir is an effective hydraulic structure, offering high discharge efficiency and economic advantages, making it a suitable option for dam construction or rehabilitation projects. Owing to its complex geometry, significant research efforts have been dedicated to enhancing its hydraulic performance. Since the beginning of this century, Computational Fluid Dynamics (CFD) has emerged as a vital approach, complementing traditional methods in the design of hydraulic structures. This study employs CFD ANSYS FLUENT to examine the discharge coefficient of a semicircular labyrinth weir, featuring a cyclic arrangement and a half-round crest profile. The numerical models and simulations address two-phase flow (air and water) under incompressible and free-surface conditions. The CFD ANSYS FLUENT approach used is multiphase flow modeling using the Volume of Fluid method to track the free water surface. For turbulence effects, it is complemented with the standard k-ε model and the Semi-Implicit Method for Pressure Linked Equations algorithm for pressure–velocity coupling. In addition, for boundary conditions, the flow velocity was defined as the inlet to the channel and atmospheric pressure as the outlet, and the walls of the channel and weir are considered solid, stationary, and non-sliding walls. The model was validated with experimental data reported in the literature. The results indicate that the semicircular labyrinth weir achieves greater discharge capacity when the headwater ratio H_T/P increases for H_T/P ≤ 0.25. A regression analysis mathematical model was also developed, using the H_T/P ratio, to predict the discharge coefficient for 0.05 ≤ H_T/P ≤ 1. Relative to other geometrical configurations, the semicircular labyrinth weir demonstrated a discharge capacity that was up to 88% higher than that of the trapezoidal labyrinth weir. Both weir and cycle efficiency were assessed, and maximum weir efficiency was observed when H_T/P ≤ 0.1, while cycle efficiency peaked at H_T/P ≤ 0.25. The geometric configuration under analysis demonstrated greater economic efficiency by providing a reduced total length and enhanced discharge capacity relative to trapezoidal designs, especially when the sidewall angle α is considered as α ≤ 12°. The study concludes by presenting a design sequence detailing the required concrete volume for construction, which is subsequently compared to the specifications of a trapezoidal labyrinth weir. Full article

This research focuses on improving flood management of the Malwathu Oya River in Anuradhapura Historical City, Sri Lanka, by designing an efficient gate system for the weir of Halpan Ela in the Malwathu Oya River. Frequent flooding threatens agriculture, infrastructure, and public safety in this region. This research aims to enhance water level control in the upper reach of Halpan Ela Anicut by evaluating rainfall patterns, tank spillway efficiency, and gate operation challenges. Historical data on rainfall and tank spillage were analyzed. Flow simulations revealed significant pressure differences, with the existing gate structure showing an upstream pressure of 114,492.5 Pa at a maximum flow of 1740 m³/s, compared to 105,406 Pa for the new flap gate system at the same flow rate. This represents a pressure difference of 9 kPa, equivalent to a 0.9 m water head. Despite the system’s estimated cost of USD 0.1 million, the potential reduction in river flood damage, which currently exceeds USD 0.2 million annually, demonstrates its value. This research emphasizes the effectiveness of the flap gate system in reducing flood risks in Anuradhapura City compared to the existing gate type, though it is only a part of a broader flood mitigation strategy. Full article

Over the past decades, significant advances have been achieved in hydraulic structures for dams, namely in water release structures such as spillway weirs, chutes, and energy dissipators. This editorial presents a brief overview of the eleven papers in this Special Issue, Advances in Spillway Hydraulics: From Theory to Practice, and frames them in current research trends. This Special Issue explores the following topics: spillway inlet structures, spillway transport structures, and spillway outlet structures. For the first topic of spillway inlet structures, this collection includes one paper on the hydrodynamics and free-flow characteristics of piano key weirs with different plan shapes and another that presents a theoretical model for the flow at an ogee crest axis for a wide range of head ratios. Most of the contributions address the second topic of spillway transport structures as follows: a physical modeling of a beveled-face stepped chute; the description and recent developments of the generalized, energy-based, water surface profile calculation tool SpillwayPro; an application of the SPH method on non-aerated flow over smooth and stepped converging spillways; a physical model study of the effect of stepped chute slope reduction on the bottom-pressure development; an assessment of a spillway offset aerator with a comparison of the two-phase volume of fluid and complete two-phase Euler models included in the OpenFOAM^® toolbox; an evaluation of the performance and design of a stepped spillway aerator based on a physical model study. For the third topic of spillway outlet structures, physical model studies are presented on air–water flow in rectangular free-falling jets, the performance of a plain stilling basin downstream of 30° and 50° inclined smooth and stepped chutes, and scour protection for piano key weirs with apron and cutoff wall. Finally, we include a brief discussion about some research challenges and practice-oriented questions. Full article

A labyrinth weir allows for higher discharge capacity than conventional linear weirs, especially at low hydraulic heads. In fact, this is an alternative for the design or rehabilitation of spillways. It can even be used as a strategy in problems related to dam safety. A sequential design method for a labyrinth weir is based on optimal geometric parameters and the results of discharge flow analysis using Computational Fluid Dynamics and the experimental studies reported in the literature. The tests performed were for weirs with values of H_T/P ≤ 0.8 and for angles of the cycle sidewall of 6° ≤ α ≤ 20°. The results of the discharge coefficient are presented as a family of curves, which indicates a higher discharge capacity when H_T/P ≤ 0.17. Four aeration conditions are identified with higher discharge capacity when the nappe is adhering to the downstream face of the weir wall and lower discharge capacity when the nappe is drowned. Unstable flow was present when 12° ≤ α ≤ 20°, with a greater presence when the nappe was partially aerated and drowned. The interference of the nappe is characterized and quantified, reaching up to 60% of the length between the apex, and a family of curves is presented as a function of H_T/P in this respect. Finally, a spreadsheet and a flowchart are proposed to support the design of the labyrinth type weir. Full article

Piano key (PK) weirs are used in a variety of flow control structure applications, including spillway crests and open channel diversion structures. However, to the best of authors’ knowledge, structure-specific design guidance for scour mitigation is still needed. To fill this gap of knowledge, a systematic experimental campaign was conducted by testing different configurations of horizontal aprons with a cutoff wall. Protection structures were located at the toe of the PK weir. Namely, experiments were performed at large-scale to assess the effect of three apron lengths on downstream scour hole geometry under different hydraulic conditions. It was observed that a horizontal apron deflects the plunging jets originating from the PK weir, thus significantly reducing scour. Experimental evidence allowed corroboration that significant scour depth reduction occurs for an apron length 1.5 times the weir height, with longer aprons found to provide marginal benefits. Finally, also provided herein are tools to estimate the main scour characteristics and help practitioners in optimizing apron design. Full article

Spillways with Highly Converging Chutes (HCCs) are a non-conventional alternative that can be applied to achieve a higher outflow capacity when the weir length exceeds the width of the valley at the toe of gravity or arch dams. This kind of spillway has been used in the past, but no general studies have yet been published. This article summarizes experimental research work aiming to increase the knowledge of the effect of some design parameters of HCCs on the energy dissipation in the stilling basin at the toe of the dam. As a comparison reference, we use the Type I stilling basins, widely known by the technical dam engineering community. The obtained results show that spillways with HCCs are a promising alternative to traditional designs, combining the ability to increase the weir length with a high capacity to dissipate energy through the impingement effect of the frontal and the side jets inside the stilling basin. Full article

The nature of fluid mechanics makes experimentation an important part of a course taught on the subject. Presented here is the application of a novel, large-scale multidisciplinary model of practical education in a fluids engineering laboratory. The advantages of this approach include efficiencies through the economy of scale leading to better pedagogy for students. The scale justifies dedicated academic resources to focus on developing laboratory classes and giving specific attention to designing activities that meet learning outcomes. Four examples of applying this approach to fluid mechanics experiments are discussed, illustrating tactics that have been developed and honed through many repeated instances of delivery. “The measurement lab” uses a flow measurement context to teach identifying and managing general experimental uncertainty. In this lab, new students, unfamiliar with fluid mechanics, are guided through a process to gain understanding that can be applied to all future experimental activities. The “pressure loss in pipes” lab discusses the advantage of and process for sharing equipment and teaching resources between multiple cohorts. Here, the provision for students is adapted for context, such as the degree program or year of study. The “weirs big and small” lab provides a methodology for teaching the power of dimensional analysis to mechanical engineers using a field of fluid mechanics that is outside their usual theoretical studies. Finally, the “spillway design” lab discusses mechanisms for delivering independent, open-ended student experiments at scale, without excessive staff resource requirements. Full article

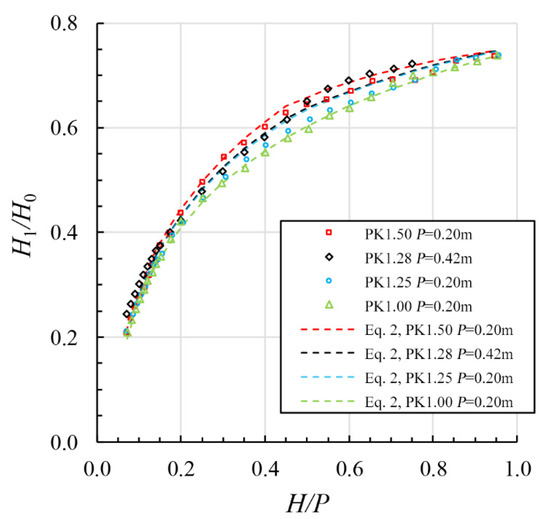

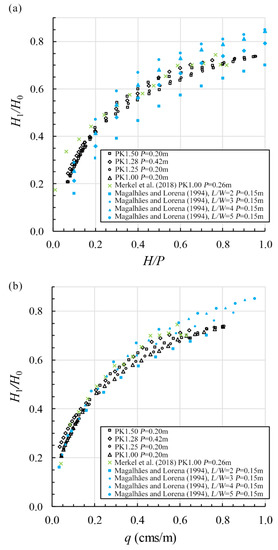

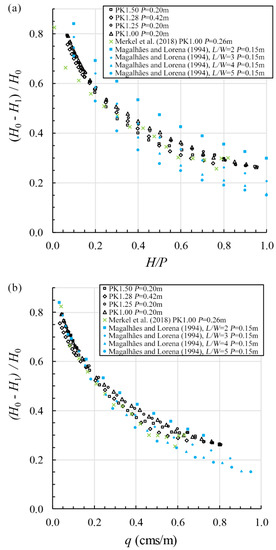

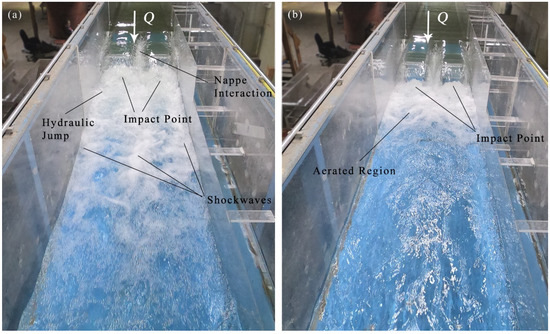

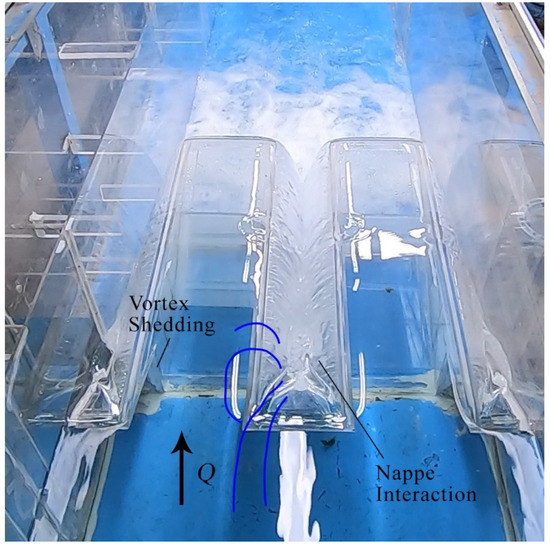

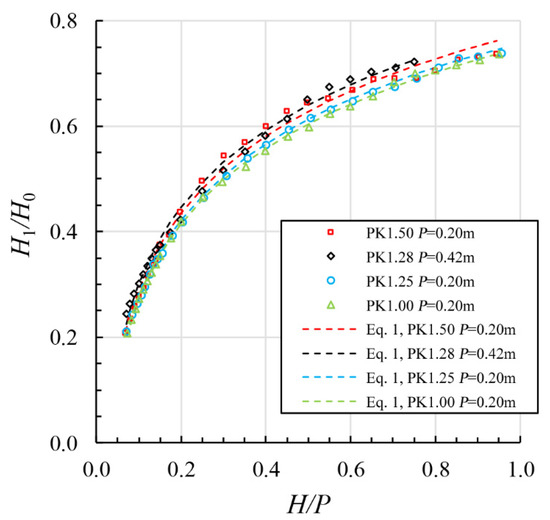

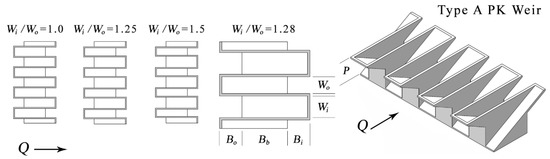

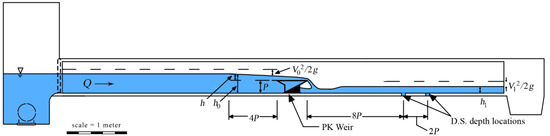

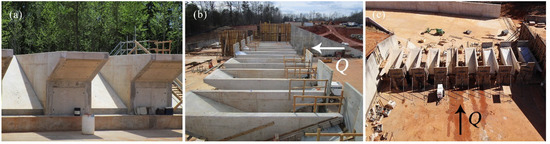

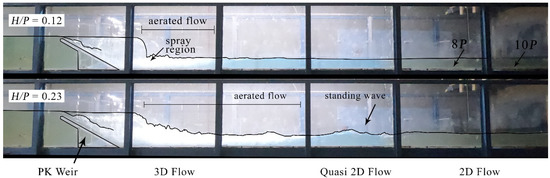

A Piano Key weir (PK weir) is a nonlinear, labyrinth-type weir well suited for rehabilitation projects due to a relatively small footprint and the ability to pass large discharges for lesser upstream-head values when compared with other weir types. A critical component of a hydraulic structure is the energy-dissipative properties. Currently, information and guidance is limited, with previous energy dissipation studies of PK weirs primarily of specific projects. Therefore, to document and quantify energy dissipation, four laboratory-scale Type A PK weir models with different width ratios (W_i/W_o) were studied, with 255 tests comprising this new dataset, along with detailed observations of the flow field. Results were compared to existing published data regarding energy dissipation downstream of trapezoidal and rectangular labyrinth weirs. To support design efforts, two equations, both functions of head-water ratio (H/P) and W_i/W_o, are proposed to predict the relative residual energy downstream of PK weirs. The energy dissipation of PK weirs is largest at low flows and decreases in a logarithmic-like manner as flow increases. PK weirs with increased hydraulic efficiency, caused by an increase in W_i/W_o, resulted in slightly smaller energy dissipation values within the range 0.2 ≤ H/P ≤ 0.8. The energy dissipation of PK weirs was found to be relatively constant, independent of W_i/W_o, and in the ranges 0.07 ≤ H/P ≤ 0.2 and 0.8 ≤ H/P ≤ 0.95. Full article
