Search Results (18)

The production process of hot-rolled seamless steel tubes often needs secondary heating for tempering treatment, resulting in high energy consumption and low production efficiency. Controlled cooling technology has been introduced into the production process. By controlling the self-tempering temperature, the residual temperature of the steel tubes is used to realize self-tempering, so as to achieve the purposes of energy savings, emissions reduction, cost reduction, and efficiency increase. This study investigated the evolution of temperature and stress fields in a seamless steel tube during temperature-controlled quenching. The size of the steel tube is 140 mm × 20 mm × 200 mm. The outer-wall cooling intensity and the self-tempering temperature were selected as the main variables, and the other process parameters remained constant. The temperature distribution and stress variation curves under different cooling intensities were obtained. The results showed that the greater the cooling intensity of the outer wall, the higher the temperature recovery of the outer wall. Under the fixed cooling intensity, the lower the self-tempering temperature, the lower the return temperature. In the thickness direction of the steel tube, there is a stress distribution of “internal tension and external compression”. Moreover, the greater the cooling intensity, the lower the self-tempering temperature and the greater the residual stress. Full article

Three-roll planetary rolling technology has emerged as a primary method for manufacturing seamless tubes due to its advantages, including significant single-pass deformation, low energy consumption, and the ability to continuously roll long workpieces. Based on the forming characteristics of three-roll planetary rolling, this study established a simulation model of the rolling process, which includes key parameters such as the friction coefficient, roll speed, and roll deflection angle. Using finite element software, the effects of these parameters on the rolling process are simulated and analyzed. By comparing critical indicators such as the equivalent stress, rolling temperature, and roundness of the workpiece, the influence of the process parameters on the forming quality of three-roll planetary rolling is revealed. The optimal parameter combination is determined as follows: a friction coefficient of 0.3, roll speed of 120 rpm, and roll deflection angle of 9°. This research provides a reliable theoretical foundation for subsequent roll profile design and process parameter optimization in three-roll planetary rolling. Full article

The interfacial bonding properties of stainless steel clad (SSC) rebars determine whether they can be widely used. In the industrial production of SSC rebars, the process of intermediate and finish rolling of the microstructure evolution, element diffusion behavior, and interfacial bonding properties of bimetallic interfaces are investigated. In this paper, 316L seamless stainless steel (SS) tube and HRB400E carbon steel (CS) bar were prepared by a vacuum oxidation-free composite round billet, and the industrial emergency stopping of SSC rebars’ hot rolling was carried out. The metallographic results showed that the thicknesses of the carburized austenite zone (CAZ) varied greatly (832–238 μm) and showed a parabolic downward trend, while the thicknesses of the decarburized ferrite zone (DFZ) varied little (85–99 μm). The elemental line scans showed that Fe and Cr had the same parabolic downward trend. The intermediate-rolling had a great influence on element diffusion, and, in S6–9, the diffusion distance of Fe and Cr decreased significantly. The diffusion distances of the elements in the intermediate-rolling back stage and finishing-rolling front stage (S9–12) were basically balanced. The elemental diffusion distances and interfacial bonding strength were not consistent. Among them, the shear strength (τ) of S13 was 410.7 MPa. Compared with ordinary rebars, the yield strength (Re) and tensile strength (Rm) of finished SSC rebars were increased by 7.05% (30.9 MPa) and 7.10% (43.0 MPa), respectively. The tensile properties exceed those of mixture effects. The paper provides a theoretical basis for the improvement of the interfacial bonding strength and optimization of the rolling process system for the industrial production of SSC rebars. Full article

Cold pilgering is widely utilized in high-end applications for the precise shaping of seamless tubes due to its capacity for large deformation, which reduces the number of deformation processes and shortens production cycles. However, there is a gap in the research on the cold pilgering of small-diameter, thick-walled seamless tubes, specifically those with an outer diameter–wall thickness ratio of ≤3. In this study, cold pilgering tests were performed on Cr-Mo-V hot-working die steel small-diameter thick-walled tubes. It was discovered that increasing the feed rate results in greater deviations in both inner diameter and wall thickness, although it has little effect on inner wall roughness. In contrast, increasing wall thickness reduction leads to higher wall thickness deviation but reduces inner surface roughness without significantly affecting inner diameter deviation. The study also found that a decrease in the initial inner wall roughness before pilgering results in improved final roughness. Under optimal conditions, the average inner surface roughness S_a can reach 0.177 μm, and small-diameter thick-walled seamless tubes with deviations in the inner diameter and wall thickness of 0.05 mm and 0.03 mm, respectively, are obtained. After tempering at 600 °C, the tensile strength (R_m) and yield strength (R_p0.₂) of the cold-pilgered tube reach 1092 MPa and 947 MPa, respectively, and the elongation (δ₅%) and impact energy (A_kU) increase to 20.4% and 61.5 J, respectively. Full article

Titanium alloy tubes were an ideal material to replace steel tubes. However, the relationship between piercing temperature and dimensional accuracy for titanium alloy seamless tubes was unclear. Therefore, the effects of piercing temperature on the stress—strain distribution and dimensional accuracy of Ti80 titanium alloy were studied using thermal simulation compression tests, finite element numerical analysis optimization and optical microscopy. Pierced at 1050 °C, Ti80 titanium alloy was cross-rolled and perforated to obtain a capillary tube, whose dimensional accuracy was better than that of those pierced at 850 °C and 950 °C. The microstructure of Ti80 seamless tubes was layered α-Ti, grain boundary β-Ti and a Widmannstatten structure. The tensile strength, yield strength and absorbed energy were 867 MPa, 692 MPa and 52 J, respectively. Full article

The cross-roll piercing and elongation (CPE) is a forming process performed at high temperatures and high strain rates. The final product quality is strongly dependent on its microstructure. In this study, a finite element method (FEM) model was developed to better understand plastic deformation effects on microstructure during CPE and to analyze alternative thermo-mechanical processing routes. Specific models were used to simulate dynamic and meta-dynamic recrystallization (DRX and MDRX) for the processing of superaustenitic stainless steel (SASS). In addition, the CPE of SASS was investigated experimentally. The microstructure, mechanical properties, and chemical changes of the final product were assessed using optical microscopy, hardness testing, X-ray diffraction, and SEM-EDS. The results revealed higher temperatures and strain rates in the exterior area of the shell after piercing, and MDRX occurred in the whole thickness. However, an average grain size reduction of 13.9% occurred only in the shell middle and inner diameters. During elongation, the highest values of the strain rate and DRX were observed in the inner region, exhibiting a grain size reduction of 38%. Spread in terms of grain size and grain shape anisotropy was found to be less accentuated for tube samples as compared to the pierced shells. Full article

The paper presents the results of an analysis of the process of drawing AISI 321 stainless steel thin-walled seamless tubes on a floating plug. The influence of the geometry of dies and plugs, drawing velocity, and lubricants on the possibility of carrying out the pipe drawing process without a loss of strength of the lubricating film and, consequently, disturbance of the forming process and tube cracking, and also on the temperature in the drawing process, the mechanical properties of the tubes drawn, and the microhardness and roughness of the inner and outer surface of the tubes was investigated. The parameters of the drawing tools used were as follows: angle of drawing dies α = 16° and floating plugs with angles of inclination of the conical part of the plug β = 11.5°, 13°, and 14°. The drawing dies and floating plugs were made of G10 sintered carbide. Drawing speed was varied over the range 1 to 10 m/min. The study used several lubricants. Tubes with dimensions (outer diameter D₀, wall thickness g₀ before drawing process) D₀ = 19 mm, g₀ = 1.2 mm and D₀ = 18 mm, g₀ = 1.2 mm were drawn to produce tubes with dimensions (outer diameter D_k, wall thickness g_k after drawing process) D_k = 16 mm, g_k = 1.06 mm on a drawbench with the same total elongation, while the diameter and wall thickness were changed. During the process, continuous measurements were made of the drawing force and temperature in the deformation zone and on the tube surface. It was found that the drawing process causes a decrease in the roughness parameters Ra and Rz of the inner surface of the tubes. Moreover, after drawing, an increase of 30–70% was observed in the microhardness of the tube material in relation to the microhardness of the charge material. Based on the test results, it can be concluded that the work of frictional forces is the main direction of optimization of tube drawing on a floating plug process of hard-deforming materials. Full article

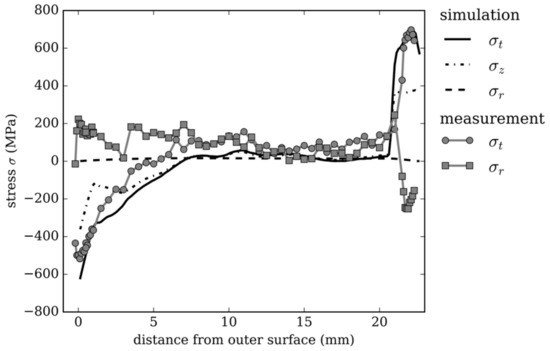

Quantitative and qualitative residual stress evolution in low-alloyed steel during heat treatment is investigated on three different length scales for sourgas resistant seamless steel tubes: on the component level, on the level of interdendritic segregation and on precipitate scale. The macroscopic temperature, phase and stress evolution on the component scale result from a continuum model of the heat treatment process. The strain and temperature evolution is transferred to a mesoscopic submodel, which resolves the locally varying chemistry being a result of interdendritic segregation. Within the segregation area and the surrounding matrix precipitates form. They are categorized with respect to their tendency for formation of microscopic residual stresses. After rapid cooling macroscopic stresses up to 700 MPa may form dependent on the cooling procedure. Mesoscopic stresses up to $\Delta$50 MPa form depending on the extent of segregation. Carbides and inclusions occuring in low-alloyed steel are ranked by their tendency for residual stress formation in the iron matrix. This scale bridging study gives an overview of residual stresses, their magnitude and evolution on three different length scales in low-alloyed steels and the results presented can serve as a input for steel design. Full article

The characteristics of flow field distribution and temperature variation of an inclined jet impinging on a steel tube surface at different positions in circumferential directions were studied via numerical simulation. By analyzing the local convective heat transfer coefficient in circumferential direction, it was shown that the downstream and upstream regions had the characteristics of typical asymmetry. As the inclination angle increases, the local convective heat transfer coefficient gradually increases in the downstream region and gradually decreases in the upstream region. When the θ of the top and bottom jet is 30°, the increases in the downstream region are 40.2% and 54.6%, respectively. Based on the study of the local convective heat transfer coefficient and temperature distribution in the circumfluence direction of a steel tube during the cooling process, it was shown that the optimal inclination angle is 0~10°. With the increase in inclination angle, the average heat transfer coefficient shows a decreasing trend overall. With the increase in jet Reynolds number, the decrease in the average heat transfer coefficient gradually decreases. When the inclination angle increases to 30°, the effect of inclination angle on steel tube cooling is obviously stronger than that of jet position. Full article

Large residual stress occurs during the quenching process of hot-rolled seamless steel tubes, which results in bending, cracking, and ellipticity exceeding standards and seriously affects the quality of hot-rolled seamless steel tubes. In addition, the stress generation mechanism of hot-rolled seamless steel tubes is different from that of steel plates due to the characteristics of annular section. In this research, the finite element simulation method was used to study the quenching residual stress of seamless steel tubes with different cooling intensities. The variation law of temperature and stress on the steel tube under different cooling intensities were analyzed. The results show that the radial stress was close to 0, and the circumferential and axial stresses were the main factors affecting the quality of the steel tube. With the increase in the cooling time, the magnitude and direction of each stress component of the steel tube changed simultaneously. Finally, a typical stress distribution state of “external compressive stress, internal tensile stress” was presented in the thickness direction of the steel tube. Furthermore, with the increase in the cooling intensity, the residual stress of the steel tube gradually increased and was mainly concentrated on the near wall of the steel tube. Full article

High-strength oil country tubular goods (OCTG) like C110, according to standard API 5CT (yield strength at least 758 MPa), are subject to requirements in terms of mechanical and corrosion properties. In this work, we studied the microstructure of seamless casing tubes made of class C110 high-strength steel with a 194.5 mm diameter and 19.7 mm wall thickness, and its influence on sulfide stress corrosion cracking (SSC). Casing tubes were obtained from continuous billets by screw piercing with preliminary quenching and tempering. It was shown that cracking during the tests always begins from the inner surface of the tube. Rough segregation bands were found on the inner tube surface, which occupies about a third of the thickness of the wall. To increase the resistance of 0.3C-Cr-Mn-Mo + 0.15(V + Nb + Ti) steel to SSC, primary recommendations for adjusting the chemical composition, production technology and heat treatment were developed. Full article

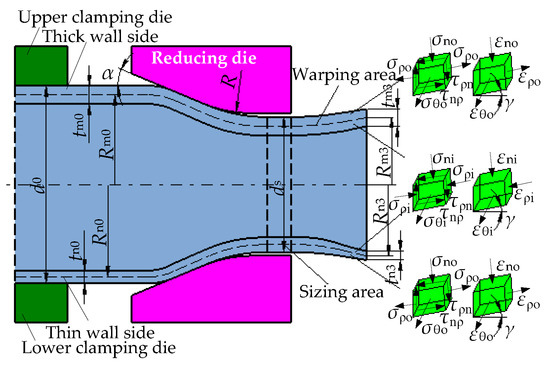

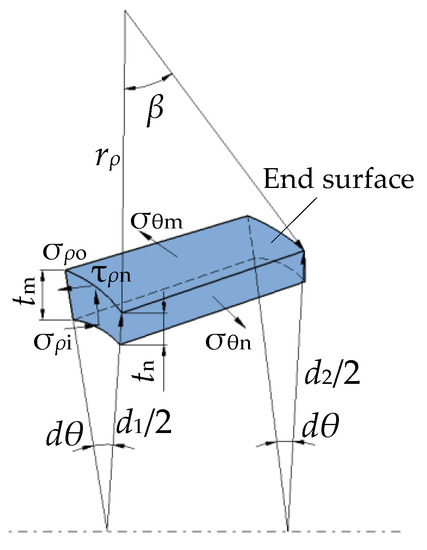

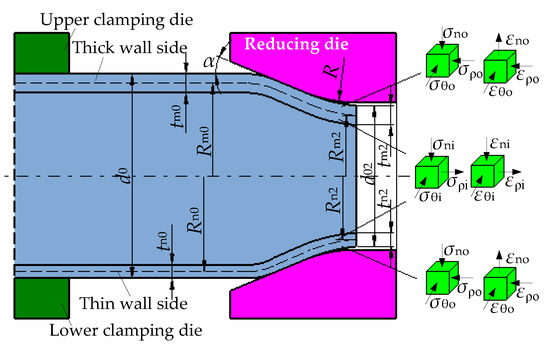

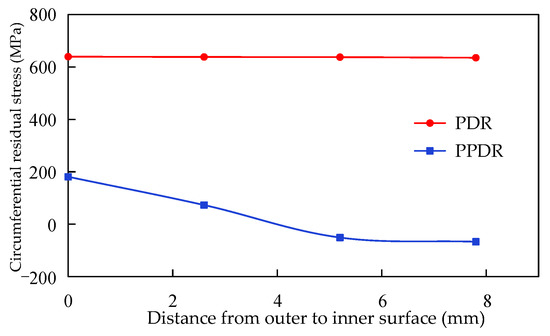

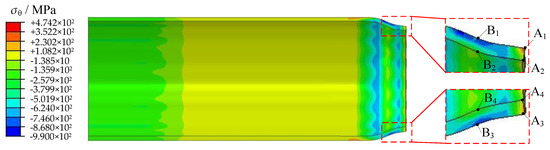

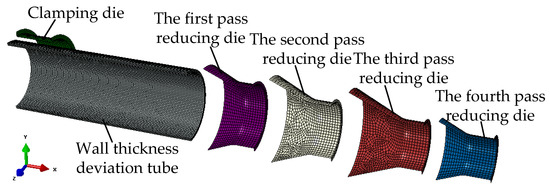

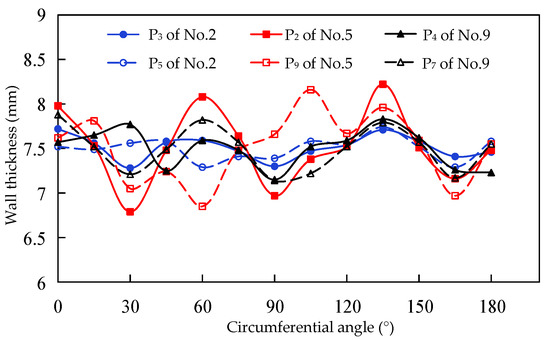

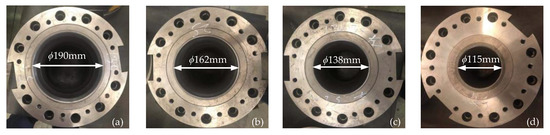

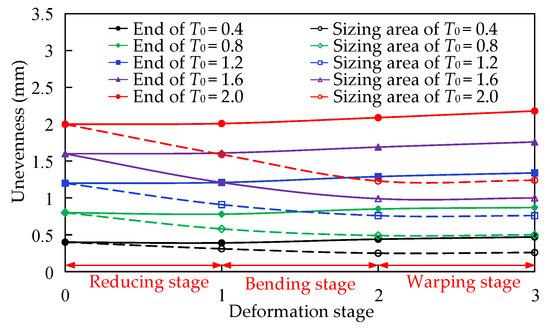

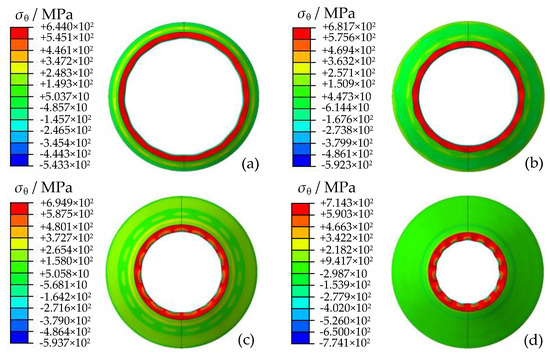

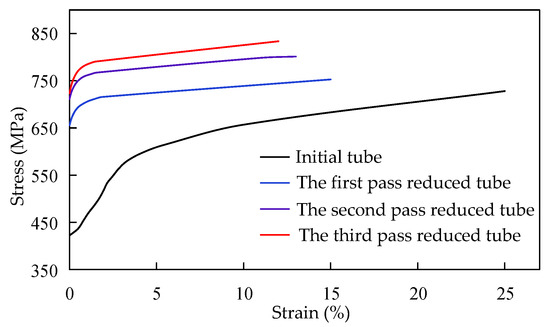

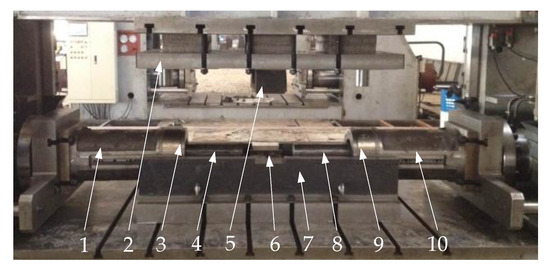

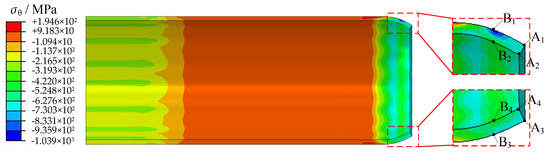

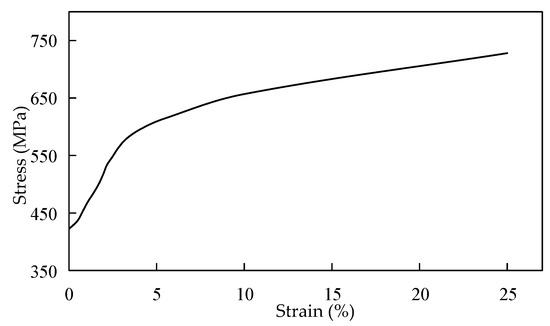

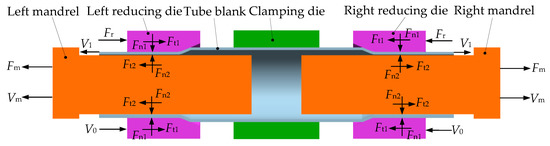

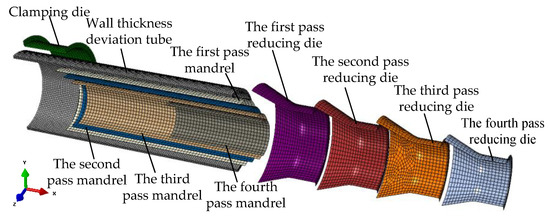

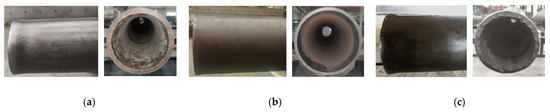

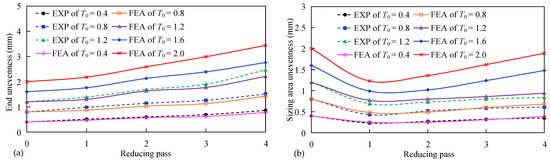

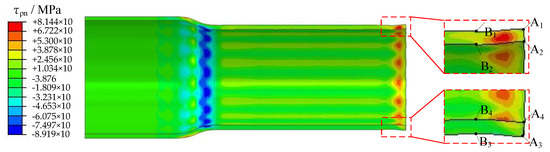

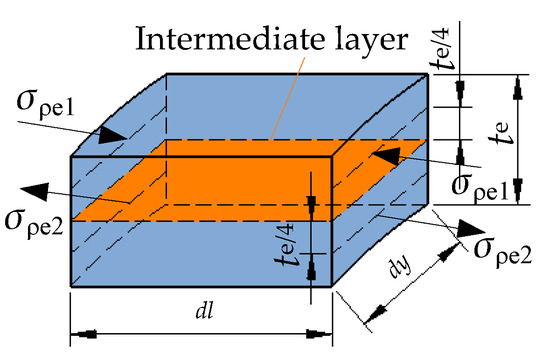

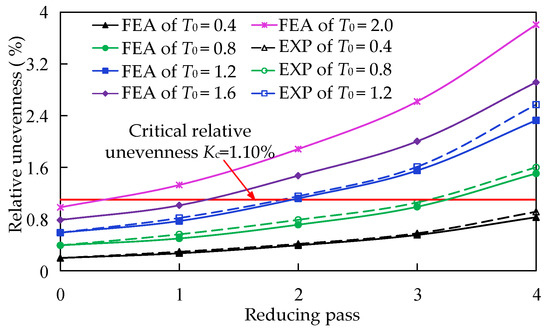

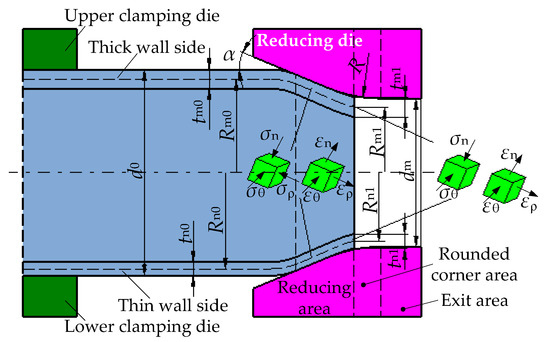

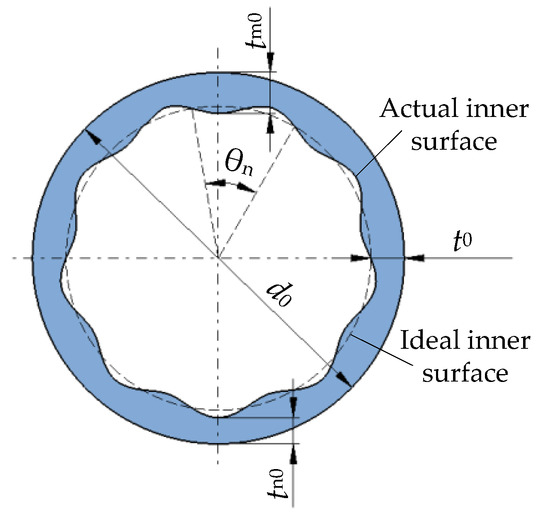

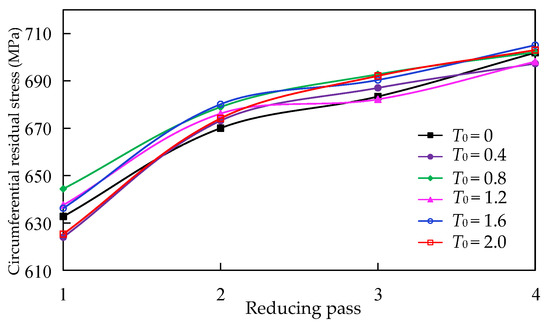

Axial cracking and circumferential wrinkling are found at the end of seamless steel tubes during multi-pass large deformations pushing diameter-reducing (PDR), which seriously affects product quality. However, the cracking and wrinkling mechanism of PDR has not been elucidated yet. In this paper, the Equation of circumferential residual stress at the end was deduced from the warping deformation and shear stress. It is revealed that the circumferential residual stress in the end warping area from the inner to outer surface is tensile, and the generation mechanism of circumferential wrinkling on the inner wall at the end was revealed through the deformation analysis of PDR. The geometric model of the tube with periodic alternating variation of wall thickness was established to reveal the generation and development of circumferential wrinkling. In addition, the four-pass PDR experiments and simulations were developed to reveal the influence of reducing pass and wall thickness deviation on the end warpage, unevenness and circumferential residual tensile stress. The pushing-pulling diameter-reducing (PPDR) method was proposed to control the wrinkling and cracking. The simulation and experimental results showed that the end warpage, unevenness and circumferential residual tensile stress are all greatly decreased, and the risk of axial cracking and circumferential wrinkling is eliminated. Full article

High-strength oil country tubular goods (OCTG) like C110, according to standard API 5CT (yield strength at least 758 MPa), are subject to requirements in terms of mechanical and corrosion properties. In this work, we studied the influence of seamless tubes microstructure with a 177.8 mm diameter and 10.36 mm wall thickness of class С110 high-strength steel to sulfide stress corrosion cracking (SSC) and sulfide stress corrosion cracking with low strain rates (SSRT). Tubes were obtained from continuous billets by screw piercing with preliminary quenching and tempering. It was established that cracking during the tests always begins from the inner surface of the tube. Rough segregation bands were found on the inner tube surface, which occupies about a third of the thickness. It is shown that the SSRT assessment technique allows to estimate the threshold value of the resistance. Full article

The deformation behaviour of a coarse-grained as-cast medium-carbon steel, alloyed with 1.2% Mn, 0.8% Cr and 0.2% Mo, was studied by uniaxial compression tests for the strain rates of 0.02 s⁻¹–20 s⁻¹ in the unusually wide range of temperatures (650–1280 °C), i.e., in various phase regions including the region with predominant bainite content (up to the temperature of 757 °C). At temperatures above 820 °C, the structure was fully austenitic. The hot deformation activation energies of 648 kJ·mol⁻¹ and 364 kJ·mol⁻¹ have been calculated for the temperatures ≤770 °C and ≥770 °C, respectively. This corresponds to the significant increase of flow stress in the low-temperature bainitic region. Unique information on the hot deformation behaviour of bainite was obtained. The shape of the stress-strain curves was influenced by the dynamic recrystallization of ferrite or austenite. Dynamically recrystallized austenitic grains were strongly coarsened with decreasing strain rate and growing temperature. For the austenitic region, the relationship between the peak strain and the Zener–Hollomon parameter has been derived, and the phenomenological constitutive model describing the flow stress depending on temperature, true strain rate and true strain was developed. The model can be used to predict the forming forces in the seamless tubes production of the given steel. Full article

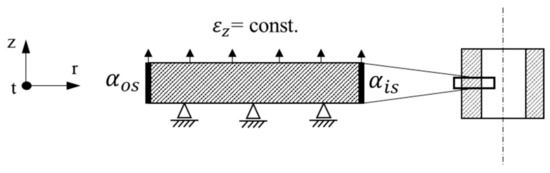

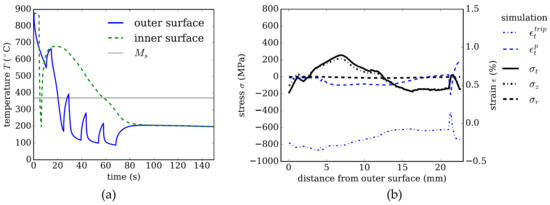

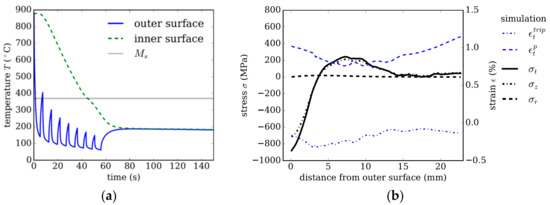

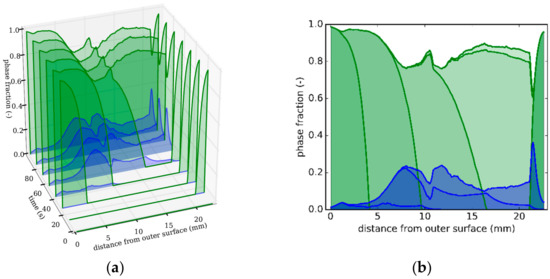

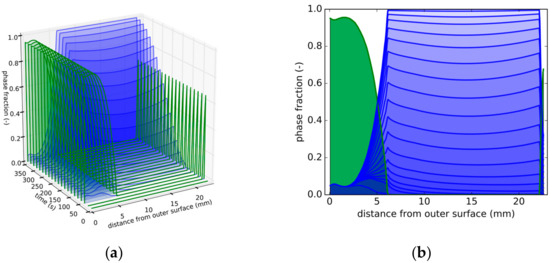

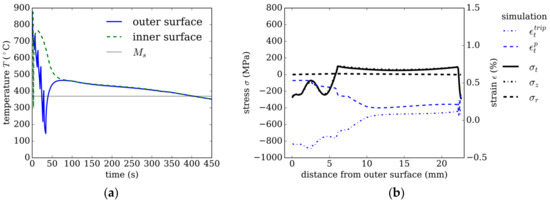

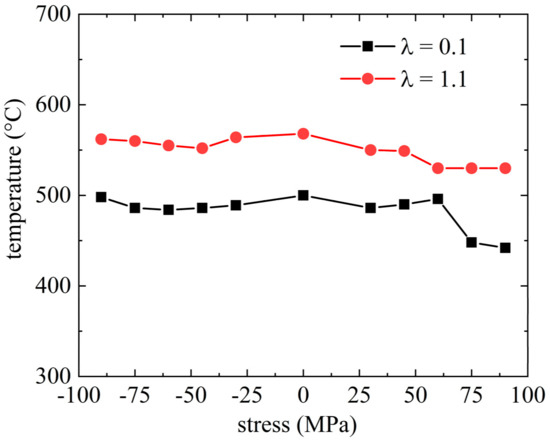

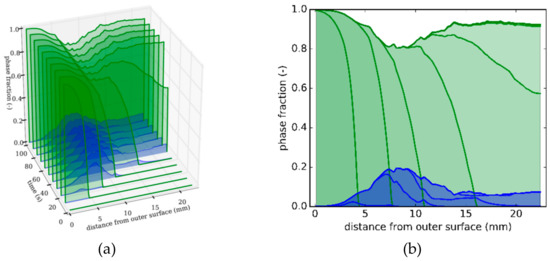

Residual stresses in quenched seamless steel tubes highly depend on the cooling conditions to which the tubes have been subjected. The design aspect of how to use controlled cooling strategies in multiphase steel tubes to achieve certain residual stress and phase configurations is discussed. In an experimentally validated finite element (FE) model considering a coupled evolution of martensite and bainite, three cooling strategies are tested for a low-alloyed 0.25 wt.% C steel tube. The strategies are (i) external cooling only, (ii) internal and external cooling for low residual stresses in a mainly martensitic tube, and (iii) internal and external cooling with low cooling rate for a mainly bainitic tube. The strategies represent design cases, where low residual stresses with different phase compositions are provoked, in order to show the potential of numerical analysis for residual stress and property design. It can be concluded that, for the investigated steel class, intense external cooling leads to a characteristic residual stress profile regardless of the dimension. A combination of external and internal cooling allows a more flexible design of residual stress and phase distribution by choosing different cooling parameters (i.e., water amount and cooling times). In general, lower cooling rates lead to lower thermal misfit strains, and thus less plasticity and lower residual stresses. Full article
