Search Results (37)

This work systematically investigates the Zn-content-dependent phase evolution (1–12 at.%) and its correlation with mechanical properties in as-cast Mg–2Y–xZn alloys. A sequential phase transformation is observed with the Zn content increasing: the microstructure evolves from X-phase dominance (1–2 at.% Zn) through W-phase formation (3–6 at.% Zn) to I-phase emergence (12 at.% Zn). Optimal mechanical performance is attained in the 2 at.% Zn-containing alloy, with measured tensile properties reaching 239 MPa UTS and 130 MPa YS, while maintaining an elongation of 12.62% prior to its gradual decline at higher Zn concentrations. Crystallographic analysis shows that the most significant strengthening effect of the X-phase originates from its coherent orientation relationship with the α-Mg matrix and the development of deformation-induced kink bands. Meanwhile, fine W-phase particles embedded within the X-phase further enhance alloy performance by suppressing X-phase deformation, revealing pronounced synergistic strengthening between the two phases. Notably, although both the I-phase and W-phase act as crack initiation sites during deformation, their coexistence triggers a competitive fracture mechanism: the I-phase preferentially fractures to preserve the structural integrity of the W-phase, effectively mitigating crack propagation. These dynamic interactions of second phases during plastic deformation—synergistic strengthening and competitive fracture—provide a novel strategy and insights for designing high-performance Mg–RE–Zn alloys. Full article

Flax fiber reinforcements weaken with aging and microstructural changes, limiting their applications. Here, we examine the effects of microstructure and aging on flax fiber elements’ performance by using 4000-year-old and modern Egyptian flax as references through multi-scale numerical modeling. This study introduces a novel investigation into the tensile stress distribution behavior of archaeological and modern flax yarns. The finite element (FE) model is derived from 3D volumes obtained via X-ray microtomography and tensile testing in the elastic domain. At the microscale, fibers exhibit higher axial stress concentrations around surface defects and pores, particularly in regions with kink bands and lumens. At the mesoscale, fiber bundles show increased stress concentrations at inter-fiber voids and lumen, with larger bundles exhibiting greater stress heterogeneity, especially around pores and surface roughness. At the macroscale, yarns display significant stress heterogeneity, especially around microstructural defects like pores and fiber–fiber cohesion points. Aged fibers from ancient Egyptian cultural heritage in particular demonstrate large fiber discontinuities due to long-term degradation or aging. These numerical observations highlight how porosity, surface imperfections, and structural degradation increase stress concentration, leading to fiber rupture and mechanical failure. This insight reveals how aging and defects impact flax fiber performance and durability. Full article

Significant reductions in the compressive strength of CFRP are attributed to a specific failure process, which is a combination of the compressive failure of fibers and the shear failure of the matrix. To further understand the mechanism of compressive failure, micromechanical numerical models were developed to reproduce the three-dimensional response, consisting of contraction by the compressive load and in-plane and out-of-plane shear deformation due to the rigid rotation of broken fibers. The feasibility of the model was confirmed by comparing the numerical results to theoretical results. The validated models were used to investigate the failure response under not only compressive loading but also in combination with in-plane and out-of-plane shear loadings. The variation in fiber misalignments and the strength of fibers were considered. The numerical model reproduced the trend of results from experiments in previous studies, in which the compressive strength of CFRP decreased with the increase in fiber misalignment. Moreover, the present results reveal that the ratio of in-plane and out-of-plane shear loadings is an important factor for the compressive strength and direction of shear deformation induced by compressive loading. Full article

The excellent mechanical properties of high-entropy alloys, especially under harsh service environments, have attracted increasing attention in the last decade. FCC-based and refractory high-entropy alloys (HEAs) are the most extensively used series. However, the strength of FCC-base HEAs is insufficient, although they possess a great ductility and fracture toughness at both room and low temperatures. With regard to the BCC-based refractory HEAs, the unsatisfactory ductility at room temperature shadows their ultrahigh strength at room and high temperatures, as well as their excellent thermal stability. In order to strike a balance between strength and toughness, strengthening mechanisms should be first clarified. Therefore, typical mechanical performance and corresponding strengthening factors are systemically summarized, including the solid solution strengthening, second phase, interface, and synergistic effects for FCC-base HEAs, along with the optimization of principal elements, construction of multi-phase, the doping of non-metallic interstitial elements, and the introduction of kink bands for refractory HEAs. Among which the design of meta-stable structures, such as chemical short-range order, and kink bands has been shown to be a promising strategy to further improve the mechanical properties of HEAs. Full article

This study presents an experimental investigation of the quasi-static and dynamic behavior of a quasi-isotropic carbon-fiber-reinforced composite subjected to in-plane compressive loading. The experiments were performed at strain rates ranging from $4\times {10}^{-5}$ to ∼1200 ${\mathrm{s}}^{-1}$ to quantifythe strain-rate-dependent response, failure propagation, and damage morphology using advanced camera systems. Fiber bridging, kink band formation, dominance of interlaminar failure, and inter-fiber failure fracture planes are evidenced through post-mortem analysis. The evolution of the in-plane compressive strength, failure strength, and stiffness are quantified across the strain rates considered in this study. For an in-depth understanding of the failure propagation, crack speeds were determined in two subsets; (i) primary and secondary cracking, and (ii) the interfaces participating in the crack propagation. Lastly, a modified Zhu–Wang–Tang viscoelastic constitutive model was used to characterize the dynamic stress-strain and compressive behavior of the quasi-isotropic composite under in-plane compression. Full article

Flax fibers, while offering numerous benefits, are susceptible to mechanical weakening due to the presence of kink-bands within their structure. The novelty of this study lies in linking mechanical behavior to fiber morphology and defects at multiple scales by utilizing X-ray microtomography to generate detailed 3D images of elementary flax fibers, enabling the creation of accurate finite element (FE) models for analysis. Aging reduces flax fibers’ strength, so both modern and ancient fibers were analyzed to understand their structural evolution over time. Static X-ray microtomography images were converted into 3D FE models for tensile simulations, and tensile tests provided essential properties for numerical modeling. Morphological analysis for both fiber types revealed that kink-bands contain multiple pores oriented ~45° to the fiber/lumen axis, with ancient fibers showing higher porosity (5.6%) and kink-band density (20.8 mm⁻¹) than modern fibers (3.3% and 16.6 mm⁻¹). SEM images confirmed that the intricate lumen and kink-bands lead to fiber failure under tensile loading. Numerical analysis highlighted higher stress concentrations at the kink-band region, particularly at pores in the kink-band region, which can initiate cracks and lead to rupture. Full article

The study investigated the effects of a toughening agent and micron-sized toughening particles (TP) on the resin and carbon fiber-reinforced polymer (CFRP) composites, with a particular focus on compressive strength. The results showed that the addition of the toughening agent improved the overall mechanical properties of both the resin and CFRP but had a minor effect on the residual compressive strength (CAI) of CFRP after impact. Compared to the pure toughening agent, the addition of TP increased the CAI, GIC, and GIIC of CFRP by 74%, 35%, and 68%, respectively. The SEM, ultrasonic C-scan, and metallographic microscopy were used to analyze the failure morphology and TP distribution. Compared to pure toughening agent modification, the introduction of TP led to the formation of continuous toughening particle layers, which reduced the compression damage area by 61%, significantly balancing and absorbing the load. This modification also resulted in typical kink band damage. This study found that resin toughening significantly improved the compressive strength of CFRP, while micron-sized toughening particles, in the form of toughening layers, notably improved the CAI. These findings provide valuable insights for enhancing the compression and impact resistance of CFRP. Full article

The optimization of the process of polymer film orientational drawing using the local heater was investigated. One of the problems with this technology is that the strength of the resulting fibers differs significantly from the theoretical estimates. It is assumed that one of the reasons is related to the peculiarity of this technology, when at the point of drawing the film is heated only on one side, which creates a temperature difference between the sides of the film in contact with the heater and the non-contact sides of the film in the air. Estimates show that even a small temperature difference of just 1 °C between these surfaces leads to a significant difference in the rate of plastic deformation of the corresponding near-surface layers. As a consequence, during hardening, in the stretching region, tensile stress is concentrated on the “cold” side of the film, and this effect can presumably lead to the generation of more defects overthere. It has been suggested that defects arising during first stage of hardening, namely, neck formation, can serve as a trigger for the formation of defects such as kink bands on the “cold” side with further orientational strengthening due to plastic deformation of the resulting fibrillar structure, at the boundaries of which microcracks are formed, leading to rupture of the oriented sample. The numerical calculation of heat propagation due to heat conduction in the film from the local surface of the heater is carried out and the temperature distribution along the thickness and width of the film during drawing is found. The temperature difference in the heated layer of the film between the contact and non-contact sides with the heater was calculated depending on the thickness of the film and the speed of its movement along the heater. It was found that the most homogeneous temperature distribution over the film thickness, which is required, by default, for the synchronous transformation of the unoriented initial folded lamellar structure into a fibrillar structure, is observed only for films with a thickness of less than 50 μm. The calculation allows us to scientifically justify the choice of orientation drawing speed and optimal thickness of the oriented polymer film, which is extremely important, for example, for obtaining super-strong and high-modulus UHMWPE filaments used in products for various purposes: from body armor to sports equipment and bioimplants, Full article

We report the results of time series analysis of blazar PKS 1440-389, observed by the Transiting Exoplanet Survey Satellite (TESS) in two sectors. We find that the source has a quasi-periodic oscillation (QPO) of about 3.1 days for sector 11 and around 3.7 days for sector 38 in the optical band. We use two methods to assess the QPO and its confidence level: Lomb–Scargle periodogram and weighted wavelet Z-transforms. We explore various potential explanations for these rapid quasi-periodic variations and propose that their source most likely resides within the innermost region of the accretion disk. Within this framework, we estimate the mass of the central black hole of this blazar. We obtain black hole masses of 6.65 × 10⁸${\mathrm{M}}_{\odot }$ (Schwarzschild black hole) and 4.22 × 10⁹${\mathrm{M}}_{\odot }$ (maximally rotating Kerr black hole), with a main period of 3.7 days. Finally, we utilize the kink instability model to explain the QPO. Full article

Extensive research has shown that nanolayered structures are capable of suppressing the shear banding in metallic glass in nanoindentation experiments. However, the specific mode and mechanism of the shear banding underneath the indenter remains unknown. Also, the quantification of shear banding-induced strain localization is still a challenge. Herein, the size-dependent shear banding behavior of a CuTiZrNb high-entropy alloy-based nanolayered glass with individual layer thicknesses (h) ranging from 5 to 80 nm was systematically investigated by nanoindentation tests. It was found that the hardness of the designed structure was almost size-independent. Yet, a clear transition in the deformation modes from the cutting-like shear bands to the kinking-like ones was discovered as h decreased to 10 nm. Moreover, multiple secondary shear bands also appeared, in addition to the primary ones, in the sample with h = 10 nm. The transition leads to an obvious strain delocalization, as clearly illustrated by the proposed theoretical model, which is based on the assumption of a pure shear stress state to quantify the shear banding-induced strain localization. The strain delocalization results from the higher density of amorphous/amorphous interfaces that exhibit the change in morphology with a refined layered glass structure. Full article

Using the microscopic s-f model and Green’s function theory, we study the temperature dependence of the band gap energy $E_g$ and the phonon energy $\omega$ and damping $\gamma$ of ferro- and antiferromagnetic semiconductors, i.e., with different signs of the s-f interaction constant I. The band gap is a fundamental quantity which affects various optical, electronic and energy applications of the materials. In the temperature dependence of $E_g$ and the phonon spectrum, there is a kink at the phase transition temperature $T_C$ or $T_N$ due to the anharmonic spin–phonon interaction (SPI) R. Moreover, the effect of the SPI R and electron–phonon interaction (EPI) A on these properties is discussed. For $I>0,R>0$, $E_g$ decreases with increasing SPI and EPI, whereas for $I<0,R>0$, there is a competition; $E_g$ increases with raising the EPI and decreases for enhanced SPI. For $R<0$, in both cases, the SPI and EPI reduce $E_g$. The magnetic field dependence of $E_g$ for the two signs of I and R is discussed. The SPI and EPI lead to reducing the energy of the phonon mode $\omega$ = 445 cm⁻¹ in EuO ($I>0$, $R<0$), whereas $\omega$ = 151 cm⁻¹ in EuSe ($I>0$, $R>0$) is enhanced with increasing EPI and reduced with SPI. Both the SPI and EPI lead to an increasing of the phonon damping in EuO and EuSe. The results are compared with the existing experimental data. Full article

Graphite IG-110 is a synthetic polycrystalline material used as a neutron moderator in reactors. Graphite is inherently brittle and is known to exhibit a further increase in brittleness due to radiation damage at room temperature. To understand the irradiation effects on pre-existing defects and their overall influence on external load, micropillar compression tests were performed using in situ nanoindentation in the Transmission Electron Microscopy (TEM) for both pristine and ion-irradiated samples. While pristine specimens showed brittle and subsequent catastrophic failure, the 2.8 MeV Au²⁺ ion (fluence of 4.378 × 10¹⁴ cm⁻²) irradiated specimens sustained extensive plasticity at room temperature without failure. In situ TEM characterization showed nucleation of nanoscale kink band structures at numerous sites, where the localized plasticity appeared to close the defects and cracks while allowing large average strain. We propose that compressive mechanical stress due to dimensional change during ion irradiation transforms buckled basal layers in graphite into kink bands. The externally applied load during the micropillar tests proliferates the nucleation and motion of kink bands to accommodate the large plastic strain. The inherent non-uniformity of graphite microstructure promotes such strain localization, making kink bands the predominant mechanism behind unprecedented toughness in an otherwise brittle material. Full article

The magnetic, electric, dielectric, and optical (band gap) properties of ion doped multiferroic KBiFe${}_2$O${}_5$ (KBFO) have been systematically investigated utilizing a microscopic model and the Green’s function theory. Doping with Co at the Fe site and Ru at the Bi site induces changes in magnetization, coercive field, and band gap energy. Specifically, an increase in magnetization is observed, while the coercive field and band gap energy decrease. This behavior is attributed to the distinct ionic radii of the doped and host ions, leading to alterations in the exchange interaction constants. The temperature dependence of the polarization P reveals a distinctive kink at the Neel temperature $T_N$, which shifts to higher temperatures with an increase in the applied magnetic field h. Furthermore, doping with Ru and La leads to an increase in polarization. The temperature dependence of the dielectric constant exhibits two peaks at the Neel temperature $T_N$ and the Curie temperature $T_C$. Notably, these peaks diminish with increasing frequency. Additionally, the dielectric constant demonstrates a decrease with the rise in the applied magnetic field h. This study sheds light on the intricate interplay between ion doping, structural modifications, and multifunctional properties in KBFO, offering valuable insights into the underlying mechanisms governing its behavior across various physical domains. Full article

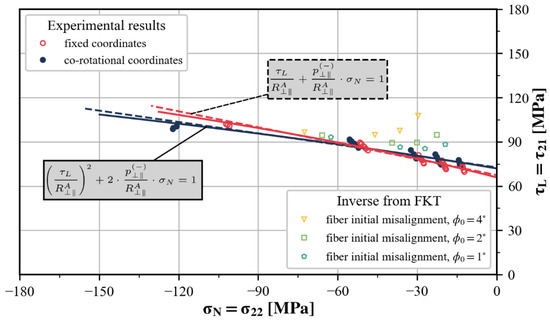

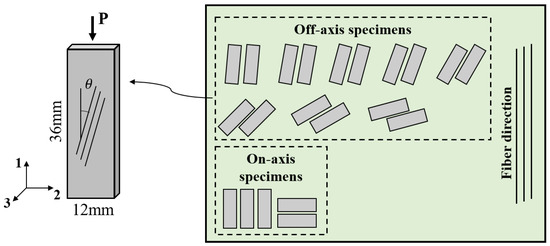

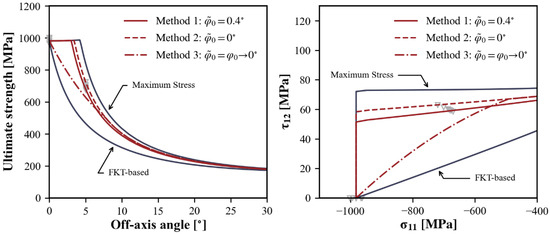

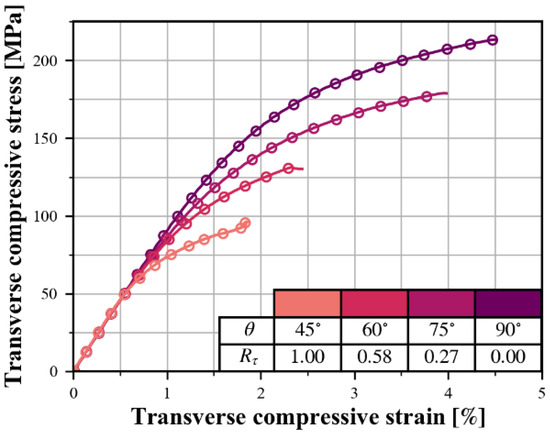

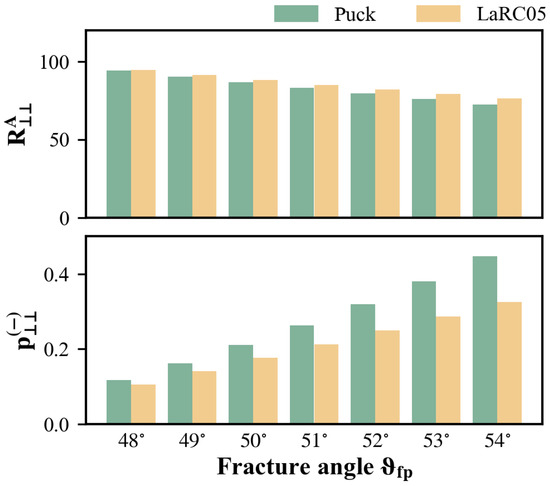

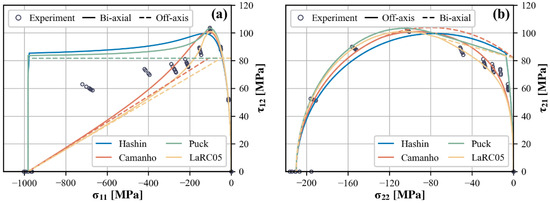

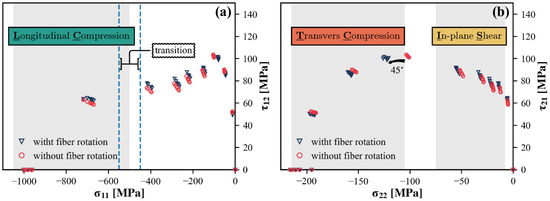

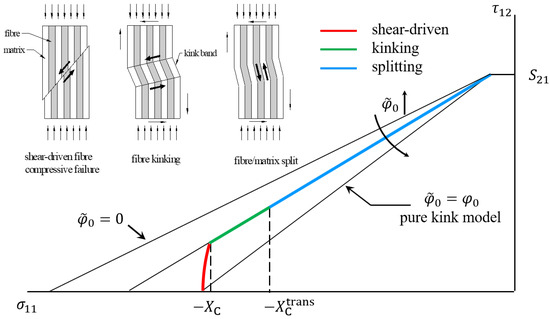

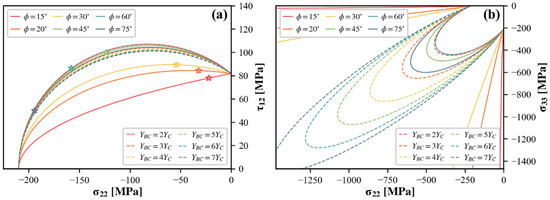

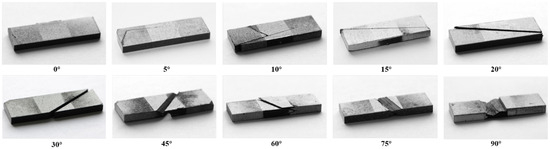

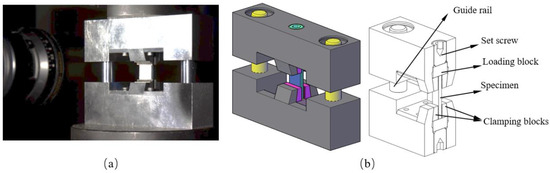

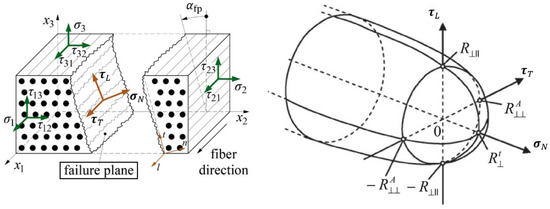

An experimental investigation was focused on the failure behavior of unidirectional fiber-reinforced polymers when subjected to combined longitudinal/transverse compression and in-plane shear due to off-axis loading. Block-shaped and end-loaded specimens, spanning ten different fiber orientations (0$°$, 5$°$, 10$°$, 15$°$, 20$°$, 30$°$, 45$°$, 60$°$, 75$°$, and 90$°$ with respect to the loading direction), were loaded to ultimate failure using a dedicated fixture. Different failure modes, including longitudinal compression, in-plane shear, and transverse compression, were identified, along with distinctive characteristics of the corresponding failure envelopes. Four physically based failure theories—Hashin, Camanho, Puck, and LaRC05—were subjected to a comparative analysis. Criteria derived from the concept of the action plane consistently outperformed in describing matrix-dominated failures, providing both qualitative and quantitative predictions of failure stresses and fracture plane orientation. However, for fiber-dominated failures, these theories seem to fall short in providing satisfactory predictions, particularly in accurately describing the influence of shear on fiber compression failure. Although criteria based on fiber-kinking theory can reasonably explain the formation of kink bands, they tend to yield overly conservative results. Recalibrations and minor refinement based on experimental results were implemented, leading to an improved agreement. Finally, the constructive role of off-axis compression tests in characterizing the failure behavior of unidirectional composites is discussed. Full article

Semicrystalline polymers are lightweight, multiphase materials that exhibit attractive shock dissipation characteristics and have potential applications as protective armor for people and equipment. For shocks of 10 GPa or less, we analyzed various mechanisms for the storage and dissipation of shock wave energy in a realistic, united atom (UA) model of semicrystalline polyethylene. Systems characterized by different levels of crystallinity were simulated using equilibrium molecular dynamics with a Hugoniostat to ensure that the resulting states conform to the Rankine–Hugoniot conditions. To determine the role of structural rearrangements, order parameters and configuration time series were collected during the course of the shock simulations. We conclude that the major mechanisms responsible for the storage and dissipation of shock energy in semicrystalline polyethylene are those associated with plastic deformation and melting of the crystalline domain. For this UA model, plastic deformation occurs primarily through fine crystallographic slip and the formation of kink bands, whose long period decreases with increasing shock pressure. Full article
