Search Results (503)

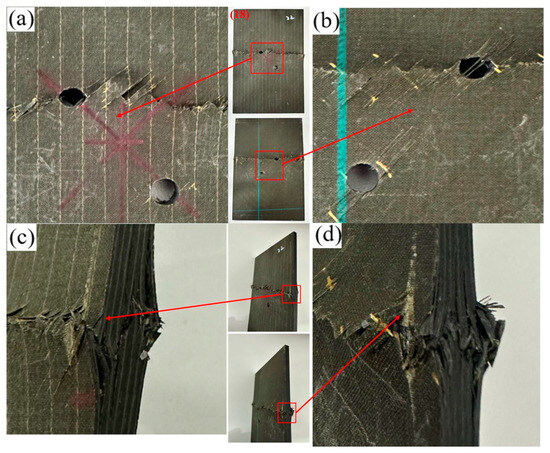

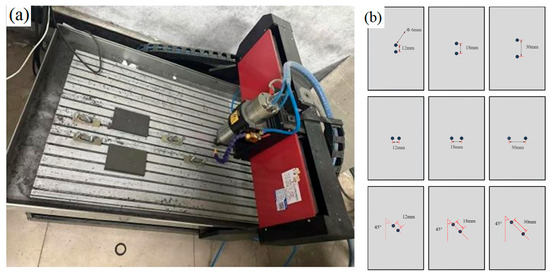

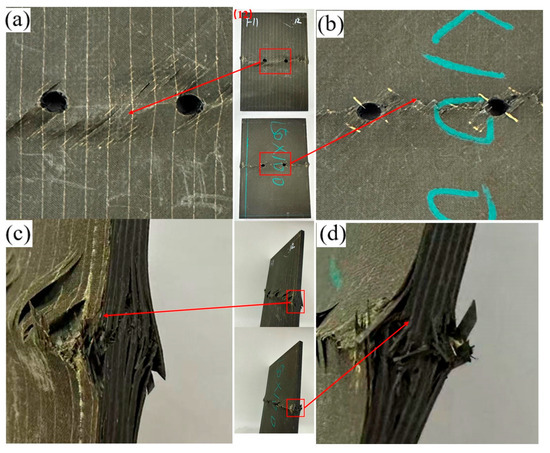

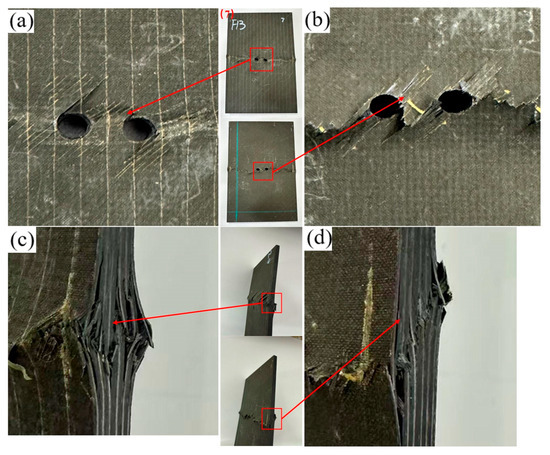

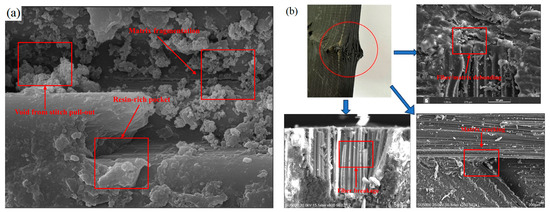

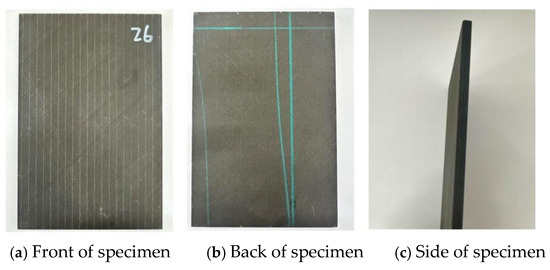

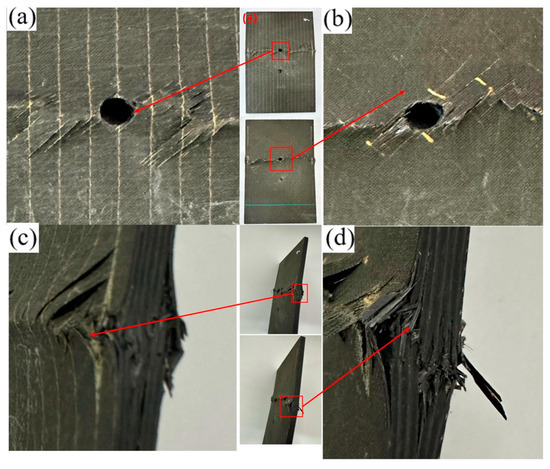

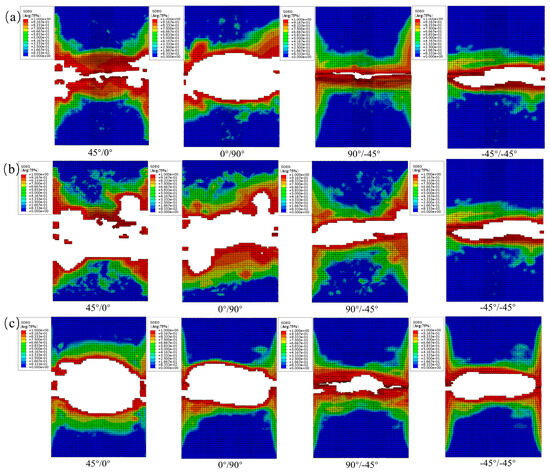

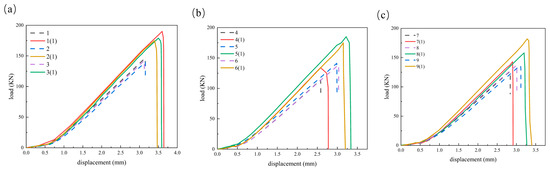

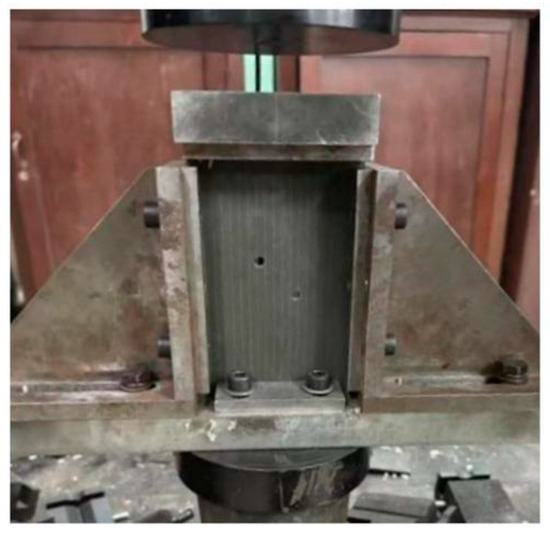

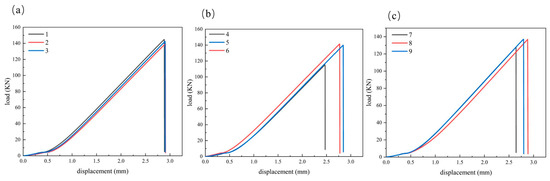

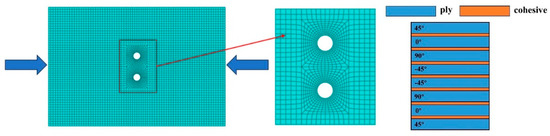

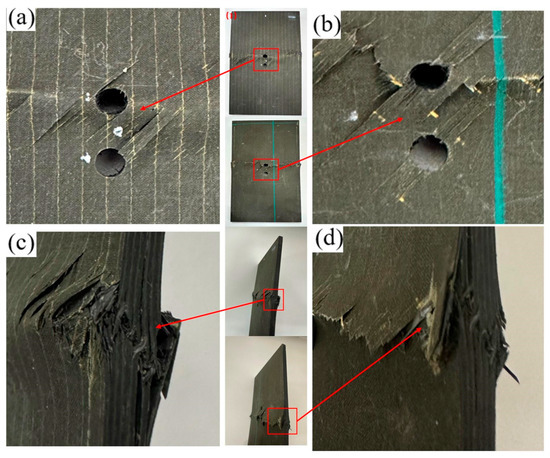

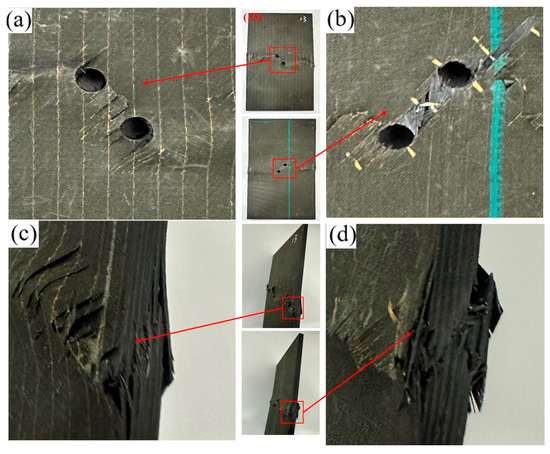

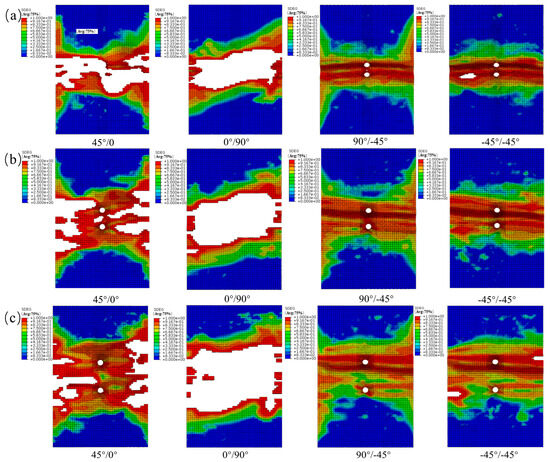

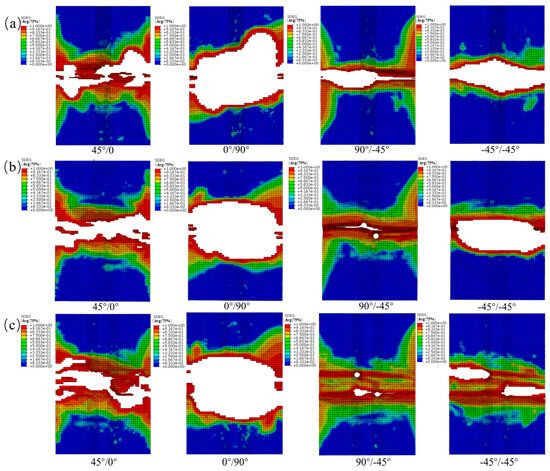

Open-hole compression (OHC) tests were carried out on non-crimp fabric (NCF) laminates with varied open-hole orientation (angle to the loading direction) and inter-hole spacing. Failure modes were documented by scanning electron microscopy (SEM), and the compressive strength was quantified. Finite element simulations in Abaqus were developed to replicate the tests, establishing a progressive-damage model for open-hole laminates under compression. Intralaminar failure was described using the three-dimensional Hashin failure criterion and a modified matrix compression criterion incorporating shear coupling effects, while interlaminar delamination was modeled with cohesive elements, enabling the simulation of damage initiation, growth, delamination, and final collapse. The results show that hole orientation and spacing have a pronounced effect on open-hole compression (OHC) strength. A spacing threshold is observed, beyond which further increases in spacing provide little additional benefit. In contrast, the apparent elastic stiffness is essentially insensitive to hole spacing and orientation. The combined intralaminar and interlaminar model successfully reproduces the characteristic mechanical response—linear elasticity followed by catastrophic failure—in good agreement with the experiments. Full article

To efficiently reuse endless fibre-reinforced composites after their life cycle, the recovery of endless fibres including matrix material with subsequent reprocessing in their original state is desirable. Thanks to their covalent adaptive networks, vitrimers offer ideal properties for enabling new repair and circular strategies for composites. In order to evaluate the detachability—meaning the separation of single laminate layers—and recycling potential for continuous fibre reinforcement, process routes and quality parameters must be established. In this study, the double cantilever beam test is used to test the adhesion based on the detachment of continuous fibre layers, and the interlaminare fracture toughness of mode I (G_IC) is measured as a parameter for the required energy for detachment. It was shown that G_IC increases above the vitrimer transition temperature and is higher than for reference specimens with an epoxy matrix. Surface roughness is measured to determine the mechanical and thermal degradation of the chemical network structure and additionally shows fibre cracking and defects in fibre–matrix interfaces. This allows the recycling process to be evaluated up to the production of a second generation, with the aim of identifying the recycling potential of the vitrimer matrix and implementing it for industrial processes. An efficient recycling strategy of the continuous fibre-reinforced vitrimers was thus demonstrated by hot pressing at 190 °C for 45 min, giving vitrimer samples a second life. Full article

It has long been desired to achieve mechanical enhancement and structural health monitoring by introducing carbon nanotubes (CNTs) into traditional carbon fiber (CF) composites. Herein, the initiation of micro-damage and crack propagation has been investigated by utilizing in situ electrical resistance changes in interlaminar hybrid CNT network/CF composites during the shear loading process. The results show a clear relationship between the crack propagation and the electrical resistance response particularly when approaching the failure of the single-layer CNT network hybrid composites. Furthermore, the chemically modified CNT network exhibits evident enhancement on main mechanical properties of the CF composites, superior to the thermoplastic toughening method. The characterizations manifest that the multiscale interlayered CNT/CF structure can simultaneously resist the crack propagation along both the in-plane direction and the cross-plane direction, which consequently enhances the flexural and compressive strengths of the composite material. This discovery provides a novel idea for the potential application of CNT network/CF hybrid composites in the integration of mechanical reinforcement and structural health monitoring, namely, that the CNT network acts not only as a reinforcing phase but also as a sensor for the structural health monitoring of the composites. Full article

The mechanical behavior of carbon-fiber-reinforced polymer (CFRP) laminates manufactured using plasma-assisted solvolysis recycled fibers was evaluated experimentally through a comprehensive mechanical testing campaign. The plasma-assisted solvolysis parameters were selected based on an earlier sensitivity analysis. Prepregs made from both virgin and recycled carbon fibers were fabricated via a hand lay-up process and manually stacked to produce unidirectional laminates. Longitudinal tension tests, longitudinal compression tests, and interlaminar shear strength (ILSS) tests were performed to assess the fundamental mechanical response of the recycled laminates and quantify the retention of mechanical properties relative to the virgin-reference material. Prior to mechanical testing, all laminates underwent ultrasonic C-scan inspection to assess manufacturing quality. While both laminate types exhibited generally satisfactory quality, the recycled-fiber laminates showed a higher density of defects. The recycled laminates preserved around 80% of their original tensile strength and maintained an essentially unchanged elastic modulus. Compressive strength was more susceptible to imperfections introduced during remanufacturing, with the recycled laminates exhibiting roughly a 14% decrease compared with the virgin material. On the contrary, the compressive modulus was largely retained. The most substantial reduction occurred in ILSS, which dropped by 58%. Overall, the results demonstrate that plasma-assisted solvolysis enables the recovery of carbon fibers suitable for remanufacturing CFRP laminates, while the observed reduction in mechanical properties of recycled CFRPs is mainly attributed to defects in manufacturing quality rather than to intrinsic degradation of the recycled carbon fibers. Full article

Laminated bamboo (LB) has shown enough exceptional performance to be used in constructions, but the performance of the bolted connections remains to be explored. To meet the criteria of low-carbon construction and fill the research gap in LB dowel embedment performance, this study examined the longitudinal dowel embedment behavior of LB. Failure modes, load–displacement curves, embedment strength, and elastic foundation parameters were examined after four sets of half-hole specimens with dowel diameters (6, 8, 10, and 12 mm) were tested in accordance with ISO 10984-2. The majority of the data was confirmed to follow a normal distribution by the Kolmogorov–Smirnov test. Interlaminar shear failure (dominant in 10 and 12 mm groups) and local crushing (dominant in 6 and 8 mm groups) were the primary failure modes. There were clear linear and nonlinear phases in the load–displacement curves (excellent ductility). The average elastic foundation modulus was 3565.55 MPa (0.39 times the compressive modulus); meanwhile, the average proportional limit, yield, and ultimate strengths were 35.48, 63.08, and 74.44 MPa (0.59, 1.06, and 1.25 times the parallel-to-grain compressive strength). The ultimate strength varied from 72.64 MPa to 76.71 MPa as the diameter rose; however, the elastic foundation beam coefficient dropped significantly. A novel calculation based on LB’s parallel-to-grain compressive strength accorded well with test results, while the existing code formulae (GB 50005, NDS, and CSA O86) overestimated LB embedment strength. The design of LB bolted connections is guided by this study, which also explains LB embedment criteria and offers design parameters and a prediction method. Full article

Full-endoscopic lumbar discectomy (FELD) has emerged over time as a minimally invasive alternative to conventional microdiscectomy. This narrative review summarizes the available evidence regarding the evolution, indications, techniques, and outcomes of FELD, with a particular focus on how different types of lumbar disc herniations influence the choice of surgical approach. The literature indicates that the transforaminal approach is most suitable for foraminal and upper lumbar disc herniations, whereas the interlaminar approach is preferred for central or migrated L5–S1 herniations due to the larger interlaminar window at this level. Unilateral biportal endoscopy (UBE) provides better flexibility, visualization, and instrument maneuverability, making it particularly useful in certain cases. Reported complication rates remain low overall but vary according to surgical technique and surgeon experience. The learning curve for FELD typically ranges from approximately 20 to over 50 cases, depending on the approach and individual proficiency. Overall, full-endoscopic techniques are redefining the management of lumbar disc herniations by offering less invasive alternatives with favourable clinical outcomes, and their role is expected to expand further as both technology and surgical expertise continue to evolve. Full article

This study investigates the Mode II fracture behavior of bamboo–coir–rubber (BCR) hybrid composite panels developed as sustainable alternatives for wood-based panels used in structural applications. The composites were fabricated using alternating bamboo and coir layers within a polypropylene (PP) thermoplastic matrix, with styrene–butadiene rubber (SBR) incorporated as an additive at 0–30 wt.% to enhance interlaminar toughness. Commercial structural plywood was tested as the benchmark. Mode II interlaminar fracture toughness (G_IIc) was evaluated using the ASTM D7905 End-Notched Flexure (ENF) test, supported by optical monitoring to study crack monitoring and Scanning Electron Microscopy (SEM) for microstructural interpretation. Results demonstrated a steady increase in G_IIc from 1.26 kJ/m² for unmodified laminates to a maximum of 1.98 kJ/m² at 30% SBR, representing a 60% improvement over the baseline and nearly double the toughness of plywood (0.7–0.9 kJ/m²). The optimum performance was obtained at 20–25 wt.% SBR, where the laminated retained approximately 85–90% of their initial flexural modulus while exhibiting enhanced energy absorption. Increasing the initial notch ratio (a₀/L) from 0.2 to 0.4 caused a reduction of 20% in G_IIc and a twofold rise in compliance, highlighting the geometric sensitivity of shear fracture to the remaining ligament. Analysis of Variance (ANOVA) confirmed that the increase in G_IIc for the 20–25% SBR laminates relative to plywood and the unmodified composite is significant at p < 0.05. SEM observations revealed rubber-particle cavitation, matrix shear yielding, and coir–fiber bridging as the dominant toughening mechanisms responsible for the transition from abrupt to stable delamination. The measured toughness levels (1.5–2.0 kJ/m²) position the BCR panels within the functional range required for reusable formwork, interior partitions, and transport flooring. The combination of renewable bamboo and coir with a thermoplastic PP matrix and rubber modification hence offers a formaldehyde-free alternative to conventional plywood for shear-dominated applications. Full article

Delamination remains a critical failure mode in carbon fiber-reinforced polymer (CFRP) composites, particularly under cyclic loading in aerospace and automotive applications. This study explores whether nanoscale reinforcement with graphene-based materials can enhance delamination resistance and identifies the most effective nanofiller type. Two distinct graphene nanospecies—reduced graphene oxide (rGO) and carboxyl-functionalized graphene nanoplatelets (HDPlas)—were incorporated at 0.5 wt% into CFRP laminates and tested under static and fatigue mode I loading using double cantilever beam (DCB) tests. Both nanofillers enhanced interlaminar fracture toughness compared to the neat composite: rGO improved the energy release rate by 36%, while HDPlas achieved a remarkable 67% enhancement. Fatigue testing showed even stronger effects, with the fatigue threshold energy release rate rising by 24% for rGO and 67% for HDPlas, leading to a fivefold increase in fatigue life for HDPlas-modified laminates. A compliance calibration method enabled continuous monitoring of crack growth over one million cycles. Fractography analysis using scanning electron microscopy revealed that both nanofillers activated crack bifurcation, enhancing energy dissipation. However, the HDPlas system further exhibited extensive nanoparticle pull-out, creating a more tortuous crack path and superior resistance to crack initiation and growth under cyclic loading. Full article

Additive Manufacturing (AM) using Fused Layer Modelling (FLM) often results in polymer components with limited and highly anisotropic mechanical properties, exhibiting structural weaknesses in the layer direction (Z-direction) due to low interlaminar adhesion. The main objective of this work was to investigate and quantify these mechanical limitations and to develop strategies for their mitigation. Specifically, this study aimed to (1) characterize the anisotropic behavior of unreinforced Polycarbonate (PC) components, (2) evaluate the effect of continuous, unidirectional (UD) carbon fiber tape reinforcement on mechanical performance, and (3) validate experimental findings through Finite Element Method (FEM) simulations to support predictive modeling of reinforced FLM structures. Methods involved experimental tensile and 3-point bending tests on specimens printed in all three spatial directions (X, Y, Z), validated against FEM simulations in ANSYS Composite PrepPost (ACP) using an orthotropic material model and the Hashin failure criterion. Results showed unreinforced samples had a pronounced anisotropy, with tensile strength reduced by over 70% in the Z direction. UD tape integration nearly eliminated this orthotropic behavior and led to strength gains of over 400% in tensile and flexural strength in the Z-direction. The FEM simulations showed very good agreement regarding initial stiffness and failure load. Targeted UD tape reinforcement effectively compensates for the weaknesses of FLM structures, although the quality of the tape–matrix bond and process reproducibility remain decisive factors for the reliability of the composite system, underscoring the necessity for targeted process optimization. Full article

This study focuses on the synthesis of two new bisphenol-based polyimide (PI) sizing agents to improve the fiber–matrix interface of carbon fiber-reinforced poly (ether ether ketone) (CF/PEEK) composites. One of the synthesized polyimides contains bisphenol A (BPA) monomer, while the other has bisphenol S (BPS) monomer. The produced polyimide precursor resins were coated with carbon fibers by thermal imidization. The thermal, thermomechanical, and mechanical properties of the CF/PEEK composites produced by the autoclave process were investigated. According to the mechanical test results, there was a balanced performance between the BPS-containing polyimide-coated composites (CF-PEEK-PI-S) and the BPA-containing polyimide-coated composites (CF-PEEK-PI-A). While tensile strength is 291 MPa and interlaminar shear (ILSS) strength is 119 MPa, the CF-PEEK-PI-A sample showed superior mechanical properties in flexural (92.1 MPa) and compressive strength (54.9 MPa). As a result, it was concluded that bisphenol-based polyimide coatings significantly improve the interfacial interactions in CF/PEEK composites, which have great potential in aerospace, automotive and advanced engineering applications. Full article

During the manufacturing and development of a proof-of-concept prototype of a continuous fiber polyphenylene sulfide (PPS) composite vehicle component, unexpected results were observed in thick laminates of an E-glass-fiber-reinforced PPS matrix, which utilized carbon black as a colorant (GF/PPS+CB). Extensive interlaminar macrocracking, transverse intralaminar microcracking, and micro-/macrovoids were observed in GF/PPS+CB laminates after compression forming. When processed under identical conditions, no micro-/macrocracking or voids were present in GF/PPS laminates and carbon fiber/PPS laminates without carbon black colorant. These observations prompted further investigation into the influence of processing conditions, presence of colorant, mold design (open and closed molds), and geometry (flat and curved) on the development of matrix defects in thick continuous fiber-reinforced PPS laminates. Full article

This study evaluates the effect of chemical treatments on the short-beam shear strength, vibrational, and acoustic performance of banana-fibre-reinforced carbon–Kevlar hybrid composites. Banana fibres were treated with 5% NaOH and 0.5% KMnO₄ to improve fibre surface characteristics and interfacial bonding within a sandwich laminate of carbon–Kevlar intraply skins and banana fibre core fabricated by hand lay-up and compression moulding. Short-beam shear strength (SBSS) increased from 14.27 MPa in untreated composites to 17.65 MPa and 19.52 MPa with KMnO₄ and NaOH treatments, respectively, due to enhanced fibrematrix adhesion and removal of surface impurities. Vibrational analysis showed untreated composites had low stiffness (7780.23 N/m) and damping ratio (0.00716), whereas NaOH treatment increased stiffness (9480.51 N/m) and natural frequency (28.68 Hz), improving rigidity and moderate damping. KMnO₄ treatment yielded the highest damping ratio (0.0557) with reduced stiffness, favouring vibration energy dissipation. Acoustic tests revealed KMnO₄-treated composites have superior sound transmission loss across low to middle frequencies, peaking at 15.6 dB at 63 Hz, indicating effective acoustic insulation linked to better mechanical damping. Scanning electron microscopy confirmed enhanced fibre impregnation and fewer defects after treatments. These findings highlight the significant role of chemical surface modification in optimising structural integrity, vibration control, and acoustic insulation in sustainable banana fibre/carbon–Kevlar hybrids. The improved multifunctional properties suggest promising applications in aerospace, automotive, and structural fields requiring lightweight, durable, and sound-mitigating materials. Full article

Hierarchical aramid/zirconia hybrid fibers were introduced into the interlayers of basalt fiber–reinforced polymer (BFRP) composites to optimize their interlaminar properties. The reinforcing effect of micro/nano aramid short fiber (MNASF) and zirconia fiber (ZF) on BFRP composites at different mass ratios was investigated through three-point bending (3PB) tests and compression tests. The results demonstrated that the BFRP composites incorporating 2 wt.% MNASF and 2 wt.% ZF exhibited the most significant property enhancement. The 3PB tests revealed increases in flexural strength and modulus of 119.2% and 62.6%, respectively, compared to the unreinforced BFRP composites. Compression tests showed that this specific formulation enhanced the compressive strength and modulus by 257.7% and 121.6%, respectively. Scanning electron microscopy and optical microscopy observations indicated that the incorporation of MNASF and ZF effectively reduced the volume fraction of resin-rich regions in the interlaminar regions, and the dominant failure mode transitioned from delamination to shear failure. Overall, the introduction of MNASF and ZF effectively combined the reinforcing effects of the two fibers, improving the mechanical properties of BFRP composites. Full article

Background and Objectives: Lumbar interlaminar ventral epidural injection (LIVEI) offers a promising alternative to transforaminal epidural injection (TFEI) by enabling ventral epidural delivery while minimizing complication risks. While previous approaches often required catheter assistance, this pilot study evaluates the safety, technical feasibility, and early outcomes of a simplified LIVEI method at L5–S1 without catheter insertion. Materials and Methods: Twelve patients with lumbosacral radicular pain received unilateral catheter-free LIVEI at L5–S1 between October 2021 and September 2022. This small retrospective pilot cohort did not include a control group. Contrast spread patterns were evaluated fluoroscopically based on AP and lateral views. Spread was classified into three grades depending on anterior epidural distribution, cranio-caudal extent, and foraminal involvement. Visual Analog Scale (VAS) scores were assessed before and two weeks after the procedure. Spread was classified into three grades depending on anterior epidural distribution, cranio-caudal extent, and foraminal involvement. Results: Fluoroscopic images confirmed ventral epidural spread in all patients, with 75% showing foraminal extension and 67% demonstrating cranio-caudal spread over two or more levels. Baseline VAS scores averaged 6.5 ± 1.0, decreasing to 3.42 ± 1.31 two weeks post-procedure (p < 0.0001), with a mean reduction of 3.08 ± 1.00. No adverse events or complications were observed. Conclusions: Catheter-free LIVEI at the L5–S1 level demonstrated consistent anterior and multi-level ventral epidural contrast distribution on fluoroscopy, supporting the technical feasibility of this approach. In addition to this radiographic validation, patients achieved clinically meaningful pain relief with excellent tolerability. Further confirmation through larger-scale controlled studies is warranted to validate long-term clinical effectiveness. Full article

This paper investigated the durability and structural performance of concrete bridge deck pavements under high temperature and high humidity conditions, focusing on three aspects: mix design, road performance evaluation, and structural optimization design. Through Marshall testing, the surface layer material SMA-13 and the middle layer material AC-13 were identified as suitable for hot and humid climates. The former exhibited excellent high-temperature stability and resistance to water damage, while the latter possessed good structural density and load-bearing capacity. A combination of high-temperature, low-temperature, water stability, and impermeability tests was used to systematically evaluate the adaptability of the mixture in hot and humid environments. Furthermore, the performance of different interfacial bonding materials was analyzed through interlaminar pull-out and direct shear tests. The results revealed that the incorporation of epoxy resin notably enhanced the interlayer bond strength and overall durability of the pavement system in hot and humid environments. The proposed “SMA-13 + epoxy resin + AC-13” configuration demonstrates promising potential for improving the mechanical performance and service life of concrete bridge deck pavements. Full article
