Mechanical Behavior of CFRP Laminates Manufactured from Plasma-Assisted Solvolysis Recycled Carbon Fibers

Abstract

The mechanical behavior of carbon-fiber-reinforced polymer (CFRP) laminates manufactured using plasma-assisted solvolysis recycled fibers was evaluated experimentally through a comprehensive mechanical testing campaign. The plasma-assisted solvolysis parameters were selected based on an earlier sensitivity analysis. Prepregs made from both virgin and recycled carbon fibers were fabricated via a hand lay-up process and manually stacked to produce unidirectional laminates. Longitudinal tension tests, longitudinal compression tests, and interlaminar shear strength (ILSS) tests were performed to assess the fundamental mechanical response of the recycled laminates and quantify the retention of mechanical properties relative to the virgin-reference material. Prior to mechanical testing, all laminates underwent ultrasonic C-scan inspection to assess manufacturing quality. While both laminate types exhibited generally satisfactory quality, the recycled-fiber laminates showed a higher density of defects. The recycled laminates preserved around 80% of their original tensile strength and maintained an essentially unchanged elastic modulus. Compressive strength was more susceptible to imperfections introduced during remanufacturing, with the recycled laminates exhibiting roughly a 14% decrease compared with the virgin material. On the contrary, the compressive modulus was largely retained. The most substantial reduction occurred in ILSS, which dropped by 58%. Overall, the results demonstrate that plasma-assisted solvolysis enables the recovery of carbon fibers suitable for remanufacturing CFRP laminates, while the observed reduction in mechanical properties of recycled CFRPs is mainly attributed to defects in manufacturing quality rather than to intrinsic degradation of the recycled carbon fibers.

1. Introduction

Carbon-fiber-reinforced polymers (CFRPs) are increasingly employed across the aerospace, automotive, and energy sectors due to their exceptional specific strength, stiffness, and corrosion resistance [1]. Their superior mechanical performance enables substantial weight reduction and improved fuel efficiency in lightweight structural applications. In the rapidly expanding hydrogen-storage sector, high-pressure composite overwrapped pressure vessels (COPVs) manufactured with CFRPs have become the industry standard for vehicular and transport applications, offering up to 70% weight savings compared with conventional metallic tanks [2,3]. This widespread adoption underscores the strategic importance of CFRPs in meeting energy-efficiency and decarbonization targets across multiple industries [4,5,6].

With the rapid expansion of CFRP applications, end-of-life management has emerged as a critical challenge for the composites industry. Recent assessments estimate that global end-of-life waste from carbon-fiber composites may reach 500,000–840,000 tons per year by 2050, predominantly originating from retired aircraft and decommissioned wind-turbine components [7]. Current worldwide recycling capacity remains significantly below this projected volume, highlighting the urgent need for scalable recovery technologies and robust closed-loop strategies for fiber reuse [8]. The permanent cross-linked structure of thermoset matrices prevents remelting or reshaping, unlike thermoplastics, rendering conventional reprocessing routes infeasible and necessitating innovative recycling pathways to meet circular-economy and sustainability objectives [9].

Several recycling routes for CFRPs have been investigated. Mechanical recycling is economically attractive; however, it typically produces short and damaged fibers, leading to reduced composite strength and compromised interfacial adhesion [10,11]. Thermal methods, particularly pyrolysis, enable the recovery of longer fibers, but the process often leaves surface char or oxide residues that impair fiber–matrix bonding and diminish fiber strength [11,12,13]. Chemical recycling through solvolysis—the depolymerization of the thermoset matrix in reactive solvents—offers a more selective alternative capable of preserving fiber morphology and achieving high mechanical performance [11,14,15]. Recent solvolysis studies using acetic or formic acid, nitric acid, supercritical water/alcohol mixtures, and catalytic systems have reported resin removal efficiencies above 90% and fiber-strength retention of approximately 80–98% [16]. Nonetheless, these processes commonly require elevated temperatures, long reaction times, or aggressive chemical environments, which introduce challenges related to scalability, safety, and environmental sustainability.

To overcome these limitations, assisted solvolysis approaches—such as ultrasonic-, microwave-, and plasma-enhanced processes—are being developed to accelerate matrix degradation under milder operating conditions. Plasma-assisted solvolysis, in particular, combines oxidative chemical reactions with the action of reactive plasma species, thereby enhancing mass transport and promoting efficient polymer oxidation within the solvent phase. Compared with conventional thermal and chemical recycling routes, such as pyrolysis and low-temperature solvolysis, plasma-assisted solvolysis enables rapid and effective matrix removal while preserving fiber integrity, reducing processing time and limiting the formation of harmful by-products. Recent studies using plasma-activated nitric acid have demonstrated complete epoxy removal within 3 to 6 h at atmospheric pressure while recovering fibers that retain or even exceed their original tensile properties [17,18]. These results indicate that plasma-enhanced solvolysis can substantially reduce energy demand and processing time without compromising fiber quality, positioning it as a promising next-generation recycling route for high-value CFRPs.

Despite considerable progress in fiber recovery, the remanufacturing of composites using recycled carbon fibers (rCFs) remains a major challenge—particularly when seeking mechanical performance comparable to virgin CFRPs. As discussed by Pimenta and Pinho [19], producing structural-grade composites from rCFs is still constrained by difficulties in achieving adequate fiber alignment, resin infiltration, and interfacial bonding, all of which limit the attainable mechanical properties. Zhang et al. [20] similarly noted that, although recycling technologies such as pyrolysis and solvolysis have advanced substantially, the transition from fiber recovery to large-scale composite remanufacturing is hindered by variability in fiber quality and limited control over downstream processing. Recent studies have therefore focused on assessing the mechanical performance of CFRP laminates remanufactured using rCF feedstocks. Ballout et al. [21], for example, fabricated laminates from fabrics reclaimed via mild solvolysis and reported performance retention of up to 93% relative to virgin composites, attributing the remaining reduction primarily to weaker fiber–matrix adhesion caused by the absence of sizing. Karuppannan and Kärki [22] also observed that thermally recycled fibers embedded in epoxy matrices preserved good tensile strength but exhibited lower interlaminar shear performance. Abdi et al. [23] emphasized that many current recycling routes induce fiber shortening, surface degradation, and misalignment, all of which compromise load-bearing capacity and interfacial bonding. Other researchers have examined how remanufacturing processes influence the resulting composite properties. Obunai et al. [24] reported that fibers recovered via superheated-steam pyrolysis led to reductions in bending and impact strength in the remanufactured laminates. Sato et al. [25] demonstrated that the mechanical response of rCF composites is highly sensitive to manufacturing quality, with fiber alignment, resin infiltration, and void content varying significantly across different fabrication routes and producing correspondingly wide variation in tensile modulus and stiffness. Sales-Contini et al. [26] and Theiss et al. [27] further showed that fiber alignment and orientation are critical determinants of mechanical performance in rCF laminates: manually fabricated laminates with insufficient alignment yielded limited tensile and flexural strengths, whereas highly oriented rCF tapes produced via automated fiber placement effectively restored structural-grade performance. Likewise, Cheng et al. [28] demonstrated that Cr₂O₃-assisted thermal recycling can yield fibers suitable for closed-loop remanufacturing, with the resulting laminates retaining more than 92% of the tensile and flexural strength of virgin CFRPs. More broadly, recent studies have highlighted the importance of detailed mechanistic analysis to link microstructural features with fracture and failure behavior in fiber-reinforced composites, as demonstrated in investigations on two-dimensional woven ceramic matrix composites [29].

Although plasma-assisted solvolysis shows clear potential for efficient fiber recovery, its influence on the mechanical performance of remanufactured composites remains largely unexplored. To assess the suitability of recycled fibers for load-bearing applications, it is essential to evaluate laminate-level behavior under multiple loading modes—tension, compression, and interlaminar shear strength (ILSS)—which collectively govern structural reliability. Accordingly, the present study investigates the remanufacturing of CFRP coupons using fibers recovered via plasma-assisted solvolysis, followed by mechanical testing in tension, compression, and ILSS. The mechanical response of the recycled-fiber laminates is compared with that of virgin-fiber composites to quantify property retention and identify failure mechanisms associated with fiber–matrix interfaces. Additionally, the study examines fabrication-related challenges encountered during laminate production and highlights how processing quality influences the resulting performance of the recycled CFRPs. Overall, this work provides new insight into the structural potential of plasma-recycled carbon fibers and contributes to advancing circular, high-value composite materials.

2. Experimental Section

2.1. Materials

The CFRP materials examined in this study originated from filament-wound composite cylinders, a manufacturing technique commonly employed for pressure vessels and structural tubular components. The cylinders were produced by B&T Composites (Florina, Greece). Each specimen had a height of approximately 6.4–6.5 cm, an inner diameter of 5.5 cm, an outer diameter of 6.0 cm, and a wall thickness of about 0.25 cm. The volume of each cylinder was approximately 30 cm³, with a mass of 39 ± 2 g and a fiber content of 64 ± 3 wt%. The anhydride-cured epoxy matrix consisted of EPIKOTE™ Resin 828 in combination with EPIKURE™ Curing Agent 866 (Westlake Epoxy, Houston, TX, USA). This high-performance two-part epoxy system is widely used in aerospace-grade composite applications. EPIKOTE 828 is a bisphenol-A-based liquid epoxy resin, whereas EPIKURE 866 is a liquid cycloaliphatic anhydride hardener. The system provides excellent mechanical strength, low curing shrinkage, strong adhesion to substrates, and high resistance to chemicals, acids, fuels, and solvents. The reinforcement phase consisted of TR30S carbon fibers (3K tows) supplied by Fibermax Ltd. (Agria Magnisias, Greece) [30].

The newly manufactured CFRP used the same type of reinforcement, while the polymer matrix consisted of a two-part epoxy system (base resin: SR1700; hardener: SD2803) mixed at a weight ratio of 2.5:1, supplied by Sicomin Epoxy Systems (Châteauneuf-les-Martigues, France) [31]. This bisphenol-A-based resin system exhibits a glass transition temperature of approximately 101 °C and is widely employed in high-performance composite structures due to its high stiffness, low water absorption, and strong fiber–matrix adhesion. The use of different epoxy systems was primarily dictated by material availability; however, the resin selected for remanufacturing was chosen to closely match the mechanical and processing characteristics of the reference system.

2.2. Plasma-Assisted Solvolysis Process

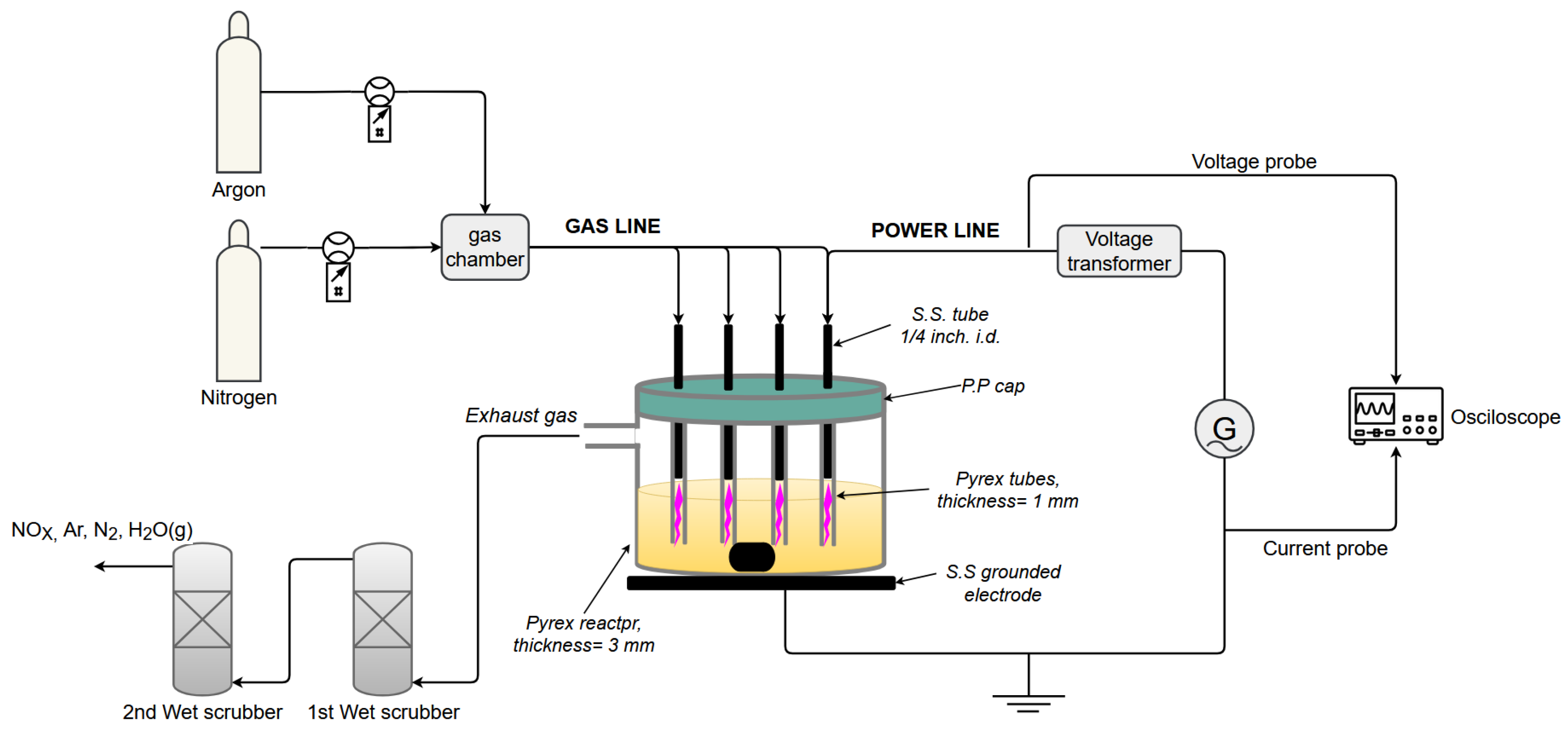

Figure 1 illustrates the plasma-assisted solvolysis setup used for recycling CFRPs. The system consists of a 2 L glass reactor vessel filled with concentrated nitric acid (65 wt%, Lachner, Neratovice, Czech Republic), capable of processing up to 1 kg of CFRP per batch. The glass reactor is placed on a grounded stainless-steel plate, which serves as the ground electrode. Four stainless-steel tube electrodes are positioned inside the reactor at the liquid surface and connected to a 30 kHz high-frequency power generator (IGBT143, Martignoni Elettrotecnica, Milano, Italy) and a 30 kV peak-to-peak voltage amplifier (IGBT163, Martignoni Elettrotecnica). Each electrode is enclosed within a glass tube that extends into the liquid and injects a controlled gas flow of 0.6 L/min, consisting of a nitrogen–argon mixture (1:4). The injected gas forms bubbles in which plasma is ignited, generating highly reactive chemical species capable of decomposing the polymer matrix of the composite. Real-time monitoring of the electrical parameters is performed using a passive voltage probe (1000:1, P6015A, Tektronix, Beaverton, OR, USA) and a passive current probe (1:1, Model 6585, Pearson Electronics, Palo Alto, CA, USA).

Before entering the plasma reactor, the composite materials undergo a pretreatment step in a dilute nitric acid solution (4–8 M) to initiate polymer swelling. During plasma treatment, the gases released from the reactor pass through two wet scrubber columns connected in series, each containing 1.5 L of scrubbing solution. The scrubber system, consisting of 0.01 M nitric acid and 0.06 M hydrogen peroxide, removes more than 80% of harmful NO_x species from the exhaust stream. As the scrubber solution becomes enriched with nitrate compounds, it can be reused either as the pretreatment solution for subsequent batches or reintegrated into the main process stream. Once the polymer matrix is fully dissolved, the spent acid solution is regenerated for the next cycle by adding hydrogen peroxide, fresh 65% nitric acid, and the nitrate-enriched scrubber liquid. Throughout treatment, each CFRP specimen is held inside a stainless-steel cylindrical cage to minimize fiber damage, limit unwanted movement, and prevent entanglement or breakage of the continuous fibers. After complete matrix removal, the cages containing the recovered fibers are removed from the reactor and thoroughly rinsed with acetone followed by water to eliminate any remaining acid or polymer residues. The recovered continuous carbon fibers (100–120 m in length) are then transferred from the cylindrical cages onto industrial bobbins using a manual winding mechanism for storage and subsequent processing.

Prior to the present study, extensive experiments were conducted to optimize the operating conditions of the plasma-assisted solvolysis system with respect to the mechanical properties of the recovered single fibers [32], the processing time required for complete matrix dissolution, and the amount of NO_x generated per gram of retrieved fibers. Based on our previous findings, operating at 1200 W with a 14.4 M HNO₃ solution was shown to minimize treatment time (≈6 h) and reduce NO_x emissions per gram of recycled fibers, while ensuring that the recovered fibers retained mechanical properties comparable to those of virgin fibers [18,33].

2.3. Characterization of Recovered Fibers

The rCFs used for laminate remanufacturing were evaluated for their mechanical and interfacial properties prior to composite fabrication, following the same procedures described in [32]. Single-fiber tensile tests were performed using a Minimat 2000 micro-tensile (Rheometric Scientific, Piscataway, NJ, USA) apparatus with a 25 mm gauge length and a displacement rate of 2 mm/min, in accordance with ASTM C1557-14 [34]. Individual fibers were mounted on paper frames using epoxy adhesive to ensure proper alignment and avoid preloading. Based on the resulting stress–strain curves, the recycled fibers exhibited an average tensile strength of 2671.21 ± 573.82 MPa, a Young’s modulus of 223.08 ± 48.53 GPa, and an elongation at break of 1.67 ± 0.23%. The corresponding Weibull shape factor was approximately 4.6, indicating good reliability and limited data scatter. Compared with the virgin carbon fibers, the recycled fibers showed an increase of roughly 18% in tensile strength, an 11% improvement in modulus, and a modest increase of about 7% in elongation at break. The slight increase in tensile strength observed for recycled fibers is attributed to surface cleaning and activation effects induced by plasma-assisted solvolysis. Interfacial adhesion was assessed through microbond testing using Araldite LY5052 resin droplets. The measured interfacial shear strength (IFSS) averaged 40.54 MPa, representing a reduction of approximately 25% relative to the virgin reference. Although the IFSS exhibited a more pronounced decrease, all other measured properties—tensile strength, modulus, and elongation—were effectively maintained. Overall, the recovered fibers can be considered suitable for remanufacturing and serve as viable reinforcement for producing the recycled CFRP laminates examined in this study.

The recovered and virgin carbon fibers were characterized using scanning electron microscopy (SEM, JEOL 6300, JEOL, Zhubei City, Taiwan) coupled with energy-dispersive spectroscopy (EDS, Link ISIS 300, Oxford Instruments, High Wycombe, Buckinghamshire, UK), operated at an accelerating voltage of 20 kV. SEM was used to assess surface morphology, while EDS provided qualitative and quantitative information on surface elemental composition.

SEM images (Figure 2) reveal surface differences between virgin and recycled carbon fibers. Virgin fibers (Figure 2b) exhibit relatively smooth and uniform surfaces with occasional remnants of the original sizing, whereas recycled fibers (Figure 2a) display etched features distributed along the fiber length. EDS analysis confirms that these surface features correspond to oxidized layers rather than residual resin, indicating that the plasma-assisted solvolysis process effectively removes the polymeric matrix and sizing from the fiber surface [35,36,37].

Quantitative EDS results are summarized in

Table 1. Surface elemental composition of virgin and recycled carbon fibers measured by EDS (atomic %).

Element	Virgin Fibers (at.%)	Recycled Fibers (at.%)
Carbon	92.2	85.3
Oxygen	7.8	14.3
Others	<0.1	<0.4

. Recycled fibers show a markedly increased surface oxygen content (14.3%) compared to virgin fibers (7.8%), accompanied by a corresponding reduction in carbon content. Plasma-activated nitric acid generates radicals (•OH, •OH₂, •O, •NO₂) that oxidize the fiber surface, converting carbonaceous groups into oxygen-containing groups. The atomic oxygen increase observed in recycled fibers is consistent with literature values for aggressive HNO₃ treatment, as Langston et al. reported that oxygen content typically rises 14–18% in heavily oxidized recycled fibers [35]. Literature on nitric acid treatment of carbon fibers also demonstrates that extended exposure leads to a shift toward carbonyl (C=O) and carboxyl (COOH) groups rather than hydroxyl (C-OH) species. The oxidation mechanism proceeds through multi-step pathways where initial hydroxylation is followed by dehydrogenation to form stable C=O and subsequently COOH through further oxidation [36].

The current investigation extends beyond fiber-level characterization and evaluates the laminate-level mechanical performance of CFRPs manufactured using plasma-recycled fibers. By employing operating conditions previously identified as optimal, the study aims to decouple recycling-process optimization from composite manufacturing effects and to assess the true structural potential and limitations of plasma-assisted solvolysis recycled carbon fibers.

2.4. Manufacturing of Composite Laminates

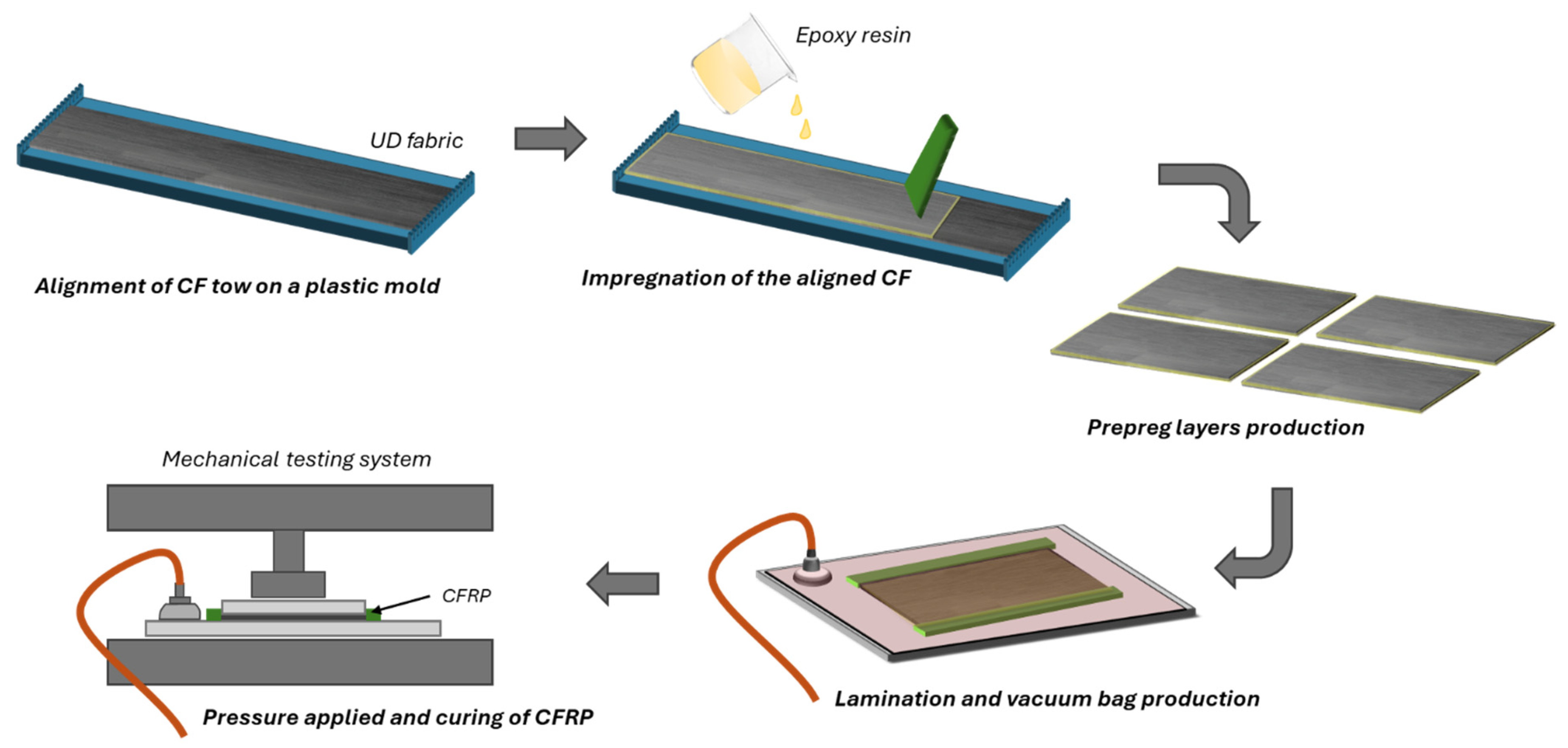

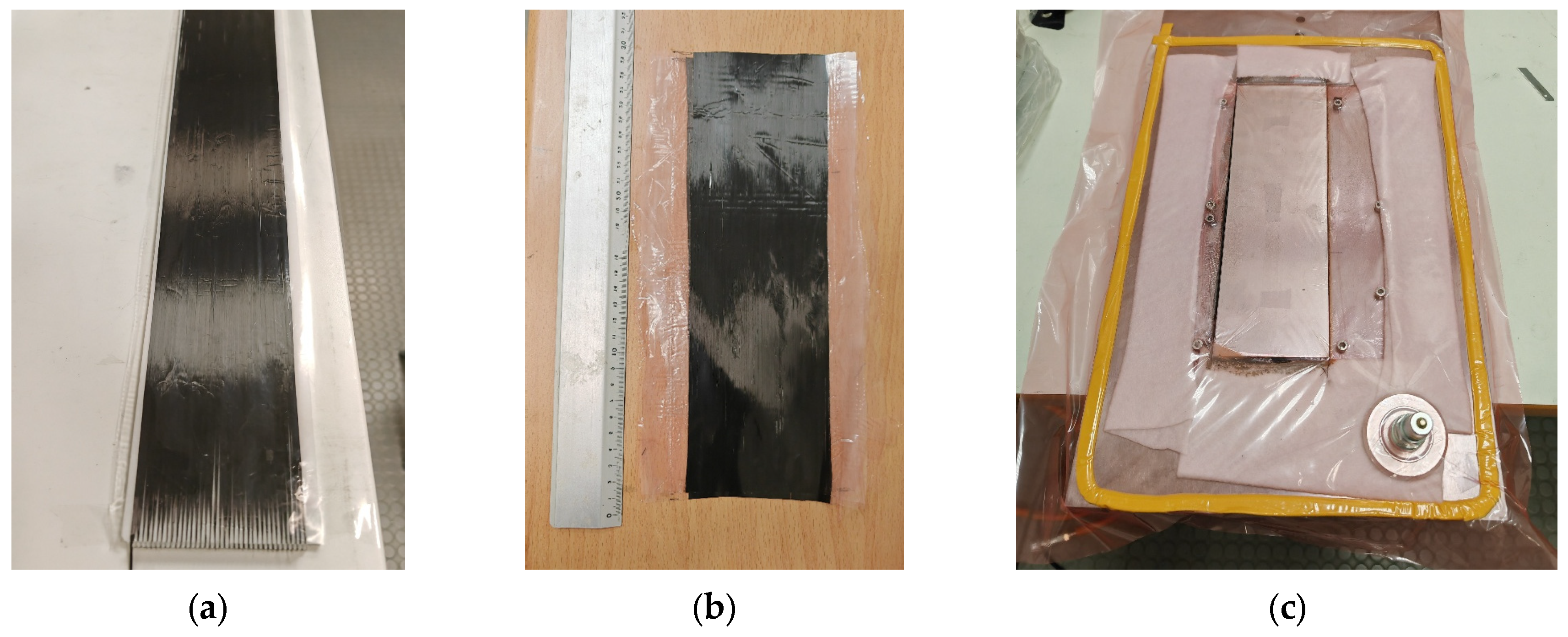

Figure 3 provides an overview of the in-house CFRP manufacturing process, which was carried out by ADRINE (https://adrine.gr/, accessed on 11 January 2026). The fabrication of the composite prepregs began with the placement and alignment of carbon fibers in a single-lamina configuration to ensure uniform fiber distribution and orientation (Figure 4a). The fibers were arranged on a PMMA plastic mold covered with a PTFE release film. The fiber tow spacing was adjusted to achieve an areal density equivalent to that of a commercial unidirectional (UD) 3K carbon fiber fabric. Prepregs were produced using a hand lay-up technique (Figure 4b). The required quantity of epoxy resin was evenly distributed over the aligned fibers with a plastic spatula, ensuring sufficient impregnation. After impregnation, the samples were separated using PTFE films and subsequently stored at −18 °C.

The prepregs were subsequently stacked layer by layer to form composite laminates, with the number of layers selected to achieve the desired final thickness of the test coupons (Figure 4c). In this study, six prepreg layers were used to produce laminates of approximately 1 mm thick. The assembled layups were placed under vacuum to remove entrapped air and to ensure proper consolidation and were then cured for 24 h at room temperature under an applied pressure of 2 bar. A post-curing step followed for 16 h at 60 °C. All processing parameters were kept constant throughout the fabrication campaign to ensure consistent fiber volume fraction and dimensional accuracy of the manufactured plates.

The fiber volume fraction of the composite plies was determined using optical microscopy (Euromex Microscopen, Duiven, Netherlands) of polished CFRP cross-sections. Image-analysis IC Measure software (version 1.0) was employed to segment the carbon-fiber regions and calculate their area fraction relative to the total cross-sectional area, resulting in an estimated fiber volume fraction of approximately 58% (Figure 5).

2.5. Mechanical Testing

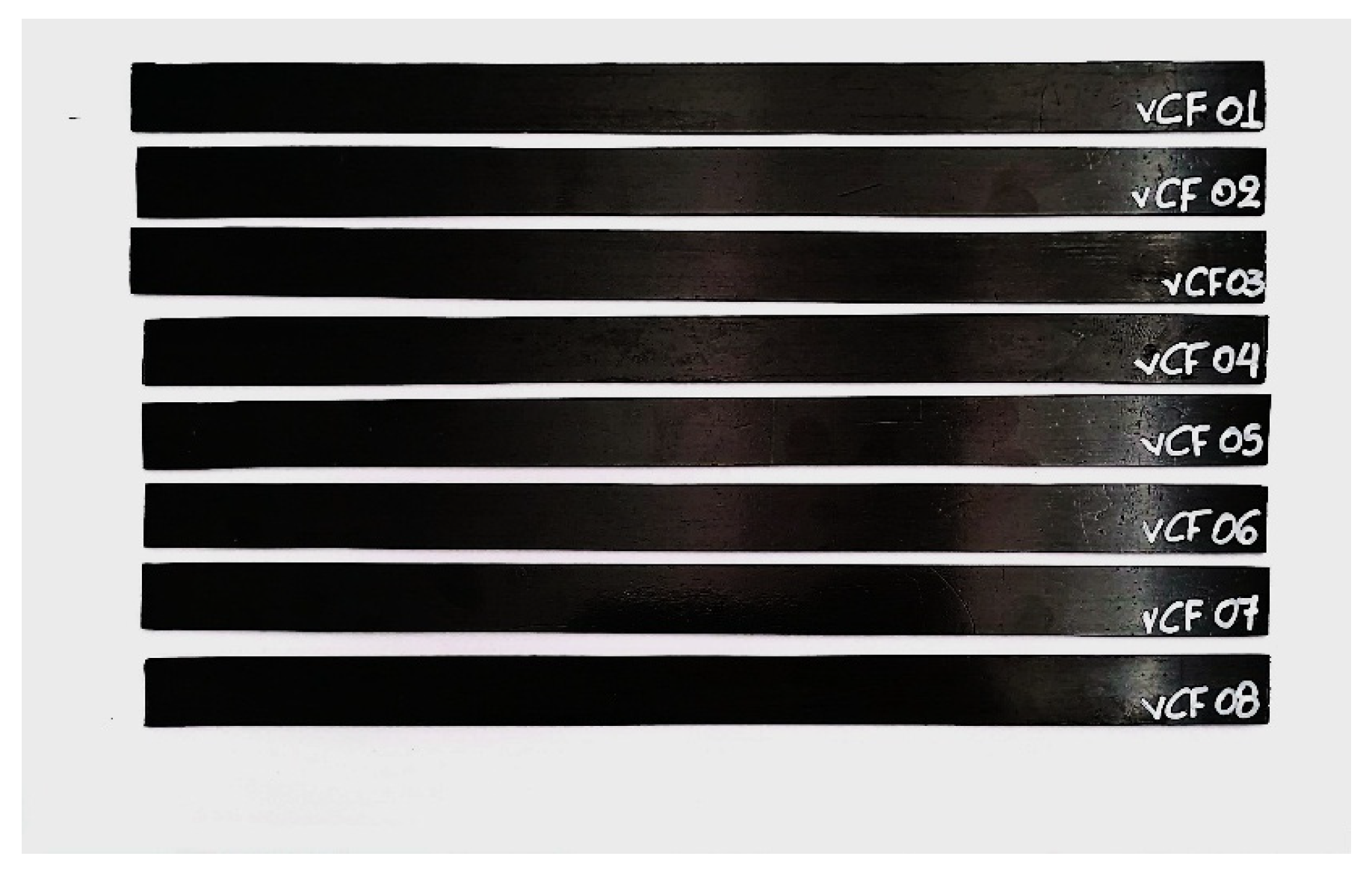

Mechanical characterization of the CFRP laminates manufactured with virgin carbon fibers (vCFs) and rCFs was performed to evaluate their tensile, compressive, and interlaminar shear properties. All tests were carried out using calibrated universal testing machines under controlled laboratory conditions, in accordance with the relevant ASTM standards.

The coupon dimensions were measured using a digital caliper with an accuracy of ±0.01 mm at three equally spaced locations along the gauge section. The values reported in

Table 2. Average coupon dimensions (mean ± standard deviation, n = 5) for tension, compression, and ILSS tests.

Test Type	Fibers Used	Thickness [mm]	Width [mm]	Length [mm]
Tension Test	vCFs	1.10 ± 0.05	15.07 ± 0.28	251.60 ± 1.82
	rCFs	1.12 ± 0.11	15.04 ± 0.33	250.00 ± 0.71
Compression Test	vCFs	0.91 ± 0.09	15.41 ± 0.38	140.46 ± 0.97
	rCFs	1.08 ± 0.03	14.36 ± 0.71	140.02 ± 0.62
ILSS Test	vCFs	2.95 ± 0.12	6.17 ± 0.24	18.91 ± 0.01
	rCFs	3.54 ± 0.08	5.91 ± 0.36	19.99 ± 0.03

correspond to the mean and standard deviation obtained from five specimens per laminate type. No statistically significant dimensional differences were observed between the virgin and recycled coupons.

2.5.1. Tension Test

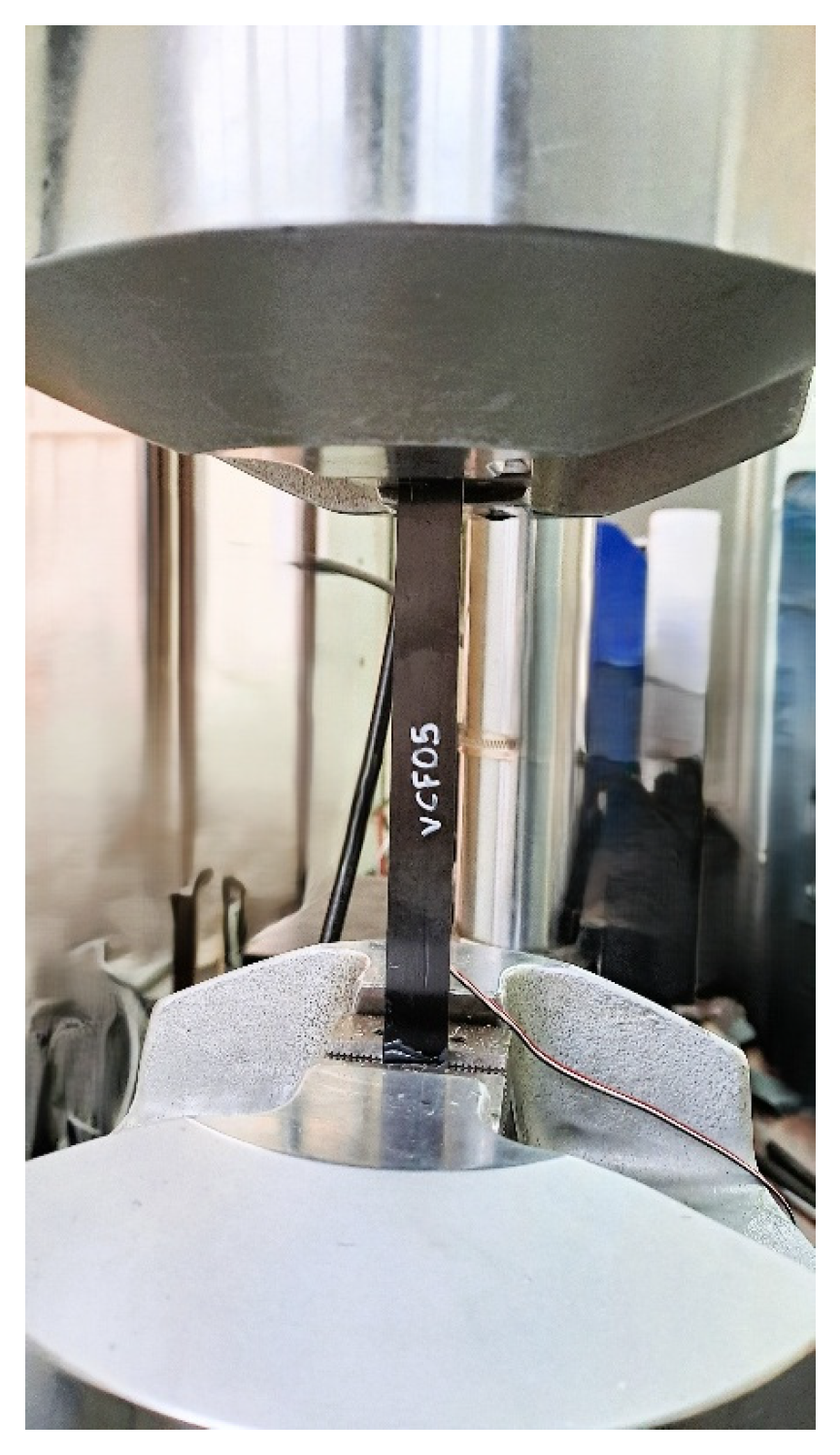

The tensile behavior of the laminates was characterized in accordance with ASTM D3039 using an MTS 100 kN universal testing machine(MTS Systems Corporation, Eden Prairie, MN, USA) equipped with wedge-action mechanical grips and an axial extensometer for strain measurement [37]. Rectangular coupons were cut from the unidirectional laminates to nominal dimensions of 250 mm × 25 mm × 1 mm (Figure 6). Each specimen was fitted with 56 mm-long GFRP end tabs bonded with a structural epoxy adhesive to promote uniform load transfer and prevent grip-induced failure. The testing configuration and specimen alignment at the start of the experiment are shown in Figure 7. Tensile loading was applied under displacement control at a crosshead rate of 2 mm/min, while load and strain were continuously recorded to generate the full stress–strain response. The tensile modulus, ultimate tensile strength, and elongation at break were subsequently derived from these measurements.

The tensile modulus (E) was obtained from the slope of the linear portion of the stress–strain curve. To ensure accurate strain measurement, at least one specimen from each material configuration was instrumented with back-to-back axial extensometers, enabling the assessment of bending effects during loading. The percentage of bending was computed at the mid-range of the chord modulus strain interval following the procedure defined in Equation (1). For tests in which bending remained below 3%, strain measurements from a single extensometer were deemed sufficient. In cases where bending exceeded this threshold, the average readings from the back-to-back sensors were used to provide a more reliable determination of the tensile modulus.

$$B_y={\displaystyle \frac{\left|{\epsilon }_f-{\epsilon }_b\right|}{\left|{\epsilon }_f+{\epsilon }_b\right|}}$$

(1)

where ${\epsilon }_f$ is indicated strain from front transducer, ${\epsilon }_b$ is indicated strain from back transducer and $B_y$ is the percent bending in specimen.

2.5.2. Compression Test

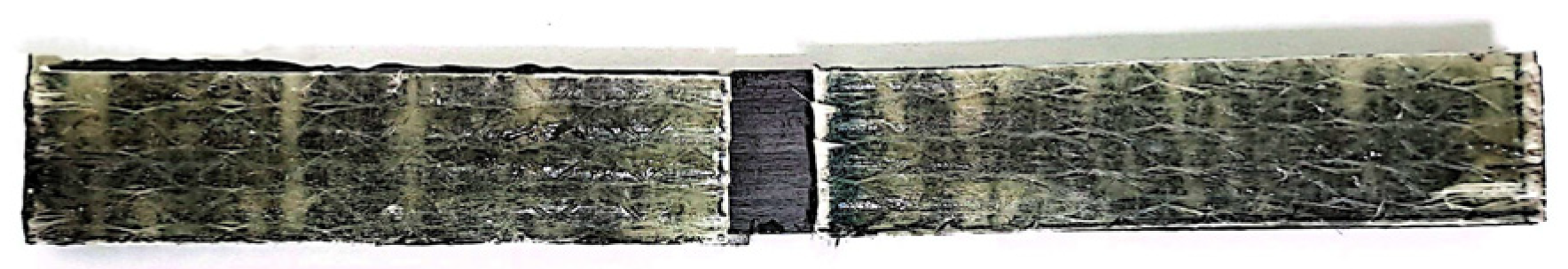

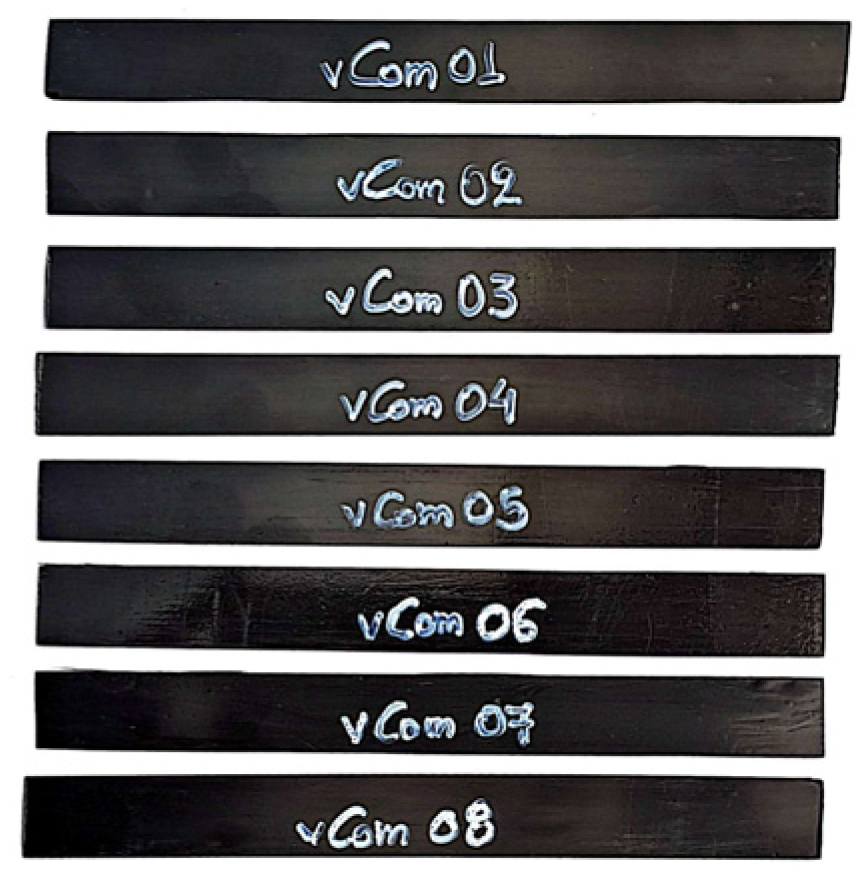

The longitudinal compressive properties were evaluated in accordance with ASTM D3410 using the same MTS 100 kN universal testing machine [38]. Rectangular coupons measuring 140 mm × 15 mm × 1 mm were prepared and fitted with 62.5 mm-long end tabs to promote uniform load transfer and prevent premature gripping-related failure (Figure 8 and Figure 9). Tests were performed under displacement control at a crosshead rate of 1 mm/min, while axial load and displacement were continuously recorded to obtain the compressive stress–strain response.

During testing, axial and transverse strains were monitored using strain gauges bonded to the specimen surface to assess specimen alignment and ensure that bending remained below the 10% limit, following the same approach used for Equation (1). The measured responses were subsequently used to determine the compressive modulus and compressive strength.

2.5.3. Interlaminar Shear Strength (ILSS) Test

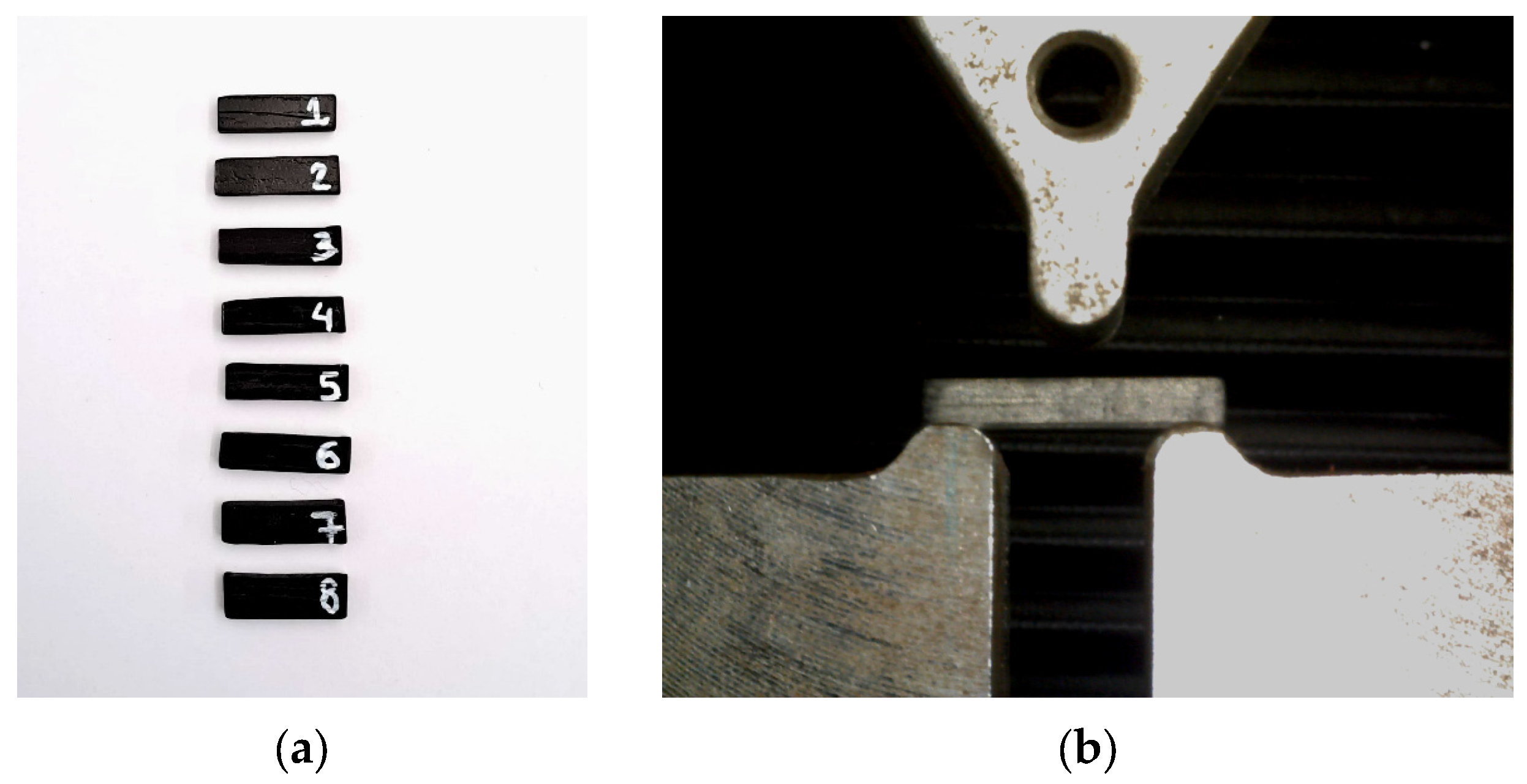

The interlaminar shear strength was evaluated using the short-beam three-point bending method in accordance with ASTM D2344 [39]. Tests were conducted on a Tinius Olsen universal testing machine (Tinius Olsen Ltd., Horsham, PA, USA) equipped with a dedicated three-point bending fixture configured with a span-to-thickness ratio of 4:1. The loading nose had a diameter of 6 mm, while the two lower cylindrical supports were 3 mm in diameter and positioned 3.5 mm from each specimen edge to ensure proper load transfer. Rectangular specimens were machined to nominal dimensions of 18 mm × 6 mm × 3 mm, with careful attention to maintaining parallel faces and uniform thickness (Figure 10a). Figure 10b illustrates the test setup at the beginning of the ILSS measurement. During testing, load and mid-span displacement were continuously recorded, and the interlaminar shear strength (${\tau }_{ILSS}$) was computed using:

$${\tau }_{ILSS}={\displaystyle \frac{0.75 F_{max}}{b\cdot t}}$$

(2)

where $F_{max}$ is the maximum load at failure [N], $b$ is specimen width [mm], and $t$ is specimen thickness [mm].

3. Results

3.1. Non-Destructive Testing

Prior to mechanical testing, the CFRP laminates intended for tensile and compressive evaluation were examined using ultrasonic C-scan inspection to verify laminate integrity, identify internal defects, and assess overall manufacturing quality. The inspection was carried out as an off-line non-destructive evaluation (NDE) technique, meaning that measurements were performed after laminate fabrication. This approach enables detailed characterization of internal features—such as voids, delamination, inclusions, and regions of insufficient resin infiltration—thereby providing a reliable assessment of laminate uniformity.

The C-scan method is based on the detection of acoustic reflections generated at interfaces where mismatches in acoustic impedance occur. In this study, an immersion pulse–echo configuration was employed, using a 5 MHz transducer and a fixed gain setting for all scans to ensure consistent comparison across specimens. Representative amplitude maps were obtained for both virgin- and recycled-fiber laminates prepared for the tensile and compressive tests. For the ILSS coupons, however, no reliable C-scan data could be collected due to the small specimen dimensions, which limited the interpretability of the ultrasonic signal.

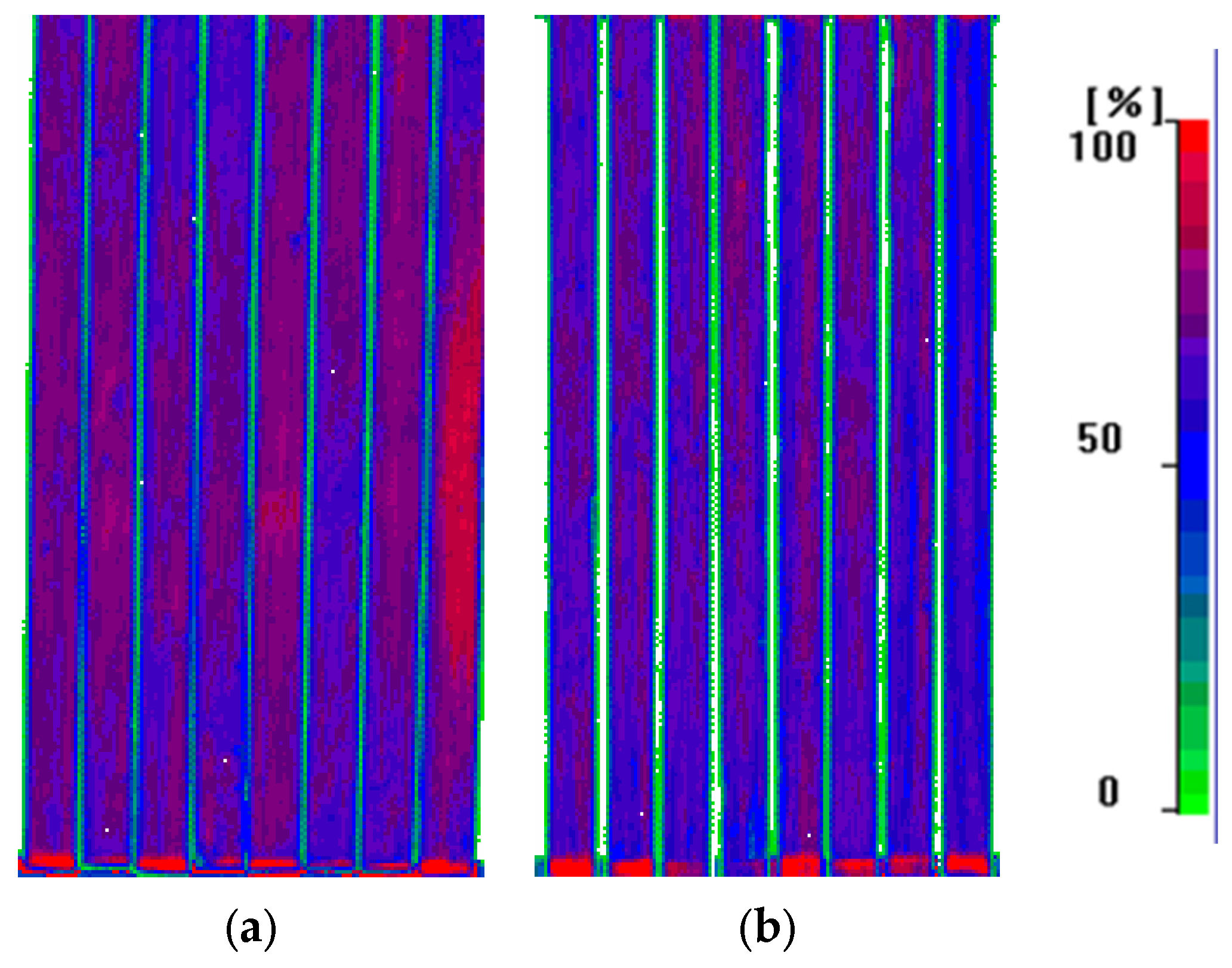

For the tensile specimens, the C-scan amplitude images of the virgin laminates (Figure 11) exhibited a predominantly red pattern with uniform signal intensity along the gauge length, indicative of effective resin impregnation and the absence of delamination or dry fiber regions. The recycled laminates showed a slightly more blue-shifted response, suggesting the presence of localized areas with reduced density, primarily near the specimen edges. Despite these minor variations, both laminate types demonstrated satisfactory manufacturing quality and good consolidation, with no major internal defects detected.

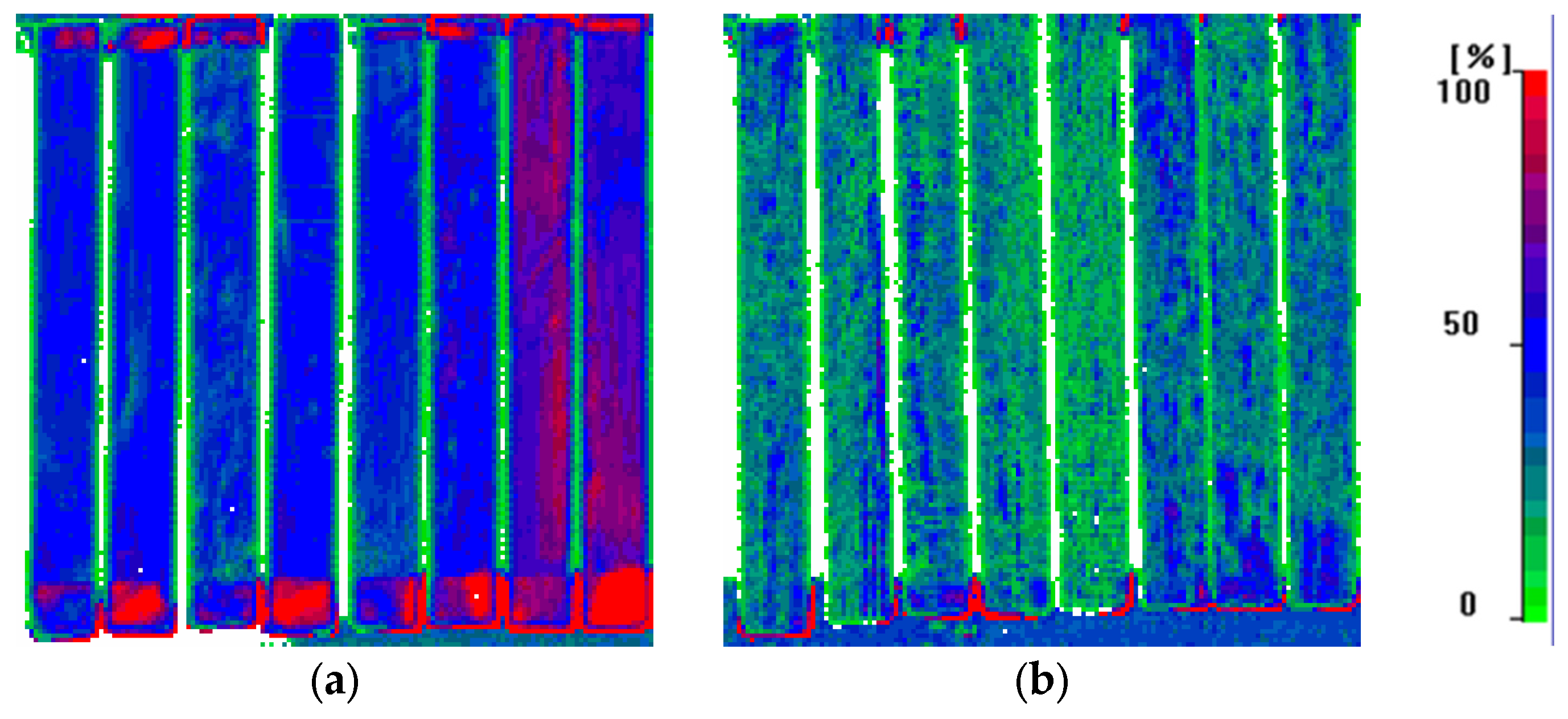

For the compressive specimens, the C-scan results (Figure 12) reveal a clear distinction in internal laminate quality between the virgin- and recycled-fiber composites. Unlike the virgin tensile coupons, the virgin compressive specimens—despite being produced with the same nominal thickness and lay-up—displayed scattered greenish regions indicative of slight interlaminar variations or minor delamination. These indications were more pronounced in the recycled compressive laminates, where larger and more continuous green zones appeared across the gauge section, particularly near the mid-thickness plane. Such localized voids or weakly bonded interfaces are known to facilitate premature micro-buckling and kink-band initiation under compressive loading. Overall, while all laminates preserved structural continuity, the recycled specimens exhibited a noticeably higher density of small defects, highlighting their increased susceptibility to void formation during fabrication.

3.2. Tensile Properties

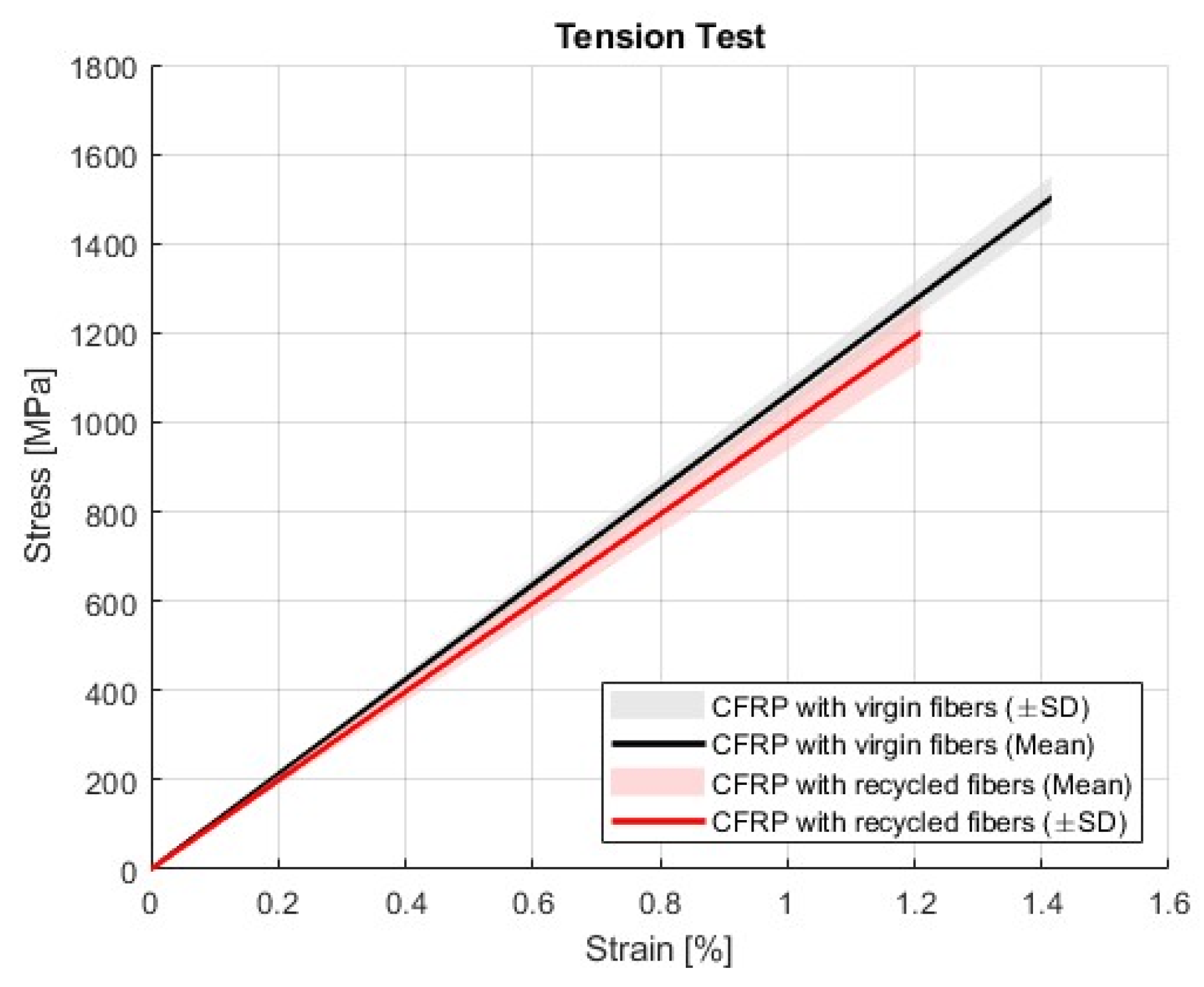

Figure 13 compares the tensile stress–strain curves of virgin and recycled coupons. The tensile stress–strain responses of both laminate types exhibited a linear elastic region followed by brittle failure. However, the recycled specimens showed an earlier deviation from linearity, indicating premature damage initiation—likely in the form of microcracking and local fiber–matrix debonding—compared to the virgin composites. A similar early slope change in tensile curves of recycled carbon-fiber composites was reported by Becker et al. [40] for staple-fiber yarn systems, which they attributed to fiber misalignment and weaker interfacial bonding.

The virgin laminates achieved an average tensile strength of 1538.55 ± 57.49 MPa, a modulus of 175.07 ± 13.45 GPa, and an elongation at break of 1.42 ± 0.15%. In comparison, the recycled laminates reached 1236.43 ± 36.17 MPa, 180.95 ± 18.24 GPa, and 1.21 ± 0.11%.

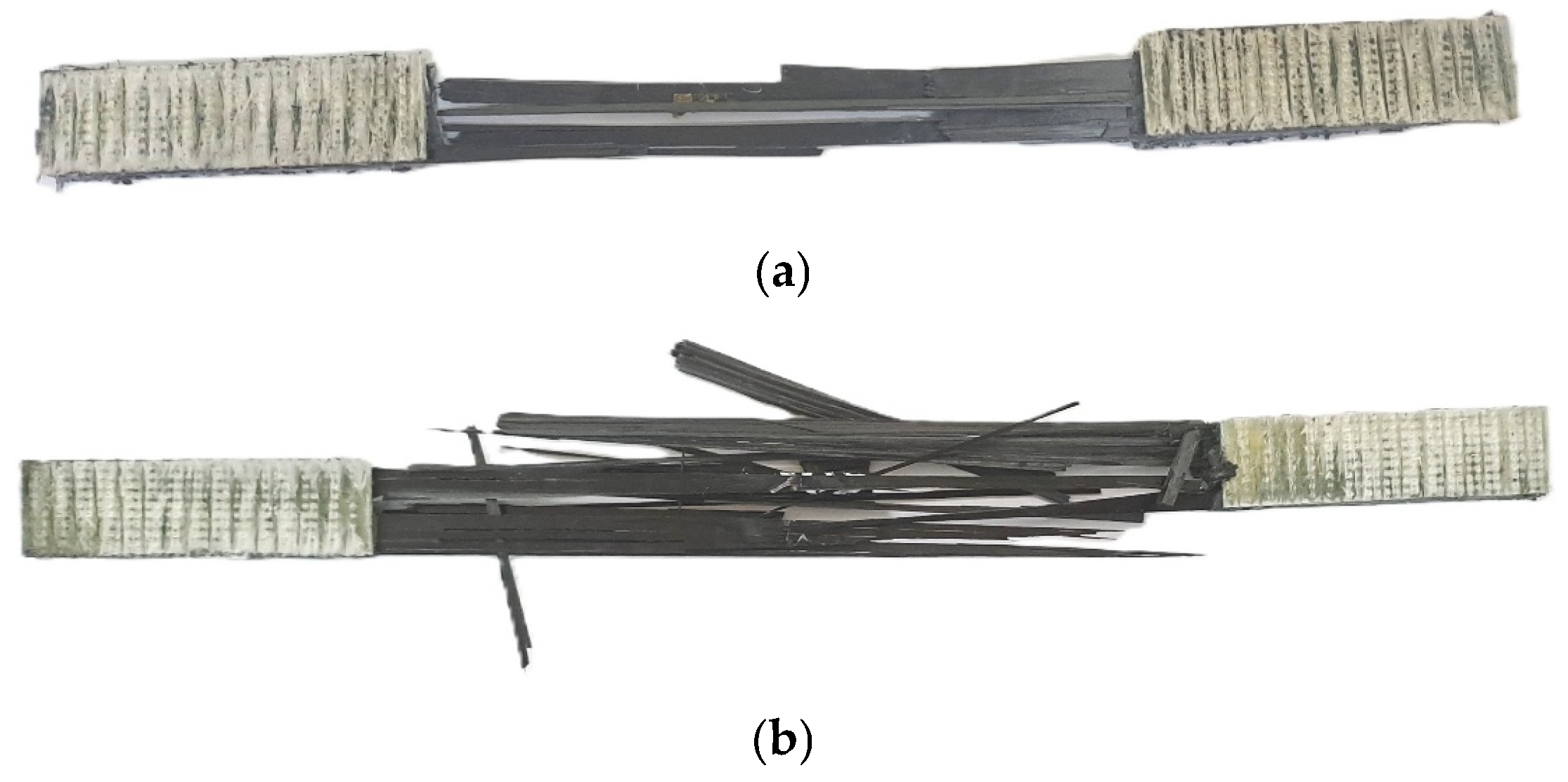

Both laminate types exhibited explosive tensile failure, which is characteristic of unidirectional CFRPs loaded parallel to the fiber direction. As shown in Figure 14, the virgin specimen (failure type XGT) displayed a clean, centrally located fiber rupture with only minor delamination near the tab ends, indicating uniform load transfer and strong fiber–matrix adhesion. In contrast, the recycled specimen (failure type XGB) presented a more diffuse failure pattern, featuring extensive fiber pull-out, splintering, and localized delamination. These visual observations are consistent with the reduced tensile strength measured for the recycled laminates and highlight the role of interfacial quality and manufacturing-induced defects in governing the failure morphology.

3.3. Compressive Properties

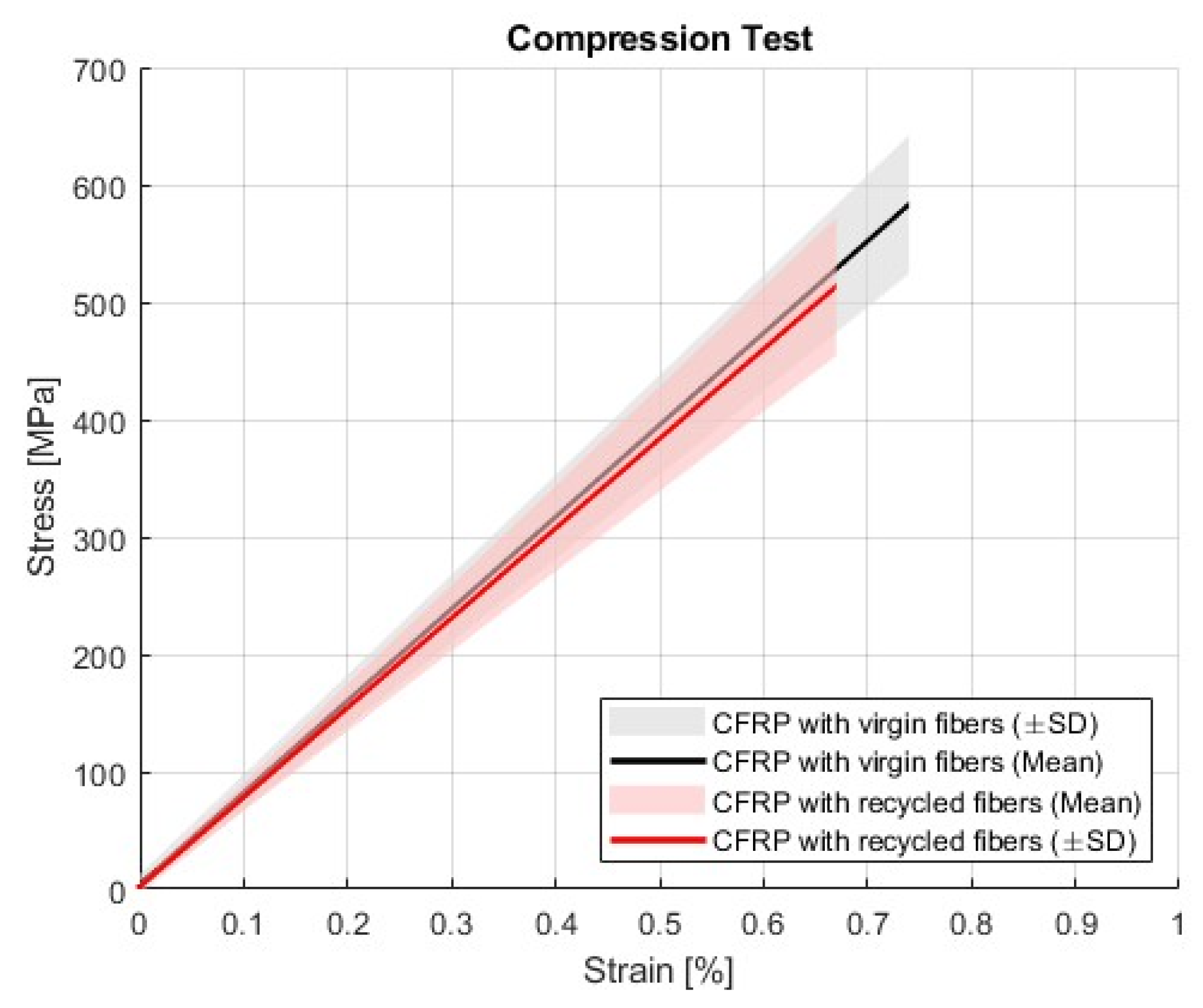

Figure 15 compares the compressive stress–strain curves of virgin and recycled coupons. Virgin-fiber laminates reached an average compressive strength of 593.48 ± 60.17 MPa, whereas the recycled-fiber specimens achieved 513.41 ± 58.92 MPa, corresponding to a reduction of approximately 14%. The compressive modulus exhibited a more moderate decrease, retaining about 93% of the virgin material’s stiffness (116.30 ± 17.44 GPa for virgin laminates compared with 108.39 ± 15.17 GPa for the recycled ones). The ultimate compressive strain showed a similar trend, with virgin laminates reaching 0.74 ± 0.13%, while the recycled laminates recorded 0.67 ± 0.30%. These results confirm that, although stiffness is largely preserved, the compressive capacity of the recycled laminates is more sensitive to remanufacturing-induced defects such as voids and fiber misalignment.

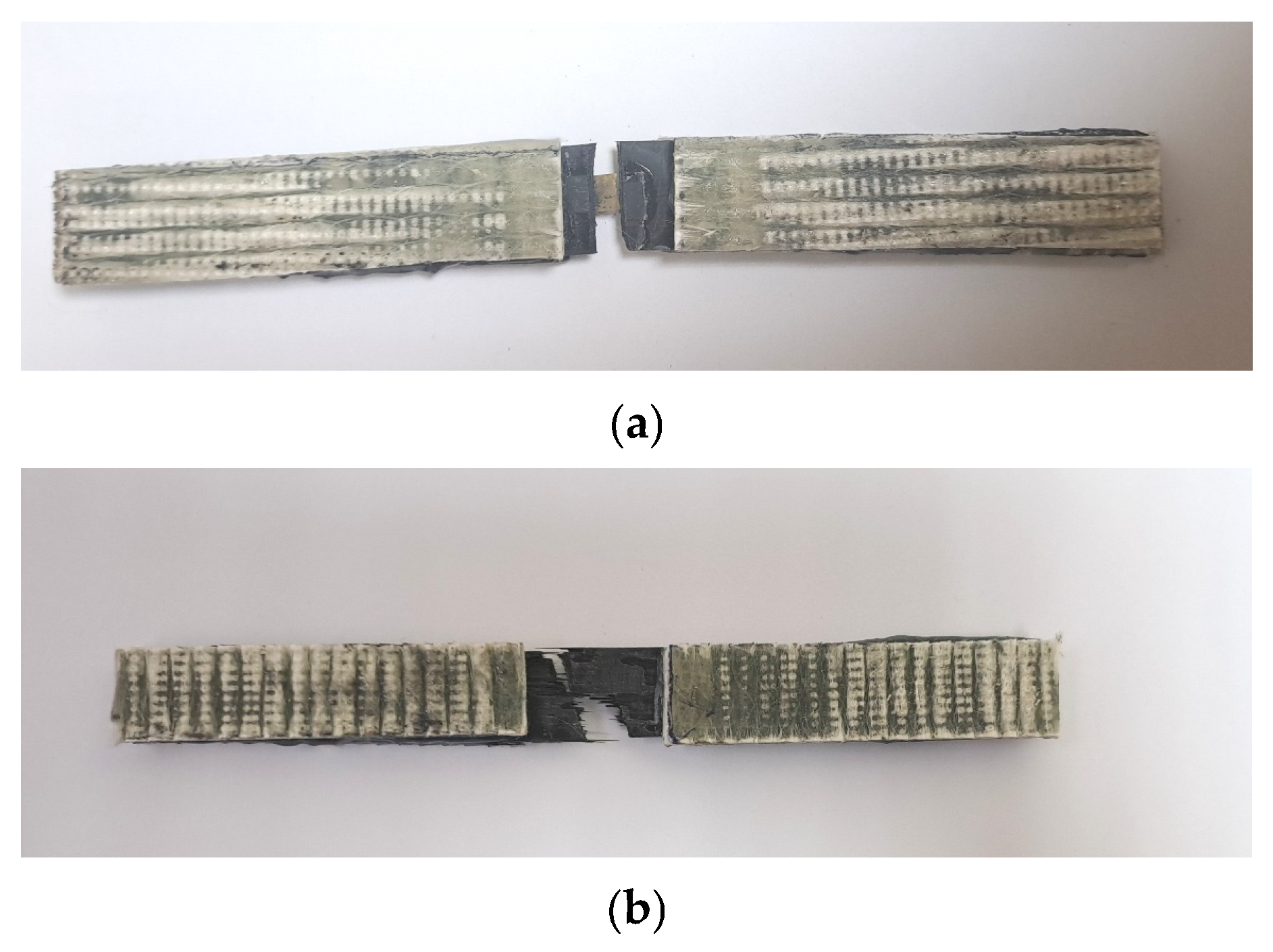

Following compressive loading, both laminates exhibited brittle failure governed by fiber micro-buckling and matrix shear (Figure 16). The virgin specimen failed through a well-defined vertical kink band located near the mid-gauge region (failure type LGM), whereas the recycled laminate displayed a more irregular fracture pattern characterized by transverse splitting and partial delamination. This behavior indicates that local instabilities initiated at resin-deficient zones—previously identified in the C-scan—played a critical role in triggering failure (failure type TGV).

These differences confirm that imperfections introduced during the remanufacturing process, such as voids, slight fiber waviness, and weakly bonded interfaces, reduce the laminate’s ability to withstand compressive loads. In contrast to tensile behavior, which is fiber-dominated and largely reflects the intrinsic properties of the carbon fibers, the compressive response of unidirectional CFRPs is highly sensitive to matrix-related characteristics and defects. Imperfections such as delamination strongly influence the onset of micro-buckling and kink-band formation. Among these factors, inadequate fiber alignment remains one of the most critical limitations in recycled-fiber laminate fabrication, suggesting that controlled pretreatment or improved fiber-orientation strategies could substantially enhance compressive performance [41].

3.4. ILSS Properties

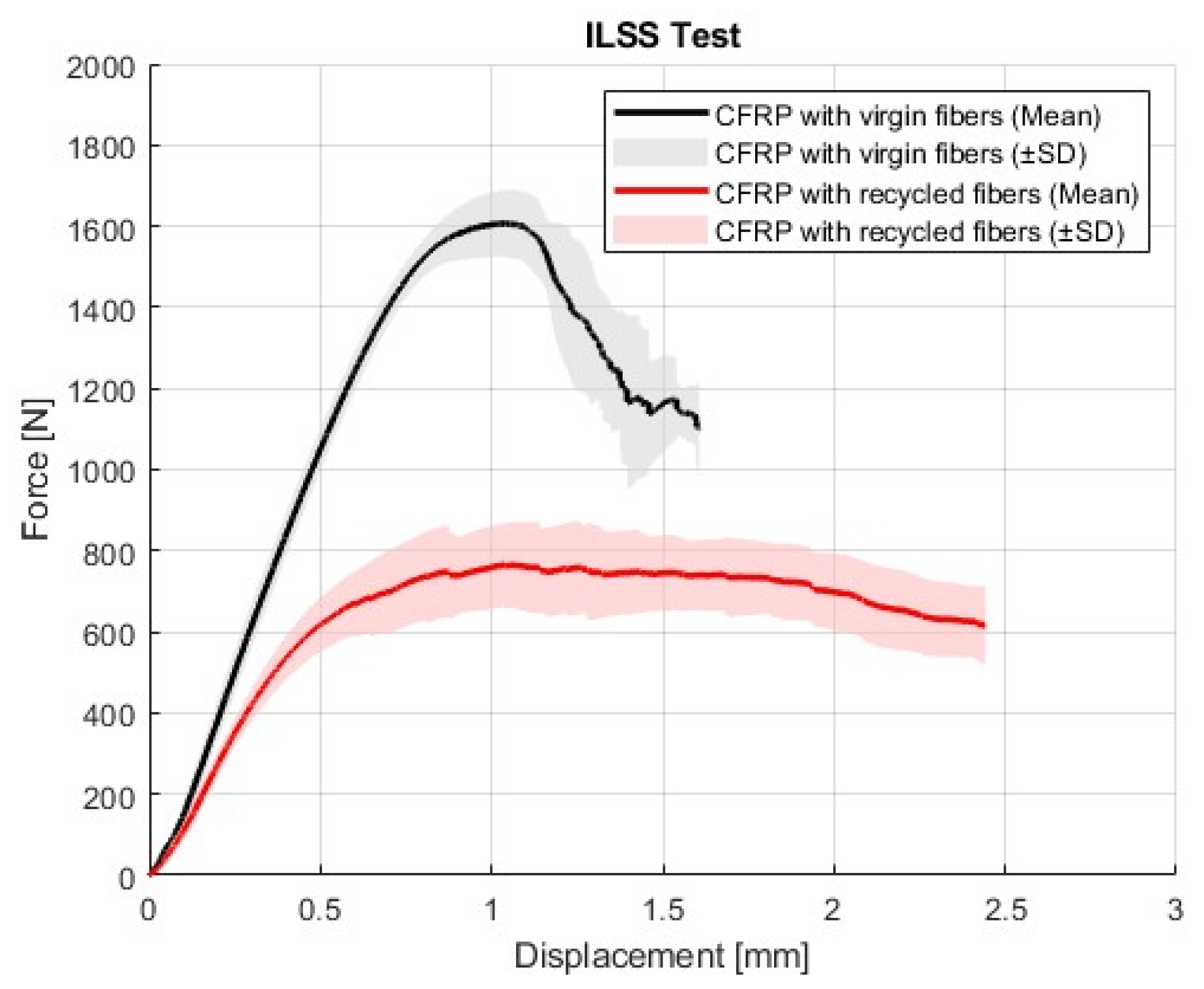

Figure 17 compares the ILSS force-displacement curves of virgin and recycled coupons. The interlaminar shear strength tests revealed the most pronounced performance reduction. Virgin-fiber laminates exhibited an average ILSS of 66.42 ± 1.88 MPa, while the recycled laminates reached about 28.07 ± 3.13 MPa, corresponding to a 58% reduction.

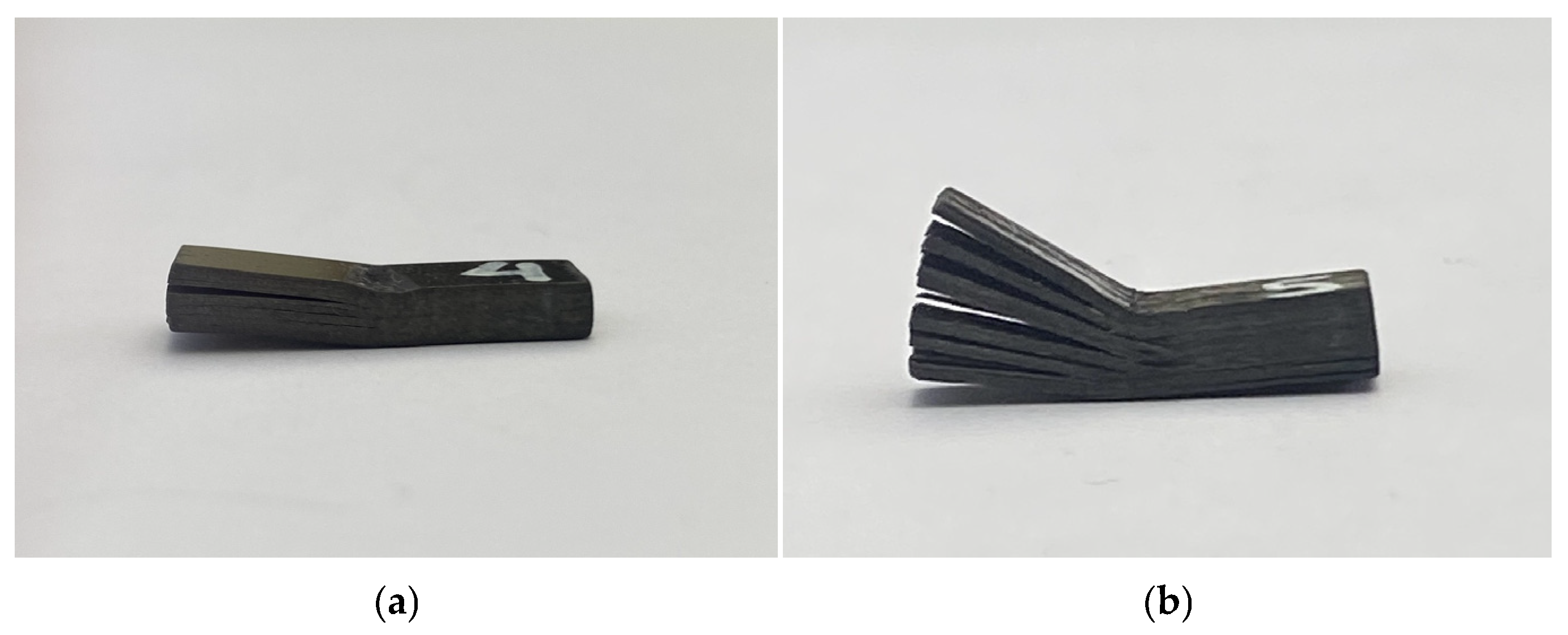

After short-beam shear testing, both laminate types exhibited failure dominated by interlaminar shear (Figure 18). The virgin specimen failed along a clean shear plane near the mid-span with minimal fiber splitting, indicating efficient load transfer and strong fiber–matrix interfacial bonding. In contrast, the recycled specimen displayed multiple delaminations and extensive interlayer separation, reflecting weak fiber–matrix adhesion and poor shear load distribution. This markedly more severe delamination behavior is consistent with the substantial reduction in ILSS measured for the recycled composites. The degraded interfacial performance suggests that the absence of sizing on the recycled fibers and the presence of remanufacturing-induced defects significantly compromise shear resistance. Improvements in ILSS could be achieved through appropriate fiber-surface treatments or resizing procedures, as plasma-engineered interlayers have been shown to enhance interfacial shear strength [42].

4. Discussion

Table 3. Summary of mechanical properties of virgin and recycled CFRP laminates in tension, compression, and interlaminar shear.

Property	Composites with vCFs	Composites with rCFs	Difference * [%]
Tensile strength (MPa)	1538.55 ± 57.49	1236.43 ± 36.17	−19.6
Tensile modulus (GPa)	175.07 ± 13.45	180.95 ± 18.24	3.4
Ultimate tensile strain (%)	1.42 ± 0.15	1.21 ± 0.11	−14.8
Compressive strength (MPa)	593.48 ± 60.17	513.41 ± 58.92	−13.5
Compressive modulus (GPa)	116.3 ± 17.44	108.39 ± 15.17	−6.8
Ultimate compressive strain (%)	0.74 ± 0.13	0.67 ± 0.30	−9.5
Interlaminar shear strength (MPa)	66.42 ± 1.88	28.07 ± 3.13	−57.7

* Property of the CFRP laminate with rCFs minus the property of the laminate with vCFs, divided by the value for the laminate with vCFs, and multiplied by 100.

summarizes the experimentally determined mechanical properties of the CFRP laminates manufactured from vCFs and rCFs.

The tensile results show that remanufacturing with plasma-recycled fibers led to a moderate reduction in strength and ductility, while the axial stiffness of the laminates was essentially preserved. Relative to the virgin composite, the recycled laminate retained approximately 80% of the tensile strength and exhibited a ~15% decrease in ultimate tensile strain, whereas the tensile modulus remained within the experimental scatter and was even slightly higher. This behavior reflects the fiber-dominated nature of the elastic response: the preserved single-fiber stiffness and comparable fiber volume fraction control the initial slope, while premature damage—driven by weaker interfaces, voids, and local misalignment—limits the ultimate strength and strain.

Similar trends have been documented in other studies on remanufactured CFRPs using recycled fibers, where tensile strength typically decreases but stiffness remains largely unaffected when fiber length and alignment are maintained. Sales-Contini et al. [26] reported reductions in tensile and flexural strength in pyrolysis-derived recycled composites relative to commercial CFRP. Sato et al. [25] observed improved fiber–matrix bonding in solvolysis-recycled systems, resulting in increased tensile strength and stiffness. Consistent with these findings, Sakai et al. [43] showed that nitric-acid-recycled fibers exhibited approximately 40% higher tensile strength compared with virgin fibers.

Statistical analysis was performed using both Student’s t-test and one-way analysis of variance (ANOVA) to assess the significance of differences between virgin and recycled CFRP laminates. Differences were considered statistically significant for p < 0.05. The statistical analysis confirmed that the reductions in tensile strength and ultimate tensile strain for the recycled laminates are statistically significant, whereas the slight increase in tensile modulus is not. This supports the conclusion that elastic stiffness is effectively preserved, while damage onset and maximum load are more sensitive to recycling-related effects.

In compression, the recycled laminates exhibited lower average performance, with reductions of approximately 13% in compressive strength, 7% in compressive modulus, and 10% in ultimate compressive strain relative to the virgin material. However, due to the larger scatter and limited sample size (n = 5), none of these differences were found to be statistically significant. The observed reductions are consistent with the laminate quality indicated by C-scan and fracture analyses: the recycled specimens contained more voids and local delamination defects known to promote premature micro-buckling and kink-band formation in UD CFRPs. Since the remanufactured laminates use a fresh epoxy matrix, the reduced compressive performance cannot be attributed to matrix aging but instead to defects and weakened interfaces introduced during remanufacturing. This agrees with the literature, which emphasizes that compressive behavior in UD laminates is matrix- and defect-dominated and highly sensitive to fiber waviness and porosity—unlike the more fiber-dominated tensile response [44].

The most pronounced degradation was observed in the interlaminar shear strength, which decreased by nearly 60%. A two-tailed t-test confirmed that this reduction is statistically significant. This strong degradation is attributed mainly to weakened fiber–matrix adhesion and remanufacturing-induced defects such as voids, local resin-poor regions, and the absence of fiber sizing. As ILSS is known to be highly interface-dominated [45], the severe reduction reported here highlights the current limitations of the remanufacturing route and suggests that fiber surface treatments or resizing will be required to restore interlaminar performance closer to that of virgin composites.

The increased surface oxygen content induced by plasma-assisted solvolysis, together with the removal of the original sizing layer, promotes over-oxidized fiber surfaces dominated by carbonyl and carboxyl functional groups. Such high-binding-energy oxygen species are known to form weaker interactions with epoxy matrices compared with hydroxyl groups, leading to reduced fiber–matrix interfacial bonding. In addition, SEM observations indicate localized surface etching, which may introduce stress concentration sites along the fiber surface [46,47].

It should be noted that the laminates investigated in this study were manufactured using a hand lay-up process, which inherently introduces variability in fiber volume fraction, fiber misalignment, resin distribution and local porosity. While C-scan inspection qualitatively revealed a higher density of defects in the recycled laminates, direct quantitative porosity measurements and statistical analysis of fiber volume fraction across multiple cross-sections were not performed in the present work and would be valuable in future studies. Such manufacturing-related factors may contribute to the observed scatter and to the reductions in compressive and interlaminar shear strength. While the present study focuses on laboratory-scale mechanical characterization, the results are relevant to industrial sectors such as automotive and aerospace, where lightweight and sustainable composite solutions are increasingly desired. Recycled carbon fiber composites are already being considered for non-structural and semi-structural applications in these fields to reduce environmental impact while maintaining acceptable mechanical performance, supporting the potential of plasma-recycled CFRPs in future circular-economy strategies [48].

5. Conclusions

This study evaluated the mechanical performance of unidirectional CFRP laminates produced using carbon fibers recovered through plasma-assisted solvolysis. The results collectively demonstrate that plasma-based solvolysis enables efficient resin removal and the recovery of clean, continuous fibers that are suitable for composite remanufacturing. Although the recycled laminates exhibited moderate reductions in mechanical properties relative to the virgin references, their overall behavior remained consistent and structurally reliable, confirming the potential of the recovered fibers for use in load-bearing composite applications. The observed reductions are attributed primarily to manufacturing challenges encountered during remanufacturing. The main conclusions can be summarized as follows:

• The recycled laminates retained approximately 80% of the tensile strength and exhibited a ~15% reduction in ultimate strain, while the elastic modulus remained essentially unchanged.
• Compressive strength proved more sensitive to remanufacturing-induced imperfections, with the recycled laminates showing a ~14% reduction compared with the virgin material. Despite this reduction in strength, the compressive modulus was largely retained.
• The most pronounced degradation was observed in ILSS, which decreased by 58%. This reduction reflects the absence of sizing on the recycled fibers and the resulting weaker fiber–matrix interfacial adhesion. Failure occurred through multiple delamination areas and interlayer separations. The reduced ILSS highlights a key limitation of the current remanufacturing route. To address this, future work should incorporate appropriate fiber surface treatments or resizing procedures to enhance interfacial bonding and restore interlaminar shear performance.
