Search Results (145)

Blade tip leakage vortex (TLV) is a critical phenomenon in hydraulic machinery, which can significantly affect the internal flow characteristics and deteriorate the hydraulic performance. In this paper, the blade tip leakage flow and TLV characteristics in a novel dishwasher pump were investigated. The correlation between the vorticity distribution in various directions and the leakage vortices was established within a rotating coordinate system. The results show that the TLV in a composite impeller can be categorized into initial and secondary leakage vortices. The initial leakage vortex originates from the evolution of two corner vortices that initially form at different locations within the blade tip clearance. This vortex induces pressure fluctuations at the impeller inlet; its shedding is identified as the primary contributor to localized energy loss within the flow passage. These findings provide insights into TLVs in complex pump geometries and provide solutions for future pump optimization strategies. Full article

Multistage centrifugal pumps, owing to their high head characteristics, are commonly applied in domains like subsea resource exploitation and groundwater extraction. However, the wear of flow passage components caused by solid particles in the fluid severely threatens equipment lifespan and system safety. To investigate the influence of solid-liquid two-phase flow on pump performance and wear, this study conducted numerical simulations of the solid-liquid two-phase flow within multistage centrifugal pumps based on the Euler–Lagrange approach and the Tabakoff wear model. The simulation results showed good agreement with experimental data. Under the design operating condition, compared to the clear water condition, the efficiency under the solid-liquid two-phase flow condition decreased by 1.64%, and the head coefficient decreased by 0.13. As the flow rate increases, particle momentum increases, the particle Stokes number increases, inertial forces are enhanced, and the coupling effect with the fluid weakens, leading to an increased impact intensity on flow passage components. This results in a gradual increase in the wear area of the impeller front shroud, back shroud, pressure side, and the peripheral casing. Under the same flow rate condition, when particles enter the pump chamber of a subsequent stage from a preceding stage, the fluid, after being rectified by the return guide vane, exhibits a more uniform flow pattern and reduced turbulence intensity. The particle Stokes number in the subsequent stage is smaller than that in the preceding stage, weakening inertial effects and enhancing the coupling effect with the fluid. This leads to a reduced impact intensity on flow passage components, resulting in a smaller wear area of these components in the subsequent stage compared to the preceding stage. This research offers critical theoretical foundations and practical guidelines for developing wear-resistant multistage centrifugal pumps in solid-liquid two-phase flow applications, with direct implications for extending service life and optimizing hydraulic performance. Full article

A slanted axial-flow pump is extensively applied in coastal pumping stations; however, severe bias flow within the outlet passage will result in unstable operation and low efficiency of the slanted axial flow pump system. In order to mitigate bias flow in a slanted axial-flow pump outlet passage, seven exit setting angle schemes of the guide vanes were designed. The influence mechanisms of the guide vane exit setting angle on internal flow characteristics, hydraulic loss, flow deviation coefficient, vortex evolution patterns, and pump system efficiency were systematically investigated. The results demonstrate that under design flow conditions, as the exit setting angle of the guide vane ranges from 90° to 105°, the flow field in the first half of the guide vane remains essentially the same. The low-velocity region at the guide vane outlet demonstrates initial contraction followed by gradual expansion with increasing stagger angles. Looking downstream within the flow passage from the left to the right, the hydraulic loss in the outlet passage goes up after an initial descending trend as the exit setting angle increases. When the exit setting angle is 97.5°, the bias coefficient of the outlet passage is 1.031. At this point, the vortex core distribution intensity within the outlet passage reaches a minimum, corresponding to the lowest recorded hydraulic loss of 0.230 m. Compared with the original guide vane scheme, the scheme with an angle set at 97.5° can improve the pump system efficiency of the slanted axial flow pump system, whether the flow is set at a design point or at a large point, and the pump system efficiency is increased by 2.3% under design flow conditions. Full article

As a core component in renewable energy systems for grid regulation, hydropower units are increasingly exposed to flow conditions that elevate the risk of cavitation and erosion, posing significant challenges to the safe operation of flow-passage components. In this study, model testing and computational fluid dynamics (CFD) simulations are employed to investigate the hydraulic performance and cavitation behavior of a bulb turbine operating under rated head conditions and varying cavitation numbers. The analysis focuses on how changes in cavitation intensity affect flow characteristics and efficiency within the runner region. The results show that as the cavitation number approaches its critical value, the generation, growth, and collapse of vapor cavities increasingly disturb the main flow, causing a marked drop in blade hydraulic performance and overall turbine efficiency. Cavitation predominantly occurs on the blade’s suction side near the trailing edge rim and in the clearance zone near the hub, with bubble coverage expanding as the cavitation number decreases. A periodic inverse correlation between surface pressure and the cavitation area is observed, reflecting the strongly unsteady nature of cavitating flows. Furthermore, lower cavitation numbers lead to intensified pressure pulsations, aggravating flow unsteadiness and raising the risk of vibration. Full article

To explore the influence of guide vanes on the energy loss of hydraulic turbines, a pump characterized by a simple structure and convenient operation was selected as the research subject. Entropy generation theory was utilized to analyze entropy generation losses at different flow rates, with a particular emphasis on the mechanisms in the impeller and draft tube. The findings indicate that turbulent entropy production dominates energy dissipation. Under the best efficiency point (BEP), the total entropy generation loss of Z₀ = 11 turbine was 7.18% and 5.76% lower than that of Z₀ = 7 and Z₀ = 9, respectively. The proportion of entropy generation loss in the impeller was highest under low-flow and optimal operating conditions, while the proportion of entropy generation loss in the draft tube was highest under high-flow conditions. In guide-vane-free turbines, the impeller’s high turbulent entropy generation rate was attributed to vortices and backflow caused by significant velocity gradients. For guide-vane-equipped turbines, high turbulent entropy generation rates arose from rotor–stator interactions and flow separation at blade inlets. Under high-flow-rate conditions, the entropy generation loss in the draft tube was significantly larger than that in other flow components, primarily due to vortices generated by excessive velocity circulation at the impeller outlet near the upstream draft tube flow passages, leading to high turbulent entropy generation rates. Full article

The wear of the flow passage components of the turbine due to sediment in sandy rivers is an inevitable challenge for hydroelectric units, often requiring frequent maintenance of hydraulic turbines. Consequently, the anti-wear protection technologies of hydraulic turbine components have garnered significant attention. In this study, three coating materials were analyzed for the stay vanes of the Francis turbine commonly used in hydropower stations. These materials, including JX ceramic metal wear-resistant material (JX33083), 3D printing additive manufacturing cermet material, and Foshilan polymer material, were tested for sediment wear, and their anti-wear performance was evaluated. The research results indicate that the anti-wear performance of the three coating materials is almost identical when the velocity on the surface of the stay vanes is below 7.5 m/s. Notably, 3D printing additive manufacturing cermet material demonstrates the best anti-wear performance when the velocity exceeds 7.5 m/s. The anti-wear effect of this coating material is 3.27 times more wear-resistant than Foshilan polymer material and 6.39 times more wear-resistant than JX ceramic metal wear-resistant material. Hence, these research findings provide a technical basis for the selection, operation, and maintenance of anti-wear coatings for the stay vanes of turbines in hydropower stations. Full article

The enhancement of the thermal and thermo-hydraulic performance of a semi-circular solar air collector (SCSAC) is numerically investigated using porous semi-circular obstacles made of metal foam with and without longitudinal porous Y-shaped fins. Two 10 and 40 PPI porous material samples are examined. Three-dimensional models are built to simulate the performance of SCSAC: model (I) with clear air passage; model (II) with only metal foam obstacles, and model (III) with metal foam obstacles as well as porous Y-fins. COMSOL Multiphysics software version 6.2 based on finite element methodology is employed. A conjugate heat transfer with a (k-ε) turbulence model is selected to simulate both heat transfer and fluid flow across the entire computational domain. However, only the local thermal non-equilibrium (LTNE) model of heat transfer is applied in the porous regions. The findings demonstrated that adding metal foam as the novel proposed configuration particularity of model (III) may enhance the thermal efficiency by about 30%, and the outlet air temperature may rise to 7% compared to other models. Also, the performance evaluation factor of this model is greater than one in all cases. Additionally, the thermal enhancement is accomplished by occupying only 5% of the air passage volume, thereby including an associated pressure drop of minimal magnitude. Full article

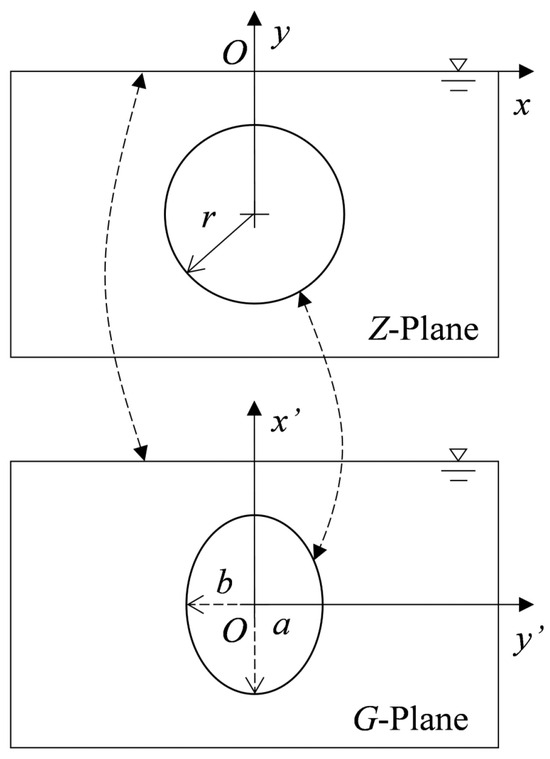

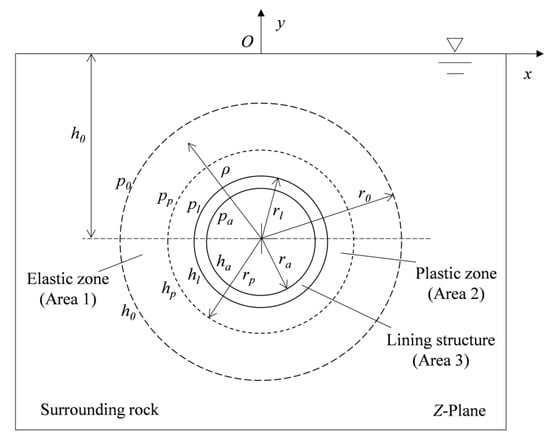

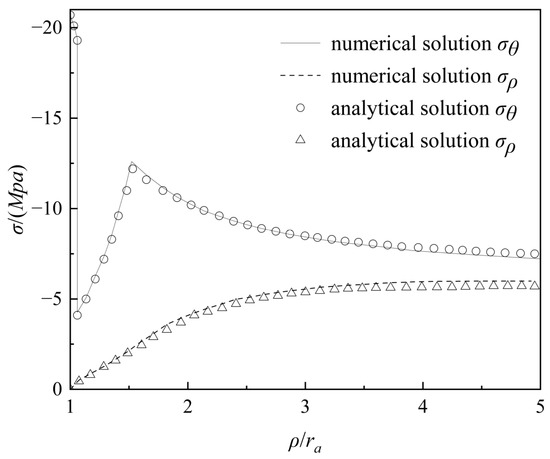

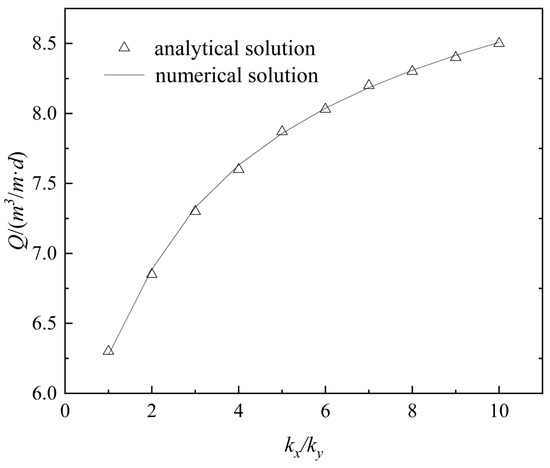

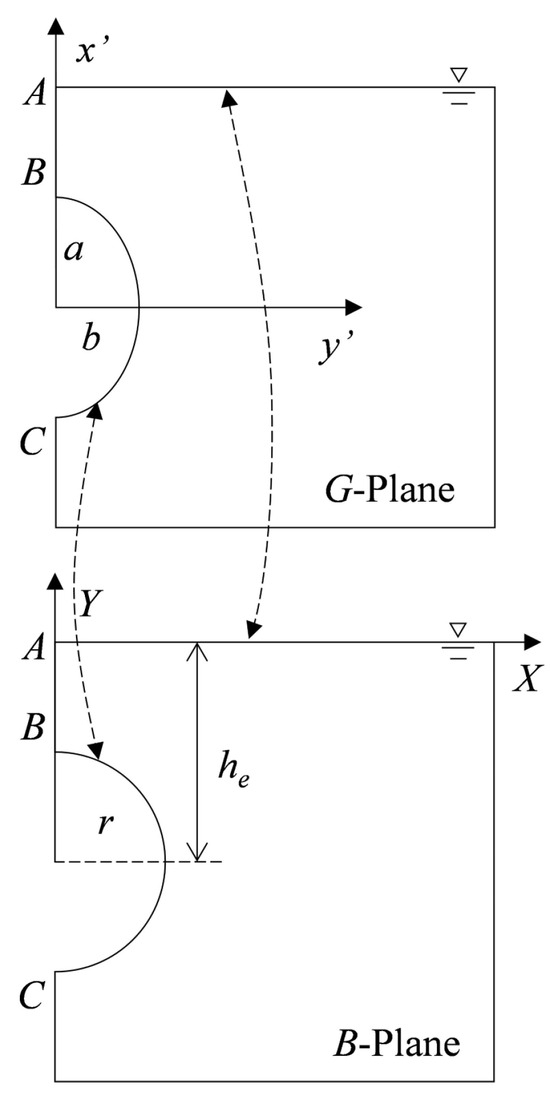

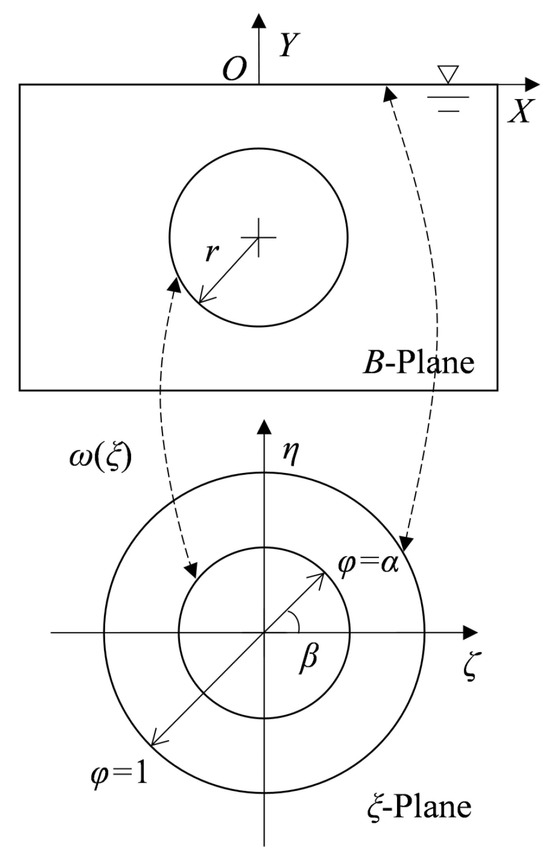

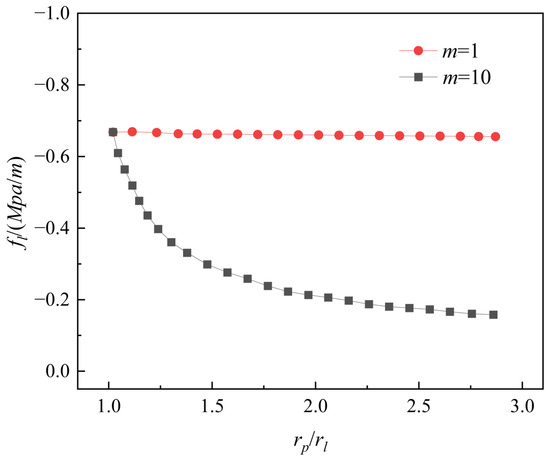

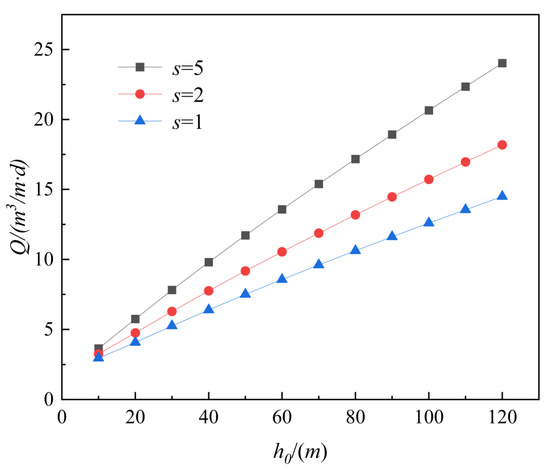

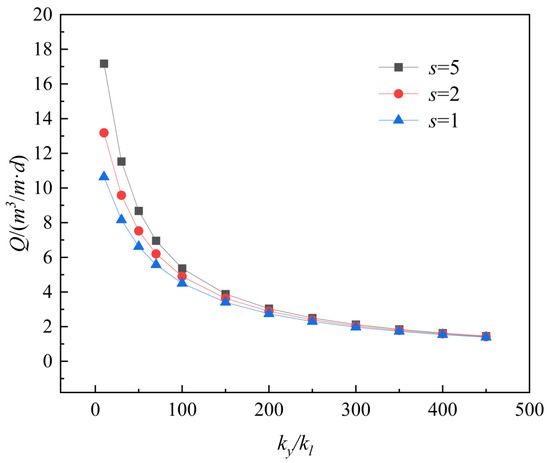

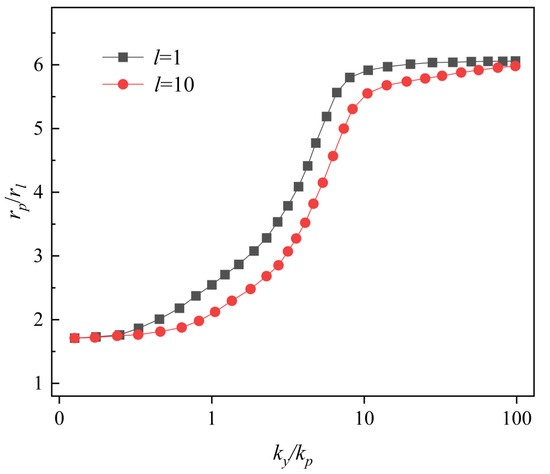

Deep-buried subsea tunnels are often under high water pressure conditions, and the influence of the seepage field on the tunnel cannot be ignored. Existing studies generally assume that the surrounding rock exhibits permeability isotropy; this study developed a model of deep-buried subsea tunnel that considers the permeability anisotropy of surrounding rock and investigated the effects of permeability differences between the surrounding rock and lining structure on tunnel seepage flow and plastic zone extent. By employing coordinate transformation and conformal mapping methods, the hydraulic head and the seepage discharge for each region are determined for each section of the tunnel. Based on the analytical solution of the seepage field, the seepage force is treated as a body force, and using the Mohr–Coulomb criterion, an elastoplastic analytical solution for the lining and surrounding rock under anisotropic seepage is derived. Using the Shenzhen MaWan Sea-Crossing Passage as a case study, numerical simulations are conducted using Abaqus2021, and the results are compared with the analytical solution to verify the accuracy of the study. The research shows that the permeability anisotropy of surrounding rock increases the seepage discharge, and this effect becomes more significant with increasing burial depth. If the anisotropy is 10 times greater than its previous value, the tunnel seepage volume will increase by 35.6%. When the surrounding rock permeability is sufficiently large, the impact of permeability anisotropy on the seepage discharge is relatively weak, with the seepage discharge primarily dominated by the permeability of the lining. In the tunnel stress field, due to the significant difference in stiffness between the lining and the surrounding rock, the hoop stress in the lining is much larger than that in the surrounding rock, and there is a stress discontinuity at their interface. When the permeability of the elastic zone of the surrounding rock is 100 times greater than that of the plastic zone, the plastic radius of the tunnel will increase by 2 to 3 times compared to the previous value. Reducing the permeability of the plastic zone in the surrounding rock effectively limits the seepage body force acting on the lining, thereby enhancing the stability of the lining structure and reducing the risk of damage to the tunnel. Full article

Sediment erosion of hydraulic turbines has gradually become a key factor affecting their long-term stable operation. There are many different factors that can cause erosion in the Francis hydraulic turbine; among them, the vortex occurs in the turbine, which is also a negative factor for the unit. In this paper, the purpose is to study the complex erosion characteristics and specific influencing factor mechanism. The method is based on numerical simulation, combined with the verification data on site. Research results show that the differences in flow patterns among various components correspond to the erosion distribution of the unit at the same location, indicating that local flow patterns affect the unit’s erosion. The highest total erosion rate is on the surface of the runner at 1.08 × 10⁻³ kg·s⁻¹·m⁻². The erosion rate on the guide vane wall is second highest, also at 9.8 × 10⁻⁴ kg·s⁻¹·m⁻². The total erosion rate in the clearance is lower than that on the guide vane wall at 7.03 × 10⁻⁴ kg·s⁻¹·m⁻². The lowest total erosion rate is found in the draft tube at 2.57 × 10⁻⁴ kg·s⁻¹·m⁻². The effect of local vortices not only exacerbate the microscopic damage on the blade surface but also leads to a more obvious nonuniform erosion distribution, especially at the clearance, where erosion is more severe. The vortex in the guide vane passage alters the particle trajectory at the guide vane outlet, increasing the erosion in the guide vane clearance. Similarly, the vortex in the draft tube increases particle rotation, enhancing erosion on the draft tube wall. Research indicates that eliminating vortices is beneficial for reducing sediment erosion within the unit. The research results provide a theoretical basis for the optimization design of Francis hydraulic turbine. Full article

To investigate the influence of circulation distribution on axial-flow pump performance, this study integrates numerical simulation and theoretical analysis methods, establishing a simulation framework based on MATLAB and CFX. By adjusting the circulation distribution function from the hub to the tip of the impeller, various design models were constructed. Three-dimensional parametric modeling of the blades was achieved through MATLAB programming, generating key parameters such as blade profile coordinates. Subsequently, the geometric data were imported into CFX to establish a full-flow passage numerical model. The simulation employed the RANS equations with the k-ε turbulence model to analyze flow field characteristics and hydraulic performance under different circulation schemes. Numerical results indicate that under identical circulation distributions, the head–flow curve exhibits a monotonically decreasing trend, while the efficiency curve demonstrates a distinct single-peak characteristic. Notably, under specific design conditions, variations in design parameters can shift the best efficiency point while simultaneously improving efficiency. Cavitation performance analysis reveals that as the hub-to-tip ratio increases, the velocity circulation initially rises rapidly before gradually stabilizing. This distribution pattern effectively optimizes the pressure gradient at the impeller outlet, thereby significantly enhancing cavitation resistance across a wide operational range. The proposed circulation control methodology provides critical theoretical support and engineering guidance for the hydrodynamic optimization of low-head axial flow pumps. Full article

The vertical slot fishway (VSF) has proven effective in mitigating the severe fragmentation of rivers caused by artificial hydraulic structures. While fishways with steeper slopes exhibit better economic performance, increased slope can raise the flow velocity and turbulence, which may hinder fish migration. To address this issue, this study investigated the application of a VSF with a staggered baffle configuration. Through numerical modeling, the hydraulic characteristics of the VSF under various slope ratios and chamber length-to-width (L/B) ratios were investigated, with data validated by physical models. An increase in the slope gradient resulted in higher flow velocities, greater maximum attenuation rates of mainstream velocity, and elevated turbulent kinetic energy (TKE) at the corners of the rectifier baffles and the ends of the divider baffles. Additionally, the overall maximum volumetric energy dissipation ($D_{\epsilon }$) increased, although its distribution pattern remained unaffected. Conversely, increasing the chamber L/B ratio significantly altered the distribution patterns of the flow velocity, TKE, and $D_{\epsilon }$, influencing their generation mechanisms. For instance, a higher chamber L/B ratio caused the maximum flow velocity (V_m) to deviate from the vertical slot and raised the maximum attenuation rate of the mainstream velocity. The L/B ratio also caused changes in the TKE distribution; as the ratio increased, the proportion of the chamber’s internal region with $D_{\epsilon }\le 150 \mathrm{W}/{\mathrm{m}}^3$ initially decreased and then increased. Overall, considering the flow velocity, TKE, and $D_{\epsilon }$, it is recommended that the chamber L/B ratio be maintained between 0.9 and 1.1 for slope ratios ranging from 1:20 to 1:50. The research results will offer practical insights for engineering applications, in engineering construction, contribute theoretical guidance for the optimized design of fish passages, promote sustainable hydraulic engineering practices, and aid in the protection of aquatic biodiversity. Full article

Theoretical analysis, numerical simulation, and experimental study are used to investigate the ultra-low head bidirectional shaft extension pump, especially near-zero head conditions. The results show that under forward operation, at low flow and design flow conditions, the closer to the shroud, the closer the vortex is to the back of the guide vanes, and the vortex area is becoming smaller. The hydraulic loss of the outlet passage is 15% of the operating head at the minimum flow and 170% of the operating head under near-zero head condition. The peak-to-peak (PTP) value of pressure fluctuation increases with the increase in flow rate. The primary frequency (PF) of vibration is strongly related to the primary and secondary frequencies (PSFs) of pressure fluctuation. Under reverse operation, when the flow rate is less than 0.83Q_r0, the uniformity of axial velocity distribution V_u and the velocity-weighted average angle θ show an approximately exponential declining pattern. The hydraulic loss of the outlet passage at the minimum flow rate is 61% of the operating head and 350% of the operating head under near-zero head condition. The exponential fitting can better describe the relationship between circulation and hydraulic loss. As the flow rate decreases, the PF of vibration decreases to rotational frequency. Full article

The axial-flow pump system has been widely applied to coastal drainage pump stations, but the hydraulic performance optimization based on the contraction angles of the inlet passage has not been studied. This paper combined the computational fluid dynamics (CFD) method, machine learning (ML) algorithms and genetic algorithm (GA) to find the optimal contraction angles of the inlet passage. The 125 sets of comprehensive objective function were obtained by the CFD method. Three contraction angles and comprehensive objective function values were regressed by three ML algorithms. After hyperparameter optimization, the Gaussian process regression (GPR) model had the highest R² = 0.958 in the test set and had the strongest generalization ability among the three models. The impact degree of the three contraction angles on the objective function of the GPR model was investigated by the Sobol sensitivity analysis method; the results indicated that the order of impact degree from high to low was ${\theta }_3>{\theta }_2>{\theta }_1$. The optimal objective function values of the GPR model and corresponding contraction angles were searched through GA; the maximum objective function value was 0.963 and corresponding contraction angles were ${\theta }_1=13.34°$, ${\theta }_2=28.36°$ and ${\theta }_3=3.64°$, respectively. The results of this study can provide reference for the optimization of inlet passages in coastal drainage pump systems. Full article

Francis turbines, being widely used in hydropower plants, operate under different loads which significantly affect their hydraulic characteristics and structural dynamics. It is essential to carry out the flow-induced dynamics analysis of the large prototype Francis turbines under different loads in a wide load operation range to optimize the hydraulic performance, ensure structural reliability, and prevent mechanical failure. This work analyzes the flow-induced dynamics of a large Francis turbine prototype with a rated power of 46 MW. Computer-aided design (CAD) models of the Francis turbine unit are first constructed, including the fluid and structural domains. After generating the computational meshes of the flow passages in the Francis turbine unit, Computational fluid dynamics (CFD) calculations are carried out under four typical operating conditions from 25% load to 100% load, and the pressure files obtained from CFD calculations are applied to the finite element model to analyze the flow-induced stresses of the runner. The results show that the pressure inside the Francis turbine runner decreases gradually from the spiral case to the draft tube under 25%, 50%, 75%, and 100% loads, but the local pressure distribution in the crown chamber of the Francis turbine unit varies under different loads. The locations of the maximum stress of the runner under the four different operating conditions vary with the power output. The flow-induced maximum stress of the runner at 25% load is located on the chamfer of the connection between the blade trailing edge and the crown. But from 50% load to 100% load, the maximum stress of the runner appears on the chamfer of the connection between the blade leading edge and the band. From 25% load to full load, the maximum stress of the unit is one-fifth of the yield stress of the runner material, and the runner will not be damaged during normal use. The calculation method with a fully three-dimensional fluid–structure interaction (FSI) method and the conclusions proposed in this study can provide important references for the design and evaluation of other hydraulic turbine units. Full article

Dams severely affect aquatic environments and block the longitudinal migration of fish. In order to mitigate the negative effects generated by these developments, fish passes, or fishways, are implemented in dams with the purpose of restoring river connectivity and allowing the movement of migrants. Nevertheless, fishways in neotropical areas often face design and construction issues that can reduce their efficiency and selectively disadvantage species with limited swimming capabilities. This study analyzes how a fish ladder on the Paraná River influences the black armored catfish (Rhinelepis aspera), a benthic, long-distance migratory species important to commercial fisheries. A total of 200 individuals were PIT-tagged and monitored for four months. The results showed that although many fish successfully located the fishway, only a small portion (3.5%) managed to complete the ascent. The interaction between the hydraulic characteristics of the fishway and the fish condition factor played a significant role in ascent performance. Our findings underscore the importance of assessing fishway suitability for benthic neotropical species to support conservation efforts in the Upper Paraná River Basin. To improve passage rates for R. aspera, we recommend optimizing flow conditions by adjusting orifice and notch configurations, incorporating roughness elements, and modifying resting pool designs. These adaptations would reduce energy expenditure for ascending fish, enhancing fishway performance and contributing to the sustainability of migratory species in this region. Full article
