Search Results (1,362)

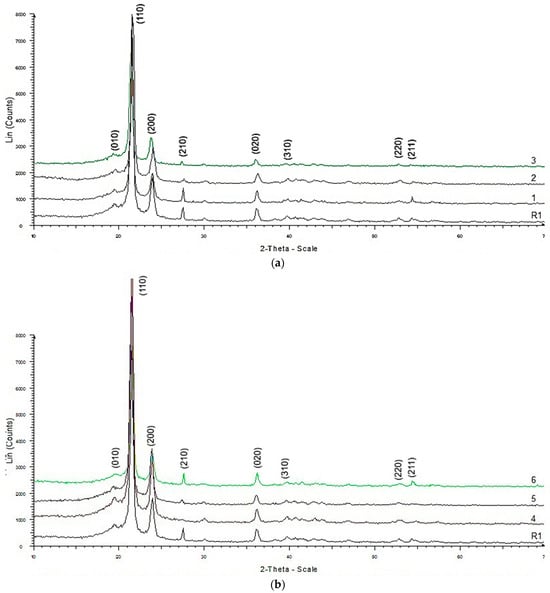

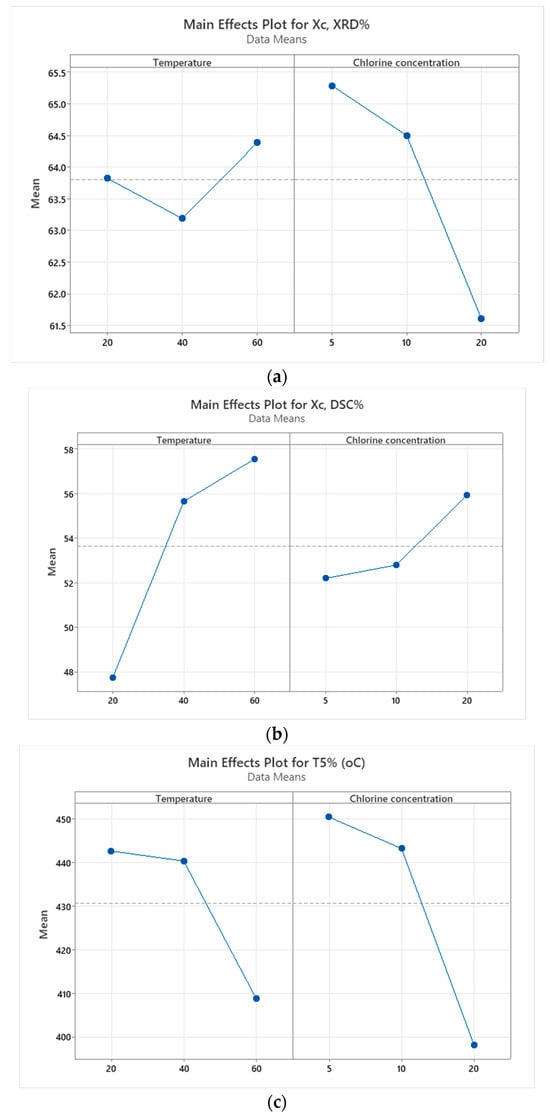

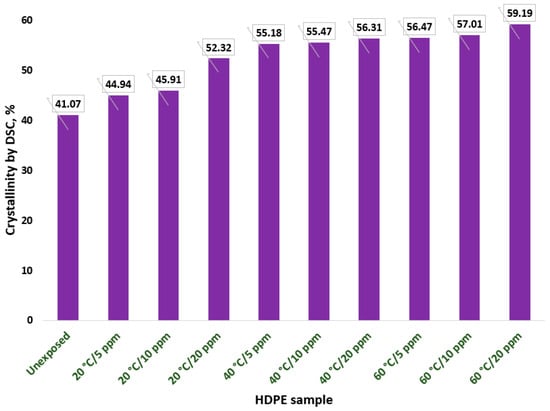

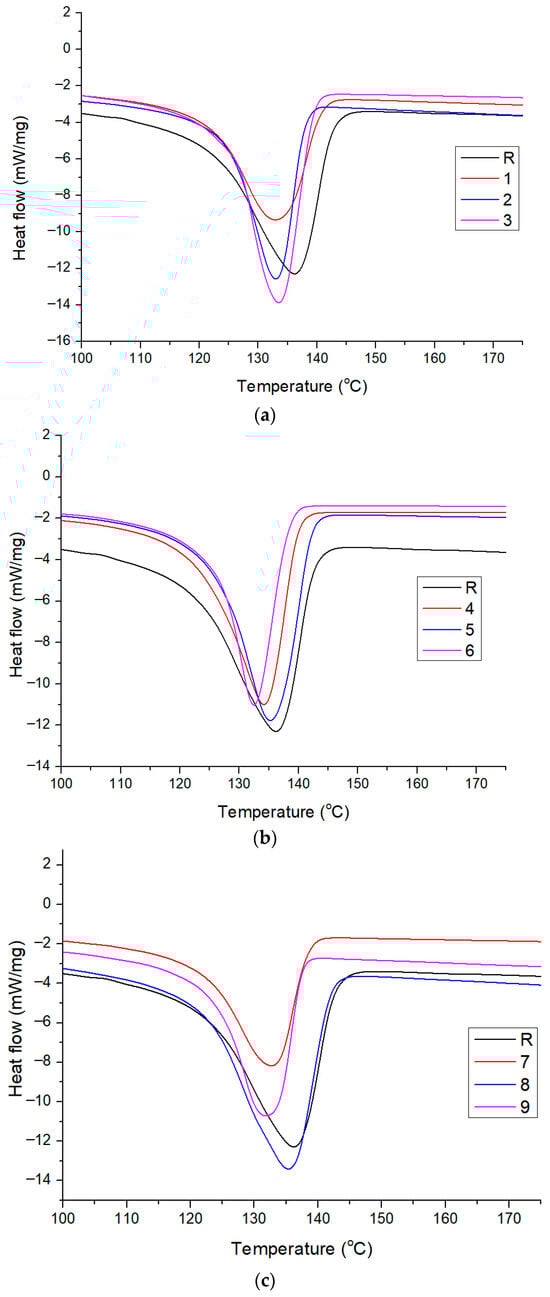

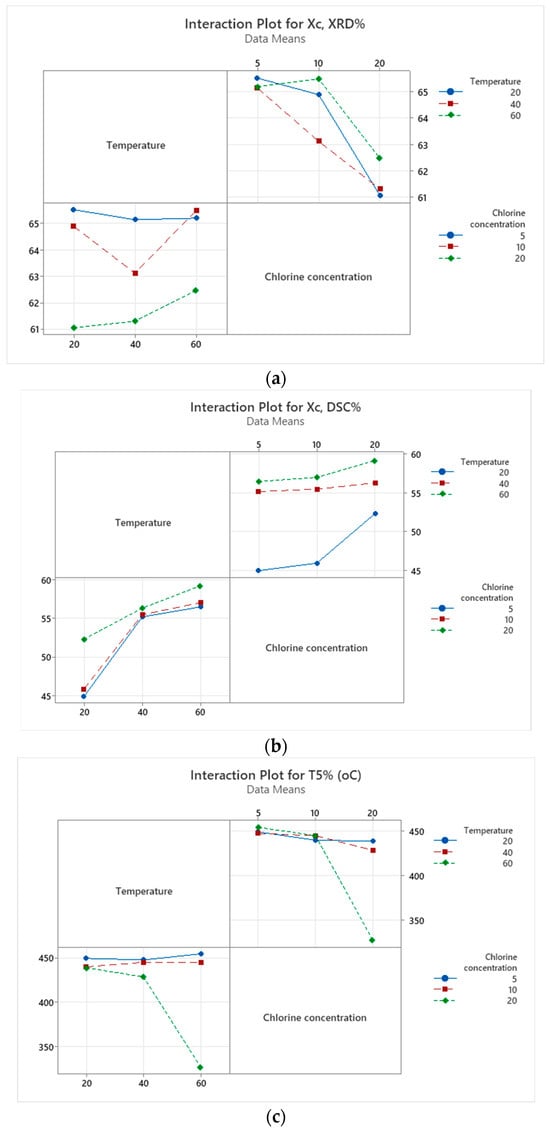

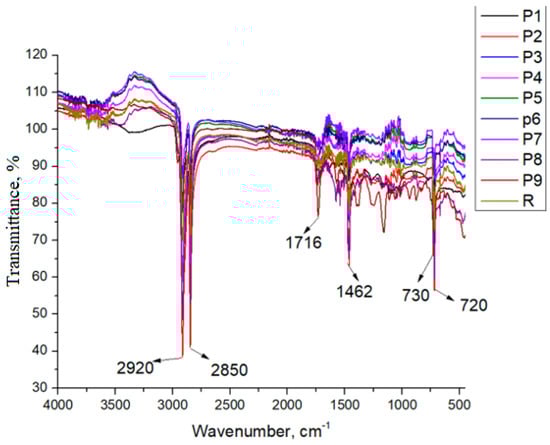

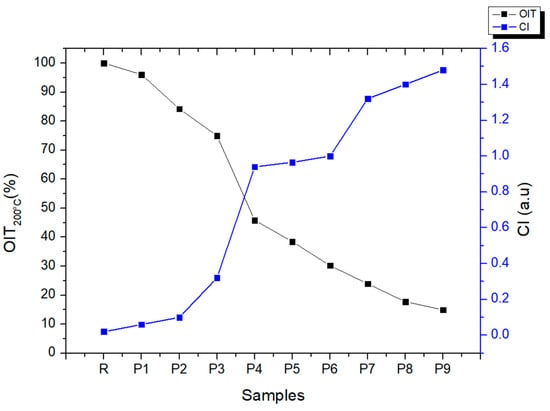

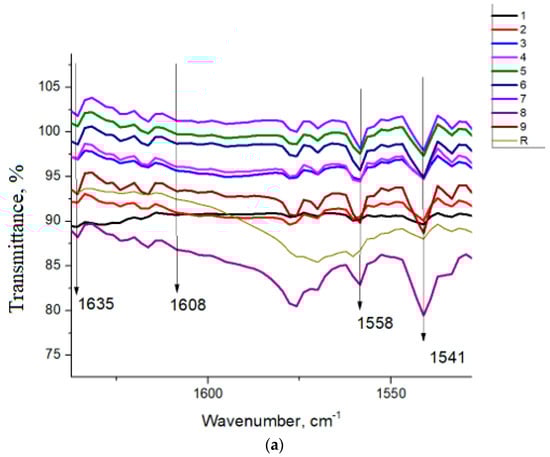

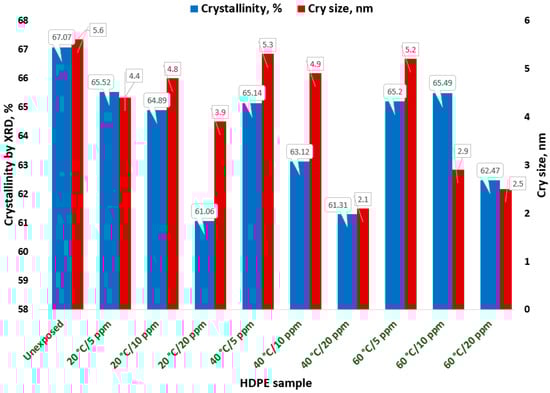

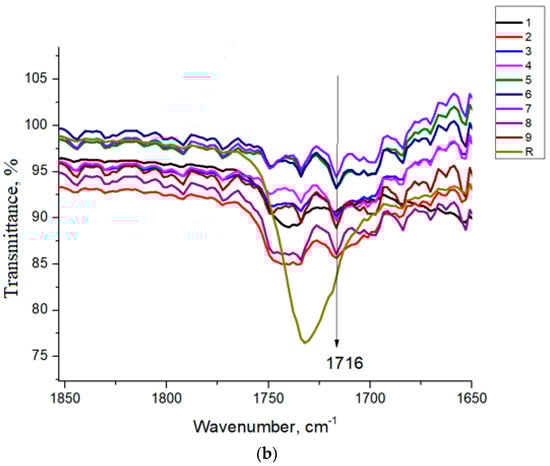

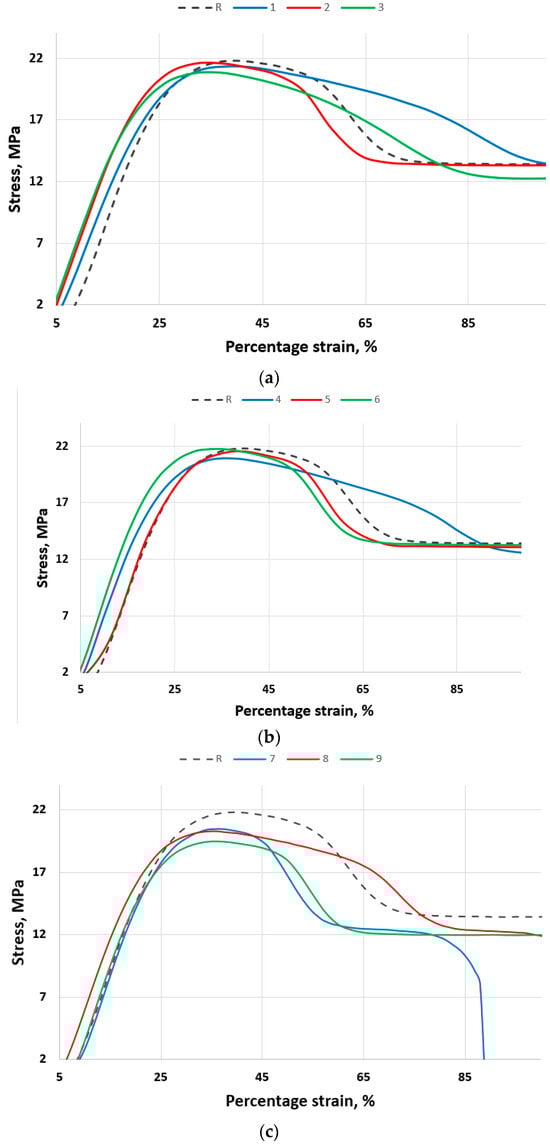

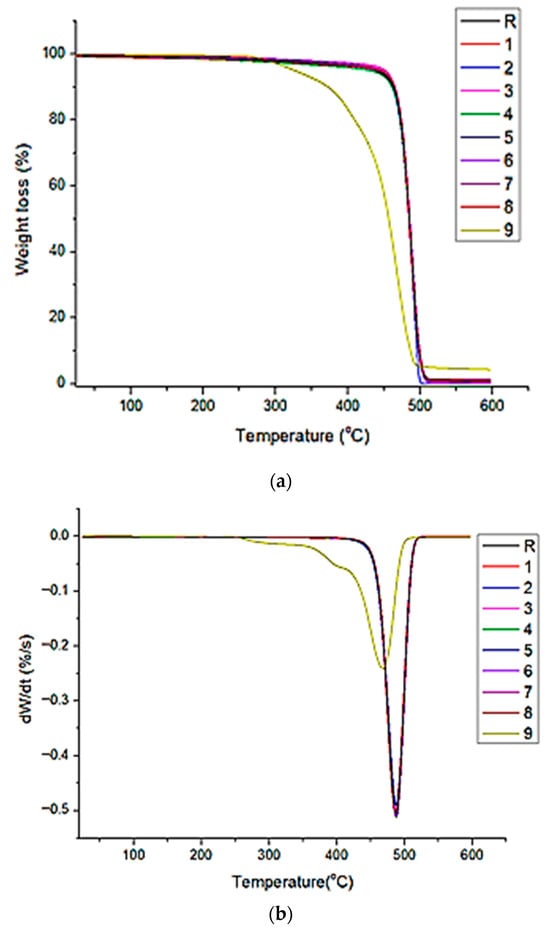

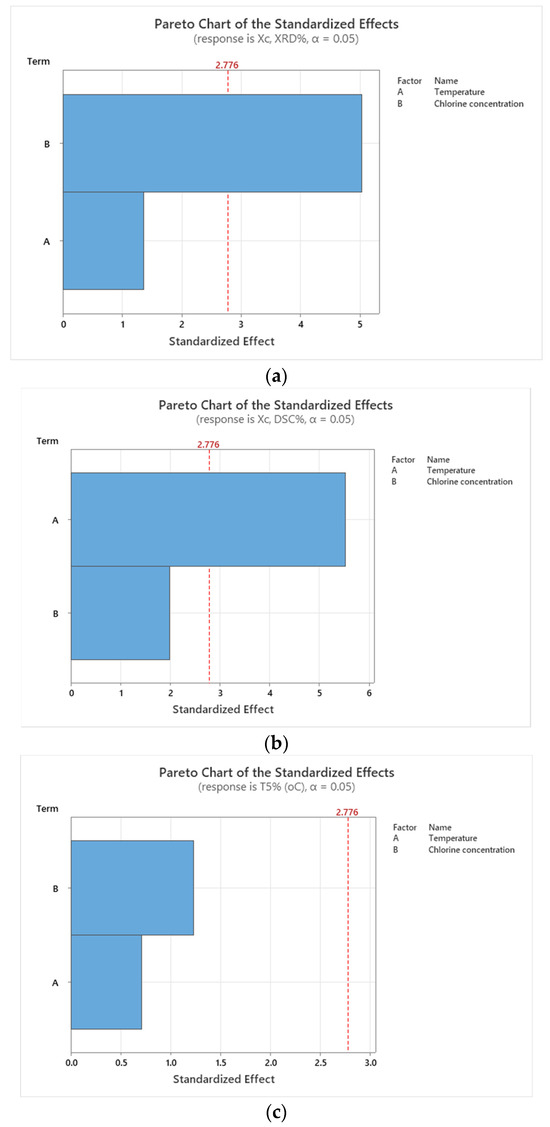

This study investigates chlorine-induced aging of high-density polyethylene (HDPE) through a 3 × 3 factorial matrix combining three temperatures (20, 40, 60 °C) and three chlorine concentrations (5, 10, 20 ppm) over 45 days. Tensile tests revealed progressive embrittlement, with elongation at break decreasing sharply under severe aging; samples exposed to 60 °C and 20 ppm exhibited premature brittle failure despite peak stresses remaining near ~22 MPa. XRD results showed a reduction in crystallinity from 67.07% (reference) to 61.06–61.31% under the most aggressive conditions, accompanied by a decrease in crystallite size from 5.60 nm to 2.10–2.50 nm. FTIR analysis confirmed oxidation through increased carbonyl absorption at 1716 cm⁻¹ and new bands at 1608–1635 cm⁻¹. TGA revealed substantial thermal deterioration, with T5% falling from 450 °C (reference) to 327 °C at 60 °C/20 ppm, along with an additional degradation peak at 398 °C. DSC showed a melting temperature decrease from 136.32 °C to 131.67 °C and an increase in crystallinity from 41.07% (unexposed sample) to 59.19% (60 °C/20 ppm). Statistical analysis of the results established that degradation is governed by different dominant factors depending on the measured property: Chlorine concentration was found to be the dominant factor for XRD crystallinity and thermal decomposition T5%, confirming that surface structural damage and early molecular weight loss are driven primarily by chlorine-induced oxidation. Conversely, DSC crystallinity was governed primarily by temperature, reflecting thermally driven molecular reorganization within the bulk material. Overall, chlorine exposure, amplified by temperature, accelerates chemical oxidation, structural degradation, and mechanical embrittlement, reducing the long-term reliability of HDPE in chlorinated water systems. The findings provide critical data for predicting the service life and informing material selection for HDPE components used in high-temperature or high-chlorine water distribution systems. Full article

In order to investigate the microstructure evolution and the degradation mechanism of SiC fiber in a high-temperature oxidative environment, the SiC fiber was thermally exposed at temperature up to 1600 °C in air. The morphologies of the surface and fracture surface were characterized by scanning electron microscopy. The consisting phase and crystallite size were analyzed by X-ray diffractometer. The mechanical properties of SiC fiber was characterized by a single-fiber tensile test technique. It was found that an obvious grain coarsening occurred at temperature above 1400 °C. A visible silica layer was formed at 1300 °C, and the morphology of silica layer was dependent on the exposure temperature. At 1400 °C, fiber surface formed a thick silica layer with cracks, while the silica layer exhibited a multilayered structure at 1600 °C. As for the tensile strength of fiber, it firstly decreased to about 1 GPa at 1200 °C, then the strength was maintained at 1400 °C. After thermal exposure at 1500 °C and 1600 °C, the strength decreased again. The degradation of mechanical properties was attributed to the grain coarsening and the decomposition of amorphous phase in fiber. Particularly, the decomposition of amorphous phase would damage the structure integrity of fiber. The current work would provide a valuable reference for research and application of SiC fiber. Full article

Additive manufacturing has huge development potential in the aerospace field. The hot-end components of aeroengines work in harsh environments, facing high temperatures and a demand for long service life. In this paper, high-cycle fatigue (HCF) tests of Ti6Al4V alloy at 400 °C by selective laser melting (SLM) under different stress ratios (−1, 0.1, 0.3, 0.5, and 0.8) were carried out, and the fracture surfaces were observed. The results show that the defects existing on the surface or subsurface are prone to become the origin of fatigue cracks. There is a large dispersion of the high-cycle fatigue life of the samples, especially at a low stress ratio. With the increase in the stress ratio, the fatigue failure area on the fracture surface gradually decreases, and the fracture surface gradually presents a mixed pattern of tensile endurance fracture and fatigue failure. Considering the influence of creep damage due to mean stress, models were established, respectively, for the fatigue behavior and time-related rupture behavior to predict fatigue life and conduct an assessment. Then, the two models were combined and the composite models were proposed using the linear damage law. Finally, the single fatigue model and rupture models, as well as the composite models, were evaluated, respectively, and compared with the actual fatigue life, and the best model was obtained for the high-cycle fatigue prediction of SLM Ti6Al4V at 400 °C. Full article

This study systematically investigates the key parameters governing the mechanical performance of fly ash-based geopolymer across paste, mortar, and concrete scales. Comprehensive mechanical testing, combined with SEM and MIP analyses, elucidated the relationships between activator composition, pore structure, and strength development. A key innovation is the development of a cross-scale quantitative framework linking mortar strength to concrete compressive strength, enabling preliminary predictive capability across material scales. Grey relational analysis identified curing temperature as the most influential factor, followed by SiO₂/Na₂O and H₂O/Na₂O ratios. Thermal curing accelerates strength development and temperatures of 70~80 °C markedly enhance reaction rates. Both compressive and flexural/splitting tensile strengths increase and then decrease with NaOH concentration or sodium silicate modulus, with optimal performance at 24~26% NaOH and SiO₂/Na₂O ratio of 1.2~1.4, while increasing H₂O/Na₂O reduces strength nearly linearly, constrained by workability. Concrete compressive strength rises with coarse aggregate content up to 60~70% before declining. SEM and MIP confirm that optimal activator formulations produce a dense, homogeneous gel matrix with lower porosity and fewer unreacted particles. Strong square-root correlations between compressive and tensile-related strengths were observed across all material systems. Overall, this work establishes a quantitative foundation for geopolymer mix design and provides actionable guidance for developing high-performance, low-carbon geopolymer concrete. Full article

The performance of ultra-high-purity copper sputtering targets is critical for nanoscale integrated circuit fabrication, yet challenges such as dynamic recovery and recrystallization hinder grain refinement and texture control. In the present work, cryogenic deformation was introduced to address these issues. Through electron backscatter diffraction (EBSD), X-ray diffraction (XRD), and mechanical testing, the microstructure, texture, and mechanical properties of 6N ultra-high-purity copper processed by room-temperature rolling (RTR) and cryorolling (CR) were comparatively investigated. Results reveal that RTR deformation is dominated by slip mechanisms; the RTR sample with 90% reduction exhibits obvious dynamic recrystallization (DRX) and forms a bimodal structure dominated by Copper ({112}⟨111⟩) and S ({123}⟨634⟩) textures. In contrast, CR suppresses thermal activation processes, enabling deformation mechanisms suggestive of twinning activity, leading to ultrafine fibrous structures, while shifting texture components toward Brass ({110}⟨112⟩) and S. Compared to RTR-processed samples, CR-processed samples possess superior mechanical performance. The CR sample with 90% reduction exhibits: a microhardness of 164.60 HV, a yield strength of 385.61 MPa, and a tensile strength of 648.02 MPa, which are, respectively, 33.2%, 91.7%, and 84.6% higher than those of RTR counterparts. Williamson–Hall analysis confirms that the CR sample with 90% reduction achieves finer substructure sizes (~133 nm) and higher stored energy (~22 J·mol⁻¹) by suppressing dynamic recovery, providing a robust driving force for subsequent annealing. This work demonstrates that cryorolling optimizes microstructure and texture through twin-dislocation synergy, providing a fundamental basis for the development of advanced sputtering targets. Full article

Solidification cracking is a critical defect in Cu–steel dissimilar laser welding for cylindrical lithium-ion battery busbar assembly, yet the metallurgical role of phosphorus (P) in crack formation has not been quantitatively established. In this study, the influence of phosphorus in the coating layer on weld solidification behavior was clarified by preparing Cu substrates with four different coating conditions—Ni–P-coated Cu (10 and 50 μm) and pure Ni-coated Cu (10 and 50 μm)—and performing high-speed single-mode fiber-laser welding under identical heat-input conditions. Shear-tensile testing, EPMA-based microstructural analysis, and Thermo-Calc solidification calculations were combined to correlate P segregation with solidification cracking susceptibility. The Ni–P 10 μm coating generated severe solidification cracking compared with the pure Ni 50 μm coating, which was attributed to excessive P enrichment in the terminal liquid phase (up to 8.8 mass%). This enrichment significantly expanded the mushy-zone width to approximately 869 K, yielding a highly solidification crack-susceptible fusion zone. In contrast, 50 μm pure Ni coatings produced narrow mushy-zone widths (200–400 K) and extremely low residual P levels (~0.1 mass%), resulting in fully crack-free microstructures. The 50 μm Ni coating exhibited the highest shear-tensile strength and largest rupture displacement among all conditions, confirming that suppression of P segregation directly improves both structural integrity and mechanical performance. Overall, this study demonstrates that phosphorus enrichment critically governs the solidification-cracking susceptibility of Cu–steel dissimilar welds by widening the solidification temperature range. Eliminating P from the coating layer and applying an adequately thick pure Ni coating constitute highly effective strategies for achieving crack-free, mechanically robust welds in lithium-ion battery busbar manufacturing. Full article

Laser additive manufacturing shows great promise for repairing high-value carburized gears, but the underlying relationships among thermal history, microstructure, and properties remain insufficiently quantified. This study uniquely integrates finite-element modeling with microstructural mapping to decipher thermo-mechanical coupling during gear repair. A thermal simulation model that combines a double-ellipsoidal heat source with phase-transformation kinetics achieves 91.1% accuracy in predicting melt pool depth and hardened-layer depth. The cladding process induces a substantial increase in subsurface hardness, primarily due to phase-transformation-induced refinement and regeneration of martensite during rapid thermal cycling. This results in a peak hardness of 64 HRC and a tensile strength of 2856 MPa in the secondary-hardened layer, both exceeding those of the original carburized substrate. The presence of beneficial compressive residual stresses further improves fatigue resistance. Spatial gradients in elastic modulus, strength, and hardness, measured by flat indentation and microhardness testing, are quantitatively correlated with simulated peak temperatures and predicted phase distributions. These correlations establish a causal link from the thermal history to phase transformations, microstructural evolution, and the resulting local hardness and strength. These findings provide a mechanistic foundation for precision repair and service-life prediction of high-carbon gear steels using laser additive manufacturing. Full article

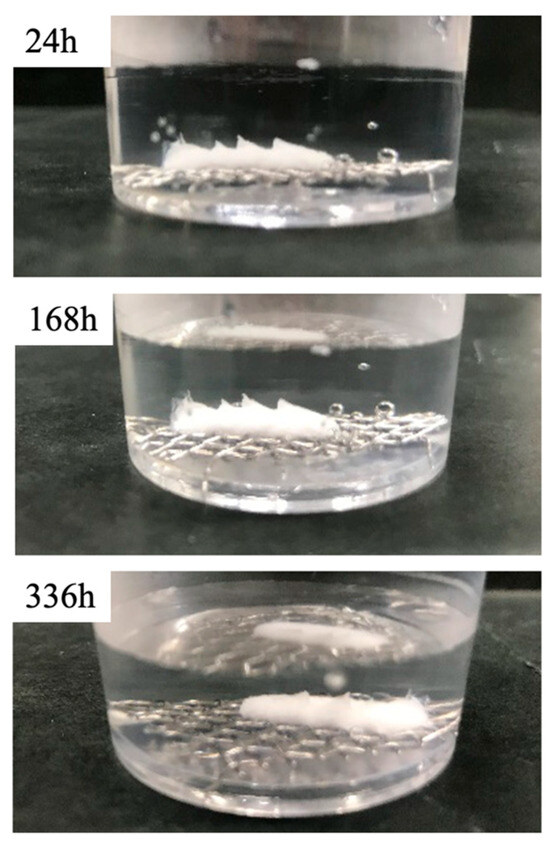

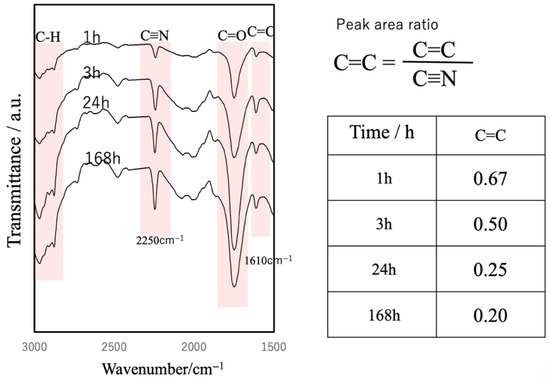

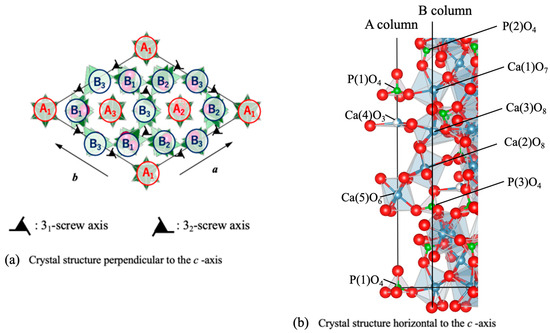

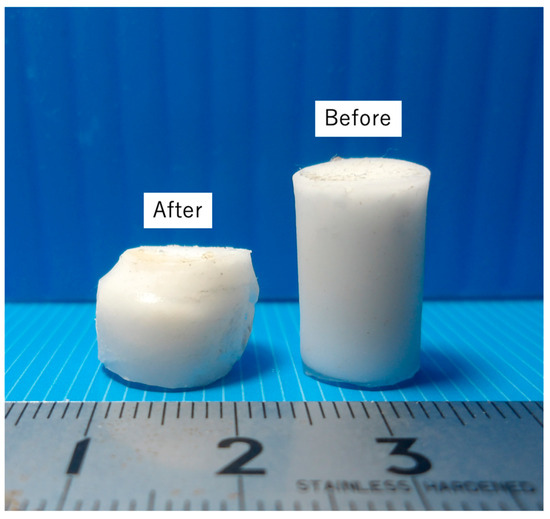

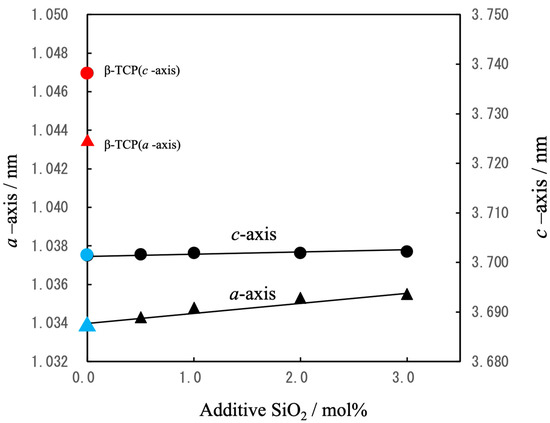

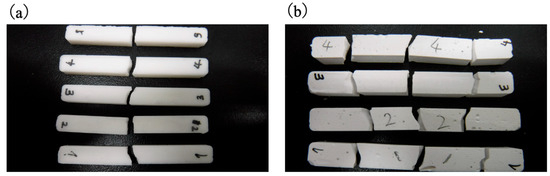

Bone cements based on polymethyl methacrylate (PMMA) remain the clinical standard for joint replacement and vertebral augmentation but suffer from several major challenges. These include excessive stiffness compared with cancellous bone, lack of resorption and osteoconductivity, and thermal necrosis during curing. Calcium phosphate cements (CPCs) are bioactive and resorbable but tend to exhibit low mechanical strength, poor injectability and brittle fracture. The work reported herein developed an injectable composite bone cement by combining spherical, porous, sintered β-tricalcium phosphate (β-TCP) particles with a cyanoacrylate adhesive. The β-TCP granules provided bioactivity and a favorable microarchitecture while the cyanoacrylate ensured strong adhesion and rapid setting. Ion substitution with Mg, Na and Si was found to modify the surface acidity of the material while also inhibiting cyanoacrylate polymerization, thereby extending the setting time and lowering the exotherm temperature. This composite exhibited high chemical stability, smooth injectability and early surface reactivity indicative of osteoconductivity. The compressive strength of the material stabilized at approximately 40 MPa and so exceeded that of cancellous bone. This new material also showed ductility, energy absorption and superior impact resistance, although its tensile and fatigue resistance remained limited. Importantly, the composite provided strength comparable to that of PMMA in cemented models during fixation tests and significantly outperformed CPCs in cementless tibial tray fixation experiments. These findings demonstrate that the present β-TCP/cyanoacrylate cement bridges the gap between PMMA and CPCs by combining injectability and mechanical reliability with bioactivity. This cement is therefore a promising next-generation option for minimally invasive osteoporotic fracture treatment and revision arthroplasty. Full article

This study investigates the low-cycle fatigue behavior and microstructural evolution of a novel 30Cr2Ni3MoWV hot-work die steel at 700 °C under different strain amplitudes. High-temperature tensile tests demonstrated a tensile strength of 460 MPa and an elongation of 32%, confirming the material retains good ductility. Fracture analysis revealed ductile failure, supported by a 95% reduction in area. Low-cycle fatigue tests indicated notable cyclic softening at high strain amplitudes, with fatigue life declining rapidly as strain amplitude rose from 0.2% to 0.6%. A stress-softening coefficient model was established to describe this accelerated softening. Microstructural examination identified carbides (MC, M₇C₃, M₂₃C₆), which promoted secondary crack formation at 0.6% strain amplitude, contributing to early failure. TEM analysis further showed dislocation rearrangement, carbide coarsening, and martensite lath widening during cyclic loading. Among these, M₂₃C₆ precipitates were linked to increased softening at higher strains. The Coffin–Manson model parameters were optimized based on the relationship between fatigue life, plastic strain, and elastic strain. The model accurately predicted the steel’s fatigue life, with only a 0.01% deviation from experimental results. This work correlates accelerated softening and reduced fatigue life with three microstructural mechanisms—carbide coarsening, dislocation accumulation, and secondary cracking—offering valuable guidance for enhancing the high-temperature performance of hot-work die steels. Full article

Coupled high temperature and dynamic loading often leads to the complicated degradation of performance in industrial kilns, enclosures, or other concrete structures, which constitutes a serious hazard to the safety of concrete structure. To bridge this research gap, this study investigates not only the mechanical response but also the damage mechanisms of normal concrete (NC), basalt fiber-reinforced concrete (BFRC), and steel fiber-reinforced concrete (SFRC) under the coupled effects of high temperature and dynamic loading. Test specimens were conditioned for ambient conditions, 200 °C, 400 °C, and 600 °C, and underwent quasi-static and dynamic splitting tensile tests using the Split Hopkinson Pressure Bar (SHPB) with strain rates varying between 24 and 91 s⁻¹. Significantly, the high-temperature-induced degradation of all types of concrete is remarkably suppressed by fibers, especially steel fibers. The best thermal degradability resistance was displayed by the SFRC with the highest remaining residual dynamic strength, peak strain, and energy dissipation, especially in the most severe (600 °C, 0.15 MPa) circumstances among these three types of materials. All materials revealed a clear strain rate strengthening effect. An empirical model, integrating the coupling effect of strain rate, temperature, and fiber type in DIF, was also developed, yielding better prediction capability than those already available. This reveals that the comprehensive performance of SFRC can meet structure requests, so it is suitable for applications involving steel fiber in environments characterized by high temperature and high strain rates. Full article

As the hydrogen economy rapidly expands, carbon-fiber-reinforced polymer composites (Towpreg) have become key materials for next-generation hydrogen pressure vessels, offering superior processability, reproducibility, and storage stability compared to conventional wet-winding composites. Since hydrogen storage vessels are evaluated at three representative service temperatures (−40, 25, and 85 °C), Towpreg materials must maintain consistent mechanical performance across this range to meet certification standards. This study establishes an integrated methodology combining Towpreg panel fabrication, temperature-controlled tensile and fatigue testing, and quantitative assessment of thermo-mechanical stability using DM epoxy resin as the matrix. To address artifacts such as tab slippage at high temperatures and inefficiency at low temperatures, a “Localized Thermal Control” approach was developed. The HY-Mini Heater System enables localized heating at 85 °C, while the HY-Cooler System applies a Joule–Thomson-based Stirling cooler for efficient localized cooling at −40 °C. Quantitative evaluation showed tensile strengths of 2973.3 MPa (RT), 2767.3 MPa (HT, ~7% decrease), and 2907.7 MPa (LT, ~2% decrease). Under R = 0.1 fatigue testing, the Basquin slope (m) was 11.97 (RT), 9.98 (HT), and 10.6 (LT), while the intercept (log b ≈ 3.7) remained nearly constant. These results confirm the excellent thermo-mechanical stability of the carbon-fiber-reinforced polymer composites (Towpreg) for hydrogen tank applications. Full article

Paper plays an important role in the packaging industry due to its low cost, light weight, recyclability and biodegradability. However, the use of paper as a packaging material is severely limited due to its hydrophilicity caused by the hydroxyl groups of cellulose. This study reports a simple preparation of highly hydrophobic kraft paper by a one-step dip coating method using [3-(2,2,3,3-tetrafluoropropoxy)propyl]silsesquioxane, {3-[(2,2,3,3,4,4,5,5-octafluoropentyl)oxy]propyl}silsesquioxane or {3-[(2,2,3,3,4,4,5,5,6,6,7,7-dodecafluoroheptyl)oxy]propyl}silsesquioxane as hydrophobic agents. As a result of modification of kraft paper, a stable covalently bonded coating is formed on its surface. The coated kraft paper has demonstrated (1) high water resistance (the water contact angle (WCA) values were 124–141°, and the water absorption and the water vapor permeability (WVP) rates were significantly decreased), (2) excellent resistance to aggressive environments and temperature, (3) enhanced mechanical properties (tensile strength increased from 46.8 to 70.8 MPa), and (4) high wear resistance, as confirmed by sandpaper abrasion, bending, and finger-wipe tests. It was shown that the maximum contact angle values were achieved for kraft paper modified with a 5% polymer solution. The results of this study have great potential, given the simplicity of the modification method, for use in the production of paper-based packaging materials with water-repellent, enhanced mechanical and moisture-protective properties. Full article

Injection molding is a high-volume manufacturing process widely used for producing polymer components; however, its process parameters strongly influence residual stress, warpage, and the resulting mechanical performance. This work presents a comprehensive factorial design and ANOVA to evaluate the simultaneous effects of the injection temperature, packing pressure, packing time, and specimen orientation on the warpage, hardness, tensile, and flexural properties of polypropylene plates. The results demonstrate that the injection temperature and packing pressure are the dominant factors affecting the hardness and ultimate tensile strength, whereas warpage is mainly governed by the injection temperature and orientation. Under the tested conditions, certain combinations of injection temperature and packing pressure led to an improved mechanical performance; however, these adjustments also produced reductions in other properties, indicating that the balance among parameters depends on the targeted application rather than a single optimal set. Conversely, the parameter combination that produced the lowest warpage still yielded a significant increase in $E_{sec}$, indicating that reducing the warpage does not necessarily compromise the tensile stiffness. Interestingly, variations in the stress distribution between the tensile and bending tests suggest that the solidification-induced structure of the material influences its mechanical response, with specimens that showed a lower tensile strength exhibiting a comparatively higher resistance under bending. These findings provide new insights into the trade-offs between dimensional accuracy and mechanical performance and offer practical guidelines for optimizing polypropylene injection molding processes. Full article

The hole expansion process of high-strength steel is influenced by multiple factors, including the deformation path, UTS/YS ratio, uniform elongation, sheet anisotropy, sheet thickness, strain rate, material micro-defects and the work hardening exponent. Based on forming limit curves or instability criteria, the prediction of the hole expansion ratio (HER) often requires extensive initial boundary conditions that complicate the result. In this study, V-Nb bainitic steel was subjected to hot continuous rolling and underwent water quenching with different coiling temperatures, then subsequently followed by thermal simulation and mechanical testing to fit the work hardening exponent (n) and to obtain the necking deformation instability curve. The radial displacement at the hole edge during simulation was predicted with the ratio of ultimate tensile strength to fracture strength. Furthermore, based on the tensile fracture failure criterion, the HER was predicted with the true fracture strain derived from uniaxial tensile tests. Comparison between the simulated results and actual hole expansion tests shows that the crack resistance in the post-uniform stage, strain hardening capacity and deformation compatibility between the microstructure and matrix are critical factors. And the proposed model achieves a prediction accuracy of over 85% for the V-Nb bainitic high-strength steel. Full article

Cement composites are non-flammable, and their resistance to high temperatures is only apparent. This article presents extensive research on the strength parameters of building mortars exposed to fire-simulating conditions. The analyses included assessment of the mortars’ tensile, compressive and flexural strength, as well as their flexural modulus of elasticity. Microscopic analysis of the samples was performed using a scanning electron microscope (SEM). The results of optimisation studies, particularly tensile strength tests conducted for various types of additives (fibres), showed that the addition of polypropylene fibres had a beneficial effect across the entire temperature range. Based on the research, relationships between temperature and the tested parameters were developed. Polynomial models were applied for their approximation, with the selection justified both by the high consistency with the experimental results and by the nature of the physical changes occurring in the cement mortar during subsequent stages of heating. These models allow an approximate assessment of the condition of mortar after a fire. Based on the conducted microstructural analyses of mortars and their correlation with the strength test results, graphical models were presented to illustrate the phenomena governing the changes in the examined parameters at various fire temperatures. On the basis of conclusions drawn from the analyses, recommendations were formulated regarding the use of polypropylene fibres in selected structural elements that may be exposed to fire, and the limitations of their applicability were indicated. Full article
