Search Results (15)

In this study, an effective strengthening method was investigated to improve the seismic performance of masonry brick walls. The strengthening method comprised the use of shotcrete, which was applied in both glass fiber-reinforced and unreinforced forms for steel plates and tie rods. Thirteen wall specimens constructed with vertical perforated masonry block bricks were tested under diagonal compression in accordance with ASTM E519 (2010). Reinforcement plates with different thicknesses (1.5 mm, 2 mm, and 3 mm) were anchored using 6 mm diameter tie rods. A specially designed steel frame and an experimental loading program with controlled deformation increments were employed to simulate the effects of reinforced concrete beam frame system on walls under the effect of diagonal loads caused by seismic loads. In addition, numerical simulations were conducted using three-dimensional finite element models in Abaqus Explicit software to validate the experimental results. The findings demonstrated that increasing the number of tie rods enhanced the shear strength and overall behavior of the walls. Steel plates effectively absorbed tensile stresses and limited crack propagation, while the fiber reinforcement in the shotcrete further improved wall strength and ductility. Overall, the proposed strengthening techniques provided significant improvements in the seismic resistance and energy absorption capacity of masonry walls, offering practical and reliable solutions to enhance the safety and durability of existing masonry structures. Full article

Aiming at the unclear bearing mechanism of the single-layer lining structure of high-performance fiber shotcrete under layered construction in the hard rock section of a highway tunnel, this paper studies the effect of different thickness ratios under layered construction on the flexural performance of the single-layer lining structure. Six types of thickness ratio specimens were subjected to a four-point bending test. The tests employed 3D digital image correlation technology to record and analyze the deformation and failure process of the specimens, and the calculation method of single-layer lining flexural stiffness was modified. The results indicate that the flexural ultimate load of the specimens is achieved at a thickness ratio of 2, which is 20.9% higher compared to a thickness ratio of 0. Layered construction affects the failure mode of the specimens. All specimens exhibit mixed-mode failure. However, with the increase in the thickness ratio, the percentage of flexural failure cracks gradually increases. Under layered construction, the reduction in the effective bending stiffness of fiber shotcrete beams becomes more pronounced as the thickness ratio increases. Based on these findings, the interface influence factor is proposed, and the flexural stiffness is corrected using composite beam theory. Full article

This study substantiates the need for direct tensile strength testing of shotcrete and fiber-reinforced shotcrete, rather than relying on indirect methods, to accurately reflect material performance under biaxial stress conditions when used for structural reinforcement. Experiments on field specimens confirmed that tensile strength values derived through direct testing differ significantly from those calculated based on compressive strength. The study presents a new testing methodology with optimized specimen dimensions (32, 40, 50, and 82 mm diameter cylinders with length-to-diameter ratios of 3.0) to mitigate eccentricity effects, ensuring normal-section failure. Results show that tensile strength values for fiber-reinforced shotcrete with brass-coated fibers (13–15 mm length, 0.3–0.5 mm diameter, 30 kg/m³ dosage) reached 68 MPa, compared to 60 MPa for standard shotcrete, while basalt-fiber reinforcement (6 mm length, 1% by weight) resulted in 42 MPa. The initial modulus of elasticity for unreinforced shotcrete was 280 × 10³ MPa, with fiber reinforcement slightly increasing this value to 287 × 10³ MPa. The findings support a direct approach to testing, providing a foundation for developing predictive methodologies for fiber-reinforced shotcrete properties based on reinforcement type and dosage. These results are essential for applications such as seismic strengthening, where accurate tensile characteristics are critical for performance under dynamic loading. Full article

This study summarizes the experience of conducting and maintaining mining operations in unstable zones in mines in Kazakhstan, assessing the mining and geological technical conditions of their operation under difficult mining and geological conditions. A field study and analytical modeling with an assessment of the stability of the boundary mass using the Barton mining method enabled the development of a technology for sinking mining operations with combined fasteners and friction anchors in ore mines. Full article

Geopolymer enhances mechanical properties with polyvinyl alcohol (PVA) fibers, but there has been limited research exploring low PVA fiber dosages for mechanical properties in 3D printing or shotcrete. This study experimentally investigated slag and fly ash-based geopolymer mixtures reinforced with 0.1%, 0.15%, and 0.2% PVA fiber by volume as well as a control group without PVA fibers. These mixtures were prepared using fly ash, quartz sand, slag powder, silica fume, and an aqueous sodium silicate solution as the alkali activator, with the addition of PVA fiber to enhance composite toughness. The mechanical properties of the composites, encompassing dog-bone tensile properties, cubic compressive strength, bending and post-bending compressive strength, and prism compressive properties, were evaluated. Significantly, specimens with 0.15% PVA fibers exhibited optimal performance, revealing a notable 28.57% increase in tensile stress, a 36.45% surge in prism compressive strain, and a 47.59% rise in tensile strain compared to fiber-free specimens. Furthermore, environmental scanning electron microscopy observations were employed to scrutinize the microscopic mechanisms of composites incorporating PVA fibers, slag, and fly ash. In comparison to fiber-free specimens, prism compressive specimens with 0.15% PVA fibers demonstrated a 27.17% increase in post-cracking loading capacity, a 44.07% increase in post-cracking ductility, a 50.00% increase in peak strain energy, and a 76.36% increase in strain energy ratio. Full article

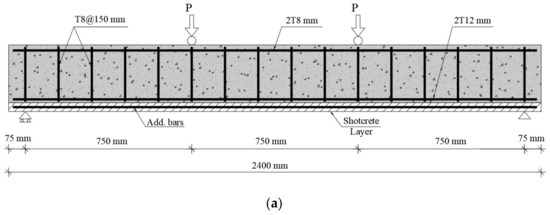

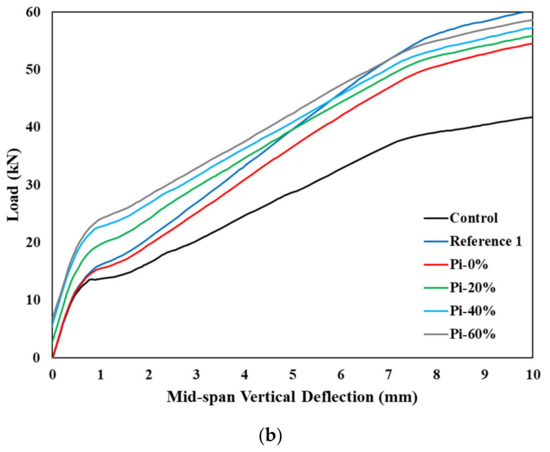

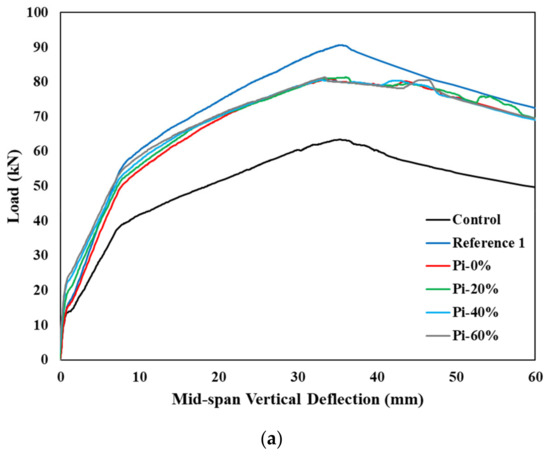

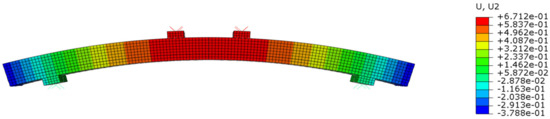

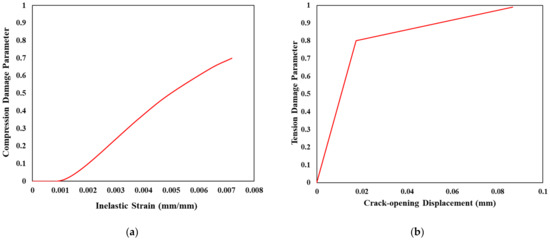

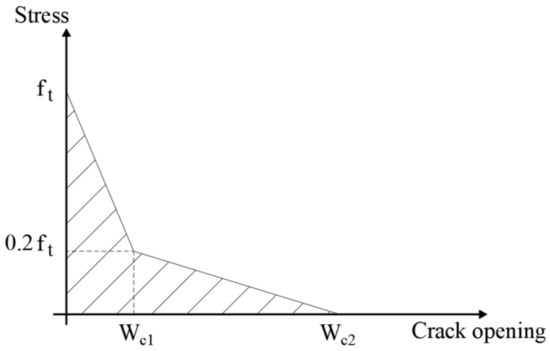

The behavior at the interface between normal strength concrete (NSC) and Ultra-High Performance Fiber-Reinforced Concrete (UHPFRC) plays a crucial role in accurately predicting the capacity of UHPFRC for strengthening and repairing concrete structures. Until now, there has been a lack of sufficient finite element (FE) models for accurately predicting the behavior at the interface between NSC and UHPFRC. This study aims to investigate the structural behavior of composite members made of NSC and UHPFRC by developing a model that accurately simulates the interface between the two materials using a linear traction-separation law. Novel parameters for the surface-based cohesive model, based on the traction-separation model, were obtained and calibrated from prior experiments using analytical methods. These parameters were then integrated into seven FE models to simulate the behavior at the interface between NSC and UHPFRC in shear, tensile, and flexural tests. The accuracy of the FE models was validated using experimental data. The findings revealed that the proposed FE models could effectively predict the structural behavior of composite NSC-UHPFRC members under various working conditions. Specifically, the maximum deviations between EXP and FEA were 6.8% in ultimate load for the shear test and 15.9% and 2.8% in ultimate displacement for the tensile and flexural tests, respectively. The model can be utilized to design the use of UHPFRC and ultra-high performance fiber-reinforced shotcrete (UHPFRS) for repairing and strengthening damaged concrete structures. Full article

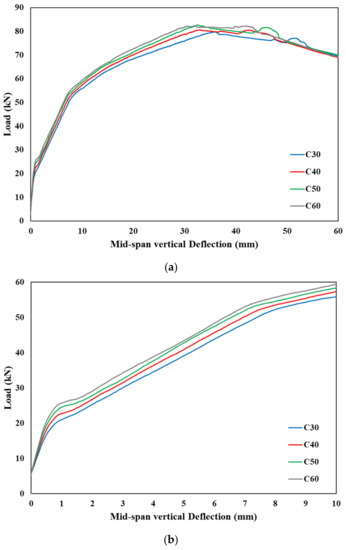

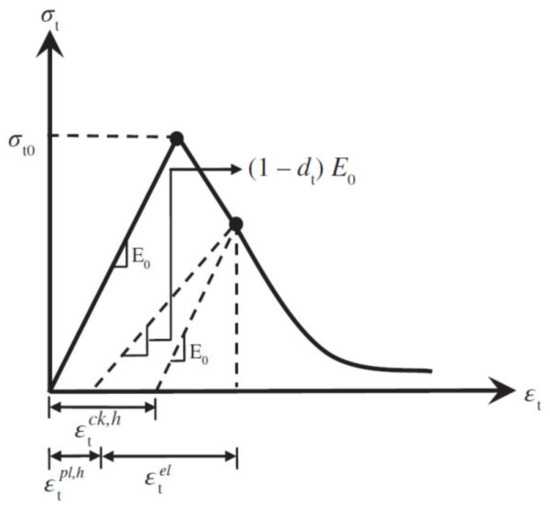

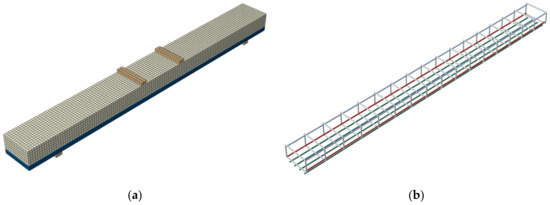

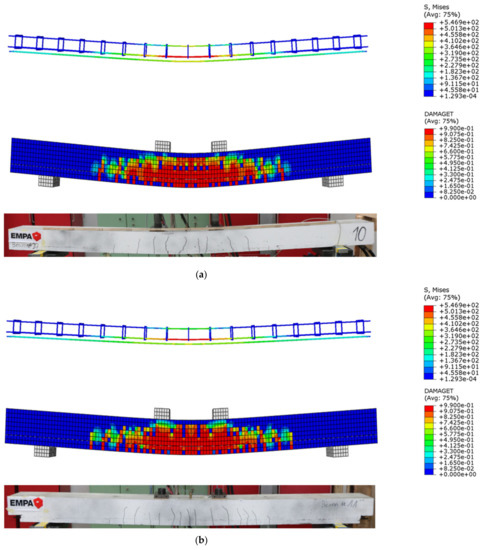

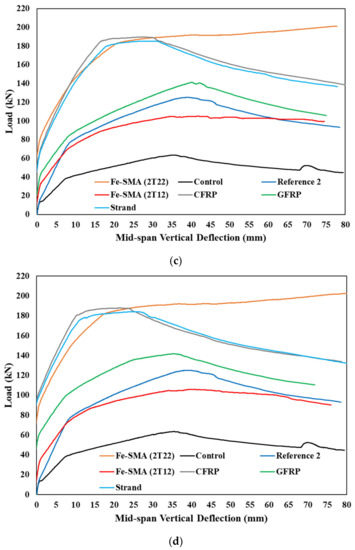

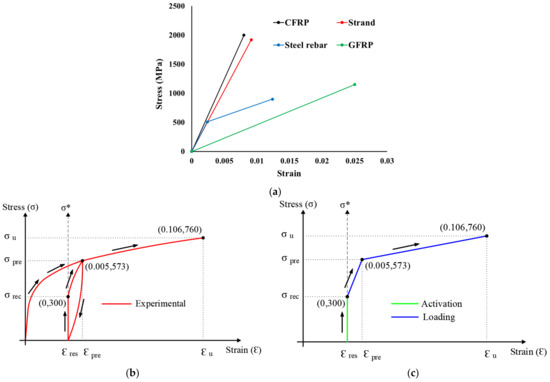

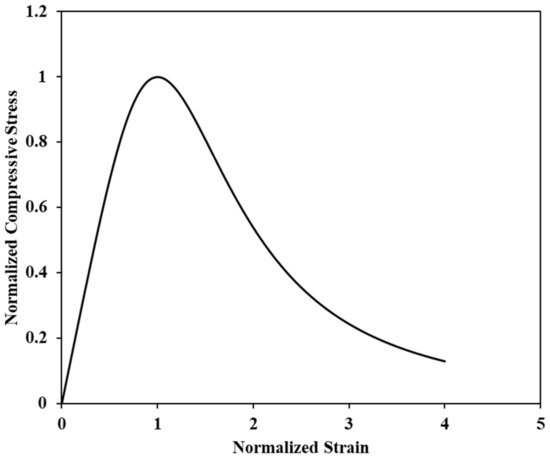

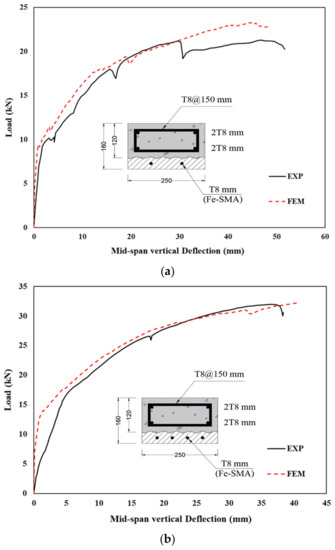

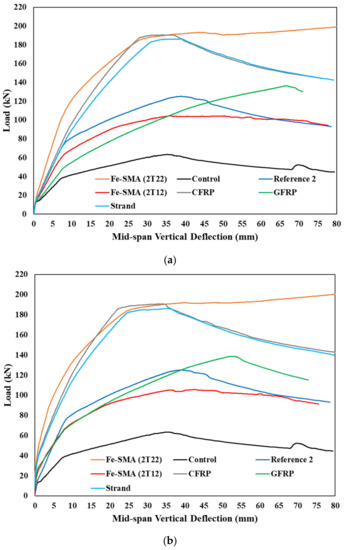

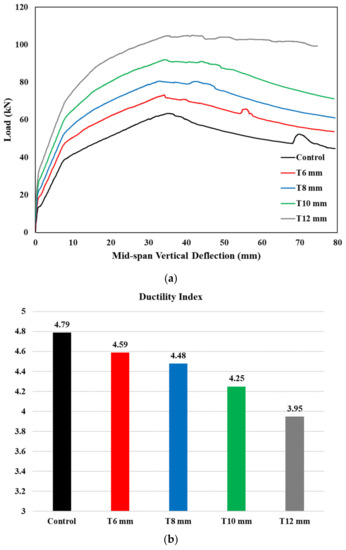

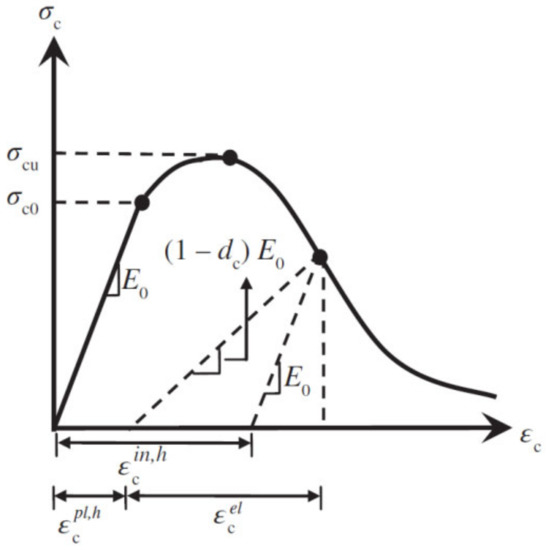

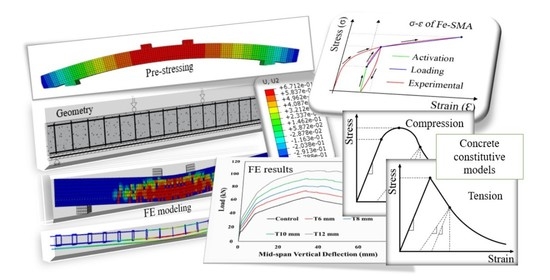

The iron-based shape memory alloy (Fe-SMA) has promising applications in strengthening and repairing aged steel-reinforced concrete structural elements. Fe-SMA bars can produce pre-stressing forces on reinforced concrete members by activating their shape memory phenomenon upon heating. This study aims to numerically evaluate the impact of pre-stressed Fe-SMA bars on the structural behavior of reinforced concrete (RC) beams at the serviceability and ultimate stages. Nonlinear finite element (FE) models were developed to predict the response of RC beams externally strengthened with Fe-SMAs. The model shows to correlate well with published experimental results. A parametric investigation was also carried out to examine the effect of various concrete grades, pre-stressing levels, and Fe-SMA bars’ diameter on load-deflection behavior. In light of the innovative nature of the Fe-SMA strengthening technique, a comparison investigation was established between RC beams strengthened with Fe-SMA bars against different pre-stressing systems, such as carbon fiber reinforced polymer (CFRP) bars, glass fiber reinforced polymer (GFRP) bars, and steel strands. The numerical findings showed a significant increase in the beams’ load-carrying capacity with larger Fe-SMA bars’ diameter. Specifically, using 12 mm Fe-SMA bars instead of 6 mm increased the beam’s strength by 73%. However, a 14% reduction in ductility was recorded for that case. Moreover, the pre-stressing level of Fe-SMA bars and concrete grade showed a negligible effect on the ultimate strength of the examined beams. Moreover, increasing the pre-stressing level and concrete strength significantly enhanced the load-deflection response in the serviceability stage. Furthermore, using 2T22 mm of Fe-SMA bars resulted in a better structural performance of RC beams compared to other techniques with 2T12 mm, with a comparable cost. Thus, it can be concluded that using Fe-SMA bars embedded in a shotcrete layer attached to the beam’s soffit is a viable and promising strengthening strategy. Nevertheless, further experimental investigations are recommended to further ascertain the reported findings of this numerical investigation. Full article

With the development of infrastructure, there are growing numbers of high geothermal environments, which, therefore, form a serious threat to tunnel structures. However, research on the changes in mechanical properties of shotcrete under high temperatures and humid environments are insufficient. In this paper, the combination of various temperatures (20 °C/40 °C/60 °C) and 55% relative humidity is used to simulate the effect of environment on the strength and stress–strain curve of basalt fiber reinforced shotcrete. Moreover, a constitutive model of shotcrete considering the effect of fiber content and temperature is established. The results show that the early mechanical properties of BFRS are improved with the increase in curing temperature, while the compressive strength at a later age decreases slightly. The 1-day and 7-day compressive strength of shotcrete at 40 °C and 60 °C increased by 10.5%, 41.1% and 24.1%, 66.8%, respectively. The addition of basalt fiber can reduce the loss of later strength, especially for flexural strength, with a increase rate of 11.9% to 39.5%. In addition, the brittleness of shotcrete increases during high temperature curing, so more transverse cracks are observed in the failure mode, and the peak stress and peak strain decrease. The addition of basalt fiber can improve the ductility and plasticity of shotcrete and increase the peak strain of shotcrete. The constitutive model is in good agreement with the experimental results. Full article

The present study investigated the influence of the hybridization of steel and polyolefin fiber on the mechanical performance and chloride ion penetration of base concrete designed for marine shotcreting purposes. The purpose of fiber hybridization is to reduce the risk of corrosion that might occur during service life. Sets of hybrid fiber reinforced base concrete, whose water to binder ratio was 0.338, were prepared. The fiber contents in the base concrete were 0.54 and 1.08 vol%, and the volume proportion of polyolefin fiber in the hybrid fiber varied from 0 to 100%. Although the effect of fiber hybridization was not clearly observed from the compressive strength, a synergetic effect which increased both the flexural strength and toughness occurred at a fiber content of 1.08 vol%. The optimum ratio of steel and polyolefin fiber was 50:50. With respect to chloride ion penetration, an increasing amount of steel fiber increased the amount of current passing through the base concrete specimen due to the presence of electrically conductive steel fiber. However, chloride ion diffusivity was not greatly affected by the presence of steel fiber. Full article

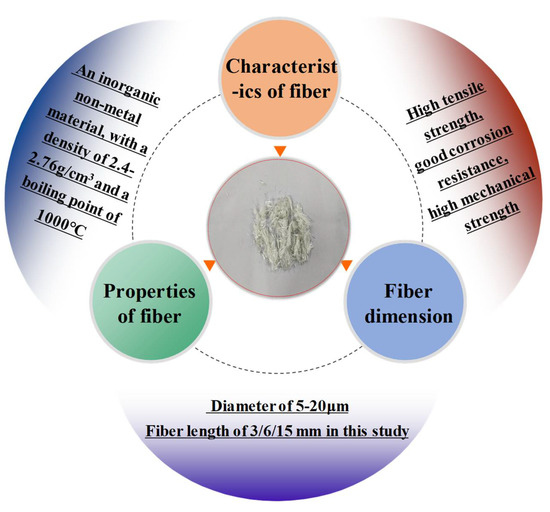

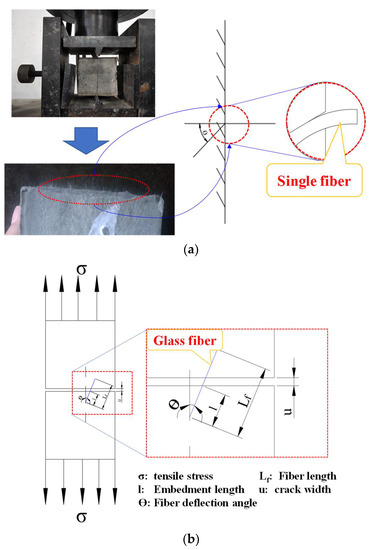

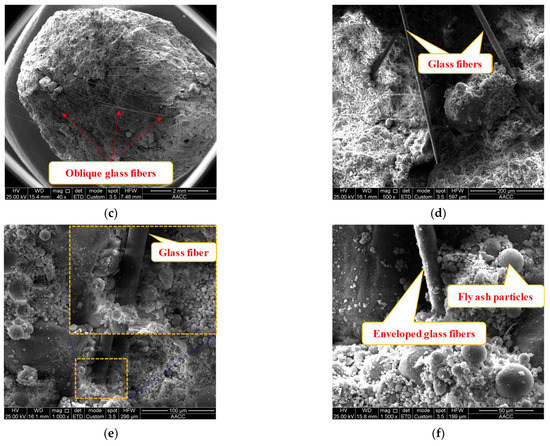

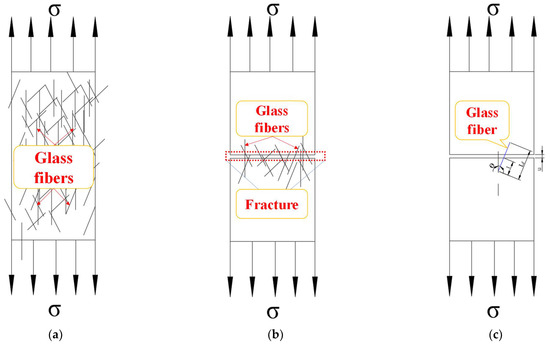

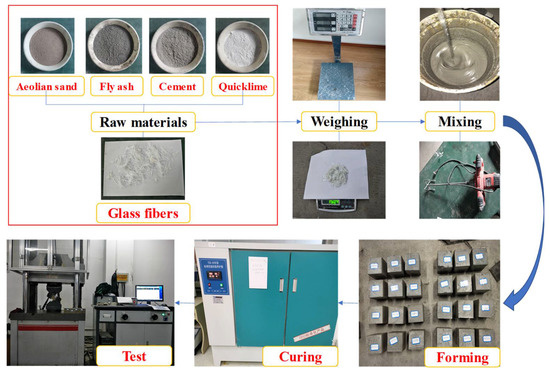

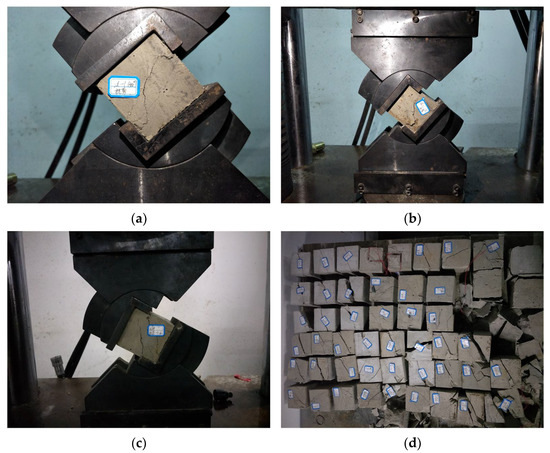

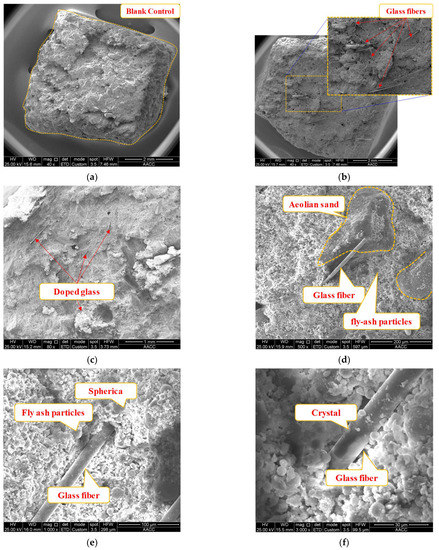

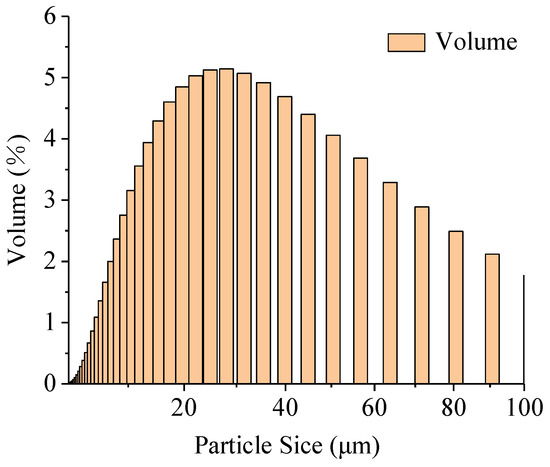

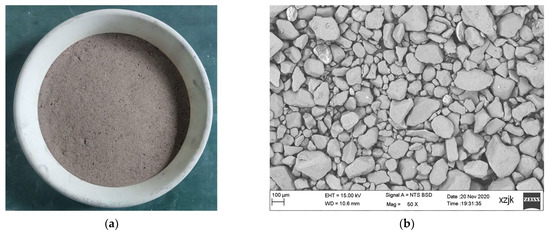

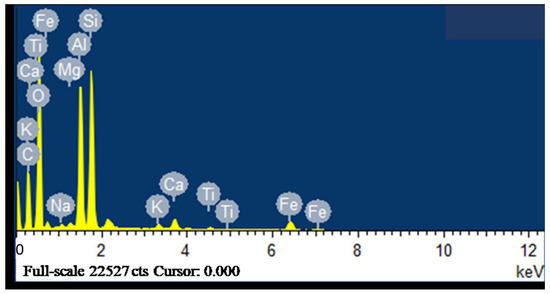

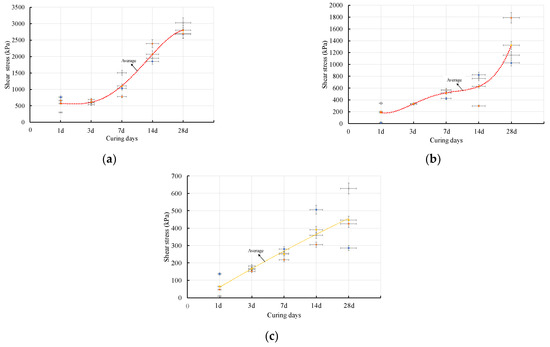

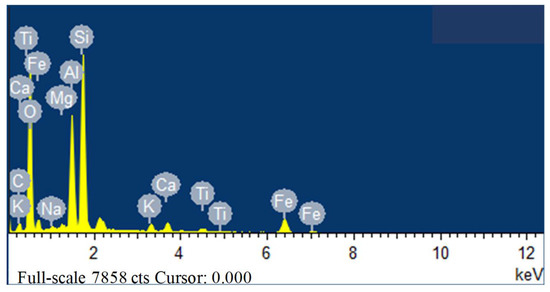

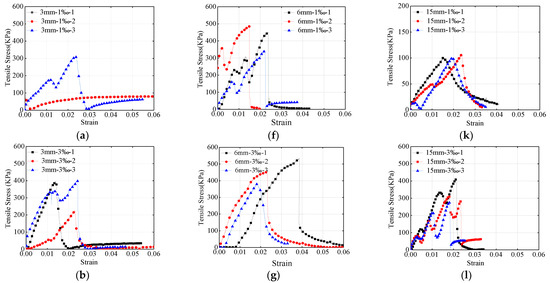

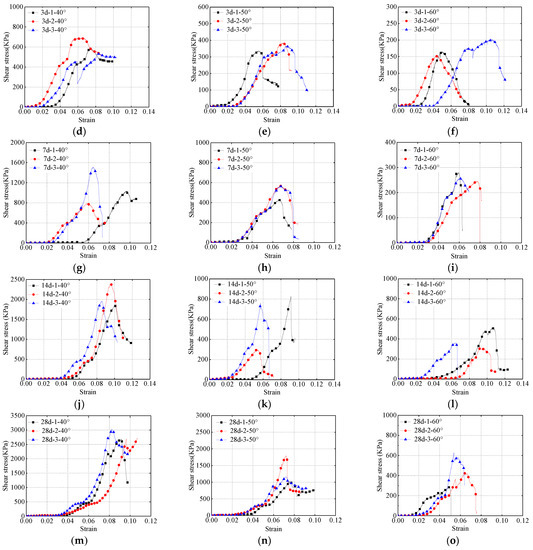

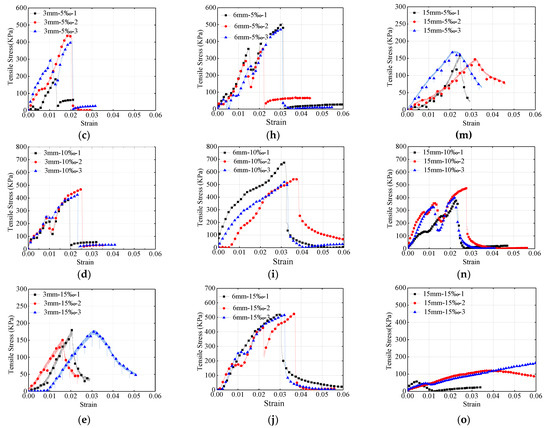

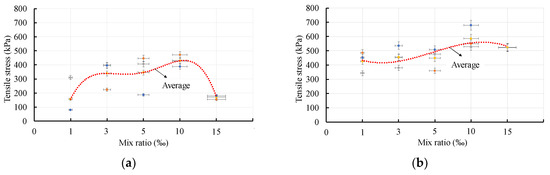

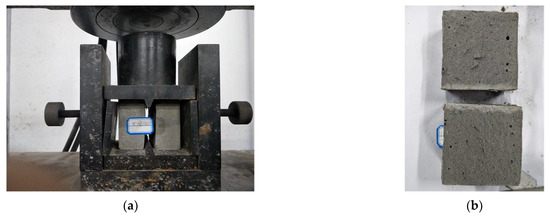

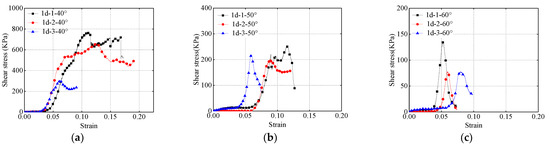

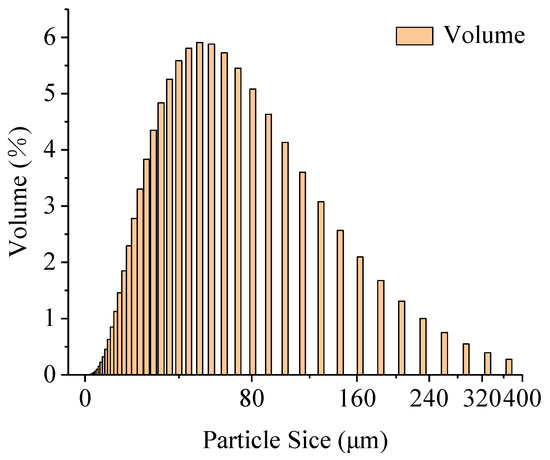

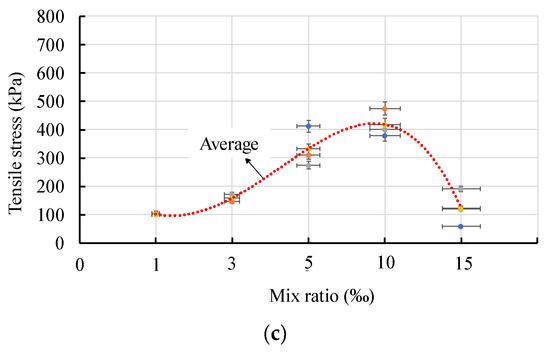

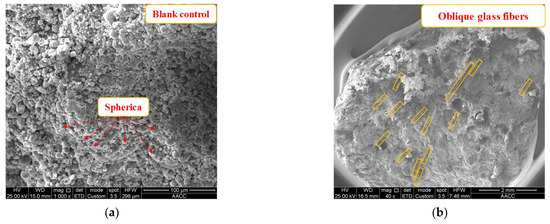

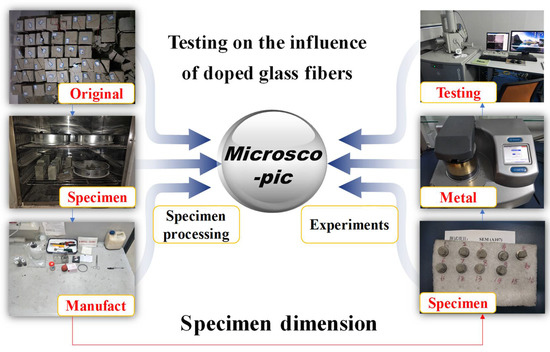

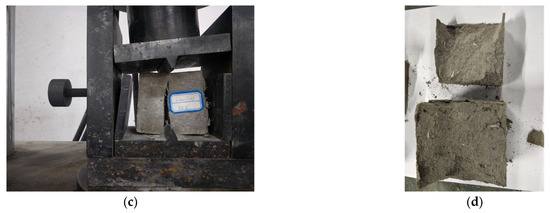

Shotcrete material has found extensive applications as a reinforcing material in the engineering sector. This study examined the effect of doped glass fibers on the mechanical performance of the modified shotcrete material composed of aeolian sand, fly ash, cement, quicklime, and doped glass fibers. Its tensile and shear strengths values were experimentally determined via a WAW-1000D computerized hydraulic universal tensile testing machine. Its microstructure was analyzed via a size analyzer, scanning electron microscope (SEM), and X-ray diffractometer (XRD). A 2D simplified mechanical model was elaborated to reflect the influence mechanism of the doped glass fibers on the mechanical performance of the modified shotcrete material. The experimental and mechanical analysis results indicated that, at the macroscopic scale, the experimental tensile and shear strengths of the shotcrete material doped with glass fibers were significantly higher than those of the undoped shotcrete material (by up to 310% and 596%, respectively). These results were in concert with the proposed model predictions, where the compound stresses in the shotcrete material were derived as the sum of the stress borne by the shotcrete material itself and the bridging stress exerted by the glass fibers. At the microscopic scale, SEM observations also revealed that the glass fibers were intertwined with each other and tightly enveloped by the shotcrete material particles within the modified shotcrete specimens, connecting the particles of different components into a whole and improving the overall mechanical strength. In addition, the relationships of the compound stress of the shotcrete material vs. embedment length, embedment angle, and cross-sectional area of the glass fibers were established. The research findings are considered instrumental in clarifying the mechanism by which the glass fibers influence the mechanical performance of shotcrete materials and optimize their solid waste (fly ash and quicklime) utilization. Full article

The research described in this paper is dedicated to the use of continuous fibers as reinforcement for additive manufacturing, particularly using Shotcrete. Composites and in particular fiber reinforced polymers (FRP) are increasingly present in concrete reinforcement. Their corrosion resistance, high tensile strength, low weight, and high flexibility offer an interesting alternative to conventional steel reinforcement, especially with respect to their use in Concrete 3D Printing. This paper presents an initial development of a dynamic robot-based manufacturing process for FRP concrete reinforcement as an innovative way to increase shape freedom and efficiency in concrete construction. The focus here is on prefabricated fiber reinforcement, which is concreted in a subsequent additive process to produce load-bearing components. After the presentation of the fabrication concept for the integration of FRP reinforcement and the state of the art, a requirements analysis regarding the mechanical bonding behavior in concrete is carried out. This is followed by a description of the development of a dynamic fiber winding process and its integration into an automated production system for individualized fiber reinforcement. Next, initial tests for the automated application of concrete by means of Shotcrete 3D Printing are carried out. In addition, an outlook describes further technical development steps and provides an outline of advanced manufacturing concepts for additive concrete manufacturing with integrated fiber reinforcement. Full article

This study analyzed the effect of accelerating agents, such as aluminate, cement mineral, and alkali-free accelerators, on the long-term performance of steel-fiber-reinforced shotcrete. The shotcrete performance was studied based on the type and amount of steel fiber added. Performance tests were performed to identify the accelerator providing better long-term performance to the steel-fiber-reinforced shotcrete. Changes in strength and flexural performance over time were investigated. The compressive strength and flexural strength tests on 1-, 3-, 6-, 12-, and 24-month-old test specimens were performed, wherein 37 kg of steel fiber was added to the cement mineral and aluminate mixes, and 40 kg of steel fiber was added to the alkali-free mix. The 1-month compressive strength result of all the test variables satisfied the Korea Expressway Corporation standard. The compressive strength of the cast concrete and shotcrete specimens increased with age, demonstrating a strength reduction, particularly in the 24-month-old shotcrete specimens. Thus, the shotcrete performance may deteriorate in the long-term. In the 24-month-old specimen, substantial flexural strength reduction was observed, particularly in the aluminate and alkali-free specimens. The relative strength of the specimens was compared with that of the cast concrete mold specimens. The results suggest the use of alkali-free accelerators, considering the long-term performance of tunnels and safety of workers. Moreover, increasing the steel fiber performance rather than the amount of low-performance steel fiber must be considered. Full article

Sprayed fiber-reinforced concrete is used in construction for the execution and repair of reinforced concrete elements. It is believed that the addition of steel fibers is most effective, due to their parameters and low costs. Some researchers, however, suggest that the addition of steel fibers can contribute to the initiation of corrosion of the main reinforcement. In consideration of the differences of opinion on the corrosion resistance of sprayed fiber-reinforced concrete, it has become necessary to analyze this issue. The article presents comparative studies of corrosion assessments of the main reinforcement in specimens made of ordinary concrete and concrete with steel fibers. The tests were performed using a semi non-destructive galvanostatic pulse method, which allows location of the areas of corrosion and estimation of the reinforcement corrosion activity. In order to initiate the corrosion processes the specimens were subjected to freezing cycles in NaCl solution. In addition, the shrinkage and compressive strength of specimens were measured, and the observation of specimen structure under a scanning microscope was performed. It was found that galvanostatic pulse method allowed estimation of the reinforcement corrosion progress. The corrosion of the main reinforcement in steel fiber reinforced concrete specimens was less advanced than in the specimens without fibers. Full article

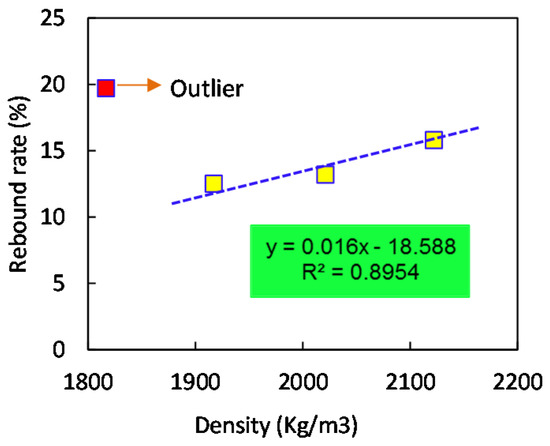

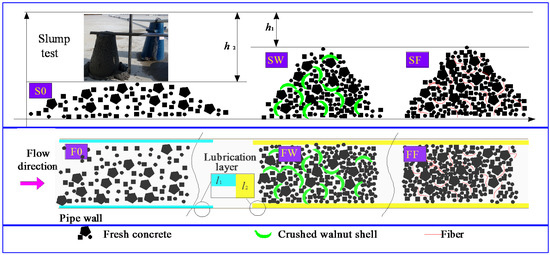

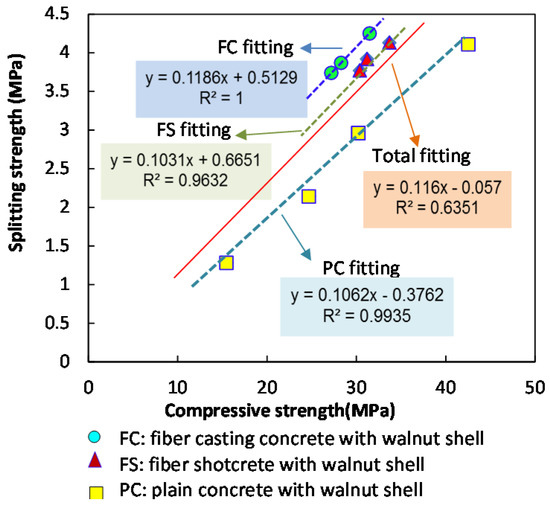

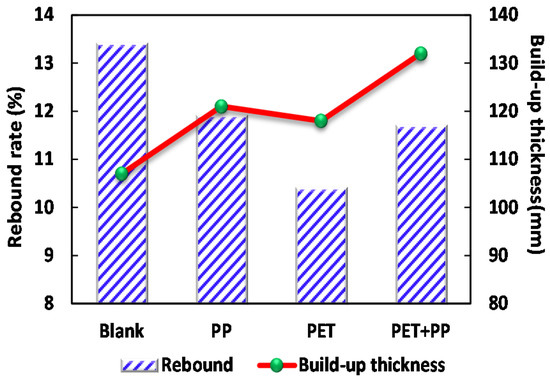

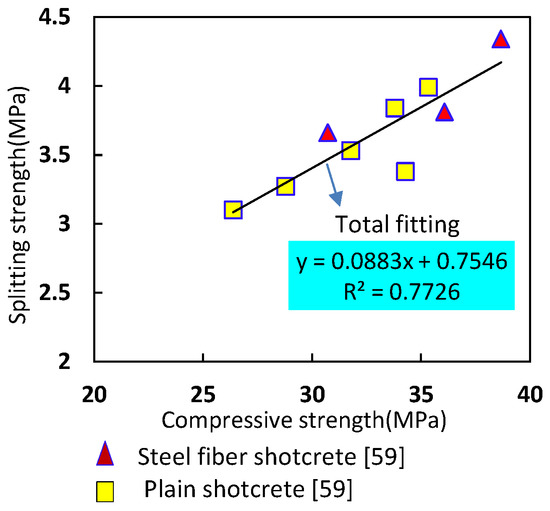

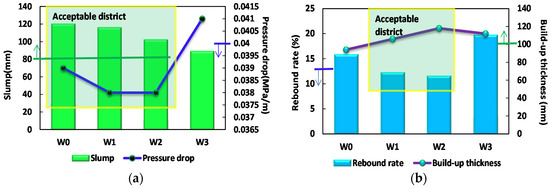

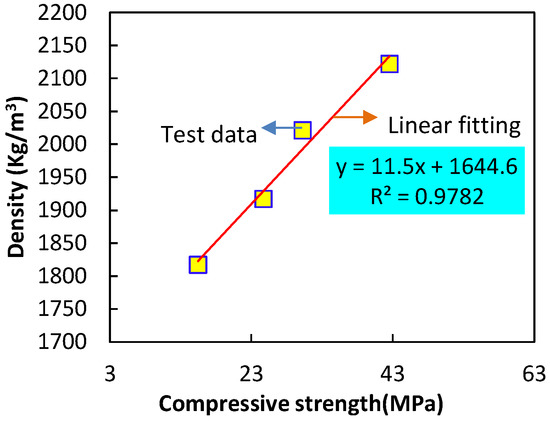

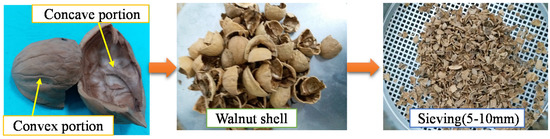

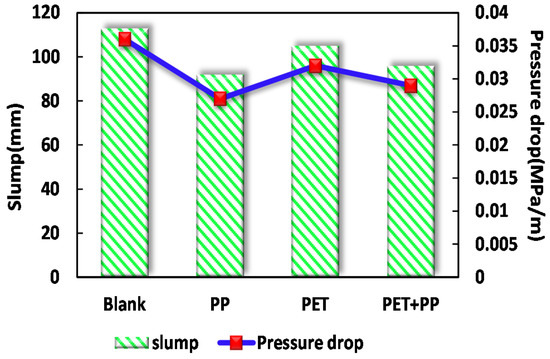

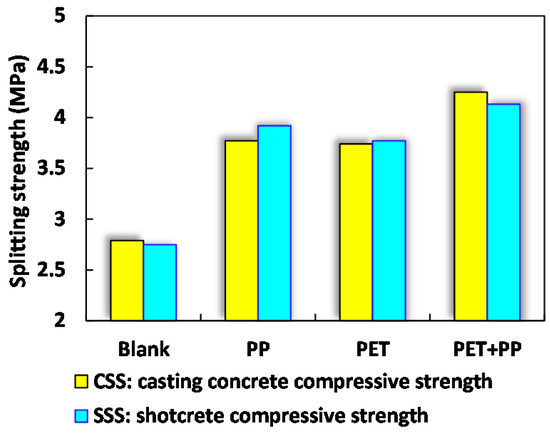

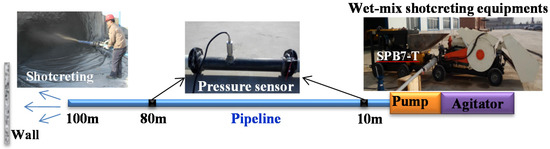

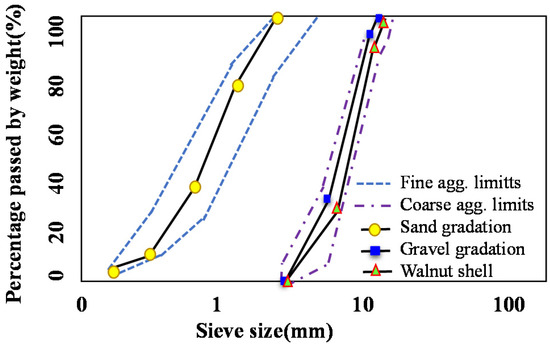

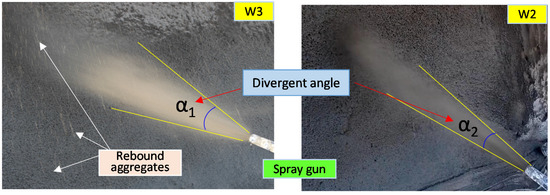

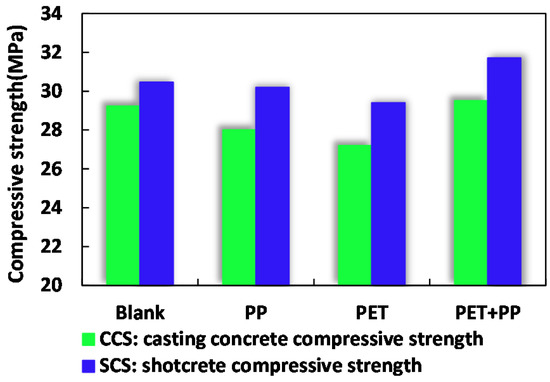

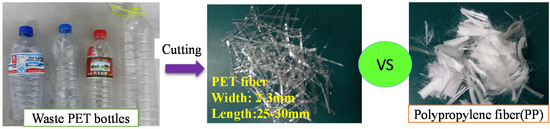

In the rapidly developing modern society, many raw materials, such as crushed limestone and river sand, which are limited, are consumed by the concrete industry. Naturally, the usage of waste materials in concrete have become an interesting research area in recent years, which is used to reduce the negative influence of concrete on the environment. Hence, this paper presents the development of a sustainable lightweight wet-mix shotcrete by replacing natural coarse gravel with a kind of byproduct, nut shell (walnut). Fibers made from dumped polyethylene terephthalate (PET) bottles were mixed in the composite to improve the properties of the lightweight wet-mix shotcrete. The initial evaluation of the fresh concrete mixed with different volume fraction of walnut shell was carried out in terms of its performance capacities of mechanical properties (i.e., tensile and compressive strength), pumpability and shootability (i.e., slump, pressure drop per meter and rebound rate) and the results were compared with plain concrete. With increase of walnut shell, compressive and splitting tensile strength of casting concrete decreased, while slump and pressure drop reduced slightly. Additionally, appropriate dosage of walnut shell can improve the shootability of fresh concrete with low rebound rate and larger build-up thickness. In the second series tests, polypropylene (PP) fiber and multi-dimension fiber were also mixed in composite for comparative analysis. After mixing fibers, the splitting tensile strength had obtained marked improvement with slight reduction of compressive strength, along with acceptable fluctuation in terms of pumpability and shootability. Furthermore, relation of density and compressive strength, relation of rebound and density, build-up thickness and relation of compressive and splitting tensile strength were discussed. This study found wet-mix shotcrete incorporating PET fiber with walnut shell of about 35% coarse aggregate replacement could be used for roadway support as lightweight shotcrete per requirements of mine support. Full article

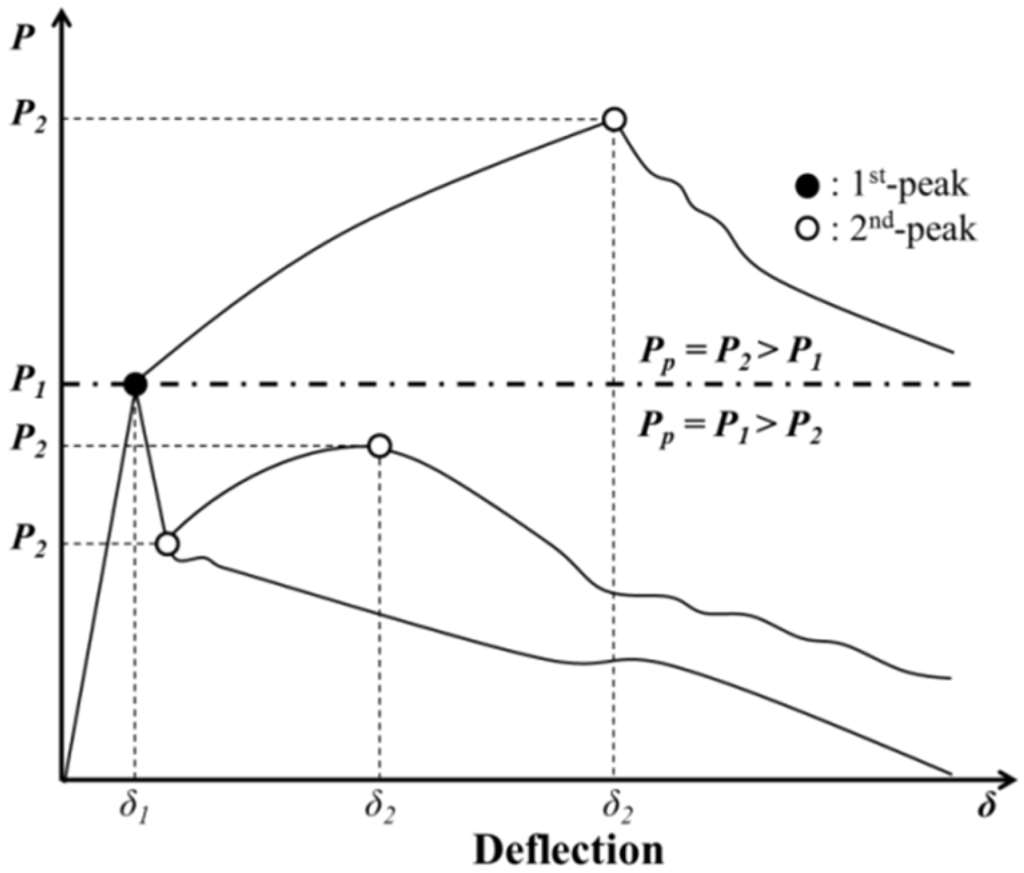

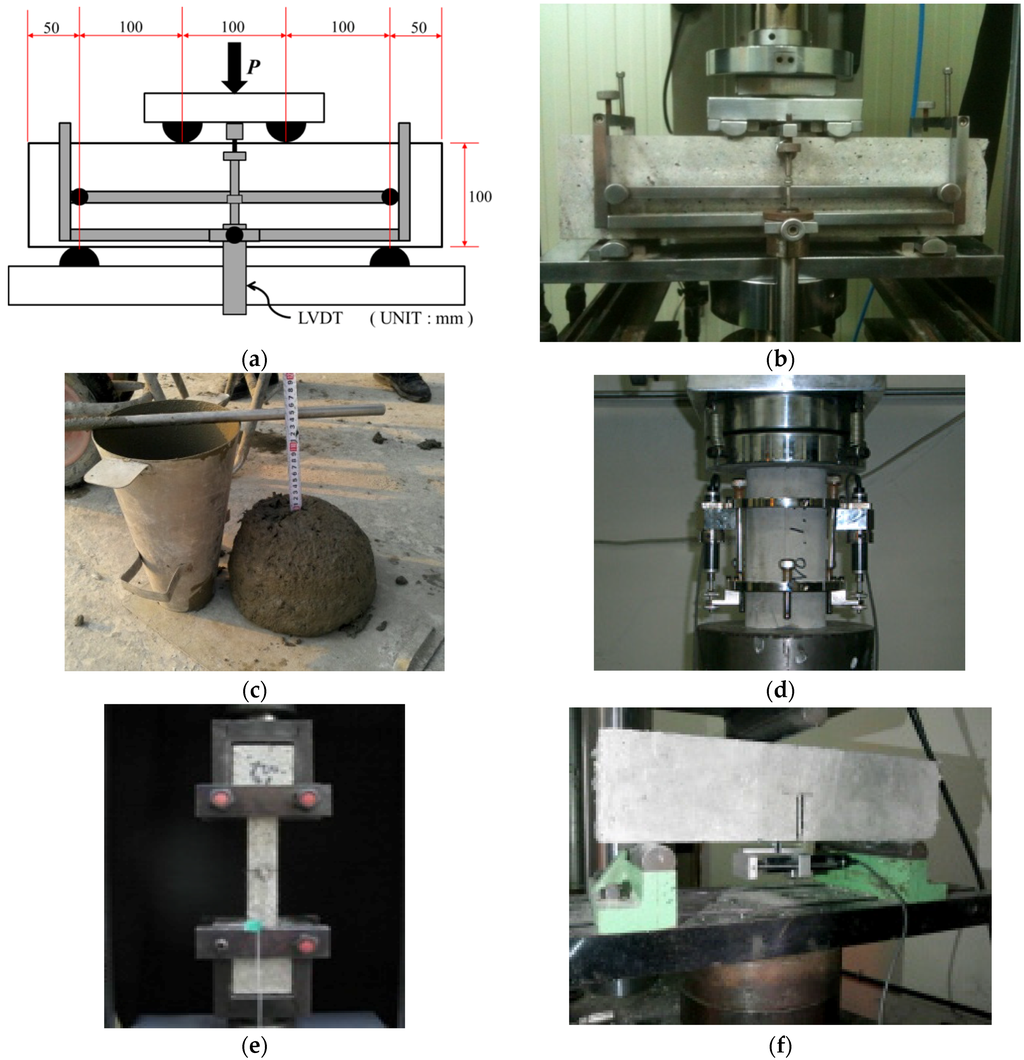

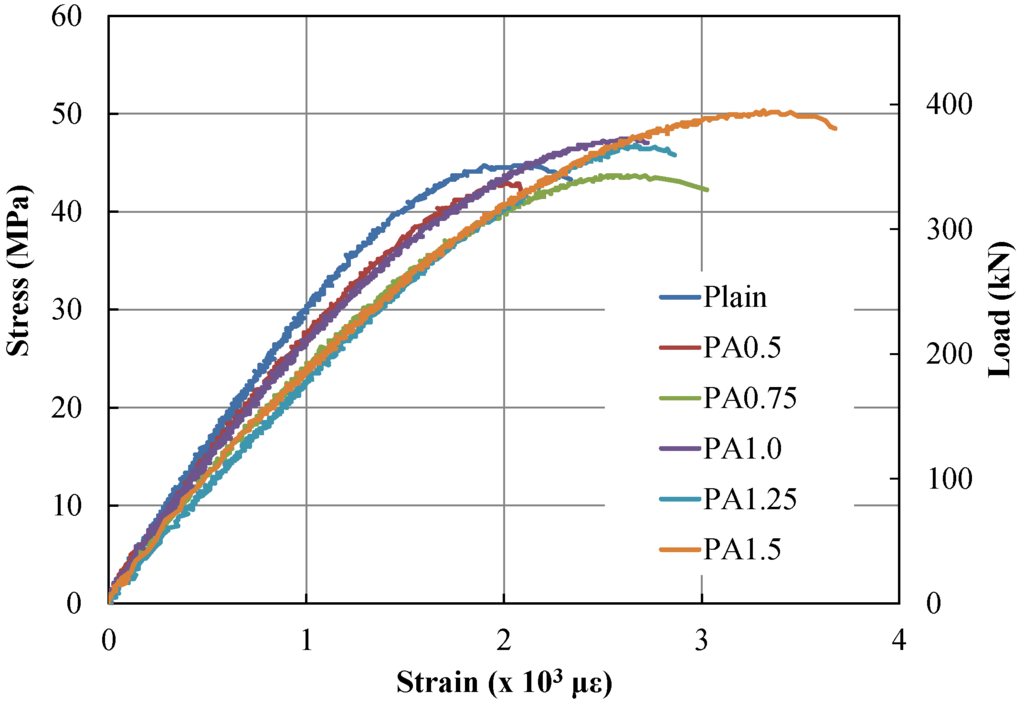

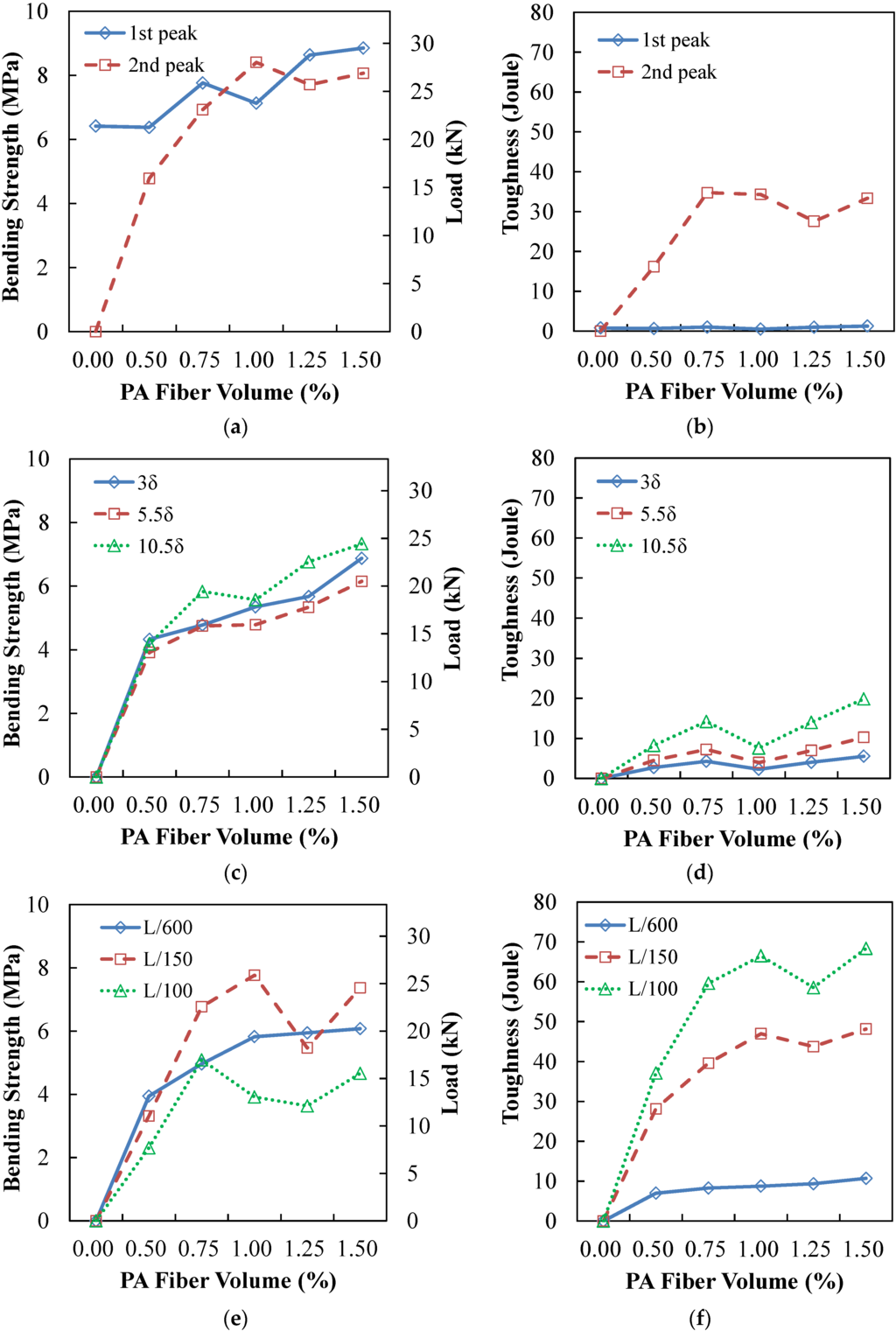

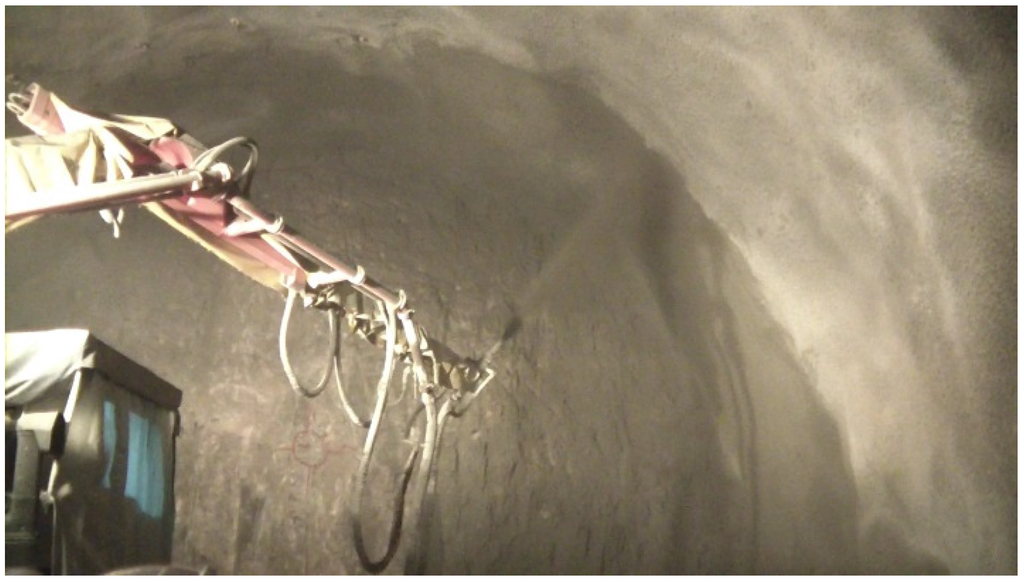

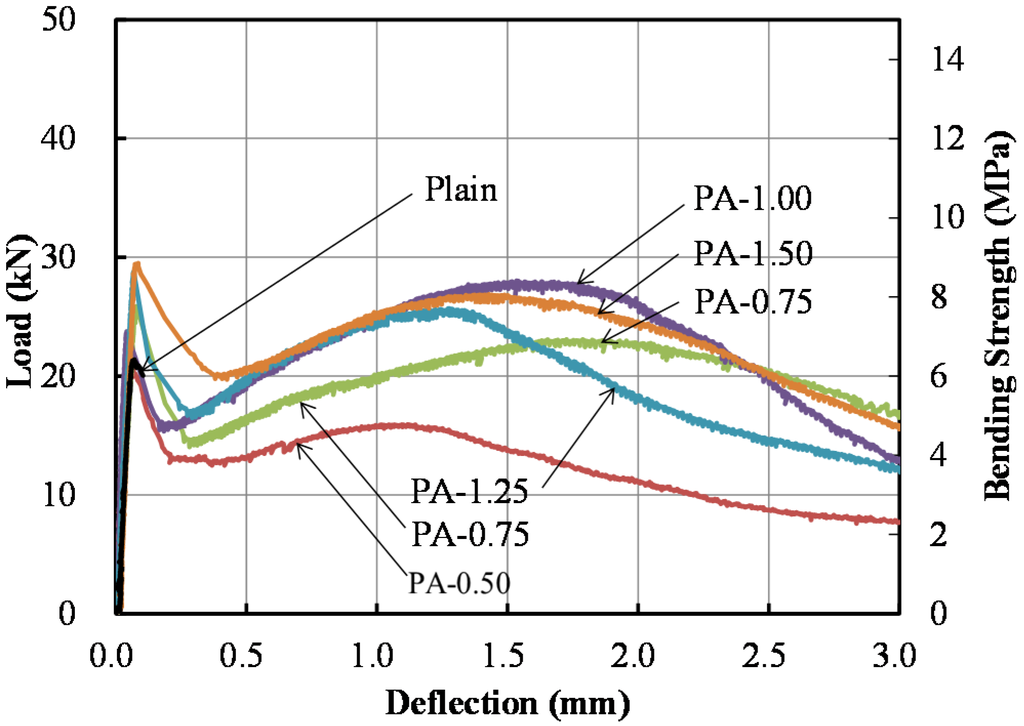

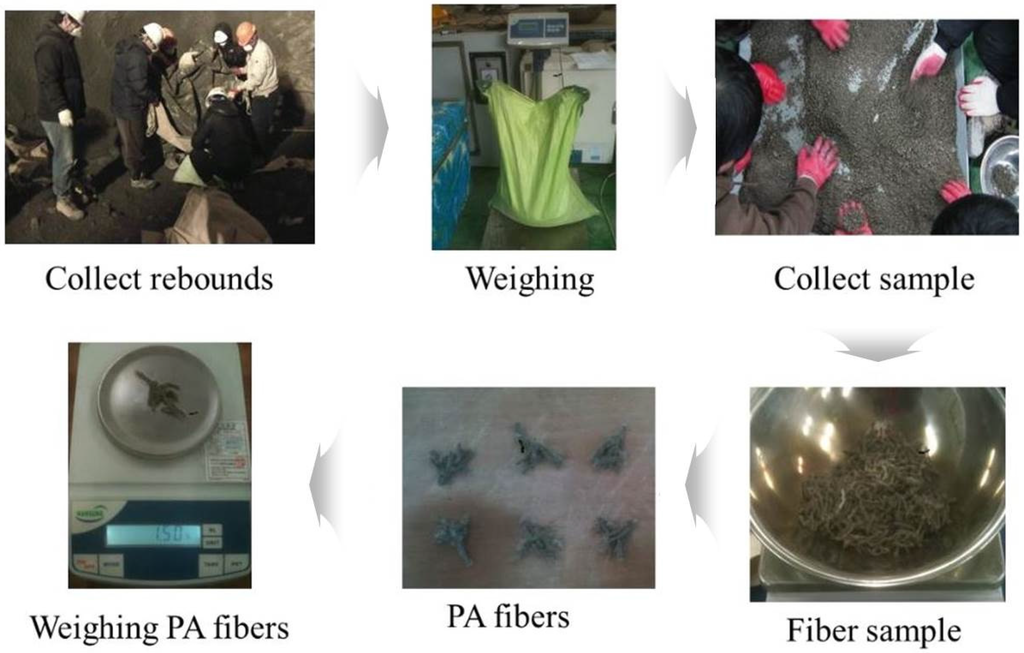

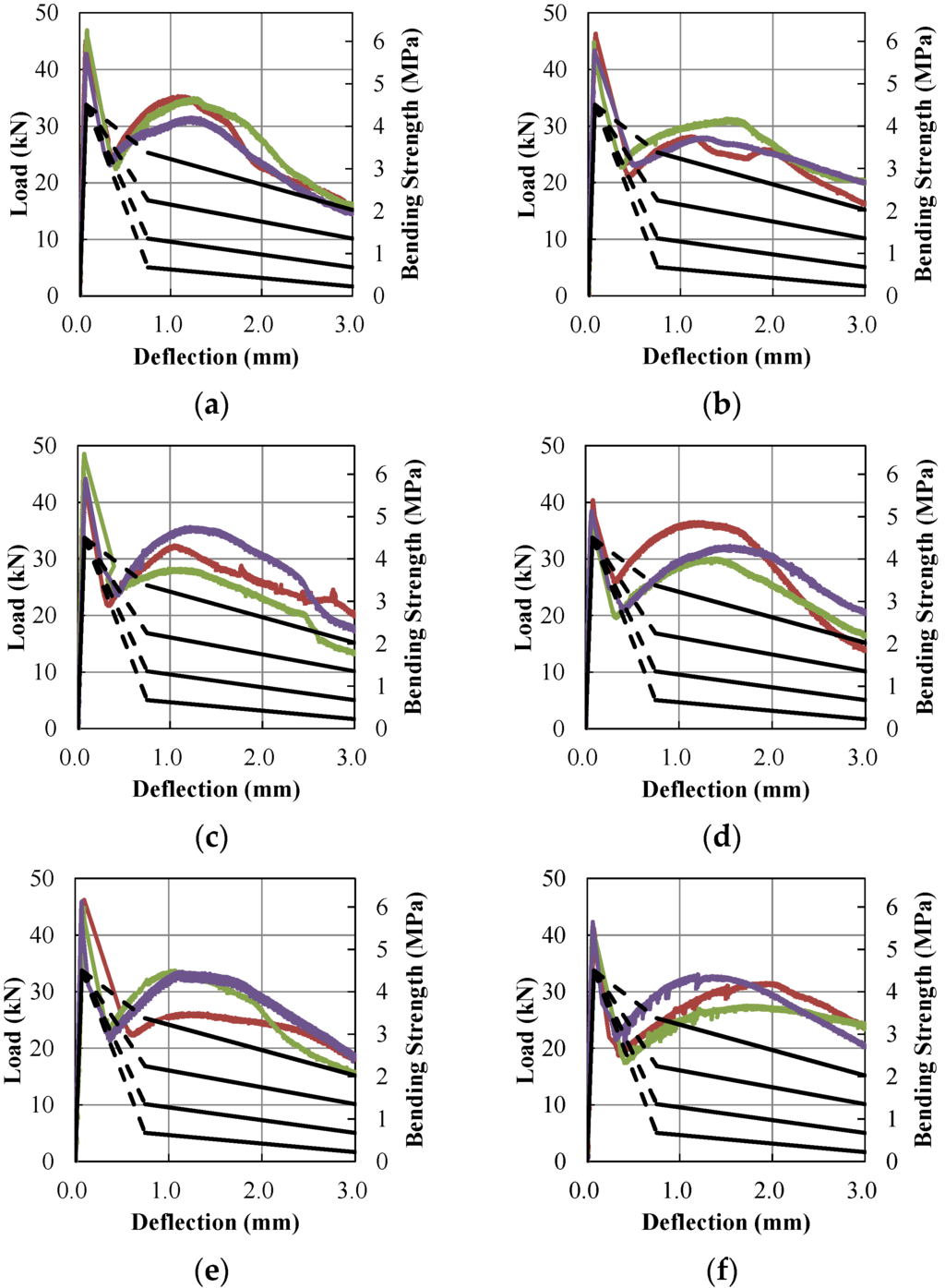

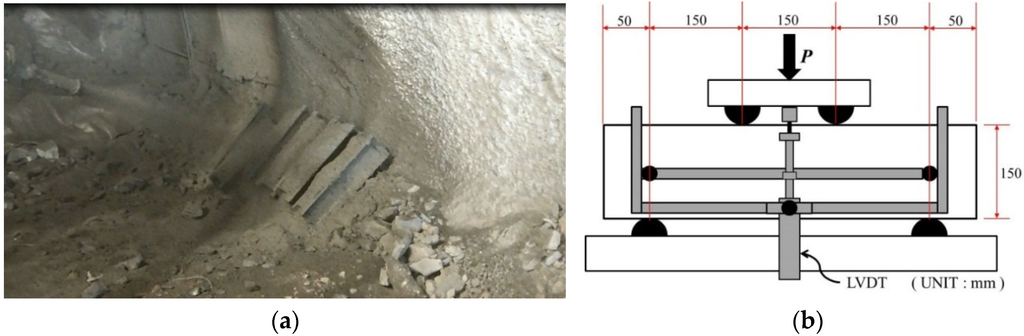

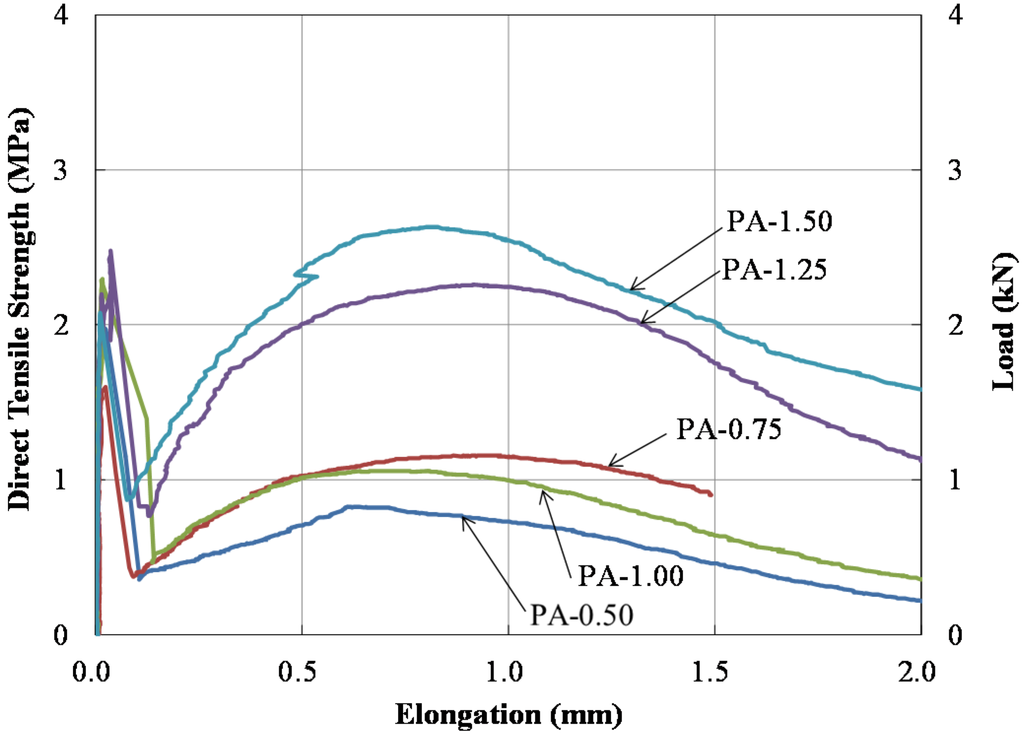

This study intends to establish the mechanical properties of polyamide fiber reinforced shotcrete (PAFRS) in terms of compressive and flexural strengths, in accordance with ASTM C1609/C1609M-12. The mechanical properties identified the influence of polyamide fiber content on the PAFRS strength. This study evaluated the toughness of PAFRS and proposed additional toughness level criteria to better represent organic fiber performance. In addition, the fiber rebounding rate and PAFRS performance in tunneling application were evaluated based on a tunnel application in Korea. PAFRS with 0.6%~0.8% volume content in tunneling shotcrete could significantly improve flexural ductility, toughness, and ultimate load capacity. Fiber rebounding tests exhibited a low rebounding rate (8.5%) and low fiber drop (63.5%). Therefore, PAFRS applied to a tunnel exhibited stability and constructability. Full article
