Search Results (25)

Alkaline nickel zinc batteries feature high safety, low cost and eco-friendly characteristics, making them highly promising for large-scale energy storage deployment. However, their practical application is severely constrained by the cathode’s electrical conductivity, available active sites, and cycling stability. Herein, vertical 2D hierarchical flake-like NiCoS_x arrays were in situ grown on nickel foam (NF) via a facile alkali-free solvothermal and in situ sulfidation approach. This highly interconnected and open porous flaky structure significantly shortens the ion diffusion pathways, exposes abundant redox-active sites, and accelerates electron transport, imparting excellent rate performance and superior long-cycle stability to the material. The optimized NiCoS_x/NF electrode achieves a high specific capacity of 323 mAh g⁻¹ at 0.5 A g⁻¹, along with excellent capacity retention capability. Assembled with a commercial Zn anode, the NiCoS_x/NF//Zn full battery delivers 124 mAh g⁻¹ at 3 A g⁻¹, and maintains 112.5% of the initial capacity after 500 cyclic tests. Moreover, the assembled NiCoS_x/NF//Zn full cell possesses a high energy density of 615.2 Wh kg⁻¹ along with a power density of 38.6 kW kg⁻¹ (based on the mass of positive electrode active materials). This unique vertical 2D open hierarchical structure plays a crucial role in enhancing the electrochemical performance of cobalt sulfide cathodes and provides valuable insights for the design of high-performance alkaline zinc-based battery electrodes. Full article

This study investigated the extraction of aluminum from aluminum silicate-rich coal ash from the ash-slag waste of the Almaty CHP-2 power station using microwave-assisted alkaline leaching. The high chemical stability of the quartz and mullite phases in the ash leads to high energy consumption during conventional acid–base treatment. To improve the kinetic parameters of the leaching process, amorphous graphite was therefore used as an active additive, which effectively absorbs microwave energy. The experiments were conducted in the temperature range of 50–200 °C, in 1–6 M NaOH solution, and over a period of 5–30 min. The amount of amorphous graphite varied between 5 and 20 wt%. The proportion of amorphous graphite varied between 5 and 20 wt%. Upon microwave irradiation, the graphite-free ash reached a temperature of 200 °C within approximately 12 min, whereas this temperature was reached in the system with 15% amorphous graphite after only 8–9 min. At low alkali concentrations (1–2 M NaOH), the aluminum transfer into solution in the graphite-free system was approximately 18%–35%. With increasing NaOH concentrations to 3–4 M, the aluminum removal efficiency increased to 38%–58%. Under the same temperature conditions, the leaching process was significantly accelerated by the addition of amorphous graphite; thus, at temperatures near 200 °C and in a 5–6 M NaOH solution, 70%–72% of aluminum was removed. The leaching kinetics were analyzed using the shrinking core model. The results showed that the apparent activation energy of the reaction decreased from 54 kJ/mol to 32 kJ/mol in the presence of graphite. These results suggest that microwave-assisted alkaline leaching in the presence of amorphous graphite is an energy-efficient and promising method for aluminum recovery from coal ash. Full article

This systematic review maps and compares experimental strategies for estimating residual expansion in concrete elements affected by internal expansive reactions (IER), with emphasis on cores extracted from in-service structures. It adopts an operational taxonomy distinguishing achieved expansion (deformation already occurred, inferred through DRI/SDT or back-analysis), potential expansion (upper limit under free conditions), and residual expansion (remaining portion estimated under controlled temperature, T, and relative humidity, RH), in addition to the free vs. restrained condition and the diagnostic vs. prognostic purpose. Seventy-eight papers were included (PRISMA), of which 14 tested cores. The limited number of core-based studies is itself a key outcome of the review, revealing that most residual expansion assessments rely on adaptations of laboratory ASR/DEF protocols rather than on standardized methods specifically developed for concrete cores extracted from in-service structures. ASR predominated, with emphasis on accelerated free tests ASTM/CSA/CPT (often at 38 °C and high RH) for reactivity characterization, and on Laboratoire Central des Ponts et Chaussées (LCPC) No. 44 and No. 67 protocols or Concrete Prism Test (CPT) adaptations to estimate residual expansion in cores. Significant heterogeneity was observed in temperature, humidity, test media, specimen dimensions, and alkali leaching treatment, as well as discrepancies between free and restrained conditions, limiting comparability and lab-to-field transferability. A minimum reporting checklist is proposed (type of IER; element history; restraint condition; T/RH/medium; anti-leaching strategy; schedule; instrumentation; uncertainty; decision criteria; raw data) and priority gaps are highlighted: standardization of core protocols, leaching control, greater use of simulated restraint, and integration of DRI/SDT–expansion curves to anchor risk estimates and guide rehabilitation decisions in real structures. Full article

Tunnel Boring Machine (TBM) excavation materials were recycled by sieving and separating particles into sizes 5–10 mm (coarse aggregates) and below 5 mm (manufactured sand) to explore their potential as aggregates in shotcrete production, with the aim of reducing environmental harm from waste disposal. Mix proportion experiments were conducted to evaluate the mechanical properties—including failure patterns, compressive strength, flexural strength, and deflection—of the shotcrete specimens through cubic axial compression and four-point bending tests; furthermore, rebound tests were conducted on shotcrete mixed with the recycled TBM aggregates in foundation pit engineering. These tests assessed the effects of key parameters (water–binder ratio, sand ratio, fly ash content, synthetic fibers, and liquid alkali-free accelerator) on shotcrete composed of recycled TBM sand and gravel. The results indicated that crushing and grading flaky TBM-excavated rock fragments, and subsequently blending them with pre-screened fine aggregates in a 4:1 ratio, yielded manufactured sand with an optimized particle gradation and controlled stone powder content (18%). Adjusting the water–binder ratio (0.4–0.5), fly ash dosage (mixed with 0–20%), and sand ratio (0.5–0.6) are feasible steps in preparing shotcrete with a compressive strength of 29.1 MPa to 50.4 MPa and slump of 9 cm to 20 cm. Moreover, the rebound rate of the shotcrete reached 11.3% by applying polyoxymethylene (POM) fibers with a 0.15% volume fraction and a liquid-state alkali-free setting accelerator (8% dosage), demonstrating that the implemented approach enables a decrease in the rebound rate of shotcrete. Full article

Cemented paste backfill (CPB) improves underground stability by filling mine voids, but the high cost of cement presents economic challenges for miners. While alternative binders and admixtures have been explored, the combined impact of slag substitution and alkali-free (AF) accelerators on CPB performance is not yet fully understood. This study investigates the influences of slag substitution and AF accelerators on the performance of CPB through a comprehensive experimental approach. CPB samples were prepared with slag substitution ratios of 25%, 50%, and 75%, maintaining a fixed AF accelerator content of 0.4%. Various test techniques, including unconfined comprehensive strength (UCS), mercury intrusion porosimetry (MIP), X-ray diffraction (XRD), and thermal analysis (TG/DTA), were employed to study their mechanical and microstructural properties. Monitoring tests were also conducted to thoroughly assess the performance of CPB, including suction (self-desiccation), electrical conductivity (EC), and volumetric water content (VWC) tests. The results showed that the PCI50–SL50–0.4AF sample exhibited 2.3 times higher strength than the control sample for 28 days, with this improvement attributed to enhanced pozzolanic reactions contributing to better microstructural compactness. Monitoring tests revealed accelerated hydration kinetics and reduced water content in slag-reinforced CPB, highlighting the significant role of AF accelerator in facilitating rapid setting and improving early-age mechanical strength. Microstructural findings revealed that porosity decreased and C–S–H gel formation increased in the specimen containing slag and AF accelerators, contributing to increased strength and durability. These findings highlight the potential usage of slag and AF accelerators to enhance CPB’s mechanical, microstructural, and hydration properties, offering significant benefits for mining operations by improving backfill performance, while contributing to environmental sustainability through reduced cement consumption and associated CO₂ emissions. Full article

Aiming at the problems of collapse, deformation, and displacement in the concrete paving of roadway floors, this paper adopts the way of adding alkali-free accelerators to the concrete on both sides, through mechanical analysis, single factor experiment, orthogonal experiment, and polynomial fitting method, and determines the relevant parameters of concrete and accelerators in the sliding form paving of roadway floor from two aspects of paving material and size. The results show that the FSA-AF alkali-free liquid accelerator is more suitable for roadway floor paving than the J85 powder accelerator. When the FSA-AF accelerator dosage reaches 8%, the decreasing trend of initial setting time curve tends to be flat. The deformation resistance of concrete containing accelerator is positively correlated with the dosage of the accelerator. Concrete side pressure is positively correlated with pavement paving height. The FSA-AF accelerator can reduce the compressive strength of concrete; the compressive strength and retention rate of concrete at all ages are the highest when the dosage of FSA-AF is 7%. A water–cement ratio of 0.4 and a 9% dosage of accelerator are the optimal combination to meet the four evaluation indexes. According to the width estimation formula, the width of the side concrete should be set to 14 cm. Full article

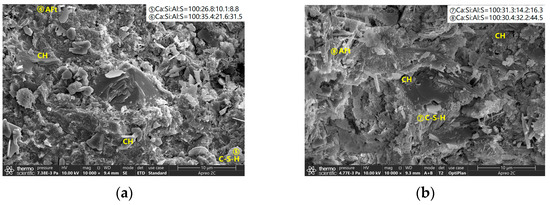

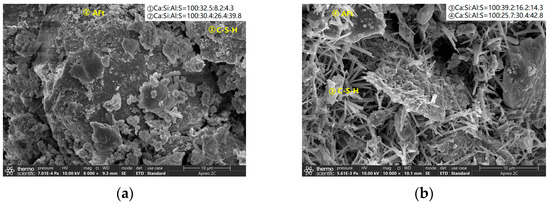

Shotcrete is one of the most important types of concrete used in engineering construction, and its properties are significantly influenced by accelerators. This study investigates the effects of aluminum sulfate series alkali-free accelerator (AKF) and alkali accelerator (ALK) on the strength, hydration process, characteristic hydration products, and microstructure properties of shotcrete. Techniques such as setting time measurement, isothermal calorimetry, simultaneous thermal analysis, scanning electron microscopy with energy-dispersive X-ray spectroscopy (SEM–EDS), and mercury intrusion porosimetry (MIP) were utilized. The results indicate that both ALK and AKF significantly accelerate and increase the early hydration heat release rate and cumulative hydration heat of Portland cement, producing the characteristic hydration products hexagonal plate AFm and rod AFt, respectively. This acceleration notably speeds up the setting process of Portland cement. ALK negatively impacts the later-stage microstructural development and pore structure filling of hardened cement paste, leading to average reductions of 15.3% and 19.9% in flexural and compressive strengths at 28 days, respectively. Specifically, compared to ALK, AKF shows a faster hydration heat release rate during the induction period and a more significant increase in cumulative hydration heat during the hydration process; the cumulative hydration heat is on average 18.2% higher than AKF. Furthermore, AKF does not hinder the subsequent C₃S hydration and C-S-H gel densification process. After 28 days of curing, EDS analysis indicates an average Ca/Si ratio of 1.171 for the AKF-treated shotcrete; the average Ca/Si ratio shows minimal variation from the reference group and is classified as the same type of C-S-H gel as the reference group. Therefore, the strength of hardened cement paste with AKF continues to increase steadily in the later stages. At 28 days, the average flexural strength increased by 10.2%, while the compressive strength decreased by only 3.0%. These findings suggest that AKF enhances the microstructural development and strength of shotcrete, making it a more effective accelerator for engineering applications. Full article

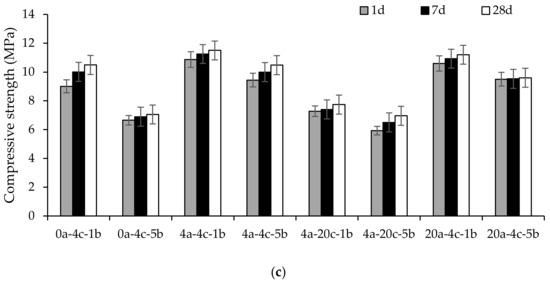

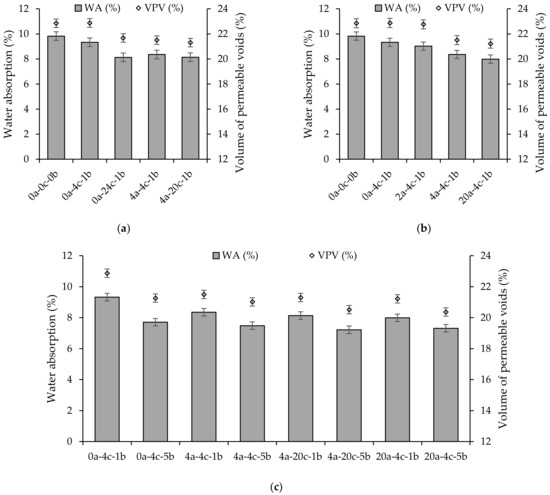

The excessive extraction of river sand has led to significant ecological issues. Moreover, the environmental impact and resource demand of cement production have increasingly turned the spotlight on sea sand as a viable alternative due to its abundance and ease of extraction. Concurrently, alkali-activated binders, a novel type of low-carbon cementitious material, have gained attention for their low energy consumption, high durability, and effective chloride ion fixation capabilities. However, they are susceptible to carbonation. Introducing a controlled sea sand amount can raise the materials’ carbonation resistance, although carbonation may raise the concentration of free Cl⁻ within the structure to levels that could risk the integrity of steel reinforcements by accelerating corrosion. In this context, the current study investigates sea sand alkali-activated slag (SSAS) concrete prepared with varying water–binder (W/B) ratios to evaluate its impact on flowability, mechanical strength, performances, and chloride ion distribution post-carbonation. The results demonstrate that the mechanical property of SSAS concrete diminishes as the water-to-binder ratio increases, with a more pronounced reduction observed. The depth of carbonation in mortar specimens also rises with the W/B ratio, whereas the compressive strength post-carbonation initially decreases before showing an increase as carbonation progresses. Furthermore, carbonation redistributes chloride ions in SSAS, leading to a peak Cl⁻ concentration near the carbonation front. However, this peak amplitude does not show a clear correlation with changes in the W/B ratio. This study provides a theoretical foundation for employing sea sand and alkali-activated concrete. Full article

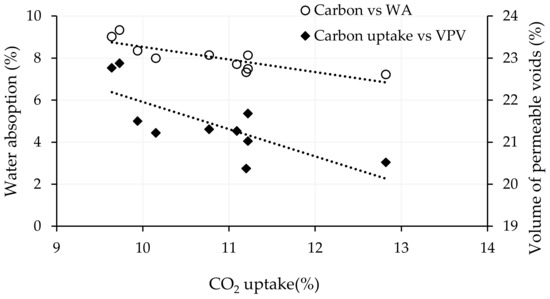

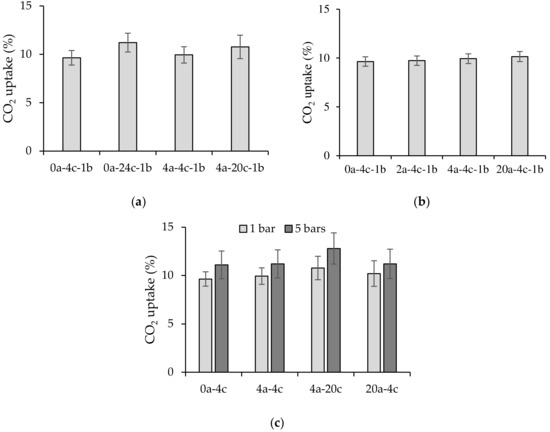

This study investigates the effect of accelerated carbonation curing on the carbon sequestration potential, performance, and microstructure of alkali-activated slag mixes representing concrete masonry blocks (CMBs). The carbonation curing process parameters varied, including initial curing duration, carbonation curing duration, and carbonation pressure. Research findings showed that a maximum CO₂ uptake of 12.8%, by binder mass, was attained upon exposing concrete to 4 h initial curing and 20 h carbonation curing at a pressure of 5 bars. The compressive strength and water absorption capacity improved with longer initial and carbonation curing durations and higher pressure. Upon subjecting to salt attack, the mass and strength of 28-day concrete samples increased, owing to the formation of Friedel’s salt and Halite. All mixes could be used as non-load-bearing CMB, with a 1-day strength greater than 4.1 MPa. Based on the global warming potential index, the carbon footprint of carbonation-cured, alkali-activated slag concrete masonry units was up to 46% lower than non-carbonation-cured counterparts. Research findings offer valuable information on the production of carbonation-cured, cement-free concrete masonry blocks to replenish natural resources, recycle industrial waste, and mitigate CO₂ emissions. Full article

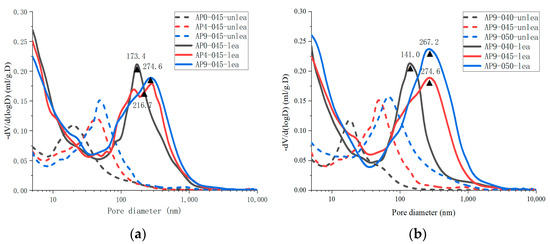

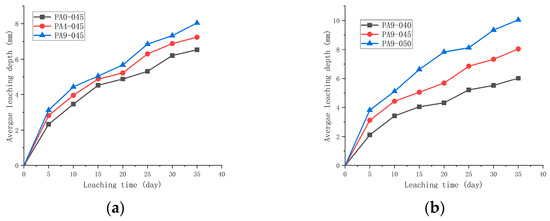

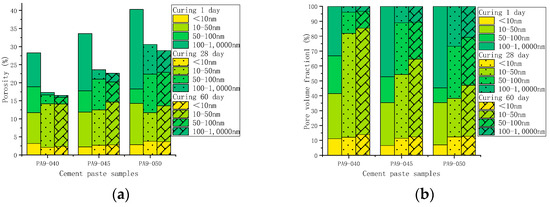

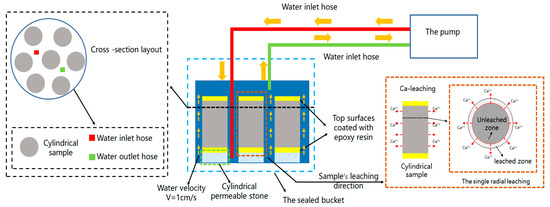

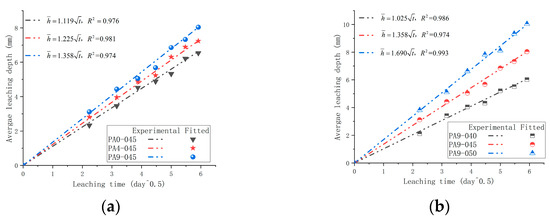

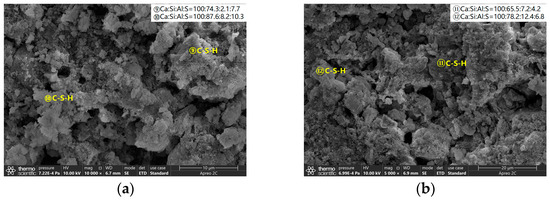

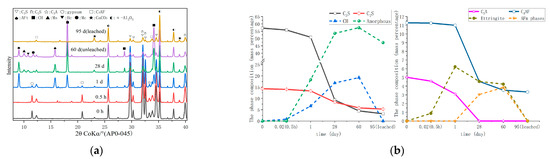

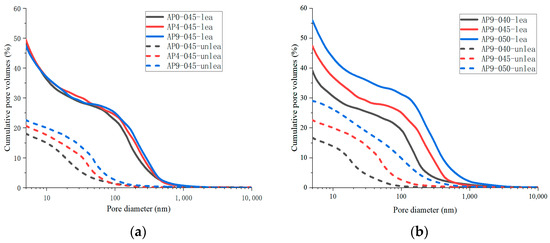

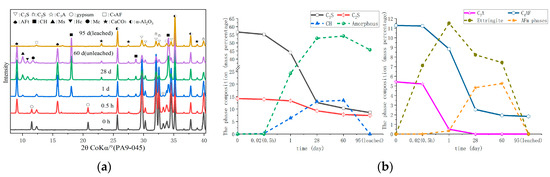

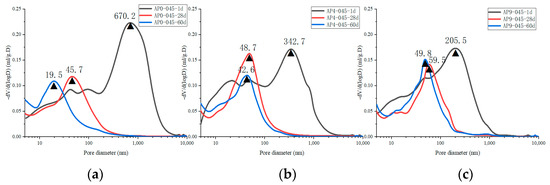

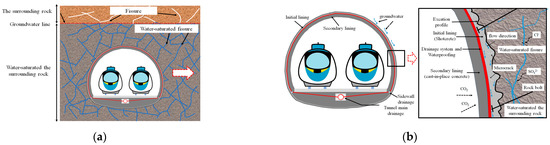

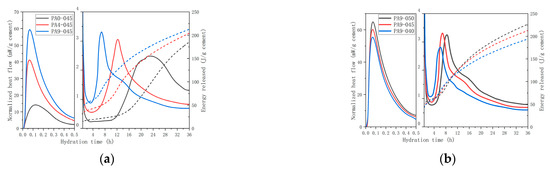

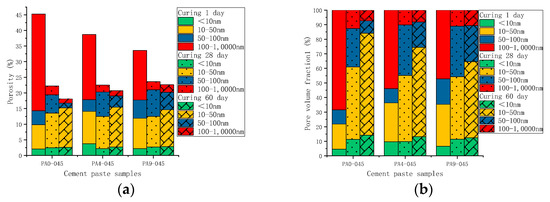

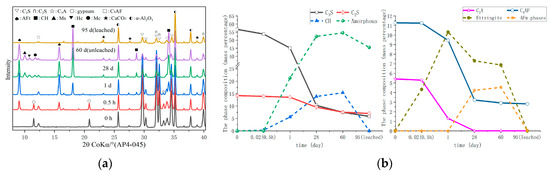

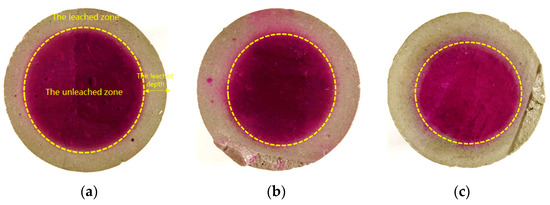

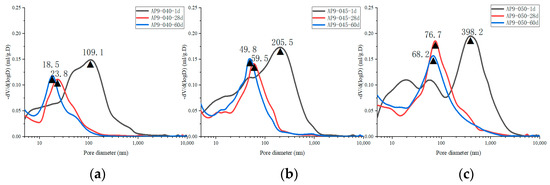

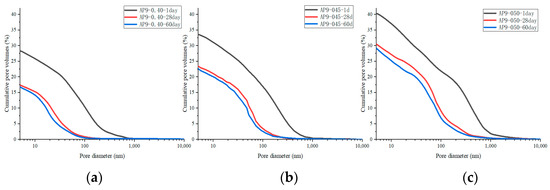

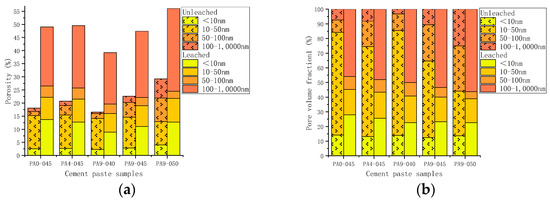

The alkali-free accelerator based on aluminum sulfate is widely used in shotcrete in tunnels. Long-term Ca-leaching of shotcrete may adversely affect the tunnels in a water-rich mountain. It is necessary to examine further the impact of the AS accelerator and w/c on cement hydration and leaching. In this study, all the cement pastes were cured in the environment with R.H. > 95% and 20 ± 1 °C for 60 days and leached in a running water test with 6 M NH₄Cl at 1 cm/s. The hydration kinetics was characterized by isothermal calorimetry. Additionally, the microstructural and mineralogical alterations were characterized by XRD, SEM, MIP, and N₂ absorption. The results show that (1) the AS accelerator affected the hydration kinetics of cement by stimulating early hydration and delaying the late silicate hydration, resulting in AS-accelerated cement pastes with rougher pore structure. As a result, the higher the dose of AS accelerator, the faster the cement pastes will leach. (2) Hydration kinetics of the accelerated cement are not affected by the w/c. The AS-accelerated cement pastes with lower w/c have a denser pore structure. So, the reduction in the w/c contributes to leaching resistance. Full article

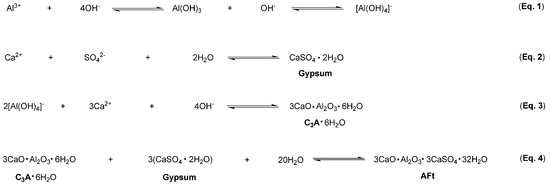

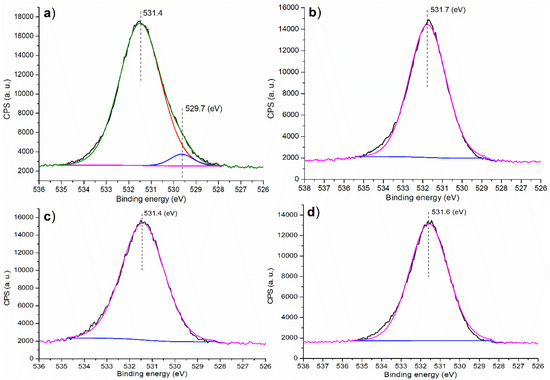

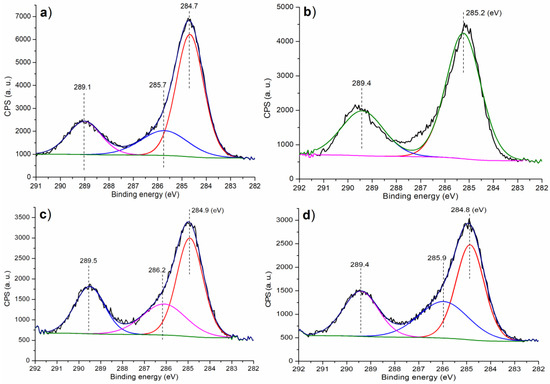

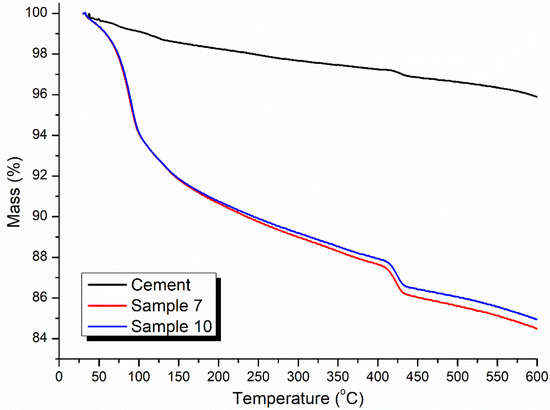

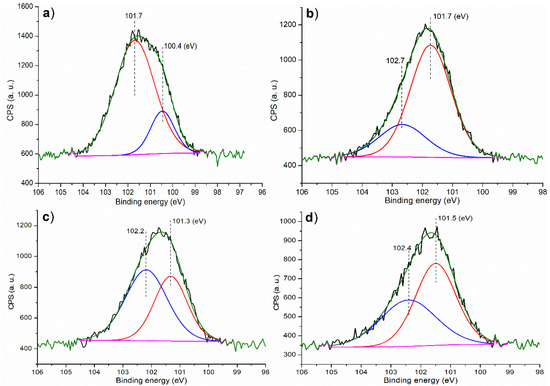

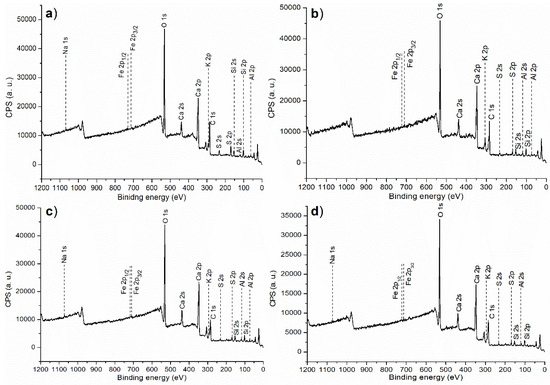

Aluminum sulfate was employed as the main accelerator in order to explore new non-chloride and alkali-free cement accelerators. Acrylic acid, aluminum fluoride, or alkanolamine were used as regulators to further accelerate cement setting. The setting time, compressive, and flexural strengths in cement early strength progress were detected, and both the cement (raw material) and hydrated mortar were fully characterized. The cement setting experiments revealed that only loading acrylic acid as the regulator would decrease the setting time of cement and increase the compressive and flexural strengths of mortar, but further introduction of aluminum fluoride or alkanolamine improved this process drastically. In the meantime, structural characterizations indicated that the raw material (cement) used in this work was composed of C₃S (alite), while hydrated mortar consisted of quartz and C₃A (tricalcium aluminate). During this transformation, the coordination polyhedron of Al³⁺ was changed from a tetrahedron to octahedron. This work puts forward a significant strategy for promoting the activity of aluminum sulfate in cement setting and would contribute to the future design of new non-chloride and alkali-free cement accelerators. Full article

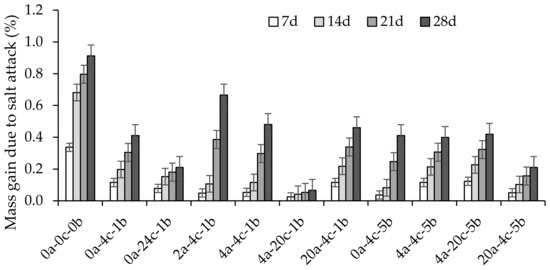

During the wintertime, concrete pavements experience harsh exposure conditions due to the presence of both the freezing–thawing and wetting–drying cycles. Airport concrete pavements are commonly de-iced using chloride-free organic salts such as potassium formate or potassium acetate. However, these materials contain alkali ions which can have harmful effects on both the cement matrix and the aggregate. Specifically, there is an increased risk of occurrence of the alkali–silica reaction (ASR). The goal of this research was to estimate the influence of potassium formate on the potential of causing alkali–silica reaction in aggregates with different categories of reactivity (R0, R1, R2). The accelerated mortar bar test and its modification (which involves replacing sodium hydroxide solution with a potassium formate solution) were used. Detailed SEM-EDS examinations were performed to confirm the presence of alkali–silica reaction and to analyze the influence of potassium formate on the microstructure of mortar. Full article

Liquid accelerating agents have the advantages of simple operation and fast construction, and have become indispensable admixtures in shotcrete. However, most liquid accelerating agents in the market at present contain alkali or fluorine, which adversely affect concrete and seriously threaten the physical and mental health of workers. Therefore, in view of the above deficiencies, it is necessary to develop a new type of alkali-free fluorine-free liquid accelerating agent. In this paper, the polyaluminum sulfate early strength alkali-free liquid accelerator is prepared using polymeric aluminum sulfate, diethanolamine, magnesium sulfate heptahydrate and nano-silica. The influence of this agent on the setting time of fresh cement paste and compressive strength of the corresponding cement mortar is determined. Thermogravimetric analysis curves, X-ray diffraction and scanning electron microscopy images are obtained to investigate the mechanism. Findings show that the initial setting time and the final setting time of cement paste are 2 min 30 s and 7 min 25 s. The compressive strengths of cement mortar cured for 1 d, 28 d and 90 d are 2.4 MPa, 52.2 MPa and 54.3 MPa respectively. Additionally, the corresponding flexural strengths are 3.4 MPa, 9.8 MPa, 11.8 MPa. When the mass rate of accelerator is 7%, the mechanical strengths of cement mortar are the highest. The additions of fly ash and blast furnace slag can affect the mechanical of cement mortar mixed with accelerator. When the mass ratio of the fly ash and blast furnace slag is 15%, the mechanical strengths of cement mortar reach the highest. Moreover, the hydration heat release rate of cement is increased by the accelerator and the corresponding time of hydration heat peak is decreased by the accelerator. The accelerator can decrease the amount of needle-like hydration products and improve the compactness. The mechanical strengths are improved by consuming a large amount of Ca(OH)₂ and forming more compact hydration products. It is recommended that the optimum dosage range of the polyaluminum sulfate early strength alkali-free liquid accelerator is 7%. Full article

Fluoride-containing alkali-free setting accelerators are a common type of admixture used in tunnel shotcrete but few studies in the literature focus on the effect of their fluoride compounds on the setting and hardening properties of accelerated cement paste under low environment temperatures. Tunnel shotcrete in cold regions or winter construction periods would be obviously influenced by low environment temperatures, especially for its fast setting and quick support applications. The objective of this work is to evaluate the early age hydration behavior of different accelerated cement pastes under 20 °C and 5 °C environment temperatures. In this study, setting time measurement, early age strength development, hydration ion leaching concentration, isothermal calorimetry, X-ray diffraction, and ESEM were performed on cement systems prepared with a non-fluoride alkali-free accelerator (aluminum sulfate solution with over 60% solid content) and a designed fluoride-containing alkali-free setting accelerator (aluminum sulfate and fluoride compound). The results showed that the fluorides obtained in alkali-free accelerators promote C3S dissolution and massive ettringite needles together with monosulfoaluminate (AFm) hydrate formation, thus leading to a quicker setting effect and low sensitivity to low environment temperatures than in non- fluoride groups. However, the rate of mechanical strength development of cement pastes hydrated within 24 h was decreased obviously when fluorine-containing alkali-free accelerator was used. This phenomenon is mainly related to the crystallization of thin-plate shape calcium fluoride (CaF₂) formations and promoted conversion of ettringite to monosulfoaluminate hydrate in the accelerating period, thus weakening the denseness of C-S-H gel and inhibiting alite further hydration. Full article

In this study, the engineering properties of Ordinary Portland Cement (OPC) and alkali-activated slag (AAS) mortar with electric arc furnace ladle slag (EAFLS) were investigated to reveal the effects of EAFLS on the expansion of cementitious mortars. Additionally, the effects of these two types of mortar were explored based on their compressive strength, especially at high temperatures. EAFLS in OPC mortars significantly reduced the compressive strength and caused serious soundness problems in the mortars after autoclaving due to the presence of free-CaO and free-MgO in the EAFLS slag. On the other hand, the AAS mortars produced with EAFLS had compressive strength comparable to ordinary OPC mortars and maintained soundness after autoclaving. During a 550 °C heat treatment, the OPC mortar cracked and lost residual strength, but the AAS mortar retained more than 90% of its residual strength. Even after an 800 °C heat treatment, the AAS mortar maintained 14% of its residual strength (about 4 MPa), sufficient to prevent the collapse of the specimen structure. The main reason is that alkali-activated technology can accelerate the hydration process and solve the delayed hydration problem. The results of this study indicated that EAFLS is suitable to partially replace the binder used in the production of AAS mortars, and the resulting AAS mortars have high volume stability, high compression strength, and good high temperature resistance. Full article
