Search Results (136)

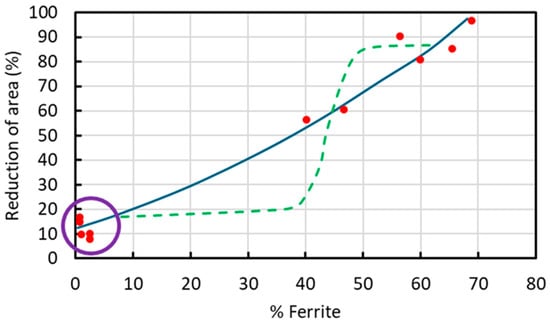

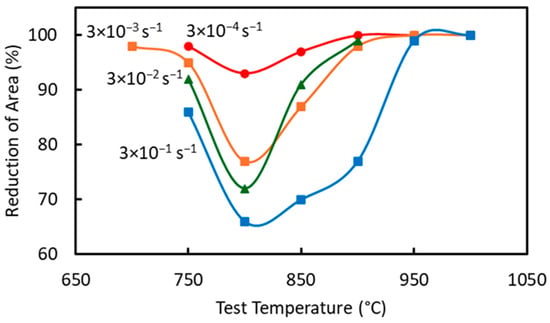

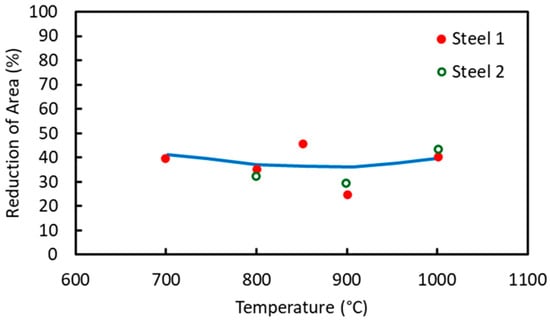

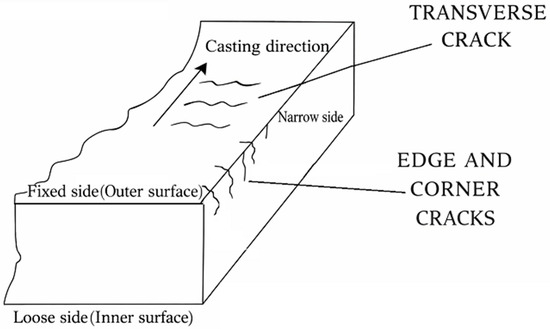

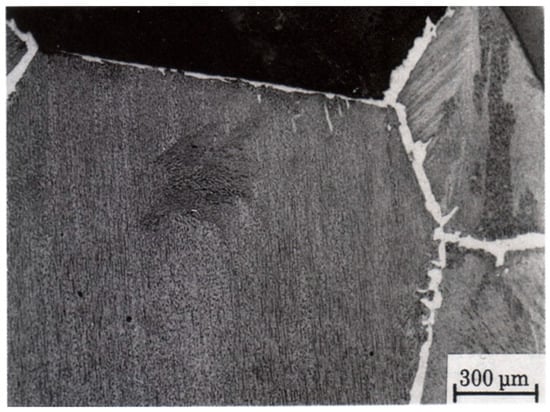

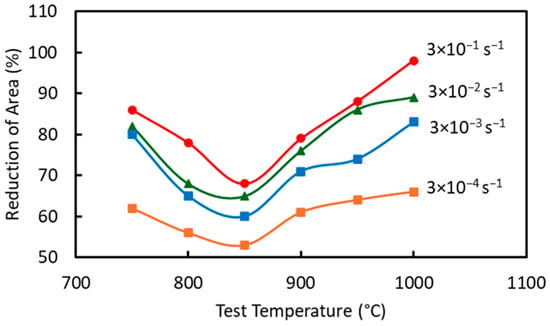

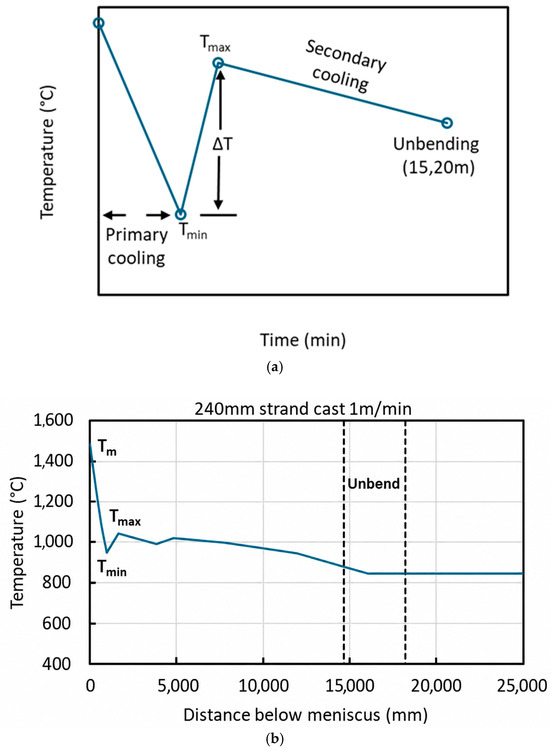

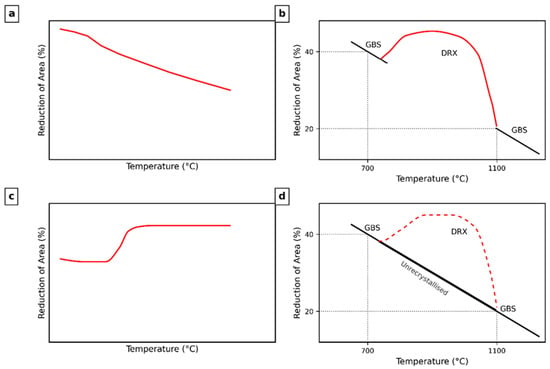

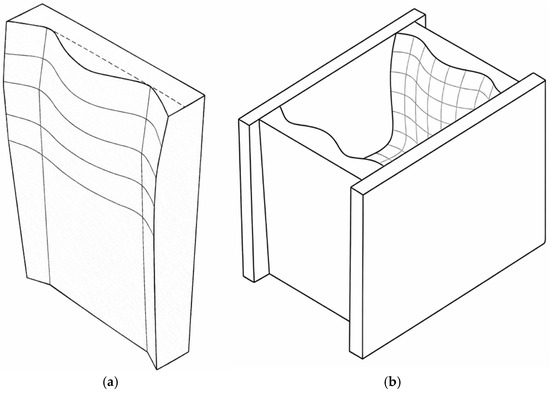

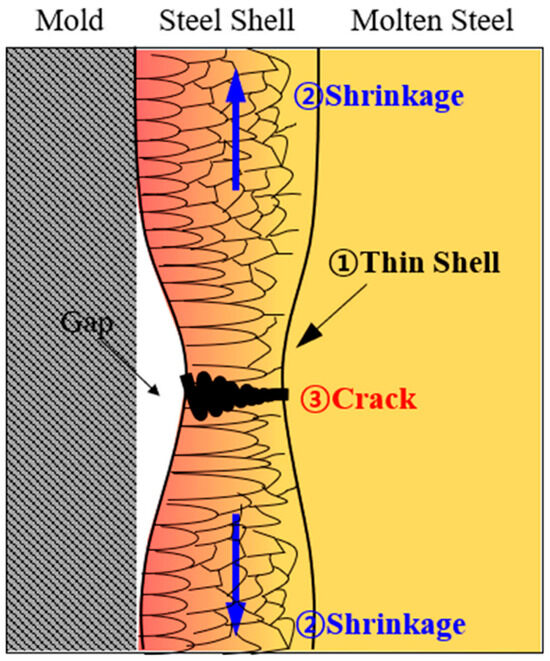

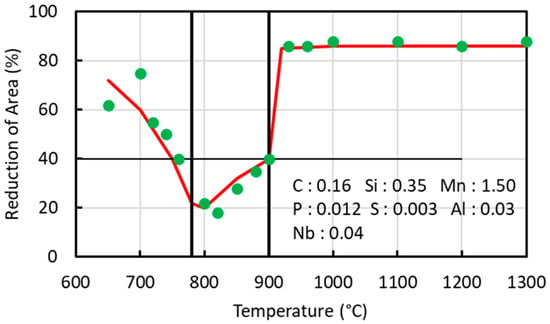

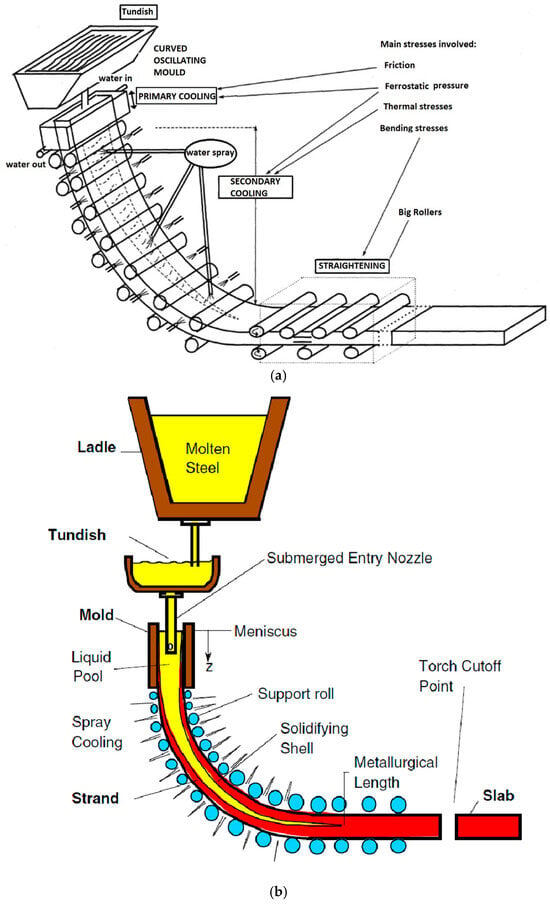

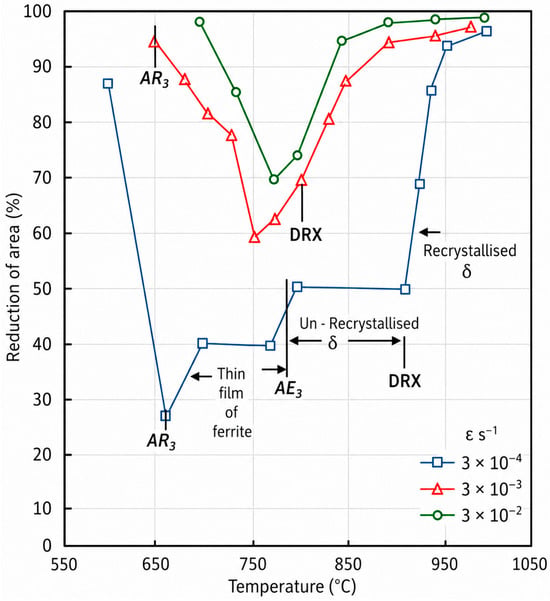

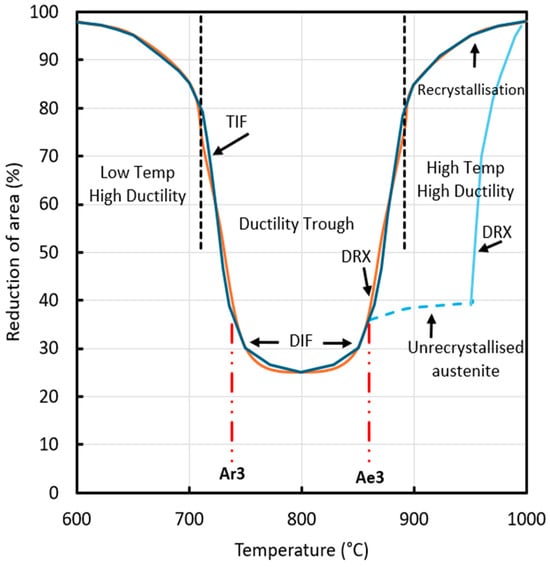

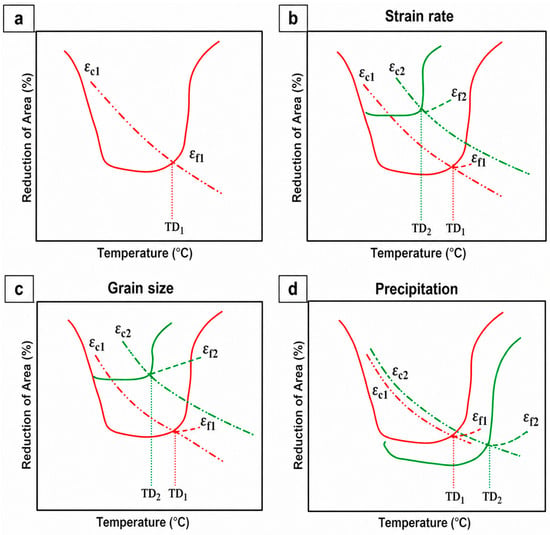

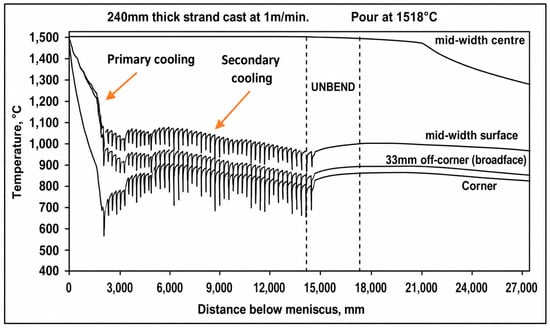

The paper presents a critical review of the key work published to date on the hot ductility of steels in relation to the problem of cracking during continuous casting, including recent publications in the field. Laboratory testing methods that are most appropriate for evaluating cracking susceptibility are examined, with particular emphasis on the hot tensile test. The discussion covers both conventional carbon–manganese (C–Mn) and high-strength low-alloy (HSLA) steels, as well as the more complex advanced high-strength steels. Special attention is given to the influence of strain rate and the role of ferrite, both transformation-induced and deformation-induced, in controlling ductility. Increasing the strain rate invariably improves the ductility of steels containing a thin film of ferrite when it is present. This improvement is attributed to the work hardening of the ferrite, which promotes a more uniform distribution of strain, rather than localisation within the thin ferrite layer, thereby reducing the likelihood of fracture. The difficulties in increasing the strain rate in continuous casters are cited. Finally, based on insights from tensile testing, the paper considers practical approaches to preventing cracking in conventional curved-mould and vertical-mould arc continuous casting machines. Newly designed chamfered moulds have also recently been introduced, and these are claimed to reduce the incidence of corner cracking; their role is also discussed. Full article

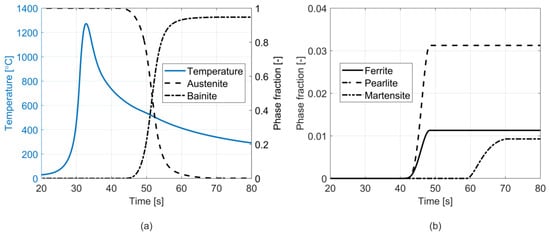

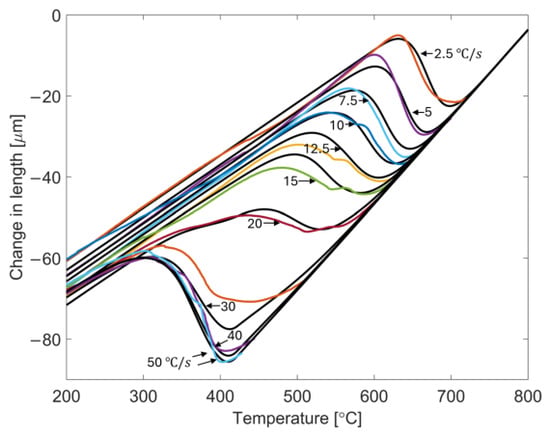

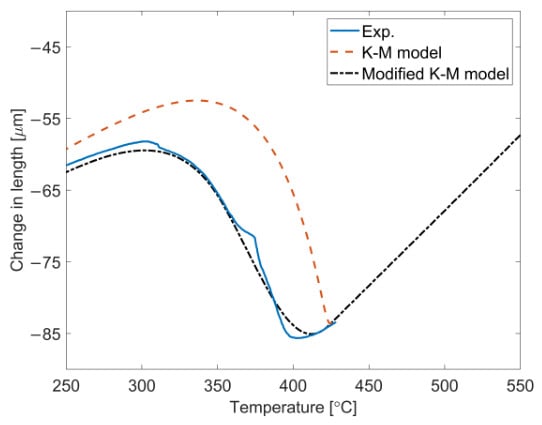

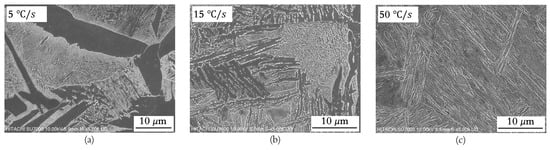

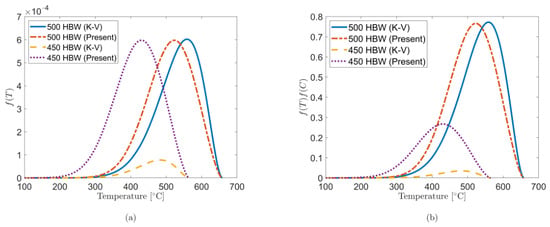

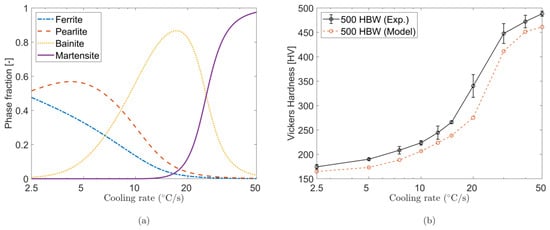

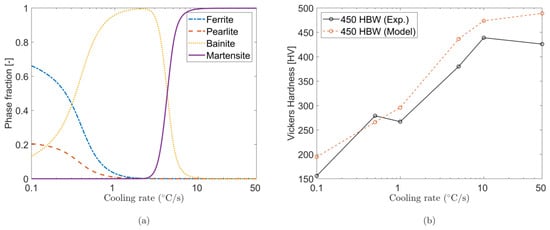

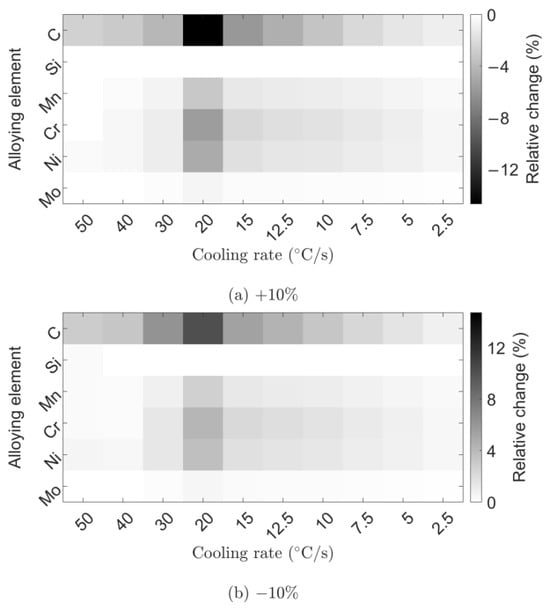

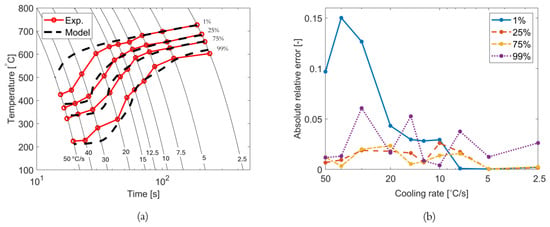

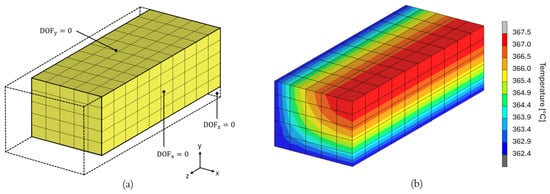

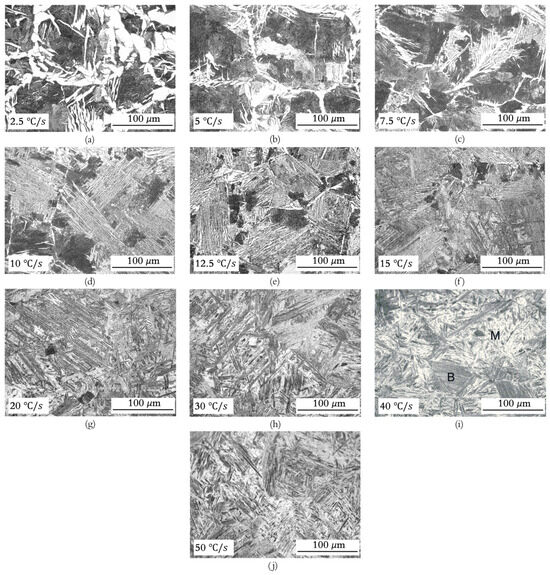

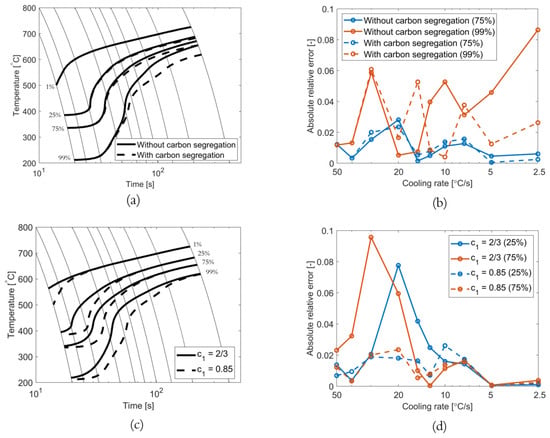

Models can help to obtain the desired properties of steel by predicting when different microstructures form during phase transformations in manufacturing processes. One prominent model for low-alloy steel is the Kirkaldy–Venugopalan model but it has not been evaluated for wear-resistant ultra-high-strength steels (UHSS). A modified Kirkaldy-type model was developed in this work for the phase transformation kinetics in a wear-resistant UHSS. A modified incremental Koistinen–Marburger model was used for the martensite transformation which considers the gradual start of the transformation. The framework was validated by simulating the dilatometry experiments in a finite element model. Good agreement was obtained for the low cooling rates 2.5 to $15$ °C/s yielding ferrite, pearlite, and bainite, as well as for the high cooling rates 20 to $50$ °C/s yielding bainite and martensite. The model was also applied to the steel Hardox 450 where it predicted the formation of 99.7% martensite at the experimental critical cooling rate for full martensite formation of $12$ °C/s found in the literature, which demonstrates the model’s capability to be used more generally on wear-resistant UHSS. The predicted hardness also captured the general trend seen in the hardness measurements. Full article

High-strength low-alloy (HSLA) steels produced by thermomechanical controlled processing (TMCP) are widely used in structural applications because of their high strength and weldability. However, the performance of welded joints is strongly affected by welding thermal cycles. This study investigated the effects of heat input (0.6, 1.4, and 1.8 kJ/mm) and filler metal strength (matching and undermatching) on the microstructure and mechanical properties of S700MC steel joints produced by metal-cored arc welding (MCAW). Microstructural characterization, hardness measurements, tensile testing, Charpy impact testing, and analysis of variance (ANOVA) were performed. Heat input was identified as the dominant factor controlling heat-affected zone (HAZ) development and mechanical performance. Increasing heat input enlarged the HAZ and reduced hardness through enhanced microstructural recovery. Filler metal strength mainly influenced failure location and joint strength. The lowest heat input (0.6 kJ/mm) provided the highest strength retention, particularly with the matching consumable, but also produced localized hardness peaks approaching 400 HV_0.01 at the weld metal (WM)/HAZ interface, reducing ductility and impact toughness. An intermediate heat input (1.4 kJ/mm) produced the best balance between strength and toughness by promoting a more homogeneous microstructure and smoother hardness distribution. These results provide practical guidance for optimizing welding procedures for TMCP HSLA steels. Full article

High-strength low-alloy (HSLA) steels in marine environments suffer from microbiologically influenced corrosion (MIC) and hydrogen-assisted degradation. This study investigates the synergistic effects of sulfate-reducing bacterial biofilms, mechanical stress, and seawater chemistry on HSLA AH36 steel using electrochemical, microstructural, and magnetic Barkhausen noise (MBN) monitoring. Under multiparametric exposure (80% yield strength tensile stress, Desulfovibrio vulgaris, 28 days), biotic samples exhibited sustained 1.88× corrosion acceleration despite 86% sulfate depletion. Magnetic Barkhausen noise RMS amplitude (MBN_RMS) peaked at day 7 (612 ± 38 mV/mm) at pit depths of only 20–50 μm, detecting subsurface hydrogen damage before macroscopic failure. Quantitative correlations (R² ≥ 0.99) between MBN_RMS and cumulative mass loss revealed distinctive linear relationships in abiotic conditions and nonlinear cubic polynomials in biotic conditions, providing a non-destructive signature diagnostic of hydrogen-assisted MIC. Directional anisotropy analysis (parallel vs. perpendicular fields) showed that hydrogen-induced damage produces isotropic magnetic signatures (anisotropy ratio: 1.27 → 1.15), enabling discrimination between hydrogen embrittlement and stress-controlled degradation. The integration of portable MBN measurements with electrochemical monitoring establishes a quantitative framework for real-time structural health assessment and predictive maintenance of HSLA steels in maritime applications. Full article

Rising energy prices, especially in Europe, make it necessary to look for cost reductions wherever possible. It also concerns the industry and hot rolling processes. One of the ideas of reducing costs is to use a roll gap lubrication (RGL) system. Lubrication makes it possible to reduce the forces needed for the materials processing, which directly translates into lower power consumption, but also makes it possible to extend the service life of the working rolls. The authors associated with Krakow Hot Rolling Mill, as a part of their work related to improving the production process of HSLA-type steel, also took into account the possibility of analyzing the subject of roll gap lubrication. This paper is a review of interesting papers concerning research on this topic over the past years. The authors also included in this paper a section on what the RGL system looks like on the AMP HSM in Krakow itself. This paper is a prelude to considering possible modifications to the RGL system. Full article

The quantity, size, and distribution of non-metallic inclusions in High-Strength Low-Alloy (HSLA) steel critically influence its service performance. Conventional detection methods often fail to adequately characterize extreme inclusion distributions in large-section components. This study developed an integrated full-process inclusion analysis system combining high-precision motion control, parallel optical imaging, and laser spectral analysis technologies to achieve rapid and automated identification and compositional analysis of inclusions in meter-scale samples. Through systematic investigation across the industrial process chain—from a dia. 740 mm consumable electrode to a dia. 810 mm electroslag remelting (ESR) ingot and finally to a dia. 400 mm forged billet—key process-specific insights were obtained. The results revealed the effective removal of Type D (globular oxides) inclusions during ESR, with their counts reducing from over 8000 in the electrode to approximately 4000–7000 in the ingot. Concurrently, the mechanism underlying the pronounced enrichment of Type C (silicates) in the ingot tail was elucidated, showing a nearly fourfold increase to 1767 compared to the ingot head, attributed to terminal solidification segregation and flotation dynamics. Subsequent forging further demonstrated exceptional refinement and dispersion of all inclusion types. The billet tail achieved exceptionally high purity, with counts of all inclusion types dropping to extremely low levels (e.g., Types A, B, and C were nearly eliminated), representing a reduction of approximately one order of magnitude. Based on these findings, enhanced process strategies were proposed, including shallow molten pool control, slag system optimization, and multi-dimensional quality monitoring. An intelligent analysis framework integrating a YOLOv11 detection model with spectral feedback was also established. This work provides crucial process knowledge and technological support for achieving the quality control objective of “known and controllable defects” in HSLA steel. Full article

Strip casting presents a sustainable route for producing advanced steels, such as high-strength low-alloy (HSLA) grades. This study investigated how early-stage isothermal holding (120–1800 s at 923 K) affects the evolution of cluster morphology and its subsequent impact on dislocation behavior and mechanical properties in a strip-cast Nb-bearing HSLA steel. Advanced characterization (atom probe tomography) revealed that prolonged holding promotes the growth of nanoscale Nb-(C,N) clusters and precipitates, accompanied by an increase in ferrite fraction. Remarkably, this evolution simultaneously enhances both strength and ductility. Enhanced ductility and sustained work hardening are linked to a higher density and volume fraction of nanoscale particles, which act as potent obstacles for dislocation nucleation and multiplication. These findings establish a critical link between cluster evolution and dislocation-mediated strengthening, providing a basis for optimizing strip-cast steels. Full article

This study investigates the effects of chromium (0.4~1.2) Cr content and temperature (35–80 °C) on the corrosion behavior and mechanisms of steels in a water-saturated supercritical CO₂ (S-CO₂) environment, aiming to provide theoretical foundations for material selection and corrosion management in S-CO₂ pipeline systems. Results indicate that increasing Cr content promotes the formation of granular bainite as the dominant microstructure, accompanied by refined martensite–austenite (MA) constituents with increased population and reduced dimensions, leading to enhanced strength at the expense of toughness. In the S-CO₂/H₂O environment, Cr reacts with CO₂ to form a dense Cr₂O₃ layer, significantly suppressing the corrosion rate. Temperature critically governs corrosion kinetics: at 35 °C, where S-CO₂ exhibits maximum density and CO₂ solubility in water peaks, electrochemical corrosion dominates, resulting in the highest corrosion rate. As temperature rises, the corrosion mechanism transitions to chemical corrosion, while accelerated formation of protective corrosion product films further reduces corrosion rates. Mechanistic analysis reveals that uniform corrosion arises from carbonic acid generated by water dissolution in S-CO₂, whereas localized corrosion intensifies upon direct contact between precipitated aqueous phases and the steel surface. These findings offer critical theoretical foundations for optimizing material design, operational parameters, and corrosion mitigation strategies in S-CO₂ transportation infrastructure. Full article

By alternately depositing hydrogen-free amorphous carbon (a-C) and hydrogenated amorphous carbon (a-C:H) nanolayers on HSLA-100 steel through arc-ion plating, multilayer diamond-like carbon (DLC) architectures were engineered, with the modulation period adjusted from 1 to 10 cycles. SEM and Raman spectroscopy served as the analytical tools for characterizing the microstructure. For assessing key functional behaviors, nanoindentation was used to test mechanical properties, dry-sliding tribometry and in-situ tribocorrosion tests targeted tribological and tribocorrosion performance, and polarization tests focused on corrosion resistance. Introducing C₂H₂ increased the sp³ fraction and hardness relative to pure a-C. The ten-period film (S5) yielded the highest H/E (0.0767) and H³/E² (0.171), reflecting the best hardness–toughness synergy. All coatings lowered the dry friction coefficient to 0.08–0.10 and cut wear by more than 1 order of magnitude versus the substrate; the ten-period film (S5) showed the minimum dry wear rate (1.39 × 10⁻⁷ mm³·N⁻¹·m⁻¹) and tribocorrosion wear rate (4.53 × 10⁻⁷ mm³·N⁻¹·m⁻¹) in 3.5 wt% NaCl. The superior performance is due to interlayer interfaces that dissipate stresses, arrest crack propagation, and block electrolyte ingress through defects. These findings indicate that the rational stacking of a-C/a-C:H significantly improves the tribological and tribocorrosion resistance of HSLA-100, providing a reliable protective approach for components used in marine services. Full article

Thick steel plates in bridges exhibit mechanical property gradients along their thickness, yet the underlying micro-mechanisms remain unclear. This study investigates an 80 mm thick 420 MPa-grade HSLA steel plate, and also quantitatively investigates the mechanism of its mechanical gradient behavior in the thickness direction through layered tensile tests combined with multi-scale microstructural characterization. The unique contribution of this work lies in establishing a quantitative correlation between the gradient in the dislocation density and the transition in yielding behavior. The results show that the surface layer area of the tested steel exhibited continuous yield characteristics, while all core layers exhibited pronounced discontinuous yielding. The mechanical properties showed a gradient distribution along the thickness direction, with the yield strength and tensile strength decreasing from 512.4 MPa and 545.9 MPa at the surface to 419.5 MPa and 520.4 MPa at the center (1/2t). Microstructural analysis shows that the full-thickness structure was composed of granular bainite (GB) and polygonal ferrite (PF). With respect to increases with depth, the average grain size increased from 6.86 µm at the surface to 11.57 µm at the center. Moreover, the surface region exhibited a broader grain size distribution range and higher size dispersity. The second-phase precipitates in the full thickness were mainly of two types, namely, Fe₃C and (Nb, Ti) (C, N) composite precipitates, and the precipitates in the surface layer had smaller sizes and higher distribution densities. Crucially, the dislocation density decreased sharply from the surface to 1/8t, then stabilized. While quantitatively elucidating the contributions of various strengthening mechanisms to the strength gradient, the mechanistic analysis also reveals a dislocation microstructure synergistic mechanism underlying the yield behavior differences. Full article

Structural applications that use High-Strength Low-Alloy (HSLA) steels require detailed microstructural analysis to manufacture welded components that combine strength and weldability. The balance of these properties depends on both the chemical composition and the welding parameters. Moreover, in multi-pass welds, thermal cycling results in a complex Heat-Affected Zone (HAZ), characterized by sub-regions with a multitude of microstructural constituents, including brittle phases. This study investigates the influence of Vanadium addition on the microstructure and performance of the HAZ. Multi-pass welded joints were manufactured on 15 mm thick S355 steels with different Vanadium contents using a robotic GMAW process. A steel variant containing both Vanadium and Niobium was also considered, and the results were compared to those of standard S355 steel. Moving through the different sub-regions of the welded joints, the results show a heterogeneous microstructure characterized by ferrite, bainite and martensite/austenite (M/A) islands. The presence of Vanadium reduces carbon solubility during the phase transformations involved in the welding process. This results in the formation of very fine (average size 11 ± 4 nm) and dispersed precipitates, as well as a lower percentage of the brittle M/A phase, in the variant with a high Vanadium content (0.1 wt.%), compared to the standard S355 steel. Despite the presence of the brittle phase, the micro-alloyed variants exhibit strengthening without loss of ductility. The combined presence of both hard and soft phases in the HAZ provides stress-damping behavior, which, together with the very fine precipitates, promises improved resistance to crack propagation under different loading conditions. Full article

High-strength low-alloy (HSLA) steel is widely used in automotive industry for reduction of consumption and emissions. The microstructure and mechanical properties of two automotive HSLA steels with different strength grades were systematically investigated in present study. Microstructural characterization was conducted using optical microscopy (OM), scanning electron microscopy (SEM), and electron backscatter diffraction (EBSD), while mechanical properties were evaluated with Vickers hardness tester and tensile tests. Both steels exhibited a ferrite matrix with spheroidized carbides/pearlites. However, Sample A displayed equiaxed ferrite grains with localized pearlite colonies, while Sample B featured pronounced elongated ferrite grains with a band structure. Tensile testing revealed that Sample B had higher ultimate tensile stress and yield stress compared to Sample A. Texture analysis indicated that both steels were dominated by α-fiber and γ-fiber textures, with minor θ-fiber texture, resulting in minimal mechanical anisotropy between the rolling direction (RD) and transverse direction (TD). The quantitative assessment of strengthening mechanisms, based on microstructural parameters and experimental data, revealed that grain boundary strengthening dominates, with dislocation strengthening also contributing significantly. This work provides the first comprehensive quantification of individual strengthening contributions in automotive HSLA steels, offering critical guidance for developing further higher-strength automotive steels. Full article

The automotive industry utilizes high-strength low-alloy (HSLA) steels and advanced high-strength steels (AHSS) to manufacture various components, including front and rear rails, chassis, and roll bars, among others. In countries where de-icing salts are used, these steels are exposed to a localized corrosive environment. This research aims to characterize the corrosion behavior of AHSS [dual-phase (DP), ferrite–bainite (FB), and complex-phase (CP)] using electrochemical techniques such as cyclic potentiodynamic polarization (CPP) curves and electrochemical noise (EN), by immersing the steels in NaCl, CaCl₂, and MgCl₂ solutions. Optical microscopy (OM) is used to observe the microstructure of the tested samples. The CPP corrosion behavior of AHSS exposed to chloride solutions exhibits corrosion densities in the range of 10⁻² and 10⁻³ mA/cm². The results generally indicated that AHSS are susceptible to localized corrosion due to the presence of positive hysteresis in the CPP. Zn results show that DP780 presented higher corrosion resistance, with 845 Ω·cm², whereas FB780 presented 253 Ω·cm² when exposed to NaCl. Additionally, the type of corrosion is localized. Full article

This research investigates the statistical correlation between Vickers hardness and tensile properties of helical submerged arc welded high-strength low-alloy (HSLA) API X70 pipeline steel. Tensile tests were performed on cross-weld joints from 138 pipe specimens. Vickers hardness measurements were also conducted on 138 samples to evaluate the hardness distribution across the base metal, fusion zone, and heat-affected zone. Results show that the fusion zone exhibits the highest hardness, correlating with enhanced tensile strength (R² = 82%). Linear regression models indicate that base metal hardness significantly influences yield strength (R² = 71%), while moderate negative correlations exist with elongation (R² = 54%). These findings suggest that hardness measurements can serve as a non-destructive predictive tool for tensile properties, improving weld quality and mechanical performance. This research provides empirical models that enhance the application of API X70 in critical engineering applications, improving pipeline safety and reliability. Full article
