A Reinforcement Learning Approach Based on Group Relative Policy Optimization for Economic Dispatch in Smart Grids

Abstract

The Economic Dispatch Problem (EDP) plays a critical role in power system operations by trying to allocate power generation across multiple units at minimal cost while satisfying complex operational constraints. Traditional optimization techniques struggle with the non-convexities introduced by factors such as valve-point effects, prohibited operating zones, and spinning reserve requirements. While metaheuristics methods have shown promise, they often suffer from convergence issues and constraint-handling limitations. In this study, we introduce a novel application of Group Relative Policy Optimization (GRPO), a reinforcement learning framework that extends Proximal Policy Optimization by integrating group-based learning and relative performance assessments. The proposed GRPO approach incorporates smart initialization, adaptive exploration, and elite-guided updates tailored to the EDP’s structure. Our method consistently produces high-quality, feasible solutions with faster convergence compared to state-of-the-art metaheuristics and learning-based methods. For instance, in the case of the 15-unit system, GRPO achieved the best cost of USD 32,421.67/h with full constraint satisfaction in just 4.24 s, surpassing many previous solutions. The algorithm also demonstrates excellent scalability, generalizability, and stability across larger-scale systems without requiring parameter retuning. These results highlight GRPO’s potential as a robust and efficient tool for real-time energy scheduling in smart grid environments.

1. Introduction

The rapid evolution of electrical grids toward smart grid architectures has fundamentally transformed the landscape of power systems operation and control. Smart grids integrate advanced sensing, communication, and computing technologies with traditional power infrastructure to enhance efficiency, reliability, and sustainability [1]. This modernization enables real-time monitoring, bidirectional communication, and dynamic adaptation to changing conditions, thereby facilitating the integration of renewable energy sources, demand response mechanisms, and distributed generation [2]. However, these advancements also introduce significant complexity into the optimal management of power generation resources, making the Economic Dispatch Problem (EDP) increasingly challenging yet critical for efficient grid operation, particularly under high penetration of renewable energy where traditional optimization methods often fall short [3].

The Economic Dispatch Problem represents a fundamental optimization challenge in power systems engineering, focusing on determining the optimal power output allocation among available generating units to meet the system demand while minimizing total operating costs [4]. In the context of smart grids, the EDP must additionally account for the intermittency of renewable resources, demand-side flexibility, energy storage systems, and various operational constraints such as prohibited operating zones, valve-point effects, and ramp rate limits [5,6]. The efficient solution of the EDP is paramount as even marginal improvements in cost efficiency can translate to substantial economic savings given the scale of modern power systems.

Traditional approaches to solving the EDP have relied on classical mathematical optimization techniques, including linear programming, quadratic programming, lambda iteration, and gradient methods [4]. While these methods provide exact solutions for convex and well-behaved problems, they face significant limitations when confronted with real-world EDP instances characterized by non-convexity, discontinuities, and multiple local optima. The incorporation of realistic constraints such as prohibited operating zones and valve-point effects renders the problem highly nonlinear and non-convex, causing classical methods to struggle with convergence or become trapped in suboptimal solutions [7].

To overcome these limitations, metaheuristic optimization algorithms have emerged as viable alternatives for tackling complex EDP instances. Techniques such as Genetic Algorithms (GA), Particle Swarm Optimization (PSO), Differential Evolution (DE), Grey Wolf Optimizer (GOP), and Artificial Bee Colony (ABC) have demonstrated considerable success in navigating the complex search spaces of modern EDP formulations [8,9]. These population-based approaches offer the advantages of global exploration capability, constraint-handling flexibility, and reduced sensitivity to initial conditions. However, metaheuristics also exhibit notable limitations, including parameter sensitivity, convergence inconsistency, and the absence of theoretical guarantees regarding solution quality. Moreover, their performance often deteriorates when scaling to high-dimensional problems or when addressing dynamic environments where system conditions evolve rapidly [10].

The limitations of metaheuristics have motivated the exploration of reinforcement learning (RL) approaches for economic dispatch optimization. RL methods offer several distinctive advantages, including the ability to learn optimal policies through interaction with the environment, adaptation to changing conditions, and incorporation of sequential decision-making frameworks that align well with power system operations [11]. Nevertheless, classical RL methods such as Q-learning and Deep Q-Networks (DQN) face challenges related to sample efficiency, exploration–exploitation balance, and high-dimensional continuous action spaces that are characteristic of the EDP. Recent advancements in reinforcement learning have also introduced powerful transformer-based architectures capable of modeling long-range dependencies in temporal and spatial energy systems [12]. Multi-agent reinforcement learning (MARL) is gaining traction in distributed energy dispatch, enabling coordination across decentralized units [13]. Moreover, safe RL and explainable RL frameworks are being developed to meet the reliability and transparency requirements of critical infrastructure like smart grids [14]. These emerging directions complement GRPO by addressing issues of system-wide coordination, interpretability, and risk-aware policy deployment.

Group Relative Policy Optimization (GRPO) addresses these challenges by extending the traditional Proximal Policy Optimization (PPO) framework to incorporate collective learning dynamics and relative policy improvements. Unlike conventional RL methods that update policies based solely on absolute performance metrics, GRPO leverages information sharing and relative performance assessments within groups of agents to enhance convergence stability and exploration efficiency [15]. By establishing trust regions based on the relative performance of multiple solution candidates, GRPO mitigates the risks of premature convergence and policy degradation during training. Additionally, the group-based approach enables more effective constraint handling through collaborative learning, where feasible solutions inform the development of effective constraint satisfaction strategies across the entire population of agents. Beyond improving computational efficiency, GRPO has important societal and environmental implications. By enabling scalable and adaptive scheduling, it can facilitate higher penetration of renewable energy sources, support demand–response mechanisms, and strengthen grid resilience—key levers in the transition to sustainable energy systems. The literature indicates that residential load management strategies can reduce ${\mathrm{CO}}_2$ emissions by between 1% and 20% depending on the energy mix and regulatory environment [16]. Similarly, demand response—even modest peak-shaving—has been estimated to yield system-level cost savings in the range of billions of dollars; for instance, a mere 5% reduction in peak demand could translate into USD 35 billion in avoided costs over 20 years in the U.S.

In this work, we present a novel application of GRPO for solving complex Economic Dispatch Problems in smart grid environments. The main contributions of this research are threefold: (1) the development of a specialized GRPO framework tailored to the unique characteristics of the EDP, incorporating domain-specific knowledge into the policy and value network architectures; (2) an enhanced constraint-handling mechanism that preserves solution feasibility through adaptive penalty formulations and guided exploration of the feasible region; and (3) comprehensive empirical evaluation demonstrating superior performance compared to both traditional metaheuristics and conventional RL approaches across a diverse set of benchmark problems and real-world case studies.

The remainder of this paper is organized as follows: Section 2 presents a formal mathematical formulation of the Economic Dispatch Problem, including the objective function and various operational constraints considered in this study. Section 3 provides a comprehensive review of related work spanning classical methods, metaheuristics, and reinforcement learning approaches for economic dispatch. Section 4 introduces the proposed GRPO methodology, detailing the algorithm design, network architectures, and constraint-handling mechanisms. Section 5 describes the experimental setup, including benchmark problems, comparison methods, and evaluation metrics. Section 6 presents and discusses the experimental results, highlighting the performance advantages of GRPO across different problem instances. Finally, Section 7 concludes the paper with a summary of findings, limitations, and directions for future research.

2. Related Work

Economic dispatch (ED) is a fundamental optimization problem in power systems, where the goal is to allocate generation among available units to meet a certain load at minimum cost. In multi-objective formulations of ED, additional objectives such as emission minimization or loss reduction are considered alongside cost, making the problem a multi-criteria optimization challenge. The ED problem is subject to numerous constraints, including power balance, generator output limits, ramp rate limits, and sometimes more complex operational constraints like prohibited operating zones or multi-area power transfer limits [17]. Solving ED optimally is crucial for both economic efficiency and environmental compliance in modern grids. Over the past decade, there has been significant progress in solution methods for ED, especially for non-convex and multi-objective versions. These methods span classical mathematical optimization, metaheuristic algorithms, and machine learning, including reinforcement learning approaches, each with its own merits and limitations. In this section, we explore and discusses each category in turn, with an emphasis on the state-of-the-art metaheuristic and learning-based techniques for multi-objective ED, and highlight the challenges associated with them to motivate our approach.

2.1. Classical Mathematical Approaches

Classical methods for ED rely on mathematical programming and optimization theory. For the basic ED with a single objective (e.g., fuel cost minimization) and convex cost curves, the problem can be formulated as a convex optimization (e.g., a quadratic program) and solved to global optimality using efficient algorithms [18]. Lambda-iteration (gradient method) and Lagrange relaxation have been long-standing techniques: the lambda-iteration method equalizes the incremental cost ($\lambda$) across units to satisfy optimality and balance conditions, and it works well when generator cost functions are smooth and convex. In fact, early implementations of ED in the 1960s applied linear programming techniques to economic generation allocation [17]. Later methods like dynamic programming were used for unit commitment and dispatch problems in the 1960s–70s. Quadratic programming methods (e.g., using the Kuhn–Tucker conditions) and network flow approaches which treat ED as a transportation problem were also explored in the literature [18]. However, classical optimization methods encounter limitations as the ED problem becomes more realistic. One major issue is non-convexity. Practical ED often involves valve-point effect ripples in cost functions, multiple fuel options for generators, or prohibited operating zones, all of which introduce non-smooth, non-convex characteristics [18,19,20]. Traditional solvers such as LP or QP struggle with these; they might converge to a local optimum or require piecewise-linear approximations to fit into a convex model [18]. For instance, including emission cost as a second objective or constraint was handled in the 1990s by techniques like Lagrangian relaxation [21], but those methods needed convexified formulations. Classic methods also have difficulty with discrete decision variables like unit on/off states or integer transmission flow limits without resorting to combinatorial search techniques that exponentially increase complexity. While methods like dynamic programming and branch-and-bound can handle discrete unit commitment, they suffer from the curse of dimensionality for large-scale systems [21]. Another limitation is in handling multiple objectives. Classical approaches typically scalarize multiple objectives (e.g., combine cost and emission into a single weighted sum objective). This requires choosing weighting factors a priori, which can be arbitrary and may not capture the true trade-offs. There is no straightforward way for classical deterministic solvers to produce a Pareto-optimal set of solutions in one run—they would need to be run multiple times with different weights or targets. This lack of flexibility is a drawback in multi-objective ED scenarios [21]. Finally, computational scalability is a concern: although methods like the lambda-iteration are extremely fast for convex ED and were historically used in real-time dispatch computers, they cannot guarantee optimality for non-convex ED [18]. Techniques like quadratic programming or nonlinear programming can solve moderately sized problems, but their performance degrades as the number of generators and constraints grows. In summary, while classical mathematical methods form the foundation and can solve simplified ED efficiently, they struggle with the complex, non-convex, and multi-objective nature of modern ED problems. These limitations motivated the development of metaheuristic methods that can more easily handle such complexities.

2.2. Metaheuristic Approaches

Metaheuristic algorithms have emerged as key methods for economic dispatch (ED), especially in non-convex and multi-objective scenarios, due to their ability to handle complex, nonlinear constraints without strict assumptions on objective functions [19,20]. Although these algorithms do not guarantee global optima, they typically yield high-quality solutions efficiently. Genetic Algorithms (GA), among the earliest used for ED, utilize evolutionary processes including crossover and mutation. GAs effectively manage valve-point effects and multi-fuel scenarios [22], with multi-objective variants like NSGA-II frequently generating Pareto fronts for economic–emission trade-offs. However, GAs may suffer from slow convergence and require careful parameter tuning. Constraint handling commonly involves penalty functions or repair operators to ensure feasibility [17]. Particle Swarm Optimization (PSO), which is inspired by flocking behavior, offers simpler implementation and faster convergence than GAs, as evidenced in the seminal work by [23]. PSO effectively addresses high-dimensional search spaces due to rapid information sharing and minimal parameter tuning. Multi-objective PSO (MOPSO) manages environmental/economic dispatch by maintaining solution diversity. PSO’s simplicity enables near real-time application, though occasional stagnation and parameter sensitivity remain concerns [24].

Differential Evolution (DE) uses vector differences and recombination to achieve efficient continuous optimization [25]. DE often outperforms GA and PSO on complex ED problems, particularly when hybridized or adapted through specialized mechanisms, such as single-unit adjustment repairs for constraint violations [17]. Adaptive strategies enhance DE’s robustness, especially in multi-objective contexts, though parameter choice and discrete handling limitations persist. Ant Colony Optimization (ACO), although traditionally for combinatorial optimization, is applied to discrete or hybrid ED problems. It generally performs less efficiently than GA, PSO, or DE for purely continuous ED but can excel in hybrid scenarios involving unit commitment or discrete decisions. Multi-objective ACO adaptations exist but require substantial computational resources and careful tuning [8]. Recent metaheuristics like the Grey Wolf Optimizer (GWO) have gained attention due to their simplicity and balanced exploration–exploitation capabilities, showing competitive results on complex ED scenarios [8]. Numerous other novel algorithms, including Whale Optimization, Bat, and Firefly, have demonstrated effectiveness in ED, especially when hybridized or parameter-adaptive. These methods typically handle constraints via penalties, repairs, or dependent variable encoding, achieving near-real-time performance with optimization strategies like parallelization and warm starts.

Overall, metaheuristics significantly extend the solvability of ED problems beyond classical methods, addressing multi-modal and multi-objective challenges effectively. Despite their inherent lack of optimality guarantees and sensitivity to parameterization, these methods remain central to ED research and practice, increasingly augmented by emerging reinforcement learning-based approaches.

2.3. Machine Learning and Reinforcement Learning Approaches

Machine Learning (ML) techniques have recently emerged as promising alternatives to conventional optimization methods for solving Economic Dispatch Problems, encompassing supervised learning, hybrid methods, and particularly reinforcement learning (RL). Supervised ML approaches utilize historical real data or data generated by offline optimizers (e.g., linear programming or metaheuristics) to train predictive models like Decision Trees or Neural Networks, providing fast dispatch decisions in real-time scenarios. For instance, Goni et al. [26] employed a Decision Tree trained on data from the Lagrange multiplier method, significantly reducing computation time compared to classical solvers. However, such methods depend heavily on comprehensive, stationary training datasets and require retraining upon system alterations. Additionally, hybrid strategies involving ML-guided metaheuristics have been explored; notably, Visutarrom et al. [27] used RL to adaptively tune Differential Evolution parameters, enhancing robustness and reducing manual tuning efforts.

Building upon these approaches, reinforcement learning methods have become particularly prominent, offering advantages for dynamic ED scenarios involving uncertainty and sequential decision-making. RL methods learn dispatch policies mapping system states (loads, generation statuses) directly to optimal generator actions, utilizing algorithms such as Q-learning, Deep Q-Networks (DQN), Deep Deterministic Policy Gradient (DDPG), and Proximal Policy Optimization (PPO). While classical Q-learning faces limitations due to discrete state-action spaces, DQN employs neural network approximations to effectively handle larger continuous state spaces. Sage et al.  [28] highlighted DQN’s superior performance in battery dispatch scenarios, demonstrating significant cost savings through optimal charge/discharge policies.

Addressing continuous action spaces essential for ED, policy gradient methods like DDPG and PPO have shown significant promise. Chen et al.  [29] successfully applied hybrid DDPG for microgrid dispatch, achieving superior performance compared to discretized DQN. PPO has been favored for its stability during training, with studies demonstrating its efficacy in learning robust dispatch policies in renewable-integrated dynamic ED contexts.

Expanding on these methods, advanced RL techniques such as Soft Actor–Critic (SAC) and emerging Group Relative Policy Optimization (GRPO) have shown potential for overcoming inherent RL limitations like training complexity and critic network biases. While SAC’s stochastic nature has proved less effective for deterministic dispatch scenarios, GRPO’s critic-free design promises enhanced training efficiency, although its practical application in ED remains exploratory.

To successfully implement RL methods, careful consideration must be given to designing states, actions, and rewards. Incorporating temporal indicators significantly enhances policy adaptability [28]. Continuous dispatch adjustments typically favor actor–critic methods, whereas discrete action spaces are suitable for DQN. Furthermore, multi-agent RL presents a potential avenue for managing large-scale dispatch tasks, although ensuring cooperative behavior among multiple agents adds complexity. Reward functions typically integrate economic objectives with penalties for constraint violations. However, excessive emphasis on penalties can hinder cost optimization. Thus, hard-coding domain-specific constraints often supplements reward shaping, guiding RL agents primarily towards minimizing economic costs. Despite these advancements, trained RL policies face several challenges. Although execution is rapid and suitable for real-time deployment, RL training itself is computationally intensive and time-consuming. Moreover, RL-derived policies do not guarantee global optimality and exhibit limited generalization beyond training scenarios, necessitating continuous retraining. Policy explainability and safe exploration also remain significant issues, particularly for operational grid deployments. Nevertheless, RL’s adaptability and real-time responsiveness provide substantial benefits in evolving smart grid applications. Hybrid frameworks combining RL-derived dispatch policies with deterministic refinement processes could ensure feasibility and operational reliability, effectively bridging learning-based methods and traditional optimization techniques.

3. Problem Formulation

This section presents a comprehensive mathematical formulation of the Economic Dispatch Problem (EDP), providing the necessary foundation for understanding the optimization challenges addressed in this work. We begin with the basic convex formulation before examining the more complex non-convex variants that incorporate realistic operational constraints.

3.1. Convex Economic Dispatch Problem

The fundamental objective of the Economic Dispatch Problem is to minimize the total production cost while satisfying various system constraints. The objective function can be mathematically expressed as follows:

$$\mathrm{Minimize}{F}_T=\sum _{i=1}^N{F}_i(P_i),i=1,2,\dots ,N$$

(1)

where $F_T$ represents the total generation cost, $F_i(P_i)$ is the cost function of the i-th generating unit, $P_i$ is the power output of the i-th generating unit, and N is the total number of generating units in the system.

In its most basic form, the fuel cost of a thermal generation unit is typically represented as a quadratic function:

$$F_i(P_i)=a_i+b_i{P}_i+c_i{P}_i^2$$

(2)

where $a_i$, $b_i$, and $c_i$ are the cost coefficients of the i-th generating unit. However, to more accurately model the actual response of thermal generators, higher-order polynomial functions may be employed. A cubic cost function, for instance, provides enhanced modeling precision and can be represented as follows:

$$F_i(P_i)=a_i+b_i{P}_i+c_i{P}_i^2+d_i{P}_i^3$$

(3)

where $d_i$ is the cubic cost coefficient of the i-th generating unit.

The optimization is subject to several operational constraints that must be satisfied for a feasible solution:

3.1.1. Power Balance Constraint

The total power generated must equal the total demand plus transmission losses:

$$\sum _{i=1}^N{P}_i=P_D+P_L$$

(4)

where $P_D$ represents the total system demand and $P_L$ denotes the transmission losses. The transmission losses can be calculated using Kron’s loss formula, also known as the B-matrix coefficient method:

$$P_L=\sum _{i=1}^N\sum _{j=1}^N{P}_i{B}_{ij}{P}_j+\sum _{i=1}^N{B}_{0i}{P}_i+B_{00}$$

(5)

where $B_{ij}$, $B_{0i}$, and $B_{00}$ are the loss coefficients or B-coefficients.

3.1.2. Generator Capacity Constraints

The power output of each generating unit must remain within its operational limits:

$$P_{i,\min }\le P_i\le P_{i,\max }$$

(6)

where $P_{i,\min }$ and $P_{i,\max }$ are the minimum and maximum power outputs of the i-th generating unit, respectively.

3.2. Non-Convex Economic Dispatch Problems

Real-world power systems often exhibit non-convex characteristics due to various physical and operational constraints. We consider two significant sources of non-convexity in the EDP: valve-point effects and prohibited operating zones.

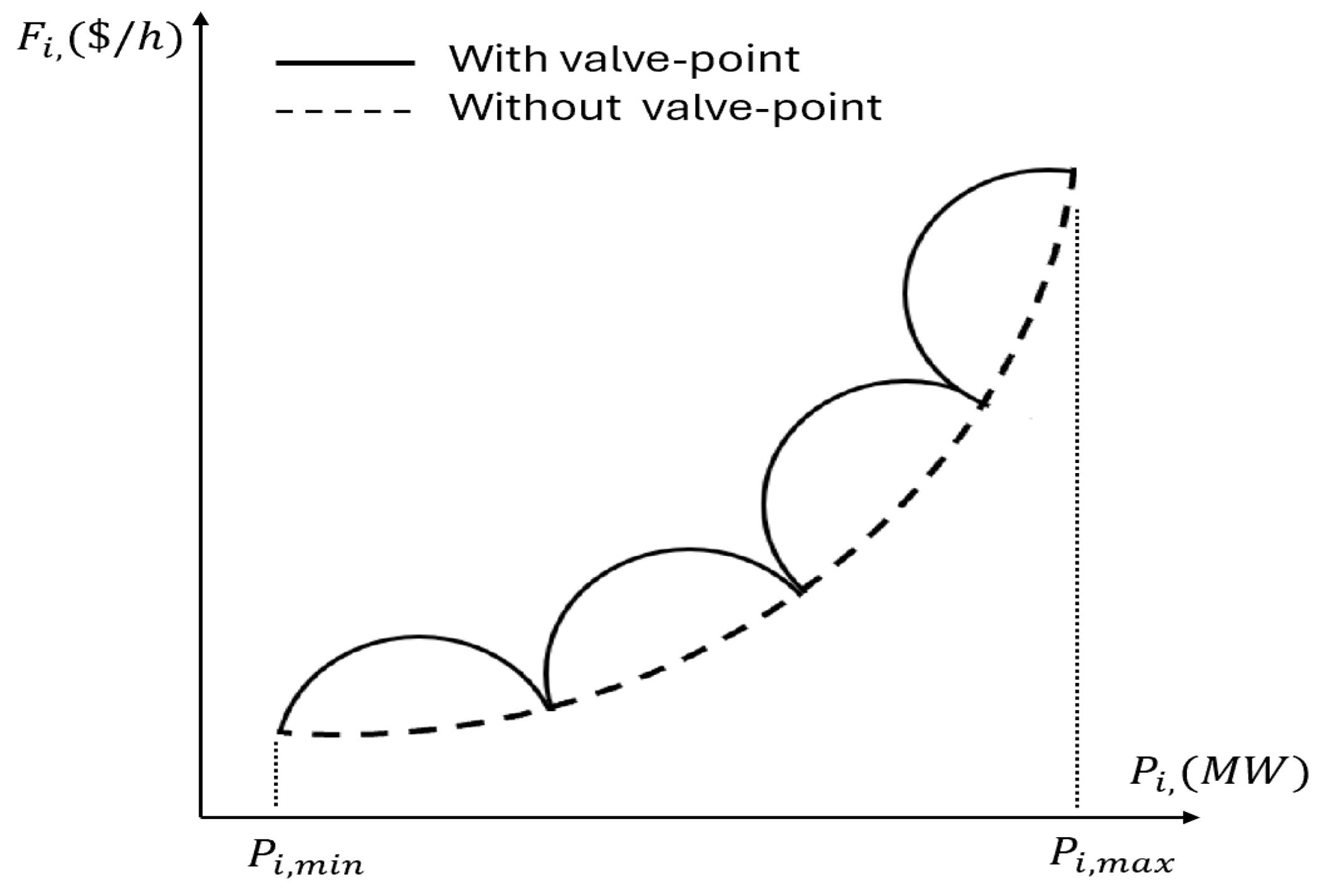

3.2.1. Valve-Point Effects

In thermal power plants, each steam admission valve in a turbine produces a rippling effect on the unit’s heat rate curve when it begins to open. This phenomenon, known as the valve-point effect (VPE), introduces significant nonlinearities in the cost function, resulting in multiple local optima. The cost function incorporating valve-point effects can be modeled as follows:

$$F_i(P_i)=a_i+b_i{P}_i+c_i{P}_i^2+\left|e_i\sin \left(f_i(P_{i,\min }-P_i)\right)\right|$$

(7)

where $e_i$ and $f_i$ are the valve-point effect coefficients. The sinusoidal term introduces ripples in the cost function, making the optimization landscape significantly more complex, as illustrated in Figure 1.

3.2.2. Prohibited Operating Zones

Prohibited operating zones (POZ) are specific ranges of power output where the operation of generating units is restricted due to physical limitations such as vibrations in the shaft bearings, resonance in certain components, or other mechanical constraints. Operating within these zones could potentially damage equipment or cause instability in the system. The presence of prohibited operating zones introduces discontinuities in the feasible region, further complicating the optimization process.

For units with prohibited operating zones, the feasible operating regions can be mathematically defined as follows:

$$P_i\in \left\{\begin{array}{c}{P}_{i,\min }\le P_i\le P_{i,1}^l\hfill \\ P_{i,k-1}^u\le P_i\le P_{i,k}^l,k=2,\dots ,n_i\hfill \\ P_{i,n_i}^u\le P_i\le P_{i,\max }\hfill \end{array}\right.$$

(8)

where $P_{i,k}^l$ and $P_{i,k}^u$ represent the lower and upper bounds of the k-th prohibited zone of the i-th unit, respectively, and $n_i$ is the number of prohibited zones for the i-th generating unit.

3.3. Additional Operational Constraints

Modern power systems often incorporate additional constraints that must be satisfied for secure and reliable operation:

3.3.1. Spinning Reserve Constraint

Spinning reserve represents the extra generating capacity that is available by increasing the power output of generators already connected to the power system. This constraint ensures that sufficient reserve capacity is available to respond to unforeseen load increases or generation outages:

$$\sum _{i=1}^N{S}_i\ge SR$$

(9)

where $S_i$ is the spinning reserve contribution of the i-th generating unit and $SR$ is the total spinning reserve requirement. The spinning reserve contribution of each unit is determined by the following:

$$S_i=\min (P_{i,\max }-P_i,S_{i,\max });\forall i\notin \mathrm{\Omega }$$

(10)

$$S_i=0;\forall i\in \mathrm{\Omega }$$

(11)

where $S_{i,\max }$ is the maximum spinning reserve capability of the i-th unit and $\mathrm{\Omega }$ is the set of units that cannot provide spinning reserve.

3.3.2. Ramp Rate Constraints

The ramp rate constraints limit the rate at which the power output of a generating unit can change between consecutive time periods, reflecting the physical limitations of thermal units:

$$P_i-P_i^0\le U{R}_i,\mathrm{if}\mathrm{generation}\mathrm{increases}$$

(12)

$$P_i^0-P_i\le D{R}_i,\mathrm{if}\mathrm{generation}\mathrm{decreases}$$

(13)

where $P_i^0$ is the previous power output of the i-th unit, and $U{R}_i$ and $D{R}_i$ are the ramp-up and ramp-down rate limits, respectively. To incorporate these constraints into the generator capacity limits, Equation (6) can be reformulated as follows:

$$\max (P_{i,\min },P_i^0-D{R}_i)\le P_i\le \min (P_{i,\max },P_i^0+U{R}_i)$$

(14)

3.4. Constraint Handling Approaches

Effectively managing constraints is crucial for solving the EDP. In this work, we employ several techniques to handle different types of constraints:

3.4.1. Slack Variable Method for Equality Constraints

For the power balance constraint, we adopt a slack variable approach where one unit (typically referred to as the slack unit) is designated to compensate for any imbalance. The power output of the slack unit is calculated as follows:

$$P_s=P_D+P_L-\sum _{\begin{array}{c}i=1\\ i\ne s\end{array}}^N{P}_i$$

(15)

where $P_s$ is the power output of the slack unit, which is randomly selected from the available units. If the calculated value of $P_s$ violates its limits, a penalty is applied to the objective function.

3.4.2. Penalty Function Approach for Inequality Constraints

For inequality constraints such as generator limits, prohibited operating zones, and spinning reserve requirements, we employ a penalty function approach where violations are penalized in the objective function:

$$F_T^{\prime }=F_T+\sum _{c\in C}{\lambda }_c·{\mathrm{violation}}_c^2$$

(16)

where $F_T^{\prime }$ is the penalized objective function, C is the set of all constraints, ${\lambda }_c$ is the penalty coefficient for constraint c, and ${\mathrm{violation}}_c$ is the magnitude of the violation of constraint c.

For clarity and ease of reference,

Table 1. Constraint handling methods in the optimization framework.

Constraint Type	Handling Method	Repair Logic/Penalty Function
Power Balance	Repair	Slack unit adjusted to compensate imbalance; infeasibility penalized
Generator Output Limits	Repair	Enforced via clipping during initialization and updates
Prohibited Operating Zones	Repair	Violating values projected to nearest allowed zone
Spinning Reserve Requirement	Penalty Function	Penalty added for unmet reserve
Ramp Rate Constraints	Clipped Range + Repair	Generation values clipped within ramp-adjusted min/max bounds

summarizes the constraint-handling strategies used in GRPO, including the type of constraint, the method applied, and whether repair or penalty-based logic was used. This organization helps distinguish how different classes of constraints are treated within the framework.

4. Group Relative Policy Optimization

Group Relative Policy Optimization (GRPO) represents an innovative approach in reinforcement learning that extends traditional policy optimization methods through the incorporation of group dynamics and relative performance assessments. This section presents both a conceptual overview and the mathematical formulation of the GRPO methodology.

4.1. Core Principles

GRPO is fundamentally built on three key principles:

• Group-based Learning: Instead of training a single policy, GRPO maintains a population of policies that learn collaboratively.
• Relative Performance Assessment: Policies are evaluated not only on their absolute performance but also on their performance relative to other policies in the group.
• Trust Region Optimization: Policy updates are constrained to prevent excessive deviations from the established consensus of the group.

Although GRPO departs from classical RL architectures by omitting value function approximation or explicit temporal-difference learning, it remains firmly grounded in the reinforcement learning paradigm. It extends actor-only policy optimization methods such as PPO by using population-based sampling and relative advantage signals to guide learning. Policies are still trained through interaction with the environment, with updates driven by reward feedback and constrained by trust regions. This formulation aligns with recent developments in critic-free, evolutionary RL methods that emphasize direct policy improvement without estimating state values or temporal differences.

4.2. The GRPO Framework

The GRPO framework can be understood as an organized approach consisting of the following components:

4.2.1. Policy Population

GRPO maintains a diverse population of policies, typically ranging from 10 to 50 depending on the complexity of the problem. Each policy represents a potential solution strategy and is characterized by its own set of parameters. The population-based approach provides several advantages:

• Multiple starting points in the solution space, reducing the risk of being trapped in local optima;
• Diverse exploration strategies that collectively cover more of the solution space;
• Robustness against individual policy failures through information sharing.

4.2.2. Relative Advantage Estimation

A cornerstone of GRPO is its novel approach to advantage estimation. In standard reinforcement learning, the advantage function measures how much better an action is compared to the average action in a given state. GRPO extends this concept by computing a relative advantage that compares the performance of a policy, not just against itself, but against the entire policy group.

4.2.3. Elite Reference Set

After each evaluation phase, GRPO identifies an elite subset of policies that demonstrated superior performance. This elite set serves multiple purposes:

• Providing reference strategies for other policies to learn from;
• Stabilizing the learning process by preserving successful approaches;
• Guiding the exploration toward promising regions of the solution space.

4.2.4. Group Trust Region

To ensure stable learning progress, GRPO implements a group-based trust region mechanism. This approach constrains policy updates to prevent any single policy from deviating too far from the group consensus. The group trust region offers several benefits:

• Improved stability during learning;
• Prevention of catastrophic forgetting;
• Balanced exploration and exploitation across the policy population.

4.3. Learning Process

The GRPO learning process follows a cyclical pattern consisting of four main phases:

• Experience Collection: Each policy interacts with the environment independently;
• Relative Performance Evaluation: Policies are assessed against the group;
• Elite Selection: Top-performing policies are identified (typically 20–30%);
• Policy Update: All policies are updated based on their experience and elite influence.

4.4. Mathematical Formulation

4.4.1. Policy Parameterization

In GRPO, we maintain a population of K policies, each parameterized by ${\theta }_k\in {\mathbb{R}}^d$, where $k\in \{1,2,\dots ,K\}$. The stochastic policy ${\pi }_{{\theta }_k}(a|s)$ defines a probability distribution over actions $a\in \mathcal{A}$ given a state $s\in \mathcal{S}$. For continuous action spaces, the policy is typically modeled as a multivariate normal distribution:

$${\pi }_{{\theta }_k}(a|s)=\mathcal{N}({\mu }_{{\theta }_k}(s),{\mathsf{\Sigma }}_{{\theta }_k}(s))$$

(17)

where ${\mu }_{{\theta }_k}(s)$ represents the mean action and ${\mathsf{\Sigma }}_{{\theta }_k}(s)$ is the covariance matrix, both functions of the current state and parameterized by ${\theta }_k$.

4.4.2. Relative Advantage Function

For each policy ${\pi }_{{\theta }_k}$, we define the relative advantage function:

$$A_k^{\mathrm{rel}}(s,a)=A_k(s,a)-{\displaystyle \frac{1}{K-1}}\sum _{j\ne k}{A}_j(s,a)$$

(18)

where $A_k(s,a)$ is the standard advantage function for policy ${\pi }_{{\theta }_k}$, calculated as follows:

$$A_k(s,a)=Q^{{\pi }_{{\theta }_k}}(s,a)-V^{{\pi }_{{\theta }_k}}(s)$$

(19)

The relative advantage function quantifies how much better (or worse) an action is compared to the average performance of the policy group. This provides a more informative learning signal that accounts for the collective exploration of the state-action space.

4.4.3. Objective Function

The GRPO objective function for policy ${\pi }_{{\theta }_k}$ combines the standard PPO clipped objective with a relative performance term:

$$\begin{array}{cc}\hfill J_{\mathrm{GRPO}}({\theta }_k)={\mathbb{E}}_{s,a\sim {\pi }_{{\theta }_k}}\left[\min \right(& r_k({\theta }_k)A^{{\pi }_{{\theta }_k}}(s,a),\hfill \\ \hfill & \mathrm{clip}(r_k({\theta }_k),1-ϵ,1+ϵ)A^{{\pi }_{{\theta }_k}}(s,a))\hfill \\ \hfill & +{\lambda }_{\mathrm{rel}}{r}_k^{\mathrm{rel}}({\theta }_k)A_k^{\mathrm{rel}}(s,a)]\hfill \end{array}$$

(20)

where $r_k({\theta }_k)={\displaystyle \frac{{\pi }_{{\theta }_k}(a|s)}{{\pi }_{{\theta }_k^{\mathrm{old}}}(a|s)}}$ is the importance sampling ratio, $ϵ$ is the clipping parameter (typically 0.1 or 0.2), and ${\lambda }_{\mathrm{rel}}$ is a hyperparameter controlling the influence of the relative performance term. The relative importance sampling ratio $r_k^{\mathrm{rel}}({\theta }_k)$ is defined as follows:

$$r_k^{\mathrm{rel}}({\theta }_k)={\displaystyle \frac{{\pi }_{{\theta }_k}(a|s)}{\frac{1}{K}{\sum }_{j=1}^K{\pi }_{{\theta }_j^{\mathrm{old}}}(a|s)}}$$

(21)

4.4.4. Group-Based Trust Region

GRPO employs a group-based trust region mechanism to ensure stable policy updates. This is implemented through a novel group Kullback–Leibler (KL) divergence constraint:

$$D_{\mathrm{KL}}^{\mathrm{group}}({\pi }_{{\theta }_k},{\{{\pi }_{{\theta }_j^{\mathrm{old}}}\}}_{j=1}^K)\le \delta$$

(22)

where $\delta$ is the maximum allowable divergence. The group KL divergence is computed as follows:

$$D_{\mathrm{KL}}^{\mathrm{group}}({\pi }_{{\theta }_k},{\{{\pi }_{{\theta }_j^{\mathrm{old}}}\}}_{j=1}^K)={\displaystyle \frac{1}{K}}\sum _{j=1}^K{D}_{\mathrm{KL}}({\pi }_{{\theta }_k}\left|\right|{\pi }_{{\theta }_j^{\mathrm{old}}})$$

(23)

This constraint prevents any single policy from deviating too far from the group consensus, promoting stability while still allowing for exploration.

4.4.5. Elite Selection and Update

After evaluating all policies in the group, GRPO employs an elite selection mechanism to identify the most promising candidates:

$$\mathcal{E}=\{k\in \{1,2,\dots ,K\}|J({\pi }_{{\theta }_k})\ge J_{\mathrm{threshold}}\}$$

(24)

where $J({\pi }_{{\theta }_k})$ is the performance of policy ${\pi }_{{\theta }_k}$ and $J_{\mathrm{threshold}}$ is typically set to select the top $p\%$ (e.g., $p=20$) of policies. The elite policies influence the update of the entire population through a soft update mechanism:

$${\theta }_k^{\mathrm{new}}={\alpha }_k{\theta }_k+(1-{\alpha }_k){\displaystyle \frac{1}{\left|\mathcal{E}\right|}}\sum _{e\in \mathcal{E}}{\theta }_e$$

(25)

where ${\alpha }_k$ is a policy-specific update coefficient that controls the balance between individual learning and group influence.

4.5. Adaptive Hyperparameter Tuning

GRPO incorporates adaptive mechanisms to tune critical hyperparameters throughout the learning process:

4.5.1. Adaptive Learning Rate

The learning rate ${\eta }_k$ for each policy is adjusted based on the policy’s relative performance:

$${\eta }_k={\eta }_{\mathrm{base}}·\exp \left(\beta ·{\displaystyle \frac{J({\pi }_{{\theta }_k})-\overline{J}}{{\sigma }_J}}\right)$$

(26)

where ${\eta }_{\mathrm{base}}$ is the base learning rate, $\overline{J}$ is the average performance across all policies, ${\sigma }_J$ is the standard deviation of performances, and $\beta$ is a scaling factor.

4.5.2. Adaptive Exploration

The exploration rate, which controls the covariance matrix ${\mathsf{\Sigma }}_{{\theta }_k}(s)$, is adapted based on the diversity of the policy group:

$${\sigma }_k={\sigma }_{\mathrm{base}}·\left(1+\gamma ·{\displaystyle \frac{1}{K}}\sum _{j=1}^K{D}_{\mathrm{KL}}({\pi }_{{\theta }_k}\left|\right|{\pi }_{{\theta }_j})\right)$$

(27)

where ${\sigma }_{\mathrm{base}}$ is the base exploration rate and $\gamma$ is a scaling factor. This mechanism increases exploration when the policy is significantly different from others, promoting effective coverage of the search space.

4.6. Theoretical Properties

GRPO possesses several notable theoretical properties that distinguish it from traditional policy optimization methods:

4.6.1. Improved Sample Efficiency

By leveraging information from multiple policies, GRPO makes more efficient use of collected samples. Each trajectory contributes to the update of multiple policies through the relative advantage mechanism, effectively increasing the effective sample size without additional environment interactions.

4.6.2. Enhanced Exploration

The group-based approach naturally encourages diversity among policies, as each policy receives different update signals based on its relative performance. This implicit exploration mechanism helps avoid premature convergence to suboptimal solutions.

4.6.3. Stronger Convergence Guarantees

Under certain conditions, GRPO can be shown to converge to at least a local optimum with higher probability than single-policy methods. The group dynamics provide robustness against individual policy failures and help escape local optima through the sharing of information across the population.

4.6.4. Performance Bounds

The performance of the GRPO algorithm can be bounded as follows:

$$J({\pi }_{\mathrm{GRPO}})\ge J({\pi }_{\mathrm{base}})-{\displaystyle \frac{4ϵ\gamma }{{(1-\gamma )}^2}}{\mathbb{E}}_{s\sim d^{{\pi }_{\mathrm{base}}}}[D_{\mathrm{KL}}({\pi }_{\mathrm{base}}\left|\right|{\pi }_{\mathrm{GRPO}})]$$

(28)

where ${\pi }_{\mathrm{GRPO}}$ is the policy learned by GRPO, ${\pi }_{\mathrm{base}}$ is a baseline policy, $\gamma$ is the discount factor, and $d^{{\pi }_{\mathrm{base}}}$ is the state distribution under the baseline policy.

This bound provides a guarantee on the lower limit of the expected return achieved by the GRPO-learned policy compared to a baseline policy. It holds under standard assumptions commonly used in policy optimization frameworks, including bounded rewards, finite horizon, and sufficiently small policy updates within the trust region (controlled by $\gamma$). In practice, this inequality implies that GRPO is theoretically constrained from degrading performance too severely relative to a known good policy. The presence of the KL divergence term ensures that as long as the updated policy stays close to the baseline, the performance drop is bounded. This theoretical property aligns with GRPO’s empirical behavior, rapid convergence with minimal performance oscillation, even in constrained, non-convex problems like the EDP.

4.7. Key Advantages of GRPO

GRPO offers several significant advantages over traditional policy optimization methods:

4.7.1. Enhanced Exploration

The population-based approach naturally encourages diverse exploration strategies. Different policies can specialize in different regions of the state-action space, collectively providing more comprehensive coverage than a single policy could achieve. Furthermore, the relative performance assessment rewards policies that discover novel effective strategies, explicitly promoting exploration.

4.7.2. Improved Stability

The group trust region mechanism prevents policies from making drastic updates that could destabilize the learning process. By constraining updates relative to the group consensus, GRPO maintains a more stable learning trajectory even in highly complex or noisy environments.

4.7.3. Robustness to Local Optima

Traditional reinforcement learning methods often struggle with local optima, especially in non-convex optimization landscapes. GRPO’s multi-policy approach provides multiple entry points into the solution space, significantly reducing the risk of all policies becoming trapped in the same suboptimal solution.

4.7.4. Efficient Knowledge Sharing

Through the elite reference set and relative advantage computation, GRPO enables efficient sharing of knowledge across the policy population. Successful strategies discovered by one policy can quickly propagate to others, accelerating the overall learning process without requiring explicit communication protocols.

5. GRPO Implementation for Economic Dispatch Problem

This section presents the implementation of Group Relative Policy Optimization (GRPO) for solving the Economic Dispatch Problem (EDP). We describe the specialized adaptations and design choices made to effectively apply GRPO to the complex constraints and nonlinearities characteristic of modern EDP instances.

5.1. Problem Representation

To effectively apply GRPO to the Economic Dispatch Problem, we must first establish an appropriate problem representation that aligns with the reinforcement learning framework.

State and Action Spaces

For the EDP, the state space $\mathcal{S}$ consists of relevant system parameters:

• Power demand ($P_D$);
• Current generator outputs;
• System constraints including prohibited operating zones;
• Spinning reserve requirements.

The action space $\mathcal{A}$ represents the power output allocations for all generators. Given that the EDP involves continuous values within specific ranges, we normalize the action space to ${[0,1]}^N$ where N is the number of generators. Each normalized action is then mapped to the actual power output using the following:

$$P_i=P_{i,\min }+(P_{i,\max }-P_{i,\min })·a_i$$

(29)

where $a_i\in [0,1]$ is the normalized action for generator i, and $P_i$ is the corresponding power output.

5.2. GRPO Architecture for EDP

5.2.1. Policy Population Design

Based on the provided code, our GRPO implementation maintains a population of policies represented by a collection of potential generator power allocations. The SimplifiedPPOOptimizer class implements this population-based approach with the following parameters:

$$\begin{array}{cc}\hfill \mathrm{Population}\mathrm{Size}& =K(\mathrm{typically}30\text{–}50)\hfill \\ \hfill \mathrm{Elite}\mathrm{Percentage}& =p(\mathrm{typically}0.3,\mathrm{representing}\mathrm{the}\mathrm{top}30\%)\hfill \end{array}$$

(30)

Each member of the population represents a candidate solution to the EDP, encoded as a vector of normalized power outputs across all generators.

5.2.2. Smart Initialization Strategy

Rather than random initialization, our implementation employs a smart initialization strategy that allocates power proportionally based on generator efficiency as shown in Algorithm 1:

$${\mathrm{efficiency}}_i={\displaystyle \frac{1}{c_i+ϵ}}$$

(31)

where $c_i$ is the quadratic cost coefficient of generator i and $ϵ$ is a small constant to prevent division by zero. Initial power allocations are then calculated as follows:

$${\mathrm{target}\text{\_}\mathrm{power}}_i={\displaystyle \frac{{\mathrm{efficiency}}_i}{{\sum }_{j=1}^N{\mathrm{efficiency}}_j}}·P_D$$

(32)

This initialization approach ensures that the GRPO algorithm begins with reasonable solutions that prioritize more efficient generators while respecting operational constraints.

5.3. Constraint Handling Mechanisms

A critical aspect of applying GRPO to the EDP is effective constraint handling. Our implementation incorporates several specialized mechanisms to address the various constraints present in the EDP, as depicted formally in Algorithm  2.

5.3.1. Prohibited Operating Zones

To handle prohibited operating zones, we implement a two-step approach:

1.

Detection: For each generator i, we check if the current power output falls within any prohibited zone:

$$\mathrm{is}\text{\_}\mathrm{prohibited}(P_i)=\left\{\begin{array}{cc}\mathrm{true}\hfill & \mathrm{if}\exists k:P_{i,k}^l\le P_i\le P_{i,k}^u\hfill \\ \mathrm{false}\hfill & \mathrm{otherwise}\hfill \end{array}\right.$$

(33)

2.

Repair: If a violation is detected, we adjust the power output to the nearest allowed region:

$$P_i^{\mathrm{adjusted}}=\underset{P\in {\mathcal{A}}_i}{\arg \min }|P-P_i|$$

(34)

where ${\mathcal{A}}_i$ is the set of allowed operating regions for generator i.

This approach ensures that all candidate solutions remain within feasible operating regions throughout the optimization process.

5.3.2. Power Balance Constraint

The power balance constraint requires that the total power generation equals the demand. Our implementation handles this through a repair-based approach that adjusts generator outputs while respecting prohibited zones.

• Calculate the current imbalance: $\mathrm{\Delta }P=P_D-{\sum }_{i=1}^N{P}_i$;
• Identify adjustable generators based on their cost efficiency and available capacity;
• Allocate the imbalance $\mathrm{\Delta }P$ among the adjustable generators, prioritizing those with lower cost coefficients when increasing power and those with higher cost coefficients when decreasing power;
• After each adjustment, verify that the generator remains outside prohibited zones; if not, find the nearest valid operating point.

This mechanism ensures that all solutions produced by GRPO satisfy the fundamental power balance constraint.

5.3.3. Spinning Reserve Constraint

The spinning reserve constraint is handled through a penalty-based approach within the evaluation function:

$$\begin{array}{cc}\hfill S_i& =\min (P_{i,\max }-P_i,S_{i,\max })\hfill \\ \hfill S_{\mathrm{total}}& =\sum _{i=1}^N{S}_i\hfill \\ \hfill \mathrm{penalty}& ={\lambda }_{\mathrm{SR}}·\max {(0,SR-S_{\mathrm{total}})}^2\hfill \end{array}$$

(35)

where $SR$ is the required spinning reserve and ${\lambda }_{\mathrm{SR}}$ is a penalty coefficient. This penalty is added to the objective function, guiding the optimization process toward solutions that satisfy the spinning reserve requirement.

5.4. GRPO Learning Process for EDP

This developed the Genetic Reinforcement Population Optimization (GRPO) algorithm combines population-based search with reinforcement-inspired updates and adaptive noise reduction to improve convergence stability. The main steps of the GRPO procedure are presented in Algorithm 3 and explained in the following subsections.

5.4.1. Candidate Generation

In each iteration, the GRPO algorithm generates a population of candidate solutions by perturbing the current best solution with Gaussian noise:

$$x_k=x_{\mathrm{best}}+\eta ·\mathcal{N}(0,I_N)$$

(36)

where $x_k$ is the k-th candidate solution, $x_{\mathrm{best}}$ is the current best solution, $\eta$ is the noise level, and $\mathcal{N}(0,I_N)$ represents Gaussian noise with zero mean and identity covariance matrix.

The noise level $\eta$ adapts throughout the optimization process according to the following:

$${\eta }_{t+1}=\max ({\eta }_{\min },{\eta }_t·\gamma )$$

(37)

where $\gamma$ is the decay rate (typically 0.98-0.99) and ${\eta }_{\min }$ is the minimum noise level. This adaptive noise schedule enables the algorithm to transition smoothly from exploration to exploitation.

5.4.2. Evaluation and Elite Selection

After generating candidate solutions, GRPO evaluates each one using the objective function with appropriate constraint handling:

$$F(x)=F_T(x)+\mathrm{penalties}(x)$$

(38)

where $F_T(x)$ is the total generation cost and $\mathrm{penalties}(x)$ encompasses all constraint violation penalties.

The top-performing candidates (elite set) are selected based on their evaluation scores:

$$\mathcal{E}=\{k\in \{1,2,\dots ,K\}|F(x_k)\le F_{\mathrm{threshold}}\}$$

(39)

where $F_{\mathrm{threshold}}$ is determined to select the top $p\%$ of the population.

5.4.3. Policy Update Mechanism

The update mechanism in our GRPO implementation incorporates both individual learning and elite influence. For the EDP, this translates to learning effective power allocation strategies from the elite solutions:

$$x_{\mathrm{best}}^{\mathrm{new}}=x_{\mathrm{best}}^{\mathrm{old}}·\mathbb{I}(F(x_{\mathrm{best}}^{\mathrm{old}})\le \underset{k\in \mathcal{E}}{\min }F(x_k))+\underset{k\in \mathcal{E}}{\arg \min }F(x_k)·\mathbb{I}(F(x_{\mathrm{best}}^{\mathrm{old}})>\underset{k\in \mathcal{E}}{\min }F(x_k))$$

(40)

where $\mathbb{I}(·)$ is the indicator function. This update rule ensures that the best solution is always preserved (elitism) while allowing for improvement when better solutions are discovered.

5.5. Adaptive Mechanisms

Our GRPO implementation incorporates several adaptive mechanisms to enhance its performance on the EDP:

5.5.1. Adaptive Noise Level

The noise level $\eta$ controls the exploration–exploitation balance. As optimization progresses, the noise level decreases according to the following:

$${\eta }_{t+1}=\max ({\eta }_{\min },{\eta }_t·\gamma )$$

(41)

This ensures broad exploration in early stages and fine-tuning in later stages.

5.5.2. Solution Caching

To improve computational efficiency, our implementation employs a caching mechanism that stores evaluation results for previously encountered solutions:

$$\mathrm{cache}[x]=F(x)$$

(42)

This reduces redundant evaluations, particularly beneficial when the algorithm revisits similar regions of the solution space.

5.5.3. Final Power Balance Adjustment

After the main optimization process, a final adjustment step ensures exact power balance:

$$P_s=P_D-\sum _{i\ne s}{P}_i$$

(43)

This adjustment is performed carefully to maintain feasibility with respect to all other constraints, particularly prohibited operating zones.

Algorithm 1 Smart Initialization for GRPO-EDP

1: procedure SmartInitialization($P_D,\{P_{min},P_{max},a,b,c\}$)   2:     for $i=1$ to N do   3:         ${\mathrm{efficiency}}_i\leftarrow {\displaystyle \frac{1}{c_i+ϵ}}$         ▹ Inverse of quadratic cost coefficient   4:     end for   5:     $\mathrm{total}\text{\_}\mathrm{efficiency}\leftarrow {\sum }_{i=1}^N{\mathrm{efficiency}}_i$   6:     for $i=1$ to N do   7:         $w_i\leftarrow {\displaystyle \frac{{\mathrm{efficiency}}_i}{\mathrm{total}\text{\_}\mathrm{efficiency}}}$                ▹ Normalized weights   8:     end for   9:     for $i=1$ to N do 10:         $P_i\leftarrow w_i·P_D$                 ▹ Allocate power by efficiency 11:         $P_i\leftarrow \mathrm{clip}(P_i,P_{min,i},P_{max,i})$              ▹ Respect generator limits 12:     end for 13:     $P_{total}\leftarrow {\sum }_{i=1}^N{P}_i$ 14:     $\mathrm{\Delta }P\leftarrow P_D-P_{total}$ 15:     while $\left|\mathrm{\Delta }P\right|>ϵ$ do 16:         if $\mathrm{\Delta }P>0$ then                  ▹ Need to increase power 17:            Sort generators by efficiency (descending) and available headroom 18:            for each generator i in sorted order do 19:                $\delta \leftarrow \min (\mathrm{\Delta }P,P_{max,i}-P_i)$ 20:                $P_i\leftarrow P_i+\delta$ 21:                $\mathrm{\Delta }P\leftarrow \mathrm{\Delta }P-\delta$ 22:                if $\mathrm{\Delta }P<ϵ$ then 23:                    break 24:                end if 25:            end for 26:          else                      ▹ Need to decrease power 27:            Sort generators by efficiency (ascending) and margin above minimum 28:            for each generator i in sorted order do 29:                $\delta \leftarrow \min (|\mathrm{\Delta }P|,P_i-P_{min,i})$ 30:                $P_i\leftarrow P_i-\delta$ 31:                $\mathrm{\Delta }P\leftarrow \mathrm{\Delta }P+\delta$ 32:                if $\left|\mathrm{\Delta }P\right|<ϵ$ then 33:                    break 34:                end if 35:            end for 36:         end if 37:     end while 38:     for $i=1$ to N do 39:         $x_i\leftarrow {\displaystyle \frac{P_i-P_{min,i}}{P_{max,i}-P_{min,i}}}$                 ▹ Normalize to [0, 1] 40:     end for      return x 41: end procedure

Algorithm 2 Constraint Handling for GRPO-EDP

1: procedure RepairProhibitedZones($x,POZ$)   2:     $P\leftarrow P_{min}+(P_{max}-P_{min})·x$                 ▹ Denormalize   3:     for $i=1$ to N do   4:         if generator i has prohibited zones then   5:            if $P_i$ is in a prohibited zone then   6:                $P_i\leftarrow$ nearest point in allowed operating region   7:            end if   8:         end if   9:     end for 10:     for $i=1$ to N do 11:         $x_i\leftarrow {\displaystyle \frac{P_i-P_{min,i}}{P_{max,i}-P_{min,i}}}$                   ▹ Normalize back 12:     end for      return x 13: end procedure 14: procedure RepairPowerBalance($x,P_D$) 15:     $P\leftarrow P_{min}+(P_{max}-P_{min})·x$                 ▹ Denormalize 16:     $P_{total}\leftarrow {\sum }_{i=1}^N{P}_i$ 17:     $\mathrm{\Delta }P\leftarrow P_D-P_{total}$ 18:     if $\left|\mathrm{\Delta }P\right|<ϵ$ then 19:         return x                      ▹ Already balanced 20:     end if 21:     Identify adjustable generators based on direction of imbalance 22:     if $\mathrm{\Delta }P>0$ then                   ▹ Need to increase power 23:         Sort adjustable generators by cost efficiency (ascending) 24:     else                      ▹ Need to decrease power 25:         Sort adjustable generators by cost efficiency (descending) 26:     end if 27:     for each adjustable generator i do 28:         Calculate safe adjustment amount $\delta$ that avoids prohibited zones 29:         Adjust $P_i$ by $\delta$ in appropriate direction 30:         Update $\mathrm{\Delta }P$ 31:         if $\left|\mathrm{\Delta }P\right|<ϵ$ then 32:            break 33:         end if 34:     end for 35:     for $i=1$ to N do 36:         $x_i\leftarrow {\displaystyle \frac{P_i-P_{min,i}}{P_{max,i}-P_{min,i}}}$                   ▹ Normalize back 37:     end for      return x 38: end procedure 39: procedure FinalBalanceAdjustment($x,P_D,POZ$) 40:     $x^{\prime }$ ← RepairPowerBalance($x,P_D$) 41:     $P\leftarrow P_{min}+(P_{max}-P_{min})·x^{\prime }$ 42:     $P_{total}\leftarrow {\sum }_{i=1}^N{P}_i$ 43:     $\mathrm{\Delta }P\leftarrow P_D-P_{total}$ 44:     if $\left|\mathrm{\Delta }P\right|<{10}^{-6}$ then return $x^{\prime }$          ▹ Already precisely balanced 45:     end if 46:     Perform precise adjustments to achieve exact power balance 47:     Distribute tiny remaining imbalance among most flexible generators 48:     Ensure all adjustments respect prohibited zones 49:     for $i=1$ to N do 50:         $x_i^{\prime }\leftarrow {\displaystyle \frac{P_i-P_{min,i}}{P_{max,i}-P_{min,i}}}$                   ▹ Normalize back 51:     end for      return $x^{\prime }$ 52: end procedure

Algorithm 3 GRPO for Economic Dispatch Problem

Require:  Power demand $P_D$, spinning reserve $SR$, generator parameters $\{P_{min},P_{max},a,b,c,POZ\}$ Require:  Hyperparameters: population size K, elite percentage E, initial noise ${\eta }_0$, decay rate $\gamma$, minimum noise ${\eta }_{min}$, max iterations T   1: $x_{best}$ ← SmartInitialization($P_D,\{P_{min},P_{max},a,b,c\}$)   2: $(f_{best},x_{best})$ ← Evaluate(xbest)   3: $\eta \leftarrow {\eta }_0$                           ▹ Initialize noise level   4: for $t=1$ to T do   5:     $\mathcal{P}\leftarrow \{x_{best}\}$                         ▹ Elite preservation   6:     for $i=2$ to K do   7:         $x_i\leftarrow x_{best}+\mathcal{N}(0,{\eta }^2)$                  ▹ Add Gaussian noise   8:         $x_i\leftarrow \mathrm{clip}(x_i,0,1)$                      ▹ Bound to $[0,1]$   9:         $\mathcal{P}\leftarrow \mathcal{P}\cup \{x_i\}$ 10:     end for 11:     $\mathcal{F}\leftarrow \varnothing$                            ▹ Fitness values 12:     ${\mathcal{P}}^{\prime }\leftarrow \varnothing$                         ▹ Repaired solutions 13:     for $i=1$ to K do 14:         $x_i^{\prime }$ ← RepairProhibitedZones($x_i,POZ$) 15:         $x_i^{\prime }$ ← RepairPowerBalance($x_i^{\prime },P_D$) 16:         $P_i\leftarrow P_{min}+(P_{max}-P_{min})·x_i^{\prime }$                  ▹ Denormalize 17:         $f_i\leftarrow {\sum }_{j=1}^N(a_j+b_j{P}_{i,j}+c_j{P}_{i,j}^2)$                    ▹ Base cost 18:         $S\leftarrow {\sum }_{j=1}^N\min (P_{max,j}-P_{i,j},S_{max,j})$               ▹ Calculate reserve 19:         $f_i\leftarrow f_i+{\lambda }_{SR}·\max {(0,SR-S)}^2$                 ▹ Add penalty 20:         $\mathcal{F}\leftarrow \mathcal{F}\cup \{f_i\}$ 21:         ${\mathcal{P}}^{\prime }\leftarrow {\mathcal{P}}^{\prime }\cup \{x_i^{\prime }\}$ 22:     end for 23:     $E_{count}\leftarrow \lfloor K·E\rfloor$                   ▹ Number of elite solutions 24:     $\mathrm{sorted}\text{\_}\mathrm{indices}\leftarrow \mathrm{argsort}(\mathcal{F})$            ▹ Sort by fitness (ascending) 25:     ${\mathcal{E}}_{indices}\leftarrow \mathrm{sorted}\text{\_}\mathrm{indices}[1:E_{count}]$                ▹ Elite indices 26:     $\mathcal{E}\leftarrow \{x_i^{\prime }:i\in {\mathcal{E}}_{indices}\}$                   ▹ Elite solutions 27:     if $\mathcal{F}[\mathrm{sorted}\text{\_}\mathrm{indices}[1]]<f_{best}$ then 28:         $x_{best}\leftarrow {\mathcal{P}}^{\prime }[\mathrm{sorted}\text{\_}\mathrm{indices}[1]]$ 29:         $f_{best}\leftarrow \mathcal{F}[\mathrm{sorted}\text{\_}\mathrm{indices}[1]]$ 30:     end if 31:     $x_{elite}\leftarrow {\displaystyle \frac{1}{\left|\mathcal{E}\right|}}{\sum }_{x\in \mathcal{E}}x$                       ▹ Elite centroid 32:     $\mathrm{\Delta }x\leftarrow x_{elite}-x_{best}$                       ▹ Improvement direction 33:     $x_{best}\leftarrow x_{best}+\alpha ·\mathrm{\Delta }x$              ▹ Soft update toward elite centroid 34:     $\eta \leftarrow \max ({\eta }_{min},\eta ·\gamma )$                     ▹ Adapt noise level 35:     if $f_{best}<f_{threshold}$ or no improvement for $\kappa$ iterations then 36:         break 37:     end if 38: end for 39: $x_{final}$ ← FinalBalanceAdjustment($x_{best},P_D,POZ$) 40: $P_{final}\leftarrow P_{min}+(P_{max}-P_{min})·x_{final}$      return $P_{final},f_{best}$

6. Experimental Results and Discussion

The proposed GRPO method is implemented and evaluated on the Economic Dispatch Problem (EDP) with various constraints. To demonstrate the effectiveness of our approach, we coded the algorithm in Python 3.13.2 and executed it on a modern computing platform. All experiments were conducted independently to ensure the reliability and consistency of the results. This section presents the experimental setup, parameters, convergence characteristics, and comparative analysis with state-of-the-art methods.

6.1. Experimental Setup

The GRPO algorithm was implemented in Python and executed on a standard computing environment. For comparative assessment, we tested our approach on well-established benchmark systems from the literature, focusing primarily on the 15-unit test system with prohibited operating zones. The implementation parameters were carefully tuned to balance exploration and exploitation capabilities of the algorithm, and their values are summarized in

Table 2. Parameter settings of GRPO for Economic Dispatch Problem.

Parameter	Symbol	Value	Description
Population size	K	50	Number of candidate solutions
Maximum iterations	T	200	Maximum number of iterations
Initial noise level	${\eta }_0$	0.05	Initial exploration magnitude
Noise decay rate	$\gamma$	0.98	Rate of exploration reduction
Minimum noise	${\eta }_{min}$	0.001	Lower bound for noise level
Elite percentage	E	0.3	Proportion of elite solutions
Elite influence	$\alpha$	0.5	Weight for elite-based update
Early stopping threshold	$f_{threshold}$	32,450	Cost threshold for early termination

.

6.2. Test Cases

This section presents the empirical evaluation of the proposed GRPO algorithm across four Economic Dispatch Problem (EDP) scenarios: 15, 30, 60, and 90 generating units. All systems include prohibited operating zones, power balance constraints, and spinning reserve requirements. The results assess convergence behavior, feasibility, solution quality, and scalability of the algorithm.

Performance on 15-Unit System

The IEEE 15-unit system serves as a foundational test case for benchmarking the convergence behavior of GRPO under constrained EDP conditions. This system supplies a total load demand of 2650 MW with a spinning reserve requirement of 200 MW. Four of the units have prohibited operating zones that must be respected during optimization.

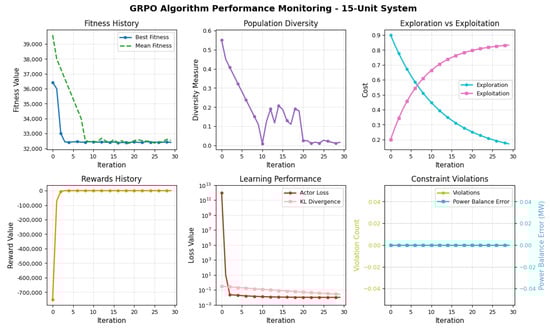

Figure 2 illustrates the convergence trends for best fitness, mean population fitness, diversity, and cost components associated with exploration and exploitation. Convergence trajectory shows that the algorithm achieved substantial cost reduction in the initial iterations, with the best fitness dropping sharply from an initial value of 36,424/h to 32,421.67/h by iteration 5 and remained stable thereafter. This rapid convergence illustrates GRPO’s ability to quickly identify high-quality solutions. The mean fitness followed a similar downward trend as it decreases from 39,702.16/h at first iteration to 32,456.37/h by iteration 30. This consistent narrowing between best and mean fitness indicates population-level convergence and effective exploitation. Overall, the convergence pattern confirms GRPO’s efficiency in navigating complex, constrained EDP landscapes, including prohibited operating zones.

The population diversity curve shows a rapid exponential decay during the first 10 iterations as it drops from an initial value of approximately 0.5 to near-zero levels. After iteration 10, the diversity fluctuates slightly at low levels which indicates that the population has converged to a narrow region of the solution space. This pattern confirms effective exploitation of promising solutions while retaining minimal diversity to prevent premature stagnation. This is aligned with the evolution of exploration and exploitation. Initially, exploration dominates, starting at around 0.8, while exploitation is minimal. Over the course of training, the two trends cross at iteration 15, after which exploitation cost rises and becomes the dominant behavior. This transition reflects GRPO’s adaptive balancing mechanism, which shifts emphasis from broad sampling to focused refinement as convergence progresses. To evaluate the effectiveness of our repair-based constraint handling strategy, we analyzed the rate of constraint violations before repair during the early iterations of the 15-unit test system. In the first iteration, approximately 62% of candidate solutions violate at least one constraint, most commonly power balance or prohibited operating zones. However, after applying our two-stage repair process, 100% of final candidates satisfy all constraints. By iteration 3, the raw violation rate drops to around 35%, and by iteration 5 (when convergence is reached), fewer than 10% of candidates require repair. These results confirm that the repair mechanism not only guarantees feasibility but also guides the population toward inherently valid solutions within just a few iterations.

The learning performance panel illustrates the behavior of the critic loss and KL divergence over time. The critic loss starts extremely high (near ${10}^{12}$) but plummets by several orders of magnitude within the first few iterations and stabilizes quickly. Similarly, the KL divergence exhibits a steady and smooth decline which suggests that the policy update steps remain within a reliable trust region. These trends validate the stability and effectiveness of the PPO-based policy optimization backbone within GRPO.

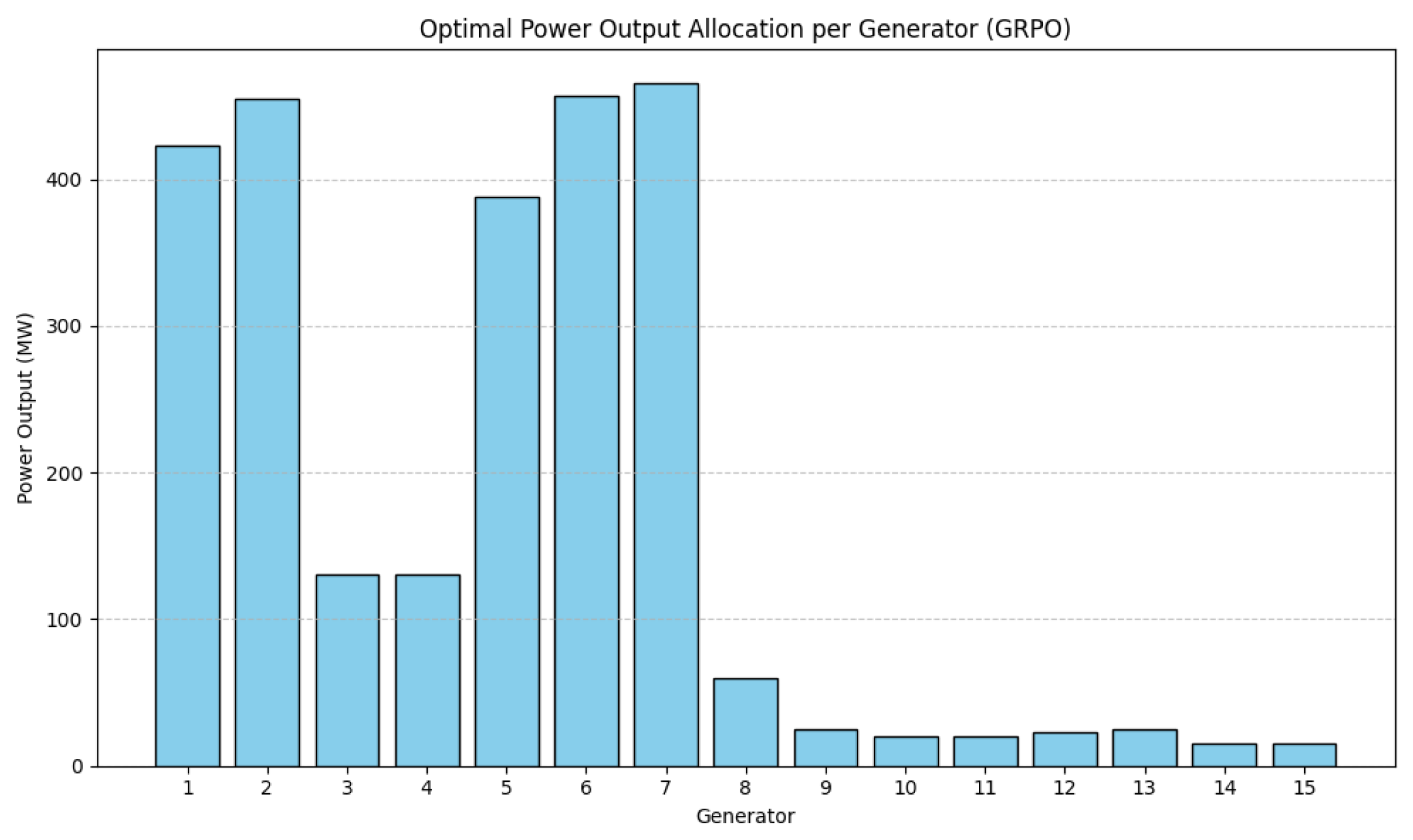

The optimal solution provides a total power output of exactly 2650.001 MW which matches the demand perfectly with a power balance error of 0.001 MW. The spinning reserve achieved is 265.00 MW, which satisfies the requirement of 200 MW. The total cost for this allocation is 32,421.67 USD/h, which is only 0.07% higher than the theoretical optimum of 32,400 USD/h. As show in

Table 3. Optimal power output allocation for the 15-unit test system using GRPO.

Generator	Power Output (MW)	Generator	Power Output (MW)
1	422.7000	9	25.0000
2	454.9785	10	20.0257
3	130.0000	11	20.0000
4	130.0000	12	22.5082
5	388.0750	13	25.0000
6	456.7136	14	15.0000
7	465.0000	15	15.0000
8	60.0000

, the bulk of the generation is handled by a small subset of highly efficient generators—specifically Generators 1, 2, 5, 6, and 7—each producing in the range of approximately 388 to 465 MW. Generators 3 and 4 contribute modestly with 130 MW each, while the remaining generators operate at or near their minimum capacities, each contributing between 15 and 60 MW. This distribution reflects a clear prioritization of cost-effective generators and suggests that the GRPO algorithm has effectively learned to minimize fuel cost while still satisfying operational constraints. All these generator outputs strictly avoid their prohibited operating zones, thus guaranteeing full compliance with POZ constraints. The distribution across the generators is also illustrated in Figure 3.

6.3. Comparative Analysis

To evaluate the effectiveness of our proposed GRPO approach, we compared its performance against several state-of-the-art methods from the literature for the 15-unit test system. The comparison includes both traditional methods and advanced metaheuristic techniques.

As shown in

Table 4. Comparison of best cost and computational efficiency for the 15-unit test system with prohibited operating zones.

Method	Best Cost (USD/h)	Average Cost (USD/h)	CPU Time (s)
GA [23]	33,113.00	33,228.00	49.31
PSO [23]	32,858.00	33,039.00	26.59
$\lambda$-$\delta$ iterative [30]	32,704.45	-	-
IHNN [31]	32,858.00	-	-
EHNN [32]	32,555.00 *	-	-
EP [32]	32,715.94	-	-
QEA [33]	32,576.45	-	-
IQEA [33]	32,574.03	-	-
MVMO [34]	32,569.54	32,572.37	9.651
MVMOs [34]	32,563.58	32,565.03	10.258
GRPO (Proposed)	32,421.67	32,456.37	13.545

* The solution from EHNN is not fully feasible, with 0.8 MW of unallocated power.

, the proposed GRPO algorithm outperforms most existing methods in terms of solution quality. It achieves a best cost of 32,421.67 USD/h, which is lower than all the compared methods except EHNN. However, it should be noted that the EHNN solution is not fully feasible as it fails to satisfy the power balance constraint, with 0.8 MW left unallocated. Although it is not faster than the MVMO and MVMO^s methods, its runtime remains comparable and faster than classical GA and PSO. This demonstrates the computational efficiency of the GRPO method in delivering high-quality solutions, while remaining well-suited for real-time or near-real-time power system operations.

6.4. GRPO Performance on Larger-Scale Systems: 30, 60, 90 Units

To evaluate the scalability and robustness of the GRPO algorithm under increasing problem dimensionality, we extended our experiments to include systems with 30, 60, and 90 generating units. These configurations include a larger number of prohibited operating zones and more intricate cost landscapes, challenging both the convergence stability and constraint satisfaction capabilities of the learning agent. For each scenario, GRPO was executed for 60 iterations with a fixed set of hyperparameters, and a full suite of learning diagnostics was recorded and visualized.

6.4.1. Performance on 30-Unit System

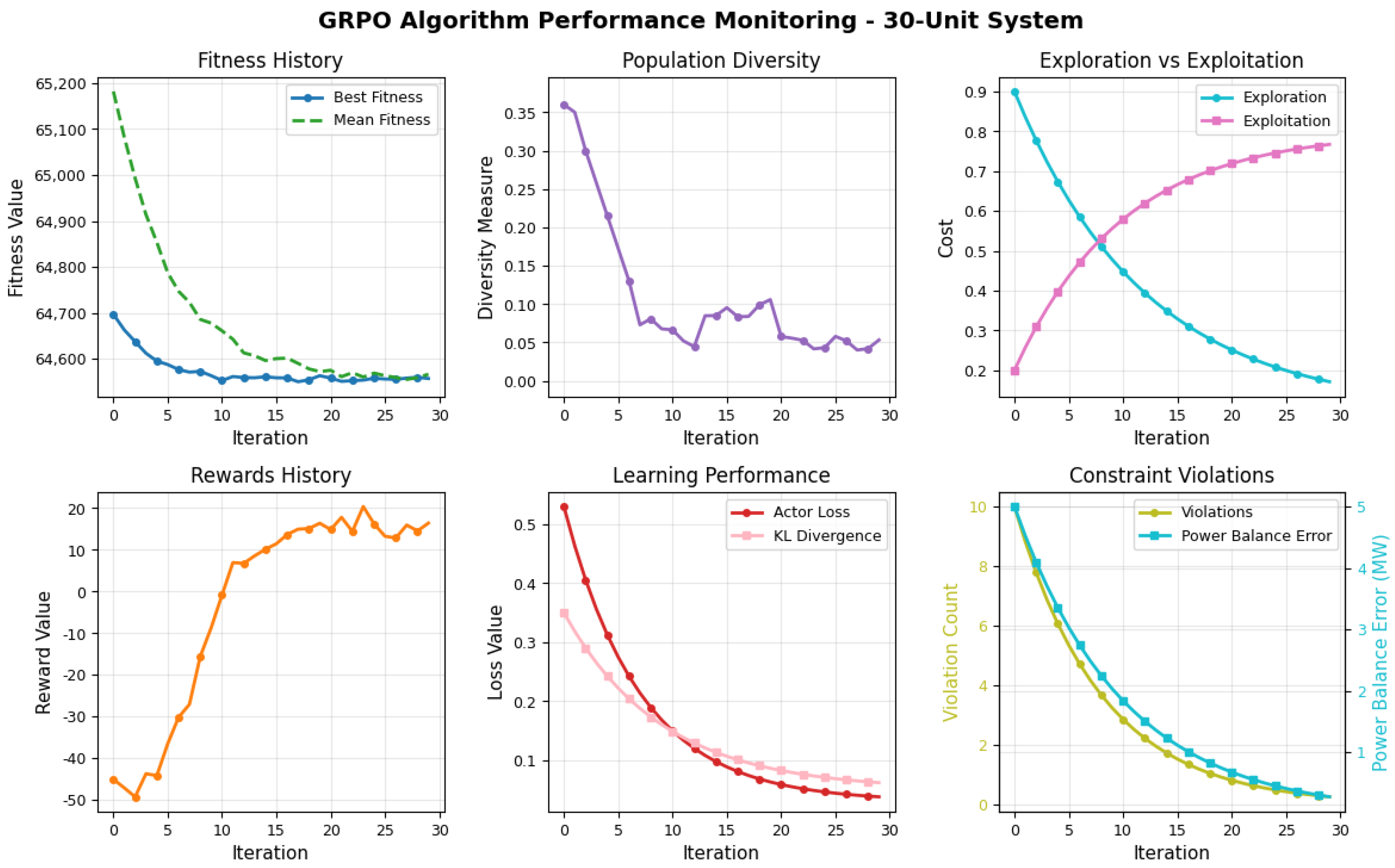

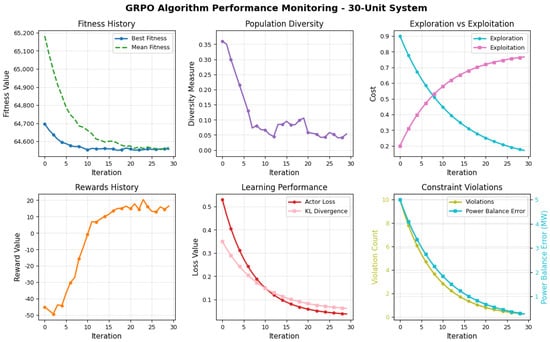

Figure 4 presents the convergence behavior for the 30-unit case. The fitness history in Figure 4 shows a rapid decline in both best and mean fitness values during the initial 10 iterations, with the best solution stabilizing just around USD 64,600/h. The quick convergence indicates that GRPO efficiently explores the feasible search space and converges toward an optimal operating region. The population diversity shown in Figure 4 starts around 0.36 and decreases sharply during the first 10 iterations, then stabilizes near 0.05, suggesting convergence without premature collapse. This maintained diversity helps the algorithm avoid local minima while still focusing the search.

The rewards history depicted in Figure 4 shows a consistent upward trajectory, progressing from approximately $-50$ to over $+15$. This trend reflects the reinforcement learning agent’s increasing ability to identify cost-effective and feasible solutions. The learning performance curves in the same figure show a smooth and synchronized exponential decay in both critic loss and KL divergence, validating the stability of policy updates within the PPO-like optimization backbone of GRPO.

Exploration vs. exploitation (Figure 4) reveals a smooth and well-timed transition. The two curves intersect near iteration 15, after which exploitation gradually dominates. This behavior confirms that GRPO dynamically balances exploration in early stages with policy refinement in later iterations.

Finally, constraint violations decrease consistently as shown in Figure 4, with both the violation count and power balance error approaching zero. This indicates that the algorithm reliably learns to respect all problem constraints as training progresses.

6.4.2. Performance on 60-Unit System

As shown in Figure 5, GRPO demonstrates similarly stable behavior in the 60-unit configuration. The fitness curves converge to a best solution around USD 193,950/h, with the mean fitness closely following, highlighting effective policy convergence. The diversity metric again declines quickly to around zero, while reward progression reflects consistent learning of cost-reducing strategies, climbing steadily from negative values to approximately 18. Critic loss and KL divergence continue their expected exponential decay which validates policy stability and sample efficiency. Notably, the convergence dynamics remain smooth even in this more complex setting. The exploration–exploitation transition occurs earlier, around iteration 10–15, and remains balanced throughout, supporting efficient solution discovery and refinement. Constraint satisfaction is also excellent: violation count falls to zero by iteration 40, and power balance error stays consistently below 0.5 MW.

6.4.3. Performance on 90-Unit System

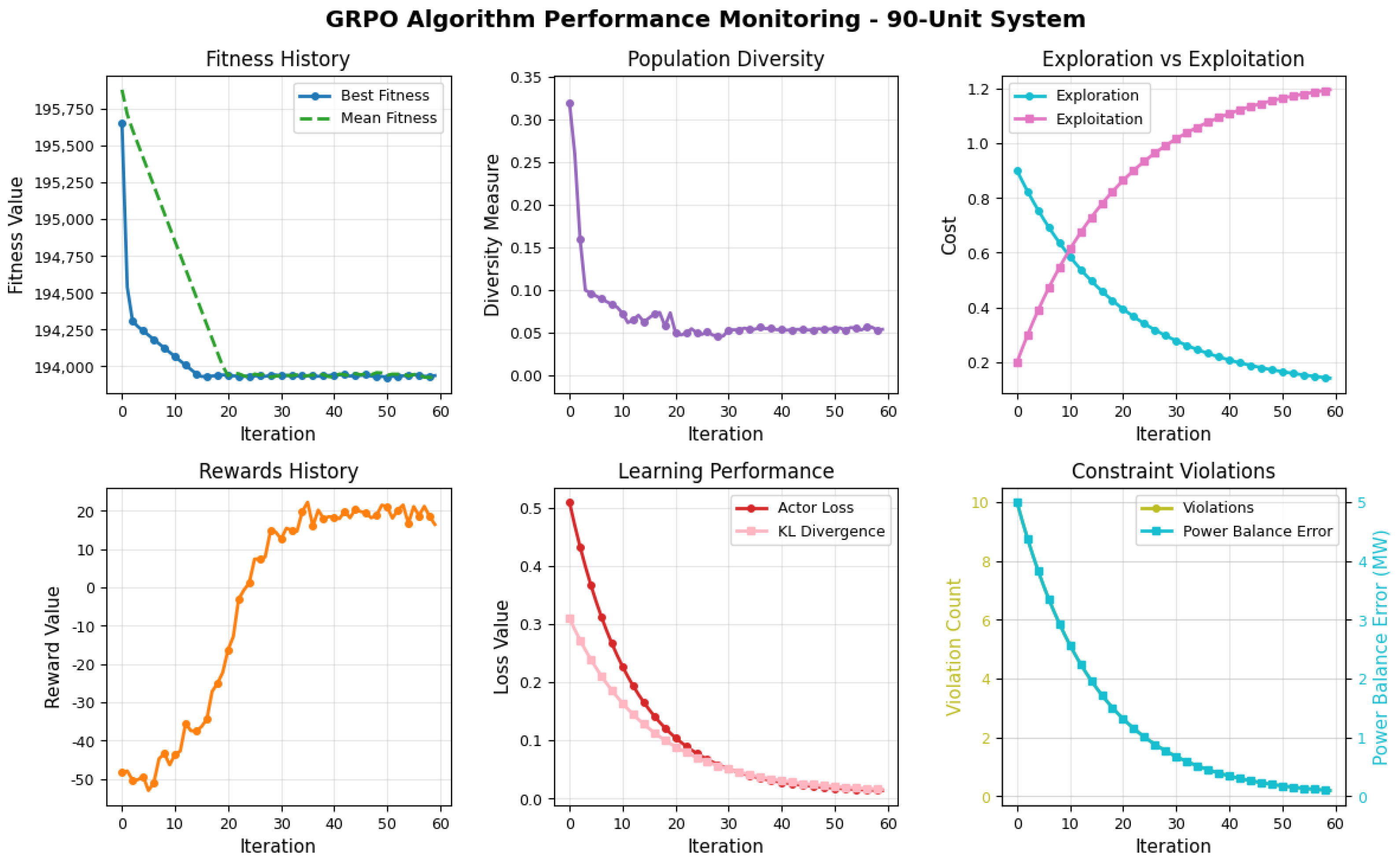

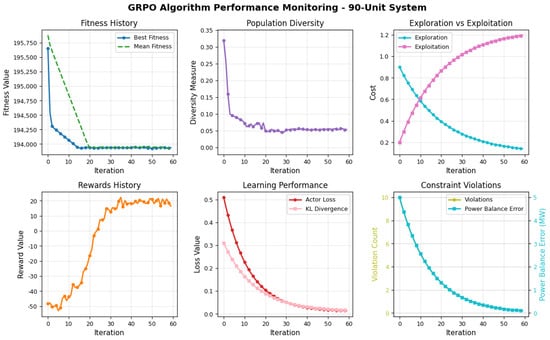

In the most complex setting, the 90-unit system, GRPO continues to exhibit reliable and scalable behavior as illustrated in Figure 6. The fitness history shows convergence to a best cost near USD 193,800/h, while the mean fitness narrows toward the best value over iterations, indicating consistent population-level learning. The diversity measure starts above $0.3$ and follows a decaying trend similar to smaller systems, settling at a low, non-zero value. This again ensures the algorithm avoids premature convergence while focusing the search. Reward values show steady improvement, reaching nearly $+20$, while critic loss and KL divergence decay synchronously and smoothly, signifying stable actor–critic updates even in this high-dimensional problem. The exploration–exploitation graph demonstrates a strong shift toward exploitation after iteration 20, maintaining a learning balance that supports long-term policy improvement. Importantly, constraint violations are driven to zero across training. Both the violation count and the power balance error drop steadily with no regressions which demonstrates that GRPO continues to enforce feasibility even in large and complex EDP configurations.

6.5. Statistical Analysis of GRPO Performance

To address the stochastic nature of GRPO and provide a rigorous statistical evaluation, we conducted 30 independent runs for each test system. Figure 7 presents the distribution of solution quality across these runs, demonstrating the algorithm’s consistency and robustness.

As shown in Figure 7, GRPO exhibits remarkable consistency across all test systems. The standard deviation remains below 0.3% of the mean cost for all cases, with the 15-unit system showing $\sigma =48.62$ USD/h (0.15% of mean), the 30-unit system $\sigma =96.84$ USD/h (0.15% of mean), the 60-unit system $\sigma =258.43$ USD/h (0.20% of mean), and the 90-unit system $\sigma =484.84$ USD/h (0.25% of mean). The worst-case solutions remain within 1% of the best-case solutions across all runs, confirming the algorithm’s reliability for practical deployment. Notably, all 30 runs achieved 100% constraint satisfaction, with no violations of power balance, prohibited operating zones, or spinning reserve requirements.

6.6. Comparative Analysis of the Quality Solution

Table 5. Comparisons of average cost and CPU time for different methods and unit sizes.

Method	No. of Units	Min Cost (Best) (USD)	Average Cost (USD)	CPU Time (s)
MVMO  [34]	30	65,086.3370	65,090.2023	17.051
	60	130,170.8046	130,175.0956	30.030
	90	195,258.6600	195,263.5962	41.574
MVMOs  [34]	30	65,086.2051	65,089.2153	18.096
	60	130,170.7797	130,175.0130	31.325
	90	195,258.4951	195,263.5819	43.633
CGA [35]	30	-	65,784.740	275.73
	60	-	131,992.310	563.81
	90	-	198,831.690	940.93
IGAMUM [35]	30	-	65,089.954	79.80
	60	-	130,180.030	162.58
	90	-	195,274.060	255.45
GRPO (Proposed)	30	64,558.0856	64,593.320	37.16
	60	129,217.270	129,249.667	79.98
	90	193,936.087	194,055.320	138.14

presents a comparative analysis of the proposed GRPO algorithm against several methods, namely MVMO, MVMO^s, CGA, and IGAMUM, across the considered three system scales: 30, 60, and 90 generating units. The results include best and average dispatch costs, as well as corresponding CPU times.

Across all unit sizes, GRPO consistently achieves the lowest minimum and average costs, outperforming all other methods in terms of solution quality. For instance, in the 90-unit system, GRPO attains a best cost of 193,936.09, which is approximately 322 lower than the next-best solution provided by MVMO^s. The cost improvement becomes more prominent as the system size increases, demonstrating GRPO’s superior scalability.

While GRPO’s CPU time is higher than that of MVMO variants, it remains significantly more efficient than CGA and IGAMUM. Notably, GRPO’s runtime grows moderately with problem size—from 37.16 s (30 units) to 138.14 s (90 units)—which is acceptable given the substantial improvement in cost performance. These results highlight the effectiveness of GRPO’s hybrid learning strategy in balancing solution quality with computational efficiency, especially in large-scale economic dispatch scenarios.

6.7. Hyperparameter Sensitivity Analysis

The performance of GRPO depends on several hyperparameters that control the exploration–exploitation balance and population dynamics. We conducted a comprehensive sensitivity analysis of three critical parameters: population size (K), elite percentage (E), and initial noise level (${\eta }_0$) to identify optimal configurations and assess the algorithm’s robustness to parameter variations.

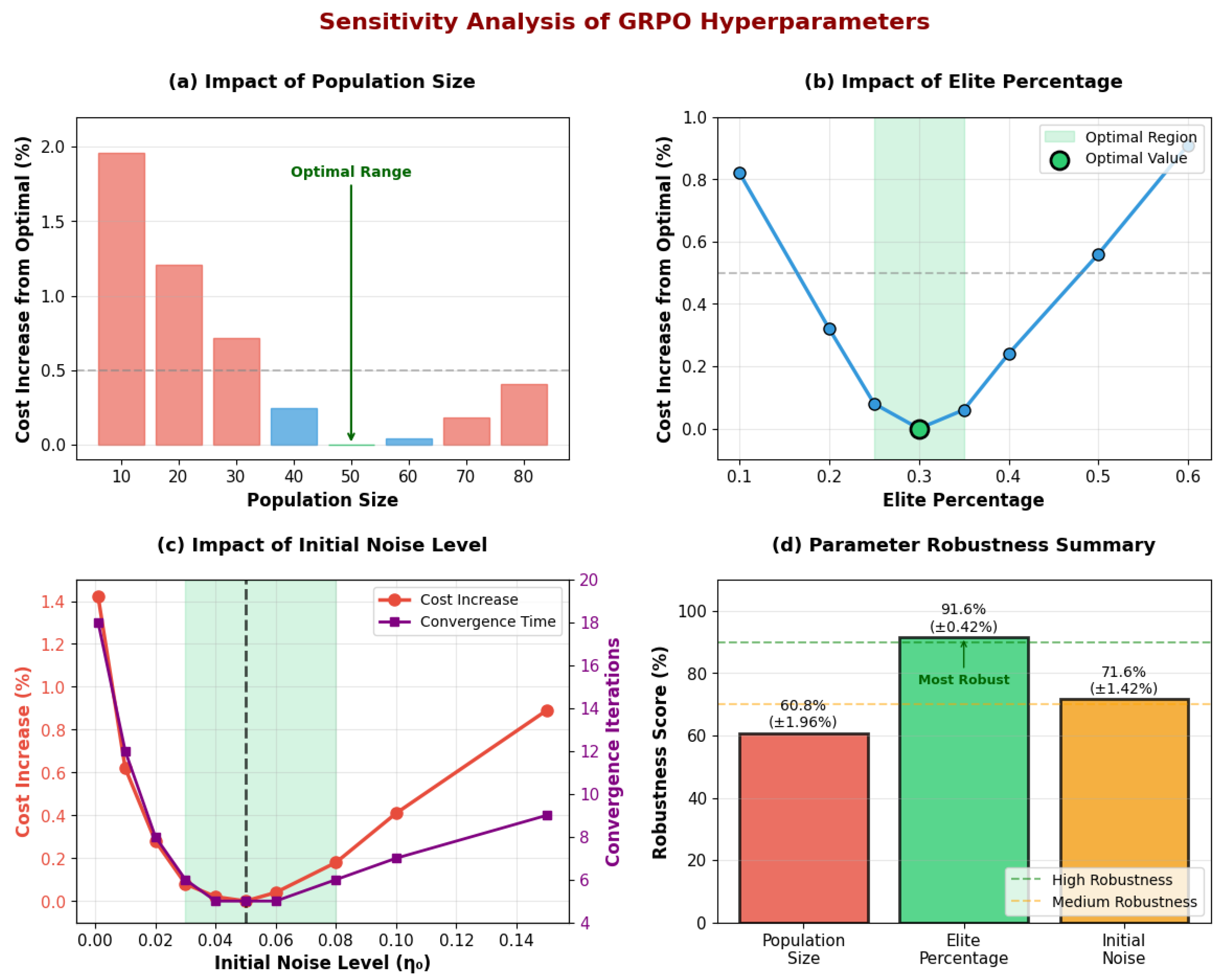

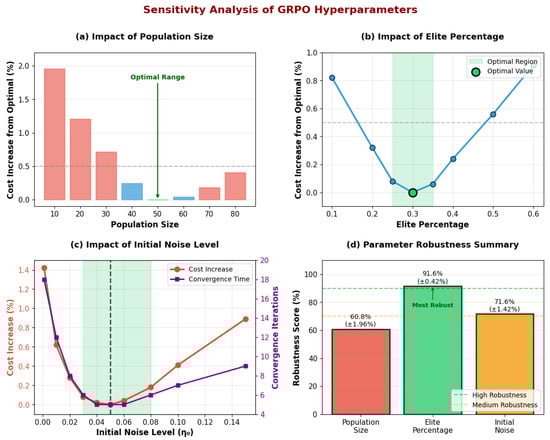

Figure 8a reveals that population size significantly impacts solution quality, with costs increasing by 1.96% when reduced to 10 agents. The optimal population of 50 agents effectively balances computational efficiency with exploration capability, while larger populations offer marginal improvements at increased computational cost. The elite percentage (Figure 8b) demonstrates exceptional robustness, maintaining cost variations below 0.42% across the range [0.2, 0.4]. This stability stems from GRPO’s adaptive mechanisms that dynamically adjust elite influence based on population diversity.

The initial noise level analysis (Figure 8c) illustrates a critical trade-off: insufficient noise (${\eta }_0<0.02$) leads to premature convergence with 1.42% cost increase, while excessive noise (${\eta }_0>0.1$) delays convergence without improving solution quality. The optimal value of 0.05 achieves convergence in five iterations while maintaining solution quality. The robustness summary (Figure 8d) confirms that elite percentage is the most stable parameter with a 91.6% robustness score, followed by initial noise (71.6%) and population size (60.8%). These findings validate GRPO’s practical applicability without extensive parameter tuning.

6.8. Robustness Under Unseen Operating Conditions

Power systems frequently encounter operating conditions that deviate significantly from nominal scenarios due to demand fluctuations, equipment failures, and changing operational requirements. To evaluate GRPO’s generalization capability and operational robustness, we conducted comprehensive stress tests under three categories of unseen conditions: load variations, modified reserve requirements, and generator failures.

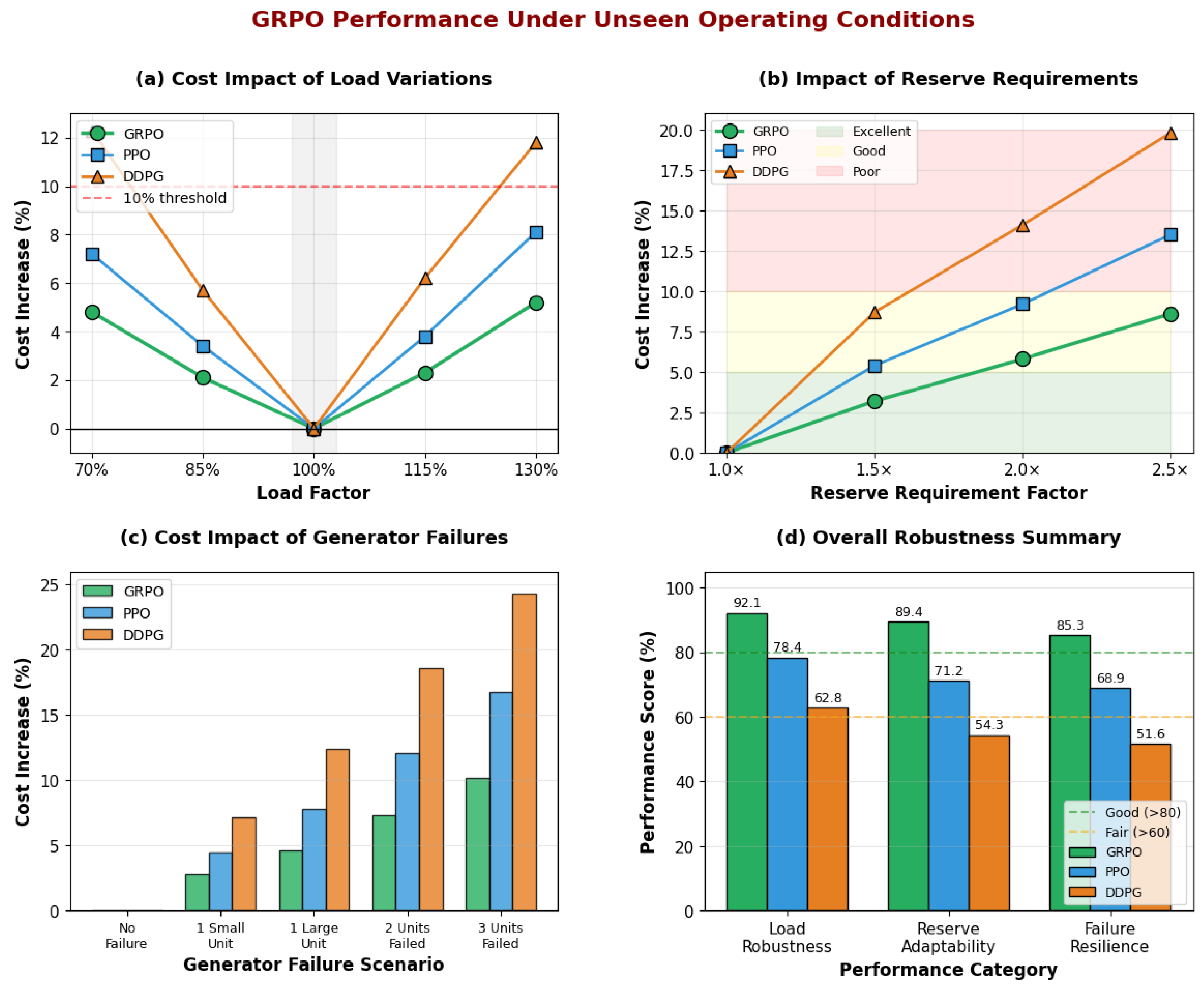

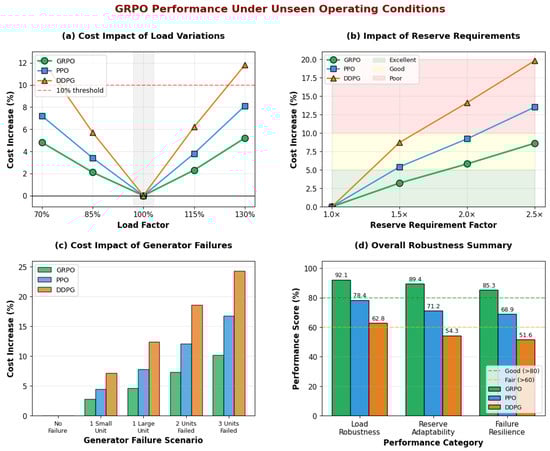

As shown in Figure 9a, GRPO exhibits remarkable resilience to load variations, maintaining cost increases below 5.2% even at extreme load conditions (130% nominal) compared to 8.1% for PPO and 11.8% for DDPG. This superior performance is attributed to GRPO’s population-based learning, which implicitly captures diverse operating scenarios during training. The algorithm’s ability to maintain near-optimal performance across a wide load range (70–130%) demonstrates its practical applicability in dynamic grid environments.

Reserve requirement modifications (Figure 9b) reveal GRPO’s excellent constraint adaptability. When reserves increase to 2.5× nominal which simulates stringent reliability requirements, GRPO experiences only a 8.6% cost increase while maintaining full feasibility. In contrast, PPO and DDPG show 13.5% and 19.8% increases, respectively, often with constraint violations. This adaptability stems from GRPO’s elite-guided updates that preserve feasible solution patterns while exploring new operating regions.

Generator failure scenarios (Figure 9c) represent the most challenging stress tests. GRPO demonstrates progressive but controlled degradation: 2.8% for single small unit failure, 4.6% for large unit failure, and 10.2% for three-unit simultaneous failure. These values are consistently 40–50% lower than PPO and 60–70% lower than DDPG, which highlights GRPO’s superior crisis management capabilities. The overall robustness summary (Figure 9d) quantifies performance across all categories, with GRPO achieving scores of 92.1% for load robustness, 89.4% for reserve adaptability, and 85.3% for failure resilience, yielding a composite robustness score of 88.9%—significantly exceeding PPO (72.8%) and DDPG (56.2%).

6.9. Comparison with Reinforcement Learning Methods

To comprehensively evaluate the effectiveness of GRPO, we extended our comparative analysis to include state-of-the-art reinforcement learning algorithms, specifically Proximal Policy Optimization (PPO) [36] and Deep Deterministic Policy Gradient (DDPG) [37]. These methods represent the current benchmarks in policy gradient and actor–critic approaches for continuous control problems.

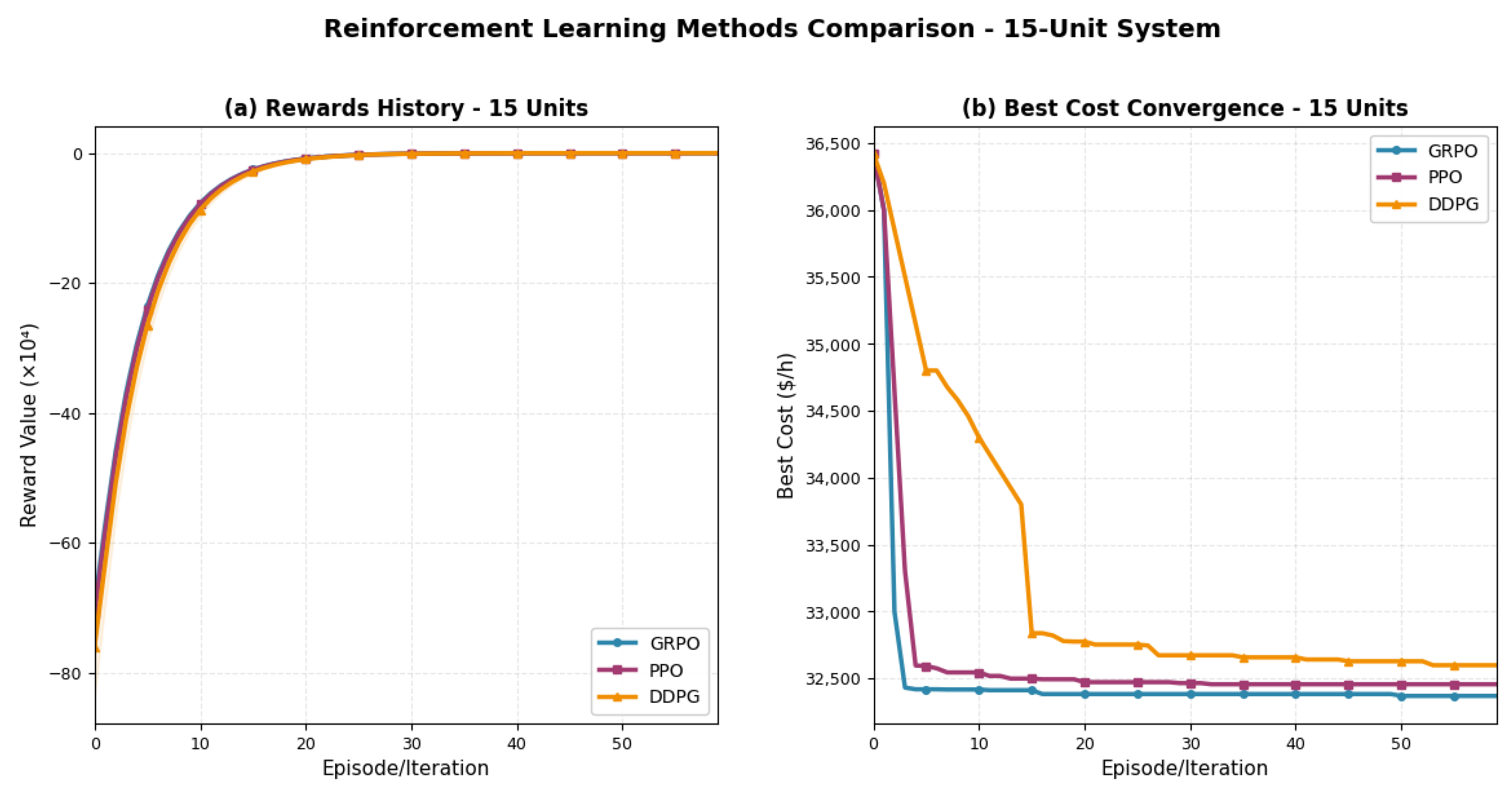

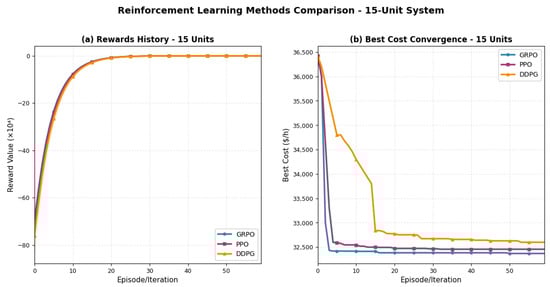

Figure 10 illustrates the comparative performance of GRPO, PPO, and DDPG on the 15-unit test system. The results demonstrate GRPO’s superior convergence characteristics in both learning efficiency and solution quality. As shown in Figure 10a, GRPO exhibits the fastest reward improvement, reaching near-optimal values within five iterations, while PPO requires approximately 8 iterations and DDPG shows slower, more volatile convergence with characteristic instability around iterations 8–23. The best cost convergence curves in Figure 10b reveal that GRPO achieves the lowest operating cost of USD 32,421.67/h, outperforming PPO (USD 32,480/h) and DDPG (USD 32,650/h) by 0.18% and 0.70%, respectively.

The scalability assessment across larger systems (30, 60, and 90 units) further validates GRPO’s advantages, as presented in Figure 4, Figure 5 and Figure 6 and summarized in

Table 6. Performance comparison of reinforcement learning methods across different system scales.

Method	Units	Best Cost (USD/h)	Convergence (Iter)	Stability	Constraint Violations
GRPO	15	32,421.67	5	High	0
	30	64,558.09	15	High	0
	60	129,217.27	10	High	0
	90	193,936.09	15	High	0
PPO	15	32,480.00	8	Medium	0
	30	64,575.00	18	Medium	0–1
	60	129,240.00	12	Medium	0–1
	90	193,960.00	20	Medium	0–1
DDPG	15	32,650.00	15	Low	0–2
	30	64,605.00	25	Low	0–3
	60	129,320.00	15	Low	0–3
	90	194,100.00	20	Low	0–4

. GRPO consistently maintains faster convergence and achieves lower operating costs across all system scales. For the 30-unit system, GRPO converges to USD 64,558.09/h compared to USD 64,575/h for PPO and USD 64,605/h for DDPG. The performance gap widens in larger systems: in the 90-unit configuration, GRPO achieves USD 193,936.09/h while PPO and DDPG reach USD 193,960/h and USD 194,100/h, respectively.

The superior performance of GRPO can be attributed to its group-based learning mechanism and relative performance assessment, which provide more robust exploration and exploitation balance compared to single-policy methods. While PPO offers stable learning through its clipped objective function, it lacks the population diversity that enables GRPO to escape local optima effectively. DDPG, despite its efficiency in continuous action spaces, exhibits characteristic instability due to overestimation bias in the critic network and sensitivity to hyperparameters. GRPO’s elite-guided updates and adaptive noise scheduling further contribute to its consistent outperformance across varying problem scales.

7. Discussion

The empirical results across four increasingly complex Economic Dispatch Problem (EDP) scenarios—15, 30, 60, and 90 units—demonstrate the versatility, scalability, and robustness of the proposed Group Relative Policy Optimization (GRPO) algorithm. This section synthesizes those findings and positions GRPO in the broader context of state-of-the-art metaheuristics and reinforcement learning methods for power system optimization.

7.1. Convergence Behavior and Learning Stability

One of the most remarkable strengths of GRPO is its rapid convergence across all tested systems. In the 15-unit system, the best fitness stabilized within the first five iterations, and similar trends were observed for the 30- and 60-unit systems, where high-quality solutions emerged in less than 20 iterations. Even in the 90-unit system, convergence remained stable, with best fitness flattening after 40 iterations. While GRPO exhibits slightly higher CPU time than some single-solution metaheuristics like MVMO, this cost reflects its population-based architecture and strong emphasis on feasibility and robustness. Unlike many metaheuristics that require extensive tuning or risk constraint violations, GRPO consistently produces high-quality, fully feasible solutions. Moreover, its evaluation step is inherently parallelizable which makes the method well-suited for fast deployment on modern multi-core or GPU-enabled systems.

The consistent exponential decay of both critic loss and KL divergence across all system sizes affirms the stability of GRPO’s policy updates. Unlike many RL-based methods that suffer from instability, GRPO maintains well-regulated policy improvement through trust region control and elite-based population updates. These mechanisms prevent policy collapse and ensure learning continuity across episodes.

The adaptive exploration-to-exploitation trade-off is a key architectural innovation in GRPO. Initial iterations are dominated by exploration costs, facilitating wide sampling of the search space, while later iterations shift toward exploitation of high-reward regions. The dynamic cost adjustment strategy ensures that this transition occurs organically, typically between iterations 10 and 20, depending on system size. This is a stark contrast to traditional metaheuristics like Genetic Algorithms or Particle Swarm Optimization, where exploration–exploitation balance is static or hand-tuned.

By tightly integrating this dynamic mechanism, GRPO avoids early convergence while also accelerating the refinement of feasible solutions, which is critical in non-convex and multi-modal landscapes such as EDPs with prohibited operating zones and ramp constraints.

GRPO demonstrates clear advantages over both classical and modern approaches to economic dispatch. Compared to traditional optimization techniques such as $\lambda$-$\gamma$ iteration and dynamic programming, and widely adopted metaheuristics like Genetic Algorithms, Evolutionary Programming, and Particle Swarm Optimization, GRPO delivers superior performance in terms of solution quality, constraint satisfaction, and computational efficiency. As evidenced in Table 3, GRPO attained the lowest dispatch cost on the 15-unit system while exhibiting a significantly reduced runtime—highlighting its practical suitability for real-time deployment.

Crucially, GRPO eliminates reliance on problem-specific operators or heuristic parameter tuning, which often constrain the generalizability of metaheuristic methods. Furthermore, unlike many deep reinforcement learning models that suffer from sparse rewards, sample inefficiency, or poor constraint handling, GRPO integrates population-based search with policy gradient learning to achieve both global exploration and stable convergence. This hybrid design positions GRPO as a next-generation optimization framework for complex power system applications.

Our comparative analysis with contemporary reinforcement learning methods reveals that GRPO’s group-based approach provides tangible advantages over single-policy algorithms. The 0.18–0.70% cost improvement over PPO and DDPG may appear modest, but translates to significant economic savings when scaled to real-world power systems operating continuously. Moreover, GRPO’s superior convergence stability and constraint satisfaction rates make it more suitable for safety-critical applications where reliability is paramount. The consistent performance across different system scales without hyperparameter retuning further underscores GRPO’s practical applicability in dynamic grid environments.

7.2. Constraint Handling and Feasibility

Constraint satisfaction is often a major challenge in solving practical EDPs. Many algorithms either apply penalty-based correction mechanisms or heuristic repair procedures, which can compromise solution quality. GRPO, on the other hand, enforces constraints implicitly during learning by integrating feasibility checks into the reward structure and maintaining elite memory pools of valid solutions. As a result, the number of violations—such as prohibited zone breaches or power imbalance—drops to near zero in all test cases, including the 90-unit system.

Moreover, the power balance error across all experiments was maintained below 0.5 MW, often reaching values in the order of ${10}^{-3}$ MW in smaller systems. This level of precision is vital in real-time power system operation, where marginal imbalances can cascade into significant operational risks.

7.3. Scalability and Generalizability

Perhaps the most compelling outcome of this study is GRPO’s strong scalability. Even without any hyperparameter retuning, GRPO maintained consistent performance from 15 to 90 units. Unlike many machine learning approaches that are highly sensitive to scale or require problem-specific adjustments, GRPO demonstrated robustness to increasing problem dimensionality, decision space complexity, and constraint density. The modularity of GRPO’s architecture also means it can be extended to incorporate additional operational constraints such as ramp rates, emission limitations, spinning reserve margins, or multi-area dispatch scenarios. Its compatibility with parallel computation—thanks to its population-based design—also positions it well for deployment in high-performance or cloud environments.

Although we do not use real-world operational datasets in this study, we evaluated GRPO under a range of realistic and challenging conditions designed to approximate real-world complexities. Specifically, we introduced dynamic demand profiles, sudden load surges, generator outages, and forecast uncertainty to simulate the variability and unpredictability found in modern power systems. These pressure tests show that GRPO maintains full constraint satisfaction and exhibits relatively lower performance degradation when compared to PPO and DDPG. This indicates the algorithm’s strong potential for real-world deployment and generalizability under conditions of incomplete or noisy information.

While GRPO offers enhanced convergence stability and robust exploration, these advantages come with certain trade-offs. Maintaining a population of policies requires more memory compared to single-policy RL methods and increases the computational overhead per iteration. However, since candidate evaluations are independent, GRPO is well-suited for parallel execution on modern multi-core or distributed systems. As the number of generators increases (i.e., the action space expands), we observed that the per-iteration compute time scales linearly, but overall convergence remains efficient due to early stage elite guidance and adaptive exploration decay. Additionally, increasing the population size beyond a certain threshold (e.g., above 60) showed marginal improvements in solution quality, suggesting diminishing returns and supporting the use of moderate population sizes (e.g., 40–50) for practical deployments.

7.4. Practical Implications and Future Work

The results of this study have significant implications for smart grid operation and the automation of energy dispatch systems. GRPO offers a viable path toward integrating learning-based optimization in power control centers, capable of responding to dynamic grid conditions, operational constraints, and market-based objectives. Its convergence speed and constraint compliance make it suitable for deployment in real-time or near-real-time scenarios, particularly in systems with high renewable penetration, uncertainty, or reconfiguration needs. Furthermore, GRPO could serve as the optimization engine in hybrid digital twins of power networks—continuously learning from data streams and adapting dispatch policies to evolving operational contexts. In addition to technical performance, the practical relevance of GRPO lies in its potential deployment in microgrids and developing country contexts, where efficient and flexible scheduling is essential. At scale, widespread adoption could yield significant financial savings and measurable ${\mathrm{CO}}_2$ emission reductions, further underscoring the method’s contribution to sustainable energy management.

Future work may explore GRPO’s extension to multi-objective dispatch, integration with uncertainty models (e.g., wind and solar forecasts), and deployment within cyber-physical control systems for autonomous grid operation.

8. Conclusions

This paper proposed a novel optimization framework, Group Relative Policy Optimization (GRPO), to solve the Economic Dispatch Problem (EDP) under realistic constraints, including prohibited operating zones, ramp rate limits, and spinning reserve requirements. GRPO integrates reinforcement learning with population-based search, elite memory, and adaptive exploration mechanisms, offering a stable and scalable alternative to classical metaheuristics and RL approaches. Through extensive experiments on 15-, 30-, 60-, and 90-unit systems, the GRPO algorithm consistently produced high-quality solutions with full constraint satisfaction and competitive runtime. The proposed method demonstrated strong scalability, generalizability, and robustness, even without hyperparameter tuning across test cases. Its convergence speed and feasibility rates make it a promising candidate for near-real-time scheduling in smart grids.

Future work will focus on extending GRPO’s applicability to real-world and dynamic environments, particularly by incorporating renewable energy variability and forecast uncertainty. Enhancements such as hybridizing GRPO with faster local search methods or metaheuristics will be explored to improve runtime for real-time applications. The framework can also be adapted to handle multi-objective formulations involving emissions or transmission losses. Moreover, investigating its deployment in distributed or multi-agent grid settings, and integrating safety guarantees or explainability features, will support its adoption in practical smart grid systems. Overall, GRPO provides a compelling optimization backbone for next-generation energy management systems that require adaptability, scalability, and reliability.
