  • Proceeding Paper
  • Open Access

17 July 2023

Green and Cost-Effective Synthesis of Sulfamidophosphonates Using ZnO Nanoparticles as Catalyst †

,
and
Laboratory of Applied Organic Chemistry, Synthesis of Biomolecules and Molecular Modelling Group, Sciences Faculty, Chemistry Department, Badji-Mokhtar Annaba University, Annaba 23000, Algeria
*
Author to whom correspondence should be addressed.
†
Presented at the 2nd International Electronic Conference on Processes: Process Engineering—Current State and Future Trends (ECP 2023), 17–31 May 2023; Available online: https://ecp2023.sciforum.net/.
Eng. Proc.2023, 37(1), 98;https://doi.org/10.3390/ECP2023-14733
This article belongs to the Proceedings The 2nd International Electronic Conference on Processes: Process Engineering—Current State and Future Trends
Version Notes
Order Reprints

Abstract

A simple and efficient protocol for the one-pot three-component synthesis of structurally diverse sulfamidophosphonates from the condensation of sulfanilamide, aldehydes, and triethylphosphite in ethanol using ZnO nanoparticles as catalysts under microwave irradiation has been developed. The structures of all compounds have been identified by appropriate spectroscopic methods such as FTIR, 1H, 13C, 31P NMR and ESI-MS.

1. Introduction

Significant factors that are intimately linked with the advancement of ecologically sustainable methods include the concept of atom economy, which pertains to the maximization of the utilization of all reactants employed in a process, along with a focus on enhancing overall efficiency. Additionally, there is a need to eliminate toxic intermediates/products from such processes while simultaneously minimizing the production of waste to the greatest extent possible [,,]. Multicomponent reactions (MCRs) have arisen as a compelling technique in this regard, enabling the facile synthesis of elaborate molecules through a one-pot approach, devoid of the need for intermediate isolation and purification. This affords a reduction in expenses, as well as time and energy consumption, making it a fascinating tool for organic synthesis [,,].
Furthermore, the use of environmentally sustainable energy sources for the promotion of chemical reactions has a prominent role []. In this regard, the use of microwave irradiation in synthesis generally leads to decreased reaction time, enhanced yield and selectivity, as well as the facilitation of organic transformations that would otherwise demand severe temperature and pressure conditions [,,].
However, the use of heterogeneous catalysts in organic synthesis has attained a notable degree of significance. This is due to the fact that not only do they facilitate environmentally sustainable syntheses, but they also yield a high percentage of products with exceptional selectivity. Various accounts have substantiated the outstanding performance of nanoparticles as heterogeneous catalysts in multicomponent reactions with regard to their selectivity, reactivity, and augmented product yields [].
Among various metal nanostructures, nanoparticles (ZnO-NPs) have received significant attention due to their remarkable properties and potential applications in diverse fields []. ZnO-NPs, in particular, exhibit high availability and can produce high product yields in short reaction times with only mild reaction conditions, as compared to conventional catalysts. Moreover, they can be readily recycled []. ZnO-NPs have been utilized as an active catalyst in several reactions, such as the synthesis of coumarins through Knoevenagel condensation [] and the synthesis of functionalized benzenes [].
In the current study, we described the efficient use of ZnO-NPs for the synthesis of sulfamidophosphonate derivatives with optimal duration and yields.

2. Results and Discussion

To facilitate the advancement of our investigations in the field of the synthesis of new compounds containing sulfonamide and phosphonate moieties, we are keen to explore the synthesis of novel derivatives of Ξ±-sulfamidophosphonate through a one-pot Kabachnik–Field’s reaction. Our approach involves the use of a green, clean eco-friendly method using microwave irradiation in the presence of zinc oxide nanoparticles [,,] as a reusable and heterogeneous catalyst.
A series of new Ξ±-sulfamidophosphonate derivatives has been successfully synthesized with remarkable efficiency via a one-pot, three-component Kabachnik–Field’s reaction. The reaction involved the use of sulfanilamide (1) with various aromatic aldehydes (2a–g) and trialkyl phosphite (3) under microwave irradiation catalyzed by catalytic quantities of (ZnO-NPs) in ethanol. The reaction was completed with excellent yields (Scheme 1).

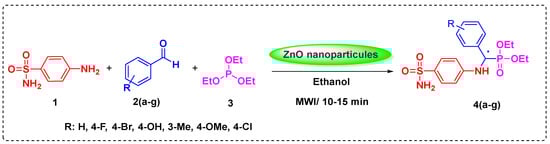

Scheme 1. Synthesis of Ξ±-sulfamidophosphonate derivatives.
The first stage of this work involved the refinement of the reaction parameters, encompassing the identification of suitable solvents, catalysts, and temperatures. The results of optimization are shown in Table 1. In this work, the effects of some solvents were also investigated for the production of 4(a–g).
Table 1. Optimization for the synthesis of Ξ±-sulfamidophosphonates with/without ZnO NPs.
Microwave irradiation was employed to investigate the reaction efficiency of various solvents at a temperature of 100 Β°C. It was observed that the reaction yields were significantly low in solvents such as CH2Cl2, MeOH, acetone, and in the absence of solvent. In contrast, the employment of EtOH as the solvent resulted in a substantially higher yield of 60%, as demonstrated in Table 1.
On the other hand, under the same conditions, the reaction was carried out in the presence of 10 mol% of ZnO-NPs as a green catalyst and the product was obtained in 93% yield after 15 min.
The results show that in the EtOH, the yields are higher than the other solvents.
According to the results of the optimization reported in Table 1, we observed that catalytic use of ZnO-NP (10% molars), and EtOH as solvent under microwave irradiations were estimated as the optimal reaction conditions.
The reaction between sulfanilamide 1, benzaldehyde 2a, and triethylphosphite 3 was selected as a model to evaluate the feasibility of Ξ±-sulfamidophosphonates and to optimize the reaction conditions.
The structures of the synthesized compounds are confirmed by elemental analysis as well as by IR and 1H, 13C, and 31P NMR spectral data.
The 31P NMR spectrum of compound 4a demonstrated a single peak at a chemical shift Ξ΄ = 22.19 ppm.
In the 1H NMR spectrum, a deshielded doublet of doublets at Ξ΄ = [5.0–5.30] ppm was consistently observed, which corresponds to NH*CH(R)PO(OEt)2. The two CH2 groups of the mustard moiety detected at Ξ΄ = [4.14–3.87] and [3.94–3.63].
The FT-IR spectrum displayed a distinctive absorption band around [3351.92–3286.65] cmβˆ’1, which corresponds to the NH group, while the sulfamide group exhibited signals at [1153.18–1147.64] cmβˆ’1 and [1327.16–1310.95] cmβˆ’1. Additionally, the phosphonate group appeared around [1229.42–1205.92] cmβˆ’1.
The 13C NMR spectrum presented characteristic doublets related to the presence of phosphorus (JC-P couplings), while the two ethoxy groups of phosphonate moiety were identified at [16.37–15.94] ppm (JC-P ~ 5.1–5.8 Hz) and [62.95–61.17] ppm (JC-P ~ 6.6–7 Hz). The asymmetric carbon NHCH(R) PO(OEt)2 was observed at [50.51–54.26] ppm, exhibiting a doublet with a large coupling constant of JC-P ~150.6–155 Hz.

3. General Procedure for the Synthesis of Sulfamidophosphonate Derivatives

A mixture of sulfanilamide (1) (1 mmol) different substituted aromatic aldehydes (2a–g) (1 mmol) and triethyl phosphite (3) (1 mmol) in the presence of ZnO nanoparticles catalyst (10 mol %) and EtOH as solvent were laid in a flat-bottom flask and irradiated with MWI. Movement of the reaction was observed by TLC experiment dichloromethane- methanol (99/1) for every 2mins. After completion of the reaction, the reaction mixture was filtered, and the catalyst was washed with ethyl acetate. The solvent was evaporated from the mixture and the residue was purified by Et2O to afford the pure Ξ±-sulfamidophosphonates in excellent yields. All other compounds were prepared by the same procedure.

4. Conclusions

In summary, facile and greener synthetic routes were developed for the synthesis of novel Ξ±-sulfamidophosphonates using ZnO-NPs as a catalyst. A synthetic approach based on a one-pot, three-component Kabachnik–Field’s reaction was devised, which used commercially available starting materials (Appendix A).

Supplementary Materials

The presentation materials can be downloaded at: https://www.mdpi.com/article/10.3390/ECP2023-14733/s1.

Author Contributions

R.R.: methodology; R.B.: formal analysis; M.B.: writing, review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was supported by the General Directorate for Scientific Research and Technological Development (DG-RSDT), Algerian Ministry of Scientific Research, Applied Organic Chemistry Laboratory (FNR 2000).

Conflicts of Interest

The authors declare that there is no conflict of interest.

Appendix A

  • diethyl (phenyl((4-sulfamoylphenyl)amino)methyl)phosphonate (4a)
White powder, 93% yield, m.p. 198–200 Β°C, Rf = 0.22 (CH2Cl2/MeOH: 96/4). IR (KBr): 3342.05, 1149.70–1319.94, 1227.04 cmβˆ’1. 1H NMR (400 MHz, DMSO) Ξ΄ 1.05 (t, J = 7 Hz, 3H, CH3), 1.18(t, J = 7 Hz, 3H, CH3), 3.76–3.72 (m, 1H, CH2), 3.92–3.86 (m, 1H, CH2), 4.08–4.00 (m, 1H, CH2), 5.15 (dd, 1H, *CH), 6.89(d, J = 8.8Hz, 4H, HAr), 7.09–7.05 (m, 1H, HAr), 7.26–7.23 (m, 1H, NH), 7.33(t, J = 12Hz, 2H, HAr), 7.44(d, J = 8.8 Hz, 2H, NH2), 7.54–7.52 (m, 2H, HAr) ppm. 31P NMR (100 MHz, DMSO) Ξ΄ 22.19 ppm. 13C NMR (101 MHz, DMSO) Ξ΄ 150.09, 136.26, 131.51, 128.24, 128.01, 127.49, 126.91, 112.36, 62.49, 62.30, 53.44, 16.25, 16.00, ppm. Anal. Calcd for C17H23N2O5PS C, 51.25; H, 5.82; N, 7.03. Found: C, 51.30; H, 5.70; N, 7.10.
  • diethyl ((4-fluorophenyl)((4-sulfamoylphenyl)amino)methyl)phosphonate (4b)
Yellow powder, 91% yield, m.p 168–170 Β°C, Rf = 0.22 (CH2Cl2/MeOH: 96/4). IR (KBr): 3332.54, 1149.16–1318.92, 1225.03 cmβˆ’1. 1H NMR (400 MHz, DMSO) Ξ΄ 1.06 (t, J = 7.1 Hz, 3H, CH3), 1.17 (t, J = 7.0 Hz, 3H, CH3), 3.82–3.73 (m, 1H, CH2), 3.95–3.87 (m, 1H, CH2), 4.04 (dqd, J = 11.2, 7.0, 2.8 Hz, 2H, CH2), 5.20 (dd, 1H, *CH), 6.93–6.85 (m, 4H, HAr), 7.20–7.04 (m, 3H, HAr), 7.45 (d, J = 7.1 Hz, 2H, NH2), 7.56 (ddd, J = 7.6, 5.4, 2.2 Hz, 2H, HAr) ppm. 13C NMR (101 MHz, DMSO) Ξ΄ 162.95, 160.53, 150.09, 132.58, 131.74, 130.38–130.25, 127.11, 115.17–114.93, 62.81, 62.57, 52.75, 16.35, 16.15 ppm. Anal. Calcd for C17H22FN2O5PS: C, 49.04; H, 5.33; N, 6.73. Found: C, 49.15; H, 5.40; N, 6.80.
  • diethyl ((4-bromophenyl)((4-sulfamoylphenyl)amino)methyl)phosphonate (4c)
White powder, 88% yield, m.p. 172–174 Β°C, Rf = 0.24 (CH2Cl2/MeOH: 96/4). IR (KBr): 3351.92, 1150.03–1322.47, 1225.53 cmβˆ’1. 1H NMR (400 MHz, DMSO) Ξ΄ 1.08 (t, J = 7.1 Hz, 3H, CH3), 1.18 (t, J = 7.0 Hz, 3H, CH3), 3.87–3.74 (m, 1H, CH2), 3.98–3.87 (m, 1H, CH2), 4.12–3.99 (m, 2H, CH2), 5.20 (dd, 1H, *CH), 6.95–6.81 (m, 4H, HAr), 7.07 (dd, J = 9.7, 6.6 Hz, 1H, NH), 7.40 (d, J = 8.4 Hz, 2H, HAr), 7.46 (d, J = 8.9 Hz, 2H, NH2), 7.54 (dd, J = 8.6, 2.2 Hz, 2H, HAr) ppm. 13C NMR (101 MHz, DMSO) Ξ΄ 150.02, 135.54, 132.34, 131.80, 128.19, 127.09, 62.85, 62.59, 52.87, 16.35, 16.15 ppm. Anal. Calcd for C17H22BrN2O5PS C, 42.78; H, 4.65; N, 5.87. Found: C, 42.85; H, 4.57; N, 5.77.
  • diethyl ((4-methoxyphenyl)((4-sulfamoylphenyl)amino)methyl)phosphonate (4d)
White powder, 89% yield, m.p. 158–160 Β°C, Rf = 0.22 (CH2Cl2/MeOH: 96/4). IR (KBr): 3317.19, 1153.18–1310.95, 1223.14 cmβˆ’1. 1H NMR (400 MHz, DMSO) Ξ΄ 1.07 (t, J = 7.0 Hz, 3H, CH3), 1.18 (t, J = 7.0 Hz, 3H, CH3), 3.72 (s, 4H, CH2 + OCH3), 3.94–3.82 (m, 1H, CH2), 4.14–3.94 (m, 2H, CH2), 5.15 (dd, 1H, *CH), 6.95–6.77 (m, 6H, HAr), 7.02 (dd, J = 9.8, 6.4 Hz, 1H, NH), 7.44 (dd, J = 8.9, 2.0 Hz, 4H, NH2 + HAr) ppm. 13C NMR (101 MHz, DMSO) Ξ΄ 158.68, 150.15, 131.42, 129.43, 127.949, 126.902, 113.51, 112.40, 62.42, 62.27, 54.26, 16.30, 16.09 ppm. Anal.Calcd for C18H25N2O6PS C, 50.46; H, 5.88; N, 6.54. Found: C, 50.51; H, 5.80; N, 6.62.
  • diethyl ((4-hydroxyphenyl)((4-sulfamoylphenyl)amino)methyl)phosphonate (4e)
White powder, 91% yield, m.p. 90–92 Β°C, Rf = 0.11 (CH2Cl2/MeOH: 96/4). IR (KBr): 3343.79, 1147.64–1323.66, 1219.42 cmβˆ’1. 1H NMR (400 MHz, DMSO) Ξ΄ 1.06 (t, J = 7.0 Hz, 3H, CH3), 1.18 (t, J = 7.0 Hz, 3H, CH3), 3.76–3.67 (m, 1H, CH2), 3.88 (dt, J = 10.3, 7.2 Hz, 1H, CH2), 4.06–4.00 (m, 2H, CH2), 5.0 (dd, 1H, *CH), 6.71 (d, J = 8.6 Hz, 2H), 6.92–6.84 (m, 4H, HAr), 6.97 (dd, J = 9.8, 6.2 Hz, 1H, NH), 7.32 (dd, J = 8.7, 2.2 Hz, 2H, HAr), 7.45 (d, J = 8.9 Hz, 2H, NH2), 9.38 (s, 1H, OH) ppm. 13C NMR (101 MHz, DMSO) Ξ΄ 156.54, 150.21, 131.32, 129.42, 126.91, 126.10, 114.89, 112.36, 62.30, 61.17, 52.86, 16.31, 16.09 ppm. Anal. Calcd for C17H23N2O6PS: C, 49.27; H, 5.59; N, 6.76. Found: C, 49.35; H, 5.67; N, 6.84.
  • diethyl (((4-sulfamoylphenyl)amino)(m-tolyl)methyl)phosphonate (4f)
White powder, 90% yield, m.p. 194–196 Β°C, Rf = 0.21 (CH2Cl2/MeOH: 96/4). IR (KBr): 3336.3, 1149.46–1315.53, 1208.35 cmβˆ’1. 1H NMR (400 MHz, DMSO) Ξ΄ 1.06 (t, J = 7.0 Hz, 3H, CH3), 1.18 (t, J = 7.0 Hz, 3H, CH3), 2.28 (s, 3H, CH3), 3.78–3.64 (m, 1H, CH2), 3.94–3.82 (m, 1H, CH2), 4.12–3.98 (m, 2H, CH2), 5.10 (dd, 1H, *CH), 6.94–6.83 (m, 4H, HAr), 7.13–7.01 (m, 2H, HAr), 7.21 (t, J = 7.6 Hz, 1H, NH), 7.38–7.30 (m, 2H, HAr), 7.48–7.42 (m, 2H, NH2) ppm. 13C NMR (101 MHz, DMSO) Ξ΄ 150.17, 137.09, 136.21, 131.47, 128.81, 128.24, 127.94, 127.41, 126.96, 125.43, 62.51, 62.36, 53.38, 16.30, 16.03 ppm. Anal. Calcd for C18H25N2O5PS: C, 52.42; H, 6.11; N, 6.79. Found: C, 52.54; H, 6.21; N, 6.87.
  • diethyl ((4-chlorophenyl)((4-sulfamoylphenyl)amino)methyl)phosphonate (4g)
White powder, 89% yield, m.p.178–180 Β°C, Rf = 0.20 (CH2Cl2/MeOH: 96/4). IR (KBr): 3286.65, 1148.98–1327.16, 1205.50 cmβˆ’1. 1H NMR (400 MHz, DMSO) Ξ΄ 1.02 (t, J = 7.0 Hz, 3H, CH3), 1.22 (t, J = 7.0 Hz, 3H, CH3), 3.78–3.63 (m, 1H, CH2), 3.88 (dt, J = 10.5, 7.5 Hz, 1H, CH2), 4.11 (p, J = 7.1 Hz, 2H, CH2), 5.30 (dd, 1H, *CH), 6.76 (d, J = 8.9 Hz, 2H, HAr), 6.92 (s, 2H, HAr), 7.38–7.22 (m, 3H, HAr), 7.53–7.42 (m, 3H, NH2 + HAr), 7.66 (d, J = 7.5 Hz, 1H, NH) ppm. 13C NMR (101 MHz, DMSO) Ξ΄ 149.61, 133.93, 133.38, 132.17, 129.60, 129.16, 127.36, 112.11, 62.94, 62.67, 50.51, 16.30, 15.94 ppm Anal. Calcd for C17H22ClN2O5PS: C, 47.17; H, 5.12; N, 6.47. Found: C, 47.25; H, 5.08; N, 6.55.

References

  1. Sheldon, R.A. The E factor 25 years on: The rise of green chemistry and sustainability. Green Chem. 2017, 19, 18–43. [Google Scholar] [CrossRef]
  2. Anastas, P.T.; Kirchhoff, M.M. Origins, current status, and future challenges of green chemistry. ACS Chem. Res. 2002, 35, 686–694. [Google Scholar] [CrossRef] [PubMed]
  3. Anastas, P.; Eghbali, N. Green chemistry: Principles and practice. Chem. Soc. Rev. 2010, 39, 301–312. [Google Scholar] [CrossRef] [PubMed]
  4. Bahadi, R.; Boughoula, R.; Berredjem, M.; Bachari, K.; Bouzina, A.; Bouacida, S.; Sbartai, H.; Benalliouche, F.; Redjemia, R. A convenient synthesis, biological activity and X-ray crystallography of novel Ξ±-aminophosphonate derivatives. Phosphorus Sulfur Silicon Relat. Elem. 2022, 197, 1150–1156. [Google Scholar] [CrossRef]
  5. Bahadi, R.; Berredjem, M.; Belhani, B.; Djouad, S.E.; Bouacida, S.; Ouk, T.S.; Laichi, Y.; Bachari, K.; Redjemia, R. Efficient synthesis and antitumor activity of novel oxazaphosphinane derivatives: X-ray crystallography, DFT study and molecular docking. J. Biomol. Struct. Dyn. 2022, 40, 1–12. [Google Scholar] [CrossRef] [PubMed]
  6. Bechlem, K.; Aissaoui, M.; Belhani, B.; Otmane Rachedi, K.; Bouacida, S.; Bahadi, R.; Djouad, S.E.; Mansour, R.B.; Bouaziz, M.; Almalki, F.; et al. Synthesis, X-ray crystallographic study and molecular docking of new Ξ±-sulfamidophosphonates: POM analyses of their cytotoxic activity. J. Mol. Struct. 2020, 1210, 127990–127998. [Google Scholar] [CrossRef]
  7. Belhani, B.; Berredjem, M.; Le Borgne, M.; Bouaziz, Z.; Lebreton, J.; Aouf, N.E. A one-pot three-component synthesis of novel Ξ±-sulfamidophosphonates under ultrasound irradiation and catalyst-free conditions. RSC Adv. 2015, 5, 39324–39329. [Google Scholar] [CrossRef]
  8. Lakrout, S.; K’tir, H.; Amira, A.; Berredjem, M.; Aouf, N.E. A simple and eco-sustainable method for the sulfonylation of amines under microwave-assisted solvent-free conditions. RSC Adv. 2014, 4, 16027–16032. [Google Scholar] [CrossRef]
  9. Gawande, M.B.; Shelke, S.N.; Zboril, R.; Varma, R.S. Microwave-Assisted Chemistry: Synthetic Applications for Rapid Assembly of Nanomaterials and Organics. Acc. Chem. Res. 2014, 47, 1338–1348. [Google Scholar] [CrossRef] [PubMed]
  10. Dallinger, D.; Kappe, C.O. Microwave-Assisted Synthesis in Water as Solvent. Chem. Rev. 2007, 107, 2563–2591. [Google Scholar] [CrossRef] [PubMed]
  11. Hajjami, M.; Gholamian, F. Tribromide Ion Immobilized on Magnetic Nanoparticle as a New, Efficient and Reusable Nanocatalyst in Multicomponent Reactions. RSC Adv. 2016, 6, 87950–87960. [Google Scholar] [CrossRef]
  12. Shantikumar, N.; Abhilash, S.; Divya Rani, V.V.; Deepthy, M.; Seema, N.; Manzoor, K.; Satish, R. Role of size scale of ZnO nanoparticles and microparticles on toxicity toward bacteria and osteoblast cancer cells. J. Mater Sci. Mater Med. 2009, 20, 235–241. [Google Scholar] [CrossRef]
  13. Moghaddam, F.M.; Saeidian, H.; Mirjafary, Z.; Sadeghi, A. Rapid and efficient one-pot synthesis of 1,4-dihydropyridine and polyhydroquinoline derivatives through the Hantzsch four component condensation by zinc oxide. J. Iran Chem. Soc. 2009, 6, 317–324. [Google Scholar] [CrossRef]
  14. Kumar, B.V.; Naik, H.S.B.; Girija, D.; Kumar, B.V. ZnO nanoparticle as catalyst for efficient green one-pot synthesis of coumarins through Knoevenagel condensation. J. Chem. Sci. 2011, 123, 615–621. [Google Scholar] [CrossRef]
  15. Rostami-Charati, F.; Akbari, R. ZnO-nanoparticles as an Efficient Catalyst for the synthesis of Functionalized Benzenes: Multicomponent Reactions of Sulfonoketenimides. Comb. Chem. High Throughput Screen. 2017, 20, 781–786. [Google Scholar] [CrossRef] [PubMed]
  16. Sabbaghan, M.; Hossaini, Z. A Highly Efficient Green Synthesis of N-Alkyl 2-[(2-Oxo-2-Aryl Ethyl) Amino] Benzamide Derivatives from Reaction of Isatoic Anhydride, Primary Amines and 2-Bromoacethophenone. Comb. Chem. High Throughput Screen. 2012, 15, 745–748. [Google Scholar] [CrossRef] [PubMed]
  17. Hosseini-Sarvari, M.; Sharghi, H.; Etemad, S. Nanocrystalline ZnO for Knoevenagel Condensation and Reduction of the Carbon,Carbon Double Bond in Conjugated Alkenes. Helv. Chim. Acta 2008, 91, 715–724. [Google Scholar] [CrossRef]
  18. Paul, S.; Bhattacharyya, P.; Das, A.R. One-pot synthesis of dihydropyrano[2,3-c]chromenes via a three component coupling of aromatic aldehydes, malononitrile, and 3-hydroxycoumarin catalyzed by nano-structured ZnO in water: A green protocol. Tetrahedron Lett. 2011, 52, 4636–4641. [Google Scholar] [CrossRef]
