# Modeling of Liquid Hydrogen Tank Cooled with Para-Orthohydrogen Conversion

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Modeling Details

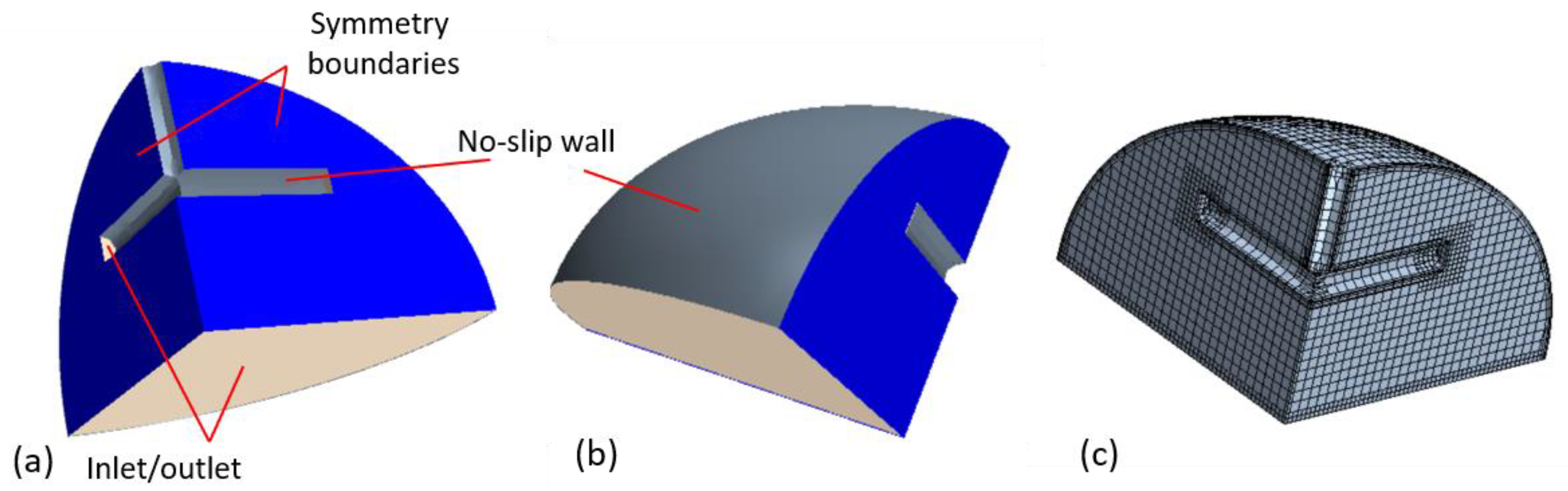

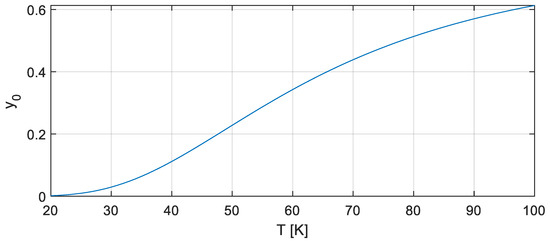

^{3}is chosen for this study, as some experimental data are available from self-pressurization experiments [18]. The computational domain for the ullage space included a quarter of the actual volume occupied by gas, assuming two symmetry boundaries (Figure 2a,b). The tank wall was treated as a no-slip boundary with a prescribed heat flux. The bottom boundary was approximated as an inlet, with the evaporating hydrogen flow rate and temperature given by an empirical model described below. In simulations including the venting tube, the tube inlets were treated as mass flow outlets for the ullage domain, while the external tube wall acted as a no-slip boundary for the ullage space and the surface heat flux was determined by the amount of para-ortho-conversion.

## 3. Results

^{3}spheroid-type tank (similar to that shown in Figure 1a) at different fill levels of liquid hydrogen and heat leaks. A 49% fill level (by volume) and a wall heat flux (into the tank) of 3.5 W/m

^{2}were selected for the present validation study. The initial experimental conditions in the tank corresponded to a 103 kPa absolute pressure and a vertical temperature gradient in the ullage space of about 7.5 K/m.

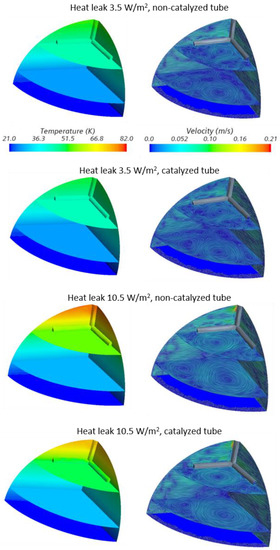

^{2}and 10.5 W/m

^{2}, while a venting tube is added into the ullage space (as shown in Figure 1 and Figure 2). The heat flux of 3.5 W/m

^{2}is the same as in the validation study, whereas the larger heat leak is considered as a higher vent rate; therefore, a more drastic effect of para-orthohydrogen conversion cooling can be expected. (It can be noted that there are tanks with lower heat leaks, depending on insulation materials.)

_{2}, which amount to about 1.5% and 6% of hydrogen loss per day for smaller and larger heat leaks, respectively. To maintain constant pressure, the larger heat leak requires about a fourfold larger venting rate. The reduction of boil-off losses due to cooling induced by para-orthohydrogen conversion is about 10% for the tank with a smaller heat leak and close to 25% at a larger heat leak, which results in noticeable savings that can make this technique economically attractive. Moreover, most commercial tanks have cylindrical shapes (rather than spheroidal ones), with larger surface-to-volume ratios. This will produce a larger heat input per volume, thus increasing achievable hydrogen savings.

## 4. Conclusions

^{2}, assuming a hydrogen conversion down to an equilibrium value at a local temperature. The model can be further extended to model flow inside a catalyzed venting tube, account for finite hydrogen conversion rates, and include the modeling of heat conduction in the tank wall. The considered cooling method is expected to be even more effective in cylindrical tanks with a larger surface-to-volume ratio.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Stolten, D.; Emonts, B. Hydrogen Science and Engineering: Materials, Processes, Systems and Technology; Wiley: Weinheim, Germany, 2016. [Google Scholar]
- Hedayat, A.; Hastings, L.J.; Bryant, C.; Plachta, D.W. Large scale demonstration of liquid hydrogen storage with zero boiloff. AIP Conf. Proc.
**2002**, 613, 1276. [Google Scholar] - Bliesner, R.; Leachman, J.; Adam, P. Parahydrogen-orthohydrogen conversion for enhance vapor-cooled shielding of liquid oxygen tanks. J. Thermophys. Heat Transf.
**2014**, 28, 717–723. [Google Scholar] - Zheng, J.; Chena, L.; Wanga, J.; Xia, X.; Zhu, H.; Zhou, Y.; Wanga, J. Thermodynamic analysis and comparison of four insulation schemes for liquid hydrogen storage tank. Energy Convers. Manag.
**2019**, 186, 526–534. [Google Scholar] - Leachman, J.W.; Jacobsen, R.; Penoncello, S.; Lemmon, E. Fundamental equations of state for parahydrogen, normal hydrogen, and orthohydrogen. J. Phys. Chem. Ref. Data
**2009**, 38, 721–748. [Google Scholar] - Milenko, Y.Y.; Sibileva, R.M.; Strzhemechny, M.A. Natural orthopara-conversion rate in liquid and gaseous hydrogen. J. Low. Temp. Phys.
**1997**, 107, 77–92. [Google Scholar] [CrossRef] - Leachman, J.; Street, M.J.; Graham, T. Catalytic pressurization of liquid hydrogen fuel tanks for unmanned aerial vehicles. AIP Conf. Proc.
**2012**, 1434, 1261–1267. [Google Scholar] - Petitpas, G.; Aceves, S.M.; Matthews, M.J.; Smith, J.R. Para-H2 to ortho-H2 conversion in a full-scale automotive cryogenic pressurized hydrogen storage up to 345 bar. Int. J. Hydrog. Energy
**2014**, 39, 6533–6542. [Google Scholar] - Bunge, C.D.; Cavender, K.A.; Matveev, K.I.; Leachman, J.W. Analytical and numerical performance models of a Heisenberg Vortex Tube. IOP Conf. Ser. Mater. Sci. Eng.
**2017**, 278, 012132. [Google Scholar] - Pedrow, B.P.; Muniyal Krishna, S.K.; Shoemake, E.D.; Leachman, J.W.; Matveev, K.I. Parahydrogen-orthohydrogen conversion on catalyst-loaded scrim for vapor-cooled shielding of cryogenic storage vessels. J. Thermophys. Heat Transf.
**2021**, 35, 142–151. [Google Scholar] [CrossRef] - Barsi, S.; Kassemi, M. Investigation of tank pressurization and pressure control. Part II: Numerical modelling. ASME J. Therm. Sci. Eng. Appl.
**2013**, 5, 041006. [Google Scholar] [CrossRef] - Kassemi, M.; Kartuzova, O. Effect of interfacial turbulence and accommodation coefficient on CFD predictions of pressurization and pressure control in cryogenic storage tank. Cryogenics
**2016**, 74, 138–153. [Google Scholar] - Huerta, F.; Vesovic, V. CFD modelling of the isobaric evaporation of cryogenic liquids in storage tanks. Int. J. Heat Mass Transf.
**2021**, 172, 131419. [Google Scholar] - Ferziger, J.H.; Peric, M. Computational Methods for Fluid Dynamics; Springer: Berlin, Germany, 1999. [Google Scholar]
- Nasrifar, K. Comparative study of eleven equations of state in predicting the thermodynamic properties of hydrogen. Int. J. Hydrog. Energy
**2010**, 35, 3802–3811. [Google Scholar] [CrossRef] - Matveev, K.I.; Leachman, J.W. Numerical simulations of cryogenic hydrogen cooling in vortex tubes with smooth transitions. Energies
**2021**, 14, 1429. [Google Scholar] [CrossRef] - Lemmon, E.W.; Bell, I.H.; Huber, M.L.; McLinden, M.O. NIST Standard Reference Database 23: Reference Fluid Thermodynamic and Transport Properties-REFPROP, Ver. 10.0, Standard Reference Data Program; National Inst. of Standards and Technology: Gaithersburg, MD, USA, 2018. [Google Scholar]
- Van Dresar, N.T.; Lin, C.S.; Hasan, M.M. Self-pressurization of a flyweight liquid hydrogen tank: Effects of fill levels at low wall heat flux. NASA Tech. Memo.
**1992**, 1054111. [Google Scholar] [CrossRef] [Green Version] - Roache, P.J. Verification and Validation in Computational Science and Engineering; Hermosa publishers: Albuquerque, NM, USA, 1998. [Google Scholar]
- Majumdar, A.; Valenzuela, J.; LeClair, A.; Moder, J. Numerical modeling of a self-pressurization and pressure control by a thermodynamic vent system in a cryogenic tank. Cryogenics
**2016**, 74, 113–122. [Google Scholar]

**Figure 1.**(

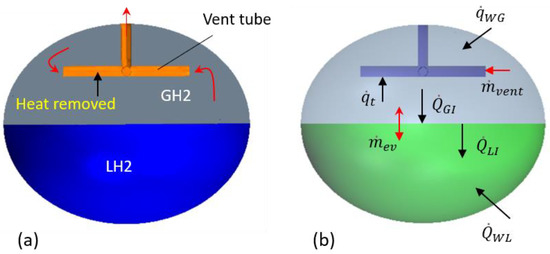

**a**) Schematic illustration of internal space of LH2 tank with vent tube that can be used for cooling, and (

**b**) boundary heat fluxes, transfer rates and inlet/outlet mass flow rates.

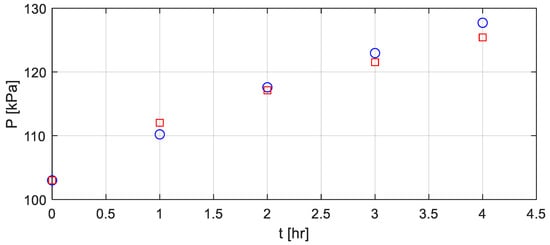

**Figure 4.**Pressure evolution in a closed tank: blue circles, experimental data; red squares, numerical results.

Heat Leak | Venting Tube | Venting Rate | Boil-off Loss |
---|---|---|---|

3.5 W/m^{2} | Non-catalyzed | 0.034 g/s | 2.9 kg/day |

3.5 W/m^{2} | Catalyzed | 0.030 g/s | 2.6 kg/day |

10.5 W/m^{2} | Non-catalyzed | 0.121 g/s | 10.5 kg/day |

10.5 W/m^{2} | Catalyzed | 0.094 g/s | 8.2 kg/day |
