Functional Differences between Chewing Sides of Implant-Supported Denture Wearers

by
Masaoki Yokoyama
1,
Hiroshi Shiga
1,*,
Shin Ogura
2,
Mako Sano
1,
Marie Komino
1,
Hitoshi Takamori
2,
Hanako Uesugi
1,
Keiji Haga
1 and
Yoshikazu Murakami
1
1
Department of Partial and Complete Denture, School of Life Dentistry at Tokyo, The Nippon Dental University, 1-9-20 Fujimi, Chiyoda-ku, Tokyo 102-0071, Japan
2
Division of Oral Implant, Hospital at Tokyo, The Nippon Dental University, 2-3-16 Fujimi, Chiyoda-ku, Tokyo 102-8158, Japan
*
Author to whom correspondence should be addressed.
Prosthesis 2023, 5(2), 346-357; https://doi.org/10.3390/prosthesis5020025
Submission received: 30 January 2023 / Revised: 20 March 2023 / Accepted: 20 March 2023 / Published: 24 March 2023
(This article belongs to the Collection Oral Implantology: Current Aspects and Future Perspectives)
Browse Figures
Review Reports Versions Notes

Abstract

:
Humans are said to have habitual and non-habitual chewing sides; however, the functional differences between the chewing sides of implant-supported denture wearers have not been sufficiently clarified. This study aimed to clarify the presence or absence of functional differences between the chewing sides in implant-supported denture wearers. Forty-five patients with bilateral posterior implants were included in this study. The participants were asked to chew a gummy jelly on one side, and the masticatory movement was recorded using a Motion Visi-trainer (MVT V1). For 10 cycles from the fifth cycle after the start of mastication, the pattern of the movement path, the opening distance, the masticatory width, and the cycle time were calculated as parameters of masticatory movement. The amount of glucose eluted during the chewing of gummy jelly was measured and used as a parameter of masticatory performance. Each parameter representing masticatory movement and masticatory performance was compared between the right and left chewing sides and between the habitual and non-habitual chewing sides using a chi-squared test or a paired t-test. There was no difference in the frequency of masticatory path patterns between the right and left chewing sides. Most participants had a normal pattern on the habitual chewing side; however, abnormal patterns were also observed on the non-habitual chewing side. When comparing right and left chewing, no significant difference was observed between chewing sides in terms of opening distance, masticatory width, cycle time, or amount of glucose eluted (p > 0.05). When comparing the habitual and non-habitual chewing sides, masticatory movement on the habitual chewing side showed a larger opening distance (p < 0.001) and masticatory width (p = 0.008), shorter cycle time (p = 0.004), and higher masticatory performance (p < 0.001). It was suggested that there is a functional difference between the habitual and non-habitual chewing sides in the masticatory movement and masticatory performance of implant-supported denture wearers.

1. Introduction

The timing of functional assessment after wearing removable or implant dentures has not been extensively investigated [1]. Sufficient adjustment is necessary to acquire good masticatory function after wearing new dentures and functional evaluation should be performed after acclimatization to dentures [2,3]. It is recommended to be performed after 3 months of wearing complete dentures [4]. In contrast, the timing of functional assessment in implant denture wearers varies from several weeks to 10 years [5,6,7,8,9,10,11,12,13,14,15,16].
In a study [10] that investigated changes in masticatory function after wearing new dentures in patients with implant-supported dentures, it was reported that masticatory function improved or did not improve 20 days after wearing implants; however, it significantly improved 8 months after wearing. There is also a report that masticatory movement did not significantly improve 6 months after wearing implant dentures [7]. These results suggest that it takes a considerable amount of time to adapt to changes in the oral environment and to acquire new masticatory functions after wearing implant dentures. In a study [16] that investigated the stability of the masticatory movement path and rhythm after implant treatment, the average value and standard deviation of each parameter were large 1 month after placement but gradually decreased from 6 months to 9 months after wearing implant dentures; almost the same values were maintained after 1 year. Based on these findings [1,7,10], a certain period is required to adjust to the masticatory function after wearing implant dentures, and a minimum of 8 months and preferably 1 year, is required to evaluate masticatory function after implant treatment.
One of the main goals of clinical dentistry is the restoration and maintenance of masticatory function. Therefore, to objectively evaluate the masticatory function, attempts have been made to examine masticatory performance [3,4,5,6,7,8,9,10,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33], occlusal force [9,12,23,26,27,29,31,34,35,36], muscular activity [5,6,37,38,39,40], and masticatory movement [1,11,12,13,18,37,41,42,43,44,45,46,47,48,49]. Masticatory performance is the most widely used and various methods have been reported. Among these, the measurement of the glucose eluted from chewing gummy jelly is attracting attention because of its simple hygiene control and simple operation. It has been confirmed that there is a positive correlation between the masticatory performance measured by this method and the masticatory performance obtained by the sieving method [17].
Recently, evaluation of masticatory performance by measuring the amount of glucose eluted during the chewing of gummy jelly has been widely performed in healthy dentate adults [31,50,51], elderly adults [27,52], patients with metabolic disease [53], removable partial denture patients [24,28], removable complete denture patients [4,29], implant denture patients [23,54], patients with jaw deformity [30], mandibulectomy patients [33], and other groups.
The examination of masticatory movement is thought to be effective in quantitatively and objectively evaluating the masticatory function, and the amount of movement, rhythm, movement stability, and path patterns during mastication have been investigated. The movement of the mandibular incisal point during mastication is regular and stable in individual cycles in healthy adults, but irregular and unstable in patients with malocclusion or temporomandibular disorders (TMD) [42,43,45,55]. It has also been reported that the amount of movement (opening distance or masticatory width) increases, rhythm shortens, and path pattern changes from abnormal to normal after dental treatment [37,43,46,55]. These findings suggest that masticatory function can be assessed by analyzing masticatory movement.
There are two methods of recording mastication: free and unilateral. It has been reported that the movement itself changes greatly with the change from right to left and left to right during free chewing, so the movement is significantly more unstable than that during unilateral chewing [41]. It has also been reported that the masticatory performance is significantly higher on the unilateral chewing than on the free chewing [21]. It is recommended that unilateral chewing should be selected for evaluation of masticatory function [41].
Humans have laterality similar to the dominant hand, and there is a side, either left or right that is easier to use. The same is true for the oral cavity, with a side that is easy to use for chewing (habitual chewing side) and another that is not (non-habitual chewing side). Because there was a functional difference between the chewing sides in the stability of the movement [41], some studies have focused on the habitual chewing side for analysis [18,46]. Additionally, research on the evaluation of masticatory performance has been conducted on the habitual chewing side [4,19,22].
However, these are intended for dentate adults and it is unclear whether they can be applied to implant-supported denture wearers. It is also unknown whether patients with implants can recognize the habitual chewing side (the easy-to-chew side). Currently, most of the studies evaluating the masticatory function of implant-applied patients specify free chewing as the masticatory method or do not describe the masticatory method, and only a few specify the habitual chewing side [20,25]. This is probably because the presence or absence of functional differences between the chewing sides in implant-applied patients has not been clarified.
Therefore, to clarify the functional differences between the chewing sides of implant-applied patients, the masticatory movement and masticatory performance of implant-supported denture wearers were compared between the right and left sides and between the habitual and non-habitual chewing sides.

2. Materials and Methods

This study was conducted in accordance with the principles of the Declaration of Helsinki. All experimental procedures were approved by the Institutional Review Board of the Faculty of Dentistry, The Nippon Dental University (Approval number: NDU-T2020-31). Informed consent was obtained from all participants after the purpose of the study was explained.

2.1. Participants

Forty-five adults (23 males, 22 females, 55–91 years old, mean 65.2 years old) participated in this study. Participants were adults with implant-supported dentures on both sides of their molars and had to meet the following inclusion and exclusion criteria. The sample size was calculated using a software program [56] (G*Power 3.1.9.3), with an α of 0.05, power of 0.8, and effect size of 0.5. A minimum of 34 participants were required to determine the presence or absence of differences between chewing sides in amount of movement, movement rhythm, and masticatory performance.
The inclusion criteria were (1) wearing implant dentures for at least 1 year, (2) no complaints about occlusion, (3) good general health or well-controlled systemic disease, and (4) an adequate cognitive function. The exclusion criteria were (1) clinical abnormalities of the masticatory system and (2) temporomandibular disorders (TMD) as defined by DC/TMD criteria [57].

2.2. Test Food

The test food (GLUCOLUMN, GC, Tokyo, Japan) was gummy jelly containing 5% glucose, with a cylindrical shape of 14 mm in diameter and 10 mm in height and weighing approximately 2 g. The other constituents of the gummy jelly were 41% reduced sugar syrup, 22% maltitol, 20% sorbitol, and 8% gelatin [32] (Figure 1).

2.3. Experimental Design

Before the experiment, the participants were allowed to freely chew the test food, and the habitual chewing side was set by asking them to choose the side that was easier to chew [31].
The movement of the mandibular incisal point was recorded with a Motion Visi-trainer (MVT V1, GC, Tokyo, Japan) when the participants chewed gummy jelly on one side for 20 s. For 10 cycles from the fifth cycle after the start of mastication [58], the pattern of the movement path, the opening distance, the masticatory width, and the cycle time were calculated and used as parameters representing masticatory movement. The amount of glucose eluted when the participant chewed a gummy jelly for 20 s on one side was measured and was used as a parameter representing masticatory performance [32]. Each recording was performed twice, and the average was used for analysis [59].

2.4. Patterns of Masticatory Movement Path

For 10 cycles from the fifth to the fourteenth cycle after the start of mastication, the movement paths were superimposed, and the average path was displayed. The masticatory movement path patterns were classified into one of five types: N (Normal pattern) and A1 to A4 (Abnormal pattern) including four patterns consisting of a combination of two types for the opening path (o1: straight or concave, o2: convex) and two types for the closing path (c1: straight or convex, c2: concave) (N: o1–c1, A1: o1–c2, A2: o2–c1, A3: o2–c2), and a pattern (A4) in which the opening and closing crossed [48] (Figure 2).

2.5. Calculation of Opening Distance, Masticatory Width, and Cycle Time

For 10 cycles from the fifth cycle, after calculating the average path from the opening and closing paths consisting of the vertical and lateral components of mandibular movement, the opening distance, and masticatory width were calculated. The opening distance was the vertical distance from the intercuspal position (IP) to the maximum mouth opening, and masticatory width was the average width of the first to ninth level (Figure 3 and Table 1). For 10 cycles from the fifth cycle, the opening time, closing time, occluding time, and sum of all three times were calculated as the cycle time. Then, the mean cycle time of the 10 cycles was calculated (Table 2).

2.6. Measurement of Masticatory Performance

Participants were asked to chew the test food on one side for 20 s without swallowing. After chewing, they were asked to hold 10 mL of water in their mouth for a moment and to spit into a cup with a filter. The glucose concentration of the filtrate was measured using a glucose-measuring device (GS-2, GC, Tokyo, Japan). The measured value was taken as a parameter of masticatory performance (Figure 4) [32]. It has been confirmed that the effect of saliva on the measurement results is less than 5% when holding 10 mL of water and spitting with the gummy jelly [60].

2.7. Statistical Analysis

All data were analyzed using statistical software (SPSS version 27.0, IBM Corp., Armonk, NY, USA). After classifying the movement path patterns of all participants into five types (N, A1 to A4), the frequency of normal (N) and abnormal (A1 to A4) patterns in the right and left chewing sides and the habitual and non-habitual chewing sides was investigated using the chi-squared test. Next, the parameter values representing masticatory movement (opening distance, masticatory width, and cycle time) and masticatory performance (amount of glucose eluted) were compared between the right and left chewing sides and between the habitual and non-habitual chewing sides. Comparisons between chewing sides were performed using a paired t-test after confirming the normality of the data using the Shapiro–Wilk test. All statistical analyses were performed with the significance level set at p values of 0.05.

3. Results

3.1. Masticatory Path Patterns

Figure 5 shows examples of masticatory movement path for some participants. Table 3 shows the masticatory path pattern for all participants. Table 4 shows the frequency of masticatory path patterns. When observing the right and left chewing sides, there was no difference in the frequency of masticatory path patterns between the chewing sides (x2 = 0.039, p = 1.000). Most participants had a normal pattern on the habitual chewing side (normal: 93%, abnormal: 7%); however, abnormal patterns were observed on the non-habitual chewing side (normal: 47%, abnormal: 53%). There was a significant difference in the pattern frequency between the chewing sides (x2 = 23.333, p < 0.001).

3.2. Masticatory Movement

The Shapiro–Wilk test confirmed normality of the data (opening distance, p = 0.306–0.606; masticatory width, p = 0.230–0.290; cycle time, p = 0.158–0.476).
Table 5 shows the means and standard deviations for the values of parameters representing masticatory movement. When comparing the right and left chewing sides, there was no significant difference between the chewing sides in terms of opening distance, masticatory width, cycle time (opening distance, p = 0.471; masticatory width, p = 0.350; cycle time, p = 0.104). When comparing the habitual and non-habitual chewing sides, the habitual chewing side showed a larger opening distance and masticatory width, a shorter cycle time, and significant differences were observed between the chewing sides (opening distance, p < 0.001; masticatory width, p = 0.008; cycle time, p = 0.004).

3.3. Masticatory Performance

The Shapiro–Wilk test confirmed normality of the data (p = 0.243–0.575).
Table 6 shows the means and standard deviations for the values of parameters representing masticatory performance. When comparing the right and left chewing sides, the amount of glucose eluted was similar, and no significant difference was observed between chewing sides (p = 0.951). When comparing the habitual and non-habitual chewing sides, the amount of glucose eluted was larger on the habitual chewing side than on the non-habitual chewing side, and a significant difference was observed between the chewing sides (p < 0.001).

4. Discussion

4.1. Determination of Habitual Chewing Side

To determine the habitual chewing side, a method based only on interviews [4,17,34,61], based on interviews after actual mastication [1,27,48], measuring from the beginning of the masticatory cycle [44], using EMG recording of the masseter muscle during mastication [38,39,40,62], and methods using jaw movement patterns [47] have been re-ported. Among them, the simplest method, which is to decide by interview, is based only on the subjectivity of the participants, and it is easily influenced by the dominant hand [34,39]. The authors found that when participants were asked about their habitual chewing side only in the interview, they often answered the dominant side, and the answers changed when the question was asked after free chewing. Therefore, we used a method in which the test food was chewed freely before the experiment, the side that was easy to chew was confirmed, and the habitual chewing side was set [26,32,36]. Therefore, this method was adopted in this study. It has also been reported that by allowing the test food to be chewed freely before the experiment, it becomes accustomed to chewing the test food, and the inter-measurement variation is reduced; therefore, even a single measurement is sufficient [31]. However, we believed that multiple measurements would be better, and in this study, the average of two measurements was used as the parameter value.

4.2. Movement Path Pattern between Chewing Sides

Regarding the movement path pattern, it has been reported that there are many nor-mal patterns in healthy adults [48], and many abnormal patterns in adults with malocclusion; however, they recover to normal patterns after treatment [43], and abnormal pat-terns appear when experimental occlusal interference is applied to healthy adults [49]. In this study, most of the participants had a normal pattern on the habitual chewing side; however, a relatively more abnormal pattern was observed on the non-habitual chewing side. Based on research reports on malocclusion and experimental occlusal interference, it is highly likely that some occlusal abnormality exists on the non-habitual chewing side. Therefore, it can be said that there is a need for inspection of occlusion on the non-habitual chewing side and further occlusal adjustment.

4.3. Masticatory Function between Chewing Sides

It has been reported that masticatory function deteriorates due to tooth loss and that dental prosthetic treatment increases the amount of masticatory movement, shortens the cycle time, and improves masticatory performance [4,28,46]. Similar findings have been reported for implant denture treatment [6,7,11,14,15,16,23]. These results indicate that the amount of movement, rhythm, and masticatory performance can be used to evaluate masticatory function.
A study investigating the functional differences between the chewing sides of dentate adults reported that the masticatory movement path on the habitual chewing side was significantly stable [41] and the masticatory performance was higher than that on the non-habitual chewing side [32]. Therefore, the number of studies targeting the habitual chewing side has recently increased [29,63,64]. However, no studies have investigated functional differences between the chewing sides of implant denture wearers, and only a few studies have analyzed the habitual chewing side [20,25]. As mentioned above, only a few studies have described masticatory methods [8,65]. In this study, the amount of movement was greater, the movement rhythm was shortened, and masticatory performance was higher on the habitual chewing side than that on the non-habitual chewing side, indicating a significant difference between the chewing sides. These results show that even implant denture wearers recognize differences in chewing ease between chewing sides and that implant-supported denture wearers have a larger and faster masticatory movement and higher masticatory performance on the easy-to-chew side (habitual chewing side) than on the difficult-to-chew side (non-habitual chewing side). Additionally, since a significant difference was observed between the chewing sides, the habitual chewing side should be analyzed in implant-supported denture wearers as well.

4.4. Limitations

The participants in this study had similar occlusal conditions on the right and left sides. Therefore, it included those with implant-fixed dentures in both the upper and lower jaws, those with complete dentures in the upper jaw and implant denture in the lower jaw, and those with natural dentition in the upper jaw and implant dentures in both molars of the lower jaw. Since the participants with similar occlusal conditions on the right and left sides were selected, it was considered that there was no problem in comparing the habitual chewing side and the non-habitual chewing side. However, when comparing by individual implants denture, it may be necessary to increase the number of participants and investigate participants with the same maxillary and mandibular conditions. Furthermore, further study may be necessary after taking into account the effects of conditions such as the condition of the oral cavity [66] and the condition of the implant [67].

5. Conclusions

To clarify the functional differences between the chewing sides of implant-supported denture wearers, the masticatory movement and masticatory performance of 45 patients who had implants applied to their bilateral molars were compared between the chewing sides. Consequently, the patients with implants had greater and faster masticatory movements and higher masticatory performance on the habitual chewing side than that on the non-habitual chewing side. These results suggest that there is a functional difference between habitual and non-habitual chewing sides in masticatory movement and the masticatory performance of implant-supported denture wearers.

Author Contributions

Conceptualization, M.Y., H.S. and S.O.; methodology, M.S., M.K. and H.U.; formal analysis, M.S., M.K., H.U., K.H. and Y.M.; investigation, S.O., M.S., H.T., K.H. and Y.M.; data curation, M.Y., H.U., M.S. and M.K.; writing—original draft preparation, M.Y. and H.S.; writing—review and editing, M.Y., H.S., S.O. and M.K.; visualization, M.S., M.K., H.U., K.H. and Y.M.; supervision, M.Y., H.S. and H.T.; project administration, H.S.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by Institutional Review Board of the Faculty of Dentistry, The Nippon Dental University (approval number: NDU–T2012–29).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shiga, H.; Ogura, S.; Hiraga, Y.; Takamori, H.; Namba, N.; Kobayashi, Y. Stability of masticatory movements after placement of implant supported denture. Odontology 2022, 110, 216–222. [Google Scholar] [CrossRef] [PubMed]
  2. Panek, H.; Krawczykowska, H.; Dobosz, A.; Napadłek, P.; Panek, B.A.; Sosna-Gramza, M. Follow-up visits as a measure of adaptation process to removable prostheses. Gerodontology 2006, 23, 87–92. [Google Scholar] [CrossRef] [PubMed]
  3. Eberhard, L.; Oh, K.; Eiffler, C.; Rammelsberg, P.; Kappel, S.; Schindler, H.J.; Giannakopoulos, N.N. Adaptation to new complete dentures-is the neuromuscular system outcome-oriented or effort-oriented? Clin. Oral Investig. 2018, 22, 2309–2317. [Google Scholar] [CrossRef] [PubMed]
  4. Yamamoto, S.; Shiga, H. Masticatory performance and oral health-related quality of life before and after complete denture treatment. J. Prosthodont. Res. 2018, 62, 370–374. [Google Scholar] [CrossRef] [PubMed]
  5. Heckmann, S.M.; Heussinger, S.; Linke, J.J.; Graef, F.; Pröschel, P. Improvement and long-term stability of neuromuscular adaptation in implant supported overdentures. Clin. Oral Implants Res. 2009, 20, 1200–1205. [Google Scholar] [CrossRef] [PubMed]
  6. Spitzl, C.; Pröschel, P.; Wichmann, M.; Heckmann, S. Long-term neuromuscular status in overdenture and complete denture patients with severe mandibular atrophy. Int. J. Oral Maxillofac. Implant. 2012, 27, 155–161. [Google Scholar]
  7. Veyrune, J.L.; Opé, S.; Nicolas, E.; Woda, A.; Hennequin, M. Changes in mastication after an immediate loading implantation with complete fixed rehabilitation. Clin. Oral Investig. 2013, 17, 1127–1134. [Google Scholar] [CrossRef]
  8. Campos, C.H.; Gonçalves, T.M.; Rodrigues Garcia, R.C. Implant retainers for free-end removable partial dentures affect mastication and nutrient intake. Clin. Oral Implant. Res. 2014, 25, 957–961. [Google Scholar] [CrossRef]
  9. Meena, A.; Jain, V.; Singh, N.; Arora, N.; Jha, R. Effect of implant supported prosthesis on the bite force and masticatory efficiency in subjects with shortened dental arches. J. Oral Rehabil. 2014, 41, 87–92. [Google Scholar] [CrossRef]
  10. Vieira, R.A.; Melo, A.C.; Budel, L.A.; Gama, J.C.; de Mattias Sartori, I.A.; Thomé, G. Benefits of rehabilitation with implants in masticatory function: Is patient perception of change in accordance with the real improvement? J. Oral Implantol. 2014, 40, 263–269. [Google Scholar] [CrossRef]
  11. Gonçalves, T.M.; Campos, C.H.; Garcia, R.C.R. Mastication and jaw motion of partially edentulous patients are affected by different implant-based prostheses. J. Oral Rehabil. 2014, 41, 507–514. [Google Scholar] [CrossRef] [PubMed]
  12. Suzuki, Y.; Kono, K.; Shimpo, H.; Sato, Y.; Ohkubo, C. Clinical evaluation of implant supported removable partial dentures with a stress-breaking attachment. Implant Dent. 2017, 26, 516–523. [Google Scholar] [CrossRef] [PubMed]
  13. Amaral, C.F.D.; Souza, G.A.; Pinheiro, M.A.; Campos, C.H.; Garcia, R.C.M.R. Sensorial ability, mastication and nutrition of single-implant overdentures wearers. Braz. Dent. J. 2019, 30, 66–72. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Nogueira, T.E.; Schimmel, M.; Leles, C.R. Changes in masticatory performance of edentulous patients treated with single-implant mandibular overdentures and conventional complete dentures. J. Oral Rehabil. 2019, 46, 268–273. [Google Scholar] [CrossRef] [PubMed]
  15. Khalid, T.; Yunus, N.; Ibrahim, N.; Saleh, N.B.M.; Goode, D.; Masood, M. Assessment of masticatory function of mandibular implant supported overdenture wearers: A 3-year prospective study. J. Prosthet. Dent. 2020, 124, 674–681. [Google Scholar] [CrossRef] [PubMed]
  16. Hartmann, R.; Bandeira, A.C.F.M.; Araújo, S.C.; Brägger, U.; Schimmel, M.; Leles, C.R. A parallel 3-group randomised clinical trial comparing different implant treatment options for the edentulous mandible: 1-year effects on dental patient-reported outcomes and chewing function. J. Oral Rehabil. 2020, 47, 1264–1277. [Google Scholar] [CrossRef] [PubMed]
  17. Kobayashi, Y.; Shiga, H.; Arakawa, I.; Yokoyama, M. The effectiveness of measuring glucose extraction for estimating masticatory performance. Prosthodont. Res. Pract. 2006, 5, 104–108. [Google Scholar] [CrossRef] [Green Version]
  18. Yoshida, E.; Fueki, K.; Igarashi, Y. Association between food mixing ability and mandibular movements during chewing of a wax cube. J. Oral Rehabil. 2007, 34, 791–799. [Google Scholar] [CrossRef]
  19. Matsumaru, Y. Influence of mandibular residual ridge resorption on objective masticatory measures of lingualized and fully bilateral balanced denture articulation. J. Prosthodont. Res. 2010, 54, 112–118. [Google Scholar]
  20. Müller, F.; Hernandez, M.; Grütter, L.; Aracil-Kessler, L.; Weingart, D.; Schimmel, M. Masseter muscle thickness, chewing efficiency and bite force in edentulous patients with fixed and removable implant supported prostheses: A cross-sectional multicenter study. Clin. Oral Implant. Res. 2012, 23, 144–150. [Google Scholar] [CrossRef] [Green Version]
  21. Rovira-Lastra, B.; Flores-Orozco, E.I.; Salsench, J.; Peraire, M.; Martinez-Gomis, J. Is the side with the best masticatory performance selected for chewing? Arch. Oral Biol. 2014, 59, 1316–1320. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Bae, J.C.; Jeong, S.H.; Jeong, C.M.; Huh, J.B. Comparison of the masticatory functions of complete dentures and implant-retained overdentures. Int. J. Prosthodont. 2015, 28, 345–347. [Google Scholar] [CrossRef] [Green Version]
  23. Tanaka, M.; Bruno, C.; Jacobs, R.; Torisu, T.; Murata, H. Short-term follow-up of masticatory adaptation after rehabilitation with an immediately loaded implant supported prosthesis: A pilot assessment. Int. J. Implant Dent. 2017, 3, 8. [Google Scholar] [CrossRef] [Green Version]
  24. Sagawa, K.; Furuya, H.; Ohara, Y.; Yoshida, M.; Hirano, H.; Iijima, K.; Kikutani, T. Tongue function is important for masticatory performance in the healthy elderly: A cross-sectional survey of community-dwelling elderly. J. Prosthodont. Res. 2019, 63, 31–34. [Google Scholar] [CrossRef]
  25. Khoury-Ribas, L.; Ayuso-Montero, R.; Willaert, E.; Peraire, M.; Martinez-Gomis, J. Do implant supported fixed partial pros-theses improve masticatory performance in patients with unilateral posterior missing teeth? Clin. Oral Implant. Res. 2019, 30, 420–428. [Google Scholar] [CrossRef] [PubMed]
  26. Sano, M.; Shiga, H. Gender differences in masticatory function in elderly adults with natural dentition. Odontology 2021, 109, 973–978. [Google Scholar] [CrossRef] [PubMed]
  27. Sano, M.; Shiga, H. Evaluation of occlusal force and masticatory performance in elderly adults with natural dentition unaffected by occlusal support. J. Oral Sci. 2021, 63, 145–147. [Google Scholar] [CrossRef]
  28. Hayashi, Y.; Fueki, K.; Yoshida-Kohno, E.; Inamochi, Y.; Wakabayashi, N. Responsiveness of methods to evaluate objective masticatory function in removable partial denture treatments. J. Prosthodont. Res. 2021, 65, 495–501. [Google Scholar] [CrossRef]
  29. Furuya, Y.; Kimoto, S.; Furuse, N.; Igarashi, K.; Furokawa, S.; Kawai, Y. Effectiveness of silicone-based resilient denture liners on masticatory function: A randomised controlled trial. J. Dent. 2021, 109, 103657. [Google Scholar]
  30. Sakuma, H.; Suda, D.; Hara, T.; Saito, N.; Saito, D.; Hasebe, D.; Katagiri, W.; Kobayashi, T. Evaluation of masticatory efficiency in patients with jaw deformities using the gummy jelly method. Adv. Oral Maxillofac. Surg. 2021, 4, 100166. [Google Scholar] [CrossRef]
  31. Sano, M.; Shiga, H. Inter-measurement variation of masticatory performance test using gummy jelly. Odontology 2022, 110, 212–215. [Google Scholar] [CrossRef] [PubMed]
  32. Shiga, H.; Nakajima, K.; Uesugi, H.; Komino, M.; Sano, M.; Arai, S. Reference value of masticatory performance by measuring the amount of glucose extraction from chewing gummy jelly. J. Prosthodont. Res. 2022, 66, 618–622. [Google Scholar] [CrossRef] [PubMed]
  33. Liu, R.; Hattori, M.; Zhang, M.; Sumita, Y.I. Use of an occlusal ramp for rehabilitation after a mandibulectomy and its effects on mastication. J. Prosthet. Dent. 2023, 129, 234–238. [Google Scholar] [CrossRef]
  34. Melo, A.C.M.; Ledra, I.M.; Vieira, R.A.; Coró, E.R.; Sartori, I.A.M. Maximum bite force of edentulous patients before and after dental implant rehabilitation: Long-term follow-up and facial type influence. J. Prosthodont. 2018, 27, 523–527. [Google Scholar] [CrossRef]
  35. Shiga, H.; Komino, M.; Uesugi, H.; Sano, M.; Yokoyama, M.; Nakajima, K.; Ishikawa, A. Comparison of two dental prescale systems used for the measurement of occlusal force. Odontology 2020, 108, 676–680. [Google Scholar] [CrossRef] [PubMed]
  36. Shiga, H.; Komino, M.; Yokoyama, M.; Sano, M.; Arakawa, I.; Nakajima, K.; Fujii, S. Relationship between age and occlusal force in adults with natural dentition. Odontology 2023, 111, 487–492. [Google Scholar] [CrossRef] [PubMed]
  37. Miyawaki, S.; Shiai, Y.; Takada, K. Changes in the masticatory jaw movement following orthodontic traction of an impacted and transposed upper canine and occlusal adjustment. Clin. Orthod. Res. 2001, 4, 43–49. [Google Scholar] [CrossRef]
  38. Zamanlu, M.; Khamnei, S.; Salarilak, S.; Oskoee, S.S.; Shakouri, S.K.; Houshyar, Y.; Salekzamani, Y. Chewing side preference in first and all mastication cycles for hard and soft morsels. Int. J. Clin. Exp. Med. 2012, 5, 326–331. [Google Scholar]
  39. Yamasaki, Y.; Kuwatsuru, R.; Tsukiyama, Y.; Oki, K.; Koyano, K. Objective assessment of mastication predominance in healthy dentate subjects and patients with unilateral posterior missing teeth. J. Oral Rehabil. 2016, 43, 575–582. [Google Scholar] [CrossRef]
  40. Khamnei, S.; Sadat-Ebrahimi, S.R.; Salarilak, S.; Savadi Oskoee, S.; Houshyar, Y.; Shakouri, S.K.; Salekzamani, Y.; Zamanlu, M. Manifestation of hemispheric laterality in chewing side preference and hardness. Bioimpacts 2019, 9, 189–193. [Google Scholar] [CrossRef] [Green Version]
  41. Shiga, H.; Kobayashi, Y.; Arakawa, I.; Shonai, Y. Selection of food and chewing side for evaluating masticatory path stability. Odontology 2003, 91, 26–30. [Google Scholar] [CrossRef]
  42. Rilo, B.; da Silva, J.L.; Mora, M.J.; Cadarso–Suárez, C.; Santana, U. Unilateral posterior crossbite and mastication. Arch. Oral Biol. 2007, 52, 474–478. [Google Scholar] [CrossRef] [PubMed]
  43. Takeda, H.; Nakamura, Y.; Handa, H.; Ishii, H.; Hamada, Y.; Seto, K. Examination of masticatory movement and rhythm be-fore and after surgical orthodontics in skeletal class III patients with unilateral posterior cross-bite. J. Oral Maxillofac. Surg. 2009, 67, 1844–1849. [Google Scholar] [CrossRef] [PubMed]
  44. Nissan, J.; Berman, O.; Gross, O.; Haim, B.; Chaushu, G. The influence of partial impant-supported restorations on chewing side preference. J. Oral Rehabil. 2011, 38, 165–169. [Google Scholar] [CrossRef] [PubMed]
  45. Piancino, M.G.; Frongia, G.; Dalessandri, D.; Bracco, P.; Ramieri, G. Reverse cycle chewing before and after orthodontic-surgical correction in class III patients. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. 2013, 115, 328–331. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Kuramochi, A.; Shiga, H. Effect of denture treatment on masticatory movement in patients with complete dentures. J. Prosthodont. Res. 2019, 63, 245–249. [Google Scholar] [CrossRef] [PubMed]
  47. Arai, S.; Kato, C.; Watari, I.; Ono, T. Does orthodontic treatment change the preferred chewing side patients with malocclusion? J. Clin. Med. 2022, 11, 6343. [Google Scholar] [CrossRef]
  48. Shiga, H.; Nakajima, K.; Yokoyama, M.; Komino, M.; Uesugi, H.; Sano, M.; Arakawa, I.; Oh, T. Masticatory path pattern and masticatory performance while chewing gummy jelly. Odontology 2022. [Google Scholar] [CrossRef]
  49. Shiga, H.; Itoh, Y.; Yokoyama, M.; Komino, M.; Nakajima, K.; Kobayashi, Y. Effect of occlusal interference on the masticatory movement path. J. JA Occlusion Health 2022, 28, 1–6. [Google Scholar]
  50. Tasaka, A.; Kikuchi, M.; Nakanishi, K.; Ueda, T.; Yamashita, S.; Sakurai, K. Psychological stress-relieving effects of chewing—Relationship between masticatory function-related factors and stress-relieving effects. J. Prosthodont. Res. 2018, 62, 50–55. [Google Scholar] [CrossRef]
  51. Iyota, K.; Mizutani, S.; Oku, S.; Asao, M.; Futatsuki, T.; Inoue, R.; Imai, Y.; Kashiwazaki, H. A cross-sectional study of age-related changes in oral function in healthy Japanese individuals. Int. J. Environ. Res. Public Health 2020, 17, 1376. [Google Scholar] [CrossRef] [Green Version]
  52. Morita, K.; Tsuka, H.; Kato, K.; Mori, T.; Nishimura, R.; Yoshida, M.; Tsuga, K. Factors related to masticatory performance in healthy elderly individuals. J. Prosthodont. Res. 2018, 62, 432–435. [Google Scholar] [CrossRef] [PubMed]
  53. Takahara, M.; Shiraiwa, T.; Maeno, Y.; Yamamoto, K.; Shiraiwa, Y.; Yoshida, Y.; Nishioka, N.; Katakami, N.; Matsuoka, T.A.; Shimomura, I. Association of obesity, diabetes, and physical frailty with dental and tongue-lip motor dysfunctions in patients with metabolic disease. Obes. Res. Clin. Prac. 2021, 15, 243–248. [Google Scholar] [CrossRef] [PubMed]
  54. Nogawa, T.; Takayama, Y.; Ishida, K.; Yokoyama, A. Comparison of treatment outcomes in partially edentulous patients with implant supported fixed prostheses and removable partial dentures. Int. J. Oral Maxillofac. Implant. 2016, 31, 1376–1383. [Google Scholar] [CrossRef] [PubMed]
  55. Sato, S.; Nasu, F.; Motegi, K. Analysis of kinesiograph recordings and masticatory efficiency after treatment of non–reducing disk displacement of the temporomandibular joint. J. Oral Rehabil. 2003, 30, 708–713. [Google Scholar] [CrossRef] [PubMed]
  56. Faul, F.; Erdfelder, E.; Lang, A.G.; Buchner, A. G*Power 3: A flexible statistical power analysis program for the social, behavioral, and biomedical sciences. Behav. Res. Methods 2007, 39, 175–191. [Google Scholar] [CrossRef] [PubMed]
  57. Schiffman, E.; Ohrbach, R.; Truelove, E.; Look, J.; Anderson, G.; Goulet, J.P.; List, T.; Svensson, P.; Gonzalez, Y.; Lobbezoo, F.; et al. Diagnostic Criteria for Temporomandibular Disorders (DC/TMD) for clinical and research applications: Recommendations of the International RDC/TMD Consortium Network and Orofacial Pain Special Interest Group. J. Oral Facial Pain Headache 2014, 28, 6–27. [Google Scholar] [CrossRef]
  58. Shiga, H.; Kobayashi, Y.; Stohler, C.S.; Tanaka, A. Section showing minimal intra-individual variations in masticatory movement. J. Jpn. Prosthodont. Soc. 2008, 52, 200–204. [Google Scholar] [CrossRef] [Green Version]
  59. Shiga, H.; Ishikawa, A.; Nakajima, K.; Tanaka, A. Relationship between masticatory performance using a gummy jelly and food intake ability in Japanese complete denture wearers. Odontology 2015, 103, 356–359. [Google Scholar] [CrossRef]
  60. Shiga, H.; Kobayashi, Y.; Arakawa, I.; Yokoyama, M.; Namba, N. Effect of saliva secretion on the assessment of masticatory performance. Prosthodont. Res. Pract. 2007, 6, 127–131. [Google Scholar] [CrossRef] [Green Version]
  61. Diernberger, S.; Bernhardt, O.; Schwahn, C.; Kordass, B. Self-reported chewing side preference and its associations with occlusal, temporomandibular and prosthodontic factors: Results from the population-based Study of Health in Pomerania (SHIP-0). J. Oral Rehabil. 2008, 35, 613–620. [Google Scholar]
  62. Mori, K.; Manda, Y.; Kitagawa, K.; Nagatsuka, H.; Furutera, H.; Kodama, N.; Minagi, S. Coordination of surface electromyography activity in the posterior tongue region during mastication of differently textured foods. J. Oral Rehabil. 2021, 48, 403–410. [Google Scholar] [PubMed]
  63. Kim, S.; Doh, R.M.; Yoo, L.; Jeong, S.A.; Jung, B.Y. Assessment of age-related changes on masticatory function in a population with normal dentition. Int. J. Environ. Res. Public Health 2021, 18, 6899. [Google Scholar] [PubMed]
  64. Ida, Y.; Yamashita, S. Analysis of the relevant factors associated with oral health-related quality of life in elderly denture wearers. J. Prosthodont. Res. 2022, 66, 93–100. [Google Scholar] [CrossRef]
  65. Sun, X.; Zhai, J.J.; Liao, J.; Teng, M.H.; Tian, A.; Liang, X. Masticatory efficiency and oral health-related quality of life with implant-retained mandibular overdentures. Saudi. Med. J. 2014, 35, 1195–1202. [Google Scholar] [PubMed]
  66. Butera, A.; Pascadopoli, M.; Pellegrini, M.; Gallo, S.; Zampetti, P.; Cuggia, G.; Scribante, A. Domiciliary use of chlorhexidine vs. postbiotic gels in patients with peri-implant mucositis: A split-mouth randomized clinical trial. Appl. Sci. 2022, 12, 2800. [Google Scholar] [CrossRef]
  67. Ziaie, B.; Khalili, S.M.R. Evaluation of fatigue life for dental implants using fem analysis. Prosthesis 2021, 3, 300–313. [Google Scholar]
Prosthesis 05 00025 g001 550

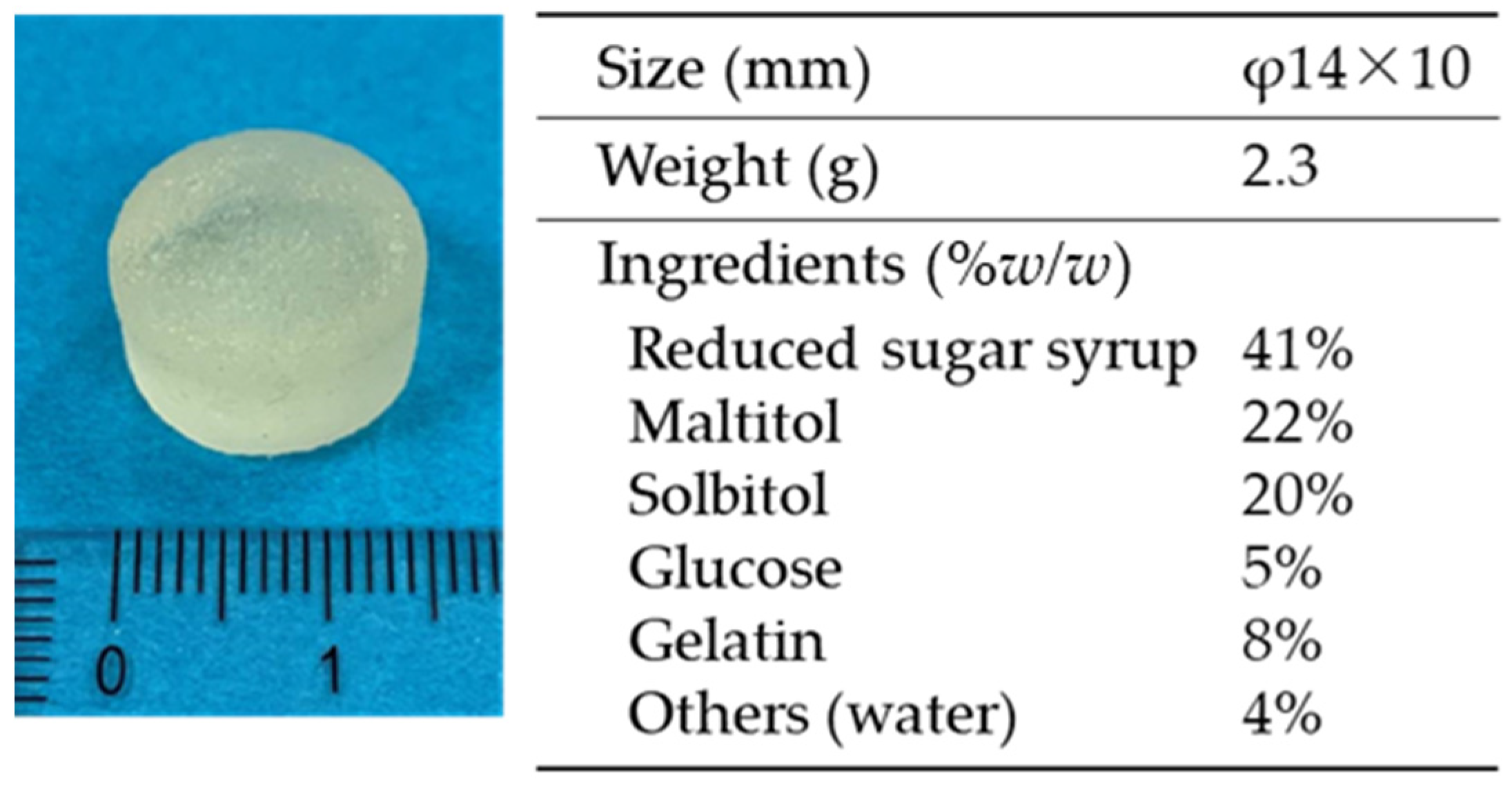

Figure 1. Test food (gummy jelly): Size, weight, and ingredients.
Figure 1. Test food (gummy jelly): Size, weight, and ingredients.
Prosthesis 05 00025 g001
Prosthesis 05 00025 g002 550

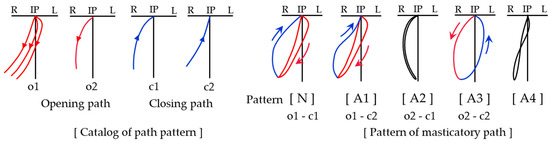

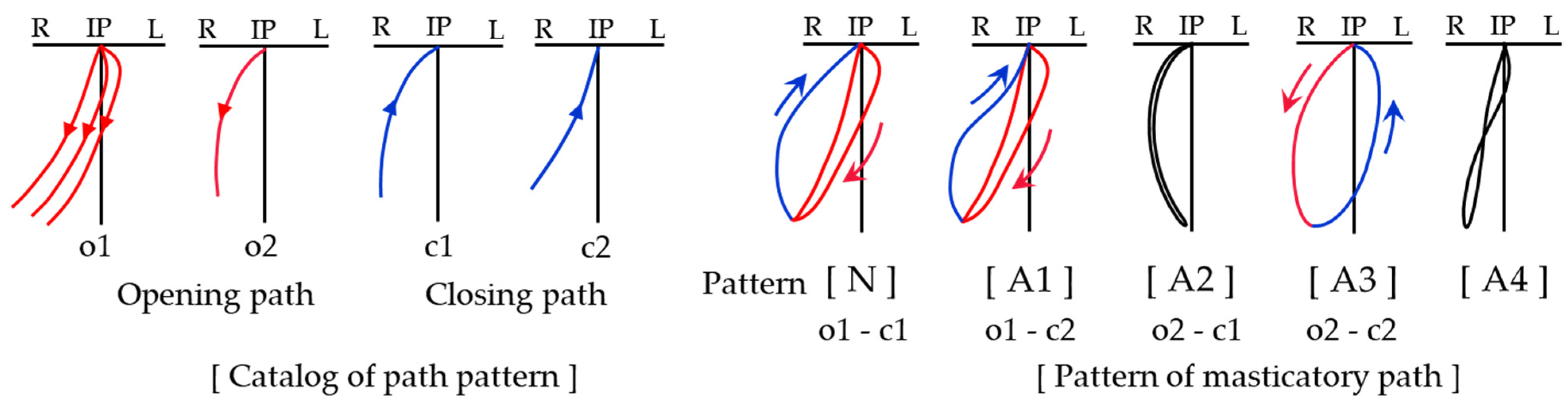

Figure 2. Catalog of path pattern and pattern of the masticatory path. IP: intercuspal position, R: right side, L: left side. N: normal pattern, A1–A4: abnormal pattern.
Figure 2. Catalog of path pattern and pattern of the masticatory path. IP: intercuspal position, R: right side, L: left side. N: normal pattern, A1–A4: abnormal pattern.
Prosthesis 05 00025 g002
Prosthesis 05 00025 g003 550

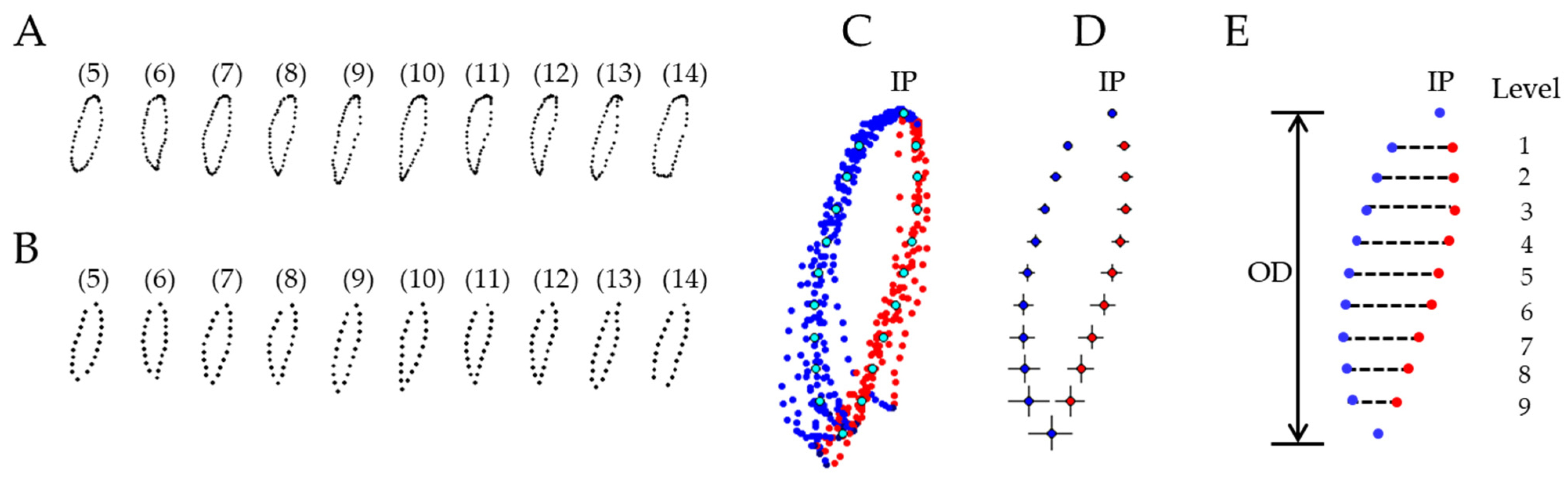

Figure 3. Method used to calculate average path, opening distance (OD), and masticatory width (example of participant 1). (A) 5–14 cycles on the right side chewing. (B) The coordinates for each cycle are determined by vertical division into 10 equally spaced sections. (C) Overlapping of each cycle and average path. IP: intercuspal position. (D) Average path and standard deviations of each level. (E) OD and width from the first to the ninth level.
Figure 3. Method used to calculate average path, opening distance (OD), and masticatory width (example of participant 1). (A) 5–14 cycles on the right side chewing. (B) The coordinates for each cycle are determined by vertical division into 10 equally spaced sections. (C) Overlapping of each cycle and average path. IP: intercuspal position. (D) Average path and standard deviations of each level. (E) OD and width from the first to the ninth level.
Prosthesis 05 00025 g003
Prosthesis 05 00025 g004 550

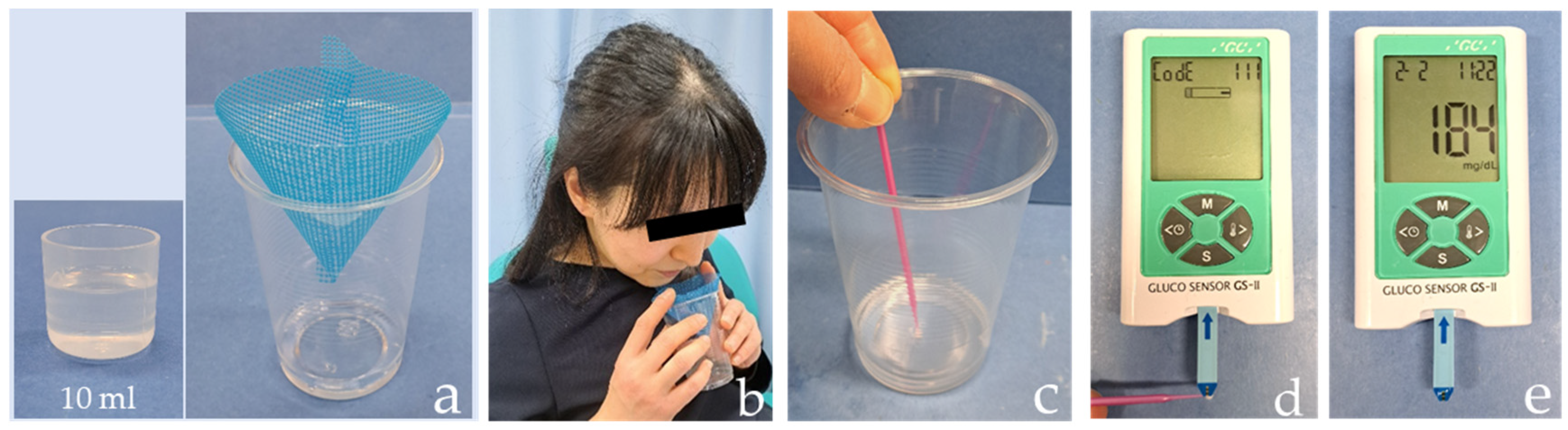

Figure 4. Procedures for measuring masticatory performance. (a) Water preparation: Prepare 10 mL of water in a cup and sieve. Have the participant chew the gummy jelly on the habitual chewing side for 20 s. (b) After chewing, have the participant hold 10 mL of water in the mouth and then spit it out along with the gummy jelly. (c–e) Collect the filtrate with a brush, and place it on the sensor tip. The glucose concentration will be displayed a few seconds later using a glucose-measuring device (GS-2, GC, Tokyo, Japan). This measured value is the amount of glucose eluted.
Figure 4. Procedures for measuring masticatory performance. (a) Water preparation: Prepare 10 mL of water in a cup and sieve. Have the participant chew the gummy jelly on the habitual chewing side for 20 s. (b) After chewing, have the participant hold 10 mL of water in the mouth and then spit it out along with the gummy jelly. (c–e) Collect the filtrate with a brush, and place it on the sensor tip. The glucose concentration will be displayed a few seconds later using a glucose-measuring device (GS-2, GC, Tokyo, Japan). This measured value is the amount of glucose eluted.
Prosthesis 05 00025 g004
Prosthesis 05 00025 g005 550

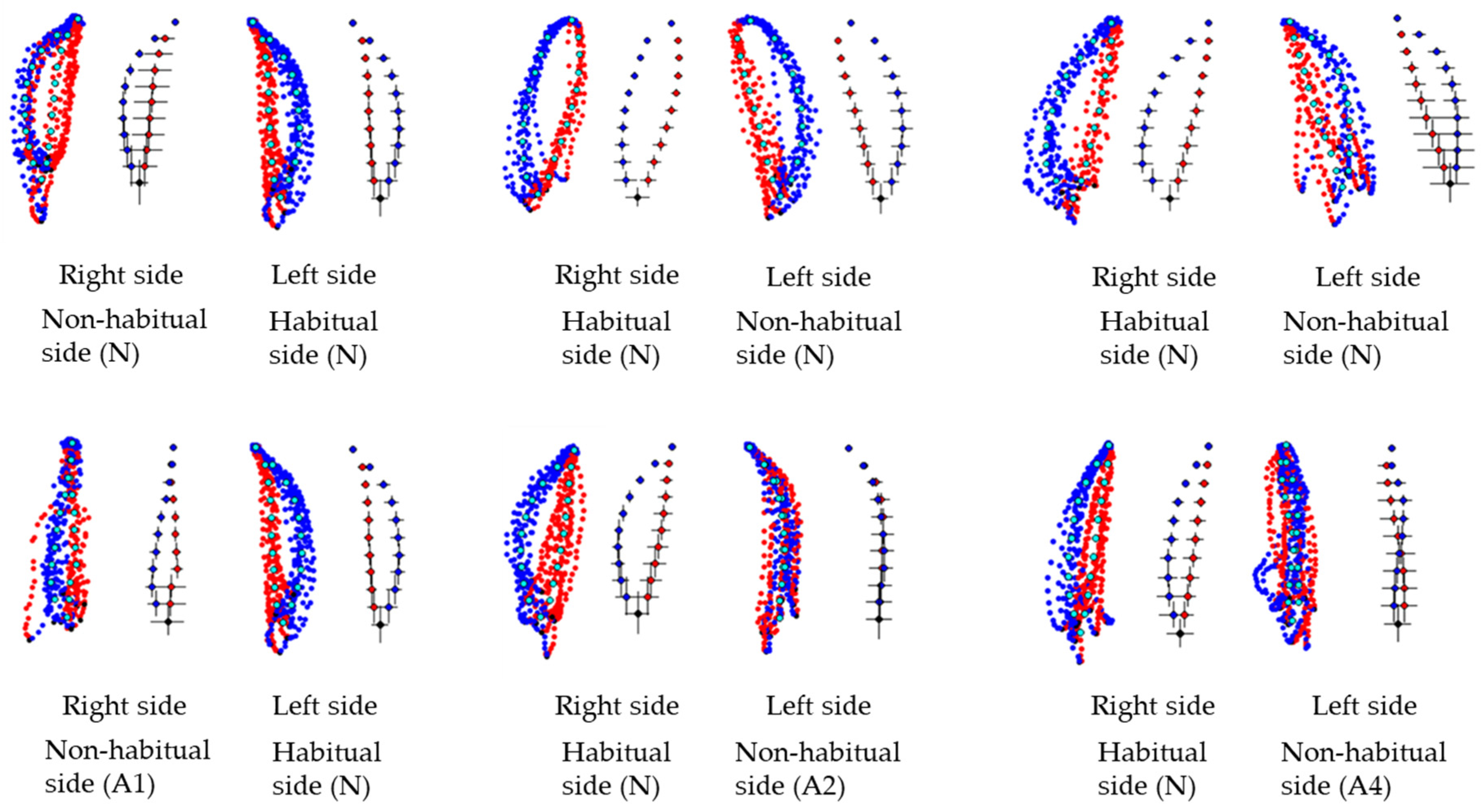

Figure 5. Examples of masticatory movements path for some participants.
Figure 5. Examples of masticatory movements path for some participants.
Prosthesis 05 00025 g005
Table
Table 1. Numerical data of the average path (example of participant 1).
Table 1. Numerical data of the average path (example of participant 1).
(mm)
LevelLateral
Opening		Lateral
Closing		WidthVertical
MeanSDMeanSDMeanSD
0 0.00.1 0.00.1 0.00.0
1−0.70.3 2.30.23.0 1.60.1
2−0.80.3 2.90.23.7 3.30.1
3−0.70.3 3.50.34.2 5.00.2
4−0.50.4 4.00.34.5 6.70.3
5−0.10.5 4.40.44.5 8.30.4
6−0.40.6 4.60.54.210.00.5
7 1.00.6 4.60.63.611.70.6
8 1.60.6 4.60.83.013.40.7
9 2.10.8 4.31.02.215.00.8
10 3.21.1 3.21.1 16.7 a0.8
Mean 0.56 0.553.6 b
a: Opening distance (OD), b: Masticatory width.
Table
Table 2. Numerical data of the opening, closing, occluding, and cycle times (example of participant 1).
Table 2. Numerical data of the opening, closing, occluding, and cycle times (example of participant 1).
(ms)
CycleOpening
Time		Closing
Time		Occluding
Time		Cycle
Time
1200220160580
2190230170590
3180250160590
4170220170560
5190230150570
6220210160590
7170240140550
8180220170570
9180220160560
10170240170580
Mean185228161573
Table
Table 3. Masticatory path pattern for all participants.
Table 3. Masticatory path pattern for all participants.
Participant1–1213–3435–4243–45
HabitualNNNA
Non-habitualNAAA
Right sideNNAA
Left sideNANA
N: Normal pattern, A: Abnormal pattern.
Table
Table 4. Frequency of masticatory path patterns.
Table 4. Frequency of masticatory path patterns.
Right SideLeft SideHabitual SideNon-Habitual Side
n%n%n%n%
Normal3373.33066.74293.3 2146.7
Abnormal1226.71533.336.7 2453.3
Table
Table 5. Means and standard deviations for the values of the movement path and movement rhythm.
Table 5. Means and standard deviations for the values of the movement path and movement rhythm.
Right SideLeft Sidep-Value
Movement path (mm)
  Opening distance15.0 ± 1.715.4 ± 2.00.471
  Masticatory width2.4 ± 0.72.2 ± 0.70.350
Movement rhythm (ms)
  Cycle time693.3 ± 82.7686.2 ± 69.40.104
Habitual SideNon-Habitual Sidep-Value
Movement path (mm)
  Opening distance15.9 ± 1.714.4 ± 1.6<0.001
  Masticatory width2.5 ± 0.72.1 ± 0.70.008
Movement rhythm (ms)
  Cycle time675.3 ± 71.8703.3 ± 82.30.004
Table
Table 6. Means and standard deviations for the values of the masticatory performance.
Table 6. Means and standard deviations for the values of the masticatory performance.
Right SideLeft Sidep-Value
Masticatory performance (mg/dL)150.7 ± 31.9151.1 ± 29.70.951
Habitual SideNon-Habitual Sidep-Value
Masticatory performance (mg/dL)162.6 ± 32.4139.2 ± 23.6<0.001
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yokoyama, M.; Shiga, H.; Ogura, S.; Sano, M.; Komino, M.; Takamori, H.; Uesugi, H.; Haga, K.; Murakami, Y. Functional Differences between Chewing Sides of Implant-Supported Denture Wearers. Prosthesis 2023, 5, 346-357. https://doi.org/10.3390/prosthesis5020025

AMA Style

Yokoyama M, Shiga H, Ogura S, Sano M, Komino M, Takamori H, Uesugi H, Haga K, Murakami Y. Functional Differences between Chewing Sides of Implant-Supported Denture Wearers. Prosthesis. 2023; 5(2):346-357. https://doi.org/10.3390/prosthesis5020025

Chicago/Turabian Style

Yokoyama, Masaoki, Hiroshi Shiga, Shin Ogura, Mako Sano, Marie Komino, Hitoshi Takamori, Hanako Uesugi, Keiji Haga, and Yoshikazu Murakami. 2023. "Functional Differences between Chewing Sides of Implant-Supported Denture Wearers" Prosthesis 5, no. 2: 346-357. https://doi.org/10.3390/prosthesis5020025

APA Style

Yokoyama, M., Shiga, H., Ogura, S., Sano, M., Komino, M., Takamori, H., Uesugi, H., Haga, K., & Murakami, Y. (2023). Functional Differences between Chewing Sides of Implant-Supported Denture Wearers. Prosthesis, 5(2), 346-357. https://doi.org/10.3390/prosthesis5020025

Article Metrics

Back to TopTop
