# Constraints on Nuclear Symmetry Energy Parameters

## Abstract

**:**

## 1. Introduction

## 2. The Nuclear Symmetry Energy

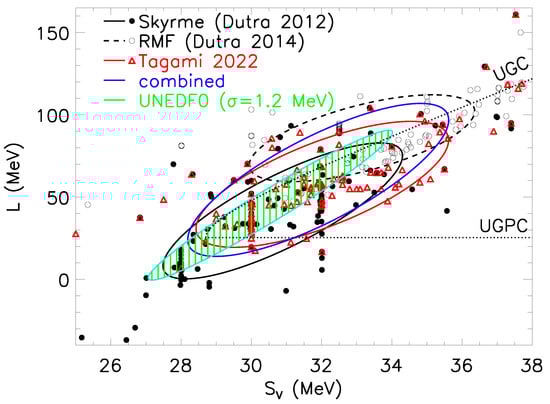

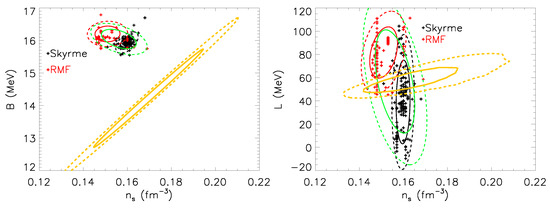

#### 2.1. Nuclear Mass Fitting

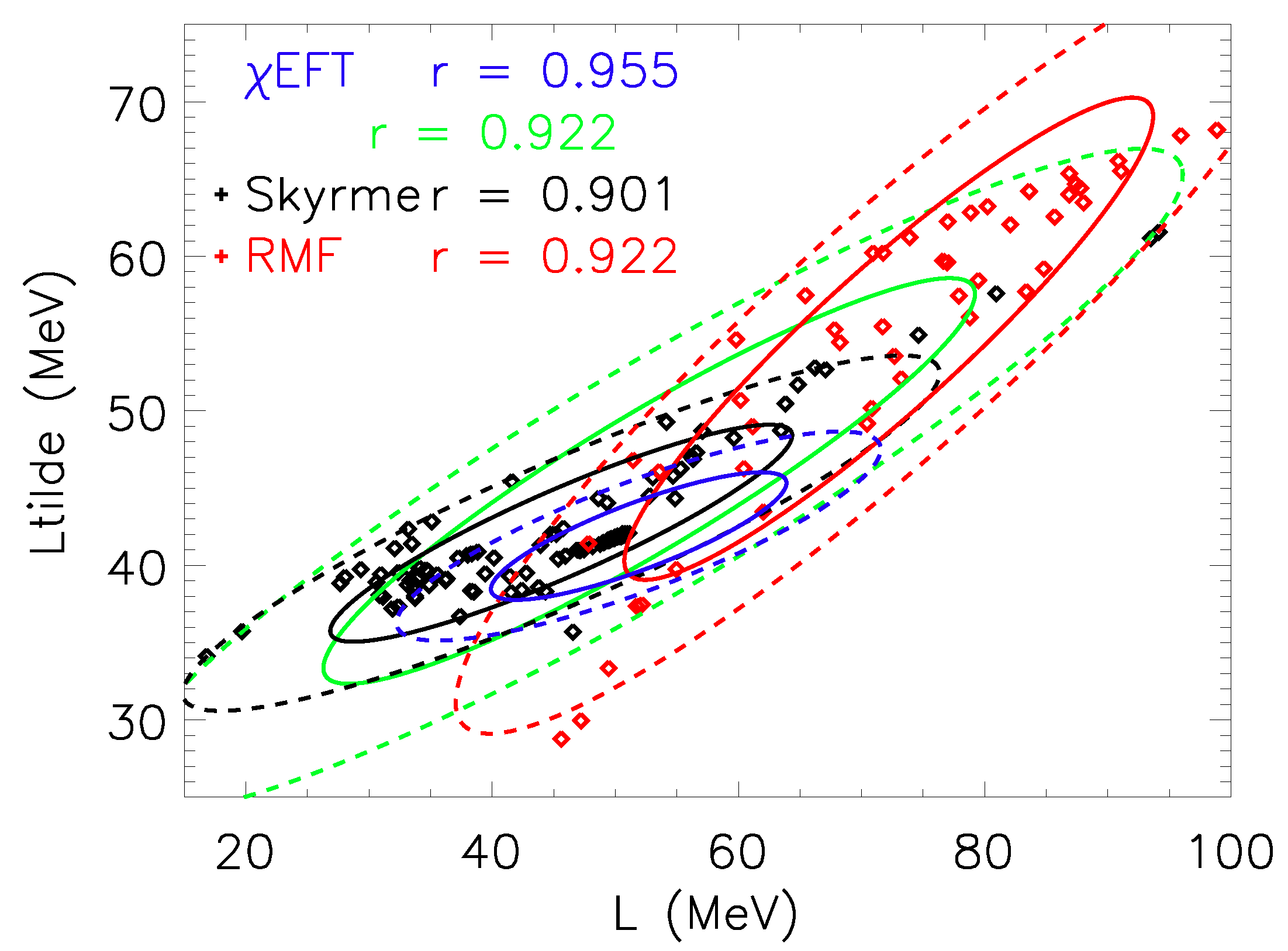

#### 2.2. Neutron Matter Theory

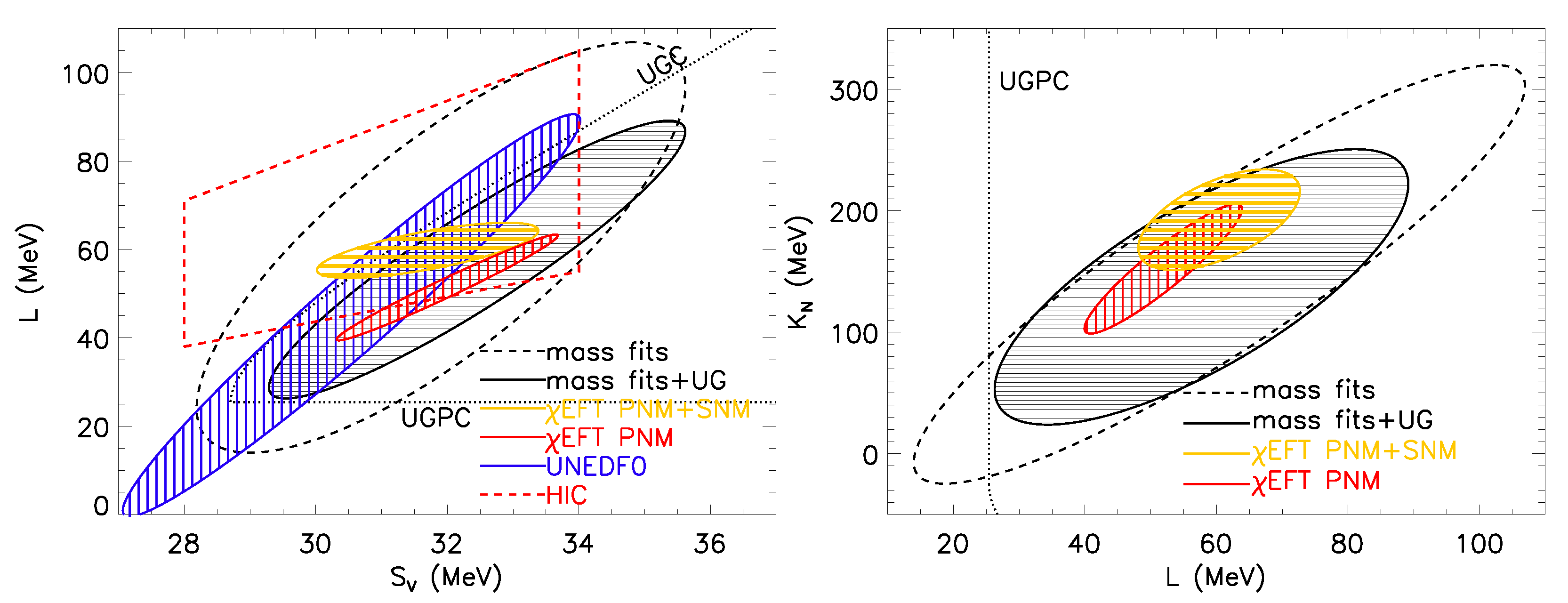

#### 2.3. The Unitary Gas Conjecture

## 3. Neutron Skin Thickness Constraints

#### 3.1. Neutron Skin Measurements and Correlations

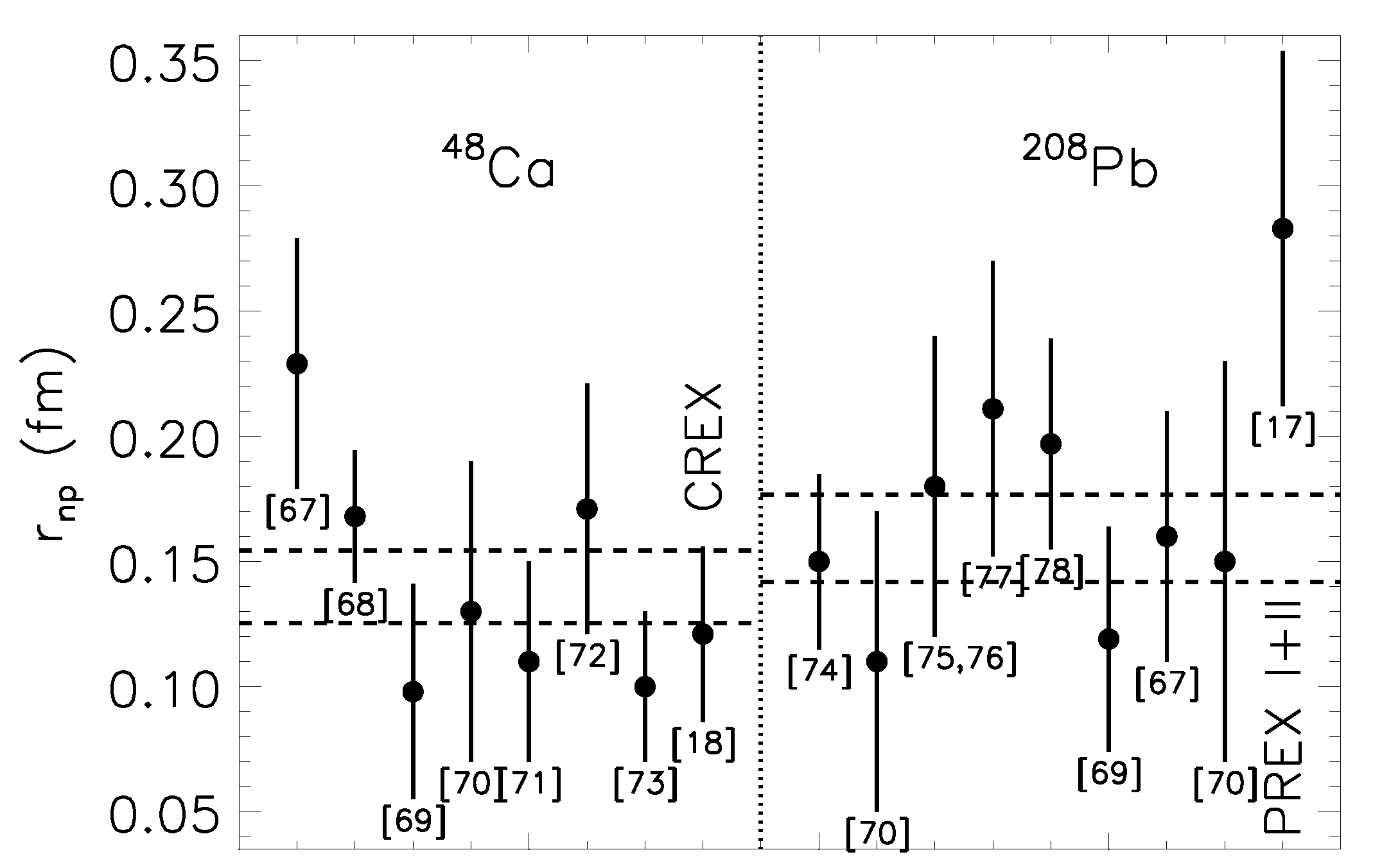

**Table 4.**${}^{208}$Pb neutron skin measurements and theoretical predictions with $1\sigma $ uncertainties.

${}^{208}$Pb Experiment | Reference | ${\mathit{r}}_{\mathit{np}}^{208}$ (fm) |
---|---|---|

Coherent ${\pi}^{0}\gamma $ production | [77] | ${0.15}_{-0.04}^{+0.03}$ |

Pionic atoms | [73] | $0.15\pm 0.08$ |

Pion scattering | [73] | $0.11\pm 0.06$ |

$\overline{p}$ annihilation | [78,79] | $0.18\pm 0.06$ |

Elastic polarized p scattering | [70] | $0.16\pm 0.05$ |

Elastic polarized p scattering | [80] | ${0.211}_{-0.063}^{+0.054}$ |

Elastic p scattering | [81] | $0.197\pm 0.042$ |

Elastic p scattering | [72] | $0.119\pm 0.045$ |

Parity-violating ${e}^{-}$ scattering (PREX I+II) | [17] | $0.283\pm 0.071$ |

${}^{208}$Pb experimental weighted mean | $0.166\pm 0.017$ | |

Pygmy dipole resonances | [82] | $0.180\pm 0.035$ |

${r}_{np}^{\mathrm{Sn}}$ | [83] | $0.175\pm 0.020$ |

Anti-analog giant dipole resonance | [84] | $0.216\pm 0.048$ |

Symmetry energy ${}^{208}$Pb | [85] | $0.158\pm 0.014$ |

Dispersive optical model | [86] | ${0.18}_{-0.12}^{+0.25}$ |

Dispersive optical model | [67] | $0.25\pm 0.05$ |

Coupled cluster expansion | [66] | $0.17\pm 0.03$ |

${r}_{np}^{48}$ | [63,64], this paper | $0.128\pm 0.040$ |

${\alpha}_{D}^{208}$ | [62], this paper | $0.154\pm 0.019$ |

${\alpha}_{D}^{208}$ | [20,64], this paper | $0.188\pm 0.017$ |

${}^{208}$Pb theoretical weighted mean | $0.170\pm 0.008$ |

**Table 5.**${}^{48}$Ca neutron skin measurements and theoretical predictions with $1\sigma $ uncertainties. * Uncertainty scaled upwards as per Ref. [87].

${}^{48}$Ca Experiment | Reference | ${\mathit{r}}_{\mathit{np}}^{48}$ (fm) |
---|---|---|

Elastic polarized p scattering | [70] | $0.229\pm 0.050$ |

Elastic p scattering | [76] | $0.10\pm 0.03$ |

Elastic p scattering | [72] | $0.098\pm 0.043$ |

Elastic p scattering | [71] | ${0.168}_{-0.028}^{+0.025}$ |

Pionic atoms | [73] | $0.13\pm 0.06$ |

Pion scattering | [74] | $0.11\pm 0.04$ |

$\alpha $ scattering | [75] | $0.171\pm 0.050$ |

Parity-violating ${e}^{-}$ scattering (CREX) | [18] | $0.121\pm 0.035$ |

${}^{48}$Ca experimental weighted mean | $0.137\pm 0.015$ * | |

Coupled-cluster expansion | [65] | $0.135\pm 0.015$ |

Dispersive optical model | [68] | $0.249\pm 0.023$ |

${r}_{np}^{208}$ | [63], this paper | $0.173\pm 0.018$ |

${}^{48}$Ca theoretical weighted mean | $0.17\pm 0.03$ * |

#### 3.2. Parity-Violating Electron Scattering Measurements

^{48}$Ca.$

## 4. Other Nuclear Methods

#### 4.1. Correlations from Nuclear Dipole Polarizabilities

#### 4.2. Correlations from Heavy Ion Collisions

## 5. Astrophysical Considerations

#### 5.1. Neutron Star Radii

_{s}, one should be wary of making predictions about neutron stars from them. Nevertheless, as shown in Figure 11, there is a clear correlation between L and R

_{1.4}. The correlation between P

_{NSM}(n) and R

_{1.4}turns out to be greatest at densities in the range 1.5–2n

_{s}[48], low enough that interaction models are still reliable. Note, however, that these models should not be used to constrain neutron star maximum masses, which are most sensitive to P

_{NSM}for n ≳ 3n

_{s}[48].

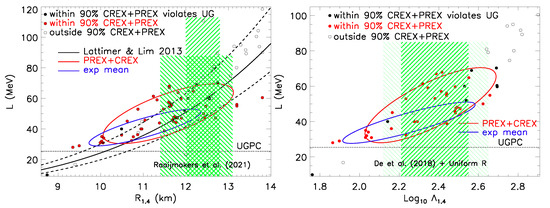

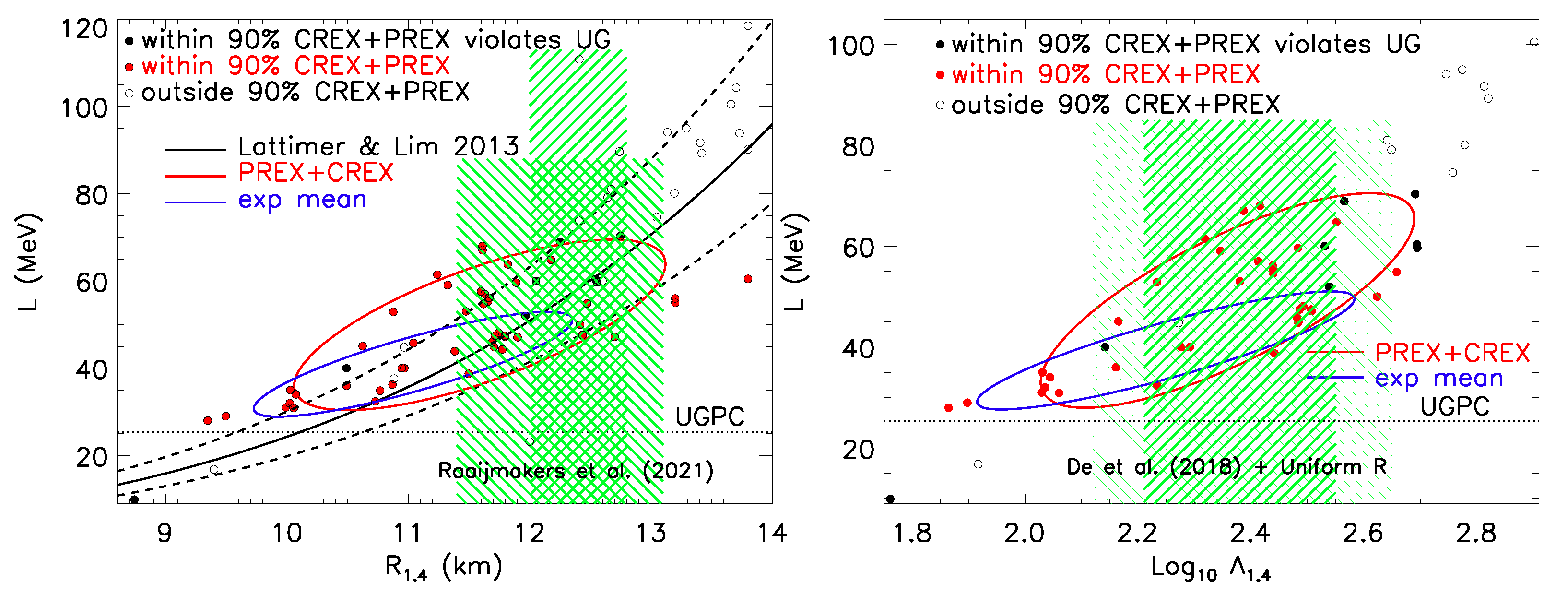

#### 5.2. Tidal Deformabilities and Radii

^{2}. It therefore follows that

## 6. Conclusions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

NS | neutron star | BNS | binary neutron stars |

EOS | equation of state | PSR | pulsar |

SNM | symmetric nuclear matter | PNM | pure neutron matter |

$\chi $EFT | chiral effective field theory | RMF | relativistic mean field |

UGC | Unitary Gas Conjecture | UGPC | Unitary Gas Pressure Conjecture |

NICER | Neutron Star Interior Composition ExploreR |

## References

- Steiner, A.W.; Prakash, M.; Lattimer, J.M.; Ellis, P. Isospin asymmetry in nuclei and neutron stars. Phys. Rep.
**2005**, 411, 325. [Google Scholar] [CrossRef] [Green Version] - Lattimer, J.M.; Prakash, M. Neutron star observations: Prognosis for equation of state constraints. Phys. Rep.
**2007**, 442, 109. [Google Scholar] [CrossRef] [Green Version] - Lattimer, J.M. Neutron Stars and the Nuclear Matter Equation of State. Annu. Rev. Nucl. Part. Sci.
**2021**, 71, 433. [Google Scholar] [CrossRef] - Swesty, F.D.; Lattimer, J.M.; Myra, E.S. The Role of the Equation of State in the “Prompt” Phase of Type II Supernovae. Astrophys. J.
**1994**, 425, 195. [Google Scholar] [CrossRef] - Roberts, L.F.; Shen, G.; Cirigliano, V.; Pons, J.A.; Reddy, S.; Woosley, S.E. Protoneutron Star Cooling with Convection: The Effect of the Symmetry Energy. Phys. Rev. Lett.
**2012**, 108, 061103. [Google Scholar] [CrossRef] [Green Version] - Morozova, V.; Radice, D.; Burrows, A.S.; Vartanyan, D. The gravitational wave signal from core-collapse supernovae. Astrophys. J.
**2018**, 861, 10. [Google Scholar] [CrossRef] - Lattimer, J.M.; Prakash, M. Neutron Star Structure and the Equation of State. Astrophys. J.
**2001**, 550, 426. [Google Scholar] [CrossRef] [Green Version] - Bauswein, A.; Janka, H.-T. Measuring Neutron-Star Properties via Gravitational Waves from Neutron-Star Mergers. Phys. Rev. Lett.
**2012**, 108, 011101. [Google Scholar] [CrossRef] [Green Version] - Lackey, B.D.; Kyutoku, K.; Shibata, M.; Brady, P.R.; Friedman, J.L. Extracting equation of state parameters from black hole-neutron star mergers. I. Nonspinning black holes. Phys. Rev. D
**2012**, 85, 044061. [Google Scholar] [CrossRef] [Green Version] - Page, D.; Reddy, S. Thermal and transport properties of the neutron star inner crust. In Neutron Star Crust; Bertulani, C.A., Piekarewicz, J., Eds.; Nova Science Publisheres: New York, NY, USA, 2021. [Google Scholar]
- Hurley, K.; Boggs, S.E.; Smith, D.M.; Duncan, R.C.; Lin, R.; Zoglauer, A.; Krucker, S.; Hurford, G.; Hudson, H.; Wigger, C.; et al. An exceptionally bright flare from SGR 1806–1820 and the origins of short-duration γ-ray bursts. Nature
**2005**, 434, 1098. [Google Scholar] [CrossRef] - Thompson, C.; Duncan, R.C. The giant flare of 1998 August 27 from SGR 1900+ 14. II. Radiative mechanism and physical constraints on the source. Astrophys. J.
**2001**, 561, 980. [Google Scholar] [CrossRef] [Green Version] - Samuelsson, L.; Andersson, N. Neutron star asteroseismology. Axial crust oscillations in the Cowling approximation. MNRAS
**2007**, 374, 256. [Google Scholar] [CrossRef] - Lattimer, J.M.; Pethick, C.J.; Prakash, M.; Haensel, P. Direct URCA process in neutron stars. Phys. Rev. Lett.
**1991**, 66, 2701. [Google Scholar] [CrossRef] - Nikolov, N.; Schunck, N.; Nazarewicz, W.; Bender, M.; Pei, J. Surface symmetry energy of nuclear energy density functionals. Phys. Rev. C
**2011**, 83, 034305. [Google Scholar] [CrossRef] [Green Version] - Drischler, C.; Holt, J.W.; Wellenhofer, C. Chiral Effective Field Theory and the High-Density Nuclear Equation of State. Annu. Rev. Nucl. Part. Sci.
**2021**, 71, 403. [Google Scholar] [CrossRef] - Adhikari, D.; Albataineh, H.; Androic, D.; Aniol, K.; Armstrong, D.S.; Averett, T.; Gayoso, C.A.; Barcus, S.; Bellini, V.; Beminiwattha, R.S.; et al. Accurate determination of the neutron skin thickness of
^{208}Pb through parity-violation in electron scattering. Phys. Rev. Lett.**2021**, 126, 172502. [Google Scholar] [CrossRef] - Adhikari, D.; Albatainen, H.; Androic, D.; Anioj, K.A.; Armstrong, D.S.; Averett, T.; Ayerbe Gayoso, C.; Barcus, S.K.; Bellini, V.; Beminiwattha, R.S.; et al. Precision determination of the neutral weak form factor of
^{48}Ca. Phys. Rev. Lett.**2022**, 129, 042501. [Google Scholar] [CrossRef] - Thiel, M.; Sfienti, C.; Piekarewicz, J.; Horowitz, C.J.; Vanderhaeghen, M. Neutron skins of atomic nuclei: Per aspera ad astra. J. Phys. G Nucl. Part. Phys.
**2019**, 46, 093003. [Google Scholar] [CrossRef] [Green Version] - Reed, B.T.; Fattoyev, F.J.; Horowitz, C.J.; Piekarewicz, J. Implications of PREX-2 on the equation of state of neutron-rich matter. Phys. Rev. Lett.
**2021**, 126, 172503. [Google Scholar] [CrossRef] - De, S.; Finstad, D.; Lattimer, J.M.; Brown, D.A.; Berger, E.; Biwer, C.M. Tidal deformabilities and radii of neutron stars from the observation of GW170817. Phys. Rev. Lett.
**2018**, 121, 091102. [Google Scholar] [CrossRef] - Abbott, B.P.; Abbott, R.; Abbott, T.D.; Acernese, F.; Ackley, K.; Adams, C.; Adams, T.; Addesso, P.; Adhikari, R.X.; Adya, V.B.; et al. Properties of the binary neutron star merger GW170817. Phys. Rev. X
**2019**, 9, 011001. [Google Scholar] [CrossRef] [Green Version] - Zhang, Z.; Chen, L.-W. Bayesian inference of the symmetry energy and the neutron skin in
^{48}Ca and^{208}Pb from CREX and PREX-2. arXiv**2022**, arXiv:2207.03328. [Google Scholar] - Reinhard, P.G.; Roca-Maza, X.; Nazarewicz, W. Combined theoretical analysis of the parity-violating asymmetry for
^{48}Ca and^{208}Pb. Phys. Rev. Lett.**2022**, 129, 232501. [Google Scholar] [CrossRef] [PubMed] - Miller, M.C.; Lamb, F.K.; Dittmann, A.J.; Bogdanov, S.; Arzoumanian, Z.; Gendreau, K.C.; Guillot, S.; Harding, A.K.; Ho, W.C.G.; Lattimer, J.M.; et al. PSR J0030+0451 Mass and Radius from NICER Data and Implications for the Properties of Neutron Star Matter. Astrophys. J. Lett.
**2019**, 887, L24. [Google Scholar] [CrossRef] [Green Version] - Riley, T.E.; Watts, A.L.; Bogdanov, S.; Ray, P.S.; Ludlam, R.M.; Guillot, S.; Arzoumanian, Z.; Baker, C.L.; Bilous, A.V.; Chakrabarty, D.; et al. A NICER view of PSR J0030+0451: Millisecond pulsar parameter estimation. Astrophys. J. Lett.
**2019**, 887, L21. [Google Scholar] [CrossRef] [Green Version] - Miller, M.C.; Lamb, F.K.; Dittmann, A.J.; Bogdanov, S.; Arzoumanian, Z.; Gendreau, K.C.; Guillot, S.; Ho, W.C.G.; Lattimer, J.M.; Loewenstein, M.; et al. The radius of PSR J0740+6620 from NICER and XMM-Newton data. Astrophys. J. Lett.
**2021**, 918, L28. [Google Scholar] [CrossRef] - Riley, T.E.; Watts, A.L.; Ray, P.S.; Bogdanov, S.; Guillot, S.; Morsink, S.M.; Bilous, A.V.; Arzoumanian, Z.; Choudhury, D.; Deneva, J.S.; et al. A NICER view of the massive pulsar PSR J0740+6620 informed by radio timing and XMM-Newton spectroscopy. Astrophys. J. Lett.
**2021**, 918, L27. [Google Scholar] [CrossRef] - Wellenhofer, C.; Holt, J.W.; Kaiser, N. Divergence of the isospin-asymmetry expansion of the nuclear equation of state in many-body perturbation theory. Phys. Rev. C
**2016**, 93, 055802. [Google Scholar] [CrossRef] [Green Version] - Agrawal, B.K.; Shlomo, S.; Au, V.K. Nuclear matter incompressibility coefficient in relativistic and nonrelativistic microscopic models. Phys. Rev. C
**2003**, 68, 031304. [Google Scholar] [CrossRef] [Green Version] - Todd-Rutel, B.G.; Piekarewicz, J. Neutron-rich nuclei and neutron stars: A new accurately calibrated interaction for the study of neutron-rich matter. Phys. Rev. Lett.
**2005**, 95, 122501. [Google Scholar] [CrossRef] [Green Version] - Audi, G.; Wapstra, A.H.; Thibault, C. The Ame2003 atomic mass evaluation: (II). Tables, graphs and references. Nucl. Phys. A
**2003**, 729, 337. [Google Scholar] [CrossRef] - Myers, W.D.; Swiatecki, W.J. Average nuclear properties. Ann. Phys.
**1969**, 55, 395. [Google Scholar] - Dutra, M.; Loureno, O.; Martins, J.S.S.; Delfino, A.; Stone, J.R.; Stevenson, P.D. Skyrme interaction and nuclear matter constraints. Phys. Rev.
**2012**, C85, 035201. [Google Scholar] [CrossRef] [Green Version] - Tews, I.; Lattimer, J.M.; Ohnishi, A.; Kolomeitsev, E.E. Symmetry parameter constraints from a lower bound on neutron-matter energy. Astrophys. J.
**2017**, 848, 105. [Google Scholar] [CrossRef] [Green Version] - Dutra, M.; Loureno, O.; Avancini, S.S.; Carlson, B.V.; Delfino, A.; Menezes, D.P.; Providencia, C.; Typel, S.; Stone, J.R. Relativistic mean-field hadronic models under nuclear matter constraints. Phys. Rev.
**2014**, C90, 055203. [Google Scholar] [CrossRef] - Tagami, S.; Wakasa, T.; Takechi, M.; Matsui, J.; Yahiro, M. Neutron skin in
^{48}Ca determined from p+^{48}Ca and^{48}Ca+^{12}C scattering. arXiv**2022**, arXiv:2201.08541. [Google Scholar] [CrossRef] - Kortelainen, M.; Lesinski, T.; Moré, J.; Nazarewicz, W.; Sarich, J.; Schunck, N.; NStoitsov, M.V.; Wild, S. Nuclear energy density optimization. Phys. Rev. C
**2010**, 82, 024313. [Google Scholar] [CrossRef] [Green Version] - Drischler, C.; Furnstahl, R.J.; Melendez, J.A.; Phillips, D.R. How well do we know the neutron-matter equation of state at the densities inside neutron stars? A Bayesian approach with correlated uncertainties. Phys. Rev. Lett.
**2020**, 125, 202702. [Google Scholar] [CrossRef] - Weinberg, S. Precise relations between the spectra of vector and axial-vector mesons. Phys. Rev. Lett.
**1967**, 18, 507. [Google Scholar] [CrossRef] [Green Version] - Weinberg, S. Nonlinear realizations of chiral symmetry. Phys. Rev.
**1968**, 166, 1568. [Google Scholar] [CrossRef] - Epelbaum, E.; Hammer, H.-W.; Meissner, U.-G. Modern theory of nuclear forces. Rev. Mod. Phys.
**2009**, 81, 1773. [Google Scholar] [CrossRef] - Machleidt, R.; Entem, D. Chiral effective field theory and nuclear forces. Phys. Rep.
**2011**, 503, 1. [Google Scholar] [CrossRef] - Hammer, H.-W.; König, S.; van Kolck, U. Nuclear effective field theory: Status and perspectives. Rev. Mod. Phys.
**2020**, 92, 025004. [Google Scholar] [CrossRef] - Tews, I.; Davoudi, Z.; Ekström; Holt, J.D.; Lynn, J.E. New Ideas in Constraining Nuclear Forces. J. Phys. G
**2020**, 47, 103001. [Google Scholar] [CrossRef] - Drischler, C.; Hebeler, K.; Schwenk, A. Chiral interactions up to next-to-next-to-next-to-leading order and nuclear saturation. Phys. Rev. Lett.
**2019**, 122, 042501. [Google Scholar] [CrossRef] [Green Version] - Leonhardt, M.; Pospiech, M.; Schallmo, B.; Braun, J.; Drischler, C.; Hebeler, K.; Schwenk, A. Symmetric nuclear matter from the strong interaction. Phys. Rev. Lett.
**2020**, 125, 142502. [Google Scholar] [CrossRef] - Drischler, C.; Han, S.; Lattimer, J.M.; Prakash, M.; Reddy, S.; Zhao, T. Limiting masses and radii of neutron stars and their implications. Phys. Rev. C
**2021**, 103, 045808. [Google Scholar] [CrossRef] - Drischler, C.; Melendez, J.A.; Furnstahl, R.J.; Phillips, D.R. Quantifying uncertainties and correlations in the nuclear-matter equation of state. Phys. Rev. C
**2020**, 102, 054315. [Google Scholar] [CrossRef] - Tsang, M.B.; Zhang, Y.X.; Danielewicz, P.; Famiano, M.; Li, Z.-X.; Lynch, W.G.; Steiner, A.W. Constraints on the density dependence of the symmetry energy. Phys. Rev. Lett.
**2009**, 102, 122701. [Google Scholar] [CrossRef] [Green Version] - Hebeler, K.; Lattimer, J.M.; Pethick, C.J.; Schwenk, A. Constraints on Neutron Star Radii Based on Chiral Effective Field Theory Interactions. Phys. Rev. Lett.
**2010**, 105, 161102. [Google Scholar] [CrossRef] - Ku, M.J.H.; Sommer, A.T.; Cheui, L.W.; Zwierlein, M.W. Revealing the superfluid lambda transition in the universal thermodynamics of a unitary Fermi gas. Science
**2012**, 335, 563. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zürn, G.; Lompe, T.; Wenz, A.N.; Jochim, S.; Julienne, P.S.; Hutson, J.M. Precise characterization of
^{6}Li Feshbach resonances using trap-sideband-resolved RF spectroscopy of weakly bound molecules. Phys. Rev. Lett.**2013**, 110, 135301. [Google Scholar] [CrossRef] [PubMed] - Zhao, T.; Lattimer, J.M. Tidal deformabilities and neutron star mergers. Phys. Rev. D
**2018**, 98, 063020. [Google Scholar] [CrossRef] [Green Version] - Brown, B.A. Neutron radii in nuclei and the neutron equation of state. Phys. Rev. Lett.
**2000**, 85, 5296. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Centelles, M.; Roca-Maza, X.; Vinas, X.; Warda, M. Nuclear symmetry energy probed by neutron skin thickness of nuclei. Phys. Rev. Lett.
**2009**, 102, 122502. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Typel, S.; Brown, B.A. Neutron radii and the neutron equation of state in relativistic models. Phys. Rev. C
**2001**, 64, 027302. [Google Scholar] [CrossRef] - Xu, J.; Xie, W.-J.; Li, B.-A. Bayesian inference of nuclear symmetry energy from measured and imagined neutron skin thickness in
^{116,118,120,122,124,130,132}Sn,^{208}Pb, and^{48}Ca. Phys. Rev. C**2020**, 102, 044316. [Google Scholar] [CrossRef] - Zhang, Z.; Chen, L.-W. Constraining the symmetry energy at subsaturation densities using isotope binding energy difference and neutron skin thickness. Phys. Lett. B
**2013**, 726, 234. [Google Scholar] [CrossRef] [Green Version] - Brown, B.A. Mirror charge radii and the neutron equation of state. Phys. Rev. Lett.
**2017**, 119, 122502. [Google Scholar] [CrossRef] [Green Version] - Furnstahl, R.J. Neutron radii in mean-field models. Nucl. Phys.
**2002**, A706, 85. [Google Scholar] [CrossRef] [Green Version] - Reinhard, P.-G.; Roca-Maza, X.; Nazarewicz, W. Information content of the parity-violating asymmetry in
^{208}Pb. Phys. Rev. Lett.**2021**, 127, 232501. [Google Scholar] [CrossRef] [PubMed] - Horowitz, C.J.; Kumar, K.S.; Michaels, R. Electroweak measurements of neutron densities in CREX and PREX at JLab, USA. Eur. Phys. J. A
**2014**, 50, 48. [Google Scholar] [CrossRef] - Piekarewicz, J.; Agrawal, B.K.; Colò, G.; Nazarewicz, W.; Paar, N.; Reinhard, P.-G.; Roca-Maza, X.; Vretenar, D. Electric dipole polarizability and the neutron skin. Phys. Rev. C
**2012**, 85, 041302. [Google Scholar] [CrossRef] [Green Version] - Hagen, G.; Ekström, A.; Forssén, C.; Jansen, G.R.; Nazarewicz, W.; Papenbrock, T.; Wendt, K.A.; Bacca, S.; Barnea, N.; Carlsson, B.; et al. Neutron and weak-charge distributions of the
^{48}Ca nucleus. Nat. Phys.**2016**, 12, 186. [Google Scholar] - Hu, B.; Jiang, W.; Miyagi, T.; Sun, Z.; Ekström, A.; Forssén, C.; Hagen, G.; Holt, J.D.; Papenbrock, T.; Stroberg, S.R.; et al. Ab initio predictions link the neutron skin of
^{208}Pb to nuclear forces. Nature Phys.**2021**, 18, 1196. [Google Scholar] [CrossRef] - Atkinson, M.C.; Mahzoon, M.H.; Keim, M.A.; Bordelon, B.A.; Pruitt, C.D.; Charity, R.J.; Dickhoff, W.H. Dispersive optical model analysis of
^{208}Pb generating a neutron-skin prediction beyond the mean field. Phys. Rev. C**2020**, 101, 044303. [Google Scholar] [CrossRef] [Green Version] - Mahzoon, M.H.; Atkinson, M.C.; Charity, R.J.; Dickhoff, W.H. Precision Determination of the Neutral Weak Form Factor of
^{48}Ca. Phys. Rev. Lett.**2017**, 119, 22503. [Google Scholar] - Reinhard, P.-G.; Piekarewicz, J.; Nazarewicz, W.; Agrawal, B.K.; Paar, N.; Roca-Maza, X. Information content of the weak-charge form factor. Phys. Rev. C
**2013**, 88, 034325. [Google Scholar] [CrossRef] [Green Version] - Ray, L. Neutron isotopic density differences deduced from 0.8 GeV polarized proton elastic scattering. Phys. Rev. C
**1979**, 19, 1855. [Google Scholar] [CrossRef] - Zenhiro, J.; Sakaguchi, H.; Terashima, S.; Uesaka, T.; Hagen, G.; Itoh, M.; Murakami, T.; Nakatsugawa, Y.; Ohnishi, T.; Sagawa, H.; et al. Direct determination of the neutron skin thicknesses in
^{40,48}Ca from proton elastic scattering at Ep = 295 MeV. arXiv**2018**, arXiv:1810.11796. [Google Scholar] - Clark, B.C.; Kerr, L.J.; Hama, S. Neutron densities from a global analysis of medium-energy proton-nucleus elastic scattering. Phys. Rev. C
**2003**, 67, 054605. [Google Scholar] [CrossRef] [Green Version] - Friedman, E. Neutron skins of
^{208}Pb and^{48}Ca from pionic probes. Nucl. Phys. A**2012**, 896, 46. [Google Scholar] [CrossRef] [Green Version] - Gibbs, W.R.; Dedonduer, J.-P. Neutron radii of the calcium isotopes. Phys. Rev. C
**1992**, 46, 1825. [Google Scholar] [CrossRef] [PubMed] - Gils, H.J.; Rebel, H.; Friedman, E. Isotopic and isotonic differences between α particle optical potentials and nuclear densities of 1${f}_{\frac{7}{2}}$ nuclei. Phys. Rev. C
**1984**, 29, 1295. [Google Scholar] [CrossRef] - Shlomo, S.; Schaeffer, R. The difference between neutron and proton radii in the Ca isotopes. Phys. Lett. B
**1979**, 83, 5. [Google Scholar] [CrossRef] - Tarbert, C.M.; Watts, D.P.; Glazier, D.I.; Aguar, P.; Ahrens, J.; Annand, J.R.M.; Arends, H.J.; Beck, R.; Bekrenev, V.; Boillat, B.; et al. Neutron Skin of
^{208}Pb from Coherent Pion Photoproduction. Phys. Rev. Lett.**2014**, 112, 242502. [Google Scholar] [CrossRef] [Green Version] - Brown, B.A.; Shen, G.; Hillhouse, G.C.; Meng, J.; Trzcinska, A. Neutron skin deduced from antiprotonic atom data. Phys. Rev. C
**2007**, 76, 034305. [Google Scholar] [CrossRef] [Green Version] - Brown, B.A.; Shen, G.; Hillhouse, G.C.; Meng, J.J.; Trzcinska, A. Neutron density distributions from antiprotonic
^{208}Pb and^{209}Bi atoms. Phys. Rev. C**2007**, 76, 014311. [Google Scholar] - Zenhiro, J.; Sakaguchi, H.; Murakami, T.; Yosoi, M.; Yasuda, Y.; Terashima, S.; Iwao, Y.; Takeda, H.; Itoh, M.; Yoshida, H.P.; et al. Neutron density distributions of
^{204,206,208}Pb deduced via proton elastic scattering at Ep = 295 MeV. Phys. Rev. C**2010**, 82, 044611. [Google Scholar] - Starodubnsky, V.E.; Hintz, N.M. Extraction of neutron densities from elastic proton scattering by
^{206,207,208}Pb at 650 MeV. Phys. Rev. C**1994**, 49, 2118. [Google Scholar] [CrossRef] - Klimkiewicz, A.; Paar, N.; Adrich, P.; Fallot, M.; Boretzky, K.; Aumann, T.; Cortina-Gil, D.; Pramanik, U.D.; Elze, T.W.; Emling, H.; et al. Nuclear symmetry energy and neutron skins derived from pygmy dipole resonances. Phys. Rev. C
**2007**, 76, 051603. [Google Scholar] [CrossRef] [Green Version] - Chen, L.-W.; Ko, C.; Li, B.-A.; Xu, J. Density slope of the nuclear symmetry energy from the neutron skin thickness of heavy nuclei. Phys. Rev. C
**2010**, 82, 024321. [Google Scholar] [CrossRef] [Green Version] - Yasuda, J.; Wakasa, T.; Okamoto, M.; Dozono, M.; Hatanaka, K.; Ichimura, M.; Kuroita, S.; Maeda, Y.; Noro, T.; Sakemi, Y.; et al. Anti-Analog Giant Dipole Resonance and the Neutron Skin in
^{208}Pb. JPS Conf. Proc.**2014**, 1, 013036. [Google Scholar] - Dong, J.; Zuo, W.; Gu, J. Constraints on neutron skin thickness in
^{208}Pb and density-dependent symmetry energy. Phys. Rev. C**2015**, 91, 034315. [Google Scholar] [CrossRef] [Green Version] - Pruitt, C.D.; Charity, R.J.; Sobotka, L.G.; Atkinson, M.C.; Dickhoff, W.H. Systematic Matter and Binding-Energy Distributions from a Dispersive Optical Model Analysis. Phys. Rev. Lett.
**2020**, 125, 102501. [Google Scholar] [CrossRef] - Zyla, P.A.; Barnett, R.M.; Beringer, J.; Dahl, O.; Dwyer, D.A.; Groom, D.E.; Lin, C.J.; Lugovsky, K.S.; Pianori, E.; Robinson, D.J.; et al. Review of Particle Physics. Prog. Theor. Exp. Phys.
**2020**, 2020, 083C01. [Google Scholar] - Danielewicz, P.; Lee, J. Symmetry energy II: Isobaric analog states. Nucl. Phys. A
**2014**, 922, 1–70. [Google Scholar] [CrossRef] [Green Version] - Roca-Maza, X.; Viñas, X.; Centelles, M.; Agrawal, B.K.; Colò, G.; Paar, N.; Piekarewicz, J.; Vretenar, D. Neutron skin thickness from the measured electric dipole polarizability in
^{68}Ni,^{120}Sn, and^{208}Pb. Phys. Rev. C**2015**, 92, 064304. [Google Scholar] [CrossRef] [Green Version] - Roca-Maza, X.; Brenna, M.; Colò, G.; Centelles, M.; Viñas, X.; Agrawal, B.K.; Paa, N.; Vretenar, D.; Piekarewicz, J.R. Electric dipole polarizability in
^{208}Pb: Insights from the droplet model. Phys. Rev. C**2013**, 88, 024316. [Google Scholar] [CrossRef] - Tamii, A. Complete Electric Dipole Response and the Neutron Skin in
^{208}Pb. Phys. Rev. Lett.**2011**, 107, 062502. [Google Scholar] [CrossRef] [Green Version] - Hashimoto, T.; Krumbholz, A.M.; Reinhard, P.G.; Tamii, A.; von Neumann-Cosel, P.; Adachi, T.; Aoi, N.; Bertulani, C.A.; Fujita, H.; Fujita, Y.; et al. Dipole polarizability of
^{120}Sn and nuclear energy density functionals. Phys. Rev. C**2015**, 92, 031305. [Google Scholar] [CrossRef] [Green Version] - Birkhan, J.; Miorelli, M.; Bacca, S.; Bassauer, S.; Bertulani, C.A.; Hagen, G.; Matsubara, H.; von Neumann-Cosel, P.; Papenbrock, T.; Pietralla, N.; et al. Electric Dipole Polarizability of
^{48}Ca and Implications for the Neutron Skin. Phys. Rev. Lett.**2017**, 118, 252501. [Google Scholar] [CrossRef] [Green Version] - Trippa, L.; Coló, G.; Vigezzi, E. Giant dipole resonance as a quantitative constraint on the symmetry energy. Phys. Rev. C
**2008**, 77, 061304. [Google Scholar] [CrossRef] - Zhang, Z.; Chen, L.-W. Electric dipole polarizability in
^{208}Pb as a probe of the symmetry energy and neutron matter around ρ_{0}/3. Phys. Rev. C**2015**, 92, 031301. [Google Scholar] [CrossRef] [Green Version] - Piekarewicz, J. Implications of PREX-2 on the electric dipole polarizability of neutron rich nuclei. Phys. Rev. C
**2021**, 104, 024329. [Google Scholar] [CrossRef] - Terashima, S.; Sakaguchi, H.; Takeda, H.; Ishikawa, T.; Itoh, M.; Kawabata, T.; Murakami, T.; Uchida, M.; Yasuda, Y.; Yosoi, M.; et al. Proton elastic scattering from tin isotopes at 295 MeV and systematic change of neutron density distributions. Phys. Rev. C
**2008**, 77, 024317. [Google Scholar] [CrossRef] [Green Version] - Karsznahorkay, A.; Fujiwara, M.; van Aarle, P.; Akimune, H.; Daito, I.; Fujimura, H.; Fujita, Y.; Harakeh, M.N.; Inomata, T.; Jänecke, J.; et al. Excitation of Isovector Spin-Dipole Resonances and Neutron Skin of Nuclei. Phys. Rev. Lett.
**1999**, 82, 3216. [Google Scholar] [CrossRef] - Trzcinska, A.; Jastrzȩbski, J.; Lubiński, P.; Hartmann, F.J.; Schmidt, R.; von Egidy, T.; Kłos, B. Neutron Density Distributions Deduced from Antiprotonic Atoms. Phys. Rev. Lett.
**2001**, 87, 082501. [Google Scholar] [CrossRef] - Xie, W.-J.; Li, B.-A. Bayesian inference of the incompressibility, skewness and kurtosis of nuclear matter from empirical pressures in relativistic heavy-ion collisions. J. Phys. G Nucl. Part. Phys.
**2021**, 48, 025110. [Google Scholar] [CrossRef] - Fuchs, C. Kaon production in heavy ion reactions at intermediate energies. Prog. Part. Nucl. Phys.
**2006**, 56, 1. [Google Scholar] [CrossRef] [Green Version] - Danielewicz, P.; Lacey, R.; Lynch, W.G. The Equation of State of Nuclear Matter and Neutron Stars Properties. Science
**2002**, 298, 1592. [Google Scholar] [CrossRef] [Green Version] - Laue, F.; Sturm, C.; Böttcher, I.; Dȩbowski, M.; Förster, A.; Grosse, E.; Koczoń, P.; Kohlmeyer, B.; Mang, M.; Naumann, L.; et al. Medium Effects in Kaon and Antikaon Production in Nuclear Collisions at Subthreshold Beam Energies. Phys. Rev. Lett.
**1999**, 82, 1640. [Google Scholar] [CrossRef] [Green Version] - Ivanov, E.I.; Stienike, D.L.; Ryabchikov, D.I.; Adams, G.S.; Adams, T.; Bar-Yam, Z.; Bishop, J.M.; Bodyagin, V.A.; Brown, D.S.; Cason, N.M.; et al. Observation of Exotic Meson Production in the Reaction π
^{−}p→η′π^{−}p at 18 GeV/c. Phys. Rev. Lett.**2001**, 86, 3977–3980. [Google Scholar] [CrossRef] [Green Version] - Partlan, M.D.; Albergo, S.; Bieser, F.; Brady, F.P.; Caccia, Z.; Cebra, D.; Chacon, A.D.; Chance, J.; Choi, Y.; Costa, S.; et al. Fragment Flow in Au +Au Collisions. Phys. Rev. Lett.
**1995**, 75, 2100. [Google Scholar] [CrossRef] [Green Version] - Liu, H.; Ajitanand, N.N.; Alexander, J.; Anderson, M.; Best, D.; Brady, F.P.; Case, T.; Caskey, W.; Cebra, D.; Chance, J.; et al. Sideward Flow in Au+Au Collisions between 2A and 8A GeV. Phys. Rev. Lett.
**2000**, 84, 5488. [Google Scholar] [CrossRef] - Pinkenburg, C.; Ajitanand, N.N.; Alexander, J.M.; Anderson, M.; Best, D.; Brady, F.P.; Case, T.; Caskey, W.; Cebra, D.; Chance, J.L.; et al. Elliptic Flow: Transition from Out-of-Plane to In-Plane Emission in Au+Au Collisions. Phys. Rev. Lett.
**1999**, 83, 1295. [Google Scholar] [CrossRef] [Green Version] - Braun-Munzinger, P.; Stachel, J. Dynamics of ultra-relativistic nuclear collisions with heavy beams: An experimental overview. Nucl. Phys. A
**1998**, 638, 3c. [Google Scholar] [CrossRef] [Green Version] - Xiao, Z.; Li, B.-A.; Chen, L.-W.; Yong, G.-C.; Zhang, M. Circumstantial Evidence for a Soft Nuclear Symmetry Energy at Suprasaturation Densities. Phys. Rev. Lett.
**2009**, 102, 062502. [Google Scholar] [CrossRef] [Green Version] - Feng, Z.-Q.; Jin, G.-M. Probing high-density behavior of symmetry energy from pion emission in heavy-ion collisions. Phys. Lett. B
**2010**, 683, 140. [Google Scholar] [CrossRef] - Xie, W.-J.; Su, J.; Zhu, L.; Zhang, F.-S. Symmetry energy and pion production in the Boltzmann-Langevin approach. Phys. Lett. B
**2013**, 718, 1510. [Google Scholar] [CrossRef] [Green Version] - Tsang, M.B.; Liu, T.X.; Shi, L.; Danielewicz, P.; Gelbke, C.K.; Liu, X.D.; Lynch, W.G.; Tan, W.P.; Verde, G.; Wagner, A.; et al. Isospin Diffusion and the Nuclear Symmetry Energy in Heavy Ion Reactions. Phys. Rev. Lett.
**2004**, 92, 062701. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Liu, T.-X.; Lynch, W.G.; Tsang, M.B.; Liu, X.D.; Shomin, R.; Tan, W.P.; Verde, G.; Wagner, A.; Xi, H.F.; Xu, H.S.; et al. Isospin diffusion observables in heavy-ion reactions. Phys. Rev. C
**2007**, 76, 034603. [Google Scholar] [CrossRef] [Green Version] - Famiano, M.A.; Liu, T.; Lynch, W.G.; Mocko, M.; Rogers, A.M.; Tsang, M.B.; Wallace, M.S.; Charity, R.J.; Komarov, S.; Sarantites, D.G.; et al. Neutron and proton transverse emission ratio measurements and the density dependence of the asymmetry term of the nuclear equation of state. Phys. Rev. Lett.
**2006**, 97, 052701. [Google Scholar] [CrossRef] [Green Version] - Cozma, M.D.; Leifels, Y.; Trautmann, W.; Li, Q.; Russotto, P. Toward a model-independent constraint of the high-density dependence of the symmetry energy. Phys. Rev. C
**2013**, 88, 044912. [Google Scholar] [CrossRef] [Green Version] - Yong, G.-C.; Guo, Y.-F. Probing High-density Symmetry Energy Using Heavy-ion Collisions at Intermediate Energies. Nucl. Phys. Rev.
**2020**, 37, 136. [Google Scholar] - Cozma, M.D.; Tsang, M.B. In-medium Δ(1232) potential, pion production in heavy-ion collisions and the symmetry energy. Eur. Phys. J. A
**2021**, 57, 309. [Google Scholar] [CrossRef] - Jhang, G.; Estee, J.; Barney, J.; Cerizza, G.; Kaneko, M.; Lee, J.W.; Lynch, W.G.; Isobe, T.; Kurata-Nishimura, M.; Murakami, T.; et al. Symmetry energy investigation with pion production from Sn+Sn systems. Phys. Lett. B
**2021**, 813, 136016. [Google Scholar] [CrossRef] - Abbott, B.; Abbott, A.; Abbott, T.D.; Acernese, F.; Ackley, K.; Adams, C.; Adams, T.; Addesso, P.; Adhikari, R.X.; Adya, V.B.; et al. GW170817: Observation of Gravitational Waves from a Binary Neutron Star Inspiral. Phys. Rev. Lett.
**2017**, 119, 161101. [Google Scholar] [CrossRef] [Green Version] - Raaijmakers, G.; Greif, S.K.; Hebeler, K.; Hinderer, T.; Nissanke, S.; Schwenk, A.; Riley, T.E.; Watts, A.L.; Lattimer, J.M.; Ho, W.C.G. Constraints on the Dense Matter Equation of State and Neutron Star Properties from NICER’s Mass–Radius Estimate of PSR J0740+6620 and Multimessenger Observations. Ap. J. Lett.
**2021**, 918, L29. [Google Scholar] [CrossRef] - Lattimer, J.M.; Lim, Y. Constraining the Symmetry Parameters of the Nuclear Interaction. Astrophys. J.
**2013**, 771, 51. [Google Scholar] [CrossRef] - Lattimer, J.M. The Nuclear Equation of State and Neutron Star Masses. Annu. Rev. Nucl. Part. Sci.
**2012**, 62, 485. [Google Scholar] [CrossRef]

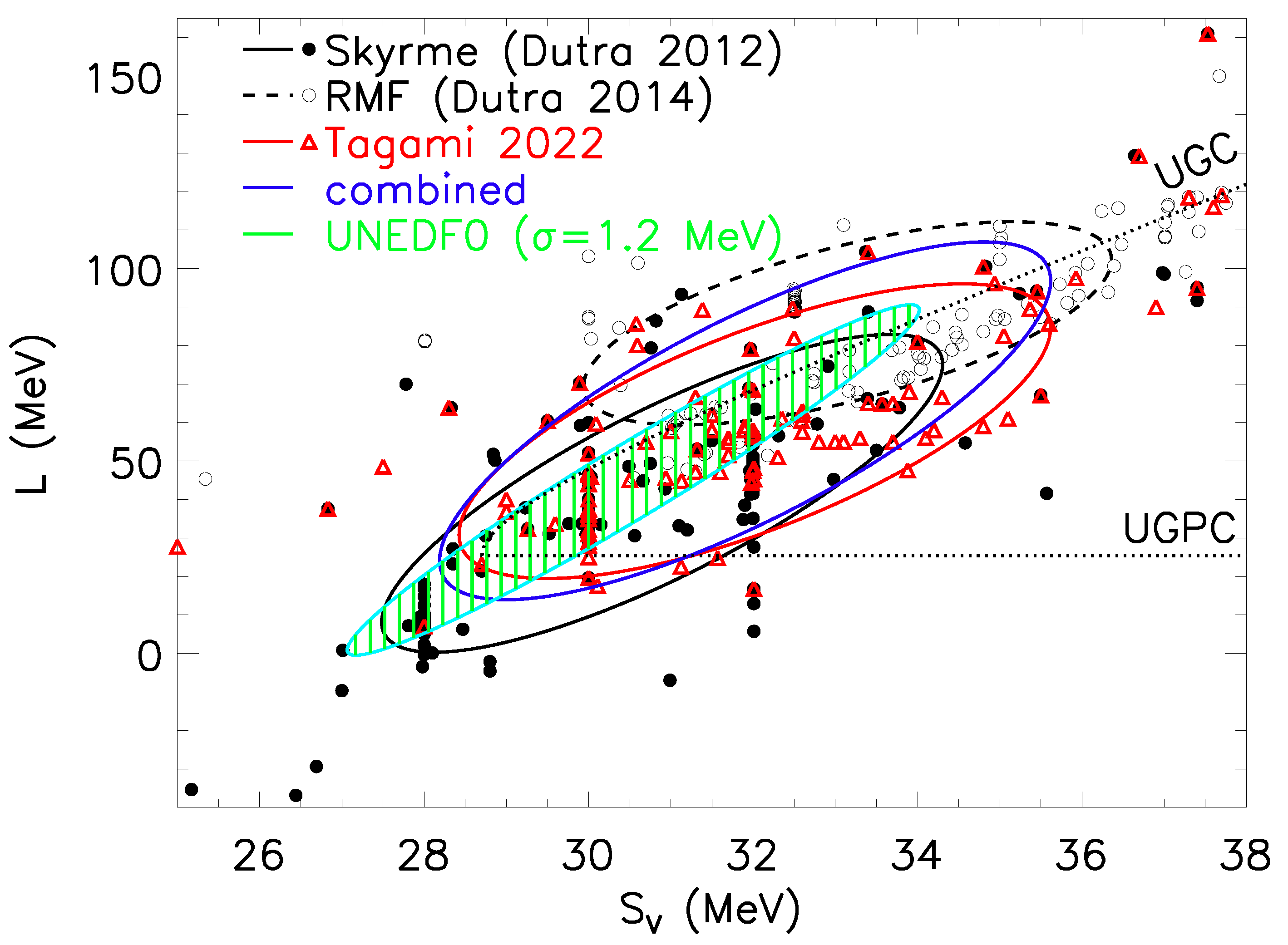

**Figure 1.**${S}_{V}$ and L data from individual Skyrme (black filled circles, Ref. [34]), relativistic mean field (RMF, black open circles, Ref. [36]) forces, both interaction types (Tagami 2022, red triangles, Ref. [37]), and all tabulated interactions (combined); corresponding 68.3% confidence ellipses are shown. The green hatched confidence ellipse is taken from the UNEDF collaboration [38] using $\sigma =1.2$ MeV (see text). The bounds provided by the Unitary Gas Conjecture (UGC, [35]) and the Unitary Gas Pressure Conjecture are shown as dotted curves.

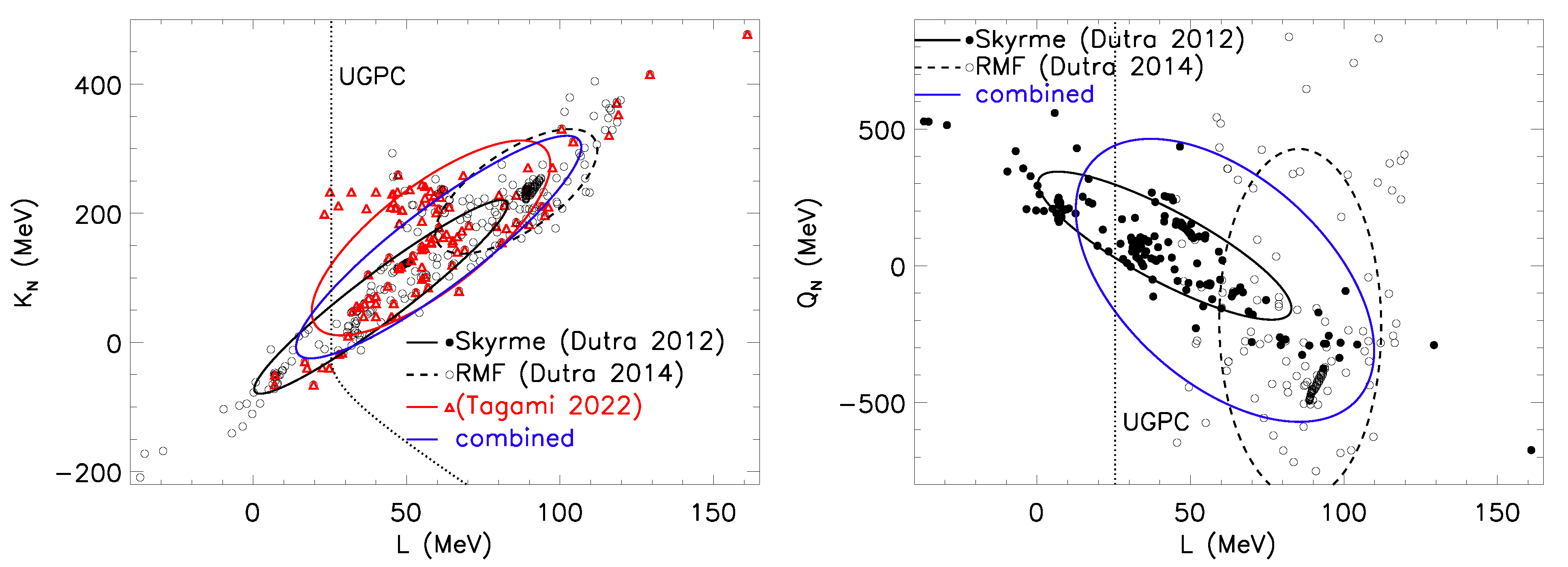

**Figure 2.**The same as Figure 1 but for correlations between ${K}_{N}$ and L [

**left panel**] and ${Q}_{n}$ and L [

**right panel**]. The Unitary Gas Pressure Conjecture restricts allowable regions to the right of the dotted lines labelled UGPC.

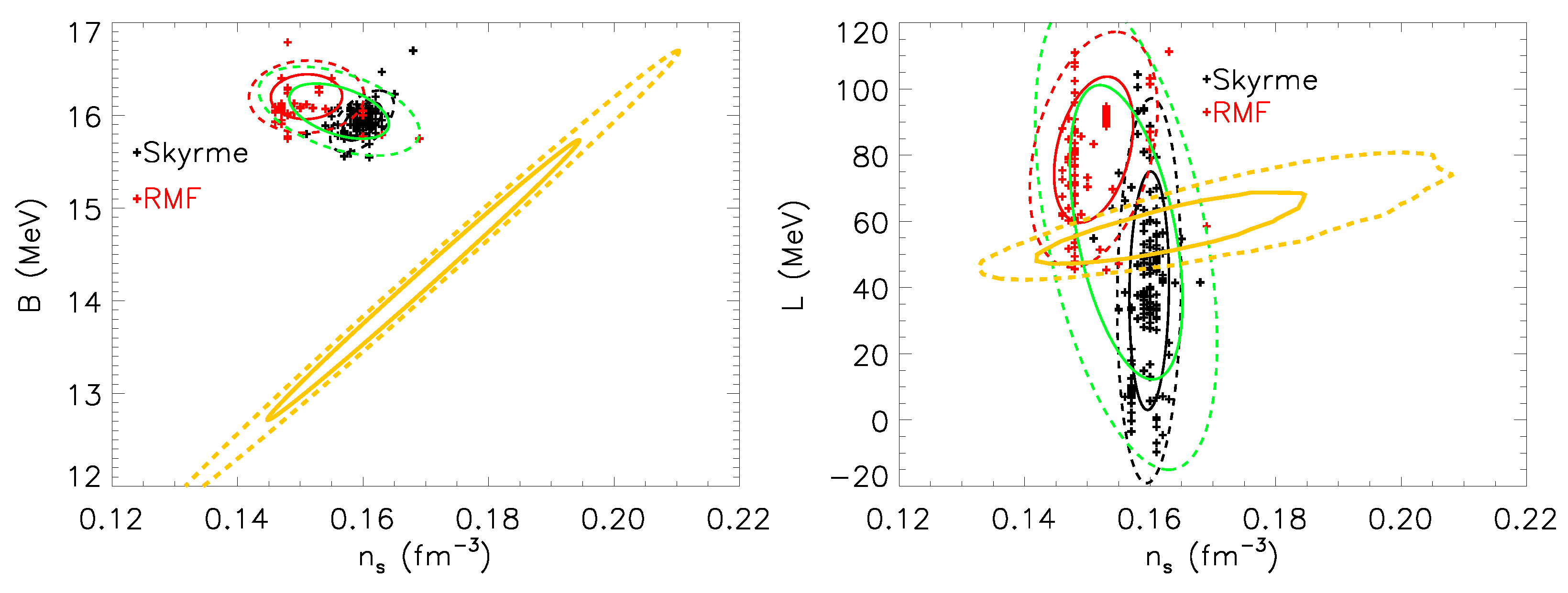

**Figure 3.**Correlations among symmetric energy parameters of forces in compilations of Refs. [34,36]. The left and right panels show the $B-{n}_{s}$ and $L-{n}_{s}$ correlations, respectively. Individual interactions are shown by filled circles. 68.3% and 95% confidence ellipses for Skyrme (RMF) interactions are shown by black (red) solid and dashed ellipses, respectively; green ellipses show the confidence ellipses for the combined force models. 68.3% and 95.5% confidence regions determined from $\chi $EFT calculations of SNM plus PNM (see Section 2.2) are shown by the orange solid and dotted curves, respectively.

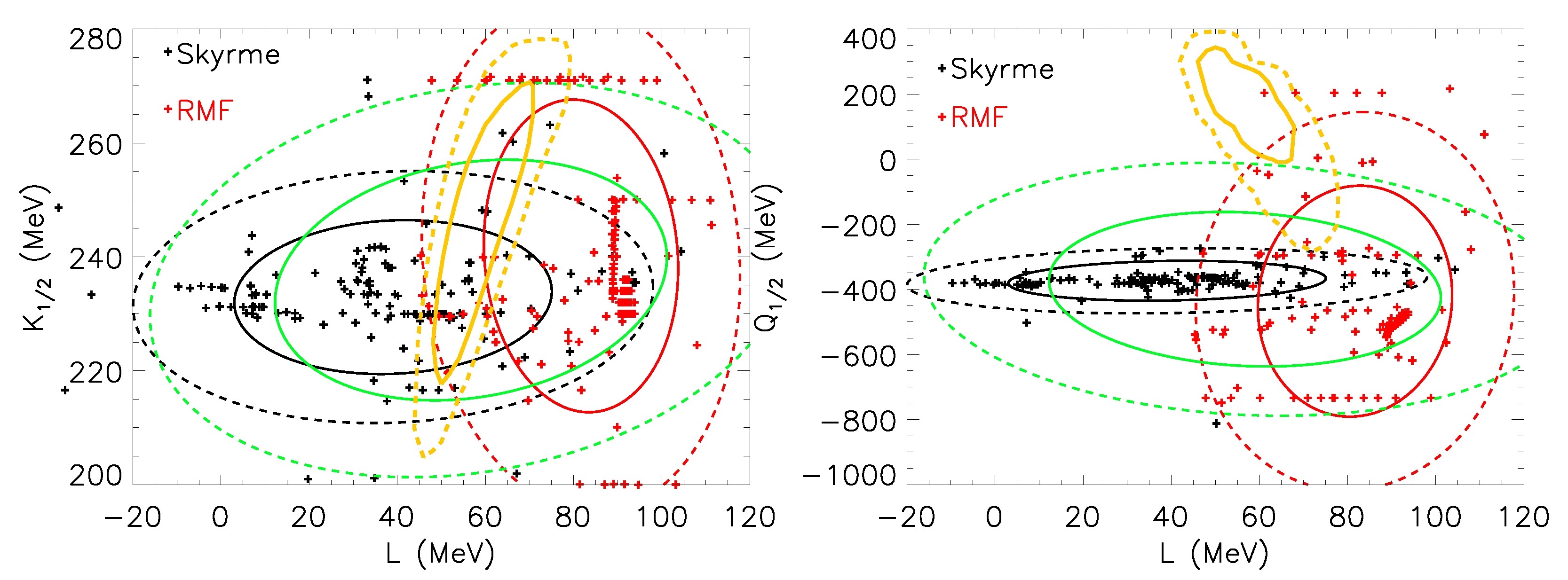

**Figure 4.**The same as Figure 3 except the left and right panels show the $L-{K}_{1/2}$ and $L-{Q}_{1/2}$ correlations, respectively.

**Figure 5.**Black correlation ellipses for ${S}_{V}-L$ (

**left panel**) and ${K}_{N}-L$ (

**right panel**) use model interaction data [34,36,37], with (solid) and without (dashed) application of Unitary Gas Constraints [35] boundaries (dotted). The blue confidence ellipse shows UNEDF [38] results assuming $\sigma =1.2$ MeV. The red (brown) confidence ellipses are from chiral EFT studies [39] using PNM results with empirical saturation properties (combined PNM+SNM results). The red-dashed quadrilateral are limits determined from elliptic flows in heavy-ion collisions [50].

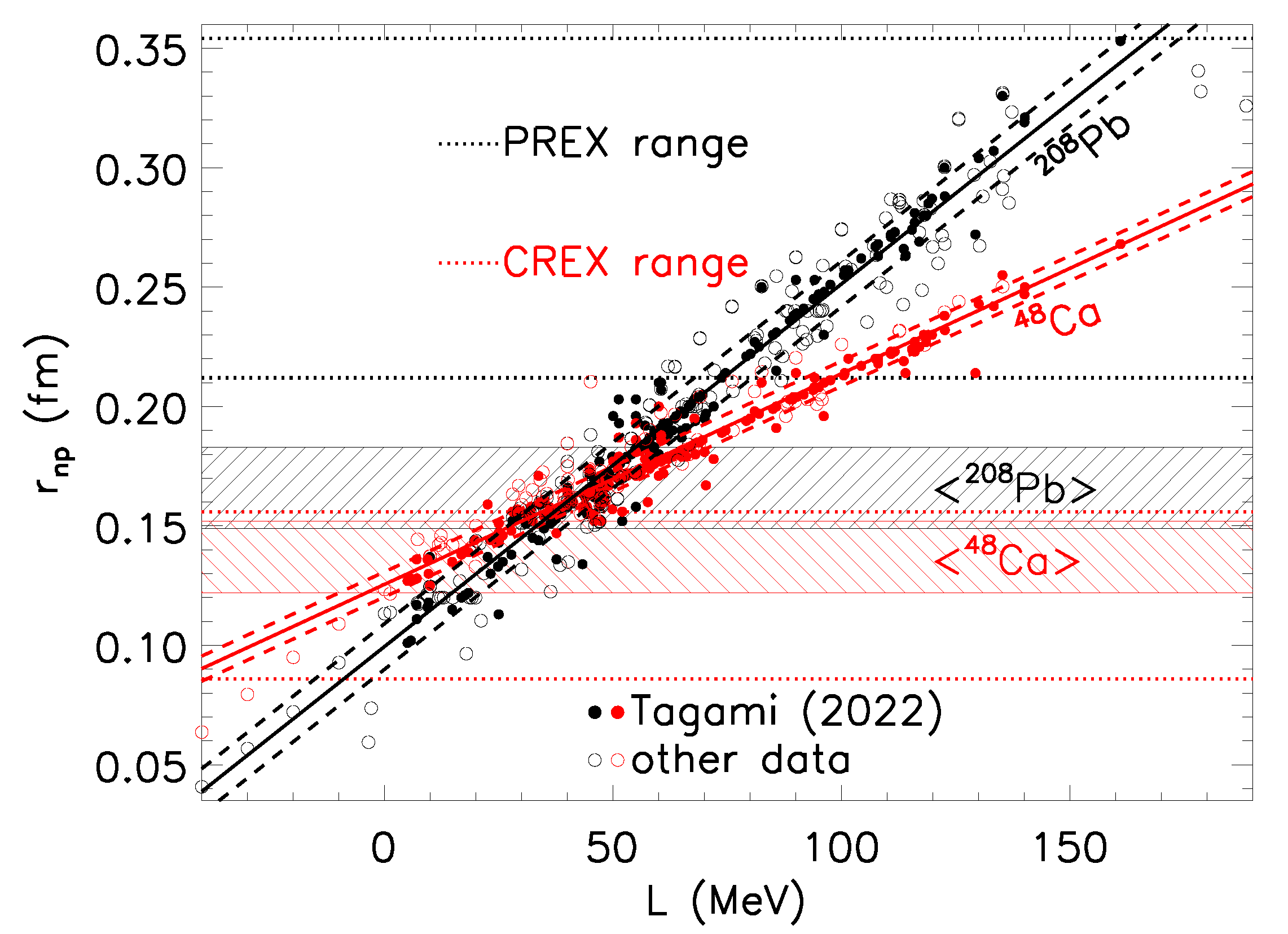

**Figure 7.**Neutron skin thicknesses of ${}^{48}$Ca (red) and ${}^{208}$Pb (black) from interactions compiled in Ref. [37] (filled circles) and Refs. [18,60,63,64] (open circles). Means (1 standard deviations) of linear correlations are shown as solid (dashed) lines. The horizontal shaded bands indicate the 1 standard deviation ranges of the averaged experimental results. The dotted black (red) lines indicate the 1 standard deviation range of ${r}_{np}^{208}$ (${r}_{np}^{48}$) from PREX I+II [17] (CREX [18]).

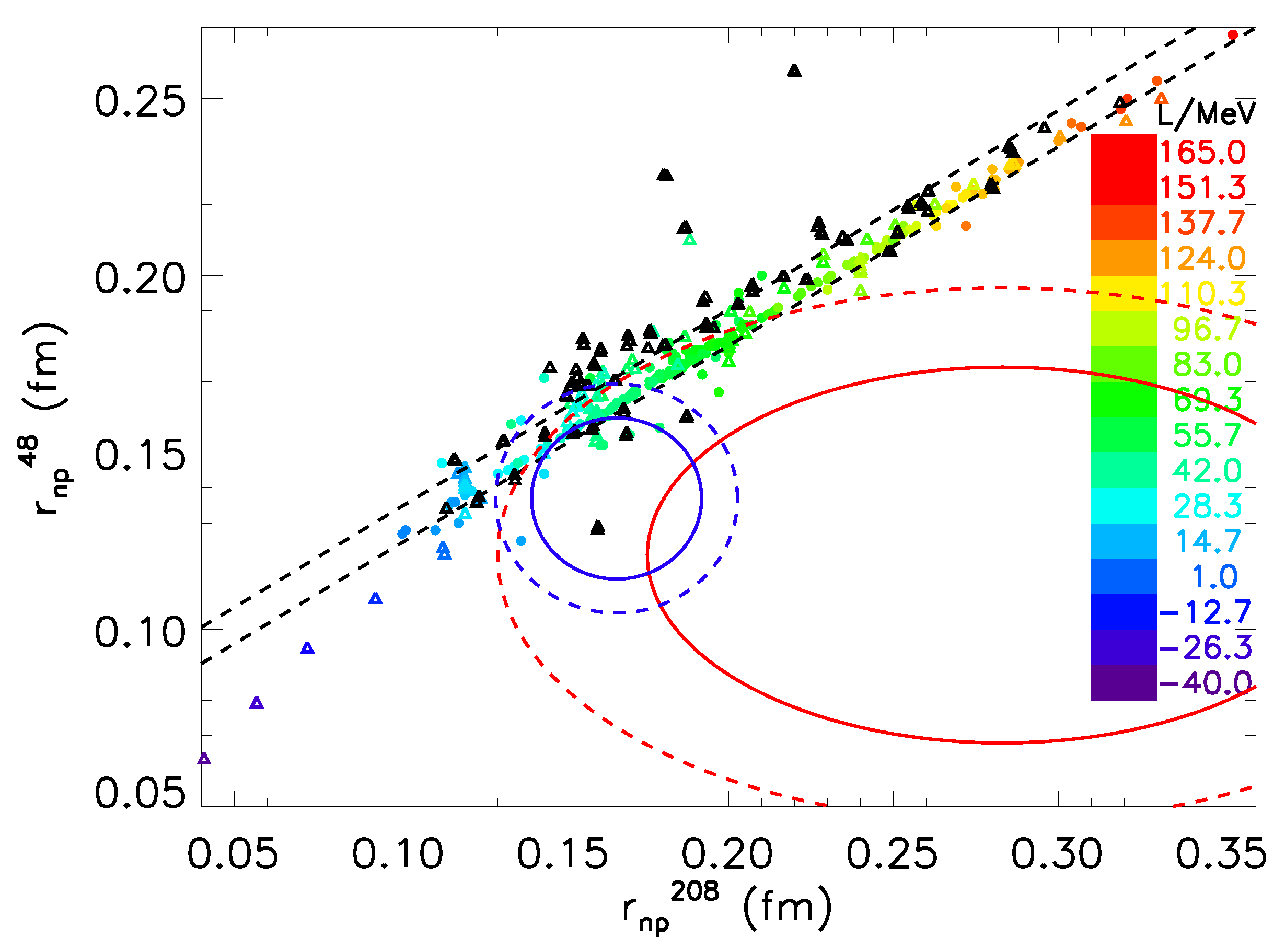

**Figure 9.**Neutron skin thicknesses of ${}^{48}$Ca and ${}^{208}$Pb from interactions compiled in Ref. [37] (filled circles) and Refs. [18,60,63,64] (triangles). Colors indicate L values where known; black triangles indicate points where L values are unspecified. Standard deviations of a linear correlation Equation (21) are shown as dashed lines. The red (blue) confidence ellipses are from PREX I+II [17] and CREX [18] (mean of all experiments); solid (dashed) ellipses are 68% (90%) confidence.

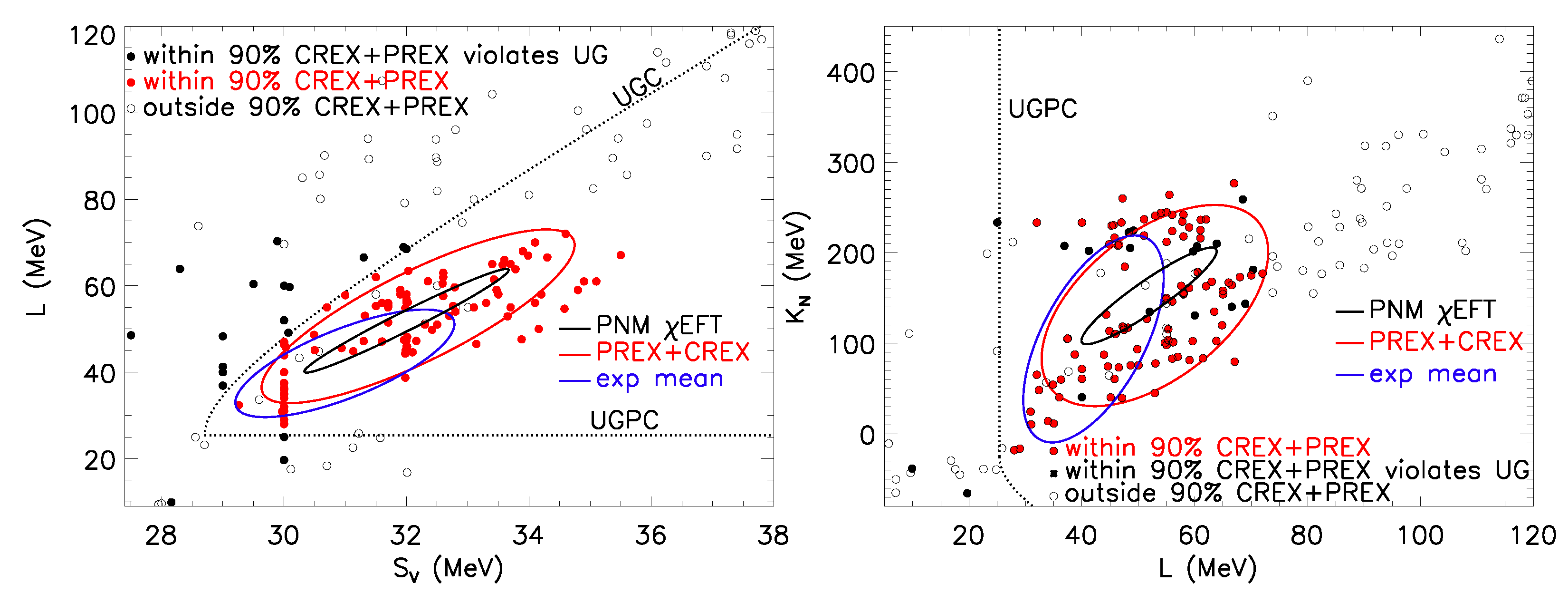

**Figure 10.**Symmetry parameters ${S}_{V}-L$ (

**left panel**) and ${K}_{N}-L$ (

**right panel**) jointly satisfying parity-violating experiments to within (exceeding) 90% confidence are shown as red and black filled (black open) circles; filled black circles violate Unitary Gas constraints (dotted boundary). Red (blue) confidence ellipses are for models satisfying Unitary Gas constraints weighted by their two-dimensional Gaussian probability defined by the parity-violating (red) and average (blue) experimental ${r}_{np}^{48}$ and ${r}_{np}^{208}$ measurements and uncertainties. The black confidence ellipse shows PNM $\chi $EFT results.

**Figure 11.**The same as Figure 10 except showing ${R}_{1.4}$ versus L (

**left panel**) and ${\Lambda}_{1.4}$ versus L (

**right panel**) for subsets of forces from Refs. [18,37,60,63,64]. Black solid and dashed curves in the left panel show the ${R}_{1.4}-L$ correlation and standard deviations derived as in the text. The shaded green bands are 68% and 95% confidence intervals from a joint analysis of GW170817 and PSR J0030+0451 and PSR J0740+6620 by Ref. [120] (

**left panel**) and from GW170817 Bayesian analyses posteriors [21], corrected for $\Lambda $ priors chosen so as to reflect uniform R priors (

**right panel**).

Method/${\mathit{S}}_{\mathit{V}}-\mathit{L}$ | ${\mathit{S}}_{\mathit{V}0}$ (MeV) | ${\mathit{L}}_{0}$ (MeV) | ${\mathit{\sigma}}_{{\mathit{S}}_{\mathit{V}}}$ (MeV) | ${\mathit{\sigma}}_{\mathit{L}}$ (MeV) | r |
---|---|---|---|---|---|

UNEDF [38] | 30.5 | 45.1 | 1.9 | 24.0 | 0.970 |

Skyrme [34] | 30.9 | 41.5 | 2.25 | 27.2 | 0.812 |

RMF [36] | 33.1 | 85.8 | 2.12 | 17.4 | 0.625 |

Tagami [37] | 32.0 | 57.7 | 2.37 | 25.2 | 0.702 |

Combined [34,36,37] | 32.1 | 62.2 | 2.45 | 30.6 | 0.783 |

Combined + UGC/UGPC | 32.5 | 57.7 | 2.09 | 20.7 | 0.920 |

$\chi $EFT (SNM+PNM) [39] | 31.7 | 59.8 | 1.1 | 4.2 | 0.715 |

$\chi $EFT (SNM+PNM) | 31.7 | 60.4 | 2.4 | 8.1 | 0.913 |

$\chi $EFT (PNM) | 32.0 | 51.9 | 1.1 | 7.9 | 0.978 |

neutron skin (CREX+PREX) | 32.2 | 52.9 | 1.7 | 13.2 | 0.820 |

neutron skin (other) | 31.0 | 42.1 | 1.2 | 8.2 | 0.729 |

Method/${\mathit{K}}_{\mathit{N}}-\mathit{L}$ | ${\mathit{K}}_{\mathit{N}\mathbf{0}}$ (MeV) | ${\mathit{L}}_{\mathbf{0}}$ (MeV) | ${\mathsf{\sigma}}_{{\mathit{K}}_{\mathit{N}}}$ (MeV) | ${\mathsf{\sigma}}_{\mathit{L}}$ (MeV) | $\mathit{r}$ |

Skyrme [34] | 73.3 | 41.6 | 98.9 | 27.2 | 0.952 |

RMF [36] | 234.0 | 85.8 | 63.6 | 17.4 | 0.666 |

Tagami 2022 [37] | 161.9 | 57.9 | 99.5 | 25.6 | 0.757 |

Combined [34,36,37] | 147.7 | 60.4 | 113.7 | 30.6 | 0.899 |

Combined [34,36,37] + UGC/UGPC | 137.3 | 57.7 | 74.8 | 20.7 | 0.745 |

$\chi $EFT (SNM+PNM) | 172.1 | 60.4 | 27.4 | 8.1 | 0.558 |

$\chi $EFT (PNM) | 152.3 | 51.9 | 35.1 | 7.9 | 0.993 |

neutron skin (CREX+PREX) | 141.6 | 52.9 | 73.2 | 13.2 | 0.530 |

neutron skin (other) | 104.8 | 42.1 | 75.4 | 8.2 | 0.590 |

Method/${\mathit{Q}}_{\mathit{N}}-\mathit{L}$ | ${\mathit{Q}}_{\mathit{N}\mathbf{0}}$ (MeV) | ${\mathit{L}}_{\mathbf{0}}$ (MeV) | ${\mathsf{\sigma}}_{{\mathit{Q}}_{\mathit{N}}}$ (MeV) | ${\mathsf{\sigma}}_{\mathit{L}}$ (MeV) | $\mathit{r}$ |

Skyrme [34] | 75.3 | 41.6 | 178.5 | 27.2 | −0.843 |

RMF [36] | −211.9 | 85.8 | 421.4 | 17.4 | −0.017 |

Combined [34,36] | −53.4 | 61.2 | 341.2 | 32.1 | −0.498 |

Combined [34,36] + UGC/UGPC | 7.86 | 58.2 | 297.1 | 21.6 | −0.378 |

$\chi $EFT (SNM+PNM) | −123.3 | 60.4 | 381.3 | 8.1 | −0.686 |

$\chi $EFT (PNM) | 112.8 | 51.9 | 90.7 | 7.9 | 0.398 |

**Table 2.**Coefficients for the relation ${r}_{np}^{208}=\tilde{a}/\mathrm{fm}+\tilde{b}{\tilde{L}}_{1}/\mathrm{MeV}$ and inferred values of ${\tilde{L}}_{1}$ from the error-weighted mean experimental value ${r}_{np}^{208}=0.166\pm 0.017$ fm. Also given are two estimated values of ${\tilde{L}}_{1}$ from neutron skin measurements of Sn isotopes. ${}^{\u2020}$ 0.01 fm uncertainty introduced for consistency.

Reference | $\tilde{\mathit{a}}$ | $\tilde{\mathit{b}}$ | ${\tilde{\mathit{L}}}_{1}$ (MeV) |
---|---|---|---|

[55] | 0.0 | $0.00378\pm 0.00014$ | $43.9\pm 4.8$ |

[57] | $0.00994\pm 0.01000$ | 0.0036 | $43.4\pm 5.5$ |

[58] | $0.0101\pm 0.01{\phantom{\rule{3.33333pt}{0ex}}}^{\u2020}$ | 0.00377 | $41.4\pm 5.2$ |

[1] | $0.0148\pm 0.0100$ | 0.00414 | 3$6.5\pm 4.8$ |

[20] | $0.0590\pm 0.0028$ | 0.00313 | $34.2\pm 10.5$ |

[59] | Sn isotopes | $42.9\pm 4.1$ | |

[58] | Sn isotopes | $43.7\pm 5.3$ | |

Error-weighted mean | $41.7\pm 2.0$ |

**Table 3.**Slopes, intercepts, and standard deviations of linear fits ${r}_{np}/\mathrm{fm}=a\pm \Delta a+bL/\mathrm{MeV}$.

Reference | a | b |
---|---|---|

${}^{208}$Pb | ||

[37] | $0.0963\pm 0.0041$ | 0.001566 |

[18] | $0.1028\pm 0.0115$ | 0.001617 |

[60] | $0.0964\pm 0.0039$ | 0.001563 |

[20] | $0.0865\pm 0.0124$ | 0.001837 |

[61] | $0.0967\pm 0.001447$ | 0.00145 |

[62] | $0.0986\pm 0.0137$ | 0.001537 |

Mean | $0.0996\pm 0.0096$ | 0.001518 |

${}^{48}$Ca | ||

[37] | $0.1250\pm 0.0028$ | 0.000873 |

[18] | $0.1261\pm 0.0056$ | 0.000990 |

[60] | $0.1290\pm 0.0037$ | 0.000791 |

Mean | $0.1255\pm 0.0052$ | 0.000882 |

**Table 6.**Dipole polarizabilities with $1\sigma $ uncertainties. ${}^{\u2020}$${\alpha}_{D}$ values corrected as per Ref. [90].

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Lattimer, J.M.
Constraints on Nuclear Symmetry Energy Parameters. *Particles* **2023**, *6*, 30-56.
https://doi.org/10.3390/particles6010003

**AMA Style**

Lattimer JM.
Constraints on Nuclear Symmetry Energy Parameters. *Particles*. 2023; 6(1):30-56.
https://doi.org/10.3390/particles6010003

**Chicago/Turabian Style**

Lattimer, James M.
2023. "Constraints on Nuclear Symmetry Energy Parameters" *Particles* 6, no. 1: 30-56.
https://doi.org/10.3390/particles6010003
