Inventions 2018, 3(2), 39; https://doi.org/10.3390/inventions3020039

How to Automate a Kinematic Mount Using a 3D Printed Arduino-Based System

1
Aistech Space, Esteve Terrades 1, Despacho 110, 08860 Castelldefels, Barcelona, Spain
2
ICFO-Institut de Ciencies Fotoniques, the Barcelona Institute of Science and Technology, Mediterranean Technology Park, 08860 Castelldefels, Barcelona, Spain
3
Department of Signal Theory and Communications, Universitat Politecnica de Catalunya, BarcelonaTech, 08034 Barcelona, Spain
*
Author to whom correspondence should be addressed.
Received: 15 March 2018 / Revised: 5 June 2018 / Accepted: 13 June 2018 / Published: 19 June 2018
(This article belongs to the Special Issue Innovations in 3-D Printing)
Full-Text   |   PDF [4109 KB, uploaded 19 June 2018]   |

Abstract

We demonstrate a simple, flexible and cost-effective system to automatize most of the kinematic mounts available nowadays on the market. It combines 3D-printed components, an Arduino board, stepper motors and simple electronics. The developed system can control up to ten stepper motors independently and simultaneously using commands sent through the serial port, and it is suitable for applications where optical realignment using flat mirrors is required on a periodic basis. View Full-Text
Keywords: open-source equipment; optics; 3D printing; Arduino open-source equipment; optics; 3D printing; Arduino
Figures

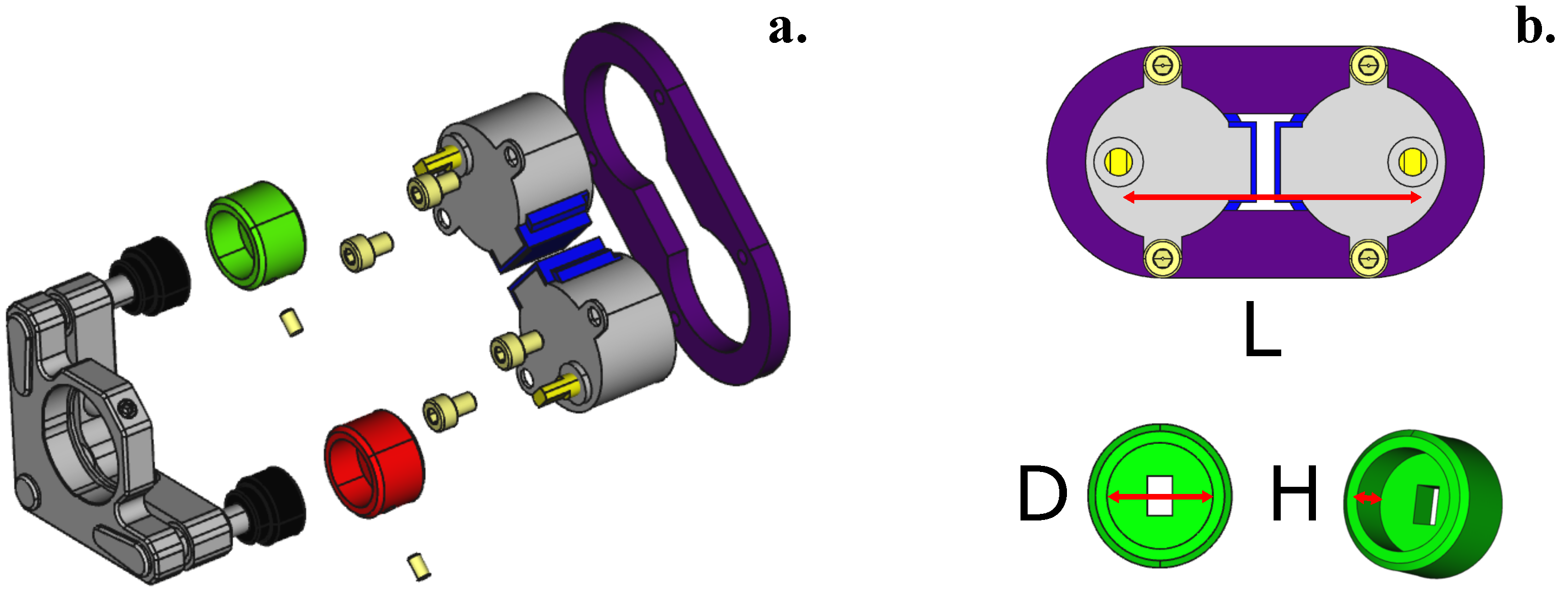

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
