Discovery of BiS2-Based Superconductor and Material Design Concept

by
Yoshikazu Mizuguchi
Department of Electrical and Electronic Engineering, Tokyo Metropolitan University, 1-1 Minami-osawa, Hachioji 192-0397, Japan
Condens. Matter 2017, 2(1), 6; https://doi.org/10.3390/condmat2010006
Submission received: 25 November 2016 / Accepted: 26 January 2017 / Published: 31 January 2017
(This article belongs to the Special Issue Layered Superconductors)
Browse Figures
Versions Notes

Abstract

:
In 2012, we discovered new layered superconductors whose superconducting states emerge in the BiS2 layers. Since their crystal structure, composed of alternate stacks of BiS2 conduction layers and electrically insulating (blocking) layers, is similar to those of cuprate and Fe-based superconductors, many researchers have explored new BiS2-based superconductors and have studied the physical and chemical properties of the BiS2-based superconductors. In this paper, we present the histories of the discovery of the first BiS2-based superconductor, Bi4O4S3, and the second one, LaO1−xFxBiS2. The structural variation of the BiS2-based superconductor family is briefly introduced. Then, we show the material design concept for the emergence of bulk superconductivity in BiS2-based compounds. At the end, a possible strategy for the enhancement of the transition temperature in the BiS2-based superconductors is proposed.

1. Discovery of BiS2-Based Superconductor Family

1.1. Layered Superconductors

Since the discovery of the Fe-based superconductor in 2008 [1], many researchers have explored new Fe-based superconductors [2]. During the Fe age, I studied physics, chemistry, and the application of the Fe-chalcogenide superconductors and obtained a Ph.D. in 2010. Then, in 2011, I launched new research group at Tokyo Metropolitan University and started exploring new layered superconductors such as Fe-based or cuprate superconductors [3]. Those layered superconductors have a layered structure composed of alternate stacks of conducting (superconducting) and insulating (blocking) layers. The FeAs layer and CuO2 plane are the essential structures for the emergence of superconductivity in Fe-based and cuprate superconductors, respectively. Namely, by utilizing the structural flexibility, new superconductors with various stacking structures could be designed by changing the blocking layer and/or the thickness of the superconducting planes. Therefore, I aimed to discover a new layered superconductor with a new type of superconducting layer other than the FeAs layer and CuO2 plane.
To discover new layered superconductors, experience in the material design of the Fe-based superconductor family is very useful. A typical crystal structure of the Fe-based superconductor is the ZrSiCuAs-type (P4/nmm) structure, for example LaOFeAs [1]. As shown in Figure 1a, the crystal structure of LaOFeAs is composed of the FeAs superconducting layer and the LaO blocking layer. Among layered compounds, the ZrSiCuAs-type structure is one of the typical structures. For example, BiOCuSe, whose structure is composed of a CuSe conducting layer and a BiO blocking layer, is a famous thermoelectric material [4]. When substituting the CuSe layer of BiOCuSe with a CuS layer, we obtain BiOCuS with the ZrSiCuAs-type structure.

1.2. Discovery of the Bi–O–S Superconductor

In the beginning, we explored new superconductors near the BiOCuS system because a superconductivity signal was detected for Cu-deficient BiOCu1−xS [6]. Although Reference [6] reported superconductivity, the shielding volume fraction of the sample was not high, indicating that the superconductivity was not bulk in nature. In addition, the other research group also examined the BiOCu1−xS and its Pb-doped samples [7]; superconductivity, however, was not discovered in those samples. Therefore, we modified the composition of Bi-O-Bu-S and finally synthesized Cu-free Bi2O2S, which is a layered compound, according to the material database [8]. Surprisingly, the Bi2O2S sample prepared at 500 °C showed a superconducting signal at T of ~5 K in the temperature dependence of magnetization. The X-ray diffraction (XRD) pattern of the sample was not what was expected from the Bi2O2S structure and indicated that the sample was not a single phase. This suggests the presence of a Bi–O–S superconducting phase stable at around 500 °C. Then, we explored the optimal composition of the unknown Bi–O–S superconducting phase. After synthesizing and evaluating over 100 samples of BixOySz (with various synthesis temperatures), we obtained the optimal composition of Bi4O4S3, in which the superconducting volume fraction is the highest, and the XRD pattern seemed to be a single phase.
Although we obtained the single-phase sample of Bi4O4S3, the crystal structure was unknown, and no similar XRD pattern could be found in the database [8]. The XRD pattern was analyzed by Fujihisa and Gotoh of AIST (National Institute of Advanced Industry Science and Technology), who are specialists in crystal structure determination. From the XRD pattern, the framework of Bi and S was determined. Since the XRD pattern was collected with a powder sample, the determination of the O site was difficult. Therefore, we determined the final structure model with the combination of calculation and Rietveld refinement. Finally, we concluded that Bi4O4S3 had a layered structure as depicted in Figure 1e. In addition, we analyzed the band structure with the support of Kuroki’s group (Osaka University). The crystal structure of Bi4O4S3 is composed of alternate stacking of the BiS2 bilayer, which is electrically conducting, and the Bi4O4(SO4)x blocking layer. The parent phase (x = 0) was expected to be a band insulator, but the present phase, Bi4O4S3, corresponded to x = 0.5. Namely, there are 50% SO4 defects in the blocking layer, and, hence, electrons are doped to the BiS2 layers, resulting in metallic conductivity and superconductivity [9]. Interestingly, the stable phase (composition) contains defects at the SO4 site, and the control of the doping level is very difficult in this Bi4O4SO4Bi2S4 structure. Motivated by this difficulty, we tried to synthesize other BiS2-based superconductors with a simpler structure.

1.3. 1112-Type BiS2-Based Superconductors

After the discovery of the Bi4O4S3 superconductor, we studied LaOBiS2, the crystal structure of which is composed of a La2O2 blocking layer and a BiS2 bilayer (Figure 1b). Although this material was already known [10], the physical properties and the carrier doping effects had not been examined in detail. Thus, on the basis of the analogies on the crystal structure and electronic structure between Bi4O4S3 and LaOBiS2, we synthesized electron-doped LaOBiS2, LaO1−xFxBiS2. The partial substitution of F− for O2− generates electron carriers in the BiS2 layer [11,12], which will be explained in Section 2.1. The LaO1−xFxBiS2 superconductor shows a Tc of ~3 K with x = 0.5, but the superconductivity is not in bulk, according to the results of the magnetic susceptibility measurements. Bulk superconductivity in LaO0.5F0.5BiS2 can be induced by the pressure effect [13,14,15,16]. Under a pressure above 1 GPa, the Tc reaches 10 K and the superconducting volume fraction is largely enhanced, which indicates the emergence of bulk superconductivity. In addition, high-pressure synthesis also produces the bulk superconductivity phase of LaO0.5F0.5BiS2 [10,17,18]. In order to induce bulk superconductivity in LaO0.5F0.5BiS2, the chemical pressure effect is also effective. By replacing La with smaller rare-earth ions, Ce, Pr, Nd, or Sm, bulk superconductivity can be induced [19,20,21,22,23,24]. Namely, REO1−xFxBiS2 with RE = La, Ce, Pr, Nd, or Sm is basically superconductive, and has a crystal structure as shown in Figure 1b. The detailed explanations on the external and chemical pressure effects will appear in Section 2.2 and Section 2.3.
The R2O2 layer can be replaced by the Sr2F2 or Eu2F2 layer, as depicted in Figure 1c [25,26,27,28]. The SrFBiS2 compound is a band insulator and superconductivity can be induced by electron doping as well as LaOBiS2. In this series, the R3+ substitution for the Sr (or Eu) site can generate electron carriers in the BiS2 layer, and superconductivity is induced [26]. EuFBiS2 shows a superconducting transition at 0.3 K without chemical doping because the valence of Eu is not 2+ but about 2.2+, which results in self-doped electron carriers [27]. Since the lattice constants of SrFBiS2-type compounds are similar to those of LaOBiS2-type ones, the physical properties of those two systems are quite similar. Namely, the strategies of carrier doping and the pressure effects can be applied similarly.

1.4. Other Bi-Chalcogenide Layered Compounds

Figure 1d shows the crystal structure of Eu3F4Bi2S4, which is composed of alternate stacks of the Eu3F4 blocking layer and the BiS2 bilayer [29,30]. This compound also exhibits the mixed-valence state of Eu, and shows superconductivity at low temperatures (Tc ~ 1 K). The Tc can be enhanced by 3.35 K with Se substitution [31].
Recently, a new Bi-S layered compound with a thicker conducting layer was discovered. LaOBiPbS3 has a La2O2 blocking similar to LaOBiS2, but its conducting layer is Bi2Pb2S6, which is the four-layer-type conducting layer [32]. Although LaOBiPbS3 is not metallic, carrier doping may induce superconductivity and will open a new playground of Bi-chalcogenide superconductors.
I would like to briefly introduce the existence of the sister phases of Bi4O4S3. In Bi3O2S3, the SO4 site of Bi4O4S3 is replaced by the S2 dimer, and superconductivity is observed without substitution [33]. The Bi–O–S series possess quite characteristic structures, and thus, the design of new superconductors in the Bi–O–S series may be one of the strategies for enhancing Tc in the BiS2-based systems.

2. Emergence of Superconductivity in BiS2-Based Compounds

2.1. Carrier Doping

As mentioned above, the parent phases of the BiS2-based compounds, such as LaOBiS2 or SrFBiS2, are generally an insulator with a band gap. Figure 2a shows the band structure of LaOBiS2. The bands just above the Fermi energy are composed of Bi-6p orbitals (px and py) [12]. Therefore, it is expected that the BiS2 layer becomes metallic by electron doping. There are several ways to induce metallicity and superconductivity in the BiS2 layer. In the REOBiS2-type structure, the most typical way of electron doping is the partial substitution of F− for O2− [11,19,21,22,23]. Figure 2b shows the temperature dependences of electrical resistivity for LaOBiS2 and LaO0.5F0.5BiS2. By F substitution, the electrical resistivity decreases and the superconducting transition is observed at 2.5 K. Figure 2c shows the temperature dependence of the magnetic susceptibility for LaO0.5F0.5BiS2. Diamagnetic signals corresponding to the emergence of superconductivity are observed. However, the magnitude of the superconductivity signal, 4πχ, is very small as a bulk superconductor. As shown in the inset of Figure 2c, the optimal F concentration, at which the Tc is the highest, is x = 0.5 [11,17,34]. Therefore, the weak superconductivity signal observed in the magnetic susceptibility measurement is caused not by the insufficiency of the carrier concentration but by another factor. To induce bulk superconductivity in LaO1−xFxBiS2, external and chemical pressure effects are essential.

2.2. External Pressure Effect

The superconducting properties of REO1−xFxBiS2 are very sensitive to the external pressure [35]. The first example is the high-pressure synthesis effect. As shown in Figure 2c, the superconductivity in LaO0.5F0.5BiS2 is not perfect (not bulk in nature) on the basis of the shielding fraction observed in the magnetic susceptibility measurement. Surprisingly, the superconducting properties of the LaO0.5F0.5BiS2 sample dramatically change when the sample is prepared under the high pressure of 2 GPa [11,17,18]. Figure 3a shows the temperature dependence of the magnetic susceptibility for two different samples of LaO0.5F0.5BiS2: one was synthesized in an evacuated quartz tube (low pressure) and the other was synthesized at a high pressure of 2 GPa (high pressure). The high-pressure (high-P) phase shows a large shielding fraction, which indicates the emergence of bulk superconductivity, and a higher Tc of ~8 K. Please note that the susceptibility measurements were performed in vacuum (not under high pressure), but the low-P and high-P samples show different properties. Therefore, high-pressure synthesis can modify the crystal structure. Importantly, we can obtain intermediate phases with Tc = 2.5−8 K by modifying the annealing temperature and pressure. Indeed, for LaO0.5F0.5BiS2, there are at least two stable structures which can be transformed by temperature and/or pressure.
The high-P phase can be obtained by applying external pressure during low-temperature measurements. Figure 3b shows the pressure dependences of Tc for REO1−xFxBiS2 with an optimal F doping (LaO0.5F0.5BiS2, CeO0.3F0.7BiS2, PrO0.5F0.5BiS2, and NdO0.5F0.5BiS2) [13,14,15,16,35]. All the REO1−xFxBiS2 superconductors show an increase in Tc by applying external pressure. Interestingly, the pressure dependences of Tc show a transition-like increase at different pressures, which is 0.5–1 GPa for RE = La and about 2 GPa for RE = Nd. The critical pressure seems to be related to the lattice constant of the a-axis of REO1−xFxBiS2. This can be understood with the crystal structure transition from tetragonal (P4/nmm) to monoclinic (P21/m) in LaO1−xFxBiS2 [13] under high pressure, as depicted in Figure 3c,d. This structural transition associated with the formation of the Bi-S zigzag chain is shown in Figure 3d. It can be easily assumed that the formation of the zigzag chain takes place when the Bi-S square lattice in the tetragonal structure is not constrained and has some space to distort. In fact, recent crystal structure analysis using synchrotron X-ray showed that the crystal structure of LaOBiS2 is the monoclinic structure at room temperature [36]. In addition, different three-dimensional stacking sequences of the BiS2 layers were theoretically proposed [37]. On the basis of these results, the crystal structure of the REO1−xFxBiS2 system can be easily transformed between tetragonal and monoclinic by tuning the lattice volume, and the systematic investigations of the crystal structure are very important for understanding the mechanisms of the emerging superconductivity.

2.3. Chemical Pressure Effect

Another method to induce the bulk superconductivity of LaO0.5F0.5BiS2 is the chemical pressure effect. Generally, the chemical pressure can be applied by substitutions of an isovalent element with a different ionic radius. In the case of LaO0.5F0.5BiS2, there are two methods of applying chemical pressure. The first method is the substitution of La3+ by the smaller RE3+ ions, such as Ce3+, Pr3+, Nd3+, or Sm3+. In REO0.5F0.5BiS2, bulk superconductivity (at above 2 K) is induced at RE = Ce0.6Nd0.4. The Tc increases with decreasing the mean RE3+ ionic radius. The lattice volume basically decreases with decreasing the mean RE3+ ionic radius, as shown in Figure 4c. Therefore, the shrinkage of the BiS2 layer should be related to the emergence of bulk superconductivity in REO0.5F0.5BiS2. These results seem to be consistent with the external pressure effects, while the crystal structure remains tetragonal up to RE = Sm [23,24]. Then, please note that the filamentary (non-bulk) superconductivity observed in RE = La is suppressed by Ce substitution. Although the reason for this strange behavior is unclear, this should be related to the structural fluctuation between tetragonal and monoclinic on a local scale.
The other method to apply chemical pressure is the substitution of S2− by Se2−. This is a direct chemical pressure to the superconducting BiS2 layer. Since the ionic radius of Se2− is larger than S2−, the lattice volume increases with the increasing Se concentration, as shown in Figure 4c. Therefore, the chemical pressure effect by the Se substitution seems to be the opposite to that by the substitution of the smaller RE3+. However, the obtained superconductivity phase diagram for LaO0.5F0.5BiS2−xSex (Figure 4b) is quite similar to that for REO0.5F0.5BiS2 (Figure 4a). The filamentary superconductivity is suppressed by the small doping of Se, and bulk superconductivity is induced at x ≥ 0.4. Tc increases with the increasing Se concentration [38].

2.4. Importance of In-Plane Chemical Pressure

On the basis of the experimental facts on REO0.5F0.5BiS2 and LaO0.5F0.5BiS2−xSex, we explored a factor essential for the evolution of bulk superconductivity in this family. To address it, the crystal structures of Ce1−xNdxO0.5F0.5BiS2 and LaO0.5F0.5BiS2−xSex, which exhibit a crossover region between non-superconductivity and bulk superconductivity, were examined using synchrotron X-ray [39]. Since the changes in the lattice volume are opposite between these two systems, as shown in Figure 4c, almost all the structural parameters show opposite doping dependences. Therefore, we have introduced the concept of in-plane chemical pressure. The magnitude of in-plane chemical pressure was calculated by the equation of (RBi + RCh)/(in-plane Bi-Ch distance) where RBi and RCh are the ionic radii of Bi and the mean ionic radius of the chalcogen (Ch) site [39]. The estimated in-plane chemical pressure is plotted as a function of the Nd or Se concentration (x) in Figure 4e. Surprisingly, the x dependences of the in-plane chemical pressure for the two systems showed the same tendency, and the bulk superconductivity appeared at above the same threshold. The x dependences of the lattice constant of a are also plotted in Figure 4e. It is clear that the lattice constant exhibits opposite x dependences. With the concept of in-plane chemical pressure, we finally obtained the factor correlating to the emergence of superconductivity in the REO0.5F0.5BiCh2 structure.
Figure 4f shows the in-plane chemical pressure dependences of Tc for the REO0.5F0.5BiS2-type and LaO0.5F0.5BiS2-xSex superconductors. There is a trend that Tc increases with the increasing in-plane chemical pressure [39]. Indeed, the magnitude of the in-plane chemical pressure becomes the scale for Tc in the tetragonal phase of REO0.5F0.5BiCh2.

3. Material Design Strategies for the BiS2-Based Superconductor

In the Section 2, the requirements for the emergence of superconductivity in the BiS2-based compounds were reviewed. Electron carrier doping to the BiS2 layer is needed to induce superconductivity. However, the carrier doping is not the sole factor related to the emergence of superconductivity in this system. In-plane chemical pressure should be optimized as well. According to these two requirements (the recipe of BiS2-based superconductivity), new superconductors can be easily designed as demonstrated in Eu0.5La0.5FBiS2−xSex [40].
Then, what is the strategy for enhancing Tc in this system? One idea comes when considering the large enhancement of Tc in LaO0.5F0.5BiS2 by the external pressure effect. The crystal structure of the high-P phase is monoclinic, and the Bi-S zigzag chains are formed in the BiS plane (Figure 2d). To link the monoclinic structure to the tetragonal structure, the concept of in-plane chemical pressure can be modified as quasi-one-dimensional (quasi-1D) chemical pressure. Since we have already obtained the trend that Tc increases when higher chemical pressure is created, we consider the shorter Bi-S distance (in-chain Bi-S distance) of the high-P phase of LaO0.5F0.5BiS2 as the origin of the high Tc. As plotted in Figure 5, the calculated quasi-1D chemical pressure for the high-P phase of LaO0.5F0.5BiS2 locates on the extrapolated line of the Tc in-plane chemical pressure relation. This may suggest that a higher Tc can be obtained in a monoclinic structure with an extremely distorted Bi-S chain. In addition, according to the results on the external pressure studies, BiS2-based compounds with a larger a-axis should be candidates for the extremely distorted phase with a high Tc.
In addition, to design new BiS2-based superconductors, we have to consider the local-scale crystal structure and physical properties. Tuning the internal strain sometimes results in local phase separation, and the coexistence of local phase separation and superconductivity has been observed in several layered superconductors [41,42,43,44,45]. Thus, understanding the crystal structure and superconducting (electronic) states on the local scale is very important for developing new layered superconductors and increasing Tc. In the BiS2-based compounds, such a phase separation could occur because the chemical pressure effects, proposed as key strategies for the emergence of superconductivity in this system, yield a poor fit between the conducting layers and blocking layers. In addition, as an experimental fact, local structure instability on the Bi-S plane has been revealed in BiS2-based compounds under external and chemical pressures [36,46,47,48,49]. Beyond controlling local-scale structures, we will be able to create new BiS2-based superconductors with a high Tc.

4. Summary

In this review article, we introduced the history of the discovery of new BiS2-based superconductors, Bi4O4S3 and REO1−xFxBiS2. Although the understanding of the mechanisms of superconductivity has advanced, the precise prediction of the emergence of superconductivity in unknown compounds is very difficult. For this reason, it is very important to stack the experiences of the material design of new superconductors. We are happy if the review on the discovery of the BiS2-based superconductor is useful for the exploration of new superconductors.
We summarized the effects of electron carrier doping, external pressure, and chemical pressure on the emergence of superconductivity in the BiS2-based compounds. To induce superconductivity, optimizations of both the electron carrier doping and in-plane chemical pressure are needed. Since we have already obtained some strategies for designing new BiS2-based superconductors and increasing Tc, we expect that the field of BiS2-based superconductivity will be a breakthrough for the discovery of new kinds of high-Tc superconductors.

Acknowledgments

The works on Bi-chalcogenide superconductors have been supported by Grant-in-Aid for Scientific Research (No. 25707031, 26600077, 15H05886, and 16H04493).

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Kamihara, Y.; Watanabe, T.; Hirano, M.; Hosono, H. Iron-Based Layered Superconductor La[O1−xFx]FeAs (x = 0.05−0.12) with Tc = 26 K. J. Am. Chem. Soc. 2008, 130, 3296–3297. [Google Scholar] [CrossRef] [PubMed]
  2. Ishida, K.; Nakai, Y.; Hosono, H. To What Extent Iron-Pnictide New Superconductors Have Been Clarified: A Progress Report. J. Phys. Soc. Jpn. 2009, 78, 062001. [Google Scholar] [CrossRef]
  3. Bednorz, J.G.; Müller, K.A. Possible high Tc superconductivity in the Ba-La-Cu-O system. Z. Phys. B Condens. Matter 1986, 64, 189–193. [Google Scholar] [CrossRef]
  4. Liu, Y.; Zhao, L.D.; Liu, Y.; Lan, J.; Xu, W.; Li, F.; Zhang, B.P.; Berardan, D.; Dragoe, N.; Lin, Y.H.; et al. Remarkable Enhancement in Thermoelectric Performance of BiCuSeO by Cu Deficiencies. J. Am. Chem. Soc. 2011, 133, 20112–20115. [Google Scholar] [CrossRef] [PubMed]
  5. Momma, K.; Izumi, F. VESTA: A three-dimensional visualization system for electronic and structural analysis. J. Appl. Crystallogr. 2008, 41, 653–658. [Google Scholar] [CrossRef]
  6. Ubaldini, A.; Giannini, E.; Senatore, C.; van der Marel, D. BiOCuS: A new superconducting compound with oxypnictide-related structure. Physica C 2010, 470, S356–S357. [Google Scholar] [CrossRef]
  7. Pal, A.; Kishan, H.; Awana, V.P.S. Synthesis and Structural Details of BiOCu1−xS: Possible New Entrant in a Series of Exotic Superconductors? J. Supercond. Nov. Magn. 2010, 23, 301–304. [Google Scholar] [CrossRef]
  8. Mat Navi. Available online: http://mits.nims.go.jp/ (accessed on 26 January 2017).
  9. Mizuguchi, Y.; Fujihisa, H.; Gotoh, Y.; Suzuki, K.; Usui, H.; Kuroki, K.; Demura, S.; Takano, Y.; Izawa, H.; Miura, O. BiS2-based layered superconductor Bi4O4S3. Phys. Rev. B 2012, 86, 220510. [Google Scholar] [CrossRef]
  10. Tanryverdiev, V.S.; Aliev, O.M.; Aliev, I.I. Synthesis and physicochemical properties of LnBiOS2. Inorg. Mater. 1995, 31, 1497–1498. [Google Scholar]
  11. Mizuguchi, Y.; Demura, S.; Deguchi, K.; Takano, Y.; Fujihisa, H.; Gotoh, Y.; Izawa, H.; Miura, O. Superconductivity in Novel BiS2-Based Layered Superconductor LaO1−xFxBiS2. J. Phys. Soc. Jpn. 2012, 81, 114725. [Google Scholar] [CrossRef]
  12. Usui, H.; Suzuki, K.; Kuroki, K. Minimal electronic models for superconducting BiS2 layers. Phys. Rev. B 2012, 86, 220501. [Google Scholar] [CrossRef]
  13. Tomita, T.; Ebata, M.; Soeda, H.; Takahashi, H.; Fujihisa, H.; Gotoh, Y.; Mizuguchi, Y.; Izawa, H.; Miura, O.; Demura, S.; et al. Pressure-induced Enhancement of Superconductivity in BiS2-layered LaO1−xFxBiS2. J. Phys. Soc. Jpn. 2014, 83, 063704. [Google Scholar] [CrossRef]
  14. Wolowiec, C.T.; Yazici, D.; White, B.D.; Huang, K.; Maple, M.B. Pressure-induced enhancement of superconductivity and suppression of semiconducting behavior in LnO0.5F0.5BiS2 (Ln = La, Ce) compounds. Phys. Rev. B 2013, 88, 064503. [Google Scholar] [CrossRef]
  15. Wolowiec, C.T.; White, B.D.; Jeon, I.; Yazici, D.; Huang, K.; Maple, M.B. Enhancement of superconductivity near the pressure-induced semiconductor-metal transition in BiS2-based superconductors LnO0.5F0.5BiS2 (Ln = La, Ce, Pr, Nd). J. Phys. Condens. Matter 2013, 25, 422201. [Google Scholar] [CrossRef] [PubMed]
  16. Kotegawa, H.; Tomita, Y.; Tou, H.; Izawa, H.; Mizuguchi, Y.; Miura, O.; Demura, S.; Deguchi, K.; Takano, Y. Pressure Study of BiS2-Based Superconductors Bi4O4S3 and La(O,F)BiS2. J. Phys. Soc. Jpn. 2012, 81, 103702. [Google Scholar] [CrossRef]
  17. Deguchi, K.; Mizuguchi, Y.; Demura, S.; Hara, H.; Watanabe, T.; Denholme, S.J.; Fujioka, M.; Okazaki, H.; Ozaki, T.; Takeya, H.; et al. Evolution of superconductivity in LaO1−xFxBiS2 prepared by high pressure technique. EPL 2013, 101, 17004. [Google Scholar] [CrossRef]
  18. Kajitani, J.; Deguchi, K.; Omachi, A.; Hiroi, T.; Takano, Y.; Takatsu, H.; Kadowaki, H.; Miura, O.; Mizuguchi, Y. Correlation between crystal structure and superconductivity in LaO0.5F0.5BiS2. Solid State Commun. 2014, 181, 1–4. [Google Scholar] [CrossRef]
  19. Xing, J.; Li, S.; Ding, X.; Yang, H.; Wen, H.H. Superconductivity Appears in the Vicinity of an Insulating-Like Behavior in CeO1−xFxBiS2. Phys. Rev. B 2012, 86, 214518. [Google Scholar] [CrossRef]
  20. Demura, S.; Deguchi, K.; Mizuguchi, Y.; Sato, K.; Honjyo, R.; Yamashita, A.; Yamaki, T.; Hara, H.; Watanabe, T.; Denholme, S.J.; et al. Coexistence of bulk superconductivity and ferromagnetism in CeO1−xFxBiS2. J. Phys. Soc. Jpn. 2015, 84, 024709. [Google Scholar] [CrossRef]
  21. Jha, R.; Kumar, A.; Singh, S.K.; Awana, V.P.S. Synthesis and superconductivity of new BiS2 based superconductor PrO0.5F0.5BiS2. J. Supercond. Nov. Magn. 2012, 26, 499–502. [Google Scholar] [CrossRef]
  22. Demura, S.; Mizuguchi, Y.; Deguchi, K.; Okazaki, H.; Hara, H.; Watanabe, T.; Denholme, S.J.; Fujioka, M.; Ozaki, T.; Fujihisa, H.; et al. BiS2-based superconductivity in F-substituted NdOBiS2. J. Phys. Soc. Jpn. 2013, 82, 033708. [Google Scholar] [CrossRef]
  23. Kajitani, J.; Hiroi, T.; Omachi, A.; Miura, O.; Mizuguchi, Y. Chemical pressure effect on superconductivity of BiS2-based Ce1−xNdxO1−yFyBiS2 and Nd1−zSmzO1−yFyBiS2. J. Phys. Soc. Jpn. 2015, 84, 044712. [Google Scholar] [CrossRef]
  24. Thakur, G.S.; Selvan, G.K.; Haque, Z.; Gupta, L.C.; Samal, S.L.; Arumugam, S.; Ganguli, A.K. Synthesis and properties of SmO0.5F0.5BiS2 and enhancement in Tc in La1−ySmyO0.5F0.5BiS2. Inorg. Chem. 2015, 54, 1076–1081. [Google Scholar] [CrossRef] [PubMed]
  25. Lei, H.; Wang, K.; Abeykoon, M.; Bozin, E.S.; Petrovic, C. New layered oxysulfide SrFBiS2. Inorg. Chem. 2013, 52, 10685. [Google Scholar] [CrossRef] [PubMed]
  26. Lin, X.; Ni, X.; Chen, B.; Xu, X.; Yang, X.; Dai, J.; Li, Y.; Yang, X.; Luo, Y.; Tao, Q.; et al. Superconductivity induced by La doping in Sr1−xLaxFBiS2. Phys. Rev. B 2013, 87, 020504. [Google Scholar] [CrossRef]
  27. Zhai, H.F.; Tang, Z.T.; Jiang, H.; Xu, K.; Zhang, K.; Zhang, P.; Bao, J.K.; Sun, Y.L.; Jiao, W.H.; Nowik, I.; et al. Possible Charge-density wave, superconductivity and f-electron valence instability in EuBiS2F. Phys. Rev. B 2014, 90, 064518. [Google Scholar] [CrossRef]
  28. Jha, R.; Tiwari, B.; Awana, V.P.S. Appearance of bulk Superconductivity under Hydrostatic Pressure in Sr0.5RE0.5FBiS2 (RE = Ce, Nd, Pr and Sm) new compounds. J. Appl. Phys. 2015, 117, 013901. [Google Scholar] [CrossRef]
  29. Zhai, H.F.; Zhang, P.; Wu, S.Q.; He, C.Y.; Tang, Z.T.; Jiang, H.; Sun, Y.L.; Bao, J.K.; Nowik, I.; Felner, I.; et al. Anomalous Eu Valence State and Superconductivity in Undoped Eu3Bi2S4F4. J. Am. Chem. Soc. 2014, 136, 15386–15393. [Google Scholar] [CrossRef] [PubMed]
  30. Luo, Y.; Zhai, H.F.; Zhang, P.; Xu, Z.A.; Cao, G.H.; Thompson, J.D. Pressure-enhanced superconductivity in Eu3Bi2S4F4. Phys. Rev. B 2014, 90, 220510. [Google Scholar] [CrossRef]
  31. Zhang, P.; Zhai, H.F.; Tang, Z.J.; Li, L.; Li, Y.K.; Chen, Q.; Chen, J.; Wang, Z.; Feng, C.M.; Cao, G.H.; et al. Superconductivity enhanced by Se doping in Eu3Bi2(S,Se)4F4. EPL 2015, 111, 27002. [Google Scholar] [CrossRef]
  32. Sun, Y.L.; Ablimit, A.; Zhai, H.F.; Bao, J.K.; Tang, Z.T.; Wang, X.B.; Wang, N.L.; Feng, C.M.; Cao, G.H. Design and Synthesis of a New Layered Thermoelectric Material LaPbBiS3O. Inorg. Chem. 2014, 53, 11125–11129. [Google Scholar] [CrossRef] [PubMed]
  33. Li, L.; Parker, D.; Babkevich, P.; Yang, L.; Ronnow, H.M.; Sefat, A.S. Superconductivity in semimetallic Bi3O2S3. Phys. Rev. B 2015, 91, 104511. [Google Scholar] [CrossRef]
  34. Higashinaka, R.; Miyazaki, R.; Mizuguchi, Y.; Miura, O.; Aoki, Y. Low-Temperature Enhancement in the Upper Critical Field of Underdoped LaO1−xFxBiS2 (x = 0.1–0.3). J. Phys. Soc. Jpn. 2014, 83, 075004. [Google Scholar] [CrossRef]
  35. Jha, R.; Awana, V.P.S. Effect of Hydrostatic Pressure on BiS2-Based Layered Superconductors: A Review. Nov. Supercond. Mater. 2016, 2, 2299–3193. [Google Scholar] [CrossRef]
  36. Sagayama, R.; Sagayama, H.; Kumai, R.; Murakami, Y.; Asano, T.; Kajitani, J.; Higashinaka, R.; Matsuda, T.D.; Aoki, Y. Symmetry Lowering in LaOBiS2: A Mother Material for BiS2-Based Layered Superconductors. J. Phys. Soc. Jpn. 2015, 84, 123703. [Google Scholar] [CrossRef]
  37. Liu, Q.; Zhang, X.; Zunger, A. Polytypism in LaOBiS2-type compounds based on different three-dimensional stacking sequences of two-dimensional BiS2 layers. Phys. Rev. B 2016, 93, 174119. [Google Scholar] [CrossRef]
  38. Hiroi, T.; Kajitani, J.; Omachi, A.; Miura, O.; Mizuguchi, Y. Evolution of superconductivity in BiS2-based superconductor LaO0.5F0.5Bi(S1−xSex)2. J. Phys. Soc. Jpn. 2015, 84, 024723. [Google Scholar] [CrossRef]
  39. Mizuguchi, Y.; Miura, A.; Kajitani, J.; Hiroi, T.; Miura, O.; Tadanaga, K.; Kumada, N.; Magome, E.; Moriyoshi, C.; Kuroiwa, Y. In-plane chemical pressure essential for superconductivity in BiCh2-based (Ch: S, Se) layered structure. Sci. Rep. 2015, 5, 14968. [Google Scholar] [CrossRef] [PubMed]
  40. Jinno, G.; Jha, R.; Yamada, A.; Higashinaka, R.; Matsuda, T.D.; Aoki, Y.; Nagao, M.; Miura, O.; Mizuguchi, Y. Bulk Superconductivity Induced by In-plane Chemical Pressure Effect in Eu0.5La0.5FBiS2–xSex. J. Phys. Soc. Jpn. 2016, 85, 124708. [Google Scholar] [CrossRef]
  41. Ricci, A.; Poccia, N.; Joseph, B.; Arrighetti, G.; Barba, L.; Plaisier, J.; Campi, G.; Mizuguchi, Y.; Takeya, H.; Takano, Y.; Saini, N.L.; Bianconi, A. Intrinsic phase separation in superconducting K0.8Fe1.6Se2 (Tc = 31.8 K) single crystals. Supercond. Sci. Technol. 2011, 24, 082002. [Google Scholar] [CrossRef]
  42. Kugel, K.I.; Rakhmanov, A.L.; Sboychakov, A.O.; Kusmartsev, F.V.; Poccia, N.; Bianconi, A. A two-band model for the phase separation induced by the chemical mismatch pressure in different cuprate superconductors. Supercond. Sci. Technol. 2009, 22, 014007. [Google Scholar] [CrossRef]
  43. Poccia, N.; Ricci, A.; Bianconi, A. Misfit Strain in Superlattices Controlling the Electron-Lattice Interaction via Microstrain in Active Layers. Adv. Condens. Matter Phys. 2010, 2010, 261849. [Google Scholar] [CrossRef]
  44. Bianconi, A.; Di Castro, D.; Bianconi, G.; Pifferi, A.; Saini, N.L.; Chou, F.C.; Johnston, D.C.; Colapietro, M. Coexistence of stripes and superconductivity: Tc amplification in a superlattice of superconducting stripes. Physica C 2000, 341–348, 1719–1722. [Google Scholar] [CrossRef]
  45. Bendele, M.; Barinov, A.; Joseph, B.; Innocenti, D.; Iadecola, A.; Bianconi, A.; Takeya, H.; Mizuguchi, Y.; Takano, Y.; Noji, T.; et al. Spectromicroscopy of electronic phase separation in KxFe2−ySe2 superconductor. Sci. Rep. 2014, 4, 5592. [Google Scholar] [CrossRef] [PubMed]
  46. Athauda, A.; Yang, J.; Lee, S.; Mizuguchi, Y.; Deguchi, K.; Takano, Y.; Miura, O.; Louca, D. In-plane Charge Fluctuations in Bismuth Sulfide Superconductors. Phys. Rev. B 2014, 91, 144112. [Google Scholar] [CrossRef]
  47. Mizuguchi, Y.; Paris, E.; Sugimoto, T.; Iadecola, A.; Kajitani, J.; Miura, O.; Mizokawa, T.; Saini, N.L. The effect of RE substitution in layered REO0.5F0.5BiS2: Chemical pressure, local disorder and superconductivity. Phys. Chem. Chem. Phys. 2015, 17, 22090–22096. [Google Scholar] [CrossRef] [PubMed]
  48. Paris, E.; Joseph, B.; Iadecola, A.; Sugimoto, T.; Olivi, L.; Demura, S.; Mizuguchi, Y.; Takano, Y.; Mizokawa, T.; Saini, N.L. Determination of local atomic displacements in CeO1−xFxBiS2 system. J. Phys. Condens. Matter 2014, 26, 435701. [Google Scholar] [CrossRef] [PubMed]
  49. Mizuguchi, Y.; Miura, A.; Nishida, A.; Miura, O.; Tadanaga, K.; Kumada, N.; Lee, C.H.; Magome, E.; Moriyoshi, C.; Kuroiwa, Y. Compositional and temperature evolution of crystal structure of new thermoelectric compound LaOBiS2−xSex. J. Appl. Phys. 2016, 119, 155103. [Google Scholar] [CrossRef]
Condensedmatter 02 00006 g001 550

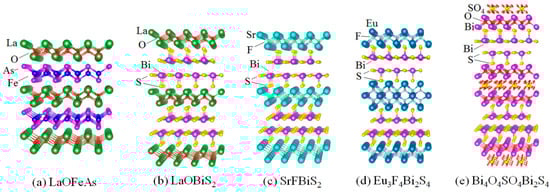

Figure 1. (a) Schematic images of crystal structure of Fe-based LaOFeAs; (b–e) Schematic images of crystal structures of BiS2-based (b) LaOBiS2, (c) SrFBiS2, (d) Eu3F4Bi2S4, and (e) Bi4O4SO4Bi2S4. The crystal structure images in this article were drawn using VESTA (Version 3.3.1) [5].
Figure 1. (a) Schematic images of crystal structure of Fe-based LaOFeAs; (b–e) Schematic images of crystal structures of BiS2-based (b) LaOBiS2, (c) SrFBiS2, (d) Eu3F4Bi2S4, and (e) Bi4O4SO4Bi2S4. The crystal structure images in this article were drawn using VESTA (Version 3.3.1) [5].
Condensedmatter 02 00006 g001
Condensedmatter 02 00006 g002 550

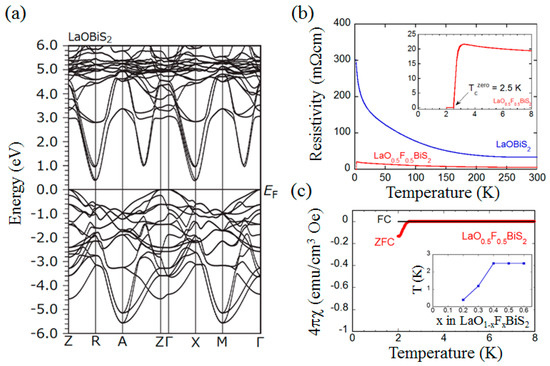

Figure 2. (a) Band structure of LaOBiS2; (b) Temperature dependences of electrical resistivity for LaOBiS2 and LaO0.5F0.5BiS2. The inset shows the enlargement of the low-temperature data of the resistivity; (c) Temperature dependences of magnetic susceptibility (measured after zero-field cooling and field cooling) for LaO0.5F0.5BiS2. The inset shows the F concentration (x) dependence of Tc of LaO1−xFxBiS2.
Figure 2. (a) Band structure of LaOBiS2; (b) Temperature dependences of electrical resistivity for LaOBiS2 and LaO0.5F0.5BiS2. The inset shows the enlargement of the low-temperature data of the resistivity; (c) Temperature dependences of magnetic susceptibility (measured after zero-field cooling and field cooling) for LaO0.5F0.5BiS2. The inset shows the F concentration (x) dependence of Tc of LaO1−xFxBiS2.
Condensedmatter 02 00006 g002
Condensedmatter 02 00006 g003 550

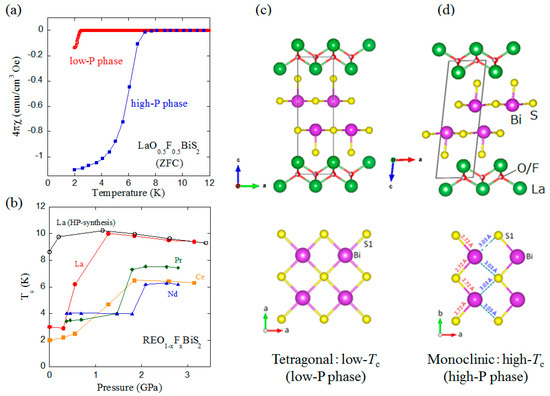

Figure 3. (a) Temperature dependences of magnetic susceptibility for two different LaO0.5F0.5BiS2 samples, low-pressure phase (low-P phase) and high-pressure phase (high-P phase); (b) Pressure dependences of Tc for REO1−xFxBiS2 with an optimal F concentration; (c,d) Schematic images of crystal structure of tetragonal (low-P) phase and monoclinic (high-P) phase of LaO0.5F0.5BiS2.
Figure 3. (a) Temperature dependences of magnetic susceptibility for two different LaO0.5F0.5BiS2 samples, low-pressure phase (low-P phase) and high-pressure phase (high-P phase); (b) Pressure dependences of Tc for REO1−xFxBiS2 with an optimal F concentration; (c,d) Schematic images of crystal structure of tetragonal (low-P) phase and monoclinic (high-P) phase of LaO0.5F0.5BiS2.
Condensedmatter 02 00006 g003
Condensedmatter 02 00006 g004 550

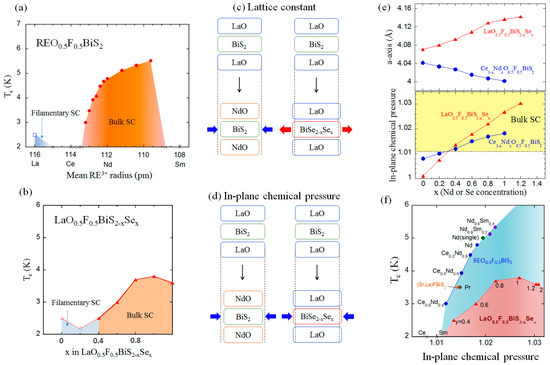

Figure 4. (a) Superconductivity phase diagram of REO0.5F0.5BiS2 plotted as a function of mean RE3+ ionic radius; (b) Superconductivity phase diagram of LaO0.5F0.5BiS2−xSex plotted as a function of Se concentration (x); (c,d) Schematic images of the evolutions of lattice constant and in-plane chemical pressure; (e) Evolutions of lattice constant of a and in-plane chemical pressure by the Nd or Se substitutions; (f) Relationship between Tc and in-plane chemical pressure in the REO0.5F0.5BiS2-type structure.
Figure 4. (a) Superconductivity phase diagram of REO0.5F0.5BiS2 plotted as a function of mean RE3+ ionic radius; (b) Superconductivity phase diagram of LaO0.5F0.5BiS2−xSex plotted as a function of Se concentration (x); (c,d) Schematic images of the evolutions of lattice constant and in-plane chemical pressure; (e) Evolutions of lattice constant of a and in-plane chemical pressure by the Nd or Se substitutions; (f) Relationship between Tc and in-plane chemical pressure in the REO0.5F0.5BiS2-type structure.
Condensedmatter 02 00006 g004
Condensedmatter 02 00006 g005 550

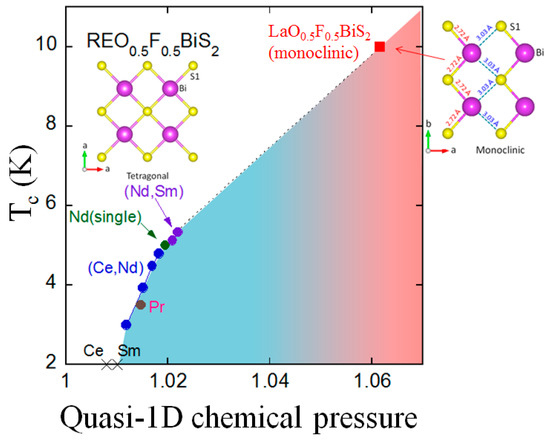

Figure 5. Possible superconductivity phase diagram plotted as a function of quasi-1D (one dimensional) chemical pressure of the REO0.5F0.5BiS2-type structures with the tetragonal or monoclinic space group.
