Assessment of Performance and Challenges in Use of Commercial Automated Sorting Technology for Plastic Waste

Abstract

Recycling plastic is an important step towards a circular economy. Attaining high-quality recycled plastics requires the separation of plastic waste by type, color, and size prior to reprocessing. Automated technology is key for sorting plastic objects in medium- to high-volume plants. The current state of the art of commercial equipment for sorting plastic as well as challenges faced by Material Recovery Facilities (MRFs) to sort post-consumer plastics are analyzed here. Equipment for sorting plastic recyclables were identified using publicly available information obtained from manufacturers’ websites, press releases, and journal articles. Currently available automated sorting equipment and artificial intelligence (AI)-based sorters are evaluated regarding their functionality, efficiency, types of plastics they can sort, throughput, and accuracy. The information compiled captures the progress made during the ten years since similar reports were published. A survey of MRFs, reclaimers, and brokers in the United States identified methods of sorting used for plastic, sorting efficiency, and current practices and challenges encountered at MRFs in sorting plastic recyclables. The commercial sorting equipment can address some of the challenges that MRFs face. However, sorting of film, multilayered, blended, or mixed-material plastics is problematic, as the equipment is typically designed to sort single-component materials. Accordingly, improvements and/or new solutions are considered necessary.

1. Introduction

Post-consumer plastics are difficult to manage with the current recycling infrastructure, mainly due to the large volume of waste generated, combined with the complexity of effectively sorting different types, shapes, and sizes of plastics for recycling. In 2017, the United States produced 35.4 million tons of plastics [1], of which only 2.96 million tons (~8.4%) were recycled. Higher recycling rates of post-consumer plastics can be achieved by improving sorting efficiency. Poorly sorted plastics result in higher reprocessing costs and a lower value for reprocessed plastics [2]. In order to achieve circularity and improve the utilization of resources, it is necessary to reduce the amount of post-consumer plastics that ends up in landfills or released into the environment.

Plastics can be recycled via mechanical or chemical means [3,4]. Mechanical recycling of plastic involves a sequence of steps, namely, sourcing, sorting, washing, shredding, identification, and separation of different plastic types, and extrusion and compounding of desired types of plastic (typically HDPE). For mechanical recycling, plastics need to be separated by type and color before reprocessing. For municipal solid waste, separation by type is performed at the Materials Recovery Facility (MRF) level, while industrial single-type plastics are typically handled by brokers. However, a few MRFs sort plastics from both municipal and industrial waste. Reclaimers obtain plastics sorted by MRFs and brokers for reprocessing into new plastic materials [5,6].

Plastics can be sourced from households and industry (e.g., manufacturing companies, retail stores, offices) through (1) single-stream, (2) mixed municipal waste, (3) dual-stream, (4) pre-sorted recyclables, or (5) container deposits [7]. Single-stream recycling is a system in which all recyclables (e.g., paper, fibers, plastics, metals, glass, and other containers) are sourced together using a single bin, a method commonly used in the US [8,9]. Single-stream recycling reportedly helped increase participation in recycling from 22% in 2005 to 73% in 2014 [9]. However, this method is often associated with cross-contamination levels in recovered plastics [9]. The mixed municipal waste consists of a mixture of waste from all places, including household waste, retail stores and other businesses, office wastes, miscellaneous waste, and non-hazardous waste. Dual-stream is sourced into separate bins by the depositor (i.e., mixed paper and cardboard in one bin, and commingled materials, such as glass, plastics, cans, and jars in another) [9]. Pre-sorted recyclables are materials (i.e., plastic waste) sorted by MRFs that are sent to a secondary MRF (for further sorting) or to reclaimers. Container deposits (i.e., “Bottle Bills”) work by adding a fee on top of a beverage product that is later refunded to the customer when the empty container is returned to an authorized redemption center for recycling.

The types of plastics sorted at MRFs are (1) poly(ethylene terephthalate) (PET), (2) high-density polyethylene (HDPE), (3) poly(vinyl chloride) (PVC), (4) low-density poly-ethylene (LDPE), (5) polypropylene (PP), (6) polystyrene (PS), and (7) other, where the numbers 1, 2, …, 7 refer to the Plastic Identification Codes [10]. Even though all these types of plastics have the potential to be sorted, most have little to no market value, except for PET and HDPE. The “residual” plastic left after the selection of valuable plastic (such as PET and HDPE) is typically landfilled. A report by Vedantam et al. [11] documented the drastic difference between the amount of HDPE recovered in New York State compared to the amount of PVC, LDPE, PS, and other plastics. The amount of PVC processed in New York State in 2019 was about 240,015 tons, 177,260 tons for LDPE and PS, and 7250 tons for others. The recovered amount of PVC, LDPE, PS, and other plastics are much lower than the amount of HDPE (colored HDPE 502,845 tons, natural HDPE 20,138) processed in the same year in New York State by brokers and reclaimers [11].

At the MRF level, post-consumer plastics can be sorted manually by operators or mechanically by exploiting differences in the optical, chemical, or electrostatic properties of materials [12]. The wide variety of plastic types makes it hard for MRF operators to efficiently distinguish plastics visually; thus, automated sorters are favored for medium- to high-volume MRFs. Automated sorting involves methods such as air classification, eddy current device, disc screen, magnetic separator, traveling chain curtains, trommel screens, optical sorters, and robotics [13]. The traditional sorters, such as magnetic and eddy currents, process waste mixtures to remove ferrous and non-ferrous materials. Separation of plastics by type, color, shape, and/or texture requires specialized equipment such as optical sorters and/or artificial intelligence (AI)-equipped sorters [14,15,16]. Sorting method varies based on the product(s) of interest, thus driving the choice of the best applicable method or technology. Optical sorters and/or AI-equipped sorters can sometimes be combined to improve product yield or sorting efficiency [16]. However, many MRFs rely on manual sorting to achieve high purity levels. This can be expensive and time-consuming for high volumes of waste, and it endangers operators’ health due to toxic additives [17,18]. In contrast, automated sorting is more efficient and can be cost-effective [17]. More versatile sorting technologies are needed to efficiently separate plastics based on resin type and grade.

The current state-of-the-art of plastic sorting equipment together with challenges faced by MRFs operating in the United States to sort post-consumer plastics are analyzed here. The previous reports published on plastic sorting equipment (by 4R Sustainability [19] and by Delavelle [20]) date from over ten years ago. Recent advances in technology and increasing pressure to recycle higher amounts of plastics motivate this effort to compile an updated inventory of established and emerging sorting equipment, and to ascertain whether this equipment can meet challenges reported at the MRF level. To this end, we evaluated both conventional systems (i.e., optical sorters) and emerging sorting equipment (i.e., AI sorting robots) using metrics on their efficiency, types of plastic sorted, size of plastic sorted, and ability to sort by color.

The following section describes the methodology used to obtain data on sorting equipment and provides an overview of our survey of MRFs. Physical principles enabling plastic materials to be sorted by type are outlined in the next section. Challenges encountered by MRFs to sort plastics and factors affecting sorting efficiency are then discussed, based on results from the survey we have conducted. Next, the inventory of sorting equipment is organized as sorters for whole plastic objects, sorters for films, flake sorters, and AI-based sorters. Equipment efficiency, type and size of plastic sorted, and throughput are reported. Finally, conclusions are presented on whether limitations at MRFs can be addressed with currently available technologies.

2. Methodology

This study synthesized and analyzed two streams of information: (1) availability and capabilities of automated sorting equipment used for plastic waste, obtained from suppliers of said equipment, and (2) utilization of sorting equipment at MRFs, sorting efficiency, and challenges faced, obtained from a survey of companies active in the field.

Equipment for sorting plastic recyclables were identified using publicly available information obtained from manufacturers’ websites, press releases, and journal articles. A search for sorting equipment and companies was conducted using Google, Google Scholar, Web of Science, Science Direct, and Engineering Village databases; with keywords such as “sorting equipment manufacturers or companies”, “optical sorters”, “plastic sorters”, “plastic sorting machines”, “sorting equipment’, and “plastic recycling”. Contact information of sorting equipment suppliers is reported in Appendix A. The companies listed come from North America and Europe. Our search was conducted in the English language; hence, it may not have captured companies in, e.g., China. The information collected here reveals the progress made during the 10 years since similar reports were published. This information is further used to assess whether challenges reported by MRFs in our survey (see next paragraph) can be addressed by currently available technologies or emerging technologies. The gap between the sorting efficiency reported by manufacturers and sorting efficiency obtained at MRFs is also obtained and reported here.

Limitations and challenges encountered at MRFs in sorting plastic recyclables were identified in a survey conducted by our team and through interviews with industry professionals. The survey was developed using Qualtrics XM software and was distributed to over 100 recycling entities (MRFs, reclaimers, and brokers) in the United States during the period August 2020 to March 2021. The list of companies surveyed was developed through Google search and magazines: Waste Today (https://www.wastetodaymagazine.com/article/largest-north-american-material-recovery-facilities last accessed on 12 February 2022), Recycling Today (https://www.recyclingtoday.com/ last accessed on 12 February 2022), and Waste 360 (https://www.waste360.com/ last accessed on 12 February 2022). The companies were contacted prior to sending the survey, and the survey was sent out to companies that showed interest in participating. Survey takers were guided through a series of quantitative and qualitative questions linked to their position in the broader plastics supply chain. Note that businesses self-identified their role in the plastics supply chain and responded to presented questions accordingly. A total of 22 responses were obtained (from 12 reclaimers, 7 MRFs, and 3 brokers), which is a satisfactory response rate for such a survey that required significant effort to collect valuable responses.

Survey questions were designed to understand the sources of plastic recyclables, amounts of plastics processed and recovered by type, methods used to sort plastic, size and types of plastics sorted, types of sorting technology in use, sorting efficiency, the technological developments that MRFs hope to see, top contaminants, average percentage contamination in the bales, the quantity of residual/landfilled material, and the types of plastic objects produced by reclaimers from recycled plastic. Specifically, survey questions were organized into 6 sections. Section 1 involved data on the type of facility (i.e., MRF, broker, or recycler) and the location of the facility. Facility locations would help estimate the amount of plastic processed from different regions. In Section 2, the waste sourcing method was designed to understand the impact of sourcing methods of plastic (i.e., municipal waste (single stream), dual stream, industrial source) on the quality of sorted plastic. Section 3 was based on the separation process used at MRFs, whether manual, automated separation, or both manual and automated sorting. If automated sorting or a combination of automated and manual sorting was selected, it was asked to provide details on the type of sorting equipment employed (magnetic separator, eddy current device, disc screen, trommel, screen, vibrating screen, traveling chain curtains, air classification system, and optical sorting equipment and the brand of the optical sorting equipment). Optical sorting equipment details would allow the comparison of sorting efficiency at the MRF level to the sorting efficiency reported by the equipment manufacturer. Section 4 was based on the challenges and limitations associated with sorting plastic waste at MRFs and how these challenges affect MRFs operations. Moreover, MRFs were asked to provide improvement recommendations in current or emerging sorting technologies that would benefit them and improve sorting efficiency. In Section 5, MRFs were asked to provide data on the type (e.g., PET), form (rigid or film), and amount of plastic sorted. MFRs were also asked to provide details and the fate of produced residuals. Section 6 was based on contamination on sorted plastic or efficiency of sorting technologies and their impact at the MRF level. Examples of survey questions are included in Appendix B. Note that only the parts of the survey that pertain to automated sorting are discussed here.

3. Plastic Type Identification Principles

In order to achieve the US national recycling rate target of 50% by 2030, with specific goals of reducing contamination in recycled content and improving the quality of recycled materials [21], a technology improvement is expected in order to keep pace with today’s diverse and changing waste system. Eriksen et al. [22] reported that 17% to 100% of post-consumer plastic could be recovered with an improved source separation system and improved separation efficiency at the MRF level. The same study concluded that <42% of plastic could be sorted with current technology [22].

Current technologies used to sort plastic waste are based on Near Infrared (NIR), X-ray Fluorescence (XRF), and VIS (color analysis by camera or spectro-colorimeter) [23,24,25]. Some other technologies, such as mid-infrared (MIR), shape recognition, hyperspectral imaging, electrostatic separators, and barcode scanners, show potential for sorting plastic recyclables but are yet to be used in large scale plastic sorting [26,27,28,29]. The wavelength ranges for each optical technology vary, from lower (X-ray) to higher wavelengths for NIR and Microwave (Figure 1). The three key methods (i.e., NIR, XRF, VIS) have different advantages in sorting different types of plastic, as outlined below. In general, optical sorting works because, when light reaches an object, some light is reflected, and some is absorbed. Different materials reflect and absorb light at different wavelengths. The reflected light minus the absorbed light produces a signature or fingerprint, which is unique to the chemical makeup of the object, allowing plastic objects to be sorted based on their chemical composition [30,31].

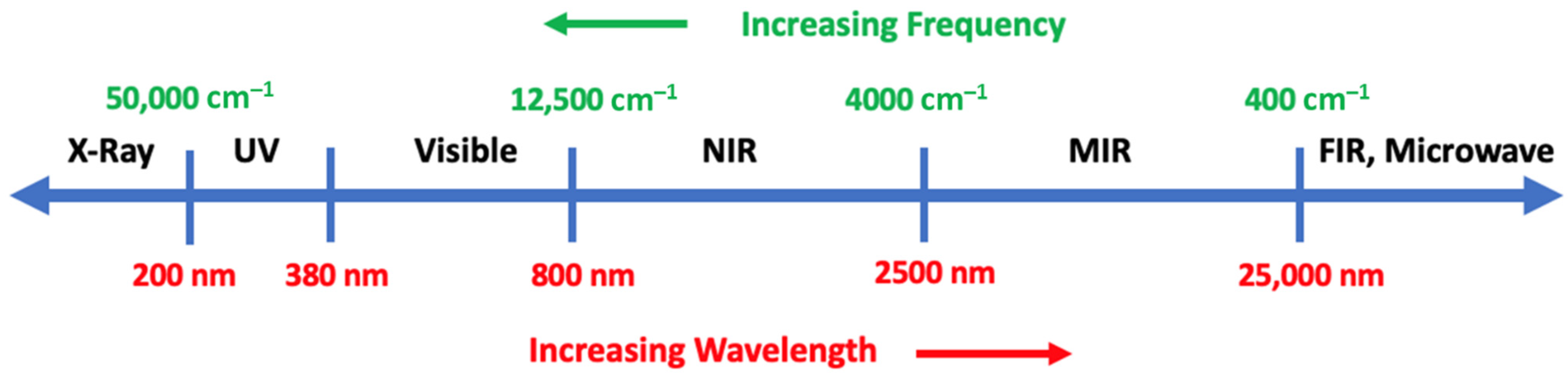

Figure 1. Wavelength range for different optical technologies (adapted from [20,32]).

Near InfraRed (NIR) based sorters employ rapid, non-destructive analysis to sort post-consumer PET, HDPE, PP, and PS [28,30]. NIR sensors detect variation in absorption, transmittance, and scattering of light in infrared wavelengths produced by different materials, which enables it to sort by plastic type [18,33]. The sorting of plastics waste can be influenced by the plastic color, surface texture, and shape, as these properties can influence the intensity of the obtained spectra [27,34]. NIR spectroscopy (wavelengths between 0.8 and 2.5 µm, Figure 1) has many advantages, such as remote high-speed measurements, the high penetration depth of the NIR radiation, and a high signal-to-noise ratio [28]. However, NIR optical sorters are not effective in sorting black plastics because the carbon black pigment interferes with the reflected light, making identification impossible because most light is absorbed. Similarly, NIR optical sorters perform poorly in sorting plastics containing brominated flame retardants (BFRs) [26].

X-ray Fluorescence (XRF) based sorters: X-rays penetrate materials and are absorbed or scattered depending on the material [18,35]. XRF works by projecting primary X-rays onto the plastic under analysis, and measures the fluorescent X-ray emitted at another wavelength by the elements present in the plastic. Each element is characterized by a unique fingerprint (spectrum), making identification of heavy elements such as chlorine and bromine possible [19]. XRF sorters are widely used to sort PVC and plastics containing BFRs [18]. However, the implementation of XRF-based sorters at an industrial level is often limited to the separation of PVC from PET [36].

Vision Technology (VIS): Optical sorting or color analysis by camera sort plastics by color. Camera-based sensors are used for identification based on the surface appearance of materials [13,37]. Commonly used technologies are the prism-coupled color camera system and visible spectrometry [20]. The prism-coupled color camera system works by measuring colors (red, green, and blue) based on intensity. Visible spectrometry works by analyzing the total range of the visible spectrum, thus accurately characterizing all colors [20]. In order to assess whether current sorting equipment can address the challenges reported by MRF operators, we evaluated both current systems (i.e., optical sorters) and emerging sorting equipment (i.e., AI sorting robots) using metrics on their efficiency, types of plastic sorted, size of plastic sorted, and ability to sort by color [13,37].

4. Challenges in Sorting Plastics

This section describes the main challenges of sorting post-consumer plastic waste, as reported by surveyed MRFs that are based in the United States. Regarding sorting technology, 29% of the seven MRFs responding to our survey use fully automated sorting facilities with little human input, 28% rely heavily on manual sorting, and 43% use both manual and automated sorting, as illustrated in Figure 2.

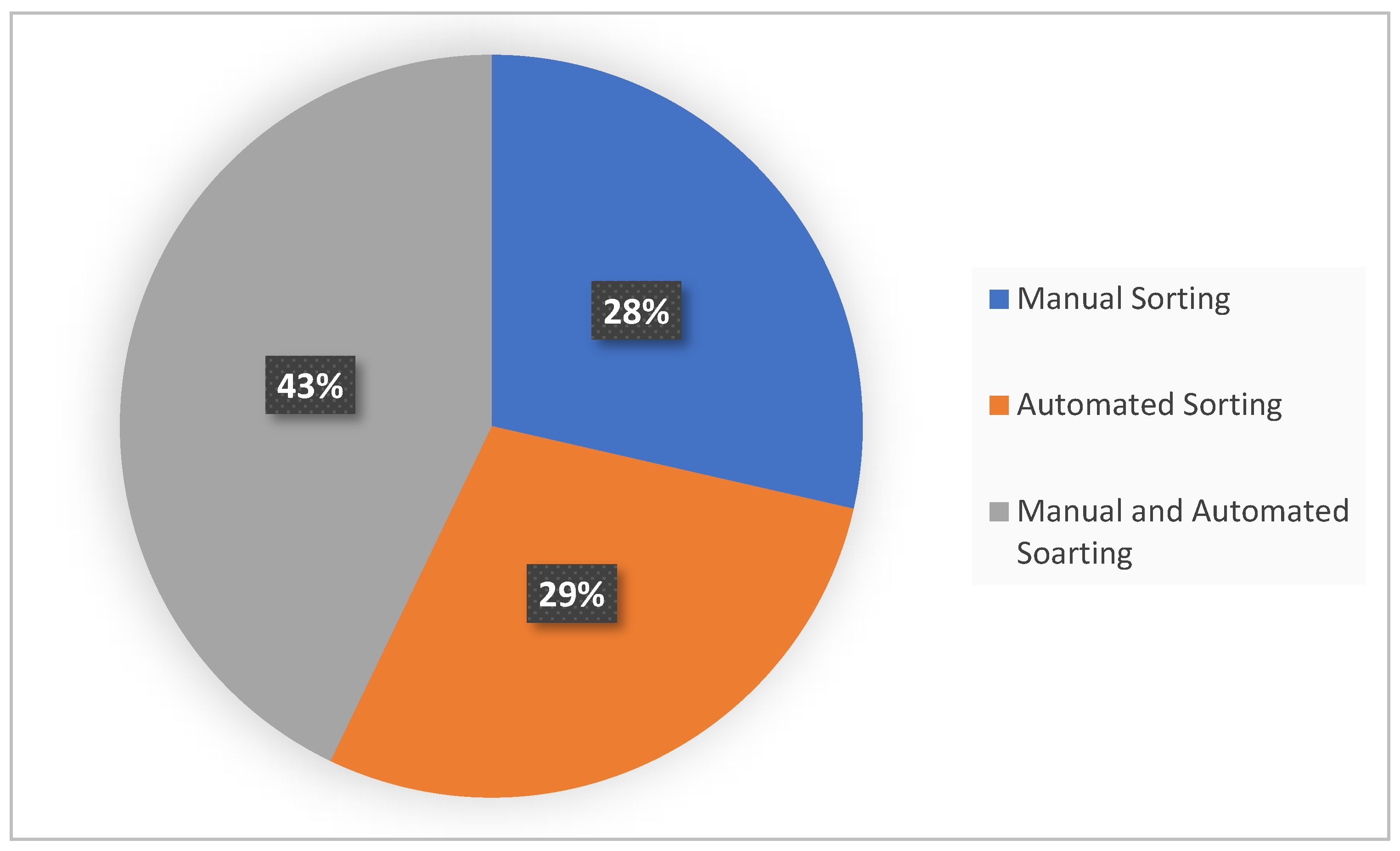

Figure 2. Breakdown of sorting methodologies currently used at MRFs in the U.S.

MRFs reported difficulties in sorting a variety of plastics. Survey results indicate that 5 out of 12 plastic reclaimers (i.e., the entities to which the MRFs send their sorted plastics) reported concerns about the quality of bales provided by MRFs, and indicated that up to 5% of bales from MRFs are rejected due to poor sorting. Low bale quality is often associated with the presence of labels on plastic materials, multilayered films, mixed polymers, wires, and incorrectly sorted individual types of polymers. One reclaimer indicated that up to 35% of colored plastic is sorted incorrectly and therefore wasted.

Limitations reported by MRFs in their survey responses are summarized in Table 1. MRFs that rely on manual sorting of plastic recyclables reported a low throughput of materials. Automated sorting could help resolve throughput limitations faced by such facilities. Another challenge for MRFs relying on manual sorting of plastic recyclables was the growing number and types of plastic reducing sorting efficiency (see Table 1). MRFs using automated sorting (or a combination of automated and manual sorting) reported that tanglers wrapping around sorting equipment presented a challenge. Tanglers are materials such as ropes, cords, plastic films, or chains that become wrapped around sorting equipment at MRFs, affecting the functionality of equipment and/or causing the shutdown of operations [38,39]. Films (e.g., plastic bags, wrapping films) are flexible plastic materials (mostly made of LDPE or HDPE), often used for packaging (e.g., bags, pouches) or wrappers [38,40]. Bale de-wiring technology is reported to be needed by MRFs using automated sorters due to shutdowns caused by wires and tanglers, which can occur up to five times a day and last up to 30 min. MRFs and reclaimers have reported that films are difficult to sort and are generally dirty, with high contamination rates. Film sorting challenges can occur due to technology limitations at MRFs, coupled with an insufficient supply of films. Reclaimers indicated that films are costly to reprocess due to intensive washing requirements.

Table 1. Common limitations in sorting plastic wastes reported by MRFs.

MRFs	Reported Limitations
MRF1	Throughput constraints for manual sorting MRFs
MRF 2	Plastic bags and film wrapping around equipment (Tanglers)
MRF 3	Tanglers
MRF 4	Tanglers and the growing number and types of plastics make it inefficient (black plastics). Difficult to identify the type of plastic when it is not a bottle tub jug or lid

Another concern identified in the survey was the inability to sort black plastics. Black plastics are reportedly a challenge to correctly sort at MRFs [41,42]. Industry professionals (Scott Farling, personal communication, 4 June 2020) mentioned that black plastics are often considered residuals at MRFs; they are difficult to sort and have low market value. A few technologies are reported to sort black plastics [42]; however, no indication of black plastic sorting efficiency was reported by sorting equipment manufacturers.

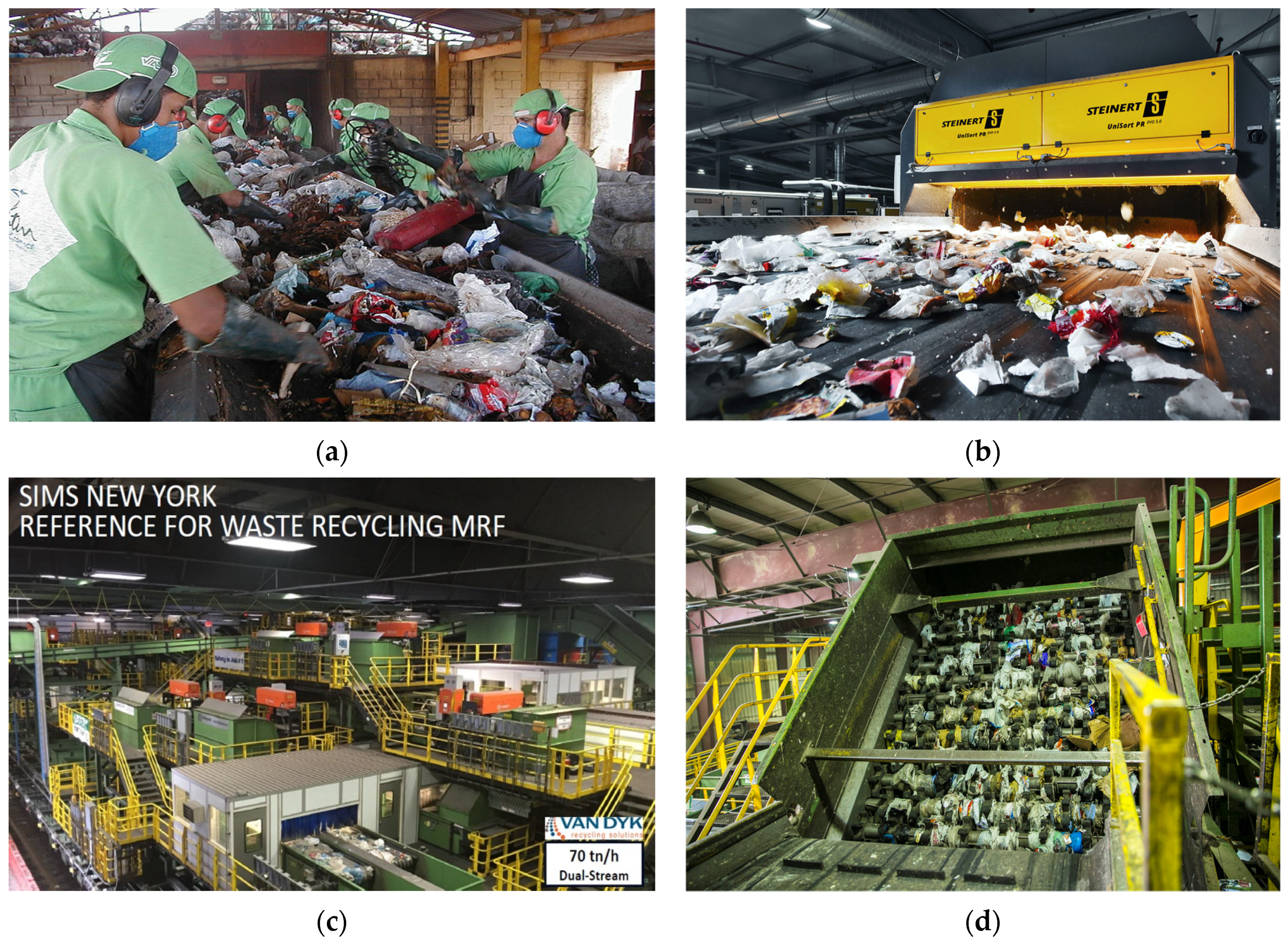

Figure 3 shows photographs from manual sorting at MRFs, automated sorting MRFs, and some of the limitations faced by MRFs.

Figure 3. (a) Manual sorting process at MRFs, (b) automated sorting using optical sorter, (c) overview of an MRF sorting facility using multiple automated sorters, and (d) tanglers as a key problem encountered by MRFs. Extracted from cleantechloops, steinertglobal, simsmunicipal, mydisposal.

5. Factors Affecting Sorting Efficiency at the MRF Level

Sorting efficiency is affected by the composition of the incoming stream, the method of sourcing, sorting technology, and operational procedures at the MRF, as described below.

The composition of the incoming stream can directly relate to the method of sourcing, as materials can be sourced from household and industry (e.g., manufacturing companies, retail stores, offices) through (1) single-stream, (2) mixed municipal waste, (3) dual-stream, (4) pre-sorted recyclables, or (5) containers deposits [7].

Survey responses indicate that sourcing materials from container deposits (1% contamination) and industrial sources (0% contamination) resulted in higher sorting efficiency, compared to materials sourced using single stream (up to 12% contamination) or dual stream (up to 5% contamination) (see Table 2). However, anecdotal evidence from MRFs that switched from single-stream to dual-stream recycling indicates that the purity level did not differ much from bales recovered from single and double-stream recycling. Additional data are required to confirm this.

Table 2. Sorting efficiency based on collection method, stream type, and materials sources.

MRF	Post Industrial Source (%)	Stream Type	Separation Method	Number of Operators	Type of Plastic Sorted	Challenges or Limitations	% of Non-Glass Materials from Incoming Stream That Is Landfilled	Percent Contamination	What Type of Technological Development(s) Would Benefit Your Facility?
1	0	Dual Stream	Manual Separation	100	PET (#1), LDPE (#4)	Time consuming; throughput constraints, high turnover	0%	1% for PET	Optical sorters
2	1	Both	Manual and Automated Separation	30	PET (#1), Natural HDPE (#2), Colored HDPE (#2), LDPE (#4), PP (#5), Industrial Scrap Plastic, Other. (Obs. MRP—only #2 pails and #5 pails, not all)	Tanglers (plastic bags and film)	21%
3	5	Single Stream	Manual and Automated Separation	22	PET (#1), Natural HDPE (#2), Colored HDPE (#2), PVC (#3), LDPE (#4), PP (#5), PS (#6), Other Plastics (#7). [#3 to #7 are mixed]	Tanglers, material jam	12%	9% on avg for PET and HDPE, and 9% for MPR #3–7
4	20	Single Stream	Manual and Automated Separation	12	PET (#1), Natural HDPE (#2), Colored HDPE (#2), Polypropylene (#5), Other Mixed Rigid Plastics (MRP)	Tanglers, growing number and types of plastics	8%	1% for PET, natural and colored HDPE, PVC, and 5% for other MRP	Optical sorters
5	5	Both	Automated Separation		PET (#1), Natural HDPE (#2), Colored HDPE (#2), LDPE (#4), Polypropylene (#5), Industrial Scrap Plastic, Mixed Rigid Plastics (MRP), Plastic Films and Bags (LDPE)		5%
6	100	Dual	Manual Separation	7	PET (#1), Natural HDPE (#2), Colored HDPE (#2)	Overcapacity, Labor Shortage	2.96%	0% for PET, 0% for natural HDPE	Optical sorters
7	90	Both			PET (#1), Natural HDPE (#2), Colored HDPE (#2), PVC (#3), LDPE (#4), Polypropylene (#5), Polystyrene (#6), Other Plastics (#7), Industrial Scrap Plastic, Mixed Rigid Plastics (MRP), Plastic Films and Bags (PET, HDPE, LDPE, LLDPE)

Regarding sorting technology, manual and automated sorting have different efficiencies, according to survey respondents. MRFs using manual sorting reported less downtime and higher sorting efficiency compared to MRFs employing automated sorting or a combination of automated and manual sorting. The higher sorting efficiency (>98%) of manual sorting MRFs is related to the fact that one MRF uses manual sorting and receives pre-sorted plastics with a reduced presence of foreign materials (i.e., paper, glass, aluminum cans), while the second MRF using manual sorting sourced plastic from dual-stream waste.

Operational procedures at MRFs affect sorting efficiency. Running operations beyond designed capacity were reported as a problem by one respondent, as it reduced sorting efficiency. Running operations at greater than design capacity can indicate that processing more materials might be more important than sorting efficiency for this MRF.

In order to ensure quality plastics for reprocessing, it is important to limit contamination in sorted materials (1.5% commonly used limit, 0.5% for China since the National Sword program was adopted) [43]. For example, as little as 50 ppm of PVC can render an entire load of PET unmarketable [9,17].

MRFs report that film separation from municipal solid waste is challenging [44]. Over 60% of survey respondents indicated this problem, and that the recovery rate is low and contamination in the sorted plastics is high (>2%). Up to 5% of film bales received by reclaimers from MRFs are discarded or returned. Moreover, the demand for films is low, attributed to low quality associated with sorting challenges. One MRF that processes plastic films indicated that <10% of sorted films are sold for reprocessing.

In Section 6, commercially available sorting equipment is evaluated as a potential remedy to the problems reported by MRFs in sorting plastic.

6. Advances in Sorting Plastics

6.1. Sorting Equipment for Post-Consumer Plastics

This section describes commercial sorting equipment for sorting mixed plastics. The optical sorters considered here utilize NIR, VIS (light- or camera-based), and XRF. Reported technologies are classified here based on criteria such as plastic identification method (e.g., NIR or XRF), primary application, throughput, whether they sort plastics by color, and/or by size, accuracy, and additional features (Table 3).

Table 3. Inventory of commercially available sorters for whole (i.e., bottle) plastic.

Manufacturer/Brand	Equipment Name	Sorting Method	Primary Application	Plastic Identified	Sorts Non-Bottle Rigids in Addition to Bottle	Non-Plastics Sorted	Colors Sorted/Black Plastic Sorted	Throughput (Average)	Accuracy	Features
Binder + Co	Clarity Plastic	NIR, Reflection VIS, Inductive metal detection	Light weight packaging, film sorting, plastic flakes, plastic granules, and hallow plastic sorting				Yes/_	0.5 tons per hour (t/h) for 700 mm sorting width, 0.7 t/h for 100 mm, and 1 t/h for 1400 mm		Metal detection
	Clarity Multiway Light Weight	NIR		PET, PE, PP, PVC		Paper and cardboard	_/_	2.4–3.5 ton/hour
Cimbria	Sea Hypersort	NIR, and/or inGaAs cameras	Sorts all resins	Sorts all resins, sorts by color and shape	Yes		Yes/Yes	20,000 scans/second
CP Group (MSS) sorting equipment	MSS CIRRUS PlasticMax	High-resolution NIR/color sensor	Sorts all resins	PET, PE, PVC, HDPE, PP, PS, PLA, PET-G, etc.	Yes	Yes	_/Yes	600–800 picks/minute	Up to 98%	Identifies and recovers the most challenging materials, such as short fills, labels, and PET-G
	Sapphire _ Plastic Sorting Equipment	NIR	To extract mixed plastic resins from low-grade material			Paper, cartons			95% to 98%	Single eject or dual eject setup
	L-VIS	Color camera sorting	Optical for small particle applications, and automatically sorts shredded, granulated materials and flakes	Color sorting, Flakes and pellets	Yes, electric scrap		Yes/Yes		98%	Statistics and quality control report, metal detector, remote modern or ethernet access
	MSS Aladdin	NIR and Vis	PET and HDPE	All resins	Yes	Yes	Yes/Yes	Up to 6 ton/hour for plastic bottles/containers	92–98%	All metal detector, split machine
	MSS Sapphire	NIR	PET and HDPE	All resins	Yes		No/_	Up to 6 ton/hour for plastic bottles/containers	92–98%	All metal detector, split machine
	FlakeMax		Best suited for PET and PE/PP		Non-metals		_/_	3–16 ton/hour	Up to 98%
	PurePlasticMax	NIR and color spectrometry with optional metal detection	Sorts even the most challenging plastics	Full-body sleeved PET, PE, and PP bottles	Metals		Yes/Yes		Up to 98%
Eagle Vizion	Aquila Series	NIR	Pure Streams of HDPE and PET	HDPE (color vs. natural), PP, PET, PS, PVC, Tetra, PLA, etc.		_	Yes/Yes		90%	Can be combined with several belts
Everyready Manufacturing	NIRsort							Up to 2.5 ton/hour
Green Machine LLC	Green Eye Hyperspectral Robotic Sorters	Patent Pending	Sorts all plastics	Identification of all grades of plastics			_/Yes	6 ton/hour (60” belt width)	95% or more	Can be trained to identify and pick out almost any type of polymer by shape, and chemical composition
	Green Eye Optical Sorter	Neural network AI-driven software/NIR	Sorts all resins	Sorts all resins			Yes	Up to 10 ton/hour	95% or better accuracy rate
IMRO	Model DSS—Sensor-Based Sorting Separators	NIR, color camera, metal sensor, 3D camera	Sorts all resins	Sorts all resins	Yes		Yes/Yes		Up to 98%
RTT Steinert GmbH)	Unisort P4000	NIR and vision spectroscopy	Sorts PP, PVC, PE, ABS, PMMA, POM, PC, PC/ABS, PS, and others	PP, PVC, PE, ABS, PMMA, POM, PC, PC/ABS, PS, and others	Yes	_	Yes/_	2.5–4.0 ton/hour	99%
	Unisort	NIR	Sort mixed containers	PET, HDPE, PP, PS, PVC, TETRAPAK			No/_	Depends on conveyor’s width	90% or better
	Unisort PX	NIR	Sort mixed containers	PET, HDPE, PP, PS, PVC, TETRAPAK			No/_	Depends on conveyor’s width	90% or better
	Unisort Multi5	NIR	Sort mixed containers	PET, HDPE, PP, PS, PVC, and others			Yes		80–98%
	Unisort RDF	NIR	Sorts PVC	PVC			No		90%
	Unisort Black		Separates dark and unknown objects that would otherwise become lost				Yes/Yes
	Unisort C	Color sensors (Linear cameras)	Separate PET bottles by color				Yes/	1.5–4 ton/hour, depending on sorting width of conveyor	97%
NRT	MultiSort ES	Vision-based	Frequently used for color sorting PET bottles	None	Yes		Yes/Yes	5.5 ton/hour	95%	Metal detector
	MultiSort IR	NIR			Yes		No/No	5.5 ton/hour	99%	Metal detector
	VinylCycle	X-ray	Sorts PVC
	SpydIR-R	NIR	Sort polymers from mixed stream	PVC, PS, PETG, PLA, PC, PE, PP, and other	Yes	Cardboard, paper, and fiber	No/No	5.5 ton/hour		Uses PET boost that improves detection of thin-wall PET, wet PET, and full-sleeve labeled PET
Pellenc ST	Mistral	NIR	Mainly used to sort PET and HDPE	Sorts all resins	Yes		No/No	6.5 ton/hour	<50 ppm of PVC and metal contaminants	Metal detector unit
	Mistral+ Connect	NIR/VIS spectrum	provides better detection and sorting PET bottles versus PET trays or thermoforms, paper versus cardboard in sorting centres	PET, PE, PP, paper, films, wood, domestic waste, organic, RDF...			_ / Yes
	Siroco	Vision Technology	Color sort for PET od HDPE	NA		No/PET: Tri-sort into clear, green, and other (blue or mixed crystal		6.5 ton/hour		Metal detector unit
	Bi-Techno	NIR and Vision technology (color)	Pure Stream of PET	PET, PVC, PS, EPS, HDPE, Beverage carton, PP, PE, PLA		_/PET: Tri-sort into clear, green, and “other “OR blue, mixed, crystal HDPE: Natural and colored	No/No	6.5 ton/hour	98%	Metal Detector Unit
PicVisa	Ecopack—Model EP Optical Plastic Sorting Machine	NIR, VIS, Deep Learning	PET/PE recycling, Plastic film (PEBD, PP, HDPE/LDPE, etc.)	PET, HDPE, PP, PS, PVC, EPS, ABS) HDPE, PET, Mixed LDPE, Sorting film (HDPE/LDPE)	Yes, sorting of films (PE) from bottles of the same material	Paper, and cardboards, Wood recycling, Metal recycling	Yes/_			Allows separating the always-present silicone cartridges in HDPE flows
BT-Wolfgang Binder GmbH (Redwave)	Redwave NIR/C	NIR	Bottles (PET, HDPE, PP), films, bio-degradable plastics	PET, PE, PP, PS, PVC, ABS, PC, PC, POM, PU (and all other non-black plastics)		Electric scrap, Refuse Derived Fuel (RDF), Demolition waste/	Yes/No	8 ton/hour (depending on the material and task)	Up to 99%, depending on the input material	Metals and alloys, glass, and other materials. Elimination of brominated plastics (BFR), plastics with cadmium compounds
	Redwave QXR	XRF	Used for PET and WEEE stream purification	Removes PVC and BFR containing plastics			No/No	2.5 to 8.0 ton/hour	80%
	Redwave XRF-P	X-ray Fluorescent	Segregation of dark PVC and brominated plastics from an infeed of shredded plastics	BFR and chloride containing plastics			No/No		Up to 99%, depending on input material
	Redwave NIR-SSI/C	NIR spectroscopy combined with Color detection	Fine material sorting	Flakes, medical waste, e-scrap, PVC separation at pulper reject and RDF		_/	No/_	2.5–4.0 ton/hour	80–98%
	Redwave C	Vision spectroscopy with CCD Camera	Separation of plastics by color	Sorting of flakes by color	No	_/	Yes/_		Up to 99%
Rofin	Rapid Sort 75	NIR	All resins	PET, PE, PVC, PP, PS, and others	Yes		_/Yes		99%
Sesotec GmbH (S+S Separation and Sorting Technology GmbH)	Varisort CS-P	CCD Linear camera	Sorts plastic by color		Yes		No/No
	Varisort NS-P	NIR	Sorts all resins	Sorts all resin			Yes/Yes	Up to 10 ton/hour depending on scale	90% to 99.8% depending on input
	Varisort X	X-ray	Mainly used to sort BFR containing plastics				No/No	Up to 10 ton/hour depending on scale	90% to 99.8% depending on material input
Titech GmbH	Autosort	NIR and spectroscopy color detection (also available in just NIR)		PET, PETG, HDPE, LDPE, PP, PVC, PLA, PS, HIPS, ABS, PC, PC-ABS, POM, PA, PPO, PMMA	Yes	_	Yes/Yes	10 ton/hour	99.99% when using multiple machines
TOMRA systems ASA	Autosort	NIR, Visual	Mixed packaging waste, RDF, Sorting paper, PET/PE recycling	Sorting of e. g. beverage cartons, PE, PP, PS, PVC, PET, EPS, ABS by type of material	Removing all metals		Yes/Yes			Remote Access
	Autosort Laser	NIR, laser	Mainly used for glass sorting. However, has the ability to sort plastics as well				No/No
Unisensor Sensorsysteme GmbH	Powersort 200	laser spectroscopy	Sorts all resins		Yes		Yes/Yes		Up to 98%
Visys	Cayman	NIR	Used to obtain resin streams	PET, HDLPE, PP, PS, PE, PVC and others	Yes		No/No	5 ton/hour depending on the input material	Up to 99% depending on input materials
	NIREX	NIR and vision technology	Used to obtain resin streams	PET, HDPE, PE, PP, PVC, and others	Yes		Yes/Yes	4 ton/hour	Depends on product type	Can be combined with other sorting units

A total of 46 optical sorters manufactured by 17 companies have been identified. Of these, 22 can sort plastic by color, with 21 of them capable of sorting black plastics from other colors using a combination of NIR and VIS technologies. The number of optical sorters available has increased by 70% since 4R Sustainability released their report in 2011 [19]. The reported recovery efficiency that the sorters can attain is 99.99%, depending on the input materials, with a wide range (up to 10 tons/h) of throughput capacities.

As discussed in the previous section, film separation from municipal solid waste is challenging for MRFs [44]. While traditional sorters designed to sort whole plastic items are not efficient in sorting plastic films and other 2D or lightweight materials, the technology exists to sort plastic films. In Table 4, nine specialist film sorters manufactured by eight companies are listed. None of these sorters was identified in the previous reports by 4R Sustainability [19] and by Delavelle [20]. These film sorters can reportedly attain an efficiency of 98%, dependent on material inputs. Three of them have the ability to sort films by color, and most of them (67% of sorters) use a combination of NIR and VIS. The film sorter Machina Cattura Sacchetti Film grabber Machine Unit by Amut Ecotech is not an optical sorter as it uses a blower to separate films or plastic bags, but is reported to be efficient in sorting films or plastic bags at the MRF level.

Table 4. Inventory of commercially available film sorters.

Manufacturer/Brand	Equipment Name	Sorting Method	Primary Application	Plastic Identified	Sorts Non-Bottle Rigids in Addition to Bottle	Non-Plastics Sorted	Colors Sorted/Black Plastic Sorted	Throughput (Average)	Accuracy	Features
Amut Ecotech	Machina Cattura Sacchetti Film graber Machine Unit	high efficiency blower fan	Sorts films and plastic bags
Binder + Co	Clarity Plastic	NIR, Reflection VIS, Inductive metal detection	Lightweight packaging, film sorting, plastic flakes, plastic granules, and hallow plastic sorting				Yes/_	0.5 ton/hour for 700 mm sorting width, 0.7 ton/hour for 100 mm, and 1 ton/hour for 1400 mm		Metal detection
CP Group (MMS) Sorting Equipment	FilmMax	NIR, color, and metal sensors	Sorts bags, pouches, foil, and other ultra-light products	LDPE/LLDPE films, PET, PVC, PS	Non-metals		_/_	0.5–3.0 ton/hour	Up to 98%
RTT Steinert GmbH	Unisort Film	NIR, VIS	Agricultural Film, Bio--based Film, Biodegradable Film, Conventional PVC Film and papers	Plastic film, bags, and paper			Yes/
Pellenc ST	Mistral + Films	NIR	Used to separate films from other plastics	PE film		Papers, cardboards, and metals/No	No/No	Up to 2.5 ton/hour	Up to 91%
	Mistral+ Connect	NIR/VIS spectrum	provides better detection and sorting PET bottles versus PET trays or thermoforms, paper versus cardboard in sorting centres	PET, PE, PP, paper, films, wood, domestic waste, organic, RDF...			_ / Yes
PicVisa	Ecopack—Model EP Optical Plastic Sorting Machine	NIR, VIS, Deep Learning	PET/PE recycling, Plastic film (PEBD, PP, HDPE/LDPE…)	PET, HDPE, PP, PS, PVC, EPS, ABS) LDPE, film (HDPE/LDPE)	Yes, sorting of films (PE) from bottles of the same material	Paper, and cardboard, Wood recycling, Metal recycling	Yes/_			Allows separating the always-present silicone cartridges in HDPE flows
Steinert GmbH	Unisort Film	NIR, VIS	Agricultural Film, Bio--based Film, Biodegradable Film, Conventional PVC Film and papers	Plastic film, bags, and paper		Yes/_
TOMRA systems ASA	Autosort Speedair			Film (LDPE, HDPE), papers, and packaging

Flake sorting is an important step prior to reprocessing plastic, as it reduces contamination from foreign materials or unwanted plastics that passed through previous sorting steps. In Section 5, we mentioned that as little as 50 ppm of PVC could contaminate an entire load of PET plastics; thus, further sorting can be necessary after whole plastic items are flaked. Flake sorters separate plastics down to 1 mm in size, depending on equipment types. Table 5 reports the currently available plastic flake sorters. Thirty-five flake sorters, manufactured by 16 companies, have been identified. This compares to 25 sorters identified in the 2011 4R Sustainability report. The reported accuracy that flake sorters can attain is 99%, depending on material inputs. Identification of plastic type is achieved using NIR, XRF, or VIS. Seventeen flake sorters have the ability to sort flakes by color.

Table 5. Inventory of commercially available flake sorters.

Manufacturer/Brand	Equipment Name	Sorting Method	Primary Application	Plastic Identified	Sorts Non-Bottle Rigids in Addition to Bottle	Non-Plastics Sorted	Colors Sorted/Black Plastic Sorted	Throughput (Average)	Accuracy	Features
Best	NIREX	NIR, and vision technology	Sorts e-scrap		Yes		Yes/Yes		Depends on product type
Binder + Co	Clarity Plastic	NIR, Reflection VIS, Inductive metal detection	Light weight packaging, film sorting, plastic flakes, plastic granules, and hallow plastic sorting				Yes/_	0.5 ton/hour for 700 mm sorting width, 0.7 ton/hour for 100 mm, and 1 ton/hour for 1400 mm		Metal detection
Buhler	Sortex Z + Series	Vision-based and high-resolution IR sensors	Sorts PET, PVC flakes, and nylon				Yes/Yes	0.675 to 1.16 ton/hour depending on model	99.9% or higher
BT-Wolfgang Binder GmbH (Redwave)	Redwave QXR	XRF	Used for PET and WEEE stream purification	Removes PVC and BFR containing plastics			No/No	2.5 to 8.0 ton/hour	80%
	Redwave XRF-P	X-ray Fluorescent	Segregation of dark PVC and brominated plastics from an infeed of shredded plastics	BFR and chloride containing plastics			No/No		Up to 99%, depending on input material
	Redwave CX	NIR, metal sensor			Yes	Glass, metals	Yes/Yes
CP Group (MMS) Sorting Equipment	FlakeMax	NIR	best suited for PET and PE/PP		Non-metals		_/_	3–16 ton/hour	Up to 98%
	eMax	NIR, color, and metal ALWAYS included	designed for e-scrap recyclers	Sorting of opaque, transparent, and black commodities such as ferrous, non-ferrous, and stainless steel, wires, PCB as well as durable plastics such as ABS, HIPS, PC, and PMMA				0.5–3.0 ton/hour	Up to 98%
Eagle Vizion	Black Sorter		Sorts PE and PP Flakes	PE, PP, and others				Up to 0.55 ton/hour		2–12 mm
CP Group (MMS) Sorting Equipment	L-VIS	VIS high-resolution color camera	Color sorting, Flakes and pellets	Yes, electric scrap			Yes/Yes		98%	Statistics and quality control report, metal detector, remote modern or ethernet access
	E-sort	NIR	Separate different types of plastics (all resin) by composition and color	Useful for flake sorting, shredded plastics (i.e., WEEE)			Yes/Yes	Up to 3 ton./hour	92–98%
Mogensen GmbH/ Allgaier Process Technology GmbH	Msort	IR and X-ray	Sorts all resins of size from 0 mm up to 12 mm	Sorts all resins (mostly used to sort PET flakes)		Yes	Yes/Yes	Up to 4.4 tons/hour. Rejects up to 8000 particles/second	Up to 99.9%
	MikroSort AF	CCD Linear Camera	Sorts PET flake by color	None			Yes/Yes	1–3 ton/hour
NRT	Flakesort	NIR	Mainly used to remove contaminants from PET stream					Up to 2.5 ton/hour	Removal efficiency of flakes up down to 0.1”
Pellenc ST	Mistral + Metal Sensor	NIR	Applicable for all resins	Mostly used in shredded e-scrap sorting		Paper, cardboard, and metals/No	No/Yes	Up to 6.5 tons/hour
Rhewum GmbH	Datasort	CCD camera system, LED	Sorts all resins				Yes/Yes	4.4 to 8.3 ton/hour	Up to 97% accuracy
	RHEWUM DataSort S		Mostly used for ore sorting, but can be used to sort plastic flakes as well						Up to 98%
Satake	Scanmaster IE	High-resolution CCD Camera	Separates plastics by color	PET, PVC			Yes/	1–3 ton/hour		Remote monitoring
	MikroSort AF	CCD Linear Cameras	Sorts PET flake by color				Yes/Yes	0.25–5 ton/hour		Remote monitoring
	Satake RNEZX	NIR, Full coolor RGB Camera	Sorts PET flake by color			Yes	Yes/Yes
	Beltuza sorter	NIR, full color RGB	Sorts plastic flakes by color			Yes	Yes/Yes	Up to 12.5 ton/hour
	FMSR-IR Sorter	Full Color RGB, InfraRed	Sorts plastic flakes by color			Beans, seeds, corns, nuts	Yes/Yes
	ScanMaster XE	Proprietary inGas/Color camera technology	Remove clear PVC from PET, and other non-contaminants	Sorts all resin		Yes	No/No	Up to 3lton/hour		Remote monitoring
	RGB Full Color Belt Sorter	NIR, Full color Cameras (RGB)	Separates plastics by color	PET, Toasted PVC			Yes/Yes	9 to 19 t/h	Up to 99%
	Pellet Scan	High-resolution CCD Cameras	Separates plastics by color	No					Up to 99%	Data Scan
Sesotec GmbH (S+S Separation and Sorting Technology GmbH)	Flake Purifier N	NIR	Purifies resin stream, also sorts e-plastic	PET, HDPE, PLA, PVC, and more			No/No	Up to 10 ton/hour depending on how the unit is scaled	90% to 99.8% depending on input
	Flake Purifier C	CCD linear camera	Color sorting	No			Yes/Yes	Up to 10 ton/hour depending on how the unit is scaled	90% to 99.8% depending on input	Dual Ejection
	Varisort X	X-ray	Identifies BFR containing plastics	Identifies BFR containing plastics			No/No	Up to 2.5 ton/hour depending on how the unit is scaled		Dual Ejection
TOMRA Systems ASA	Ixus	X-ray	Useful for sorting shredded e-scrap	Useful for sorting BFR and chloride containing plastics (i.e., PVC)			No/No	1 ton/hour	Depends on product type
	Innosort Flake	NIR, Visible spectra Sensors	Used for purifying PET flakes, purifying transparent and opaque flakes, sorting of mixed color flakes	PVC, PE, PET, PP, PS, and others, including Tetrapak and film			Yes/_
	Autosort Flake	Flying beam, full-color camera	Sorts plastic Flakes
Unisensor Sensorsysteme GmbH	PowerSort 200	Ultra-high-speed Lase Spectroscopy	Useful for bottle-to-bottle recycling	Sorts all resins			Yes/Yes	Up to 3 ton/hour	98% or higher
Visys	Spyder	Laser	Separation based on color, structure, shape and size differences	No			Yes/Yes	1–3 ton/hour	Up to 99% depending on input
	Python	Laser and cameras	Separation based on color, structure, shape and size differences
	Tyrex	X-ray	Separation based on density of materials (i.e., plastic, WEEE, ASR)	Useful for sorting BFR and chloride containing plastics (i.e., PVC)			No/No		Up to 99% depending on input

6.2. AI-based Sorting Robots

In order to tackle challenges encountered in the field of waste management, new approaches are being developed based on the use of computers and robotic technologies (Figure 4) [16,45]. Sorting robots, guided by AI, can either operate as an alternative to traditional optical sorters or can supplement optical sorters by purging incorrectly sorted plastics at the end of the sorting process [16]. Moreover, AI sorters have the ability to improve sorting efficiency over time by using available data to mimic a human brain’s learning and decision-making processes [46,47,48].

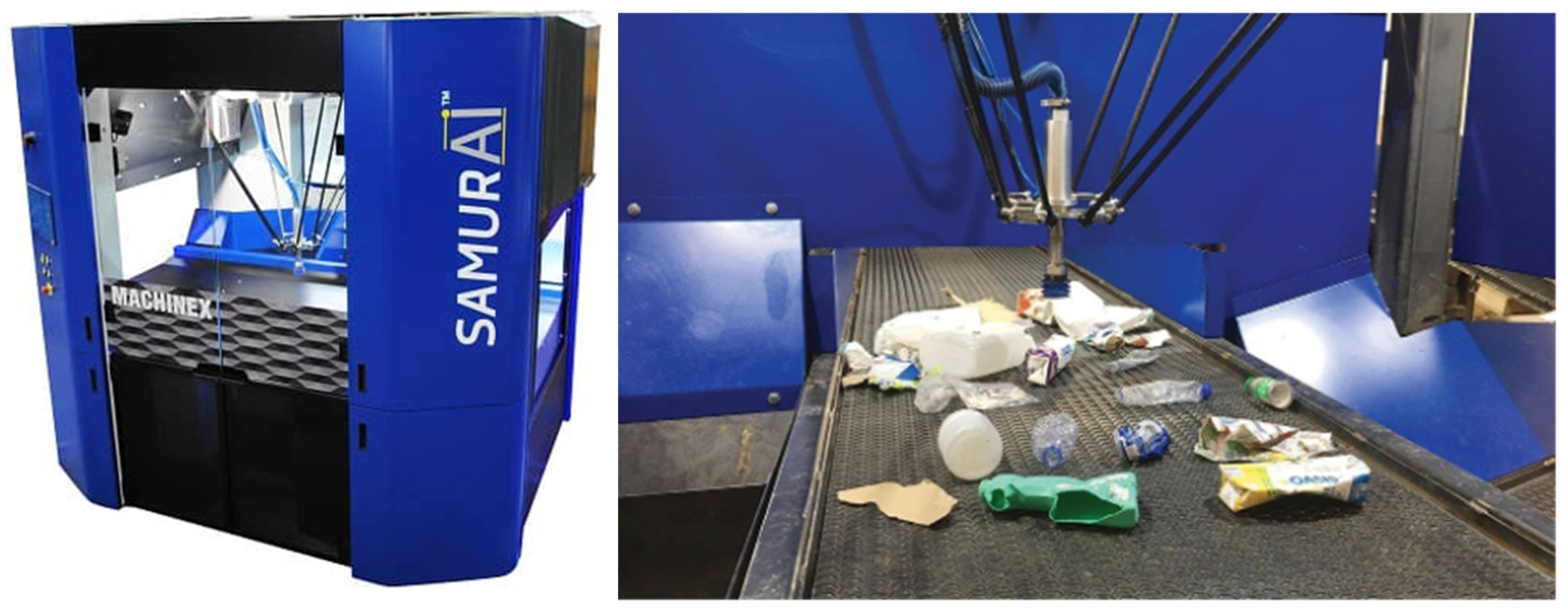

Figure 4. AI-based sorting robots, extracted from: https://www.machinexrecycling.com/products/samurai-sorting-robot/ (last accessed on 12 February 2022).

A total of seven AI-based sorters are reported here from seven different companies, all with the ability to sort plastic by type and color (Table 6). Some MRFs have already integrated AI-based sorters in their processing line, according to manufacturers of AI-based sorters that report in their publicity materials lists of MRFs that have adopted their technologies. The plastic identification method or sorting method involves Deep Learning and VIS, and in some cases, combine Deep Learning, VIS, and NIR. Past reports (4R Sustainability [19] and Delavelle [20]) did not report any AI-based sorters.

Table 6. Inventory of emerging AI-based sorters.

Manufacturer/Brand	Equipment Name	Sorting Method	Primary Application	Plastic Identified	Sorts Non-Bottle Rigids in Addition to Bottle	Non-Plastics Sorted	Colors Sorted/Black Plastic Sorted	Throughput (Average)	Plants in the US Using Equipment	Accuracy	Features
AMP Robotics	Cortex				Yes	Yes	_/Yes	60 picks per minute	Alpine Waste and Recycling. Denver Co, and Minnesota	99%	Cortex is continuously learning from experience, becoming better all the time
Back Handling Systems (BHS)	Max-AI	Deep learning technology and the sorting process is based on the evaluation of optical data determined by VIS-sensors	Extract recyclable commodities from a specific stream of material	PET, HDPE	Yes	Yes	_/Yes	65 picks per minute	Recology, San Francisco		Continuously learning to improve efficiency
Bollegraaf Recycling Solutions	Sorting systems Bollegraaf	NIR	Sorts different types of plastic, paper, cardboard, cardboard packaging, and Tetra Pak	Sorts PS, PET, HDPE, LDPE, PS, and PP to Tetra Pak, cardboard or paper
BT-Wolfgang Binder GmbH (Redwave)	RedWave 2i	NIR, RGB cameras and all-metal detectors	Sorts all resins	Sorts all resins	Yes	Paper, metals, e-waste, glass, construction waste		Up to 7 ton/hour			24/7 remote maintenance access for quick service and support
Machinex	Samur AI	Delta robot with vacuum gripper	Extract recyclable commodities from a specific stream of material (e.g., plastics from a reject line)	PET, colored, and natural HDPE	Yes	Yes	_/Yes	Up to 70 picks per minute	Lakeshore Recycling Systems. Forest View, IL	Up to 95%	It has ongoing evolution and optimization of AI material recognition. It continually improves and learns from operating experience to assure maximum recognition efficiency
OP Teknik	SELMA	Deep learning				Wood, stone, concrete, bricks, metals, cardboard, foam, etc.				300 picks/min (with 6 arms) or 50 picks/min. arm
TOMRA Systems ASA	AutoSort CyBot		Packaging, beverage cartons, and all thermoplastics

7. Conclusions

Large volumes of plastic are generated and landfilled every year, increasing pressure to recycle them. For efficient recycling, sorting is important, as it increases the quantity and improves the quality and value of post-consumer plastics for reprocessing. As most MRFs receive large volumes of mixed plastics, automated sorting has proven efficient in separating large plastics while maintaining a high throughput of sorted materials.

This study identifies current limitations or challenges encountered by US-based MRFs when sorting plastic recyclables, reports on the types and capabilities of plastic-sorting equipment that is commercially available in North America and Europe, and assesses how the available equipment can address the sorting challenges that MRFs face. This study does not address the financial aspects of automated sorting deployment.

Findings from a survey identifying MRF needs and interviews with industry professionals indicate that MRFs struggle to sort tanglers, films, black plastics, and plastic objects made of a combination of polymers or polymer blends. Other reported challenges are that MRFs that rely heavily on manual sorting have throughput constraints. The commercial sorting equipment presented here can address some of the challenges that MRFs encounter. Black plastics can be sorted with currently available sorters (Table 3, Table 4, Table 5 and Table 6). Tanglers can be partially addressed using AI-based sorters, as they have the ability to sort materials by shape and can sort wires. However, the efficiency of AI sorters in high-volume MRFs is yet to be reported. Moreover, AI-based sorters are typically placed at the end of a sorting line to remove residual or recover materials missed by optical sorters. Thus, they may not address shutdowns caused by tanglers. Throughput constraints experienced by MRFs currently utilizing manual sorting can be solved by implementing automated sorting. However, the effective sorting of multilayered, blended, or mixed-material plastics remains a challenge as sorting equipment is designed to sort single-component materials. Accordingly, new solutions or improvements are needed to improve current optical sorters to sort these complex plastics.

The inventory of commercially available sorting equipment includes 46 optical sorters for whole plastic objects, 35 flake sorters (from 16 companies), 9 film sorters (from 9 companies), and 7 AI-based sorters for mixed plastic recyclables. The previous reports were published on plastic sorting equipment date from over ten years ago [19,20]. The recovery efficiency of sorting equipment reported herein can be as high as 99.99%, depending on input materials, with a wide range of throughput capacities (up to 10 ton/h). Growth in available sorting technology was observed (70% increase in whole plastic sorters, 26% increase in flake sorters) compared to the 2011 report by 4R Sustainability [19]. Continued growth in plastic usage and waste generation creates demand for more plastic sorters. This inventory of commercially available sorting equipment includes nine film sorters and seven AI-based sorters; past studies did not report any of these technologies, reflecting the recent advances in AI. The efficiency of film sorting at the MRF level remains low, evidenced by high contamination rates (10 wt%) reported in most outgoing bales. Thus, further progress in film sorting equipment is necessary.

The sorting efficiency (91% to 99%) reported by MRFs in the survey is lower than that reported by equipment manufacturers (up to 99.99%). However, a direct comparison of sorting equipment efficiency between manufacturers and MRFs was not possible, as MRFs provided little detail on the specific types of sorters in use. In practice, factors such as the composition of the incoming stream, method of sourcing, and operations at MRFs can affect the achieved sorting efficiency of optical sorters. In order to improve sorting efficiency at the MRF level, operating conditions that favor higher sorting efficiency could be required, e.g., a reduced capacity that tends to yield cleaner bales but can be financially unfavorable, or reduced heterogeneity of incoming waste, or use of sorting technologies with higher sorting efficiency.

This report reveals an improvement in the availability of sorting equipment for plastic over the past ten years, evidenced by film sorters and AI-based sorters that were not previously available. The potential efficiency of sorting equipment from past reports and currently available sorting equipment remains similar. This study can serve as a guide for MRFs interested in evaluating the current state of sorting equipment and identifying equipment that best matches their needs.

Perspective and Outlook: Technology for automated sorting of plastics is widely available and deployed at MRFs. Sorting technology advances will continue, with AI-driven identification and robotic manipulation being currently at the forefront. Some of the challenges in mechanical recycling that are associated with tanglers and black plastic remain to be addressed. A series of sorters specializing in different shapes or sizes of plastic would improve the sorting efficiency. Deployment of advanced technology, however, comes at a cost, and the recovery of investment depends on the market value of sorted plastic, incentives for sorting plastic and/or disincentives associated with not sorting plastic waste. Chemical recycling, if/when widely deployed, can handle plastic that currently poses challenges in mechanical recycling involving sorting. MRFs with different levels of scale and specialization, and corresponding sorting equipment, can coordinate their inputs and outputs and connect to chemical recycling plants, working toward a concerted goal to decrease the plastic that ends up in landfills and the environment, and increase the plastic that is being reused in products for the benefit of a circular economy.
