In Situ Tuning of Magnetism in Fe₃GeTe₂ via Argon Ions Irradiation

Abstract

We report the continuous argon ions irradiation of itinerant Fe₃GeTe₂, a two-dimensional ferromagnetic metal, with the modification to its transport properties measured in situ. Our results show that defects generated by argon ions irradiation can significantly weaken the magnetization (M) and coercive field ($H_c$) of Fe₃GeTe₂, demonstrating the tunable magnetism of this material. Specifically, at base temperature, we observed a reduction of M and $H_c$ by up to 40% and 62.4%, respectively. After separating the contribution from different mechanisms based on the Tian-Ye-Jin (TYJ) scaling relation, it’s the skew scattering that dominates the contribution to anomalous Hall effect in argon ions irradiated Fe₃GeTe₂. These findings highlight the potential of in situ transport modification as an effective method for tailoring the magnetic properties of two-dimensional magnetic materials, and provides new insights into the mechanisms underlying the tunable magnetism in Fe₃GeTe₂.

1. Introduction

The field of two-dimensional (2D) layered materials has experienced rapid growth since the discovery of graphene in 2004 [1,2,3,4,5,6,7,8,9]. Significant research efforts have been devoted to studying the electrical, optical, and topological properties of 2D materials, with notable achievements in phenomena such as the quantum Hall effect (QHE) [4], valley Hall effect (VHE) [10] and nonlinear Hall effect (NLHE) [11,12,13]. However, the discovery and study of 2D layered magnetic materials has been surprisingly delayed until 2017, when the confirmation of the existence of long-range magnetic order is achieved by magnetic crystalline anisotropy in single-layer CrI₃ [14] and by the application of a small external magnetic field in Cr₂Ge₂Te₆ [15]. As a result, much attention has been devoted to the search for and tuning of 2D magnets with higher Curie temperatures (T_c) in order to further explore their mechanisms and potential applications [16,17,18,19,20,21]. Recent advancements, such as the ionic-gate tunable room temperature 2D itinerant magnet in Fe₃GeTe₂, using an Al₂O₃ assisted exfoliation method [22], have inspired various modulation techniques including gate-controlled Li⁺ doping and Fe defects [22,23,24]. However, despite these developments, understanding the modulation of magnetic properties, particularly the anomalous Hall effect, remains an active area of research and requires further investigation.

With its high surface-to-volume ratio, thin layered materials possess excellent surface sensitivity and can be effectively modified by surface treatments such as doping, irradiation and etching [25,26,27,28]. In situ modification measurements can ensure that the physical properties are only affected by the intended modifications and exclude unwanted influences, thereby improving the accuracy of tuning particularly sensitive materials. In situ transport measurements have demonstrated unique advantages in materials such as Co-decorated graphene [29], hydrogenated graphene [30] and so on [31,32]. Therefore, combining tunable thin flake Fe₃GeTe₂ with in situ transport provides an exciting opportunity to explore the mechanism of anomalous Hall effect and the tuning of magnetic properties.

In this study, we report on the tunable magnetic properties of argon ions irradiated thin flake Fe₃GeTe₂, where the remanent Hall resistance ($R_{xy}^r$) and coercive field ($H_c$) decreased with increasing irradiation. The anomalous Hall effect in irradiated Fe₃GeTe₂ mainly originates from skew scattering induced by argon ions by scaling analysis. Our results suggest that argon irradiation can effectively tune the magnetic properties of Fe₃GeTe₂ and provide valuable insights into the underlying physics of this system.

2. Materials and Methods

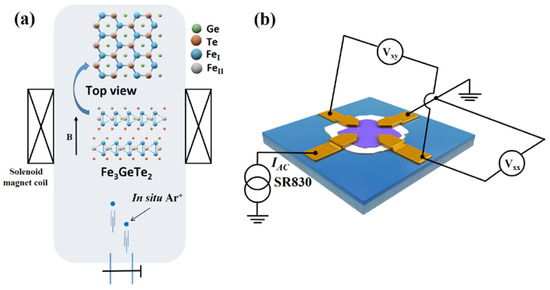

In this work, we report the tunable magnetic properties of argon-irradiated thin flakes of Fe₃GeTe₂. The exfoliation of thin flakes of Fe₃GeTe₂ on SiO₂/Si substrates was assisted by the evaporation of Al₂O₃, as previously described [22]. Cr/Au (3 nm/70 nm) electrodes were evaporated onto the thin flakes of Fe₃GeTe₂ through stencil masks to avoid any possible degradation from the conventional lithography process. The fabrication process was conducted in a glovebox to preserve sample quality. Seven runs of argon ions irradiation were performed, and the transport properties of Fe₃GeTe₂ were studied in situ after each round using the lock-in detection technique. The simplified schematic of the in situ transport measurement setup is shown in Figure 1a, and the base temperature was maintained at 10 K. The argon ions generation was accomplished through a radio-frequency ions source with a working voltage of 2 kV and current of 20 mA. The irradiation time was in the range of 5–10 s for each run.

3. Results

In ferromagnetic (FM) materials, the transverse Hall resistance comprises ordinary Hall and anomalous Hall terms, which can be expressed as a function of the applied magnetic field and magnetization [33]:

$$R_{xy}=R_0{\mu }_{0}H+R_{S}M$$

(1)

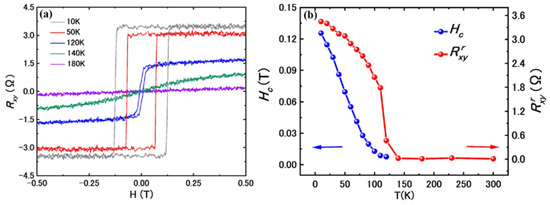

where $R_0$ and $R_S$ represent the ordinary Hall coefficient and anomalous Hall coefficient, respectively; $H$ is the applied magnetic field perpendicular to the sample surface and M is the magnetization. The $R_{xy}$ under zero magnetic field after the application of saturation magnetic field is called the remanent Hall resistance ($R_{xy}^r$), which is proportional to the spontaneous magnetization and reflects the long-range FM order of the sample. In this study, we investigated the magnetic properties of thin flake Fe₃GeTe₂ through transport measurements. The temperature-dependent Hall resistance ($R_{xy}$) of the pristine sample as a function of applied magnetic field is shown in Figure 2a, revealing square-shaped magnetic hysteresis below 140 K, indicating the presence of a single magnetization domain and confirming the establishment of long-range FM order in the sample. As shown in Figure 2b, the $R_{xy}^r$ of the pristine sample appears at 140 K and increases to 3.45 Ω at 10 K. Since $R_{xy}^r$ is proportional to the zero field spontaneous magnetization, the onset of non-zero $R_{xy}^r$ represents the appearance of long-range magnetic order below 140 K, which indicates that the Curie temperature is around 140 K. Thus determining the thickness of our sample to be approximately 3.2 nm (four layers) according to previous transport reports [22]. The coercive field ($H_c$) increases from 0.0076 T at 120 K to 0.1255 T at 10 K; at higher temperatures the hysteresis loop disappears due to thermal fluctuations.

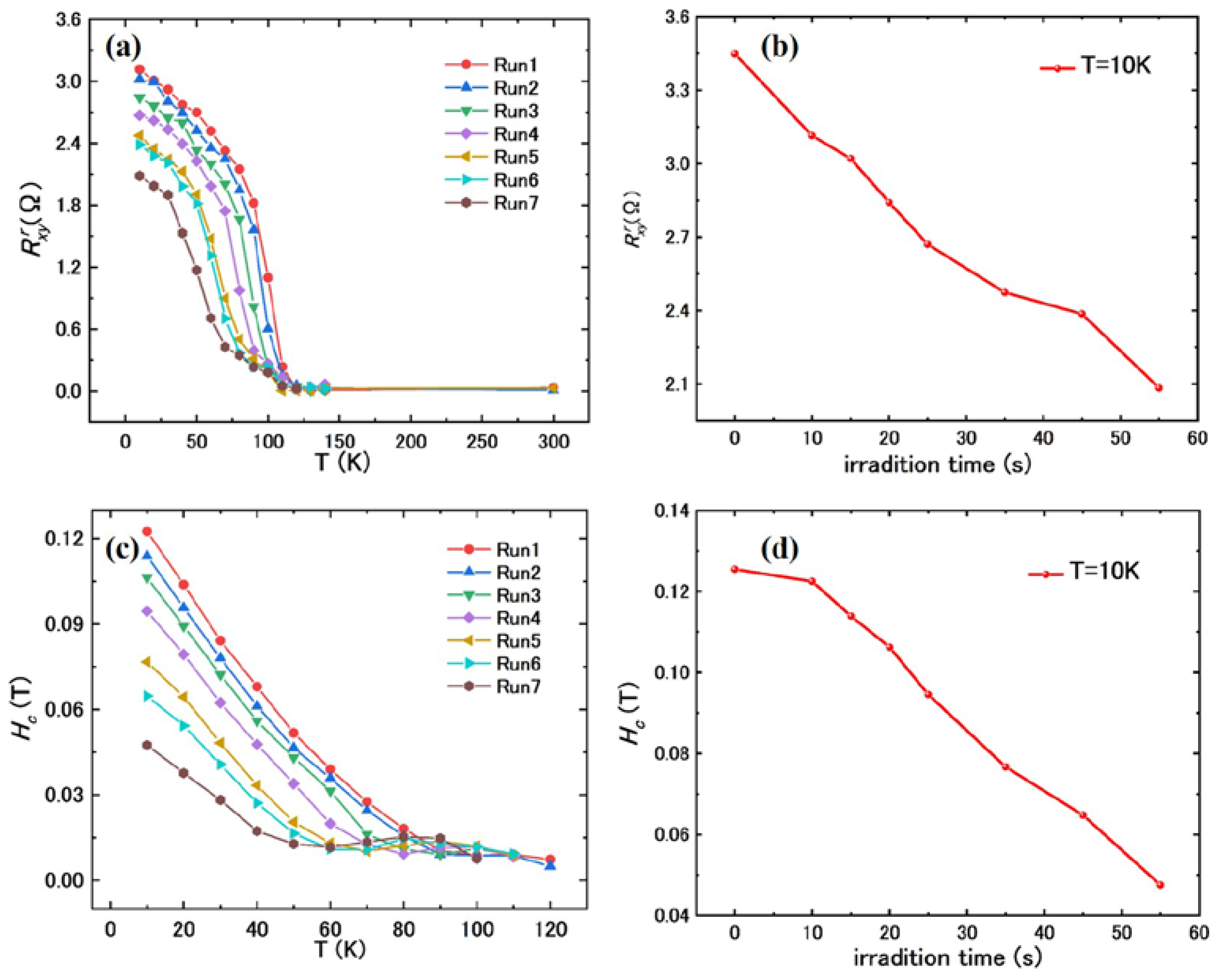

In order to explore the irradiation tunability of thin flakes Fe₃GeTe₂, we conducted in situ irradiation with argon ions and transport measurement. As depicted in Figure 3a, $R_{xy}^r$ for each run of irradiation shows similar behavior with temperature, but the over-all curves are decreasing with increasing Ar⁺ irradiation under the same temperature. At base temperature, the $R_{xy}^r$ of the pristine sample was measured to be 3.45 Ω, while after the seventh irradiation, it decreased to 2.08 Ω. This indicates a ~40% reduction in magnetization, as shown in Figure 3b, which suggests that the magnetization is disrupted by defects induced by argon ions.

In recent reports, the “chemical pressure” generated by substituting Ni or Co into the Fe sites, played an important role in suppressing ferromagnetism in Fe_3−xGeTe₂ crystals [34,35,36,37]. They all showed a significant modification of Curie temperature accompanied by the change of lattice parameters. Taking Fe₃GeTe₂ substituted by non-magnetic nickel (Ni) as an example [36], the long-range FM order was smeared into a glassy phase and even vanished above the inflection point around x = 0.3 in (Fe_1−xNi_x)₃GeTe₂ (x = 0–0.84). However, although the $R_{xy}^r$ can be greatly tuned by Ar⁺ irradiation in our report, the onset temperature with the appearance of $R_{xy}^r$ accompanied by FM hysteresis is almost unchanged, which indicates that the long-range FM order always persists and was not destroyed by defects. Therefore, the irradiated Fe₃GeTe₂ will provide a good platform for continuously controllable modification with persisting long-range FM order.

Apart from $R_{xy}^r$, the coercive field ($H_c$) is another crucial parameter for characterizing magnetic properties. We found that $H_c$ can also be modified by the introduction of defects, as demonstrated in Figure 3c. It is worth noting that the $H_c$ value drops by approximately 62.4% from 0.125 T to 0.047 T at 10 K after seven rounds of irradiation with argon ions, as depicted in Figure 3d. This finding suggests that defects induced by argon ions does not induce domain wall pinning, but rather, reduces such pinning in Fe₃GeTe₂, resulting in a reduction in the coercivity. Notably, the slight bump in $H_c$ observed after the sixth round of irradiation at 60–90 K may stem from the local magnetic moment and warrants further investigation using other characterization techniques in future studies.

Combined with the report from previous neutron and X-ray diffraction studies about Fe-deficient Fe_3−xGeTe₂ [38], we can speculate that the suppressed magnetization in Ar⁺ irradiated Fe₃GeTe₂ probably derived from increasing vacancies on the Fe(2) site generated by implanted argon ions, although the confirmation of which requires a scanning tunneling experiment in the future. The increasing disorder and magnetic dilution via vacancies may cause a disruption of the magnetic exchange and induce the suppressed magnetism. More efforts, such as theoretical simulation, adatoms doping, should be investigated in the future.

To summarize, our above results demonstrate that defects generated by argon ions irradiation can effectively tune the magnetization and coercivity of Fe₃GeTe₂ in situ, highlighting the potential of in situ transport measurement as a powerful tool for modifying the magnetic properties of materials.

4. Discussion

The scaling between anomalous Hall resistivity (${\rho }_{ah}$) and longitudinal resistivity (${\rho }_{xx}$) provided by Xiaofeng Jin et al. can clearly separate the contribution involving skew scattering, side jump and Berry curvature [39], which was widely used in the analysis of anomalous Hall effect [40]. This scaling is also called the TYJ scaling relation and can be expressed as:

$${\rho }_{ah}=a^{\prime }{\rho }_{xx0}+a^{″}{\rho }_{xxT}+b{\rho }_{xx}^2$$

(2)

where the ${\rho }_{xx0}$ and ${\rho }_{xxT}$ represent the residual resistivity at zero temperature and the phonon-induced resistivity at temperature T, respectively. They satisfy the relationship of ${\rho }_{xx}$ = ${\rho }_{xx0}$ + ${\rho }_{xxT}$. The parameters $a^{\prime }$ and $a^{″}$ represent the impurity and phonon contribution to the skew scattering, and the parameter b represents joint contributions from the extrinsic side-jump and intrinsic Berry curvature.

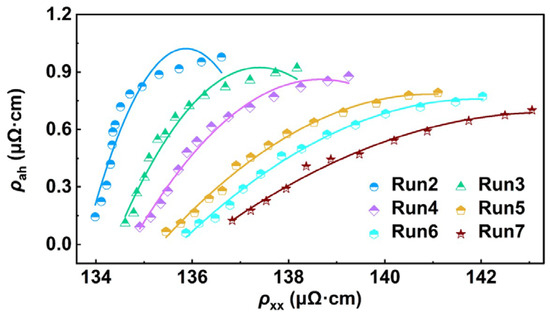

To gain further insight into the reduction of magnetism in Ar⁺ irradiated Fe₃GeTe₂, we employ fitting between ${\rho }_{ah}$ and ${\rho }_{xx}$ based on Equation (2) to determine contribution from different mechanisms. The longitudinal resistivity (${\rho }_{xx}$) is obtained by the relation of ${\rho }_{xx}=\frac{R_{xx}·d}{L/W}$, where the d is the thickness of device and the L/W is the aspect ratio between the measured electrodes. The transverse resistivity (${\rho }_{xy}$) is derived according to the relation of ${\rho }_{xy}=R_{xy}·d$. Wherein the $R_{xx}$($R_{xy}$) is the longitudinal (transverse) resistance after the standard symmetrization (anti-symmetrization) procedure [22,33]. Then the anomalous Hall resistivity (${\rho }_{ah}$) can be determined by extrapolating the high field (H > 1 T) part of ${\rho }_{xy}$ back to zero field. The fitting results are shown in Figure 4 for data from the Ar⁺ irradiation run 2–7, which demonstrated the applicability of the TYJ scaling relation.

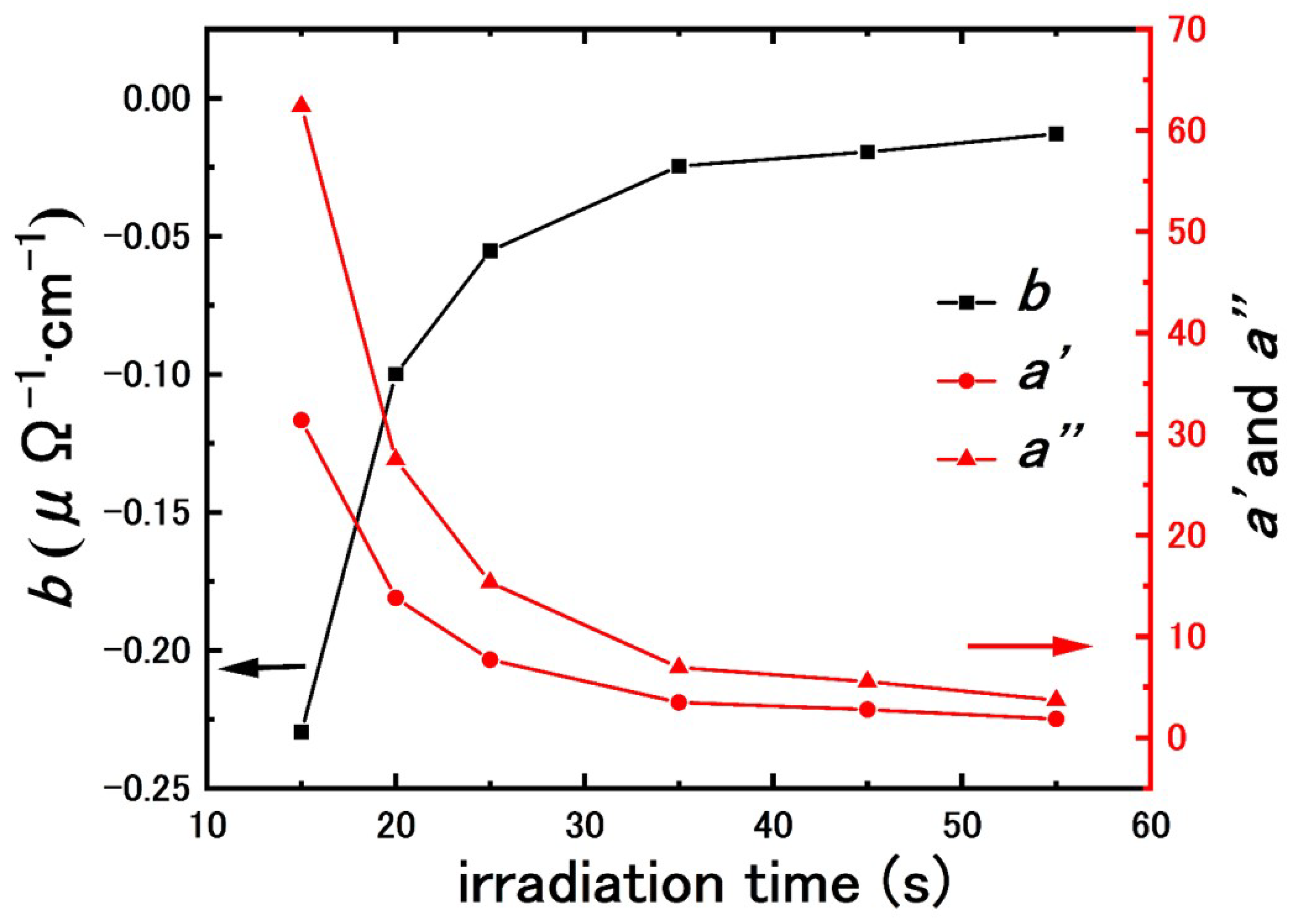

Next, we plot the fitting parameters $a^{\prime }$, $a^{″}$, and b with irradiation time as shown in Figure 5. First, it is obvious from the parameters that the skew scattering contribution dominates the anomalous Hall effect due to higher value. Moreover, the opposite sign between $a^{\prime }$ ($a^{″}$) and b indicates that the contribution between joint contribution from intrinsic Berry curvature as well as side-jump and skew scattering is opposite, which was also observed recently in pristine single crystal Fe₃GeTe₂ [41]. As irradiation time increases, the amplitude of $a^{\prime }$,$a^{″}$, and b gradually decrease, especially in the range of the first 15–25 s, then tend to zero. This means that the defects generated by Ar⁺ irradiation can effectively reduce the skew scattering strength in Fe₃GeTe₂. Ar⁺ irradiation can also strongly reduce the combined effect of Berry curvature and side-jump scattering in the material. The overall effect is that the scattering in Ar⁺ irradiated Fe₃GeTe₂ becomes increasingly non-magnetic, which is an interesting observation, since the contribution from magnetic scattering reduces drastically when disorders are introduced.

5. Conclusions

In conclusion, we have demonstrated the tunable magnetism of Fe₃GeTe₂ via in situ argon ions irradiation and subsequent transport measurement in continuous vacuum environment. Our results show that defects induced by argon ions can significantly weaken the magnetization, with a 40% reduction observed at base temperature after seven runs of irradiation in 4 layers of Fe₃GeTe₂. Additionally, we observed a 62.4% decrease in the coercive field at 10K, meaning the magnetic domain wall pinning effect is also weakened by the disorder, contrary to common expectation [22,42]. The suppressed magnetization might stem from increasing vacancies generated by argon ions irradiation on the Fe(2) site in Fe₃GeTe₂. The persisting long-range FM order below onset temperature is different from chemical doping Fe₃GeTe₂, which showed vanished long-range FM order with doping. Moreover, the TYJ scaling reveals that the main contribution to the anomalous Hall effect is from skew scattering. The scaling shows that Ar⁺ irradiation strongly reduces the effect of skew scattering, side-jump and Berry curvature, turning charge carriers scattering in Ar⁺ irradiated Fe₃GeTe₂ to become increasingly non-magnetic. Finally, these show that magnetism in Fe₃GeTe₂ is highly tunable by disorders, and emphasize the powerful capability of in situ transport measurements to clarify the magnetic properties and scattering mechanisms of low-dimensional magnetic materials.
