Isolation and Expression of Transcription Factors Involved in Somatic Embryo Development by Transcriptome Analysis of Embryogenic Callus of Thuja koraiensis

by
Chang Ho Ahn
1,2,
Jung Yeon Han
2,
Hyeong Soo Park
3,
Hyun Won Yoon
1,
Jung Won Shin
1,
Jeong Min Seo
1,
Hana Lee
1,
Yeoung Ryul Kim
1,
Saeng Geul Baek
1,
Jae Ik Nam
1,
Jung Min Kim
1 and
Yong Eui Choi
2,*
1
Division of Garden Material Research, Korea Institute of Arboretum Management, Sejong-si 30129, Republic of Korea
2
Department of Forest Resources, College of Forest and Environmental Sciences, Kangwon National University, Chuncheon-si 24341, Republic of Korea
3
Habitat Conservation Division, Korea National Park Service, Gurye-gun 57616, Republic of Korea
*
Author to whom correspondence should be addressed.
Horticulturae 2023, 9(2), 131; https://doi.org/10.3390/horticulturae9020131
Submission received: 1 December 2022 / Revised: 2 January 2023 / Accepted: 14 January 2023 / Published: 19 January 2023
(This article belongs to the Topic Plant Breeding, Genetics and Genomics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Thuja koraiensis Nakai (Cupressaceae) is an endangered and ecologically important conifer endemic to Korea. Previously, we established a protocol for micropropagation in T. koraiensis, which involved somatic embryogenesis from embryogenic callus of T. koraiensis. However, the molecular mechanisms underlying somatic embryogenesis remain unclear. Herein, we performed transcriptomic analysis to identify somatic embryogenesis-related genes of T. koraiensis via Illumina RNA sequencing. We conducted de novo transcriptome assembly using a Trinity assembler, which produced 274,077 transcript contigs clustered into 205,843 transcripts (unigenes), with an average length of 825 base pairs. Of all the unigenes, 14.69%, 18.62%, and 7.4% had homologs in the Gene Ontology, NCBI Non-redundant Protein, and NCBI Nucleotide databases, respectively. Among these mRNA sequences, expression of putative embryogenesis-associated transcription factors, namely BABYBOOM (BBM), WUSCHEL-RELATED HOMEOBOX (WOX), and SOMATIC EMBRYOGENESIS RECEPTOR-LIKE KINASE (SERK), was analyzed during somatic embryogenesis. RT-PCR analysis revealed that TkBBM, TkWOX, and TkSERK were highly expressed in embryogenic callus and seedling roots, whereas their expression was reduced in seedling leaves. Our findings provide new insights into the roles of BBM, WOX, and SERK in somatic embryogenesis. Our results may serve as a reference for comparative transcriptome analysis in related species and further aid functional genomics studies in conifers.

1. Introduction

Gymnosperms first appeared more than 300 million years ago, and currently, approximately 630 conifer species exist on Earth [1]. Conifers are important species of ecological and economic value. Cupressaceae, also known as the cypress family, is distributed throughout the world and comprises >160 species in 32 genera [2]. Many members of the cypress family serve as timber sources and ornamentals and are crucial for the forest ecosystem. Korean arborvitae (Thuja koraiensis Nakai), a short and creeping evergreen shrub, which reaches a height of about 3 m, is only found in Korea, predominantly in the high mountains. Recently, T. koraiensis was designated rare and endangered due to climate change.
To date, many angiosperm genomes have been sequenced, particularly Arabidopsis thaliana [3] and poplar, a woody plant [4]; however, owing to the large size of gymnosperm genomes, reference genomes are still lacking for gymnosperms. Genome assembly has been conducted for only a few members of the cypress family, including Cunninghamia lanceolate [5,6], Juniperus chinensis [7], Platycladus orientalis [8,9], and T. plicata [10]. For T. koraiensis, Hou et al. [11] performed de novo genome assembly using restriction-associated DNA to develop SSR markers. Nonetheless, no studies have focused on transcriptome analysis in T. koraiensis.
Recently, we established a protocol for micropropagation in T. koraiensis, which involves somatic embryogenesis (SE) from embryogenic callus [12]. In SE from embryogenic callus, drastic changes take place in the transcriptome, and these changes promote embryogenic potential in plant cells. Among the various factors that are involved in this developmental switch, genes encoding transcription factors (TFs), which constitute sequence-specific DNA-binding proteins and regulate gene expression, are well known to play a central role in the developmental process. Although initiation of SE has been found in many conifers, the molecular mechanisms underlying SE remain unclear. Analyses of gene expression during SE can provide insights into its complex process [13].
TFs, namely BABYBOOM (BBM) and WUSCHEL-RELATED HOMEOBOX (WOX), and transmembrane kinase, namely SOMATIC EMBRYOGENESIS RECEPTOR-LIKE KINASE (SERK), are key regulators of SE initiation and have been identified in both angiosperms and gymnosperms. BBM belongs to the APETALA2 (AP2) subfamily of the ETHYLENE-RESPONSE-FACTOR (ERF) TFs [14] and is a key regulator of plant cell totipotency. Moreover, BBM has been shown to play a role in developmental pathways associated with cell proliferation and growth [15]. WOX forms a large family of genes in plants and has important functions during all stages of plant development [16]. Recently, several members of the WOX gene family were reported to be expressed in the early stages of embryogenesis. Haecker et al. [17] and Rupps et al. [18] reported that WOX genes were highly expressed during early somatic embryo development in A. thaliana and Larix decidua, respectively. Similarly, in Picea abies, PaWOX2 expression was demonstrated to be the highest at the earliest stages of somatic embryo development, whereas low levels were observed in seedling tissues [19]. Moreover, PaWOX2 expression has not been observed in non-embryogenic cell cultures. Therefore, WOX genes can serve as potential markers for identifying embryogenic potential. SERK, which encodes a leucine-rich repeat containing receptor-like kinase protein, plays a crucial role in the transduction of extracellular signals by phosphorylating intracellular target proteins during SE [20]. SERK is expressed in the embryogenic callus of carrots [20] and grapevine [21]. Expression of SERK genes in other plant species established a broader expression pattern extending to non-embryogenic, embryogenic, and vegetative tissues [22].
Due to its accuracy and low cost, high-throughput RNA sequencing (RNA-Seq) has been broadly used to analyze transcriptomes both quantitatively and qualitatively. Furthermore, the use of transcriptome sequencing technologies has increased with advancements in genomic technologies. For this reason and to gain insights on the functional genes involved in SE, in the current study, we performed de novo sequencing, assembly, and annotation of the genome sequence of T. koraiensis embryogenic callus using Illumina paired-end sequencing technology. Subsequently, on the basis of bioinformatics analysis of assembled transcriptome data, we selected potential embryogenesis-associated genes, namely BBM, WOX, and SERK, and analyzed their functions during SE. Taken together, our findings may serve as a comprehensive sequence resource for other related species and contribute to the understanding of the process of SE in T. koraiensis.

2. Materials and Methods

2.1. Plant Material and Initiation of Embryogenic Culture

In 2018, immature cones were collected from three open-pollinated T. koraiensis trees growing in Mt. Seorak (Gangwon province, Korea; at approximately 1590 m; 38°12′23′′ latitude, 128°45′79′′ longitude) during the northern hemisphere summer. Cones were dissected, immature seeds were extracted, and surfaces of whole seeds were disinfested as follows in the given order: 70% ethanol rinse for 1 min, sterile water rinse for 3 min, 50% Clorox rinse (approximately 4% sodium hypochlorite) for 1 min, and sterile water rinse five times. Seed coats were removed, and whole megagametophytes containing zygotic embryos were cultured on a semisolid initiation medium (IM) [23], which was modified from an EM medium [24], in Petri dishes (60 × 15 mm). Embryogenic callus lines were maintained by transferring the calluses to fresh IM supplemented with 3% sucrose, 2.25 µM 2,4-dichlorophenoxyacetic acid, and 1.1 µM 6-benzyladenine every 2 weeks.

2.2. TruSeq Stranded mRNA and RNA-Seq

For Illumina sequencing, total RNA from embryogenic callus was isolated using Trizol reagent (MRC, Cincinnati, OH, USA) and RNeasy® Plant Mini Kit (QIAGEN, Hilden, Germany). Genomic DNA was removed from the total RNA using DNase I (Takara Bio, Shiga, Japan). Prior to cDNA synthesis, RNA quality and quantity were verified using an Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA) and a NanoDrop™ 2000 Spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). RNA integrity was confirmed using an Agilent 2100 Bioanalyzer (Agilent Technologies) with a minimum RNA integrity number value ≥ 7. Total RNA was converted into cDNA libraries using the TruSeq Stranded mRNA Sample Prep Kit (Illumina, San Diego, CA, USA) according to the manufacturer’s instructions. The cDNA libraries were analyzed for size distribution, quantitated by qPCR (Kapa Library Quantification Kit; Kapa Biosystems, Wilmington, MA, USA), normalized to 2 nmol/L, and then pooled in equimolar amounts for RNA-Seq. Sequencing runs were performed on the HiSeq 4000 (Illumina) according to the method previously described by Bodian et al. [25].

2.3. Sequence Trimming, De Novo Transcriptome Assembly, and Annotation

The raw reads were first trimmed to remove the low-quality reads using Trimmomatic software version 0.36 (http://www.usadellab.org/cms/index.php?page=trimmomatic, accessed on 26 June 2018) [26]. The trimmed reads for all samples were pooled and assembled using Trinity software (version r20140717, bowtie 1.1.2), which is generally utilized for the de novo reconstruction of transcriptomes, to obtain high-quality transcript sequences. For gene assembly, the longest contig of the assembled contigs was filtered and clustered into non-redundant transcripts using the CD-HIT-EST program (version 4.6). Subsequently, unigenes were obtained. For the functional annotation of these unigenes, we searched various public databases, including NCBI Nucleotide (NT; http://www.ncbi.nlm.nih.gov/nucleotide/, accessed on 25 June 2018), NCBI Non-redundant Protein (NR; http://www.ncbi.nlm.nih.gov/protein/, accessed on 16 June 2018), Protein Families (Pfam; http://pfam.xfam.org/, accessed on 25 June 2018), Gene Ontology (GO; http://www.geneontology.org/, accessed on 20 June 2018), Universal Protein Resource (UniProt; http://www.uniprot.org/, accessed on 26 June 2018), and EggNOG (http://eggnogdb.embl.de/, accessed on 15 June 2018), using BLASTN of NCBI BLAST (version 2.4.0+) and BLASTX of DIAMOND software (version 0.9.21; http://github.com/bbuchfink/diamond, accessed on 25 June 2018) with an E-value default cut-off of 1.0 × 10−5. The abundance of the unigenes across samples was estimated using the RSEM algorithm (version v1.2.29, bowtie 1.1.2). The expression levels were calculated as read counts.

2.4. Gene Selection and Phylogenetic Analysis of Selected mRNA Sequences

The embryogenesis-associated genes, BBM, WOX, and SERK, were screened using the sequenced transcriptome and NR database. Full-length BBM, WOX, and SERK sequences of other species were obtained from Genebank Non-Redundant database using TBLASTN with TkBBM (“TkBBM1” and “TkBBM2”), TkWOX (“TkWOX1” and “TkWOX2”), and TkSERK (“TkSERK1”, “TkSERK2”, and “TkSERK3”) proteins of T. koraiensis as queries. The sequence alignment of T. koraiensis proteins and other species (BBM, WOX, and SERK sequences) was compared via phylogenetic tree analysis using the neighbor-joining method with the MEGA v. 7.0.21 (DNA Star, Madison, WI, USA).

2.5. RT-PCR Analysis

To assess gene expression in T. koraiensis during SE, we collected embryogenic calluses at three different developmental stages and gathered somatic seedling leaves and roots. Total RNA was isolated from the samples using the RNeasy Plant Mini Kit (QIAGEN), and reverse transcription was conducted with the ImProm-II™ Reverse Transcription System (Promega, Madison, WI, USA). As per the RT-PCR, amplification conditions were adjusted as follows: 95 °C for 5 min; 35 cycles of 95 °C for 30 s, 57 °C for 30 s, and 72 °C for 1 min; and a final 7 min extension at 72 °C. The PCR-amplified products were analyzed using 1% (w/v) agarose gel electrophoresis, wherein the gel was previously stained with Red-SafeTM DNA dye (iNtRON Biotechnology, Sungnam, Korea) and imaged under GelDoc-ItTS2 Gel Imager (Analytik Jena US LLC, Upland, CA, USA). The intensity of the bands was quantified at least thrice using ImageJ software (National Institutes of Health, Bethesda, MD, USA). To assess RNA integrity, equivalent concentrations of cDNA were utilized; furthermore, actin was used as the internal control. The sequences of all RT-PCR primers are listed in Table S1.

3. Results and Discussion

3.1. RNA-Seq and De Novo Assembly

A cDNA library constructed from the total RNA extracted from embryogenic cells of T. koraiensis was sequenced on an Illumina sequencing platform after validation. To reduce bias in analysis, artifacts, such as low-quality reads, adaptor sequences, contaminant DNA, or PCR duplicates, were removed. Sequencing of T. koraiensis produced 250,474,062 reads, which were reduced to 246,686,422 after quality control (Table 1). After trimming to remove low-quality reads, the averages of Q20, Q30, and GC were 98.99, 96.87, and 42.86%, respectively. The de novo transcriptome assembly of T. koraiensis performed using the Trinity assembler produced a total of 214,470 transcripts, with an average contig length of 738 nt. Information regarding the number of read bases and the average contig length is shown in Table 2. In total, 205,843 unigenes were obtained, with an average contig length of 619 nt, an N50 of 931 nt, and an N90 of 256 nt. Among the obtained unigenes, 63,599 (30.9%) were ≥500 nt in length, and 29,113 (14.14%) were ≥1000 nt in length. The total length of the assembled sequence was 127,425,530 nt.

3.2. Functional Annotation

The unigenes of the transcriptome were annotated, and sequence similarity analysis was conducted using six databases: NT, NR, Pfam, GO, UniProt, and EggNOG. The greatest number of annotations were retrieved from the NR database, i.e., 38,320 (18.62%), and the least were retrieved from the NT database, i.e., 15,237 (7.4%) (Table 3). Furthermore, 35,511 (17.25%) unigenes were annotated using EggNOG, and 27,659 (13.44%) unigenes were annotated using Pfam. Additionally, 26,274 (12.76%) unigenes were annotated using the UniProt databases. The size distribution of the unigenes is shown in Figure 1.
The top-scoring BLASTX hits against the NR protein database showed that 78.2% of the unigenes were present in the genus Picea, 11.6% were present in the genus Pinus, and 3.9% were present in the genus Taxus (Figure 2). Moreover, in the cypress family (Cupressaceae), 1.7% of the unigenes were present in the genus Cryptomeria, and 1.3% and 0.7% of the unigenes were present in the genera Thuja and Cunninghamia, respectively. The most abundant transcript, with 5961 reads, was annotated as a hypothetical protein of Citrus unshiu. The 20 most abundant transcripts are listed in Table 4. Two unigenes matched the auxin transport protein in Amborella trichopoda and Quercus suber.

3.3. Functional Classification

For functional classification of T. koraiensis unigenes, the GO database was employed along with BLASTX of DIAMOND with an E-value cut-off of 1.0 × 10−5. The GO terms belonging to biological processes, cellular components, and molecular functions were listed. Subsequently, 30,241 (14.69%) of the total unigenes were assigned GO terms, with 4.68% assignments from biological processes, 5.03% from cellular components, and 4.99% from molecular functions (Figure 3).
In addition, GO functional classification showed 67 functional groups (Figure 4). The category of biological process comprises a large number of unique sequences that are classified into 35 subcategories (Figure S1). The majority of the sequences in biological processes were involved in metabolic processes (35.61%), followed by those involved in cellular processes (13.09%). The unique sequences were grouped into 18 GO classifications under the cellular component category (Figure S2). Among them, cell part (45.99%) and organelle (22.3%) were the most represented cellular components. The molecular function category included 14 GO classifications (Figure S3). The two largest classifications of molecular function included catalytic activity (48.2%) and binding (33.45%).

3.4. Identification and Sequence Analysis of TkBBM, TkSERK, and TkWOX

We sought to identify sequences in the transcriptome that encoded authentic BBM, WOX, and SERK. FPKM values of selected contigs for BBM, WOX, and SERK were shown in Figure 5.
Then, we selected full-length sequences of the coding regions for putative homologs of BBM, WOX, and SERK of T. koraiensis. The genes were referred to as TkBBM (TkBBM1 and TkBBM2), TkWOX (TkWOX1 and TkWOX2), and TkSERK (TkSERK1, TkSERK2, and TkSERK3). To examine the phylogenetic similarity between T. koraiensis and other plants, we compared the sequences of 57 highly conserved proteins of 28 species.
BBM has been reported to be involved in embryogenesis in various plant species, including A. thaliana [27], Brassica napus [27], Glycine max L. [28], Capsicum annuum L. [29], L. decidua [18], and Zea mays [30]. In this study, the open reading frame (ORF) of TkBBM1 spanned 2325 base pairs (bp) and was predicted to encode a protein of 774 amino acids (aa). The ORF of TkBBM2 spanned 1791 bp (596 aa). Phylogenetic tree analysis showed the evolutionary relationships between TkBBM (TkBBM1 and TkBBM2) and 11 plant species (Figure 6A). TkBBM showed a high similarity with BBM from other plant species. TkBBM1 was clearly grouped with LdBBM (L. decidua, Acc. AEF56566) and LkBBM (Larix gmelinii var. olgensis × L. kaempferi aintegumenta; Acc. AHH34920), whereas TkBBM2 was observed to be neighboring RcBBM1 (Rosacanina, Acc. AGZ02154). Rupps et al. [18] reported that LdBBM showed a similarity of 97.6% to its homolog, LkBBM. These findings are similar to our results.
Previously, Hedman et al. cloned WOX genes in P. abies and found that Norway spruce WOX genes are represented in all three major clades identified, and that the major diversification within the WOX gene family took place before the split between gymnosperms and angiosperms [31]. In this study, the ORF of TkWOX1 spanned 705 bp and was predicted to encode a 234 aa protein. The ORF of TkWOX2 spanned 963 bp (320 aa). As per TkWOX (TkWOX1 and TkWOX2), eight gymnosperms and three angiosperms were clustered (Figure 6B). TkWOX1 was closely related to PaWOX5 (P. abies, Acc. AGL53583), and TkWOX2 was observed to neighbor ClWOX13-2 (C. lanceolata, Acc. ATY46640). According to Van der Graaff et al. [32], the WOX gene family was divided into three major clades, namely the modern, intermediate, and ancient clades.
Five genes belonging to the SERK family in A. thaliana were identified. SERK1 overexpression has been observed to result in a strong expression of embryogenic competence in transgenic lines [33]. Our results showed that the ORF of TkSERK1 and TkSERK2 comprised 1899 bp (632 aa) and 1827 bp (608 aa), respectively, and that the ORF of TkSERK3 spanned 1845 bp, encoding a 614 aa protein. Expression of LdSERK in European larch (L. decidua) has been observed to be increased during late embryogenesis [18]. Our results showed that 11 plant species were found to cluster with the TkSERK genes (TkSERK1, TkSERK2, and TkSERK3) (Figure 6C). All three TkSERK protein sequences showed high similarity to C. lanceolata protein sequences (ClSERK1-1, Acc. ATY46633; ClSERK1-2, Acc. ATY46632; ClSERK1-4, ATY46634).

3.5. Expression of TkBBM, TkWOX, and TkSERK during SE

For RT-PCR, embryogenic calluses at three different developmental stages and somatic seedling leaves and roots were collected (Figure 7). The expression of TkBBM, TkWOX, and TkSERK during SE was analyzed (Figure 8). In the present study, we observed that the expression of TkBBM1 and TkBBM2 were reduced during SE and in somatic seedling leaves. However, both genes showed high expression in somatic seedling roots. These results are in contrast with results reported for L. decidua. Rupps et al. [18] reported that the expression of LdBBM increased during embryogenesis. Li et al. [34] reported that LkBBM showed strong expression in the roots of L. kaempferi and L. olgensis. In addition, BBM groups with PLT1 and PLT2 in the AP2/ERF TF family have been reported to be expressed in the A. thaliana root [35]. The BBM gene was also identified as an auxin-inducible gene in Medicago truncatula roots [36]. Given our results and those of previous studies, we speculate that TkBBM plays an important role in regulating the development and growth of roots in Thuja spp.
TkWOX1 and TkWOX2 were observed to be highly expressed either in embryogenic calluses or at the early stage of somatic embryo development. The expression decreased in parallel with somatic embryo development. TkWOX1 was similarly expressed in seedling leaves and roots, whereas TkWOX2 showed faint expression in seedling leaves and strong expression in seedling roots. In the case of P. abies, PaWOX8/9 was observed to be highly expressed in early embryo stages; however, a notably low expression was observed in the mature embryo stage [16]. Similar results were reported for L. decidua [18]. TkSERK1, TkSERK2, and TkSERK3 were also observed to be highly expressed in early embryogenesis. As compared with the others, TkSERK1 showed different expression patterns, i.e., uniform expression in seedling leaves and roots. Similarly, TkSERK2 and TkSERK3 showed similar expression patterns. In particular, low expression was detected in seedling leaves. In contrast, P. glauca SERK1 showed high expression in shoot bud [37]. Only few studies have reported the involvement of SERK genes in nodulation.
Owing to the high FPKM values of TkBBMs, TkWOXs, and TkSERKs, as seen in Figure 5, we speculate that TkBBM, TkWOX, and TkSERK are SE-related genes, possibly playing key roles in the SE of T. koraiensis. Our study serves as a valuable genetic resource for gene discovery, functional genomics, and comparative genomics in T. koraiensis. The T. koraiensis sequence resource reported in our study may serve as a reference for comparative transcriptome analysis in related species and aid functional genomics and association studies in conifers. In addition, the findings of the present study enhance our understanding of the transcriptome of T. koraiensis during SE.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/horticulturae9020131/s1, Figure S1: Distributions of the GO terms for the biological processes; Figure S2: Distributions of the GO terms for the cellular processes; Figure S3: Distributions of the GO terms for the molecular processes; Table S1: List of primer sequences used for RT-PCR analysis.

Author Contributions

Conceptualization and funding acquisition, Y.E.C.; writing—original draft, C.H.A.; formal analysis, J.Y.H.; resources, H.S.P.; methodology, H.W.Y., J.W.S., J.M.S., H.L., and Y.R.K.; software, S.G.B., J.I.N., and J.M.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the R&D Program for Forest Science Technology provided by the Korea Forest Service (Korea Forestry Promotion Institute), grant number FTIS 2018131B10-1820-BB01 and 2021339A00-2123-CD02.

Data Availability Statement

Not applicable.

Acknowledgments

We would like to thank the National Park Research Institute of Korea for providing T. koraiensis seeds.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nystedt, B.; Street, N.R.; Wetterbom, A.; Zuccolo, A.; Lin, Y.C.; Scofield, D.G.; Vezzi, F.; Delhomme, N.; Giacomello, S.; Alexeyenko, A.; et al. The Norway spruce genome sequence and conifer genome evolution. Nature 2013, 497, 579–584. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Farjon, A. A Monograph of Cupressaceae and Sciadopitys; Royal Botanic Gardens, Kew: Kew, UK, 2005. [Google Scholar]
  3. Arabidopsis Genome Initiative. Analysis of the genome sequence of the flowering plant Arabidopsis thaliana. Nature 2000, 408, 796–815. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Tuskan, G.A.; Difazio, S.; Jansson, S.; Bohlmann, J.; Grigoriev, I.; Hellsten, U.; Putnam, N.; Ralph, S.; Rombauts, S.; Salamov, A.; et al. The genome of black cottonwood, Populus trichocarpa (Torr. & Gray). Science 2006, 313, 1596–1604. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Huang, H.H.; Xu, L.L.; Tong, Z.K.; Lin, E.P.; Liu, Q.P.; Cheng, L.J.; Zhu, M.Y. De novo characterization of the Chinese fir (Cunninghamia lanceolata) transcriptome and analysis of candidate genes involved in cellulose and lignin biosynthesis. BMC Genom. 2012, 13, 648. [Google Scholar] [CrossRef] [Green Version]
  6. Wang, Z.; Chen, J.; Liu, W.; Luo, Z.; Wang, P.; Zhang, Y.; Zheng, R.; Shi, J. Transcriptome characteristics and six alternative expressed genes positively correlated with the phase transition of annual cambial activities in Chinese fir (Cunninghamia lanceolata (Lamb.) hook). PLoS ONE 2013, 8, e71562. [Google Scholar] [CrossRef] [Green Version]
  7. Hu, X.G.; Liu, H.; Zhang, J.Q.; Sun, Y.Q.; Jin, Y.Q.; Zhao, W.; El-Kassaby, Y.A.; Wang, X.R.; Mao, J.F. Global transcriptome analysis of Sabina chinensis (Cupressaceae), a valuable reforestation conifer. Mol. Breed. 2016, 36, 99. [Google Scholar] [CrossRef]
  8. Hu, X.G.; Liu, H.; Jin, Y.; Sun, Y.Q.; Li, Y.; Zhao, W.; El-Kassaby, Y.A.; Wang, X.R.; Mao, J.F. De novo transcriptome assembly and characterization for the widespread and stress-tolerant conifer Platycladus orientalis. PLoS ONE 2016, 11, e0148985. [Google Scholar] [CrossRef]
  9. Chang, E.; Zhang, J.; Deng, N.; Yao, X.; Liu, J.; Zhao, X.; Jiang, Z.; Shi, S. Transcriptome differences between 20- and 3,000-year-old Platycladus orientalis reveal that ROS are involved in senescence regulation. Electron. J. Biotechnol. 2017, 29, 68–77. [Google Scholar] [CrossRef]
  10. Shalev, T.J.; Yuen, M.M.S.; Gesell, A.; Yuen, A.; Russell, J.H.; Bohlmann, J. An annotated transcriptome of highly inbred Thuja plicata (Cupressaceae) and its utility for gene discovery of terpenoid biosynthesis and conifer defense. Tree Genet. Genomes 2018, 14, 35. [Google Scholar] [CrossRef]
  11. Hou, L.; Cui, Y.; Li, X.; Chen, W.; Zhang, Z.; Pang, X.; Li, Y. Genetic evaluation of natural populations of the endangered conifer Thuja koraiensis using microsatellite markers by restriction-associated DNA sequencing. Genes 2018, 9, 218. [Google Scholar] [CrossRef]
  12. Ahn, C.H.; Heo, K.; Park, H.S.; Choi, Y.E. In vitro propagation and cryopreservation of Thuja koraiensis Nakai via somatic embryogenesis. In Vitro Cell. Dev. Biol.-Plant 2019, 55, 605–614. [Google Scholar] [CrossRef]
  13. Shi, X.; Zhang, C.; Liu, Q.; Zhang, Z.; Zheng, B.; Bao, M. De novo comparative transcriptome analysis provides new insights into sucrose induced somatic embryogenesis in camphor tree (Cinnamomum camphora L.). BMC Genom. 2016, 17, 26. [Google Scholar] [CrossRef] [Green Version]
  14. Nole-Wilson, S.; Tranby, T.L.; Krizek, B.A. AINTEGUMENTA-like (AIL) genes are expressed in young tissues and may specify meristematic or division-competent states. Plant Mol. Biol. 2005, 57, 613–628. [Google Scholar] [CrossRef] [PubMed]
  15. Passarinho, P.; Ketelaar, T.; Xing, M.; van Arkel, J.; Maliepaard, C.; Hendriks, M.W.; Joosen, R.; Lammers, M.; Herdies, L.; den Boer, B.; et al. BABY BOOM target genes provide diverse entry points into cell proliferation and cell growth pathways. Plant Mol. Biol. 2008, 68, 225–237. [Google Scholar] [CrossRef] [PubMed]
  16. Zhu, T.; Moschou, P.N.; Alvarez, J.M.; Sohlberg, J.J.; von Arnold, S. WUSCHEL-related homeobox 8/9 is important for proper embryo patterning in the gymnosperm Norway spruce. J. Exp. Bot. 2014, 65, 6543–6552. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Haecker, A.; Gross-Hardt, R.; Geiges, B.; Sarkar, A.; Breuninger, H.; Herrmann, M.; Laux, T. Expression dynamics of WOX genes mark cell fate decisions during early embryonic patterning in Arabidopsis thaliana. Development 2004, 131, 657–668. [Google Scholar] [CrossRef] [Green Version]
  18. Rupps, A.; Raschke, J.; Rümmler, M.; Linke, B.; Zoglauer, K. Identification of putative homologs of Larix decidua to Babyboom (bbm), Leafy cotyledon1 (lec1), Wuschel-related homeobox2 (wox2) and Somatic embryogenesis receptor-like kinase (serk) during somatic embryogenesis. Planta 2016, 243, 473–488. [Google Scholar] [CrossRef]
  19. Palovaara, J.; Hakman, I. Conifer WOX-related homeodomain transcription factors, developmental consideration and expression dynamic of WOX2 during Picea abies somatic embryogenesis. Plant Mol. Biol. 2008, 66, 533–549. [Google Scholar] [CrossRef]
  20. Schmidt, E.D.L.; Guzzo, F.; Toonen, M.A.J.; De Vries, S.C. A leucine-rich repeat containing receptor-like kinase marks somatic plant cells competent to form embryos. Development 1997, 124, 2049–2062. [Google Scholar] [CrossRef]
  21. Schellenbaum, P.; Jacques, A.; Maillot, P.; Bertsch, C.; Mazet, F.; Farine, S.; Walter, B. Characterization of VvSERK1, VvSERK2, VvSERK3 and VvL1L genes and their expression during somatic embryogenesis of grapevine (Vitis vinifera L.). Plant Cell. Rep. 2008, 27, 1799–1809. [Google Scholar] [CrossRef]
  22. Lee, F.C.; Ong-Abdullah, M.; Ooi, S.E.; Ho, C.L.; Namasivayam, P. Cloning and characterization of Somatic Embryogenesis Receptor kinase I (EgSERK I) and its association with callus initiation in oil palm. In Vitro Cell. Dev. Biol.-Plant 2019, 55, 153–164. [Google Scholar] [CrossRef]
  23. Ahn, C.H.; Choi, Y.E. In vitro clonal propagation and stable cryopreservation system for Platycladus orientalis via somatic embryogenesis. Plant Cell Tissue Organ Cult. 2017, 131, 513–523. [Google Scholar] [CrossRef]
  24. Maruyama, E.; Tanaka, T.; Hosoi, Y.; Ishii, K.; Morohoshi, N. Embryogenic cell culture, protoplast regeneration, cryopreservation, biolistic gene transfer and plant regeneration in Japanese cedar (Cryptomeria japonica D. Don). Plant Biotechnol. 2000, 17, 281–296. [Google Scholar] [CrossRef]
  25. Bodian, D.L.; Solomon, B.D.; Khromykh, A.; Thach, D.C.; Iyer, R.K.; Link, K.; Baker, R.L.; Baveja, R.; Vockley, J.G.; Niederhuber, J.E. Diagnosis of an imprinted-gene syndrome by a novel bioinformatics analysis of whole-genome sequences from a family trio. Mol. Genet. Genomic. Med. 2014, 2, 530–538. [Google Scholar] [CrossRef] [PubMed]
  26. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [Green Version]
  27. Boutilier, K.; Offringa, R.; Sharma, V.K.; Kieft, H.; Ouellet, T.; Zhang, L.; Hattori, J.; Liu, C.M.; van Lammeren, A.A.M.; Miki, B.L.A.; et al. Ectopic expression of BABY BOOM triggers a conversion from vegetative to embryonic growth. Plant Cell 2002, 14, 1737–1749. [Google Scholar] [CrossRef] [Green Version]
  28. El Ouakfaoui, S.E.; Schnell, J.; Abdeen, A.; Colville, A.; Labbé, H.; Han, S.; Baum, B.; Laberge, S.; Miki, B. Control of somatic embryogenesis and embryo development by AP2 transcription factors. Plant Mol. Biol. 2010, 74, 313–326. [Google Scholar] [CrossRef] [Green Version]
  29. Irikova, T.; Grozeva, S.; Denev, I. Identification of Baby boom and Leafy cotyledon genes in sweet pepper (Capsicum annuum L.) genome by their partial gene sequences. Plant Growth Regul. 2012, 67, 191–198. [Google Scholar] [CrossRef]
  30. Salvo, S.A.G.D.; Hirsch, C.N.; Buell, C.R.; Kaeppler, S.M.; Kaeppler, H.F. Whole transcriptome profiling of maize during early somatic embryogenesis reveals altered expression of stress factors and embryogenesis-related genes. PLoS ONE 2014, 9, e111407. [Google Scholar] [CrossRef] [Green Version]
  31. Hedman, H.; Zhu, T.; von Arnold, S.; Sohlberg, J.J. Analysis of the WUSCHEL-RELATED HOMEOBOX gene family in the conifer Picea abies reveals extensive conservation as well as dynamic patterns. BMC Plant Biol. 2013, 13, 89. [Google Scholar] [CrossRef]
  32. Van der Graaff, E.; Laux, T.; Rensing, S.A. The WUS homeobox-containing (WOX) protein family. Genome Biol. 2009, 10, 248. [Google Scholar] [CrossRef] [PubMed]
  33. Hecht, V.; Vielle-Calzada, J.; Hartog, M.; Schmidt, E.; Grossniklaus, U.; de Vries, S. The Arabidopsis somatic embryogenesis receptor kinase 1 gene is expressed in developing ovules and embryos and enhances embryogenic competence in culture. Plant Physiol. 2001, 127, 803–816. [Google Scholar] [CrossRef] [PubMed]
  34. Li, K.P.; Sun, X.M.; Han, H.; Zhang, S.G. Isolation, characterization and expression analysis of the BABY BOOM (BBM) gene from Larix kaempferi × L. olgensis during adventitious rooting. Gene 2014, 10, 551. [Google Scholar] [CrossRef] [PubMed]
  35. Galinha, C.; Hofhuis, H.; Luijten, M.; Willemsen, V.; Blilou, I.; Heidstra, R.; Scheres, B. PLETHORA proteins as dose-dependent master regulators of Arabidopsis root development. Nature 2007, 449, 1053–1057. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Imin, N.; Nizamidin, M.; Wu, T.; Rolfe, B.G. Factors involved in root formation in Medicago truncatula. J. Exp. Bot. 2007, 58, 439–451. [Google Scholar] [CrossRef] [Green Version]
  37. Klimaszewska, K.; Overton, C.; Stewart, D.; Rutledge, R.G. Initiation of somatic embryos and regeneration of plants from primordial shoots of 10-year-old somatic white spruce and expression profiles of 11 genes followed during the tissue culture process. Planta 2011, 233, 635–647. [Google Scholar] [CrossRef]
Horticulturae 09 00131 g001 550

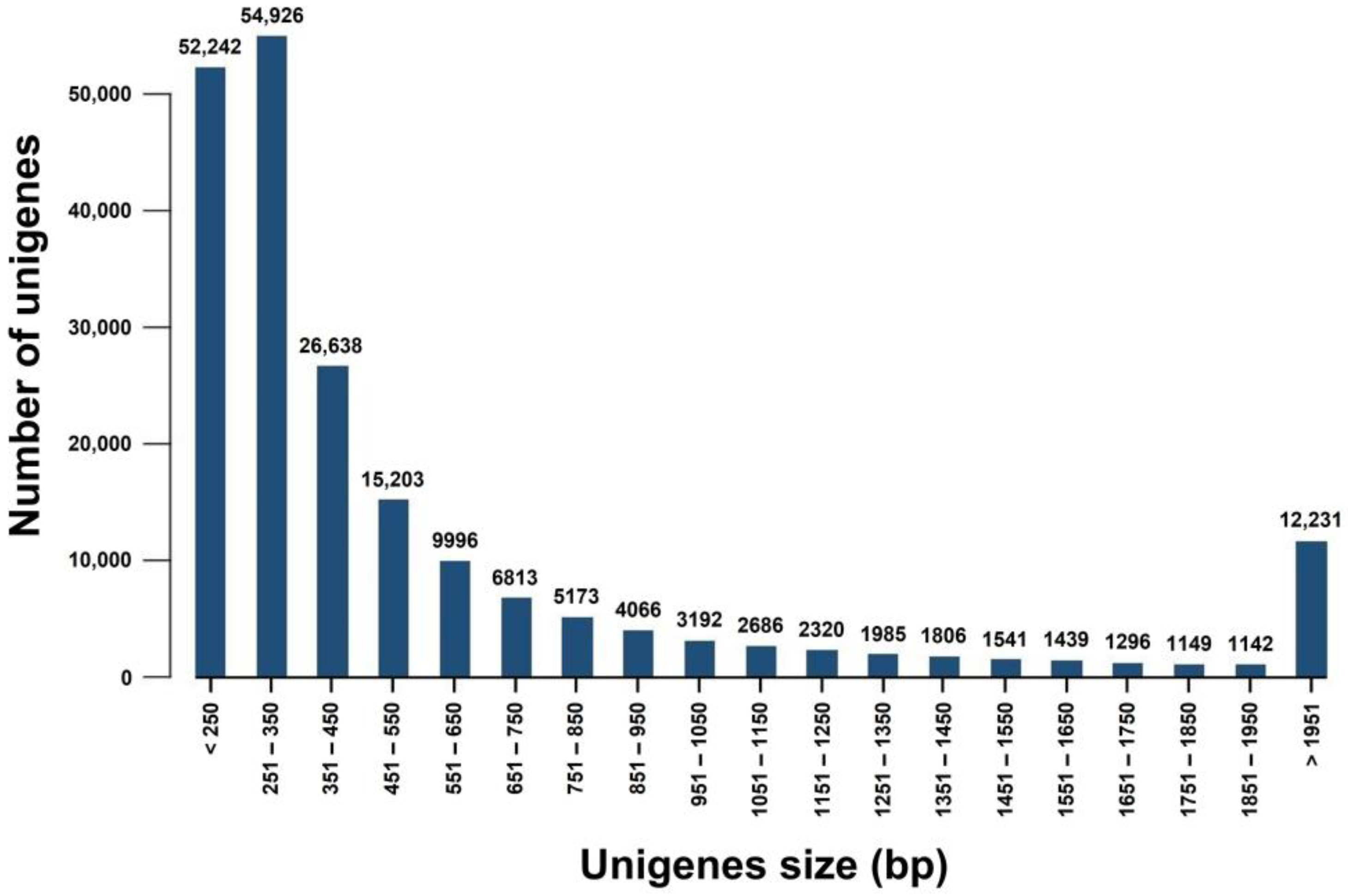

Figure 1. Length distribution of all unigenes.
Figure 1. Length distribution of all unigenes.
Horticulturae 09 00131 g001
Horticulturae 09 00131 g002 550

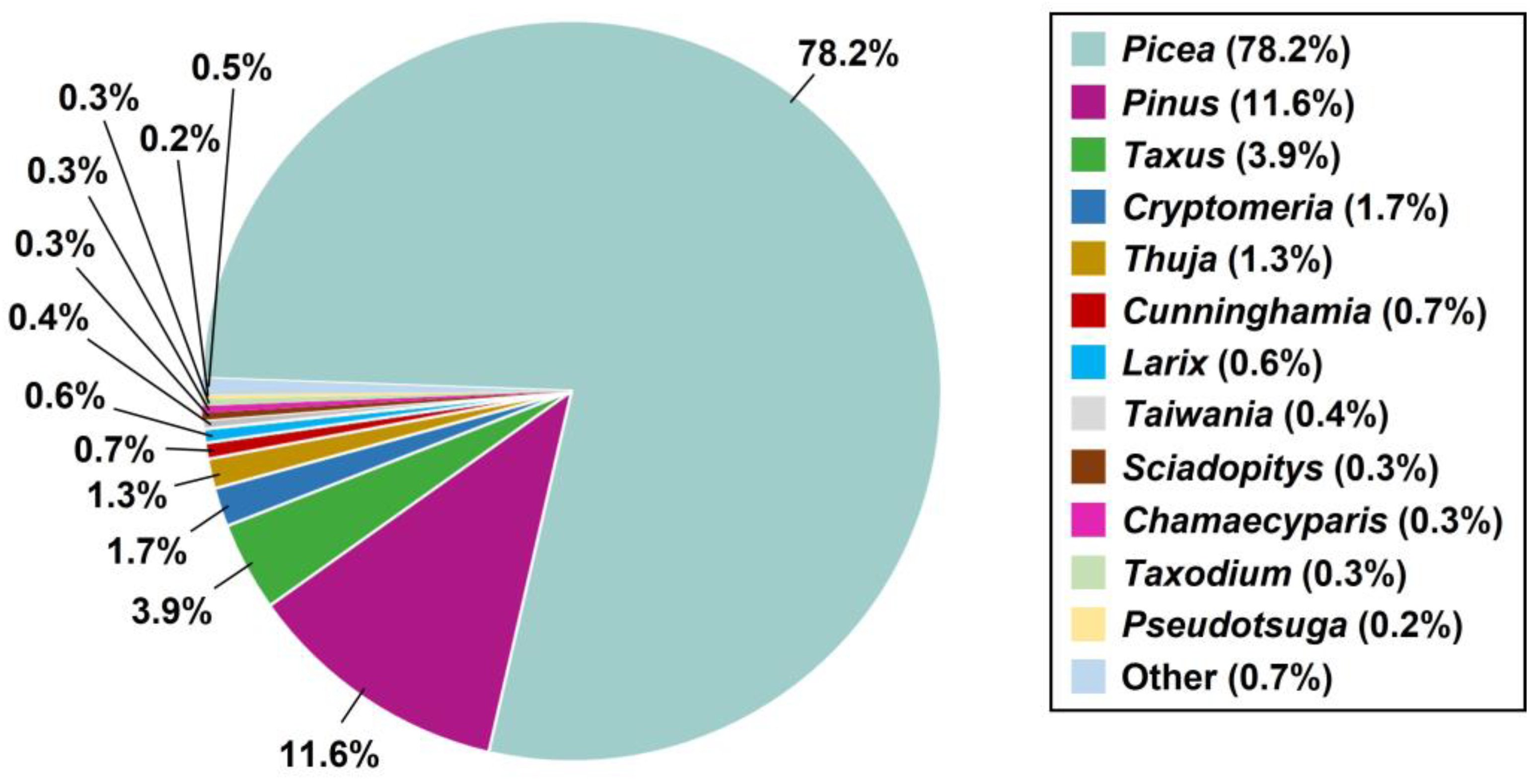

Figure 2. Distribution of the top BLASTX hits of conifers for unigenes in the NCBI Non-redundant database.
Figure 2. Distribution of the top BLASTX hits of conifers for unigenes in the NCBI Non-redundant database.
Horticulturae 09 00131 g002
Horticulturae 09 00131 g003 550

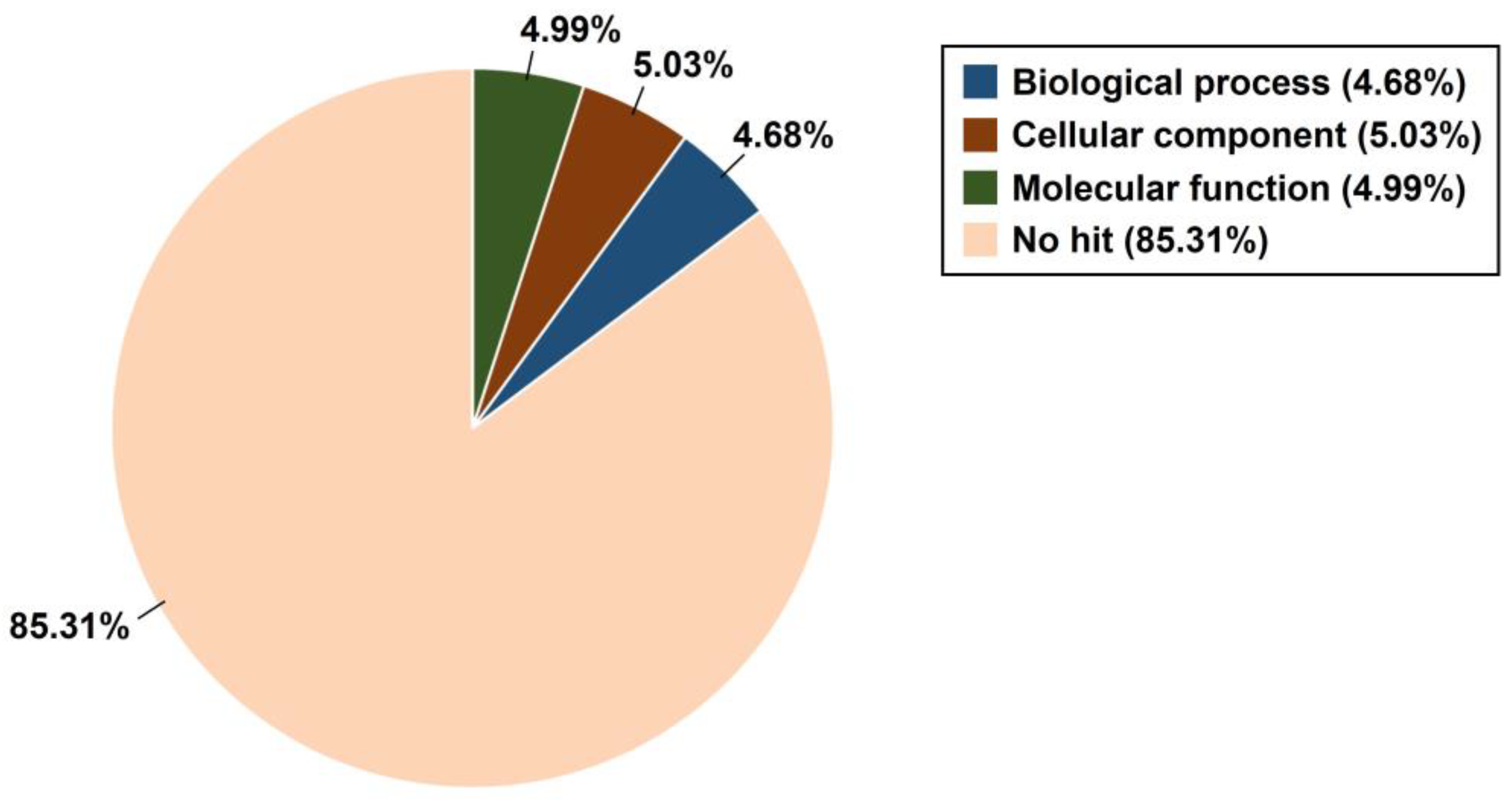

Figure 3. Distribution of the Gene Ontology terms for the three categories (biological process, cellular component, and molecular function).
Figure 3. Distribution of the Gene Ontology terms for the three categories (biological process, cellular component, and molecular function).
Horticulturae 09 00131 g003
Horticulturae 09 00131 g004 550

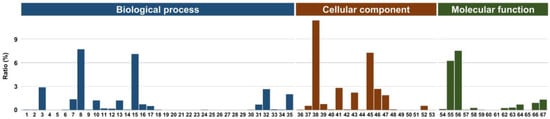

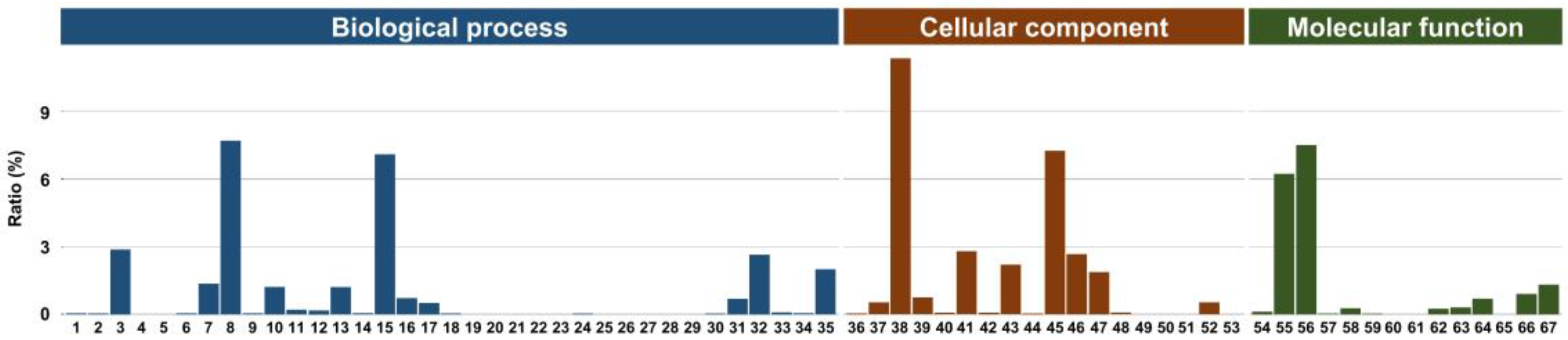

Figure 4. Bar diagram of unigenes assigned to 67 Gene Ontology (GO) categories. GO terms of biological process: 1 behavior, 2 biological adhesion, 3 biological regulation, 4 carbon utilization, 5 cell killing, 6 cell proliferation, 7 cellular component organization or biogenesis, 8 cellular process, 9 detoxification, 10 developmental process, 11 growth, 12 immune system process, 13 localization, 14 locomotion, 15 metabolic process, 16 multicellular organismal process, 17 multi-organism process, 18 nitrogen utilization, 19 obsolete chloroplast ribulose bisphosphate carboxylase complex biogenesis, 20 obsolete MAPK import into nucleus, 21 obsolete mitochondrial respiratory chain complex Ⅰ biogenesis, 22 obsolete mitochondrial respiratory chain complex Ⅳ biogenesis, 23 obsolete mycelium development, 24 obsolete protein import into nucleus and docking, 25 obsolete RNA polymerase Ⅱ complex import into nucleus, 26 obsolete RNA polymerase Ⅲ complex import into nucleus, 27 obsolete transcription factor import into nucleus, 28 pigmentation, 29 presynaptic process involved in chemical synaptic transmission, 30 reproduction, 31 reproductive process, 32 response to stimulus, 33 rhythmic process, 34 signaling, and 35 unclassified. Cellular component: 36 cells, 37 cell junction, 38 cell part, 39 extracellular region, 40 extracellular region part, 41 membrane, 42 membrane-enclosed lumen, 43 membrane part, 44 nucleoid, 45 organelle, 46 organelle part, 47 protein-containing complex, 48 supramolecular complex, 49 symplast, 50 synapse, 51 synapse part, 52 unclassified, and 53 virion part. Molecular function: 54 antioxidant activity, 55 binding, 56 catalytic activity, 57 molecular carrier activity, 58 molecular function regulator, 59 nutrient reservoir activity, 60 obsolete cyclic pyranopterin monophosphate synthase activity, 61 protein tag, 62 signal transducer activity, 63 structural molecule activity, 64 transcription regulator activity, 65 translation regulator activity, 66 transporter activity, and 67 unclassified.
Figure 4. Bar diagram of unigenes assigned to 67 Gene Ontology (GO) categories. GO terms of biological process: 1 behavior, 2 biological adhesion, 3 biological regulation, 4 carbon utilization, 5 cell killing, 6 cell proliferation, 7 cellular component organization or biogenesis, 8 cellular process, 9 detoxification, 10 developmental process, 11 growth, 12 immune system process, 13 localization, 14 locomotion, 15 metabolic process, 16 multicellular organismal process, 17 multi-organism process, 18 nitrogen utilization, 19 obsolete chloroplast ribulose bisphosphate carboxylase complex biogenesis, 20 obsolete MAPK import into nucleus, 21 obsolete mitochondrial respiratory chain complex Ⅰ biogenesis, 22 obsolete mitochondrial respiratory chain complex Ⅳ biogenesis, 23 obsolete mycelium development, 24 obsolete protein import into nucleus and docking, 25 obsolete RNA polymerase Ⅱ complex import into nucleus, 26 obsolete RNA polymerase Ⅲ complex import into nucleus, 27 obsolete transcription factor import into nucleus, 28 pigmentation, 29 presynaptic process involved in chemical synaptic transmission, 30 reproduction, 31 reproductive process, 32 response to stimulus, 33 rhythmic process, 34 signaling, and 35 unclassified. Cellular component: 36 cells, 37 cell junction, 38 cell part, 39 extracellular region, 40 extracellular region part, 41 membrane, 42 membrane-enclosed lumen, 43 membrane part, 44 nucleoid, 45 organelle, 46 organelle part, 47 protein-containing complex, 48 supramolecular complex, 49 symplast, 50 synapse, 51 synapse part, 52 unclassified, and 53 virion part. Molecular function: 54 antioxidant activity, 55 binding, 56 catalytic activity, 57 molecular carrier activity, 58 molecular function regulator, 59 nutrient reservoir activity, 60 obsolete cyclic pyranopterin monophosphate synthase activity, 61 protein tag, 62 signal transducer activity, 63 structural molecule activity, 64 transcription regulator activity, 65 translation regulator activity, 66 transporter activity, and 67 unclassified.
Horticulturae 09 00131 g004
Horticulturae 09 00131 g005 550

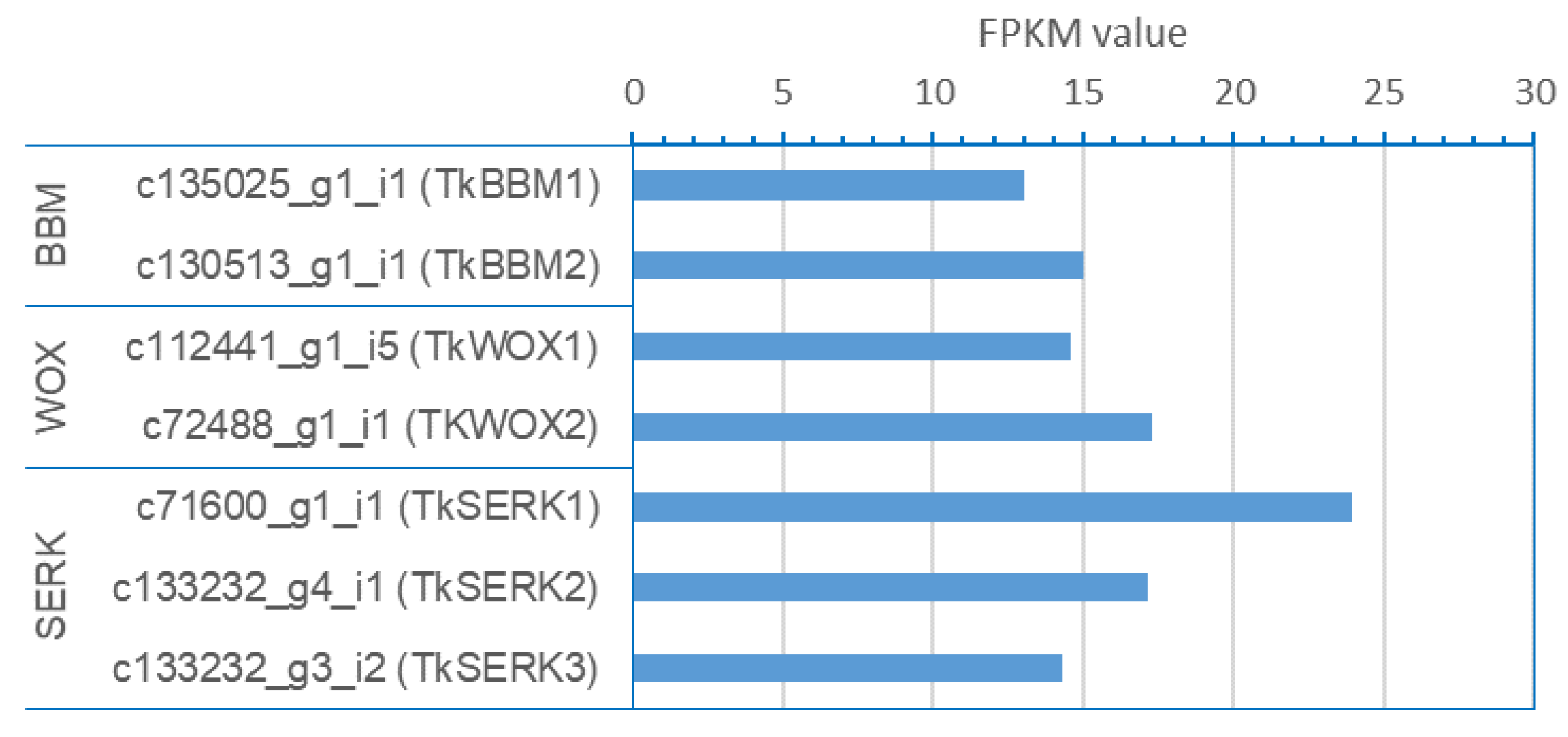

Figure 5. FPKM values of selected contigs of BBM, SERK, and WOX in annotated transcriptome sequences of T. koraiensis embryogenic callus.
Figure 5. FPKM values of selected contigs of BBM, SERK, and WOX in annotated transcriptome sequences of T. koraiensis embryogenic callus.
Horticulturae 09 00131 g005
Horticulturae 09 00131 g006 550

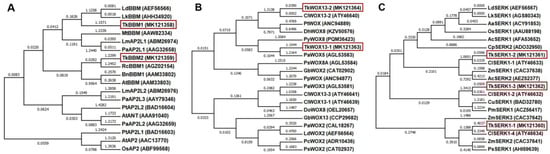

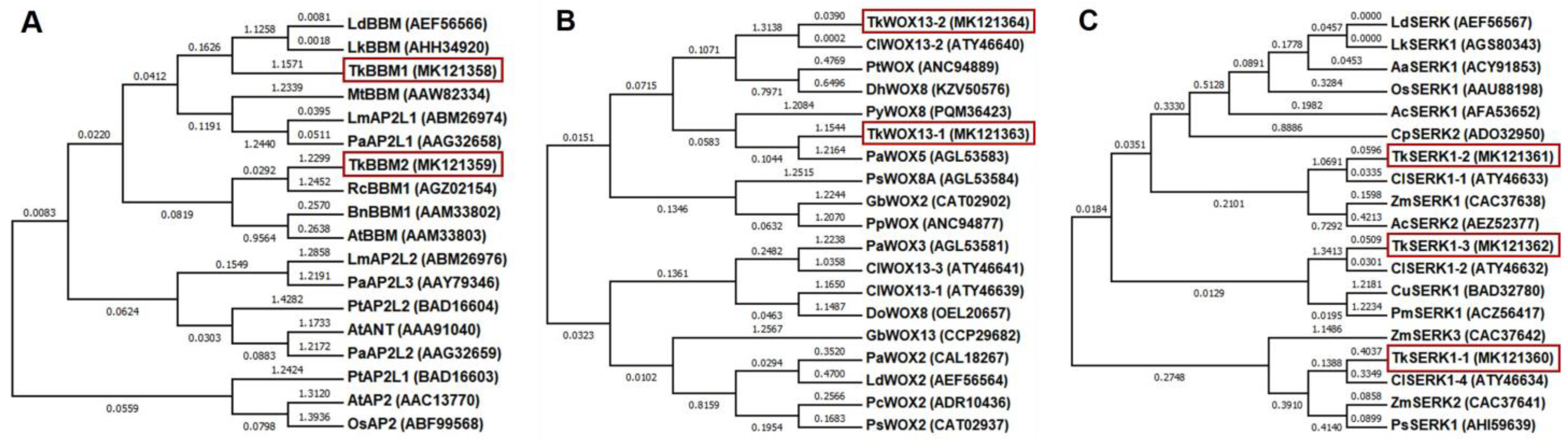

Figure 6. Phylogenetic tree of the putative TkBBM (TkBBM1 and TkBBM2), TkWOX (TkWOX1 and TkWOX2), and TkSERK (TkSERK1, TkSERK2, and TkSERK3) proteins based on the NCBI database and representatives characterizing each protein from broad plant lineages. (A) TkBBM1 and TkBBM2; (B) TkWOX1 and TkWOX2; (C) TkSERK1, TkSERK2, and TkSERK3.
Figure 6. Phylogenetic tree of the putative TkBBM (TkBBM1 and TkBBM2), TkWOX (TkWOX1 and TkWOX2), and TkSERK (TkSERK1, TkSERK2, and TkSERK3) proteins based on the NCBI database and representatives characterizing each protein from broad plant lineages. (A) TkBBM1 and TkBBM2; (B) TkWOX1 and TkWOX2; (C) TkSERK1, TkSERK2, and TkSERK3.
Horticulturae 09 00131 g006
Horticulturae 09 00131 g007 550
Figure 7. Characteristic stages of somatic development of T. koraiensis embryos and seedling. (A) Proembryonic masses (PEMs) on maturation medium. Scale bar: 5 mm. (B) Early embryo on maturation medium after 10 days. Scale bar: 1 mm. (C) Fully mature cotyledonary embryo on maturation medium after 30 days. Scale bar: 2 mm. (D) Somatic seedling with the first true needles emerging and a taproot on germination medium after 60 days. Scale bar: 1 mm.
Figure 7. Characteristic stages of somatic development of T. koraiensis embryos and seedling. (A) Proembryonic masses (PEMs) on maturation medium. Scale bar: 5 mm. (B) Early embryo on maturation medium after 10 days. Scale bar: 1 mm. (C) Fully mature cotyledonary embryo on maturation medium after 30 days. Scale bar: 2 mm. (D) Somatic seedling with the first true needles emerging and a taproot on germination medium after 60 days. Scale bar: 1 mm.
Horticulturae 09 00131 g007
Horticulturae 09 00131 g008 550

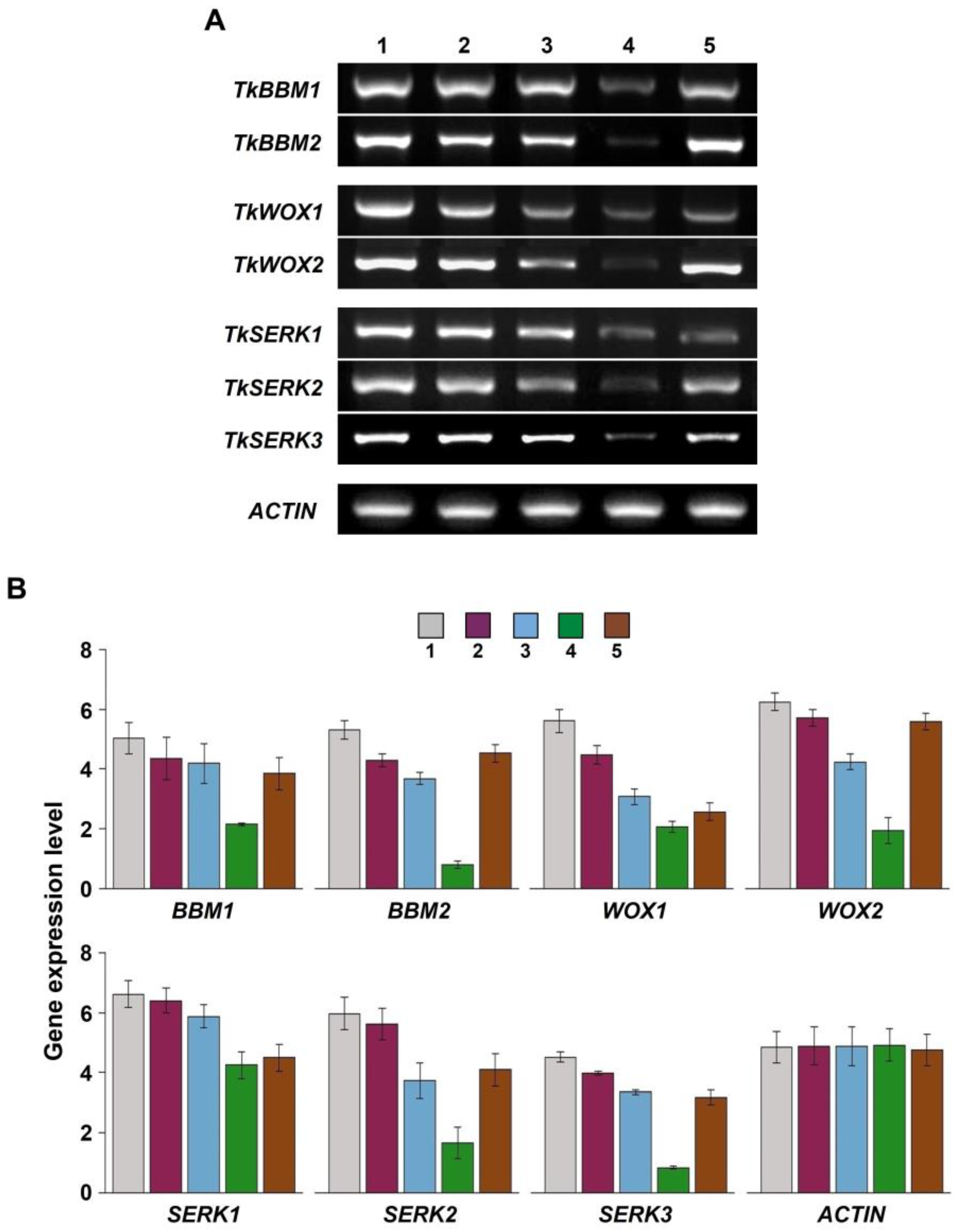

Figure 8. Expression analysis of the identified genes during the development of T. koraiensis somatic embryos. (A) RT-PCR analysis of somatic embryos of different explants. (B) Gene expression levels were analyzed, and intensity of bands was quantified by ImageJ densitometry analysis. Gray—proembryonic masses; purple—early embryo; blue—fully mature cotyledonary embryo; green—somatic seedling leaf; and brown—somatic seedling root.
Figure 8. Expression analysis of the identified genes during the development of T. koraiensis somatic embryos. (A) RT-PCR analysis of somatic embryos of different explants. (B) Gene expression levels were analyzed, and intensity of bands was quantified by ImageJ densitometry analysis. Gray—proembryonic masses; purple—early embryo; blue—fully mature cotyledonary embryo; green—somatic seedling leaf; and brown—somatic seedling root.
Horticulturae 09 00131 g008
Table
Table 1. The T. koraiensis raw sequenced data and trimmed sequenced data.
Table 1. The T. koraiensis raw sequenced data and trimmed sequenced data.
Types of DataTotal Number of Read BasesTotal Number of ReadsGC a (%)Q20 b (%)Q30 c (%)
Raw data statistics25,297,880,262250,474,062 42.9098.5596.06
Trimming data statistics24,768,744,102246,686,42242.8698.9996.87
a GC content. b Ratio of bases that have a Phred quality score greater than or equal to 20. c Ratio of bases that have a Phred quality score greater than or equal to 30.
Table
Table 2. Summary data of the assembled transcripts and unigenes in T. koraiensis.
Table 2. Summary data of the assembled transcripts and unigenes in T. koraiensis.
AssemblyTranscriptsUnigenes
Total number of genes214,470205,843
GC a (%)38.7938.35
Contig N90 b278256
Contig N50 c1345931
Median contig length371.0340.0
Average contig length738.06619.04
Total assembled bases202,286,040127,425,530
a GC content. b At least 90% of the assembled transcript nucleotides are found in contigs with lengths ≥N90. c At least 50% of the assembled transcript nucleotides are found in with lengths ≥N50.
Table
Table 3. Summary data of the annotation using various databases in T. koraiensis.
Table 3. Summary data of the annotation using various databases in T. koraiensis.
Annotation DatabaseThe Number of AnnotationsAnnotation (%)
GO a30,24114.69
UniProt b26,27412.76
NR c38,32018.62
Pfam d27,65913.44
EggNOG35,51117.25
NT e15,2377.40
Overall40,46119.66
a Gene Ontology. b Universal Protein Resource. c NCBI non-redundant Protein. d Protein families. e NCBI Nucleotide. The annotations were blasted against public databases with a BLASTN and BLASTX, including NT, Pfam, GO, NR, UniProt, and EggNOG.
Table
Table 4. Most abundant transcripts in the T. koraiensis transcriptome.
Table 4. Most abundant transcripts in the T. koraiensis transcriptome.
Transcript IDReadTarget Description (Species)Identity (%)E Value
c121998_g2_i15961Hypothetical protein (Citrus unshiu)703 × 10−127
c137033_g1_i35756Hypothetical protein (Marchantia polymorpha)490
c119709_g1_i35619Hypothetical protein (Physcomitrella patens)442 × 10−90
c125131_g1_i15427Hypothetical protein (Plasmodium cynomolgi strain B)240.0006
c202221_g1_i15405PREDICTED: Midasin (Ipomoea nil)713 × 10−10
c124649_g1_i25108Auxin transport protein (Amborella trichopoda)600
c69094_g1_i15083Auxin transport protein (Quercus suber)715 × 10−89
c115060_g1_i14787Zinc finger protein (Macleaya cordata)560
c121372_g1_i14506PREDICTED: A-kinase anchor protein 9-like isoform X5 (Musa acuminata subsp. malaccensis)241 × 10−8
c139228_g2_i84360Uncharacterized protein (Amborella trichopoda) 500
c137890_g3_i24321Hypothetical protein (Marchantia polymorpha)538 × 10−191
c132000_g1_i14294Peroxin/Ferlin domain (Macleaya cordata)540
c130259_g1_i34152Hypothetical protein (Marchantia polymorpha)460
c138002_g5_i34128Hypothetical protein (Vitis vinifera)325 × 10−166
c103923_g2_i14128Hypothetical protein (Vitis vinifera)347 × 10−21
c130469_g2_i44105PREDICTED: Chromatin structure-remodeling complex protein SYD isoform X1 (Nelumbo nucifera)550
c134892_g4_i23977Hypothetical protein (Marchantia polymorpha)750
c87277_g1_i13961Transformation/transcription domain associated protein (Trifolium pratense)370.00008
c134892_g6_i13896PREDICTED: Transformation/transcription domain-associated protein-like (Nelumbo nucifera)766 × 10−120
c114560_g2_i13878PREDICTED: Uncharacterized protein (Nicotiana tabacum)333 × 10−32
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ahn, C.H.; Han, J.Y.; Park, H.S.; Yoon, H.W.; Shin, J.W.; Seo, J.M.; Lee, H.; Kim, Y.R.; Baek, S.G.; Nam, J.I.; et al. Isolation and Expression of Transcription Factors Involved in Somatic Embryo Development by Transcriptome Analysis of Embryogenic Callus of Thuja koraiensis. Horticulturae 2023, 9, 131. https://doi.org/10.3390/horticulturae9020131

AMA Style

Ahn CH, Han JY, Park HS, Yoon HW, Shin JW, Seo JM, Lee H, Kim YR, Baek SG, Nam JI, et al. Isolation and Expression of Transcription Factors Involved in Somatic Embryo Development by Transcriptome Analysis of Embryogenic Callus of Thuja koraiensis. Horticulturae. 2023; 9(2):131. https://doi.org/10.3390/horticulturae9020131

Chicago/Turabian Style

Ahn, Chang Ho, Jung Yeon Han, Hyeong Soo Park, Hyun Won Yoon, Jung Won Shin, Jeong Min Seo, Hana Lee, Yeoung Ryul Kim, Saeng Geul Baek, Jae Ik Nam, and et al. 2023. "Isolation and Expression of Transcription Factors Involved in Somatic Embryo Development by Transcriptome Analysis of Embryogenic Callus of Thuja koraiensis" Horticulturae 9, no. 2: 131. https://doi.org/10.3390/horticulturae9020131

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
