# Hybrid RANS/LES Turbulence Model Applied to a Transitional Unsteady Boundary Layer on Wind Turbine Airfoil

^{*}

## Abstract

**:**

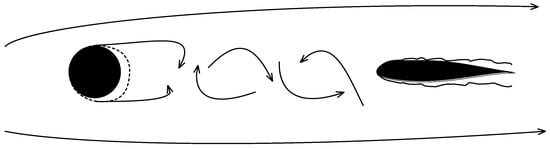

## 1. Introduction

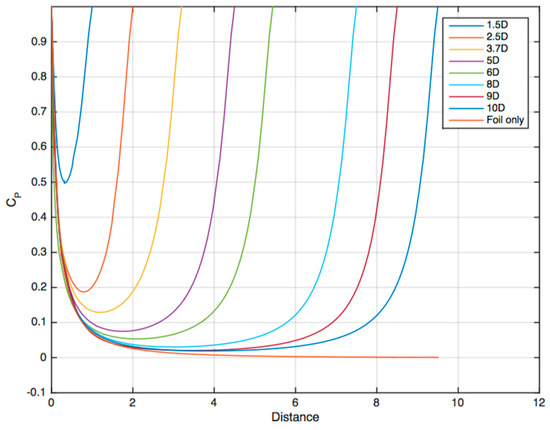

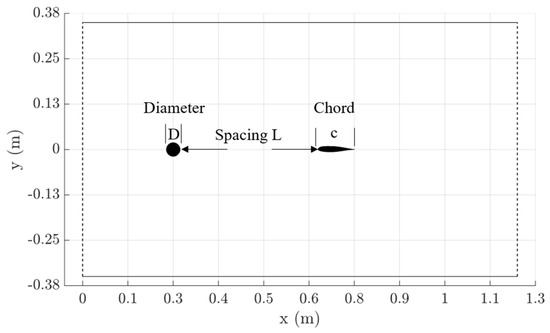

## 2. Model Formulation and CFD-based Experimental Design

## 3. Turbulence Model and Simulation Setups

#### 3.1. Turbulence Model

#### 3.1.1. Delayed-Detached-Eddy Simulation

_{DDES}is directly multiplied with the dissipation term in TKE equation, i.e., for ${F}_{DDES}=1$, the original RANS formulation is recovered; for ${F}_{DDES}>1$, the turbulence model switches to LES mode.

#### 3.1.2. Transition Model Formulation

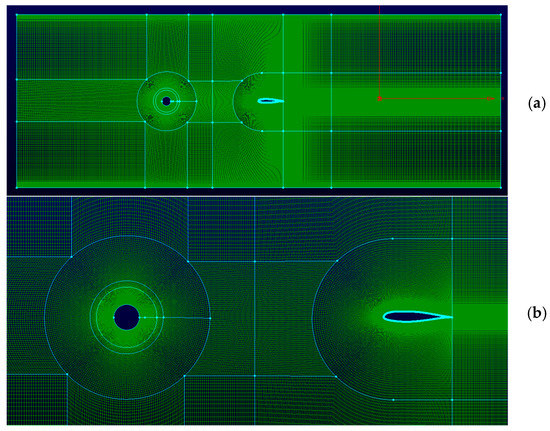

#### 3.2. Simulation Setups

## 4. Circular Cylinder Flow

#### 4.1. Instantaneous Flow Field

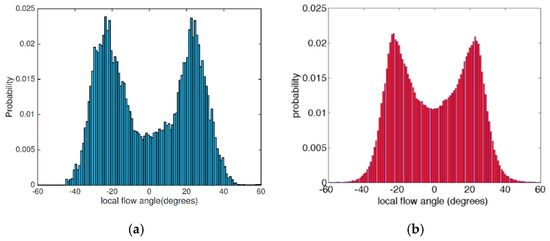

#### 4.2. Mean Flow Field and Flow Statistics

## 5. Unsteady Boundary Layer on Airfoil

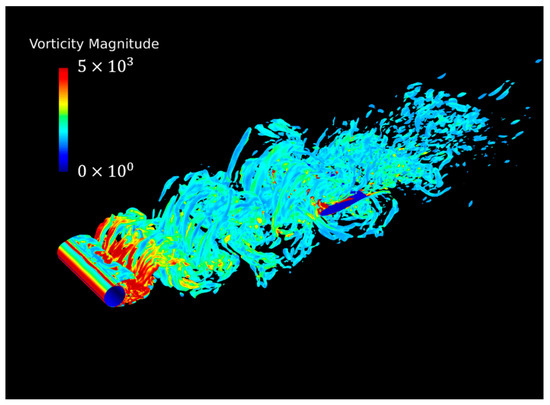

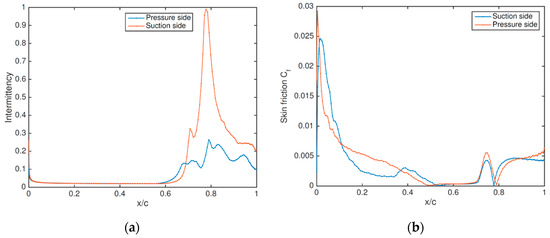

#### 5.1. Instantaneous Flow Field

#### 5.2. Mean Flow Field and Flow Statistics

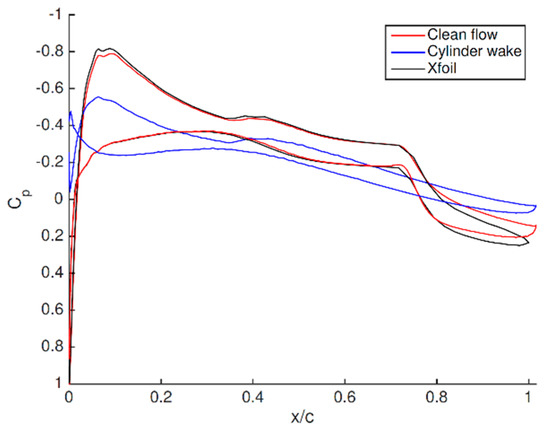

#### 5.2.1. Mean Pressure and Velocity Field

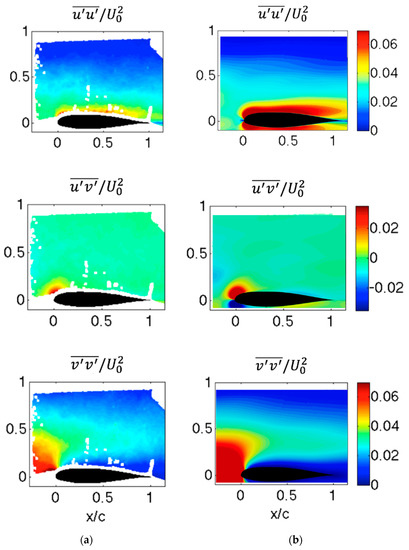

#### 5.2.2. Reynolds Stress

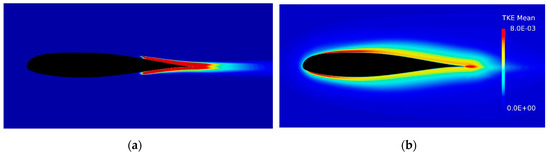

#### 5.2.3. Mean Turbulence Kinetic Energy

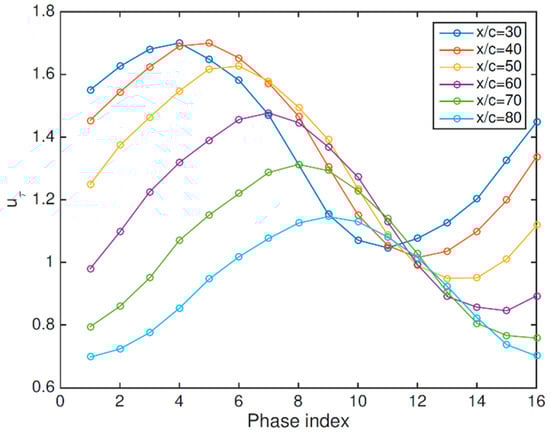

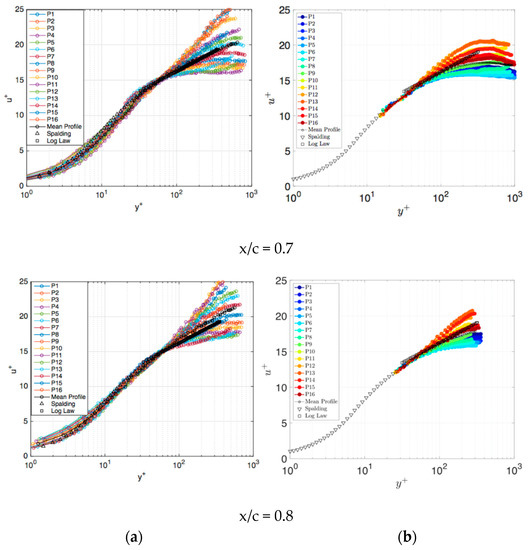

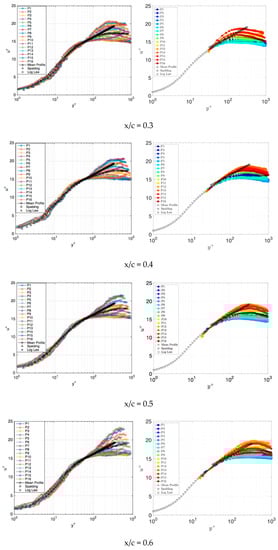

#### 5.2.4. Phase-Averaged Boundary Layer Profiles

## 6. Conclusions and Future Work

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Nomenclature

D | =circular cylinder diameter |

c | =airfoil chord length |

${C}_{d}$ | =airfoil section drag coefficient |

${C}_{D}$ | =drag coefficient |

CFD | =Computational Fluid Dynamics |

${C}_{l}$ | =airfoil section lift coefficient |

${C}_{L}$ | =lift coefficient |

${C}_{p}$ | =pressure coefficient |

EFD | =Experimental Fluids Dynamics |

F_{DDES} | =DDES blending function |

k | =airfoil reduced frequency |

L | =distance from cylinder center to airfoil leading edge |

LM | =Langtry-Menter (turbulence model) |

PIV | =particle image velocimetry |

$R{e}_{c}$ | =airfoil Reynolds number |

$R{e}_{D}$ | =cylinder Reynolds number |

RMS | =root-mean square |

$St$ | =Strouhal number |

Ti | =turbulence intensity |

${U}_{\infty}$ | =freestream velocity |

${U}_{\tau}$ | =friction velocity |

$\left|V\right|$ | =velocity vector magnitude |

${y}^{+}$ | =dimensionless wall distance |

$\gamma $ | =LM turbulence intermittency |

## References

- Windtec Solutions AMSC. SeaTitanTM 10 MW Wind Turbine. Available online: https://www.amsc.com/wp-content/uploads/wt10000_DS_A4_0212.pdf (accessed on 9 July 2019).
- Weston, D. Siemens Teases a 10MW+ Turbine. Available online: http://www.windpowermonthly.com/article/1399841/siemens-teases-10mw+-turbine (accessed on 9 July 2019).
- Ganesh, V. Non-Steady Dynamics of Atmospheric Turbulence Interaction with Wind Turbine Loadings through Blade-Boundary-Layer-Resolved CFD. Ph.D. Thesis, Mechanical and Nuclear Engineering, Penn State University, State College, PA, USA, April 2015. [Google Scholar]
- Jha, P.; Churchfield, M.; Moriarty, P.; Schmitz, S. Accuracy of State-of-the-Art Actuator-Line Modeling for Wind Turbine Wakes. In Proceedings of the 51st AIAA Aerospace Sciences Meeting including the New Horizons Forum and Aerospace Exposition, Grapevine, TX, USA, 7–10 January 2013. [Google Scholar]
- Sorensen, N.N.; Michelsen, J.A.; Schreck, S. Navier--Stokes predictions of the NREL phase VI rotor in the NASA Ames 80 ft × 120 ft wind tunnel. Wind Energy
**2002**, 5, 151–169. [Google Scholar] [CrossRef] - Lynch, C.E.; Smith, M.J. Unstructured overset incompressible computational fluid dynamics for unsteady wind turbine simulations. Wind Energy
**2013**, 16, 1033–1048. [Google Scholar] [CrossRef] - Pape, A.L.; Lecanu, J. 3D Navier–Stokes computations of a stall-regulated wind turbine. Wind Energy
**2004**, 7, 309–324. [Google Scholar] [CrossRef] - Johansen, J.; Sörensen, N.; Michelsen, J.; Schreck, S. Detached-eddy simulation of flow around the NREL phase-vi blade. In Proceedings of the 2002 ASME Wind Energy Symposium, Reno, NV, USA, 14–17 January 2002; pp. 106–114. [Google Scholar]
- Menter, F.R.; Langtry, R.B.; Likki, S.R.; Suzen, Y.B.; Huang, P.G.; Volker, S. A correlation-based transition model using local variables—Part I: Model formulation. ASME J. Turbomach.
**2006**, 128, 413–422. [Google Scholar] [CrossRef] - Sorensen, N.N. CFD modelling of laminar-turbulent transition for airfoils and rotors using the gamma model. Wind Energy
**2009**, 12, 715–733. [Google Scholar] [CrossRef] - Lanzafame, R.; Mauro, S.; Messina, M. Wind turbine CFD modeling using a correlation- based transitional model. Renew. Energy
**2013**, 52, 31–39. [Google Scholar] [CrossRef] - Ekaterinaris, J.A.; Platzer, M.F. Computational prediction of airfoil dynamic stall. Prog. Aerosp. Sci.
**1998**, 33, 759–846. [Google Scholar] [CrossRef] - Nandi, T.N. Effects of Blade Boundary Layer Transition and Daytime Atmospheric Turbulence on Wind Turbine Performance Analyzed with Blade-Resolved Simulation and Field Data. Ph.D. Thesis, Mechanical and Nuclear Engineering, Penn State University, State College, PA, USA, 2017. [Google Scholar]
- Takagi, Y.; Fujisawa, N.; Nakano, T.; Nashimoto, A. Cylinder wake influence on the tonal noise and aerodynamic characteristics of a NACA 0018 airfoil. J. Sound Vib.
**2006**, 297, 563–577. [Google Scholar] [CrossRef] - Szepessy, S. On the spanwise correlation of vortex shedding from a circular cylinder at high subcritical reynolds number. Phys. Fluids
**1994**, 6, 2406–2416. [Google Scholar] [CrossRef] - Williamson, C.H.K. Vortex dynamics in the cylinder wake. Annu. Rev. Fluid Mech.
**1996**, 28, 477–539. [Google Scholar] [CrossRef] - Jenkins, L.; Neuhart, D.; McGinley, C.; Khorrami, M.; Choudhari, M. Measurements of unsteady wake interference between tandem cylinders. In Proceedings of the 36th AIAA Fluid Dynamics Conference and Exhibit, San Francisco, CA, USA, 5–8 June 2006. [Google Scholar]
- Liu, B.; Hamed, A.M.; Jin, Y.; Chamorro, L. Influence of vortical structure impingement on the oscillation and rotation of flat plates. J. Fluids Struct.
**2017**, 70, 417–427. [Google Scholar] [CrossRef] - Zhang, D.; Cadel, D.R.; Paterson, E.G.; Lowe, K.T. Numerical and experimental study of the unsteady transitional boundary layer on a wind turbine airfoil. In Proceedings of the 35th Wind Energy Symposium, Grapevine, TX, USA, 9–13 January 2017. [Google Scholar]
- Nandi, T.N.; Brasseur, J.; Vijayakumar, G. Prediction and analysis of the nonsteady transitional boundary layer dynamics for flow over an oscillating wind turbine airfoil using the γ-Re
_{θ}transition model. In Proceedings of the 34th Wind Energy Symposium, San Diego, CA, USA, 4–8 January 2016. [Google Scholar] - Langtry, R.; Menter, F. Correlation-based transition modeling for unstructured parallelized computational fluid dynamics codes. AIAA J.
**2009**, 47, 2894–2906. [Google Scholar] [CrossRef] - Cadel, D.R.; Zhang, D.; Lowe, K.T.; Paterson, E.G. Unsteady boundary layer development on a wind turbine blade: An experimental study of a surrogate problem. Exp. Fluids
**2018**, 59, 72. [Google Scholar] [CrossRef] - Hicks, R.M.; Schairer, E.T. Effects of Upper Surface Modification on the Aerodynamic Characteristics of the NACA 632-215 Airfoil Section; National Aeronautics and Space Administration, Scientific and Technical Information Office: Hampton, VA, USA, Technical Memorandum 78503; 1979. [Google Scholar]
- Cadel, D.R. Advanced Instrumentation and Measurement Techniques for Near Surface Flows. Ph.D. Thesis, Department of Aerospace and Ocean Engineering, Virginia Tech, Blacksburg, VA, USA, 2016. [Google Scholar]
- Spalart, P.R.; Deck, S.; Shur, M.L.; Squires, K.D.; Strelets, M.K.; Travin, A. A new version of detached-eddy simulation, resistant to ambiguous grid densities. J. Theor. Comput. Fluid Dyn.
**2006**, 20, 181–195. [Google Scholar] [CrossRef] - Spalart, P.R.; Jou, W.H.; Strelets, M.K.; Allmaras, S.R. Comments on the feasibility of LES for wings, and on a hybrid RANS/LES approach. In Proceedings of the Advances in DNS/LES, Ruston, LA, USA, 4–8 August 1997; Volume 1, pp. 4–8. [Google Scholar]
- Spalart, P.R.; Rumsey, C.L. Effective inflow conditions for turbulence models in aerodynamic calculations. AIAA J.
**2007**, 45, 2544–2553. [Google Scholar] [CrossRef] - Advanced Research Computing Center at Virginia Tech, “Computing: Blueridge”. Available online: https://secure.hosting.vt.edu/www.arc.vt.edu/computing/blueridge-sandy-bridge/ (accessed on 9 July 2019).
- Advanced Research Computing Center at Virginia Tech, “Computing: Cascades”. Available online: https://secure.hosting.vt.edu/www.arc.vt.edu/computing/cascades/ (accessed on 9 July 2019).
- Norberg, C. Flow around a circular cylinder: Aspects of fluctuating lift. J. Fluids Struct.
**2001**, 15, 459–469. [Google Scholar] [CrossRef] - Toebes, G.H. Fluidelastic features of flow around cylinders. In Proceedings of the International Research Seminar, Wind Effects on Buildings and Structures, Ottawa, ON, Canada, 11–15 September 1967; pp. 323–341. [Google Scholar]
- Maekawa, T.; Mizuno, S. Flow around the separation point and in the near-wake of a circular cylinder. Phys. Fluids
**1967**, 10, S184–S186. [Google Scholar] [CrossRef] - Shimizu, K.; Kawamura, M. Spanwise correlation measurement behind a circular cylinder in subcritical reynolds number region. J. Phys. Soc. Jpn.
**1972**, 32, 1454. [Google Scholar] [CrossRef] - Hunt, J.C.R.; Graham, J.M.R. Free-stream turbulence near plane boundaries. J. Fluid Mech.
**1978**, 84, 209–235. [Google Scholar] [CrossRef] - Pope, S.B. Turbulent Flows; Cambridge University Press: Cambridge, UK, 2001. [Google Scholar]
- Perrin, R.; Cid, E.; Cazin, S.; Sevrain, A.; Braza, M.; Moradei, F.; Harran, G. Phase-averaged measurements of the turbulence properties in the near wake of a circular cylinder at high Reynolds number by 2c-piv and 3c-piv. Exp. Fluids
**2007**, 42, 93–109. [Google Scholar] [CrossRef] - Spalding, D.B. A single formula for the “law of the wall”. J. Appl. Mech.
**1961**, 28, 455–458. [Google Scholar] [CrossRef]

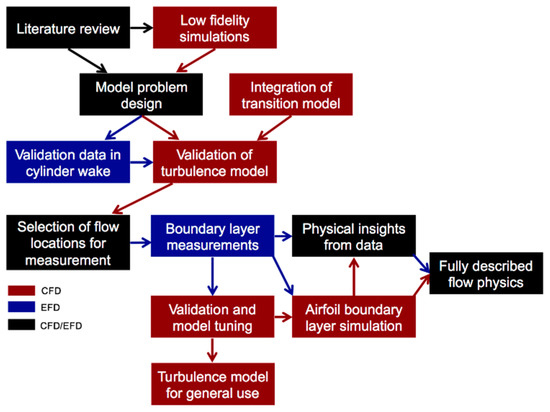

**Figure 2.**Overview of experimental and numerical procedure used in the research. Experimental efforts in blue, numerical efforts in red and joint contributions in black.

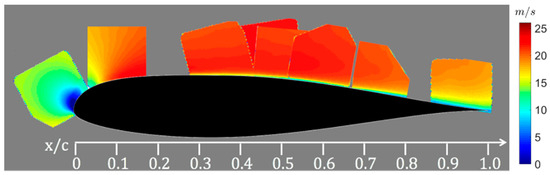

**Figure 5.**Particle image velocimetry (PIV) near-surface planes on airfoil suction side. Colors are visualizations of mean velocity magnitude.

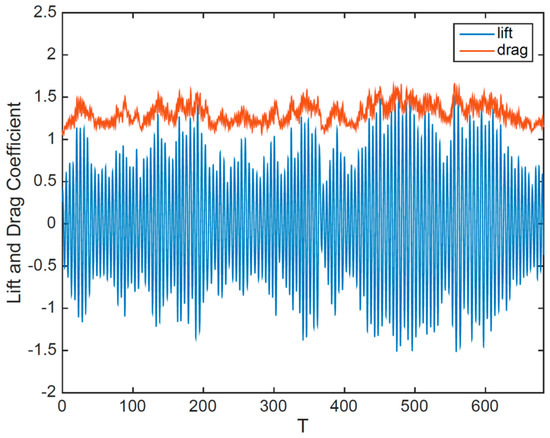

**Figure 7.**Lift (blue) and drag (red) coefficients of circular cylinder, $\mathrm{T}=t/(D/{U}_{\infty})$.

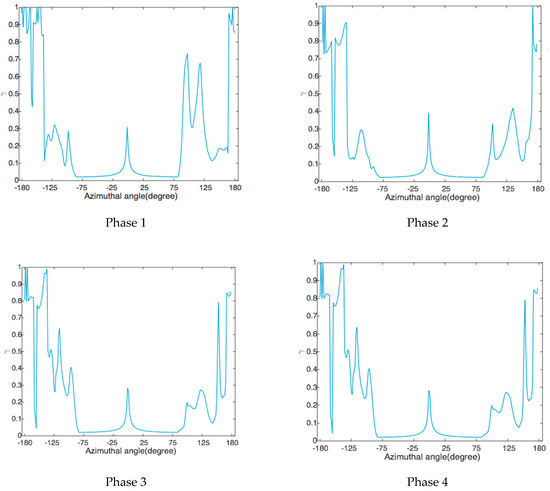

**Figure 8.**Langtry-Menter (LM) turbulence intermittency field ($\gamma $) on circular cylinder over one shedding cycle.

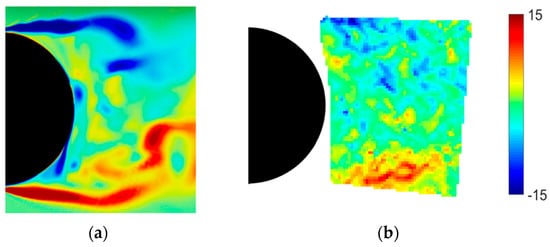

**Figure 9.**Normalized instantaneous spanwise vorticity ${\tilde{\mathsf{\omega}}}_{\mathrm{z}}={\mathsf{\omega}}_{\mathrm{z}}/\left({\mathrm{U}}_{\infty}\mathrm{D}\right)\text{}$(

**a**) Simulation, (

**b**) Experiment.

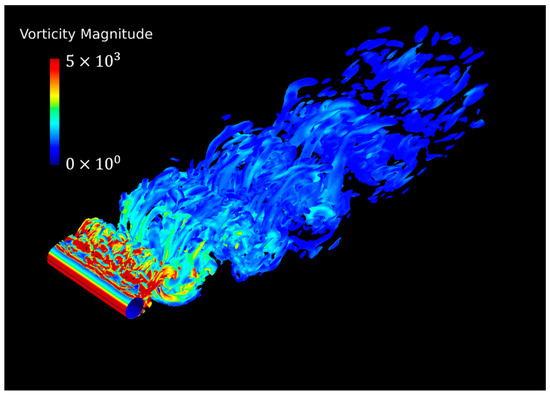

**Figure 10.**Iso-surface of Q criterion of the circular cylinder flow (flow field is mirrored in spanwise direction).

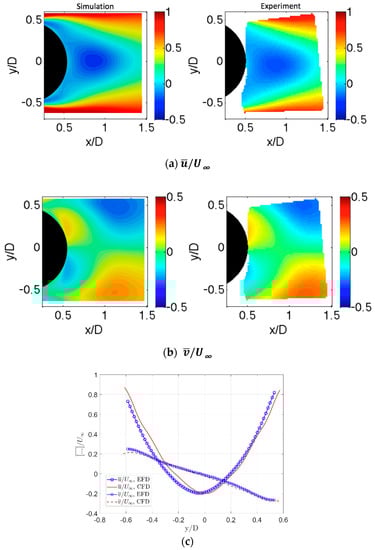

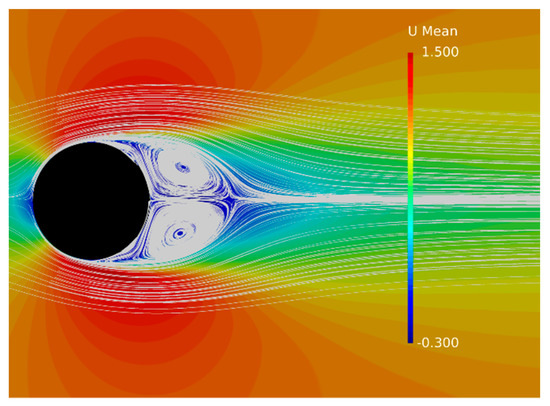

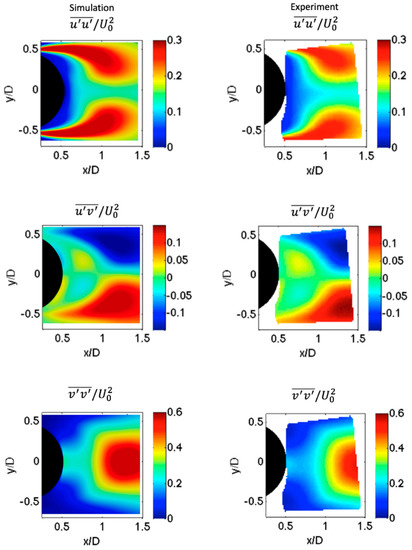

**Figure 12.**Mean velocity components in cylinder wake. (

**a**) contours of streamwise velocity; (

**b**) contours of transverse velocity; (

**c**) EFD/CFD line plot comparisons at $x/D$ = 1.

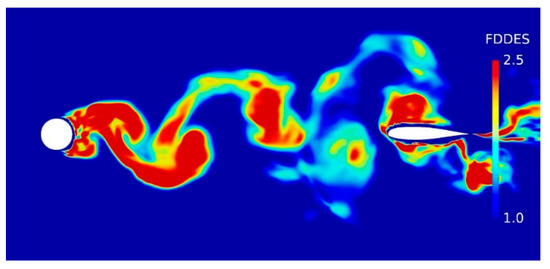

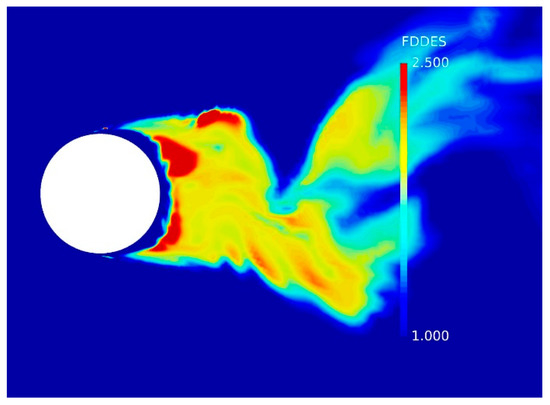

**Figure 16.**Instantaneous snapshot of blending function ${F}_{DDES}$ around airfoil in cylinder wake.

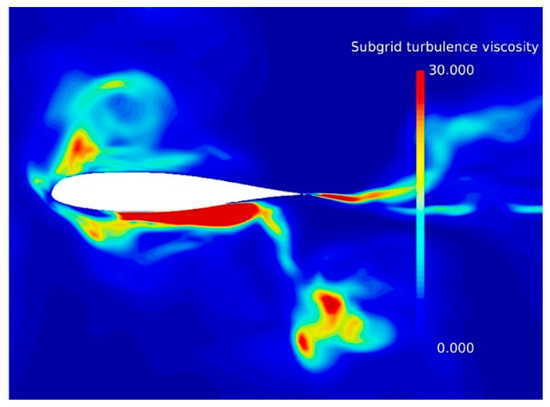

**Figure 17.**Instantaneous snapshot of normalized eddy viscosity ${\nu}_{t}/\nu $ around airfoil in cylinder wake.

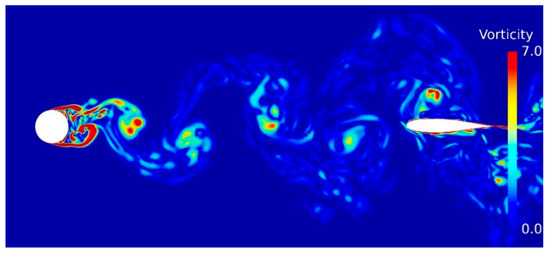

**Figure 18.**Instantaneous snapshot of normalized spanwise vorticity magnitude ${\tilde{\mathsf{\omega}}}_{\mathrm{z}}={\mathsf{\omega}}_{\mathrm{z}}/\left({\mathrm{U}}_{\infty}\mathrm{D}\right)$ from cylinder to airfoil.

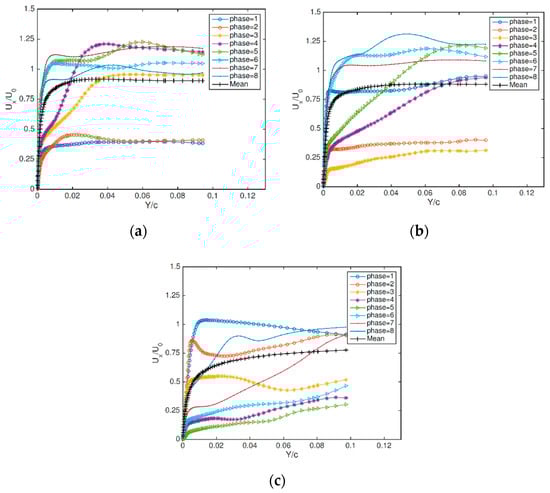

**Figure 21.**Instantaneous velocity profiles of ${U}_{x}$ parallel to airfoil surface. (

**a**) $\text{}x/c=0.3$; (

**b**) $x/c=0.5$; (

**c**) $x/c=0.8$.

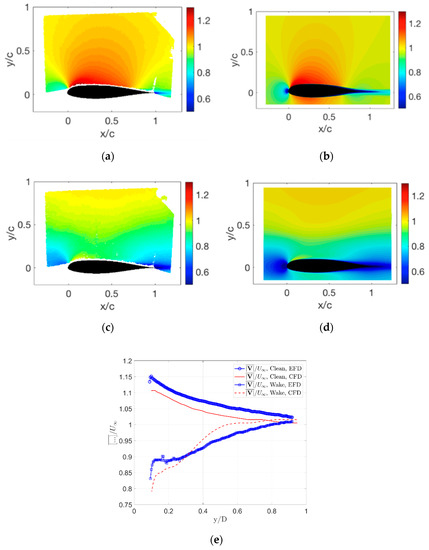

**Figure 23.**Normalized mean velocity magnitude in clean flow, (

**a**) EFD, (

**b**) CFD, and cylinder wake, (

**c**) EFD, (

**d**) CFD. Line plot comparisons for both cases in (

**e**).

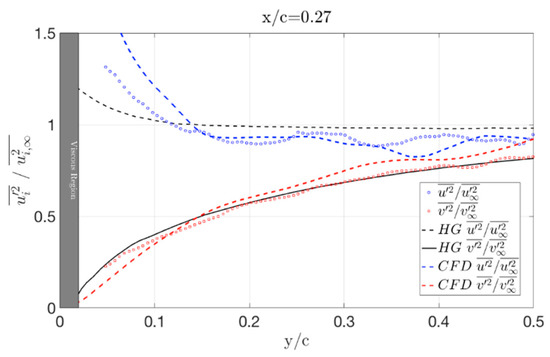

**Figure 25.**Experimental (dots) and numerical (dashed lines) profiles of the streamwise and transverse Reynolds stress components at $x/c=0.27$. Note HG is theory from Hunt and Graham [34].

Time Scale (s) | Length Scale (m) | Blade Re | Reduced Frequency | Modeling Technique |
---|---|---|---|---|

$\sim \mathcal{O}\left({10}^{-3}-{10}^{1}\right)$ | $\sim \mathcal{O}\left({10}^{-6}-{10}^{2}\right)$ | $\sim \mathcal{O}\left({10}^{7}\right)$ | $\sim \mathcal{O}\left({10}^{-2}-{10}^{0}\right)$ | CFD, actuator methods, BEM |

Freestream Conditions | Test Section Dimensions | Circular Cylinder | NACA63215b Airfoil |
---|---|---|---|

${U}_{\infty}=26\mathrm{m}/\mathrm{s}$ $Ti=1\%$ | Streamwise (x): $121.9\text{}\mathrm{cm}$ | Diameter $\text{}D=3.81\text{}\mathrm{cm}$ | Chord $\text{}c=10.16\mathrm{cm}$ |

Transverse (y): $71.1\mathrm{cm}$ | $R{e}_{D}=6.4\times {10}^{4}$ | $R{e}_{c}=1.7\times {10}^{5}$ | |

Spanwise(z): $71.1\mathrm{cm}$ | Spacing $L=10.7D$ | Reduced frequency $k=1.5$ |

Grid | Average ${\mathit{y}}^{+}$ on Surface | Cells around Cylinder | Total Cell Count | $\overline{{\mathit{C}}_{\mathit{D}}}$ | ${\mathit{C}}_{\mathit{L}}^{\prime}$ | $\mathit{S}\mathit{t}$ |
---|---|---|---|---|---|---|

Coarse | $\approx 2\left(y=2\times {10}^{-5}\mathrm{m}\right)$ | $120$ | 328,680 | 0.64 | 0.16 | 0.256 |

Medium | $\approx 1\left(y=1\times {10}^{-5}\mathrm{m}\right)$ | 240 | 2,768,566 | 1.31 | 0.67 | 0.193 |

Fine | $\approx 0.5\left(y=5\times {10}^{-6}\mathrm{m}\right)$ | 480 | 21,790,080 | 1.35 | 0.71 | 0.190 |

${\mathit{C}}_{\mathit{l}}$ Mean | ${\mathit{C}}_{\mathit{l}}$ RMS | ${\mathit{C}}_{\mathit{d}}$ Mean | ${\mathit{C}}_{\mathit{d}}$ RMS | |
---|---|---|---|---|

Airfoil in Clean flow | 0.16 | $0.16$ | 0.016 | 0.016 |

XFOIL | 0.17 | / | 0.015 | / |

Airfoil in Cylinder wake | 0.10 | 0.43 | −0.026 | 0.042 |
