Ordered Mesoporous Silica Prepared in Different Solvent Conditions: Application for Cu(II) and Pb(II) Adsorption
Abstract
:1. Introduction
2. Results and Discussion
2.1. FT-IR Analysis
2.2. Thermal Analysis

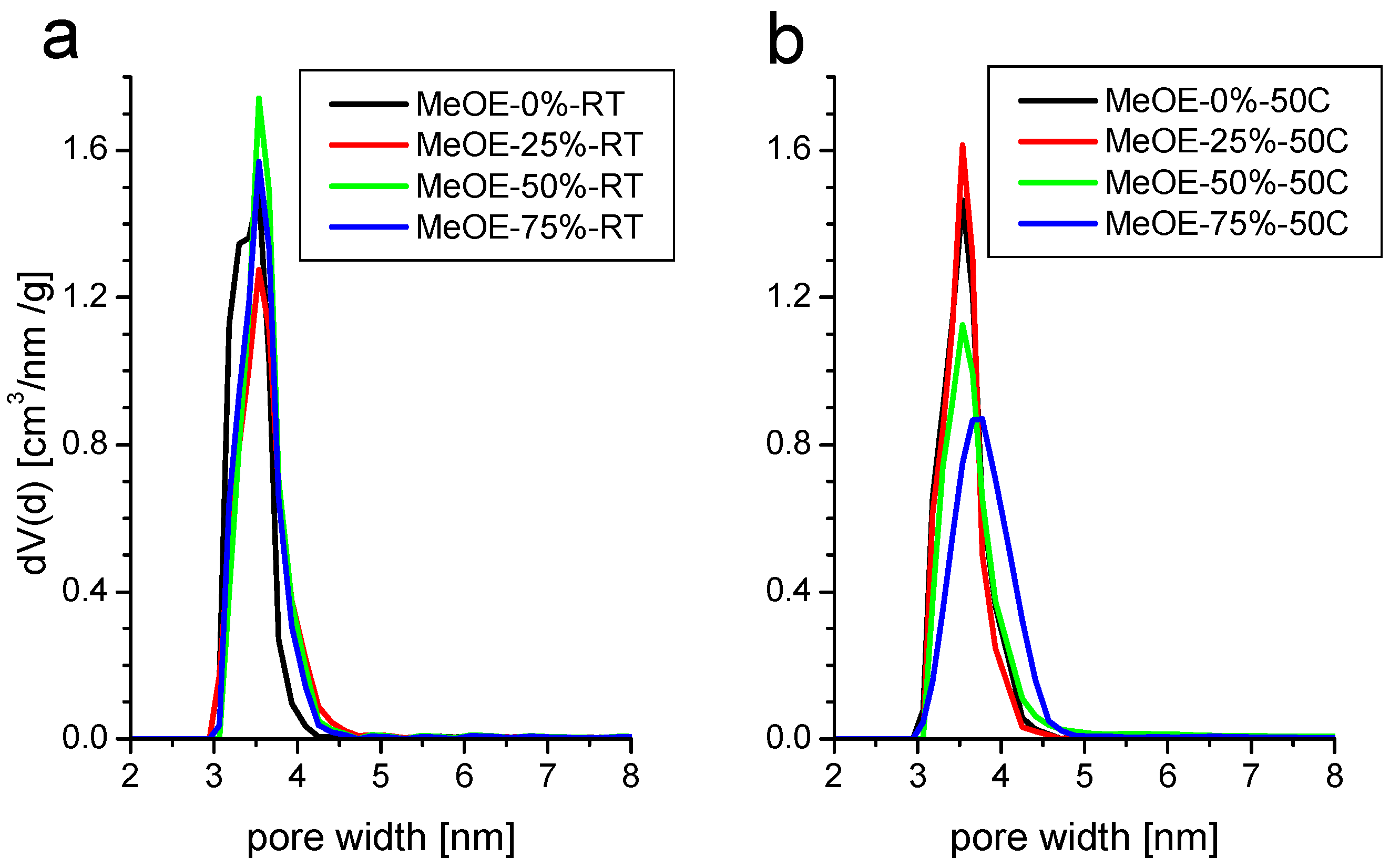

2.3. Nitrogen Porosimetry
2.4. Electron Microscopy

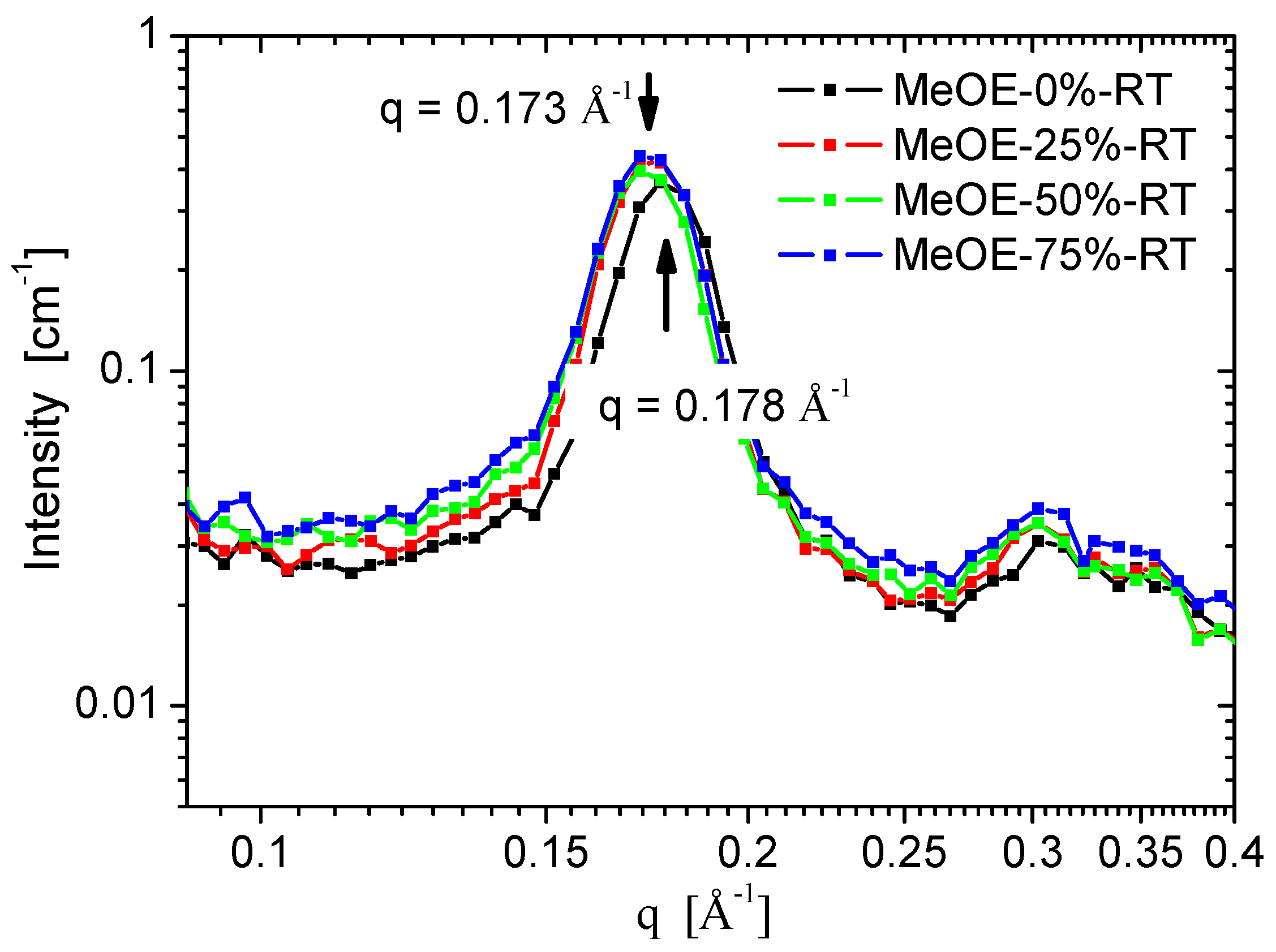

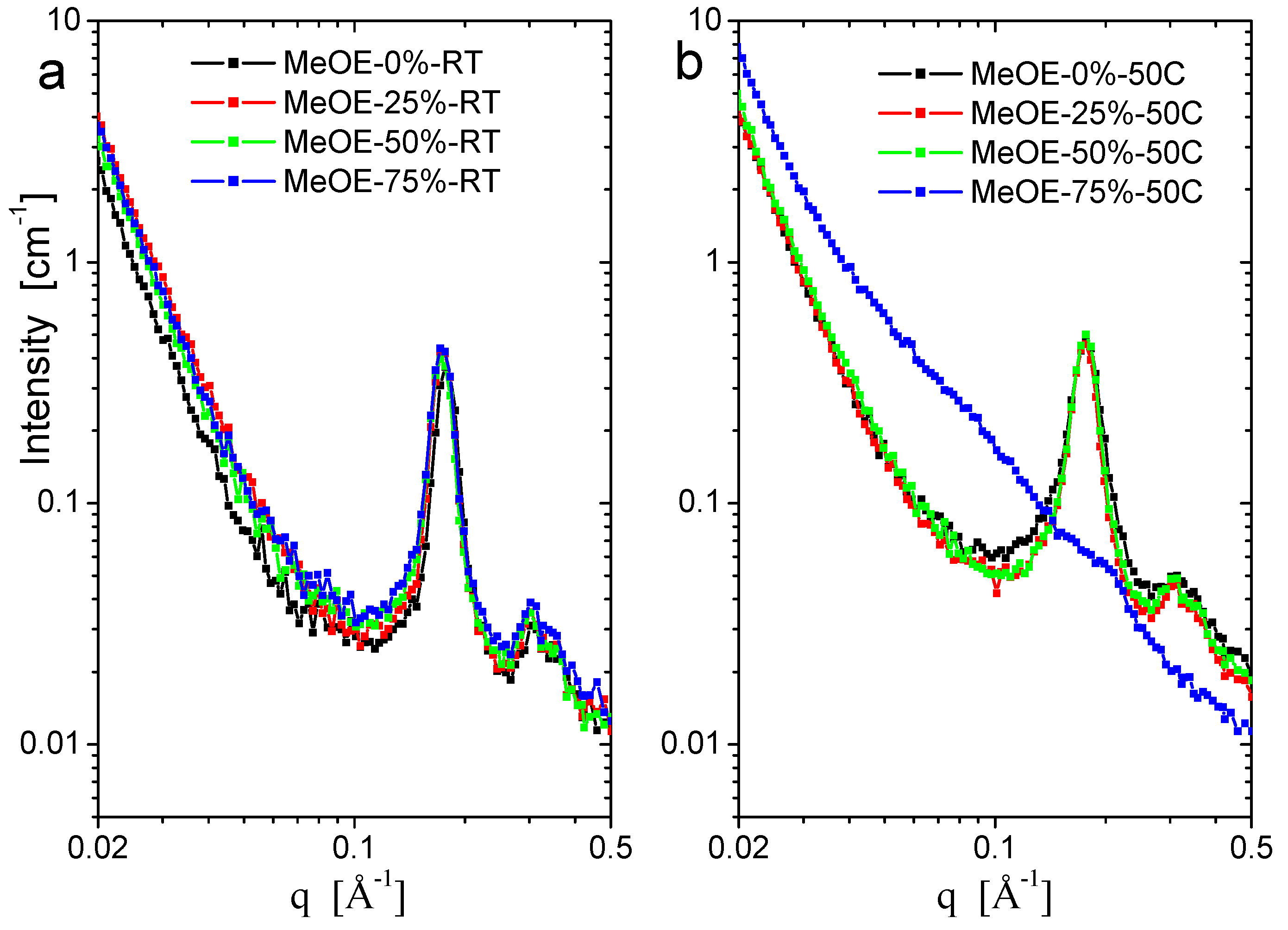

2.5. Small Angle Neutron Scattering
2.6. Metal Ion Adsorption
3. Conclusions
4. Materials and Methods
4.1. Sample Preparation
4.2. Characterization Methods
4.3. Metal Ion Adsorption Measurements
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Yuan, Q.; Li, N.; Chi, Y.; Geng, W.; Yan, W.; Zhao, Y.; Li, X.; Dong, B. Effect of Large Pore Size of Multifunctional Mesoporous Microsphere on Removal of Heavy Metal Ions. J. Hazard. Mater. 2013, 254–255, 157–165. [Google Scholar] [CrossRef] [PubMed]
- De Gisi, S.; Lofrano, G.; Grassi, M.; Notarnicola, M. Characteristics and Adsorption Capacities of Low-Cost Sorbents for Wastewater Treatment: A Review. Sustain. Mater. Technol. 2016, 9, 10–40. [Google Scholar] [CrossRef] [Green Version]
- Beveridge, A.; Pickering, W.F. The Influence of Surfactants on the Adsorption of Heavy Metal Ions by Clays. Water Res. 1983, 17, 215–225. [Google Scholar] [CrossRef]
- Yang, J.; Hou, B.; Wang, J.; Tian, B.; Bi, J.; Wang, N.; Li, X.; Huang, X. Nanomaterials for the Removal of Heavy Metals from Wastewater. Nanomaterials 2019, 9, 424. [Google Scholar] [CrossRef] [Green Version]
- Hu, H.; Zhao, D.; Wu, C.; Xie, R. Sulfidized Nanoscale Zerovalent Iron Supported by Oyster Powder for Efficient Removal of Cr (VI): Characterization, Performance, and Mechanisms. Materials 2022, 15, 3898. [Google Scholar] [CrossRef] [PubMed]
- Shen, J.; Wang, N.; Wang, Y.G.; Yu, D.; Ouyang, X. Efficient Adsorption of Pb(II) from Aqueous Solutions by Metal Organic Framework (Zn-BDC) Coated Magnetic Montmorillonite. Polymers 2018, 10, 1383. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Herman, P.; Kiss, A.; Fábián, I.; Kalmár, J.; Nagy, G. In situ remediation efficacy of hybrid aerogel adsorbent in model aquatic culture of Paramecium caudatum exposed to Hg(II). Chemosphere 2021, 275, 130019. [Google Scholar] [CrossRef] [PubMed]
- Herman, P.; Fábián, I.; Kalmár, J. Mesoporous Silica–Gelatin Aerogels for the Selective Adsorption of Aqueous Hg(II). ACS Appl. Nano Mater. 2020, 3, 195. [Google Scholar] [CrossRef] [Green Version]
- Hamza, M.F.; Hamad, N.A.; Hamad, D.M.; Khalafalla, M.S.; Abdel-Rahman, A.A.; Zeid, I.F.; Wei, Y.; Hessien, M.M.; Fouda, A.; Salem, W.M. Synthesis of Eco-Friendly Biopolymer, Alginate-Chitosan Composite to Adsorb the Heavy Metals, Cd(II) and Pb(II) from Contaminated Effluents. Materials 2021, 14, 2189. [Google Scholar] [CrossRef]
- Zhang, J.; He, H.; Owusu, A.; Henderson, M.J.; Yan, M.; Tian, Q.; Almásy, L. Efficient and selective sorption of uranyl by hydrated Ti3C2TX-Li agglomerates. Environ. Nanotechnol. Monit. Manag. 2021, 16, 100528. [Google Scholar] [CrossRef]
- Wojciechowska, P.; Cierpiszewski, R.; Maciejewski, H. Gelatin-Siloxane Hybrid Monoliths as Novel Heavy Metal Adsorbents. Appl. Sci. 2022, 12, 1258. [Google Scholar] [CrossRef]
- Kaliannan, D.; Palaninaicker, S.; Palanivel, V.; Dhamodaran, K.; Kadirvelu, K.; Kumaran, S. Sol-Gel Mediated Synthesis of Silica Nanoparticle from Bambusa Vulgaris Leaves and Its Environmental Applications: Kinetics and Isotherms Studies. J. Sol-Gel Sci. Technol. 2019, 90, 653–664. [Google Scholar] [CrossRef]
- Li, Y.; Wang, R.; Luo, X.; Chen, Z.; Wang, L.; Zhou, Y.; Liu, W.; Cheng, M.; Zhang, C. Synthesis of Rice Husk-Based MCM-41 for Removal of Aflatoxin B1 from Peanut Oil. Toxins 2022, 14, 87. [Google Scholar] [CrossRef] [PubMed]
- Sarti, E.; Chenet, T.; Stevanin, C.; Costa, V.; Cavazzini, A.; Catani, M.; Martucci, A.; Precisvalle, N.; Beltrami, G.; Pasti, L. High-Silica Zeolites as Sorbent Media for Adsorption and Pre-Concentration of Pharmaceuticals in Aqueous Solutions. Molecules 2020, 25, 3331. [Google Scholar] [CrossRef] [PubMed]
- Medeiros de Paula, G.; do Nascimento Rocha de Paula, L.; Freire Rodrigues, M.G. Production of MCM-41 and SBA-15 Hybrid Silicas from Industrial Waste. Silicon 2022, 14, 439–447. [Google Scholar] [CrossRef]
- Razak, N.A.A.; Othman, N.H.; Shayuti, M.S.M.; Jumahat, A.; Sapiai, N.; Lau, W.J. Agricultural and industrial waste-derived mesoporous silica nanoparticles: A review on chemical synthesis route. J. Env. Chem. Eng. 2022, 10, 107322. [Google Scholar] [CrossRef]
- Miao, C.; Liang, L.; Zhang, F.; Chen, S.; Shang, K.; Jiang, J.; Zhang, Y.; Ouyang, J. Review of the fabrication and application of porous materials from silicon-rich industrial solid waste. Int. J. Miner. Metall. Mater. 2022, 29, 424–438. [Google Scholar] [CrossRef]
- Wu, S.; Li, F.; Xu, R.; Wei, S.; Li, G. Synthesis of Thiol-Functionalized MCM-41 Mesoporous Silicas and Its Application in Cu(II), Pb(II), Ag(I), and Cr(III) Removal. J. Nanopart. Res. 2010, 12, 2111–2124. [Google Scholar] [CrossRef]
- Zhu, W.; Wang, J.; Wu, D.; Li, X.; Luo, Y.; Han, C.; Ma, W.; He, S. Investigating the Heavy Metal Adsorption of Mesoporous Silica Materials Prepared by Microwave Synthesis. Nanoscale Res. Lett. 2017, 12, 323. [Google Scholar] [CrossRef] [Green Version]
- Putz, A.-M.; Ciopec, M.; Negrea, A.; Grad, O.; Ianăşi, C.; Ivankov, O.; Milanović, M.; Stijepović, I.; Almásy, L. Comparison of Structure and Adsorption Properties of Mesoporous Silica Functionalized with Aminopropyl Groups by the Co-Condensation and the Post Grafting Methods. Materials 2021, 14, 628. [Google Scholar] [CrossRef]
- Gervas, C.; Mubofu, E.B.; Mdoe, J.E.G.; Revaprasadu, N. Functionalized mesoporous organo-silica nanosorbents for removal of chromium (III) ions from tanneries wastewater. J. Porous Mater. 2016, 23, 83–93. [Google Scholar] [CrossRef]
- Liu, S.; Lu, L.; Yang, Z.; Cool, P.; Vansant, E.F. Further Investigations on the Modified Stöber Method for Spherical MCM-41. Mater. Chem. Phys. 2006, 97, 203–206. [Google Scholar] [CrossRef]
- Liu, S.; Cool, P.; Collart, O.; Van Der Voort, P.; Vansant, E.F.; Lebedev, O.I.; Van Tendeloo, G.; Jiang, M. The Influence of the Alcohol Concentration on the Structural Ordering of Mesoporous Silica: Cosurfactant versus Cosolvent. J. Phys. Chem. B 2003, 107, 10405–10411. [Google Scholar] [CrossRef]
- Ngoc Thi Le, H.; Jeong, H.K. Synthesis and Characterization of Uniform Silica Nanoparticles on Nickel Substrate by Spin Coating and Sol–Gel Method. Chem. Phys. Lett. 2014, 592, 349–354. [Google Scholar] [CrossRef]
- El-Safty, S.A. Instant Synthesis of Mesoporous Monolithic Materials with Controllable Geometry, Dimension and Stability: A Review. J. Porous Mater. 2011, 18, 259–287. [Google Scholar] [CrossRef]
- Courtois, J.; Byström, E.; Irgum, K. Novel Monolithic Materials Using Poly(Ethylene Glycol) as Porogen for Protein Separation. Polymer 2006, 47, 2603–2611. [Google Scholar] [CrossRef]
- Tan, S.; Wu, Q.; Wang, J.; Wang, Y.; Liu, X.; Sui, K.; Deng, X.; Wang, H.; Wu, M. Dynamic Self-Assembly Synthesis and Controlled Release as Drug Vehicles of Porous Hollow Silica Nanoparticles. Microporous Mesoporous Mater. 2011, 142, 601–608. [Google Scholar] [CrossRef]
- Zhang, Y.B.; Qian, X.F.; Li, Z.K.; Yin, J.; Zhu, Z.K. Synthesis of Novel Mesoporous Silica Spheres with Starburst Pore Canal Structure. J. Solid State Chem. 2004, 177, 844–848. [Google Scholar] [CrossRef]
- Pabón, E.; Retuert, J.; Quijada, R. Synthesis of Mixed Silica–Titania by the Sol–Gel Method Using Polyethylenimine: Porosity and Catalytic Properties. J. Porous Mater. 2007, 14, 151–158. [Google Scholar] [CrossRef]
- Pirson, A.; Mohsine, A.; Marchot, P.; Michaux, B.; van Cantfort, O.; Pirard, J.P.; Lecloux, A.J. Synthesis of SiO2-TiO2 Xerogels by Sol-Gel Process. J. Sol-Gel Sci. Technol. 1995, 4, 179–185. [Google Scholar] [CrossRef]
- Dudás, Z.; Len, A.; Ianăşi, C.; Paladini, G. Structural Modifications Caused by the Increasing MTES Amount in Hybrid MTES/TEOS-based Silica Xerogels. Mater. Charact. 2020, 167, 110519. [Google Scholar] [CrossRef]
- Al-Oweini, R.; El-Rassy, H. Synthesis and Characterization by FTIR Spectroscopy of Silica Aerogels Prepared Using Several Si(OR)4 and R′′Si(OR′)3 Precursors. J. Mol. Struct. 2009, 919, 140–145. [Google Scholar] [CrossRef]
- Brinker, C.J.; Scherer, G.W. Sol-Gel Science: The Physics and Chemistry of Sol-Gel Processing; Academic Press: New York, NY, USA, 1990; pp. 581–585. [Google Scholar]
- Gallardo, J.; Galliano, P.; Durán, A. Thermal Evolution of Hybrid Sol-Gel Silica Coatings: A Structural Analysis. J. Sol-Gel Sci. Technol. 2000, 19, 393–397. [Google Scholar] [CrossRef]
- Lenza, R.F.S.; Vasconcelos, W.L. Preparation of Silica by Sol-Gel Method Using Formamide. Mat. Res. 2001, 4, 175–179. [Google Scholar] [CrossRef] [Green Version]
- Putz, A.-M.; Cecilia, S.; Ianăşi, C.; Dudás, Z.; Székely, K.N.; Plocek, J.; Sfârloagă, P.; Săcărescu, L.; Almásy, L. Pore Ordering in Mesoporous Matrices Induced by Different Directing Agents. J. Porous Mater. 2015, 22, 321–331. [Google Scholar] [CrossRef] [Green Version]
- Cychosz, K.A.; Thommes, M. Progress in the Physisorption Characterization of Nanoporous Gas Storage Materials. Engineering 2018, 4, 559–566. [Google Scholar] [CrossRef]
- Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of Gases, with Special Reference to the Evaluation of Surface Area and Pore Size Distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
- Ahmad, A.L.; Mustafa, N.N.N. Pore Surface Fractal Analysis of Palladium-Alumina Ceramic Membrane Using Frenkel-Halsey-Hill (FHH) Model. J. Colloid Interface Sci. 2006, 301, 575–584. [Google Scholar] [CrossRef]
- Lelong, G.; Bhattacharyya, S.; Kline, S.; Cacciaguerra, T.; Gonzalez, M.A.; Saboungi, M.-L. Effect of Surfactant Concentration on the Morphology and Texture of MCM-41 Materials. J. Phys. Chem. C 2008, 112, 10674–10680. [Google Scholar] [CrossRef]
- Soper, A.K. Radical Re-Appraisal of Water Structure in Hydrophilic Confinement. Chem. Phys. Lett. 2013, 590, 1–15. [Google Scholar] [CrossRef]
- Goworek, J.; Kierys, A.; Gac, W.; Borówka, A.; Kusak, R. Thermal Degradation of CTAB in As-Synthesized MCM-41. J. Therm. Anal. Calorim. 2009, 96, 375–382. [Google Scholar] [CrossRef]
- Foo, K.Y.; Hameed, B.H. Insights into the Modeling of Adsorption Isotherm Systems. Chem. Eng. J. 2010, 156, 2–10. [Google Scholar] [CrossRef]
- Alberti, G.; Amendola, V.; Pesavento, M.; Biesuz, R. Beyond the Synthesis of Novel Solid Phases: Review on Modelling of Sorption Phenomena. Coord. Chem. Rev. 2012, 256, 28–45. [Google Scholar] [CrossRef]
- Langmuir, I. The Adsorption of Gases on Plane Surfaces of Glass, Mica and Platinum. J. Am. Chem. Soc. 1918, 40, 1361–1403. [Google Scholar] [CrossRef] [Green Version]
- Freundlich, H. Über die Adsorption in Lösungen. Z. Phys. Chem. 1906, 57, 385–470. [Google Scholar] [CrossRef]
- Sips, R. On the Structure of a Catalyst Surface. J. Chem. Phys. 1948, 16, 490–495. [Google Scholar] [CrossRef]
- Ciopec, M.; Davidescu, C.; Negrea, A.; Lupa, L.; Negrea, P.; Popa, A.; Muntean, C. Use of D2EHPA impregnated XAD7 resin for the removal of Cd(II) and Zn(II) from aqueous solutions. Environ. Eng. Manag. J. 2011, 10, 1597–1608. [Google Scholar] [CrossRef]
- Anirudhan, T.S.; Senan, P.; Suchithra, P.S. Evaluation of Iron(III)-Coordinated Amino-Functionalized Poly(Glycidyl Methacrylate)-Grafted Cellulose for Arsenic(V) Adsorption from Aqueous Solutions. Water Air Soil Pollut. 2011, 220, 101–116. [Google Scholar] [CrossRef]
- Mishra, P.C.; Patel, R.K. Removal of Lead and Zinc Ions from Water by Low Cost Adsorbents. J. Hazard. Mater. 2009, 168, 319–325. [Google Scholar] [CrossRef]
- Keochaiyom, B.; Wan, J.; Zeng, G.; Huang, D.; Xue, W.; Hu, L.; Huang, C.; Zhang, C.; Cheng, M. Synthesis and Application of Magnetic Chlorapatite Nanoparticles for Zinc (II), Cadmium (II) and Lead (II) Removal from Water Solutions. J. Colloid Interface Sci. 2017, 505, 824–835. [Google Scholar] [CrossRef]
- Nguyen, T.C.; Loganathan, P.; Nguyen, T.V.; Vigneswaran, S.; Kandasamy, J.; Naidu, R. Simultaneous Adsorption of Cd, Cr, Cu, Pb, and Zn by an Iron-Coated Australian Zeolite in Batch and Fixed-Bed Column Studies. Chem. Eng. J. 2015, 270, 393–404. [Google Scholar] [CrossRef]
- Hubert, B.; Setiawan, Y.; Soetaredjo, F.E.; Hartono, S.B. Adsorption of Pb on Thiol Modified Magnetic Mesoporous Silica. ARPN J. Eng. Appl. Sci. 2018, 13, 859–863. [Google Scholar]
- Fan, H.; Ma, X.; Zhou, S.; Huang, J.; Liu, Y.; Liu, Y. Highly Efficient Removal of Heavy Metal Ions by Carboxymethyl Cellulose-Immobilized Fe3O4 Nanoparticles Prepared via High-Gravity Technology. Carbohydr. Polym. 2019, 213, 39–49. [Google Scholar] [CrossRef] [PubMed]
- Tian, Q.; Wang, X.; Mao, F.; Guo, X. Absorption Performance of DMSA Modified Fe3O4@SiO2 Core/Shell Magnetic Nanocomposite for Pb2+ Removal. J. Cent. South Univ. 2018, 25, 709–718. [Google Scholar] [CrossRef]
- Ahmad, N.; Sereshti, H.; Mousazadeh, M.; Rashidi Nodeh, H.; Kamboh, M.A.; Mohamad, S. New Magnetic Silica-Based Hybrid Organic-Inorganic Nanocomposite for the Removal of Lead(II) and Nickel(II) Ions from Aqueous Solutions. Mater. Chem. Phys. 2019, 226, 73–81. [Google Scholar] [CrossRef]
- Wang, J.; Zheng, S.; Shao, Y.; Liu, J.; Xu, Z.; Zhu, D. Amino-Functionalized Fe3O4@SiO2 Core-Shell Magnetic Nanomaterial as a Novel Adsorbent for Aqueous Heavy Metals Removal. J. Colloid Interface Sci. 2010, 349, 293–299. [Google Scholar] [CrossRef]
- Dursun, A.Y. A Comparative Study on Determination of the Equilibrium, Kinetic and Thermodynamic Parameters of Biosorption of Copper(II) and Lead(II) Ions onto Pretreated Aspergillus niger. Biochem. Eng. J. 2006, 28, 187–195. [Google Scholar] [CrossRef]
- Rajput, S.; Singh, L.P.; Pittman, C.U.; Mohan, D. Lead (Pb2+) and Copper (Cu2+) Remediation from Water Using Superparamagnetic Maghemite (γ-Fe2O3) Nanoparticles Synthesized by Flame Spray Pyrolysis (FSP). J. Colloid Interface Sci. 2017, 492, 176–190. [Google Scholar] [CrossRef]
- Giraldo, L.; Erto, A.; Moreno-Piraján, J.C. Magnetite Nanoparticles for Removal of Heavy Metals from Aqueous Solutions: Synthesis and Characterization. Adsorption 2013, 19, 465–474. [Google Scholar] [CrossRef]
- Mahdavi, S.; Jalali, M.; Afkhami, A. Heavy Metals Removal from Aqueous Solutions Using TiO2, MgO, and Al2O3 Nanoparticles. Chem. Eng. Commun. 2013, 200, 448–470. [Google Scholar] [CrossRef]
- Hadi Najafabadi, H.; Irani, M.; Roshanfekr Rad, L.; Heydari Haratameh, A.; Haririan, I. Removal of Cu2+, Pb2+ and Cr6+ from Aqueous Solutions Using a Chitosan/Graphene Oxide Composite Nanofibrous Adsorbent. RSC Adv. 2015, 5, 16532–16539. [Google Scholar] [CrossRef]
- Tighadouini, S.; Radi, S.; Bacquet, M.; Degoutin, S.; Zaghrioui, M.; Jodeh, S.; Warad, I. Removal Efficiency of Pb(II), Zn(II), Cd(II) and Cu(II) from Aqueous Solution and Natural Water by Ketoenol–Pyrazole Receptor Functionalized Silica Hybrid Adsorbent. Sep. Sci. Technol. 2017, 52, 608–621. [Google Scholar] [CrossRef]
- Raji, F.; Saraeian, A.; Pakizeh, M.; Attarzadeh, F. Removal of Pb(II) from Aqueous Solution by Mesoporous Silica MCM-41 Modified by ZnCl2: Kinetics, Thermodynamics, and Isotherms. RSC Adv. 2015, 5, 37066–37077. [Google Scholar] [CrossRef]
- Huang, J.; Ye, M.; Qu, Y.; Chu, L.; Chen, R.; He, Q.; Xu, D. Pb (II) Removal from Aqueous Media by EDTA-Modified Mesoporous Silica SBA-15. J. Colloid Interface Sci. 2012, 385, 137–146. [Google Scholar] [CrossRef] [PubMed]
- Unob, F.; Wongsiri, B.; Phaeon, N.; Puanngam, M.; Shiowatana, J. Reuse of Waste Silica as Adsorbent for Metal Removal by Iron Oxide Modification. J. Hazard. Mater. 2007, 142, 455–462. [Google Scholar] [CrossRef]
- Nicola, R.; Costişor, O.; Ciopec, M.; Negrea, A.; Lazău, R.; Ianăşi, C.; Picioruş, E.-M.; Len, A.; Almásy, L.; Szerb, E.I.; et al. Silica-Coated Magnetic Nanocomposites for Pb2+ Removal from Aqueous Solution. Appl. Sci. 2020, 10, 2726. [Google Scholar] [CrossRef] [Green Version]
- Qureashi, A.; Pandith, A.H.; Bashir, A.; Manzoor, T.; Malik, L.A.; Sheikh, F.A. Citrate Coated Magnetite: A Complete Magneto Dielectric, Electrochemical and DFT Study for Detection and Removal of Heavy Metal Ions. Surf. Interfaces 2021, 23, 101004. [Google Scholar] [CrossRef]
- Melnyk, I.V.; Pogorilyi, R.P.; Zub, Y.L.; Vaclavikova, M.; Gdula, K.; Dąbrowski, A.; Seisenbaeva, G.A.; Kessler, V.G. Protection of Thiol Groups on the Surface of Magnetic Adsorbents and Their Application for Wastewater Treatment. Sci. Rep. 2018, 8, 8592. [Google Scholar] [CrossRef] [Green Version]
- Zhang, X.; Cheng, T.; Chen, C.; Wang, L.; Deng, Q.; Chen, G.; Ye, C. Synthesis of a Novel Magnetic Nano-Zeolite and Its Application as an Efficient Heavy Metal Adsorbent. Mater. Res. Express 2020, 7, 085007. [Google Scholar] [CrossRef]
- Kaliannan, D.; Palaninaicker, S.; Palanivel, V.; Mahadeo, M.A.; Ravindra, B.N.; Jae-Jin, S. A Novel Approach to Preparation of Nano-Adsorbent from Agricultural Wastes (Saccharum Officinarum Leaves) and Its Environmental Application. Environ. Sci. Pollut. Res. 2019, 26, 5305–5314. [Google Scholar] [CrossRef]
- Yang, P.; Li, F.; Wang, B.; Niu, Y.; Wei, J.; Yu, Q. In Situ Synthesis of Carbon Nanotube-Steel Slag Composite for Pb(II) and Cu(II) Removal from Aqueous Solution. Nanomaterials 2022, 12, 1199. [Google Scholar] [CrossRef] [PubMed]
- Kotsyuda, S.S.; Tomina, V.V.; Zub, Y.L.; Furtat, I.M.; Lebed, A.P.; Vaclavikova, M.; Melnyk, I.V. Bifunctional Silica Nanospheres with 3-Aminopropyl and Phenyl Groups. Synthesis Approach and Prospects of Their Applications. Appl. Surf. Sci. 2017, 420, 782–791. [Google Scholar] [CrossRef]
- Mahmoud, M.E.; Fekry, N.A.; El-Latif, M.M.A. Nanocomposites of Nanosilica-Immobilized-Nanopolyaniline and Crosslinked Nanopolyaniline for Removal of Heavy Metals. Chem. Eng. J. 2016, 304, 679–691. [Google Scholar] [CrossRef]
- Ramkumar, J.; Majeed, J.; Chandramouleeswaran, S. Insight to Sorption Mechanism Employing Nanocomposite: Case Study of Toxic Species Removal. Microporous Mesoporous Mater. 2021, 314, 110858. [Google Scholar] [CrossRef]
- De, S.; Malik, S.; Ghosh, A.; Saha, R.; Saha, B. A review on natural surfactants. RSC Adv. 2015, 5, 65757. [Google Scholar] [CrossRef]
- Putz, A.-M.; Wang, K.; Len, A.; Plocek, J.; Bezdicka, P.; Kopitsa, G.P.; Khamova, T.V.; Ianăşi, C.; Săcărescu, L.; Mitróová, Z.; et al. Mesoporous Silica Obtained with Methyltriethoxysilane as Co-Precursor in Alkaline Medium. Appl. Surf. Sci. 2017, 424, 275–281. [Google Scholar] [CrossRef] [Green Version]
- Kuklin, A.I.; Soloviov, D.V.; Rogachev, A.V.; Utrobin, P.K.; Kovalev, Y.S.; Balasoiu, M.; Ivankov, O.I.; Sirotin, A.P.; Murugova, T.N.; Petukhova, T.B.; et al. New Opportunities Provided by Modernized Small-Angle Neutron Scattering Two-Detector System Instrument (YuMO). J. Phys. Conf. Ser. 2011, 291, 12013. [Google Scholar] [CrossRef]
- Kuklin, A.I.; Rogov, A.D.; Gorshkova, Y.E.; Utrobin, P.K.; Kovalev, Y.S.; Rogachev, A.V.; Ivankov, O.I.; Kutuzov, S.A.; Soloviov, D.V.; Gordeliy, V.I. Analysis of Neutron Spectra and Fluxes Obtained with Cold and Thermal Moderators at IBR-2 Reactor: Experimental and Computer-Modeling Studies. Phys. Part. Nucl. Lett. 2011, 8, 119. [Google Scholar] [CrossRef]
- Kuklin, A.I.; Islamov, A.K.; Gordeliy, V.I. Scientific Reviews: Two-Detector System for Small-Angle Neutron Scattering Instrument. Neutron News 2005, 16, 16–18. [Google Scholar] [CrossRef]
- Soloviev, A.G.; Solovjeva, T.M.; Ivankov, O.I.; Soloviov, D.V.; Rogachev, A.V.; Kuklin, A.I. SAS program for two-detector system: Seamless curve from both detectors. J. Phys. Conf. Ser. 2017, 848, 012020. [Google Scholar] [CrossRef]
- Strunz, P.; Saroun, J.; Mikula, P.; Lukas, P.; Eichhorn, F. Double-Bent-Crystal Small-Angle Neutron Scattering Setting and its Applications. J. Appl. Cryst. 1997, 30, 844–848. [Google Scholar] [CrossRef]

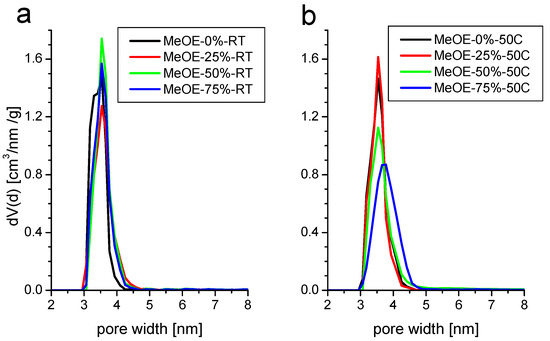

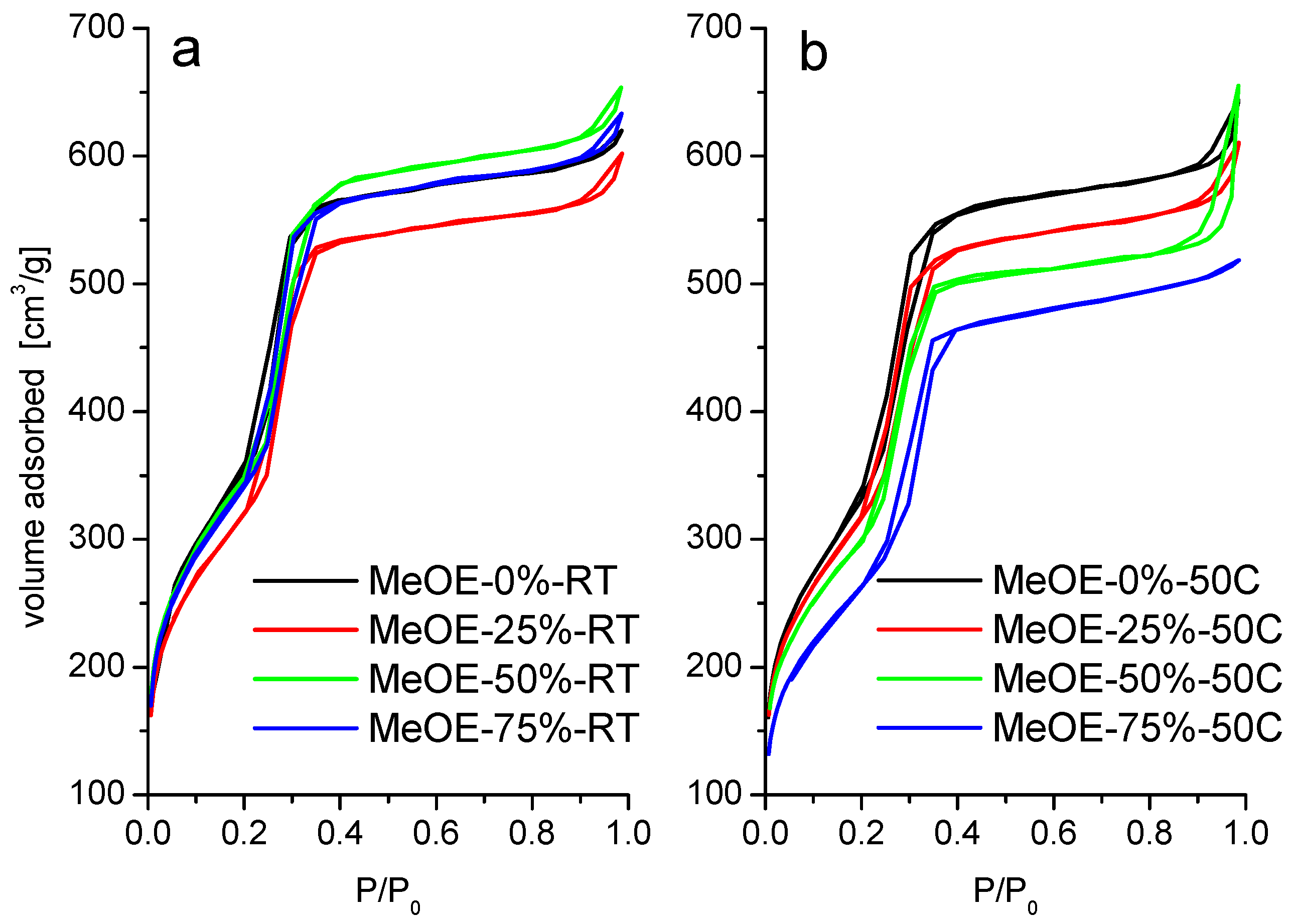

Sample | BET Surface Area (m²/g) | BET Constant | Pore Width (DFT) (nm) | Mean Pore Size (BJH) (nm) | Mean Pore Size (BJH) (nm) | Total Pore Volume (cm3/g) | Df (Adsorpt.) | Df (Desorpt.) |
---|---|---|---|---|---|---|---|---|
MeOE-0%-RT | 1793 | 10 | 3.53 | 3.30 | 3.07 | 0.961 | 2.846 | 2.876 |
MeOE-25%-RT | 1540 | 12 | 3.53 | 3.39 | 3.06 | 0.933 | 2.762 | 2.830 |
MeOE-50%-RT | 1620 | 13 | 3.53 | 3.41 | 3.34 | 1.013 | 2.761 | 2.828 |
MeOE-75%-RT | 1547 | 15 | 3.53 | 3.41 | 3.31 | 0.981 | 2.764 | 2.839 |
MeOE-0%-50C | 1568 | 13 | 3.53 | 3.39 | 3.07 | 0.998 | 2.750 | 2.864 |
MeOE-25%-50C | 1446 | 15 | 3.53 | 3.40 | 3.04 | 0.946 | 2.757 | 2.865 |
MeOE-50%-50C | 1428 | 12 | 3.53 | 3.06 | 3.06 | 1.016 | 2.750 | 2.864 |
MeOE-75%-50C | 1074 | 24 | 3.78 | 3.39 | 3.31 | 0.804 | 2.738 | 2.822 |

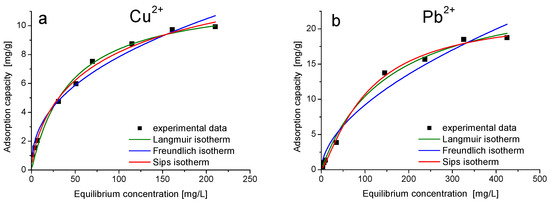

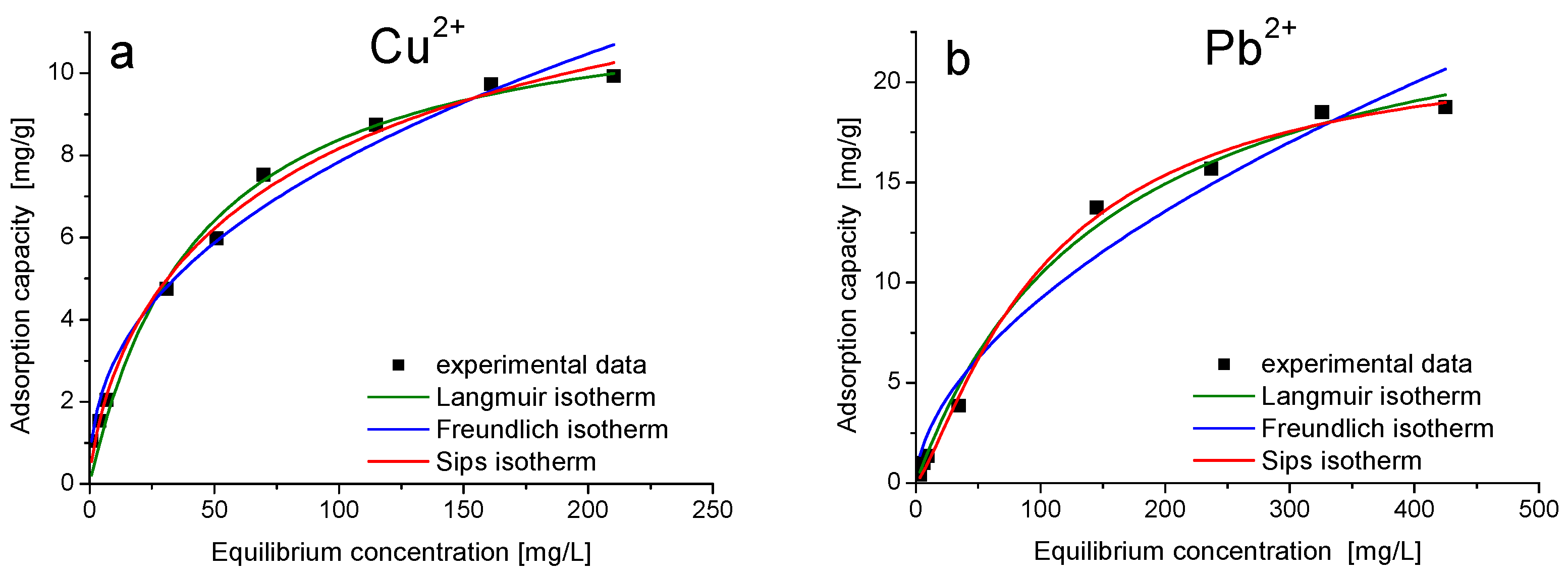

Adsorbent /Metal Ion | qm,exp (mg/g) | Langmuir Isotherm | Freundlich Isotherm | Sips Isotherm | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
qL (mg/g) | KL | R2 | KF (mg/g) | 1/nF | R2 | KS | qS (mg/g) | 1/ns | R2 | ||
MeOE-75%-RT /Cu2+ | 9.7 | 7.3 | 0.022 | 0.988 | 1.14 | 0.41 | 0.978 | 0.0026 | 10.2 | 0.3 | 0.990 |
MeOE-0%-RT /Pb2+ | 18.8 | 26.3 | 0.065 | 0.993 | 0.7 | 0.5 | 0.963 | 0.0061 | 22.2 | 0.6 | 0.995 |
Sorbent | Metal Ion | Adsorption Capacity (mg/g) | Reference |
---|---|---|---|
Kaolin | Pb(II) | 4.5 | [50] |
activated carbon | 6.7 | [50] | |
magnetic chlorapatite nanoparticles | 238 | [51] | |
zeolite | 9.9 | [52] | |
thiol functionalized iron-oxide loaded FDU-12 mesoporous silica | 287 | [53] | |
Fe3O4@carboxymethyl-cellulose | 152 | [54] | |
Fe3O4@SiO2@DMSA | 50.5 | [55] | |
Fe3O4@SiO2@TSD | 417 | [56] | |
Fe3O4@SiO2 -NH2 | 76.6 | [57] | |
pretreated Aspergillus niger | 32.6 | [58] | |
maghemite nanoparticle | 68.9 | [59] | |
magnetite nanoparticles | 37.3 | [60] | |
TiO2 nanoparticles | 21.7 | [61] | |
Al2O3 nanoparticles | 41.2 | [61] | |
MgO nanoparticles | 148 | [61] | |
Chitosan/graphene oxide | 461 | [62] | |
silica@ketoenol-pyrazole | 41.8 | [63] | |
ZnCl2-MCM-41 | 479 | [64] | |
EDTA/SBA-15 | 273 | [65] | |
waste silica coated by iron oxide | 8.2 | [66] | |
silica-magnetite composite | 14.9 | [67] | |
citrate coated SPION | 58.9 | [68] | |
gelatin-siloxane hybrid | 3.75 | [11] | |
chitosane-alginate hydrogel | 85 | [9] | |
thiol functionalized silica/magnetite | 0.8 | [69] | |
magnetic nano-zeolite | 476.1 | [70] | |
nano-silica made of Saccharum officinarum | 148 | [71] | |
Calcined MCM-41 | 18.8 | Present paper | |
zeolite | Cu(II) | 8.5 | [52] |
Fe3O4@SiO2 -NH | 29.9 | [57] | |
pretreated Aspergillus niger | 28.7 | [58] | |
maghemite nanoparticle | 34.0 | [59] | |
magnetite nanoparticles | 10.8 | [60] | |
TiO2 nanoparticles | 50.2 | [61] | |
Al2O3 nanoparticles | 47.9 | [61] | |
MgO nanoparticles | 149.1 | [61] | |
Chitosan/graphene oxide | 423.8 | [62] | |
silica@ketoenol-pyrazole | 76.9 | [63] | |
waste silica coated by iron oxide | 3.4 | [66] | |
magnetic nano-zeolite | 59.9 | [70] | |
steel slag/CNT composite | 132.8 | [72] | |
bifunctional silica nanospheres | 139.8 | [73] | |
nanosilica/nanopolyaniline | 108 | [74] | |
nanosilica/crosslinked nanopolyaniline | 105 | [74] | |
gelatin-siloxane hybrid | 1.76 | [11] | |
core-shell magnetite-silica NP | 41 | [75] | |
Calcined MCM-41 | 9.7 | Present paper |
Sample Name | CTAB (g) | TEOS (mL) | Synthesis Temperature | H2O (mL) | Ethanol (mL) | 2-Methoxyethanol (mL) |
---|---|---|---|---|---|---|
MeOET-0%-RT | 1 | 4 | r.t. | 192.5 | 68 | 0 |
MeOET-25%-RT | 1 | 4 | r.t. | 192.5 | 51 | 17 |
MeOET-50%-RT | 1 | 4 | r.t. | 192.5 | 34 | 34 |
MeOET-75%-RT | 1 | 4 | r.t. | 192.5 | 17 | 51 |
MeOET-0%-50C | 1 | 4 | 50 °C | 192.5 | 68 | 0 |
MeOET-25%-50C | 1 | 4 | 50 °C | 192.5 | 51 | 17 |
MeOET-50%-50C | 1 | 4 | 50 °C | 192.5 | 34 | 34 |
MeOET-75%-50C | 1 | 4 | 50 °C | 192.5 | 17 | 51 |
