Implementation of MALDI-TOF Mass Spectrometry and Peak Analysis: Application to the Discrimination of Cryptococcus neoformans Species Complex and Their Interspecies Hybrids

by
Margarita E. Zvezdanova
1,2,
Manuel J. Arroyo
3,
Gema Méndez
3,
Jesús Guinea
1,2,4,
Luis Mancera
3,
Patricia Muñoz
1,2,4,5,
Belén Rodríguez-Sánchez
1,2,* and
Pilar Escribano
1,2
1
Clinical Microbiology and Infectious Diseases Department, Hospital General Universitario Gregorio Marañón, Doctor Esquerdo, 46, 28007 Madrid, Spain
2
Instituto de Investigación Sanitaria Gregorio Marañón, 28007 Madrid, Spain
3
Clover Bioanalytical Software, Centro de Empresas del Parque Tecnológico de la Salud, Av. del Conocimiento, 41, 18016 Granada, Spain
4
CIBER de Enfermedades Respiratorias (CIBERES CB06/06/0058), 28029 Madrid, Spain
5
Medicine Department, School of Medicine, Universidad Complutense de Madrid, 28040 Madrid, Spain
*
Author to whom correspondence should be addressed.
J. Fungi 2020, 6(4), 330; https://doi.org/10.3390/jof6040330
Submission received: 16 September 2020 / Revised: 20 November 2020 / Accepted: 30 November 2020 / Published: 2 December 2020
Browse Figures
Review Reports Versions Notes

Abstract

:
Matrix-assisted laser desorption–ionization/time of flight mass spectrometry (MALDI-TOF MS) has been widely implemented for the rapid identification of microorganisms. Although most bacteria, yeasts and filamentous fungi can be accurately identified with this method, some closely related species still represent a challenge for MALDI-TOF MS. In this study, two MALDI-TOF-based approaches were applied for discrimination at the species-level of isolates belonging to the Cryptococcus neoformans complex, previously characterized by Amplified Fragment Length Polymorphism (AFLP) and sequencing of the ITS1-5.8S-ITS2 region: (i) an expanded database was built with 26 isolates from the main Cryptococcus species found in our setting (C. neoformans, C. deneoformans and AFLP3 interspecies hybrids) and (ii) peak analysis and data modeling were applied to the protein spectra of the analyzed Cryptococcus isolates. The implementation of the in-house database did not allow for the discrimination of the interspecies hybrids. However, the performance of peak analysis with the application of supervised classifiers (partial least squares-discriminant analysis and support vector machine) in a two-step analysis allowed for the 96.95% and 96.55% correct discrimination of C. neoformans from the interspecies hybrids, respectively. In addition, PCA analysis prior to support vector machine (SVM) provided 98.45% correct discrimination of the three analyzed species in a one-step analysis. This novel method is cost-efficient, rapid and user-friendly. The procedure can also be automatized for an optimized implementation in the laboratory routine.

1. Introduction

The genus Cryptococcus has classically comprised two sibling species with great clinical importance: Cryptococcus neoformans and C. gattii, the causative agents of cryptococcosis. Whilst the C. neoformans complex has been associated with meningitis in immunosuppressed patients, C. gatti has been shown to cause disease in both immune competent and immunocompromised populations [1,2,3]. Species differentiation is important in order to establish the epidemiology, virulence and susceptibility pattern to the commonly used antifungal drugs [4,5,6,7]. Traditionally, species assignment has been achieved by the morphology analysis of the colonies grown on specific culture media and serological tests [8]. The availability of DNA-based methodologies as restriction fragment length polymorphism (RFLP) analysis [9], amplified fragment length polymorphism (AFLP) analysis [10], multi-locus microsatellite typing (MLMT) [11], and multi-locus sequence typing (MLST) [12] has allowed for the identification of Cryptococcus species and molecular types [13,14]. Genotyping methods have allowed for the characterization of the following major molecular types: AFLP1/VNI, AFLP1A, AFLP1B/VNII for C. neoformans; AFLP2/VNIV for C. deneoformans, AFLP3/VNIII for the interspecies hybrid C. neoformans x C. deneoformans; and AFLP4/VGI, AFLP5/VGIII, AFLP6/VGII, AFLP7/VGIV and AFLP10/VGIV-VGIIIc for the C. gattii complex [15,16]. These molecular techniques have been shown to be accurate and robust, although the applied procedure is cumbersome, time consuming and delays the final identification. Although genomic analysis is currently the gold standard for Cryptococcus spp. identification, its high requirements in hands-on time and expertise has led to the evaluation of alternative tools.
Matrix-assisted laser desorption–ionization/time of flight mass spectrometry (MALDI-TOF MS) has emerged as a promising technology for the rapid and reliable identification of yeasts [17,18,19]. Isolates belonging to the Candida genus have been shown to be easily identified at the species level either from single colonies or directly from clinical samples using MALDI-TOF MS [20]. However, non-Candida yeasts still represent a challenge for this technology, especially when applied to the identification of genera poorly represented or lacking in the commercial databases [21]. In this case, expanded in-house databases containing protein spectra from the underrepresented species have been shown to overcome this drawback [17]. Although this approach has worked before for the discrimination between C. neoformans and C. gatti complexes [22,23], the construction of a database where isolates from these complexes are well represented is out of reach for most microbiology laboratories.
In this study, a novel MALDI-TOF-based methodology for the discrimination between C. deneoformans, C. neoformans and the interspecies hybrids was developed: protein spectra from Cryptococcus isolates were analyzed and classified using different algorithms in order to find species-specific peaks that allowed their differentiation. In addition, a database was built using well characterized isolates for the identification of the Cryptococcus spp. isolates using the Biotyper system developed by Bruker Daltonics (Bremen, Germany) and the identifications obtained were compared with the peak-analysis method.

2. Materials and Methods

2.1. Isolates

We retrospectively selected 70 Cryptococcus spp. isolates from clinical samples (n = 70) belonging to 67 patients admitted to Hospital Gregorio Marañón (Madrid, Spain) from 1994 to 2007 (Supplementary Materials Table S1). Isolates were sourced from cerebrum spinal fluids (51%), blood (33%), respiratory samples (10%), and others (6%). They were morphologically identified on Columbia agar + 5% sheep blood plates (bioMérieux, Marcy-l’Étoile, France) at 35 °C, and by means of the ID 32C system (bioMérieux, Marcy-l’Étoile, France). All isolates were stored at −80 °C in water until further analysis. Twenty-six out of the seventy isolates from the study were selected randomly and included in the MALDI-TOF MS in-house library as reference main spectra profiles (MSPs). The remaining isolates (n = 44) were used to evaluate the commercial database alone or in combination with the in-house library. For the peak analysis approach, protein spectra from 65 Cryptococcus isolates were included since the remaining isolates could not be recovered from the frozen backup after MALDI-TOF MS identification.

2.2. Molecular Identification

To ensure the purity, the isolates were grown on Columbia agar supplemented with 5% of sheep blood plates and incubated at 35 °C for 24 h. All isolates were previously identified by the DNA sequencing analysis of the ITS1-5.8S-ITS2 region [24] and AFLP analysis [25]. Molecular identifications were considered as the reference in our study.

2.3. MALDI-TOF MS Identification

Seventy Cryptococcus spp. isolates were analyzed using an LT Microflex benchtop MALDI-TOF mass spectrometer (Bruker Daltonics, Bremen, Germany) using default settings. FlexControl 3.3 and MALDI Biotyper 3.1 were applied for spectra acquisition and comparison with the reference spectra present in the BDAL database, updated with 8223 MSPs (Bruker Daltonics). This database contains 12 reference MSPs from C. neoformans and 7 from C. deneoformans. Twenty-six isolates from the hospital collection were selected as representatives of the Cryptococcus species from this study and included in the in-house library (Hospital Gregorio Marañón—HGM). Then, the expanded in-house HGM library was challenged in combination with the commercial database with the remaining 44 isolates.
The sample processing method applied consisted of a mechanical disruption step followed by a standard protein extraction [26]. Briefly, a few colonies were picked, re-suspended in 300 μL water of HPLC grade (high-pressure liquid chromatography) and 900 μL ethanol, and submitted to 5 min vortexing. After a brief spin, the supernatant was discarded and the pellet allowed to dry completely at RT. Standard protein extraction with formic acid and acetonitrile was performed and 1 μL of the supernatant was spotted onto the MALDI target plate in duplicates. Once the spots were dry, they were covered with 1 μL -α-Cyano-4-hydroxycinnamic acid- (HCCA) matrix (Bruker Daltonics), prepared following the manufacturer’s instructions (Figure 1).
The identifications provided by MALDI-TOF MS were compared at the species level with those provided by AFLP analysis regardless of their score value (Table 1). Moreover, score values ≥2.0 were considered as “high-confidence” scores and those ≥1.7 as “low-confidence” ones. Score values below 1.6 were only considered as “very low-confidence” identifications—but reliable—when consistent along the four top identifications, otherwise they were considered as “not reliable”.

2.4. Peak Analysis

For the classification of the three Cryptococcus species, their protein spectra were processed using Clover MS Data Analysis software (Clover Biosoft, Granada, Spain) with the parameters shown in Table S2 in order to achieve a peak matrix with a representative mass list in the range of 2400–12,000 m/z. Furthermore, spectra alignment was performed. First, the replicates from the same isolate were aligned in order to get an average spectrum. Finally, all average spectra were aligned together.
The rate of presence for the biomarker peaks was calculated for each species and then compared among species. The receiver operating characteristic (ROC) curve with area under the curve (AUC) higher than 0.99 were used as quality indicator to measure the sensibility and specificity of a selected biomarker.
Once the putative biomarkers were selected and analyzed, a peak matrix was built containing all the aligned spectra from all Cryptococcus isolates, processed as described in Table S3. This peak matrix was constructed with 10 species-specific biomarkers and it was used as input for a dendrogram obtained measuring the Euclidean distance from principal component analysis (PCA) scores.
Over the peak matrix, two approaches were applied in order to discriminate the three Cryptococcus species. The first one was a two-step method in which the discrimination of C. deneoformans from the other two species was performed as a first step and it was replicated by means of two supervised machine learning algorithms on the same peak matrix: partial least squares discriminant analysis (PLS-DA) and support vector machine (SVM). Results were validated using k-fold cross validation method.
In the second step, a new peak matrix was performed in order to achieve a better discrimination of C. neoformans from the interspecies hybrids. Again, PLS-DA and SVM were applied to this second peak matrix to replicate the classification and k-fold cross validation was applied. The two-step method was further improved by the removal of peaks that did not provide enough discrimination.
Finally, in order to simplify the workflow, a one-step method was assayed so that the capacity of the algorithms to discriminate the three Cryptococcus species at the same time was tested. In this case, only one peak matrix with spectra from the three species was built and five species-specific biomarkers were included. The alignment and processing parameters were the same as in the two-steps approach. As in the previous cases, PLS-DA and SVM analysis was performed and results were validated using k-fold confusion matrix.

2.5. Database Construction

Twenty-six Cryptococcus isolates—C. neoformans (n = 12), interspecies hybrids (n = 10) and C. deneoformans (n = 4)—were processed according to the manufacturer’s instructions and added to the in-house database (HGM—Hospital Gregorio Marañón library) as individual main spectra (MSPs). Following the manufacturer’s recommendations, at least ten MSPs from each species were planned to be included in the in-house library. However, this figure was modified according to the availability of isolates in our local collection.
The procedure for adding new entries to an in-house library has already been described [27]. Briefly, the instrument was calibrated before spectra acquisition using freshly prepared Bacterial Test Standard (BTS, Bruker Daltonics, Bremen, Germany); Cryptococcus isolates were processed as explained below and then spotted onto eight positions in the MALDI target plate and each position was read three times. Twenty-four protein spectra were thus achieved, 20 of which had to be identical in order to be accepted by the software (Biotyper, Bruker Daltonics) as an MSP and then added to the extended library.

2.6. Ethic Statement

The hospital Ethics Committee approved this study and gave consent for its performance (Code: MICRO.HGUGM.2017-003). Since only microbiological samples were analyzed, not human products, all the conditions to waive the informed consent were met.

3. Results

3.1. Molecular Identification

The genotyping of the isolates detected three different genotypes. The most common genotype was AFLP1/1B (C. neoformans, n = 34; 49%), followed by AFLP3 (interspecies hybrids, n = 29; 41%) and AFLP2 (C. deneoformans, n = 7; 10%).

3.2. Identification Using MALDI-TOF MS

The application of MALDI-TOF MS and the commercial database allowed the correct identification of 18/22 C. neoformans isolates (81.8%) and 1/3 C. deneoformans isolates (33.3%); the remaining C. neoformans isolates—n = 4—could not be reliably identified and for 2 C. deneoformans isolates, MALDI-TOF MS did not provide species identification (Table 1). The identification of the interspecies hybrids (n = 19) was not achieved using the commercial database due to the lack of representation of this microorganism. These isolates were identified as C. neoformans complex in nine cases (score ≥ 2.0, n = 7; score > 1.7, n = 1; score < 1.6, n = 1), as C. deneoformans in seven cases (score > 1.7, n = 4; score < 1.6, n = 3) and as C. neoformans in three cases (score > 1.7)—Table 1.
Only two C. neoformans isolates (4.5%) were correctly identified at the species level with high-confidence score values (≥2.0) whilst 29.5% of the samples—13—were correctly identified with low-confidence scores (≥1.7)—Table 1. Another three isolates were reliably identified to the species level, although with scores values ranging between 1.7 and 1.6—very-low confidence identifications—and finally, four isolates obtained scores below 1.6. The latter can be considered as unreliable identifications.
Using the HGM in-house library, all C. neoformans and C. deneoformans isolates were correctly identified by MALDI-TOF MS at the species level (Table 1). Moreover, 21/25 of these isolates (84.0%) were identified with score values ≥2.0 which indicates a high-confidence level. The reliability of the identification was further demonstrated by the fact that the top 4–5 identifications were identical in all cases. In all but two cases, these top reference isolates belonged to the HGM in-house library.
However, the implementation of the expanded HGM library only allowed for the correct identification of 12/19 interspecies hybrids, seven of them with score values above 2.0. The high closeness of the interspecies hybrids with the other two Cryptococcus species made it difficult for MALDI-TOF MS to discriminate among them and misidentified seven interspecies hybrids as C. neoformans (Table 1).

3.3. Peak Analysis

To improve the identification of the interspecies hybrids and their discrimination from C. deneoformans and C. neoformans, the peaks present in the protein spectra provided by MALDI-TOF MS were analyzed. The search for species-specific biomarker peaks yielded a list of 10 peaks that allowed the differentiation of the Cryptococcus species analyzed, with five of them showing higher discriminative power (Table 2 and Figure S1).
The two-step method allowed for the correct differentiation of the interspecies hybrids, which clustered distinctly in the dendrograms built using two different hierarchical clustering variations (Figure 2 and Figure S2). Accurate differentiation among the three Cryptococcus species was achieved using the peak matrix built upon the five most discriminative peaks, with only three spectra from interspecies hybrids misallocated in the C. neoformans cluster (Figure 2B). C. neoformans and the interspecies hybrids showed close relatedness between them based on their protein spectra. Moreover, the variability of C. neoformans was shown by the three main clusters in which the protein spectra from this species were grouped (Figure 2B).
The validation of the method yielded a k-fold (k = 10) score of 96.92% for PLS-DA, which performed over the peak matrix with 10 biomarkers and 98.46% for the analysis with five biomarkers. However, the SVM algorithm achieved 100% discrimination in both cases when PCA was applied (Table S4).
A second dendrogram was performed using hierarchical clustering analysis. It showed two well defined clusters for C. neoformans and the interspecies hybrids (Figure S2). In this step, only three biomarkers were used to differentiate C. deneoformans from interspecies hybrids (5453.91, 5552.90 and 7103.00 m/z). Furthermore, this second dendrogram was validated by PLS-DA and SVM algorithms. K-fold (k = 10) was applied achieving 95.55% accuracy in both analyses.
In the single-step method, the peak matrix built with five biomarkers was used as an input for PLS-DA and SVM analysis in order to achieve the discrimination of the three Cryptococcus species simultaneously. PLS-DA analysis could not classify correctly the three species at the same time due to the low k-fold (k = 10) values obtained. However, the PCA performance prior to SVM allowed 98.46% correct classification of the three Cryptococcus species (Figure 3). The efficacy of the method was tested by k-fold (k = 10) cross validation analysis and it was above 95.0%. (Figure 3, Table S4).
As a result of this analysis, a visual method for the differentiation of the analyzed Cryptococcus species can be applied based on the presence of the 6688.67 m/z peak in the C. neoformans isolates and its absence in C. deneoformans isolates, where the peaks at 6576.08 and 7103.01 m/z could be detected (Figure S3). On the other hand, both sets of peaks were present in the interspecies hybrids although some of them (2842.14, 3084.11 and 8636.24 m/z) were detected in 100% of the spectra from this species (Table 3). The visual detection of these biomarker peaks could provide a rapid and accurate identification of the Cryptococcus species prior to a more in-depth peak analysis using ad hoc software.

4. Discussion

The accurate identification of Cryptococcus species within the C. neoformans complex provides valuable information about their epidemiology, susceptibility to commonly used antifungal drugs or virulence. Our results show that discrimination among the three Cryptococcus species analyzed—C. deneoformans, C. neoformans and interspecies hybrids—can be performed successfully using MALDI-TOF MS and peak analysis.
The implementation of the in-house database built in our laboratory allowed for 100% correct species-level identification of the 25 C. deneoformans and C. neoformans isolates used to challenge it. Apart from the reliable identification of the analyzed Cryptococcus species, the in-house library also provided high confidence identifications in 63.6% of the cases. Furthermore, these results showed consistency along the 10 top identifications provided by the mass spectrometry instrument, even for the hybrids. This fact is of great importance in the routine of the microbiology laboratory in order to transfer reliable information to the clinicians.
These results are in agreement with those shown in previous studies that report improved identification of Cryptococcus species based on MALDI-TOF MS and the implementation of extended in-house libraries: Firacative et al. and Siqueira et al. reported 100% correct molecular-type identifications [23,27] and Posteraro et al. 98.8% unambiguous discrimination at the same level [28]. On the other hand, McTaggart et al. also showed 98.8% species-level identification although in their case no interspecies hybrids were included in the study [22]. In the case of the interspecies hybrids, Hagen et al. reported 52.0% correct identification by applying the expanded library [16]. These results match those obtained in the present study, where 61.2% (12/19) of the hybrids were reliably identified by MALDI-TOF. In both cases, the remaining isolates were identified as one of the parental species. The goal to differentiate the interspecies hybrids was only fulfilled completely in the present study when peak analysis was performed and the three Cryptococcus species analyzed in this study distinctively clustered together.
The updated commercial database from Bruker Daltonics has demonstrated high species-level resolution for C. deneoformans and C. neoformans—76.0%—although score values <1.7 were obtained in 21.0% of the cases and species-level identification was not provided for two C. deneoformans isolates. These data supported the need for expanded databases. Although the limited number of C. deneoformans included in this study is clearly one of its limitations, the fact that all isolates from this species were reliably identified at the species level with the expanded library shows that even small improvements in the reference library were useful to achieve the correct identifications of this species.
However, even improvements in the reference libraries proved not to be enough to differentiate the interspecies hybrids. This may be due to the algorithms used by the mass spectrometry instrument for species assignment and to the fact that the hybrids show peaks present of both parental species. Since the in-house library developed in this study has shown to be useful for the achievement of high-confidence, species-level identifications for C. deneoformans and C. neoformans and for the discrimination of 61.2% of the interspecies hybrids, the authors will be glad to share it with other users or add the reference spectra to existing open access libraries. Due to the limited number of C. deneoformans isolates included in our in-house library, combining our references with those from other databases could greatly improve the identification of the interspecies hybrids.
Therefore, a novel approach consisting of the analysis of the protein peaks present in the MALDI-TOF MS spectrum has been developed in this study. A list of 10 biomarker peaks was achieved as the input for the species classification. The implementation of PLS-DA analysis in a two-step approach allowed the discrimination of C. deneoformans isolates in the first place due to the phylogenetic differences between this species and the other two Cryptococcus species. Subsequently, the correct classification of C. neoformans isolates and the interspecies hybrids was achieved in 96.92% of the cases. Furthermore, the accuracy of this method increased when the number of biomarker peaks used was reduced to the five most discriminative ones (98.46%).
In order to simplify the analysis, a one-step method was applied to classify the three species simultaneously. In this case, PLS-DA provided correct classification in less than 75.0% of the cases but the application of SVM after PCA analysis allowed 96.92% correct discrimination of the analyzed isolates. This algorithm allowed for the correct discrimination of all C. deneoformans isolates and of a high rate of C. neoformans and interspecies hybrids despite their genetic variability, demonstrating the robustness of this study. In addition, this analysis provided a set of species-specific peaks for the Cryptococcus species within the C. neoformans complex that may be detected by visual inspection, representing a rapid and inexpensive approach for their discrimination.

5. Conclusions

Our results demonstrate the usefulness of MALDI-TOF MS and peak analysis when applied in the microbiology laboratory for the rapid and reliable identification of Cryptococcus spp. isolates. Although the updated commercial library provided correct species-level identification for a high number of C. deneoformans and C. neoformans isolates, the identification of these species was missing or not reliable in 20.5% and 18.2% of the cases, respectively. Moreover, the detection of the interspecies hybrids was not possible with the Biotyper database. However, the expanded in-house library allowed for the correct species-level identification for all C. deneoformans and C. neoformans, either by conventional identification with MALDI-TOF MS or by peak analysis. The interspecies hybrids required hierarchical clustering for their correct identification since their close relatedness with the other species made it difficult for MALDI-TOF MS to differentiate them from the other two species in a routine manner. This novel approach and the visual detection of species-specific peaks can be implemented in microbiology laboratories where ad hoc libraries are not available.

Supplementary Materials

The following are available online at https://www.mdpi.com/2309-608X/6/4/330/s1. Table S1. Detailed information about the Cryptococcus strains included in this study. Table S2. Pre-treatment of raw data spectra for the biomarkers search. Table S3. Parameters applied for the construction of the peak matrix. Table S4. Score and validation of (A) the SVM analysis applied to the two-step model with 5 biomarkers and (B) PLS-DA applied to the one-step model with 5 biomarkers. K = 10 Figure S1. ROC curve of MS peaks of Cryptococcus spp. according to the criteria for the biomarkers search. Figure S2. Discrimination between C. neoformans and the interspecies hybrids using the two-step classification method. Figure S3. Representative protein spectra from the three Cryptococcus species analyzed in this study. Species-specific peaks with intensity above 500 arbitrary units (a. u.) are marked with asterisks (*). The complete list of species-specific peaks can be found in Table 2.

Author Contributions

M.E.Z. methodology (lead); formal analysis (lead); writing—original draft (supporting)—review and editing (equal). M.J.A. software (lead); writing—review and editing (equal). G.M. software (equal); review and editing (equal). J.G. conceptualization (supporting); formal analysis (supporting); writing—review and editing (equal). L.M. software (lead); writing—review and editing (equal). P.M. Writing—review and editing (equal). B.R.-S. conceptualization (lead); formal analysis (lead); writing—review and editing (lead). P.E.: conceptualization (lead); formal analysis (lead); writing—review and editing (lead). All authors have read and agreed to the published version of the manuscript.

Funding

This study has been supported by the Miguel Servet Program (ISCIII-MICINN CP14/00220) and by the projects PI16/01012 (PE), PI15/01073 and PI18/00997 (BRS) from the Health Research Fund (FIS) of the Carlos III Health Institute (ISCIII), Madrid, Spain, partially financed by the by the European Regional Development Fund (FEDER) ‘A way of making Europe.’ BRS (MSII19/00002) and PE (MSI15/00115) are recipients of Miguel Servet contracts supported by the FIS program. J.G. is funded by Fundación para Investigación Sanitaria del Hospital Gregorio Marañón. The funders had no role in the study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Acknowledgments

The authors want to thank Álvaro Gómez-González for his assistance with Bruker Daltonics databases.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kwon-Chung, K.J.; Fraser, J.A.; Doering, T.L.; Wang, Z.A.; Janbon, G.; Idnurm, A.; Bahn, Y.-S. Cryptococcus neoformans and Cryptococcus gattii, the Etiologic Agents of Cryptococcosis. Cold Spring Harb. Perspect. Med. 2014, 4, a019760. [Google Scholar] [CrossRef]
  2. D’Souza, C.A.; Kronstad, J.W.; Taylor, G.; Warren, R.; Yuen, M.; Hu, G.; Jung, W.H.; Sham, A.; Kidd, S.E.; Tangen, K.; et al. Genome Variation in Cryptococcus gattii, an Emerging Pathogen of Immunocompetent Hosts. mBio 2011, 2, e00342-10. [Google Scholar] [CrossRef] [Green Version]
  3. Trilles, L.; Meyer, W.; Wanke, B.; Guarro, J.; Lazéra, M. Correlation of antifungal susceptibility and molecular type within the Cryptococcus neoformans/C. gattii species complex. Med. Mycol. 2012, 50, 328–332. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Chong, H.S.; Dagg, R.; Malik, R.; Chen, S.; Carter, D. In Vitro Susceptibility of the Yeast Pathogen Cryptococcus to Fluconazole and Other Azoles Varies with Molecular Genotype. J. Clin. Microbiol. 2010, 48, 4115–4120. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Kwon-Chung, K.J.; Bennett, J.E. Epidemiologic Differences between the Two Varieties of Cryptococcus neoformans. Am. J. Epidemiol. 1984, 120, 123–130. [Google Scholar] [CrossRef] [PubMed]
  6. Iqbal, N.; DeBess, E.E.; Wohrle, R.; Sun, B.; Nett, R.J.; Ahlquist, A.M.; Chiller, T.; Lockhart, S.R.; for the Cryptococcus gattii Public Health Working Group. Correlation of Genotype and In Vitro Susceptibilities of Cryptococcus gattii Strains from the Pacific Northwest of the United States. J. Clin. Microbiol. 2010, 48, 539–544. [Google Scholar] [CrossRef] [Green Version]
  7. Perfect, J.R.; Bicanic, T. Cryptococcosis diagnosis and treatment: What do we know now. Fungal Genet. Biol. 2015, 78, 49–54. [Google Scholar] [CrossRef] [Green Version]
  8. Feng, X.; Yao, Z.; Ren, D.; Liao, W. Simultaneous identification of molecular and mating types within the Cryptococcus species complex by PCR-RFLP analysis. J. Med. Microbiol. 2008, 57, 1481–1490. [Google Scholar] [CrossRef] [Green Version]
  9. Pakshir, K.; Fakhim, H.; Vaezi, A.; Meis, J.F.; Mahmoodi, M.; Zomorodian, K.; Javidnia, J.; Ansari, S.; Hagen, F.; Badali, H. Molecular epidemiology of environmental Cryptococcus species isolates based on amplified fragment length polymorphism. J. Mycol. Méd. 2018, 28, 599–605. [Google Scholar] [CrossRef]
  10. Hanafy, A.; Kaocharoen, S.; Jover-Botella, A.; Katsu, M.; Iida, S.; Kogure, T.; Gonoi, T.; Mikami, Y.; Meyer, W. Multilocus microsatellite typing for Cryptococcus neoformans var. grubii. Med. Mycol. 2008, 46, 685–696. [Google Scholar] [CrossRef] [Green Version]
  11. Meyer, W.; Aanensen, D.M.; Boekhout, T.; Cogliati, M.; Diaz, M.R.; Esposto, M.C.; Fisher, M.; Gilgado, F.; Hagen, F.; Kaocharoen, S.; et al. Consensus multi-locus sequence typing scheme for Cryptococcus neoformans and Cryptococcus gattii. Med. Mycol. 2009, 47, 561–570. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Franzot, S.P.; Salkin, I.F.; Casadevall, A. Cryptococcus neoformans var. grubii: Separate Varietal Status for Cryptococcus neoformans Serotype A Isolates. J. Clin. Microbiol. 1999, 37, 838–840. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Meyer, W.; Castañeda, A.; Jackson, S.; Huynh, M.; Castañeda, E.; the IberoAmerican Cryptococcal Study Group. Molecular Typing of IberoAmerican Cryptococcus neoformans Isolates. Emerg. Infect. Dis. 2003, 9, 189–195. [Google Scholar] [CrossRef] [PubMed]
  14. Hagen, F.; Hare Jensen, R.; Meis, J.F.; Arendrup, M.C. Molecular epidemiology and in vitro antifungal susceptibility testing of 108 clinical Cryptococcus neoformans sensu lato and Cryptococcus gattii sensu lato isolates from Denmark. Mycoses 2016, 59, 576–584. [Google Scholar] [CrossRef]
  15. Hagen, F.; Khayhan, K.; Theelen, B.; Kolecka, A.; Polacheck, I.; Sionov, E.; Falk, R.; Parnmen, S.; Lumbsch, H.T.; Boekhout, T. Recognition of seven species in the Cryptococcus gattii/Cryptococcus neoformans species complex. Fungal Genet. Biol. 2015, 78, 16–48. [Google Scholar] [CrossRef] [Green Version]
  16. De Carolis, E.; Vella, A.; Vaccaro, L.; Torelli, R.; Posteraro, P.; Ricciardi, W.; Sanguinetti, M.; Posteraro, B. Development and Validation of an In-House Database for Matrix-Assisted Laser Desorption Ionization-Time of Flight Mass Spectrometry-Based Yeast Identification Using a Fast Protein Extraction Procedure. J. Clin. Microbiol. 2014, 52, 1453–1458. [Google Scholar] [CrossRef] [Green Version]
  17. Jamal, W.Y.; Ahmad, S.; Khan, Z.U.; Rotimi, V.O. Comparative evaluation of two matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) systems for the identification of clinically significant yeasts. Int. J. Infect. Dis. 2014, 26, 167–170. [Google Scholar] [CrossRef] [Green Version]
  18. Fraser, M.; Brown, Z.; Houldsworth, M.; Borman, A.M.; Johnson, E.M. Rapid identification of 6328 isolates of pathogenic yeasts using MALDI-ToF MS and a simplified, rapid extraction procedure that is compatible with the Bruker Biotyper platform and database. Med. Mycol. 2016, 54, 80–88. [Google Scholar] [CrossRef] [Green Version]
  19. Spanu, T.; Posteraro, B.; Fiori, B.; D’Inzeo, T.; Campoli, S.; Ruggeri, A.; Tumbarello, M.; Canu, G.; Trecarichi, E.M.; Parisi, G.; et al. Direct MALDI-TOF Mass Spectrometry Assay of Blood Culture Broths for Rapid Identification of Candida Species Causing Bloodstream Infections: An Observational Study in Two Large Microbiology Laboratories. J. Clin. Microbiol. 2012, 50, 176–179. [Google Scholar] [CrossRef] [Green Version]
  20. Bader, O.; Weig, M.; Taverne-Ghadwal, L.; Lugert, R.; Groß, U.; Kuhns, M. Improved clinical laboratory identification of human pathogenic yeasts by matrix-assisted laser desorption ionization time-of-flight mass spectrometry. Clin. Microbiol. Infect. 2011, 17, 1359–1365. [Google Scholar] [CrossRef] [Green Version]
  21. McTaggart, L.R.; Lei, E.; Richardson, S.E.; Hoang, L.; Fothergill, A.; Zhang, S.X. Rapid identification of Cryptococcus neoformans and Cryptococcus gattii by matrix-assisted laser desorption ionization-time of flight mass spectrometry. J. Clin. Microbiol. 2011, 49, 3050–3053. [Google Scholar] [CrossRef] [Green Version]
  22. Firacative, C.; Trilles, L.; Meyer, W. MALDI-TOF MS Enables the Rapid Identification of the Major Molecular Types within the Cryptococcus neoformans/C. gattii Species Complex. PLoS ONE 2012, 7, e37566. [Google Scholar] [CrossRef] [Green Version]
  23. Posteraro, B.; Vella, A.; Cogliati, M.; De Carolis, E.; Florio, A.R.; Posteraro, P.; Sanguinetti, M.; Tortorano, A.M. Matrix-Assisted Laser Desorption Ionization-Time of Flight Mass Spectrometry-Based Method for Discrimination between Molecular Types of Cryptococcus neoformans and Cryptococcus gattii. J. Clin. Microbiol. 2012, 50, 2472–2476. [Google Scholar] [CrossRef] [Green Version]
  24. Katsu, M.; Kidd, S.; Ando, A.; Morettibranchini, M.; Mikami, Y.; Nishimura, K.; Meyer, W. The internal transcribed spacers and 5.8S rRNA gene show extensive diversity among isolates of the Cryptococcus neoformans species complex. FEMS Yeast Res. 2004, 4, 377–388. [Google Scholar] [CrossRef] [Green Version]
  25. Guinea, J.; Hagen, F.; Peláez, T.; Boekhout, T.; Tahoune, H.; Torres-Narbona, M.; Bouza, E. Antifungal susceptibility, serotyping, and genotyping of clinical Cryptococcus neoformans isolates collected during 18 years in a single institution in Madrid, Spain. Med. Mycol. 2010, 48, 942–948. [Google Scholar] [CrossRef] [Green Version]
  26. Rodríguez-Sánchez, B.; Marín, M.; Sánchez-Carrillo, C.; Cercenado, E.; Ruiz, A.; Rodríguez-Créixems, M.; Bouza, E. Improvement of matrix-assisted laser desorption/ionization time-of-flight mass spectrometry identification of difficult-to-identify bacteria and its impact in the workflow of a clinical microbiology laboratory. Diagn. Microbiol. Infect. Dis. 2014, 79, 1–6. [Google Scholar] [CrossRef]
  27. Zvezdanova, M.E.; Escribano, P.; Ruiz, A.; Martínez-Jiménez, M.C.; Peláez, T.; Collazos, A.; Guinea, J.; Bouza, E.; Rodríguez-Sánchez, B. Increased species-assignment of filamentous fungi using MALDI-TOF MS coupled with a simplified sample processing and an in-house library. Med. Mycol. 2019, 57, 63–70. [Google Scholar] [CrossRef]
  28. Siqueira, L.P.M.; Gimenes, V.M.F.; de Freitas, R.S.; Melhem, M.D.S.C.; Bonfietti, L.X.; da Silva, A.R.; Souza Santos, L.B.; Motta, A.L.; Rossi, F.; Benard, G.; et al. Evaluation of Vitek MS for Differentiation of Cryptococcus neoformans and Cryptococcus gattii Genotypes. J. Clin. Microbiol. 2018, 57, e01282-18. [Google Scholar] [CrossRef] [Green Version]
Jof 06 00330 g001 550

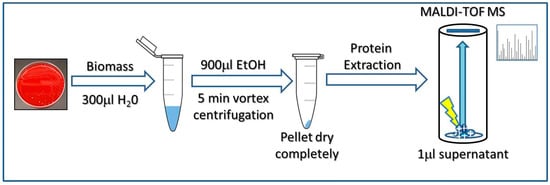

Figure 1. Workflow of the sample preparation method used in this study to obtain proteins from Cryptococcus spp. isolates for their identification by MALDI-TOF MS.
Figure 1. Workflow of the sample preparation method used in this study to obtain proteins from Cryptococcus spp. isolates for their identification by MALDI-TOF MS.
Jof 06 00330 g001
Jof 06 00330 g002 550

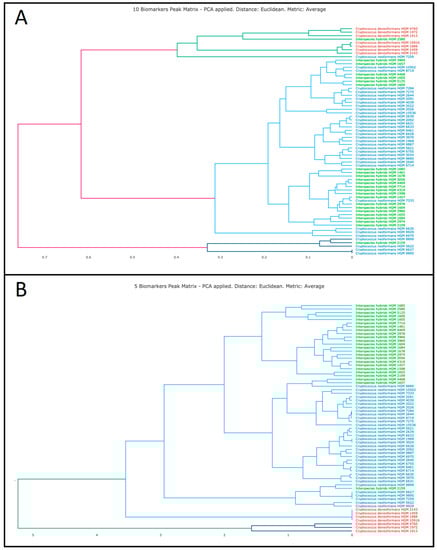

Figure 2. Clustering of 65 Cryptococcus isolates included in this study in a two-step approach. Five isolates could not be recovered from culture for further analysis: (A) clustering using 10 biomarker peaks and PCA; and (B) clustering using 5 biomarker peaks and PCA.
Figure 2. Clustering of 65 Cryptococcus isolates included in this study in a two-step approach. Five isolates could not be recovered from culture for further analysis: (A) clustering using 10 biomarker peaks and PCA; and (B) clustering using 5 biomarker peaks and PCA.
Jof 06 00330 g002
Jof 06 00330 g003 550

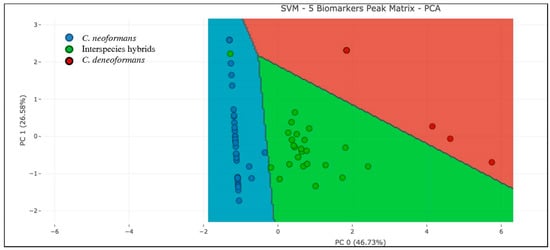

Figure 3. Classification of the three Cryptococcus species by support vector machine (SVM) in the one-step approach, using 5 biomarker peaks.
Figure 3. Classification of the three Cryptococcus species by support vector machine (SVM) in the one-step approach, using 5 biomarker peaks.
Jof 06 00330 g003
Table
Table 1. Identification of Cryptococcus neoformans, C. deneoformans and interspecies hybrids using MALDI-TOF MS and the Biotyper library alone or in combination with the in-house Hospital Gregorio Marañón (HGM) database. MSP stands for Main Spectra Profile.
Table 1. Identification of Cryptococcus neoformans, C. deneoformans and interspecies hybrids using MALDI-TOF MS and the Biotyper library alone or in combination with the in-house Hospital Gregorio Marañón (HGM) database. MSP stands for Main Spectra Profile.
Identification by DNA SequencingIsolates AnalyzedIdentification Using the Biotyper Database with 8223 MSPsIdentification Using the Biotyper Database with 8223 MSPs + HGM Library
Score ≥ 2.0Score ≥ 1.7Score ≥ 1.6Score < 1.6Score ≥ 2.0Score ≥ 1.7Score ≥ 1.6
Cryptococcus neoformans22213341840
Cryptococcus deneoformans302 110300
Interspecies hybrids197 28 304 4712 50
Total449234828160
1 Identified as C. neoformans complex (n = 2); 2 identified as C. neoformans complex (n = 7); 3 identified as C. neoformans complex (n = 1), C. deneoformans (n = 4) and C. neoformans (n = 3); 4 identified as C. neoformans complex (n = 1) and C. deneoformans (n = 3); 5 identified as C. neoformans (n = 7).
Table
Table 2. List of the 10 representative mass peaks of Cryptococcus spp. identified as potential biomarkers. These peaks were used for the construction of dendrograms and PLS-DA and SVM models. The 5 peaks marked with asterisks (*) were selected for the simplified models. CV = coefficient of variation.
Table 2. List of the 10 representative mass peaks of Cryptococcus spp. identified as potential biomarkers. These peaks were used for the construction of dendrograms and PLS-DA and SVM models. The 5 peaks marked with asterisks (*) were selected for the simplified models. CV = coefficient of variation.
m/zNumber of SpectraC. neoformansC. neoformans (CV)C. neoformans (Mean)Interspecies HybridsInterspecies Hybrids (CV)Interspecies Hybrids (Mean)C. deneoformansC. deneoformans (CV)C. deneoformans (mean)
2488.075430/3488.75%4401.7724/2469.62%2811.790/7--
2842.145329/3478.21%2202.1324/2479.60%2235.200/7--
* 3084.115531/3498.46%7800.0624/2489.28%5969.390/7--
* 5453.91271/340.0%72.9123/2465.08%731.903/712.65%748.87
* 5552.90271/340.0%558.3123/2473.62%1418.903/747.30%2.763.28
6576.08230/34--16/2463.17%457.987/756.70%685.58
* 6688.675734/3495.69%4420.9123/2488.39%3556.220/7--
* 7103.01311/340.0%24.3223/24122.76%1484.777/752.14%4.155.27
7830.42180/34--11/2446.49%719.137/739.83%449.70
8636.244319/34101.07%2887.8624/2487.32%1832.720/7--
Table
Table 3. Differentiation of the analyzed Cryptococcus species based on the absence/presence of biomarker peaks. Figures indicate the percentage (%) of isolates showing the indicated peak.
Table 3. Differentiation of the analyzed Cryptococcus species based on the absence/presence of biomarker peaks. Figures indicate the percentage (%) of isolates showing the indicated peak.
m/z2842.143084.116576.086688.677103.018636.24
C. deneoformans0010001000
C. neoformans85.391.20100055.9
Interspecies hybrids10010066.795.84.3100
