Identifying GNSS Signals Based on Their Radio Frequency (RF) Features—A Dataset with GNSS Raw Signals Based on Roof Antennas and Spectracom Generator

Morales-Ferre, Ruben; Wang, Wenbo; Sanz-Abia, Alejandro; Lohan, Elena-Simona

doi:10.3390/data5010018

Submit to this Journal Review for this Journal Edit a Special Issue

Article Menu

...

Open AccessData Descriptor

Identifying GNSS Signals Based on Their Radio Frequency (RF) Features—A Dataset with GNSS Raw Signals Based on Roof Antennas and Spectracom Generator

and

ITC Faculty, Department of Electrical Engineering, Tampere University, 33720 Tampere, Finland

Author to whom correspondence should be addressed.

Data 2020, 5(1), 18; https://doi.org/10.3390/data5010018

Received: 6 January 2020 / Revised: 7 February 2020 / Accepted: 13 February 2020 / Published: 17 February 2020

(This article belongs to the Special Issue Data from Smartphones and Wearables)

View Full-Text Download PDF

Browse Figures

Review Reports Citation Export

Abstract

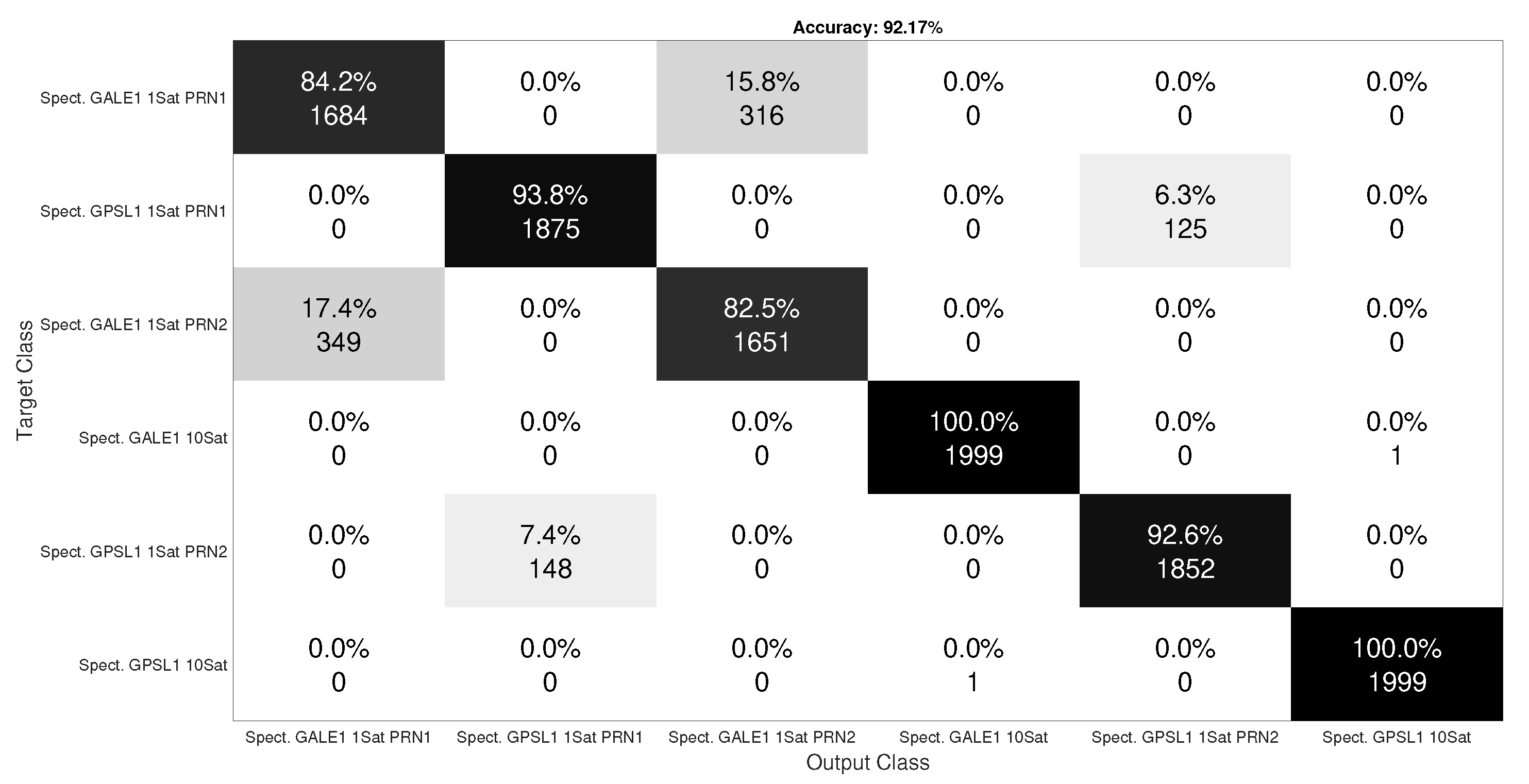

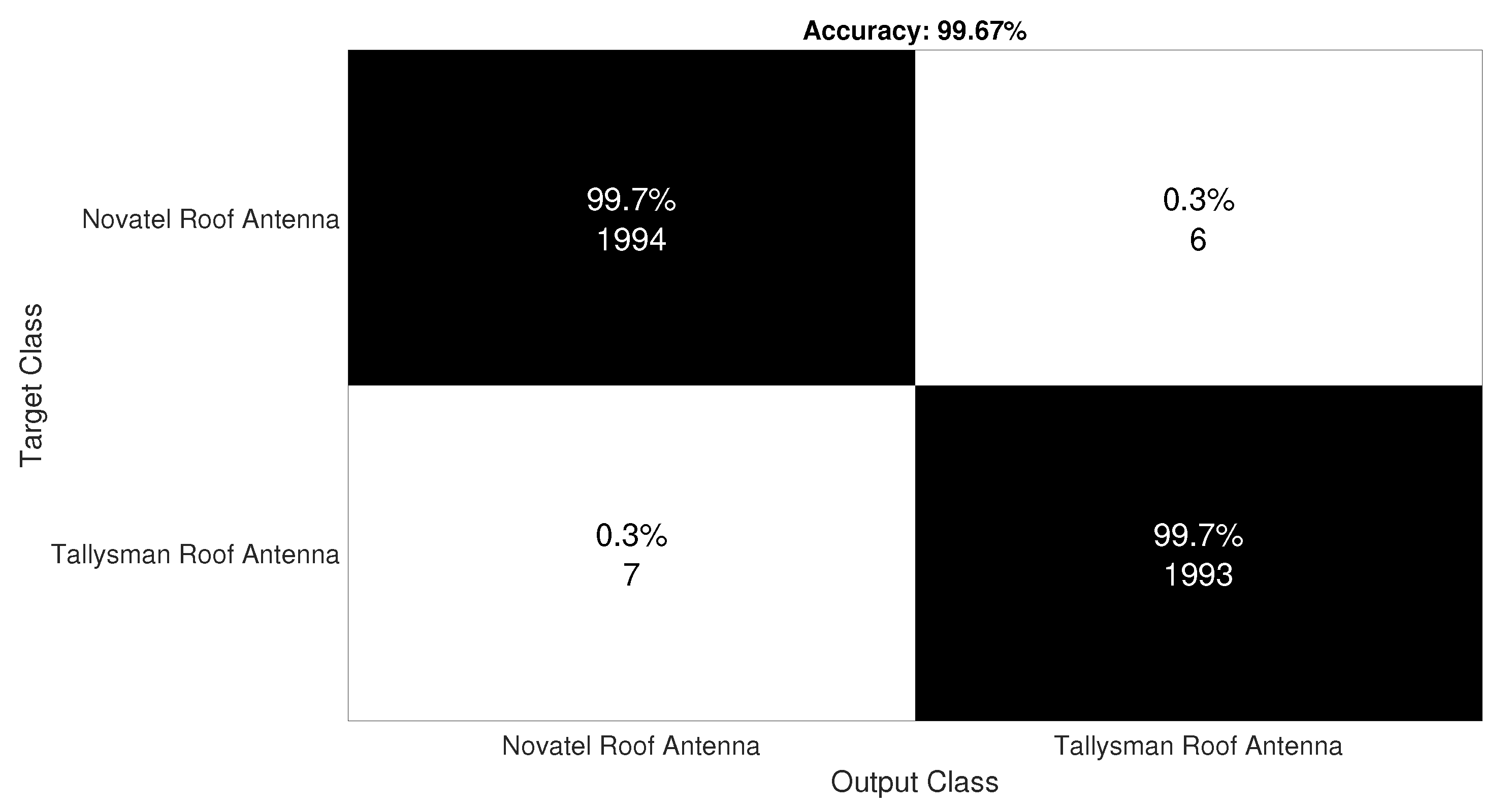

This is a data descriptor paper for a set of raw GNSS signals collected via roof antennas and Spectracom simulator for general-purpose uses. We give one example of possible data use in the context of Radio Frequency Fingerprinting (RFF) studies for signal-type identification based on front-end hardware characteristics at transmitter or receiver side. Examples are given in this paper of achievable classification accuracy of six of the collected signal classes. The RFF is one of the state-of-the-art, promising methods to identify GNSS transmitters and receivers, and can find future applicability in anti-spoofing and anti-jamming solutions for example. The uses of the provided raw data are not limited to RFF studies, but can extend to uses such as testing GNSS acquisition and tracking, antenna array experiments, and so forth. View Full-Text

Keywords: Global Navigation Satellite Systems (GNSS); Radio Frequency Fingerprinting (RF FP); spectracom; roof antenna; Galileo; Global Positioning Systems (GPS); machine learning

▼ Show Figures

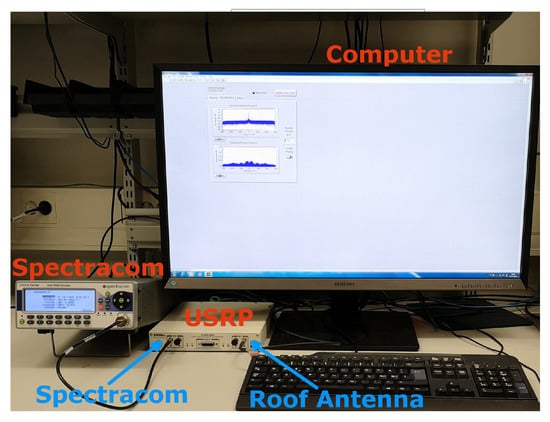

Figure 1
