COVID-19 Diagnosis: A Review of Rapid Antigen, RT-PCR and Artificial Intelligence Methods

Department of Molecular and Cell Biology, Faculty of Science, University of Cape Town, Cape Town 7701, South Africa
Department of Pharmacy and Pharmacology, School of Therapeutic Science, Faculty of Health Sciences, University of the Witwatersrand, Johannesburg, 7 York Road, Parktown 2193, South Africa
Department of Chemistry, Bayelsa Medical University, Yenagoa PMB 178, Bayelsa State, Nigeria
Department of Computer Science and Engineering, University of California, San Diego, La Jolla, CA 92093-0404, USA
School of Computing and Mathematical Sciences, University of Leicester, Leicester LE1 7RH, UK
Department of Electrical and Electronic Engineering Science, University of Johannesburg, Johannesburg 2006, South Africa
Department of Mathematics and Statistics, York University, Toronto, ON M3J 1P3, Canada
Authors to whom correspondence should be addressed.
Bioengineering 2022, 9(4), 153;
Submission received: 20 January 2022 / Revised: 22 March 2022 / Accepted: 23 March 2022 / Published: 3 April 2022


As of 27 December 2021, SARS-CoV-2 has infected over 278 million persons and caused 5.3 million deaths. Since the outbreak of COVID-19, different methods, from medical to artificial intelligence, have been used for its detection, diagnosis, and surveillance. Meanwhile, fast and efficient point-of-care (POC) testing and self-testing kits have become necessary in the fight against COVID-19 and to assist healthcare personnel and governments curb the spread of the virus. This paper presents a review of the various types of COVID-19 detection methods, diagnostic technologies, and surveillance approaches that have been used or proposed. The review provided in this article should be beneficial to researchers in this field and health policymakers at large.

1. Introduction

The recent incident of the novel coronavirus (SARS-CoV-2) in Wuhan, China, and its spread globally has impacted the world’s economy. So far, the virus has claimed more than 5 million lives and infected over 278 million people worldwide as of 27 December 2021 [1]. The emergence of different variants shows that the fight against the deadly and infectious viruses is far from over [1]. It also shows how swiftly new infectious diseases might emerge and spread while wrecking global economic havoc. The viral aetiology of coronavirus disease 2019 (COVID-19) is SARS-CoV-2, which has unexpectedly increased the need for clinical knowledge and information, epidemiological investigations, and quick diagnostic technology.
It is well known that quick, efficient, and ultrasensitive detection of SARS-CoV-2 is crucial for epidemic prevention and containment [2,3]. As a result, there has been worldwide demand for knowledge on SARS-CoV-2 diagnostic and surveillance technologies. With accurate diagnostics in place, health workers may decide where and how to allocate resources and efforts to effectively isolate and treat patients. This mechanism can slow the spread of infectious diseases and minimise mortality. Thus, all of the tools required for the rapid detection of SARS-CoV-2 are extremely useful to frontline healthcare workers and policymakers working together to alleviate the disease’s devastation and limit its spread. Since the emergence of COVID-19, many methodologies have been used worldwide to identify and diagnose the virus. The approaches reported include whole-genome sequencing, electron microscopy, and different computed tomography (CT) imaging based methods, which were initially employed to screen for and detect SARS-CoV-2 [4,5].
Meanwhile, the availability of known diagnostic tools for SARS-CoV-1 (from the 2002 SARS outbreak) was helpful in the diagnosis of COVID-19. These tools are currently performing critical roles in detecting and controlling the spread of COVID-19. For example, the transmission electron microscopy (TEM) was employed to determine the morphology of the SARS-CoV-2 virus [6]. The virus’s identification was confirmed via genome sequencing [7,8], and the sequencing data was used in the development of primers and probes for polymerase chain reaction (PCR) [9]. It is worth noting that whereas the SARS-CoV-1 identification took about five months in 2002, the same procedures were employed to identify SARS-CoV-2 within a few days [10]. Recently, artificial intelligence (AI) has shown great potential in detecting diverse diseases [11,12,13]. Some AI-based methods have been proposed for COVID-19 detection, tracking, and treatment [14,15,16,17]. Deep learning, a subfield of AI that is based on artificial neural networks [18], has been applied to learn and analyze the lung regions using CT images and chest radiographs (X-ray) in order to detect COVID-19 [19,20].
This study presents a detailed review of the various types of detection methods, diagnostic technologies, and surveillance approaches that have been used or recently proposed in the fight against COVID-19. Holistically, this will aid decision making by researchers and policymakers. The rest of this paper is structured as follows: The current and emerging COVID-19 diagnostic tests are presented in Section 2. Section 3 discusses real-time reverse transcriptase-polymerase chain reaction, and rapid antigen detection test is presented in Section 4. Section 5 presented a detailed application of AI techniques for COVID-19. Section 6 highlights some contributions of AI in the fight against COVID-19. Finally, the paper is concluded in Section 7.

2. Current and Emerging COVID-19 Diagnostic Tests

Nucleic acid tests and computer tomography (CT) scans were earlier used to diagnose COVID-19. At the start of the COVID-19 epidemic in China, syndromic testing using CT scans was predominantly employed to diagnose and examine the virus [21]. However, molecular technology is more suitable for detecting the virus than syndromic examination and CT scans because it can target and detect specific infections. However, due to the need for a more effective and real-time diagnosis of COVID-19, researchers and scientists have created several tools summarised in Table 1. These technologies are divided into three categories: nucleic acid testing, protein testing, and point-of-care (POC) testing.
Figure 1 also depicts the stages of development of diagnostic tests used thus far. As can be observed, most of the approaches are still in the proof-of-concept stage. The majority of the proposed diagnostics technologies are likely to enter the commercial phase and be applied for disease detection in the future. Notably, it remains unpredictable if the vast knowledge gathered from the various variants seen so far can be generalised for investigating future variants of the COVID-19 virus. For example, to mitigate the widespread of the new variant (Omicron) that was first confirmed on 9 November 2021 [22], testing will be paramount. And to achieve this, less expensive, sensitive, user-friendly, and point-of-care kits will be required. Such kits will ultimately reduce a surge in cases as people can self-test and isolate themselves accordingly.

3. Real-Time Reverse Transcriptase-Polymerase Chain Reaction

In recent years, nucleic acid detection-based techniques have become a reliable and rapid approach for detecting viruses. Precisely, the polymerase chain reaction (PCR) has gained popularity and is considered the gold standard for diagnosing some variants of viruses and is characterised by rapid detection, high sensitivity and specificity [33]. Based on those above, real-time reverse transcriptase-PCR (RT-PCR) has gained much interest in detecting SARS-CoV-2 due to its specific and easy qualitative assay. To achieve its aim, the RT-PCR involves the reverse transcription of the virus RNA into complementary DNA (cDNA) strands, followed by the amplification of certain regions of the cDNA. The amplified cDNA of the virus is targeted, and a section of the SARS-CoV-2 genome is amplified via PCR [34].
The Center for Disease Control and Prevention (CDC) presented a recent study using the Fulgent COVID-19 RT-PCR test to detect COVID-19 [35]. A total of 2039 patients admitted to the emergency department in a California hospital between June and August of 2020 participated in the study, and the RT-PCR test obtained a specificity above 99%. Another study used the RT-PCR test to detect COVID-19 in samples from 323 patients, and metrics such as sensitivity and specificity, with confidence intervals (CI) that indicate the test results’ statistical significance, were used in the study [36]. The RT-PCR obtained a sensitivity of 94.7% (95% CI 74.0 to 99.9%) and a specificity of 100% (95% CI 94.9 to 100%). To date, the RT-PCR test is the most commonly used test for detecting COVID-19, and several studies have stated its robustness and reliability compared to other testing methods [37,38,39,40].
The SARS-CoV-2 RNA is extracted and diluted with a master mix containing both forward and reverse primers, nuclease-free water, a fluorophore-quencher probe and a reaction mix (magnesium, transcriptase, nucleotides, polymerase, and additives). The extracted viral RNA and master mix are amplified in a PCR thermocycler, and the respective incubation parameters are set to run the assay. During the assay, the cleavage of the fluorophore-quencher probe results in a fluorescent signal detected by the thermocycler and amplification is recorded in real-time. The primary method of this diagnostic test involves the collection of samples from the upper respiratory of a person via nasal and oropharyngeal swabs. Notably, swabs from the nose and throat can produce false-negative results if not done correctly. Hence, the person performing the test must be familiar with the upper respiratory anatomy [41]. False-negative tests may also occur due to mutation in the real-time RT-PCR primer and probe-target segments of the virus genome [33]. Others may include but are not limited to sample cross-talk, and hitches with software may reduce the sensitivity of PCR reaction. More so, the commercially available RT-PCR kits are only operated in well-equipped laboratories due to the specialised tools and instruments used for the reactions coupled with safety reasons, thereby limiting the number of tests that can be performed daily [42]. Several nucleic acid amplification tests have been authorized by the U.S. Food and Drug Administration (FDA) [43]. These kits have been used to analyze samples from the nose, throat, bronchoalveolar lavage and sputum, and the sensitivity of some are higher than RT-PCR. For example, loop-mediated isothermal amplification (LAMP) can rapidly amplify the viral RNA at a single temperature whilst providing a reliable diagnosis [44]. Some of these tests can be self-administered at home or in laboratories. Indeed, antigen tests targeting various virus proteins could be vital to support the currently available RT-PCR kits and speed up detection.

4. Rapid Antigen Detection Test

A rapid antigen test (RAT), also known as an antigen rapid test (ART), or a rapid antigen detection test (RADT), or simply a rapid test, is a type of rapid diagnostic test that immediately identifies the absence or presence of an antigen for point-of-care testing. Rapid tests are a form of lateral flow device that detects antigens, as opposed to other medical tests that detect nucleic acid (nucleic acid tests) or antibodies (antibody tests), of either point-of-care types or laboratory. Usually, it is widely used to detect SARS-CoV-2, the virus that causes COVID-19. Rapid tests often have fast turnaround times of less than 5 to 30 min, involve minimal training or equipment, and offer considerable cost benefits, and may be employed in decentralised testing; and they have the potential to boost testing procedures [45].
Meanwhile, Gremmels et al. [45] studied the potential of PanbioTM COVID-19 antigen rapid test and its diagnostic performance, which is yet to be fully confirmed. According to their results, the PanbioTM COVID-19 Ag rapid test successfully detects SARS-CoV-2 infected people with a significant viral load in nasopharyngeal samples in a population of participants dwelling in a community with mild respiratory tract infection, and this test has a 100 percent specificity. Though the sensitivity is lesser than that of RT-qPCR, all false-negative rapid test findings were attributed to low viral loads in nasopharyngeal samples. The study concluded that because the PanbioTM COVID-19 Ag rapid test has a lower sensitivity, RT-qPCR would be the appropriate diagnostic test for clinical applications in a hospital environment.
However, for community monitoring of SARS-CoV-2, this rapid antigen test accurately and quickly identifies persons with a high risk of continued transmission. In the future, it might be an essential tool in our testing strategy to prevent SARS-CoV-2 transmission. In another research, Torres et al. [46] studied the performance of the PanbioTM COVID-19 Ag rapid test device to identify and detect SARS-CoV-2-infected asymptomatic peoples. The study discovered that the Panbio test has limited sensitivity in asymptomatic COVID-19 patients close contacts, especially non-household contacts. Notably, the authors believe that determining the best time to collect upper respiratory tract samples in this group is critical for pinpointing test sensitivity [46]. However, a low sensitivity test such as this is not suitable for detecting COVID-19, considering the impact a false-negative test result can cause.
Furthermore, Mak et al. [47] studied the specificity and sensitivity of COVID-19 Ag rapid tests such as SARS-CoV-2 detection using the rapid antigen detection kit from the WHO Emergency Use List. The findings from the study revealed that the rapid antigen detection kit was 100 times less sensitive than RT-PCR. The clinical sensitivity of the rapid antigen detection test for identifying specimens from COVID-19 patients was 68.6%. A multicenter study was also conducted by Merino et al. [48] also conducted a multicenter study to evaluate the PanbioTM COVID-19 rapid antigen-detection test for SARS-CoV-2 infection diagnosis.

5. Artificial Intelligence and COVID-19

5.1. Machine Learning

Machine learning (ML) has shown high performance in several image processing applications such as image analysis [49], image segmentation and classification [50], and medical imaging [11,51]. With the recent outbreak of the COVID-19 pandemic, ML offers a great potential for accurate and fast detection of COVID-19 from computed tomography (CT) and chest radiographs (CXR) images.
As we learn more about the natural history of COVID-19, it has become apparent that the disease progresses in stages. The need to pre-empt deterioration and personalise preventative interventions has emerged as a priority [52]. Currently, imaging research has focused on diagnosis based on appearances once the disease has progressed. Early detection of the infection, when the initiation of appropriate therapy is likely to be most effective, would be more helpful. CT also has a well-established role as a tool to detect several diseases, particularly when combined with clinical data. This finding is essential in COVID-19 detection; because the primary concern for healthcare providers is becoming overwhelmed by patients requiring intensive care and ventilatory support, accurate prognostication is a more pressing clinical problem than diagnosis [53]. For COVID-19, training a model to predict outcomes such as the need for mechanical ventilation, intensive care unit admission, and mortality could have a considerable clinical effect [54,55,56].
Since the pandemic, several studies have been conducted on how ML can be used to detect and diagnose COVID-19. The systematic review in [57] critically examined the methodologies used in 29 studies that focused on ML and COVID-19. Of these 29 studies, seven were based on conventional ML algorithms, 20 on deep learning techniques, and two used deep learning and traditional ML techniques together. Most of the studies, i.e., 23, address the detection of COVID-19, while six focused on building systems for prognostication. The findings in Roberts et al. [57] showed that none of the developed models in the 29 papers has any potential for clinical use because of their methodology’s underlying biases and flaws. An ML model was developed in [58] for screening potential neutralising antibodies discovered for the COVID-19 virus. The model was developed to check synthetic antibodies to detect antibodies that potentially inhibit SARS-CoV-2. The study used 14 different types of viruses and developed models using graph featurisation with different ML algorithms such as support vector machine, random forest, and logistic regression. The model’s out-of-class predictions for covid and influenza were 100% and 84.61%, respectively; this shows the model’s robustness in neutralising predicted antibodies for the SARS-CoV-2. To understand the spread of the virus in the top five affected countries (USA, India, Brazil, Peru, and Russia) as of 10 July 2020, Hazarika and Gupta [59] proposed a new approach based on a random vector functional link (RVFL) network. RVFL was hybridised with a wavelet-coupled RVFL network and 1-D discrete wavelet transform. Hazarika and Gupta [59] concluded that the wavelet-based hybrid models can be useful in the fight against COVID-19.
Elaziz et al. [60] introduced an ML technique that uses fractional multichannel exponent moments (FrMEMs) to extract features from X-ray images. The technique classified chest X-ray images into two classes, i.e., COVID 19 patients and non-COVID-19 patients. The proposed method achieved an accuracy of 96.09% in predicting the COVID 19 class and 98.09% in the non-COVID-19 class. Meanwhile, India is among the countries worse hit by the COVID-19 pandemic [61]. During the pandemic surge in that country, an ML forecasting model was proposed in [62] to assist in predicting the spread of the virus. The authors in Sujath et al. [62] used multilayer perceptron, linear regression, and vector autoregression on datasets obtained from Kaggle to understand the fast-spreading virus across the country, i.e., confirmed, death, and recovered cases across India. The review in Kushwaha et al. [63] discussed the importance of ML in the fight against the COVID-19 pandemic. The research examined several papers that addressed how different ML models could have assisted in detecting the virus. The review concluded that ML could be used for COVID-19 diagnosis, precise and personalised patient treatment, patient behaviour analysis, and future symptoms prediction. A hybrid ML model based on a multilayer perceptron algorithm and adaptive network-based fuzzy inference system was used to predict a patient mortality rate [64]. The dataset used was collected in Hungary, and the model validation was performed for nine days with good results. ML-based CT analysis has shown to be a promising screening medium for COVID-19 and has outperformed viral real-time PCR testing [65,66].

5.2. Deep Learning

Although machine learning powers many aspects of societal applications from social media networks to consumer products and devices, supported by cameras and smartphones [67]. However, conventional machine learning techniques are not well-suited for some modern societal applications [68]. The advent of deep learning, a subset of machine learning, has found applications in many areas, such as object and speech detection, drug and genomics, and natural language processing systems [67,69].
Since the outbreak of COVID-19, deep learning algorithms have been widely used to understand and forecast the disease pattern [70,71]. Several attempts have been made to utilise these algorithms to estimate and forecast the future spread of the disease [72]. A review by [70] on six deep learning algorithms used for disease forecasting shows popular algorithms such as Recurrent Neural Network (RNN), Long Short-Term Memory (LSTM), Bi-directional (Bi-LSTM), Variational Auto Encoder (VAE), and Gated recurrent units (GRUs) have been used on time-series data for predicting newly affected and recovered cases of COVID (See Figure 2).
These models are based on time-sensitive analysis (temporal) and possess attractive modelling features. All these algorithms are based on RNN [73,74]. Meanwhile, RNNs possess less memory and are not suited for time dependencies in historical data. LSTMs were designed to mitigate many of the dependency issues of RNN, and they contain three gates for controlling information flow—input, forget, and output gates. Bi-LSTM enhances the capabilities of the LSTM and retains the option of being reconstructed to a backward context [73]. The GRU models are an alternative to LSTM. GRUs was created to optimise the performance of LSTM models, and VAE models are based on generative modelling and extend the capabilities of RNNs.

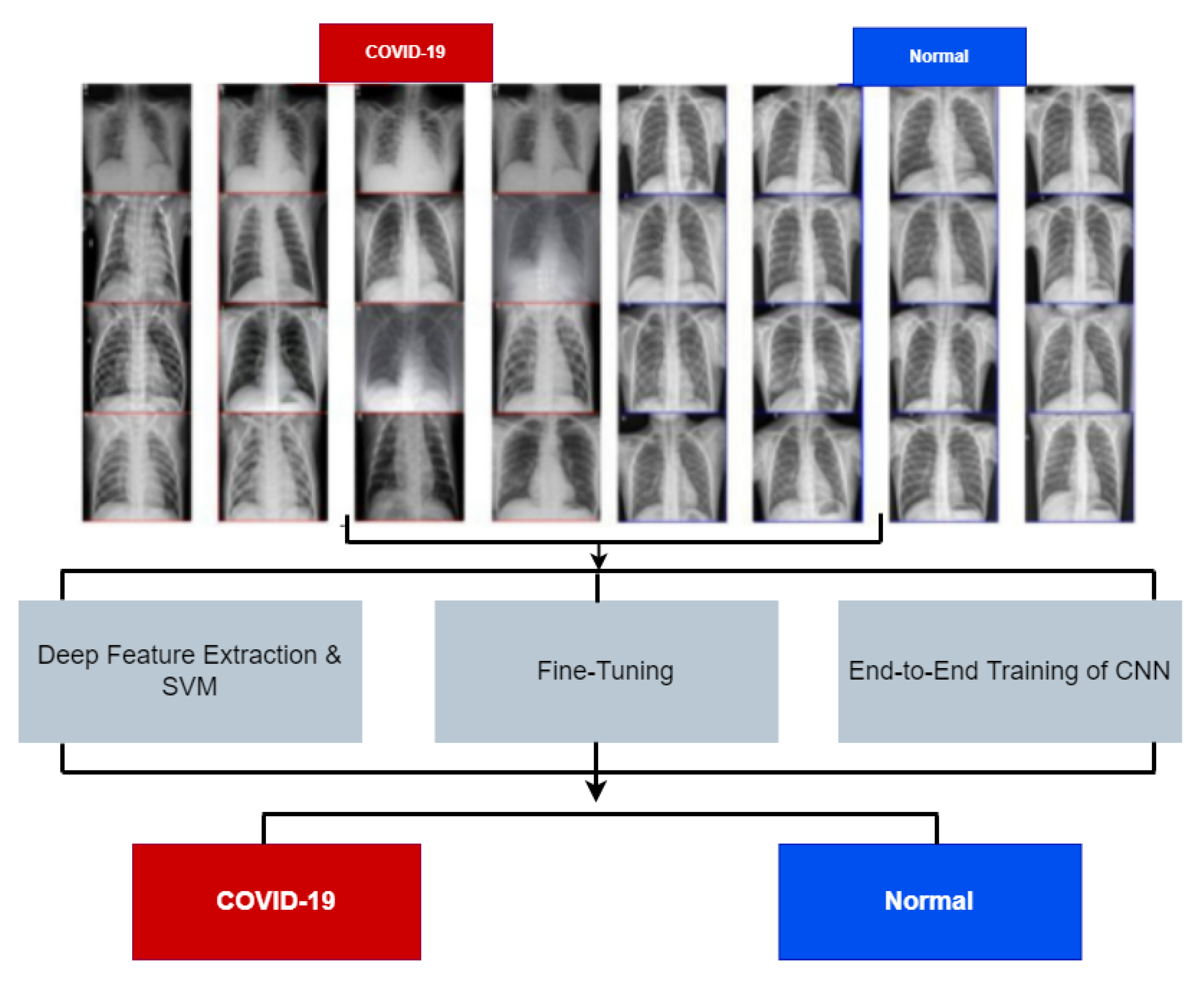

Other works in literature have explored the convolutional neural networks (CNN) [75,76,77]. CNN is a type of artificial neural network that has been widely used for medical imaging analysis. It has multiple layers to process data at less computational power with higher accuracy. A pre-trained CNN was used in classifying X-ray images to uncover healthy and non-healthy chest scans [78]. These pre-trained models include ResNet18, ResNet50, ResNet101, VGG16, and VGG19. The ResNet50 model was trained alongside the support vector machine, which was found to have achieved higher accuracy. Other CNN variants have been created to join the fight against COVID, which include CoVNet-19 [79], Res-CovNet [80], and MTU-COVNet [81].

5.3. COVID-19 Datasets

Data is essential in all machine learning models and applications [82]. If data is made publicly available, ML algorithms can help in reducing the spread of COVID-19. Therefore, the first step in designing a COVID-19 detection model is data collection. Having ML-based COVID-19 diagnosis from X-rays and CT scans will lower the challenge on the short supplies of reverse transcriptase-polymerase chain reaction (RT-PCR) test kits. Epidemiological and statistical analysis of reported covid cases can also be useful in understanding the relationship between virus transmission and human mobility. Social media data can also provide socio-economic and sentiment analysis for governments and policymakers in the current pandemic. Therefore, data is essential for the effective implementation of models to fight and reduce the spread of the virus.
Most available datasets were private at the beginning of the pandemic due to privacy issues. However, several of these datasets were recently made open to researchers [83]. Meanwhile, most researchers have focused on using CT image datasets for their diagnosis due to the time consumed and low sensitivity associated with the standard COVID-19 diagnosis methods, such as the RT-PCR and CXR [84,85,86,87,88]. This has made both CT and chest X-ray diagnostic imaging modalities quickly produce large volumes of data on COVID-19, which has enabled the development of machine learning models for detecting and diagnosing the virus.
At the start of the COVID-19 pandemic, radiologists were extremely busy with little bandwidth to read many CT scans timely. Also, radiologists in developing countries may not be well equipped to recognise COVID-19 from CT scans since the disease was relatively new at the time. Therefore, in order to accurately detect the virus, several deep learning methods were developed to screen COVID-19 from CTs [65,89,90,91]. COVID-CT, an open-sourced dataset, was introduced in [92]. The dataset comprises 349 positive COVID-19 CT images and 463 negative COVID-19 CTs. The dataset was extracted from reported CT images in 760 bioRxiv and medRxiv preprints about COVID-19. Experiments on the dataset showed that COVID-CT is efficient in developing an AI-enabled model to diagnose COVID-19. The authors [92] further used the dataset to build self-supervised and multi-task learning, which achieved an area under the receiver operating curve (AUC) of 0.98, F1-score of 0.90, and accuracy of 0.89. Table 2 summarises some notable COVID-19 datasets in the literature, the techniques used in building the ML model, and the obtained results. The metrics used in evaluating the performance includes accuracy (ACC), sensitivity (Sen), and specificity (Spe).
Afshar et al. [93] proposed COVID-CT-MD, a new COVID-19 dataset. The dataset also consisted of healthy and participants infected by Community-Acquired Pneumonia (CAP). The COVID-CT-MD consists of 169 chest CT scans of positive patients, 60 patients with CAP, and 76 patients that do not have either covid or CAP. The results obtained from COVID-CT-MD showed that the dataset could advance the application of ML and DL in diagnosing COVID. Ref. [85] developed an open-source SARS-CoV-2 CT scan dataset to encourage the development of AI techniques for detecting COVID-19 through the analysis of their CT scan. SARS-CoV-2 CT contains 2482 CT scans, with 1252 positive and 1230 non-infected cases. The dataset is made up of actual patient CT scans collected in Sao Paulo, Brazil. Using the eXplainable Deep Learning technique (xDNN), Angelo and Soares [85] achieved an F1-score of 97.31%, which is promising. Furthermore, in light of understanding how chest X-ray images can assist in diagnosing COVID-19, Hall et al. [94] obtained 320 chest X-rays of bacterial and viral pneumonia and 135 chest X-rays of positive COVID-19 patients. These datasets were used with a pre-trained deep convolutional neural network (DCNN). The model achieved an accuracy of 91.24% and an AUC of 0.94. Another notable application of ML in the COVID-19 era is contact tracing, which has yielded excellent results [95].

6. Notable Contributions of AI in the Fight against COVID-19

6.1. AI for COVID-19 Tracking and Dashboarding

Since the outbreak of COVID-19, there have been concerted efforts towards tracking and predicting its debilitating effect across many nations [96,97,98]. These unified efforts have led AI researchers to utilise predictive modelling for forecasting actual and expected spread and reporting on open data dashboards, thereby supporting the efforts of healthcare professionals.
One of the foremost real-time dashboards used for COVID-19 tracking was developed by the Center for Systems Science and Engineering (CSSE) at the John Hopkins University [99]. The CSSE platform has effectively tracked recoveries, death, and new cases worldwide. This platform aimed to provide stakeholders, such as public authorities, researchers, and the broader public, with an interactive interface to track the virus in real-time [100]. Similar platforms have emerged to unify monitoring and prediction efforts. These dashboards include the Center for Disease Control and Prevention (CDC), COVID-19 Data Tracker, Microsoft Bing’s COVID-19 tracker dashboard, the BBC, New York Times, HealthMap, and Upcode. Other notable platforms include nCoV2019, 1point3arces, China’s Baidu, South Korea’s KSIC, Time’s Coronavirus Map, NPR, and Worldmapper [101].
Countries within the Global South have intensified efforts to create dashboards for monitoring and predicting COVID-19 [102,103,104]. The African Union Centre for Disease Control, a public health agency for member states, created the African CDC Dashboard to provide updates on the COVID-19 crisis within the region [105]. Another popular example is the COVID-19 ZA South Africa Dashboard, developed at the University of Pretoria by the Data Science for Social Impact Research Group (DSFSI). In South America, especially in Panama, a dashboard termed the COVID-19 Open data was developed to track and predict cases [106]. Saudi Arabia launched its own dashboard in the Middle East to enable public authorities to monitor and combat COVID-19 cases. Table 3 shows the summary of COVID-19 dashboards discussed in this research, and they are classified according to the source, name of dashboard, country, its purpose, coverage, and accessible medium. However, this list is not exhaustive.

6.2. AI for COVID-19 Diagnosis and Forecasting

Recently, researchers have intensified efforts to combat the threats posed by COVID-19 using different techniques. Several AI initiatives are in continuous development to detect COVID-19 infections, assisting healthcare professionals. A study by [113] used the Random Forest (RF) algorithm to extract eleven key blood indices to accurately identify traces of the COVID-19 virus on patients’ blood test data. The study showed that the RF algorithm extracted the features, enabling the predictive model to achieve an accuracy of 96.7%. Similarly, Tang et al. [114] applied the RF algorithm on chest CT images and identified features of COVID-19. The study reported an accuracy of 87.5% and an AUC of 91%.
Yan et al. [115] proposed a method to detect COVID-19 using the extreme gradient boosting (XGBoost) classifier. The XGBoost classifier was trained with samples from 485 infected patients, and it achieved excellent performance. In another research, Bertsimas et al. [116] used the XGBoost classifier to predict the mortality of COVID-19 patients. Furthermore, Wang et al. [89] proposed a deep convolutional neural network approach called COVID-Net to diagnose COVID-19 from radiography images. Sun et al. [117] applied the Support Vector Machine to predict severe symptoms in COVID-19 patients using four clinical indicators. The study reported an accuracy of 77.5% and a specificity of 78.4%.
Chimmula and Zhang [71] applied the Long Short Term Memory (LSTM) algorithm, a type of recurrent neural network, to forecast COVID-19 prevalence. The proposed method achieved an accuracy of 93.4% on the test set. Other studies have also focused on forecasting COVID-19 prevalence. For example, Chintalapudi et al. [118] and Gupta et al. [119] applied the Auto-Regressive Integrated Moving Average (ARIMA), a time-series method, to forecast the number of confirmed cases. Ref. [120] used a modified stacked auto-encoder method to forecast the prevalence of confirmed cases in China. A summary of articles reviewing COVID-19 diagnosis and forecasting can be found in Table 4.

6.3. AI for the Treatment of COVID-19

AI is changing the landscape of many disciplines, particularly the pharmaceutical industry [121,122,123]. Through clinical trials, AI has found applications in the area of drug discovery even prior to the existence of COVID-19. Anecdotal evidence revealed that drug discovery and development are capital-intensive processes that typically cost billions of US Dollars and take about twelve years on a typical average [124,125,126]. In itself, drug discovery and development involve target selection and validation, screening of compounds identified from molecular libraries, preclinical studies, and drug candidates, which must pass clinical trials by being administered to patients (See Figure 3). Recently, this landscape has been changing with the exploration of AI to the voluminous data produced in the genomics field [121,125].

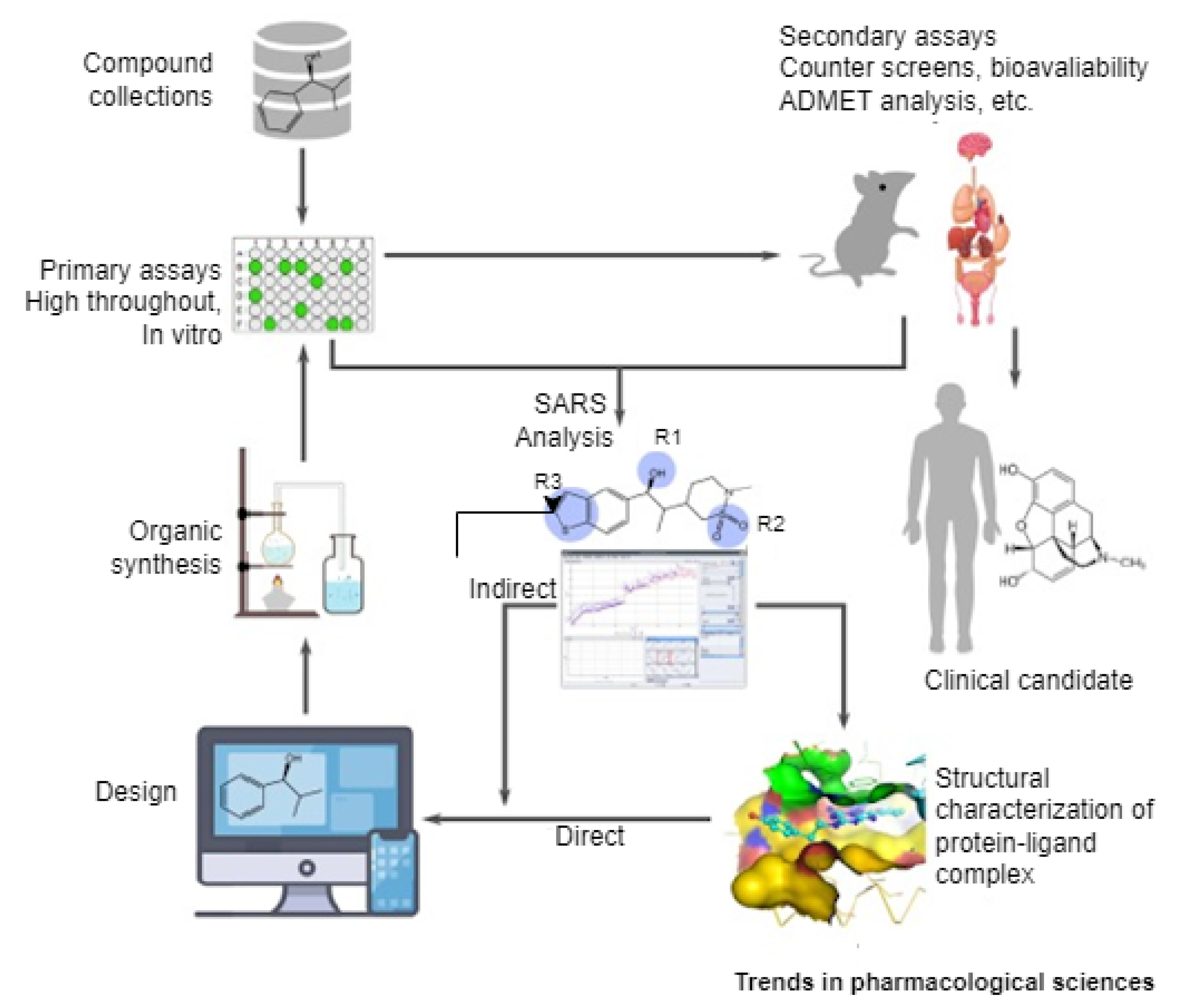

Arshadi et al. [127] outlined three approaches of AI to drug discovery: protein-based, RNA-based, and generative methods. The study showed that AI was useful in identifying unique drug and disease relationships. Furthermore, the study reviewed Benevolent AI, a UK-based organisation that integrated biomedical data from structured and unstructured sources through its AI-knowledge graph. Other organisations that have intensified efforts in using AI for COVID-19 drug discovery include Innoplexus through assessing the capability of Hydroxychloroquine and Remdesivir in the treatment of COVID-19 [128]. Similarly, Deargen and Gero used AI techniques to recommend atazanavir and niclosamide-nitazoxanide, respectively, for treating the virus [128,129,130].
In a study that utilised AI for drug screening, Delijewski and Haneczok [131] applied a supervised machine learning model based on gradient-boosting, an ensemble learning technique to identify zafirlukast as the best-repurposed candidate drug in the fight against COVID-19. The study utilised the Food and Drug Administration (FDA) set of approved drugs as the dataset, consisting of approximately 290,000 negative and 405 active molecules of COVID-19 3CL pro inhibitors, and concluded that the ML algorithm was helpful in the drug identification. Meanwhile, Pham et al. [132] proposed a graph-based neural network called DeepCE, a technique used for predicting chemical-induced gene expression profiles from chemical and biological objects. The study achieved excellent performance on the L1000 dataset and indicated that it could also be helpful for phenotype-based drug screening.
In a pathogenesis study used to find possible drug candidates, Kabra and Singh [133] used ML algorithms in a high-dimensional nucleotide sequence dataset for selecting and identifying peptides against a strain of the COVID-19 virus. The dataset consists of 2765 sequences of COVID-19 patients from different countries. The study concluded that the ML algorithms obtained excellent performance and opened a new dimension in designing and generating peptides with desired targets. Meanwhile, Jin et al. [134] proposed a drug-target interaction using a deep learning architecture, ComboNet, to predict whether a drug is likely to bind to a biological target. ComboNet consists of a graph convolutional neural network that learns a molecule representation and a linear function that learns antiviral activity and synergies in biological targets. According to the study, ComboNet performed very well despite limited drug combination training data.

6.4. AI for COVID-19 Surveillance

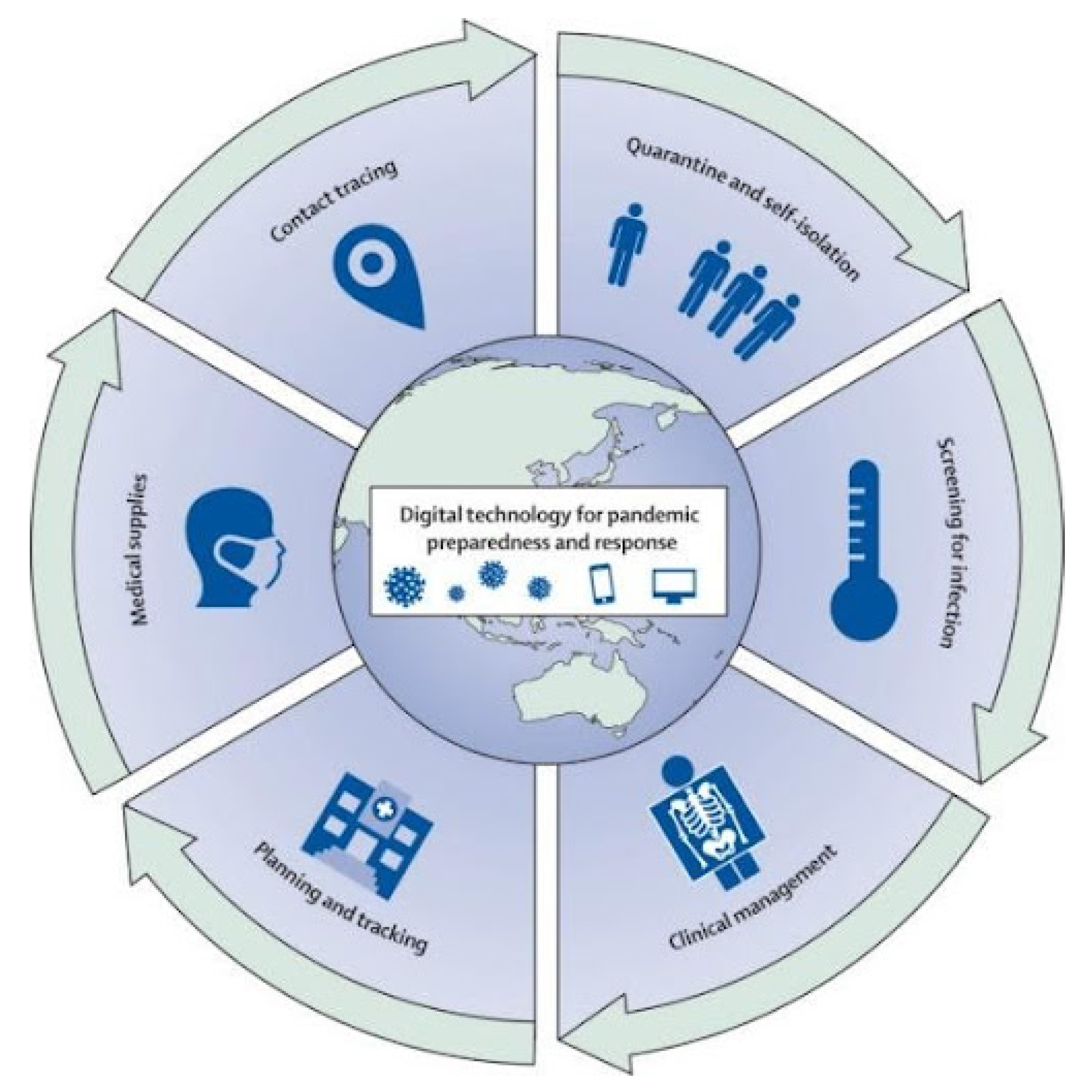

Many AI techniques have been used to build surveillance tools that predict the impact of COVID-19 [135,136,137]. As represented in Figure 4, these tools can help towards pandemic combating strategies, which can be difficult if manual methods are applied. According to Arora et al. [138], these tools incorporate several features, such as location tracking, travel data, epidemiological and behavioural patterns, to build reliable surveillance toolkits. Although these tools have been effective in reducing the spread of COVID-19, they have been widely criticised for privacy infringements.
Different machine learning models have been used to curb the spread of infection in several countries. For example, the Taiwan authorities implemented AI-based health checks for airline travellers who had visited Wuhan, China, after the outbreak was reported [140]. Taiwan attributed the low number of death cases to the AI surveillance system. Before the COVID-19 pandemic, many Chinese cities had surveillance security cameras linked to AI-based facial recognition systems [141]. When the pandemic started, these technologies were repurposed with thermal imaging for screening citizens with high temperatures.
Furthermore, South Korean CDC deployed its contact-tracing system, known as COVID-19 Smart Management System, to trace the movement of individuals with COVID-19 [142]. The system incorporated security footage, credit card records, and global positioning system (GPS) data from cell phones. Meanwhile, a US-based firm, Swedish Health Services, developed a platform for healthcare professionals to track COVID-19 cases in hospitals [139]. The app aimed to use the tracking information in allocating healthcare resources and knowing the facilities’ status. In India, a local government used geo-mapping of quarantine locations and CCTV recordings to track possible COVID-19 patients [143]. Similar technologies have been used in Israel, Argentina, and Morocco [143,144].

7. Discussion and Conclusions

The health and economic impact of the COVID-19 pandemic has been severe worldwide. Numerous researchers have proposed several COVID-19 diagnosis techniques. Generally, these techniques are based on antibody tests that detect the presence of proteins the body produces in response to a previous infection, molecular tests used for detecting viral genomic material, and CT tests that examine a person’s lung. Among these diagnostic techniques, the RT-PCR test that detects various regions of the SARS-CoV-1 genome is the gold standard for diagnosing COVID-19. However, the scarcity of testing tools such as RT-PCR kits could occur during pandemic emergencies. Hence, it is vital to have several testing options. Also, the RT-PCR testing technique is expensive, and many low-income countries cannot afford sufficient testing of a greater part of their population.
Meanwhile, a comprehensive review of COVID-19 diagnostic methods has been conducted in this research. The study covered current and emerging diagnostic tests, including RT-PCR, rapid antigen detection, and AI-based methods. Also, this research discussed other areas where AI has been applied to curb the spread of COVID-19, such as surveillance, tracking and dashboarding, forecasting, and treatment. Furthermore, it is necessary to state that different methods are required to control and prevent the spread of COVID-19 effectively in addition to clinical diagnosis. While highly accurate and sensitive tests are needed in the fight against COVID-19, it is also necessary to have a somewhat rapid point of care and easy to use self-testing kits.

Author Contributions

R.T.A., T.A.A., N.A., G.O., K.A., I.D.M., I.A. and B.O. conceived the idea. All authors designed and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in article.

Conflicts of Interest

The authors declare that there are no conflict of interests.
