Coordination Polymers Constructed from Polycarboxylic Acids and Semi-Rigid Bis-pyridyl-bis-imide Ligands: Synthesis, Structures and Iodine Adsorption

,
,
and
Department of Chemistry, Chung Yuan Christian University, Chung Li, Taoyuan City 320, Taiwan
*
Author to whom correspondence should be addressed.
Inorganics2025, 13(3), 69;https://doi.org/10.3390/inorganics13030069
Version Notes
Order Reprints

Abstract

Reactions of N,N′-bis(3-pyridylmethyl)-pyromellitic diimide (L1) or N,N’-bis(3-pyridyl)bicyclo(2,2,2,)oct-7-ene-2,3,5,6-tetracarboxylic diimide (L2) with 1,3,5-benzenetricarboxylic acid (1,3,5-H3BTC), 4,4′-sulfonyldibenzoic acid (H2SDA), or 4,4′-oxybisbenzoic acid (H2OBA) and divalent metal salts afforded {[Co(1,3,5-HBTC)(H2O)2(L1)]·H2O}n, 1, {[Co(1,3,5-HBTC)(H2O)3(L1)0.5]·H2O}n, 2, {[Co(SDA)(L1)0.5]·H2O}n, 3, {[Co(1,3,5-HBTC)(H2O(L2))]·H2O}n, 4, {[Ni(1,3,5-HBTC)(H2O)(L2)]·H2O}n, 5, [Ni(SDA)(L2)]n, 6, and [Ni(OBA)(L2)]n, 7, which were structurally characterized by using single-crystal X-ray diffraction. Complexes 1 and 2 are 1D chains with the 2,4C6 and 2,3C2 topologies, respectively, and 3 is a 2D layer with the 4,5L51 topology, whereas 4 and 5 are 1D chains with the 2,4C6 topology and 6 and 7 are 2D layers with the 2,4L2 topology. Complex 3 shows a better iodine-adsorption factor of 133.77 mg g−1 at 75 °C for 24 h than 5–7, revealing that the pi-pi conjugation of the dipyridyl ligand may govern the iodine adsorption capacity.

1. Introduction

Due to their designable structures and variable functions, coordination polymers (CPs) have shown potential applications in areas such as ion exchange, sensor, catalysis, gas storage, and magnetism [1,2,3,4,5]. Therefore, CPs have attracted widespread attention and research in the chemical community. However, designing and forming CPs with unique structures and functions remain challenges. The coordination of the spacer ligands to the metal ions may result in CPs with one-dimensional (1D), two-dimensional (2D), or three-dimensional (3D) structures, which are susceptible to changes in the metal ion, spacer ligand, solvent system, and reaction temperature. On the other hand, the separation and recovery of toxic radioactive iodine such as 129I are essential for human health. CPs showing tailorable structures and possessing pores that may facilitate iodine adsorption through noncovalent interactions are thus demanded [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22].
In the self-assembly processes of CPs, the identities of the spacer ligands involving the length, flexibility, and orientation of the donor atom may govern the structural diversity. By using the flexible ligands N,N’-di(4-pyridyl)sebacoamide or N,N′-di(4-pyridyl)adipoamide and angular dicarboxylate ligands, five entangled CPs, and one non-entangled CP, were obtained [23], whereas the use of the rigid N,N′-bis(4-pyridylmethyl)bicyclo(2,2,2,)oct-7-ene-2,3,5,6-tetracarboxylic diamide afforded three non-entangled CPs and one entangled CP, respectively [23]. We thus proposed that Co(II) CPs containing flexible bis-pyridyl-bis-amide (bpba) and angular dicarboxylate ligands are more likely to form entangled networks than those with rigid ones [23].
To further investigate the role of rigid spacer ligands in determining the structural diversity of CPs supported by polycarboxylate ligands, N,N′-bis(3-pyridylmethyl)-pyromellitic diimide (L1) [24,25,26,27,28,29,30], Figure 1a, and N,N’-bis(3-pyridyl)bicyclo(2,2,2,)oct-7-ene-2,3,5,6-tetracarboxylic diimide (L2) [31,32], Figure 1b, were prepared to react with polycarboxylic acids and divalent salts to study the structural diversity of the CPs thus prepared. Herein, the synthesis and structures of {[Co(1,3,5-HBTC)(H2O)2(L1)]·H2O}n, 1, {[Co(1,3,5-HBTC)(H2O)3(L1)0.5]·H2O}n, 2, {[Co(SDA)(L1)0.5]·H2O}n, 3, {[Co(1,3,5-HBTC)(H2O(L2))]·H2O}n, 4, {[Ni(1,3,5-HBTC)(H2O)(L2)]·H2O}n, 5, [Ni(SDA)(L2)]n, 6, and [Ni(OBA)(L2)]n, 7, form the subject of this report. The iodine adsorption of complexes 3, 5, 6, and 7 are also evaluated.

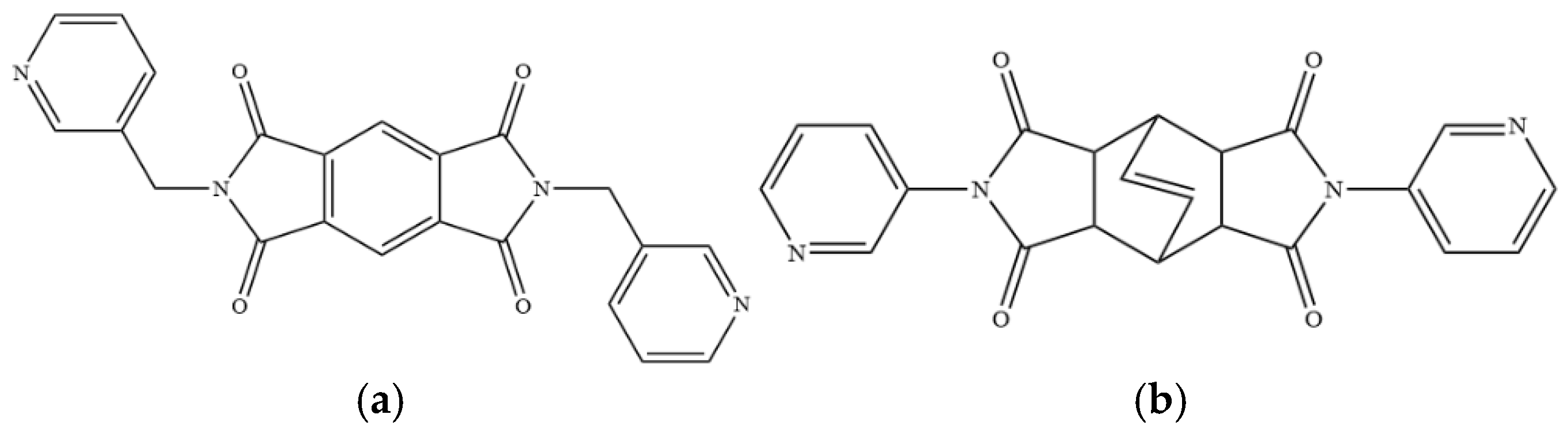

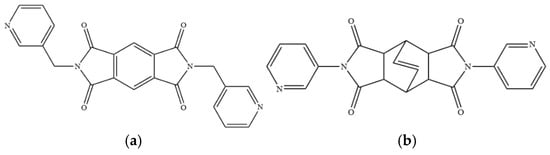

Figure 1. Structures of (a) L1, (b) L2.

2. Results and Discussion

The structures of complexes 1, 3, 4, and 5 were solved in the triclinic space group Pī, and 2 in the monoclinic P21/c, respectively, whereas 6 and 7 were solved in the monoclinic C2/c.

2.1. Structure of 1

The asymmetric unit consists of one Co(II) cation, one L1 ligand, one 1,3,5-HBTC2− ligand, two coordinated water molecules and one crystallized water molecule. Figure 2a shows the coordination environment around the Co(II) metal center, which is six-coordinated by two nitrogen atoms from two L1 ligands [Co–N = 2.165(3)–2.193(3) Å], two oxygen atoms from two 1,3,5-HBTC2− ligands [Co–O = 2.076(2)–2.095(3) Å], and two oxygen atoms from two coordination water molecules [Co–O = 2.096(3)–2.136(3) Å]. The Co(II) cations are linked by 1,3,5-HBTC2− and L1 ligands to form 1D looped chains. If the Co(II) ions are defined as 4-connected nodes and 1,3,5-HBTC2− ligands as 2-connected nodes, whereas the L1 ligands are defined as linkers, the structure can be simplified as a 2,4-connected 1D net with a {4.64.8}{4}-2,4C6 topology (Figure 2b), as determined using ToposPro [33].

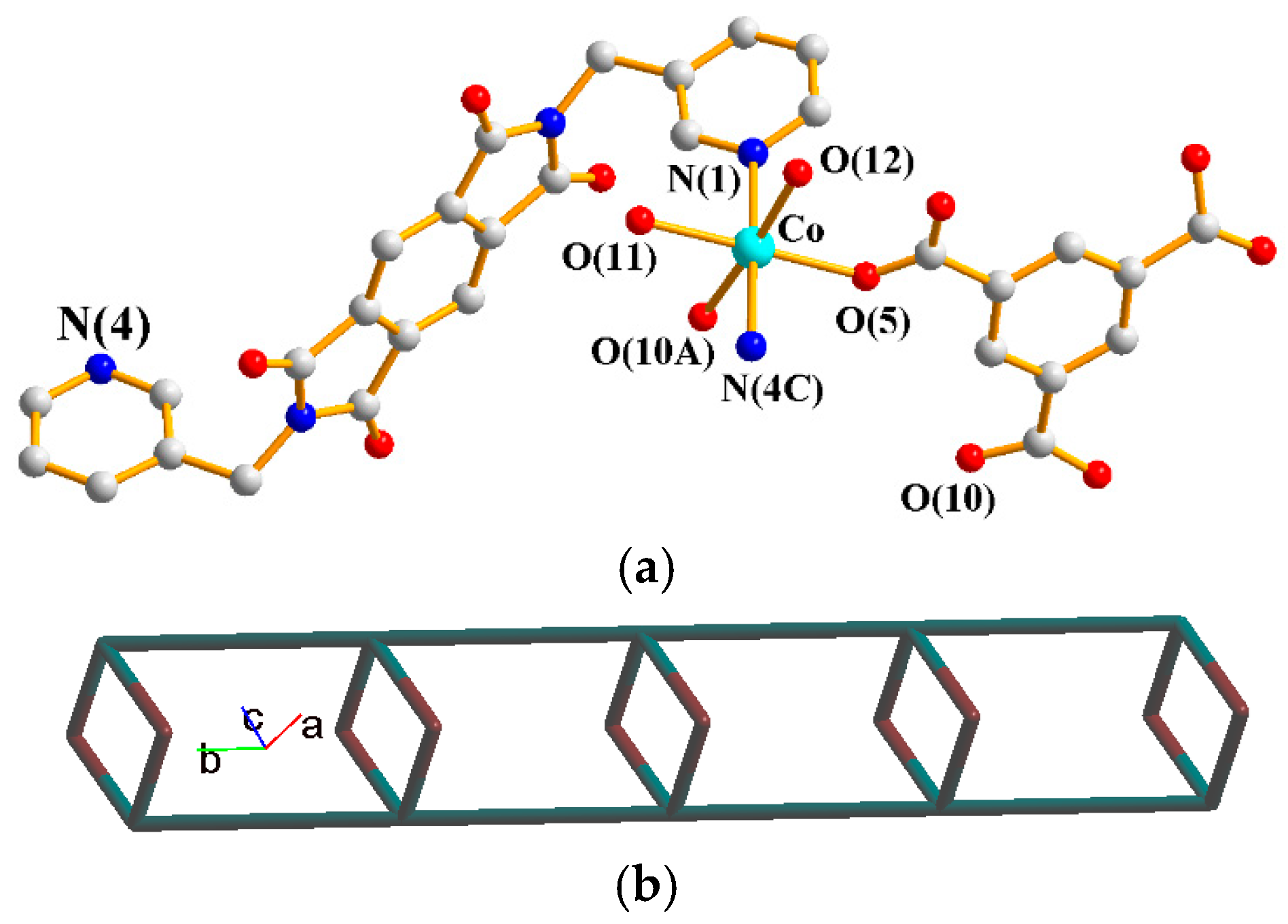

Figure 2. (a) Coordination environment around the Co(II) ion of 1. Symmetry transformations used to generate equivalent atoms: (A) −x + 1, −y + 1, −z + 1; (B) x, y − 1, z; (C) x, y + 1, z. (b) A drawing showing the 2,4C6 topology.

2.2. Structure of 2

The asymmetric unit consists of one Co(II) cation, half of an L1 ligand, one 1,3,5-HBTC2− ligand, three coordinated water molecules, and one crystallized water molecule. Figure 3a shows the coordination environment around the Co(II) metal center, which is six-coordinated by one nitrogen atom from the L1 ligand [Co–N = 2.1231(18) Å], two oxygen atoms from two 1,3,5-HBTC2− ligands [Co–O = 2.0407(14)–2.0945(14) Å] and three oxygen atoms from three coordination water molecules [Co-O = 2.0945(15)–2.1803(16) Å]. The Co(II) cations are linked by 1,3,5-HBTC2− and L1 ligands to form 1D looped chains. If the Co(II) units are defined as 3-connected nodes and 1,3,5-HBTC2− ligands as 2-connected nodes, whereas the L1 ligands are defined as linkers, the structure of 2 can be simplified as a 2,3-connected 1D net with a {4}-2,3C2 topology, as shown in Figure 3b.

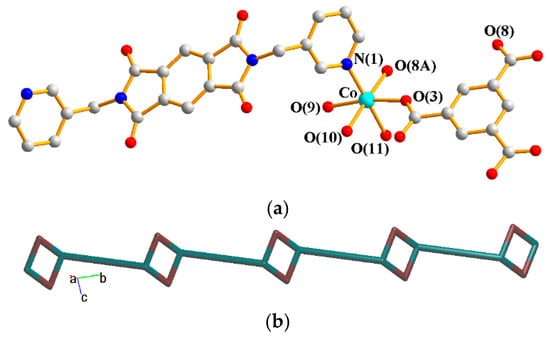

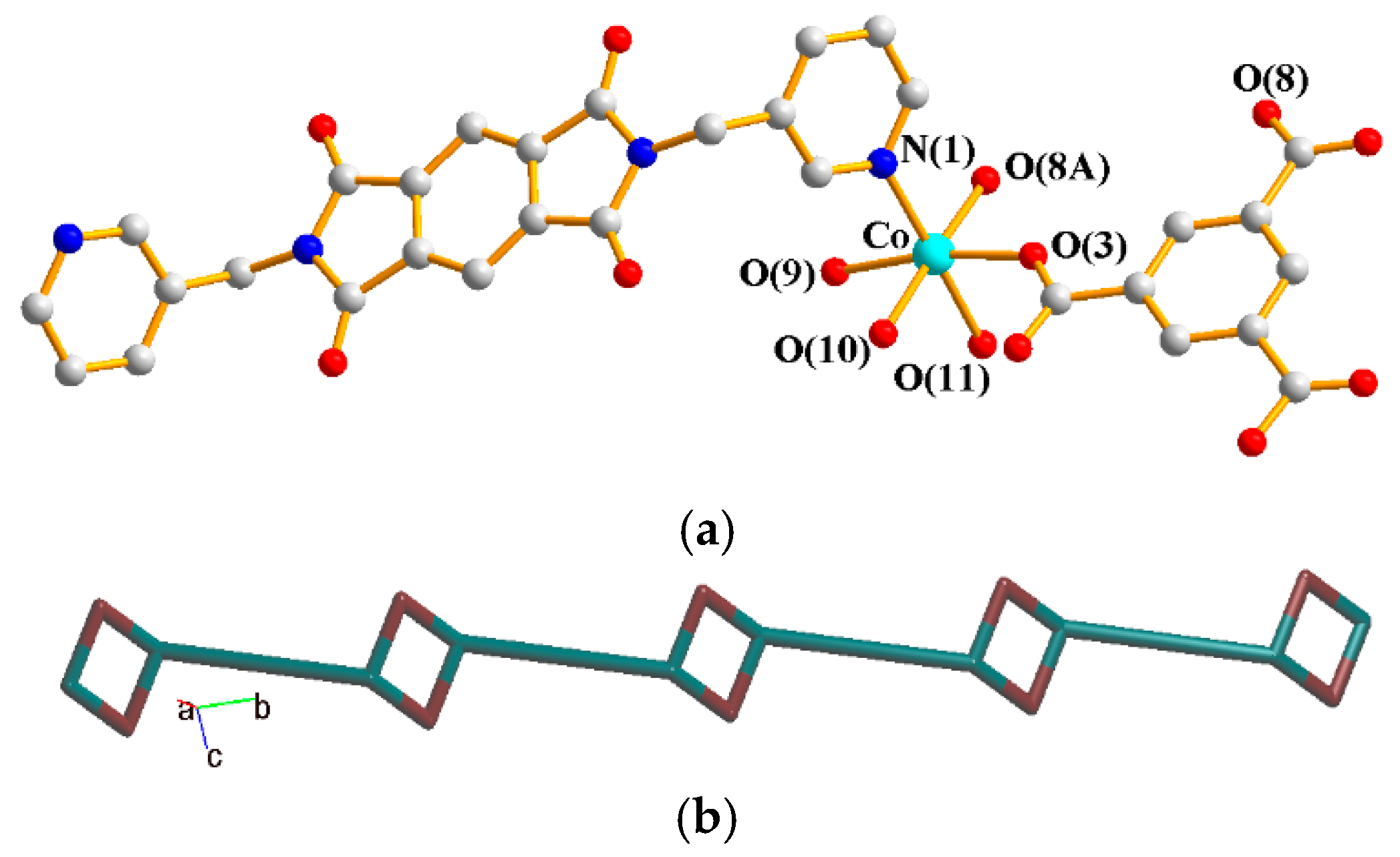

Figure 3. (a) Coordination environment around the Co(II) ion of 2. Symmetry transformations used to generate equivalent atoms: (A) −x + 1, −y + 1, −z + 2; (B) −x, −y + 2, −z + 2. (b) A drawing showing the 2,3C2 topology.
It is interesting to note that the subtle difference in the structures between complexes 1 and 2, 1D looped chains with {4.64.8}{4}-2,4C6 and {4}-2,3C2 topologies, respectively, can be ascribed to the different molar ratios of the reagents, Co(OAc)2⋅4H2O:L1:1,3,5-H3BTC, for preparations of 1 and 2 that are 1:1:1 and 3:1:2, respectively.

2.3. Structure of 3

The asymmetric unit consists of one Co(II) cation, half of an L1 ligand, one SDA2− ligand, and one crystallized water molecule. Figure 4a shows the coordination environment around the Co(II) metal center, which is six-coordinated by one nitrogen atom from two L2 ligands [Co–N = 2.055(2) Å] and five oxygen atoms from two SDA2− ligands [Co–O =2.0168(18)–2.3641(19) Å]. The Co(II) cations are linked by SDA2− to form 2D layers. If the Co(II) ions are defined as 5-connected nodes and SDA2− as 4-connected nodes, whereas the L2 ligands are defined as linkers, the structure of 3 can be simplified as a 4,5-connected 2D net with a {46⋅64}{46}-4,5L51 topology, Figure 4b.

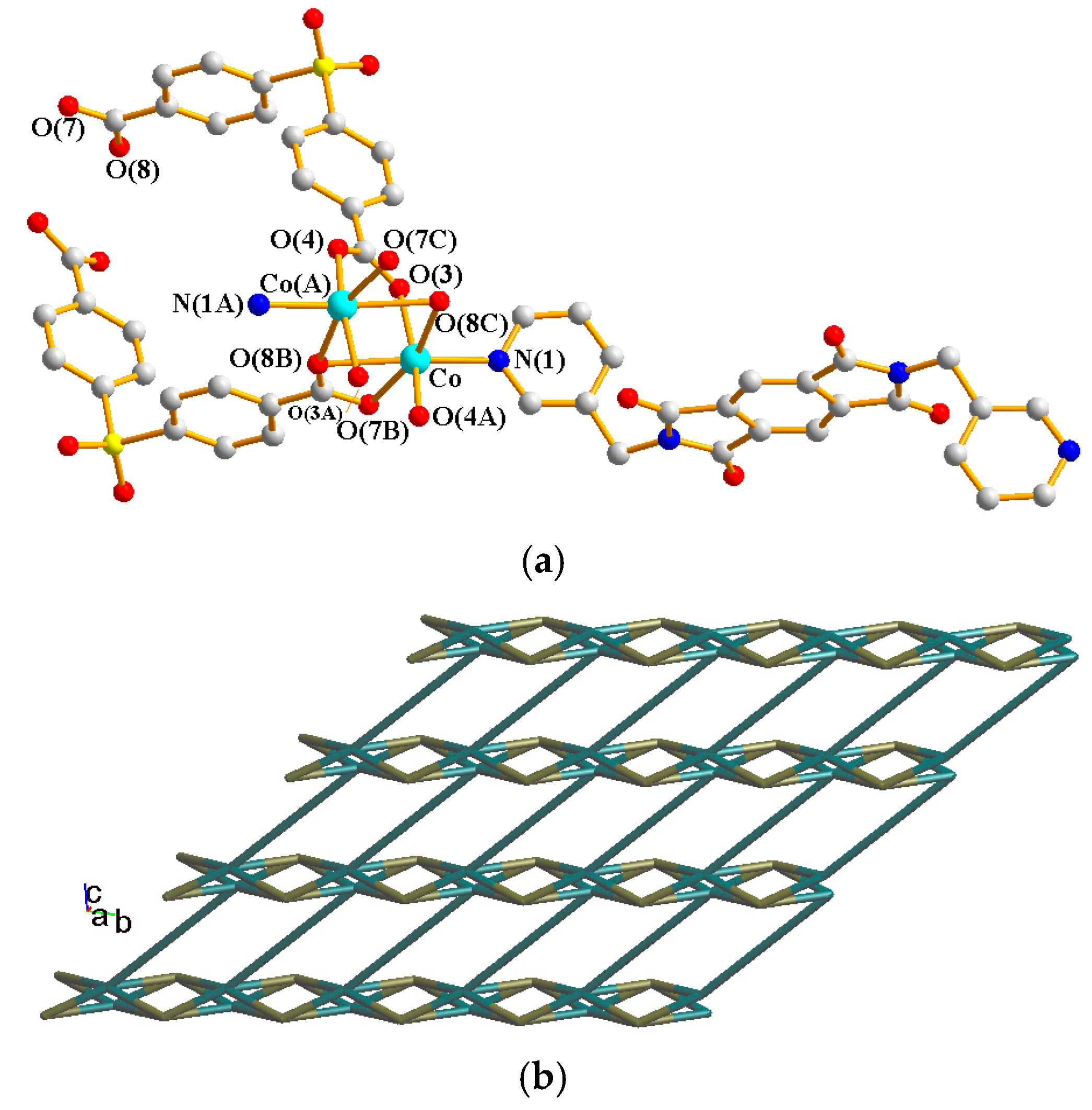

Figure 4. (a) Coordination environment around the Co(II) ions of 3. Symmetry transformations used to generate equivalent atoms: (A) −x + 1, −y − 2, −z + 1; (B) −x + 2, −y − 1, −z + 1; (C) x − 1, y − 1, z. (b) A drawing showing the 4,5L51 topology.

2.4. Structure of 4

The asymmetric unit consists of one Co(II) cation, one L2 ligand, one 1,3,5-HBTC2− ligand, one coordinated water molecule, and one crystallized water molecule. Figure 5a shows the coordination environment around the Co(II) metal center, which is six-coordinated by two nitrogen atoms from two L2 ligands [Co–N = 2.147(4)–2.156(4) Å], three oxygen atoms from two 1,3,5-HBTC2− ligands [Co–O = 2.043(3)–2.209(3) Å], and one oxygen atom from one coordination water molecule [Co–O = 2.065(3) Å]. The Co(II) cations are linked by 1,3,5-HBTC2− and L2 ligands to form 1D chains. If the Co(II) units are defined as 4-connected nodes and L2 as 2-connected nodes, whereas the 1,3,5-HBTC2− ligand is defined as a linker, the structure of 4 can be simplified as a 2,4-connected 1D net with a {4.64.8}{4}-2,4C6 topology, as shown in Figure 5b. It is noted that although complexes 1 and 4 adopt the same structural topology of 2,4C6, the 2-connected nodes are 1,3,5-HBTC2− ligands and L2 ligands, respectively.

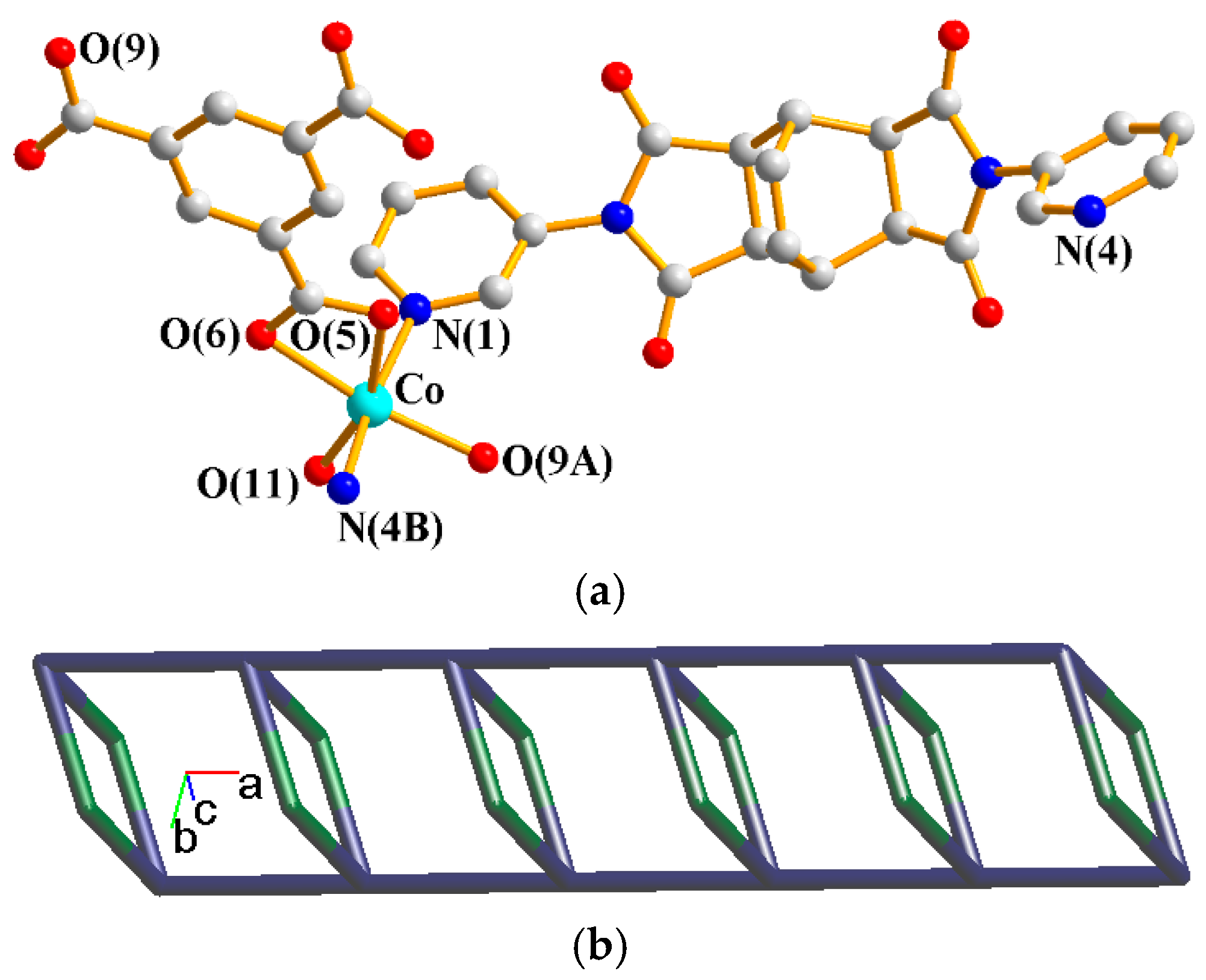

Figure 5. (a) Coordination environment about the Co(II) ions of 4. Symmetry transformations used to generate equivalent atoms: (A) x + 1, y, z; (B) −x + 2, −y + 2, −z + 2; (C) x − 1, y, z. (b) A drawing showing the 2,4C6 topology.

2.5. Structure of 5

The asymmetric unit consists of one Ni(II) cation, one L2 ligand, one 1,3,5-HBTC2− ligand, one coordinated water molecule, and one crystallized water molecule. Figure 6a shows the coordination environment around the Ni(II) metal center, which is six-coordinated by two nitrogen atoms from two L2 ligands [Ni–N = 2.099(3)–2.114(3) Å], three oxygen atoms from two 1,3,5-HBTC2− ligands [Ni–O = 2.031(2)–2.169(2) Å], and one oxygen atom from the coordination water molecule [Ni–O = 2.075(2) Å]. The Co(II) cations are linked by 1,3,5-HBTC2− and L1 ligands to form 1D chains. If the Co(II) units are defined as 4-connected nodes and L2 as 2-connected nodes, whereas the 1,3,5-HBTC2− ligands are defined as the linkers, the structure can be simplified as a 2,4-connected net with a {4.64.8}{4}-2,4C6 topology, as shown in Figure 6b.

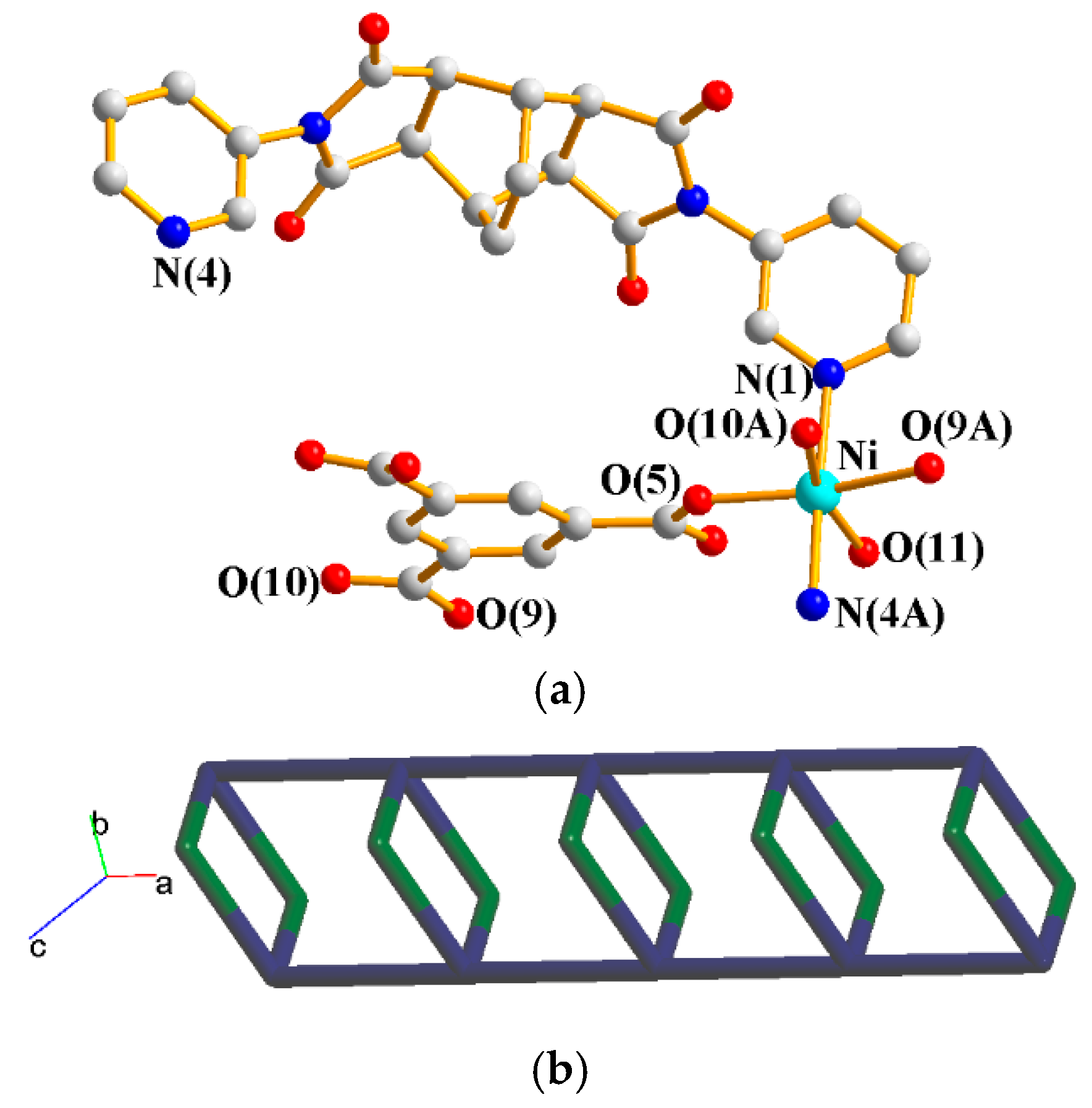

Figure 6. (a) Coordination environment about the Ni(II) ions of 5. Symmetry transformations used to generate equivalent atoms: (A) −x + 1, −y + 1, −z + 1; (B) x − 1, y, z; (C) x + 1, y, z. (b) A drawing showing the 2,4C6 topology.

2.6. Structures of 6 and 7

Their asymmetric units consist of a half of a Ni(II) cation, a half of an L2 ligand, and a half of an SDA2− or an OBA2− ligand. Figure 7a shows the coordination environment around the Ni(II) metal center of complex 6, which is six-coordinated by two nitrogen atoms from two L2 ligands [Ni–N = 2.099(2) Å] and four oxygen atoms from two SDA2− ligand [Ni–O = 2.0867(17)–2.1923(18) Å]. Figure 7b shows the coordination environment around the Ni(II) metal center of complex 7, which is six-coordinated by two nitrogen atoms from two L2 ligands [Ni–N = 2.0777(18) Å] and four oxygen atoms from two OBA2− ligands [Ni–O = 2.0611(14)–2.1523(15) Å]. Both of the Ni(II) centers of complexes 6 and 7 form distorted octahedral geometries, resulting in 2D layers and the same topological structure. If the Ni(II) ions are defined as 4-connected nodes and the L2 and the dicarboxylate (SDA2− and OBA2−) ligands as 2-connected nodes, the structures of 6 and 7 can be simplified as 2,4-connected 2D nets with the {84⋅122}{8}2-2,4L2 topology, as shown in Figure 7c. Figure 7d depicts a packing diagram of the 2D layers.

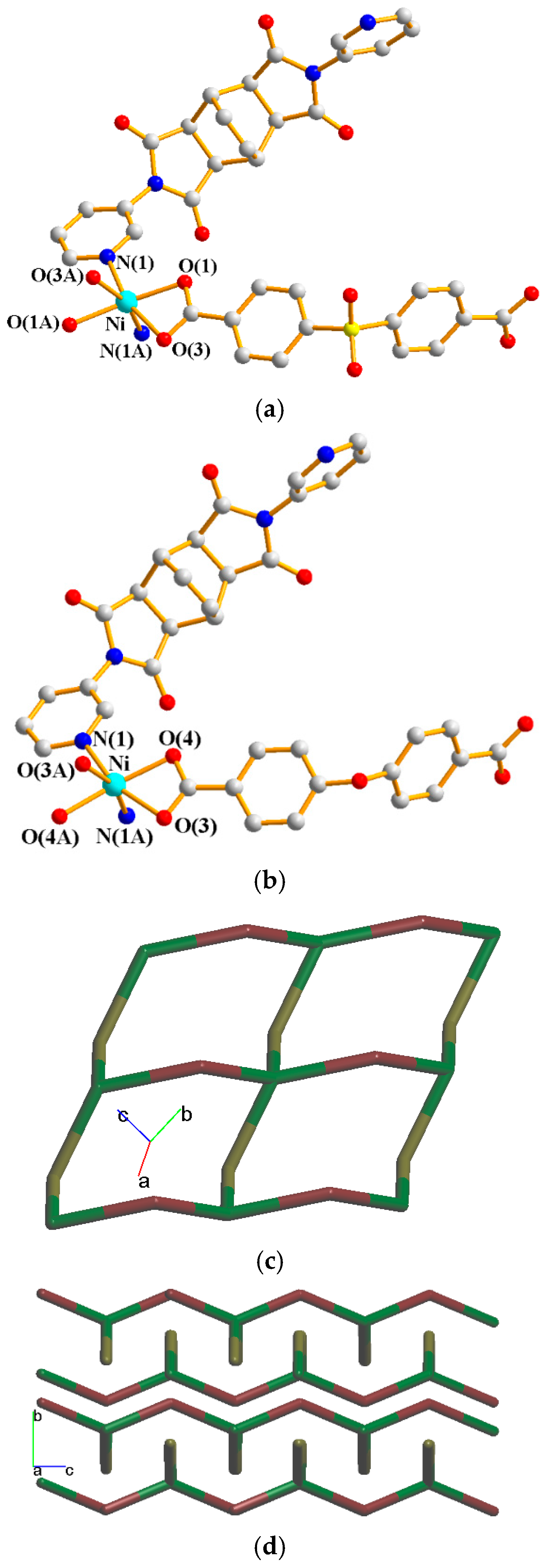

Figure 7. (a) Coordination environment around the Ni(II) ions of 6. Symmetry transformations used to generate equivalent atoms: (A) x + 1, y, −z + 1/2; (B) −x + 2, y, −z + 3/2; (C) −x + 2, y, −z + 1/2. (b) Coordination environment around the Ni(II) ions of 7. Symmetry transformations used to generate equivalent atoms: (A) −x, y, −z + 1/2; (B) −x + 1, y, −z + 3/2; (C) −x + 1, y, −z + 1/2. (c) A drawing showing the 2,4L2 topology. (d) A packing diagram of the 2D layers.

2.7. Ligand Conformations and Coordination Modes

For the L1 ligand, the orientations of the two nitrogen atoms of the two pyridyl rings can be distinguished as cis or trans. It is defined as trans when the two nitrogen atoms show opposite directions, and as cis when they are of the same. Moreover, U and Z configurations can be given if the pyridyl rings are pointing to the same and opposite directions, respectively [23,29]. On the other hand, cis and trans conformations can be applied to the L2 ligand if the two pyridyl nitrogen atoms are pointing to the same and opposite directions, respectively. Consequently, the assigned ligand conformations of L1 and L2 of complexes 1–7 are listed in Table 1. The coordination modes of the polycarboxylate ligands in Table 1 indicate that these ligands bridge two and four metal ions. For comparisons, it is noted that in the two CPs, {[Hg(3-pmpmd)I2]·H2O)}n, {[Ni2(3-pmpmd)3(NO3)4]·2CH3OH}n, two types of ligand conformations, ZT and UC, are observed for the 3-pmpmd (L1) ligands [34]. On the other hand, all the 3-pmpmd (L1) ligands in the supramolecular compounds, {[3-pmpmd]}n, {H2[3-pmpmd]·2NO3−}n and {H2[3-pmpmd]·2tbb}n (tbb = tertiary butyl benzoic acid) afforded the ZT conformation [35].
Table 1. Ligand conformations and bonding modes of complexes 1–7.

2.8. Powder X-Ray Analysis

To check the phase purity of the products, powder X-ray diffraction (PXRD) experiments were performed for all complexes. As shown in Figures S1–S7, the peak positions of the experimental and simulated PXRD patterns are in good agreement with each other, suggesting the good bulk purities of these CPs.

2.9. Thermal Properties

The thermal decompositions of the CPs were examined by using thermal gravimetric analyses (TGAs), which were executed under nitrogen gas at a pressure of 1 atm with a heating rate of 10 °C min−1. Table 2 and Figures S8–S14 show that the complexes 1–5 suffered two-step decomposition involving the loss of solvent molecules and loss of organic ligands, whereas 6 and 7 only experienced the loss of organic ligands.
Table 2. Thermal properties of complexes 1–7.

2.10. Gas Adsorption

Using the PLATON program [36], the solvent-accessible volumes of the complexes 1–7 were estimated, giving 3.7, 0, 9.1, 0, 10.5, 1.8, and 1.0% of the corresponding unit cell volumes, respectively. Since the yield of complex 1 is low and 2 and 4 show zero solvent-accessible volume, the N2 gas adsorption complexes 3, 5, 6, and 7 were thus investigated for the further iodine adsorption experiments. The N2 adsorption measurements were performed at 1.0 bar and 77 K, and the complexes were heated at 120 °C for 24 h to obtain fully activated ones before the measurements, affording BET surface areas of 9.25, 62.11, 13.3, and 10.28 m2/g, and N2 uptake capacities of 8.62, 42.76, 11.94, and 8.70 cm3/g for complexes 3, 5, 6, and 7, respectively, as shown in Figures S15–S18. The pore-size distribution curves show that the pore sizes of complexes 3, 5, 6, and 7 are 5.96, 7.57, 5.86, and 6.84 nm, respectively, as shown in Figures S19–S22. The results indicate that complex 5 has the best surface area and N2 uptake capacity. Figures S23–S26 demonstrate that the complexes remain stable after gas adsorption.

2.11. Iodine Adsorption

The iodine adsorption capabilities of complexes 3, 5, 6, and 7 were investigated at 35 and 75 °C with time intervals of 0.5, 1, 2, 3, 4, 5, 6, 12, 24, 36, and 48 h. Each experiment was repeated three times and performed by heating the apparatus involving 10 mg of each complex in a smaller sample bottle (4 mL) inside a larger one (20 mL) having 1 g of iodine. The changes in the colors of the complexes at 35 and 75 °C are shown in Figures S27–S34.
Tables S1–S8 summarize the results for I2 adsorption, while Figure 8 and Figure 9 display the average iodine vapor adsorption rates of complexes 3, 5, 6, and 7 at 35 and 75 °C, showing that the adsorption rate has a strong dependence on temperature and the best adsorption capacity is 133.77 mg g−1 at 75 °C for 24 h, as observed in 3. The results indicate that the surface area and N2 uptake capacity of the complexes investigated may not govern the iodine adsorptions. PXRD patterns were measured to evaluate the structures of the iodine-adsorbed samples, as shown in Figures S35–S42, demonstrating that the iodine-adsorbed samples probably retain the structures of complexes 3, 5, 6, and 7.

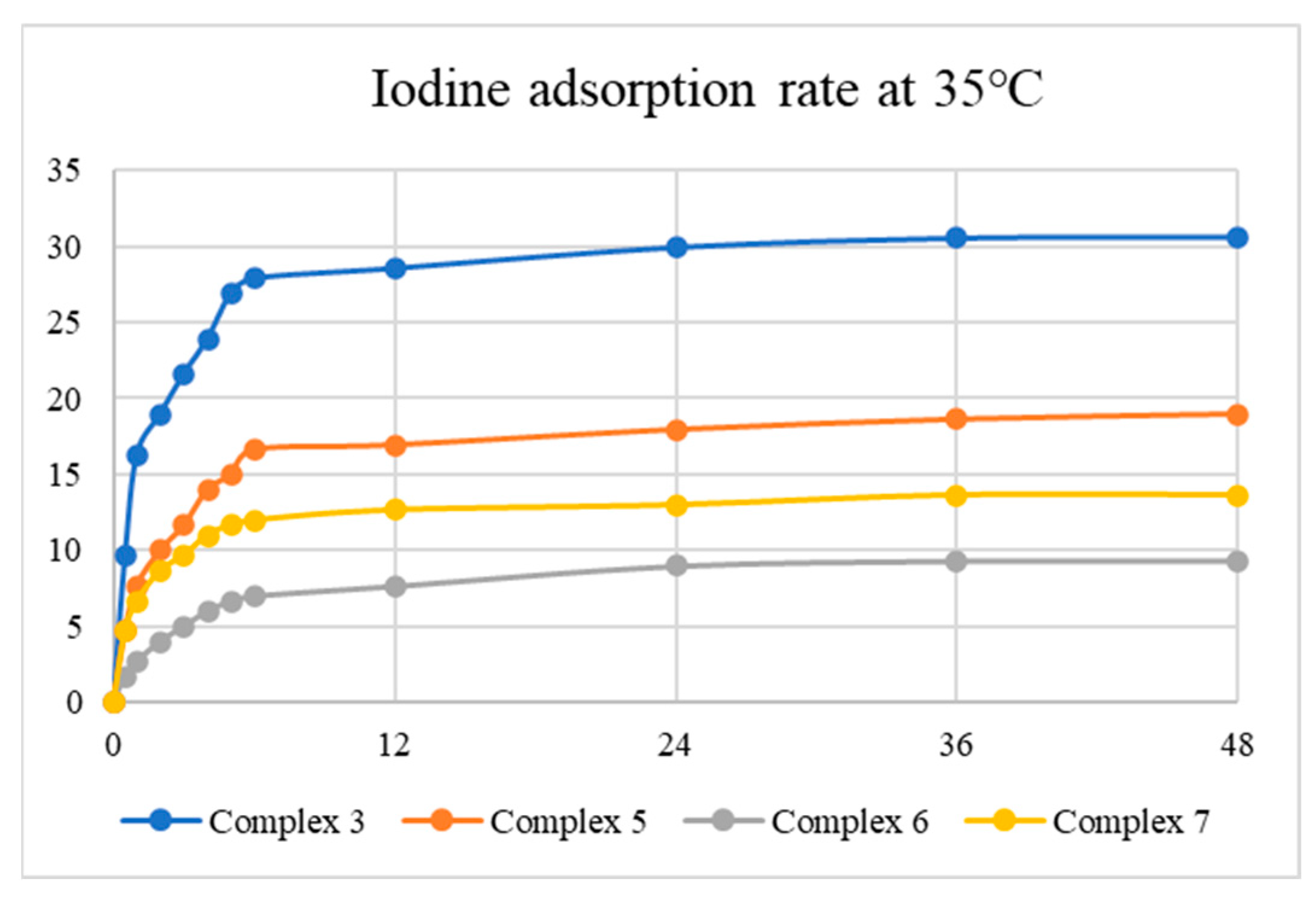

Figure 8. Iodine vapor adsorption rate of the complexes at 35 °C.

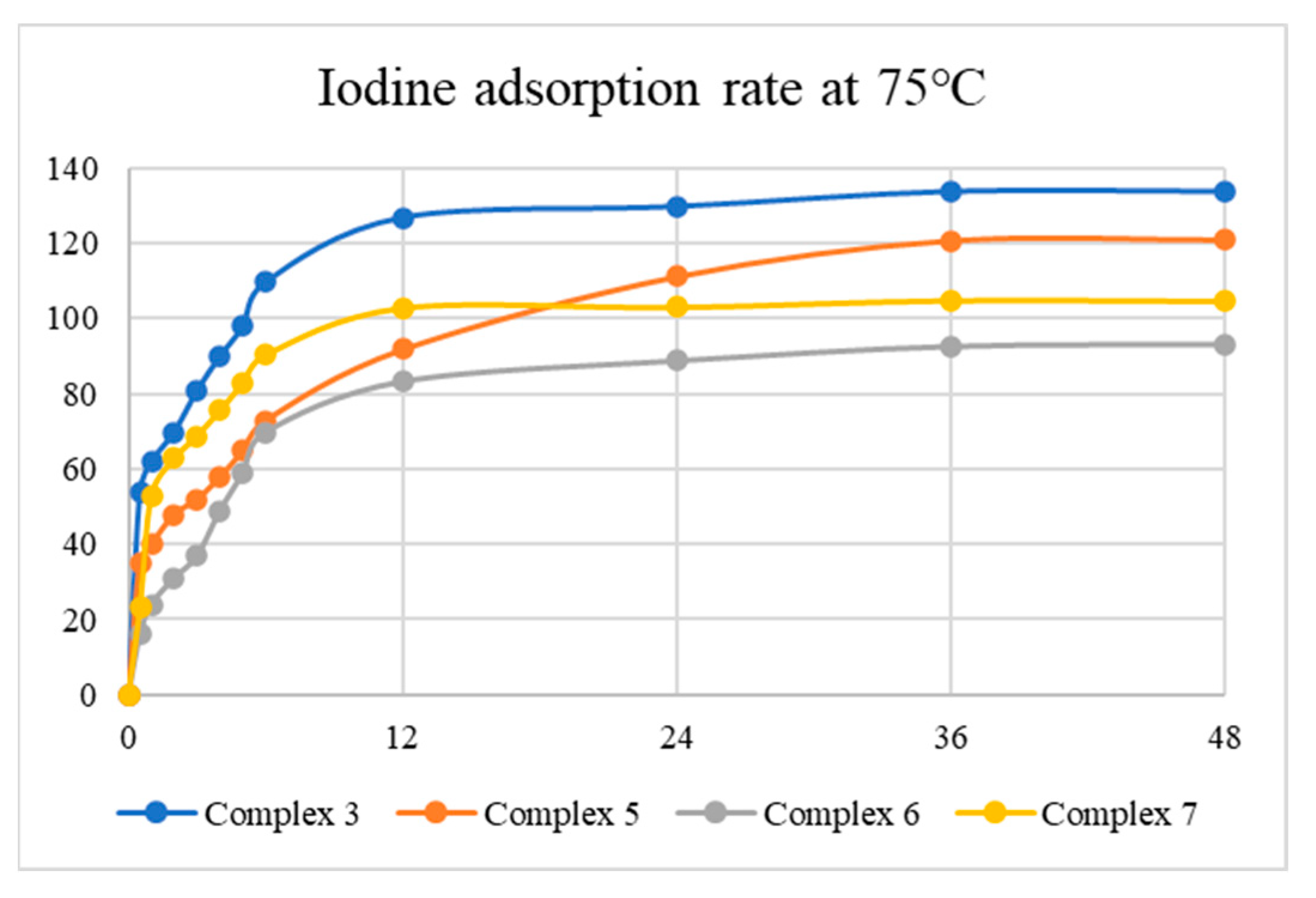

Figure 9. Iodine vapor adsorption rate of the complexes at 75 °C.

2.12. Recyclability

The recyclability and reusability of adsorbents are also very important in industrial applications. The iodine-adsorbed samples were placed in ethanol for 24 h to eradicate the iodine, and the ethanol was replaced with fresh ethanol every 8 h. Figures S43–S46 show the PXRD patterns of the CPs upon I2 removal, indicating no significant structural changes. The desorbed CPs were then heated to 120 °C for 24 h and then subjected to iodine adsorption again. After four cycles, the adsorption capabilities of complexes 3, 5, 6, and 7 were evaluated, giving 66.42, 85.25, 94.62, and 56.07% of their original ones, respectively, as shown in Figure 10. Figures S47–S50 show that these CPs remain stable after four cycles.

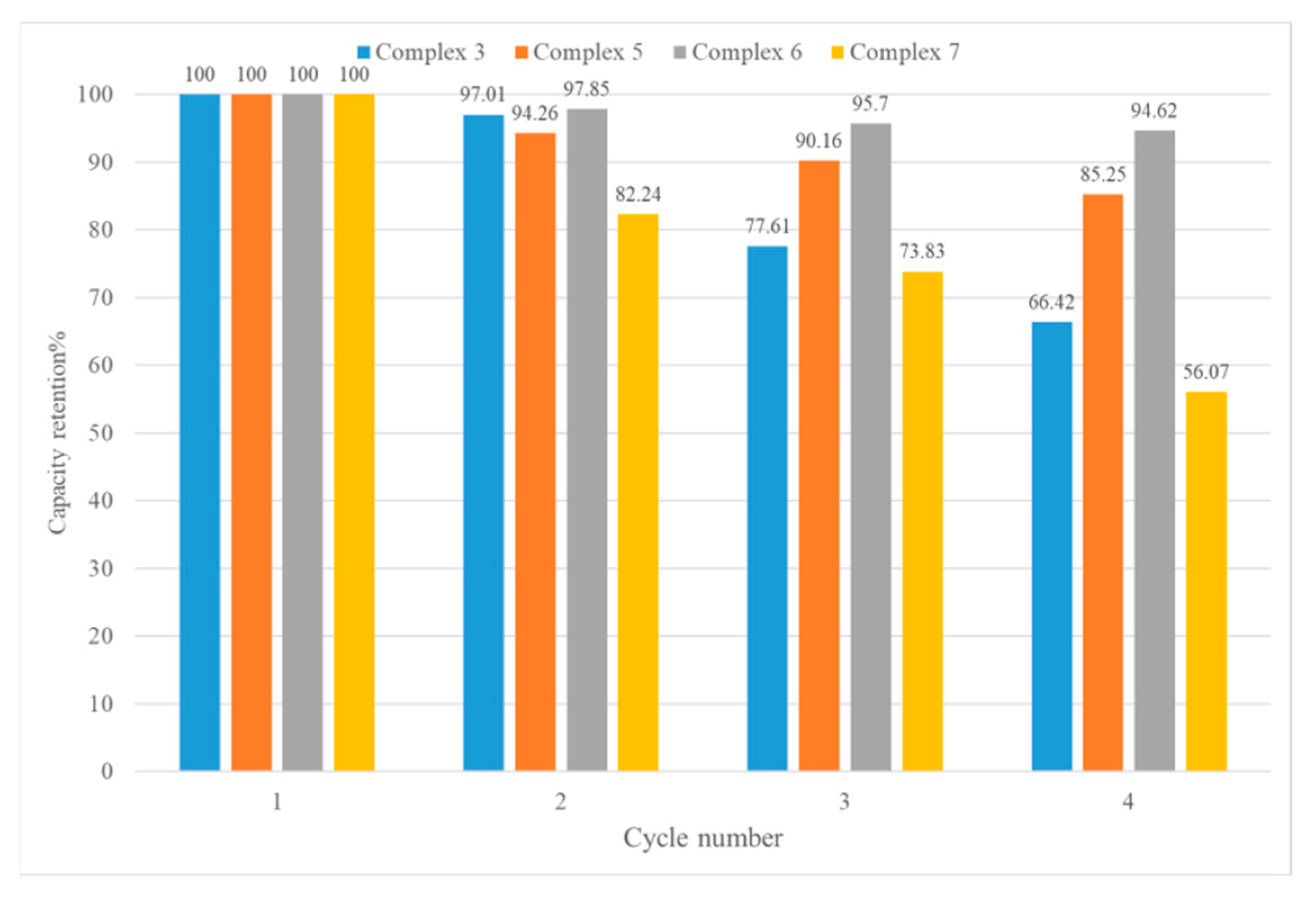

Figure 10. Capacity retention of complexes after several I2 vapor adsorption/desorption cycles.

2.13. X-Ray Photoelectron Spectroscopy (XPS)

X-ray photoelectron spectroscopy (XPS) was applied to investigate the interaction between the complex and iodine [37,38]. The XPS broad spectra, shown in Figures S51–S54, reveal peaks of I 3d3/2, I 3d5/2, and I 4d for the iodine-adsorbed 3, 5, 6, and 7, respectively, confirming the adsorption of iodine by the four CPs. The spectra given in Figures S55–S58 indicate that each of I 3d3/2 and I 3d5/2, centered at ~631 and ~619 eV, can be fitted into two peaks, assignable to I2 and I3−, respectively. Specifically, the peaks are attributed to I2 (631.1 eV; 619.9 eV) and I3– (630.1 eV; 618.7 eV) for 3, (631.0 eV; 619.4 eV) and (630.0 eV; 618.6 eV) for 5, (631.1 eV; 619.8 eV) and (630.1 eV; 618.7 eV) for 6, and (630.9 eV; 619.5 eV) and (630.0 eV; 618.5 eV) for 7, respectively.
The XPS N1s spectra of the original complexes and the iodine-adsorbed samples show obvious changes in binding energy, indicating the electron transfer from N to I atoms, as shown in Figures S59–S62. Figures S63–S66 give the XPS spectra of C1s for the four CPs before and after iodine capture, which are fitted with five peaks and the peak around 288 eV corresponds to the C=O. It is evident that these peaks exhibit significant blue shifts upon iodine adsorption, probably due to the interactions between iodine and the oxygen atoms of the C=O, causing the electrons on carbon atoms to be pulled toward oxygen atoms and leading to blue shifts in the binding energies of C1s.
Interestingly, the peak areas assignable to sp2 C-C become smaller after iodine adsorption, although the binding energies do not change significantly. Specifically, the area of complex 3 dropped from 35.20 to 20.21%, while those of complexes 5–7 dropped from 20.56 to 12.16%, 10.04 to 6.01%, and 9.73 to 2.94%, respectively, with increasing intensities of the other three peaks. This suggests that the iodine-interacted C-C sp2 peak may overlap with the other three peaks and thereby increase their peak areas. The most significant change (about 15%) in the C-C sp2 peak area is observed in complex 3, which may be attributed to the interaction of the pi electrons of the L1 ligand with iodine. Moreover, the better adsorption rate of complex 3 may indicate that the π conjugation system of the L1 ligand forms stronger donor–acceptor interactions with the iodine molecules than the L2 ligands of complexes 5–7 with a single double bond in the center of the spacer. The XPS results thus suggest that the adsorption mechanism likely involves the transfer of π electrons from L1 and L2 to I2, forming polyiodides.

3. Experimental Section

3.1. General Procedures

Elemental analyses of (C, H, N) were performed on a PE 2400 series II CHNS/O (PerkinElmer Instruments, Shelton, CT, USA) or an Elementar Vario EL-III analyzer (Elementar Analysensysteme GmbH, Hanau, Germany). Infrared spectra were obtained from a JASCO FT/IR-460 plus spectrometer with pressed KBr pellets (JASCO, Easton, MD, USA). Gas sorption measurements were conducted using a Micromeritics ASAP 2020 system (Micromeritics Instruments Co., Norcross, GA, USA). Powder X-ray diffraction patterns were carried out with a Bruker D8-Focus Bragg–Brentano X-ray powder diffractometer equipped with a CuKα (λα = 1.54178 Å) sealed tube (Bruker Corporation, Karlsruhe, Germany). X-ray photoelectron spectroscopy (XPS) was on performed on a PHI Quantes spectrometer (Ulvac-Phi Inc., Kanagawa, Japan).

3.2. Materials

The reagents Ni(OAc)2·4H2O and 1,3,5-H3BTC were purchased from Alfa Aesar Co. (Ward Hill, MA, USA), Co(OAc)2·4H2O from J. T. Baker Co. (Phillipsburg, NJ, USA), H2SDA and H2OBA from Aldrich Chemical Co. (St. Louis, MO, USA). The ligand N,N′-bis(3-pyridylmethyl)-pyromellitic diimide (L1) [24] and N,N′-bis(3-pyridyl)bicyclo(2,2,2,)oct-7-ene-2,3,5,6-tetracarboxylic diamide(L2) [25,26] were prepared according to published procedures. Complexes 2–7 were prepared by following similar procedures for 1.

3.3. Preparations

3.3.1. {[Co(L1)(1,3,5-HBTC)(H2O)2]⋅H2O}n, 1

A mixture of Co(OAc)2⋅4H2O (0.025 g, 0.10 mmol), L1 (0.030 g, 0.10 mmol), and 1,3,5-H3BTC (0.021 g, 0.10 mmol) in 10 mL H2O was sealed and heated in an autoclave to 100 °C for two days, which was then cooled to room temperature at a rate of 2 °C per hour. Suitable pink crystals were prepared. Yield: 0.0080 g (11%). Anal. Calcd for C31H24CoN4O13 (MW = 719.47): C, 51.75; H, 3.36; N,7.78%. Found: C, 48.40; H, 3.25; N, 6.77%. IR (cm−1): 3439(m), 3006(m), 1776(m), 1703(s), 1608(s), 1576(m), 1433(m), 1394(s), 1303(m), 1272(m), 1095(m), 924(m), 759(m), 706(m).

3.3.2. {[Co(L1)0.5(1,3,5-HBTC)(H2O)3]·H2O}n, 2

A mixture of Co(OAc)2⋅4H2O (0.075 g, 0.30 mmol), L1 (0.030 g, 0.10 mmol) and 1,3,5-H3BTC (0.042 g, 0.20 mmol) 10 mL H2O was used. Pink crystals were obtained. Yield: 0.0134 g (8%). Anal. Calcd for C20H19CoN2O12 (MW = 538.30): C, 44.62; H, 3.55; N, 5.20%. Found: C, 44.05; H, 3.39; N, 5.51%. IR (cm−1):3342(m), 3097(m), 1769(m), 1703(s), 1604(s), 1483(w), 1434(m), 1395(s), 1094(m), 1278(w), 1171(w), 1072(w), 926(m), 784(w), 734(m).

3.3.3. {[Co(L1)0.5(SDA)]·H2O}n, 3

A mixture of Co(OAc)2⋅4H2O (0.025 g, 0.10 mmol), L1 (0.030 g, 0.10 mmol) and H2SDA (0.031 g, 0.10 mmol) 10 mL H2O was used. Suitable dark pink crystals were obtained. Yield: 0.027 g (54%). Anal Calcd for C25H17CoN2O9S (MW = 580.39): C, 53.39; H, 2.68; N, 4.98%. Found: C, 53.36; H, 2.72; N, 5.37%. IR (cm−1): 3262(s), 2978(w), 2934(w), 2361(m), 1772(m), 1725(s), 1611(s), 1563(m), 1487(m), 1417(s), 1392(s), 1358(m), 1290(m), 1191(w), 1159(m), 1100(m), 1065(w), 1010(w), 963(w), 943(w), 922(w), 874(w), 851(w), 780(m), 742(s).

3.3.4. {[Co(L2)(1,3,5-HBTC)(H2O)]·H2O}n, 4

A mixture of Co(OAc)2⋅4H2O (0.075 g, 0.30 mmol), L2 (0.040 g, 0.10 mmol) and 1,3,5-H3BTC (0.042 g, 0.20 mmol) 10 mL H2O was used. Purple crystals were obtained. Yield: 0.0126 g (6%). Anal. Calcd for C62H52Co2N8O24 (MW = 1410.97): C, 52.77; H, 3.71; N, 7.94%. Found: C, 52.61; H, 3.19; N, 8.17%. IR (cm−1): 2937(s), 1709(s), 1619(s), 1539(m), 1484(m), 1437(s), 1378(s), 1270(w), 1237(w), 1183(s), 1103(w), 929(w), 780(m), 727(m), 696(m), 590(w).

3.3.5. {[Ni(L2)(1,3,5-HBTC)·H2O]·H2O}n, 5

A mixture of Ni(OAc)2⋅4H2O (0.025 g, 0.10 mmol), L2 (0.040 g, 0.10 mmol) and 1,3,5-H3BTC (0.021 g, 0.10 mmol) 10 mL H2O was used. Blue crystals were obtained. Yield: 0.043 g (56%). Anal Calcd for C31H24NiN4O12 (MW = 703.25): C, 52.94; H, 3.43; N,7.96%. Found: C, 52.14; H, 3.67; N, 7.87%. IR (cm−1): 3350(s), 3070(m), 2361(w), 1175(m), 1708(s), 1614(m), 1566(m), 1533(m), 1485(m), 1455(w), 1435(m), 1373(s), 1311(m), 1035(w), 930(w), 874(w), 778(s), 756(m), 726(m).

3.3.6. [Ni(L2)(SDA)]n, 6

A mixture of Ni(OAc)2⋅4H2O (0.025 g, 0.10 mmol), L2 (0.040 g, 0.10 mmol) and H2SDA (0.031 g, 0.10 mmol) 10 mL H2O was used. Green crystals were obtained. Yield: 0.052 g (74%). Anal Calcd for C36H24NiN4O10S (MW = 763.36): C, 56.64; H, 3.16; N,7.33%. Found: C, 56.39; H, 2.89; N, 7.69%. IR (cm−1): 3398(s), 3061(w), 2360(w), 1776(m), 1720(s), 1532(s), 1485(m), 1417(m), 1379(s), 1321(m), 1296(m), 1237(w), 1183(s), 1159(m), 1100(m), 1012(w), 881(w), 859(m), 776(m), 751(s), 695(m), 648(w), 618(m), 586(w), 538(w).

3.3.7. [Ni(L2)(OBA)]n, 7

A mixture of Ni(OAc)2⋅4H2O (0.050 g, 0.20 mmol), L2 (0.040 g, 0.10 mmol) and H2OBA (0.026 g, 0.10 mmol) 10 mL H2O was used. Green crystals were obtained. Yield: 0.021 g (14%). Anal Calcd for C36H24NiN4O9 (MW = 715.30): C, 60.44; H, 3.38; N, 7.83%. Found: C, 60.39; H, 3.20; N, 7.58%. IR (cm−1): 3390(s), 3060(w), 2360(w), 1775(m), 1720(s), 1590(s), 1528(m), 1484(m), 1438(s), 1382(s), 1351(m), 1304(w), 114(s), 1183(s), 1159(m), 1094(w), 1012(w), 876(m), 778(m), 700(m), 652(m).

3.4. X-Ray Crystallography

The crystal data of complexes 1–7 were collected by using a Bruker AXS SMART APEX II CCD diffractometer at 100 or 298 K and data reduction was achieved by using standard methods [39]. While some heavier atoms were located by direct or Patterson methods and the remaining atoms by a series of alternating difference Fourier maps and least-square refinements, the hydrogen atoms except those of the water molecules were added by using the HADD command in SHELXTL 6.1012 [40]. CCDC nos. 2410834–2410840 contain the supplementary crystallographic data for complexes 1–7 and Table 3 lists their crystal data.
Table 3. Crystal data for complexes 1–7.

4. Conclusions

Seven 1D and 2D non-entangled CPs based on the semi-rigid spacer ligands L1 and L2 have been successfully obtained, which indirectly demonstrates that the flexible nature of the bpba ligand may govern the formation of the entangled CPs. The rigidity thus hinders the spacer ligands from adjusting the steric requirements for the formation of the entangled CPs. The iodine adsorption studies of complexes 3, 5, 6, and 7 show that 3 gives a better iodine-adsorption factor of 133.77 mg g−1 at 75 °C for 24 h than the others, confirming that the π conjugated system of L1 may enhance the capacity of iodine adsorption, although the metal identity may play some role.
