Recent Progress on the Functionalization of Endohedral Metallofullerenes

by
Song Wang
1,2,*,
Xianming Zhang
1,
Xi Tan
2,
Hongzhen Li
2,
Songxin Dai
2,
Bin Yao
2,
Xingyan Liu
2,
Youzhou He
2 and
Fei Jin
3,*
1
Engineering Research Center for Waste Oil Recovery Technology and Equipment, Ministry of Education, Chongqing Technology and Business University, Chongqing 400067, China
2
Department of Materials Science and Engineering, College of Environment and Resources, Chongqing Technology and Business University, Chongqing 400067, China
3
Magnetism Key Laboratory of Zhejiang Province, China Jiliang University, Hangzhou 310018, China
*
Authors to whom correspondence should be addressed.
Inorganics 2023, 11(8), 346; https://doi.org/10.3390/inorganics11080346
Submission received: 26 June 2023 / Revised: 7 August 2023 / Accepted: 16 August 2023 / Published: 21 August 2023
(This article belongs to the Special Issue Research on Metallofullerenes)
Browse Figures
Versions Notes

Abstract

:
Functionalization of endohedral metallofullerenes (EMFs) plays an important role in exploring the reactivity of EMFs and stabilizing missing EMFs, thus conferring tunable properties and turning EMFs into applicable materials. In this review, we present exhaustive progress on the functionalization of EMFs since 2019. Classic functionalization reactions include Prato reactions, Bingel–Hirsch reactions, radical addition reactions, carbene addition reactions, and so on are summarized. And new complicated multi-component reactions and other creative reactions are presented as well. We also discuss the structural features of derivatives of EMFs and the corresponding reaction mechanisms to understand the reactivity and regioselectivity of EMFs. In the end, we make conclusions and put forward an outlook on the prospect of the functionalization of EMFs.

Graphical Abstract

1. Introduction

Endohedral metallofullerenes (EMFs) with the metallic atom(s) or cluster encapsulated inside the carbon cages exhibit unique molecular structure and physicochemical properties, conferring EMFs great potential application in biomedicine, optoelectronic, and spin devices [1,2].
Until now, hundreds of EMFs have been reported and it is found that metals from IA, IIA, IIIB, IVB, and VB groups can be entrapped in the carbon cage [1,2,3], especially Sc, Y, and lanthanides, and form various EMFs including conventional EMFs and cluster EMFs. In the past five years, Th- or U-based actinide EMFs become new family members, showing novel molecular structures [4,5,6].
Based on the entrapped metallic species, EMFs are usually divided into conventional EMFs including mono-metallofullerenes (e.g., La@C82) [7], di-metallofullerenes (e.g., La2@C80) [7], tri-metallofullerenes (e.g., Sm3@C80) [8] and cluster metallofullerenes [2]. In 1999, Sc3N@C80, the first cluster metallofullerenes, was reported and also represented trimetallic nitride template (TNT) EMFs [9]. Later on, various cluster metallofullerenes such as carbides (e.g., Sc2C2@C84 [10], TiLu2C@C80) [11], methano (e.g., Sc3CH@C80) [12], carbonitride (e.g., Sc3CN@C80) [13], oxide (e.g., Sc4O2@C80) [14], sulfide (e.g., Sc2S@C82) [15] and cyano-clusters (e.g., YCN@C82) [16] metallofullerenes have been successively reported. In particular, the embedded metallic species donates electrons (up to 6e) to the carbon cages [17,18], which significantly stabilizes EMFs and changes their electronic structures compared to that of pristine empty fullerenes.
EMFs show distinctive chemical properties compared to empty fullerenes due to the doping of embedded metallic species [1,2,3,19,20,21]. In 1995, Akasaka first reported the chemical reaction of La@C82 [22], which starts to tune the properties of EMFs. Up to now, various kinds of methods have been developed for the functionalization of EMFs including photochemical reactions [23,24], Diels−Alder reactions [25,26], Prato reactions [27,28], Bingel–Hirsch reactions [29,30], radical addition reactions [31,32] and so on [1,2,3]. The inherent properties of EMFs are investigated via functionalization, which is essential access to the application of EMFs. In addition, the functionalization of EMFs is beneficial to acquiring high-quality crystals of EMFs and characterizing the structures of EMFs by forming derivatives that reduce the symmetry of EMFs [33,34]. Hence, the functionalization of EMFs is a popular direction and lots of reviews on the functionalization of EMFs have been published [1,2,3,19,35].
In this review, we focus on recent progress in the functionalization of EMFs from 2019. Classic functionalization reactions of EMFs with variable endohedral specials, different cage sizes, and isomers are summarized. And new complicated multi-component reactions and other creative reactions are also presented. The structural features of derivatives of EMFs and the corresponding reaction mechanisms are mainly discussed to understand the reactivity and regioselectivity of EMFs. Finally, we make conclusions and put forward an outlook.

2. Functionalization Reactions

The functionalization of EMFs since 2019 was summarized in Table 1.

2.1. Silylation and Germylation

The first exohedral functionalization of EMFs started from the organosilicon reaction of La@C2v(9)-C82 in 1995 [22]. Later on, the digermirane reaction of the La@C2v(9)-C82 was also introduced and showed high reactivity [36]. So far, silylation and germylation reactions of mono-EMFs [37], di-EMFs [38,39], and nitride cluster-fullerenes (NCFs) [40,41] have been realized and exhaustively summarized in Kako’s and Jin’s reviews [35,42].
Very recently, a novel method for the exclusive separation of Ih and D5h isomers of Sc3N@C80 was proposed based on the different reactivity of photoreactions of Sc3N@Ih-C80 and Sc3N@D5h-C80 with disilirane, silirane, and digermirane [43]. Specifically, under the same condition, Sc3N@Ih-C80 reacted readily with them to afford the corresponding 1:1 adducts, whereas Sc3N@D5h-C80 was recovered without any adducts [43]. According to these results, the separation solution was put forward and involved three steps: selective derivatization of Sc3N@Ih-C80 with disilirane, silirane, and digermirane, facile high performance liquid chromatography (HPLC) separation of pristine Sc3N@Ih-C80 and Sc3N@D5h-C80 derivatives, and thermolysis of corresponding derivatives to recovery pristine Sc3N@Ih-C80 [43]. Furthermore, the reaction mechanism has been studied by laser flash photolysis experiments [43]. Decay of the transient absorption of 3Sc3N@Ih-C80* was observed to be enhanced in the presence of disilirane, indicating the quenching process; however, the transient absorption of 3Sc3N@D5h-C80* was much less intensive, which could not confirm the quenching of 3Sc3N@D5h-C80* by disilirane [43]. Finally, based on the time-dependent density functional theory (TD-DFT) calculations, the poor electron acceptor property of 3Sc3N@D5h-C80* might decrease the photochemical reactivity toward disilirane, silirane, and digermirane compared to 3Sc3N@Ih-C80* [43].

2.2. Prato Reaction (1,3 Dipolar Cycloaddition)

The Prato reaction via 1,3-dipolar cycloaddition of azomethine ylides with alkene is one of the most useful methods of fullerene functionalization due to its high selectivity and feasibility [1,2], which means easily connecting a wide range of addends and functional group to fullerenes. Prato reactions of mono-EMFs [44], di-EMFs [27,45], nitride EMFs [28,46], and carbide EMFs [47] have been reviewed in Dunsch’s, Yang’s, and Jin’s reviews [1,2,35]. Herein, recent progress is summarized and some results are inspiring.
The pyrazole and the ring-fused pyrrole reaction of di-EMF Y2@C3v(8)-C82 affords highly regioselective and quantitative mono-adduct [48]. Only one [6,6]-adduct out of the twenty-five different types of nonequivalent C-C bonds of Y2@C3v(8)-C82 was got and its molecular structure was identified by the single crystal X-ray diffraction [48]. Theoretical results suggested that both the anisotropic distribution of p-electron density on the C3v(8)-C82 cage and the local strain of the cage carbon atoms lead to the formation of the highly regioselective and quantitative mono-adduct [48]. Additionally, electrochemical studies revealed that the reversibility of the reductive processes of Y2@C3v(8)-C82 was significantly changed by exohedral functionalization, whereas the oxidative process was less influenced [48]. The reason for this phenomenon is that the reduction processes depend on the carbon cage, but the oxidation is mainly influenced by the endohedral Y2 cluster [48].

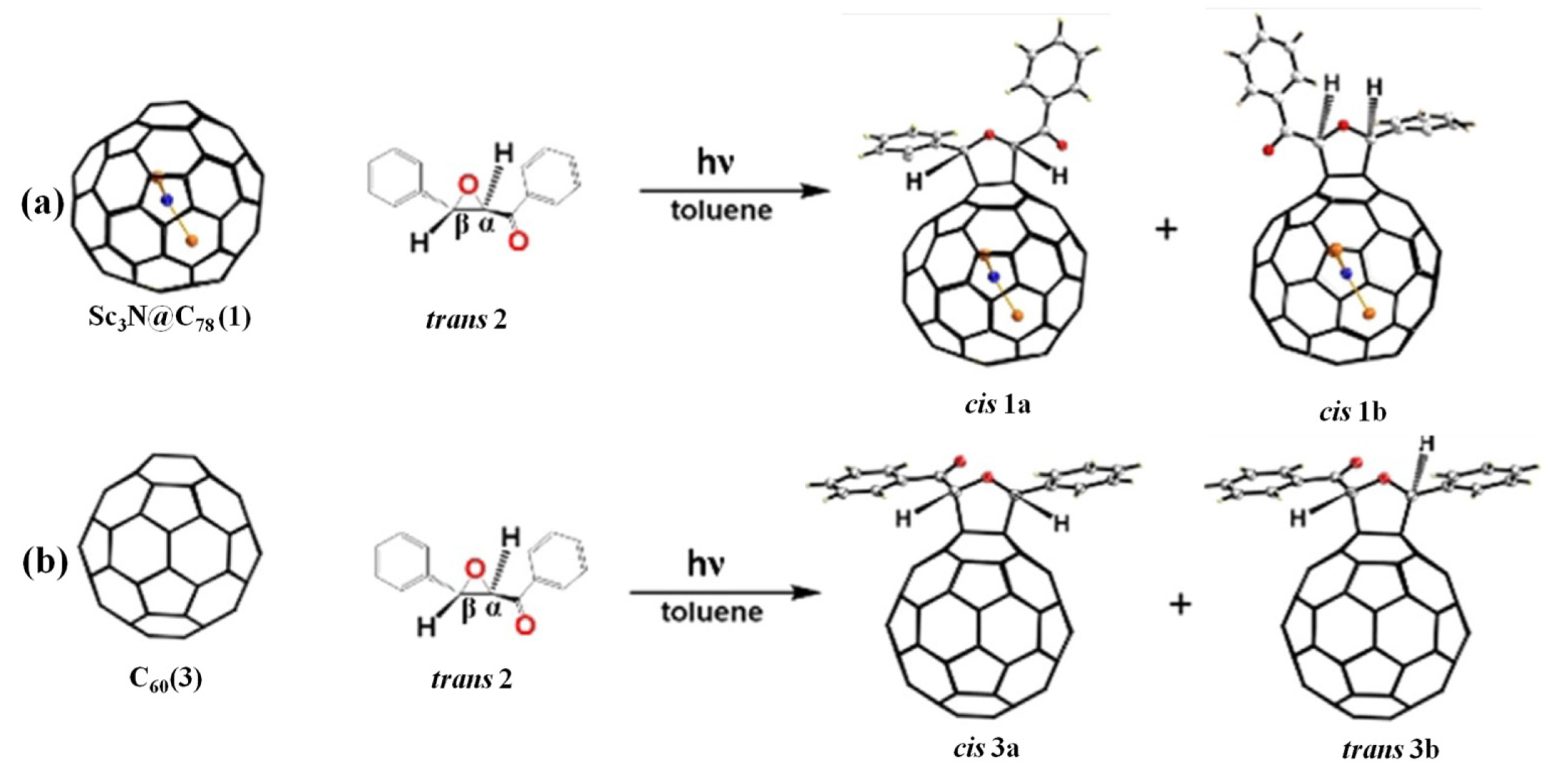

In 2022, Chen et al. [49] reported the 1,3-dipolar cycloaddition photoreaction of Sc3N@D3h-C78 with carbonyl ylide affords two isomeric mono-adducts 1a and 1b under light irradiation (see Figure 1a). The single crystal X-ray diffraction confirmed that both mono-adducts 1a and 1b have the same addition sites at a closed [6,6] bond and possess the same cis-conformation, namely, in which the hydrogen atoms of two methines situated at the same side of the tetrahydrofuran ring with parallel orientation [49]. However, two isomeric mono-adducts 3a and 3b were got when Sc3N@D3h-C78 was replaced by C60 in a similar reaction under the same condition [49]. Surprisingly, the crystal structure of 3b shows that the addition pattern is located at the closed [6,6]-bond and exhibits a trans-conformation, in which the hydrogen atoms of the two methines within the tetrahydrofuran ring located at the opposite sides (see Figure 1b) [49]. In contrast, 3a has the cis-conformation based on the 1H NMR spectrum which has been previously reported by Wang and Yang [50,51]. Furthermore, the DFT calculation results indicated that the synergistic contributions of thermodynamics of adducts, the most reactive C-C bond, and the cis-dipole intermediate from trans 2, result in the high regioselectivity of cis-conformations of 1a and 1b [49].
Though the mono-adducts of Prato reaction of M3N@C80 (M = M = Sc, Y, Gd, Dy, Ho, Er, Lu) have been widely reported [1,2], the corresponding bis-adducts are rare. Aroua et al. [52] synthesized the bis-adducts of the Prato reaction of Gd3N@Ih-C80 and Y3N@Ih-C80 in 2015. Later on, Cerón et al. [53] obtained 1,3-dipolar bis-additions of Sc3N@Ih-C80 and Lu3N@Ih-C80 using the tether-controlled multi-functionalization method, but the unambiguous crystal structure characterization of these reported Prato bis-adducts are missing. Fortunately, Semivrazhskaya et al. [54] reported one precise crystal structure of two bis-ethylpyrrolidinoadducts of Gd3N@Ih-C80 (4) obtained by regioselective 1,3-dipolar cycloadditions; see Figure 2a. The crystal structure of the minor-bis-adduct (7) shows a C2-symmetric carbon cage with [6,6][6,6]-addition sites, as shown in Figure 2b and a strictly planar Gd3N cluster, which is much less strained compared to a pyramidalized cluster of the pristine Gd3N@Ih-C80. Indeed, two interior Gd atoms coordinated to the C80 cage at two sp3 addition sites, releasing the strain of the endohedral Gd3N cluster in the minor-bis-adduct. However, the structure of major-bis-adduct was presumably asymmetric [6,6][6,6]-addition sites, because its visible - near infrared (vis-NIR) spectra are almost identical to that of the major bis-adduct of Y3N@C80 with an asymmetric [6,6][6,6]-structure. Moreover, it is experimentally observed that the symmetrical minor-bis-adduct of Gd3N@Ih-C80 isomerized to the asymmetrical major-adduct and based on the linear transit calculations, a pathway of the isomerization is through the formation of the [6,6][6,6]-bis-adduct, followed by [5,6][6,6]-bis-adduct [54].
It is hard to get the Prato multi-additions of EMFs because of their huge isomers theoretically. Unexpectedly, four tris- and one tetra-isomers for both Y3N@Ih-C80 and Gd3N@Ih-C80 were obtained in a regioselective manner when M3N@Ih-C80(M = Y, Gd) reacted with an excess of N-ethylglycine and formaldehyde [55]. Three of four tris-adducts of Y3N@Ih-C80 are [6,6][6,6][6,6] isomers and the remaining one is [6,6][6,6][5,6]-isomer confirmed by the NMR whereas the tetra-adduct is all [6,6] isomer which is similar to that of Gd3N@Ih-C80 [55]. And, mutual interconversions among all [6,6] tris-adducts of both Y3N@Ih-C80 and Gd3N@Ih-C80 are observed at room temperature. Density functional theory (DFT) calculations show that the most stable structures corresponded to adding at the most strained bonds by estimating the relative stabilities of tris- and tetra-adducts formed upon Prato functionalization of the most pyramidalized regions of the fullerene structure [55]. Electron resonance (ESR) measurements of pristine, bis-, and tris-adducts of Gd3N@Ih-C80 show that the rotation of the endohedral cluster slowed down as the addition numbers to C80 cage increased, which indicates the accommodating of Gd atoms of the relatively large Gd3N cluster inner space at the sp3 addition sites [55]. Therefore, the strain release of the Gd3N@Ih-C80 leads to the high regioselectivity of the Prato multi-addition reaction.

2.3. Bingel–Hirsch Reaction

Bingel–Hirsch reaction is one of the most used methods to synthesize derivations of EMFs [1,2]. The first Bingel–Hirsch reaction of Gd@C60 affords multi-adducts Gd@C60[C(COOH)2]n (n = 1–10) [56]. Surprisingly, the reaction of La@C2v(9)-C82 obtains four singly bonded adducts as well as one conventional cyclopropane adduct [29,57]. Recently, a highly regioselective Bingel–Hirsch reaction of Y@Cs(6)-C82 induced by the metal encapsulation was reported by Shen et al. [58]. Three mono-adduct out of 44 possible isomers for the Cs(6)-C82 cage have been thoroughly isolated, showing high regioselectivity [59]. The single-crystal X-ray diffraction crystallography analysis confirmed that the bromomalonate group was singly bonded to the [5,6,6]-cage carbon of Y@Cs(6)-C82 in one isomer [59]. Meanwhile, further experimental and theoretical results indicate that three mono-adduct isomers may mutually be regioisomers with bromomalonate singly bonded to different cage carbon atoms having high spin density values caused by the encapsulation of a Y3+ ion into the low symmetric Cs(6)-C82 cage [58].
Despite differences in activity, NCFs such as M3N@Ih(7)-C80 (M = Sc, Y, Gd, Lu) [59] and Gd3N@C2n (2n = 82, 84) [60], typically afford the methanofullerene adduct (via [2 + 1] cycloaddition). The Bingel–Hirsch reaction of Y3N@Ih(7)-C80 yields an unexpected [6,6]-open mono-adduct confirmed by a crystallographic study [30]. In contrast, the Bingel–Hirsch reaction of TiY2N@Ih(7)-C80, a Y3+ ion replaced by a Ti3+ ion compared to the Y3N@Ih(7)-C80, affords a singly bonded adduct, indicating that change the endohedral atom or clusters can manipulate the regioselectivity of EMFs as well as the addition pattern [61].

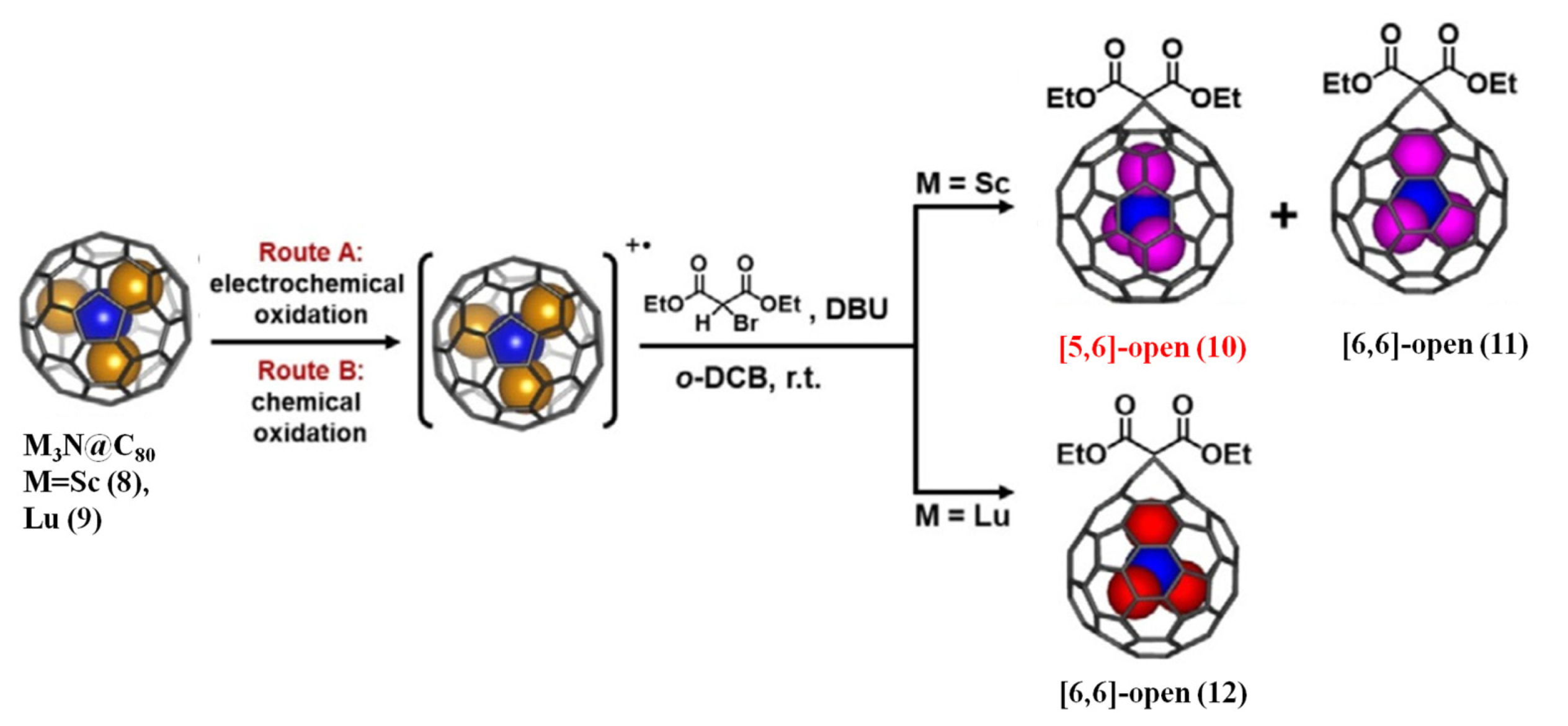

Notably, a new route to synthesize the Bingel–Hirsch derivative of EMFs via the cationic metallofullerenes was reported by Hu et al. recently, as shown in Figure 3 [62]. M3N@Ih(7)-C80 (M = Sc or Lu) cations were generated by both electrochemical and chemical oxidation and then the cations successfully underwent the typical Bingel–Hirsch reaction [62]. For Sc3N@Ih(7)-C80, both [5,6]-open (10) and [6,6]-open (11) adducts have been obtained whereas the former has never been synthesized via the neutral NCFs [62]. However, only a [6,6]-open adduct (12) was generated for Lu3N@Ih(7)-C80 [62]. DFT calculations implied that the cationic M3N@Ih(7)-C80 was much more reactive than the neutral compound for the Bingel–Hirsch reaction [62]. Furthermore, a new unusual mechanism for the Bingel–Hirsch reaction of the cationic NCFs is proposed, involving an outer-sphere single-electron transfer (SET) process [62]. Namely, the diethyl bromomalonate anion not only acts as a nucleophile, the same role in common Bingel–Hirsch reaction, but also as an electron donor, a new role to stable intermediate [M3N@C80(C2H5COO)2CBr]* [62]. Additionally, the energy profiles for the Bingel–Hirsch additions on M3N@C80+ cations for M = Sc and Lu were drawn out to explain the distinguished regioselectivity of M3N@C80+ cations, in which M = Sc (with the [6,6] and [5,6] products) and M = Lu (with only the [6,6] product) [62].

2.4. Carbene Addition

The carbene reactions are vital for the functionalization of EMFs as well as for determining the molecular structure of EMFs [3]. Up to now, photochemical carbene reactions of mono-EMFs [24], di-EMFs [63], carbide clusterfullerenes [64], and NCFs [65] have been reported and open fulleroid derivatives were usually achieved. Especially, the N-heterocyclic carbene (NHC) reaction of Sc3N@Ih-C80 afforded an abnormal carbene product with C5 as its active center singly connected to the inert [6,6,6] carbon atom of the C80 cage [66]. In contrast, normal NHC products of M3N@Ih-C80 (M = Sc, Lu) were acquired by the introduction of a little oxygen in the same reaction [67]. Recent results of NHC reaction with Lu3N@Ih(7)-C80, Lu2@C3v(8)-C82, and Lu2@C2v(9)-C82 indicated that the high regioselectivity and preferential formation for mono-adducts mainly originated from the electronic effect including molecular orbitals and electrostatic interactions of the fullerene cages in addition to the steric clash between the NHC and EMFs [68].
Recently, the carbene reaction was extended to the actinide EMFs, Th@C3v(8)-C82 and U@C2v(9)-C82, and the former afforded three mono-adducts, named Th@C3v(8)-C82Ad(I, II, III) (Ad = adamantylidene), while four mono-adducts were acquired for the latter, named U@C2v(9)-C82Ad(I, II, III, IV), presenting remarkably higher reactivity than lanthanide EMFs [69], as shown in Figure 4a. Both Th@C3v(8)-C82Ad(I) and U@C2v(9)-C82Ad(I) are [6,6]-open cage structures, which are unambiguously confirmed by single crystal X-ray crystallography [69]. Moreover, isomerization of Th@C3v(8)-C82Ad(II) and Th@C3v(8)-C82Ad(III) and U@C2v(9)-C82Ad(II) and U@C2v(9)-C82Ad(III) was observed at room temperature; however, Th@C3v(8)-C82Ad(I) and U@C2v(9)-C82Ad(I) showed high stability under the same condition [69]. DFT calculations suggested that carbon atoms with the largest negative charge density and POAV(p-orbital axis vector) values are the best sites toward the Ad addition [69]. Furthermore, compared to the lanthanide analogs, the unusually high reactivity of Th@C3v(8)-C82 and U@C2v(9)-C82 steamed from much closer metal–cage distance, increased metal-to-cage charge transfer, and strong metal–cage interactions, which is due to the significant contribution of extending Th-5f and U-5f orbitals to the occupied molecular orbitals [69].
Very recently, the first carbene reaction of Dy2TiC@Ih-C80, the μ3-carbido clusterfullerene (μ3-CCF) bearing central μ3-C and Ti(IV) atoms forming a Ti = C double bond, with 2-adamantane-2,3-[3H]-diazirine(AdN2) was reported [70], see Figure 4b. Noteworthily, the photochemical carbene reaction of Dy2TiC@Ih-C80 with AdN2 affords only one mono-adduct with a [6,6]-open addition pattern, which is unambiguously confirmed by single-crystal X-ray diffraction [70]. Meanwhile, the Ad moiety selectively attacks the [6,6]-bond which is adjacent to the Ti4+ ion instead of the two Dy3+ ions, thus the encapsulated Ti atom within Dy2TiC@Ih-C80-Ad is fully ordered while the two Dy atoms are still disordered [70]. Theoretical calculations indicate that the [6,6]-open adduct is thermodynamic and the Ti(IV) ion plays a decisive role in the high regioselectivity [70]. In contrast, a different type of adduct with the additional sites adjacent to the Y3+ ion instead of the Ti3+ ion is predicted to be got when a similar reaction of Y2TiN@Ih-C80 containing a Ti(III) ion with AdN2 is carried out [70]. Hence, the non-rare-earth metal Ti bearing a high oxidation state within the μ3-CCF determines the peculiarity of the chemical properties of the μ3-CCF [70].

2.5. Radical Addition Reaction

Radical addition reactions of EMFs can generate a wide range of derivatives and especially capture the unstable EMFs to form stable derivatives with a closed-shell electronic configuration. Radical groups such as benzyl or trifluoromethyl were reacted with EMFs including mono-EMFs [71], di-EMFs [31], NFC [72], CCF [32], and cyano-clusters [73] EMFs.

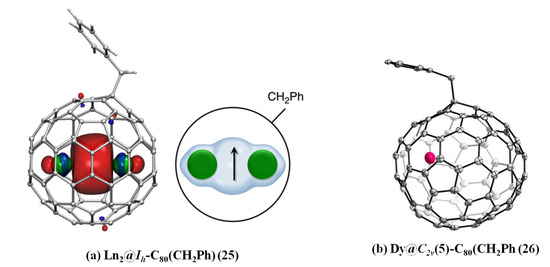

Liu et al. reported that an array of air-stable dimetallofullerene Ln2@C80(CH2Ph) (Ln2 = Y2, Gd2, Tb2, Dy2, Ho2, Er2, TbY, TbGd) (25) was acquired by reacting metallofullerene anions with benzyl-bromide in DMF (N,N-Dimethylformamide) solution [74]. Single-crystal X-ray diffraction of Ln2@C80(CH2Ph) shows that the benzyl is attached to the cage via a single bond, see Figure 5a [74]. Moreover, there is a covalent lanthanide–lanthanide bond in Ln2@C80(CH2Ph) and a single electron residing on the metal–metal bonding orbital [74]. Thanks to very strong exchange interactions between 4f moments and the residing single electron, Tb2@C80(CH2Ph) is a robust nanomagnet and shows a gigantic coercivity of 8.2 Tesla at 5 K and a high 100 s blocking temperature of magnetization of 25.2 K [74].
Recently, a long-sought dysprosium-based EMF Dy@C2v(5)-C80 was captured in the form of Dy@C2v(5)-C80(CH2Ph)(Ph =-C6H5) (26) from carbon soot with various fullerenes [75]. On the basis of the single crystal X-ray diffraction, the carbon cage is confirmed as a rare C2v(5)-C80, which is the first case of an EMF composed of a mono-metal rare earth ion encapsulated within this C80 cage, as shown in Figure 5b [75]. And, the benzyl group is grafted onto the [5,6,6]-carbon atom via a single bond, which verifies that Dy@C2v(5)-C80(CH2Ph) has an open-shell electron configuration and its electron configuration is Dy3+@C2v(5)-C803-[75]. Meanwhile, the encapsulated Dy3+ ion is sited underneath the [6,6]-bond and deviated from the symmetry plan of C2v(5)-C80 [75]. Furthermore, based on theoretical calculations, the bandgap is enlarged from 1.11 eV to 1.86 eV and the LUMO energy level is obviously elevated to about 0.87 eV due to a benzyl radical addition to Dy@C2v(5)-C80, thus synergistically stabilizing the missing Dy@C2v(5)-C80 [75].
Xu et al. reported that using 1,2,4-trichlorobenzene or iodobenzene to extract the Er-based fullerene soot, Er@C72(C6H3Cl2) and Er@C76(C6H5) were obtained by free radical addition [76]. In addition, a high-temperature trifluoromethylated reaction of Er@C2n and AgCOOCF3 afforded several adducts, Er@C76(CF3)5, Er@C82(CF3)3, and Er@C82(CF3)5(I, II, III) [76]. Unexpectedly, all derivatives of Er@C2n(2n = 72, 76, 82) exhibit detectable characteristic NIR photoluminescence at around 1520 nm, which stems from the emission of Er3+, but pristine Er@C2n(2n = 76, 82) show no photoluminescence [76]. Based on the UV-vis-NIR absorption spectrum, HOMO-LUMO gaps of the derivatives are remarkably enlarged compared to that of pristine Er@C2n [76]. And, odd-number addition groups result in a closed-shell electronic structure for the derivatives [76]. Hence, the enlarged HOMO-LUMO gap and the closed-shell electronic structure turn on the photoluminescence activity of Er3+ [76]. In addition, the photoluminescence mechanism study suggests that the photoluminescence of the Er3+ ion comes from the energy transfer from the fullerene cage to the Er3+ ion; however, the photoluminescence of pristine Er@C2n was quenched by energy transfer from the first excited state of Er3+ to the fullerene cage [76].
Li et al. reported a novel radical reaction of Y@C2v(9)-C82 with N-arylbezamidine catalyzed by silver carbonate [77]. The reaction is highly regioselective and affords only one mono-adduct with an imidazoline group. The theoretical calculation reveals the addition group is attached to a specific [5,6]-bond near the Y atom [77].

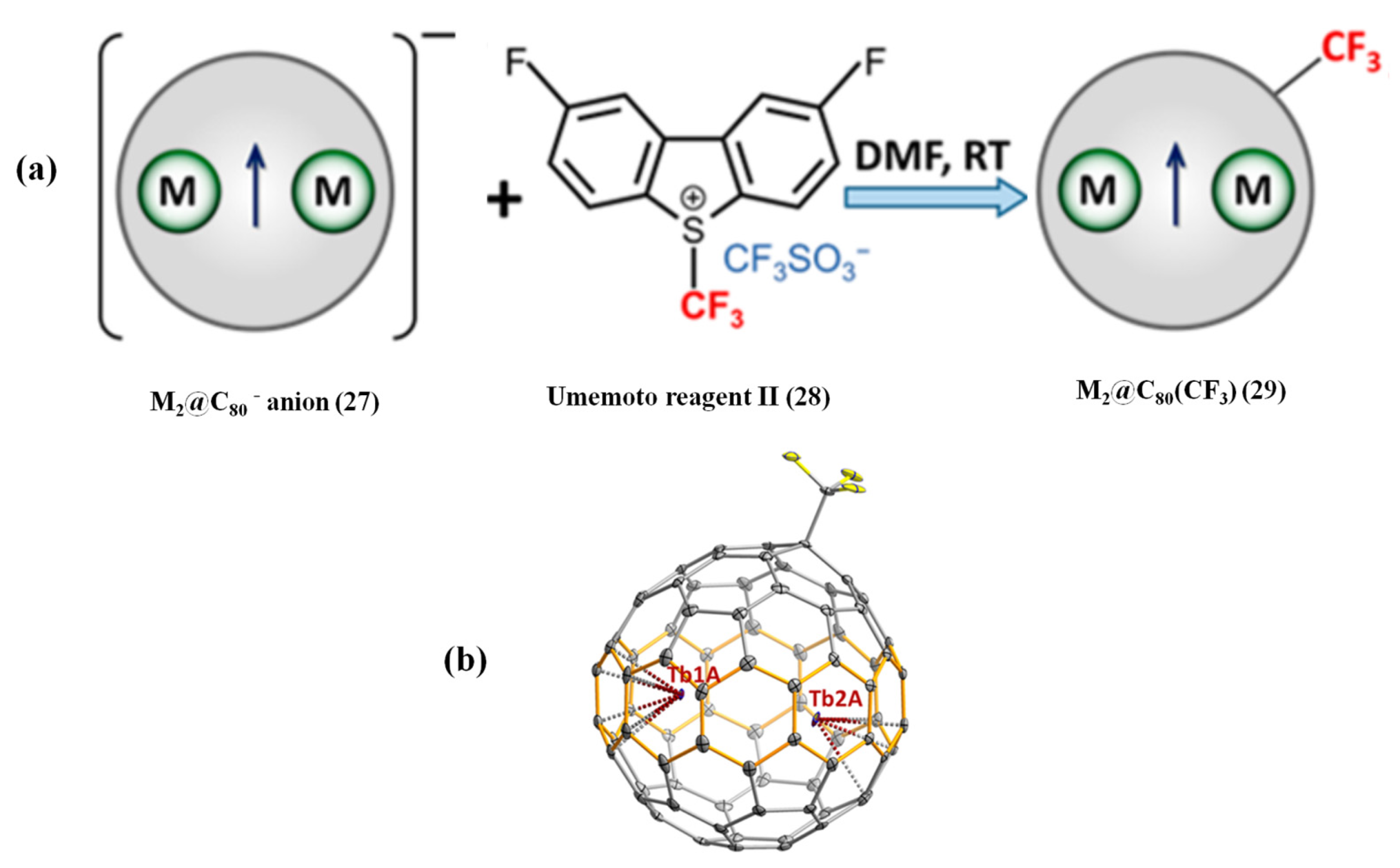

2.6. Electrophilic Trifluoromethylation

The lack of selectivity of the radical addition reactions results in multi-adducts and a complicated separation process. Unprecedentedly, the high selectivity of electrophilic trifluoromethylation of metallofullerene anions was reported very recently [78]. Specifically, reacting metallofullerene anions extracted by DMF with Umemoto reagent II affords M2@C80(CF3) (M = Tb, Y) mono-adducts as the major product, indicating higher selectivity of electrophilic trifluoromethylation than that of benzyl bromide reaction (see Figure 6a) [78]. The single-crystal X-ray diffraction analysis shows that the CF3 group is attached to the pentagon/hexagon/hexagon junction ([5,6,6] position) of the Ih-C80 cage via a single bond, as shown in Figure 6b [78]. Similarly, a single electron remains between two Tb ions, forming single-electron metal–metal bonds with the formal metal oxidation state of Tb2.5+ [78]. As expected, Tb2@C80(CF3) is also a robust single-molecule magnet based on magnetic characterizations, which is comparable to the benzyl mono-adduct Tb2@C80(CH2Ph) [78]. Therefore, electrophilic trifluoromethylation is a very excellent approach to stabilize metallofullerene anions M2@C80, which is a simple, fast room-temperature reaction with high selectivity and needs less time for required HPLC separation compared to the benzylation reaction of M2@C80 [78].

2.7. Coordination Reaction

The organometallic complexes of EMFs usually bear the η2 coordination fashion [79], and the η1-coordinated complexes of EMFs with only one metal–cage bond are very desirable. Until 2019, Xie et al. [80] reported a coordination reaction of Re2(CO)10 (31) to paramagnetic Y@C2v(9)-C82 (30) by an efficient radical coupling, and an unprecedented η1-coordinated complex: Re(CO)5-η1-Y@C2v(9)-C82 (32) was obtained, as shown in Figure 7a. Crystallographic results confirmed that the Re(CO)5 moiety coordinates to a [5,6,6]-carbon atom of the C82 cage via a single Re-C σ bond [80]. Furthermore, Vis-NIR and ESR results verified that the Re(CO)5 moiety transfers one electron to the EMF, resulting in a closed-shell electronic structure similar to anionic (Y@C82)- species with high stability [80]. In contrast, replacing with diamagnetic Sc3N@Ih(9)-C82 and Lu2@C2v(9)-C82 in the same reaction, no product is yielded, further confirming a radical coupling process [80].
Bao et al. [81] reported that reacting mono-metallofullerenes, Eu@C2(5)-C82 (33) and Eu@C2(13)-C84) (34), with a tungsten complex W(CO)4(Ph2PC2H4PPh2) (35) afford the highly regioselective product; alternatively, only one product was acquired for each reaction. Single crystal X-ray crystallography shows that in both products (36, 37), the tungsten moiety coordinates to a [6,6]-bond of the cage with an η2-fashion, as shown in Figure 7b [81]. And, after the coordination of the tungsten moiety, the motion of the internal Eu ion in both adducts is restricted to a certain extent, which is due to changing the electrostatic potentials inside the cage supported by theoretical calculations [81]. Moreover, the observed high regioselectivity is explained by electron transfer from the endohedral Eu to the cage, which significantly changed the LUMO distribution on C2(5)-C82/C2(13)-C84 based on theoretical calculations [81]. Therefore, the interplay between the endohedral and the exohedral metallic moiety is achieved in a single molecule system via intramolecular charge transfer [81].

2.8. Methoxide Reaction

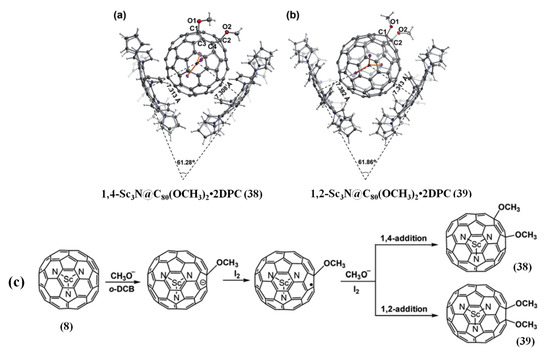

Unexpected bis-methoxyl adducts of Sc3N@Ih-C80 were got for the first time when Sc3N@Ih-C80 reacted with/without Ph2C=O, PhC≡CPh or PhC≡N in the presence of tetrabutylammonium hydroxide (TBAOH) stored in CH3OH [82]. However, it was further observed that bis-methoxyl adducts of Sc3N@Ih-C80 form irrespective of the presence of other reagents, since TBAOH in CH3OH efficiently boosts the -CH3O addition [82]. Furthermore, single crystal X-ray diffraction analysis unambiguously determines the molecular structures of the products as 1,4- and 1,2-bis-methoxyl adducts, and the conformations of the two -OCH3 groups in both bis-methoxyl adducts are obviously different bis-methoxyl, as shown in Figure 8a,b [82]. And, the planar Sc3N cluster in 1,4-bis-methoxyl adducts (38) is orthogonal with the plane crossing the addition sites, whereas the metal cluster in 1,2-bis-methoxyl adducts (39) is nearly parallel to the plane crossing the addition site, which indicates that exohedral modification is practical to control the orientation of the embedded cluster bis-methoxyl [82]. In addition, a possible mechanism related to an anion addition and a radical reaction was put forward (see Figure 8c), which opened up new horizons to the highly selective reactions between the methoxyl anion and EMFs [82]. Specifically, CH3O- generated by deprotonates CH3OH via TBAOH prevailed over OH- (from TBAOH) in the o-DCB (o-dichlorobenzene) solution and attached to Sc3N@C80 to form the mono-anion [Sc3N@C80(OCH3)]− firstly [82]. Then, the mono-anion was oxidized to [Sc3N@C80(OCH)•radical by I2, and the dimethoxyfullerene anion [Sc3N@C80(OCH3)2]− formed by accepting another CH3O− [82]. Finally, the ultimate 1,2- or 1,4-addition dimethoxyfullerene products were yielded through the oxidation of dimethoxyfullerene anion by I2 [82].

2.9. Multicomponent Reactions

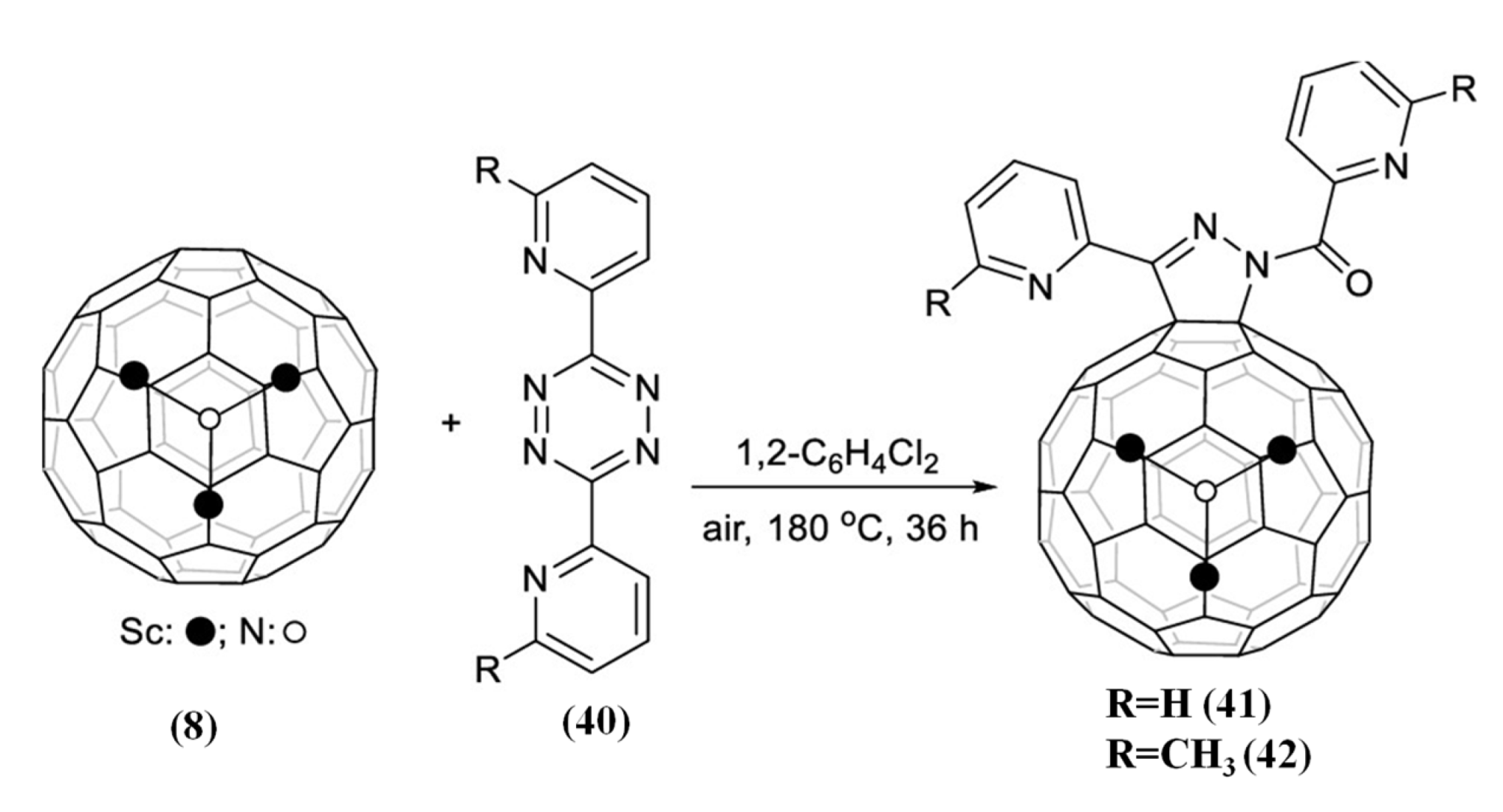

Very recently, pyrazoline-fused metallofullerene derivative (41) as shown in Figure 9 was generated from a four-component cascade reaction of Sc3N@Ih-C80 with 3,6-di(pyridin-2-yl)-1,2,4,5-tetrazines (40), H2O, and O2 [83]. The [5,6] pyrazoline-fused structure is remarkably different from the reaction of a 1,2,4,5-tetrazine with Sc3C2@Ih-C80 which provided a bis-fulleroid derivative [84]. Moreover, the reaction was extended to 3,6-bis(6-methylpyridin-2-yl)-1,2,4,5-tetrazine, and a similar [5,6] pyrazoline-fused derivative (42) was achieved [83]. Furthermore, a plausible formation mechanism of pyrazoline-fused metallofullerenes is proposed, which involved a complicated sequence of Diels–Alder reaction, retro Diels–Alder reaction with N2 extrusion, hydration reaction, rearrangement reaction, and oxidative dehydrogenation reaction [83].
Table 1. An exhaustive list of functionalizations of EMFs reported from 2019 to date.
Table 1. An exhaustive list of functionalizations of EMFs reported from 2019 to date.
ReactionEndohedral MetallofullereneReactantsProductAddition PositionNumber of IsomersRef.
Silylation and germylationSc3N@Ih-C80DisiliraneSc3N@C80Si2Mes4[1,2], [1,4]2[40,43]
SiliraneSc3N@C80Si(Dep)2CH2CHtBp[5,6]diastereomers,[6,6]3[43]
DigermiraneSc3N@C80Ge(Dep)4[1,4]1[43]
Sc3N@D5h-C80Disilirane, silirane, digermiraneNo productnon-reactive0[43]
Prato reaction
(1,3 dipolar cycloaddition)		Y2@C3v(8)-C82Diphenylnitrilimine ylideY2@C82N2(C6H5)2[6,6]1[48]
N-benzylazomethine ylideY2@C82NCH2(C6H5)[6,6]1[48]

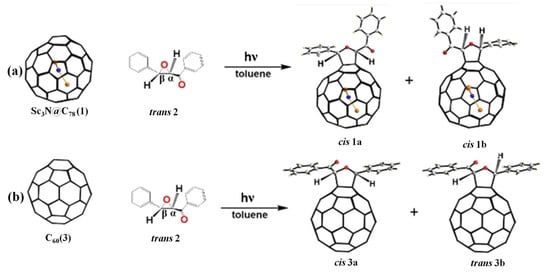

Sc3N@D3h-C78Trans-phenyl-(3-phenyl-oxiranyl)-methanoneSc3N@C78(C6H5)CHOCHCO(C6H5)cis-[6,6]2[49]

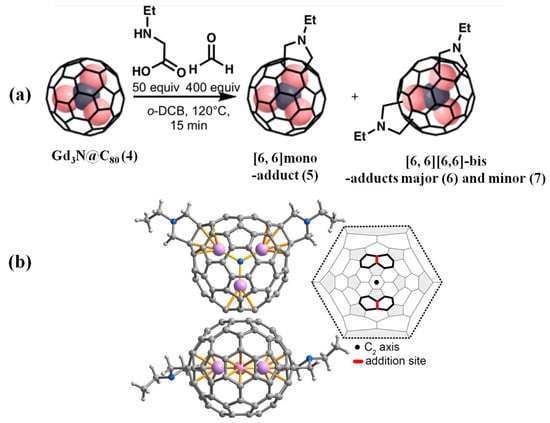

Gd3N@Ih-C80N-ethylglycine, paraformaldehydeGd3N@C80((CH2)2NEt)2[6,6] [6,6]-bis adduct2[54]
Gd3N@C80((CH2)2NEt)3[6,6] [6,6] [6,6] tris-adduct3[55]
Gd3N@C80((CH2)2NEt)3[6,6] [6,6] [5,6] tris-adduct1[55]
Gd3N@C80((CH2)2NEt)4all [6,6] tera-adduct1[55]
Bingel–Hirsch reactionY@Cs(6)-C82Diethyl bromomalonate, DBUY@C82CBr(CCOOCH2CH3)2[5,6,6]-single bond3[58]
Sc3N@Ih(7)-C80Diethyl bromomalonate, DBUSc3N@C80 CBr(CCOOCH2CH3)2[5,6]-open, [6,6]-open2[62]
Lu3N@Ih(7)-C80Diethyl bromomalonate, DBULu3N@C80 CBr(CCOOCH2CH3)2[6,6]-open1[62]

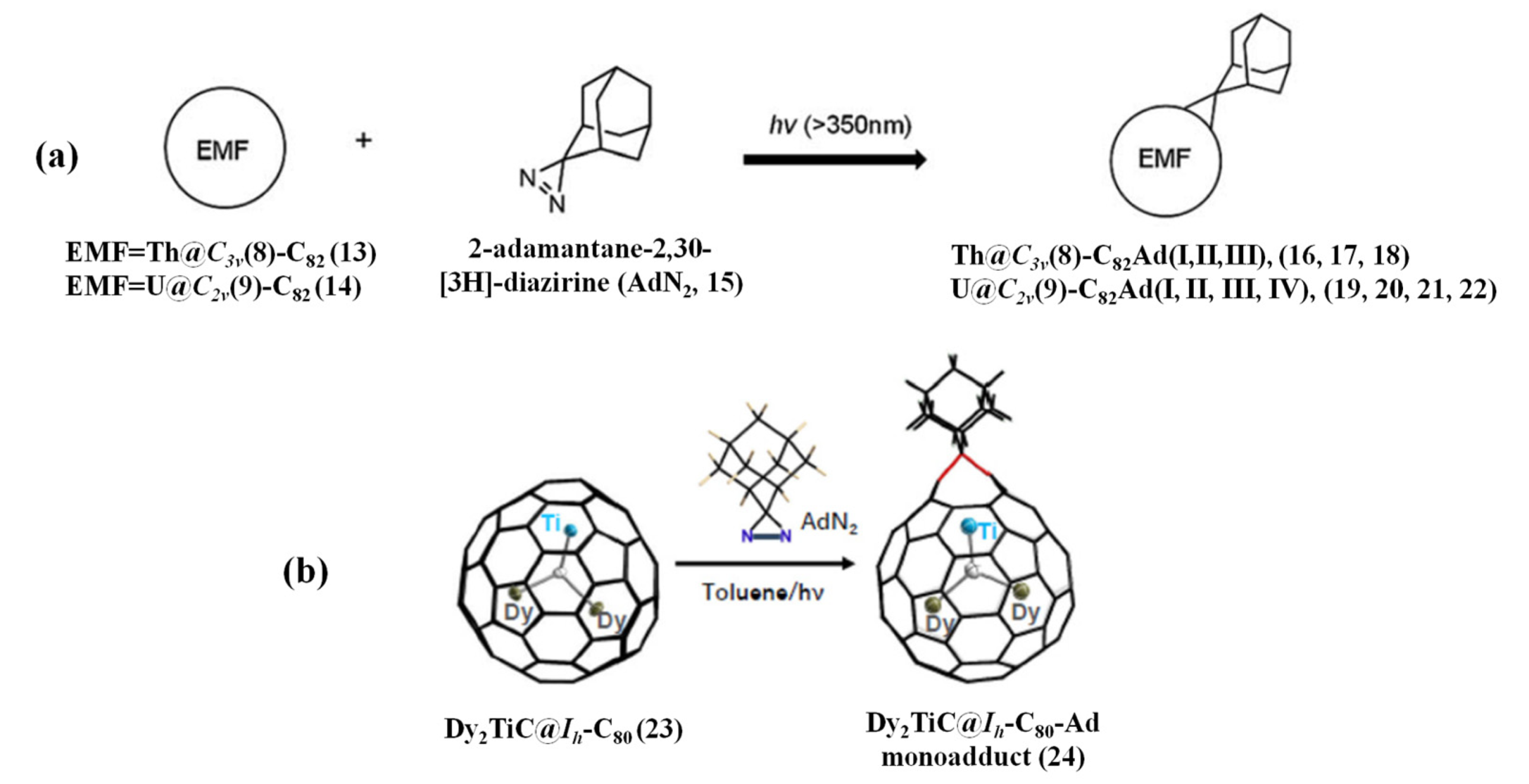

Carbene additionTh@C3v(8)-C822-adamantane-2,30-[3H]-diazirine(AdN2)Th@C82Ad[6,6]-open, et al.3[69]
U@C2v(9)-C822-adamantane-2,30-[3H]-diazirine(AdN2)U@C82Ad[6,6]-open, et al.4[69]
Dy2TiC@Ih-C802-adamantane-2,3-[3H]-diazirine (AdN2)Dy2TiC@C80-Ad[6,6]-open1[70]
Radical addition reactionLn2@C80(Ln2 = Y2, Gd2, Tb2, Dy2, Ho2, Er2, TbY, TbGd)BrCH2PhLn2@C80(CH2Ph)[5,6,6]1[74]
Dy@C2v(5)-C80BrCH2PhDy@C80(CH2Ph)[5,6,6]1[75]
Er@C721,2,4-trichlorobenzeneEr@C72(C6H3Cl2)Unknown1[76]
Er@C76IodobenzeneEr@C76(C6H5)Unknown1[76]
AgCOOCF3Er@C76(CF3)5Unknown1[76]
Er@C82AgCOOCF3Er@C82(CF3)3Unknown1[76]
Er@C82(CF3)5Unknown3[76]
Y@C2v(9)-C82N-arylbezamidine Y@C82NPhCNPh[5,6]1[77]

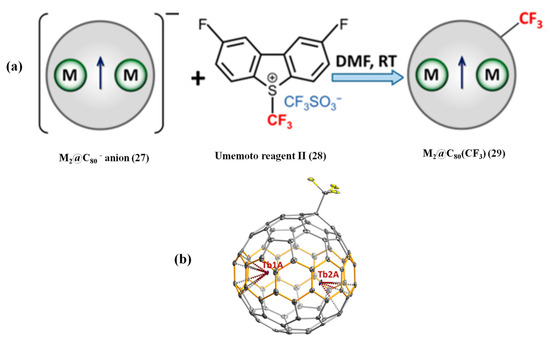

Electrophilic trifluoromethylationTb2@C80−Umemoto reagent IITb2@C80(CF3)[5,6,6]1[78]
Y2@C80−Umemoto reagent IITb2@C80(CF3)[5,6,6]1[78]

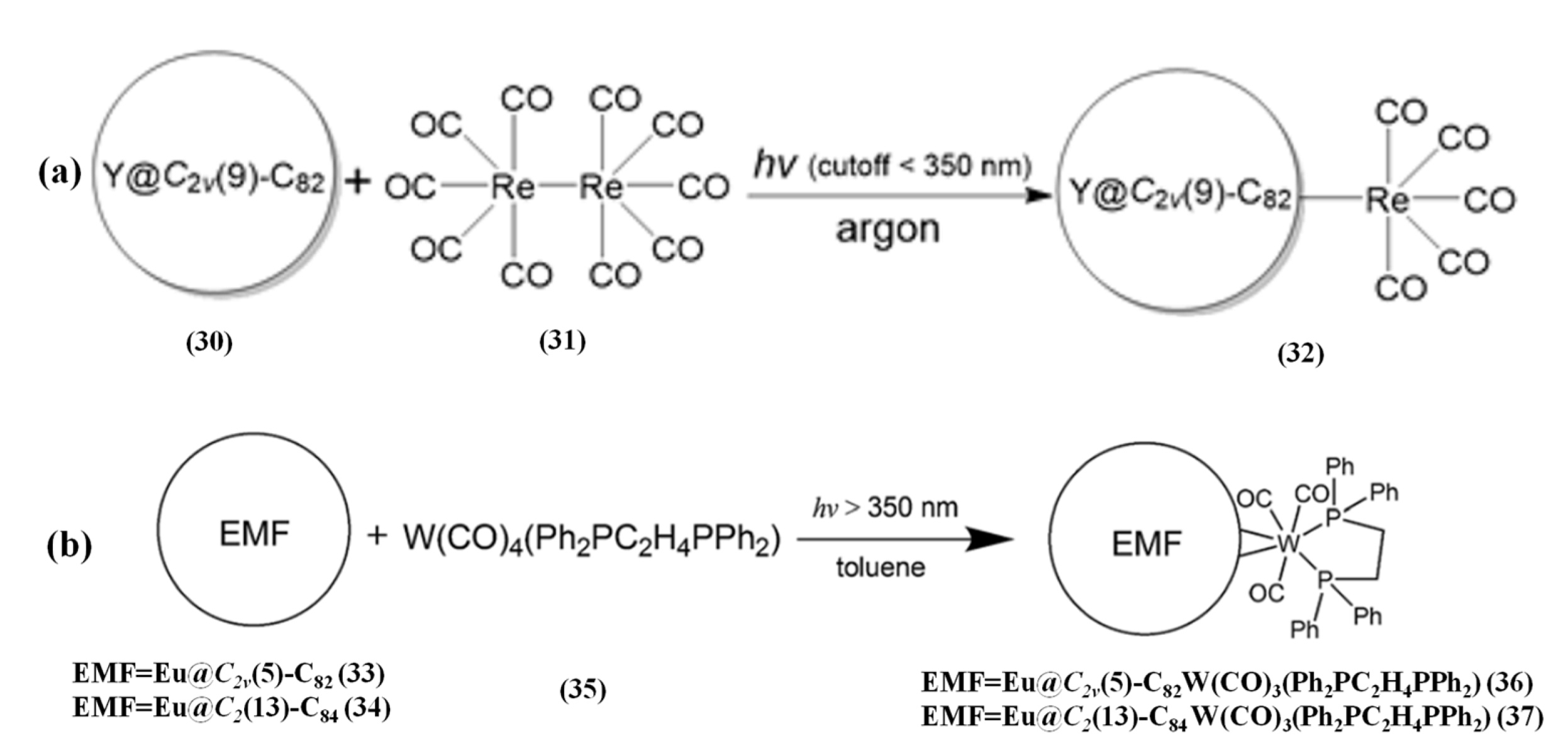

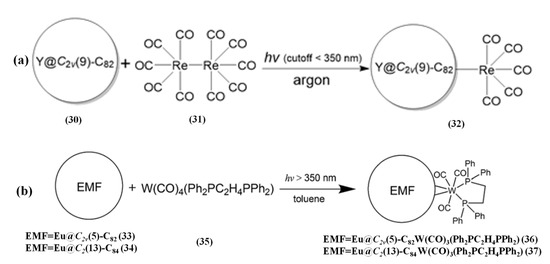

Coordination reactionY@C2v(9)-C82Re2(CO)10Re(CO)5-η1-Y@C2v(9)-C82[5,6,6]1[80]
Eu@C2(5)-C82W(CO)4(Ph2PC2H4PPh2)Eu@C82 W(CO)3(Ph2PC2H4PPh2)η2-[6,6]-bond1[81]
Eu@C2(13)-C84W(CO)4(Ph2PC2H4PPh2)Eu@C84) W(CO)3(Ph2PC2H4PPh2)η2-[6,6]-bond1[81]
Methoxide reactionSc3N@Ih-C80TBAOH, CH3OHSc3N@C80(OCH3)2[1,2], [1,4]2[82]

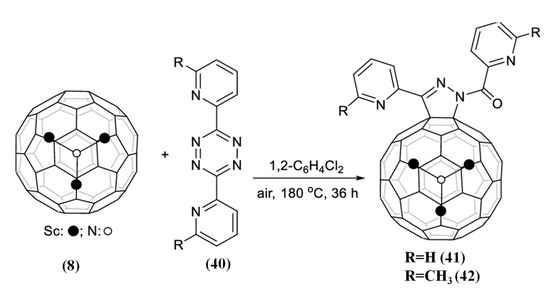

Multicomponent reactionsSc3N@Ih-C803,6-di(pyridin-2-yl)-1,2,4,5-tetrazines, water, and oxygenSc3N@C80CN=NCO(C5NH4)2[5,6]-closed1[83]
3,6-bis(6-methylpyridin-2-yl)-1,2,4,5-tetrazine, water, and oxygenSc3N@C80CN=NCO(C5NCH3)2[5,6]-closed1[83]

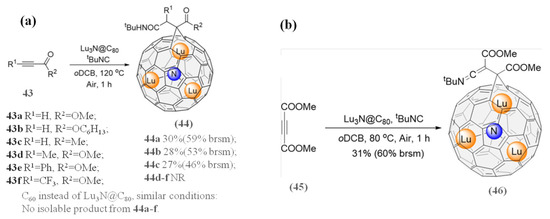

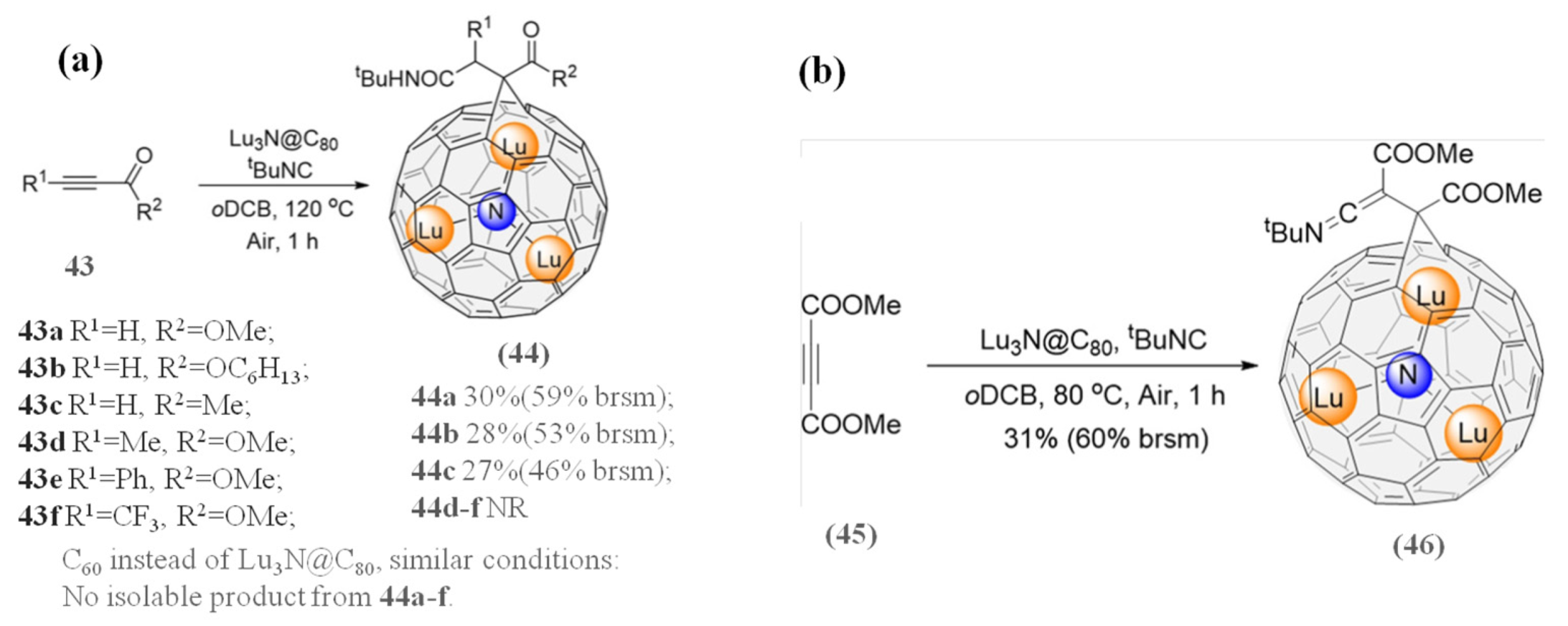

Lu3N@Ih-C80tBuNC and EWG-bearing terminalalkynesLu3N@C80CCR1CONHtBuCOR2[6,6]-open1[85]
tBuNC and dimethyl acetylenedicarboxylate (DMAD)Lu3N@C80C(COOMe)C(COOMe)CNtBu[6,6]-open1[85]
Difluoromethylenation reactionSc3N@Ih-C80CF2ClCOONaSc3N@C80(CF2)[6,6]-open1[86]
Sc3N@C78CF2ClCOONaSc3N@C78(CF2)[6,6]1[87]
Unexpected formation of metallofulleroids with [6,6]-open structure from the isocyanide-based multicomponent reactions of an isocyanide (e.g., tBuNC), various alkynes, and Lu3N@Ih-C80 have been reported recently [85]. A major product was obtained by using EWG (electron-withdrawing group)-bearing terminal alkynes, whereas no products were obtained by using disubstituted internal alkynes [85]; see Figure 10a. Notably, when Lu3N@Ih-C80 was replaced by C60, there were no isolated products under any conditions [85]. Surprisingly, unlike internal alkynes, dimethyl acetylenedicarboxylate (DMAD) yielded a ketenimine metallofulleroid 45, as shown in Figure 10b, while the addition pattern is greatly different from that of C60 reacting with the same reactants [85]. Strikingly, a variable temperature single-crystal study of metallofulleroid 46 showed that the motion of the embedded cluster is significantly hindered by the close interaction with the exohedral organic appendant of a neighboring molecule [85]. Furthermore, DFT calculations suggested that the reaction mechanism involved three main steps including a barrierless anionic attack of the dipole, 3-exo-trig ring closure, and final hydration [85].

2.10. Difluoromethylenation Reaction

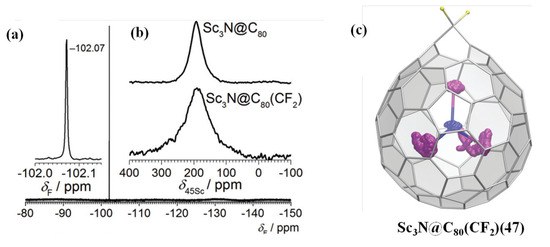

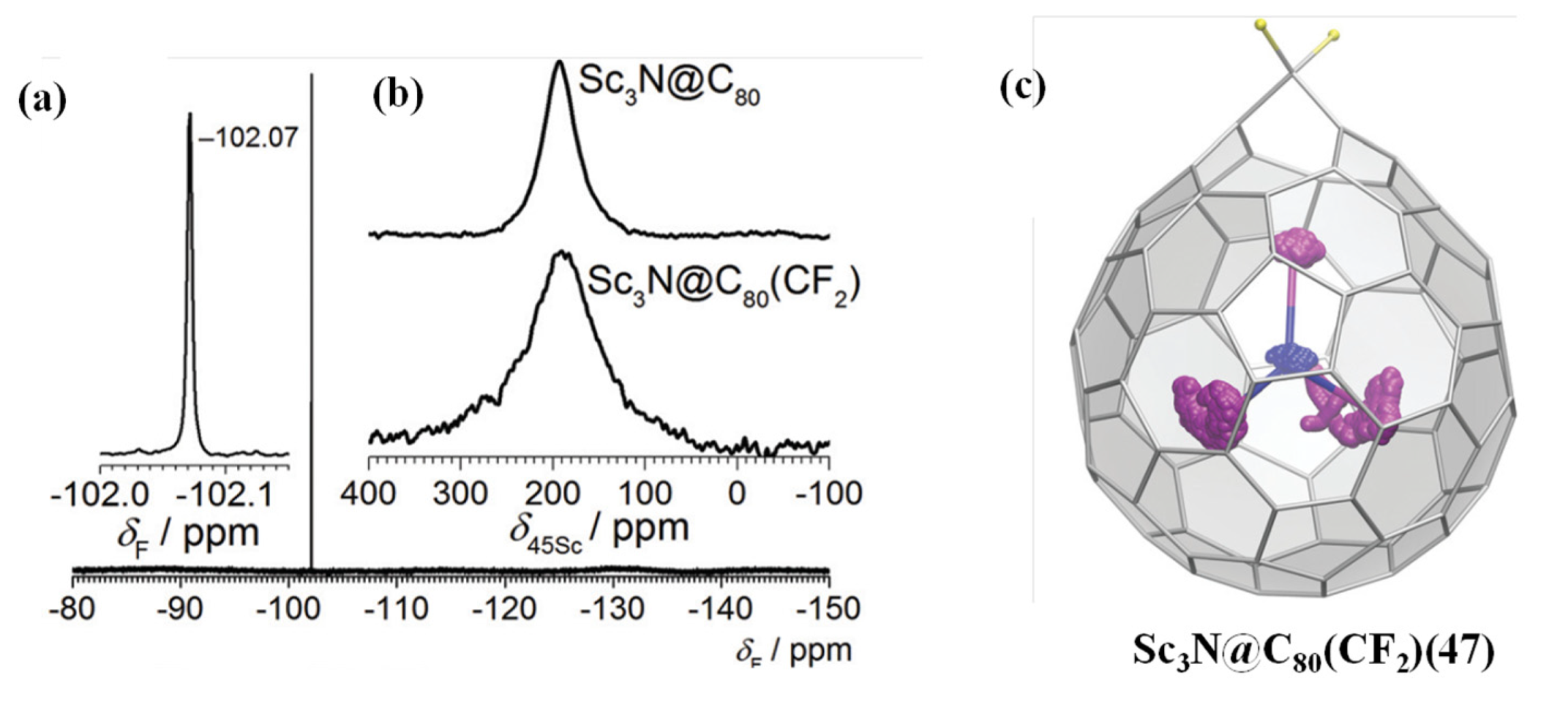

Recently, difluoromethylenation of Sc3N@Ih-C80 reacting with CF2ClCOONa affords a sole Cs-symmetric Sc3N@C80(CF2) adduct [86]. Based on the 19F, 13C, and 45Sc NMR spectroscopic, Sc3N@C80(CF2) was identified as the [6,6]-open structure with 2.2–2.3 Å between the bridgehead atoms, which is consistent with the DFT-optimized structure (see Figure 11) [86]. And the UV/vis spectra of Sc3N@C80(CF2) are similar to that of Sc3N@Ih-C80, thus indicating the [6,6]-open structure with weakly perturbed π-electron systems [86]. Furthermore, the electrochemical behavior of Sc3N@C80(CF2) resembles that of Sc3N@Ih-C80, in which both the HOMO and LUMO level of Sc3N@C80(CF2) downshift 0.1 eV compared to the pristine Sc3N@Ih-C80, resulting in essentially unchanged HOMO–LUMO gap [86]. It is worth noting that in the experiment the absence of the [5,6]-conformer, the more energetically favorable one based on the theoretical analysis, suggests that the adduct is kinetical rather than thermodynamical [86]. In addition, the nucleophilic route, which involves nucleophilic addition of CF2Cl− anion followed by cyclopropanation via Cl− displacement, is considered to be better than the route of [2 + 1]-cycloaddition of CF2 carbene [86].
Very recently, the difluoromethylenation reaction was extended to Sc3N@C78 and it showed higher reactivity than Sc3N@C80, in which the reaction temperature is lower [87]. Mono-adduct Sc3N@C78(CF2) was identified by the mass spectrum, but, unfortunately, the Sc3N@C78(CF2) degraded rapidly, which was different from Sc3N@C80(CF2) and the CF2 adducts of empty fullerenes [87]. And, only the UV-Vis spectrum of the Sc3N@C78(CF2) was recorded and showed high similarity with the spectra of the Bingel–Hirsch mono-adduct and that of the major Prato mono-adduct, indicating that Sc3N@C78(CF2) has the same bond type, bond 66-6 [87]. Moreover, DFT results suggested that the open [6,6]-Sc3N@C78(CF2) is more stable and the regioselectivity is controlled kinetically as well as the CF2 addition mechanism resembles that of Sc3N@C80 [87].

3. Conclusions and Outlook

In summary, EMFs exhibit active reactivities toward versatile functionalization reactions, which confer EMFs tunable properties. Prato reaction was extended to EMFs with low symmetry, such as Sc3N@C78 and Y2@C3v(8)-C82; furthermore, the complicated bis-adducts and multi-adducts of Prato reaction were studied as well. Metal encapsulation induces a highly regioselective Bingel–Hirsch adducts of Y@Cs(6)-C82 achieved and a new cationic metallofullerene route was put forward for Bingel–Hirsch reaction. Carbene additions of actinide EMFs and Ti-based EMFs were developed. A new non-cycloaddition of EMFs, methoxide reaction, was exploited. Furthermore, new complicated multi-component reactions instead of simple transplantation from empty fullerenes arise and acquire unexpected adducts, expanding new horizons in the functionalization of EMFs. Especially, besides radical reactions, new electrophilic trifluoromethylation was exploited to stabilize the missing EMFs.
High regioselectivity is frequently observed for EMFs due to strong metal–cage interactions. The endohedral cluster plays an important role in determining the regioselectivity and addition pattern. Furthermore, combined with calculated results, the regioselectivity of the reactions was plausibly interpreted by POAV, HOMOs/LUMOs, and charges. However, new credible, advanced, and reasonable theoretical calculation schemes are also expected. In turn, the addition groups affect the location, motion, orientation, and electronic state of the encapsulated clusters. As a result, the ultimate structures and properties of the derivatives of EMFs are together regulated by the intramolecular interplay of the cluster, carbon cage, and exohedral groups.
Recent functionalization reactions are mainly restricted to exploring the inherent chemical activities of EMFs or stabilizing EMFs. However, using reaction groups to modulate the magnetic, luminescence, or photovoltaic properties of EMFs is rarely reported. And it is not much clear whether and how the type or amount of reaction groups affects those properties of EMFs. Therefore, more efforts are needed to reveal the relationships between the reaction groups and those properties of EMFs and make metallofullerenes truly applicable materials. Functionalizations of EMFs are an attractive and popular area of fullerene research, which still holds great promise.
