Three-Dimensional Non-Linearly Thermally Radiated Flow of Jeffrey Nanoliquid towards a Stretchy Surface with Convective Boundary and Cattaneo–Christov Flux

Abstract

The objective of this paper is to investigate the 3D non-linearly thermally radiated flow of a Jeffrey nanofluid towards a stretchy surface with the Cattaneo–Christov heat flux (CCHF) model in the presence of a convective boundary condition.The Homotopy Analysis Method (HAM) is used to solve the ordinary differential equation that is obtained by reforming the governing equation using suitable transformations. The equations obtained from HAM are plotted graphically for different parameters. In addition, the skin-friction coefficient, local Nusselt number, and Sherwood number for various parameters are calculated and discussed. The velocity profile along the x- and y-directions decrease with a raise in the ratio of relaxation to retardation times. The concentration and temperature profile rises while magnifying the ratio of relaxation to retardation times. While raising the ratio parameter, the x-direction velocity, temperature, and concentration profile diminishes, whereas the y-direction velocity profile magnifies. Magnifying the Deborah number results in a rise in the velocity profile along the x- and y-directions, and a decline in the temperature and concentration profile.

1. Introduction

There are many models for a non-Newtonian fluid, and a few of them have been discussed in Halim et al. [1], Mahanthesh et al. [2], Malik et al. [3], and Olajuwon et al. [4]. The polymer and textile industries, and plastic manufacturing and food processing are some of the areas where a non-Newtonian fluid is used. Stretchy flow heat transfer is used widely in metal sheet cooling, electronic chips cooling, plastic sheet extrusion in aerodynamic, etc.

A Jeffrey fluid is one of the non-Newtonian fluids that are related to the retardation time and the ratio of relaxation to retardation time. The CCHF model is one of the flow models discussed by Christov [5]. Kasmani et al. [6] concluded that the temperature profile, heat transfer rate, and mass transfer rate rises while magnifying the thermophoresis parameter. The peristalsis flow of a non-constant viscous Jeffrey nanofluid was studied by Alvi et al. [7]. While increasing the Brownian motion and the thermophoresis parameter, the opposite behavior of the concentration profile is identified by Muhammad et al. [8]. Ramly et al. [9] observed that under passive control, the heat and mass transfer rates seem to have opposite behaviors when influenced by the Brownian motion parameter and the thermophoresis parameter.

The effects of non-linear thermal radiation and the Soret and Dufour and stratification effect on an MHD nanofluid flow over a stretchy cylinder was studied by Jagan and Sivasankaran [10]. Li et al. [11] identified that the heat transfer rate rises by magnifying the relaxation time parameter and the mixed convection parameter. The temperature field enhances with a rise in the thermal radiation, and the heat generation parameters were concluded by Niranjan et al. [12]. Das et al. [13] identified that the fluid temperature of a Jeffrey fluid is higher when compared with a Newtonian fluid. The effects of radiation, chemical reaction, and slip on a magnetoconvection stagnation-point flow in a porous medium were analyzed by Niranjan et al. [14]. Ali et al. [15] observed that the non-linear thermal radiation parameters regulate the momentum and thermal boundary layers. Thermally stratified stretchy flow with CCHF is studied by Hayat et al. [16]. Ferdows et al. [17] examined about the free convective flow in an inclined porous surface. Ramzan et al. [18] investigated the MHD stagnation-point flow of a Williamson fluid with CCHF, homogeneous–heterogeneous reactions, and a convective boundary condition.

Hayat et al. [19] studied three-dimensional incompressible elastico-viscous fluid flow towards a stretchy surface. Unsteady 3D boundary layer flow due to a permeable shrinky sheet was analyzed by Bachok et al. [20]. Shehzad et al. [21] investigated 3D Jeffrey fluid flow over a stretched surface that exhibits a convective boundary condition. A Three-dimensional thermally radiated Jeffrey fluid flow towards a stretchy surface with variable thermal conductivity was examined by Hayat et al. [22]. Raju et al. [23] concluded that heat and mass transfer rate for a flow over a stretchy surface is high. Three-dimensional flow and heat transfer to a Burger’s fluid using the CCHF model was analyzed by Khan et al. [24]. Ramzan et al. [25] examined the supremacy of homogeneous–heterogeneous reactions on the MHD 3D flow of increasing the Maxwell fluid with the CCHF model and convective boundary condition. Hayat et al. [26] identified that Fourier and Cattaneo–Christov heat conduction models remain numerically similar when influenced by an embedding parameter. The three-dimensional Jeffrey fluid boundary layer flow induced by a bi-directional stretchy surface with CCHF model is studied by Hayat et al. [27]. More related study are found in [28,29,30].

In this paper, an analysis is made on a 3D non-linearly thermally radiated flow of a Jeffrey nanofliud with the CCHF model in the presence of a convective boundary condition towards a bidirectional stretchy surface. The current model with non-linear thermal radiation and convective boundary layer flow is not analyzed by any author, which shows the novelty of the current study. No such investigation is available in the literature, and therefore, the results obtained are novel. The results may useful to fields such as paper production and plastic sheet production.

2. Mathematical Formulation

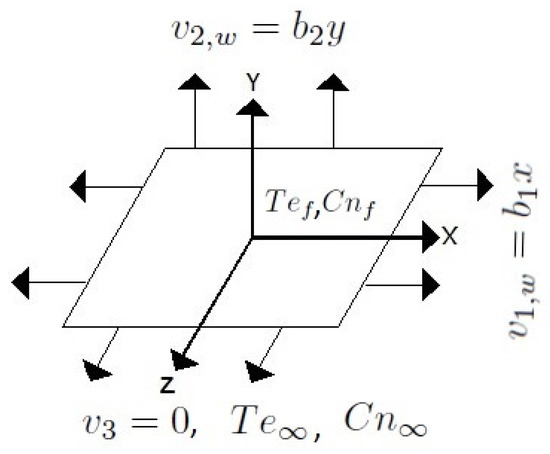

Regarding three-dimensional, steady, and incompressible non-linearly thermally radiated Jeffrey nanofluid flow towards a bidirectional stretchy surface CCHF model, the convective boundary condition is considered. The velocity of the stretchy surface along the x-axis and y-axis is assumed as $v_{1,w}=b_{1}x$ and $v_{2,w}=b_{2}y$, where $b_1$ and $b_2$ are positive constants, as shown in Figure 1. Fluid flow is considered along the z-axis. The governing boundary layer equations for the present analysis (refer to Hayat et al. [27]) can be written as

Contunity Equation

$$\begin{array}{ccc}\hfill & & \frac{\partial v_1}{\partial x}+\frac{\partial v_2}{\partial y}+\frac{\partial v_3}{\partial z}=0,\hfill \end{array}$$

(1)

Momentum Equation

$$\begin{array}{ccc}\hfill & & v_1\frac{\partial v_1}{\partial x}+v_2\frac{\partial v_1}{\partial y}+v_3\frac{\partial v_1}{\partial z}=\frac{\nu }{1+{\lambda }_1}\frac{{\partial }^2{v}_1}{\partial z^2}+\frac{\nu {\lambda }_2}{1+{\lambda }_1}\left(v_1\frac{{\partial }^3{v}_1}{\partial x\partial z^2}+v_2\frac{{\partial }^3{v}_1}{\partial y\partial z^2}\right.\hfill \\ & & +\left.v_3\frac{{\partial }^3{v}_1}{\partial z^3}\right)+\frac{\nu {\lambda }_2}{1+{\lambda }_1}\left(\frac{\partial v_1}{\partial z}\frac{{\partial }^2{v}_1}{\partial x\partial z}+\frac{\partial v_2}{\partial z}\frac{{\partial }^2{v}_1}{\partial y\partial z}+\frac{\partial v_3}{\partial z}\frac{{\partial }^2{v}_1}{\partial z^2}\right),\hfill \end{array}$$

(2)

$$\begin{array}{ccc}\hfill & & v_1\frac{\partial v_2}{\partial x}+v_2\frac{\partial v_2}{\partial y}+v_3\frac{\partial v_2}{\partial z}=\frac{\nu }{1+{\lambda }_1}\frac{{\partial }^2{v}_2}{\partial z^2}+\frac{\nu {\lambda }_2}{1+{\lambda }_1}\left(v_1\frac{{\partial }^3{v}_2}{\partial x\partial z^2}+v_2\frac{{\partial }^3{v}_2}{\partial y\partial z^2}\right.\hfill \\ & & +\left.v_3\frac{{\partial }^3{v}_2}{\partial z^3}\right)+\frac{\nu {\lambda }_2}{1+{\lambda }_1}\left(\frac{\partial v_1}{\partial z}\frac{{\partial }^2{v}_2}{\partial x\partial z}+\frac{\partial v_2}{\partial z}\frac{{\partial }^2{v}_2}{\partial y\partial z}+\frac{\partial v_3}{\partial z}\frac{{\partial }^2{v}_2}{\partial z^2}\right),\hfill \end{array}$$

(3)

Temperature Equation

$$\begin{array}{ccc}\hfill & & v_1\frac{\partial \left(Te\right)}{\partial x}+v_2\frac{\partial \left(Te\right)}{\partial y}+v_3\frac{\partial \left(Te\right)}{\partial z}+{\lambda }_3\left(v_1^2\frac{{\partial }^2\left(Te\right)}{\partial x^2}+v_2^2\frac{{\partial }^2\left(Te\right)}{\partial y^2}+v_3^2\frac{{\partial }^2\left(Te\right)}{\partial v_3^2}\right)\hfill \\ & & +{\lambda }_3\left(2v_1{v}_2\frac{{\partial }^2\left(Te\right)}{\partial x\partial y}+2v_1{v}_3\frac{{\partial }^2\left(Te\right)}{\partial x\partial z}+2v_2{v}_3\frac{{\partial }^2\left(Te\right)}{\partial y\partial z}+\left(v_1\frac{\partial v_1}{\partial x}+v_2\frac{\partial v_1}{\partial y}\right.\right.\hfill \\ & & +\left.\left.v_3\frac{\partial v_1}{\partial z}\right)\frac{\partial \left(Te\right)}{\partial x}\right)+{\lambda }_3\left(\left(v_1\frac{\partial v_2}{\partial x}+v_2\frac{\partial v_2}{\partial y}+v_3\frac{\partial v_2}{\partial z}\right)\frac{\partial \left(Te\right)}{\partial y}+\left(v_1\frac{\partial v_3}{\partial x}\right.\right.\hfill \\ & & +\left.\left.v_2\frac{\partial v_3}{\partial y}+v_3\frac{\partial v_3}{\partial z}\right)\frac{\partial \left(Te\right)}{\partial z}\right)=\frac{k}{\left(\rho c_p\right)}\left(\frac{{\partial }^2\left(Te\right)}{\partial z^2}\right)+\tau D_B\left(\frac{\partial \left(Te\right)}{\partial z}\frac{\partial \left(Cn\right)}{\partial z}\right)\hfill \\ & & +\frac{\tau D_{Te}}{T{e}_{\infty }}{\left(\frac{\partial \left(Te\right)}{\partial z}\right)}^2+\frac{1}{\left(\rho c_p\right)}\frac{16}{3}\frac{{\sigma }^{\ast }T{e}^3}{k^{\ast }}\frac{{\partial }^2\left(Te\right)}{\partial z^2},\hfill \end{array}$$

(4)

Nano-Particle Volume Fraction Equation

$$\begin{array}{ccc}\hfill & & v_1\frac{\partial \left(Cn\right)}{\partial x}+v_2\frac{\partial \left(Cn\right)}{\partial y}+v_3\frac{\partial \left(Cn\right)}{\partial z}=D_B\left(\frac{{\partial }^2\left(Cn\right)}{\partial z^2}\right)+\frac{D_{Te}}{T{e}_{\infty }}\left(\frac{{\partial }^2\left(Te\right)}{\partial z^2}\right),\hfill \end{array}$$

(5)

where the boundary conditions (refer to Hayat et al. [27] and Shehzad et al. [21]) are

$$\begin{array}{ccc}\hfill & & v_1=v_{1,w}=b_{1}x,v_2=v_{2,w}=b_{2}y,v_3=0,\hfill \\ & & -k\frac{\partial \left(Te\right)}{\partial z}=h\left(T{e}_f-Te\right),Cn=C{n}_{f}atz=0.\hfill \\ & & v_1\to 0,v_2\to 0,Te\to T{e}_{\infty },Cn\to C{n}_{\infty }asz\to \infty .\hfill \end{array}$$

(6)

The transformations (refer to Hayat et al. [27]) are

$$\begin{array}{ccc}\hfill & & \zeta =z\sqrt{\frac{b_1}{\nu }},v_1=b_{1}x{\varphi }_1^{\prime }\left(\zeta \right),v_2=b_{1}y{\varphi }_2^{\prime }\left(\zeta \right),v_3=-\sqrt{b_1\nu }\left({\varphi }_1\left(\zeta \right)+{\varphi }_2\left(\zeta \right)\right),\hfill \\ & & {\varphi }_3\left(\zeta \right)=\frac{Te-T{e}_{\infty }}{T{e}_f-T{e}_{\infty }},{\varphi }_4\left(\zeta \right)=\frac{Cn-C{n}_{\infty }}{C{n}_f-C{n}_{\infty }}.\hfill \end{array}$$

(7)

Equation (1) satisfies identically, and Equations (2)–(6) are reduced to Equations (8)–(12) using Equation (7).

$$\begin{array}{ccc}& & {\varphi }_1^{‴}+\left(1+{\lambda }_1\right)\left[{\varphi }_1^{″}\left({\varphi }_1+{\varphi }_2\right)-{\varphi }_1^{{}^{\prime }2}\right]+\beta \left[{\varphi }_1^{{}^{″}2}-\left({\varphi }_1+{\varphi }_2\right){\varphi }_1^{iv}-{\varphi }_1^{‴}{\varphi }_2^{\prime }\right]=0,\hfill \end{array}$$

(8)

$$\begin{array}{ccc}& & {\varphi }_2^{‴}+\left(1+{\lambda }_1\right)\left[\left({\varphi }_1+{\varphi }_2\right){\varphi }_2^{″}-{\varphi }_2^{{}^{\prime }2}\right]+\beta \left[{\varphi }_2^{{}^{″}2}-\left({\varphi }_1+{\varphi }_2\right){\varphi }_2^{iv}-{\varphi }_1^{\prime }{\varphi }_2^{‴}\right]=0,\hfill \\ & & \left(1+\frac{4}{3}Rd\right){\varphi }_3^{″}+\frac{4}{3}Rd\left[{\left({\theta }_w-1\right)}^3\left(3{\varphi }_3^2{\left({\varphi }_3^{\prime }\right)}^2+{\varphi }_3^3{\varphi }_3^{″}\right)\right.\hfill \\ & & +\left.3{\left({\theta }_w-1\right)}^2\left(2{\varphi }_3{\left({\varphi }_3^{\prime }\right)}^2+{\varphi }_3^2{\varphi }_3^{″}\right)\right]+4Rd\left[\left({\theta }_w-1\right)\left({\left({\varphi }_3^{\prime }\right)}^2+{\varphi }_3{\varphi }_3^{″}\right)\right]\hfill \\ & & +Pr\left({\varphi }_1+{\varphi }_2\right){\varphi }_3^{\prime }-\gamma Pr\left[{\left({\varphi }_1+{\varphi }_2\right)}^2{\varphi }_3^{″}+{\varphi }_3^{\prime }\left({\varphi }_1+{\varphi }_2\right)\left({\varphi }_1^{\prime }+{\varphi }_2^{\prime }\right)\right]\hfill \end{array}$$

(9)

$$\begin{array}{ccc}& & +PrNt{\left({\varphi }_3^{\prime }\right)}^2+PrNb{\varphi }_3^{\prime }{\varphi }_4^{\prime }=0,\hfill \end{array}$$

(10)

$$\begin{array}{ccc}& & {\varphi }_4^{″}+Sc\left({\varphi }_1+{\varphi }_2\right){\varphi }_4^{\prime }+\frac{Nt}{Nb}{\varphi }_3^{″}=0,\hfill \\ & & {\varphi }_1\left(0\right)=0,{\varphi }_2\left(0\right)=0,{\varphi }_1^{\prime }\left(0\right)=1,{\varphi }_2^{\prime }\left(0\right)=\mathit{c},{\varphi }_3^{\prime }\left(0\right)=-\alpha \left(1-{\varphi }_3\left(0\right)\right),\hfill \end{array}$$

(11)

$$\begin{array}{ccc}& & {\varphi }_4\left(0\right)=1\hfill \\ & & {\varphi }_1^{\prime }\left(\zeta \right)\to 0,{\varphi }_2^{\prime }\left(\zeta \right)\to 0,{\varphi }_3\left(\zeta \right)\to 0,{\varphi }_4\left(\zeta \right)\to 0as\zeta \to \infty .\hfill \end{array}$$

(12)

where

$$\begin{array}{ccc}& & \alpha =\frac{h\sqrt{\nu /b_1}}{k},\beta ={\lambda }_2{b}_1,c=\frac{b_2}{b_1},\gamma ={\lambda }_3{b}_1,Nb=\frac{\tau D_B\left(C{n}_f-C{n}_{\infty }\right)}{\nu },\hfill \\ & & Nt=\frac{\tau D_{Te}\left(T{e}_f-T{e}_{\infty }\right)}{\nu T{e}_{\infty }},Pr=\frac{\mu c_p}{k},Rd=\frac{4{\sigma }^{\ast }T{e}_{\infty }^3}{k{k}^{\ast }},Sc=\frac{\nu }{D},\hfill \\ & & {\theta }_w=\frac{T{e}_f}{T{e}_{\infty }}.\hfill \end{array}$$

(13)

The skin-friction coefficient, and the local Nusselt and Sherwood number are given by

$$\begin{array}{ccc}& & R{e}_x^{1/2}{C}_{f_x}=\left(\frac{2}{1+{\lambda }_1}\right){\varphi }_1^{″}\left(0\right),\hfill \end{array}$$

(14)

$$\begin{array}{ccc}& & R{e}_y^{1/2}{C}_{f_y}=\left(\frac{2}{1+{\lambda }_1}\right){\varphi }_2^{″}\left(0\right),\hfill \end{array}$$

(15)

$$\begin{array}{ccc}& & R{e}_x^{-1/2}Nu=-\left(1+\frac{4}{3}Rd{\left({\theta }_w\right)}^3\right){\varphi }_3^{\prime }\left(0\right),\hfill \end{array}$$

(16)

$$\begin{array}{ccc}& & R{e}_x^{-1/2}Sh=-{\varphi }_4^{\prime }\left(0\right).\hfill \end{array}$$

(17)

where $R{e}_x=\frac{v_{1,w}x}{\nu }$ and $R{e}_y=\frac{v_{2,w}y}{\nu }$ are Reynolds numbers.

3. Convergence of the Solution

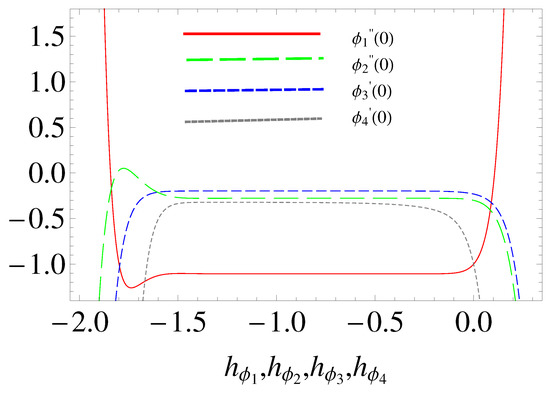

Equations (8)–(11), subject to Equation (12), are solved using HAM by choosing the initial boundary approximations, auxillary function, and auxillary linear operators (refer to Hayat et al. [27]) as

$$\begin{array}{ccc}& & {\varphi }_{1,0}\left(\zeta \right)=1-exp\left(-\zeta \right),{\varphi }_{2,0}\left(\zeta \right)=c\left(1-exp\left(-\zeta \right)\right),\hfill \end{array}$$

$$\begin{array}{ccc}& & {\varphi }_{3,0}\left(\zeta \right)=\frac{\alpha }{1+\alpha }exp\left(-\zeta \right),{\varphi }_{4,0}\left(\zeta \right)=exp\left(-\zeta \right).\hfill \end{array}$$

(18)

$$\begin{array}{ccc}& & H\left(\zeta \right)=1.\hfill \\ & & {\mathit{L}}_{{\varphi }_1}\left({\varphi }_1\right)=\frac{d^3{\varphi }_1}{d{\zeta }^3}-\frac{d{\varphi }_1}{d\zeta },{\mathit{L}}_{{\varphi }_2}\left({\varphi }_2\right)=\frac{d^3{\varphi }_2}{d{\zeta }^3}-\frac{d{\varphi }_2}{d\zeta },\hfill \end{array}$$

(19)

$$\begin{array}{ccc}& & {\mathit{L}}_{{\varphi }_3}\left({\varphi }_3\right)=\frac{d^2{\varphi }_3}{d{\zeta }^2}-{\varphi }_3,{\mathit{L}}_{{\varphi }_4}\left({\varphi }_4\right)=\frac{d^2{\varphi }_4}{d{\zeta }^2}-{\varphi }_4.\hfill \end{array}$$

(20)

which satisfies the property

$$\begin{array}{ccc}& & {\mathit{L}}_{{\varphi }_1}[A_1+A_{2}exp\left(-\zeta \right)+A_{3}exp\left(\zeta \right)]=0,\hfill \end{array}$$

(21)

$$\begin{array}{ccc}& & {\mathit{L}}_{{\varphi }_2}[A_4+A_{5}exp\left(-\zeta \right)+A_{6}exp\left(\zeta \right)]=0,\hfill \end{array}$$

(22)

$$\begin{array}{ccc}& & {\mathit{L}}_{{\varphi }_3}[A_{7}exp\left(-\zeta \right)+A_{8}exp\left(\zeta \right)]=0,\hfill \end{array}$$

(23)

$$\begin{array}{ccc}& & {\mathit{L}}_{{\varphi }_4}[A_{9}exp\left(-\zeta \right)+A_{10}exp\left(\zeta \right)]=0.\hfill \end{array}$$

(24)

where $A_1$ to $A_{10}$ are arbitrary constants. Mathematica software is used to solve the above HAM equations. The equations obtained contain the parameters $h_{{\theta }_1}$, $h_{{\varphi }_1}$, $h_{{\varphi }_2}$, and $h_s$. The h-curve is plotted for $\alpha =0.3$, $\beta =0.2$, $c=0.3$, $\gamma =0.2$, ${\lambda }_1=0.3$, $Nb=0.2$, $Nt=0.2$, $Pr=1.0$, $Rd=0.3$, $Sc=0.6$, and ${\theta }_w=0.3$. From Figure 2, it is clear that the range for the admissible values of $h_{{\varphi }_1}$, $h_{{\varphi }_2}$, $h_{{\varphi }_3}$, and $h_{{\varphi }_4}$ are $-1.5\le h_{{\varphi }_1}\le -0.2$, $-1.4\le h_{{\varphi }_2}\le -0.1$, $-1.5\le h_{{\varphi }_3}\le -0.1$, and $-1.4\le h_{{\varphi }_4}\le -0.3$ at the 20th-order approximation.

The convergence value is tabulated in

Table 1. Convergence of the series $-{\varphi }_1^{″}\left(0\right)$, $-{\varphi }_2^{″}\left(0\right)$, $-{\varphi }_3^{\prime }\left(0\right)$, and $-{\varphi }_4^{\prime }\left(0\right)$ for $\alpha =0.3$, $\beta =0.2$, $c=0.3$, $\gamma =0.2$, ${\lambda }_1=0.3$, $Nb=0.2$, $Nt=0.2$, $Pr=1.0$, $Rd=0.3$, $Sc=0.6$, and ${\theta }_w=0.3$.

m-th-Order Approximation	$-{\mathit{\varphi }}_1^{″}\left(0\right)$	$-{\mathit{\varphi }}_2^{″}\left(0\right)$	$-{\mathit{\varphi }}_3^{\prime }\left(0\right)$	$-{\mathit{\varphi }}_4^{\prime }\left(0\right)$
1	$1.0625$	$0.2873$	$0.2186$	$0.7573$
5	$1.1055$	$0.2774$	$0.2016$	$0.4537$
10	$1.1064$	$0.2774$	$0.1980$	$0.3766$
15	$1.1064$	$0.2774$	$0.1974$	$0.3487$
20	$1.1064$	$0.2774$	$0.1974$	$0.3357$
25	$1.1064$	$0.2774$	$0.1974$	$0.3292$
30	$1.1064$	$0.2774$	$0.1975$	$0.3258$
35	$1.1064$	$0.2774$	$0.1975$	$0.3239$

for different orders of approximations. In order to vary our results, we made a comparison of the results for $-{\varphi }_1^{″}\left(0\right),-{\varphi }_2^{″}\left(0\right)$ and $-{\varphi }_3^{\prime }\left(0\right)$ when $\beta =\gamma =0.2,c=\lambda =0.3,Pr=1,$ with Hayat et al. [27]. We found a good agreement between the present results and the available results.

In

Table 2. Numerical values of the skin-friction coefficient for the fixed values $\alpha =0.3$, $\gamma =0.2$, $Nb=0.2$, $Nt=0.2$, $Pr=1.0$, $Rd=0.3$, $Sc=0.6$, and ${\theta }_w=0.3$.

${\mathit{\lambda }}_1$	$\mathit{\beta }$	c	$-{\mathit{Re}}_{\mathit{x}}^{1/2}{\mathit{C}}_{{\mathit{f}}_{\mathit{x}}}$	$-{\mathit{Re}}_{\mathit{y}}^{1/2}{\mathit{C}}_{{\mathit{f}}_{\mathit{y}}}$
$0.1$	$0.2$	$0.3$	$1.8505$	$0.4639$
$0.2$	$0.2$	$0.3$	$1.7717$	$0.4441$
$0.3$	$0.2$	$0.3$	$1.7022$	$0.4267$
$0.4$	$0.2$	$0.3$	$1.6403$	$0.4112$
$0.5$	$0.2$	$0.3$	$1.5847$	$0.3973$
$0.3$	$0.1$	$0.3$	$1.7739$	$0.4268$
$0.3$	$0.2$	$0.3$	$1.7022$	$0.4267$
$0.3$	$0.3$	$0.3$	$1.6387$	$0.4265$
$0.3$	$0.4$	$0.3$	$1.5819$	$0.4263$
$0.3$	$0.5$	$0.3$	$1.5306$	$0.4259$
$0.3$	$0.2$	$0.1$	$1.6361$	$0.1204$
$0.3$	$0.2$	$0.2$	$1.6696$	$0.2641$
$0.3$	$0.2$	$0.3$	$1.7022$	$0.4267$
$0.3$	$0.2$	$0.4$	$1.7341$	$0.6053$
$0.3$	$0.2$	$0.5$	$1.7656$	$0.7976$

and

Table 3. Numerical values of the Nusselt number and Sherwood number for the fixed values $\alpha =0.3$, $c=0.3$, $Pr=1.0$, $Sc=0.6$, and ${\theta }_w=0.3$.

$\mathit{Rd}$	${\mathit{\lambda }}_1$	$\mathit{\beta }$	$\mathit{Nt}$	$\mathit{Nb}$	$\mathit{\gamma }$	${\mathit{Re}}_{\mathit{x}}^{-1/2}\mathit{Nu}$	${\mathit{Re}}_{\mathit{x}}^{-1/2}\mathit{Sh}$
$0.1$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.2019$	$0.3453$
$0.2$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.2007$	$0.3471$
$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.1996$	$0.3487$
$0.4$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.1986$	$0.3503$
$0.5$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.1976$	$0.3518$
$0.3$	$0.1$	$0.2$	$0.2$	$0.2$	$0.2$	$0.2016$	$0.3613$
$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.2$	$0.2006$	$0.3548$
$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.1996$	$0.3487$
$0.3$	$0.4$	$0.2$	$0.2$	$0.2$	$0.2$	$0.1986$	$0.3431$
$0.3$	$0.5$	$0.2$	$0.2$	$0.2$	$0.2$	$0.1977$	$0.3380$
$0.3$	$0.3$	$0.1$	$0.2$	$0.2$	$0.2$	$0.1985$	$0.3424$
$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.1996$	$0.3487$
$0.3$	$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2005$	$0.3546$
$0.3$	$0.3$	$0.4$	$0.2$	$0.2$	$0.2$	$0.2014$	$0.3600$
$0.3$	$0.3$	$0.5$	$0.2$	$0.2$	$0.2$	$0.2022$	$0.3651$
$0.3$	$0.3$	$0.2$	$0.1$	$0.2$	$0.2$	$0.2001$	$0.4146$
$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.1996$	$0.3487$
$0.3$	$0.3$	$0.2$	$0.3$	$0.2$	$0.2$	$0.1990$	$0.2835$
$0.3$	$0.3$	$0.2$	$0.4$	$0.2$	$0.2$	$0.1985$	$0.2191$
$0.3$	$0.3$	$0.2$	$0.5$	$0.2$	$0.2$	$0.1979$	$0.1553$
$0.3$	$0.3$	$0.2$	$0.2$	$0.1$	$0.2$	$0.2020$	$0.2098$
$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.1996$	$0.3487$
$0.3$	$0.3$	$0.2$	$0.2$	$0.3$	$0.2$	$0.1971$	$0.3951$
$0.3$	$0.3$	$0.2$	$0.2$	$0.4$	$0.2$	$0.1946$	$0.4183$
$0.3$	$0.3$	$0.2$	$0.2$	$0.5$	$0.2$	$0.1920$	$0.4323$
$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.1$	$0.1985$	$0.3496$
$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.2$	$0.1996$	$0.3487$
$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.3$	$0.2007$	$0.3478$
$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.4$	$0.2019$	$0.3467$
$0.3$	$0.3$	$0.2$	$0.2$	$0.2$	$0.5$	$0.2032$	$0.3456$

, the skin-friction coefficient, and the Nusselt number and Sherwood number are tabulated for various parameters with different sets of values.

4. Computational Results and Discussion

The supremacy of embedding the parameters involved in the study are discussed here. The agreement is found to be good while comparing the current study with Hayat et al. [27] for $\beta =0.2$, ${\lambda }_1=0.3$, and $c=0.3$ (see

Table 4. Comparision of current study with Hayat et al. [27] for $\beta =0.2$, ${\lambda }_1=0.3$, and $c=0.3$.

m-th-Order Approximation	Hayat et al. [27] $-{\mathit{\varphi }}_1^{″}\left(0\right)$	Present $-{\mathit{\varphi }}_1^{″}\left(0\right)$	Hayat et al. [27] $-{\mathit{\varphi }}_2^{″}\left(0\right)$	Present $-{\mathit{\varphi }}_2^{″}\left(0\right)$
1	$1.10000$	$1.0375$	$0.27960$	$0.29235$
5	$1.10638$	$1.0947$	$0.27744$	$0.27983$
10	$1.10643$	$1.1053$	$0.27737$	$0.27753$
15	$1.10643$	$1.10633$	$0.27737$	$0.27737$
20	$1.10643$	$1.10643$	$0.27737$	$0.27737$
25	$1.10643$	$1.10643$	$0.27737$	$0.27737$
35	$1.10643$	$1.10643$	$0.27737$	$0.27737$
50	$1.10643$	$1.10643$	$0.27737$	$0.27737$

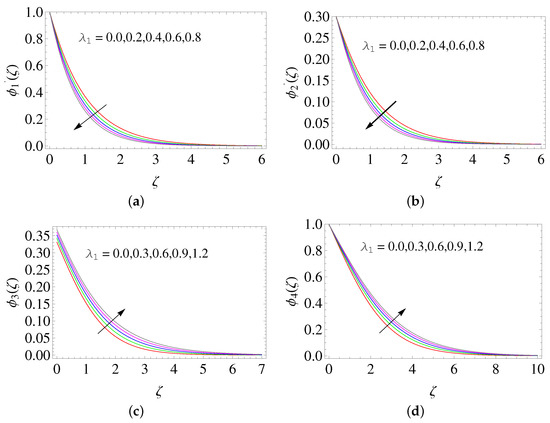

). In Figure 3, the ratio of relaxation to the retardation time $\left({\lambda }_1\right)$ is plotted with different values for ${\varphi }_1^{\prime }\left(\zeta \right)$, ${\varphi }_2^{\prime }\left(\zeta \right)$, ${\varphi }_3\left(\zeta \right)$, and ${\varphi }_4\left(\zeta \right)$. It is clear that ${\varphi }_1^{\prime }\left(\zeta \right)$ and ${\varphi }_2^{\prime }\left(\zeta \right)$ rise while boosting $\left({\lambda }_1\right)$, whereas ${\varphi }_3\left(\zeta \right)$ and ${\varphi }_4\left(\zeta \right)$ diminish. In Figure 4, it is found that when the Deborah number $\left(\beta \right)$ is raised, ${\varphi }_1^{\prime }\left(\zeta \right)$ and ${\varphi }_2^{\prime }\left(\zeta \right)$ enhance, and at the same time, the temperature and concentration profile diminishes because the retardation will be raised while raising $\beta$.

The supremacy of the ratio of stretching rates $\left(\mathit{c}\right)$ on ${\varphi }_2^{\prime }\left(\zeta \right)$, ${\varphi }_3\left(\zeta \right)$, and ${\varphi }_4\left(\zeta \right)$ is analyzed in Figure 5. It is noticed that ${\varphi }_2^{\prime }\left(\zeta \right)$ enlarges while boosting $\mathit{c}$, whereas ${\varphi }_3\left(\zeta \right)$ and ${\varphi }_4\left(\zeta \right)$ diminish. Magnifying the radiation parameter leads to the generation of more heat energy to flow, which leads to a rise in the temperature profile (see Figure 6a). From Figure 6b, it is clear that the temperature profile declines by magnifying the thermal relaxation time parameter $\left(\gamma \right)$. The concentration profile magnifies with a rise in the thermal Biot number $\left(\alpha \right)$ (see Figure 6c).

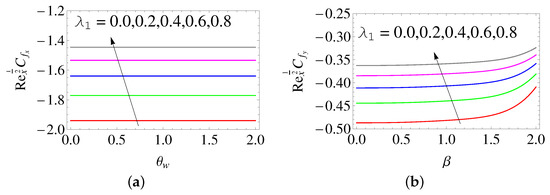

The skin-friction coefficient along the x- and y-directions rises upon boosting the ratio of the relaxation to retardation time $\left({\lambda }_1\right)$ (see Figure 7). From Figure 8, it is clear that the local Nusselt number diminishes by magnifying both $Rd$. Also, the local Nusselt number enhances by raising $\alpha$. In Figure 9, the local Nusselt number diminishes on raising ${\lambda }_1$ and $Nb$. From Figure 10, it is observed that local Sherwood number enhances with a rise in $Rd$ and $Nb$.

The regression equation for skin friction with a variation in the ratio of relaxation to retardation time $\left({\lambda }_1\right)$, Deborah number $\left(\beta \right)$, and the ratio of stretching rates $\left(\mathit{c}\right)$ are

$$\begin{array}{ccc}& & R{e}_x^{1/2}{C}_{f_x}=-1.9288+0.6631\ast {\lambda }_1+0.6057\ast \beta -0.3236\ast \mathit{c}.\hfill \end{array}$$

(25)

$$\begin{array}{ccc}& & R{e}_y^{1/2}{C}_{f_y}=0.0203+0.1662\ast {\lambda }_1+0.0249\ast \beta -1.6956\ast \mathit{c}.\hfill \end{array}$$

(26)

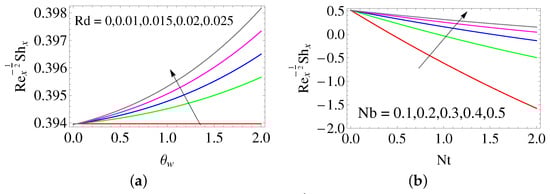

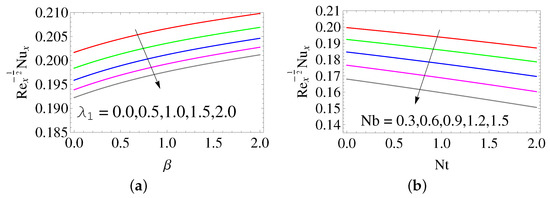

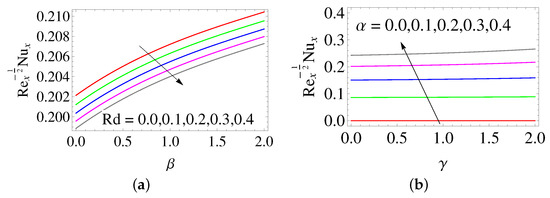

The regression equation for the Nusselt number and the Sherwood number with variations in the radiation parameter $\left(Rd\right)$, Deborah number $\left(\beta \right)$, thermophoresis parameter $\left(Nt\right)$, Brownian motion parameter $\left(Nb\right)$, and thermal relaxation time parameter $\left(\gamma \right)$ are

$$\begin{array}{ccc}& & R{e}_x^{1/2}Nu=0.2077-0.0106\ast Rd-0.0097\ast {\lambda }_1+0.0088\ast \beta -0.0056\ast Nt\hfill \end{array}$$

$$\begin{array}{ccc}& & -0.0252\ast Nb+0.0117\ast \gamma .\hfill \\ & & R{e}_x^{1/2}Sh=0.3847+0.0161\ast Rd-0.0583\ast {\lambda }_1+0.0742\ast \beta -0.6286\ast Nt\hfill \end{array}$$

(27)

$$\begin{array}{ccc}& & +0.4019\ast Nb+0.0083\ast \gamma .\hfill \end{array}$$

(28)

5. Conclusions

The study of the 3D non-linearly thermally radiated flow of a Jeffrey nanofliud with the CCHF model in the presence of a convective boundary condition is presented. The following are the outcomes of this analysis:

• The thickening of the thermal boundary occurs while raising the thermal radiation.
• On increasing the thermal radiation, the local heat transfer diminishes and the local heat transfer raises with a raise in the Deborah number.
• The thickness of the momentum boundary layer reduces by boosting the ratio of the relaxation to retardation time; however, the skin friction rises by raising the ratio of the relaxation to retardation time.
• While boosting the thermal Biot number, the thermal boundary layer thickness rises, which results in a rise in the heat transfer rate.
• The local heat (mass) transfer rate diminishes (rises) when the Brownian motion parameter is raised.
