# Optimal Control Analysis of a Mathematical Model for Breast Cancer

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Model Formulation

## 3. Model Analysis

#### 3.1. Boundedness and Positivity of Solutions

**Theorem**

**1.**

**Proof:**

#### 3.2. The Equilibrium Points of System (5)

#### 3.3. The Reproductive Number and Tumor-Free Equilibrium Point

**Theorem**

**2.**

**Proof.**

**Theorem**

**3.**

**Proof.**

**Theorem**

**4.**

**Proof.**

#### 3.4. Co-Existing Equilibrium Points

**Theorem**

**5.**

**Proof.**

## 4. Uncertainty and Sensitivity Analysis

## 5. Analysis of Optimal Control

#### Existence of an Optimal Control

**Theorem**

**6.**

- $f$ is not empty;
- The admissible control set $U$ is closed and convex;
- Each right hand side of the state system is continuous, is bounded above by the sum of the bounded control and the state, and can be written as a linear function of $\overline{{u}_{i}^{*}(t)}$ with coefficients depending on time and the state;
- The integrand of ${J}_{1}\overline{({u}_{i}^{*}})$ is convex on $U$ and is bounded below by $-{c}_{2}+{c}_{1}{\overline{u}}^{2}$ with ${c}_{1}>0$.

**Proof.**

- Strategy 1: Anti-cancer drug treatment control on tumor cells (control ${u}_{1}(t)$ only);
- Strategy 2: Ketogenic diet control on excess estrogen and tumor cells (control ${u}_{2}(t)$ only);
- Strategy 3: Anti-cancer drug and ketogenic diet treatment combined control on tumor cells growth and excess estrogen (controls ${u}_{1}(t)$ and ${u}_{2}(t)$).

**Theorem**

**7.**

**Proof.**

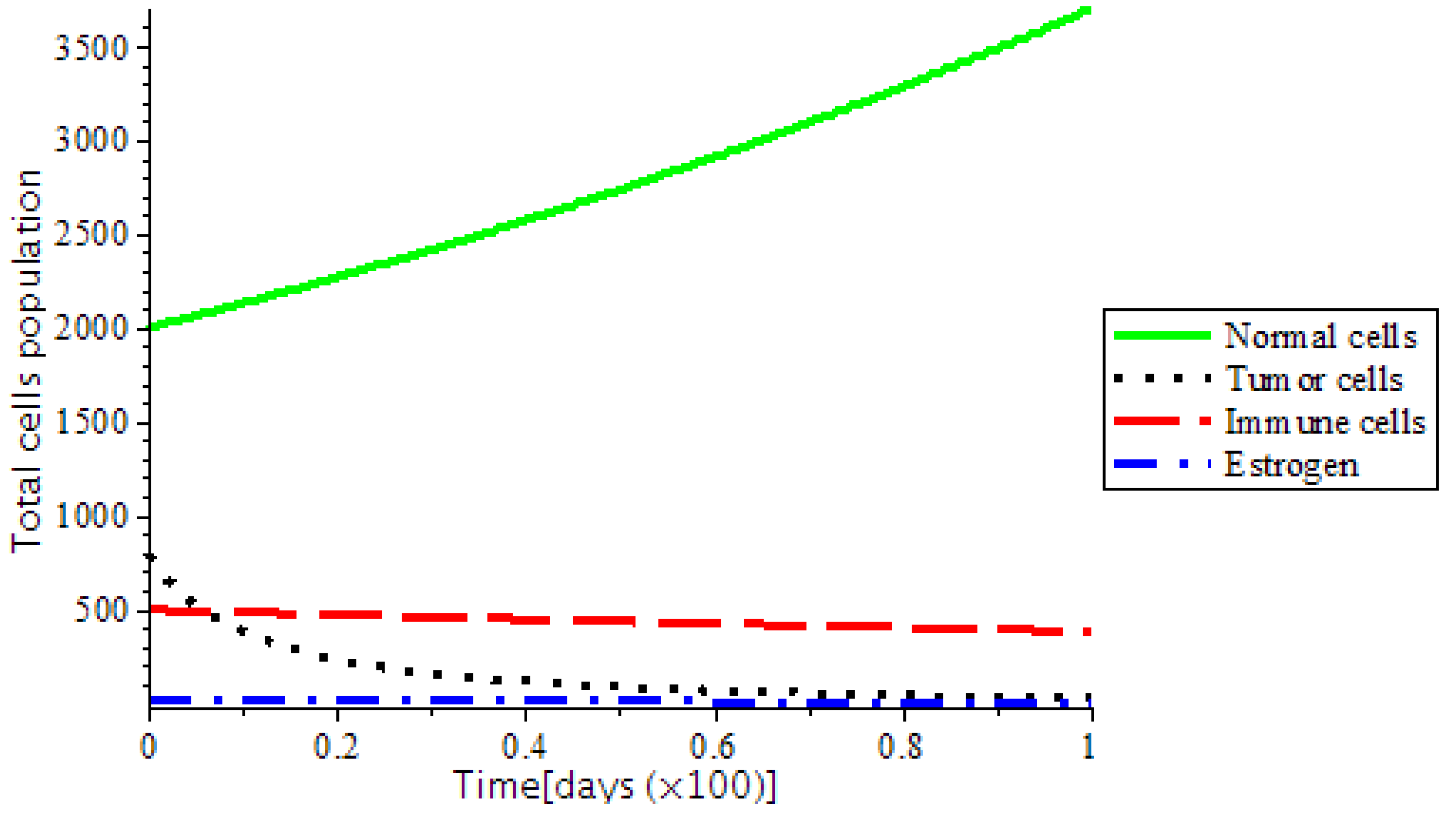

## 6. Numerical Simulations and Discussion

#### Effects of Control on the System (9)

## 7. Conclusions

- The conditions of stability of the tumor-free equilibrium (TFE) was established and the system is only local asymptotically stable (LAS) if a certain threshold quantity, known as the reproductive number, is less than unity (${R}_{0}<1$). It implies that the number of tumor cells in the body will be brought to zero if proper treatments and a ketogenic diet that can force make the threshold to a value less than unity are monitored.

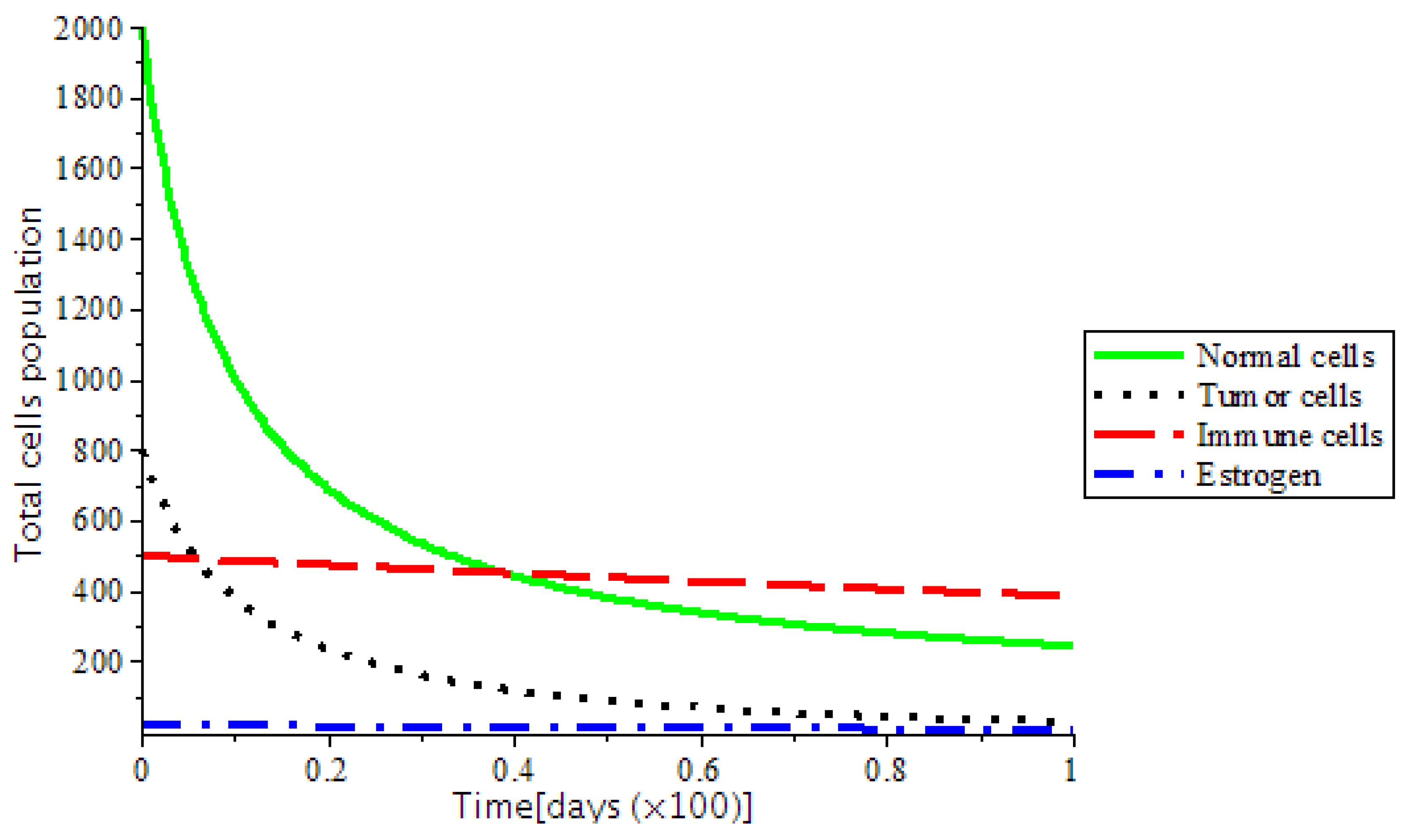

- An individual has the chance of developing breast cancer depending on the level of the immune system (s), the efficacy of the anti-cancer drug (k) and the rate at which the ketogenic diet (d) is being taken to fight tumor cells. We also found out that the presence of excess estrogen in system makes it unstable, as depicted in Figure 7. This implies that any additional estrogen quantity introduced into the body through the birth control, and hormone replacement therapy (HRT) enhances the rate of tumor formation. Thus, the development of breast cancer is certain.
- The transition from normal cells class to tumor cells class plays a crucial role in breast cancer dynamics $({\lambda}_{1})$. More tumor is formed if the DNA is damaged or altered as a result of excess estrogen, which reduces the number of normal cells being produced by red blood cells.

_{0}is properly analyzed. In addition, moderation is conceivable if the planning of intercessions is sufficiently quick and if the arrangement includes the utilization of more than one therapy procedure. No therapy (ketogenic diet and anti-cancer drug) is possible, unless minimal resources are accessible.

## 8. Further Research

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## References

- Evans, C.W. The invasion and metastatic behaviour of malignant cells. In The Metastatic Cell: Behavior and Biochemistry; Chapman and Hall: London, UK, 1991; pp. 137–214. [Google Scholar]
- National Cancer Registry of South Africa. Available online: http://www.cansa.org.za/files/2015/10/NCR_Final_2010_tables1.pdf (accessed on 24 April 2018).
- World Health Organization. Global Action Plan for the Prevention and Control on NCDs; World Health Organization: Geneva, Switzerland, 2014. [Google Scholar]
- Abernathy, K.; Abernathy, Z.; Baxter, A.; Stevens, M. Global Dynamics of a Breast Cancer Competition Model. Differ. Equ. Dyn. Syst.
**2017**, 3, 1–15. [Google Scholar] [CrossRef] - Patel, M.I.; Nagl, S. The Role of Model Integration in Complex Systems Modelling: An Example from Cancer Biology; Springer: Berlin, Germany, 2010. [Google Scholar]
- Allen, B.G.; Bhatia, S.K.; Anderson, C.M.; Eichenberger-Gilmore, J.M.; Sibenaller, Z.A.; Mapuskar, K.A.; Schoenfeld, J.D.; Buatti, J.M.; Spitz, D.R.; Fath, M.A. Ketogenic diets as an adjuvant cancer therapy: History and potential mechanism. Redox Biol.
**2014**, 2, 963–970. [Google Scholar] [CrossRef] [PubMed] - Gilbert, D.L.; Pyzik, P.L.; Freeman, J.M. The ketogenic diet: Seizure control correlates better with serum β-hydroxybutyrate than with urine ketones. J. Child Neurol.
**2000**, 15, 787–790. [Google Scholar] [CrossRef] [PubMed] - Westman, E.C.; Yancy, W.S.; Mavropoulos, J.C.; Marquart, M.; McDuffie, J.R. The effect of a low-carbohydrate, ketogenic diet versus a low-glycemic index diet on glycemic control in type 2 diabetes mellitus. Nutr. Metab.
**2008**, 5, 36. [Google Scholar] [CrossRef] [PubMed] - Kareva, I.; Berezovskaya, F. Cancer immunoediting: A process driven by metabolic competition as a predator–prey–shared resource type model. J. Theor. Biol.
**2015**, 380, 463–472. [Google Scholar] [CrossRef] [PubMed] - Lenhart, S.; Workman, J.T. Optimal Control Applied to Biological Models; CRC Press: Boca Raton, FL, USA, 2007. [Google Scholar]
- Pontryagin, L.S. Mathematical Theory of Optimal Processes; CRC Press: Boca Raton, FL, USA, 1987. [Google Scholar]
- De Pillis, L.G.; Radunskaya, A. A mathematical tumor model with immune resistance and drug therapy: An optimal control approach. Comput. Math. Methods Med.
**2001**, 3, 79–100. [Google Scholar] [CrossRef] - D’Onofrio, A.; Ledzewicz, U.; Maurer, H.; Schättler, H. On optimal delivery of combination therapy for tumors. Math. Biosci.
**2009**, 222, 13–26. [Google Scholar] [CrossRef] [PubMed] - Kermack, W.O.; McKendrick, A.G. A contribution to the mathematical theory of epidemics. In Proceedings of the Royal Society of London A: Mathematical, Physical and Engineering Sciences, London, UK, 1 August 1927; The Royal Society: London, UK, 1927; Volume 115, pp. 700–721. [Google Scholar]
- Kermack, W.O.; McKendrick, A.G. Contributions to the mathematical theory of epidemics: V. Analysis of experimental epidemics of mouse-typhoid; a bacterial disease conferring incomplete immunity. Epidemiol. Infect.
**1939**, 39, 271–288. [Google Scholar] [CrossRef] - Cai, P.; Tang, J.S.; Li, Z.B. Analysis and controlling of Hopf Bifurcation for chaotic Van der Pol-Duffing system. Math. Comput. Appl.
**2014**, 19, 184–193. [Google Scholar] [CrossRef] - Bernoulli, D. Essai d’une nouvelle analyse de la mortalité causée par la petite vérole et des avantages de l’inoculation pour la prévenir. Hist. Acad. R. Sci. (Paris) Mém. Math. Phys. Mém.
**1760**, 1, 1–45. [Google Scholar] - De Pillis, L.G.; Radunskaya, A.E.; Wiseman, C.L. A validated mathematical model of cell-mediated immune response to tumor growth. Cancer Res.
**2005**, 65, 7950–7958. [Google Scholar] [CrossRef] [PubMed] - Mufudza, C.; Walter, S.; Chiyaka, E.T. Assessing the effects of estrogen on the dynamics of breast cancer. Comput. Math. Methods Med.
**2012**, 2012, 473572. [Google Scholar] [CrossRef] [PubMed] - Malinzi, J.; Eladdadi, A.; Sibanda, P. Modelling the spatiotemporal dynamics of chemovirotherapy cancer treatment. J. Biol. Dyn.
**2017**, 11, 244–274. [Google Scholar] [CrossRef] [PubMed] - Swierniak, A.; Krzeslak, M.; Student, S.; Rzeszowska-Wolny, J. Development of a population of cancer cells: Observation and modeling by a mixed spatial evolutionary games approach. J. Theor. Biol.
**2016**, 405, 94–103. [Google Scholar] [CrossRef] [PubMed] - Wu, C.H.; Motohashi, T.; Abdel-Rahman, H.A.; Flickinger, G.L.; Mikhail, G. Free and protein-bound plasma estradiol-17β during the menstrual cycle. J. Clin. Endocrinol. Metab.
**1976**, 43, 436–445. [Google Scholar] [CrossRef] [PubMed] - Kumar, A.; Srivastava, P.K. Vaccination and treatment as control interventions in an infectious disease model with their cost optimization. Commun. Nonlinear Sci. Numer. Simul.
**2017**, 44, 334–343. [Google Scholar] [CrossRef] - Kimmel, M.; Swierniak, A. Control theory approach to cancer chemotherapy: Benefiting from phase dependence and overcoming drug resistance. In Tutorials in Mathematical Biosciences III; Springer: Berlin/Heidelberg, Germany, 2006; pp. 185–221. [Google Scholar]
- Buonomo, B. Modeling itns usage: Optimal promotion programs versus pure voluntary adoptions. Mathematics
**2015**, 3, 1241–1254. [Google Scholar] [CrossRef] - Pinho, S.T.R.D.; Freedman, H.I.; Nani, F. A chemotherapy model for the treatment of cancer with metastasis. Math. Comput. Model.
**2002**, 36, 773–803. [Google Scholar] [CrossRef] - American Cancer Society. Breast Cancer; American Cancer Society: Atlanta, GA, USA, 2013. [Google Scholar]
- Gatenby, R.A. The potential role of transformation-induced metabolic changes in tumor-host interaction. Cancer Res.
**1995**, 1766, 4151–4156. [Google Scholar] - Neves, A.A.; Brindle, K.M. Assessing responses to cancer therapy using molecular imaging. Biochim. Biophys. Acta
**2006**, 1766, 242–261. [Google Scholar] [CrossRef] [PubMed] - Valayannopoulos, V.; Bajolle, F.; Arnoux, J.B.; Dubois, S.; Sannier, N.; Baussan, C.; Petit, F.; Labrune, P.; Rabier, D.; Ottolenghi, C.; et al. Successful treatment of severe cardiomyopathy in glycogen storage disease type III With d, l-3-hydroxybutyrate, ketogenic and high-protein diet. Pediatr. Res.
**2011**, 70, 638–641. [Google Scholar] [CrossRef] [PubMed] - De Leenheer, P.; Aeyels, D. Stability properties of equilibria of classes of cooperative systems. IEEE Trans. Autom. Control
**2001**, 46, 1996–2001. [Google Scholar] [CrossRef] - Perko, L. Differential Equations and Dynamical Systems; Springer: Berlin, Germany, 2013; Volume 7. [Google Scholar]
- Marino, S.; Hogue, I.B.; Ray, C.J.; Kirschner, D.E. A methodology for performing global uncertainty and sensitivity analysis in systems biology. J. Theor. Biol.
**2008**, 254, 178–196. [Google Scholar] [CrossRef] [PubMed] - Acar, E.; Aplak, H.S. A Model Proposal for a Multi-Objective and Multi-Criteria Vehicle Assignment Problem: An Application for a Security Organization. Math. Comput. Appl.
**2016**, 21, 39. [Google Scholar] [CrossRef] - Madhi, M.; Mohamed, N. An Initial Condition Optimization Approach for Improving the Prediction Precision of a GM (1,1) Model. Math. Comput. Appl.
**2017**, 22, 21. [Google Scholar] [CrossRef] - Zhuang, K. Spatiotemporal Dynamics of a Delayed and Diffusive Viral Infection Model with Logistic Growth. Math. Comput. Appl.
**2017**, 22, 7. [Google Scholar] [CrossRef] - De Pillis, L.G.; Gu, W.; Fister, K.R.; Head, T.A.; Maples, K.; Murugan, A.; Neal, T.; Yoshida, K. Chemotherapy for tumors: An analysis of the dynamics and a study of quadratic and linear optimal controls. Math. Biosci.
**2007**, 209, 292–315. [Google Scholar] [CrossRef] [PubMed] - De Pillis, L.G.; Fister, K.R.; Gu, W.; Head, T.; Maples, K.; Neal, T.; Murugan, A.; Kozai, K. Optimal control of mixed immunotherapy and chemotherapy of tumors. J. Biol. Syst.
**2008**, 16, 51–80. [Google Scholar] [CrossRef] - Kirschner, D.; Lenhart, S.; Serbin, S. Optimal control of the chemotherapy of HIV. J. Math. Biol.
**1997**, 35, 775–792. [Google Scholar] [CrossRef] [PubMed] - Swan, G.W. Role of optimal control theory in cancer chemotherapy. Math. Biosci.
**1990**, 101, 237–284. [Google Scholar] [CrossRef] - Ratajczyk, E.; Ledzewicz, U.; Schättler, H. Optimal Control for a Mathematical Model of Glioma Treatment with Oncolytic Therapy and TNF-α Inhibitors. J. Optim. Theory Appl.
**2018**, 456–477. [Google Scholar] [CrossRef] - Di Liddo, A. Optimal Control and Treatment of Infectious Diseases. The Case of Huge Treatment Costs. Mathematics
**2016**, 4, 21. [Google Scholar] [CrossRef] - Fleming, W.H.; Rishel, R.W. Deterministic and Stochastic Optimal Control; Springer: Berlin, Germany, 2012; Volume 1. [Google Scholar]
- Ghaddar, C.K. Novel Spreadsheet Direct Method for Optimal Control Problems. Math. Comput. Appl.
**2018**, 23, 6. [Google Scholar] [CrossRef] - Lukes, D.L. Differential Equations: Classical to Controlled; Elsevier: New York, NY, USA, 1982. [Google Scholar]
- Schattler, H.; Ledzewicz, U. Optimal Control for Mathematical Models of Cancer Therapies; Springer: New York, NY, USA, 2015. [Google Scholar]
- Otieno, G.; Koske, J.K.; Mutiso, J.M. Cost effectiveness analysis of optimal malaria control strategies in kenya. Mathematics
**2016**, 4, 14. [Google Scholar] [CrossRef] - Davies, C.; Pan, H.; Godwin, J.; Gray, R.; Arriagada, R.; Raina, V.; Abraham, M.; Medeiros Alencar, V.H.; Badran, A.; Bonfill, X.; et al. Long-term effects of continuing adjuvant tamoxifen to 10 years versus stopping at 5 years after diagnosis of oestrogen receptor-positive breast cancer: ATLAS, a randomised trial. Lancet
**2013**, 381, 805–816, Erratum in**2013**, 381, 804. [Google Scholar] [CrossRef]

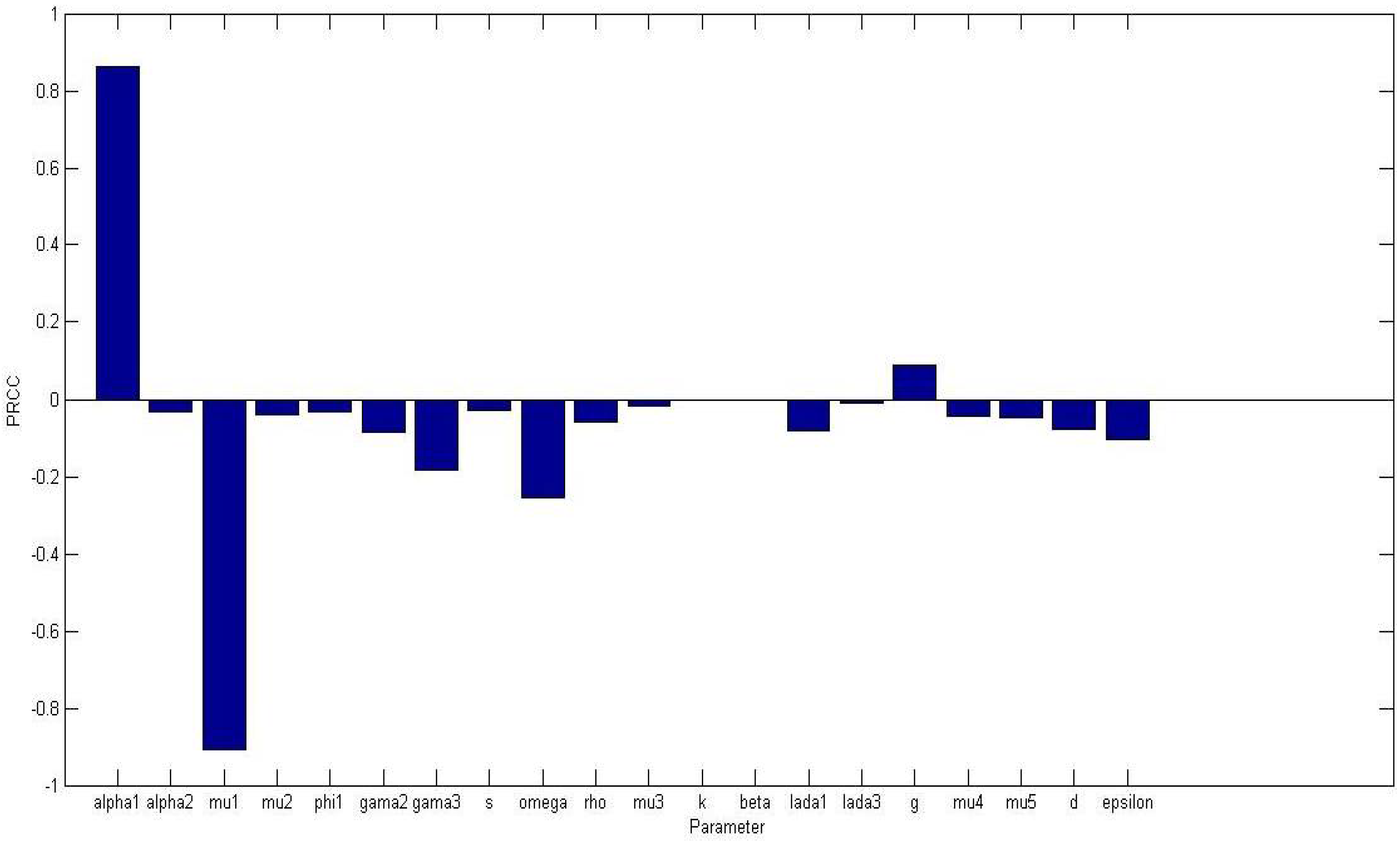

**Figure 1.**PRCCs of homogeneous model parameters with the tumor cells as the baseline variable. All parameter values were varied in 25% of their baseline values in Table 1. The most sensitive parameters are shown to be $P-values$ of ${\alpha}_{1},g,{\mu}_{1},{\gamma}_{3}$ and $\omega $ are less than 0.01.

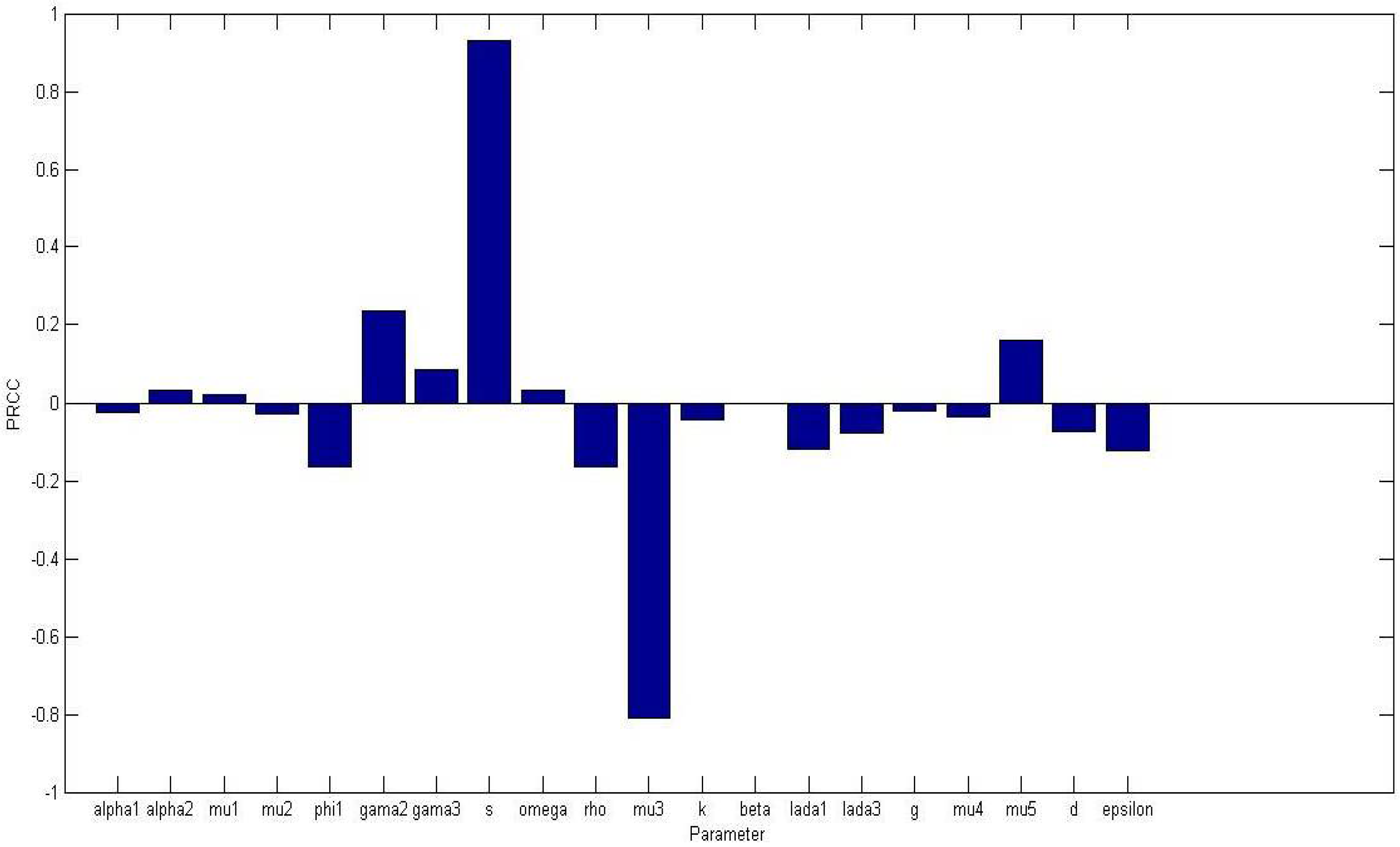

**Figure 2.**PRCCs of homogeneous model parameters with the tumor cells as the baseline variable. All parameter values were varied in 25% of their baseline values in Table 1. The most sensitive parameters are shown to be $P-values$ of $s,{\gamma}_{2},{\mu}_{3}$ and $\rho $ are less than 0.01.

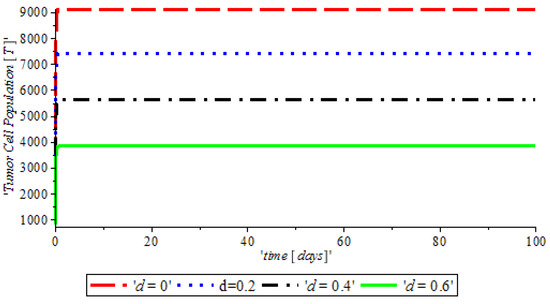

**Figure 3.**The variation of proportion of Tumor cell population for different values of $d$ with other parameters fixed.

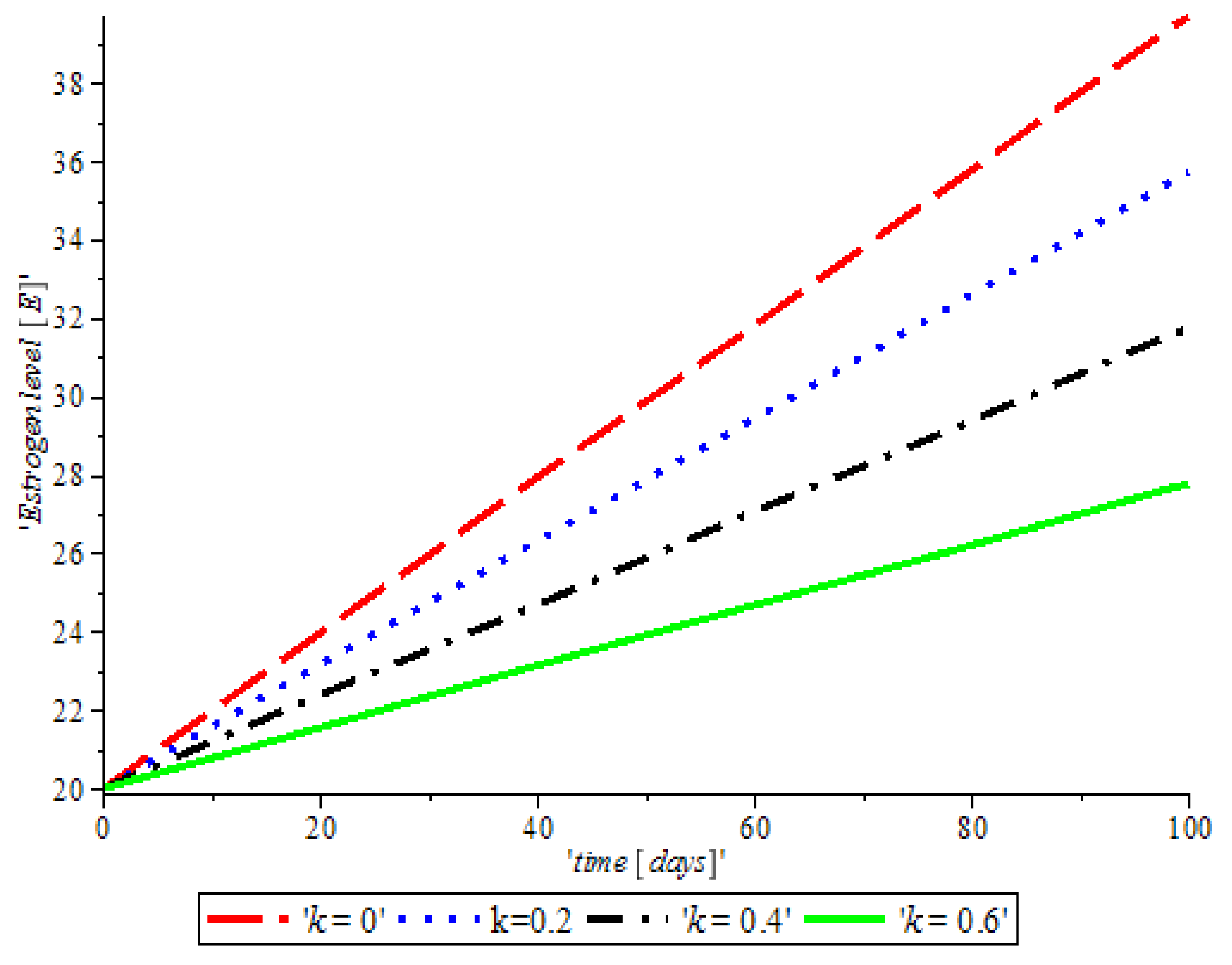

**Figure 4.**The variation of proportion of Estrogen level population for different values of $k$ with other parameters fixed.

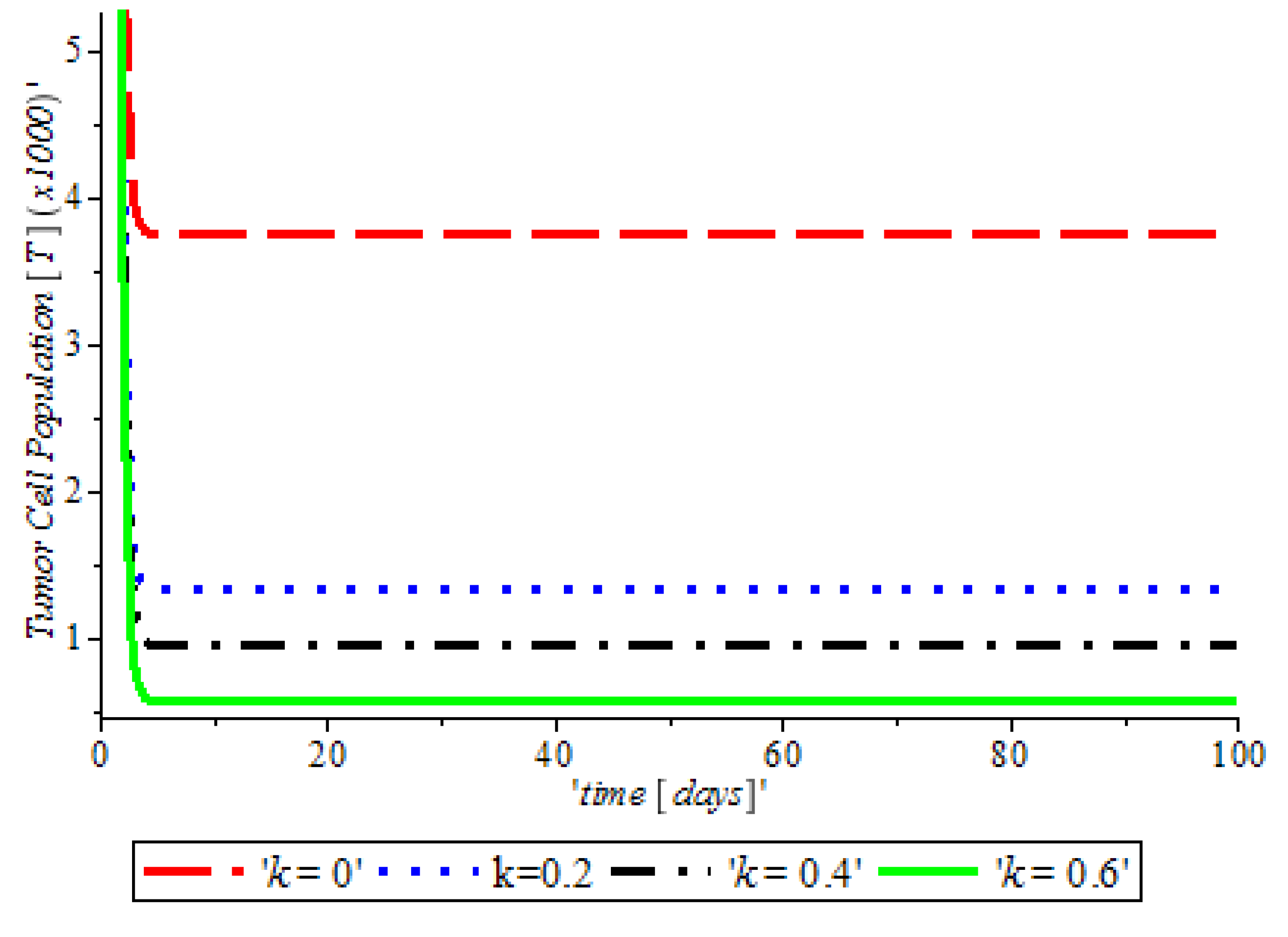

**Figure 5.**The variation of proportion of Tumor cell population for different values of $k$ with other parameters fixed.

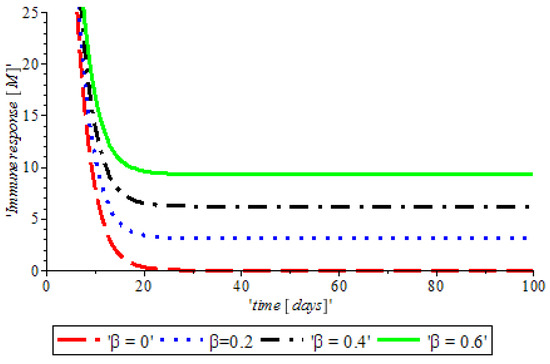

**Figure 6.**The variation of proportion of Immune booster population for different values of $\beta $ with other parameters fixed.

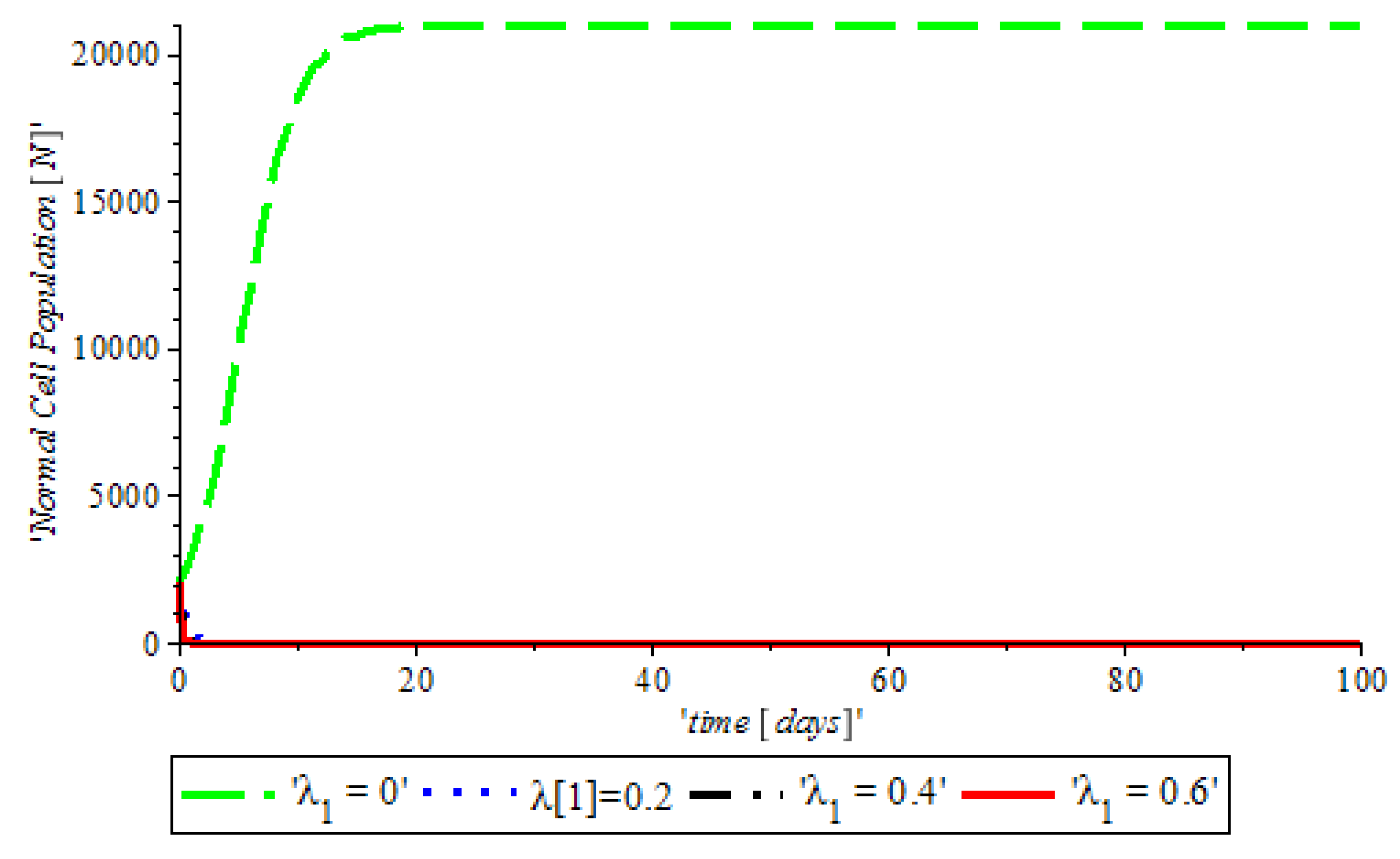

**Figure 9.**The variation of proportion of Normal cell population for different values of ${\lambda}_{1}$ with other parameters fixed.

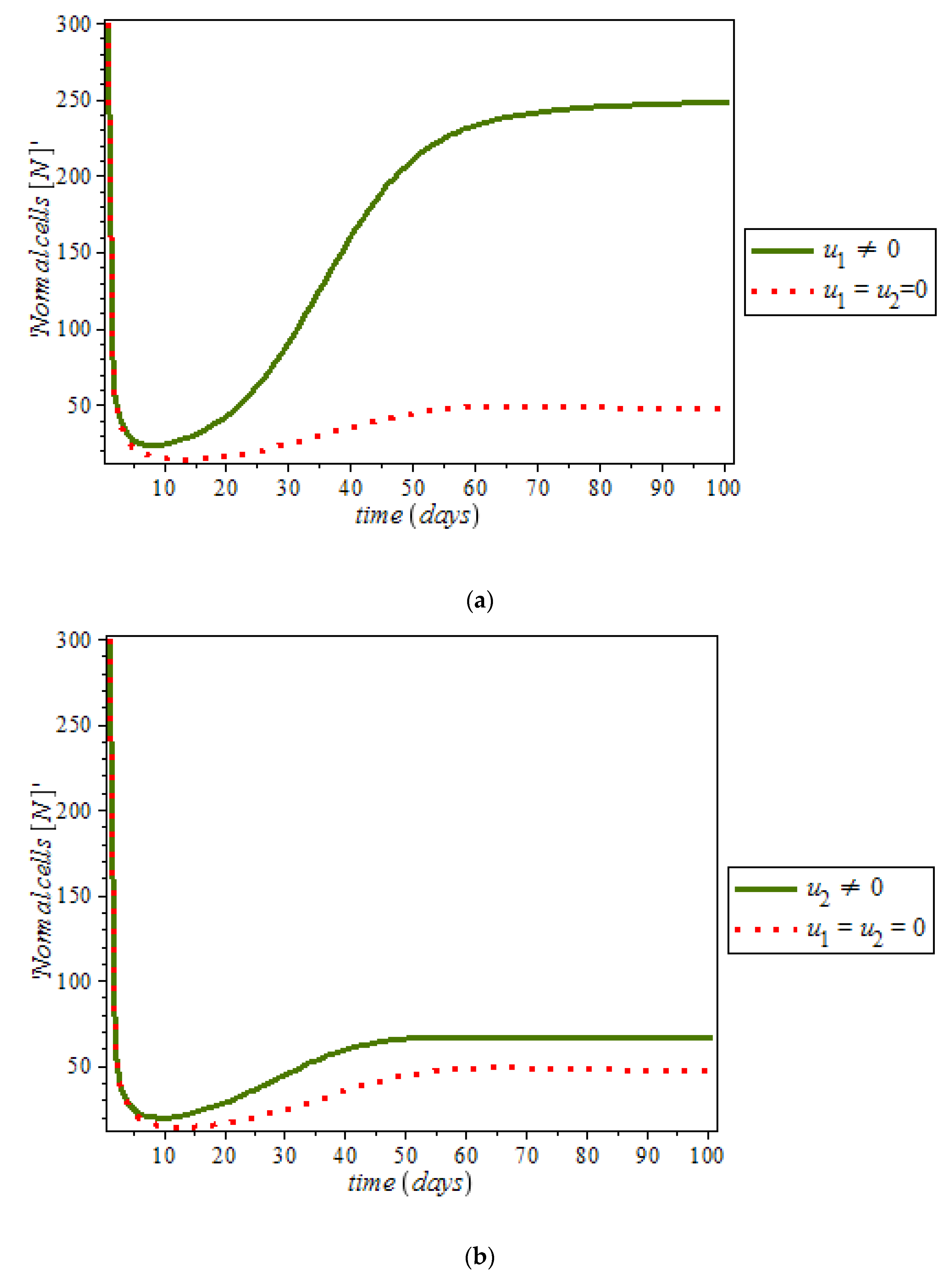

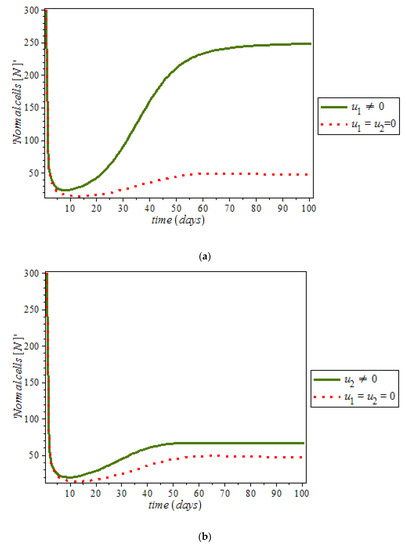

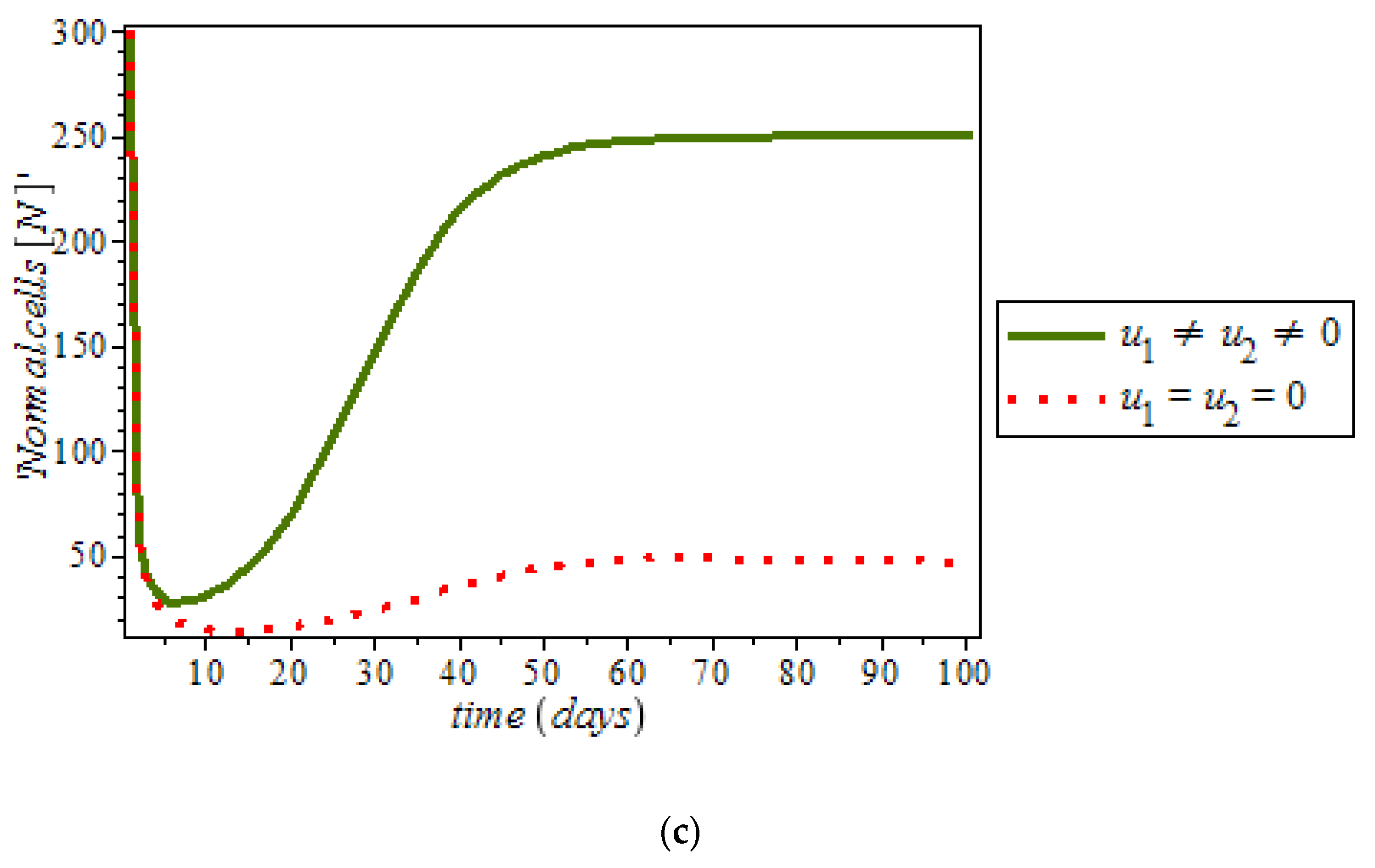

**Figure 10.**Simulation result of the model (9), showing normal cell population against time with and without control.

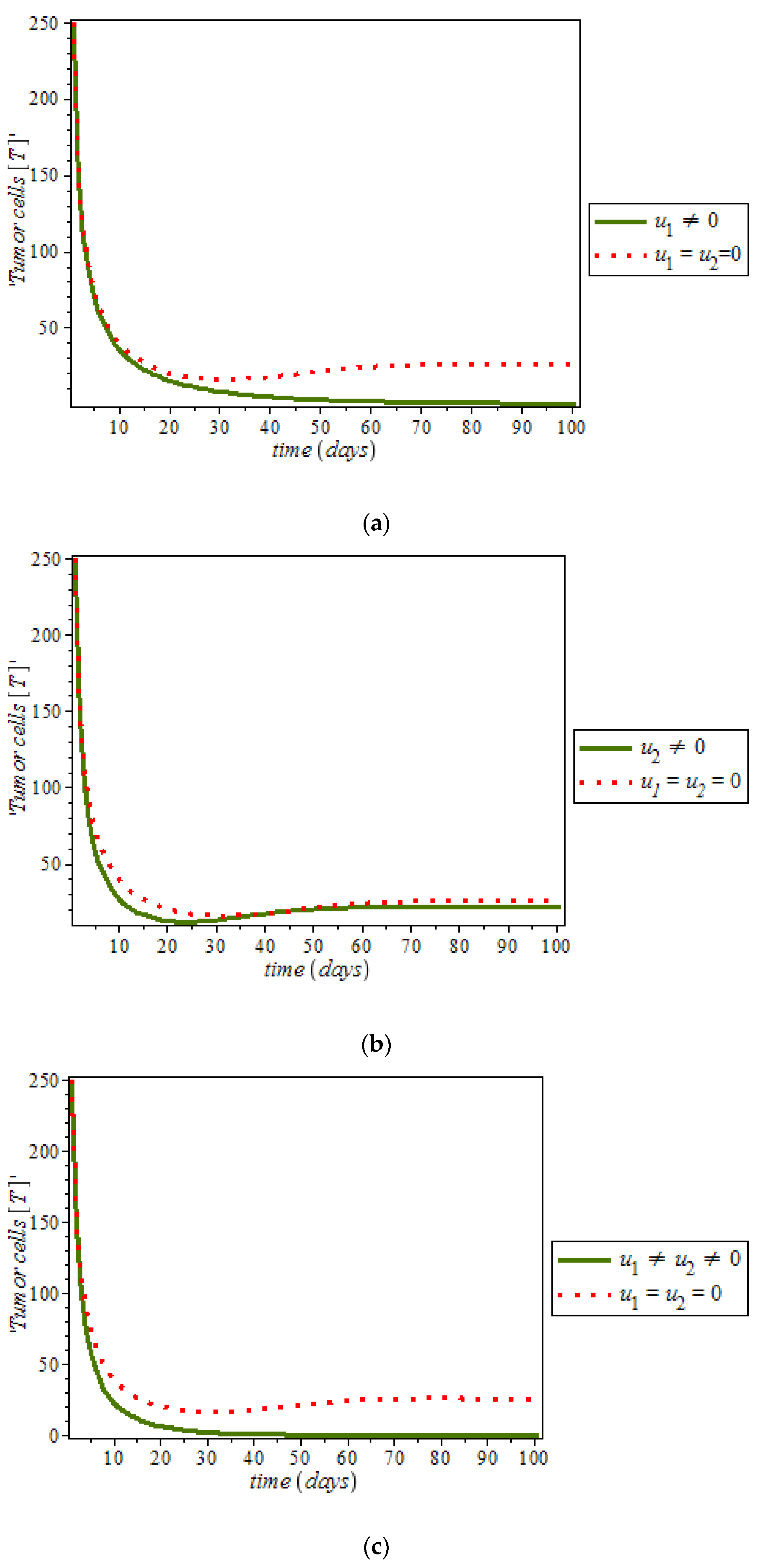

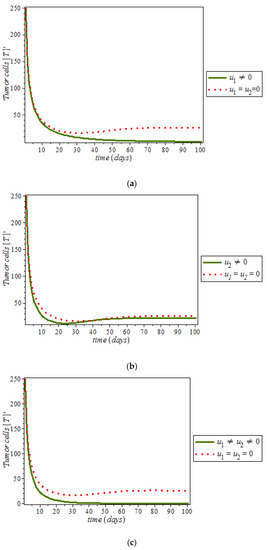

**Figure 11.**Simulation result of the model (9), showing tumor cell population against time with and without control.

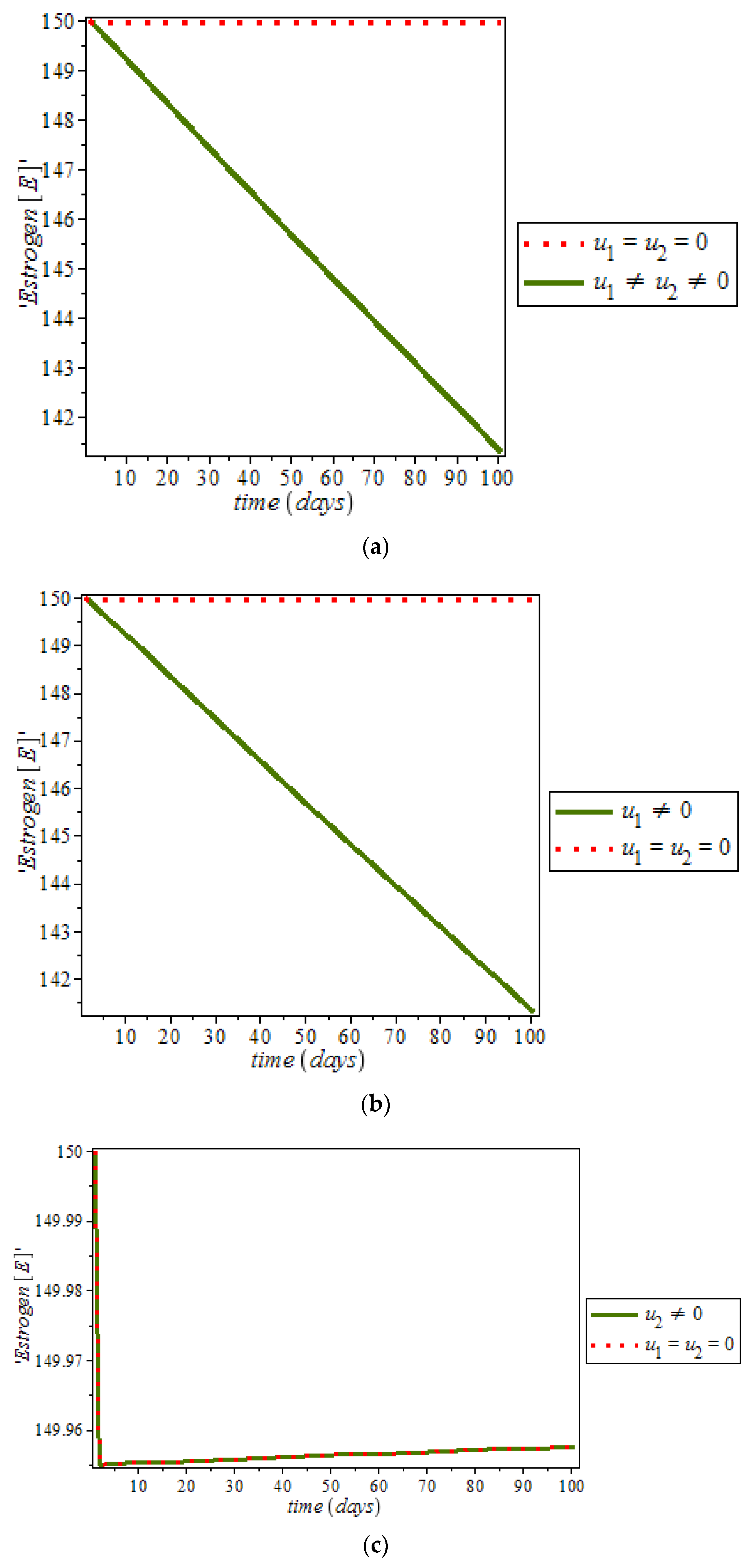

**Figure 12.**Simulation result of the model (9), showing estrogen level against time with and without control.

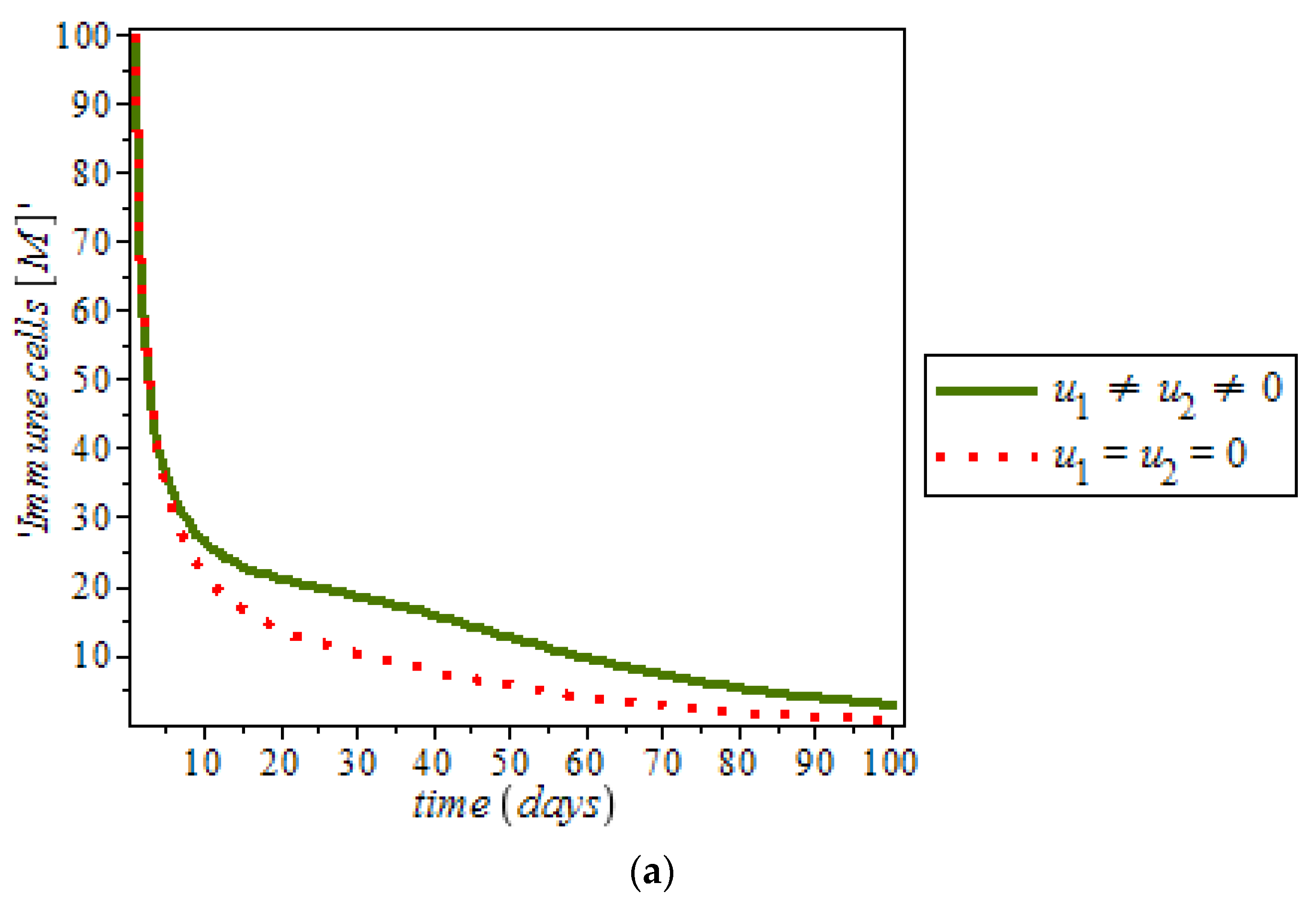

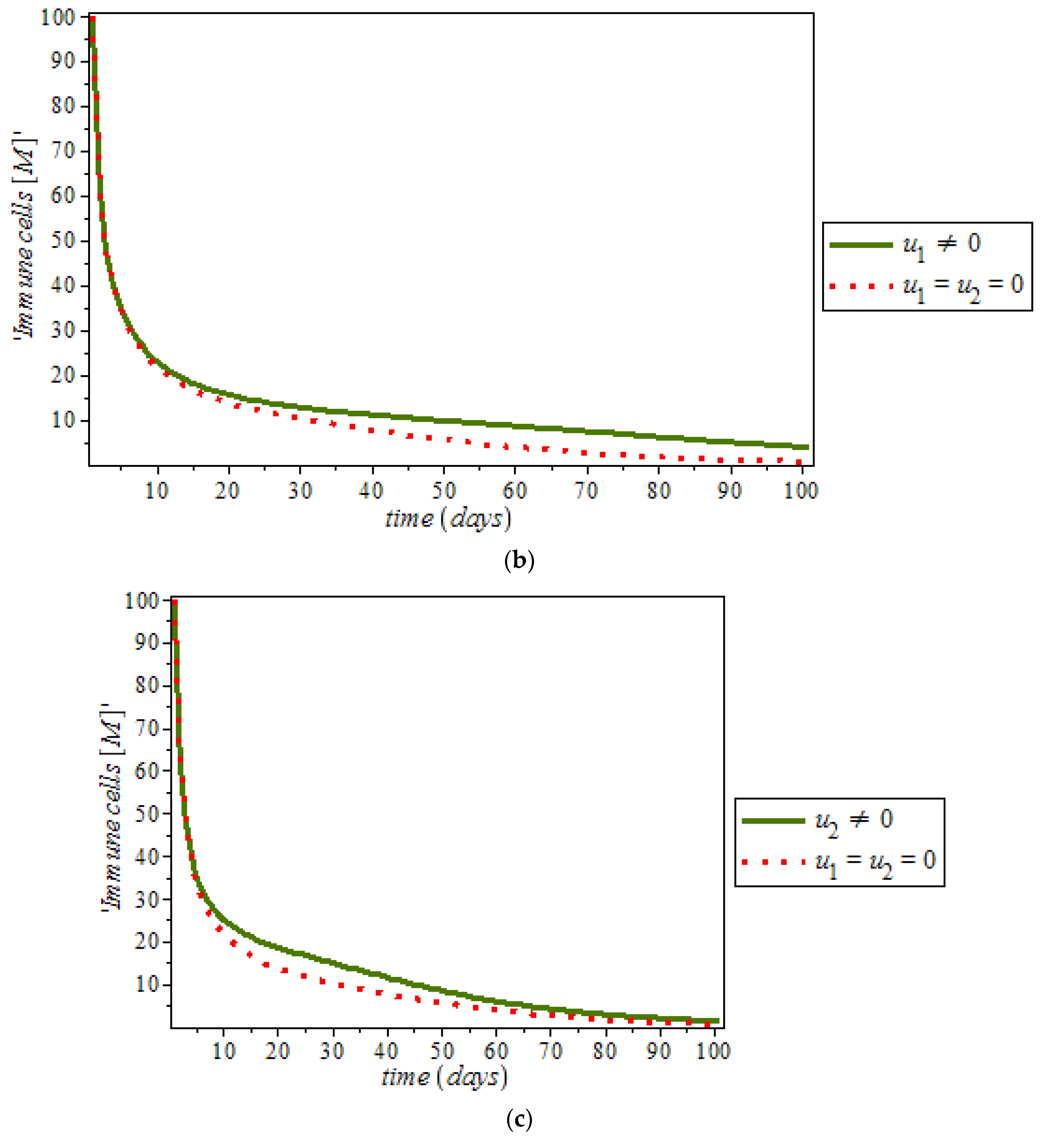

**Figure 13.**Simulation result of the model (9), showing immune response against time with and without control.

Parameter | Symbol | Value | Unit | Refs |
---|---|---|---|---|

Per capita growth rate of normal cells | ${\alpha}_{1}$ | 0.70 | day^{−1} | [12] |

Per capita growth rate of tumor cells | ${\alpha}_{2}$ | 0.514 | day^{−1} | [5] |

Natural death rate of normal cells | ${\mu}_{1}$ | 0.00003 | day^{−1} | Assumed |

Natural death rate of tumor cells | ${\mu}_{2}$ | 0.01 | day^{−1} | [7] |

Rate of inhibition of normal cells | ${\varphi}_{1}$ | 6 × 10^{−8} | day^{−1} | [1] |

Tumor cells death rate due to immune response | ${\gamma}_{2}$ | 3 × 10^{−6} | day^{−1} | [12] |

Interaction coefficient rate with immune response | ${\gamma}_{3}$ | 1 × 10^{−7} | day^{−1} | [5] |

Source rate of immune cells | $s$ | 1.3 × 10^{4} | day^{−1} | [12] |

Source rate of estrogen | $\u03f5$ | 1.3 × 10^{4} | day^{−1} | est |

Immune threshold rate | $\omega $ | 3 × 10^{5} | day^{−1} | [5] |

Immune response rate | $\rho $ | 0.20 | day^{−1} | [13] |

Natural death rate of immune cells | ${\mu}_{3}$ | 0.29 | day^{−1} | [5] |

Efficacy of anti-cancer drug | $k$ | 0–1 | day^{−1} | Assumed |

Supplement for immune booster | $\beta $ | 0.01 | day^{−1} | est |

Tumor formation rate as a result of DNA damage by excess estrogen | ${\lambda}_{1}$ | 0.20 | (Pg/mL)^{−1}day^{−1} | est |

Immune suppression rate due to excess estrogen | ${\lambda}_{3}$ | 0.002 | day^{−1} | est |

Assume constant of value of decay factor | $g$ | 0.1 | day^{−1} | est |

Natural death rate of estrogen | ${\mu}_{4}$ | 0.97 | day^{−1} | [19] |

Death rate due to ketogenic diet | ${\mu}_{5}$ | 2.0 | day^{−1} | est |

Constant rate of ketogenic diet | $d$ | 0.5 | day^{−1} | est |
