Open AccessArticle
Processes 2018, 6(8), 123; https://doi.org/10.3390/pr6080123

Deformation and Hydraulic Conductivity of Compacted Clay under Waste Differential Settlement

1
Institute of Geotechnical Engineering, Zhejiang University of Technology, Hangzhou 310014, China
2
Zhejiang College of Construction, Hangzhou 310014, China
*
Author to whom correspondence should be addressed.
Received: 20 July 2018 / Revised: 5 August 2018 / Accepted: 6 August 2018 / Published: 8 August 2018
(This article belongs to the Special Issue Fluid Flow in Fractured Porous Media)
Full-Text   |   PDF [3331 KB, uploaded 8 August 2018]   |

Abstract

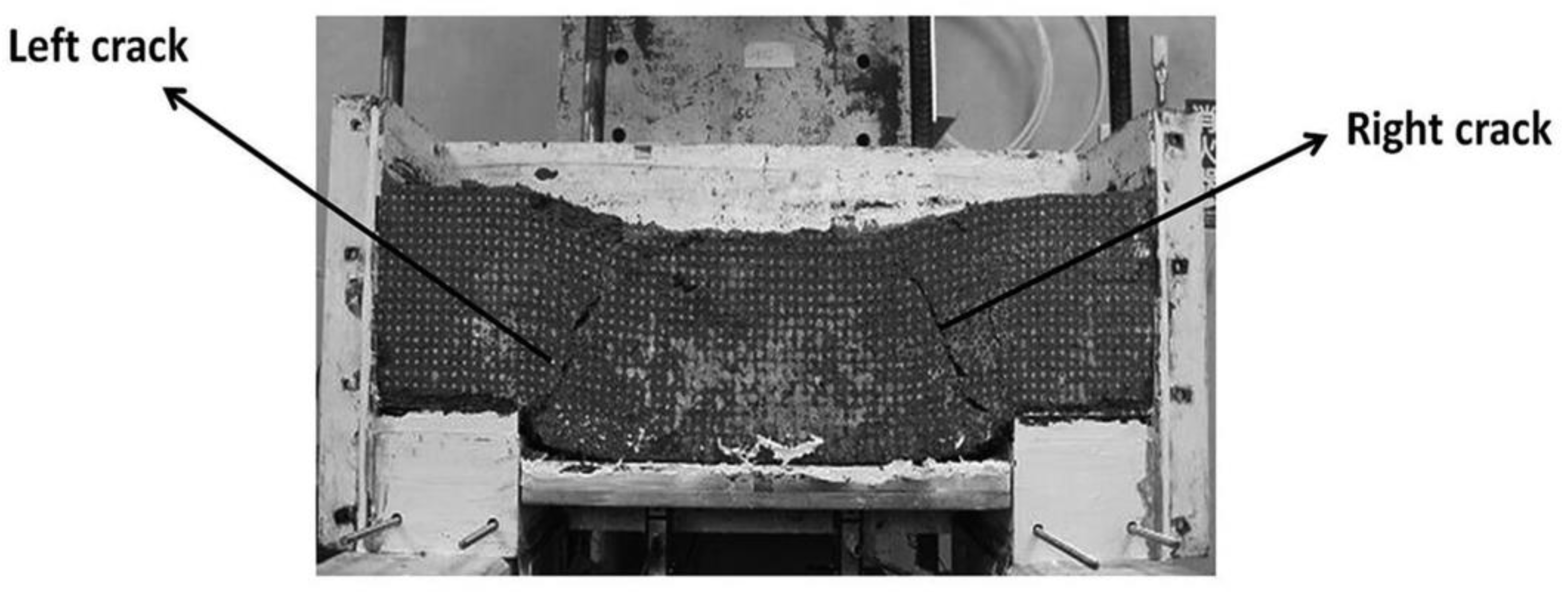

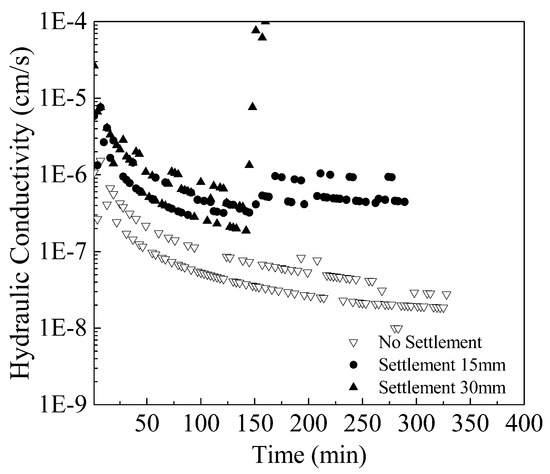

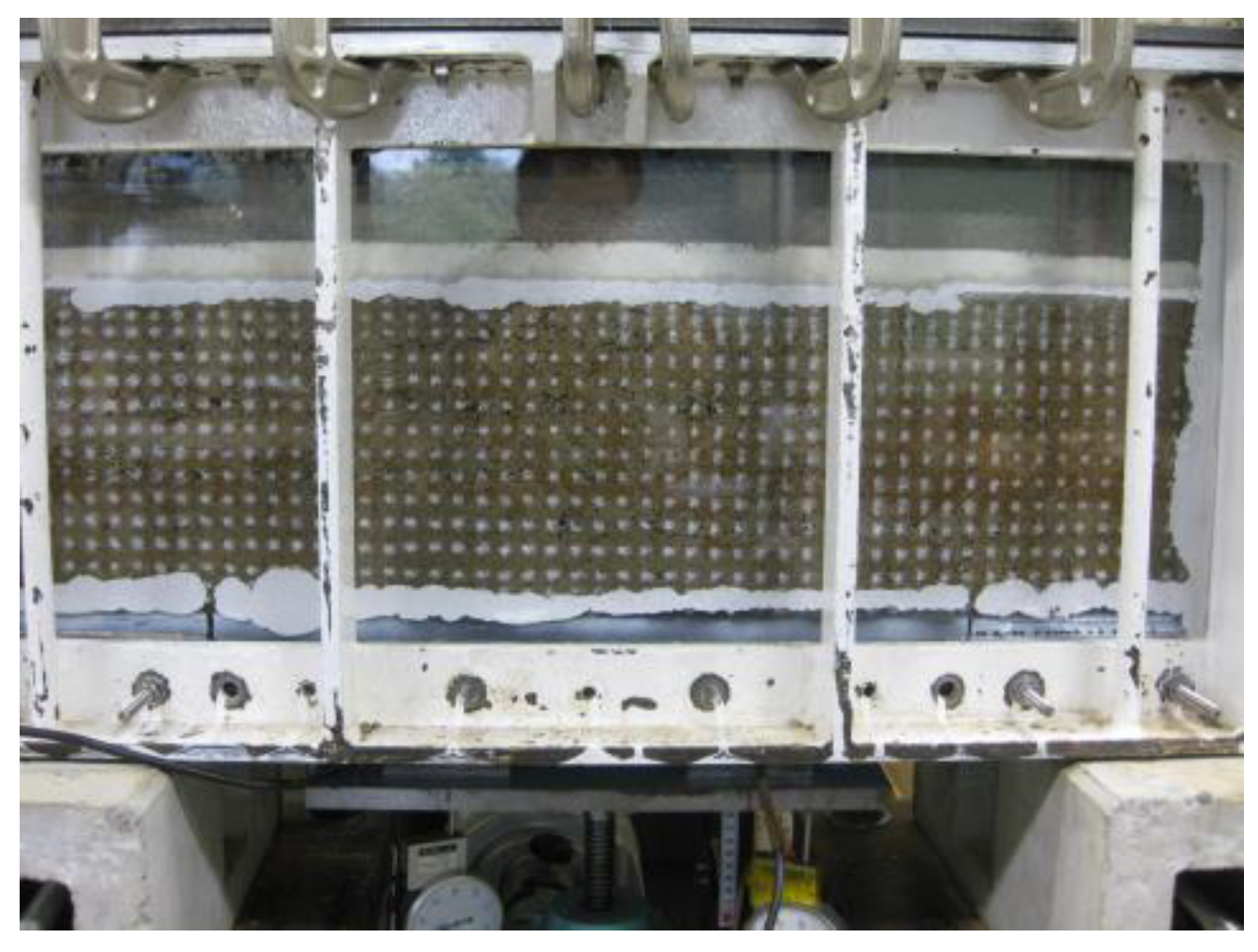

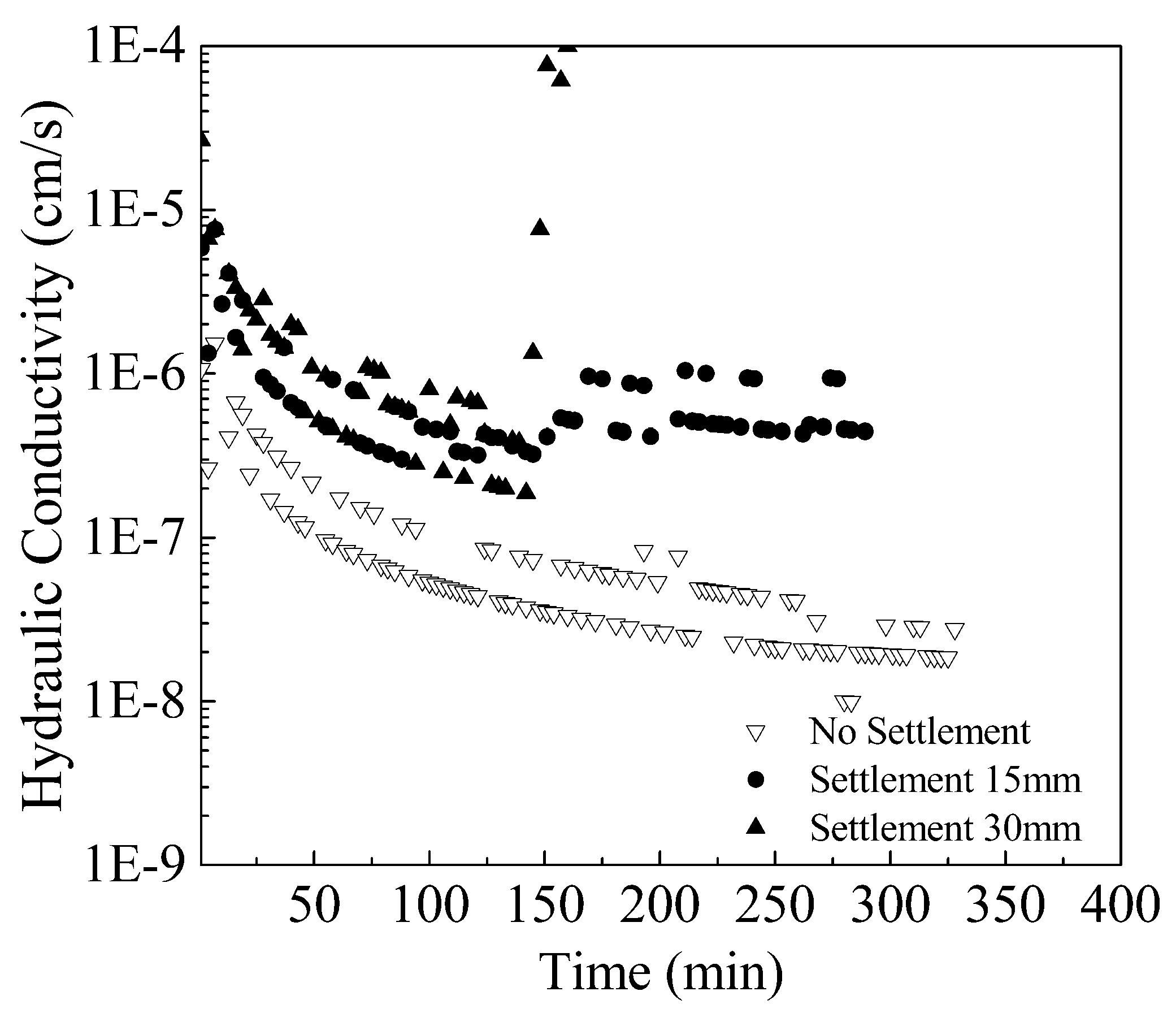

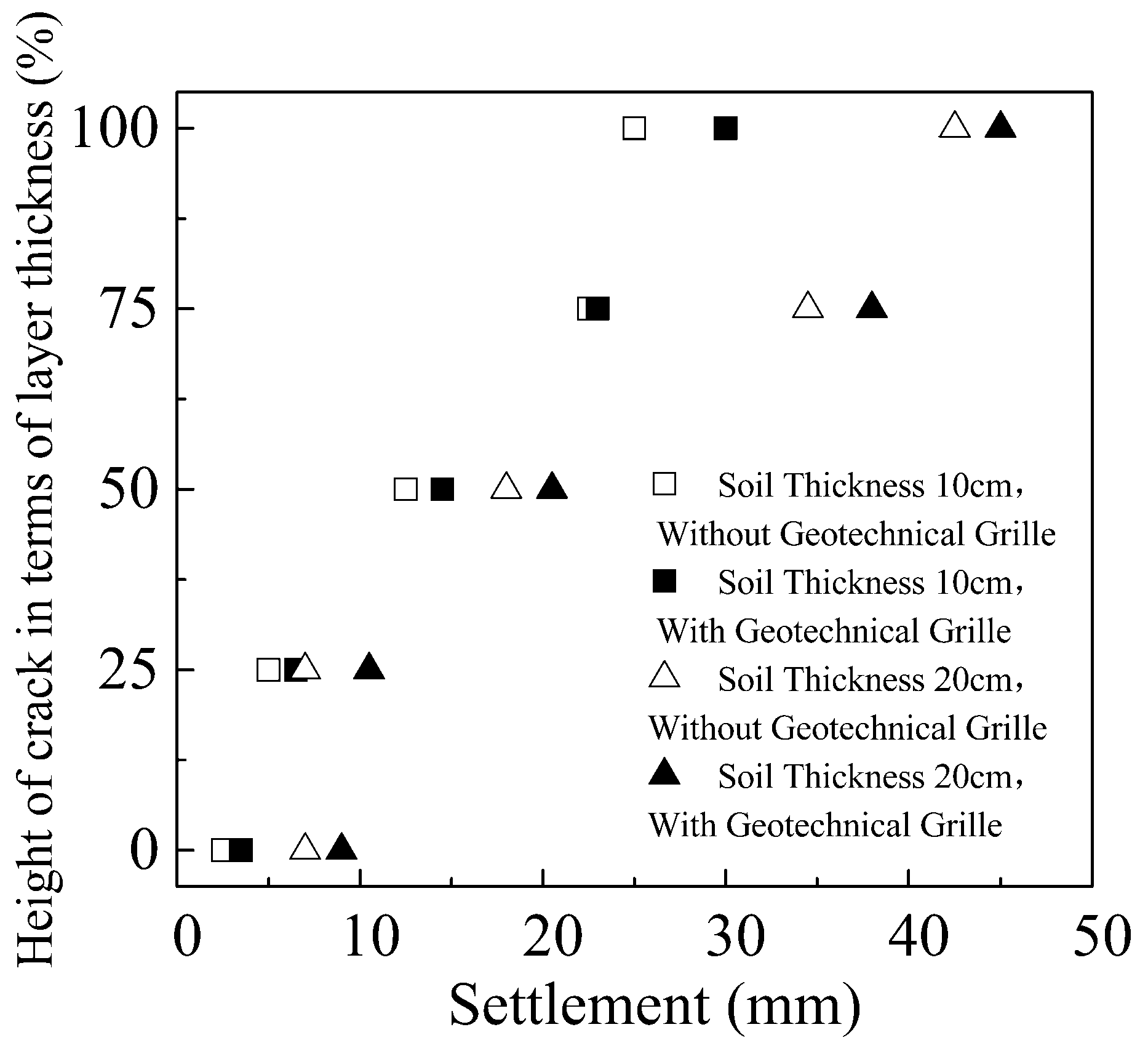

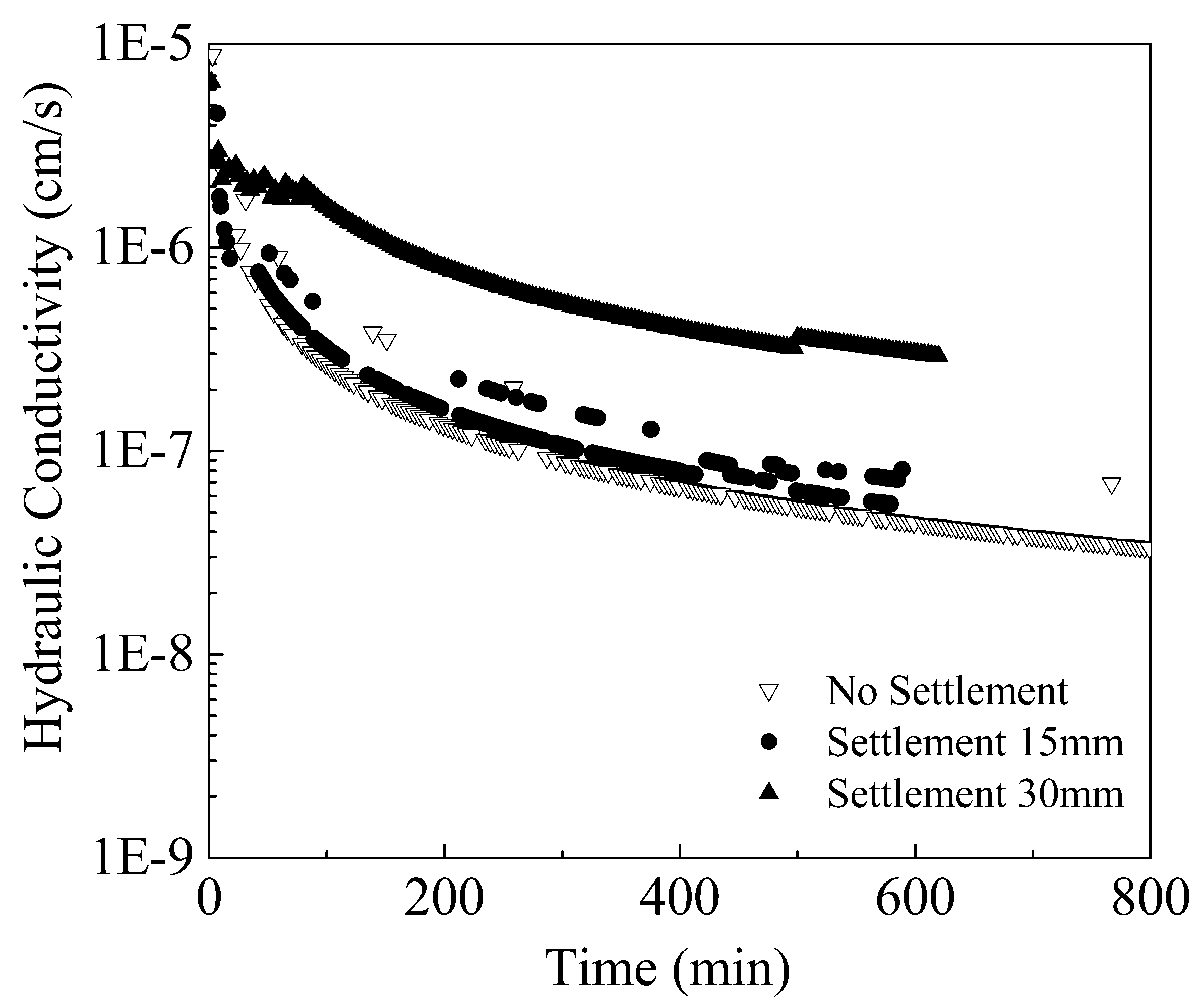

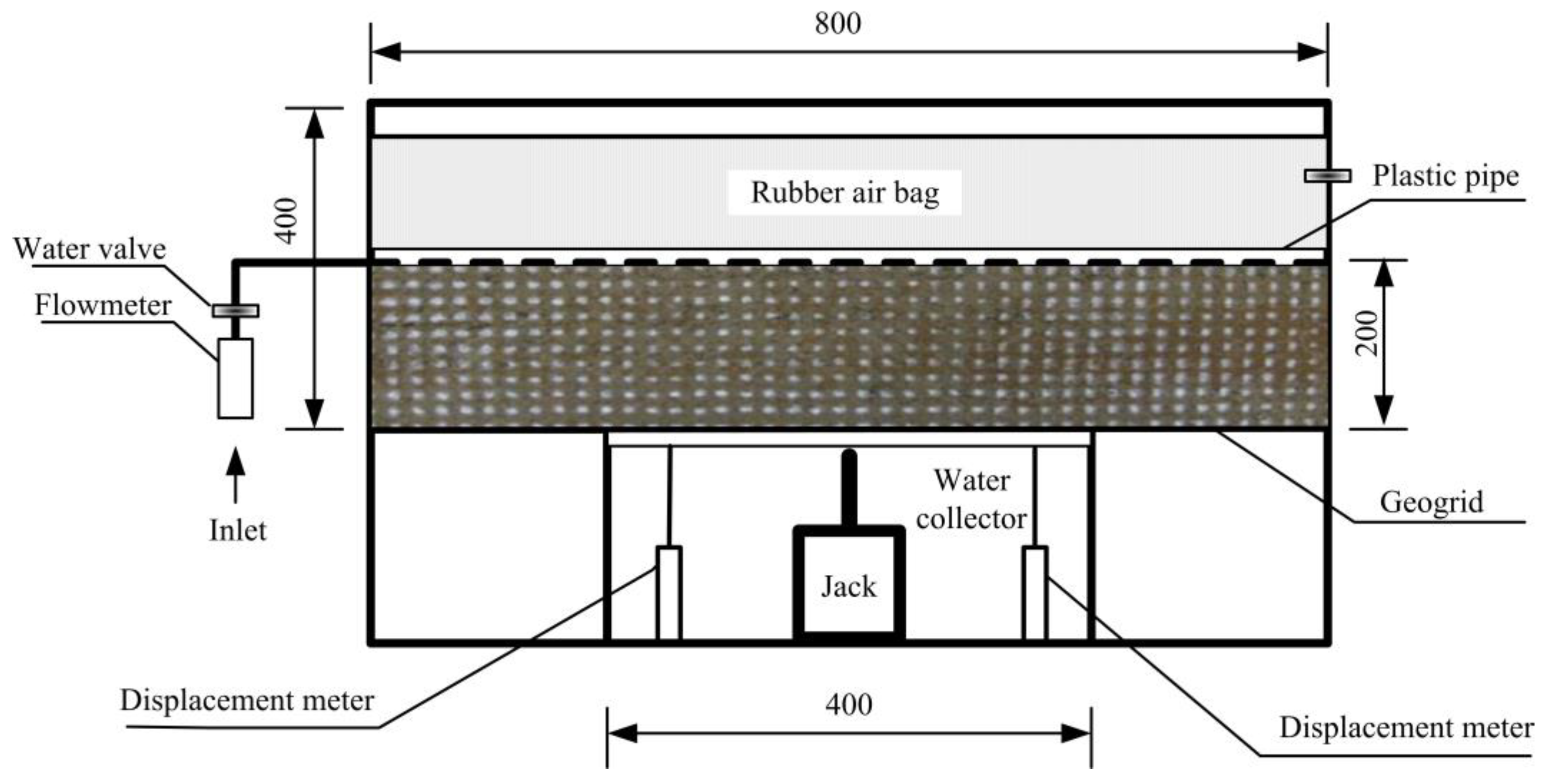

Landfill is still the most important process to dispose of municipal solid waste in China, while landfill closure aims for pollution control, security control, and better land reuse. However, uneven settlement of landfill cover system is very likely to cause deformation and cracking. The objective of this paper is to examine the effects of geogrid reinforcement on the deformation behaviour and hydraulic conductivity of the bentonite-sand mixtures that are subjected to differential settlement. The laboratory model tests were performed on bentonite-sand mixtures with and without the inclusion of geogrid reinforcement. By maintaining the type and location of the geogrid within the liner systems as constant, the thickness of the bentonite-sand mixtures is varied. The performation of the liner systems with and without the inclusion of geogrid reinforcement was assessed by using jack to control differential settlement. Un-reinforced bentonite-sand mixtures of 100 mm and 200 mm thickness were observed to begin cracking at settlement levels of 2.5 mm and 7 mm, respectively. When settlement reached 25 and 42.5 mm, cracks for 100 mm and 200 mm thick bentonite-sand mixtures without geogrid penetrated completely. The settlement levels for bentonite-sand mixtures of 100 mm thickness with and without geogrid reinforcement was found to be 10 mm and 15 mm, respectively, when its hydraulic conductivity was around 5 * 10−7 cm/s. In comparison, geogrid reinforced bentonite-sand mixtures was found to sustain large deformation with an enhanced imperviousness. The results from the present study can provide theory evidence of predicting deformation and hydraulic conductivity of the landfill cover system. View Full-Text
Keywords: bentonite-sand mixtures; differential settlement; deformation; hydraulic conductivity; crack; geogrid bentonite-sand mixtures; differential settlement; deformation; hydraulic conductivity; crack; geogrid
Figures

Figure 1
