# Fault Location Method of Distribution Network Based on VGAE-GraphSAGE

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Problem Statement

#### 1.2. Main Contributions

#### 1.3. Paper Organization

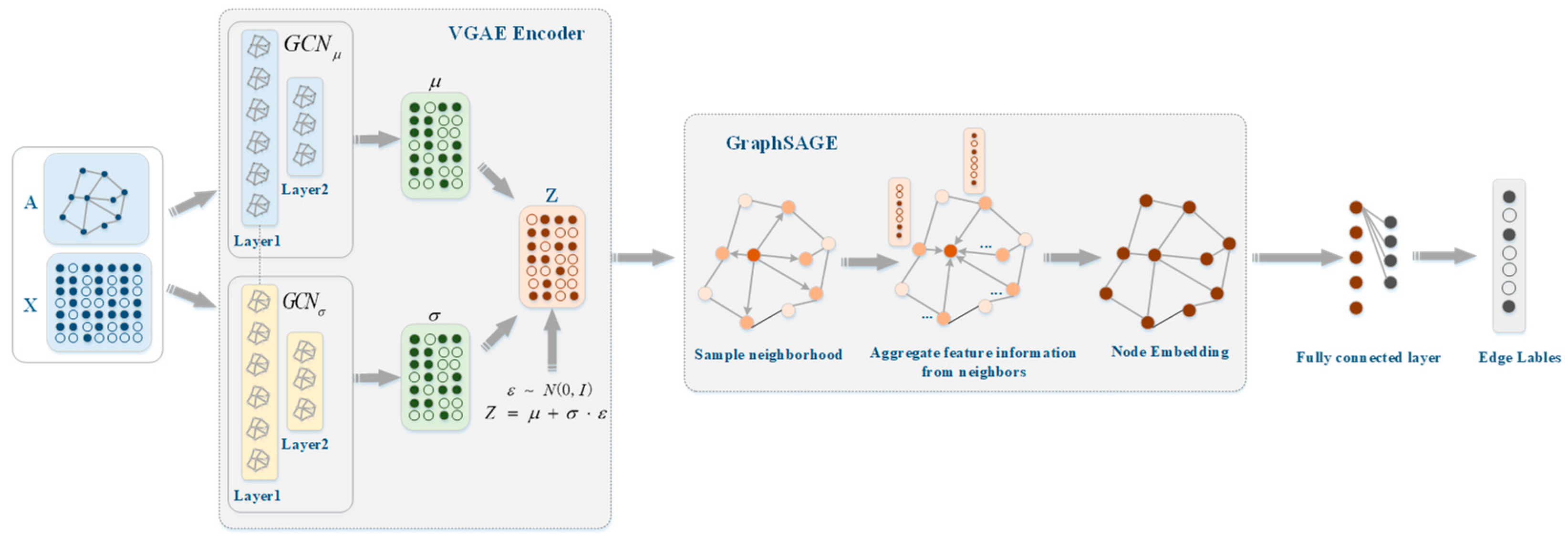

## 2. The Overall Process of the Distribution Network Fault Location Method

## 3. Selection of Data Input Features of VGAE

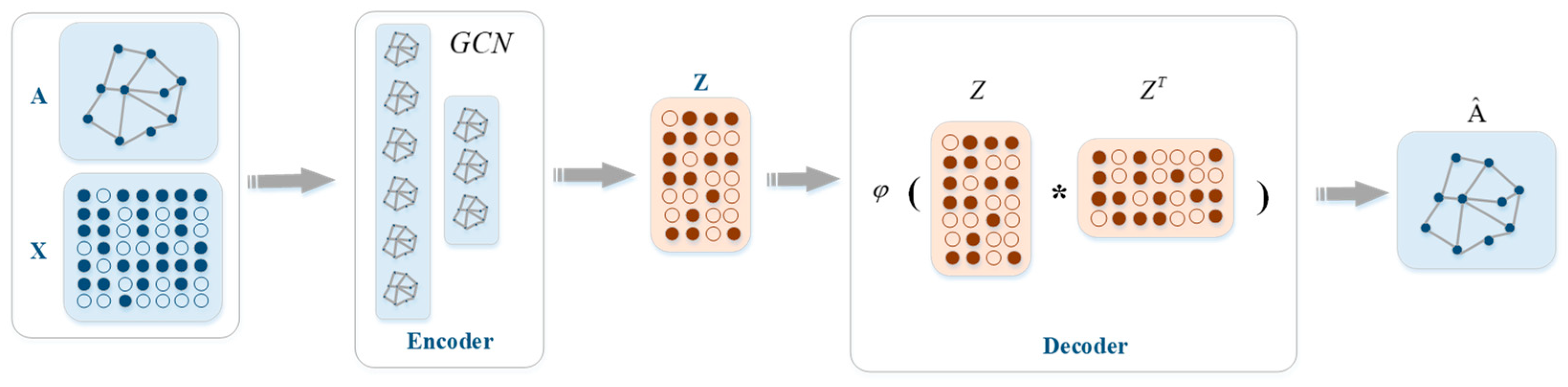

## 4. Extract the Hidden Features of Graph Nodes Based on VGAE

Algorithm 1. The Operation Procedure of the VGAE Model Encoding |

Input: $\mathit{A},\mathit{X},\mathit{D},{\mathit{W}}^{\left(\mathbf{0}\right)},{\mathit{W}}_{\mathit{\mu}}^{\left(\mathbf{1}\right)},{\mathit{W}}_{\mathit{\sigma}}^{\left(\mathbf{1}\right)},\mathit{W},\mathit{B}$Output: $\mathit{Z}$ |

1 $\mu ={\tilde{D}}^{-{\displaystyle \frac{1}{2}}}\tilde{A}{\tilde{D}}^{-{\displaystyle \frac{1}{2}}}\left[Relu\left({\tilde{D}}^{-{\displaystyle \frac{1}{2}}}\tilde{A}{\tilde{D}}^{-{\displaystyle \frac{1}{2}}}X{W}^{\left(0\right)}\right)\right]{W}_{\mu}^{\left(1\right)}$ |

2 $\sigma ={\tilde{D}}^{-{\displaystyle \frac{1}{2}}}\tilde{A}{\tilde{D}}^{-{\displaystyle \frac{1}{2}}}\left[Relu\left({\tilde{D}}^{-{\displaystyle \frac{1}{2}}}\tilde{A}{\tilde{D}}^{-{\displaystyle \frac{1}{2}}}X{W}^{\left(0\right)}\right)\right]{W}_{\sigma}^{\left(1\right)}$ |

3 sampled random number $\epsilon ~N\left(0,1\right)$ |

4 $Z=\mu +\sigma \xb7\epsilon $ |

5 $\tilde{A}=\sigma \left(W\ast Z+B\right)$ |

6 return $Z$ |

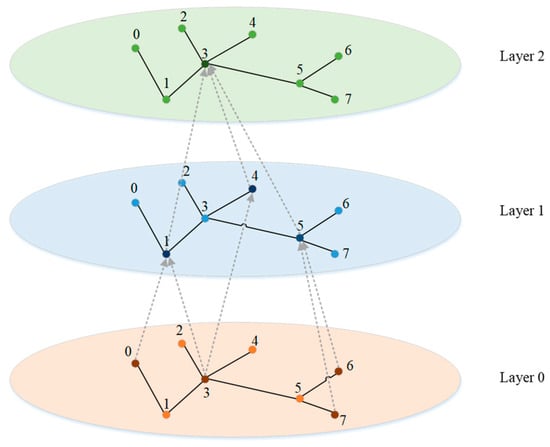

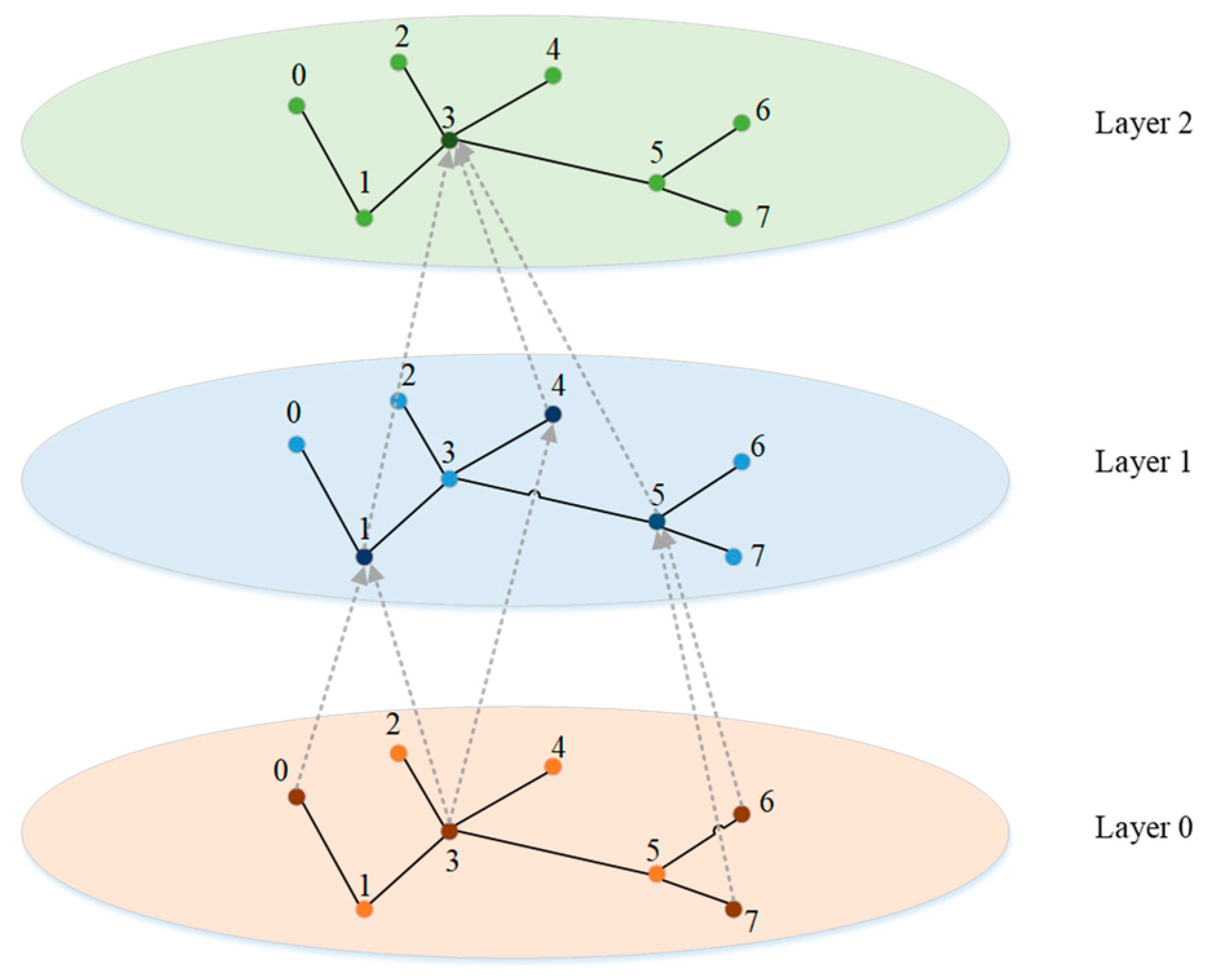

## 5. Distribution Network Fault Location Based on GraphSAGE

## 6. Analysis of Numerical Examples

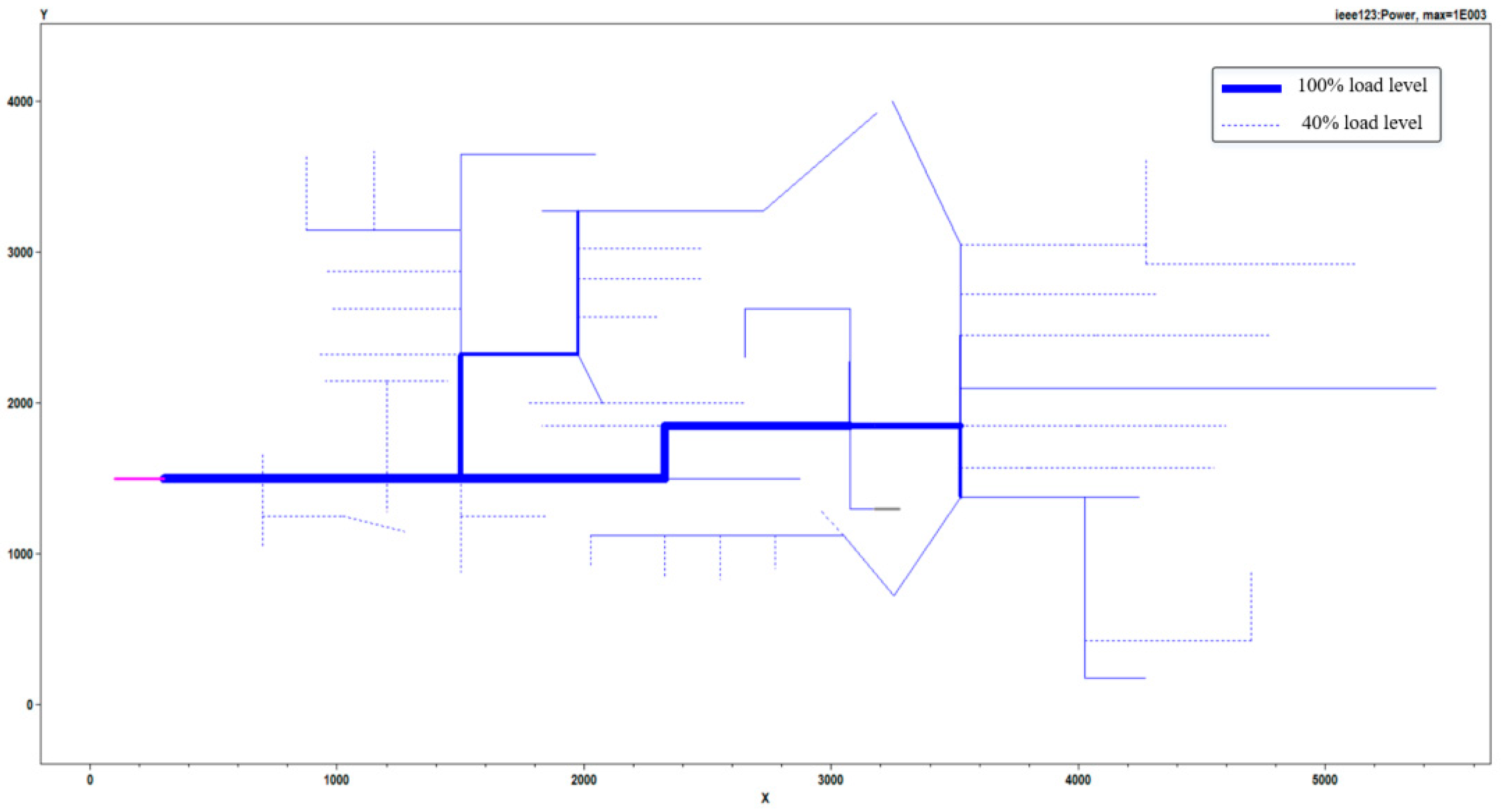

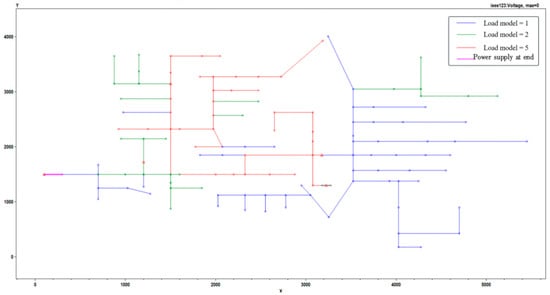

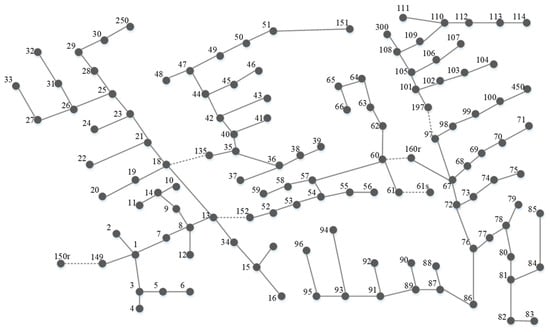

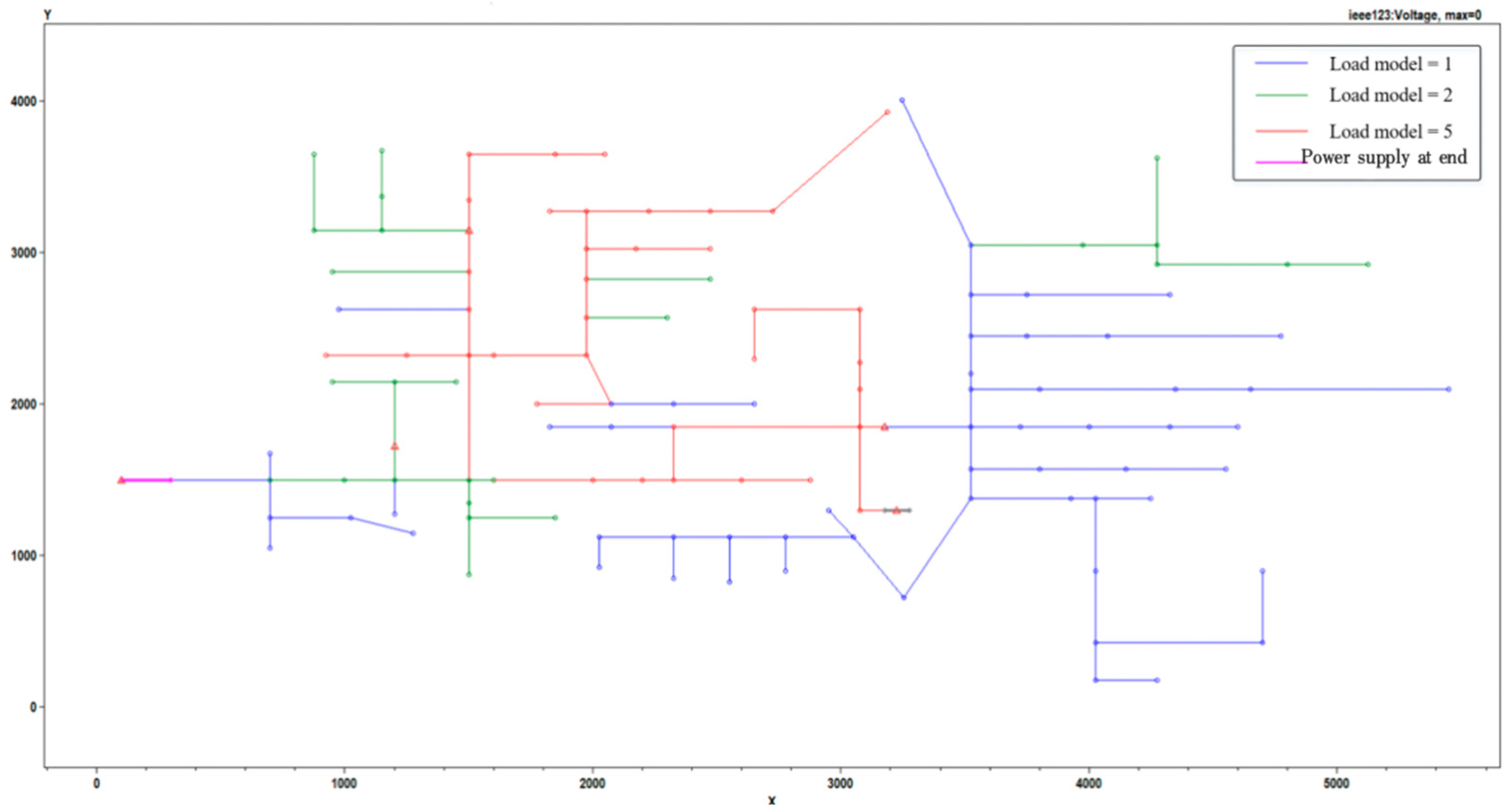

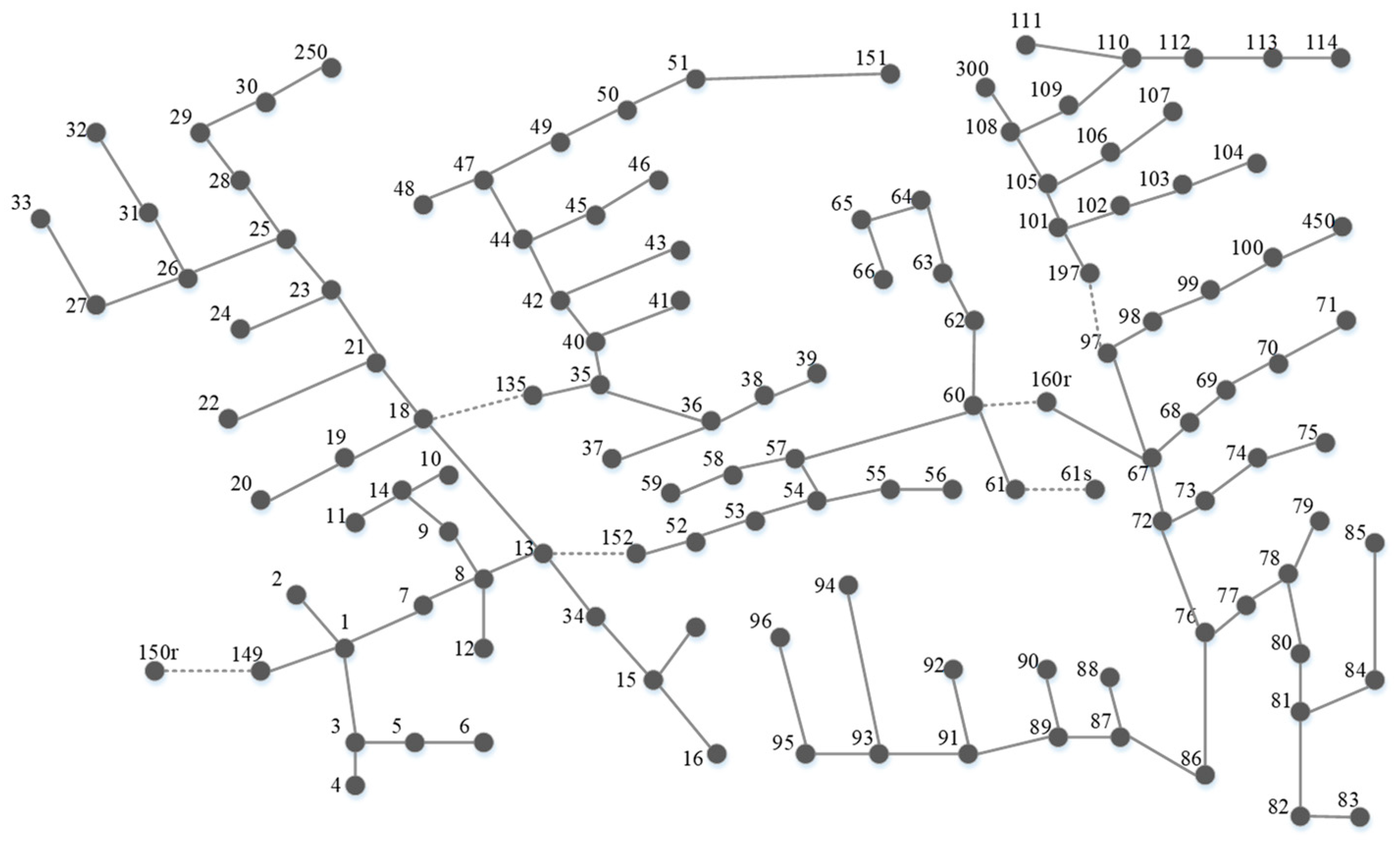

#### 6.1. Data Set Introduction and Experimental Environment Construction

#### 6.2. Evaluation Indicators

#### 6.3. Experimental Results and Analysi

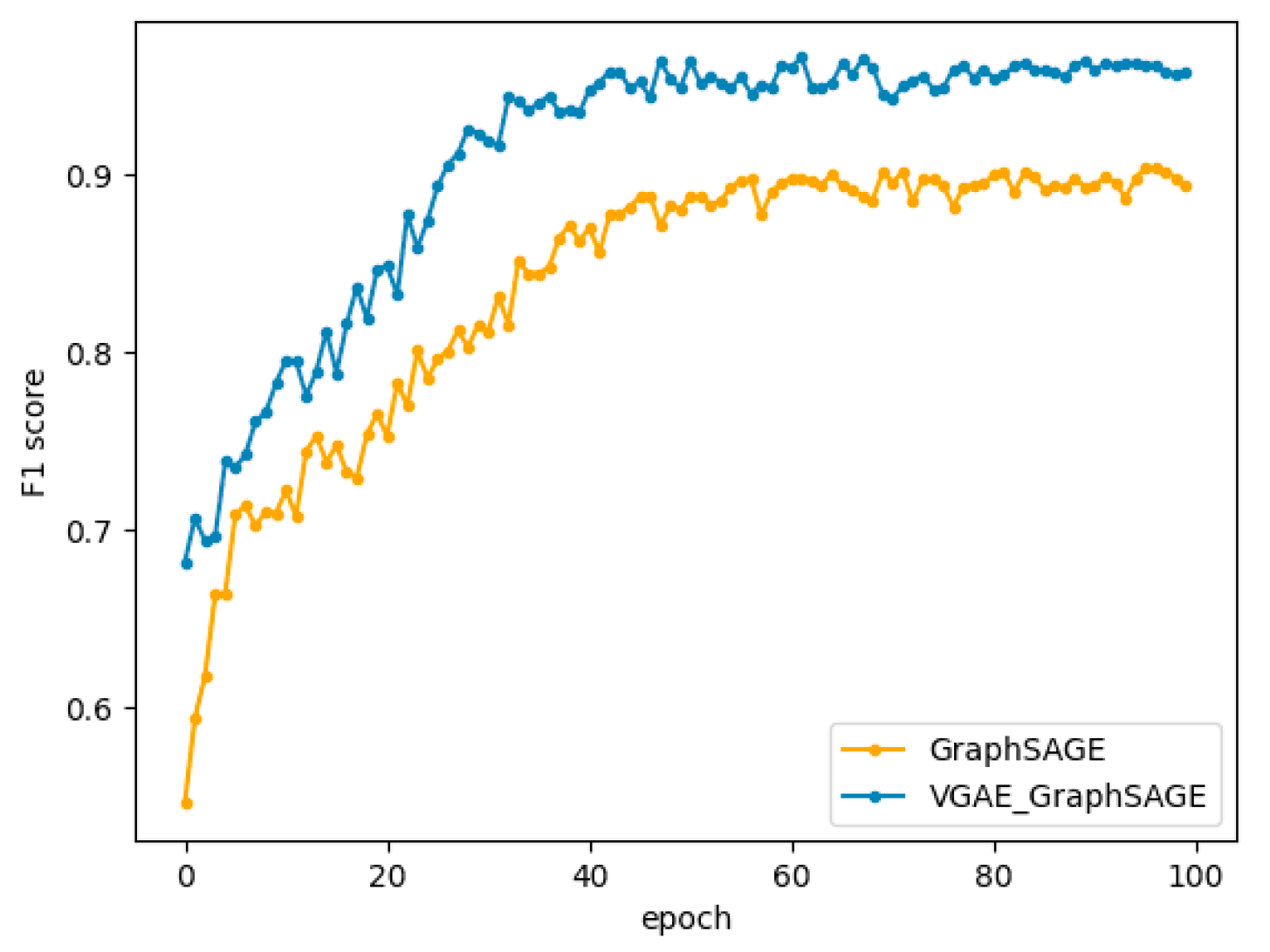

#### 6.3.1. Analysis of the Influence of Feature Extraction on the Model Positioning Effect

#### 6.3.2. Effect Comparison of Feature Extraction Methods

#### 6.3.3. Comparison of Similar Models

#### 6.3.4. Analysis of Model Positioning Effect in the Scenario of Distributed Power Access

#### 6.3.5. Noise Experimental Analysis

## 7. Conclusions and Prospect

#### 7.1. Conclusions

#### 7.2. Outlook

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Zhang, J.; Zhou, P.; Chen, H. Simulation of single-phase ground fault location based on improved impedance method. Electr. Meas. Instrum.
**2018**, 55, 84–87. [Google Scholar] - Yang, J.; Xiao, K.; Bao, X.; Shao, S.; Tian, Q.; Mu, X.; Xu, Z. Simulation analysis of phase-to-phase fault location algorithm of distribution network based on impedance method. Electr. Eng.
**2018**, 477, 3–6. [Google Scholar] - Jia, K.; Dong, X.; Li, L.; Feng, T.; Bi, T. Fault location of distribution network based on sparse voltage amplitude measurement. Power Syst. Technol.
**2020**, 44, 835–845. [Google Scholar] - Dai, Z.; Wang, X. Fault location algorithm for active distribution network based on improved impedance method. Power Syst. Technol.
**2017**, 41, 2027–2034. [Google Scholar] - Chai, P.; Zhou, H.; Zhang, Y.; Zhao, W.; Yang, X.; Zhou, M.; Li, M. Improvement of short-circuit fault location for cable lines based on Double-ended Traveling Wave method. Electr. Power
**2020**, 53, 168–174. [Google Scholar] - Wang, L.; Du, F. Research on fault location with improved double-ended traveling wave method based on wavelet transform. Electr. Eng.
**2022**, 3, 34–37. [Google Scholar] - Du, G.; Liu, X.; Su, G. Research on ground fault location technology of distribution network based on FTU and ”S“ signal injection method. Power Syst. Prot. Control
**2010**, 38, 73–76. [Google Scholar] - Zeng, H.; Chen, S.; Zhang, Z.; Li, H.; He, S.; Wu, C. Single phase grounding fault detection and section location method based on non power frequency signal injection. In Proceedings of the China International Conference on Electricity Distribution (CICED), Changsha, China, 7–8 September 2022; pp. 1104–1108. [Google Scholar]
- Zhang, D.; Cai, J.; Li, T.; Chen, B. Improved correlation matrix algorithm for distribution network fault location. Electr. Power Electr. Eng.
**2013**, 33, 29–31. [Google Scholar] - Zhang, W.; Li, J.; Wang, X. An improved matrix algorithm for distribution network fault location based on multi-terminal traveling wave information. Water Resour. Power
**2021**, 39, 170+194–197. [Google Scholar] - Ye, J. Fault location method for single-phase grounding of distribution cable based on genetic algorithm. Autom. Appl.
**2022**, 4, 133–135. [Google Scholar] - Ren, X.; Sun, H.; Zhao, S.; Chen, X.; Huang, W. Fault location monitoring of power transmission system based on ant colony genetic algorithm. Electr. Tech.
**2022**, 51, 64–67. [Google Scholar] - Li, X.; Li, Y.; Zhang, S. Fault location method for HVDC lines based on hybrid intelligent algorithm. Power Syst. Prot. Control
**2014**, 42, 108–113. [Google Scholar] - Hassani, H.; Hallaji, E.; Razavi-Far, R.; Saif, M. Unsupervised concrete feature selection based on mutual information for diagnosing faults and cyber-attacks in power systems. Eng. Appl. Artif. Intell.
**2021**, 100, 104150. [Google Scholar] [CrossRef] - Meng, Z.; Du, W.; Wang, H. Fault region location of distribution network based on transfer learning Deep Convolutional neural network. S. P. Sys. Tech.
**2019**, 13, 25–33. [Google Scholar] - Das, B.; Kutsal, M.; Das, R. Effective prediction of drug–target interaction on HIV using deep graph neural networks. Chemom. Intell. Lab. Syst.
**2022**, 230, 104676. [Google Scholar] [CrossRef] - Das, R.; Soylu, M. A key review on graph data science: The power of graphs in scientific studies. Chemom. Intell. Lab. Syst.
**2023**, 240, 104896. [Google Scholar] [CrossRef] - Grando, F.; Granville, L.Z.; Lamb, L.C. Machine learning in network centrality measures: Tutorial and outlook. ACM Comput. Surv.
**2019**, 51, 1–32. [Google Scholar] [CrossRef] - Xu, K. Research on Multi-Relation Network Embedding Based on Variational Auto Encoder. Masters’ Thesis, School of Computer Science and Technology, Harbin Institute of Technology, Harbin, China, 2020. [Google Scholar]
- Jin, W.; Ma, Y.; Wang, Y.; Liu, X.; Tang, J.; Cen, Y.; Qiu, J.; Tang, J.; Shi, C.; Ye, Y.; et al. Graph representation learning: Foundations, methods, applications and systems. In Proceedings of the 27th ACM SIGKDD Conference on Knowledge Discovery & Data Mining, Singapore, 14–18 August 2021; pp. 14–18. [Google Scholar]
- Chen, C.; Li, Q.; Chen, L.; Liang, Y.; Huang, H. An improved GraphSAGE to detect power system anomaly based on time-neighbor feature. Energy Rep.
**2022**, 9, 930–937. [Google Scholar] [CrossRef] - Chen, Z.; Deng, Q.; Ren, H.; Zhao, Z.; Peng, T.; Yang, C.; Gui, W. A new energy consumption prediction method for chillers based on GraphSAGE by combining empirical knowledge and operating data. Appl. Energy
**2022**, 310, 118410. [Google Scholar] [CrossRef] - Lei, Z.; Wu, Q.; Ye, J.; Yu, Z.; Sun, F. Impact analysis of distributed photovoltaic access on distribution network based on OPENDSS Simulation platform. Dstrb. Util.
**2015**, 32, 69–73. [Google Scholar] - Xu, K.; Nie, M.; Wang, Y.; Hou, G.; Song, J.; Liu, W.; Li, Q.; Cheng, J. Application of OpenDSS in simulation analysis of distributed photovoltaic access to distribution network. EP Inf. Comm. Tech.
**2018**, 16, 88–92. [Google Scholar]

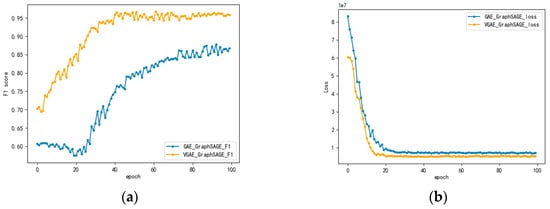

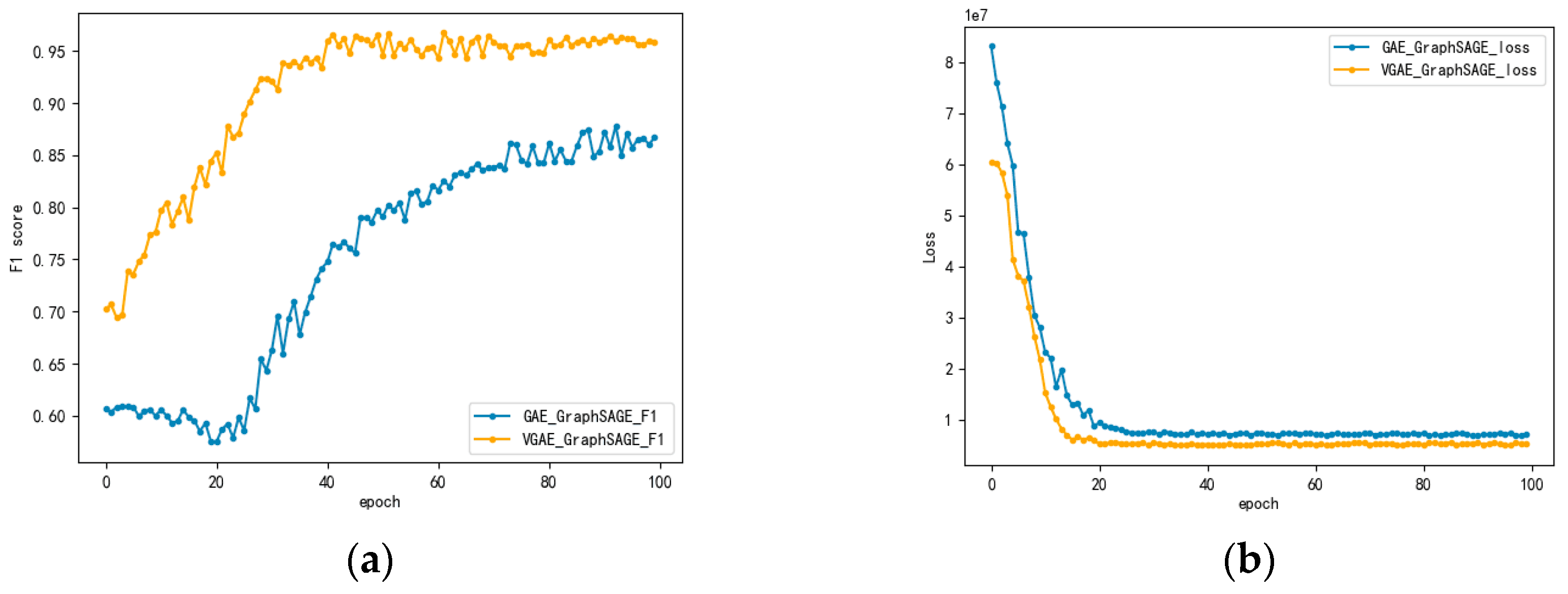

**Figure 8.**Comparison of the F1 score indicator and the loss function results of the VGAE_GraphSAGE model and the GAE_GraphSAGE model. (

**a**) Comparison of the F1 score indicator; (

**b**) Comparison of loss function results.

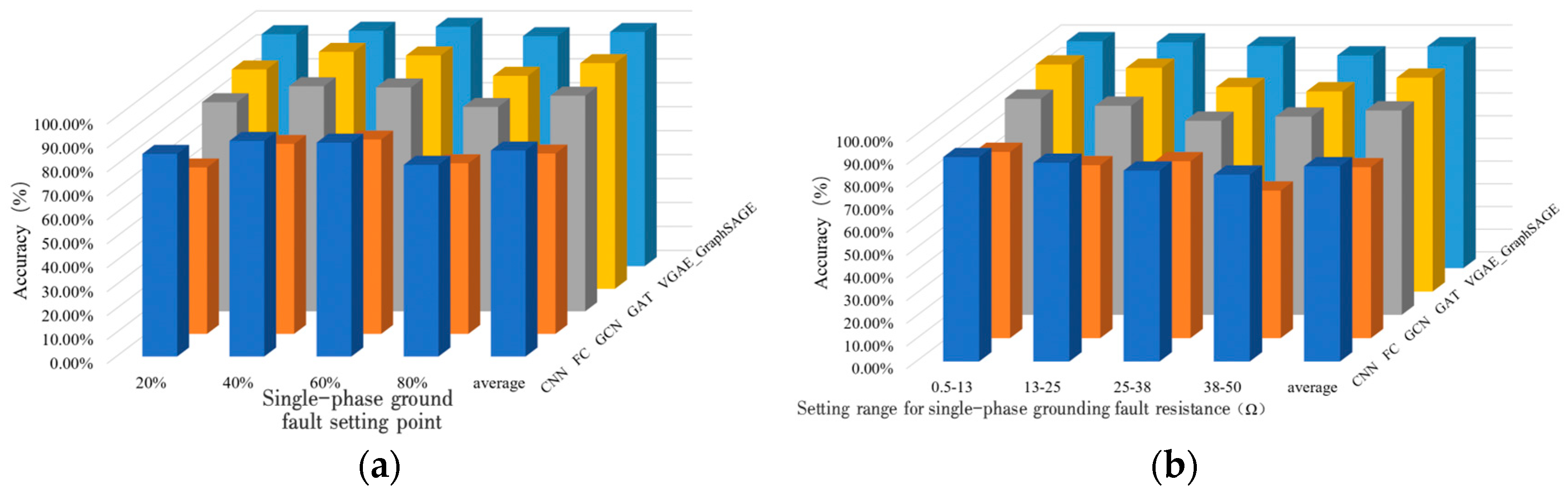

**Figure 9.**Comparison of model positioning effects. (

**a**) Comparison of model positioning effects with different fault location settings. (

**b**) Comparison of model positioning effects with different settings of single-phase grounding fault resistance.

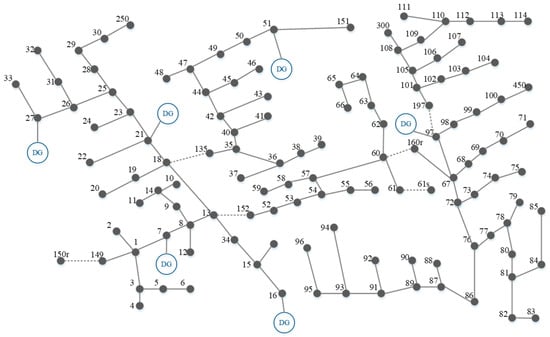

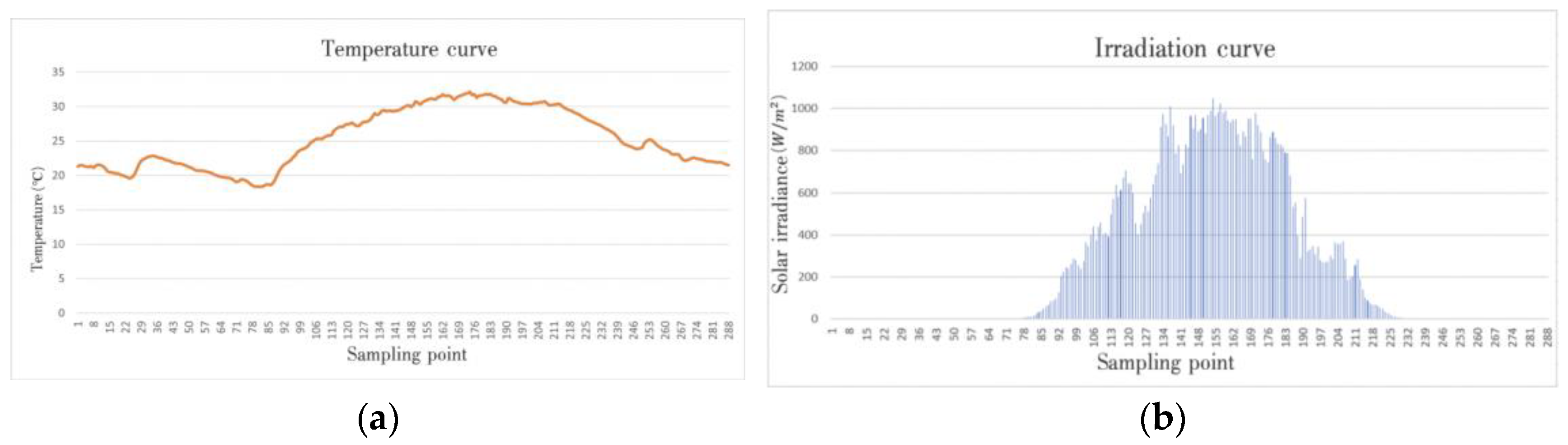

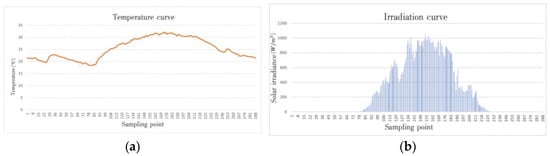

**Figure 11.**Temperature curve and irradiation curve of solar panels. (

**a**) Temperature curve of solar panels. (

**b**) Irradiation curve of solar panels.

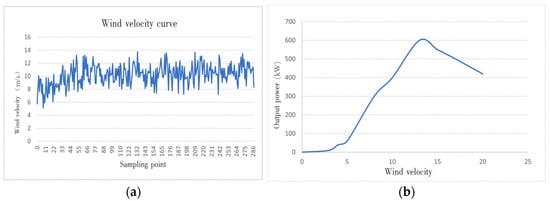

**Figure 12.**Wind speed curve and operation curve of wind power generation. (

**a**) Wind speed curve of wind power generation. (

**b**) Operation curve of wind power generation.

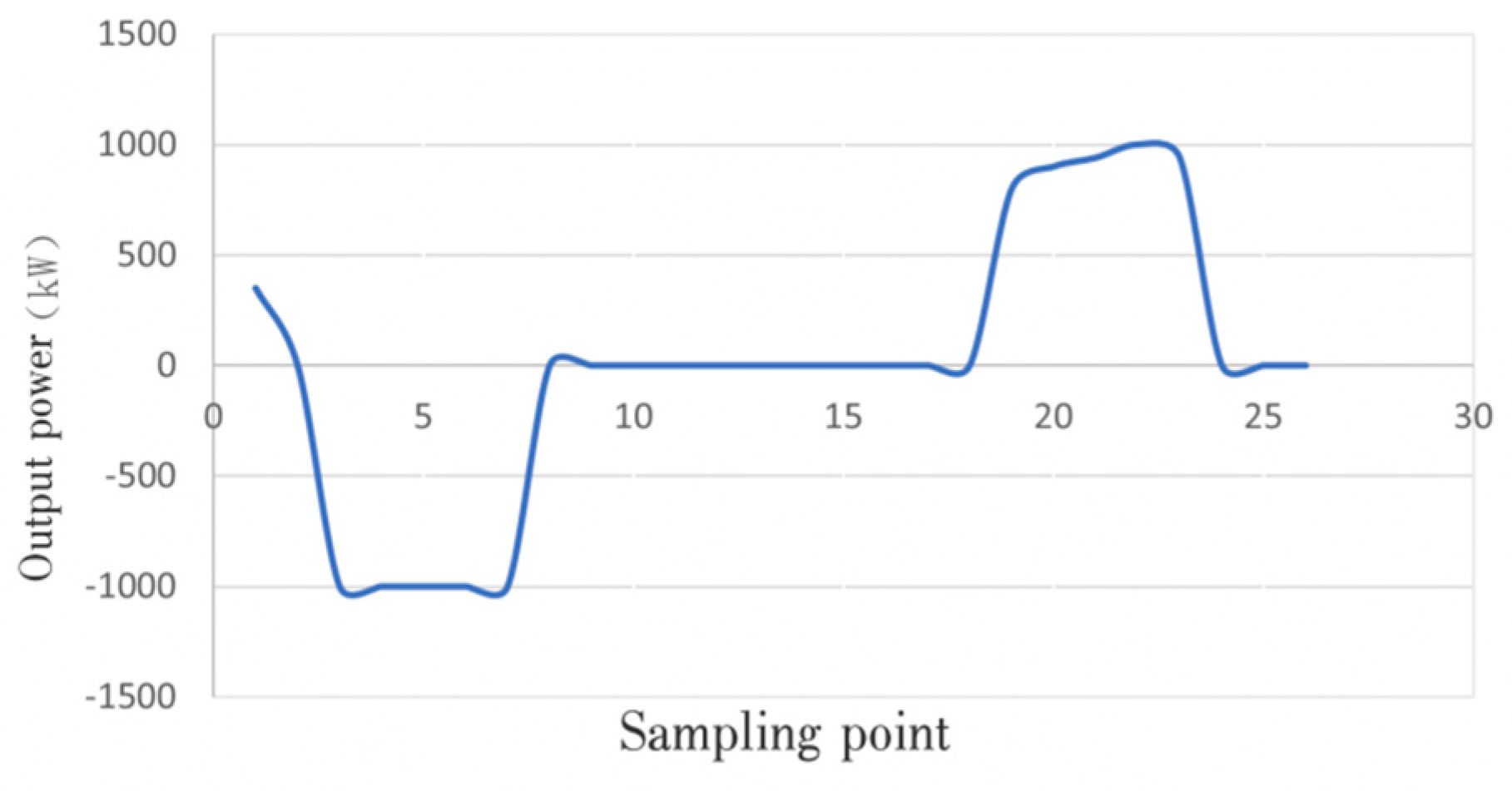

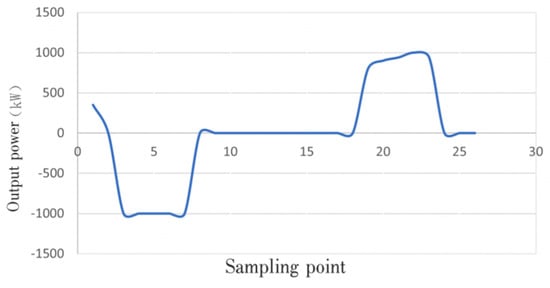

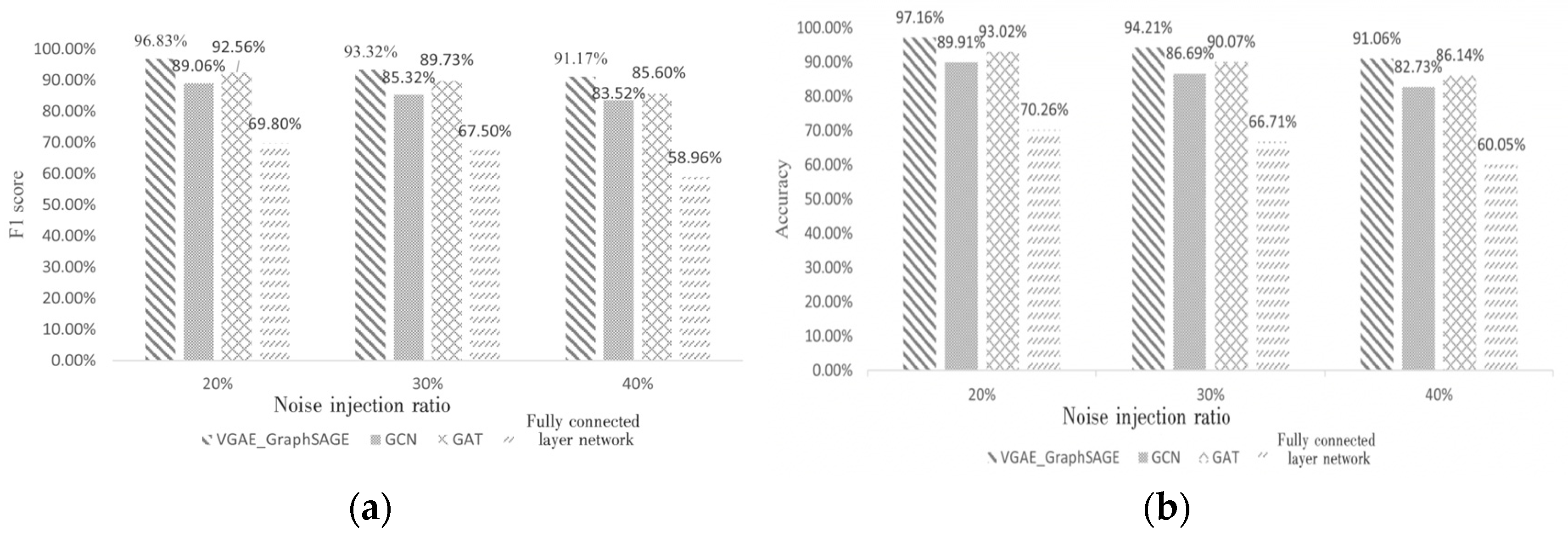

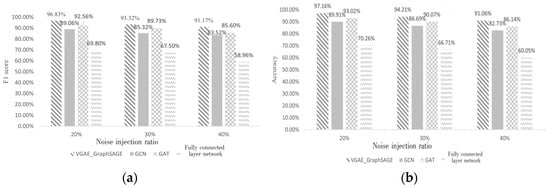

**Figure 14.**F1 score comparison and accuracy comparison of fault location effects of different models in the “dirty sample” scenario. (

**a**) F1 score comparison of fault location effects. (

**b**) Accuracy comparison of fault location effects.

Method | References | Advantage | Disadvantage |
---|---|---|---|

Impedance Method | [1,2,4] | Simple implementation Low cost | Assumes ideal line models Affected by non-ideal line characteristics Limited accuracy in complex networks |

Traveling Wave Method | [5,6] | Mature technology High accuracy in ideal conditions | Increased complexity Affected by network topology |

Signal Injection Method | [7,8] | Real-time monitoring Effective fault detection | High operation and maintenance costs |

Matrix Algorithms | [9,10] | High detection speed Good accuracy | Poor fault tolerance Less effective with distorted signals |

Genetic Algorithms | [11,12] | Global search capability Handles complex optimizations | Requires careful hyperparameter tuning High computational cost with large populations |

Artificial Neural Networks | [13,14,15] | Simulates complex information processing Improved accuracy with hybrid methods | May not fully leverage network topology Effectiveness depends on training data |

Geometric Deep Learning | [16] | Utilizes graph neural networks to capture molecular interactions High accuracy in drug resistance prediction Effective in small datasets | Limited to specific datasets (e.g., HIV drug interactions) High computational complexity in larger datasets |

Graph Neural Networks for Data Science | [17] | Powerful in analyzing complex, interconnected data structures Applicable to multiple scientific disciplines Effective in modeling complex relationships with graph data | Challenges in visualizing and interpreting large-scale graph data Scalability issues with very large datasets |

Proposed Method | Considering equipment interrelationships Improved VGAE resists noise Explores line correlations in depth Adapts to complex real-world scenarios |

Model | Test Sample Size | Accuracy | F1 Score | Test Time (s) |
---|---|---|---|---|

CNN | 9520 | 86.02% | 85.76% | 21.45 |

FC | 9520 | 75.30% | 72.98% | 34.27 |

GCN | 9520 | 90.04% | 89.76% | 12.39 |

GAT | 9520 | 94.19% | 93.78% | 11.76 |

VGAE_GraphSAGE | 9520 | 97.81% | 97.32% | 13.81 |

Distributed Power Supply Settings | Accuracy | F1 Score |
---|---|---|

All are solar photovoltaic power generation | 95.30% | 94.89% |

All are wind power | 93.02% | 91.71% |

All are energy storage power generation | 96.34% | 96.12% |

Hybrid power generation | 95.07% | 94.62% |
