Preliminary Study on the Thermal Behavior and Chemical-Physical Characteristics of Woody Biomass as Solid Biofuels

by
Max J. A. Romero
,
Daniele Duca
,
Vittorio Maceratesi
,
Sara Di Stefano
,
Carmine De Francesco
and
Giuseppe Toscano
*
Department of Agricultural, Food and Environmental Sciences, Università Politecnica Delle Marche, Via Brecce Bianche, 60131 Ancona, Italy
*
Author to whom correspondence should be addressed.
Processes 2023, 11(1), 154; https://doi.org/10.3390/pr11010154
Submission received: 3 October 2022 / Revised: 28 December 2022 / Accepted: 30 December 2022 / Published: 4 January 2023
(This article belongs to the Special Issue Advances in Biomass Co-combustion with Alternative Fuels)
Browse Figures
Review Reports Versions Notes

Abstract

The chemical composition of woody biomass directly influences its thermal degradation and, subsequently, the selection of processes and technologies used for its conversion into energy or value-added products. Thus, the present study aimed to evaluate the thermal behavior and chemical-physical characteristics of three different woody biomass species (hardwood, softwood and chemically-treated wood) using thermogravimetric and characterization analysis based on ISO 16948, ISO 18125 and ISO 18122 methods. The main findings show that the most significant trend of mass loss, around 70%, in the thermal degradation of the different species of woody biomass occurred between 150 °C and 500 °C and that the residual mass at 650 °C was between 13% and 24%. Although the three species of woody biomass showed a high average energy content (19.60 MJ/kg), softwood samples had a more stable thermal degradation than hardwoods and chemically-treated woods.

1. Introduction

According to the latest data, the electricity sector accounted for 36% of all energy-related emissions in 2020. Most electricity produced worldwide comes from coal, which is responsible for around three-quarters of the sector’s CO2 emissions. To this end, several initiatives have been deployed to increase the share of renewable energies to 40–70% by 2050 and achieve a rapid transition to decarbonization in the electricity sector [1]. One of these initiatives is the production of biofuels, which have the potential to provide at least 25% of the world’s projected energy needs by 2035 [2]. Particularly, lignocellulosic biomass represents an abundant and carbon-neutral non-food resource that is being intensively investigated as a raw material for producing novel solid biofuels [3]. According to ISO 17225, the main origin-based solid biofuel groups are woody biomass, herbaceous biomass, fruit biomass, aquatic biomass and blends and mixtures. Woody biomass includes forest, plantation and other virgin wood and by-products or residues from the wood processing industry. Wood by-products and wood residues from industrial production can be chemically untreated. For example, residues from debarking, sawing, size reduction, shaping and pressing. On the other hand, chemically-treated woody biomass includes wood residues from wood processing and the production of panels and furniture (glued, painted, coated, lacquered or otherwise treated wood), provided they do not contain heavy metals or halogenated organic compounds from treatment with wood preservatives or coating [4]. However, in several European countries, including Italy, treated wood residues such as glue-laminated wood, oriented strand board (OSB), plywood and chipboard are normatively considered waste, and they do not allow their utilization for energy application because they could contain unwanted or harmful compounds [5]. In fact, according to the Italian Legislative Decree 156/2006, a waste is defined as “any substance or object that an owner discards or has an intention or obligation to discard” [6].
Woody biomass energy can be extracted and made available directly or indirectly with low-emission generation technologies such as combined heat and power (CHP) systems. Although cogeneration accounted for 11% of the EU’s electricity and 15% of its heat in 2020, it is estimated that it will grow to 20% in 2030, when it will avoid 350 Mt CO2 of emissions and account for 25% of the EU’s heat [7]. In addition, the EU’s strategic long-term vision for a climate-neutral economy by 2050 stresses the importance of an integrated energy system approach to achieve deep emissions reductions [8,9]. The CHP systems are mainly composed of a combustion device that transforms the chemical energy stored within the fuel into heat and a generator that subsequently transforms part of the heat into electricity. Regarding the combustion process, CHP systems can be mainly classified in technologies based on an external combustion process such as steam turbines, Stirling engines and ORC systems and technologies based on an internal combustion process such as internal combustion engines (ICEs) and gas turbines [10,11]. Since ICEs cannot directly use solid biomass as fuel, some CHP systems may also include a third step in which solid biomass is converted into liquid or gaseous biofuels through additional thermochemical (e.g., pyrolysis, gasification and liquefaction) or biochemical processes (e.g., anaerobic digestion and fermentation) [12]. Although large-scale CHP systems are preferred due to a better net profit with respect to the investment, it was reported that using micro- and small-scale CHP systems for valorizing biomass resources in local areas could also be economically feasible [13,14,15,16]. The European Directive 2004/8 EC defines micro-scale CHP systems and small-scale CHP systems as systems having electrical capacities of less than 50 kW and ranging from 50 kW to 1 MW, respectively. At present, it is typical to find micro- and small-scale combined heat and power (CHP) systems on the market based on the direct combustion of liquid or gaseous fuels such as refined vegetable oils (RVO) and bio-oils [17,18,19,20,21,22,23,24], biogas [25,26,27,28,29] and syngas [30,31,32,33,34,35,36]. On the other hand, more recent studies propose making biomass energy available using promising technologies such as fuel cell technologies. For example, the direct carbon fuel cell (DCFC) is a high-temperature (usually >500 °C) fuel cell technology that can convert solid biocarbon fuel directly into electricity without an extra reforming process, with an efficiency greater than 80%, unlike other fuel cells. Hence, compared to a current coal-burning power plant, the direct carbon fuel cell has a lower CO2 emission at the same amount of electricity generation [37]. Moreover, Photo Fuel Cell (PFC) systems have been reported for photocatalytic electricity generation from lignocellulosic biomass. The peak power density (Pmax) of PFC systems reported is in the range of 0.01–5 mW/cm2, being higher than those obtained by microbial fuel cells (MFCs) but significantly lower than those obtained by proton exchange membrane fuel cells and DCFCs. Efficient lignocellulose conversion based on photocatalysis is a promising topic because it uses sustainable solar energy and mild process conditions. However, it is crucial to develop photoelectrodes that improve their performance [38]. Additionally, the use of woody biomass can be extended to other industrial sectors such as food, cosmetics, pharmaceuticals, electronics and the environment through the production of value-added derivatives. For example, the lignin-first approach has recently emerged as a new biorefinery model that proposes using the entire lignocellulosic biomass to disassemble lignin prior to cellulose and hemicellulose valorization [39,40,41].
In this context, to enable the development of technologies that more efficiently convert woody biomass into energy, biofuels and value-added chemicals, it is important to increase the knowledge of its chemical-physical characteristics. Woody biomass mainly comprises three fractions, namely cellulose, hemicellulose, and lignin, which approximately represent 40–50%, 25–35% and 15–20% of its weight, respectively, depending on the source (hardwood, softwood, or grasses) [42]. Cellulose and hemicellulose are polymers composed of glucose monomers linked mainly through -1,4-glycosidic bonds [43]. However, cellulose has a rigid structure due to the main polymer chain’s cyclic structure and strong intermolecular hydrogen bonds between the hydroxyl groups, while hemicellulose has an amorphous as well as a random structure organized in branched chains [44]. Both compounds play an important role in woody biomass’s stability, resistance and insolubility to most organic solvents and water. Moreover, lignin is an aromatic polymer that acts similar to glue by filling the gap between the cellulose and hemicellulose and is composed of primary lignin monomers such as coniferyl alcohol, sinapyl alcohol and coumaryl alcohol (C9–C11 monolignols) [45]. Due to their different chemical structures, hemicellulose and cellulose have different degradation temperatures in the ranges of 200–300 °C and 300–400 °C, respectively. However, both compounds pyrolyze through similar routes: at low temperatures, dehydration is favored, forming water, gases, char, and further acids and anhydrides; at higher temperatures, depolymerization forms levoglucosan (dehydrated analogue of glucose) and other anhydrosugars, alongside levoglucosene (the dehydration product of levoglucosan), furans and other volatile organics. Lignin follows the same pyrolysis pattern but has greater thermal stability, and its degradation temperature ranges between 200 and 500 °C [37]. Therefore, the chemical composition of woody biomass directly influences its thermal degradation and, subsequently, the selection of processes and technologies used for its conversion into energy or value-added products [46,47,48].
The European standards for solid biofuels (EN ISO 17225-series) define different quality classes of solid biofuels based on qualitative attributes (origin and source of the material) and chemical-physical parameters. The aim of this work is to investigate the thermal behavior and chemical-physical characteristics of the most common European woody biomass species used in the energy pellet sector by using thermogravimetric analysis and characterization analysis (heating value, elemental composition (CHNO and ash content).
Ding et al. [49] focused on the thermal decomposition characteristics and kinetic mechanisms of hardwood and softwood by thermogravimetric analysis in nitrogen. The obtained activation energy of softwood was greater than that of hardwood during the whole pyrolysis process, and the kinetic mechanisms for both hardwood and softwood can be summed up as a diffusion mechanism followed by a reaction order mechanism. Yao et al. [50] calculated the apparent activation energy of hardwood and softwood in nitrogen atmosphere, and the mean values were approximately 155 and 160 kJ/mol for hardwood and softwood, respectively [51]. It should be noted that the thermal degradation characteristics, activation energy, and kinetic mechanisms of woody biomass under oxidative atmosphere are quite diverse from those under inert atmosphere. In fact, the thermal degradation of solid materials in oxidizing atmosphere is more complicated because the presence of oxidants (air, oxygen, etc.) will produce heterogeneous reactions between oxygen and solid reactants and homogeneous reactions between oxygen and volatiles. However, softwood decomposition began and ended at lower temperatures than hardwood in air atmosphere. In oxidizing atmosphere two diverse peaks and one shoulder appeared on the reaction rate curves for both hardwood and softwood. The maximal reaction rate of hardwood was larger than that of softwood [52,53,54]
Thermogravimetric analysis (TGA) is a reliable, low-cost and fast method for investigating the thermal decomposition of biomass in oxidizing (combustion and gasification) and inert atmospheres (pyrolysis and torrefaction) [49,50,51,52,53,54]. TGA is a method that consists of submitting a sample of a substrate, such as biomass, to an isothermal or non-isothermal heating program and recording the mass-loss rate due to temperature vs. time or temperature. Then, a differentiated thermogravimetric curve (DTG) and second derivative curve (DDTG) can be obtained from the experimental, which can provide an accurate profile of the thermal degradation of the biomass and its characteristics as feedstocks [55,56,57]. Based on the temperature ranges where the main degradations occur as well as other data such as the initial and residual mass and its variation, it is possible to establish the kinetics of biomass pyrolysis and determine the activation energy of the decomposition reactions of its main components using several previously-developed model-based methods [58,59,60]. Additionally, higher heating value (HHV) and ash content (AC) represent the most important parameters for discriminating solid biofuel quality. The presence of lignin increases HHV, but it can also decrease with high AC, while moisture content (MC) reduces lower heating value (LHV). All these parameters influence energy generation performance and its economic aspects. Additionally, the presence of other elements such as nitrogen, sulfur, chlorine and some minor elements can be especially relevant for environmental aspects [61,62].

2. Materials and Methods

In this study, 15 samples of the most common European woody biomass species used in the energy pellet sector were selected, collected and classified into 3 categories: hardwood, softwood and chemically-treated wood. The samples shown in Table 1 were ground using a cutting mill (model SM 2000, Retsch), sieved below 0.25 mm and stored in plastic containers for subsequent analysis.
Thermogravimetric analyses were performed using a TGA LINSEIS model STA PT-1600 in nitrogen (flow 100 mL/min) with alumina crucibles by heating 30 °C/min up to 110 °C, isothermal for 30 min and further heating of 5 °C/min up to 700 °C. The first drying steps were omitted from the results. Carbon, hydrogen, nitrogen and oxygen content was determined following the ISO 16948 (E) standard (Solid Biofuels-determination of total content of carbon, hydrogen and nitrogen) using an elemental analyzer (TruSpec CHN, Leco). In these analyses, about 70 mg of wood powder was burned at 950 °C (for about 5 min) under an oxygen atmosphere. At this temperature, all forms of nitrogen were oxidized to NOx. After humidity and ash elimination, the concentrations of NO2 and NOx were determined by thermal conductivity. The higher heating value (HHV) was also determined in accordance with EN ISO 18125 (Solid biofuels-determination of calorific value). Following this method, we burned a mass of 1.0 ± 0.2 g of woody biomass in high-pressure oxygen in a bomb calorimeter (Isoperibolic calorimeter mod.C2000 basic, IKA). Then, the lower heating value was calculated considering moisture and hydrogen content.
Additionally, we determined the ash content by following the ISO 18122 (E) standard (Solid biofuels—determination of ash content). The porcelain crucible containing 1.0 g of woody biomass was burnt in a TGA Leco 701 at 550 °C for at least two hours. Instruments and methods are summarized in Table 2.
Since our purpose is not to evaluate each woody species individually, but to compare the chemical-physical characteristics and the thermal behavior of the different types of biomasses, every sample was analyzed in a single test.

3. Results

3.1. Thermogravimetric Analysis Results

The thermograms (TG, DTG and DDTG) obtained show the thermal degradation (pyrolysis) profiles of the woody biomass samples studied. From the TGA, it is possible to obtain the conversion rate, which differentiates with respect to time, represents the DTG curve and gives the mass-loss rate. The second derivative (DDTG) curve provides the inflection points, representing the significant changes in the mass-loss rates occurring at various temperatures or residence times [63]. We divided the thermograms into three zones: Zone I starts from the ambient temperature to around 150 °C and corresponds to the mass loss due to evaporation of water and light volatiles; Zone II, ranging from 150 °C to about 500 °C, represents the main pyrolysis stage and is caused by the devolatilization of hemicellulose, cellulose and lignin; Zone III, above 500 °C, is the zone in which a small mass loss occurs largely due to the degradation of carbonaceous in the residues.
The TG results in Table 3 and Figure 1 highlight the most significant mass-loss trend in Zone II, in which molecular weight compounds split into smaller molecular weight compounds by cause of the steady supply of thermal energy. In this zone, regardless of the type of biomass, a rapid and greater mass loss of around 70% was observed, since the residual mass decreased from an average of 91% at 150 °C to 18% at 650 °C. Although, some differences were more obvious at 650 °C, depending on the category of wood: chemically-treated wood, softwood and hardwood showed a residual mass of 20%, 18% and 16%, respectively. Additionally, residual mass differences were identified within each category, especially in chemically-treated woods. For example, while, at 650 °C, the average residual mass of laminated pine and laminated ash was around 15 %, the average residual mass of MDF, OSB and chipboard was about 23%. On the other hand, Figure 2 shows that the conversion ratio increases rapidly from 250 °C to 350 °C, reaching values of 0.80–0.85.
Despite the interactions between the fractions of woody biomass samples, in the DTG curves (Figure 3) it was possible to identify a shoulder, a peak and a long tailing caused by the conversion of hemicellulose, cellulose and lignin, respectively. It should be noted that, in the presence of oxygen (combustion), it might be possible to see in the thermogravimetric graph a fourth peak around 450 °C due to the combustion of char [64,65]. The initial and final points of these three stages were identified by using the second derivative of the TG curve or differential DTG (DDTG) curves (Figure 4 and Figure 5) [66]. Hemicellulose breaks down rapidly and the end point of the shoulder of the DTG curve, which varies from 280 °C to 320 °C, is the local minimum of the DDTG curve. The rapid conversion of hemicellulose is due to its composition, which consists primarily of five-carbon sugars such as xylose and arabinose in hardwoods and six-carbon sugars such as glucose, mannose and galactose in softwoods. Polysaccharides derived from these monomeric units have low thermal stability and are easily subject to hydrolysis and dehydration reactions [67,68]. For example, the decomposition of xylans, whose typical content is 10–35% in hardwoods and 10–15% in softwoods, yield mainly water, formic, hydroxy-1-propanone, hydroxy-1-butanone, methanol, 2-furfuraldeyde and acetic, and propionic acids that can be found in bio-oils [69]. Although the breakdown of cellulose starts below 280 °C with reactions such as dehydration, free radical formation and the construction of oxygenated moieties (such as carbonyls, carboxyl groups and peroxides), the pyrolysis of cellulose corresponds mainly to the second stage of DDTG, which shares the peak of the DTG curve. At this stage, the breakdown of cellulose results in a tar-rich pyrolysate encompassing levoglucosan, anhydrosugars, oligosaccharides, some glucose decay compounds due to depolymerization glycosidic bond, lower molecular weight gases and volatile products [70]. The DTG curve showed that the position of the peaks was quite similar for all the softwood samples, and the maximum mass-loss rate was around 350 °C, while the hardwood samples showed peaks in various positions and the maximum mass-loss rate ranged between 315 °C and 350 °C. The peaks of the chemically-treated wood samples showed less variation in their position, and the maximum mass-loss rate ranged between 340 °C and 355 °C. In addition, within each category, some differences in the maximum mass-loss rate were identified: chestnut showed a lower maximum mass-loss rate (around 0.75) compared to the other samples of hardwood studied (greater than 1); juniper also showed a lower maximum mass-loss rate (about 0.85) compared to the other samples of softwood studied (around 1.1); meanwhile, in chemically-treated wood, chipboard and OSB showed a lower maximum mass-loss rate compared to MDF, laminated pine and laminated ash. Additionally, the greater area of the shoulders and peaks of some wood samples would indicate a higher hemicellulose and cellulose content. The final temperature of the second stage on the DDTG curve, and, consequently, the initial point of the third stage, where lignin continues to break down at a slower rate, is the corresponding temperature at which −d2 m/dTc2 values no longer change or change very little (around 400 °C for most of the materials studied). The most appreciated depolymerization products from lignin fraction are high-value aromatic monomers such as BTX (benzene, toluene and the three xylene isomers) and phenols, which can be used directly as basic fuels (e.g., bio marine fuel) or, such as holocellulose residue, can be catalytically upgraded to a wide variety of high-quality fuels and chemicals [71,72,73]. BTX is produced today in large amounts from fossil raw materials and is among the top 15 petrochemicals in terms of market, mainly because it is applied as building blocks for producing many secondary intermediates and final products [74,75]. Similar to depolymerization products from lignin fraction, holocellulose-rich pulp residue can be upgraded to a wide variety of high-quality fuels and chemicals [76,77].

3.2. Physical and Chemical Characterization Results

Table 4 shows the elemental composition analyses of the woody biomass samples, which indicated that hardwood and softwood had a similar and higher carbon content than chemically-treated wood; particularly, MDF, OSB and chipboard showed the lowest carbon content. The average carbon content decreased in the order of softwood (50.74%) > hardwood (49.47%) > chemically-treated wood (47.46%). Additionally, from the results shown in Figure 6 and Table 5, the atomic O/C ratio of chemically-treated woods varied widely (from 0.59 to 0.75) compared to the O/C ratio of hardwoods (from 0.58 to 0.70) and softwoods (from 0.59 to 0.65). Likewise, we observed that the ash content of chemically-treated woods varied broadly (from 0.22% to 3.00%) compared to the O/C ratio of hardwoods (from 0.37% to 0.60%) and softwoods (from 0.37% to 0.60%). In general, the samples of hardwoods, softwoods and chemically-treated woods showed a similar energy content with HHV averages of 19.68 MJ/Kg, 19.42 MJ/kg and 19.59 MJ/kg, respectively. However, it is known that the carbon, oxygen and ash content could influence the calorific value of a fuel. A high H/C ratio, low O/C ratio and low ash content would provide a higher calorific value [78,79,80]. In Figure 6, this relationship was observed mainly in chemically-treated woods. For example, laminated pine and laminated ash, which had a lower O/C atomic ratio and lower ash content compared to MDF, OSB and chipboard, showed higher energy content. The energy content could also be related to the content of hemicellulose and cellulose, since the lower energy contents of MDF, OSB and chipboard agree with the lower areas of shoulders and peaks of the results of the thermogravimetric analyses. It should be noted that the ash is formed by the inorganic elements of the biomass and makes up the non-combustible part, which can generate the formation of slag and fouling at the end of the thermal degradation, as well as the corrosion of metallic surfaces of the burner systems such as boilers, furnaces, domestic stoves and gasifiers, consequently increasing the maintenance costs [81,82]. In addition, based on the atomic ratios (H/C, N/C and O/C), it is possible to elucidate the empirical formula for the woody biomass samples. For example, the empirical formula of MDF, OSB, chipboard, laminated pine and laminated ash could be described as CH1.70N0.06O0.75, CH1.73N0.05O0.71, CH1.73N0.09O0.75, CH1.41N0.00O0.59 and CH1.48N0.00O0.67, respectively [83].
The samples of chemically-treated woods were also characterized by higher nitrogen content compared to hardwoods and softwoods, for which the nitrogen content was almost negligible. The average nitrogen content decreased in the order, chemically-treated wood (2.17%) > hardwood (0.17%) > softwood (0.13%). Notably, MDF (3.28%), OSB (2.47%) and chipboard (4.47%) showed the highest nitrogen content. The high nitrogen content in chemically-treated wood was mainly due to the presence of thermosetting adhesives. In the past, bio-based adhesives were used to glue wood. However, since the beginning of the 20th century, the market for thermosetting adhesives such as urea-formaldehyde, melamine-formaldehyde and isocyanate-based polymers has grown rapidly because they are generally considered more effective, less expensive and more stable in wet conditions [84,85]. Currently, urea-formaldehyde-based adhesives are almost exclusively used to produce wood-based materials such as OSB or MDF, mainly due to their low production cost, the versatility of use, high dry bond strength and colorless glue line. Although thermosetting adhesives are rich in nitrogen, they do not contain sulfur. Therefore, due to the very low sulfur content of woody biomass and the non-use of sulfur-based treatments in chemically-treated wood, the sulfur content could be less relevant in some cases for this type of material [86]. A lower sulfur content in solid biofuels could reduce corrosion problems in boilers and pipes, but it should be noted that feedstocks with a larger amount of nitrogen and sulphur lead to the production of NOx/SOx emissions [87].
Nitrogen is also released to a small extent as molecular nitrogen, nitrogen oxides and aromatic organic compounds [88]. These emissions negatively impact the acidification of the environment and climate change, increasing the global temperature disturbances and anomalies of the climatic phenomena and causing significant damage to the quality of ecosystems and biodiversity. Overall, it was identified that hardwoods, softwoods and some chemically-treated woods, such as laminated pine and laminated ash, showed characteristics that comply with solid biofuel standard limits for high-quality pellet classes (ISO 17225-2:2021), i.e., ash content and heating value that comply with the limit of class A0.5 and nitrogen content that complies with the limit of class N0.2. Meanwhile chemically-treated woods such as MDF, OSB and chipboard showed an ash content and heating value that comply with the limit of class A1.

4. Conclusions

This study evaluated the thermal behavior and chemical-physical characteristics of three woody biomass species (hardwood, softwood and chemically-treated wood) using thermogravimetric analysis and characterization analysis. The results showed that the different woody biomass species had an energy content ranging between 18.58 MJ/kg and 21.02 MJ/kg, and that the most significant trend of mass loss in the thermal degradation, around 70%, occurred between 150 °C and 500 °C, while the residual mass at 650 °C was between 13% and 24%. Additionally, it was evidenced that the softwood samples had a more stable thermal degradation compared to hardwoods and chemically-treated woods, mainly due to the different content of hemicellulose, cellulose and lignin. These characteristics make the woody biomass species studied optimal energy sources that can be used directly or indirectly in low emission generation technologies that are currently available on the market such as combined heat and power (CHP) systems or technologies that are in the phase of development, such as fuel cells, in addition to being excellent resources to produce value-added derivatives, so their use can be extended to many other industrial sectors. However, to select the most suitable woody biomass species, not only should its quality as fuel be considered, but also other factors such as economic and environmental factors or the availability of the feedstock in a specific area, which will be decisive by promoting new investments in the market of clean energy generation and biorefineries.

Author Contributions

Conceptualization, M.J.A.R. and G.T.; methodology, M.J.A.R.; validation, M.J.A.R. and G.T.; investigation, M.J.A.R.; resources, G.T. and D.D.; data acquisition, V.M., S.D.S. and C.D.F.; writing—original draft preparation, M.J.A.R.; writing—review and editing, M.J.A.R., D.D. and G.T.; supervision, G.T.; project administration, G.T.; funding acquisition, G.T. and D.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. IEA. World Energy Outlook 2021; IEA: Paris, France, 2021. [Google Scholar]
  2. Kopetz, H. Build a biomass energy market. Nature 2013, 494, 29–31. [Google Scholar] [CrossRef] [PubMed]
  3. Balat, M.; Balat, H. Recent trends in global production and utilization of bio-ethanol fuel. Appl. Energy 2009, 86, 2273–2282. [Google Scholar] [CrossRef]
  4. ISO 17225-2:2021; Solid Biofuels—Fuel Specifications and Classes—Part 1: General Requirements. International Organization for Standardization: Geneva, Switzerland, 2020.
  5. Mancini, M.; Taavitsainen, V.M.; Toscano, G. Comparison of three different classification methods performance for the determination of biofuel quality by means of NIR spectroscopy. J. Chemom. 2019, 33, e3145. [Google Scholar] [CrossRef]
  6. Agovino, M.; D’Uva, M.; Garofalo, A.; Marchesano, K. Waste management performance in Italian provinces: Efficiency and spatial effects of local governments and citizen action. Ecol. Indic. 2018, 89, 680–695. [Google Scholar] [CrossRef]
  7. Brown, M.; Herrera, M. Combined heat and power as a platform for clean energy systems. Appl. Energy 2021, 304, 117686. [Google Scholar] [CrossRef]
  8. Jimenez-Navarro, J.; Kavvadias, K.; Filippidou, F.; Pavičević, M.; Quoilin, S. Coupling the heating and power sectors: The role of centralised combined heat and power plants and district heat in a European decarbonised power system. Appl. Energy 2020, 270, 115134. [Google Scholar] [CrossRef]
  9. Villarino, Y.; Rial, L.; Rodríguez-Abalde, A. Assessment of a residual biomass micro-combined heat and power system based on an organic Rankine Cycle coupled to a boiler. J. Environ. Manag. 2022, 301, 113832. [Google Scholar] [CrossRef]
  10. Martinez, S.; Michaux, G.; Salagnac, P.; Bouvier, J. Micro-combined heat and power systems (micro-CHP) based on renewable energy source. Energy Convers. Manag. 2017, 154, 262–285. [Google Scholar] [CrossRef]
  11. Malico, I.; Pereira, R.N.; Gonçalves, A.C.; Sousa, A.M.O. Current status and future perspectives for energy production from solid biomass in the European industry. Renew Sust. Energy Rev. 2019, 112, 960–977. [Google Scholar] [CrossRef]
  12. Bhatia, S.K.; Joo, H.S.; Yang, Y.H. Biowaste-to-bioenergy using biological methods–a mini-review. Energy Convers. Manag. 2018, 177, 640–660. [Google Scholar] [CrossRef]
  13. Romero, M.J.A.; Capuano, D.; Miranda, C. Economic and Environmental Performance of Biowaste-to-energy Technologies for Small-scale Electricity Generation. J. Mod. Power Syst. Clean Energy 2022, 10, 12–18. [Google Scholar]
  14. Situmorang, Y.A.; Zhao, Z.; Yoshida, A.; Abudula, A.; Guan, G. Small-scale biomass gasification systems for power generation (<200 kW class): A review. Renew. Sustain. Energy Rev. 2020, 117, 109486. [Google Scholar]
  15. Safarian, S.; Unnthorsson, R.; Richter, C. Techno-economic and environmental assessment of power supply chain by using waste biomass gasification in Iceland. Biophys. Econ. Sust. 2020, 5, 7. [Google Scholar] [CrossRef]
  16. Riva, C.; Schievano, A.; D’Imporzano, G.; Adani, F. Production costs and operative margins in electric energy generation from biogas: Full-scale case studies in Italy. J. Waste Manag. 2014, 34, 1429–1435. [Google Scholar] [CrossRef]
  17. No, S.Y. Application of straight vegetable oil from triglyceride based biomass to IC engines—A review. J. Environ. Manag. 2017, 216, 235–245. [Google Scholar] [CrossRef]
  18. Dabi, M.; Saha, U.K. Application potential of vegetable oils as alternative to diesel fuels in compression ignition engines: A review. J. Energy Inst. 2019, 92, 1710–1726. [Google Scholar] [CrossRef]
  19. Mat, S.C.; Idroas, M.Y.; Hamid, M.F.; Zainal, Z.A. Performance and emissions of straight vegetable oils and its blends as a fuel in diesel engine: A review. Renew. Sustain. Energy Rev. 2018, 82, 808–823. [Google Scholar] [CrossRef]
  20. Biobrent. Impianti a Olio Vegetale. Available online: https://www.biobrent.it/it/impianti_olio.php (accessed on 4 June 2022).
  21. Altertecno. Impianti di Cogenerazione ad Olio Vegetale. Available online: http://www.altertecno.com/olio-vegetale/ (accessed on 4 June 2022).
  22. Compagnia Tecnica Motori. Sistemi di Generazione a Combustibili Vegetali. Available online: http://ctm.it/sistemi_generazione_combustibili_vegetali.php (accessed on 4 June 2022).
  23. Man Energy Solutions. Biofuels. Available online: https://www.man-es.com/marine/strategic-expertise/future-fuels/biofuel (accessed on 4 June 2022).
  24. Wärtsilä. Sustainable Fuels. Available online: https://wartsila.prod.sitefinity.fi/energy/sustainable-fuels/paper (accessed on 4 June 2022).
  25. Atelge, M.R.; Atabania, A.E.; Banuc, J.R.; Krisa, D.; Kaya, M.; Eskicioglu, C.; Kumar, G.; Lee, C.; Yildiz, Y.Ş.; Unalan, S.; et al. A critical review of pretreatment technologies to enhance anaerobic digestion and energy recovery. Fuel 2020, 270, 117494. [Google Scholar] [CrossRef]
  26. Ardolino, F.; Parrillo, F.; Arena, U. Biowaste-to-biomethane or biowaste-to-energy? An LCA study on anaerobic digestion of organic waste. J. Clean. Prod. 2018, 174, 462–476. [Google Scholar] [CrossRef]
  27. Valenti, F.; Zhong, Y.; Sun, M.; Porto, S.M.C.; Toscano, A.; Dale, B.E.; Sibilla, F.; Liao, W. Anaerobic co-digestion of multiple agricultural residues to enhance biogas production in southern Italy. J. Waste Manag. 2018, 78, 151–157. [Google Scholar] [CrossRef]
  28. Banja, M.; Jégard, M.; Motola, V.; Sikkema, R. Support for biogas in the EU electricity sector—A comparative analysis. Biomass Bioenergy 2019, 128, 105313. [Google Scholar] [CrossRef]
  29. Scarlat, N.; Dallemand, J.F.; Fahl, F. Biogas: Developments and perspectives in Europe. Renew. Energy 2018, 129, 457–472. [Google Scholar] [CrossRef]
  30. Safarian, S.; Richter, C.; Unnthorsson, R. Waste biomass gasification simulation using aspen plus: Performance evaluation of wood chips, sawdust and mixed paper wastes. Int. J. Power Energy Eng. 2019, 7, 12–30. [Google Scholar] [CrossRef]
  31. Jungbluth, N.; Chudacoff, M.; Dauriat, A.; Dinkel, F.; Doka, G.; Faist, M.; Gnansounou, E.; Kljun, N.; Schleiss, K.; Spielmann, M.; et al. Life Cycle Inventories of Bioenergy: Ecoinvent Report No. 17, v2.0; Swiss Centre for Life Cycle Inventories: Dübendorf, Switzerland, 2007. [Google Scholar]
  32. ESPE. Il Cogeneratore a Biomassa ESPE CHiP50. Available online: https://www.espegroup.com/biomassa/cogeneratore-a-biomassa/ (accessed on 5 June 2022).
  33. Gruppo, R.M. Unità di Gassificazione. Available online: https://www.rmimpiantisrl.it/gassificazione/gassificazione_impianto (accessed on 5 June 2022).
  34. CMD. Microcogeneratore ECO20. Available online: https://eco20cmd.com/ (accessed on 5 June 2022).
  35. Spanner Re² GmbH. Impianti legno-energia. Available online: https://www.holz-kraft.com/it/prodotti/impianti-legno-energia.html (accessed on 5 June 2022).
  36. Ankur. Ankur Gasifiers. Available online: https://www.ankurscientific.com/ankur-gasifiers-msw-rdf.html (accessed on 5 June 2022).
  37. Wang, F.; Ouyang, D.; Zhou, Z.; Page, S.J.; Liu, D.; Zhao, X. Lignocellulosic biomass as sustainable feedstock and materials for power generation and energy storage. J. Energy Chem. 2021, 57, 247–280. [Google Scholar] [CrossRef]
  38. Ouyang, D.; Wang, F.; Gao, D.; Han, W.; Hu, X.; Qiao, D.; Zhao, X. Light-driven lignocellulosic biomass conversion for production of energy and chemicals. iScience 2022, 25, 105221. [Google Scholar] [CrossRef]
  39. Renders, T.; Van den Bosch, S.; Koelewijn, S.; Schutyser, W.; Sels, B. Lignin-first biomass fractionation: The advent of active stabilization strategies. Energy Environ. Sci. 2017, 10, 1551–1557. [Google Scholar] [CrossRef]
  40. Renders, T.; Den Bossche, G.V.; Vangeel, T.; Van Aelst, K.; Sels, B. Reductive catalytic fractionation: State of the art of the lignin-first biorefinery. Curr. Opin. Biotechnol. 2019, 56, 193–201. [Google Scholar] [CrossRef]
  41. Paone, E.; Tabanelli, T.; Mauriello, F. The rise of lignin biorefinery. Curr. Opin. Green Sustain. Chem. 2020, 24, 1–6. [Google Scholar] [CrossRef]
  42. Anwar, Z.; Gulfraz, M.; Irshad, M. Agro-industrial lignocellulosic biomass a key to unlock the future bio-energy: A brief review. J. Radiat. Res. Appl. Sci. 2014, 7, 163–173. [Google Scholar] [CrossRef]
  43. Alonso, D.M.; Bond, J.Q.; Dumesic, J.A. Catalytic conversion of biomass to biofuels. Green Chem. 2010, 12, 1493–1513. [Google Scholar] [CrossRef]
  44. Saldarriaga-Hernández, S.; Velasco-Ayala, C.; Leal-Isla Flores, P.; Rostro-Alanis, M.J.; Parra-Saldivar, R.; Iqbal, H.M.N.; Carrillo-Nieves, D. Biotransformation of lignocellulosic biomass into industrially relevant products with the aid of fungi-derived lignocellulolytic enzymes. Int. J. Biol. Macromol. 2020, 161, 1099–1116. [Google Scholar] [CrossRef]
  45. Poveda-Giraldo, J.A.; Solarte-Toro, J.C.; Cardona-Alzate, C.A. The potential use of lignin as a platform product in biorefineries: A review. Renew. Sust. Energy Rev. 2021, 138, 110688. [Google Scholar] [CrossRef]
  46. Bilal, M.; Wang, Z.; Cui, J.; Romanholo Ferreira, L.F.; Bharagava, R.N.; Iqbal, H.M.N. Environmental impact of lignocellulosic wastes and their effective exploitation as smart carriers—A drive towards greener and eco-friendlier biocatalytic systems. Sci. Total Environ. 2022, 722, 137903. [Google Scholar] [CrossRef]
  47. Hoang, A.T.; Ong, H.C.; Fattah, I.M.R.; Chong, C.T.; Cheng, C.K.; Sakthivel, R.; Ok, Y.S. Progress on the lignocellulosic biomass pyrolysis for biofuel production toward environmental sustainability. Fuel Process. Technol. 2021, 223, 106997. [Google Scholar] [CrossRef]
  48. Romero, M.J.A.; Duca, D.; Toscano, G. Advancements in the Conversion of Lipid-Rich Biowastes and Lignocellulosic Residues into High-Quality Road and Jet Biofuels Using Nanomaterials as Catalysts. Processes 2022, 10, 187. [Google Scholar] [CrossRef]
  49. Ding, Y.; Ezekoye, O.; Lu, S.; Wang, C.; Zhou, R. Comparative pyrolysis behaviors and reaction mechanisms of hardwood and softwood. Energy Convers. Manag. 2017, 132, 102–109. [Google Scholar] [CrossRef]
  50. Yao, F.; Wu, Q.; Lei, Y.; Guo, W.; Xu, Y. Thermal decomposition kinetics of natural fibers: Activation energy with dynamic thermogravimetric analysis. Polym. Degrad. Stab. 2008, 93, 90–98. [Google Scholar] [CrossRef]
  51. Xu, X.; Pan, R.; Chen, R. Comparative Thermal Degradation Behaviors and Kinetic Mechanisms of Typical Hardwood and Softwood in Oxygenous Atmosphere. Processes 2021, 9, 1598. [Google Scholar] [CrossRef]
  52. Gil, M.; Casal, D.; Pevida, C.; Pis, J.; Rubiera, F. Thermal behaviour and kinetics of coal/biomass blends during co-combustion. Bioresour. Technol. 2010, 101, 5601–5608. [Google Scholar] [CrossRef]
  53. Kong, B.; Wang, E.; Li, Z.; Lu, W. Study on the feature of electromagnetic radiation under coal oxidation and temperature rise based on multi-fractal theory. Fractals 2019, 27, 1950038. [Google Scholar] [CrossRef]
  54. Cai, P.; Nie, W.; Chen, D.; Yang, S.; Liu, Z. Effect of air flowrate on pollutant dispersion pattern of coal dust particles at fully mechanized mining face based on numerical simulation. Fuel 2019, 239, 623–635. [Google Scholar] [CrossRef]
  55. Carrier, M.; Loppinet-Serani, A.; Denux, D.; Lasnier, J.M.; Ham-Pichavant, F.; Cansell, F.; Aymonier, C. Thermogravimetric analysis as a new method to determine the lignocellulosic composition of biomass. Biomass Bioenergy 2011, 35, 298–307. [Google Scholar] [CrossRef]
  56. Rego, F.; Soares Dias, A.P.; Casquilho, M.; Rosa, F.C.; Rodrigues, A. Fast determination of lignocellulosic composition of poplar biomass by Thermogravimetry. Biomass Bioenergy 2019, 122, 375–380. [Google Scholar] [CrossRef]
  57. Sanchez-Silva, L.; López-González, D.; Villaseñor, J.; Sánchez, P.; Valverde, J.L. Thermogravimetric–mass spectrometric analysis of lignocellulosic and marine biomass pyrolysis. Bioresour. Technol. 2012, 109, 163–172. [Google Scholar] [CrossRef] [PubMed]
  58. Rodrigues, R.C.L.B.; Rodrigues, B.G.; Canettieri, E.V.; Martinez, E.A.; Palladino, F.; Wisniewski, A., Jr.; Rodrigues, D., Jr. Comprehensive approach of methods for microstructural analysis and analytical tools in lignocellulosic biomass assessment—A review. Bioresour. Technol. 2022, 348, 126627. [Google Scholar] [CrossRef]
  59. Valente, M.; Brillard, A.; Schönnenbeck, C.; Brilhac, J.F. Investigation of grape marc combustion using thermogravimetric analysis. Kinetic modeling using an extended independent parallel reaction (EIPR). Fuel Process. Technol. 2015, 131, 297–303. [Google Scholar] [CrossRef]
  60. Ikegwu, U.M.; Okoro, N.M.; Ozonoh, M.; Daramola, M.O. Thermogravimetric properties and degradation kinetics of biomass during its thermochemical conversion process. Mater. Today 2022, 65, 2163–2171. [Google Scholar] [CrossRef]
  61. Mancini, M.; Toscano, G.; Feliciangeli, G.; Leoni, E.; Duca, D. Investigation on woodchip quality with respect to ISO standards and relationship among quality parameters. Fuel 2020, 279, 118559. [Google Scholar] [CrossRef]
  62. Leoni, E.; Mancini, M.; Duca, D.; Toscano, G. Rapid Quality Control of Woodchip Parameters Using a Hand-Held Near Infrared Spectrophotometer. Processes 2020, 8, 1413. [Google Scholar] [CrossRef]
  63. Felix, C.B.; Chen, W.H.; Ubando, A.T.; Park, Y.K.; Lin, K.Y.A.; Pugazhendhi, A.; Nguyen, T.B.; Dong, C.D. A comprehensive review of thermogravimetric analysis in lignocellulosic and algal biomass gasification. Chem. Eng. J. 2022, 445, 136730. [Google Scholar] [CrossRef]
  64. Cao, W.; Li, J.; Lue, L. Study on the ignition behavior and kinetics of combustion of biomass. Energy Procedia 2017, 142, 136–141. [Google Scholar] [CrossRef]
  65. Kok, M.V.; Özgür, E. Thermal analysis and kinetics of biomass samples. Fuel Process. Technol. 2013, 106, 739–743. [Google Scholar] [CrossRef]
  66. Chen, Z.; Hu, M.; Zhu, X.; Guo, D.; Liu, S.; Hu, Z.; Xiao, B.; Wang, J.; Laghar, M. Characteristics and kinetic study on pyrolysis of five lignocellulosic biomass via thermogravimetric analysis. Bioresour. Technol. 2015, 192, 441–450. [Google Scholar] [CrossRef]
  67. Musa, Y.; Bwatanglang, I.B. Current role and future developments of biopolymers in green and sustainable chemistry and catalysis. In Micro and Nano Technologies, Sustainable Nanocellulose and Nanohydrogels from Natural Sources; Elsevier: Amsterdam, The Netherlands, 2020; pp. 131–154. [Google Scholar]
  68. Kumar, N.; Dixit, A. Management of Biomasss. In Micro and Nano Technologies, Nanotechnology for Rural Development; Elsevier: Amsterdam, The Netherlands, 2021; pp. 97–140. [Google Scholar]
  69. Koch, G. Raw Material for Pulp. In Handbook of Pulp; WILEY-VCH Verlag GmbH & Co., KGaA: Weinheim, Germany, 2006; Volume 1, pp. 21–68. [Google Scholar]
  70. Li, L.; Rowbotham, J.; Greenwell, H.; Dyer, P. An Introduction to Pyrolysis and Catalytic Pyrolysis: Versatile Techniques for Biomass Conversion. In Catalytic Biomass Conversion, New and Future Developments in Catalysis; Elsevier: Amsterdam, The Netherlands, 2013; pp. 173–208. [Google Scholar]
  71. Parsell, T.; Yohe, S.; Degenstein, J.; Jarrell, T.; Klein, I.; Gencer, E.; Hewetson, B.; Hurt, M.; Kim, J.; Choudhari, H.; et al. A synergistic biorefinery based on catalytic conversion of lignin prior to cellulose starting from lignocellulosic biomass. Green Chem. 2015, 17, 1492. [Google Scholar] [CrossRef]
  72. Carrozza, C.F.; Leonardi, G.; Vasso, M.; Gelfi, C.; Serafini, A.; Gambarotti, C.; Citterio, A.; Sebastiano, R. Novel in-situ preparation of nano sized Ni (0) catalyst for depolymerization of lignin-rich waste from industrial biorefinery. Bioresour. Technol. Rep. 2020, 10, 100355. [Google Scholar] [CrossRef]
  73. Kouris, P.; Oevering, H.; Boot, M.D.; Hensen, E.J.M. An integrated lignin biorefinery: Scaling-up lignin depolymerization technology for biofuels and chemicals. In Proceedings of the NOVACAM Winter School, Padua, Italy, 22–23 February 2017. [Google Scholar]
  74. Busca, G. Production of Gasolines and Monocyclic Aromatic Hydrocarbons: From Fossil Raw Materials to Green Processes. Energies 2021, 14, 4061. [Google Scholar] [CrossRef]
  75. Wang, H.; Pu, Y.; Ragauskas, A.; Yang, B. From lignin to valuable products–strategies, challenges, and prospects. Bioresour. Technol. 2019, 271, 449–461. [Google Scholar] [CrossRef]
  76. Trache, D.; Tarchoun, A.F.; Derradji, M.; Hamidon, T.S.; Masruchin, N.; Brosse, N.; Hussin, M.H. Nanocellulose: From Fundamentals to Advanced Applications. Front. Chem. 2020, 8, 392. [Google Scholar] [CrossRef]
  77. Barbash, V.A.; Yaschenko, O.V.; Shniruk, O.M. Preparation and Properties of Nanocellulose from Organosolv Straw Pulp. Nanoscale Res. Lett. 2017, 12, 241. [Google Scholar] [CrossRef]
  78. Romero, M.; Pizzi, A.; Toscano, G.; Busca, G.; Bosio, B.; Arato, E. Deoxygenation of waste cooking oil and non-edible oil for the production of liquid hydrocarbon biofuels. Waste Manag. 2016, 47, 62–68. [Google Scholar] [CrossRef]
  79. Romero, M.; Pizzi, A.; Toscano, G.; Casazza, A.; Busca, G.; Bosio, B.; Arato, E. Deoxygenation of non-edible vegetable oil to produce hydrocarbons over Mg-Al mixed oxydes. Chem. Eng. Trans. 2018, 64, 121–126. [Google Scholar]
  80. Romero, M.; Pizzi, A.; Toscano, G.; Casazza, A.; Busca, G.; Bosio, B.; Arato, E. Preliminary experimental study on biofuel production by deoxygenation of Jatropha oil. Fuel Process. Technol. 2015, 137, 31–37. [Google Scholar] [CrossRef]
  81. Mlonka-Mędrala, A.; Magdziarz, A.; Dziok, T.; Sieradzka, M.; Nowak, W. Laboratory studies on the influence of biomass particle size on pyrolysis and combustion using TG GC/MS. Fuel 2019, 252, 635–645. [Google Scholar] [CrossRef]
  82. Da Silva, S.B.; Arantes, M.D.C.; De Andrade, J.K.B.; Andrade, C.R.; Carneiro, A.C.O.; Protásio, T.P. Influence of physical and chemical compositions on the properties and energy use of lignocellulosic biomass pellets in Brazil. Renew. Energy 2020, 147, 1870–1879. [Google Scholar] [CrossRef]
  83. Nanda, S.; Reddy, S.N.; Dalai, A.K.; Kozinski, J.A. Subcritical and supercritical water gasification of lignocellulosic biomass impregnated with nickel nanocatalyst for hydrogen production. Int. J. Hydrog. Energy 2016, 41, 4907–4921. [Google Scholar] [CrossRef]
  84. Frihart, C.R. Introduction to Special Issue: Wood Adhesives: Past, Present, and Future. For. Prod. J. 2015, 65, 4–8. [Google Scholar] [CrossRef]
  85. Pizzi, A. Synthetic adhesives for wood panels. Rev. Adhes. Adhes. 2014, 2, 85–126. [Google Scholar] [CrossRef]
  86. Cesprini, E.; Resente, G.; Causin, V.; Urso, T.; Cavalli, R.; Zanetti, M. Energy recovery of glued wood waste—A review. Fuel 2020, 262, 116520. [Google Scholar] [CrossRef]
  87. Mishra, R.; Mohanty, K. Kinetic analysis and pyrolysis behavior of low-value waste lignocellulosic biomass for its bioenergy potential using thermogravimetric analyzer. Mater. Sci. Energy Technol. 2021, 4, 136–147. [Google Scholar]
  88. Watson, J.; Zhang, Y.; Si, B.; Chen, W.T.; De Souza, R. Gasification of biowaste: A critical review and outlooks. Renew. Sust. Energy Rev. 2018, 83, 1–17. [Google Scholar] [CrossRef]
Processes 11 00154 g001

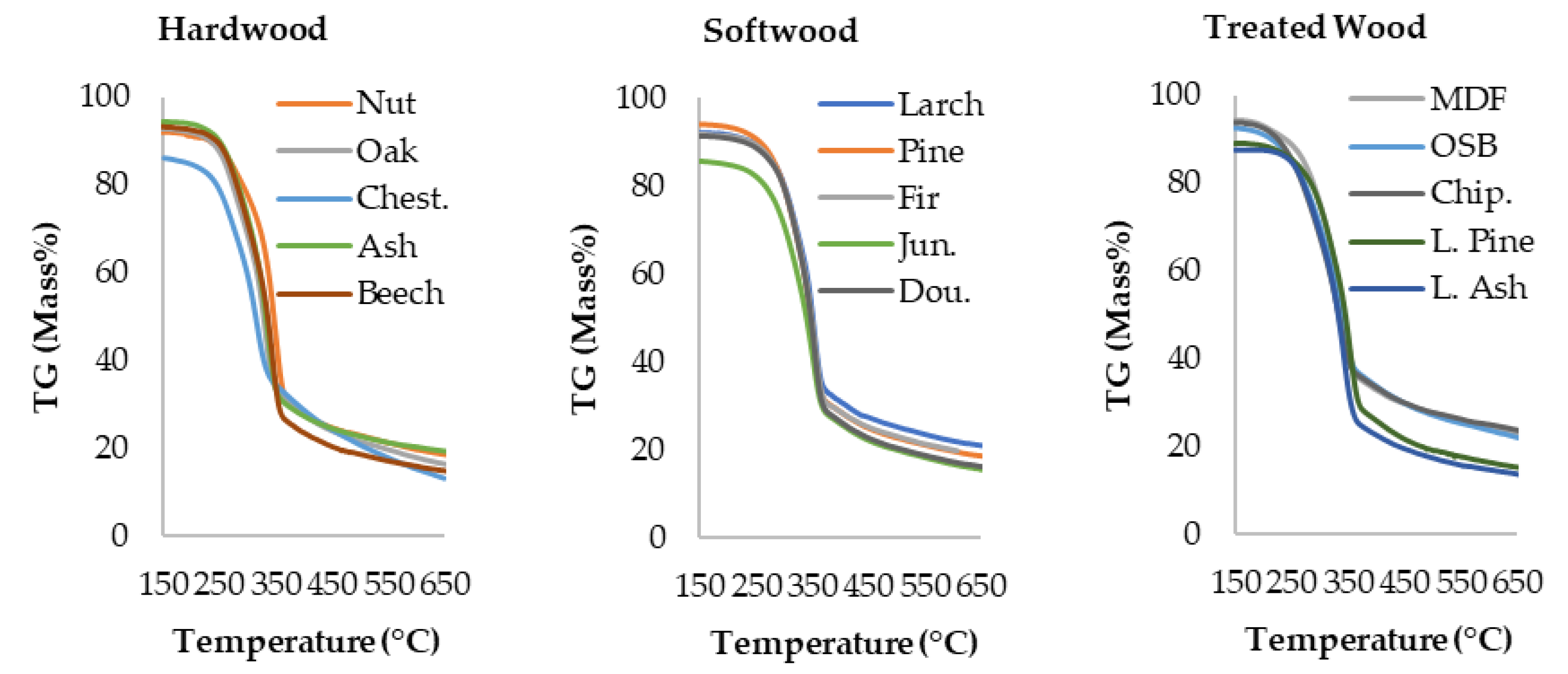

Figure 1. TG curves of thermal degradation of woody biomass samples.
Figure 1. TG curves of thermal degradation of woody biomass samples.
Processes 11 00154 g001
Processes 11 00154 g002

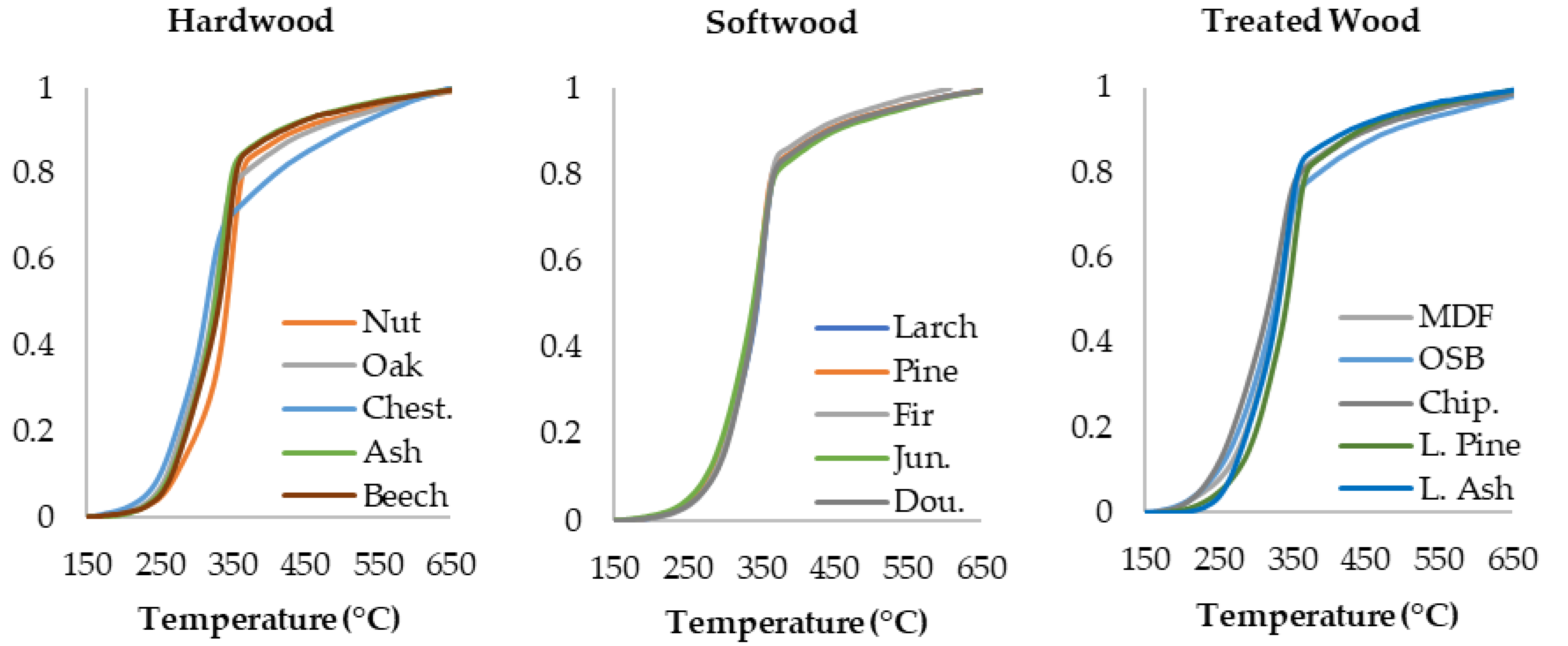

Figure 2. The conversion ratios of woody biomass samples.
Figure 2. The conversion ratios of woody biomass samples.
Processes 11 00154 g002
Processes 11 00154 g003

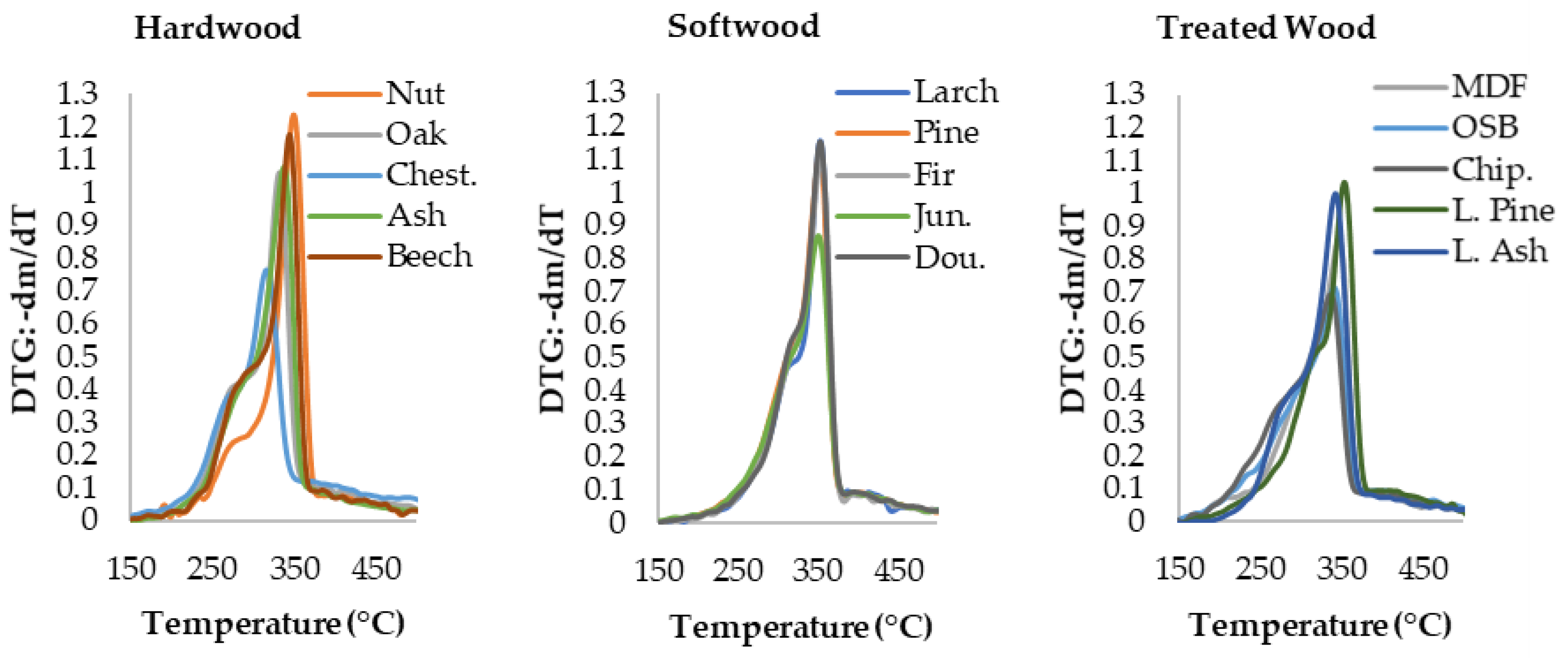

Figure 3. DTG curves of thermal degradation of woody biomass samples.
Figure 3. DTG curves of thermal degradation of woody biomass samples.
Processes 11 00154 g003
Processes 11 00154 g004

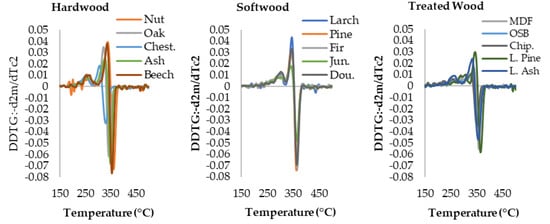

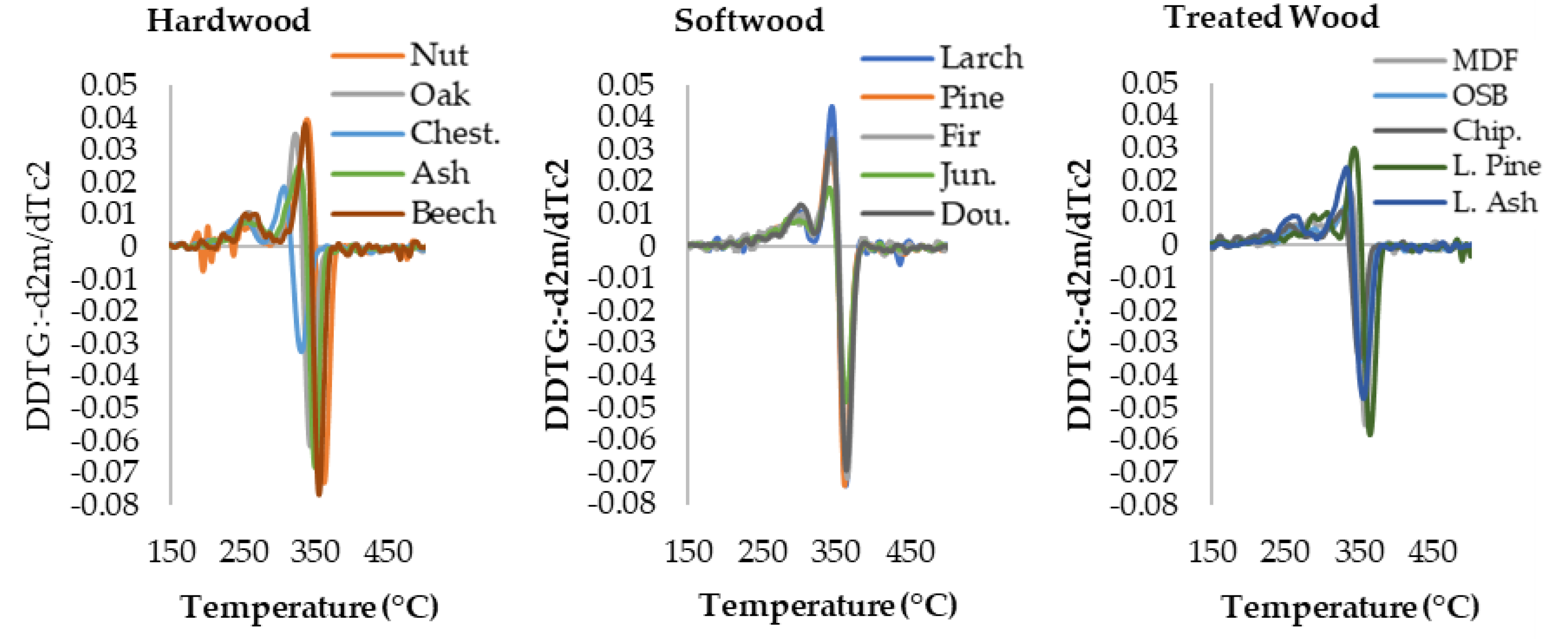

Figure 4. DDTG curves of thermal degradation of woody biomass samples.
Figure 4. DDTG curves of thermal degradation of woody biomass samples.
Processes 11 00154 g004
Processes 11 00154 g005

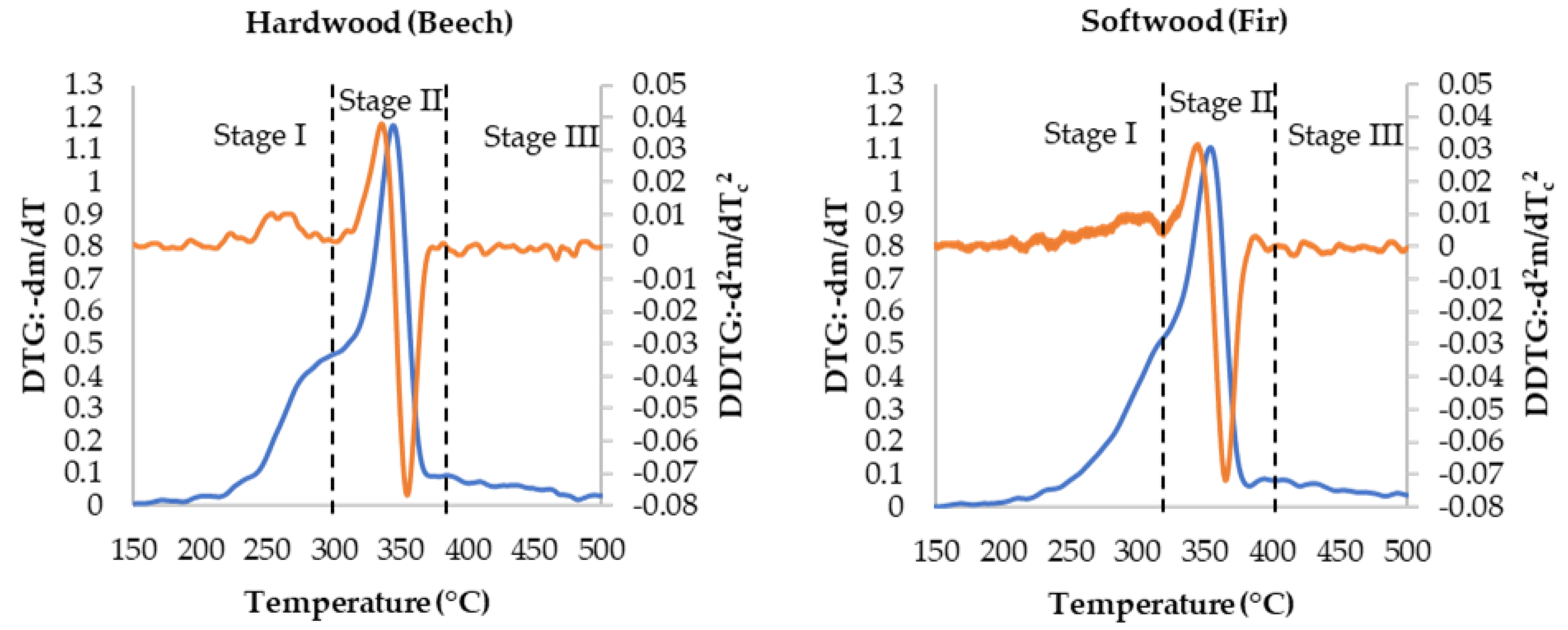

Figure 5. Examples of the Zone II division of the degradation profiles of hardwood and softwood samples using the second derivative of the TG curve method.
Figure 5. Examples of the Zone II division of the degradation profiles of hardwood and softwood samples using the second derivative of the TG curve method.
Processes 11 00154 g005
Processes 11 00154 g006

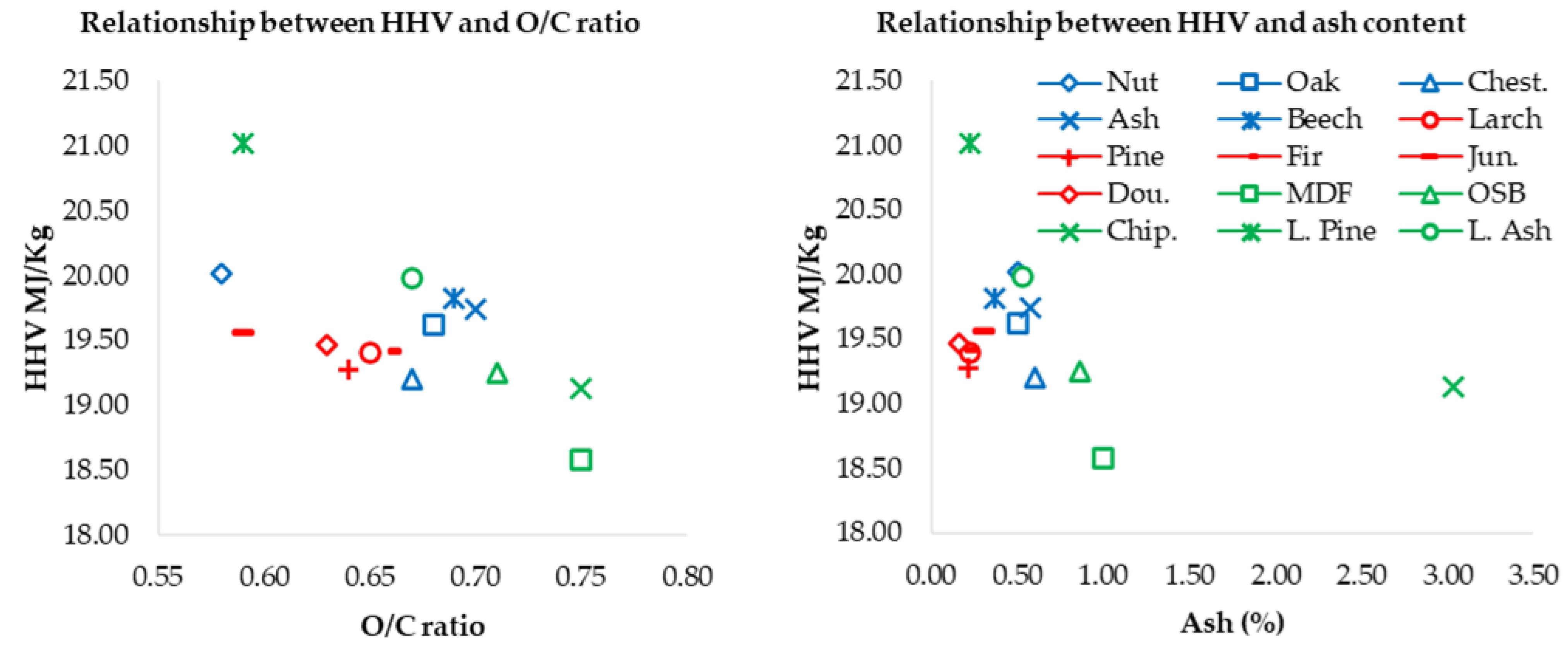

Figure 6. Relationship between HHV, O/C ratio and ash content of woody biomass samples.
Figure 6. Relationship between HHV, O/C ratio and ash content of woody biomass samples.
Processes 11 00154 g006
Table 1. The woody biomass samples used in this study.
Table 1. The woody biomass samples used in this study.
CategoryWoody Biomasses
HardwoodCommon nameWalnutSessile OakChestnutAshBeech
Scientific nameJuglans regiaQuercus petraeaCastanea sativaFraxinusFagus sylvatica
AbbreviationNut.OakChest.AshBeech
SoftwoodCommon nameLarchPineFirJuniperDouglas Fir
Scientific nameLarix DeciduaPinusAbiesJuniperus communisPseudotsuga menziesii
AbbreviationLarchPineFirJun.Dou.
Chemically-Treated WoodCommon nameMedium density FibreboardOriented Strand BoardChipboardLaminated PineLaminated Ash
Scientific name-----
AbbreviationMDFOSBChip.L. PineL. Ash
Table 2. Instruments and methods for the physical and chemical characterization of woody biomass.
Table 2. Instruments and methods for the physical and chemical characterization of woody biomass.
AnalysesInstrumentMethod
ThermogravimetryTGA LINSEIS (STA PT-1600)-
Elemental Composition (CHNO)Elemental analyser (TruSpec CHN, Leco)ISO16948
Calorific ValueIsoperibolic calorimeter mod.C200 basic, IKAISO18125
Ash ContentTGA Leco 701ISO18122
Table 3. Mass % at key temperature points of the thermogravimetric analysis results.
Table 3. Mass % at key temperature points of the thermogravimetric analysis results.
HardwoodSoftwoodChemically-Treated Wood
Temp. (°C)NutOakChest.AshBeechLarchPineFirJun.Dou.MDFOSBChip.L. PineL. Ash
150929386949392949286919493948988
500232221231925232320212827281917
650191613191521191916162322241514
Table 4. Elemental composition and ash content of woody biomass samples.
Table 4. Elemental composition and ash content of woody biomass samples.
HardwoodSoftwoodChemically-Treated Wood
NutOakChest.AshBeechLarchPineFirJun.Dou.MDFOSBChip.L. PineL. Ash
C (%)52.1049.1049.2048.2448.4050.0750.5549.8652.4950.7045.2046.1044.5052.3649.16
H (%)6.536.055.805.985.955.966.086.166.146.266.456.706.486.216.12
N (%)0.330.110.200.210.170.230.120.120.150.113.282.472.870.100.13
O (%)40.5744.2544.245.0045.1343.5243.0443.6640.9242.7745.0743.8743.1241.1144.06
Ash (%)0.500.500.600.570.350.220.200.200.300.161.000.863.030.220.53
Table 5. Atomic ratios and energy content of woody biomass samples.
Table 5. Atomic ratios and energy content of woody biomass samples.
HardwoodSoftwoodChemically-Treated Wood
NutOakChest.AshBeechLarchPineFirJun.Dou.MDFOSBChip.L. PineL. Ash
H/C1.491.471.401.471.461.411.431.471.391.471.701.731.731.411.48
N/C0.010.000.000.000.000.000.000.000.000.000.060.050.090.000.00
O/C0.580.680.670.700.700.650.640.660.590.630.750.710.750.590.67
HHV (MJ/Kg)20.0219.6219.2019.7419.8219.4019.2719.4219.5619.4718.5819.2519.1321.0219.98
LHV (MJ/Kg)18.6018.3017.8818.4418.5118.1017.9218.0818.2318.1017.3417.9817.7818.5718.64
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Romero, M.J.A.; Duca, D.; Maceratesi, V.; Di Stefano, S.; De Francesco, C.; Toscano, G. Preliminary Study on the Thermal Behavior and Chemical-Physical Characteristics of Woody Biomass as Solid Biofuels. Processes 2023, 11, 154. https://doi.org/10.3390/pr11010154

AMA Style

Romero MJA, Duca D, Maceratesi V, Di Stefano S, De Francesco C, Toscano G. Preliminary Study on the Thermal Behavior and Chemical-Physical Characteristics of Woody Biomass as Solid Biofuels. Processes. 2023; 11(1):154. https://doi.org/10.3390/pr11010154

Chicago/Turabian Style

Romero, Max J. A., Daniele Duca, Vittorio Maceratesi, Sara Di Stefano, Carmine De Francesco, and Giuseppe Toscano. 2023. "Preliminary Study on the Thermal Behavior and Chemical-Physical Characteristics of Woody Biomass as Solid Biofuels" Processes 11, no. 1: 154. https://doi.org/10.3390/pr11010154

APA Style

Romero, M. J. A., Duca, D., Maceratesi, V., Di Stefano, S., De Francesco, C., & Toscano, G. (2023). Preliminary Study on the Thermal Behavior and Chemical-Physical Characteristics of Woody Biomass as Solid Biofuels. Processes, 11(1), 154. https://doi.org/10.3390/pr11010154

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
