# Heat Transfer Models for Dense Pulverized Particle Jets

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Heat Transfer Modeling in Lagrangian Parcels

## 3. Synthetic Particle Cluster

^{®}v7 [46] for the simulations of the heat-up of the particle clusters. chtMultiRegionFoam couples fluid and solid regions explicitly in space and time. This approach is referred to as loose coupling in the literature [47] and requires suitable time stepping and mesh resolution [48]. The boundary conditions of the fluid are representative for the pulverized particle jet entering the raceway zone of blast furnaces [21,49]. Temperatures were kept constant at 2500 K, outlet pressure was set to 5 bar

_{(a)}, while the inlet velocity was varied according to Table 1. The initial particle clusters temperature is 400 K.

^{−6}and 7.5 × 10

^{−4}s for the investigated cases. The overall mean cell size of the fluid grid is between 20 and 30 $\mathsf{\mu}$m, with significant refinement near the particles. The time step is of order 10

^{−7}to 10

^{−8}seconds for the 0.5 and 13 m/s relative velocities. Therefore, the chosen mesh resolution and time step sizes suit DNS. The grid independence of the cluster simulations is discussed in Appendix A.1. Thermal radiation is modeled by the finite volume discrete ordinates model (fvDOM) [41] with 16 discrete rays (two azimuthal angles in $\pi $/2 on X-Y plane and two polar angles in $\pi $ between the Z and X-Y plane). Gas-phase radiation contribution is approximated by grey mean absorption [50]. According to Narayanaswamy and Chen [51], Song et al. [52], near-field effects between the solid particles can be disregarded for the investigated cases. The OpenFOAM

^{®}fvDOM implementation has been validated in the literature [53,54,55], while the flow and convective heat transfer is validated using single sphere simulations, which are given in Appendix A.1.

## 4. Single Sphere Reference Cases

- size equivalent case (SE)
- mass equivalent case (ME),
- surface area equivalent case (AE), and
- surface area and mass equivalent case (AME).

^{3}to ensure mass equivalence.

## 5. Cluster Heat Transfer Models

#### 5.1. Projected Surface Area Correction

#### 5.2. Convective Heat Transfer Model

#### 5.2.1. Multiple Linear Regression Approach (MLR)

#### 5.2.2. Lévêque Approach (GLE)

#### Drag Coefficient

#### Nusselt Number

#### 5.3. Comparison with Random Cluster Simulations

#### 5.4. Comparison of Nusselt Correlations from Literature

## 6. Euler–Lagrangian Validation Simulations

#### 6.1. Convective Heat Transfer Model Validation

#### 6.2. Projected Surface Area Correction Validation

## 7. Summary and Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Symbols

## Latin Symbols

symbol | unit | description |

A | [m^{2}] | area |

c_{p} | [Jkg^{−1}K^{−1}] | specific heat capacity |

d | [m] | diameter |

d_{32} | [m] | Sauter diameter |

e | [Jkg^{−1}] | specific internal energy |

F_{f} | [N] | drag force |

f (φ) | [-] | radiation correction function |

G | [Wm^{−2}] | incident radiation |

h_{conv} | [Wm^{−2}K^{−1}] | convective heat transfer coefficient |

I | [Wm^{−2}] | radiative intensity |

k | [-] | shape parameter of the Weibull distribution |

L | [m] | length scale |

m | [kg] | mass |

N_{p} | [-] | number of particles |

Nu | [-] | Nusselt number |

Pr | [-] | Prandtl number |

Q | [W] | integral heat flux |

R | [-] | coefficient of determination |

Re_{P} | [-] | particle Reynolds number |

t | [s] | time |

U | [ms^{−1}] | velocity |

x | [-] | distribution parameter |

x_{f} | [-] | frictional drag force share |

## Greek Symbols

symbol | unit | description |

ε | [-] | emissivity |

κ | [Wm^{−1}K^{−1}] | thermal conductivity |

λ | [-] | scale parameter of the Weibull distribution |

µ | [Pas] | dynamic viscosity |

ν | [m^{2}s^{−1}] | kinematic viscosity |

φ | [-] | void fraction |

ρ | [kgm^{−3}] | density |

σ | [Wm^{−2}K^{−4}] | Stefan-Boltzmann constant |

ξ | [-] | drag coefficient |

ξ_{f} | [-] | drag coefficient due to fluid friction |

## Subscripts

symbol | description |

C | cluster |

conv | convective |

GLE | Generalized Lévêque equation |

h | hydraulic |

∞ | bulk fluid |

MLR | multiple linear regression |

P | particle |

R | projected/illuminated |

rad | radiative |

rel | relative |

S | surface |

## Appendix A. Grid Independence Study

#### Appendix A.1. Synthetic Cluster

Scaling Factors | ${\mathit{Re}}_{\mathit{P}}$ = 2.058 | |||||
---|---|---|---|---|---|---|

id | a | b | c | ${\mathit{\xi}}_{\mathit{sim}}$ (-) | Error (% of 4) | Error (% of 6) |

1 | 2.66 | 1.25 | 1.83 | 1.649 | 10.49 | 24.48 |

2 | 2.66 | 2.5 | 1.83 | 1.503 | 0.66 | 13.41 |

3 | 2.66 | 3.75 | 1.83 | 1.492 | 0.03 | 12.63 |

4 | 2.66 | 5 | 1.83 | 1.492 | - | 12.66 |

5 | 7 | 3.75 | 5.33 | 1.358 | - | 2.47 |

6 | 12 | 3.75 | 10 | 1.325 | - | - |

Cell Size | ${\mathit{\xi}}_{\mathit{sim}}$ (-) | Deviation (%) | ${\mathit{Nu}}_{\mathit{P},\mathit{sim}}$ (-) | Deviation (%) |
---|---|---|---|---|

−50% | 2.2341 | −0.62 | 0.3283 | −0.43 |

−20% | 2.2257 | −0.25 | 0.3288 | −0.58 |

base | 2.2202 | - | 0.3269 | - |

+20% | 2.2122 | 0.36 | 0.3250 | 0.58 |

+50% | 2.2059 | 0.65 | 0.3242 | 0.83 |

#### Appendix A.2. Representative Particle

Scaling Factors | ${\mathit{Re}}_{\mathit{P}}$ = 2.058 | ${\mathit{Re}}_{\mathit{P}}$ = 51.469 | |||||||
---|---|---|---|---|---|---|---|---|---|

id | a | b | c | ${\mathit{\xi}}_{\mathit{sim}}$ (-) | Error (% of 5) | ${\mathit{\xi}}_{\mathit{th}}$ (-) | ${\mathit{\xi}}_{\mathit{sim}}$ (-) | Error (% of 5) | ${\mathit{\xi}}_{\mathit{th}}$ (-) |

1 | 15 | 4 | 11 | 15.353 | 6.65 | 15.153 | 1.579 | 2.38 | 1.569 |

2 | 19 | 6 | 13 | 14.765 | 2.57 | 1.556 | 0.88 | ||

3 | 23 | 8 | 15 | 14.586 | 1.33 | 1.549 | 0.42 | ||

4 | 27 | 10 | 17 | 14.474 | 0.55 | 1.546 | 0.21 | ||

5 | 37 | 15 | 22 | 14.394 | - | 1.542 | - |

Cell Size | ${\mathit{\xi}}_{\mathit{sim}}$ (-) | Deviation (%) | ${\mathit{\xi}}_{\mathit{th}}$ (-) | Error (%) | ${\mathit{Nu}}_{\mathit{P},\mathit{sim}}$ (-) | Deviation (%) | ${\mathit{Nu}}_{\mathit{P},\mathit{th}}$ (-) | Error (%) | |
---|---|---|---|---|---|---|---|---|---|

−50% | 1.530 | 1.21 | 1.567 | 2.51 | 5.687 | −1.1 | 5.279 | −7.72 | |

−20% | 1.545 | 0.24 | 1.567 | 1.55 | 5.639 | −0.25 | 5.279 | −6.82 | |

base | 1.548 | - | 1.567 | 1.31 | 5.625 | - | 5.279 | −6.55 | |

+20% | 1.550 | −0.11 | 1.567 | 1.21 | 5.618 | 0.12 | 5.279 | −6.45 | |

+100% | 1.553 | −0.28 | 1.567 | 1.04 | 5.612 | 0.23 | 5.279 | −6.30 |

## References

- Prokhorov, D.A.; Piralishvili, S.A. Numerical simulation of pulverized coal combustion and comparison with in-furnace measurements. AIP Conf. Proc.
**2020**, 2211, 040008. [Google Scholar] [CrossRef] - Zheng, J.; Liu, P.; Shen, Z. Simulation of Turbulent Combustion in a Large Pulverized Coal Boiler Based on Turbulent Radiation Interaction and the Modified Soot Model. ACS Omega
**2020**, 5, 23822–23835. [Google Scholar] [CrossRef] [PubMed] - Kuang, S.; Li, Z.; Yu, A. Review on Modeling and Simulation of Blast Furnace. Steel Res. Int.
**2018**, 89, 1700071. [Google Scholar] [CrossRef] - Abhale, P.B.; Viswanathan, N.N.; Saxén, H. Numerical modelling of blast furnace—Evolution and recent trends. Miner. Process. Extr. Metall.
**2020**, 129, 166–183. [Google Scholar] [CrossRef] - Konrad, K. Dense-phase pneumatic conveying: A review. Powder Technol.
**1986**, 49, 1–35. [Google Scholar] [CrossRef] - Cai, L.; Liu, S.; Pan, X.; Guiling, X.; Xiaoping, C.; Changsui, Z. Influence of carbonaceous powders on flow characteristics of dense-phase pneumatic conveying at high pressure. Exp. Therm. Fluid Sci.
**2014**, 58, 121–130. [Google Scholar] [CrossRef] - Liang, C.; Xu, P.; Xu, G.; Chen, X.; Zhao, C.; Duan, L. Comparison on Flow Characteristics of Dense-phase Pneumatic Conveying of Biomass Powder and Pulverized coal at High Pressure. Energy Source Part A Recover. Util. Environ. Eff.
**2015**, 37, 583–589. [Google Scholar] [CrossRef] - Jin, Y.; Lu, H.; Guo, X.; Gong, X. Application of CPFD method in the simulation of vertical dense phase pneumatic conveying of pulverized coal. Powder Technol.
**2019**, 357, 343–351. [Google Scholar] [CrossRef] - Puttinger, S.; Holzinger, G.; Pirker, S. Investigation of highly laden particle jet dispersion by the use of a high-speed camera and parameter-independent image analysis. Powder Technol.
**2013**, 234, 46–57. [Google Scholar] [CrossRef] - Zhong, W.; Yu, A.; Zhou, G.; Xie, J.; Zhang, H. CFD simulation of dense particulate reaction system: Approaches, recent advances and applications. Chem. Eng. Sci.
**2016**, 140, 16–43. [Google Scholar] [CrossRef] - Zhou, L. Theory and Modeling of Dispersed Multiphase Turbulent Reacting Flows; Butterworth-Heinemann: Oxford, UK, 2018. [Google Scholar]
- Haugen, N.E.L.; Mitchell, R.E. Modeling radiation in particle clouds: On the importance of inter-particle radiation for pulverized solid fuel combustion. Heat Mass Transf.
**2015**, 51, 991–999. [Google Scholar] [CrossRef] [Green Version] - Liberman, M.A.; Kleeorin, N.; Rogachevskii, I.; Haugen, N.E.L. Multipoint radiation induced ignition of dust explosions: Turbulent clustering of particles and increased transparency. Combust. Theory Model.
**2018**, 22, 1084–1102. [Google Scholar] [CrossRef] [Green Version] - Banko, A.J.; Villafañe, L.; Kim, J.H.; Esmaily, M.; Eaton, J.K. Stochastic modeling of direct radiation transmission in particle-laden turbulent flow. J. Quant. Spectrosc. Radiat. Transf.
**2019**, 226, 1–18. [Google Scholar] [CrossRef] - Forgber, T.; Radl, S. A novel approach to calculate radiative thermal exchange in coupled particle simulations. Powder Technol.
**2018**, 323, 24–44. [Google Scholar] [CrossRef] - Bermúdez, A.; Ferrín, J.; Liñán, A.; Saavedra, L. Numerical simulation of group combustion of pulverized coal. Combust. Flame
**2011**, 158, 1852–1865. [Google Scholar] [CrossRef] [Green Version] - Haugen, N.E.L.; Krüger, J.; Mitra, D.; Løvås, T. The effect of turbulence on mass transfer rates of small inertial particles with surface reactions. J. Fluid Mech.
**2018**, 836, 932–951. [Google Scholar] [CrossRef] [Green Version] - Krüger, J.; Haugen, N.E.L.; Løvås, T. Correlation effects between turbulence and the conversion rate of pulverized char particles. Combust. Flame
**2017**, 185, 160–172. [Google Scholar] [CrossRef] - Krüger, J.; Haugen, N.E.; Mitra, D.; Løvås, T. The effect of turbulent clustering on particle reactivity. Proc. Combust. Inst.
**2017**, 36, 2333–2340. [Google Scholar] [CrossRef] [Green Version] - Skinner, F.D.; Smoot, L.D. Heterogeneous Reactions of Char and Carbon. In Pulverized-Coal Combustion and Gasification: Theory and Applications for Continuous Flow Processes; Smoot, L.D., Pratt, D.T., Eds.; Springer: Boston, MA, USA, 1979; Chapter 9; pp. 149–167. [Google Scholar] [CrossRef]
- Bösenhofer, M.; Wartha, E.M.; Jordan, C.; Feilmayr, C.; Stocker, H.; Hauzenberger, F.; Rieger, J.; Tjaden, S.; Walk, A.; Harasek, M. Suitability of pulverised coal testing facilities for blast furnace applications. Ironmak. Steelmak.
**2020**, 47, 574–585. [Google Scholar] [CrossRef] [Green Version] - Tavassoli, H.; Kriebitzsch, S.; van der Hoef, M.; Peters, E.; Kuipers, J. Direct numerical simulation of particulate flow with heat transfer. Int. J. Multiph. Flow
**2013**, 57, 29–37. [Google Scholar] [CrossRef] - Tenneti, S.; Sun, B.; Garg, R.; Subramaniam, S. Role of fluid heating in dense gas-solid flow as revealed by particle-resolved direct numerical simulation. Int. J. Heat Mass Transf.
**2013**, 58, 471–479. [Google Scholar] [CrossRef] - Sun, B.; Tenneti, S.; Subramaniam, S. Modeling average gas-solid heat transfer using particle-resolved direct numerical simulation. Int. J. Heat Mass Transf.
**2015**, 86, 898–913. [Google Scholar] [CrossRef] [Green Version] - Municchi, F.; Radl, S. Consistent closures for Euler–Lagrange models of bi-disperse gas-particle suspensions derived from particle-resolved direct numerical simulations. Int. J. Heat Mass Transf.
**2017**, 111, 171–190. [Google Scholar] [CrossRef] - Singhal, A.; Cloete, S.; Radl, S.; Quinta-Ferreira, R.; Amini, S. Heat transfer to a gas from densely packed beds of monodisperse spherical particles. Chem. Eng. J.
**2017**, 314, 27–37. [Google Scholar] [CrossRef] - Singhal, A.; Cloete, S.; Radl, S.; Quinta-Ferreira, R.; Amini, S. Heat transfer to a gas from densely packed beds of cylindrical particles. Chem. Eng. Sci.
**2017**, 172, 1–12. [Google Scholar] [CrossRef] - Esteghamatian, A.; Hammouti, A.; Lance, M.; Wachs, A. Particle resolved simulations of liquid/solid and gas/solid fluidized beds. Phys. Fluids
**2017**, 29, 033302. [Google Scholar] [CrossRef] - Thiam, E.I.; Masi, E.; Climent, E.; Simonin, O.; Vincent, S. Particle-resolved numerical simulations of the gas–solid heat transfer in arrays of random motionless particles. Acta Mech.
**2019**, 230, 541–567. [Google Scholar] [CrossRef] [Green Version] - Lei, H.; Zhu, L.T.; Luo, Z.H. Study of filtered interphase heat transfer using highly resolved CFD–DEM simulations. AICHE J.
**2020**, e17121. [Google Scholar] [CrossRef] - Rauchenzauner, S.; Schneiderbauer, S. A dynamic Spatially Averaged Two-Fluid Model for heat transport in moderately dense gas-particle flows. Phys. Fluids
**2020**, 32, 063307. [Google Scholar] [CrossRef] - Gnielinski, V. Wärme- und Stoffübertragung in Festbetten. Chem. Ing. Tech.
**1980**, 52, 228–236. [Google Scholar] [CrossRef] - Achenbach, E. Heat and flow characteristics of packed beds. Exp. Therm. Fluid Sci.
**1995**, 10, 17–27. [Google Scholar] [CrossRef] - Crowe, C.T.; Smoot, L.D. Multicomponent Conservation Equations. In Pulverized-Coal Combustion and Gasification: Theory and Applications for Continuous Flow Processes; Smoot, L.D., Pratt, D.T., Eds.; Springer: Boston, MA, USA, 1979; Chapter 2; pp. 15–54. [Google Scholar] [CrossRef]
- Naruse, I.; Inada, T. Advanced Pulverized Coal Injection Technology and Blast Furnace Operation; Characteristics of Pulverized Coal Combustion; Elsevier Science Ltd.: Oxford, UK, 2000; pp. 15–35. [Google Scholar]
- Cai, J.; Handa, M.; Modest, M.F. Eulerian–Eulerian multi-fluid methods for pulverized coal flames with nongray radiation. Combust. Flame
**2015**, 162, 1550–1565. [Google Scholar] [CrossRef] [Green Version] - Wu, B.; Roy, S.P.; Zhao, X.; Modest, M.F. Effect of multiphase radiation on coal combustion in a pulverized coal jet flame. J. Quant. Spectrosc. Radiat. Transf.
**2017**, 197, 154–165. [Google Scholar] [CrossRef] [Green Version] - Will, J.; Kruyt, N.; Venner, C. An experimental study of forced convective heat transfer from smooth, solid spheres. Int. J. Heat Mass Transf.
**2017**, 109, 1059–1067. [Google Scholar] [CrossRef] - Ellendt, N.; Lumanglas, A.; Moqadam, S.I.; Mädler, L. A model for the drag and heat transfer of spheres in the laminar regime at high temperature differences. Int. J. Therm. Sci.
**2018**, 133, 98–105. [Google Scholar] [CrossRef] - Whitaker, S. Forced convection heat transfer correlations for flow in pipes, past flat plates, single cylinders, single spheres, and for flow in packed beds and tube bundles. AIChE J.
**1972**, 18, 361–371. [Google Scholar] [CrossRef] - Modest, M.F. Radiative Heat Transfer, 3rd ed.; Academic Press: New York, NY, USA, 2013. [Google Scholar]
- Modest, M.F.; Haworth, D.C. Radiative Heat Transfer in Turbulent Combustion Systems; Springer International Publishing: Cham, Switzerland, 2016. [Google Scholar] [CrossRef]
- Trivic, D.N.; Djordjevic, B.; Grbavcic, Z.B. Influence of particles size and concentration in particles cloud radiation by Mie theory. In Proceedings of the International Thermal Science Seminar Bled, Bled, Slovenia, 11–14 June 2000; Begellhouse: Danbury, CT, USA, 2000. [Google Scholar] [CrossRef]
- Squires, K.D.; Eaton, J.K. Preferential concentration of particles by turbulence. Phys. Fluids A Fluid Dyn.
**1991**, 3, 1169–1178. [Google Scholar] [CrossRef] - Balachandar, S.; Eaton, J.K. Turbulent Dispersed Multiphase Flow. Annu. Rev. Fluid Mech.
**2010**, 42, 111–133. [Google Scholar] [CrossRef] - Weller, H.G.; Tabor, G.; Jasak, H.; Fureby, C. A tensorial approach to computational continuum mechanics using object-oriented techniques. Comput. Phys.
**1998**, 12, 620–631. [Google Scholar] [CrossRef] - Ferrer, P.M.; Causon, D.; Qian, L.; Mingham, C.; Ma, Z. A multi-region coupling scheme for compressible and incompressible flow solvers for two-phase flow in a numerical wave tank. Comput. Fluids
**2016**, 125, 116–129. [Google Scholar] [CrossRef] [Green Version] - Kiss, M.; Bösenhofer, M.; Schatzl, M.; Harasek, M. Region Coupling Algorithms in OpenFoam. In Proceedings of the 16th Minisymposium Verfahrenstechnik and 7th Partikelforum, Vienna, Austria, 21–22 September 2020; TU Wien: Vienna, Austria, 2020; p. DiV2–(01). [Google Scholar] [CrossRef]
- Babich, A.; Senk, D.; Born, S. Interaction between Co-injected Substances with Pulverized Coal into the Blast Furnace. ISIJ Int.
**2014**, 54, 2704–2712. [Google Scholar] [CrossRef] [Green Version] - Grosshandler, W.L. RADCAL: A Narrow-Band Model for Radiation–Calculations in a Combustion Environment; Technical Note 1402; National Institute of Standards and Technology (NIST): Gaithersburg, MD, USA, 1993.
- Narayanaswamy, A.; Chen, G. Thermal near-field radiative transfer between two spheres. Phys. Rev. B
**2008**, 77, 075125. [Google Scholar] [CrossRef] [Green Version] - Song, B.; Fiorino, A.; Meyhofer, E.; Reddy, P. Near-field radiative thermal transport: From theory to experiment. AIP Adv.
**2015**, 5, 053503. [Google Scholar] [CrossRef] [Green Version] - Krishnendu, G.S.; Jayakumar, J.S. CFD Analysis of Combined Thermal Radiation and Conjugate Heat Transfer in a 3D FFS. In Materials, Design, and Manufacturing for Sustainable Environment; Mohan, S., Shankar, S., Rajeshkumar, G., Eds.; Springer: Singapore, 2021; pp. 835–850. [Google Scholar]
- Sinn, C.; Kranz, F.; Wentrup, J.; Thöming, J.; Wehinger, G.D.; Pesch, G.R. CFD Simulations of Radiative Heat Transport in Open-Cell Foam Catalytic Reactors. Catalysts
**2020**, 10, 716. [Google Scholar] [CrossRef] - Verderio Junior, S.A.; Scalon, V.L.; Avallone, E.; Mioralli, P. Numerical validation of viewFactor and FVDOM radiation models of OpenFOAM
^{®}and application in the study of food furnaces. Ingeniare-Rev. Chil. Ing.**2018**, 26, 546–556. [Google Scholar] [CrossRef] [Green Version] - Smith, G.P.; Golden, D.M.; Frenklach, M.; Moriarty, N.W.; Eiteneer, B.; Goldenberg, M.; Bowman, C.T.; Hanson, R.K.; Song, S.; Gardiner, W.C., Jr.; et al. GRI-Mech 3.0. 2018. Available online: http://combustion.berkeley.edu/gri-mech/ (accessed on 12 December 2021).
- Duan, Z.; He, B.; Duan, Y. Sphere Drag and Heat Transfer. Sci. Rep.
**2015**, 5, 12304. [Google Scholar] [CrossRef] [Green Version] - Martin, H. A theoretical approach to predict the performance of chevron-type plate heat exchangers. Chem. Eng. Process. Process. Intensif.
**1996**, 35, 301–310. [Google Scholar] [CrossRef] - Freedman, D. Statistical Models: Theory and Practice; Cambridge University Press: Cambridge, NY, USA, 2009. [Google Scholar]
- Cohen, J.; Cohen, P.; West, S.G.; Aiken, L.S. Applied Multiple Regression/Correlation Analysis for the Behavioral Sciences; Routledge: London, UK, 2013. [Google Scholar] [CrossRef]
- Martin, H. The generalized Lévêque equation and its use to predict heat or mass transfer from fluid friction. In Proceedings of the 20th National Heat Transfer Conference, Maratea, Italy, 27–29 June 2002; pp. 21–29. [Google Scholar]
- Brauer, H. Impuls-, Stoff- und Wärmetransport durch die Grenzfläche kugelförmiger Partikeln. Chem. Ing. Tech.
**1973**, 45, 1099–1103. [Google Scholar] [CrossRef] - Weibull, W. A Statistical Theory of Strength of Materials; Ingeniörs Vetenskaps Akademiens Handlingar, Royal Swedish Institute for Engineering Research: Stockholm, Sweden, 1939; No. 151; pp. 5–45. [Google Scholar]
- Papoulis, A.; Pillai, S.U. Probability, Random Variables, and Stochastic Processes, 4th ed.; McGraw-Hill Series in Electrical and Computer Engineering; McGraw-Hill: Boston, MA, USA, 2002. [Google Scholar]
- Gunn, D. Transfer of heat or mass to particles in fixed and fluidised beds. Int. J. Heat Mass Transf.
**1978**, 21, 467–476. [Google Scholar] [CrossRef] - Deen, N.G.; Peters, E.; Padding, J.T.; Kuipers, J. Review of direct numerical simulation of fluid–particle mass, momentum and heat transfer in dense gas-solid flows. Chem. Eng. Sci.
**2014**, 116, 710–724. [Google Scholar] [CrossRef] - Monchaux, R.; Bourgoin, M.; Cartellier, A. Preferential concentration of heavy particles: A Voronoï analysis. Phys. Fluids
**2010**, 22, 103304. [Google Scholar] [CrossRef] [Green Version] - Petersen, A.J.; Baker, L.; Coletti, F. Experimental study of inertial particles clustering and settling in homogeneous turbulence. J. Fluid Mech.
**2019**, 864, 925–970. [Google Scholar] [CrossRef] [Green Version] - Falkinhoff, F.; Obligado, M.; Bourgoin, M.; Mininni, P.D. Preferential Concentration of Free-Falling Heavy Particles in Turbulence. Phys. Rev. Lett.
**2020**, 125, 064504. [Google Scholar] [CrossRef] [PubMed] - Constant, E.; Favier, J.; Meldi, M.; Meliga, P.; Serre, E. An immersed boundary method in OpenFOAM Verification and validation. Comput. Fluids
**2017**, 157, 55–72. [Google Scholar] [CrossRef] - Farazi, S.; Sadr, M.; Kang, S.; Schiemann, M.; Vorobiev, N.; Scherer, V.; Pitsch, H. Resolved simulations of single char particle combustion in a laminar flow field. Fuel
**2017**, 201, 15–28. [Google Scholar] [CrossRef] - Jayawickrama, T.R.; Haugen, N.E.L.; Babler, M.U.; Chishty, M.; Umeki, K. The effect of Stefan flow on the drag coefficient of spherical particles in a gas flow. Int. J. Multiph. Flow
**2019**, 117, 130–137. [Google Scholar] [CrossRef] - Richter, A.; Nikrityuk, P.A. Drag forces and heat transfer coefficients for spherical, cuboidal and ellipsoidal particles in cross flow at sub-critical Reynolds numbers. Int. J. Heat Mass Transf.
**2012**, 55, 1343–1354. [Google Scholar] [CrossRef] - Safronov, D.; Kestel, M.; Nikrityuk, P.; Meyer, B. Particle resolved simulations of carbon oxidation in a laminar flow. Can. J. Chem. Eng.
**2014**, 92, 1669–1686. [Google Scholar] [CrossRef] - Schubert, H. Handbuch der Mechanischen Verfahrenstechnik, 1st ed.; Wiley-VCH: Zürich, Switzerland, 2012. [Google Scholar]

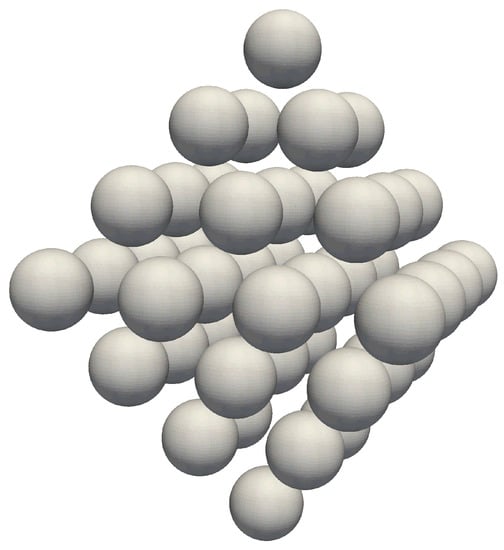

**Figure 1.**Synthetic rhomboid-shaped particle cluster with a void fraction ($\varphi $) of 0.741 (120 $\mathsf{\mu}\mathrm{m}$ distance between particle centers).

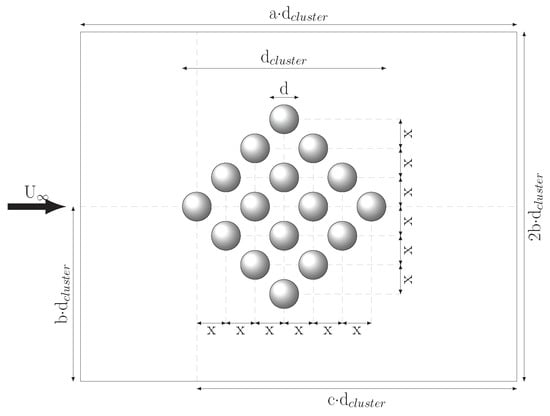

**Figure 2.**Horizontal cross-section of the synthetic particle cluster. 2 × x is the distance between the particle centers, which is varied to obtain clusters with different void fraction. Cuts through all Cartesian axis planes look identical. The scaling factors of the simulation domain are a = 12, b = 3.75, c = 10.

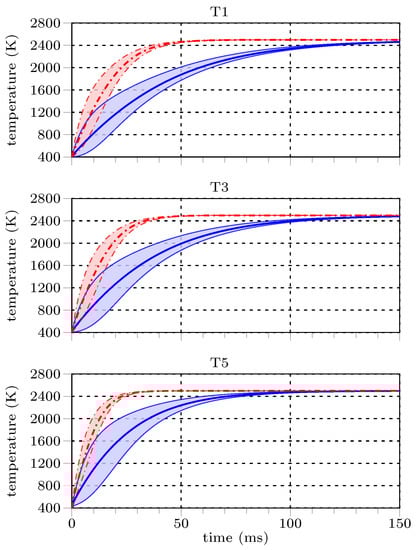

**Figure 3.**Comparison of mean cluster temperature (solid) and range of individual particle temperatures (shaded area) during the heat-up at 0.5 m/s relative velocity ($R{e}_{P}$ = 0.29), as defined in Table 1. red ( ): convective and radiative region coupling; blue ( ): convective region coupling.

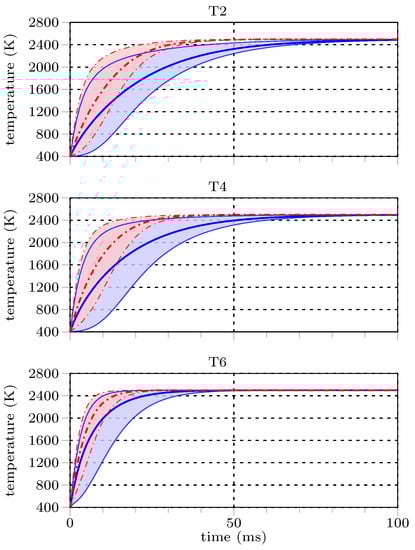

**Figure 4.**Comparison of mean cluster temperature (solid) and range of individual particle temperatures (shaded area) during the heat-up at 13 m/s relative velocity ($R{e}_{P}$ = 7.50), as defined in Table 1. red ( ): convective and radiative region coupling; blue ( ): convective region coupling.

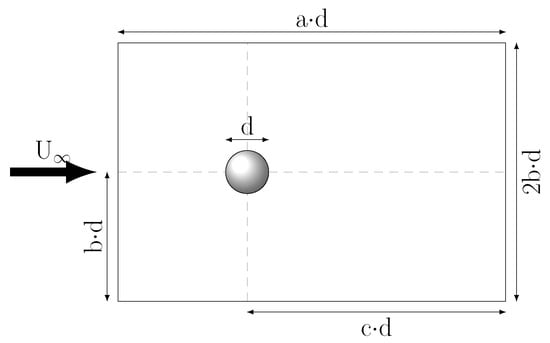

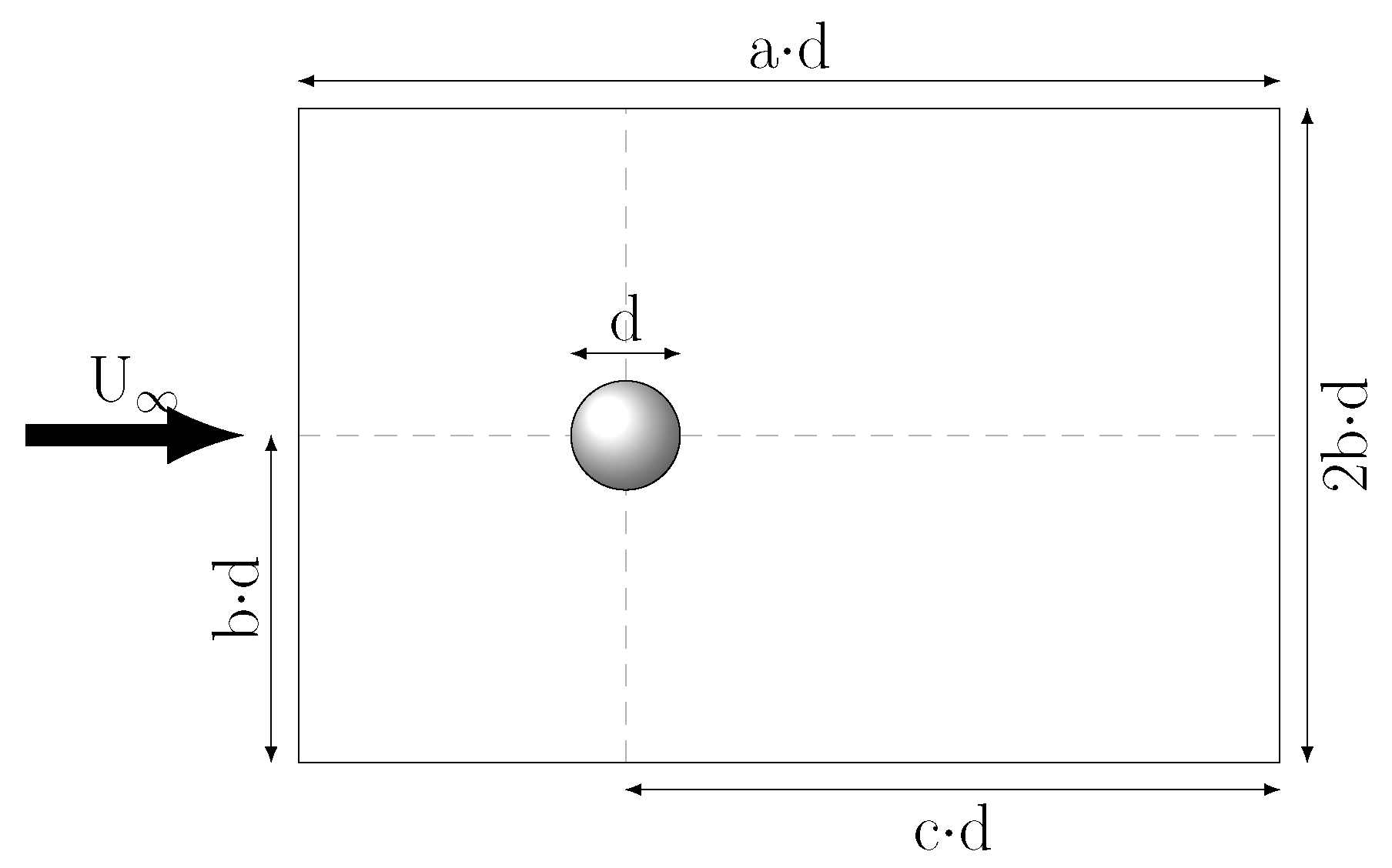

**Figure 5.**Horizontal cross-section of the size equivalent sphere cases. Cuts through all Cartesian axis planes look identical. The scaling factors of the simulation domain are a = 23, b = 8, c = 14.5.

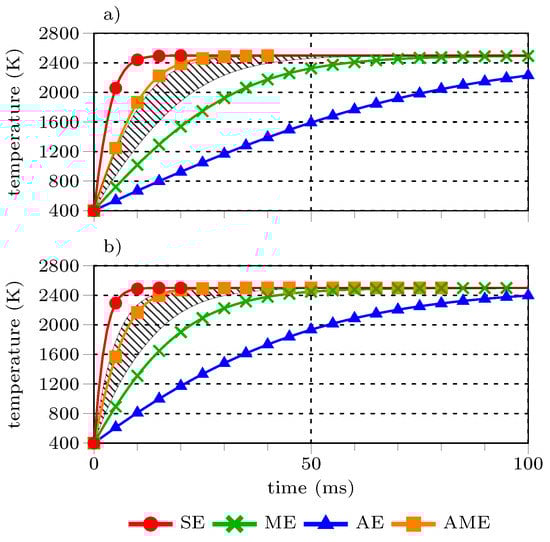

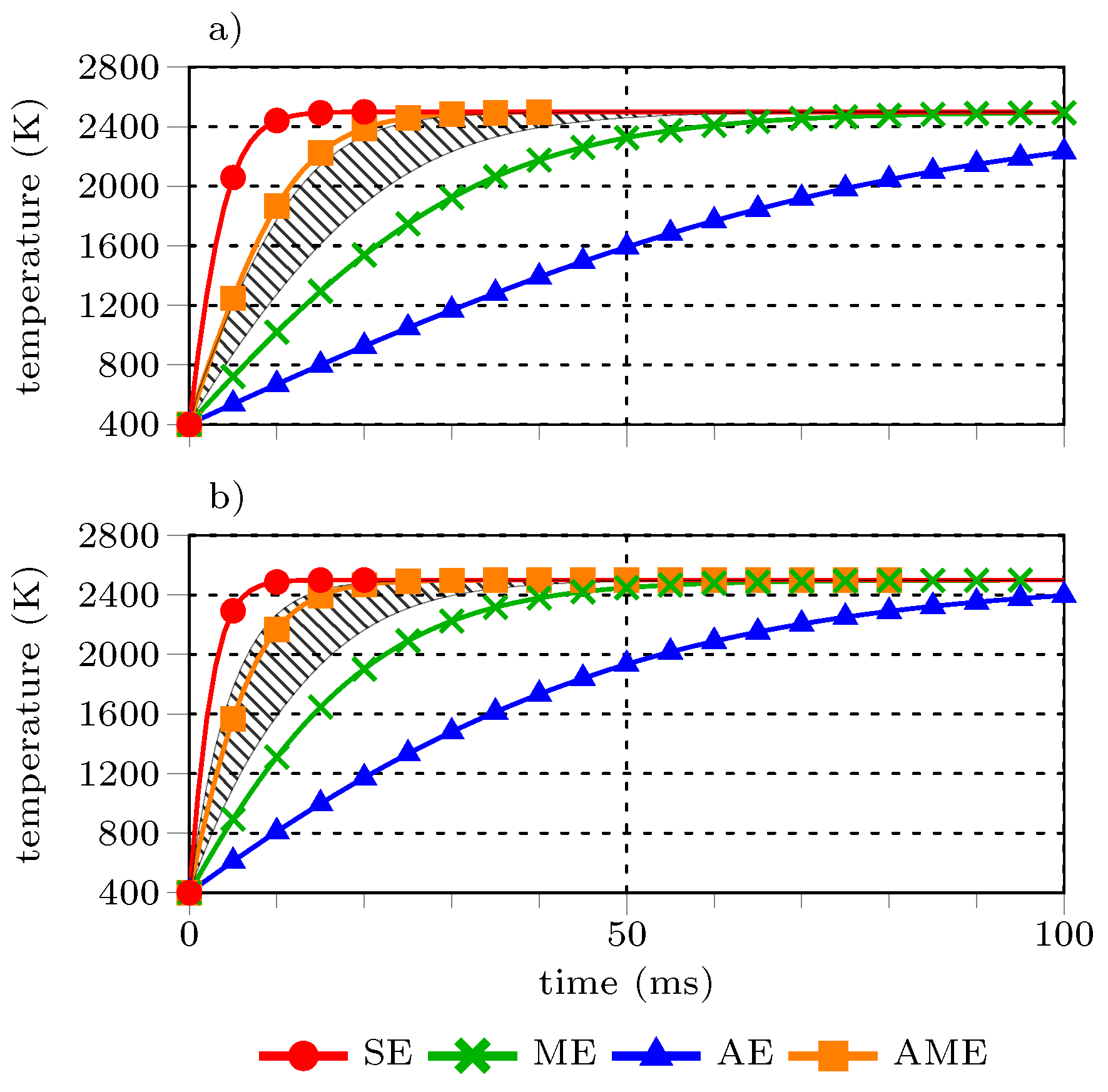

**Figure 6.**Comparison of cluster and equivalent sphere temperature profiles (

**a**) 0.5 m/s (

**b**) 13 m/s relative velocity. Hatched areas represent cluster temperature profiles. SA, ME, AE, and AME are the size, mass, surface area, and surface area and mass equivalent case, respectively.

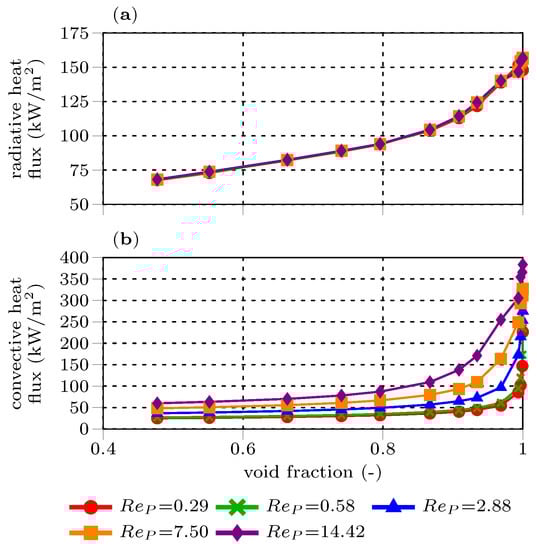

**Figure 7.**Comparison of specific radiative (

**a**) and convective (

**b**) integral heat flux towards the particle cluster versus the cluster void fraction for different particle Reynolds numbers ($R{e}_{P}$).

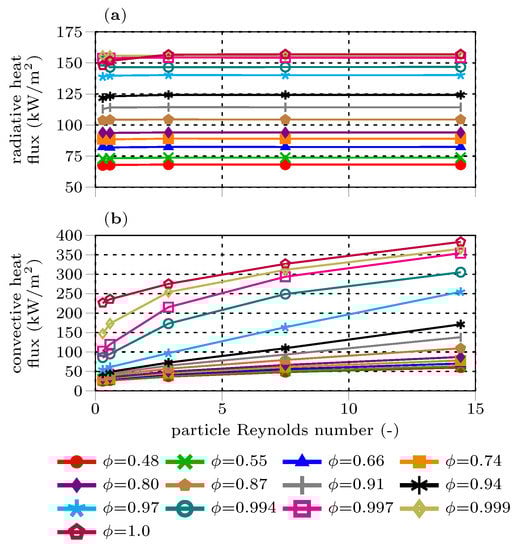

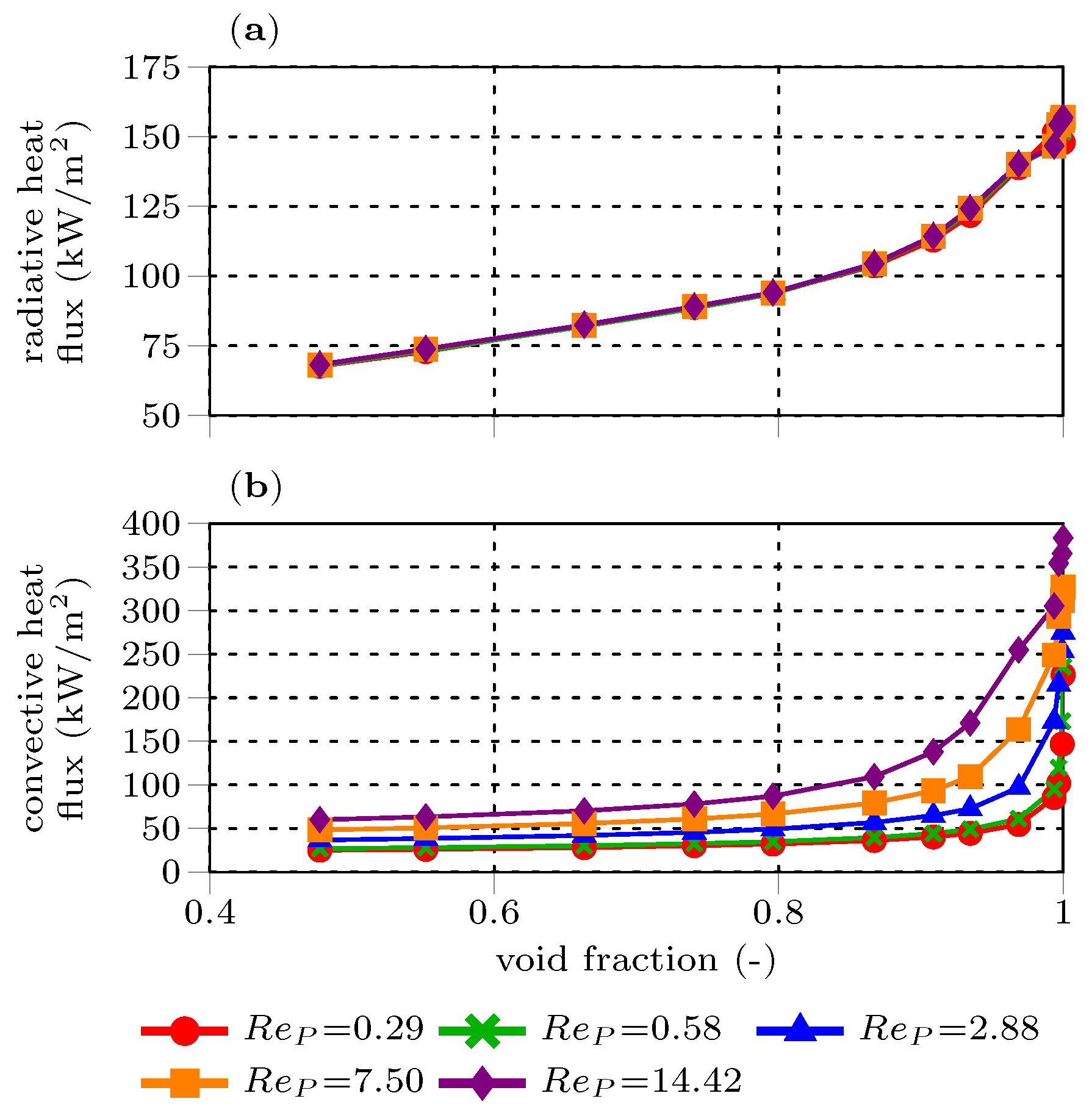

**Figure 8.**Comparison of specific radiative (

**a**) and convective (

**b**) integral heat flux towards the particle cluster versus the particle Reynolds number for different void fractions ($\varphi $).

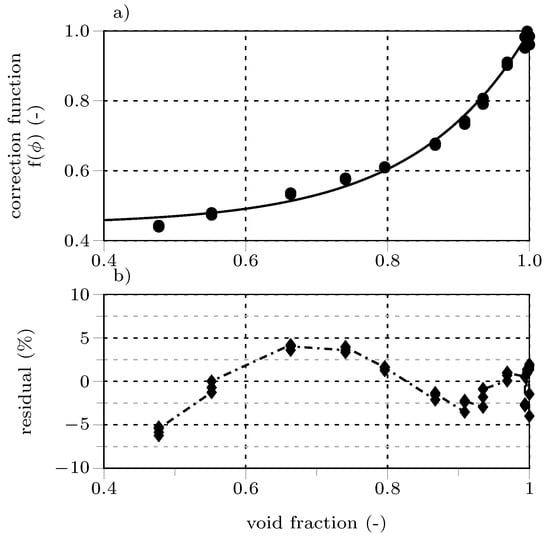

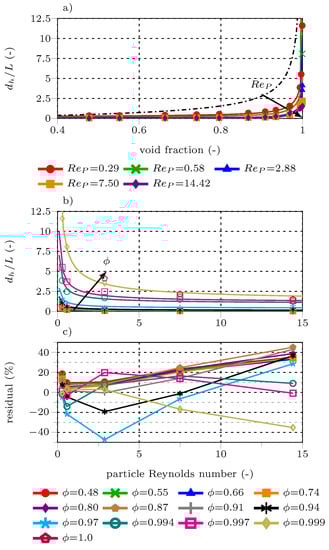

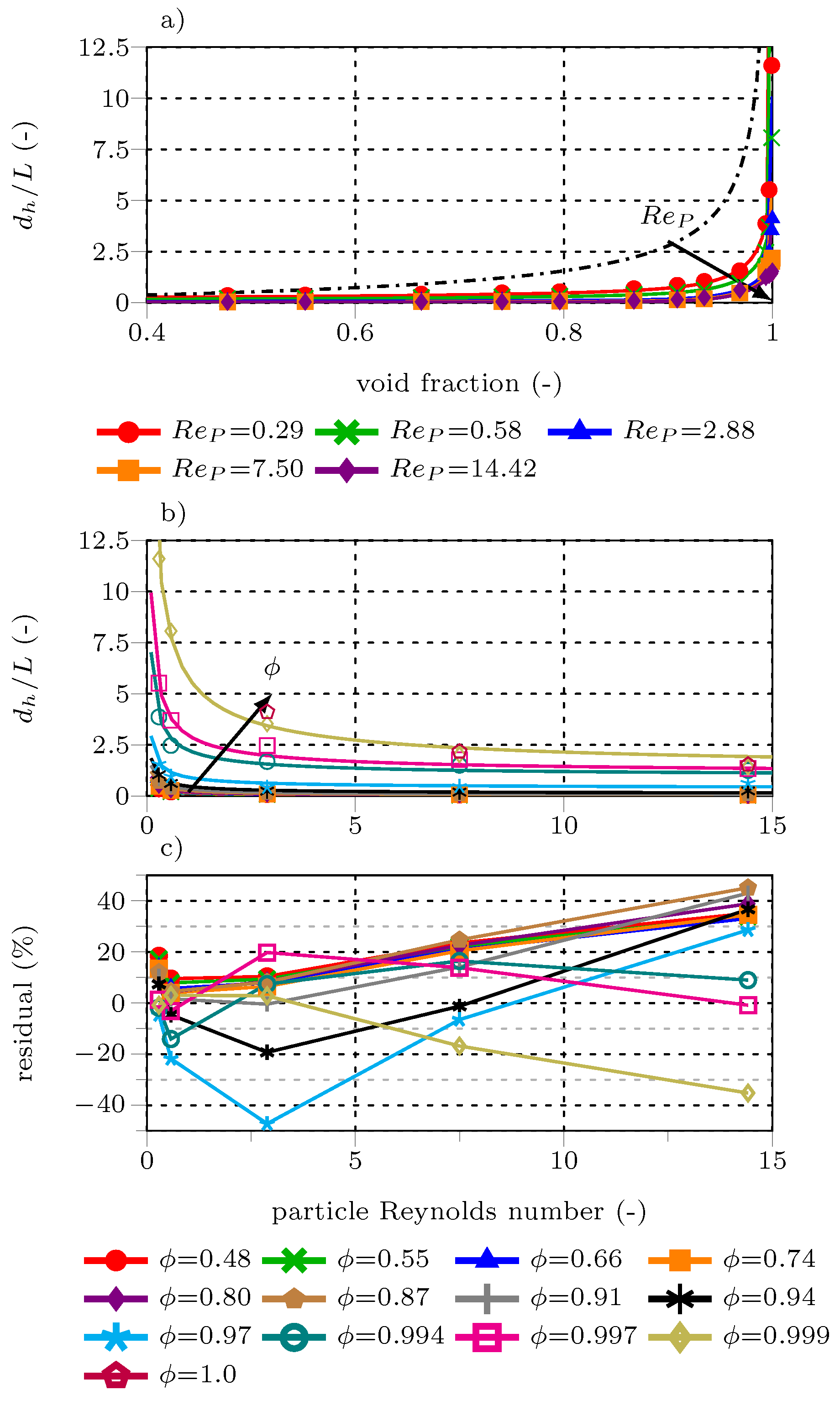

**Figure 11.**Comparison of ${d}_{h}/L$ correlation given by Equation (19) ( ) with simulation data (●) and ${d}_{h}=2/3\varphi /{(1-\varphi )}^{2/3}$ [61] ( ) versus the cluster void fraction (

**a**) and particle Reynolds number (

**b**). The relative errors of Equation (19) compared to CFD-simulated data is presented in (

**c**).

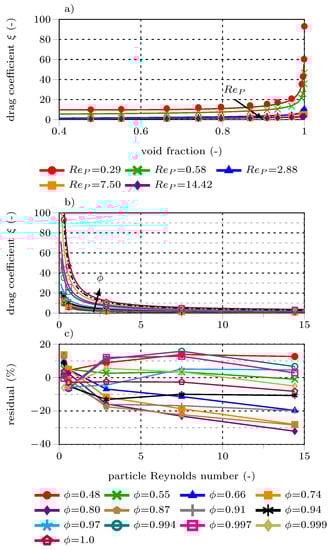

**Figure 12.**Comparison of drag coefficient correlation given by Equation (20) ( ) with simulation data (●) and the drag coefficient according to Brauer [62] ( ) versus the cluster void fraction (

**a**) and particle Reynolds number (

**b**). The relative errors of Equation (20) compared to CFD-simulated data is presented in (

**c**).

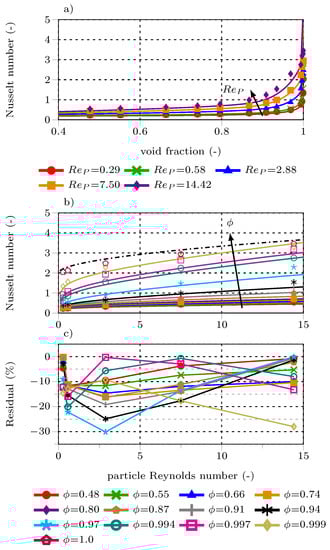

**Figure 13.**Comparison of Nusselt number calculated using Equations (17) and (20), ${x}_{f}$ = 2/3 and Equation (19) ( ) with values determined from simulations (●) and Equation (5) ( ) versus the cluster void fraction (

**a**) and particle Reynolds number (

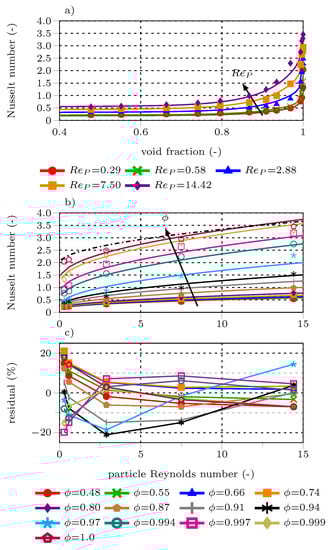

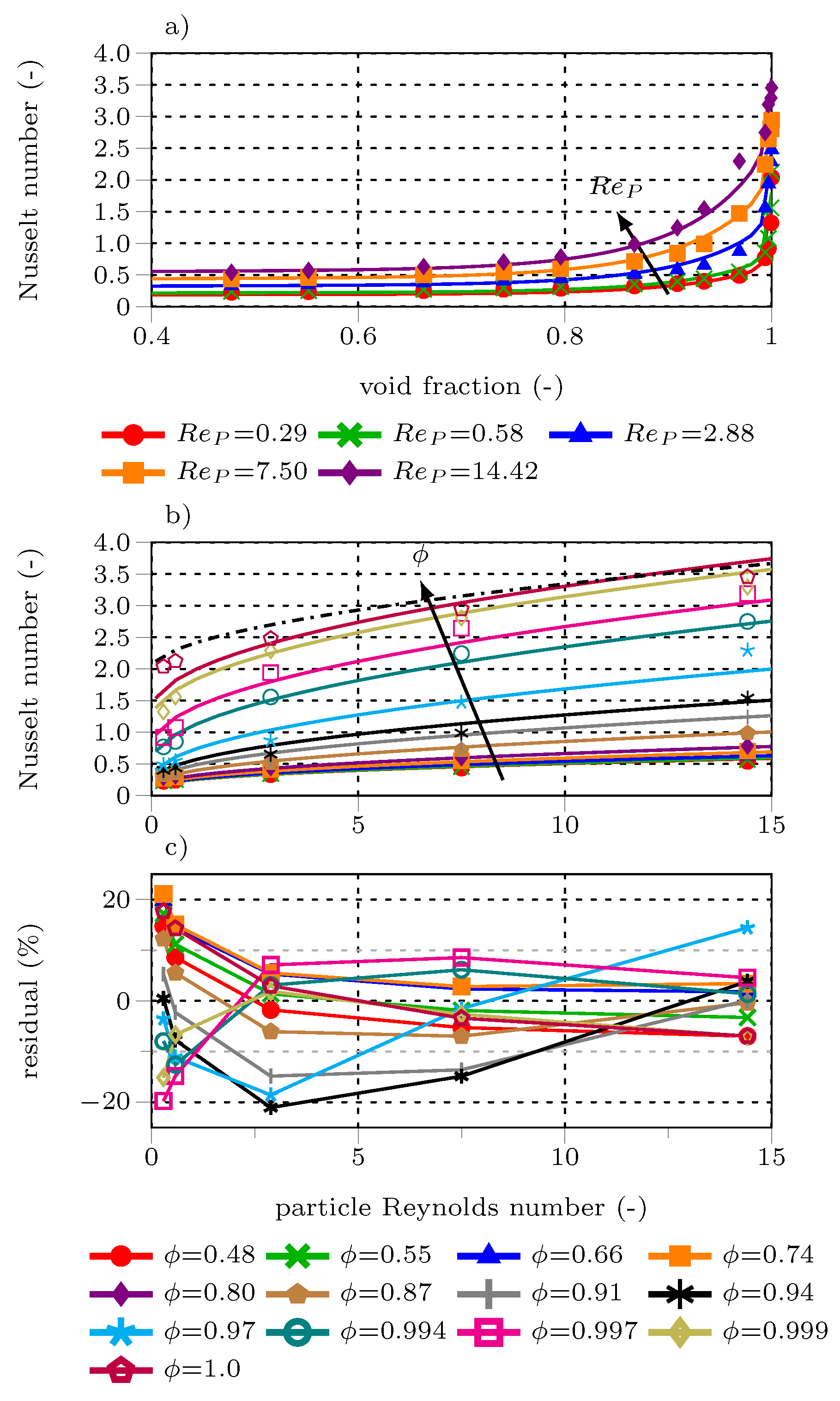

**b**). The relative errors of Equation (17) compared to CFD-simulated data is presented in (

**c**).

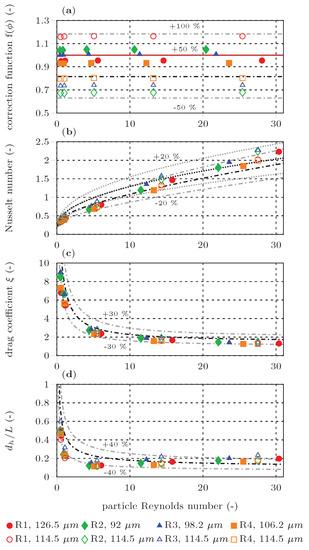

**Figure 14.**Comparison of (

**a**) the projected surface area correction calculated using Equation (13) ( ) (

**b**) the Nusselt number calculated using Equation (16) ( ) and Equation (17) ( ), (

**c**) the drag coefficient according to Equation (20) ( ), and (

**d**) ${d}_{h}/L$ calculated using Equation (19) ( ) with values determined from simulations (●) versus the cluster particle Reynolds number.

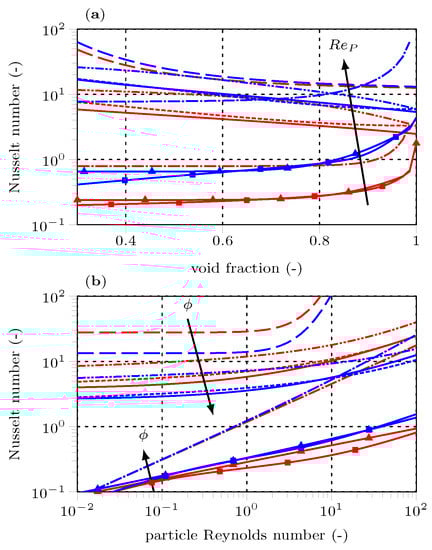

**Figure 15.**Comparison of various Nusselt number correlations from the literature (Achenbach [33] ( ), Gnielinski [32] ( ), Gunn [65] ( ), Sun et al. [24] ( ), Municchi and Radl [25] ( )) with the multiple linear regression (MLE) of Equation 16 ( ) and the Lévêque (GLE) of Equations (17)–(19) ( ) correlations versus void fraction (

**a**) and particle Reynolds number (

**b**). Red: (

**a**) lower Re

_{P}, (

**b**) lower void fraction; Blue: (

**a**) higher Re

_{P}, (

**b**) higher void fraction.

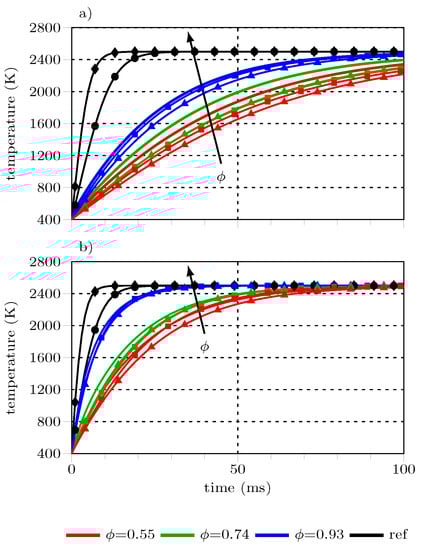

**Figure 16.**Comparison of resolved cluster mean temperatures ( ) and Lagrangian parcel temperatures using the multiple linear regression (MLR) ( ) and the Lévêque (GLE) ( ) Nusselt correlation for relative velocities of 0.5 m/s (

**a**) and 13 m/s (

**b**). Size equivalent ( ) and surface and mass equivalent ( ) reference cases use the Whitaker heat transfer model.

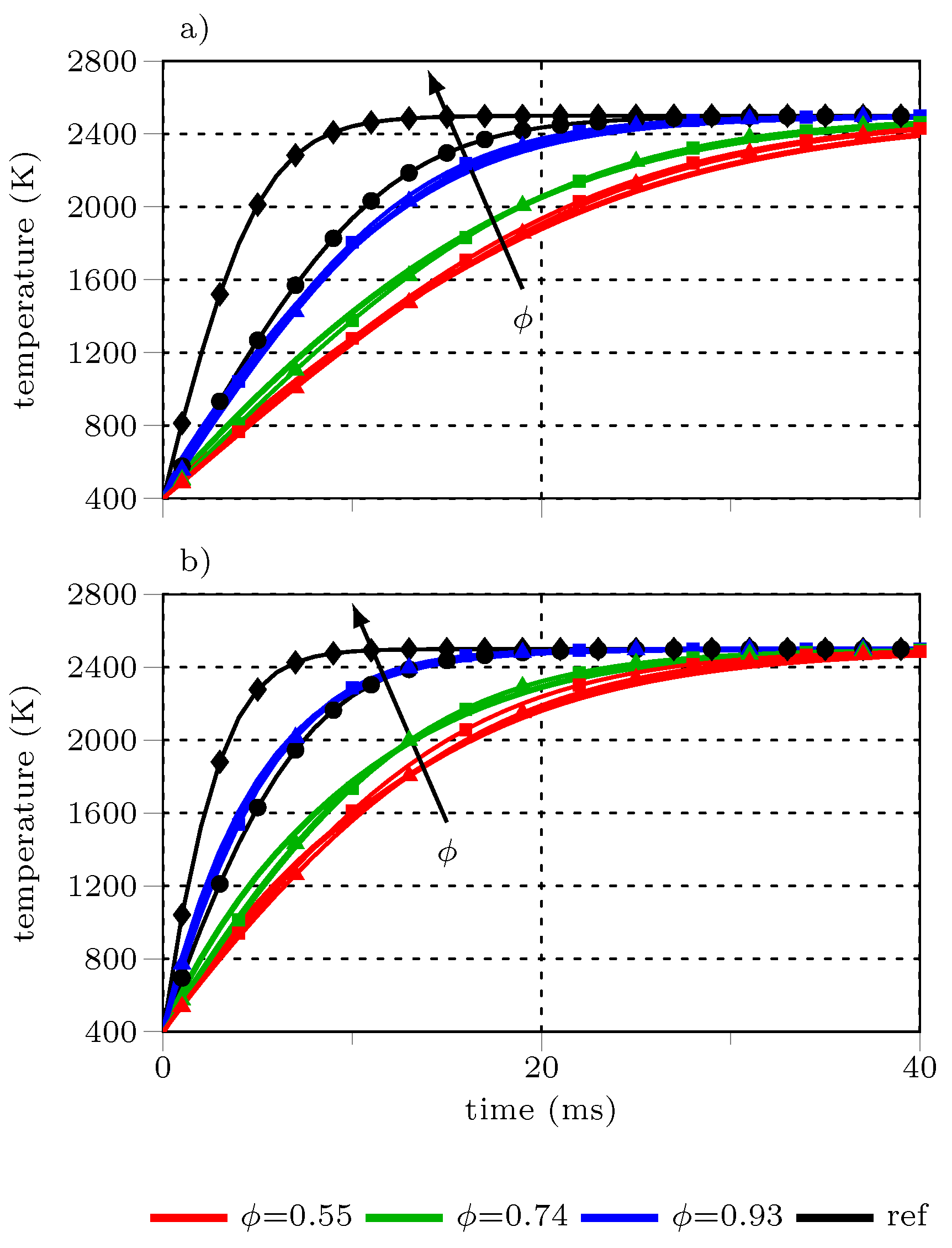

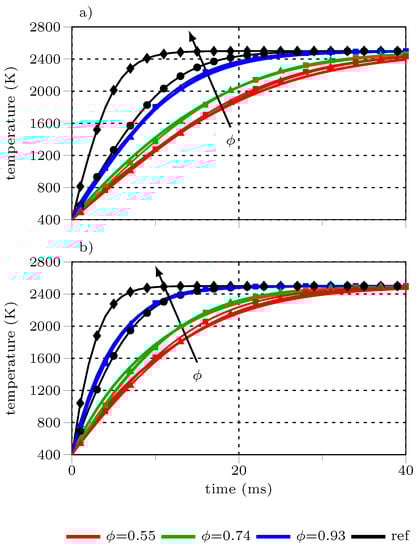

**Figure 17.**Comparison of resolved cluster mean temperatures ( ) and Lagrangian parcel temperatures using the radiative heat transfer correction and the Nusselt correlation ( ) and the Lévêque approach ( ) for relative velocities of 0.5 m/s (

**a**) and 13 m/s (

**b**). Size equivalent ( ) and surface and mass equivalent ( ) reference cases use the Whitaker heat transfer model.

Case | ${\mathit{U}}_{\mathbf{rel}}$ | ${\mathbf{Re}}_{\mathit{P}}$ | $\mathit{\varphi}$ | Distance 2 × x |
---|---|---|---|---|

id | (m/s) | (-) | (-) | ($\mathsf{\mu}\mathbf{m}$) |

T1 | 0.5 | 0.29 | 0.552 | 100 |

T2 | 13 | 7.50 | 0.552 | 100 |

T3 | 0.5 | 0.29 | 0.741 | 120 |

T4 | 13 | 7.50 | 0.741 | 120 |

T5 | 0.5 | 0.29 | 0.935 | 190 |

T6 | 13 | 7.50 | 0.935 | 190 |

Patch | U | p | T | I |
---|---|---|---|---|

inlet | fixed value | zero gradient | fixed value | gray body |

outlet | zero gradient | fixed value | zero gradient | gray body |

wall | slip | zero gradient | zero gradient | gray body |

gas-solid interface | no slip | zero gradient | coupled | gray body |

**Table 3.**Gas-phase composition and thermophysical properties and solid thermophysical properties used in the simulations.

Gas-Phase Composition (kg/kg) | |
---|---|

H_{2}O | 0.01 |

N_{2} | 0.72 |

O_{2} | 0.27 |

Bulk Gas-Phase Thermophysical Properties | |

density ($\rho $) | 0.69 kg m^{−3} |

specific heat capacity (${c}_{p}$) | 1300
J kg^{−1}K^{−1} |

thermal conductivity ($\kappa $) | 0.133 W m^{−1}K^{−1} |

dynamic viscosity ($\mu $) | 7.213× 10^{−5} Pa s |

Solid Thermophysical Properties | |

density ($\rho $) | 1100 kg m^{−3} |

emissivity ($\epsilon $) | 1 |

specific heat capacity (${c}_{p}$) | 1660 J kg^{−1}K^{−1} |

thermal conductivity ($\kappa $) | 1.241 W m^{−1}K^{−1} |

Case | ${\mathit{U}}_{\mathbf{rel}}$ | ${\mathit{d}}_{\mathit{P}}$ | ${\mathbf{Re}}_{\mathit{P}}$ | m |
---|---|---|---|---|

id | (m/s) | ($\mathsf{\mu}\mathbf{m}$) | (-) | (kg) |

SE1 | 0.5 | 60 | 0.29 | 1.24 × 10^{−10} |

SE2 | 13 | 60 | 7.50 | 1.24 × 10^{−10} |

ME1 | 0.5 | 211.8 | 1.02 | 5.47 × 10^{−9} |

ME2 | 13 | 211.8 | 26.46 | 5.47 × 10^{−9} |

AE1 | 0.5 | 397.8 | 1.91 | 3.63 × 10^{−8} |

AE2 | 13 | 397.8 | 49.70 | 3.63 × 10^{−8} |

AME1 | 0.5 | 397.8 | 1.91 | 5.47 × 10^{−9} |

AME2 | 13 | 397.8 | 49.70 | 5.47 × 10^{−9} |

Case | ${\mathit{U}}_{\mathbf{rel}}$ | ${\mathbf{Re}}_{\mathit{P}}$ | $\mathit{\varphi}$ | Solid Loading | Distance 2 × x |
---|---|---|---|---|---|

id | (m/s) | (-) | (-) | Ratio (-) | ($\mathsf{\mu}\mathbf{m}$) |

ST1–ST5 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.477 | 1737 | 95 |

13, 25 | 7.5, 14.42 | ||||

ST6–ST10 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.552 | 1288 | 100 |

13, 25 | 7.5, 14.42 | ||||

ST11–ST15 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.663 | 805 | 110 |

13, 25 | 7.5, 14.42 | ||||

ST16–ST20 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.741 | 556 | 120 |

13, 25 | 7.5, 14.42 | ||||

ST21–ST25 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.796 | 407 | 130 |

13, 25 | 7.5, 14.42 | ||||

ST26–ST30 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.867 | 243 | 150 |

13, 25 | 7.5, 14.42 | ||||

ST31–ST35 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.909 | 159 | 170 |

13, 25 | 7.5, 14.42 | ||||

ST36–ST40 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.935 | 111 | 190 |

13, 25 | 7.5, 14.42 | ||||

ST41–ST45 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.969 | 51 | 243 |

13, 25 | 7.5, 14.42 | ||||

ST46–ST50 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.994 | 10 | 415 |

13, 25 | 7.5, 14.42 | ||||

ST51–ST55 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.997 | 5 | 523 |

13, 25 | 7.5, 14.42 | ||||

ST56–ST60 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 0.999 | 1 | 892 |

13, 25 | 7.5, 14.42 | ||||

ST61–ST65 | 0.5, 1, 5, | 0.29, 0.58, 2.88, | 1 | - | - |

13, 25 | 7.5, 14.42 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Bösenhofer, M.; Pichler, M.; Harasek, M.
Heat Transfer Models for Dense Pulverized Particle Jets. *Processes* **2022**, *10*, 238.
https://doi.org/10.3390/pr10020238

**AMA Style**

Bösenhofer M, Pichler M, Harasek M.
Heat Transfer Models for Dense Pulverized Particle Jets. *Processes*. 2022; 10(2):238.
https://doi.org/10.3390/pr10020238

**Chicago/Turabian Style**

Bösenhofer, Markus, Mario Pichler, and Michael Harasek.
2022. "Heat Transfer Models for Dense Pulverized Particle Jets" *Processes* 10, no. 2: 238.
https://doi.org/10.3390/pr10020238
