Honokiol Protects the Kidney from Renal Ischemia and Reperfusion Injury by Upregulating the Glutathione Biosynthetic Enzymes

by
Eun Jung Park
1,
Theodomir Dusabimana
1,2,
Jihyun Je
1,
Kyuho Jeong
1,
Seung Pil Yun
1,2,
Hye Jung Kim
1,2,
Hwajin Kim
1,* and
Sang Won Park
1,2,*
1
Department of Pharmacology, Institute of Health Sciences, Gyeongsang National University College of Medicine, Jinju 52727, Korea
2
Department of Convergence Medical Sciences, Institute of Health Sciences, Gyeongsang National University Graduate School, Jinju 52727, Korea
*
Authors to whom correspondence should be addressed.
Biomedicines 2020, 8(9), 352; https://doi.org/10.3390/biomedicines8090352
Submission received: 4 August 2020 / Revised: 29 August 2020 / Accepted: 13 September 2020 / Published: 15 September 2020
(This article belongs to the Section Molecular and Translational Medicine)
Browse Figures
Versions Notes

Abstract

:
Glutathione (GSH) is an endogenous antioxidant found in plants, animals, fungi, and some microorganisms that protects cells by neutralizing hydrogen peroxide. Honokiol, an active ingredient of Magnolia officinalis, is known for antioxidant, anti-inflammatory, and anti-bacterial properties. We investigated the protective mechanism of honokiol through regulating cellular GSH in renal proximal tubules against acute kidney injury (AKI). First, we measured cellular GSH levels and correlated them with the expression of GSH biosynthetic enzymes after honokiol treatment in human kidney-2 (HK-2) cells. Second, we used pharmacological inhibitors or siRNA-mediated gene silencing approach to determine the signaling pathway induced by honokiol. Third, the protective effect of honokiol via de novo GSH biosynthesis was investigated in renal ischemia-reperfusion (IR) mice. Honokiol significantly increased cellular GSH levels by upregulating the subunits of glutamate-cysteine ligase (Gcl)—Gclc and Gclm. These increases were mediated by activation of nuclear factor erythroid 2-related factor 2, via PI3K/Akt and protein kinase C signaling. Consistently, honokiol treatment reduced the plasma creatinine, tubular cell death, neutrophil infiltration and lipid peroxidation in IR mice and the effect was correlated with upregulation of Gclc and Gclm. Conclusively, honokiol may benefit to patients with AKI by increasing antioxidant GSH via transcriptional activation of the biosynthetic enzymes.

1. Introduction

Ischemia-reperfusion (IR) injury is the tissue damage caused by an ischemic period lacking oxygen and nutrients by blood blockage, followed by a sudden restoration of blood flow resulting in severe oxidative and inflammatory stress reactions. Thus, IR injury is more serious than ischemia alone, due to the burst of reactive oxygen species, leading to endothelial and organ dysfunction in various clinical conditions [1]. The pathophysiology of kidney IR is complicated, but reactive oxygen species (ROS), inflammatory mediators, and dysfunctional mitochondria have been shown to be involved [2].
The reperfusion of ischemic tissue creates an imbalance between the rate of ROS generation and the tissue’s ability to detoxify ROS. The major sources of excessive ROS production are xanthine oxidase (XO), NADPH oxidase (Nox), mitochondria, and uncoupled nitric oxide synthase (NOS) [3]. The kidney tissues exposed IR presented a substantial accumulation of XO substrates (hypoxanthine, xanthine, and succinate) [4] and the XO inhibitors (e.g., febuxostat, allopurinol) suppressed renal IR injury via reduced oxidative stress [5,6]. Nox2 and Nox4 were major enzymes to produce ROS and their expression and activity were altered in renal IR [7,8,9]. The mitochondrial electron transport chain (ETC) plays a dominant role in IR injury, due to uncoupling of ETC and subsequent electron leakage [10], and mitochondria-targeted antioxidants (e.g., MitoQ, SkQ1, etc.) are shown to protect the kidney from IR and may be promising for clinical use [11].
Under IR, oxidative stress is also caused by reduced or impaired endogenous antioxidant activities [12]. There are multiple antioxidant systems to protect the tissue from oxidative stress, which include superoxide dismutases (SODs), catalase and peroxidases, physiological cofactors (e.g., cysteine and glutathione (GSH)), heme oxygenase-1 (HO-1), and dietary antioxidants (e.g., ascorbate, tocopherol) [13]. GSH is a tripeptide, γ-L-glutamyl-cysteinyl-glycine, and a pivotal antioxidant found in plants, animals, fungi, and some microorganisms. GSH protects cellular components by neutralizing ROS, hydrogen peroxide, and prevents from lipid peroxidation and the ROS-induced protein and DNA damage [14]. Most of cellular GSH is present in the cytosol, and readily oxidized to glutathione disulfide (GSSG) by ROS, and thus the [GSH]:[GSSG] ratio is often used as an indicator of cellular redox state [15]. Two enzymes, glutamate-cysteine ligase (Gcl) and glutathione synthetase (Gss) act sequentially for GSH synthesis. Gcl, the rate-limiting enzyme of GSH synthesis, is a heterodimer consisting of catalytic and modulatory subunits, Gclc and Gclm, respectively; whereas, Gss is a homodimer [15]. The catalytic Gclc subunit is necessary and sufficient for the enzymatic activity, whereas the modulatory Gclm subunit increases the catalytic efficiency; thus, mice lacking Gclc are embryonic lethal [16]. Mice lacking Gclm have no overt phenotype; but are markedly reduced in GSH and susceptible to oxidative insults [17,18,19]. Gcl expression is inducible to oxidative stress and has shown to be regulated by nuclear factor-erythroid 2 related factor 2 (Nrf2), activator protein-1 (AP-1) and nuclear factor κB (NFκB) [20]. The overall rate of GSH synthesis is controlled by the substrate availability, amount of two subunits of Gcl, and extent of feedback inhibition by GSH and ATP [21]. The downregulation of GSH was shown to contribute to oxidative stress in rats exposed to renal IR [22,23], and thus, therapeutic strategies to increase GSH biosynthesis are of a great attention as effective antioxidants.
Nrf2 is a key transcription factor involved in cellular responses against oxidative stress, and regulates many cytoprotective genes in GSH production, ROS detoxification, NADPH regeneration, and heme and iron metabolism [24]. Under a basal condition, Nrf2 is suppressed by binding to Kelch-like ECH-associated protein 1 (keap1) and rapidly degraded by proteasomes in cytoplasm. Under stressed conditions, Nrf2 dissociated from keap1 is stabilized, and translocated into nucleus, and binds to a cis-acting antioxidant response element (ARE) that activate transcription of antioxidant genes [25,26]. Nrf2 KO mice were vulnerable to various chemical toxicities and diseases associated with oxidative pathology [27], whereas pharmacological activation of Nrf2 protects from diseases underlined by oxidative stress and inflammation [28].
Honokiol is an active ingredient of Magnolia officinalis, extensively used for traditional Asian medicine, and has known for its antioxidant, anti-inflammatory, anti-cancer, and anti-bacterial properties in various diseases. Honokiol has been shown to protect against renal IR and sepsis-induced acute kidney injury through inhibition of oxidative stress and inflammation [29,30], but the underlying molecular mechanisms of antioxidant properties have not been clearly shown. Here, we investigated whether honokiol has a modulatory effect on the biosynthesis of GSH during renal IR injury in vivo and the molecular mechanisms were elucidated using chemical inhibitors and siRNA-mediated gene silencing in proximal tubular human kidney-2 (HK-2) cells in vitro.

2. Experimental Section

2.1. Animals

Male C57BL/6 mice (7-weeks old) were purchased from Koatech (Pyeongtaek, South Korea) and maintained in the animal facility at Gyeongsang National University (GNU). All animal experiments were approved by the Institutional Board of Animal Research at GNU (GNU-180615-M0028) and performed in accordance with the National Institutes of Health guidelines for laboratory animal care. Mice were housed with an alternating 12-h light/dark cycle and provided with water and standard chow (Harlan Laboratories, Indianapolis, IN, USA) ad libitum.

2.2. Animal Model of Renal IR

Mice were divided into four groups: (1) sham-operated mice treated with vehicle (Veh sham, n = 4), (2) mice treated with vehicle and subjected to bilateral renal IR (Veh IR, n = 8), (3) mice treated with honokiol (Sigma-Aldrich, St. Louis, MA, USA) and subjected to bilateral renal IR (HNK IR, n = 8), and (4) sham-operated mice treated with honokiol (HNK sham, n = 4). The mice were anesthetized with zoletil (0.5 mg/kg; Virbac Laboratories, Carros, France) and placed supine on a heating pad under a heat lamp to maintain body temperature at 37 °C. Kidneys were exposed, and the right and left renal pedicles were clamped with microaneurysm clips. After 25 min of ischemia, the clips were removed to allow reperfusion, and abdomen was closed by suture. Honokiol (1 mg/kg) was dissolved in a mixture of dimethyl sulfoxide (Sigma-Aldrich), Tween-20 (Sigma-Aldrich), and water at 1:1:8 ratio, and intraperitoneally injected twice, 1 h prior to ischemia and 4 h after reperfusion. Mice were sacrificed 24 h after reperfusion and the blood and kidney tissues were collected.
The excised kidney was immediately fixed in 10% formalin (Sigma-Aldrich) for histology or snap-frozen in liquid nitrogen and stored at −80 °C for biochemical analysis. Plasma creatinine was measured by a direct colorimetric Jaffe method and detected by using a spectrophotometer (Shimadzu UV-1800 spectrophotometer, Tokyo, Japan), as previously described [31].

2.3. H&E Staining and Immunohistochemistry (IHC)

The formalin-fixed kidney was processed for paraffin embedding. Five µm-thick paraffin sections were prepared and stained with hematoxylin and eosin (H&E) (Sigma-Aldrich). All images were captured by using a CKX41 light microscope (Olympus, Tokyo, Japan).
For immunohistochemistry (IHC) analysis, the sections were deparaffinized, rehydrated, and antigen-retrieved in sodium citrate buffer (10 mM, pH 6.0; iNtRON Biotechnology, Seongnam, Korea) for 20 min. The sections were blocked in 10% normal horse serum (Vector Laboratories, Burlingame, CA, USA) and incubated with a primary antibody for Ly-6B.2 (Bio-Rad, Hercules, CA, USA) or 4-hydroxynonenal (4-HNE; Abcam, Cambridge, UK) overnight at 4 °C. Sections were washed and incubated with a biotinylated secondary antibody (Vector Laboratories) for 1 h at room temperature. Sections were washed again and incubated in avidin-biotin-peroxidase complex solution (ABC solution; Vector Laboratories) and then developed using a 3,3′-diaminobenzidine (DAB) Peroxidase Substrate Kit (Vector Laboratories). The sections were counterstained with hematoxylin and analyzed using a CKX41 light microscope (Olympus).

2.4. Terminal Deoxynucleotidyl Transferase dUTP Nick End Labeling (TUNEL) Assay

Terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) assay was performed using an in situ cell death detection kit (Roche Molecular Biochemicals, Mannheim, Germany) according to the manufacturer’s protocol. Briefly, kidney sections were deparaffinized, and permeabilized with proteinase K (Abcam) at room temperature for 15 min. The sections were incubated with the labeling reaction mixture at 37 °C for 60 min. After washing with the PBS, the sections were mounted with ProLong Gold antifade reagent with DAPI (Invitrogen, Carlsbad, CA, USA). Images were captured using a CKX41 light microscope (Olympus) and quantified by using Image J (NIH, Bethesda, MD, USA).

2.5. Cell Culture and Treatment

Human proximal tubular epithelial human kidney-2 (HK-2) cells were obtained from the ATCC (Manassas, VA, USA) and maintained in a 1:1 mixture of Dulbecco’s modified Eagle medium (Thermo Fisher Scientific, Waltham, MA, USA)/Kaighn’s modification of Ham’s F-12 medium (F-12K; Thermo Fisher Scientific), supplemented with 10% fetal bovine serum and 1% penicillin/streptomycin (Hyclone Laboratories, Logan, UT, USA). The cells were incubated at 37 °C in a 5% CO2 and 95% air humidified chamber (Forma 310 Direct Heat CO2 Incubator; Thermo Fisher Scientific).

2.6. siRNA-Mediated Transfection

HK-2 cells were transfected with Nrf2, PKCα, PKCβ, or PKCδ specific siRNA along with control siRNA (Bioneer, Daejeon, Korea) using the Lipofectamine RNAiMAX (Invitrogen) at 50 or 100 nM of siRNA. After incubation for 24 h, honokiol, LY294002, wortmannin, or Gö6983 (Sigma-Aldrich) were treated as indicated in figure legends.

2.7. Cell Viability Assay

Cell viability was determined by 3-(4,5-dimethylthiazol-2yl)-2,5-diphenyltetrazolium bromide (MTT; Sigma-Aldrich) assay. MTT solution (final 0.1 mg/mL) was added to each well, and cells were incubated for 4 h at 37 °C. The supernatants were aspirated, the formazan crystals in each well were dissolved in 200 μL of dimethyl sulfoxide. Absorbance was measured at 570 nm using an Infinite 200 PRO microplate reader (Tecan, Mannedor, Switzerland).

2.8. GSH Measurement

The GSH contents were measured using a GSH/GSSG ration detection kit II (Abcam) according to the manufacturer’s instruction. The cells were washed with PBS and collected in RIPA buffer (Thermo Fisher Scientific). After centrifugation, samples were deproteinized using trichloroacetic acid (Sigma-Aldrich)/sodium bicarbonate (NaHCO3; Sigma-Aldrich) to remove enzymes that interfere with the analysis. Samples were added to the assay mixture at room temperature for 10–60 min protected from light. Fluorescence at Ex/Em = 490/520 nm was measured using an Infinite 200 PRO microplate reader (Tecan).

2.9. Lipid Peroxidation (Malondialdehyde, MDA) Assay

MDA assay was performed using a Malondialdehyde (MDA) assay kit (Abcam) according to the manufacturer’s protocol. Briefly, the cells were washed with PBS and collected in RIPA buffer (Thermo Fisher Scientific). After centrifugation, TBA solution was added to samples, and the TBA-sample mixtures were incubated at 95 °C for 60 min and put on ice for 10 min for cooling. Absorbance was measured at 532 nm using an Infinite 200 PRO microplate reader (Tecan).

2.10. Antioxidant Response Element (ARE)-Luciferase Reporter Assay

Cells were transfected with 1 μg of the luciferase reporter gene fusion construct (pTi-luciferase) with a wild type ARE sequence and 0.5 μg of the pCMV-β-galactosidase internal control vector with Lipofectamine 2000 (Invitrogen) according to the manufacturer’s instructions. After incubation for 24 h, the cells were treated with honokiol for additional 4 h. Then, the cells were lysed in 1× reporter lysis buffer (Promega, Madison, WI, USA). After mixing the cell lysates with a luciferase substrate (Promega), the luciferase activity was measured by a TD-20/20 luminometer (Turner Designs, San Jose, CA, USA) according to the manufacturer’s instructions.

2.11. Western Blot Analysis

Kidney tissues or HK-2 cells were homogenized in ice-cold RIPA buffer (Thermo Fisher Scientific) containing protease inhibitors (Thermo Fisher Scientific), sonicated, and incubated for 20 min on ice. After centrifugation, the supernatant was saved and protein concentration was determined using the Bradford assay (Bio-Rad). Nuclear and cytoplasmic fractionations were conducted by using NE-PERTM Nuclear and cytoplasmic extraction reagents (Thermo Fisher Scientific) according to the manufacturer’s instructions.
The protein samples were electrophoresed on polyacrylamide gels, and transferred to PVDF membranes (Roche, Basel, Switzerland). After blocking, the membranes were incubated with primary antibodies against Gclc, Gclm, Gss, and p84 (Abcam); Nrf2, p-Akt, p-p38, p-JNK, p-ERK, p-PKC (pan), p-PKCα/βII, and p-PKCδ (Cell Signaling Technology, Danvers, MA, USA); β-actin and β tubulin (Sigma-Aldrich) at 4 °C overnight. The membranes were incubated with horseradish peroxidase-conjugated secondary antibodies (Bio-Rad) at RT for 1 h. The membranes were incubated with Electrochemiluminescence (ECL) substrates (Bio-Rad) and protein bands were visualized using the ChemiDoc XRS+ System (Bio-Rad).

2.12. Reverse Transcription and Quantitative PCR (qPCR) Analysis

Total RNA was extracted using Trizol (Invitrogen) and converted into cDNA with the RevertAid Reverse Transcription System (Thermo Fisher Scientific), according to the manufacturer’s instructions. Quantitative PCR was performed on the CFX Connect Real-Time PCR System using iQ SYBR Green Supermix (Bio-Rad). Relative mRNA levels were normalized to those of GAPDH for each gene. The primer sequences are listed in Table 1.

2.13. Statistical Analysis

Statistical difference was determined using SigmaPlot software (Systat Software, Inc., San Jose, CA, USA). Comparisons among the groups were conducted by one-way analysis of variance (ANOVA), followed by Newman–Keuls tests. Data are expressed as the mean ± SEM. A p < 0.05 was accepted as statistically significant.

3. Results

3.1. Honokiol Treatment Increased GSH Levels in HK-2 Cells

First, we determined non-cytotoxic concentration of honokiol (the structure shown in Figure 1a) by performing MTT assay in HK-2 cells. The logarithmically growing cells were split and grown overnight, then treated with honokiol for 24 h at the indicated concentrations, and finally collected for following assays. Specifically, the cell viability was accessed in the cells treated with vehicle or honokiol at the concentration of 0.1, 1, 2, or 10 μM for 24 h. The results showed that cell viability was significantly reduced to 84% compared to control (100%) at 10 μM of honokiol in HK-2 cells (Figure 1b). To investigate whether honokiol treatment affects cellular redox homeostasis, we measured cellular levels of GSH, a major antioxidant that provides reducing equivalents for the glutathione peroxidase (GPx) reaction. The GSH levels were increased significantly in the cells treated with honokiol in a dose-dependent manner (Figure 1c). The GSH levels were increased by 1.26 and 1.48 at 1 and 2 μM of honokiol, respectively, compared to control.

3.2. Honokiol Treatment Upregulated the Expression of GSH Biosynthetic Enzymes in HK-2 Cells

We investigated whether honokiol increases the biosynthesis of GSH through upregulating the expression of two key enzymes, glutamate cysteine ligase (Gclc and Gclm subunits) and glutathione synthetase (Gss). The relative mRNA levels of Gclc, Gclm and Gss were accessed in the cells treated with 1 or 2 μM of honokiol for 3, 6, or 12 h. The results showed that honokiol increased significantly the Gclc levels at 2 μM after 6 h, the Gclm levels at 1 and 2 μM after 3 h, the Gss levels at 1 and 2 μM after 3 and 6 h (Figure 2a). In addition, honokiol increased the protein levels of Gclc at 2 μM after 12 and 24 h, Gclm at 2 μM after 24 h; however, the level of Gss was not significantly changed after treatment (Figure 2b).

3.3. Honokiol-Induced Upregulation of Gclc Was Regulated by Nuclear Nrf2 Translocation in HK-2 Cells

Many antioxidant genes including Nqo1, Gclc, Gclm, and HO-1 are activated transcriptionally by Nrf2. Thus, we investigated whether honokiol treatment stimulates the Nrf2-mediated transcriptional activity of Gclc, Gclm, and Gss in HK-2 cells. First, the cytoplasmic and nuclear Nrf2 expression was determined by Western blot analysis after subcellular fractionation of HK-2 cells; honokiol treatment increased significantly nuclear Nrf2 levels at the concentrations up to 1 μM (Figure 3a). Second, Nrf2-mediated ARE transcriptional activity was accessed by a luciferase reporter assay in HK-2 cells. Cells were transfected with the ARE-luciferase plasmid for 24 h and treated with 0.1, 1, or 2 μM of honokiol for 4 h. The results showed that honokiol increased significantly the ARE-luciferase activity at the concentrations up to 1 μM (Figure 3b). Third, we investigated whether honokiol-induced upregulation of Gclc and Gclm was blocked in Nrf2-silenced HK-2 cells. Cells were transfected with control or Nrf2 siRNA for 24 h and treated with 2 μM of honokiol for 12 h. The results showed that honokiol increased the Gclc and Gclm expression in the control siRNA-transfected cell; however, the expression was not changed in Nrf2 siRNA-transfected cells. In comparison, honokiol treatment affected the Gss expression in nether of control or Nrf2 siRNA-transfected cells (Figure 3c). Theses suggest that the honokiol-induced upregulation of Gclc and Gclm is through Nrf2-mediated transcriptional activation in HK-2 cells.

3.4. Honokiol Treatment Increased Nrf2 Transcriptional Activity through PI3K/Akt and PKC Signaling Pathway in HK-2 Cells

The Nrf2 transcriptional activity has shown to be enhanced by signaling kinases, such as extracellular signal-regulated kinase (ERK), c-Jun N-terminal kinase (JNK), p38 mitogen-activated protein kinase (MAPK), phosphoinositide 3-kinase (PI3K)/Akt, and protein kinase C (PKC) in various cell types [18,19,20,21,22]. To determine whether honokiol activates Nrf2 through these kinases in HK-2 cells, honokiol (2 μM) was treated for varying times (0, 10, 30, 60, 120, 240, or 360 min) and the p-Akt, p-p38, p-JNK, p-ERK, and p-PKC levels were examined by Western blot analysis. While the p-p38 and p-JNK levels were not altered at honokiol treatment, the p-Akt and p-ERK levels were increased significantly at 10 min and 240–360 min after honokiol treatment, respectively. The p-PKC (pan) and p-PKC α/βII levels were increased gradually after honokiol treatment and maintained the enhanced levels until 360 min. The p-PKC δ levels were not altered at honokiol treatment (Figure 4a). To investigate whether PI3K/Akt and PKC signaling pathway is involved in Nrf2 transcriptional activity directly, the ARE-luciferase activity was measured after honokiol treatment in the presence of Wortmannin, LY294002 (specific inhibitors of PI3K/Akt), or Gö6983 (a pan-PKC inhibitor). The results showed that the honokiol-induced ARE-luciferase activities were significantly reduced by the inhibitors of PI3K/AKt and PKC (Figure 4b,c).

3.5. Honokiol Increases GSH Biosynthesis through PI3K/Akt and PKC Signaling in HK-2 Cells

To investigate whether honokiol treatment increases the biosynthesis of GSH through PI3K/Akt and PKC signaling, the expression levels of biosynthetic enzymes, Gclc, Gclm, and Gss were analyzed after pretreatment of the specific inhibitors in HK-2 cells. After honokiol treatment, the Gclc and Gclm levels were not increased in the presence of Wortmannin, and the Gclc levels were not increased in the presence of LY294002 or Gö6983 (Figure 5a,b). In addition, the Gclc and Gclm levels were not increased after honokiol treatment in the cells transfected with siRNA specific to PKCα or PKCβ (Figure 5c), but were increased in the cells transfected with siRNA specific to PKCδ. Finally, cellular GSH content was determined in the presence of Wortmannin, LY294002, or Gö6983; the honokiol-induced GSH levels were decreased by these inhibitors (Figure 5d,e). These results suggest that honokiol increases the biosynthesis of GSH by activating Nrf2-mediated transcription of Gclc and Gclm through Akt/PI3K and PKC (particularly through PKCα and PKCβ, not through PKCδ) signaling in HK-2 cells. To investigate whether honokiol protects cells from the hypoxic condition, we measured the levels of GSH and malondialdehyde (MDA), an oxidative stress marker in H2O2 (600 μM)-treated cells after 2 μM of honokol treatment for 24 h. Honokol increased GSH levels and decreased MDA levels in H2O2-treated cells, compared to vehicle control (Supplementary Figure S1a,b).

3.6. Honokiol Attenuates Renal Ischemia-Reperfusion Injury by Increasing GSH Biosynthesis

To investigate whether honokiol protects the kidney from renal IR injury, mice were treated with honokiol and subjected to renal IR. Then, plasma creatinine was measured at 24 h of reperfusion (Figure 6a). Mice subjected to IR showed a significant increase in the plasma creatinine level, which was inhibited by honokiol treatment; Sham-operated mice treated with honokiol did not show any nephrotoxic feature. Histological analysis by H&E staining revealed that IR mice showed significant tubular necrosis and proteinaceous casts with increased congestion; however, honokiol treatment reduced renal necrosis and tubular injury. To determine whether honokiol treatment reduces renal inflammation and tubular apoptosis induced by renal IR, PMN and TUNEL staining was performed, respectively. Consistently, honokiol reduced the neurtrophil infiltration and tubular apoptosis induced by renal IR (Figure 6b,c).
To investigate whether honokiol treatment attenuates renal IR injury by increasing the biosynthesis of GSH, the mRNA expression of Gclc, Gclm, and Gss was examined in the kidney tissues of Veh sham, Veh IR, HNK IR and HNK sham mice (Figure 7a) by qPCR analysis. The protein expression was also examined by Western blot analysis (Figure 7b). Our results suggest that honokiol has a strong antioxidant effect by increasing the expression of GSH biosynthetic enzymes, Gclc and Gclm, attenuating the renal IR injury (Figure 8).

4. Discussion

The present study demonstrated the antioxidant effect of honokiol by upregulating the subunits of Gcl, a GSH biosynthetic enzyme in HK-2 cells as well as in the kidney exposed to IR injury. We suggest the underlying molecular mechanism that honokiol induces Nrf2 activation via PI3K/Akt and PKC signaling pathway, which was confirmed using pharmacological inhibitors and siRNA-mediated gene silencing. Thus, honokiol might provide an effective therapeutic strategy by reducing oxidative stress in patients with AKI as well as chronic kidney disease.
An imbalance of pro-oxidants and antioxidants occurs during the reperfusion phase of IR due to excessive ROS accumulation and impaired cellular redox systems [1]. A variety of endogenous antioxidants is present in the body to counteract external or internal sources of oxidants, and can be either enzymatic or non-enzymatic. The major enzymatic antioxidants are SODs, catalase and GSH peroxidase (GSH-Px); additional antioxidants are HO-1 and redox proteins (e.g., thioredoxins, peroxiredoxins, and glutaredoxins). Non-enzymatic antioxidants include GSH, vitamins C (ascorbate) and E (tocopherol), and carotenoids [32]. Particularly, GSH is the major soluble antioxidant and highly abundant in the cytoplasm. GSH has shown to recognize rapidly and have characteristic interactions with the hydroxyl radical (OH•) which is the most reactive species of ROS [22]. GSH also detoxifies hydrogen peroxide (H2O2) and lipid peroxides through the action of GSH-Px, protecting cell membrane from lipid oxidation; it also serves to convert vitamins C and E back to their active form [33,34].
Many natural compounds extracted from medicinal plants have shown antioxidant properties through scavenging ROS directly and activating endogenous antioxidant systems. GSH deficiency or metabolic dysfunction contributes to oxidative stress, playing a key role in aging and the pathogenesis of many diseases (e.g., neurodegenerative disease, cystic fibrosis, anemia, cancer, stroke, and diabetes) [15]. Several papers have reported the effects of polyphenols and flavonoids on enhancing activities of Gcl [35] and several antioxidant enzymes (e.g., GSH-Px, SOD, catalase, or GSH reductase) in cells stressed by UV irradiation or cytotoxin [36,37]. Interestingly, overexpression of Gclc subunits has shown to protect pancreatic islets from oxidative stress [38], or attenuate TNF-induced mitochondrial injury and apoptosis in mouse hepatoma cells [39]. Consistently, we demonstrated that honokiol upregulated the expression of Gcl subunits, alleviating IR-induced renal injury.
Recent review papers suggest that natural products activating Nrf2 have effectively attenuated oxidative stress, inflammation, and other distress in acute kidney injury caused by IR or nephrotoxin, and chronic renal diseases associated with diabetes, hypertension, and insulin resistance [40,41]. The transcription of many antioxidant enzymes is activated by Nrf2 binding on the ARE sequence, and the process of Nrf2 degradation or nuclear translocation is regulated by pharmacological active phytochemicals [42]. Quercetin or onion extract has shown to increase GSH levels in COS-1 and HepG2 cells by activating Gcl transcriptionally via the ARE [43,44]. In fact, Nrf2 plays as a master redox switch by the induction of many stress-responsive and cytoprotective enzymes. Certain phytochemicals have reported to target Keap1 thereby stabilizing Nrf2, or activate signaling kinases in the upstream of Nrf2 to facilitate nuclear localization [45]; activation of several upstream kinases, such as MAP kinases, PI3K/Akt, PKC, and casein kinase-2 have been demonstrated [46,47,48,49,50]. We also demonstrated that honokiol activated Nrf2 activation through activation of PI3K/Akt and PKC signaling.
Honokiol has traditionally been used to treat various diseases in China and East Asia countries and many research papers reported its beneficial effects and underlying mechanisms. Honokiol has shown anti-inflammatory, anti-cancer, anti-bacterial, neuroprotective properties under oxidative stressed conditions, such as LPS-induced hepatotoxicity, collagen (CII)-induced arthritis, bacterial infection, or hydroxydopamine-induced neurotoxicity [51,52,53,54,55]. Particularly, in our interest, honokiol has reported its renoprotective effect. Honokiol treatment improves animal survival of septic rats and reduces oxidative stress, inflammatory cytokines, and nitric oxide (NO) in sepsis-associated acute kidney injury (AKI) [29]. Honokiol also protects against renal IR injury by increasing SOD and catalase and suppressing oxidative stress, inducible NO synthase and inflammation in rats [30]. Honokiol protects H2O2-induced apoptosis of mouse podocytes by reducing the expression of caspase-3 and caspase-9 via Akt and Erk1/2 signaling [56]. Here, we found that honokiol upregulated cellular GSH by upregulating its biosynthesis through Nrf2 activation via PI3/Akt and PKC signaling. The protective role of honokiol in IR has been reported in our and previous studies, but further studies on the precise molecular mechanisms are needed.
In conclusion, the present study demonstrated that honokiol increased GSH, a major cellular antioxidant, by upregulating the expression of biosynthetic enzyme subunits, Gclc and Gclm, through Nrf2 activation, where PI3K/Akt and PKC signaling pathways were involved. Thus, honokiol has a therapeutic potential that the activation of Nrf2 results in induction of multiple antioxidant and cytoprotective genes, which alleviates oxidative stress, inflammation, and other distress in acute IR and chronic renal injury, as well as associated diseases.

Supplementary Materials

The following are available online at https://www.mdpi.com/2227-9059/8/9/352/s1, Figure S1: Honokiol attenuates the lipid peroxidation by increasing the expression of GSH biosynthetic enzymes in H2O2-treated HK-2 cells.

Author Contributions

Conceptualization, S.W.P.; methodology, E.J.P. and S.W.P.; data collection and analysis, E.J.P., J.J., and T.D.; investigation, K.J., H.J.K., and S.P.Y.; data curation, E.J.P., H.K., and S.W.P.; writing—original draft preparation, E.J.P.; writing—review and editing, H.K. and S.W.P.; supervision and funding acquisition, S.W.P. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Research Foundation (NRF) of Korea funded by the Ministry of Science, ICT and Future Planning (NRF-2015R1A5A2008833).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Granger, D.N.; Kvietys, P.R. Reperfusion injury and reactive oxygen species: The evolution of a concept. Redox Biol. 2015, 6, 524–551. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Malek, M.; Nematbakhsh, M. Renal ischemia/reperfusion injury; from pathophysiology to treatment. J. Ren. Inj. Prev. 2015, 4, 20–27. [Google Scholar] [CrossRef] [PubMed]
  3. Wu, M.Y.; Yiang, G.T.; Liao, W.T.; Tsai, A.P.; Cheng, Y.L.; Cheng, P.W.; Li, C.Y.; Li, C.J. Current Mechanistic Concepts in Ischemia and Reperfusion Injury. Cell. Physiol. Biochem. Int. J. Exp. Cell. Physiol. Biochem. Pharmacol. 2018, 46, 1650–1667. [Google Scholar] [CrossRef]
  4. Chouchani, E.T.; Pell, V.R.; Gaude, E.; Aksentijevic, D.; Sundier, S.Y.; Robb, E.L.; Logan, A.; Nadtochiy, S.M.; Ord, E.N.J.; Smith, A.C.; et al. Ischaemic accumulation of succinate controls reperfusion injury through mitochondrial ROS. Nature 2014, 515, 431–435. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Paller, M.S.; Hoidal, J.R.; Ferris, T.F. Oxygen free radicals in ischemic acute renal failure in the rat. J. Clin. Investig. 1984, 74, 1156–1164. [Google Scholar] [CrossRef] [Green Version]
  6. Tsuda, H.; Kawada, N.; Kaimori, J.Y.; Kitamura, H.; Moriyama, T.; Rakugi, H.; Takahara, S.; Isaka, Y. Febuxostat suppressed renal ischemia-reperfusion injury via reduced oxidative stress. Biochem. Biophys. Res. Commun. 2012, 427, 266–272. [Google Scholar] [CrossRef]
  7. Cho, S.; Yu, S.L.; Kang, J.; Jeong, B.Y.; Lee, H.Y.; Park, C.G.; Yu, Y.B.; Jin, D.C.; Hwang, W.M.; Yun, S.R.; et al. NADPH oxidase 4 mediates TGF-beta1/Smad signaling pathway induced acute kidney injury in hypoxia. PLoS ONE 2019, 14, e0219483. [Google Scholar] [CrossRef] [Green Version]
  8. Karim, A.S.; Reese, S.R.; Wilson, N.A.; Jacobson, L.M.; Zhong, W.; Djamali, A. Nox2 is a mediator of ischemia reperfusion injury. Am. J. Transplant. Off. J. Am. Soc. Transplant. Am. Soc. Transpl. Surg. 2015, 15, 2888–2899. [Google Scholar] [CrossRef]
  9. Simone, S.; Rascio, F.; Castellano, G.; Divella, C.; Chieti, A.; Ditonno, P.; Battaglia, M.; Crovace, A.; Staffieri, F.; Oortwijn, B.; et al. Complement-dependent NADPH oxidase enzyme activation in renal ischemia/reperfusion injury. Free Radic. Biol. Med. 2014, 74, 263–273. [Google Scholar] [CrossRef]
  10. Chen, Q.; Moghaddas, S.; Hoppel, C.L.; Lesnefsky, E.J. Ischemic defects in the electron transport chain increase the production of reactive oxygen species from isolated rat heart mitochondria. American journal of physiology. Cell Physiol. 2008, 294, C460–C466. [Google Scholar] [CrossRef] [Green Version]
  11. Kezic, A.; Spasojevic, I.; Lezaic, V.; Bajcetic, M. Mitochondria-Targeted Antioxidants: Future Perspectives in Kidney Ischemia Reperfusion Injury. Oxidative Med. Cell. Longev. 2016, 2016, 2950503. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Rahal, A.; Kumar, A.; Singh, V.; Yadav, B.; Tiwari, R.; Chakraborty, S.; Dhama, K. Oxidative stress, prooxidants, and antioxidants: The interplay. Biomed. Res. Int. 2014, 2014, 761264. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Ratliff, B.B.; Abdulmahdi, W.; Pawar, R.; Wolin, M.S. Oxidant Mechanisms in Renal Injury and Disease. Antioxid. Redox Signal 2016, 25, 119–146. [Google Scholar] [CrossRef] [Green Version]
  14. Hanschmann, E.M.; Godoy, J.R.; Berndt, C.; Hudemann, C.; Lillig, C.H. Thioredoxins, glutaredoxins, and peroxiredoxins--molecular mechanisms and health significance: From cofactors to antioxidants to redox signaling. Antioxid. Redox Signal 2013, 19, 1539–1605. [Google Scholar] [CrossRef]
  15. Wu, G.; Fang, Y.Z.; Yang, S.; Lupton, J.R.; Turner, N.D. Glutathione metabolism and its implications for health. J. Nutr. 2004, 134, 489–492. [Google Scholar] [CrossRef] [Green Version]
  16. Dalton, T.P.; Dieter, M.Z.; Yang, Y.; Shertzer, H.G.; Nebert, D.W. Knockout of the mouse glutamate cysteine ligase catalytic subunit (Gclc) gene: Embryonic lethal when homozygous, and proposed model for moderate glutathione deficiency when heterozygous. Biochem. Biophys. Res. Commun. 2000, 279, 324–329. [Google Scholar] [CrossRef]
  17. Giordano, G.; Afsharinejad, Z.; Guizzetti, M.; Vitalone, A.; Kavanagh, T.J.; Costa, L.G. Organophosphorus insecticides chlorpyrifos and diazinon and oxidative stress in neuronal cells in a genetic model of glutathione deficiency. Toxicol. Appl. Pharmacol. 2007, 219, 181–189. [Google Scholar] [CrossRef]
  18. McConnachie, L.A.; Mohar, I.; Hudson, F.N.; Ware, C.B.; Ladiges, W.C.; Fernandez, C.; Chatterton-Kirchmeier, S.; White, C.C.; Pierce, R.H.; Kavanagh, T.J. Glutamate cysteine ligase modifier subunit deficiency and gender as determinants of acetaminophen-induced hepatotoxicity in mice. Toxicol. Sci. 2007, 99, 628–636. [Google Scholar] [CrossRef] [Green Version]
  19. Yang, Y.; Dieter, M.Z.; Chen, Y.; Shertzer, H.G.; Nebert, D.W.; Dalton, T.P. Initial characterization of the glutamate-cysteine ligase modifier subunit Gclm(-/-) knockout mouse. Novel model system for a severely compromised oxidative stress response. J. Biol. Chem. 2002, 277, 49446–49452. [Google Scholar] [CrossRef] [Green Version]
  20. Lu, S.C. Regulation of glutathione synthesis. Mol. Asp. Med. 2009, 30, 42–59. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Aquilano, K.; Baldelli, S.; Ciriolo, M.R. Glutathione: New roles in redox signaling for an old antioxidant. Front. Pharmacol. 2014, 5, 196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Golab, F.; Kadkhodaee, M.; Zahmatkesh, M.; Hedayati, M.; Arab, H.; Schuster, R.; Zahedi, K.; Lentsch, A.B.; Soleimani, M. Ischemic and non-ischemic acute kidney injury cause hepatic damage. Kidney Int. 2009, 75, 783–792. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Shang, Y.; Siow, Y.L.; Isaak, C.K.; Karmin, O. Downregulation of Glutathione Biosynthesis Contributes to Oxidative Stress and Liver Dysfunction in Acute Kidney Injury. Oxidative Med. Cell. Longev. 2016, 2016, 9707292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Tonelli, C.; Chio, I.I.C.; Tuveson, D.A. Transcriptional Regulation by Nrf2. Antioxid. Redox Signal 2018, 29, 1727–1745. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Kobayashi, M.; Yamamoto, M. Molecular mechanisms activating the Nrf2-Keap1 pathway of antioxidant gene regulation. Antioxid. Redox Signal 2005, 7, 385–394. [Google Scholar] [CrossRef] [PubMed]
  26. Ma, Q. Role of nrf2 in oxidative stress and toxicity. Annu. Rev. Pharmacol. Toxicol. 2013, 53, 401–426. [Google Scholar] [CrossRef] [Green Version]
  27. Kensler, T.W.; Wakabayashi, N.; Biswal, S. Cell survival responses to environmental stresses via the Keap1-Nrf2-ARE pathway. Annu. Rev. Pharmacol. Toxicol. 2007, 47, 89–116. [Google Scholar] [CrossRef]
  28. Robledinos-Anton, N.; Fernandez-Gines, R.; Manda, G.; Cuadrado, A. Activators and Inhibitors of NRF2: A Review of Their Potential for Clinical Development. Oxidative Med. Cell Longev. 2019, 2019, 9372182. [Google Scholar] [CrossRef]
  29. Li, N.; Xie, H.; Li, L.; Wang, J.; Fang, M.; Yang, N.; Lin, H. Effects of honokiol on sepsis-induced acute kidney injury in an experimental model of sepsis in rats. Inflammation 2014, 37, 1191–1199. [Google Scholar] [CrossRef]
  30. Yu, Y.; Li, M.; Su, N.; Zhang, Z.; Zhao, H.; Yu, H.; Xu, Y. Honokiol protects against renal ischemia/reperfusion injury via the suppression of oxidative stress, iNOS, inflammation and STAT3 in rats. Mol. Med. Rep. 2016, 13, 1353–1360. [Google Scholar] [CrossRef] [Green Version]
  31. Seo, M.S.; Kim, H.J.; Kim, H.; Park, S.W. Ethyl Pyruvate Directly Attenuates Active Secretion of HMGB1 in Proximal Tubular Cells via Induction of Heme Oxygenase-1. J. Clin. Med. 2019, 8, 629. [Google Scholar] [CrossRef] [Green Version]
  32. Birben, E.; Sahiner, U.M.; Sackesen, C.; Erzurum, S.; Kalayci, O. Oxidative stress and antioxidant defense. World Allergy Organ. J. 2012, 5, 9–19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Fiser, B.; Jojart, B.; Csizmadia, I.G.; Viskolcz, B. Glutathione--hydroxyl radical interaction: A theoretical study on radical recognition process. PLoS ONE 2013, 8, e73652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Masella, R.; Di Benedetto, R.; Vari, R.; Filesi, C.; Giovannini, C. Novel mechanisms of natural antioxidant compounds in biological systems: Involvement of glutathione and glutathione-related enzymes. J. Nutr. Biochem. 2005, 16, 577–586. [Google Scholar] [CrossRef]
  35. Scharf, G.; Prustomersky, S.; Knasmuller, S.; Schulte-Hermann, R.; Huber, W.W. Enhancement of glutathione and g-glutamylcysteine synthetase, the rate limiting enzyme of glutathione synthesis, by chemoprotective plant-derived food and beverage components in the human hepatoma cell line HepG2. Nutr. Cancer 2003, 45, 74–83. [Google Scholar] [CrossRef]
  36. Jeon, S.E.; Choi-Kwon, S.; Park, K.A.; Lee, H.J.; Park, M.S.; Lee, J.H.; Kwon, S.B.; Park, K.C. Dietary supplementation of (+)-catechin protects against UVB-induced skin damage by modulating antioxidant enzyme activities. Photodermatol. Photoimmunol. Photomed. 2003, 19, 235–241. [Google Scholar] [CrossRef]
  37. Ramirez-Mares, M.V.; de Mejia, E.G. Comparative study of the antioxidant effect of ardisin and epigallocatechin gallate in rat hepatocytes exposed to benomyl and 1-nitropyrene. Food Chem. Toxicol. 2003, 41, 1527–1535. [Google Scholar] [CrossRef]
  38. Tran, P.O.; Parker, S.M.; LeRoy, E.; Franklin, C.C.; Kavanagh, T.J.; Zhang, T.; Zhou, H.; Vliet, P.; Oseid, E.; Harmon, J.S.; et al. Adenoviral overexpression of the glutamylcysteine ligase catalytic subunit protects pancreatic islets against oxidative stress. J. Biol. Chem. 2004, 279, 53988–53993. [Google Scholar] [CrossRef] [Green Version]
  39. Botta, D.; Franklin, C.C.; White, C.C.; Krejsa, C.M.; Dabrowski, M.J.; Pierce, R.H.; Fausto, N.; Kavanagh, T.J. Glutamate-cysteine ligase attenuates TNF-induced mitochondrial injury and apoptosis. Free Radic. Biol. Med. 2004, 37, 632–642. [Google Scholar] [CrossRef]
  40. Matzinger, M.; Fischhuber, K.; Heiss, E.H. Activation of Nrf2 signaling by natural products-can it alleviate diabetes? Biotechnol. Adv. 2018, 36, 1738–1767. [Google Scholar] [CrossRef]
  41. Nezu, M.; Suzuki, N. Roles of Nrf2 in Protecting the Kidney from Oxidative Damage. Int. J. Mol. Sci. 2020, 21, 2951. [Google Scholar] [CrossRef] [PubMed]
  42. Surh, Y.J.; Kundu, J.K.; Na, H.K.; Lee, J.S. Redox-sensitive transcription factors as prime targets for chemoprevention with anti-inflammatory and antioxidative phytochemicals. J. Nutr. 2005, 135, 2993S–3001S. [Google Scholar] [CrossRef] [Green Version]
  43. Moskaug, J.O.; Carlsen, H.; Myhrstad, M.C.; Blomhoff, R. Polyphenols and glutathione synthesis regulation. Am. J. Clin. Nutr. 2005, 81, 277S–283S. [Google Scholar] [CrossRef] [PubMed]
  44. Myhrstad, M.C.; Carlsen, H.; Nordstrom, O.; Blomhoff, R.; Moskaug, J.O. Flavonoids increase the intracellular glutathione level by transactivation of the gamma-glutamylcysteine synthetase catalytical subunit promoter. Free Radic. Biol. Med. 2002, 32, 386–393. [Google Scholar] [CrossRef]
  45. Surh, Y.J.; Kundu, J.K.; Na, H.K. Nrf2 as a master redox switch in turning on the cellular signaling involved in the induction of cytoprotective genes by some chemopreventive phytochemicals. Planta Med. 2008, 74, 1526–1539. [Google Scholar] [CrossRef] [Green Version]
  46. Apopa, P.L.; He, X.; Ma, Q. Phosphorylation of Nrf2 in the transcription activation domain by casein kinase 2 (CK2) is critical for the nuclear translocation and transcription activation function of Nrf2 in IMR-32 neuroblastoma cells. J. Biochem. Mol. Toxicol. 2008, 22, 63–76. [Google Scholar] [CrossRef] [PubMed]
  47. Gokila Vani, M.; Kumar, K.J.; Liao, J.W.; Chien, S.C.; Mau, J.L.; Chiang, S.S.; Lin, C.C.; Kuo, Y.H.; Wang, S.Y. Antcin C from Antrodia cinnamomea Protects Liver Cells Against Free Radical-Induced Oxidative Stress and Apoptosis In Vitro and In Vivo through Nrf2-Dependent Mechanism. Evid. Based Complement. Altern. Med. 2013, 2013, 296082. [Google Scholar] [CrossRef] [Green Version]
  48. Huang, H.C.; Nguyen, T.; Pickett, C.B. Regulation of the antioxidant response element by protein kinase C-mediated phosphorylation of NF-E2-related factor 2. Proc. Natl. Acad. Sci. USA 2000, 97, 12475–12480. [Google Scholar] [CrossRef] [Green Version]
  49. Huang, H.C.; Nguyen, T.; Pickett, C.B. Phosphorylation of Nrf2 at Ser-40 by protein kinase C regulates antioxidant response element-mediated transcription. J. Biol. Chem. 2002, 277, 42769–42774. [Google Scholar] [CrossRef] [Green Version]
  50. Xu, C.; Yuan, X.; Pan, Z.; Shen, G.; Kim, J.H.; Yu, S.; Khor, T.O.; Li, W.; Ma, J.; Kong, A.N. Mechanism of action of isothiocyanates: The induction of ARE-regulated genes is associated with activation of ERK and JNK and the phosphorylation and nuclear translocation of Nrf2. Mol. Cancer Ther. 2006, 5, 1918–1926. [Google Scholar] [CrossRef] [Green Version]
  51. Cho, J.H.; Jeon, Y.J.; Park, S.M.; Shin, J.C.; Lee, T.H.; Jung, S.; Park, H.; Ryu, J.; Chen, H.; Dong, Z.; et al. Multifunctional effects of honokiol as an anti-inflammatory and anti-cancer drug in human oral squamous cancer cells and xenograft. Biomaterials 2015, 53, 274–284. [Google Scholar] [CrossRef] [PubMed]
  52. Hou, Y.; Peng, S.; Li, X.; Yao, J.; Xu, J.; Fang, J. Honokiol Alleviates Oxidative Stress-Induced Neurotoxicity via Activation of Nrf2. ACS Chem. Neurosci. 2018, 9, 3108–3116. [Google Scholar] [CrossRef] [PubMed]
  53. Kim, K.R.; Park, K.K.; Chun, K.S.; Chung, W.Y. Honokiol inhibits the progression of collagen-induced arthritis by reducing levels of pro-inflammatory cytokines and matrix metalloproteinases and blocking oxidative tissue damage. J. Pharmacol. Sci. 2010, 114, 69–78. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Park, J.; Lee, J.; Jung, E.; Park, Y.; Kim, K.; Park, B.; Jung, K.; Park, E.; Kim, J.; Park, D. In vitro antibacterial and anti-inflammatory effects of honokiol and magnolol against Propionibacterium sp. Eur. J. Pharmacol. 2004, 496, 189–195. [Google Scholar] [CrossRef]
  55. Sulakhiya, K.; Kumar, P.; Gurjar, S.S.; Barua, C.C.; Hazarika, N.K. Beneficial effect of honokiol on lipopolysaccharide induced anxiety-like behavior and liver damage in mice. Pharm. Biochem. Behav. 2015, 132, 79–87. [Google Scholar] [CrossRef]
  56. Wu, F.; Yao, H.; Zheng, F.; Tang, S.; Lin, X.; Li, L.; Zhou, J.; Li, H. Protective effects of honokiol against oxidative stress-induced apoptotic signaling in mouse podocytes treated with H2O2. Exp. Ther. Med. 2018, 16, 1278–1284. [Google Scholar] [CrossRef]
Biomedicines 08 00352 g001 550

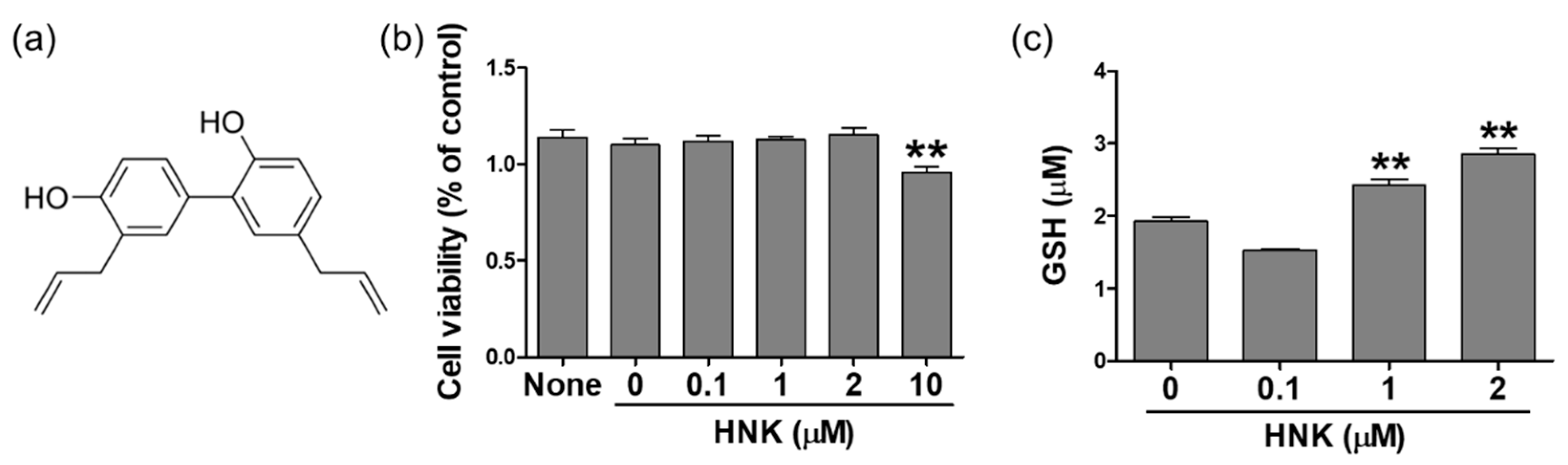

Figure 1. The structure of honokiol (HNK) and the cell viability and glutathione (GSH) content in human kidney-2 (HK-2) cells. (a) A chemical structure of honokiol. (b) Cells were treated with honokiol (0, 0.1, 1, 2, or 10 μM) for 24 h and MTT assays were performed. (c) Cells were treated with honokiol (0, 0.1, 1, or 2 μM) for 24 h and the GSH levels were determined. Values are expressed as the means ± S.E.M. of three independent experiments. ** p < 0.01 compared with the vehicle control.
Figure 1. The structure of honokiol (HNK) and the cell viability and glutathione (GSH) content in human kidney-2 (HK-2) cells. (a) A chemical structure of honokiol. (b) Cells were treated with honokiol (0, 0.1, 1, 2, or 10 μM) for 24 h and MTT assays were performed. (c) Cells were treated with honokiol (0, 0.1, 1, or 2 μM) for 24 h and the GSH levels were determined. Values are expressed as the means ± S.E.M. of three independent experiments. ** p < 0.01 compared with the vehicle control.
Biomedicines 08 00352 g001
Biomedicines 08 00352 g002 550

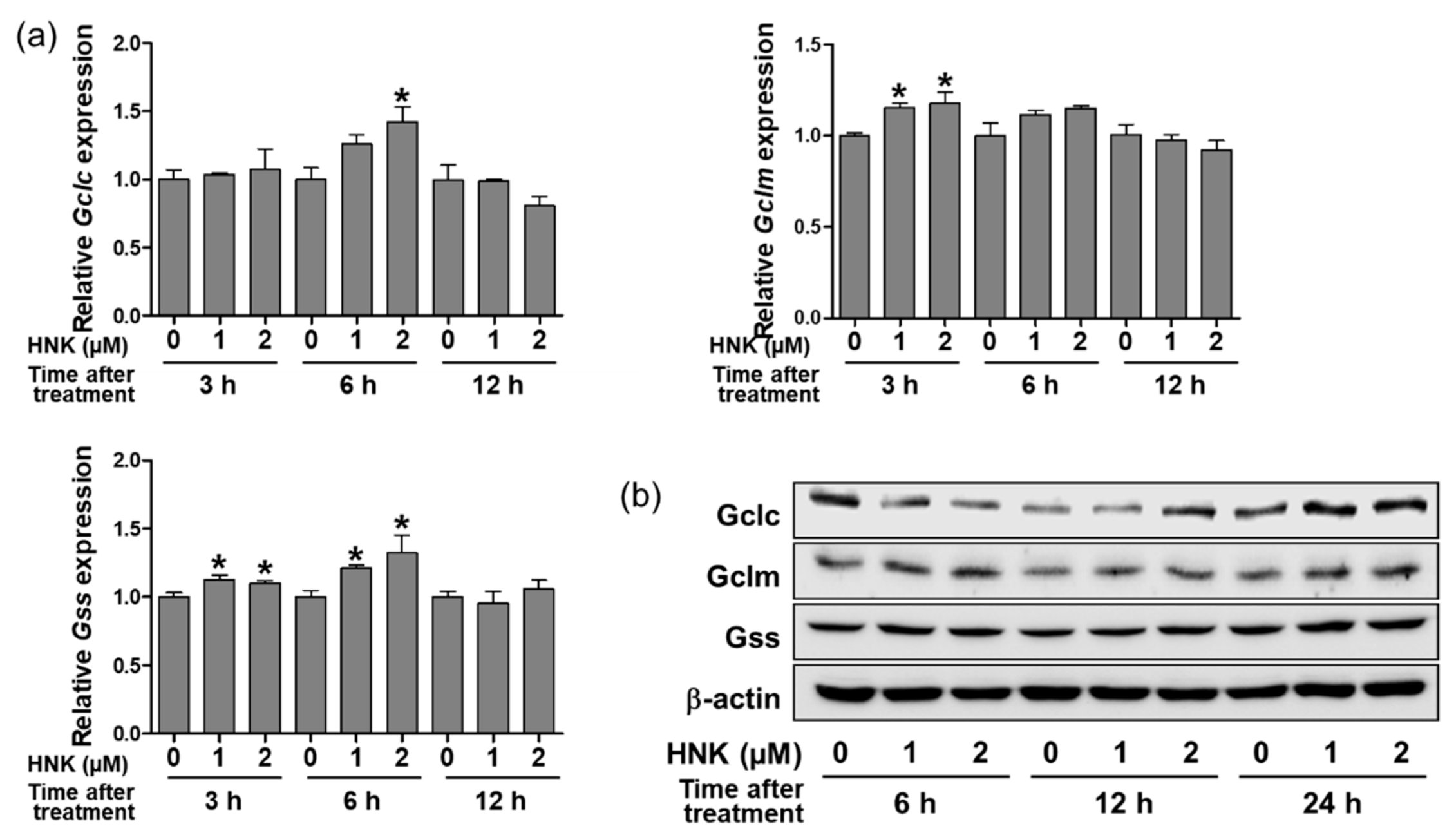

Figure 2. Honokiol increases the expression of GSH biosynthetic enzymes in HK-2 cells. (a) Cells were treated with honokiol (0, 1, or 2 μM) for 3, 6, or 12 h and the mRNA expression of Gclc, Gclm, and Gss was determined by real-time PCR analysis. Relative mRNA levels were normalized to those of GAPDH. (b) Cells were treated with honokiol (0, 1, or 2 μM) for 6, 12, or 24 h and the protein expression of Gclc, Gclm, and Gss was determined by Western blot analysis. Relative protein levels were normalized to those of β-actin. Values are expressed as the means ± S.E.M. of three independent experiments. * p < 0.05 significant compared with the vehicle control.
Figure 2. Honokiol increases the expression of GSH biosynthetic enzymes in HK-2 cells. (a) Cells were treated with honokiol (0, 1, or 2 μM) for 3, 6, or 12 h and the mRNA expression of Gclc, Gclm, and Gss was determined by real-time PCR analysis. Relative mRNA levels were normalized to those of GAPDH. (b) Cells were treated with honokiol (0, 1, or 2 μM) for 6, 12, or 24 h and the protein expression of Gclc, Gclm, and Gss was determined by Western blot analysis. Relative protein levels were normalized to those of β-actin. Values are expressed as the means ± S.E.M. of three independent experiments. * p < 0.05 significant compared with the vehicle control.
Biomedicines 08 00352 g002
Biomedicines 08 00352 g003 550

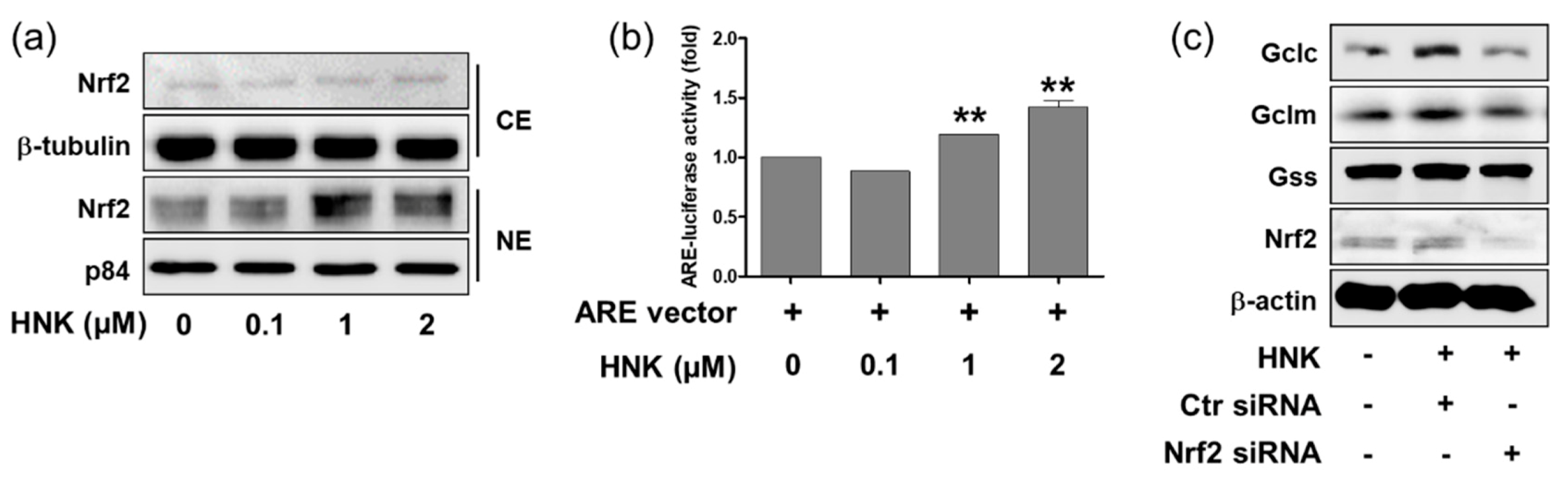

Figure 3. Honokiol increases nuclear translocation Nrf2 and ARE-luciferase activity in HK-2 cells. (a) Cells were treated with honokiol (0, 0.1, 1, or 2 μM) for 4 h and the cytosolic and nuclear fractionation were extracted and subjected to Western blot analysis. Nrf2 protein levels were normalized to those of β-tubulin and p84 in cytosolic and nuclear fractions, respectively. (b) Cells were transiently transfected with ARE-luciferase plasmid (1 μg) for 24 h, and treated with honokiol (0, 0.1, 1, or 2 μM) for 4 h. The ARE-luciferase activity was measured using a luciferase reporter assay system. (c) Cells were transiently transfected with control siRNA or Nrf2-specific siRNA (50 nM) for 24 h and treated with honokiol (2 μM) for 12 h. Then, cell lysates were subjected to Western blot analysis using anti-Gclc, anti-Gclm, anti-Gss or anti-β-actin antibodies. The + and − indicate the presence or absence of each treatment. Values are expressed as the means ± S.E.M. of three independent experiments. ** p < 0.01 significant compared with the vehicle control.
Figure 3. Honokiol increases nuclear translocation Nrf2 and ARE-luciferase activity in HK-2 cells. (a) Cells were treated with honokiol (0, 0.1, 1, or 2 μM) for 4 h and the cytosolic and nuclear fractionation were extracted and subjected to Western blot analysis. Nrf2 protein levels were normalized to those of β-tubulin and p84 in cytosolic and nuclear fractions, respectively. (b) Cells were transiently transfected with ARE-luciferase plasmid (1 μg) for 24 h, and treated with honokiol (0, 0.1, 1, or 2 μM) for 4 h. The ARE-luciferase activity was measured using a luciferase reporter assay system. (c) Cells were transiently transfected with control siRNA or Nrf2-specific siRNA (50 nM) for 24 h and treated with honokiol (2 μM) for 12 h. Then, cell lysates were subjected to Western blot analysis using anti-Gclc, anti-Gclm, anti-Gss or anti-β-actin antibodies. The + and − indicate the presence or absence of each treatment. Values are expressed as the means ± S.E.M. of three independent experiments. ** p < 0.01 significant compared with the vehicle control.
Biomedicines 08 00352 g003
Biomedicines 08 00352 g004 550

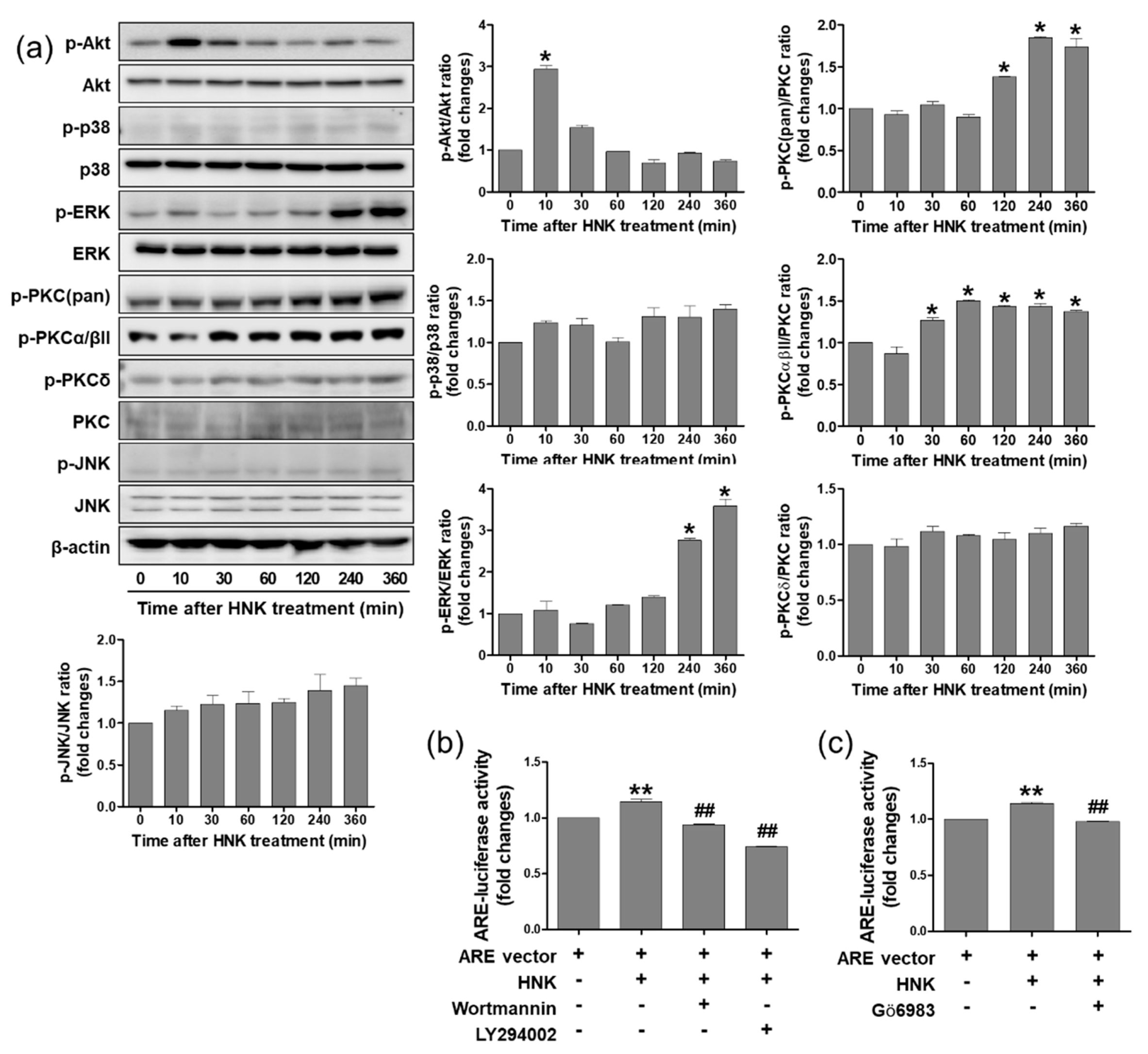

Figure 4. Honokiol regulates Nrf2 activation through phosphoinositide 3-kinase (PI3K)/Akt and protein kinase C (PKC) signaling pathway in HK-2 cells. (a) Cells were treated with honokiol (2 μM) for 0, 10, 30, 60, 120, 240, or 360 min. The cell lysates were subjected to western blot analysis using anti-p-Akt, anti-p-p38, anti-p-JNK, anti-p-ERK, anti-p-PKC (pan), anti-p-PKCα/βII, anti-p-PKCδ, and anti-β-actin antibodies. (b,c) Cells were transfected with ARE-luciferase plasmid (1 μg) and treated with inhibitors of Wortmannin (100 nM), LY294002 (10 μM), or Gö6983 (10 nM) for 30 min, prior to honokiol (2 μM). After 4 h incubation, the ARE-luciferase activity was measured by a luciferase reporter assay system. Values are expressed as the means ± S.E.M. of three independent experiments. * p < 0.05, ** p < 0.01 significant compared with the vehicle control. ## p < 0.01 significant compared with honokiol alone.
Figure 4. Honokiol regulates Nrf2 activation through phosphoinositide 3-kinase (PI3K)/Akt and protein kinase C (PKC) signaling pathway in HK-2 cells. (a) Cells were treated with honokiol (2 μM) for 0, 10, 30, 60, 120, 240, or 360 min. The cell lysates were subjected to western blot analysis using anti-p-Akt, anti-p-p38, anti-p-JNK, anti-p-ERK, anti-p-PKC (pan), anti-p-PKCα/βII, anti-p-PKCδ, and anti-β-actin antibodies. (b,c) Cells were transfected with ARE-luciferase plasmid (1 μg) and treated with inhibitors of Wortmannin (100 nM), LY294002 (10 μM), or Gö6983 (10 nM) for 30 min, prior to honokiol (2 μM). After 4 h incubation, the ARE-luciferase activity was measured by a luciferase reporter assay system. Values are expressed as the means ± S.E.M. of three independent experiments. * p < 0.05, ** p < 0.01 significant compared with the vehicle control. ## p < 0.01 significant compared with honokiol alone.
Biomedicines 08 00352 g004
Biomedicines 08 00352 g005 550

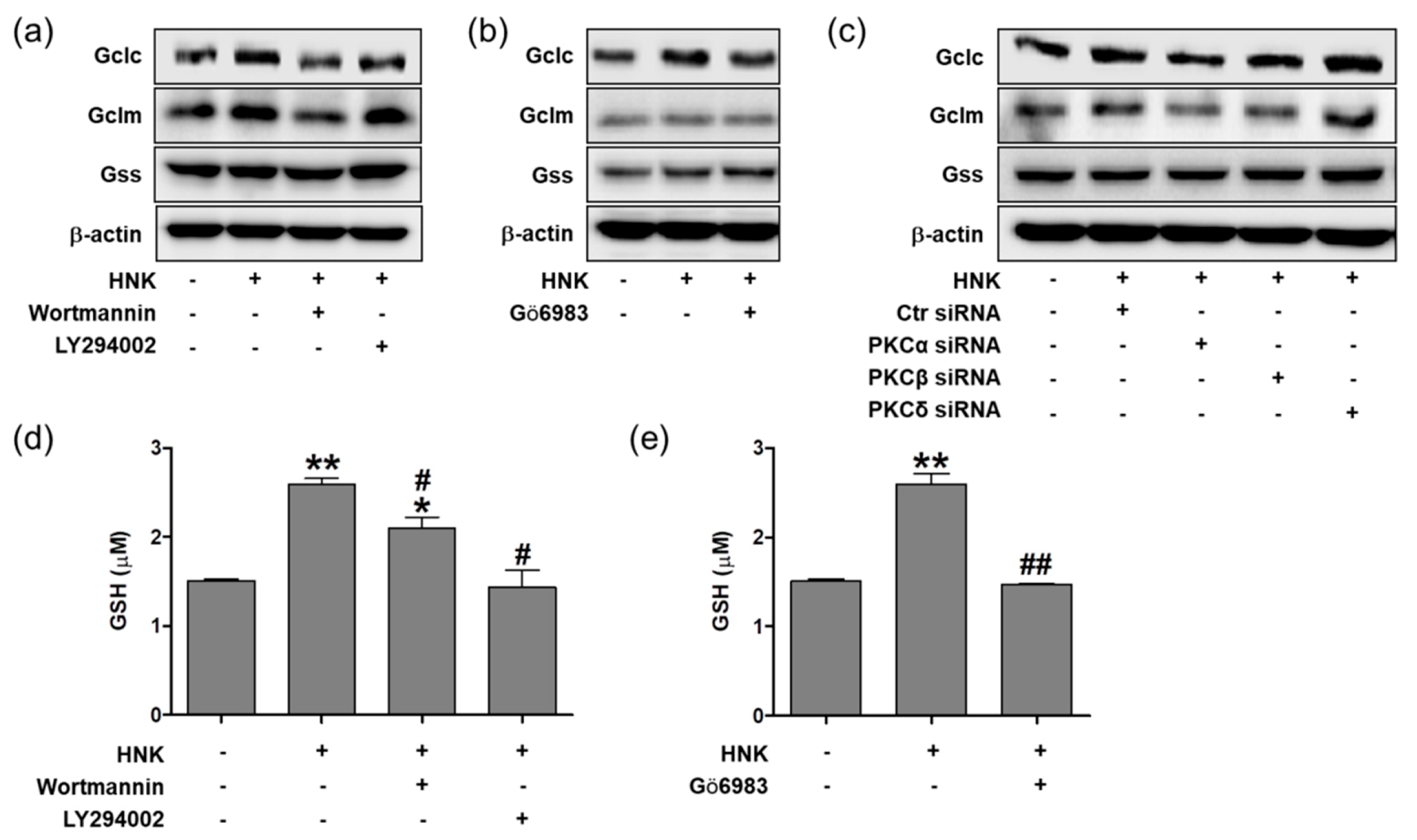

Figure 5. Honokiol regulates the biosynthesis of GSH through PI3K/Akt and PKC signaling pathway in HK-2 cells. (a,b) Cells were treated with inhibitors of Wortmannin (100 nM), LY294002 (10 μM), or Gö6983 (10 nM) for 30 min prior to honokiol (2 μM). After 12 h incubation, the cell lysates were subjected to Western blot analysis using anti-Gclc, anti-Gclm, anti-Gss, or anti-β-actin antibodies. (c) Cells were transiently transfected with specific RNAi for PKCα, PKCβ, or PKCδ, or control siRNA (100 nM) for 24 h, and then treated with honokiol (2 μM) for 12 h. The cell lysates were subjected to Western blot analysis using anti-Gclc, anti-Gclm, anti-Gss, or anti-β-actin antibodies. (d,e) Cells were treated with inhibitors of Wortmannin (100 nM), LY294002 (10 μM), or Gö6983 (10 nM) for 30 min prior to honokiol (2 μM). After 24 h incubation, the GSH levels were measured. Values are expressed as the means ± S.E.M. of three independent experiments. * p < 0.05, ** p < 0.01 significant compared with the vehicle control. # p < 0.05, ## p < 0.01 significant compared with honokiol alone.
Figure 5. Honokiol regulates the biosynthesis of GSH through PI3K/Akt and PKC signaling pathway in HK-2 cells. (a,b) Cells were treated with inhibitors of Wortmannin (100 nM), LY294002 (10 μM), or Gö6983 (10 nM) for 30 min prior to honokiol (2 μM). After 12 h incubation, the cell lysates were subjected to Western blot analysis using anti-Gclc, anti-Gclm, anti-Gss, or anti-β-actin antibodies. (c) Cells were transiently transfected with specific RNAi for PKCα, PKCβ, or PKCδ, or control siRNA (100 nM) for 24 h, and then treated with honokiol (2 μM) for 12 h. The cell lysates were subjected to Western blot analysis using anti-Gclc, anti-Gclm, anti-Gss, or anti-β-actin antibodies. (d,e) Cells were treated with inhibitors of Wortmannin (100 nM), LY294002 (10 μM), or Gö6983 (10 nM) for 30 min prior to honokiol (2 μM). After 24 h incubation, the GSH levels were measured. Values are expressed as the means ± S.E.M. of three independent experiments. * p < 0.05, ** p < 0.01 significant compared with the vehicle control. # p < 0.05, ## p < 0.01 significant compared with honokiol alone.
Biomedicines 08 00352 g005
Biomedicines 08 00352 g006 550

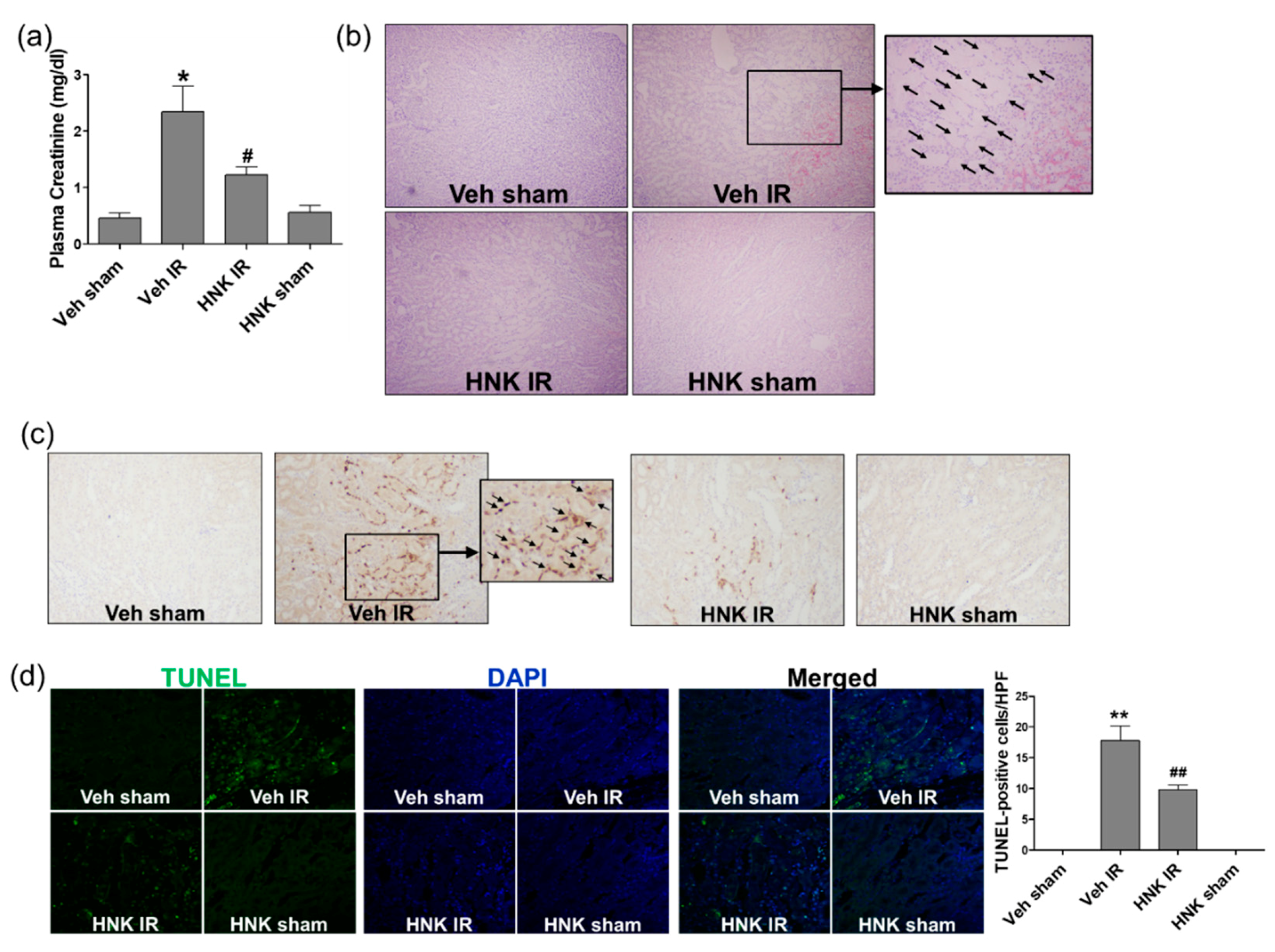

Figure 6. Honokiol attenuates the increase in plasma creatinine, tubular cell death and neutrophil infiltration induced by renal ischemia-reperfusion (IR) in mice. C57BL/6 mice were subjected to 25 min of bilateral renal ischemia. Honokiol (1 mg/kg) or vehicle was injected twice, 1 h prior to ischemia and 4 h after reperfusion. The blood and kidney tissues were collected at 24 h of reperfusion. (a) Plasma creatinine levels were measured to assess the degree of kidney injury. (b) Representative images of H&E staining of renal sections to evaluate tubular pathology. Arrows indicate necrotic area. (c) Representative images of polymorphonuclear leukocytes (PMN) staining of renal sections to evaluate neutrophil infiltration. (d) Representative images of terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) staining of renal sections to evaluate tubular apoptosis; TUNEL (green) merged with DAPI (blue). Values are expressed as the means ± S.E.M. of 4–8 mice from each group. * p < 0.05, ** p < 0.01 significant compared with Veh sham. # p < 0.05, ## p < 0.01 significant compared with Veh IR.
Figure 6. Honokiol attenuates the increase in plasma creatinine, tubular cell death and neutrophil infiltration induced by renal ischemia-reperfusion (IR) in mice. C57BL/6 mice were subjected to 25 min of bilateral renal ischemia. Honokiol (1 mg/kg) or vehicle was injected twice, 1 h prior to ischemia and 4 h after reperfusion. The blood and kidney tissues were collected at 24 h of reperfusion. (a) Plasma creatinine levels were measured to assess the degree of kidney injury. (b) Representative images of H&E staining of renal sections to evaluate tubular pathology. Arrows indicate necrotic area. (c) Representative images of polymorphonuclear leukocytes (PMN) staining of renal sections to evaluate neutrophil infiltration. (d) Representative images of terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) staining of renal sections to evaluate tubular apoptosis; TUNEL (green) merged with DAPI (blue). Values are expressed as the means ± S.E.M. of 4–8 mice from each group. * p < 0.05, ** p < 0.01 significant compared with Veh sham. # p < 0.05, ## p < 0.01 significant compared with Veh IR.
Biomedicines 08 00352 g006
Biomedicines 08 00352 g007a 550Biomedicines 08 00352 g007b 550

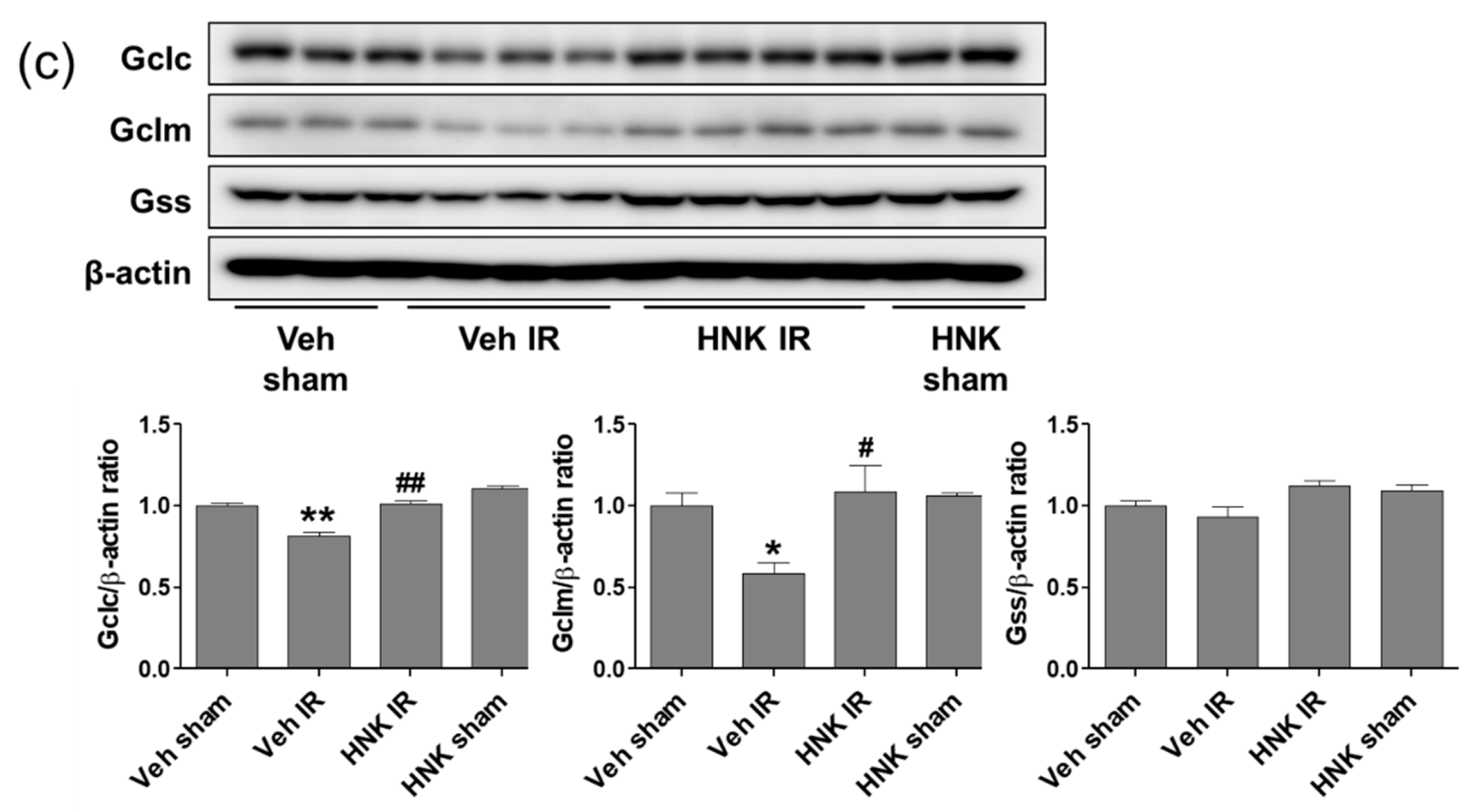

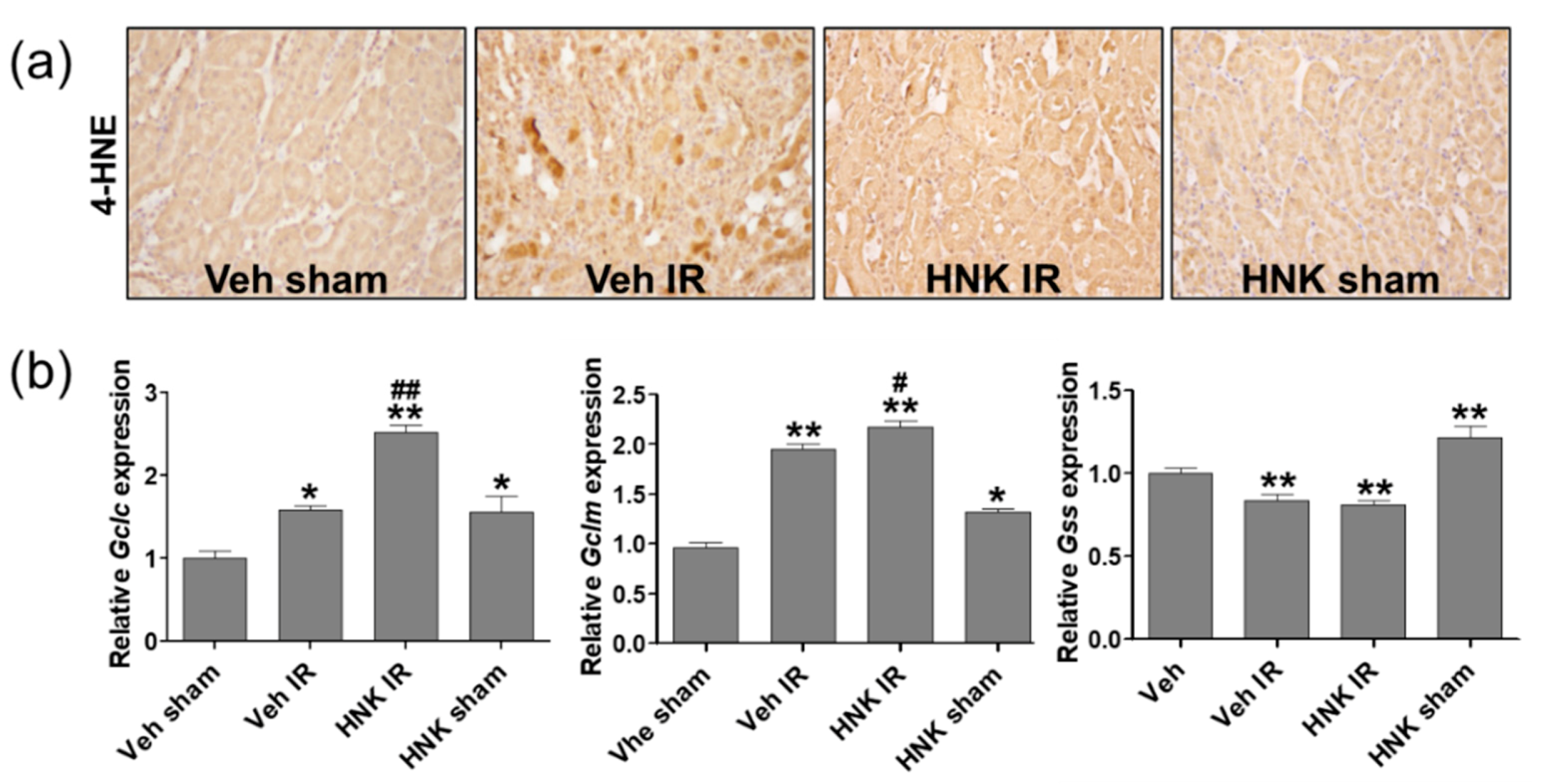

Figure 7. Honokiol attenuates the lipid peroxidation by increasing the expression of GSH biosynthetic enzymes in the kidney of IR-subjected mice. C57BL/6 mice were subjected to 25 min of bilateral renal ischemia. Honokiol (1 mg/kg) or vehicle was injected twice, 1 h prior to ischemia and 4 h after reperfusion. The kidney tissues were collected at 24 h of reperfusion. (a) Representative images of 4-HNE staining of renal sections to evaluate the lipid peroxidation. (b) The mRNA expression of Gclc, Gclm, and Gss was determined in kidney tissues by real-time PCR analysis. Relative mRNA levels were normalized to those of GAPDH. (c) The protein expression of Gclc, Gclm, and Gss was determined in the kidney tissue lysates using Western blot analysis. Relative protein levels were normalized to those of β-actin. Values are expressed as the means ± S.E.M. of 4–8 mice from each group. * p < 0.05, ** p < 0.01 significant compared with Veh sham. # p < 0.05, ## p < 0.01 significant compared with Veh IR.
Figure 7. Honokiol attenuates the lipid peroxidation by increasing the expression of GSH biosynthetic enzymes in the kidney of IR-subjected mice. C57BL/6 mice were subjected to 25 min of bilateral renal ischemia. Honokiol (1 mg/kg) or vehicle was injected twice, 1 h prior to ischemia and 4 h after reperfusion. The kidney tissues were collected at 24 h of reperfusion. (a) Representative images of 4-HNE staining of renal sections to evaluate the lipid peroxidation. (b) The mRNA expression of Gclc, Gclm, and Gss was determined in kidney tissues by real-time PCR analysis. Relative mRNA levels were normalized to those of GAPDH. (c) The protein expression of Gclc, Gclm, and Gss was determined in the kidney tissue lysates using Western blot analysis. Relative protein levels were normalized to those of β-actin. Values are expressed as the means ± S.E.M. of 4–8 mice from each group. * p < 0.05, ** p < 0.01 significant compared with Veh sham. # p < 0.05, ## p < 0.01 significant compared with Veh IR.
Biomedicines 08 00352 g007aBiomedicines 08 00352 g007b
Biomedicines 08 00352 g008 550

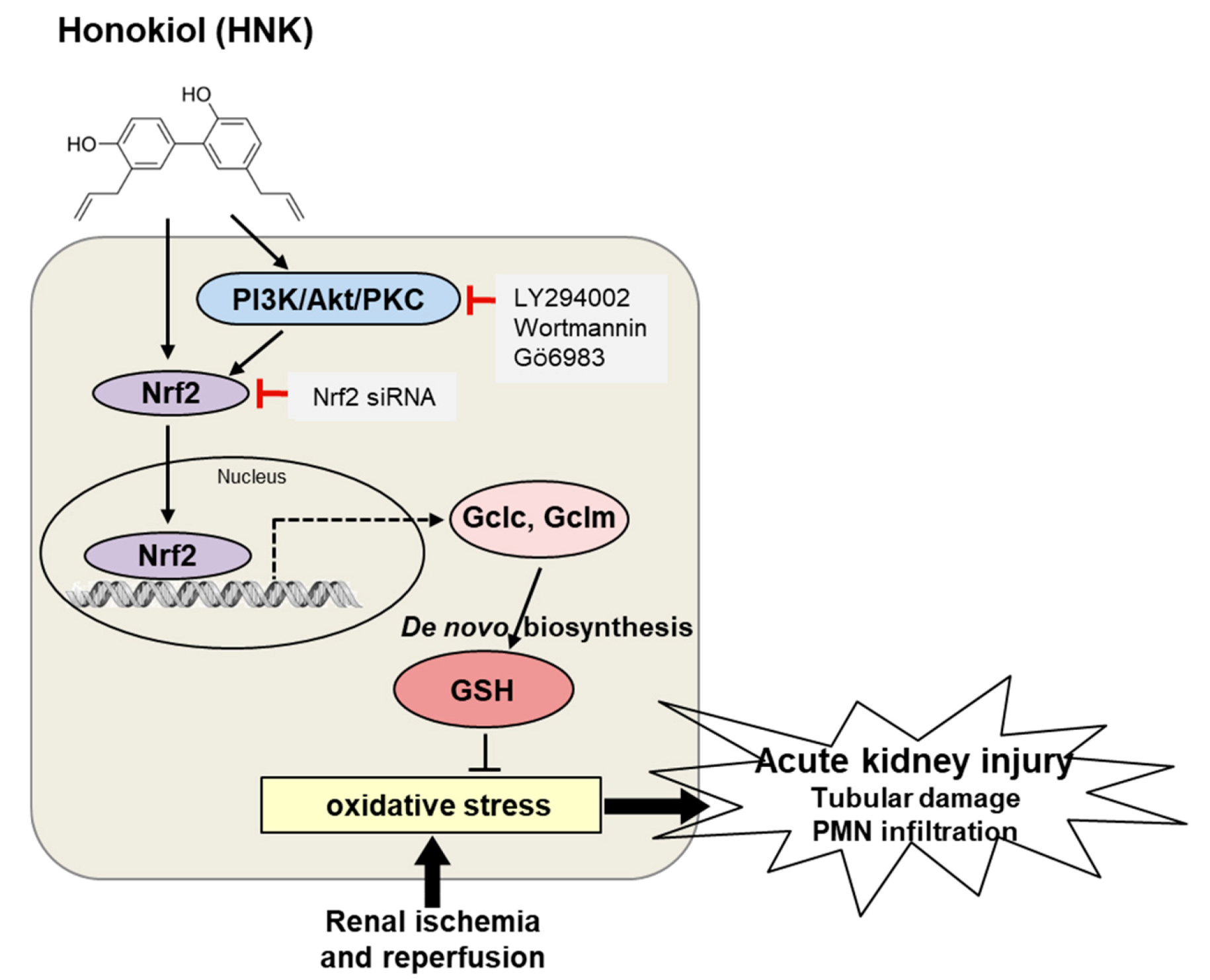

Figure 8. A proposed molecular mechanism of honokiol that protects the kidney against renal IR injury. Honokiol activates PI3K/Akt and PKC signaling, increasing nuclear translocation of Nrf2 for transcription of antioxidant genes including Gclc and Gclm. An increase of GSH exerts an antioxidant effect, attenuating IR injury. Solid, dashed, and bold arrows indicate signaling transduction pathways, gene transcription, and induced pathology, respectively. Different colors represent individual pathways or proteins.
Figure 8. A proposed molecular mechanism of honokiol that protects the kidney against renal IR injury. Honokiol activates PI3K/Akt and PKC signaling, increasing nuclear translocation of Nrf2 for transcription of antioxidant genes including Gclc and Gclm. An increase of GSH exerts an antioxidant effect, attenuating IR injury. Solid, dashed, and bold arrows indicate signaling transduction pathways, gene transcription, and induced pathology, respectively. Different colors represent individual pathways or proteins.
Biomedicines 08 00352 g008
Table
Table 1. Primers used in this study.
Table 1. Primers used in this study.
GenesPrimers (5′-3′)
Human GclcForward: CCCAAACCATCCTACCCTTT
Reverse: CATGTTGGCCTCAACTGTATTG
Human GclmForward: CCTGTTCAGTCCTTGGAGTTG
Reverse: CCTCCCAGTAAGGCTGTAAATG
Human GssForward: CCTGTTCAGTCCTTGGAGTTG
Reverse: CCTCCCAGTAAGGCTGTAAATG
Human GAPDHForward: GGTGTGAACCATGAGAAGTATGA
Reverse: GAGTCCTTCCACGATACCAAAG
Mouse GclcForward: CATCGACCTGACCATCGATAAG
Reverse: AGGGTGAGTGGGTCTCTAATAA
Mouse GclmForward: GTATCAGTGGGCACAGGTAAA
Reverse: CGGGTCATTGTGAGTCAGTAG
Mouse GssForward: ACCTTTGCTGGCCTCTATTC
Reverse: TTGTTACCTCCACCCTCTCT
Mouse GAPDHForward: GTGGCAAAGTGGAGATTGTTG
Reverse: TTGACTGTGCCGTTGAATTTG

Share and Cite

MDPI and ACS Style

Park, E.J.; Dusabimana, T.; Je, J.; Jeong, K.; Yun, S.P.; Kim, H.J.; Kim, H.; Park, S.W. Honokiol Protects the Kidney from Renal Ischemia and Reperfusion Injury by Upregulating the Glutathione Biosynthetic Enzymes. Biomedicines 2020, 8, 352. https://doi.org/10.3390/biomedicines8090352

AMA Style

Park EJ, Dusabimana T, Je J, Jeong K, Yun SP, Kim HJ, Kim H, Park SW. Honokiol Protects the Kidney from Renal Ischemia and Reperfusion Injury by Upregulating the Glutathione Biosynthetic Enzymes. Biomedicines. 2020; 8(9):352. https://doi.org/10.3390/biomedicines8090352

Chicago/Turabian Style

Park, Eun Jung, Theodomir Dusabimana, Jihyun Je, Kyuho Jeong, Seung Pil Yun, Hye Jung Kim, Hwajin Kim, and Sang Won Park. 2020. "Honokiol Protects the Kidney from Renal Ischemia and Reperfusion Injury by Upregulating the Glutathione Biosynthetic Enzymes" Biomedicines 8, no. 9: 352. https://doi.org/10.3390/biomedicines8090352

APA Style

Park, E. J., Dusabimana, T., Je, J., Jeong, K., Yun, S. P., Kim, H. J., Kim, H., & Park, S. W. (2020). Honokiol Protects the Kidney from Renal Ischemia and Reperfusion Injury by Upregulating the Glutathione Biosynthetic Enzymes. Biomedicines, 8(9), 352. https://doi.org/10.3390/biomedicines8090352

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
