Article

Substantiating the Therapeutic Effects of Simultaneous Heat Massage Combined with Conventional Physical Therapy for Treatment of Lower Back Pain: A Randomized Controlled Feasibility Trial

1
Department of Rehabilitation Medicine, Presbyterian (Jesus) Medical Center, Jeonju 54987, Republic of Korea
2
College of Social Sciences, Jeonju University, Jeonju 55069, Republic of Korea
3
College of Medical Sciences, Jeonju University, Jeonju 54896, Republic of Korea
4
Research Center of Welllife Healthcare, Sungkyul University, Anyang 14097, Republic of Korea
*
Author to whom correspondence should be addressed.
Healthcare 2023, 11(7), 991; https://doi.org/10.3390/healthcare11070991
Submission received: 19 February 2023 / Revised: 25 March 2023 / Accepted: 27 March 2023 / Published: 30 March 2023
(This article belongs to the Special Issue Back Pain: Pathophysiology, Diagnosis, and Treatment)

Abstract

:
Background: There are various therapeutic options for the conservative management of lower back pain (LBP). A combination of two or more treatment options may be more effective in the clinical management of non-specific LBP. In this study, we compared the effects of simultaneous heat massage with conventional physical therapy in patients with subacute LBP. Methods: A single-center randomized controlled trial in which 40 participants with LBP were allocated to one of two groups: a heat massage group (HMG) and physical therapy group (PTG). The HMG received simultaneous heat massage therapy using a mechanical device (CGM MB-1401, Ceragem, Republic of Korea). The PTG received conventional physical therapy. Both groups received 40 min of therapy once daily, five times a week, for a total of four weeks. Changes in serum cortisol, epinephrine (EP), and norepinephrine (NE) were assessed. The outcomes were measured using the pain numeric rating scale (PNRS), the Oswestry disability index (ODI), the Roland–Morris disability questionnaire (RMDQ), the short-form McGill pain questionnaire (SF-MPQ), the multidimensional fatigue inventory (MFI-20), the Beck depression inventory (BDI), surface EMG (sEMG), and sympathetic skin response (SSR) at baseline (PRE), at 2 (2 W) and 4 weeks (4 W) following the intervention. Results: The serum EP and NE levels in the HMG decreased after treatment. The PNRS, ODI, RMDQ, and SF-MPQ scores improved without significance in both groups. The BDI score showed improvement in the HMG before the PTG. The MFI-20 score improved in both groups, but the results were better in the HMG than in the PTG at 4 W. All the activities of sEMG were significantly decreased in both groups. However, the improvement of the %MVIC in the HMG was better than that in the PTG at 4 W. The SSR latency on sEMG decreased while the amplitude increased in the HMG at 2 W and 4 W, respectively. Conclusions: Following 4 weeks of combined therapies, heat massage was not superior to conventional physical therapy alone. Both treatments were shown to be effective in improving LBP and pain-related disability. However, heat massage was shown to have a better effect on the control of autonomic nerve function and underlying moods.

1. Introduction

Lower back pain (LBP) is a widespread problem in clinical practice [1]. Research studies have reported that LBP compromises function and causes more disability than most other health conditions worldwide [2]. The functionality of individuals is profoundly impacted. It affects our performance in activities in daily living, including leisure, and affects our quality of life by preventing us from fulfilling our duties and responsibilities at work [2]. The literature indicates that approximately 60–80% of the world’s population will experience an episode of LBP at some point, and among these individuals, 60–85% are expected to have more than one episode in their lifetime [1,2].
The clinical management of LBP broadly ranges from conservative to intensive approaches and includes surgical interventions in some cases [3]. A non-surgical approach usually involves a regimen of medication and rest, as well as therapeutic modalities, such as exercise, stretching, heat, and massage. The dual purpose and primary goal in the conservative management of LBP are to preserve the baseline function and to prevent disability [3]. Thus, many will opt for efficient and conservative treatment methods that ensure an uninterrupted lifestyle with a speedy return to work and continued community participation.
The most common conservative treatment approach to the management of non-specific pain is the application of heat and low-frequency TENS. The clinical effects of thermal therapy produce temporary pain relief from enhanced blood flow and metabolism and improve the elasticity of the connective tissues [4]. A heat wrap is more effective, and one study compared it with pharmacotherapeutics—acetaminophen or ibuprofen—for pain relief and showed improved scores on the Roland–Morris disability questionnaire (RMDQ) [5].
On the opposite end of the spectrum, in terms of pain management, massage therapy is considered to be one of the oldest and most widely used non-pharmacologic approaches to LBP management. It promotes circulation and increases lymphatic drainage, improves the elastic and inelastic properties of connective tissues and muscles, reduces muscle pain, relaxes rigid muscles, and systemically relaxes the body [6]. In a previous Cochrane study, massage was determined to be an effective treatment option for the treatment of acute, subacute, and chronic LBP [7]. Massage therapy, such as heat therapy, has been shown to be more effective in the treatment and management of subacute LBP when combined with other therapeutic approaches than medication, exercise, or education alone [8].
The clinical effects of combined heat and massage application include increased blood flow to the affected areas, reduced muscle spasms, and increased flexibility [9]. If heat and massage are applied at the same time, these effects are expected to be intensified. Previous studies have shown that simultaneously combining two or more treatments for LBP is more effective than single-modality management [8,10]. Heat plus exercise provides greater pain relief with improved RMDQ scores when compared with exercise alone in LBP patients [10]. The combined thermal massage is presumed to have a synergistic effect. However, there have been no studies comparing the effects of the direct application of simultaneously combined heat and massage against conventional therapy for pain relief. This knowledge gap serves as the rationale for a clinical investigation using a therapeutic thermal massage device. Thus, the purpose of this study was to investigate the clinical improvement of pain and function by comparing the treatment effects of heat-structured massage and conventional physical therapy in individuals with LBP.

2. Materials and Methods

2.1. Design and Sample Size

This pilot study is a single-blinded, prospective, randomized, controlled trial. The study was approved by the Institutional Review Board of the Presbyterian Medical Center (IRBN. 2019-03-006) and was registered with the Clinical Research Information Service (KCT0004654; 28 January 2020). All ethical considerations were addressed and incorporated in the explanation of the research study to participants, and their written consent was obtained thereafter. We enrolled 20 participants in one of two groups (n = 40) through convenience sampling and exceeded the minimum recommended number of participants for pilot studies [11].

2.2. Participants

Randomization was achieved using a centrally generated, variable-sized block design created by a statistical program that was concealed and protected. Physicians and collaborating researchers were blinded to the type of management. The participants knew if they received heat massage or physical therapy, but they were blinded to the way in which they received the treatment. The study was conducted by a third-party clinical research coordinator.
Forty-six patients with nonspecific LBP were recruited from an outpatient clinic through a 3-week poster advertisement period. The enrollees were randomized into either physical therapy (PTG) or heat massage treatment (HMG) groups based on the random allocation sequence. The two groups were managed in separate buildings of the medical center to ensure blinding. The clinical characteristics of the participants, including age, body weight, height, BMI, and history, were recorded before group allocation.
Patients were eligible for enrollment if they were aged 18 years and over, experienced LBP for more than 6 weeks, had a Roland–Morris disability questionnaire (RMDQ) score of 4–6 points, and an Oswestry disability index (ODI) score of 40% or lower. Patients were excluded from the study if they had a history of recent illness, malignancy, pregnancy, muscle disease, surgical history of the lumbar or thoracic back region, or inflammatory spine disease. They were excluded if they were taking medications, including non-steroidal anti-inflammatory drugs (NSAIDs); if they had cognitive dysfunction, compression of the dorsal root, or discogenic pain. Patients who scored 7 points or higher on the pain numeric rating scale (PNRS) with accompanying pain radiating to the lower limbs were also excluded, as were those experiencing muscular weakness and abnormal sensations in the lower limbs. Finally, patients with positive RA, ANA, HLA-B29, and CRP through laboratory testing were also excluded before the start of the clinical trial.

2.3. Intervention

The heat massage device (CGM MB-1401; Ceragem, Seoul, Republic of Korea) was run in the eighth mode (this mode provides acupressure, moxibustion, and rubbing along the spine) in the HMG study (Figure 1). Once the participant laid down on the device in the supine position, a rolling projector protruded up against the posterior aspect of the spinal column to scan its curvature along the sagittal plane from the cervical spine through to the sacrum. These rollers applied heat and massage while automatically adjusting the height of the protrusion with reference to the curvature of the entire length of the spine. All participants used the device for 40 min, once daily, 5 days per week, for a total of 4 weeks.
In the PTG, the participants received physical therapy treatment (from 4 physiotherapists) for up to 5 days per week for 4 weeks in total. Treatment consisted of a typical physiotherapy program without exercises, with the application of 5 min of therapeutic ultrasound (US), 10 min of transcutaneous electrical nerve stimulation (TENS), and 15 min of hot pack application. TENS was applied with a frequency of 75~125 Hz and an intensity of 40 mA. Ultrasound was applied for 5 min with a frequency of 1MHz and an intensity of 1.5 W/cm2. Both treatments were applied to specific areas of the lower back where patients complained of pain. This is the representative non-surgical approach to the conservative therapeutic regimen commonly used for LBP patients in the Republic of Korea [12].
Participants who received physical therapy or heat massage for at least one session were reported to the researcher if they experienced any adverse events.

2.4. Measurement Tools

The pain numeric rating scale (PNRS), the Oswestry disability index (ODI), and the Roland–Morris disability questionnaire (RMDQ) were used as tools to assess the back pain intensity and its impact on pain and function [13]. The PNRS is a unidimensional measure of pain intensity and is a segmented numeric version of the visual analog scale (VAS), in which a participant selects a whole number (0–10 integers) that best reflects the intensity of pain [14]. The ODI is used to measure the LBP-related dysfunction and consists of 10 questions—5 points for each question—and the total score is expressed as a percentage. We used the validated Korean version of the ODI in this study [15,16]. The RMDQ is a tool consisting of 24 questions—scored from 0 to 24—and has been reported to closely reflect the changes over time in patients with LBP. It was designed for use in research to assess physical disability due to LBP and is more discriminative among patients who have relatively little disability over those who have a high level of disability [15,17].
The short-form McGill pain questionnaire (SF-MPQ) is an abbreviated version of the widely used MPQ and is a combination of a descriptive scale, VAS, and present pain intensity (PPI) scale. The descriptive scale and pain rating index are based on 15 selected words, including a sensory subscale with 11 words and an affective subscale with 4 words [18].
The Beck depression inventory (BDI) and the multidimensional fatigue inventory (MFI-20) were used as parameters to assess pain-related depression and fatigue.
Surface electromyography (sEMG) and the sympathetic skin response (SSR) were measured to analyze the voltage level of the spinal muscles and the changes in sympathetic activities.
Using the FREEEMG device (BTS Bioengineering Corp, Boston, MA, USA), a sampling rate of 1000 Hz and a band-pass filtered from 20 to 500 Hz, the sEMG signals of the spinal extensor muscles were obtained. This examination was performed at rest and in the most flexed position. The pairs of electrodes were placed on the right and left sides of the muscles. Upon finding the L3 level through palpation, each of the two recording electrodes was attached at the L3 vertebral level, 2–3 cm away from the center of the spine. The reference electrode was attached 10 cm above the L3 recording electrode [19].
In order to assess activities during the motion of trunk flexion extension, sEMG was measured in the lumbar paraspinal muscles. The participant was in an upright standing position with arms crossed over their chest, then flexed about the waist fully forward, and held this position for 6 s before returning to a straight standing position. The data obtained for 6 s in a completely flexed posture showed an average RMS value of 4 s, excluding 1 s before and after. Participants were placed in the prone position for the isometric contraction test with the lower limbs fixed to the bed with straps, and the MVIC (maximum voluntary isometric contraction) was measured for 6 s while the lumbar extensors were maintained in the prone position. The acquired data, treated as the RMS with the average value for 4 s, excluding the first and last second, was recorded as the MVIC [20,21]. All tests were performed 3 times to obtain an average value. To compare the EMG activity of the MVIC and the full flexion posture, the sEMG signals were normalized by dividing the RMS (%MVIC) [22,23].
The sympathetic skin response (SSR) was monitored using a Viking IV (CareFusion, San Diego, CA, USA) instrument to measure changes in the sympathetic nervous system reflecting pain-induced stress. The filter settings were adjusted (0.2~20 Hz), and the participant was laid in the supine position in a quiet, dimly lit room with an ambient temperature between 22 and 24 °C. A round surface electrode with a diameter of 1 cm was attached 2 cm from the medial border of the left palm, while a reference electrode was attached to the dorsal surface of the right hand. Nerve stimulation was applied 3 times on the proximal part of the volar wrist on the right medial nerve distribution surface, and the intensity was set at 15~20 mA.
All parameters, except for blood sampling, were evaluated before the start of the clinical trial (PRE), after 2 weeks (2 W), and at 4 weeks (4 W). The laboratory tests included evaluation of the epinephrine (EP), norepinephrine (NE), and cortisol levels before the clinical trial (PRE), with the changes in these levels compared at 4 weeks (4 W). Coffee, tea, chocolate, and allergy medications were prohibited a day before blood sample collection.

2.5. Statistics

All statistical tests and analyses were conducted using SPSS for Windows (Version 22.0; SPSS, Inc., Chicago, IL, USA). A p-value of <0.05 was considered statistically significant. A Shapiro–Wilk test was performed to assess the normality of the distribution. The independent sample t-test, Mann–Whitney U-test, and Chi-squared test were conducted to determine the general characteristics and homogeneity of the pre-measured values in both groups. In order to verify the effectiveness of the thermal massage device, the independent sample t-test and Mann–Whitney U-test were used to compare the outcomes between the two groups. Repeated measures of ANOVA and Friedman test with a Bonferroni correction assessed the between-group differences regarding changes in the PNRS, SF-MPQ, RMDQ, and ODI.

3. Results

3.1. General Characteristics

A total of 40 participants were evaluated after the exclusion of six due to their unwillingness to continue with the study. There were no significant differences between the experimental and control groups in the general characteristics (Table 1). The absence of significant differences (p > 0.05) between the two groups on homogeneity testing was deemed suitable for conducting the trial (Table 2).

3.2. Blood Chemistry

Cortisol levels were not different before and after treatment, and these values were not significantly different between the two groups, as shown in Table 3. However, there was a significant decrease in serum EP and NE levels at 4 weeks compared to baseline in the HMG (p < 0.05). This is summarized in Table 2.

3.3. Pain and Pain-Related Disability

The PNRS, ODI, RMDQ, and SF-MPQ scores improved after 2 W and 4 W in both groups when compared to before the trial. There was no significant difference after treatment between the HMG and PTG (p < 0.05) (Table 4 and Table 5).

3.4. BDI and MFI-20

In the HMG, the MFI-20 was gradually improved to PRE (57.50 ± 2.07), 2 W (54.44 ± 4.06), and 4 W (47.50 ± 5.38) with treatment. Similarly, in the PTG, the MFI-20 was improved to PRE (58.17 ± 2.18), 2 W (54.28 ± 3.80), and 4 W (51.22 ± 3.75). The MFI-20 of both groups were improved at 2 W, but there was no significant difference. However, at 4 W, The MFI-20 of the HMG showed a significant improvement compared to that of the PTG (p < 0.05) (Figure 2).
There was a gradual improvement in the BDI with treatment in both groups. In the HMG, the BDI was improved to PRE (10.83 ± 3.70), 2 W (9.44 ± 3.52), and 4 W (7.61 ± 1.9). In the PTG, the BDI was improved to PRE (11.11 ± 3.18), 2 W (10.11 ± 3.32), and 4 W (9.39 ± 4.10). The BDI of the PTG was improved at 4 W compared to PRE and 2 W, whereas that of the HMG was improved at 2 W (p < 0.05) (Figure 2).

3.5. EMG and SSR

The levels of the normalized sEMG signal (%MVIC) were changed at PRE (60.17 ± 20.67), at 2 W (59.35 ± 16.97), and at 4 W (42.94 ± 11.22) among the HMG based on treatment progress; changes were also observed at PRE (59.58 ± 19.92), at 2 W (56.02 ± 18.80), and at 4 W (54.15 ± 21.17) in the PTG. The %MVIC was significantly decreased at 4 W in both groups. However, there was a decrease in the HMG compared to the PTG at 4 W (p < 0.05) (Figure 3).
The SSR measurement for the HMG showed a decreased latency with increased amplitude at 4 W and at 2 W. However, for the PTG, the latency decreased, and amplitude increased at 4 W and at 2 W, respectively, with similar results for PRE. In comparison between the two groups, the latency, and amplitude of the SSR were significantly different at 2 W and 4 W compared to at PRE (p < 0.05) (Figure 3).

3.6. Safety

There were no adverse events observed in either group during each visit.

4. Discussion

The study aimed to verify changes in the level of disability and symptoms related to LBP by undergoing physical therapy or heat massage treatment options among patients who have had underlying back pain for more than 6 weeks.
The literature shows that the levels of epinephrine (EP) and norepinephrine (NE) are higher in patients with frequent episodes of back pain; labor-related stress factors were associated with inducing musculoskeletal pain and NE concentration [24,25]. In our study, we observed a significant decrease in serum EP and NE levels at 4 W among members of the HMG. The serum levels of EP and NE serve as indicators of the sympathetic nervous system (SNS) function under a normal physiologic state. The decrease in these levels is reflective of the decreased function of the sympathetic nerve input, presumably as a direct result of the heat massage application. However, the measurement of catecholamines can be influenced by factors such as time, diet, tobacco, caffeine, position, exercise, and stress, as well as by techniques in phlebotomy and specimen collection. Therefore, further research is necessary to elucidate the precise role of these indicators in establishing pain.
In this study, the ODI and RMDQ evaluated the functional level of daily life, and the SF-MPQ was used to assess the degree of pain and related emotional states among those with LBP. These are specific measurement tools related to LBP rather than an indication of the patient’s performance, disability, and overall health. Although both groups showed improvement in LBP after the intervention, there were no differences between the two groups regarding pain and pain-related indicators, such as the VAS, ODI, and RMDQ. The results suggest that both clinic-based PT with simultaneous heat massage application can effectively control LBP and function.
The BDI and MFI-20 were assessed to observe the changes in the quality of life based on pain improvement by comparing both types of management, and these were shown to be effective using these measurements. Fatigue and accompanying various morbidities, including LBP, can also profoundly impact the quality of life. Participants with LBP and fatigue had greater pain intensity, more depressive symptoms, and increased levels of disability compared to those without substantial fatigue. Further, chronic LBP patients were found to be more fatigued [26,27].
Pain alone can be a single cause of fatigue. Fatigue and pain have a synergic effect in reducing the functional capacity in LBP patients. The loss of function may be increased due to the simultaneous occurrence of fatigue and LBP [28]. Therefore, fatigue should be simultaneously assessed when evaluating pain in patients with LBP. The MFI-20 is a self-reported instrument designed for the measurement of fatigue. Although there have been no studies addressing fatigue using massage application in LBP with the MFI-20, a previous study of cancer patients reported that massage therapy produced significant relief for fatigue in this patient group [29].
Previous studies have shown higher scores for depression among patients with acute or subacute non-specific LBP than among asymptomatic participants without underlying pain [30], and depression may affect the prognosis of acute and subacute LBP, according to a systematic review [31]. In this study, the first improvement of depression in the HMG was observed at two weeks. It is plausible that this may be attributed to the effects of massage therapy. A previous study showed that massage is effective for clinical depression [32]. In a study on the progression of depression associated with LBP, it was reported that patients who experienced substantial improvement in LBP showed simultaneously improved levels of depression. Hence, in the treatment of LBP, it is advantageous to evaluate the degree of pain and underlying depression [33].
In the meta-analytic review for sEMG, as an objective marker of LBP, sEMG is a simple and noninvasive measure of muscle activity [23]. The normalization of sEMG is performed when comparing EMG amplitudes between individual muscle fascicles or between subjects because the RMS value of sEMG is affected by the age, sex, and body fat of the individual. For example, the amplitudes of sEMG will be decreased in those with higher fat and less water content in the body [34]. In this study, there were no differences in age, sex, and BMI in both groups prior to intervention, and the BMI was shown to be appropriately proportional to body fat [35]. The most common method of normalizing EMG signals is to use the maximal voluntary isometric contraction (MVIC) method as the reference value [22].
The flexion-relaxation phenomenon (FRP) is defined as the reduced EMG activity of the lumbar erector spinal muscle during full trunk flexion, and it is achieved in healthy individuals but not in most LBP patients. The FRP is the most studied sEMG response among the various physiologic indicators of LBP [23,36]. The levels of sEMG activities after normalization (%MVIC) were significantly decreased in both groups. However, at 4 W, the %MVIC of the HMG was decreased, while the PTG showed no changes. It is plausible that both groups had a decrease in sEMG signals at full flexion due to an improvement in LBP. The improved muscle relaxation among the HMG is presumably the result of an additive effect of the heat combined with deep massage. However, further research is warranted to elucidate the precise pressure measurement applied by the massage device.
Musculoskeletal pain triggers constant stress, which activates the SNS, resulting in increased blood pressure, tachycardia, dizziness, anxiety, and muscle tension. Persistent pain is accompanied by physiologic changes within the autonomic nervous system (ANS) [37]. The excessive stimulation of the SNS may contribute to the intensity and chronicity of pain via the increased nociceptor response [38,39]. When functional changes occur due to stress in the ANS, an electrodiagnostic examination reveals the presence of SSR, usually with increased amplitude and decreased latency [40].
In our measurement of the SSR, the latency increased while the amplitude decreased in both groups. However, in the HMG, the latency and amplitude of the SSR after treatment were different compared to those of the PTG. A previous study concurrently showed that the application of simultaneous thermal massage reduced sympathetic activity, and similar results have also been observed in the SSR [41]. These observations are presumably attributed to a decrease in sympathetic activity with associated catecholamine changes following the thermal massage.
A Cochrane review for LBP concluded that massage might be beneficial for subacute and chronic nonspecific LBP, especially when combined with exercise and patient education [42].
Massage therapy benefits the human body through muscular relaxation, improved blood and lymph circulation, and neurohormonal immunologic effects. Moreover, when heat is combined with massage and is applied to a painful area, the resultant benefits are further heightened. It promotes increased blood flow with vasodilatation, an increased metabolic rate, relaxation of muscle spasms, pain relief via the gate-control mechanism with reduced ischemia, and increased connective tissue elasticity. Circulatory vessels also widen to enhance blood flow to transport excess lactic acid and other toxins away from fatigued muscles. It also relaxes muscle tone by reducing muscle spindle and gamma-efferent firing rates [43]. A Cochrane review for LBP concluded that massage might be beneficial for subacute and chronic nonspecific LBP, especially when combined with exercise and patient education [42].
Therefore, when applying both heat and massage simultaneously, it was expected that a synergistic effect of the two applications would have a better impact than conventional physical therapy. Ironically, the results from this study did not confirm this expectation. On the contrary, in a previous study on the effects of massage on LBP, the results showed that massage was significantly better than general physical therapy in improving pain or disability [44].
Other studies have also shown that hand massage is therapeutically better than physical therapy modalities for the management and decrease of (1) pain intensity, (2) disability, and (3) missed work days [45,46].
There is the likelihood of potential confounding bias in terms of the therapist–patient relationship, as well as the techniques and experiences in the application of therapeutic hand massage. These confounding variables should be controlled in order to obtain a true effect size as much as possible. To control for this and standardize the delivery of intervention in our study, the massage device was used. In this study, the comparative analysis between heat massage and physical therapy and the resultant effects on pain and pain-related dysfunction were similar. Nevertheless, heat massage was shown to have a better effect on autonomic nerve function and the underlying mood.
The limitations of this study included the small sample size, short study period, and exclusive focus on subacute LBP. For the purposes of generalizability, a comparative study is warranted in the future, which includes an adequately powered sample size and a longer duration of treatment application with other therapeutic modalities.

5. Conclusions

The resultant effects on pain and pain-related dysfunction were shown to be similar in this study that compared heat massage with conventional physical therapy. Both treatments were shown to be effective in improving pain and pain-related disability. Combination heat massage management is not superior to conventional physical therapy. Nevertheless, heat massage was shown to have a better effect on the control of autonomic nerve function and underlying mood.

Author Contributions

Conceptualization, T.-H.K., Y.-S.Y., J.-H.L., H.-Y.J., I.-Y.C. and S.-K.P.; Formal analysis, software, J.-H.L.; Investigation, data curation, visualization, writing—original draft preparation, T.-H.K.; Resources, supervision, I.-Y.C., H.-Y.J., J.-H.L. and S.-K.P.; Methodology, validation, project administration, writing—review and editing, Y.-S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and was approved by the Institutional Review Board (or Ethics Committee) of Clinical Research Information Service (protocol code KCT0004654; date of approval 28 January 2020).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data will be available upon reasonable request to the authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vlaeyen, J.W.S.; Maher, C.G.; Wiech, K.; Van Zundert, J.; Meloto, C.B.; Diatchenko, L.; Battié, M.C.; Goossens, M.; Koes, B. Low back pain. Nat. Rev. Dis. Prim. 2018, 4, 52. [Google Scholar] [CrossRef] [PubMed]
  2. Hoy, D.; March, L.; Brooks, P.; Blyth, F.; Woolf, A.; Bain, C.; Williams, G.; Smith, E.; Vos, T.; Barendregt, J.; et al. The global burden of low back pain: Estimates from the Global Burden of Disease 2010 study. Ann. Rheum. Dis. 2014, 73, 968–974. [Google Scholar] [CrossRef] [Green Version]
  3. Gugliotta, M.; da Costa, B.R.; Dabis, E.; Theiler, R.; Jüni, P.; Reichenbach, S.; Landolt, H.; Hasler, P. Surgical versus conservative treatment for lumbar disc herniation: A prospective cohort study. BMJ Open 2016, 6, e012938. [Google Scholar] [CrossRef] [Green Version]
  4. Nadler, S.F.; Weingand, K.; Kruse, R.J. The physiologic basis and clinical applications of cryotherapy and thermotherapy for the pain practitioner. Pain Physician 2004, 7, 395–399. [Google Scholar] [CrossRef] [PubMed]
  5. Nadler, S.F.; Steiner, D.J.; Erasala, G.N.; Hengehold, D.A.; Hinkle, R.T.; Goodale, M.B.; Weingand, K.W. Continuous low-level heat wrap therapy provides more efficacy than Ibuprofen and acetaminophen for acute low back pain. Spine 2002, 27, 1012–1017. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Gonzalez, E.G.; Myers, S.J.; Edelstein, J.E.; Lieberman, J.S.; Downey, J.A. Downey and Darling’s physiological basis of rehabilitation medicine. In Manual Modalities, 3rd ed.; Gailey, R.S., Raya, M.A., Eds.; Butterworth-Heinemann: Boston, MA, USA, 2001; pp. 761–776. [Google Scholar]
  7. Furlan, A.D.; Giraldo, M.; Baskwill, A.; Irvin, E.; Imamura, M. Massage for low-back pain. Cochrane Database Syst. Rev. 2015, 2015, CD001929. [Google Scholar] [CrossRef]
  8. Preyde, M. Effectiveness of massage therapy for subacute low-back pain: A randomized controlled trial. CMAJ Can. Med. Assoc. J. J. Assoc. 2000, 162, 1815–1820. [Google Scholar]
  9. Simon, D.; Scott, H. Evidence-Based Management of Low Back Pain, 1st ed.; Mosby: Maryland Heights, MO, USA, 2011; pp. 216–228. [Google Scholar]
  10. Mayer, J.M.; Ralph, L.; Look, M.; Erasala, G.N.; Verna, J.L.; Matheson, L.N.; Mooney, V. Treating acute low back pain with continuous low-level heat wrap therapy and/or exercise: A randomized controlled trial. Spine J. Off. J. North Am. Spine Soc. 2005, 5, 395–403. [Google Scholar] [CrossRef]
  11. Hertzog, M.A. Considerations in determining sample size for pilot studies. Res. Nurs. Health 2008, 31, 180–191. [Google Scholar] [CrossRef]
  12. Hush, J.M.; Lee, H.; Yung, V.; Adams, R.; Mackey, M.; Wand, B.M.; Nelson, R.; Beattie, P. Intercultural comparison of patient satisfaction with physiotherapy care in Australia and Korea: An exploratory factor analysis. J. Man. Manip. Ther. 2013, 21, 103–112. [Google Scholar] [CrossRef] [Green Version]
  13. Collins, S.L.; Moore, R.A.; McQuay, H.J. The visual analogue pain intensity scale: What is moderate pain in millimetres? Pain 1997, 72, 95–97. [Google Scholar] [CrossRef] [PubMed]
  14. Rodriguez, C.S. Pain measurement in the elderly: A review. Pain Manag. Nurs. Off. J. Am. Soc. Pain Manag. Nurses 2001, 2, 38–46. [Google Scholar] [CrossRef]
  15. Roland, M.; Morris, R. A study of the natural history of back pain. Part I: Development of a reliable and sensitive measure of disability in low-back pain. Spine 1983, 8, 141–144. [Google Scholar] [CrossRef] [PubMed]
  16. Jeon, C.H.; Kim, D.J.; Kim, S.K.; Kim, D.J.; Lee, H.M.; Park, H.J. Validation in the cross-cultural adaptation of the Korean version of the Oswestry Disability Index. J. Korean Med. Sci. 2006, 21, 1092–1097. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Roland, M.; Fairbank, J. The Roland-Morris Disability Questionnaire and the Oswestry Disability Questionnaire. Spine 2000, 25, 3115–3124. [Google Scholar] [CrossRef] [Green Version]
  18. Melzack, R. The short-form McGill Pain Questionnaire. Pain 1987, 30, 191–197. [Google Scholar] [CrossRef] [PubMed]
  19. Mannion, A.F.; Dolan, P. Electromyographic median frequency changes during isometric contraction of the back extensors to fatigue. Spine 1994, 19, 1223–1229. [Google Scholar] [CrossRef]
  20. Linsiński, P. Surface EMG in chronic low back pain. Eur. Spine J. Off. Publ. Eur. Spine Soc. Eur. Spinal Deform. Soc. Eur. Sect. Cerv. Spine Res. Soc. 2000, 9, 559–562. [Google Scholar] [CrossRef] [Green Version]
  21. McGill, S.M. Electromyographic activity of the abdominal and low back musculature during the generation of isometric and dynamic axial trunk torque: Implications for lumbar mechanics. J. Orthop. Off. Publ. Orthop. Res. Soc. 1991, 9, 91–103. [Google Scholar] [CrossRef]
  22. Mark, H.; Karen, G. Normalization of EMG signals: To normalize or not to normalize and what to normalize to? In Computational Intelligence in Electromyography Analysis—A Perspective on Current Applications and Future Challenges; IntechOpen: London, UK, 2012. [Google Scholar]
  23. Geisser, M.E.; Ranavaya, M.; Haig, A.J.; Roth, R.S.; Zucker, R.; Ambroz, C.; Caruso, M. A meta-analytic review of surface electromyography among persons with low back pain and normal, healthy controls. J. Pain 2005, 6, 711–726. [Google Scholar] [CrossRef]
  24. Elfering, A.; Grebner, S.; Semmer, N.K.; Gerber, H. Time control, catecholamines and back pain among young nurses. Scand. J. Work. Environ. Health 2002, 28, 386–393. [Google Scholar] [CrossRef] [Green Version]
  25. Elfering, A.; Grebner, S.; Gerber, H.; Semmer, N.K. Workplace observation of work stressors, catecholamines and musculoskeletal pain among male employees. Scand. J. Work. Environ. Health 2008, 34, 337–344. [Google Scholar] [CrossRef] [PubMed]
  26. Snekkevik, H.; Eriksen, H.R.; Tangen, T.; Chalder, T.; Reme, S.E. Fatigue and depression in sick-listed chronic low back pain patients. Pain Med. 2014, 15, 1163–1170. [Google Scholar] [CrossRef] [PubMed]
  27. Fishbain, D.A.; Cutler, R.B.; Cole, B.; Lewis, J.; Smets, E.; Rosomoff, H.L.; Rosomoff, R.S. Are patients with chronic low back pain or chronic neck pain fatigued? Pain Med. 2004, 5, 187–195. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Von Korff, M.; Crane, P.; Lane, M.; Miglioretti, D.L.; Simon, G.; Saunders, K.; Stang, P.; Brandenburg, N.; Kessler, R. Chronic spinal pain and physical-mental comorbidity in the United States: Results from the national comorbidity survey replication. Pain 2005, 113, 331–339. [Google Scholar] [CrossRef]
  29. Kinkead, B.; Schettler, P.J.; Larson, E.R.; Carroll, D.; Sharenko, M.; Nettles, J.; Edwards, S.A.; Miller, A.H.; Torres, M.A.; Dunlop, B.W.; et al. Massage therapy decreases cancer-related fatigue: Results from a randomized early phase trial. Cancer 2018, 124, 546–554. [Google Scholar] [CrossRef]
  30. Calvo-Lobo, C.; Fernández, J.M.V.; Becerro-de-Bengoa-Vallejo, R.; Losa-Iglesias, M.E.; Rodríguez-Sanz, D.; López, P.P.; López, D.L. Relationship of depression in participants with nonspecific acute or subacute low back pain and no-pain by age distribution. J. Pain Res. 2017, 10, 129–135. [Google Scholar] [CrossRef] [Green Version]
  31. Pinheiro, M.B.; Ferreira, M.L.; Refshauge, K.; Maher, C.G.; Ordoñana, J.R.; Andrade, T.B.; Tsathas, A.; Ferreira, P.H. Symptoms of depression as a prognostic factor for low back pain: A systematic review. Spine J. Off. J. North Am. Spine Soc. 2016, 16, 105–116. [Google Scholar] [CrossRef]
  32. Hou, W.H.; Chiang, P.T.; Hsu, T.Y.; Chiu, S.Y.; Yen, Y.C. Treatment effects of massage therapy in depressed people: A meta-analysis. J. Clin. Psychiatry 2010, 71, 894–901. [Google Scholar] [CrossRef]
  33. Von Korff, M.; Deyo, R.A.; Cherkin, D.; Barlow, W. Back pain in primary care. Outcomes at 1 year. Spine 1993, 18, 855–862. [Google Scholar] [CrossRef]
  34. Ptaszkowski, K.; Wlodarczyk, P.; Paprocka-Borowicz, M. The Relationship between the Electromyographic Activity of Rectus and Oblique Abdominal Muscles and Bioimpedance Body Composition Analysis—A Pilot Observational Study. Diabetes Metab. Syndr. Obes. Targets Ther. 2019, 12, 2033–2040. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Stavig, G.R.; Leonard, A.R.; Igra, A.; Felten, P. Indices of relative body weight and ideal weight charts. J. Chronic Dis. 1984, 37, 255–262. [Google Scholar] [CrossRef] [PubMed]
  36. François, N.; Daniel, M.; Martin, D. Detection method of flexion relaxation phenomenon based on wavelets for patients with low back pain. EURASIP J. Adv. Signal Process. 2012, 2012, 151. [Google Scholar] [CrossRef] [Green Version]
  37. Nazarewicz, J.; Verdejo-Garcia, A.; Giummarra, M.J. Sympathetic pain? A role of poor parasympathetic nervous system engagement in vicarious pain states. Psychophysiology 2015, 52, 1529–1537. [Google Scholar] [CrossRef]
  38. El-Badawy, M.A.; El Mikkawy, D.M. Sympathetic Dysfunction in Patients with Chronic Low Back Pain and Failed Back Surgery Syndrome. Clin. J. Pain 2016, 32, 226–231. [Google Scholar] [CrossRef]
  39. Schlereth, T.; Birklein, F. The sympathetic nervous system and pain. Neuromolecular Med. 2008, 10, 141–147. [Google Scholar] [CrossRef] [PubMed]
  40. Mohan, A.; Sharma, R.; Bijlani, R.L. Effect of meditation on stress-induced changes in cognitive functions. J. Altern. Complement. Med. 2011, 17, 207–212. [Google Scholar] [CrossRef] [PubMed]
  41. Lee, Y.H.; Park, B.N.; Kim, S.H. The effects of heat and massage application on autonomic nervous system. Yonsei Med. J. 2011, 52, 982–989. [Google Scholar] [CrossRef] [Green Version]
  42. Scott, M.; Ballantyne, J.C.; Rathmell, J.P. Bonica’s Management of Pain, 4th ed.; Lippincott Williams & Wilkins: Philadelphia, PA, USA, 2010; pp. 1294–1374. [Google Scholar]
  43. Prentice, E.W. Therapeutic Modalities in Rehabilitation, 4th ed.; McGraw-Hill Education/Medical: New York, NY, USA, 2011; pp. 311–312. [Google Scholar]
  44. Furlan, A.D.; Yazdi, F.; Tsertsvadze, A.; Gross, A.; Van Tulder, M.; Santaguida, L.; Cherkin, D.; Gagnier, J.; Ammendolia, C.; Ansari, M.T.; et al. Complementary and alternative therapies for back pain II. In Evidence Report/Technology Assessment; RTI International—University of North Carolina Evidence-Based Practice Center: Boston, MA, USA, 2010. [Google Scholar]
  45. Hsieh, L.L.; Kuo, C.H.; Lee, L.H.; Yen, A.M.; Chien, K.L.; Chen, T.H. Treatment of low back pain by acupressure and physical therapy: Randomised controlled trial. BMJ Clin. Res. Ed. 2006, 332, 696. [Google Scholar] [CrossRef] [Green Version]
  46. Hsieh, L.L.; Kuo, C.H.; Yen, M.F.; Chen, T.H. A randomized controlled clinical trial for low back pain treated by acupressure and physical therapy. Prev. Med. 2004, 39, 168–176. [Google Scholar] [CrossRef]

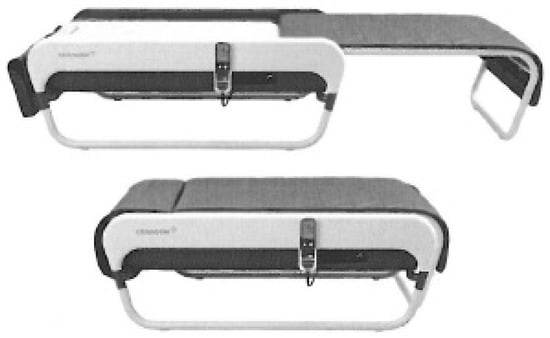

Figure 1. The heat massage device (CGM MB-1401; Ceragem, Republic of Korea).
Figure 1. The heat massage device (CGM MB-1401; Ceragem, Republic of Korea).
Healthcare 11 00991 g001

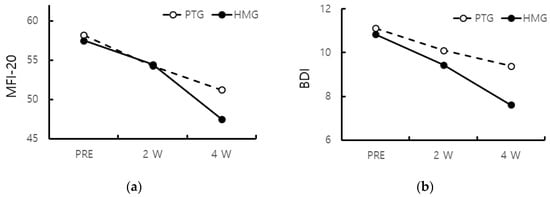

Figure 2. (a) MFI-20 of both groups were improved from 2 W, and the MFI-20 of the HMG improved from 4 W compared to that of the PTG (p < 0.05); (b) BDI of the PTG was improved at 4 W compared to PRE and 2 W, but that of the HMG was improved at 2 W (p < 0.05). (MFI-20: multidimensional fatigue inventory 20, BDI: Beck’s depression inventory).
Figure 2. (a) MFI-20 of both groups were improved from 2 W, and the MFI-20 of the HMG improved from 4 W compared to that of the PTG (p < 0.05); (b) BDI of the PTG was improved at 4 W compared to PRE and 2 W, but that of the HMG was improved at 2 W (p < 0.05). (MFI-20: multidimensional fatigue inventory 20, BDI: Beck’s depression inventory).
Healthcare 11 00991 g002

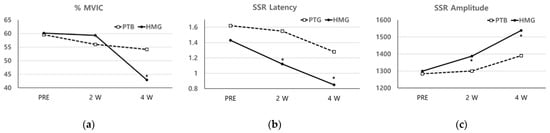

Figure 3. (a) The levels of the normalized sEMG signals (%MVIC) were significantly decreased at 4 W in both groups. However, there was a decrease in the HMG compared to the PTG at 4 W (p < 0.05); (b,c) in a comparison between the two groups, the latency, and amplitude of the SSR were significantly different at 2 W and 4 W compared to at PRE (p < 0.05). (%MVIC: the level of the normalized sEMG signal, SSR: sympathetic skin response).
Figure 3. (a) The levels of the normalized sEMG signals (%MVIC) were significantly decreased at 4 W in both groups. However, there was a decrease in the HMG compared to the PTG at 4 W (p < 0.05); (b,c) in a comparison between the two groups, the latency, and amplitude of the SSR were significantly different at 2 W and 4 W compared to at PRE (p < 0.05). (%MVIC: the level of the normalized sEMG signal, SSR: sympathetic skin response).
Healthcare 11 00991 g003
Table 1. Characteristics of the subjects.
Table 1. Characteristics of the subjects.
CharacteristicsCategoriesExp.(n = 20)Cont.(n = 20)χ2 or tp
n (%) or M ± SDn (%) or M ± SD
SexMale9 (45.0)10 (50.0)0.100 0.752
Female11 (55.0)10 (50.0)
Age 56.30 ± 12.2856.15 ± 9.750.043 0.966
50>3 (15.0)2 (10.0)0.259 0.879
50~608 (40.0)9 (45.0)
60<9 (45.0)9 (45.0)
Onset (month) 12.10 ± 2.7311.85 ± 2.480.303 0.763
Values are presented as the mean ± SD deviation. Exp. = experimental group; Cont. = control group. Independent sample t-test. Chi-squared test.
Table 2. Homogeneity test for the a priori dependent variables.
Table 2. Homogeneity test for the a priori dependent variables.
VariablesExp. (n = 20)Cont. (n = 20)Z p
M ± SDM ± SD
BMI25.83 ± 2.6225.93 ± 4.10−0.4060.685
Back rest42.64 ± 20.6641.21 ± 24.17−0.2710.787
%MVIC60.42 ± 19.5759.86 ± 18.87−0.0540.957
Lt_Lat1298.90 ± 106.821283.80 ± 92.18−0.3790.705
Lt_Amp1.49 ± 0.431.62 ± 0.50−0.7580.448
MPQ(Sensory)7.65 ± 1.147.90 ± 0.85−0.6500.516
MPQ(Affective)1.35 ± 0.671.40 ± 0.68−0.2700.787
SF-MPQ9.10 ± 1.749.30 ± 1.22−0.2490.803
BDI11.05 ± 3.5611.10 ± 3.01−0.0410.967
MFI57.75 ± 2.1058.15 ± 2.06−0.7460.456
VAS5.65 ± 1.145.80 ± 1.15−0.2670.790
ODI29.22 ± 5.3629.33 ± 6.56−0.2220.825
RMDQ5.70 ± 1.385.95 ± 1.32−0.5190.604
Epi68.52 ± 58.7159.78 ± 17.14−0.8500.395
NE286.47 ± 97.37328.24 ± 128.90−0.3940.694
Cortisol7.30 ± 2.806.34 ± 3.79−1.1200.263
Exp. = experimental group; Cont.= control group. Mann–Whitney U-test.
Table 3. Comparison of the blood sample tests.
Table 3. Comparison of the blood sample tests.
HMGPTGp-Value
AST (aspartate aminotransferase)
Baseline (PRE)24.44 (1.48)25.75 (0.94)0.495
4 weeks23.88 (0.99)25.81 (1.06)0.068
LDH (lactate dehydrogenase)
Baseline (PRE)177.63 (7.41)184.06 (7.69)0.551
4 weeks177.69 (8.43)194.69 (11.97)0.255
Lactate
Baseline (PRE)0.95 (0.08)1.31 (0.15)0.057
4 weeks1.21 (0.07)1.51 (0.23)0.219
Creatine kinase
Baseline (PRE)110.75 (11.11)132.19 (25.43)0.446
4 weeks112.31 (13.48)130.88 (26.53)0.538
Epinephrine
Baseline (PRE)66.66 (14.30)60.37 (4.18)0.679
4 weeks47.55 (5.74) *48.58 (4.31)0.887
Norepinephrine
Baseline (PRE)285.86 (23.52)343.02 (34.46)0.181
4 weeks234.95 (20.27) *309.44 (37.92)0.072
Cortisol
Baseline (PRE)7.19 (0.68)6.35 (0.91)0.463
4 weeks7.33 (0.74)6.10 (0.77)0.263
Values are presented as the mean (SD), * Mann–Whitney U-test, p < 0.05.
Table 4. Comparison of the pain and pain-related disabilities.
Table 4. Comparison of the pain and pain-related disabilities.
Dependent
Valuables
Baseline
(PRE)
2 Weeks
(2 W)
4 Weeks
(4 W)
χ2 ‡Within-Group
Comparisons
PNRSHMG5.50 (1.10)4.67 (1.19)3.17 (1.29)35.690PRE > 2 W, 4 W
PTG5.78 (1.22)4.94 (1.26)3.39 (1.46)33.549PRE > 2 W, 4 W
Z −0.267−0.057−0.252
p0.7900.9550.801
ODIHMG29.26 (5.67)21.60 (3.56)11.73 (5.43)37.026PRE > 2 W, 4 W
PTG29.38 (6.93)20.00 (7.43)11.36 (5.44)32.316PRE > 2 W, 4 W
Z −0.222 −0.689 −0.141
p0.8250.4910.888
RMDQHMG5.61 (1.42)3.78 (1.17)2.50 (0.51)34.105PRE > 2 W, 4 W
PTG6.00 (1.37)4.06 (1.16)2.72 (0.89)30.907PRE > 2 W, 4 W
Z −0.519−0.397−0.151
p0.6040.6910.880
Values are presented as the mean (SD), PNRS: pain numeric rating scale, ODI: Oswestry disability index, RMDQ: Roland–Morris disability questionnaire, Mann–Whitney U-test, Friedman test, p < 0.05.
Table 5. Comparison of the SF-MPQ Parameters.
Table 5. Comparison of the SF-MPQ Parameters.
Dependent
Valuables
Baseline
(PRE)
2 Weeks
(2 W)
4 Weeks
(4 W)
χ2 ‡Within-Group Comparisons
SF-MPQ
(Sensory)
HMG7.67 (1.19)6.00 (0.97)4.17 (1.29)30.737PRE > 2 W, 4 W
PTG8.00 (0.84)5.94 (1.00)4.11 (0.83)38.519PRE > 2 W, 4 W
Z −0.650 −0.058 −0.014
p0.5160.9540.989
SF-MPQ
(Affective)
HMG1.33 (0.69)0.83 (0.38)0.56 (0.51)20.440PRE > 2 W, 4 W
PTG1.39 (0.70)0.94 (0.24)0.72 (0.46)16.625PRE > 2 W, 4 W
Z −0.270 −0.874 −0.637
p0.7870.3820.524
SF-MPQHMG9.00 (1.78)6.83 (1.10)4.72 (1.93)30.727PRE > 2 W, 4 W
PTG9.39 (1.24)6.89 (1.02)4.83 (0.92)38.519PRE > 2 W, 4 W
Z −0.249 −0.346 −0.304
p0.8030.7300.761
Values are presented as the mean (SD), SF-MPQ: short-form McGill pain questionnaire, Mann–Whitney U-test, Friedman test, p < 0.05.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kim, T.-H.; Park, S.-K.; Cho, I.-Y.; Lee, J.-H.; Jang, H.-Y.; Yoon, Y.-S. Substantiating the Therapeutic Effects of Simultaneous Heat Massage Combined with Conventional Physical Therapy for Treatment of Lower Back Pain: A Randomized Controlled Feasibility Trial. Healthcare 2023, 11, 991. https://doi.org/10.3390/healthcare11070991

AMA Style

Kim T-H, Park S-K, Cho I-Y, Lee J-H, Jang H-Y, Yoon Y-S. Substantiating the Therapeutic Effects of Simultaneous Heat Massage Combined with Conventional Physical Therapy for Treatment of Lower Back Pain: A Randomized Controlled Feasibility Trial. Healthcare. 2023; 11(7):991. https://doi.org/10.3390/healthcare11070991

Chicago/Turabian Style

Kim, Tae-Hwan, Soon-Kwon Park, Il-Young Cho, Jong-Hoo Lee, Hong-Young Jang, and Yong-Soon Yoon. 2023. "Substantiating the Therapeutic Effects of Simultaneous Heat Massage Combined with Conventional Physical Therapy for Treatment of Lower Back Pain: A Randomized Controlled Feasibility Trial" Healthcare 11, no. 7: 991. https://doi.org/10.3390/healthcare11070991

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
